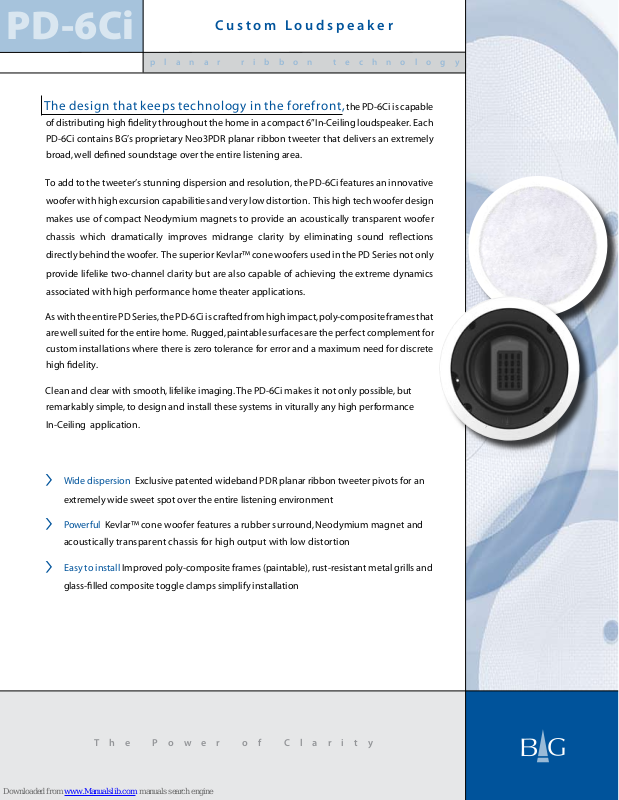

Bg PD-6Ci Specifications

PD-6Ci

The design that keeps technology in the forefront, the PD-6Ci is capable

of distributing high fidelity throughout the home in a compact 6” In-Ceiling loudspeaker. Each

PD-6Ci contains BG’s proprietary Neo3PDR planar ribbon tweeter that delivers an extremely

broad, well defined soundstage over the entire listening area.

To add to the tweeter’s stunning dispersion and resolution, the PD-6Ci features an innovative

woofer with high excursion capabilities and very low distortion. This high tech woofer design

makes use of compact Neodymium magnets to provide an acoustically transparent woofer

chassis which dramatically improves midrange clarity by eliminating sound reflections

directly behind the woofer. The superior Kevlar™ cone woofers used in the PD Series not only

provide lifelike two-channel clarity but are also capable of achieving the extreme dynamics

associated with high performance home theater applications.

As with the entire PD Series, the PD-6Ci is crafted from high impact, poly-composite frames that

are well suited for the entire home. Rugged, paintable surfaces are the perfect complement for

custom installations where there is zero tolerance for error and a maximum need for discrete

high fidelity.

C u s t o m L o u d s p e a k e r

p l a n a r r i b b o n t e c h n o l o g y

Clean and clear with smooth, lifelike imaging. The PD-6Ci makes it not only possible, but

remarkably simple, to design and install these systems in viturally any high performance

In-Ceiling application.

Wide dispersion Exclusive patented wideband PDR planar ribbon tweeter pivots for an

›

extremely wide sweet spot over the entire listening environment

Powerful Kevlar™ cone woofer features a rubber surround, Neodymium magnet and

›

acoustically transparent chassis for high output with low distortion

Easy to install Improved poly-composite frames (paintable), rust-resistant metal grills and

›

glass-filled composite toggle clamps simplify installation

T h e P o w e r o f C l a r i t y

C u s t o m L o u d s p e a k e r

p l a n a r r i b b o n t e c h n o l o g y

G E N E R A L P A R A M E T E R S :

›

PD-6Ci

D e s c r i p t i o n 2-way coaxial hybrid

D i m e n s i o n s 8 13/16” x 4 1/4”

We i g h t 2.8 lbs.

C u t o u t s i ze 7 5/8” diameter

I n s t a l l e d d e p t h 4 1/4” from surface

D r i v e r co m p l e m e n t 1 x 6” Kevlar™ cone, Neo magnet woofer

1 x Neo3PDR planar ribbon tweeter, pivoting

N o m i n a l i m p e d a n c e 8 ohms

F r e q u e n c y r es p o n s e 50 Hz - 25 kHz (-6dB, half space)

P o we r h a n d l i n g 100 W RMS

S e n s i t i v i t y 88 dB/1W/1M

C r o s s o ve r f r e q u e n c y 2.3 kHz, passive

A d j u s t m e n t s -3 dB, 0 dB, +3 dB tweeter level adjustment

I n s t a l l a t i o n The PD Series loudspeakers use high-quality, glass-lled, composite dog-

toggle clamps for easy mounting in panel thicknesses from 3/8” - 1 7/8”

Wa r r a n t y1 Lifetime

1

Please see BG warranty for complete details
