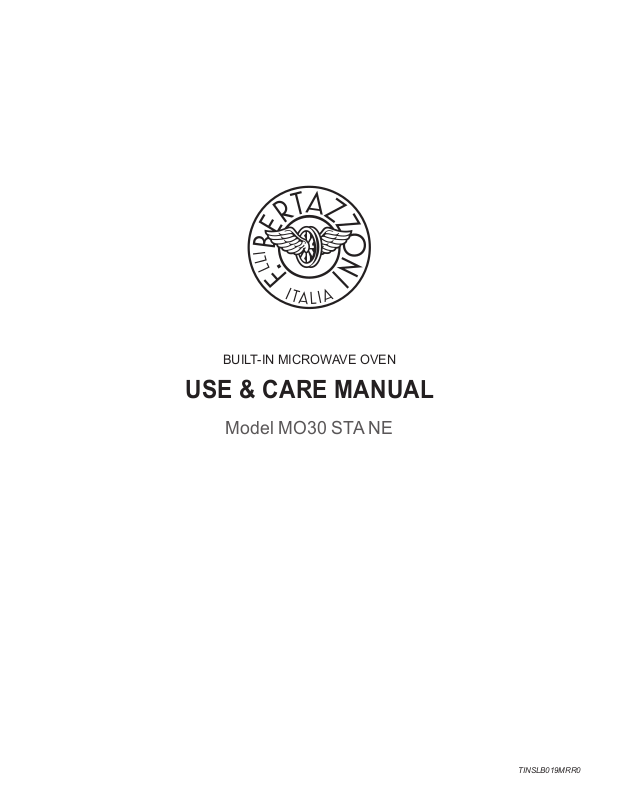

Bertazzoni MO30 STA NE Owner's Manual
BUILT-IN MICROWAVE OVEN
USE & CARE MANUAL
Model MO30 STA NE
TINSLB019MRR0
FOR CUSTOMER ASSISTANCE
ASSISTANCE À LA CLIENTÈLE
CUSTOMER SERVICE
SERVICE À LA CLIENTÈLE
English Anglais / Spanish Espagnol (866) 905-0010
French Français (800) 561-7625
Fax Télécopieur (714) 428-0040
Email Courriel bertazzonihelp@servicepower.com
MAILING ADDRESS
ADRESSE POSTALE
SERVICEPOWER
1503 South Coast Drive
Suite 320
Costa Mesa CA 92626
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
MESURES POUR ÉVITER UNE EXPOSITION POSSIBLE
À UNE ÉNERGIE MICRO-ONDE EXCESSIVE
• Do not attempt to operate this oven with the door open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
Ne pas essayer de faire fonctionner ce four avec la porte ouverte puisque le fonctionnement avec la porte
ouverte peut entraîner une exposition dangereuse à l’énergie micro-onde. Il est important de ne pas enlever
ou modier les verrouillages de sécurité.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Ne pas placer d’objet entre l’avant du four et la porte ou laisser s’accumuler de la saleté ou des résidus de
nettoyant sur les surfaces d’étanchéité.
• Do not operate the oven if it is damaged. It is particularly important that the oven door close properly
and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3)
door seals and sealing surfaces.
Ne pas faire fonctionner le four s’il est endommagé. Il est particulièrement important que la porte du four
ferme bien et qu’il n’y ait pas de dommages: (1) à la tête du tiroir (tordue), (2) aux glissières et verrous (brisés
ou avec du jeu), (3) aux joints et aux surfaces d’étanchéité du tiroir.
• The oven should not be adjusted or repaired by anyone except properly qualied service personnel.
Seul du personnel qualié en réparations doit ajuster ou réparer ce four.
CONTENTS TABLE DES MATIÈRES
FOR CUSTOMER ASSISTANCE .....................INSIDE COVER
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY ..............INSIDE COVER
CONTENTS ..............................................................................1
TWO YEAR LIMITED WARRANTY ..........................................2
IMPORTANT SAFETY INSTRUCTIONS ..................................3
INSTALLATION INSTRUCTIONS ........................................ 4-5
INFORMATION YOU NEED TO KNOW ............................... 6-7
About Your Oven ..................................................................6
About Utensils and Coverings .............................................6
About Microwave Cooking ....................................................6
About Food ...........................................................................7
About Safety ........................................................................7
About Children and the Microwave .......................................7
PART NAMES...........................................................................8
CONTROL PANEL ....................................................................8
BEFORE OPERATING .............................................................9
Before Operating ..................................................................9
To Set The Clock ..................................................................9
Stop/Clear ............................................................................9
MANUAL OPERATION .............................................................9
SENSOR COOKING ..............................................................10
Sensor Cooking Chart ...................................................10-11
MENU OPTIONS .............................................................. 12-17
Breakfast and Lunch ...........................................................12
Breakfast Chart ...................................................................12
Lunch Chart ........................................................................13
15 Minute Recipes ........................................................ 13-14
From The Pantry Recipes ...................................................15
Defrost ................................................................................16
Super Defrost Chart ............................................................16
Auto Defrost Chart ..............................................................17
Beverage ............................................................................17
Beverage Chart...................................................................17
OTHER CONVENIENT FEATURES ................................ 18-20
Keep Warm ........................................................................18
Multiple Sequence Cooking ................................................18
More or Less Time Adjustment ...........................................18
Setup/Help .........................................................................18
Start ....................................................................................19
Timer/Clock .........................................................................19
Help ....................................................................................19
Demonstration Mode ..........................................................20
Easy Minute ........................................................................20
CLEANING AND CARE ..........................................................20
Exterior ...............................................................................20
Door ....................................................................................20
Touch Control Panel ...........................................................20
Interior.................................................................................20
Waveguide Cover ...............................................................20
Odor Removal.....................................................................20
Turntable/Turntable Support ...............................................20
SPECIFICATIONS ..................................................................21
SERVICE CALL CHECK ........................................................21
ASSISTANCE À LA CLIENTÉLE .................INTÉRIEUR DE LA
COUVERTURE
MESURES POUR ÉVITER UNE EXPOSITION POSSIBLE À
UNE ÉNERGIE MICRO-ONDE EXCESSIVE ... INTÉRIEUR DE
LA COUVERTURE
TABLE DES MATIÈRES ...........................................................1
GARANTIE LIMITEE DE DEUX ANS .....................................24
IMPORTANTES CONSIGES DE SÉCURITÉ .........................25
DIRECTIVES D'INSTALLATION ....................................... 26-27
CE QUE VOUS DEVEZ SAVOIR ..................................... 27-29
Le four à micro-ondes .........................................................27
À Propos des Ustensiles et des Moyens de Couvrir les
Aliments...........................................................................27
À propos de la cuisson aux micro-ondes ............................28
À Propos des Aliments........................................................28
À Propos de La Sécurité .....................................................29
À Propos des Enfants et du Micro-onde .............................29
NOM DES PIÈCES.................................................................30
TABLEAU DE COMMANDE ...................................................30
AVANT L’USAGE ....................................................................31
Avant l’usage ......................................................................31
Réglage de l’horloge ...........................................................31
Stop/Clear (Arrêt/Annulation)..............................................31
FONCTIONNEMENT MANUEL ........................................ 31-32
SENSOR COOKING (CAPTEUR CUISSON) .................. 32-34
Tableau de Capteur cuisson ...............................................33
MENU OPTIONS (OPTIONS DU REPAS) ....................... 34-41
Tableau de Petit Déjeuner ..................................................35
Tableau de Déjeuner ..........................................................35
15 Minute Recipes (15 Recettes Minute )..................... 36-37
From The Pantry (De l'Cellier) ...................................... 38-39
Defrost (Décongelation) ......................................................40
Tableau de Super Décongélation........................................40
Tableau de Auto Décongelation ..........................................41
Beverage (Boissons) ..........................................................41
Tableau de Boissons...........................................................41
AUTRES PARTICULARITÉS PRATIQUES ...................... 42-44
Keep Warm (Réchaud) .......................................................42
Séquence de Cuisson Multiple ...........................................42
Réglages des temps de cuisson en plus ou en moins........42
Setup/Help (Aide) ..............................................................42
Timer/Clock (Minuterie / l'Horlage) .....................................43
Help (Aide - sur l'afcheur) .................................................43
Mode de démonstration ......................................................44
Easy Minute (Minute Facile) ...............................................44
NETTOYAGE ET ENTRETIEN ...............................................44
Autres Surfaces Extérieure .................................................44
Porte ...................................................................................44
Tableau de Commandes .....................................................44
Autres Parios Intérieures ....................................................44
Couvercle du Guide d’ondes ..............................................44
Désodorisation ....................................................................44
Plateau Tournant et Support de Plateau Tournant ..............44
FICHE TECHNIQUE ...............................................................45
APPEL DE SERVICE .............................................................45
1
TWO YEAR LIMITED WARRANTY
The warranties provided by Bertazzoni Spa in this statement apply exclusively to Bertazzoni appliances
and accessories sold as new products to the original owner by a Bertazzoni authorized distributor,
retailer, dealer or service center and installed in the United States and Canada. The warranties provided
in this statement are not transferable and have validity from the date of installation.
COVERAGE INFORMATION
Bertazzoni SpA will repair or replace any component part which fails or proves defective due to materials
and/or workmanship within 2 years from the date of installation and under conditions of normal residential use. Repair or replacement
will be free of charge, including labor at standard rates and shipping expenses. Repair service must be performed by a Bertazzoni
Authorized Service Center during normal working hours. Cosmetic damages must be reported no later than 30 days after installation.
This warranty does not cover the use of the product in any commercial application. To obtain warranty service please contact Bertazzoni
Customer Service at the numbers below and provide model number, serial number and date of purchase.
ENGLISH 866 905 0010 FRANCAIS 800 561 7265
Save proof of original purchase or of original installation to establish warranty period. Copy of the product serial tag is afxed to the
back cover of the instruction manual.
WHAT IS NOT COVERED
1. Repair service provided by other than a Bertazzoni authorized service agency.
2. Damage or repair service to correct service provided by an unauthorized agency or the use of unauthorized parts.
3. Installation not in accordance with local electrical codes or plumbing codes.
4. Defects or damage due to improper storage of the product.
5. Service calls or repairs to correct the installation of the product and/or related accessories.
6. Service calls to connect, convert or otherwise repair the electrical wiring and/or gas line to properly use the product.
7. Service calls to provide instructions on the use of a Bertazzoni product.
8. Repair service due to product usage in manner other than what is normal and customary for home use.
9. Defects and damages arising from accident, alteration, misuse, abuse, improper installation.
10. Defects and damages arising from transportation of the product to the home of the owner.
11. Defects and damage arising from external forces beyond the control of Bertazzoni SpA such as re, ood, earthquakes and
other acts of God.
In case the product will be installed in a remote area, where certied trained technicians are not reasonably available, the
customer will be responsible for the transportation costs for the delivery of the product to the nearest authorized service
center or for the displacement costs of a certied trained technician.
Bertazzoni does not assume any responsibility for incidental or consequential damages. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you
specic legal rights and you may also have other rights which may vary from state to state or province to province.
2
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, re, injury to persons or exposure to excessive microwave energy:
1. READ ALL INSTRUCTIONS BEFORE USING THE
APPLIANCE.
2. Read and follow the specic “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on inside front cover.
3. This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” on page 5.
4. Install or locate this appliance only in accordance with
the provided installation instructions.
5. Some products such as whole eggs and sealed containers—for example, closed glass jars—are able to
explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is
specically designed to heat, cook or dry food. It is
not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary
when used by children.
8. Do not operate this appliance if it has a damaged cord
or plug, if it is not working properly or if it has been
damaged or dropped.
9. This appliance should be serviced only by qualied
service personnel. Contact nearest Bertazzoni Authorized Servicer for examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store or use this appliance outdoors. Do not
use this product near water—for example, near a
kitchen sink, in a wet basement, near a swimming
pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 20.
16. To reduce the risk of re in the oven cavity:
• Do not overcook food. Carefully attend to appliance when paper, plastic or other combustible
materials are placed inside the oven to facilitate
cooking.
• Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
• If materials inside the oven ignite, keep oven
door closed, turn oven off and disconnect the
power cord or shut off power at the fuse or
circuit breaker panel.
• Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils or
food in the cavity when not in use.
17. Liquids, such as water, coffee or tea are able to be
overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is not
always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN
A SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through
heating it.
• Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container.
• After heating, allow the container to stand in the
microwave oven at least for 20 seconds before
removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.
18. If the oven is installed as a built-in, observe the following instructions:
• Do not mount over a sink.
• Do not store anything directly on top of the appliance surface when the appliance is in operation.
19. If the oven light fails, consult a Bertazzoni Authorized
Servicer.
SAVE THESE INSTRUCTIONS
3
INSTALLATION INSTRUCTIONS
UNPACKING AND EXAMINING YOUR OVEN
Remove all packing materials
Hinges
from inside the oven cavity;
however, DO NOT REMOVE
THE WAVEGUIDE COVER,
which is located on the right
cavity wall. Read enclosures
Safety
door
latches
and SAVE the Operation
Manual.
Remove the feature sticker, if
Door seals
and sealing
surfaces
there is one, from the outside
of the door.
Check the oven for any damage, such as misaligned or bent
door, damaged door seals and sealing surfaces, broken or
loose door hinges and latches and dents inside the cavity or
on the door. If there is any damage, do not operate the oven
and contact your dealer or Bertazzoni Authorized Servicer.
CHOOSING A LOCATION
FOR YOUR OVEN ON THE COUNTER
You will use the oven frequently so plan its location for ease
of use. It’s wise, if possible, to have counter space on at least
one side of the oven. Allow at least 2 inches on the sides, top
and at the rear of the oven for air circulation.
2"
Figure 1
The opening in the wall or cabinet must be within the following
dimensions:
6"
4"
A
4"
B
Figure 2
C
A HEIGHT : 16 3/4" to 17"
B WIDTH : 24 3/8" to 24 11/16"
C DEPTH : minimum 20"
CHOOSING A LOCATION
FOR YOUR OVEN IF BUILT-IN
Your microwave oven can be
built into a cabinet or wall using
a Bertazzoni built-in kit.
Your microwave oven can be
built into a cabinet or wall by
itself or above any electric wall
oven or warming drawer using
Bertazzoni’s built-in kit FR30
PRO B.
Your microwave oven cannot
be built-in above any gas wall
oven.
See Figure 1 for proper location when building in above an
electric wall oven. Carefully follow both the wall oven installation
instructions and Bertazzoni’s Built-in Kit instructions. Be sure
that the clearance of the oor between the wall oven and the
microwave oven is minimum of 2 inches.
Trim Kit Frame Assembly
Oven Front
Outlet should NOT be in the shaded area as indicated on
Figure 2. If the dimension of DEPTH (C) is more than 21", the
outlet location may be any area on the rear wall.
The oor of the opening should be constructed of plywood
strong enough to support the weight of the oven and oor
load (about 100 pounds). The oor should be level for proper
operation of the oven. Be sure to check the local building code
as it may require that the opening be enclosed with sides,
ceiling and rear partition. The proper functioning of the oven
does not require the enclosure.
The kit includes all the neccessary parts and easy-to-follow
instructions for installation as well as location of the power
supply.
The ease of assembly for these kits will allow installation into
an existing wall opening in less than an hour if power outlet
is already properly located. All it takes are four steps and a
Phillips screw driver.
4
INSTALLATION INSTRUCTIONS
GROUNDING
INSTRUCTIONS
This appliance must be grounded. This oven is equipped with
a cord having a grounding wire with a grounding plug. It must
be plugged into a wall receptacle that is properly installed and
grounded in accordance with the National Electrical Code and
local codes and ordinances. In the event of an electrical short
circuit, grounding reduces risk of electric shock by providing
an escape wire for the electric current.
WARNING – Improper use of the grounding plug can result in
a risk of electric shock.
ELECTRICAL REQUIREMENTS
Permanent and Correct Installation
The electrical requirements are a 120 volt 60 Hz, AC only, 15
amp. or more protected electrical supply. It is recommended
that a separate circuit serving only this appliance be provided.
Temporary Use
EXTENSION CORD
If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the microwave oven.
The marked rating of the extension cord should be AC 115120 volt, 15 amp. or more.
Be careful not to drape the cord over the countertop or
table where it can be pulled on by children or tripped over
accidentally.
NOTES:
• If you have any questions about the grounding or electrical
instructions, consult a qualied electrician or service
person.
• Neither Bertazzoni nor the dealer can accept any liability
for damage to the oven or personal injury resulting
from failure to observe the correct electrical connection
procedures.
RADIO OR TV INTERFERENCE
Should there be any interference caused by the microwave
oven to your radio or TV, check that the microwave oven is
on a different electrical circuit, relocate the radio or TV as far
away from the oven as feasible or check position and signal
of receiving antenna.
The oven is equipped with a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed
and grounded. Should you only have a 2-prong outlet, have a
qualied electrician install a correct wall receptacle.
A 3-prong adapter may be purchased and used temporarily if
local codes allow. Follow package directions.
A short power-supply cord is provided to reduce risk of
becoming entangled in or tripping over a longer cord.
5
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable. Read it carefully and
always save it for reference.
NEVER use the oven without the turntable and support nor
turn the turntable over so that a large dish could be placed
in the oven. The turntable will turn both clockwise and
counterclockwise.
ALWAYS have food in the oven when it is on to absorb the
microwave energy.
When using the oven at power levels below 100%, you may
hear the magnetron cycling on and off. It is normal for the
exterior of the oven to be warm to the touch when cooking or
reheating.
Condensation is a normal part of microwave cooking. Room
humidity and the moisture in food will inuence the amount
of moisture that condenses in the oven. Generally, covered
foods will not cause as much condensation as uncovered
ones. Vents on the oven back must not be blocked.
The oven is for food preparation only. It should not be used to
dry clothes or newspapers.
Your oven is rated 1100 watts by using the IEC Test Procedure.
In using recipes or package directions, check food a minute or
two before the minimum time and add time accordingly.
ABOUT UTENSILS AND COVERINGS
It is not necessary to buy all new cookware. Many pieces already
in your kitchen can be used successfully in your new microwave
oven. Make sure the utensil does not touch the interior walls
during cooking.
Use these utensils for safe microwave cooking and
reheating:
• glass ceramic (Pyroceram®), such as Corningware®.
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• paper plates
• microwave-safe pottery, stoneware and porcelain
• browning dish (Do not exceed recommended preheating
time. Follow manufacturer's directions.)
These items can be used for short time reheating of foods
that have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for microwaving,
place the empty dish in the oven and microwave on HIGH for
30 seconds. A dish which becomes very hot should not be used.
The following coverings are ideal:
• Paper towels are good for covering foods for reheating and
absorbing fat while cooking bacon.
• Wax paper can be used for cooking and reheating.
• Plastic wrap that is specially marked for microwave use can
be used for cooking and reheating. DO NOT allow plastic
wrap to touch food. Vent so steam can escape.
• Lids that are microwave-safe are a good choice because
heat is kept near the food to hasten cooking.
• Oven cooking bags are good for large meats or foods that
need tenderizing. DO NOT use metal twist ties. Remember
to slit bag so steam can escape.
How to use aluminum foil in your microwave oven:
• Small at pieces of aluminum foil placed smoothly on the
food can be used to shield areas that are either defrosting
or cooking too quickly.
• Foil should not come closer than one inch to any surface of
the oven.
Should you have questions about utensils or coverings, check a
good microwave cookbook or follow recipe suggestions.
ACCESSORIES There are many microwave accessories
available for purchase. Evaluate carefully before you purchase
so that they meet your needs. A microwave-safe thermometer
will assist you in determining correct doneness and assure you
that foods have been cooked to safe temperatures. Bertazzoni
is not responsible for any damage to the oven when accessories
are used.
ABOUT MICROWAVE COOKING
• Arrange food carefully. Place thickest areas towards outside
of dish.
• Watch cooking time. Cook for the shortest amount of time
indicated and add more as needed. Food severely overcooked
can smoke or ignite.
• Cover foods while cooking. Check recipe or cookbook for
suggestions: paper towels, wax paper, microwave plastic
wrap or a lid. Covers prevent spattering and help foods to
cook evenly.
• Shield with small at pieces of aluminum foil any thin areas
of meat or poultry to prevent overcooking before dense,
thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice during
cooking, if possible.
• Turn foods over once during microwaving to speed cooking
of such foods as chicken and hamburgers. Large items like
roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking
both from top to bottom and from the center of the dish to
the outside.
• Add standing time. Remove food from oven and stir, if
possible. Cover for standing time which allows the food to
nish cooking without overcooking.
6
INFORMATION YOU NEED TO KNOW
• Check for doneness. Look for signs indicating that cooking
temperatures have been reached.
DONENESS SIGNS INCLUDE:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and akes easily with a fork.
ABOUT FOOD
FOOD DO DON'T
EGGS,
SAUSAGES, NUTS,
SEEDS,
FRUITS &
VEGETABLES
POPCORN • Use specially bagged
BABY
FOOD
GENERAL • Cut baked goods
• Puncture egg yolks
before cooking to
prevent “explosion”.
• Pierce skins of
potatoes, apples,
squash, hot dogs
and sausages so that
steam escapes.
popcorn for the
microwave oven.
• Listen while popping
corn for the popping
to slow to 1 or 2
seconds or use
special POPCORN
pad.
• Transfer baby food
to small dish and
heat carefully,
stirring often. Check
temperature before
serving.
• Put nipples on
bottles after
heating and shake
thoroughly. “Wrist”
test before feeding.
with lling after
heating to release
steam and avoid
burns.
• Stir liquids briskly
before and after
heating to avoid
“eruption”.
• Use deep bowl,
when cooking liquids
or cereals, to prevent
boilovers.
• Cook eggs in
shells.
• Reheat whole eggs.
• Dry nuts or seeds
in shells.
• Pop popcorn in
regular brown bags
or glass bowls.
• Exceed maximum
time on popcorn
package.
• Heat disposable
bottles.
• Heat bottles with
nipples on.
• Heat baby food in
original jars.
• Heat or cook in
closed glass jars or
air tight containers.
• Can in the
microwave as
harmful bacteria
may not be
destroyed.
• Deep fat fry.
• Dry wood, gourds,
herbs or wet
papers.
ABOUT SAFETY
• Check foods to see that they are cooked to the United
States Department of Agriculture's recommended
temperatures.
TEMP FOOD
160˚ for fresh pork, ground meat, boneless white
poultry, sh, seafood, egg dishes and frozen
prepared food.
165˚ for leftover, ready-to-reheat refrigerated, and
deli and carry-out “fresh” food.
170°F white meat of poultry.
180°F dark meat of poultry.
• To test for doneness, insert a meat thermometer in a thick
or dense area away from fat or bone. NEVER leave the
thermometer in the food during cooking, unless it is approved
for microwave oven use.
• ALWAYS use potholders to prevent burns when handling
utensils that are in contact with hot food. Enough heat from
the food can transfer through utensils to cause skin burns.
• Avoid steam burns by directing steam away from the face
and hands. Slowly lift the farthest edge of a dish's covering
and carefully open popcorn and oven cooking bags away
from the face.
• Stay near the oven while it's in use and check cooking
progress frequently so that there is no chance of overcooking
food.
• NEVER use the cavity for storing cookbooks or other items.
• Select, store and handle food carefully to preserve its high
quality and minimize the spread of foodborne bacteria.
• Keep waveguide cover clean. Food residue can cause
arcing and/or res.
• Use care when removing items from the oven so that the
utensil, your clothes or accessories do not touch the safety
door latches.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave oven with
a supervising person very near to them. Between the ages of
7 and 12, the supervising person should be in the same room.
The child must be able to reach the oven comfortably; if not, he/
she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing on the
oven door.
Children should be taught all safety precautions: use potholders,
remove coverings carefully, pay special attention to packages
that crisp food because they may be extra hot.
Don’t assume that because a child has mastered one cooking
skill he/she can cook everything.
Children need to learn that the microwave oven is not a toy. See
page 18 for CHILD LOCK feature.
7
PART NAMES
MICROWAVE OVEN PARTS
1. One touch door open button. Push to open door.
2. Oven door with see-through window
3. Safety door latches. The oven will not operate unless the
door is securely closed.
4. Door hinges
5. Door seals and sealing surfaces
6. Turntable motor shaft
7. Removable turntable support. Carefully place the turntable
support in the center of the oven oor.
8. Removable turntable. Place the turntable on the turntable
support securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
9. Ventilation openings (Rear)
10. Oven light. It will light when oven is operating or door is
open.
11. Waveguide cover: DO NOT REMOVE.
12. Auto-Touch control panel
13. Interactive display: 99 minutes, 99 seconds
14. Menu Options menu label
15. Name plate
CONTROL PANEL
Number next to the control panel illustration indicates pages on
which there are feature descriptions and usage information.
VISUAL
DISPLAY
Indicators
10-11
18
12-17
19
9
9, 18
9
18
20
19
The two-line, Interactive Display spells out operating
steps and shows cooking hints. When HELP is lighted
in the display, touch the SETUP/HELP pad to read a
specic hint which may assist you.
8
BEFORE OPERATING
MANUAL OPERATION
BEFORE OPERATING
• Before operating your new microwave oven make sure you
read and understand this operation manual completely.
Before the oven can be used, follow these procedures:
1. Plug in the oven. Close the door. The oven display will show
WELCOME PRESS CLEAR AND PRESS CLOCK.
2. Touch the STOP/CLEAR pad.
3. Set clock.
will appear.
:
TO SET THE CLOCK
This is a 12 hour clock. If you attempt to enter an incorrect clock
time, ERROR will appear in the display. Touch the STOP/CLEAR
pad and re-enter the time.
• Suppose you want to enter the correct time of day 12:30
(A.M. or P.M.).
PROCEDURE
1. Touch TIMER/CLOCK pad and number 2.
2. Enter the correct time of day touching the numbers in
sequence
3. Touch TIMER/CLOCK pad again.
• If the electrical power supply to your microwave oven
should be interrupted, the display will inter-mittently show
WELCOME PRESS CLEAR AND PRESS CLOCK after the power is
reinstated. If this occurs during cooking, the program will be
erased. The time of day will also be erased. Simply touch
STOP/CLEAR pad and reset the clock for the correct time
of day.
STOP/CLEAR
Touch the STOP/CLEAR pad to:
• Erase if you make a mistake during programming.
• Cancel timer.
• Stop the oven temporarily during cooking.
• Return the time of day to the display.
• Cancel a program during cooking, touch twice.
MANUAL OPERATION
TIME COOKING
Your oven can be programmed for 99 minutes and 99 seconds
(99.99). Always enter the seconds after the minutes, even if they
are both zeros.
• Suppose you want to cook for 5 minutes at 100%.
PROCEDURE
1. Enter cooking time.
2. Touch START.
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time which is
recommended for foods such as cheese, milk and long slow
cooking of meats. Consult cookbook or recipes for specic
recommendations.
Touch Power Level pad number
of time for desired power
Power Level x 1 100% High
Power Level x 2 90%
Power Level x 3 80%
Power Level x 4 70% Medium High
Power Level x 5 60%
Power Level x 6 50% Medium
Power Level x 7 40%
Power Level x 8 30% Med Low/Defrost
Power Level x 9 20%
Power Level x 10 10% Low
Power Level x 11 0%
• Suppose you want to defrost for 5 minutes at 30%.
1. Enter defrosting time.
2. Touch POWER LEVEL pad eight times or hold down until
the desired power appears.Touch START.
3. When the defrost time is complete, a long tone will sound
and END will appear in the display.
Approx. % of
Power
PROCEDURE
Common words for
Power Levels
MANUAL DEFROST
If the food that you wish to defrost is not listed on the SUPER
DEFROST or AUTO DEFROST Chart or is above or below
the limits in the “Amount” column on the SUPER DEFROST
or AUTO DEFROST Charts (page 16), you need to defrost
manually.
You can defrost any frozen food, either raw or previously cooked,
by using Power Level 3. Follow the exact 4-step procedure
found under TO SET POWER LEVEL. Estimate defrosting time
and press POWER LEVEL eight times for 30% power.
For either raw or previously cooked frozen food the rule of thumb
is approximately 4 minutes per pound. For example, defrost 4
minutes for 1 pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or separate the
portions that are defrosted. If food is not defrosted at the end
of the estimated defrosting time, program the oven in 1 minute
increments at 30% until totally defrosted.
When using plastic containers from the freezer, defrost only
long enough to remove from the plastic in order to place in a
microwave-safe dish.
9
SENSOR COOKING
Bertazzoni's Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The
sensor adjusts the cooking times and power level for various foods and quantities.
USING SENSOR SETTINGS:
1. After oven is plugged in, wait 2 minutes before using Sensor
Cooking.
2. Be sure the exterior of the cooking container and the interior
of the oven are dry. Wipe off any moisture with a dry cloth
or paper towel.
3. The oven works with foods at normal storage temperature.
For example, popcorn would be at room temperature.
4. Any Sensor Cooking selection can be programmed with
MORE or LESS TIME ADJUSTMENT. See page 18.
5. More or less food than the quantity listed in the chart should
be cooked following the guidelines in any microwave
cookbook.
6. During the rst part of Sensor Cooking, the food name will
appear on the display. Do not open the oven door or touch
STOP/CLEAR during this part of the cooking cycle. The
measurement of vapor will be interrupted. If this occurs, an
error message will appear. To continue cooking, touch the
STOP/CLEAR pad and cook manually.
7. When the sensor detects the vapor emitted from the food,
remainder of cooking time will appear. The door may be
opened when remaining cooking time appears on the
display. At this time, you may stir or season food, as desired.
8. If the sensor does not detect vapor properly when popping
popcorn, the oven will turn off, and the correct time of day will
be displayed. If the sensor does not detect vapor properly
when cooking other foods, ERROR will be displayed, and the
oven will turn off.
9. Check food for temperature or doneness after cooking. If
food is not completely cooked, enter additional cooking
time manually. Do not press SENSOR COOK again as
food may overcook.
10. Each food has a cooking hint. Touch SETUP/HELP pad
when the HELP indicator is lighted in the display.
COVERING FOODS:
Some foods work best when covered. Use the cover
recommended in the Sensor Cooking chart for these foods.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for microwave
cooking. Cover dish loosely; allow approximately 1/2 inch to
remain uncovered to allow steam to escape. Plastic wrap
should not touch food.
3. Wax paper: Cover dish completely; fold excess wrap under
dish to secure. If dish is wider than paper, overlap two
pieces at least one inch to cover.
Be careful when removing any covering to allow steam to escape
away from you.
EXAMPLE:
You can cook many foods by simply selecting the food and
touching START. You don’t need to calculate cooking time or
power level.
• Suppose you want to reheat canned chili.
PROCEDURE
1. Touch REHEAT pad.
2. Touch START.
3. When the sensor detects the vapor emitted from the food,
the remainder of cooking time will appear.
NOTE:
The FRESH VEGETABLES and POULTRY settings have 2
choices. Follow directions in the Interactive Display to choose
desired option.
SENSOR COOKING CHART
FOOD AMOUNT PROCEDURE
POPCORN 1 package Use only popcorn packaged for microwave oven use. Try several brands to decide
which you like the best. Do not try to pop unpopped kernels.
1.5 - 3.5 oz
bag
SENSOR REHEAT 4 - 36 oz Place in dish or casserole slightly larger than amount to be reheated. Flatten, if
BAKED
POTATOES
1 - 8 med. Pierce. Place on paper-towel-lined turntable. After cooking, remove from oven, wrap
Touch POPCORN pad and then START.
possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap
or lids with larger quantities of more dense foods such as stews. After reheating, stir
well, if possible. Foods should be very hot. If not, continue to heat with variable power
and time. After stirring, re-cover and allow to stand 2 to 3 minutes.
in aluminum foil and let stand 5 to 10 minutes.
10
SENSOR COOKING
SENSOR COOKING CHART
FOOD AMOUNT PROCEDURE
FRESH VEGETABLES: SOFT Wash and place in casserole. Add no water if vegetables have just been washed. Cover
Broccoli .25 - 2.0 lb
Brussels sprouts .25 - 2.0 lb
Cabbage .25 - 2.0 lb
Cauliower (owerets) .25 - 2.0 lb
Cauliower (whole) 1 med.
Spinach .25 - 1.0 lb
Zucchini .25 - 2.0 lb
Baked apples 2 - 4 med.
FRESH VEGETABLES: HARD Place in casserole. Add 1-4 tbsp water. Cover with lid for tender vegetables. Use plastic
Carrots, sliced .25 - 1.5 lb
Corn on the cob 2 - 4
Green beans .25 - 1.5 lb
Winter squash: diced
halves
.25 - 1.5 lb
with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. Touch
FRESH VEGETABLES, number 1 and START pads. After cooking, stir, if possible. Let
stand, covered, for 2 to 5 minutes.
wrap cover for tender-crisp vegetables. Touch FRESH VEGETABLES, number 2 and
START pads. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.
1 - 2
RICE .5 - 2.0 cups Place rice into a deep casserole dish and add double quantity of water. Cover with lid
or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid
has been absorbed.
Rice Water Size of Casserole dish
.5 cups
1 cup
1.5 cups
2 cups
GROUND MEAT .25 - 2.0 lb Use this setting to cook ground beef or turkey as patties or in a casserole to be added
to other ingredients. Place patties on a microwave-safe rack and cover with wax paper.
Place ground meat in a casserole and cover with wax paper or plastic wrap. When oven
stops, turn patties over or stir meat in casserole to break up large pieces. Re-cover and
touch START. After cooking, let stand, covered, for 2 to 3 minutes.
POULTRY:
BONELESS
POULTRY:
BONE-IN
FISH/SEAFOOD .25 - 2.0 lb Arrange in ring around shallow glass dish (roll llet with edges underneath). Cover with
FROZEN ENTREES 6 - 17 oz Use this pad for frozen convenience foods. It will give satisfactory results for most
FROZEN SNACKS 3 - 8 oz Use for frozen French fries, cheese sticks, appetizers etc. Remove from outer package.
FROZEN VEGETABLES .25 - 1.5 lb Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered,
.5 - 2.0 lb Use boneless breast of chicken or turkey. Cover with vented plastic wrap. Touch
POULTRY, number 1 and START pads. When oven stops, rearrange. Re-cover and
touch START pad. After cooking, let stand, covered, 3 to 5 minutes. Poultry should be
160˚F.
.5 - 3.0 lb Arrange pieces with meatiest portions toward outside of glass dish or microwave safe
rack. Cover with vented plastic wrap. Touch POULTRY, number 2 and START pads.
After cooking, let stand, covered, 3 to 5 minutes. Dark meat should be 180°F and white
meat should be 170˚F.
vented plastic wrap. After cooking, let stand, covered for 3 minutes.
brands. You may wish to try several and choose your favorite. Remove package from
outer wrapping and follow package directions for covering. After cooking, Iet stand,
covered, for 1 to 3 minutes.
Follow package directions for how to wrap or cover. Be careful when removing from the
oven as snack may be very hot.
for 3 minutes.
1 cups
2 cups
3 cups
4 cups
1.5 quart
2 quart
2.5 or 3 quart
3 quart or larger
11
MENU OPTIONS
Your oven has 6 convenience pads to assist with meal preparation. There are some foods in the BREAKFAST, LUNCH and 15 MINUTE
RECIPES that use the sensor. See the SENSOR COOKING information on page 10. For foods not using the sensor, follow the
directions in the Interactive Display to enter quantity.
BREAKFAST AND LUNCH
BREAKFAST and LUNCH are for cooking and heating popular
foods that take a short amount of time.
• Suppose you want to use BREAKFAST to cook 2 servings of
hot cereal.
PROCEDURE
1. Touch BREAKFAST pad.
2. Select desired BREAKFAST setting by touching desired
number pad. (Ex: Touch number 3 pad to select hot cereal.)
3. Enter quantity. (Ex: Touch number 2 pad for servings.)
4. Touch START. After cooking, follow the directions in the
display.
NOTE:
• Heat rolls/mufns setting has 2 choices. Follow directions in
the Interactive Display to choose desired option.
• BREAKFAST can be programmed with MORE or LESS
TIME ADJUSTMENT. Touch the POWER LEVEL pad once
or twice before touching START pad. See page 18.
• Each food has a cooking hint. Touch SETUP/HELP pad
when the HELP indicator is lighted in the display.
• Should you attempt to enter more or less than the allowed
amount, an error message will appear in the display.
• More or less than the quantity listed in the chart should be
cooked following the guidelines in any microwave book.
• The nal cooking result will vary according to the food
condition (e.g. initial temperature, shape, quality, covering).
Check food for temperature after cooking. If additional time
is needed, continue to cook manually.
BREAKFAST CHART
* It is not necessary to enter amount or number.
FOOD AMOUNT PROCEDURE
1. Scrambled
Eggs
2. Bacon 2 - 6 slices Place bacon on paper plate, lined with paper towel. Bacon should not extend over the rim of plate.
3. Hot Cereal 1 - 6
4. Heat Rolls/
mufns
Fresh To warm fresh rolls and mufns, touch BREAKFAST, number 4 pad, and touch number 1 pad.
Frozen For frozen rolls and mufns, touch BREAKFAST pad and touch number 4 pad, then number 2 pad.
5. Frozen
Breakfast*
1- 9 eggs For each egg, use 1 teaspoon of butter or margarine and 1 tablespoon of milk. Place butter or
margarine in dish, measuring cup or casserole large enough for the egg to expand. Mix egg and milk
together. Pour on to butter or margarine in dish. Place in oven and program. When audible signals
are heard, stir egg mixture moving the cooked portion to the center of the dish and uncooked portion
to the outside. After cooking, stir and let stand, covered, until set. Note that eggs will be slightly
undercooked when removed from the oven.
Cover with another paper towel. Allow bacon to stand a few minutes after removing from the oven
to complete the cooking.
Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran, cream of wheat,
servings
1 - 10 pcs Use this pad to warm rolls, mufns, biscuits, bagels etc. Large items should be considered as 2 or
1 (3 - 6 oz) This setting works well for frozen breakfast entrees, pancakes, wafes, burritos etc. Follow
farina or wheatena. Follow package directions for the correct amount of water or milk. To prevent
boilovers, it is very important to choose a large container because microwave cooking of cereal
causes high boiling. When oven stops, stir and touch START. After cooking, stir and let stand,
covered, for 2 minutes.
3 regular size. Arrange on plate: cover with paper towel.
Then enter desired quantity and touch START pad. For refrigerated rolls or mufns, it may be
necessary to double the entered amount to ensure the proper serving temperature. For example,
enter quantity of 2 for 1 refrigerated mufn.
Then enter desired quantity and touch START pad.
manufacturer’s directions for how to prepare for microwaving. Allow to stand 1 or 2 minutes after
cooking.
12
MENU OPTIONS
* It is not necessary to enter amount or number.
LUNCH CHART
FOOD AMOUNT PROCEDURE
1. Meal in a
cup*
2. Hot Dog in
Buns*
3. Soup 1 - 8 cups Place in bowl or casserole. Cover with lid or plastic wrap. At end, stir, re-cover and let stand 1 to 3
4. Microwave
Pizza
5. Frozen
Sandwich*
15 MINUTE RECIPES and FROM THE PANTRY 15 MINUTE RECIPES
15 MINUTE RECIPES and FROM THE PANTRY each offer ve
simple-to-prepare but great tasting meals. Follow the specic
directions on the Recipe Card and in the Interactive Display.
• Suppose you want to use 15 MINUTE RECIPES to cook
Saucy Chicken.
1. Touch 15 MINUTE RECIPES pad.
2. Select desired setting by touching desired number pad.
(Ex: Touch number 1 pad to select Saucy Chicken.)
3. Follow the Recipe Card for ingredients and instructions.
SEE RECIPE CARD PRESS START. Touch START.
4. When the oven stops, the display will show the instruction
number on the Recipe Card. Follow the instructions on the
Recipe Card. CHECK RECIPE INSTRUCTION 2. Touch START.
5. At end, the display will show the instruction number on the
Recipe Card. Follow the instructions on the Recipe Card.
CHECK RECIPE INSTRUCTIONS 3
1 cup This setting is ideal for individual portions of canned food packed in a small microwaveable container,
usually 6 to 8 ounces. Remove inner metal lid and replace outer microwaveable lid. After cooking,
stir food and allow to stand 1 or 2 minutes.
1 - 4 pieces Place hot dog in bun. Wrap each with paper towel or napkin.
minutes.
1 (6 -8 oz) Use for frozen microwave pizza. Remove from package and unwrap. Follow package directions for
use of package and/or silver crisping disk.
1 (3 - 6 oz) Use for frozen microwaveable sandwiches. Remove from package and follow directions for placing
in the oven.
(Recipes serve 6)
1. SAUCY CHICKEN
1. Place in a 3 quart casserole:
1 tablespoon oil
½ pound mushrooms, sliced
1 onion, chopped
PROCEDURE
1 tablespoon minced garlic
Stir well and cover. Touch 15 MINUTE RECIPES, number
1 to select SAUCY CHICKEN and then touch START.
2. Blend together:
8 ounces reduced fat cream cheese, softened
¼ cup milk
Stir into the cream cheese mixture:
1 10-ounce package of frozen peas
2 cups cooked thinly sliced chicken breast
Salt and pepper to taste
At pause, drain liquid from mushrooms, etc. Add cream
cheese/peas/chicken mixture and stir together.
Re-cover. Touch START.
3. At end, stir in 1 cup shredded Monterey Jack cheese.
Serve on top of baked potatoes or cooked pasta.
13
Loading...
