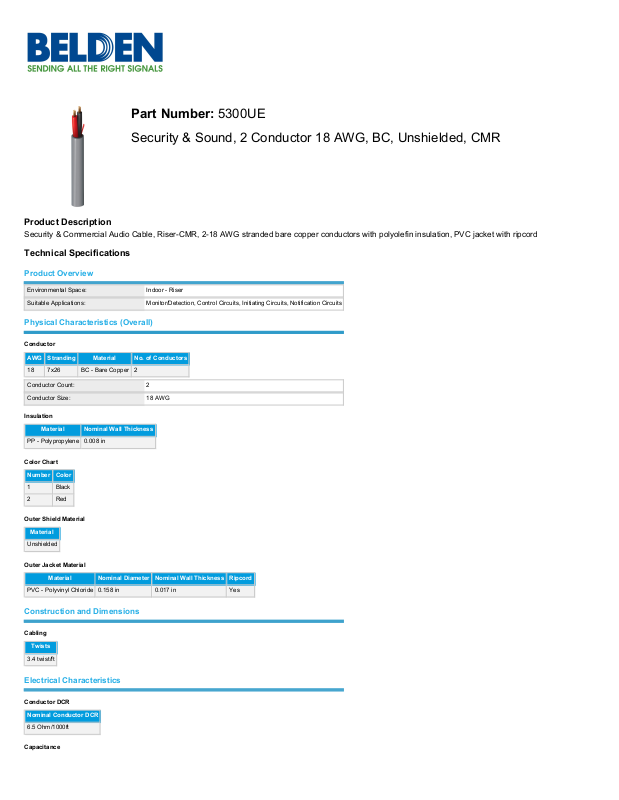

Belden 5300UE Specifications
Part Number: 5300UE
Security & Sound, 2 Conductor 18 AWG, BC, Unshielded, CMR
Product Description
Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord
Technical Specifications
Product Overview
Environmental Space: Indoor - Riser
Suitable Applications: Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
18 7x26 BC - Bare Copper 2
Conductor Count: 2
Conductor Size: 18 AWG
Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.008 in
Color Chart
Number Color
1 Black
2 Red
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVC - Polyvinyl Chloride 0.158 in 0.017 in Yes
Construction and Dimensions
Cabling
Twists
3.4 twist/ft
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
21.5 pF/ft
Inductance
Nominal Inductance
0.145 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 15 lbs/1000ft
Max Recommended Pulling Tension: 45 lbs
Min Bend Radius/Minor Axis: 1.5 in
Standards
NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT4
UL Flammability: UL1666 Vertical Shaft
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): N
Plenum Number: 6300UE
Part Number
Variants
Item # Color UPC Length Footnote
5300UE 0101000 Black 612825159162 1,000 ft C
5300UE 010U1000 Black 612825421511 1,000 ft
5300UE 010Z1000 Black 612825159254 1,000 ft
5300UE 010Z1000 Black 612825159254 1,000 ft
