Washer-Dryer |
User Manual |
WDIR7543101 |
EN |
Document Number= 2820524991_EN/17-11-15.(16:52) |
Please read this user manual first!
Dear Customer,
Thank you for choosing a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.
Throughout this user manual the following symbols are used:
DANGER! |
BWarning for electric shock. |
DANGER! |
Product weight warning |
CAUTION
A• Warning for hazardous situations with regard to life andproperty.
A• |
PRECAUTION |
Precautions that need to be taken. |
This product was manufactured using the latest technology in environmentally friendly conditions.
C |
INFORMATION |
• Important information or useful hints about usage. |
• Read user manual.
•Packaging materials of the product are manufactured from recyclable materials in accordance with regulations.
• Do not dispose of the Packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
•Allergy UK, is the brand of British Allergy Association. Theirmainendorsementisthe‚SealofApproval‘.When you see a product with this logo on it, you have the reassurance the product has been scientifically tested to prove it is efficient at reducing/removing allergens from the environment of allergy and asthma sufferers or the products have significantly reduced allergen/ chemical content.
“The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machine washable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of this washing machine. M1527.”
“In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.”
TABLE OF CONTENTS |
|
1Importantinstructionsforsafetyandenvironment |
7 |
1.1 General safety...................................................................................................................................... |
7 |
1.1.1 Electrical safety .......................................................................................................................................... |
7 |
1.1.2 Product safety............................................................................................................................................. |
8 |
1.1.3 Warnings for drying.................................................................................................................................. |
10 |
1.2 Intended use........................................................................................................................................ |
13 |
1.3 Children's safety.................................................................................................................................. |
13 |
1.4 Compliance with WEEE Directive and disposing of the waste product.................... |
14 |
1.5 Package information......................................................................................................................... |
14 |
2Yourwasher-dryer |
15 |
2.1 Overview................................................................................................................................................ |
15 |
2.2 Package contents.............................................................................................................................. |
16 |
2.3 Technical specifications................................................................................................................. |
17 |
3Installation |
18 |
3.1 Appropriate installation location................................................................................................ |
19 |
3.2 Removing packaging reinforcement......................................................................................... |
19 |
3.3 Removing the transit bolts............................................................................................................ |
20 |
3.4 Connecting water supply............................................................................................................... |
20 |
3.5 Connecting to the drain.................................................................................................................. |
21 |
3.6 Adjusting the feet............................................................................................................................. |
22 |
3.7 Electrical connection........................................................................................................................ |
23 |
3.8 Transportation of the product.................................................................................................... |
24 |
4Preparation |
25 |
4.1 Sorting the laundry........................................................................................................................... |
25 |
4.2 Preparing laundry for washing.................................................................................................... |
26 |
4.3 Tips for energy saving..................................................................................................................... |
27 |
4.4 Initial use............................................................................................................................................... |
27 |
4.5 Correct load capacity....................................................................................................................... |
28 |
4.6 Loading the laundry......................................................................................................................... |
28 |
4.7 Using detergent and softener..................................................................................................... |
29 |
4.7.1 Detergent drawer..................................................................................................................................... |
29 |
4.7.2 Main Wash Compartment...................................................................................................................... |
30 |
4.7.3 Liquid Softener Compartment............................................................................................................ |
30 |
4.7.4 Pre-Wash Compartment....................................................................................................................... |
31 |
4.7.5 Choosing the detergent......................................................................................................................... |
31 |
4.7.6 Adjusting the amount of detergent................................................................................................ |
31 |
4.7.7 Using gel and tablet detergent........................................................................................................... |
31 |
4.7.8 Using laundry starch............................................................................................................................... |
32 |
4.7.9 Using bleaches........................................................................................................................................... |
32 |
4.7.10 Using limescale remover..................................................................................................................... |
32 |
4.8 Tips for efficient washing............................................................................................................. |
33 |
4 / EN |
Washer-Dryer |
|
|
TABLE OF CONTENTS |
|
4.9 Tips for correct drying..................................................................................................................... |
34 |
5Operatingtheproduct |
35 |
5.1 Control panel........................................................................................................................................ |
35 |
5.2 Display symbols.................................................................................................................................. |
36 |
5.3 Preparing the machine.................................................................................................................... |
36 |
5.4 Selecting the washing programme .......................................................................................... |
37 |
5.5 Washing programmes ..................................................................................................................... |
37 |
Cottons............................................................................................................................................................ |
38 |
Synthetics...................................................................................................................................................... |
38 |
Woollens......................................................................................................................................................... |
39 |
Cottons Eco................................................................................................................................................... |
39 |
Delicates......................................................................................................................................................... |
39 |
Hand Wash..................................................................................................................................................... |
40 |
Daily Quick...................................................................................................................................................... |
40 |
Super Short .................................................................................................................................................. |
40 |
Shirts................................................................................................................................................................ |
41 |
Rinse................................................................................................................................................................. |
41 |
Spin + Drain .................................................................................................................................................. |
41 |
5.6 Temperature selection................................................................................................................... |
42 |
5.7 Spin speed selection........................................................................................................................ |
43 |
5.7.1 If you want to spin your laundry after the Rinse Hold function:......................................... |
44 |
5.7.2 Auxiliary function selection for drying............................................................................................ |
44 |
5.8 Drying programmes.......................................................................................................................... |
45 |
Synthetic Dry................................................................................................................................................ |
45 |
Cotton Dry...................................................................................................................................................... |
45 |
5.9 Washing and drying programmes.............................................................................................. |
46 |
5 Kg Wash&Dry............................................................................................................................................ |
46 |
Wash&Wear.................................................................................................................................................. |
46 |
Anti Allergy Wash&Dry............................................................................................................................. |
47 |
5.10 Programme and consumption table ...................................................................................... |
48 |
5.11 Auxiliary function selection........................................................................................................ |
51 |
Prewash.......................................................................................................................................................... |
52 |
Quicker Wash................................................................................................................................................ |
52 |
Extra Rinse.................................................................................................................................................... |
52 |
5.12 Drying steps....................................................................................................................................... |
53 |
5.12.1 Iron Dry .................................................................................................................................................... |
53 |
5.12.2 Cupboard Dry ....................................................................................................................................... |
53 |
5.12.3 Extra Dry ................................................................................................................................................. |
53 |
5.12.4 Time based drying-minutes.............................................................................................................. |
53 |
5.13 Time display....................................................................................................................................... |
53 |
5.14 End Time.............................................................................................................................................. |
54 |
5.15 Starting the programme.............................................................................................................. |
55 |
5.16 Loading door lock............................................................................................................................ |
55 |
User’s Manual |
5 / EN |
|
|
TABLE OF CONTENTS |
|
5.17 Changing the selections after programme has started................................................ |
56 |
5.17.1 Adding laundry after the programme has started:................................................................. |
56 |
5.17.2 Switching the machine to pause mode:....................................................................................... |
56 |
5.17.3 Changing the programme selection after programme has started:............................... |
56 |
5.17.4 Changing the auxiliary function, spin speed and temperature........................................ |
57 |
5.18 Child Lock............................................................................................................................................ |
57 |
5.18.1 To activate the child lock:.................................................................................................................... |
57 |
5.18.2 To deactivate the child lock:.............................................................................................................. |
58 |
5.19 Cancelling the programme.......................................................................................................... |
58 |
5.20 End of programme.......................................................................................................................... |
59 |
5.21 Your machine features a "Standby Mode"............................................................................ |
59 |
6Maintenanceandcleaning |
60 |
6.1 Cleaning the detergent drawer................................................................................................... |
60 |
6.2 Cleaning the loading door and the drum................................................................................ |
60 |
6.3 Cleaning the body and control panel........................................................................................ |
61 |
6.4 Cleaning the water intake filters................................................................................................ |
61 |
6.5 Draining remaining water and cleaning the pump filter................................................. |
62 |
7Troubleshooting |
64 |

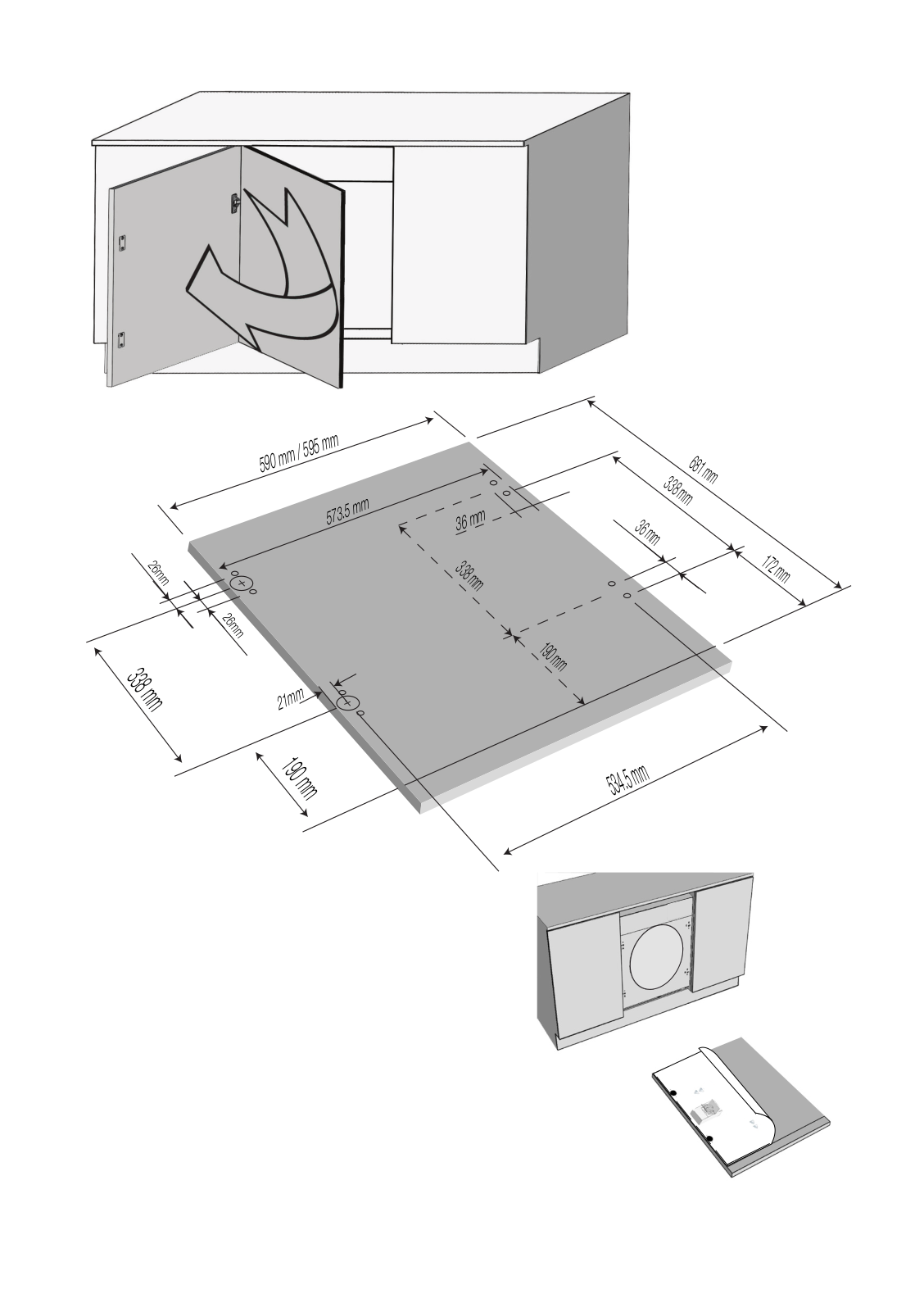

8BUILT-ININSTALLATION |
70 |
6 / EN |
Washer-Dryer |
|
|
1Important instructions for safety and environment
This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall invalidate any warranty.
1.1Generalsafety
CAUTION
•This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they
Important instructions for safety and environment
|
|
|
|
|
CAUTION |
|
• |
If the power cable is damaged, it must be replaced by |
|
|
the manufacturer, after sales service or a similarly |
A qualified person (preferably an electrician) or |
||
|
|
someonedesignatedbytheimporterinordertoavoid |
|
|
possiblerisks. |
|
|
|
|
|
PRECAUTION |
|
• |
Unplug the product when it is not in use. |
|
• |
Never touch the plug with wet hands! Never unplug by |
A• |
pulling on the cable, always unplug by holding the plug. |
|
Product should be unplugged during installation, |
||
|
|
maintenance, cleaning and repair procedures. |
|
• |
Do not make connections via extension cables or multi- |
|
|
plugs. |
|
|
|
|
|
INFORMATION |
C |
• |
Thisproductisdesignedtoresumeoperatingintheevent |
|
of powering on after a power interruption. If you wish to |
|
|
|
cancel the programme, see "Cancelling the programme" |
section.
1.1.2Productsafety
DANGER!
ANever open the loading door or remove the filter while there is still water in the drum. Otherwise, risk of flooding and injury from hot water will occur.
CAUTION
A• Thewatersupplyanddraininghosesmustbesecurely fastenedandremainundamaged.Otherwise,thereis theriskofwaterleakage.
8 / EN |
Washer-Dryer |
|
|
Important instructions for safety and environment
|
|
INFORMATION |
|
• |
Do not force open the locked loading door. Door can be |
|
|
opened a few minutes after the washing cycle ends. If |
|
|
the machine has not cooled enough at the end of the |
|
|
programme,loadingdoorcannotbeopened.Donotforce |
|
|
the loading door to open. It must be left to cool itself. The |
|
|
loading door and the lock mechanism may get damaged. |
C |
• Intheinstallationlocationofthisproduct,theremustnot |
|
|
be a lockable, sliding or hinged door that will restrict the |
|
|
|
full opening of the loading door. |
|
• |
Follow the instructions on the textile tags and on the |
|
|
detergent package. |
|
• Useonlydetergents,softenersandsupplementssuitable |
|
|
|
for washing machines. |
|
• |
Do not install or leave this product in places where it |
|
|
might be exposed to outdoor conditions. |
|
• Controls must not be tampered with. |
|
User’s Manual |
9 / EN |
|
|
Important instructions for safety and environment
1.1.3Warningsfordrying
DANGER!
Laundry that is previously washed, cleaned, soiled or stained with petrol / gasoline, dry cleaning solvents or other flammable or explosive substances must not be dried in the machine as they give out flammable or explosive steam. It may cause fire risk.
Laundry stained with Liquid cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers must be washed in hot water with plenty of detergent before drying. It may cause fire risk.
Foam rubber (latex foam), shower caps, waterproof textiles, clothes or pillows with rubber support or rubber foam pads must not be dried with drying function. It may cause fire risk.
If you use washing ball, detergent scale, laundry clothing cages and balls in your machine, they can melt during drying. Do not use these products if drying option will be selected. It may cause fire risk.
When you use industrial chemicals for cleaning, do not use drying function. It may cause fire risk.
10 / EN |
Washer-Dryer |
|
|
Important instructions for safety and environment
DANGER!
Do not touch loading door glass with bare hands after drying. There is the risk of getting burnt.
In order to maintain laundry in a temperature that will prevent them from getting damaged, a cooling A step is performed as a final step. You may be exposed to hot steam if you open the door before
cooling is complete. There is the risk of scalding.
If the drying programmes are interrupted (as a result of programme cancellation or power failure), laundry in the machine can be hot. Be careful.
CAUTION
• Do not stop the machine before drying programme is completed. If you have to stop the machine, remove alllaundryandlaytheminasuitableplacetoletthem
|
|
cooldown. |
A |
• Your product is suitable to operate in ambient |
|
temperaturesbetween0°Cand+35°C. |
||
|
• |
Ambient temperatures between 15°C and +25°C are |
|
|
idealtemperaturesforyourproduct. |
|
• |
Do not let pets enter the product. Check inside the |
|
|
productbeforeusing. |
|
• |
Do not overload the machine for drying. Observe the |
|
|
maximumloadlevelsspecifiedfordrying. |
User’s Manual |
11 / EN |
|
|
Important instructions for safety and environment
PRECAUTION
• Do not dry leather laundry or laundry that contains leather (such as leather jeans label). The colour from Leather parts can run into other textiles.
• In failures that cannot be repaired using information giveninsafetyinstructions,turnoffthemachine,unplug the power cable and call the Authorised Service Agent.
• You can just wash laundry, just dry laundry or wash and dry laundry in your washer-dryer. Machine must not be used only to dry wet loads for a long time. When machine isusedonlyfordrying,itmustbeoperatedemptywithout
A loading15 operation.laundry in a short wash programme after every
•Check all clothes before loading them into the machine andensurethattheydonothaveobjectssuchaslighters, coins, metal pieces, needles in the pockets or inside.
•Underwear with metal supports must not be dried in the machine. Metal supports might come off during drying and cause damage in the machine. Place in a bag or pillowcase.
•Do not dry large laundry such as tulle curtain, curtain, bedding, blanket, rug in the machine. Your laundry might get damaged.
|
|
|
|
|
INFORMATION |
|
• Do not dry unwashed laundry in the machine. |
|
|
• |
Do not use fabric softeners or static preventers in the |
|
|
machine unless recommended by the manufacturer. |
C |
• Products such as fabric softeners must be used in |
|
|
accordance with manufacturer's instructions. |
|
|
• Do not dry sensitive clothes such as silk, wool, etc. in the |
|
|
|
machine. Otherwise, wool clothes may get shrunken and |
|
|
other sensitive clothes may get damaged. |
|
• |
Check symbols on the garment tag before washing and |
|
|
drying. |
12 / EN |
Washer-Dryer |
|
|
Important instructions for safety and environment
1.2Intendeduse
|
|
|
|
|
INFORMATION |
|
• Thisproducthasbeendesignedfordomesticuse.Itisnot |
|
|
|
suitable for commercial use and it must not be used out |
|
|
of its intended use. |
C |
• The product must only be used for washing, rinsing and |
|
|
drying of textile products that are marked accordingly. |
|
|
• The manufacturer waives any responsibility arisen from |
|
|
|
incorrect usage or transportation. |
|
• |
The service life of your product is 10 years. During this |
|
|
period, original spare parts will be available to operate |
|
|
the product properly. |
1.3Children'ssafety
CAUTION
•Children below the age of 3 must be kept away from themachineunlesstheyarecontinuouslysupervised.
•Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach ofthechildren.
•Electrical products are dangerous for the children. Keepchildrenawayfromtheproductwhenitisinuse.
A Do not allow them to play with the product. Use child lock to prevent children from intervening with the product.
•Do not forget to close the loading door when leaving theroomwheretheproductislocated.
•Storealldetergentsandadditivesinasafeplaceaway from the reach of the children by closing the cover of the detergent container or sealing the detergent package.
User’s Manual |
13 / EN |
|
|
Important instructions for safety and environment
1.4CompliancewithWEEEDirectiveand disposingofthewasteproduct
•This product does not contain harmful and forbidden materials described in the
"Regulation on the Control of the Waste Electrical and Electronic Equipment". It complies with the WEEE Directive.
This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the loading door so that it will be non-functional before disposing of the product.
Compliance with RoHS Directive:
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.
1.5Packageinformation
Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging with normal domestic waste. Take them to the packaging material collection points designated by the local authorities.
14 / EN |
Washer-Dryer |
|
|
2 Your washer-dryer
2.1Overview
1 8
2
3 7
6
4
5
1- Power cable
2- Top panel
3- Control panel
4- Filter cover
5- Adjustable feet
6- Loading door
7- Detergent drawer
8- Water discharge hose
User’s Manual |
15 / EN |
|
|
Your washer-dryer
2.2Packagecontents
Power cable
Water discharge hose
Transit bolts
Mains water inlet hose
User manual
Plastic plug group
• Figures in this manual are schematic and may not match the product exactly.
NOTE
16 / EN |
Washer-Dryer |
|
|
Your washer-dryer
2.3Technicalspecifications
Complying Commission Delegated Regulation (EU) No.96/60/EC/1996
Supplier name or trademark |
|
Beko |
|
Model name |
|
|
WDIR7543101 |
Washer Dryer Energy efficiency class (1) |
A |
||
Washing Energy efficiency class (1) |
A |
||
(Washing & Drying) Energy Consumption - full load per cycle (kWh) |
4,76 |
||
Washing Energy Consumption - full load per cycle (kWh) |
0,8 |
||
Annual (Washing & Drying) Energy Consumption (kWh) (2) |
952 |
||
Annual Washing Energy Consumption (kWh) (2) |
160 |
||
Water Consumption |
(Washing & Drying) full load per cycle- (l) |
72 |
|
Water Consumption |
(Washing) full load per cycle (l) |
45 |
|
Annual Water Consumption |
(Washing & Drying)- (l) (3) |
14400 |
|
Annual Water Consumption |
(Washing) (l) (3) |
9000 |
|
Spin-drying efficiency class (1) |
A |
||
Maximum spin speed (rpm) |
|
1400 |
|
Airborne acoustical noise emissions washing/spinning/drying (dB) |
47/73/58 |
||
Built-in |
|
|
Yes |
Rated capacity - Washing (kg) |
7 |
||
Rated capacity - Drying (kg) |
|
5 |
|
Height (cm) |
|
|
84 |
Width (cm) |
|
|
60 |
Depth (cm) |
|
|
54 |
Net weight (±4 kg.) |
|
|
68 |
Single Water inlet / Double Water inlet |
• / - |
||
• Available |
|
|
|
|
|
|
|
Electrical input (V/Hz) |
|
230 V / 50Hz |
|
Total current (A) |
|
|
10 |
Total power (W) |
|
|
2200 |
VDE Main model code |
|
9620 |
|
(1)Scale from A (Highest Efficiency) to G (Lowest Efficiency)
(2)Energy Consumption based on 200 standard washing cycles - full loads washing (and drying). Actual energy consumption will depend on how the appliance is used.
(3)Water consumption based on 200 standard washing cycles - full loads washing (and drying). Actual energy consumption will depend on how the appliance is used.
Technical specifications may be changed without prior notice to improve the quality of the product.
User’s Manual |
17 / EN |
|
|
3 Installation
To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply and water drainage systems are appropriate. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.
DANGER!
Make sure that the installation and electrical B connections of the product are performed by competent persons. Manufacturer shall not be held liable for damages that may arise from procedures
carried out by unauthorised persons.
DANGER!
Your product is too heavy for one person to carry.
A |
|
CAUTION |
• |
Prior to installation, visually check if the product |
|
has any defects on it. If so, do not have it installed. |
||
|
|
Damagedproductscauserisksforyoursafety. |
|
|
|
|
|
PRECAUTION |
|
• |
Preparation of the location and electrical, tap water and |
A• |
waste water installations at the place of installation is |
|
under customer's responsibility. |
||
Make sure that the water inlet and discharge hoses as |
||
wellasthepowercablearenotfolded,pinchedorcrushed while pushing the product into its place after installation or cleaning procedures.
18 / EN |
Washer-Dryer |
|
|
Installation
3.1Appropriateinstallationlocation
•Place the product on a solid and level floor. Do not place it onto a carpet with high pile or other similar surfaces.
•Do not place the product close to the edge if the floor contains steps. Do not also place the product on a platform.
•Do not place the product on the power cable.
•Do not install the product in environments where the temperature falls below 0
ºC.(See. Warnings for Drying)
•Place the product at least 1,5 cm away from the edges of other furniture.
In the area where this product is installed, there must not be a lockable, sliding or hinged door that will restrict the full opening of loading door.
Operate the product in a well ventilated and dust free environment.
3.2Removingpackagingreinforcement
Tilt the machine backwards to remove the packaging reinforcement. Remove the packaging reinforcement attached to the ribbon.
DANGER!
Your product is heavy. Remove packaging reinforcement as displayed in the figure.
Be careful not to get your hand caught under the machine during this procedure.
User’s Manual |
19 / EN |
|
|
Installation
3.3Removingthetransitbolts
PRECAUTION
A• Do not remove the transit bolts before removing the packaging reinforcement.
•Remove the transit bolts before operating the washing machine! Otherwise, the product will get damaged.
1 |
2 |
3 |
1Use a tool to loosen all bolts until they rotate freely. (C)
2Remove the transit bolts by turning them slightly.
3Attach the plastic covers supplied in the user manual bag into the holes on the rear panel. (P)
INFORMATION
Cproduct needs to be moved again in the future.
•Nevermovetheproductwithoutthetransitboltsproperly fixed in place!
3.4Connectingwatersupply• Keep the transit bolts in a safe place to reuse when the
INFORMATION
• The water supply pressure required to run the product is C between1to10bars(0.1–1MPa).Itisnecessarytohave 10 – 80 liters of water flowing from the fully open tap in one minute to have your product run smoothly. Attach a
pressure reducing valve if water pressure is higher.
CAUTION
• Models with a single water inlet should not be connected to the hot water tap. In such a case the A laundrywillgetdamagedortheproductwillswitchto
protectionmodeandwillnotoperate.
•Do not use old or used water inlet hoses on the new product.Itmaycausestainsonyourlaundry.
20 / EN |
Washer-Dryer |
|
|
Installation |
|
|
1 |
2 |
3 |
1 Connect the special hose supplied with the product to the water inlet on the product.
|
CAUTION |
A |
• Ensure that the cold water connection is made |
correctlywheninstallingtheproduct.Otherwise,your |
|
|
laundry will come out hot at the end of the washing |
|
processandwearout. |
2 Tighten the hose nuts securely by hand. Never use a tool when tightening the nuts.
3 Open the taps completely after making the hose connection to check for water leaks at the connection points. If any leak occurs, turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. In order to prevent the water leaks, keep the taps closed when you do not use the product.
3.5Connectingtothedrain
• Attach the end of the drain hose directly to waste water drain, sink or bathtub.
CAUTION |
• Yourhousewillbefloodedifthehosecomesoutofits |
housing during water discharge. Moreover, there is |
A riskofscaldingduetohighwashingtemperatures!To |
prevent such situations and to ensure smooth water |
intake and discharge of the machine, fix the end of |
thedischargehosetightlysothatitcannotdisplace. |
User’s Manual |
21 / EN |
|
|
Installation
90 |
40 |
40 |
•Connect the hose to a minimum height of 40 cm and a maximum height of 90 cm.
•If the hose is run along the floor (or at less than 40 cm above it) and raised later on, water drain becomes difficult and laundry may come out extremely wet. Therefore, observe the heights described in the figure.
•To prevent flowing of dirty water back into the machine and to allow for easy discharge, do not immerse the hose end into the dirty water or do not drive it in the drain more than 15 cm. If it is too long, cut it short.
•The end of the hose should not be bent, it should not be stepped on and the hose must not be pinched between the drain and the machine.
•If the length of the hose is too short, add an original extension hose. Length of the hose may not be longer than 3.2 m. To avoid water leak failures, the connection between the extension hose and the drain hose of the product must be fitted well with an appropriate clamp as not to come off and leak.
3.6Adjustingthefeet
CAUTION
•Adjustfeetsothattheproductwillbebalancedinthe locationitwillbeused.
•Balancethemachinebyadjustingthefeet.
A• Checkforanyplaybypressingtheproductfromupper
diagonaledges.
•Otherwise, the product may move from its place and causecrushing,noiseandvibrationproblems.
•Do not use any tools to loosen the lock nuts. Otherwise,thelocknutsmaygetdamaged.
22 / EN |
Washer-Dryer |
|
|
Installation
a)Loosen the lock nuts on the feet by hand.
b)Adjust the feet until the product stands level and balanced.
c)Tighten all lock nuts again by hand.
3.7Electricalconnection
Connect the product to a grounded outlet protected by a 16 A fuse. Our company shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
•Connection must comply with national regulations.
•Power cable plug must be within easy reach after installation.
•If the current value of the fuse or breaker in the house is less than 16 Amps, have a qualified electrician install a 16 Amp fuse.
•The voltage specified in the "Technical specifications" section must be equal to your mains voltage.
DANGER! |
BDamaged power cables must be replaced by the |
Authorised Service Agent. |
Important
Fittingadifferentplug
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows:
1Connect the green - yellow or green (earth) wire to the terminal in the plug marked ‘E’ or with the symbol f or coloured green and yellow or green.
2Connect the blue (neutral) wire to the terminal in the plug marked ‘N’ or coloured black.
3Connect the brown (live) wire to the terminal in the plug marked ‘L’ or coloured red.
With the alternative plugs a 16A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician.
User’s Manual |
23 / EN |
|
|
Installation
3.8Transportationoftheproduct
1Unplug the product before transporting it.
2Remove water drain and water supply connections.
3Drain all water that has remained in the product. See 6.5
4Install the transit bolts in reverse order of the disassembly procedure. See 3.3
DANGER!
Your product is too heavy for one person to carry.
Your product is heavy; two persons must carry it and extra precaution taken on stairs. If your product falls on you, it may cause injuries.
CAUTION
A• Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach ofthechildren.
INFORMATION
C • Nevermovetheproductwithoutthetransitboltsproperly fixed in place!
24 / EN |
Washer-Dryer |
|
|
4 |
Preparation |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
LAUNDRY WASH SYMBOLS |
|
|
|
|
||||
|
|
Machine |
Normal wash |
|
|
|
|
|
|
|
|
Not washable |
|
|
|
Wash |
|
|
|
SensitiveDelicate wash |
|
Hand wash |
|
|
|||
|
|
Symbols |
|
|
No Iron |
|
|
No Spin |
|||||
|
|
|
|
|
|
|
|||||||
|
WASH |
Water |
Maximum |
950C |
700C |
600C |
500C |
400C |
300C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperatures |
Symbol(s) |
••• |
••• |
•• |
••• |
•• |
• |
|
|
|
|
|
|
••• |
•• |
•• |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
Drying |
Suitable for |
No Iron |
Sensitive / |
Do not dry |
Do not dry |
Do not dry- |
|||||
|
|
Symbols |
|||||||||||
|
|
dryer |
|
||||||||||
|
|
|
|
|
|
Delicate dry |
with dryer |
|
|
clean |
|||
|
|
|
|
|
|
|
|
|
|||||
DRYING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drying |
At any temperature |
At high temperature |
|
At low temperature |
Without heating |
|
|
|
Hang wet to dry |
Lay in shadow to dry |
Dry-cleanable |
|
|
Settings |
At medium temperature |
|
Hang to dry |
|
|||||||
|
|
|
|
Lay to dry |
|||||||||
|
|
Iron - |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Iron at high |
Iron at medium |
Iron at low |
|
|
|
|||
|
|
Dry or Steam |
|
|
temperature |
temperature |
temperature |
|
Do not iron |
Iron without steam |
|||
|
IRON |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
Maximum temperature |
|
200 0C |
150 0C |
|
110 0C |
|
|||||
|
|
|
|
|
|
|
Bleach (sodium |
Bleach is not |
|
Only bleaches without |
|||
|
|
All bleaches are allowed |
|
hypochlorite) |
|
||||||||
|
|
|
allowed |
|
chlorine are allowed |
||||||||
BLEACH |
|
|
|
|
|
can be used |
|
||||||
|
|
|
|
|
|
|
|
|
|
||||
4.1Sortingthelaundry
*Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature.
*Always observe the instructions given on the garment care labels.
User’s Manual |
25 / EN |
|
|
Loading...
