Beko DN 156720 D, DN 156720 DX, DN H 156620, DN 156720 DS, DN 156720 DH User Manual

Refrigerator

Réfrigérateur

Hűtőszekrény

DN 156720 D DN 156720 DS DN 156720 DX DN 156720 X DN 156721 X DN 156720 H DN 156720 DH DN 156721 DH DN 160103 DN 160103 X DN 156620 C DN 156620 H DN 156620 X DN 158600 C DN163720DH

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

•Will help you use your appliance in a fast and safe way.

•Read the manual before installing and operating your product.

•Follow the instructions, especially those for safety.

•Keep the manual in an easily accessible place as you may need it later.

•Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

This product was manufactured using the latest technology in environmentally friendly conditions.

CONTENTS

1 The refrigerator

3

2 Important Safety Warnings4

Intended use......................................	4
For products with a water dispenser;.6
Child safety........................................	6
HCA Warning.....................................	6
Things to be done for energy saving...	6
Reccomendations for freshfood
compartment.....................................	7
3 Installation	8
Points to be considered when re-
transporting your refrigerator..............	8
Before operating your refrigerator.......	8
Electric connection.............................	9
Disposing of the packaging................	9
Disposing of your old refrigerator........	9
Placing and Installation.......................	9
Adjusting the legs...............................	9
Changing the illumination lamp ..........	9

4 Preparation	10
5 Using your refrigerator
Indicator Panel	11
Door Open Warning.........................	14
Freezing fresh food...........................	15
Recommendations for preservation of
frozen food.......................................	16
Placing the food...............................	16
Deep-freeze information...................	17
Description and cleaning of odor
filter:.................................................	18
Egg holder.......................................	18
Water Dispenser...............................	19
Rotary storage container..................	21
Blue light..........................................	22
Auto Icematic ..................................	22
Icematic and ice storage container...	23
6 Maintenance and
cleaning	24
Protection of plastic surfaces ..........	24
7 Troubleshooting	25

2 EN

1 The refrigerator

	21
	1	14
	2*
	3*
		*20
	4*	15
	5*	16*
		17*
	6
	7
	8
	9*
	22	18
		*19
	10	*20
	11
	12
	13

1.	Freezer compartment shelf	13.	Adjustable legs
2.	Auto Icematic	14.	Freezer compartment door racks
3.	Ice storage container	15.	Egg holder
4.	Auto Icematic water tank	16.	Water dispenser filling container
5.	Temperature setting indicator	17.	Water dispenser tank
6.	Adjustable glass shelves	18.	Fridge compartment door shelves
7.	Odor filter	19.	Sliding and rotary storage containers
8.	Illumination lens	20.Key
9.	Bottle shelf	21.	Freezer compartment
10.Snack compartment		22.	Fridge compartment
11.Crisper cover		*OPTIONAL
12.Crisper

CFigures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it

is valid for other models.

3 EN

2 Important Safety Warnings

	Please review the following information.	•	Do not touch frozen food by hand; they
	Failure to observe this information may cause		may stick to your hand.
	injuries or material damage. Otherwise, all	•	Unplug your refrigerator before cleaning or
	warranty and reliability commitments will		defrosting.
	become invalid.
		•	Vapor and vaporized cleaning materials
	The usage life of the unit you purchased is
	10 years. This is the period for keeping the		should never be used in cleaning and
			defrosting processes of your refrigerator. In
	spare parts required for the unit to operate
			such cases, the vapor may get in contact
	as described.
			with the electrical parts and cause short
			circuit or electric shock.

Intended use

This product is intended to be used

–indoors and in closed areas such as homes;

–in closed working environments such as stores and offices;

–in closed accommodation areas such as farm houses, hotels, pensions.

•This product should not be used outdoors.

General safety

•When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

•Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

•For products with a freezer compartment;

Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

•For products with a freezer compartment;

Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

•Never use the parts on your refrigerator such as the door as a means of support or step.

•Do not use electrical devices inside the refrigerator.

•Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

•Do not cover or block the ventilation holes on your refrigerator with any material.

•Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

•In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

•Do not pull by the cable when pulling off the plug.

•Place the beverage with higher proofs tightly closed and vertically.

•Never store spray cans containing flammable and explosive substances in the refrigerator.

•Do not use mechanical devices or other means to accelerate the defrosting

4 EN

process, other than those recommended by the manufacturer.

•This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they

are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

•Do not operate a damaged refrigerator.

Consult with the service agent if you have any concerns.

•Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

•Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

•Contact authorized service when there is a power cable damage to avoid danger.

•Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

•This refrigerator is intended for only storing food items. It must not be used for any other purpose.

•Label of technical specifications is located on the left wall inside the refrigerator.

•Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

•If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

•For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

•This operation manual should be handed in to the new owner of the product when it is given to others.

•Avoid causing damage on power cable when transporting the refrigerator.

Bending cable may cause fire. Never place heavy objects on power cable. Do

not touch the plug with wet hands when plugging the product.

•Do not plug the refrigerator if the wall outlet is loose.

•Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

•Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

•Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

•Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

•As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

•If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

•The plug's tip should be regularly cleaned; otherwise, it may cause fire.

•The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

5 EN

•Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

•When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

•When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

•Use only potable water.

Child safety

•If the door has a lock, the key should be kept away from reach of children.

•Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

•Do not leave the doors of your refrigerator open for a long time.

•Do not put hot food or drinks in your refrigerator.

•Do not overload your refrigerator so that the air circulation inside of it is not prevented.

•Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

•Pay attention to keep your food in closed containers.

•For products with a freezer compartment;

You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

•Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

6 EN

Reccomendations for freshfood compartment

*OPTIONAL

•Please do not let any foodstuff to come to contact with the temperature sensor in freshfood compartment.In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs.

•Do not place hot foodstuff in your appliance.

food	temperature
	sensor

MILK	temperature
juice
etc.	sensor

7 EN

3 Installation

BPlease remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1.Your refrigerator must be emptied and cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3.Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget…

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

2.Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4.Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.

5.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

8 EN

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

•The connection must be in compliance with national regulations.

•The power cable plug must be easily accessible after installation.

•The specified voltage must be equal to your mains voltage.

Placing and Installation

A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1.Install your refrigerator to a place that allows ease of use.

2.Keep your refrigerator away from heat sources, humid places and direct sunlight.

3.There must be appropriate air ventilation

•Extension cables and multiway plugs must around your refrigerator in order to achieve

not be used for connection.

BA damaged power cable must be replaced by a qualified electrician.

BProduct must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

•You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4.Place your refrigerator on an even floor surface to prevent jolts.

5.Do not keep your refrigerator in ambient temperatures under 10°C.

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

9 EN

4 Preparation

CYour refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

CThe ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your

refrigerator under cooler conditions is not recommended with regard to its efficiency.

CPlease make sure that the interior of your refrigerator is cleaned thoroughly.

CIf two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

CWhen you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

-The door should not be opened frequently.

-It must be operated empty without any food in it.

-Do not unplug your refrigerator. If

a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

COriginal packaging and foam materials should be kept for future transportations or moving.

10 EN

5 Using your refrigerator

Indicator Panel

Indicator panels may vary depending on1 your product’s*2model. 3

		7		*6					5		4

Indicator panel aids in using your refrigerator with its audio and visual functions.

1.Freezer Compartment Temperature Indicator

2.Error Status Indicator

3.Fridge Compartment Temperature Indicator

4.Fridge Compartment Temperature Setting

Button

5.Economy Mode Indicator

6.Ioniser Indicator

7.Freezer Compartment Temperature Setting

Button

1.Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer compartment.

2.Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e" and Fridge Compartment Temperature Indicator will display numbers

such as "1,2,3…". These numbers on the indicator provides information about the error to the service personnel.

3.Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge compartment.

4.Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2,

8...respectively. Press this button to set the desired temperature for the fridge compartment.

5.Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode.

6. Ioniser Indicator

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

7. Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to

11 EN

15

14

13	1

12
11	2
10	3
9
8*	4
7	5

1.Freezer compartment setting / Icematic on-off button

2.Fridge compartment setting button

3.Error status indicator

4.Key lock indicator

5.Eco Extra Function indicator

6.Eco Extra/Vacation Button

7.Vacation function indicator

8.Icematic off indicator (*in some models)

9.6 Economic usage indicator

10.Quick fridge function indicator

11.Quick fridge function button

12.Fridge compartment temperature setting indicator

13.Quick freeze function button

14.Freezer compartment temperature setting indicator

15.Quick freeze function indicator

CFigures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

12 EN

1.Freezer Compartment Setting / Icematic On-Off Button

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.

To stop ice formation, press Icematic onoff button for 3 seconds. Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the Icematic. To restart ice formation, press Icematic on-off button for

3seconds.

2.Fridge Compartment Setting Button

This function allows you to make the

fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 respectively.

3. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3…". These numbers on the indicator provides information about the error to the service personnel.

When you place hot food into the freezer compartment or if you leave the door open for a long time, exclamation mark can illuminate for some time. This is not a failure; this warning will disappear when the food cools down.

4. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Fridge compartment setting button and Freezer compartment setting button simultaneously for a long time (3 sec) to activate this function.

5. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active.

If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to deactivate this function.

6. Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function.

Press this button again to deactivate the selected function.

7. Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, "- -" appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

13 EN

8. Ice Off indicator

Icematic will not run when the indicator of this function is active. See Item 1 to enable the Icematic.

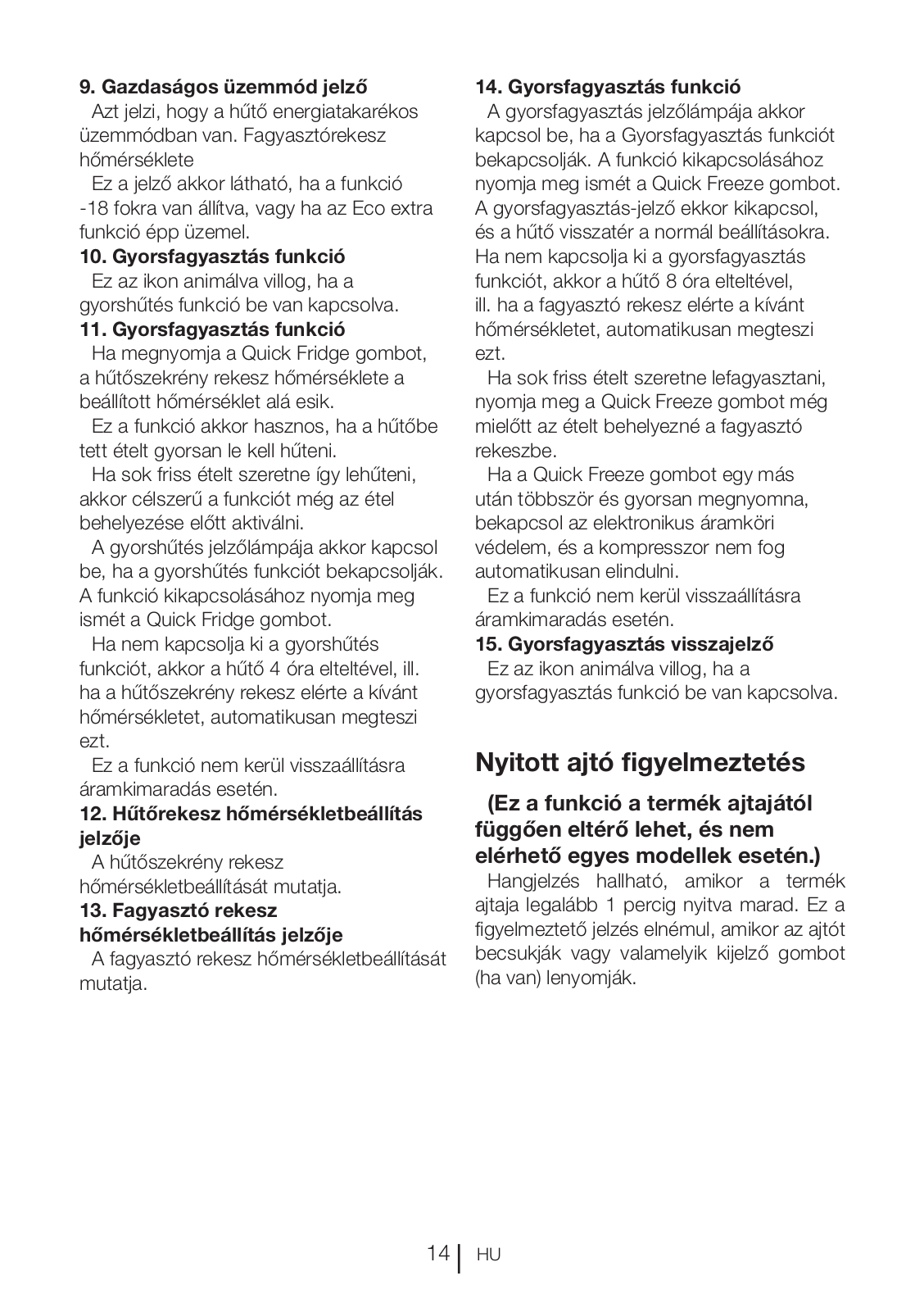

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature

This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

10. Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

11. Quick Fridge Function

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge.

Quick Fridge indicator turns on when the Quick Fridge function is on. To cancel this function press Quick Fridge button again.

If you do not cancel it, Quick Fridge will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

12. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

13.Freezer Compartment Temperature Setting Indicator

Indicates the temperature set for the Freezer Compartment.

14.Quick Freeze Function

Quick Freeze indicator turns on when the Quick Freeze function is active. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 8 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment.

If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

15. Quick Freeze Indicator

This icon flashes in an animated style when the Quick Freeze function is active.

Door Open Warning

(This feature may vary depending on the door of the product and may not exist in some models.)

A audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

14 EN

Freezing fresh food

•Wrap or cover the food before placing them in the refrigerator.

•Hot food must cool down to the room temperature before putting them in the refrigerator.

•The foodstuff that you want to freeze must be fresh and in good quality.

•Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

•The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

•Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

•Frozen food must be used immediately after they are thawed and they should never be re-frozen.

•Please observe the following instructions to obtain the best results.

1.Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2.Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.

3.Take special care not to mix already frozen food and fresh food.

	Freezer	Fridge
	Compartment	Compartment	Explanations
	Setting	Setting
	-18°C	4°C	This is the normal recommended setting.
	-20,-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
	Quick Freeze	4°C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its
			previous mode when the process is over.
	-18°C or colder	2°C	If you think that your fridge compartment is not cold enough because of the hot conditions
			or frequent opening and closing of the door.
			You can use it when your fridge compartment is overloaded or if you wish to cool down
	-18°C or colder	Quick Fridge	your food rapidly. It is recommended that you activate quick fridge function 4-8 hours
			before placing the food.

15 EN

Recommendations for preservation of frozen food

•Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment.

•To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1.Put packages in the freezer as quickly as possible after purchase.

2.Ensure that contents are labeled and dated.

3.Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

	Freezer compartment	Various frozen food such
		as meat, fish, ice cream,
	shelves
		vegetables and etc.
	Egg holder	Egg
	Fridge compartment	Food in pans, covered plates
	shelves	and closed containers
	Fridge compartment door	Small and packaged food or
		drinks (such as milk, fruit juice
	shelves
		and beer)
	Crisper	Vegetables and fruits
	Freshzone compartment	Delicatessen products (cheese,
		butter, salami and etc.)

16 EN

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume.

It is possible to keep the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING! A

•Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

•Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

•Cold resistant adhesive tape

•Self adhesive label

•Rubber rings

•Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

17 EN

Description and cleaning of odor filter:

Odor filter prevents unpleasant odor buildup in your refrigerator.

Pull the cover, into which the odor filter is installed, downwards and remove as illustrated. Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Snack compartments

Use these compartments for your food which you want store at a temperature a few degrees below the fridge compartment.

You can increase the inner volume of your refrigerator by removing any of the snack compartments.

1.Pull the compartment towards yourself until it rests and stops against the stopper.

2.Lift the front section and pull towards yourself to remove the compartment from its seating.

CYou can place the food, that you want to freeze, in these compartments in order to prepare them for freezing.

Egg holder

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment

18 EN

Water Dispenser

(in some models)

Water dispenser is a very useful feature based on reaching cold water without opening the door of your refrigerator. As you will not have to open your refrigerator door frequently, you will have saved energy.

Using the water spring

Push the arm of the water dispenser with your glass. The dispenser will cease operating once you release the arm.

When operating the water dispenser, maximum flow can be obtained by pressing the arm fully. Please remember that the amount of flow from the dispenser is subject to the degree you press the arm.

As the level of the water in your glass/ container rises, slightly lessen the pressure on the arm to prevent the overspill. If you slightly press the arm, the water will drop; this is quite normal and not a failure.

Filling the water dispenser water tank

Water tank filling reservoir is located inside the door rack. Open the reservoir cover and fill in clean potable water. And then, close the lid.

Warning!

•Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank material.

19 EN

•Use clean and pure potable water only.

•Capacity of the water tank is 3 liters; do not overfill.

•Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.

Cleaning the water tank

•Remove the water filling reservoir inside the door rack.

•Remove the door rack by holding from both sides.

•Grab the water tank from both sides and remove it with an angle of 45°.

•Clean the water tank by removing its lid.

Important:

Components of the water tank and water dispenser should not be washed in dishwasher.

20 EN

Water tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Take out the plastic strainer as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated

CAUTION: Connect only to a potable water line.

Rotary storage container

(in some models)

Sliding body shelf can be moved to left or right in order to allow you place long bottles, jars or boxes to a lower shelf (Fig. 1)

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

1

2

3

4

21 EN

Blue light

(in some models)

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Auto Icematic

(in some models)

Auto Icematic system allows you to obtain ice from the refrigerator easily. Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the Icematic.

First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment..

If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes.

Change the water in water tank if it has waited around 2-3 weeks.

22 EN

Icematic and ice storage container

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready

approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

23 EN

6 Maintenance and cleaning

A B B

C C

B B

C A

Never use gasoline, benzene or similar substances for cleaning purposes.

We recommend that you unplug the appliance before cleaning.

Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.

Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.

Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

Make sure that no water enters the lamp housing and other electrical items.

If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

Check door seals regularly to ensure they are clean and free from food particles.

To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

CDo not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

24 EN

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

•The plug is not inserted into the socket correctly. >>> Insert the plug into the socket securely.

•The fuse of the socket which your refrigerator is connected to or the main fuse have

blown out. >>> Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

•Ambient is vey cold. >>> Do not install the refrigerator in places where the temperature falls below 10 °C.

•Door has been opened frequently. >>> Do not open and close the door of refrigerator frequently.

•Ambient is vey humid. >>> Do not install your refrigerator into highly humid places.

•Food containing liquid is stored in open containers. >>> Do not store food with liquid content in open containers.

•Door of the refrigerator is left ajar. >>> Close the door of the refrigerator.

•Thermostat is set to a very cold level. >>> Set the thermostat to a suitable level.

Compressor is not running

CProtective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

•The refrigerator is in defrost cycle. >>> This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.

•The refrigerator is not plugged into the socket. >>> Make sure that the plug is fit into the socket.

•Temperature settings are not made correctly. >>> Select the suitable temperature value.

•There is a power failure. >>> Refrigerator returns to normal operation when

the power restores.

The operation noise increases when the refrigerator is running.

CThe operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

25 EN

The refrigerator is running frequently or for a long time.

CNew product may be wider than the previous one. Larger refrigerators operate for a longer period of time.

•The ambient temperature may be high. >>> It is normal that the product operates for longer periods in hot ambient.

•The refrigerator is plugged in or loaded with food recently. >>> When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.

•Large amounts of hot food may have been put in the refrigerator recently. >>> Do not put hot food into the refrigerator.

•Doors are opened frequently or left ajar for a long time. >>>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.

•Freezer or fridge compartment door is left ajar. >>> Check if the doors are closed completely.

•The refrigerator is adjusted to a very low temperature. >>> Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.

•Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>> Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current

temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

•The freezer temperature is adjusted to a very low value. >>> Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

•The fridge temperature is adjusted to a very low value. >>> Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are frozen.

•The fridge temperature is adjusted to a very high value. >>> Adjust the fridge temperature to a lower value and check.

26 EN

Temperature in the fridge or freezer is very high.

•The fridge temperature is adjusted to a very high value. >>> Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.

•Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently.

•Door is ajar. >>> Close the door completely.

•The refrigerator is plugged in or loaded with food recently. >>> This is normal. When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.

•Large amounts of hot food may have been put in the refrigerator recently. >>> Do

not put hot food into the refrigerator.

Vibrations or noise.

•The floor is not level or stable. >>>If the refrigerator rocks when moved slowly, balance it by adjusting its legs. Also make sure that the floor is strong enough to carry the refrigerator, and level.

•The items put onto the refrigerator may cause noise. >>> Remove the items on

top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing or spraying.

CLiquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

C Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

CHot and humid weather increases icing and condensation. It is normal and not a fault.

•Doors are opened frequently or left ajar for a long time. >>> Do not open the doors frequently. Close them if they are open.

•Door is ajar. >>> Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

CThere may be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

27 EN

Bad odor inside the refrigerator.

•No regular cleaning is performed. >>> Clean the inside of the refrigerator regularly with a sponge, lukewarm water or sodium bicarbonate diluted in water.

•Some containers or package materials may cause the smell. >>> Use a different container or different brand packaging material.

•Food is put into the refrigerator in uncovered containers. >>> Keep the food in closed containers. Microorganisms spreading out from uncovered

containers can cause unpleasant odors.

CRemove the foods that have expired best before dates and spoiled from the refrigerator.

The door is not closing.

•Food packages are preventing the door from closing. >>> Replace the packages that are obstructing the door.

•The refrigerator is not completely even on the floor. >>> Adjust the legs to balance the refrigerator.

•The floor is not level or strong. >>> Make sure that the floor is level and

capable to carry the refrigerator.

Crispers are stuck.

•The food is touching the ceiling of the drawer. >>> Rearrange food in the drawer.

28 EN

Veuillez d’abord lire la notice d’utilisation !

Chère cliente, cher client,

Nous espérons que votre produit, qui a été fabriqué dans des usines modernes et vérifié au terme des procédures de contrôle de qualité les plus méticuleuses, vous aidera efficacement.

Pour cette raison, nous vous conseillons de lire attentivement tout le manuel d’utilisation de votre produit avant de vous en servir, et de le conserver ensuite pour une utilisation ultérieure.

Le présent manuel

•Vous aidera à utiliser votre produit avec rapidité et sécurité.

•Lisez le manuel avant d’installer et de faire fonctionner votre produit.

•Respectez les instructions, notamment celles relatives à la sécurité.

•Conservez ce manuel dans un endroit facilement accessible car vous pouvez en avoir besoin ultérieurement.

•En plus, lisez également les autres documents fournis avec votre produit.

Veuillez noter que ce manuel peut également être valide pour d’autres modèles.

Symboles et descriptions

Vous retrouverez les symboles suivants dans le présent manuel :

C A B

Informations importantes ou astuces.

Avertissement relatif aux conditions dangereuses pour la vie et la propriété. Avertissement relatif à la tension électrique.
