Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
•Please read the user guide carefully before installing and operating the product.
•Always observe the applicable safety instructions.
•Keep the user guide within easy reach for future use.
•Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models.
C Important information and useful tips.
A Risk of life and property.
B Risk of electric shock.
The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.
1. Safety and environment instructions3
1.1. General safety . . . . . . . . . . . . . . . . . . . . . . 3 1.1.1 HC warning . . . . . . . . . . . . . . . . . . . . . . . 5 1.1.2 For models with water dispenser. . . . . . . . 5 1.2. Intended use . . . . . . . . . . . . . . . . . . . . . . . 6 1.3. Child safety . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4. Compliance with WEEE Directive and Disposing of the Waste Product. . . . . . . . . . . . . . . . . 6
1.5. Compliance with RoHS Directive . . . . . . . . . 6 1.6. Package information . . . . . . . . . . . . . . . . . 7
2 |
Your Refrigerator |
8 |
|
|
|
3 |
Installation |
9 |
3.1. Right place for installation. . . . . . . . . . . . . . 9 3.2. Attaching the plastic wedges . . . . . . . . . . . 9 3.3. Adjusting the stands. . . . . . . . . . . . . . . . . . 9 3.4. Power connection . . . . . . . . . . . . . . . . . . 10 3.5. Reversing the doors . . . . . . . . . . . . . . . . . 11 3.6. Reversing the doors . . . . . . . . . . . . . . . . . 12
4 Preparation |
13 |
4.1. What to do for energy saving . . . . . . . . . . 13 4.2. First Use . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Using the product |
14 |
5.1. Temperature adjustment button . . . . . . . . 14 5.2. Rapid freezing . . . . . . . . . . . . . . . . . . . . . 14 5.3. Vacation function . . . . . . . . . . . . . . . . . . . 15 5.4. Indicator panel . . . . . . . . . . . . . . . . . . . . . 16 5.5. Indicator panel . . . . . . . . . . . . . . . . . . . . . 18 5.6. Ice bucket . . . . . . . . . . . . . . . . . . . . . . . . 24 5.7. Eggholder . . . . . . . . . . . . . . . . . . . . . . . . 24 5.8. Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5.9. Vegetable bin . . . . . . . . . . . . . . . . . . . . . 24 5.10. Zero degree compartment. . . . . . . . . . . . 24 5.11. Moving door rack . . . . . . . . . . . . . . . . . . 25 5.12. Sliding storage box . . . . . . . . . . . . . . . . . 25 5.13. Moisture controlled vegetable bin . . . . . . 26 5.14. Automatic ice machine . . . . . . . . . . . . . . 26 5.15. Icematic and ice storage container . . . . . 27 5.16. Using the water dispenser . . . . . . . . . . . . 27 5.17. Filling the water dispenser's tank. . . . . . . 28 5.18. Cleaning the water tank . . . . . . . . . . . . 29 5.20. HerbBox/HerbFresh. . . . . . . . . . . . . . . . . 30 5.19. Drip tray . . . . . . . . . . . . . . . . . . . . . . . . . 30 5.21. Freezing fresh food . . . . . . . . . . . . . . . . . 31 5.22. Recommendations for storing frozen foods 31 5.23. Deep freezer details . . . . . . . . . . . . . . . . 32 5.24. Placing the food . . . . . . . . . . . . . . . . . . . 32 5.25. Door open alert. . . . . . . . . . . . . . . . . . . . 32 5.26. Changing the opening direction of the door32 5.27. Interior light . . . . . . . . . . . . . . . . . . . . . . 32
6 Maintenance and cleaning |
33 |
6.1. Avoiding bad odors. . . . . . . . . . . . . . . . . . 33 6.2. Protecting the plastic surfaces . . . . . . . . . 33 6.3. Door Glasses . . . . . . . . . . . . . . . . . . . . . 33
7 Troubleshooting |
34 |
|
|
|
2 /36 EN |
Refrigerator / User Guide |
|
|
|
|
|
|
|
1. |
Safety and environment instructions |
|
||||
|
This |
section provides the safety |
|
applications such as |
|||
|
instructions necessary to prevent |
|
– staff kitchen areas in shops, |
||||
|
the risk of injury and material |
|
|||||
|
|
offices and other working |
|||||
|
damage. Failure to observe these |
|
|||||
|
|
environments; |
|||||
|
instructions will invalidate all |
|
|||||
|
|
– farm houses and by clients |
|||||
|
types of product warranty. |
|
|||||
|
|
in hotels, motels and other |
|||||
|
Intended use |
|
|||||
|
|
residential type environments; |
|||||
|
|
|
|
– bed and breakfast type |
|||
|
|
WARNING: |
|
||||
|
|
Keep ventilation openings, |
|
environments; |
|||
|
Ain the appliance enclosure |
|
– catering and similar non-retail |
||||
|
|
or in the built-instructure, |
|
applications. |
|||
|
|
clear of obstruction. |
|
1.1.General safety |
|||
|
|
WARNING: |
|
||||
|
|
|
• This product should not be |
||||
|
|
Do not use mechanical |
|
used by persons with physical, |
|||
|
|
devices or other means |
|
sensory and mental disabilities, |
|||
|
|
to accelerate the |
|
without sufficient knowledge |
|||
|
Adefrosting process, other |
|
and experience or by children. |
||||
|
|
than those recommended |
The device can only be used by |
||||
|
|
by the manufacturer. |
|
such persons under supervision |
|||
|
|
WARNING: |
|
and instruction of a person |
|||
|
ADo not damage the |
|
responsible for their safety. |
||||
|
|
refrigerant circuit. |
|
Children should not be allowed |
|||
|
|
WARNING: |
|
to play with this device. |
|||
|
|
Do not use electrical |
|
• In case of malfunction, unplug |
|||
|
|
appliances inside |
|
the device. |
|||
|
|
the food storage |
|
• After unplugging, wait at least |
|||
|
Acompartments of the |
|
5 minutes before plugging in |
||||
|
|
appliance, unless |
|
again. |
|||
|
|
they are of the type |
|
• Unplug the product when not in |
|||
|
|
recommended by the |
|
use. |
|||
|
|
manufacturer. |
|
• Do not touch the plug with wet |
|||
|
|
|
|
|
hands! Do not pull the cable to |
||
|
This appliance is intended to be |
|
plug off, always hold the plug. |
||||
|
|
|
|
|
|||
|
used in household and similar |
|
|
|
|
|
|
|
Refrigerator / User Guide |
|
3/36 EN |
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Safety and environment instructions |
|||
• Do not plug in the |
• |
Do not wash the product by |
|
refrigerator if the socket is |
|
spraying or pouring water on |
|
loose. |
|
it! Danger of electric shock! |
|
• Unplug the product during |
• |
In case of malfunction, do |
|
installation, maintenance, |
|
not use the product, as it |
|
cleaning and repair. |
|
may cause electric shock. |
|
• If the product will not be |
|
Contact the authorised |
|
used for a while, unplug the |
|
service before doing |
|
product and remove any food |
|
anything. |
|
inside. |
• |
Plug the product into an |
|
• Do not use the product when |
|
earthed socket. Earthing |
|
the compartment with circuit |
|
must be done by a qualified |
|
cards located on the upper |
|
electrician. |
|
back part of the product |
• |
If the product has LED |
|
(electrical card box cover) (1) |
|
type lighting, contact the |
|
is open. |
|
authorised service for |
|
|
|
replacing or in case of any |
|
1 |
|
problem. |
|
• |
Do not touch frozen food |
||
|
|||
|
|
with wet hands! It may |
|
|
|
adhere to your hands! |
|
|
• Do not place liquids in |
||
1 |
|
bottles and cans into the |
|
|
freezer compartment. They |
||
|
|
may explode. |
|
|
• Place liquids in upright |
||
• Do not use steam or |
|
position after tightly closing |
|
steamed cleaning materials |
|
the lid. |
|
for cleaning the refrigerator |
• |
Do not spray flammable |
|
and melting the ice inside. |
|
substances near the product, |
|
Steam may contact the |
|
as it may burn or explode. |
|
electrified areas and cause |
• |
Do not keep flammable |
|
short circuit or electric |
|
materials and products with |
|
shock! |
|
flammable gas (sprays, etc.) |
|
4 /36 EN |
Refrigerator / User Guide |
|
Safety and environment instructions |
||
|
in the refrigerator. |
1.1.1 HC warning |
|
• Do not place containers |
If the product comprises a |
||
|
holding liquids on top of the |
cooling system using R600a |
|
|
product. Splashing water on |
gas, take care to avoid |
|
|
an electrified part may cause |
damaging the cooling system |
|
|
electric shock and risk of |
and its pipe while using and |
|
|
fire. |
moving the product. This gas |
|
• Exposing the product to rain, |
is flammable. If the cooling |
||
|
snow, sunlight and wind |
system is damaged, keep the |
|
|
will cause electrical danger. |
product away from sources |
|
|
When relocating the product, |
of fire and ventilate the room |
|
|
do not pull by holding the |
immediately. |
|
|
door handle. The handle may |
The label on the inner left |
|
|
come off. |
||
|
Cside indicates the type of |
||
• |
Take care to avoid trapping |
||
|
any part of your hands or |
gas used in the product. |
|
|
body in any of the moving |
1.1.2 For models with |
|
|
parts inside the product. |
||
|
water dispenser |
||
• |
Do not step or lean on the |
||
• Pressure for cold water |
|||
|
door, drawers and similar |
||
|
inlet shall be maximum 90 |
||
|
parts of the refrigerator. This |
||
|
psi (6.2 bar). If your water |
||
|
will cause the product to fall |
||
|
pressure exceeds 80 psi |
||
|
down and cause damage to |
||
|
(5.5 bar), use a pressure |
||
|
the parts. |
||
|
limiting valve in your mains |
||
• |
Take care not to trap the |
||
system. If you do not know |
|||
|
power cable. |
||
|
how to check your water |
||
|
|
||
|
|
pressure, ask for the help of |
|
|
|
a professional plumber. |
|
|
|
• If there is risk of water |
|
|
|
hammer effect in your |
|
|
|
installation, always |
|
|
|
use a water hammer |
|
|
|
prevention equipment in |
Refrigerator / User Guide |
5/36EN |
|
|
|
|
|
Safety and environment instructions |
|||
|
your installation. Consult |
following the product |
||
|
Professional plumbers if you |
purchasing date. |
||
|
are not sure that there is no |
1.3.Child safety |
||
|
water hammer effect in your |
|||
|
• Keep packaging materials |
|||
|
installation. |
|||
|
out of children’s reach. |
|||
• Do not install on the hot |
||||
• Do not allow the children to |
||||
|
water inlet. Take precautions |
|||
|
against of the risk of |
play with the product. |
||
|
• If the product’s door |
|||
|
freezing of the hoses. Water |
|||
|
temperature operating |
comprises a lock, keep the |
||
|
key out of children’s reach. |
|||
|
interval shall be 33°F |
|||
|
|
|
||
|
(0.6°C) minimum and 100°F |
1.4. Compliance with WEEE |
||
|
(38°C) maximum. |
Directive and Disposing |
||
• |
Use drinking water only. |
of the Waste Product |
||
1.2.Intended use |
This product complies with EU WEEE |
|||
Directive (2012/19/EU). This product bears a |
||||
• |
This product is designed for |
classification symbol for waste electrical and |
||
|
home use. It is not intended |
electronic equipment (WEEE). |
||
|
|
This product has been |
||
|
for commercial use. |
|
manufactured with high quality |
|
• |
The product should be used |
|
parts and materials which can be |
|
|
reused and are suitable for |
|||
|
to store food and beverages |
|
||
|
|
recycling. Do not dispose of the |
||
|
only. |
|
waste product with normal |
|
|
|
|||
• |
Do not keep sensitive |
|
domestic and other wastes at the |
|
|
||||
end of its service life. Take it to the collection |
||||
|
products requiring controlled |
|||
|
center for the recycling of electrical and |
|||
|
temperatures (vaccines, |
electronic equipment. Please consult your local |
||
|
heat sensitive medication, |
authorities to learn about these collection |
||
|
centers. |
|||
|
medical supplies, etc.) in the |
|||
|
1.5. Compliance with |
|||
|
refrigerator. |
|||
• |
The manufacturer assumes |
RoHS Directive |
||
• This product complies with EU |
||||
|
no responsibility for any |
|||
|
WEEE Directive (2011/65/EU). |
|||
|
damage due to misuse or |
It does not contain harmful and |
||
|
mishandling. |
prohibited materials specified in |
||
• Original spare parts will |
the Directive. |
be provided for 10 years,
|
6 /36 EN |
Refrigerator / User Guide |
Safety and environment instructions
1.6. Package information
•Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
Refrigerator / User Guide |
7/36EN |
|
|
|
|
2 Your Refrigerator
|
|
|
*1 |
|
*15 |
|
*2 |
|
*14 |
|
*3 |
|
*5 |
|
*4 |
|
|
|
|
|
16 |
|
|
|
13 |
|
|
|
*12 |
|
*5 |
|
*11 |
|
*6 |
|
|
|
|
|
*9 |
|
|
|
*10 |
|
|
|
17 |
|
|
|
*8 |
|
|
|
7 |
7 |
|
|
|
|
|
1. |
Cooler compartment door shelf |
10. |
Ice cube tray & Ice bank |
2. |
Water dispenser filling tank |
11. |
Vegetable bin |
3. |
Egg section |
12. |
Zero degree compartment |
4. |
Water dispenser reservoir |
13. |
Interior light |
5. |
Bottle shelf |
14. |
Cooler compartment glass shelf |
6. |
Sliding storage box |
15. |
Temperature adjustment button |
7. |
Adjustable legs |
16. |
Cooler compartment |
8. |
Deep freezer compartment |
17. |
Freezer compartment |
9. |
Quick freeze compartment |
|
|
|
*optional: Pictures given in this manual are given as example figures and they may not be exactly |
||
|
the same as your product. If your product does not comprise the relevant parts, the information |
||
Cpertains to other models. |
|
|
|
8 /36 EN |
Refrigerator / User Guide |
|
|
|
|
|
|
3 Installation
3.1. Right place for installation
Contact the Authorized Service for the product's installation. To ready the product for installation, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary.
BWARNING: The manufacturer assumes no responsibility for any damage caused by the work carried out by unauthorized persons.
BWARNING: The product’s power cable must be unplugged during installation. Failure to do so may result in death or serious injuries!
AWARNING: If the door span is too narrow for the product to pass, remove the door and turn the product sideways; if this does not work, contact the authorized service.
•Place the product on a flat surface to avoid vibration.
•Place the product at least 30 cm away from the heater, stove and similar sources of heat and at least 5 cm away from electric ovens.
•Do not expose the product to direct sunlight or keep in damp environments.
•The product requires adequate air circulation to function efficiently.
•If the product will be placed in an alcove, remember to leave at least 5 cm distance between the product and the ceiling and the walls.
•Do not install the product in environments with temperatures below -5°C.
3.2. Attaching the plastic wedges
Use the plastic wedges in the provided with the product to provide sufficient space for air circulation between the product and the wall.
1.To attach the wedges, remove the screws on the product and use the screws provided with the wedges.
2.Attach 2 plastic wedges on the ventilation cover as shown in the figure.
3.3. Adjusting the stands
If the product is not in balanced position, adjust the front adjustable stands by rotating right or left.
Refrigerator / User Guide |
9/36 EN |
|
Installation

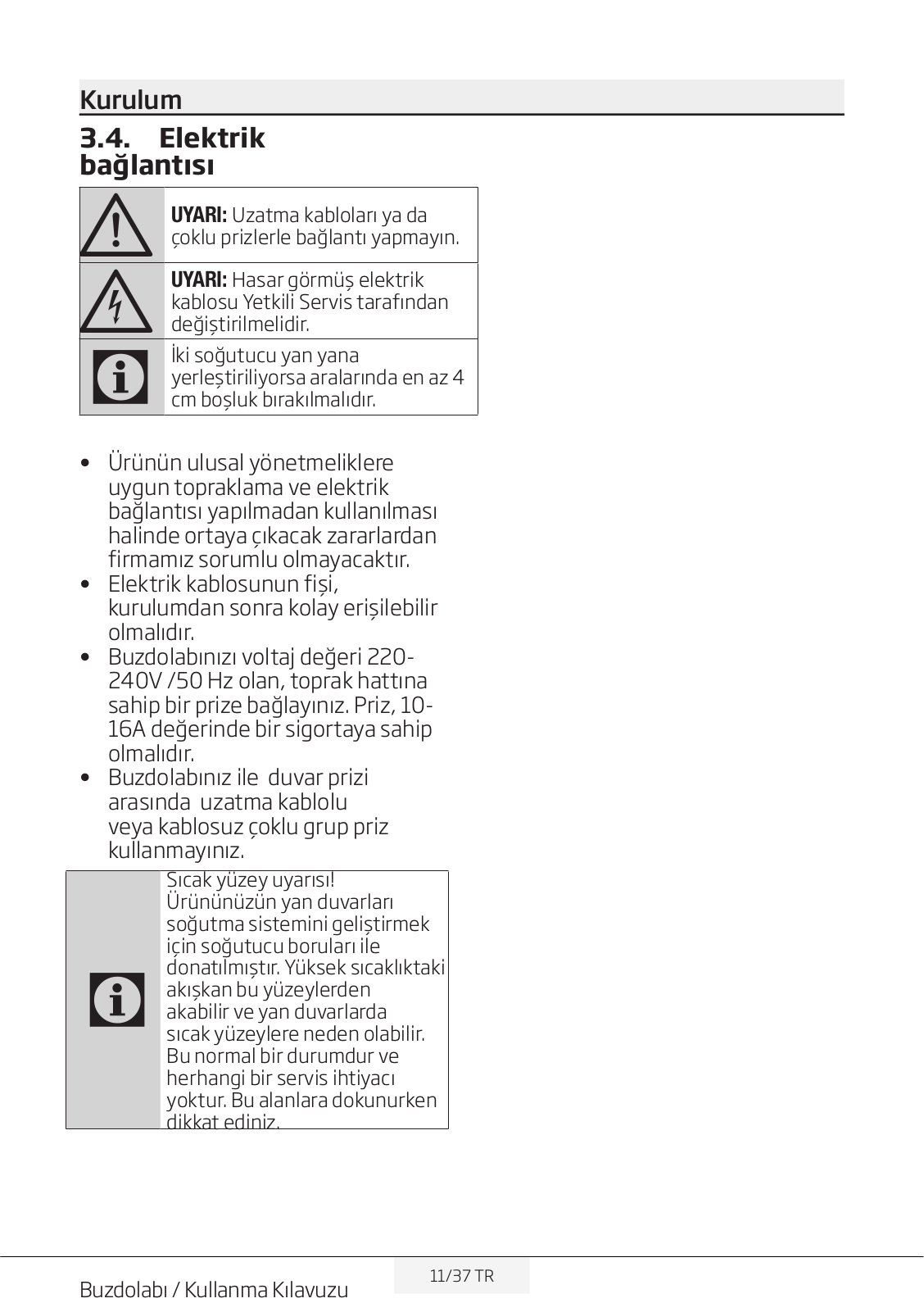

3.4. Power connection
AWARNING: Do not use extension or multi sockets in power connection.
BWARNING: Damaged power cable must be replaced by Authorized Service.
CWhen placing two coolers in adjacent position, leave at least 4 cm distance between the two units.
•Our firm will not assume responsibility for any damages due to usage without earthing and power connection in compliance with national regulations.
•The power cable plug must be easily accessible after installation.
•Connect the refrigerator to an earthed socket with 220-240V/50 Hz voltage. The plug must comprise a 10-16A fuse.
•Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.
Hot Surface Warning!
Side walls of your product is equipped with refrigerant pipes to improve the
Ccooling system. Refrigerant with high temperatures may flow through these areas, resulting in hot surfaces on the side walls. This is normal and does not need any servicing. Please pay attention while touching these areas.
|
10 /36 EN |
Refrigerator / User Guide |
|
|
|
Installation
3.5. Reversing the doors
1 |
9 |
Proceed in numerical order . |
9 |
|
3 |
|
6 |
2 |
10 |
|
||
|
|
|
5 |
11 |
12 |
45 |
4 |
|
|
|
8
7
13
21
16
19
|
20 |
18 |
20 |
|
15
14
Refrigerator / User Guide |
11/36 EN |
|
|
|
|
Installation
3.6. Reversing the doors
Proceed in numerical order . |
(8) |
|
(13) |
|
|
|
|
|
|
7 |
20 |
|
|
|
|
|
1 |
1 |
|
|
|
|
|
2 |
|
6 |
|
|
5 |
|
|
|
|
|
|
14 |
|
11 |
|
|
|
|
|
45° |
|
13 |
9 |
|
|
|
|
|
|
4 |
|
10 |
|
|
|
12 |
8 |
20 |
|
|
|
||
180° |
|
15 |
|
|
|
20 |
|
16
18
17
19
|
12 /36 EN |
Refrigerator / User Guide |
|
|
|
4 Preparation
4.1. What to do for energy saving
AConnecting the product to electronic energy-saving systems is harmful, as it may damage the product.
•Do not keep the refrigerator doors open for long periods.
•Do not place hot food or beverages into the refrigerator.
•Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.
•In order to store the maximum amount of food into the cooler compartment of your refrigerator, you should take out the upper drawers and place it onto the glass rack.
The declared energy consumption of your refrigerator was determined by taking out the cooler, ice tray and upper drawers in a way that will enable maximum storage. Using the below drawer when storing is strongly recommended. Energy saving function should be activated for best energy consumption.
•You should not block the airflow by putting food in front of the cooler fan. A space of minimum 3cm must be left in front of the protective fan wire when placing food.
•Depending on the product’s features; defrosting frozen foods in the cooler compartment will ensure energy saving and preserve food quality.
•Food should be stored using the drawers in the cooler compartment in order to ensure energy saving and protect food in better conditions.
•Food packages should not be in direct contact with the heat sensor located in the cooler compartment. If they are in contact with the sensor, energy consumption of the appliance might increase.
•Make sure the foods are not in contact with the cooler compartment temperature sensor described below.
4.2. First Use
Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in “Safety and environment instructions” and “Installation” sections.
•Keep the product running with no food inside for 6 and do not open the door, unless absolutely necessary.
CA sound will be heard when the compressor is engaged. It is normal to hear sound even when the compressor is inactive, due to the compressed liquids and gasses in the cooling system.
CFront edges of the product might heat up. This is normal. These areas are designed to warm up in order to prevent condensation.
CIn some models indicator panel turns off automatically 5 minutes after the door closes. It will be reactivated when the door is open or any button is pressed.
Refrigerator / User Guide |
13/36 EN |
|
5 Using the product
5.1. Temperature adjustment button
Internal temperature of your refrigerator varies depending on the following reasons:
•Seasonal temperatures,
•Opening the door frequently and leaving it open for long periods,
•Meals put into the refrigerator without being cooled to room temperature,
•Location of the refrigerator in the room (e.g. exposed to sunshine).
•Internal temperature varying due to these factors can be adjusted via the adjustment button.
Numbers around the adjustment button indicate temperature degrees as “°C”.
If the ambient temperature is 20°C, it is recommended to use the refrigerator temperature adjustment at 4°C. In other ambient temperatures this value can be customised.
5.2. Rapid freezing
If you want to freeze large amounts of fresh food, switch the temperature adjustment button to
( ) position before putting the food into the quick freezing compartment.
It is recommended to keep the button at this position for 24 hours to freeze maximum amount of food indicated as the freezing capacity. Pay special attention not to mix food stolen as frozen and fresh food.
Remember to switch the temperature adjustment button back to its previous position.
|
14 /36 EN |
Refrigerator / User Guide |
|
|
|
|
|
|
Using the product
5.3. Vacation function
If doors of the product is not ( ) opened for at least 12 hours after adjusting the temperature setting button to the highest, vacation function is automatically activated.
Button setting must be changed to cancel the function.
It is not recommended to store food in the cooler compartment when vacation function is activated.
• After setting is completed, you can conceal the temperature setting button by pressing it inside.
Refrigerator / User Guide |
15/36EN |
|
Using the product
5.4. Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your product.
8 |
|
|
|
|
1 |
|
2 |
|
|
3 |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9
7 |
6 |
5 |
4 |
1.Fridge Compartment Indicator
2.Error status indicator
3.Temperature indicator
4.Vacation function button
5.Temperature setting button
6.Compartment selection button
7.Freezer compartment indicator
8.Economy mode indicator
9.Vacation function indicator
*optional
C *Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
|
16 /36EN |
Refrigerator / User Guide |
|
|
|
|
|
|
Using the product
1. Fridge compartment indicator
Fridge compartment light is illuminated while the fridge compartment temperature is set.
2. Error status indicator
If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator
is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.
3.Temperature indicator
Indicates freezer, fridge compartment temperature.
4.Vacation function button
Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments
shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation button again.
5. Temperature setting button
Changes the temperature of the relevant compartment between -24°C... -18°C and 8°C...1°C.
6.Compartment selection button
Selection button: Press compartment selection button to switch between fridge and freezer compartments.
7.Freezer compartment indicator
Fridge compartment light is illuminated while the freezer compartment temperature is set.
8.Economy mode indicator
Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18°C.
9.Vacation function indicator
Indicates that vacation is activated.
Refrigerator / User Guide |
17/36EN |
|
Using the product
5.5. Indicator panel
Indicator panel allows you to set the temperature and control the other functions related to the product without opening the door of the product. Just press the inscriptions on relevant buttons for function settings.
1 2
12
11 *10 |
9 |
8 |
7 |
6 |
5 |
4 |
3 |
1. Power failure/High temperature / error warning indicator
This indicator () illuminates during power failure, high temperature failures and error warnings. During sustained power failures, the highest temperature that the freezer compartment reaches will flash on the digital display. After checking the food located in the freezer compartment ) press the alarm off button to clear the warning.
Please refer to "remedies advised for troubleshooting" section on your manual if you observe that this indicator is illuminated.
2. Energy saving function (display off):
If the product doors are kept closed for a long time energy saving function is automatically activated and energy saving symbol is illuminated. ( )
When energy saving function is activated, all symbols on the display other than energy saving symbol will turn off. When the Energy Saving function is activated, if any button is pressed or the door is opened, energy saving function will be canceled and the symbols on display will return to normal.
Energy saving function is activated during delivery from factory and cannot be canceled.
C *Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
|
18 /36EN |
Refrigerator / User Guide |
|
|
|
|
|
|
Using the product
3.Quick fridge function
The button has two functions. To activate or deactivate the quick cool function press it briefly. Quick Cool indicator will turn off and the product will return to its normal settings. ( )
CUse quick cooling function when you want to quickly cool the food placed in the fridge compartment. If you want to cool large amounts of fresh food,
activate this function before putting the food into the product.
CIf you do not cancel it, quick cooling will cancel itself automatically after 8 hours or when the fridge compartment reaches to the required temperature.
CIf you press the quick cooling button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.
CThis function is not recalled when power restores after a power failure.
4. Fridge compartment temperature setting button
Press this button to set the temperature of the fridge compartment to 8, 7,6, 5,4,3, 2, 8...
respectively. Press this button to set the fridge compartment temperature to the desired value. ()
5.Vacation Function
In order to activate vacation function, press the this button ( ) for 3 seconds, and the vacation mode indicator () will be activated. When the vacation function is activated,
“- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.
To cancel this function press Vacation function button again.
6. Alarm off warning:
In case of power failure/high temperature alarm, after checking the food located in the freezer compartment press the alarm off button () to clear the warning.
7. Key lock
Press key lock button ( ) simultaneously for 3 seconds. Key lock symbol
() will light up and key lock mode will be activated. Buttons will not function if the Key lock mode is active. Press key lock button simultaneously for 3 seconds again. Key lock symbol will turn off and the key lock mode will be exited.
Press the key lock button if you want to prevent changing of the temperature setting of the refrigerator ( ).
8. Eco fuzzy
Press and hold eco fuzzy button for 1 seconds to activate eco fuzzy function. Refrigerator will start operating in the most economic mode at least 6 hours later and the economic usage indicator will turn on when the function is
active ( ). Press and hold eco fuzzy function button for 3 seconds to deactivate eco fuzzy function.
This indicator is illuminated after 6 hours when eco fuzzy is activated.
Refrigerator / User Guide |
19/36EN |
|
Using the product
9. Freezer compartment temperature setting button
Press this button to set the temperature of the freezer compartment to -18,-19,-20,-21, -22, -23,-24, -18... respectively. Press this button to set the freezer compartment temperature to the desired value.()
10. Icematic off indicator
Indicates whether the icematic is on or off. ( )If On, then the icematic is not operating. To operate the icematic again press and hold the On-Off button for 3 seconds.
CWater flow from water tank will stop when this function is selected.
However, ice made previously can be taken from the icematic.
11. Quick freeze function button/ icematic on-off button
Press this button to activate or deactivate the quick freezing function. When you activate the function, the freezer compartment will be cooled to a temperature lower than the set value. ()
To turn on and off the icematic press and hold it for 3 seconds.
CUse the quick freeze function when you want to quickly freeze the food placed in fridge compartment. If you want to freeze large amounts of fresh food, activate this function before putting the food into the product.
CIf you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.
CThis function is not recalled when power restores after a power failure.
12. Economic usage indicator
Indicates that the product is running in energyefficient mode. ()This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.
CEconomic usage indicator is turned off when quick cooling or quick freeze functions are selected.
|
20 /36EN |
Refrigerator / User Guide |
|
|
|
|
|
|
Using the product
12 3
4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11 |
10 |
9 |
8 7.2 7.16 |
5 |
||||||
1- |
Economic use |
|
|
|
|
|
||||
|
2- High temperature / fault alert |
|
|
|||||||
|
3- Energy saving function (display off) |
|
|
|||||||
4- |
Rapid cooling |
|
|
|
|
|
||||
5- |
Vacation function |
|
|
|
|
|
||||
|
6- Cooler compartment temperature |
|
|
|||||||
|
|
setting |
|
|
|
|
|
|
|
|
|
7- Energy saving (display off) / Alarm off |
|||||||||
8- |
warning |
|
|
|
|
|
|
|
||
Keypad lock |
|
|
|
|
|
|||||
|
9- Eco-fuzzy |
|
|
|
|
|
|
|
||
|
10Freezer compartment temperature |
|
|
setting
11Rapid freezing
C *Optional: The figures in this user guide are intended as drafts and may not perfectly match your product. If your product does not comprise the relevant parts, the information pertains to other models.
Refrigerator / User Guide |
21/36EN |
|
Using the product
1. Economic use |
|
|
4. Rapid cooling |
|
|
|
This sign will light up when the freezer |
When the rapid cooling function is turned on, the |
|||||
compartment is set to -18°C', the most |
rapid cool indicator will light up ( |
) |
and the co- |
|||
economical setting. ( |
) Economic use |
oler compartment temperature indicator will disp- |
||||
indicator will turn off when rapid cooling or |
lay the value 1. Push the Rapid cool button again |
|||||
rapid freezing function is selected. |
to cancel this function. The Rapid cool indicator will |
|||||
2. High temperature / fault alert |
turn off and return to normal setting. The rapid co- |
|||||
oling function will be automatically cancelled after |
||||||
This indicator ( |
) will light up in case of |
|||||
1 hour, unless cancelled by the user. Too cool a lar- |
||||||
temperature faults or fault alerts. If you |
||||||
ge amount of fresh food, press the rapid cool but- |
||||||
see this indicator is lit up, please see the |
||||||
ton before placing the food in the cooler compart- |
||||||
"recommended solutions for problems" section |
||||||
ment. |
|
|
||||
in this guide. |
|
|
|
|
||
|
|
5. Vacation function |
|
|
||
This indicator illuminates during power failure, |
|
|
||||
To activate the Vacation function, press the |
||||||
high temperature failures and error warnings. |
||||||
button for ( ) 3 seconds; this will activate |
||||||
During sustained power failures, the highest |
||||||
the vacation mode indicator ( |
). When |
|||||
temperature that the freezer compartment |
||||||
the Vacation function is active, the cooler |
||||||
reaches will flash on the digital display. After |
||||||
compartment temperature indicator displays |
||||||
checking the food located in the freezer |
||||||
the inscription "- -" and no cooling process |
||||||
compartment press the alarm off button to |
||||||
will be active in the cooling compartment. This |
||||||
clear the warning. |
|
|
||||
|
|
function is not suitable to keep food in the |
||||
Please refer to “remedies advised for |
||||||
cooler compartment. Other compartments will |
||||||
troubleshooting” section on your manual if you |
||||||
remain cooled with the respective temperature |
||||||
observe that this indicator is illuminated. |
||||||
set for each compartment. |
|
|
||||
3. Energy saving function (display off) |
|
|
||||
Push the vacation function button again to |
||||||
|
|
|
||||
If the product doors are kept closed for a long |
cancel this function |
|
|
|||
time energy saving function is automatically |
6. Cooler compartment temperature set- |
|||||
activated and energy saving symbol is |
||||||
ting |
|
|
||||
illuminated. When energy saving function is |
After pressing the button, the cooler |
|||||
activated, all symbols on the display other |
compartment temperature can be set to |
|||||
than energy saving symbol will turn off. When |
8,7,6,5,4,3,2 and 1 respectively. ( |
) |
the Energy Saving function is activated, if any button is pressed or the door is opened,
energy saving function will be canceled and the symbols on display will return to normal. Energy saving function is activated during delivery from factory and cannot be canceled.
|
22 /36EN |
Refrigerator / User Guide |
|
|
|
|
|
|
