Beckhoff CB4058 Manual 1.3

CB4058
Manual
rev. 1.3
Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de
Contents
0 Document History................................................................................................................................. 6
1 Introduction .......................................................................................................................................... 7
1.1 Notes on the Documentation ........................................................................................................ 7
1.1.1 Liability Conditions ................................................................................................................ 7
1.1.2 Copyright ............................................................................................................................... 7
1.2 Safety Instructions ........................................................................................................................ 8
1.2.1 Disclaimer ............................................................................................................................. 8
1.2.2 Description of Safety Symbols .............................................................................................. 9
1.3 Essential Safety Measures ......................................................................................................... 10
1.3.1 Operator's Obligation to Exercise Diligence ....................................................................... 10
1.3.2 National Regulations Depending on the Machine Type ..................................................... 10
1.3.3 Operator Requirements ...................................................................................................... 10
1.4 Functional Range ........................................................................................................................ 11
2 Overview ............................................................................................................................................ 12
2.1 Features ...................................................................................................................................... 12
2.2 Specifications and Documents ................................................................................................... 14
3 Connectors ......................................................................................................................................... 15
3.1 Connector Map ........................................................................................................................... 16
3.2 Power Supply .............................................................................................................................. 17
3.3 System/SM-Bus .......................................................................................................................... 18
3.4 Memory ....................................................................................................................................... 19
3.5 PCI/104-Express Bus ................................................................................................................. 22
3.6 PCI-Express Mini Card ............................................................................................................... 24
3.7 DVI/HDMI .................................................................................................................................... 25
3.8 DisplayPort.................................................................................................................................. 26
3.9 VGA ............................................................................................................................................ 27
3.10 LCD ............................................................................................................................................. 28
3.11 Audio ........................................................................................................................................... 30
3.12 USB ............................................................................................................................................. 31
3.13 LAN ............................................................................................................................................. 33
3.14 SATA Interfaces .......................................................................................................................... 34
3.15 COM1 and COM2 ....................................................................................................................... 35
3.16 GPIO ........................................................................................................................................... 36
3.17 Monitoring Functions .................................................................................................................. 37
4 State LEDs ......................................................................................................................................... 38
4.1 HD LED ....................................................................................................................................... 38
4.2 RGB LED .................................................................................................................................... 39
5 BIOS Settings ..................................................................................................................................... 40
5.1 General Remarks ........................................................................................................................ 40
5.2 Main ............................................................................................................................................ 41
5.3 Advanced .................................................................................................................................... 42
5.3.1 PCI Subsystem Settings ..................................................................................................... 43
5.3.2 ACPI Settings...................................................................................................................... 45
5.3.3 CPU Configuration .............................................................................................................. 46
5.3.4 SATA Configuration ............................................................................................................ 48
5.3.5 Power Controller Options .................................................................................................... 49
Beckhoff New Automation Technology CB4058 page 3
Contents
5.3.6 USB Configuration .............................................................................................................. 50
5.3.7 Super IO Configuration ....................................................................................................... 51
5.3.8 H/W Monitor ........................................................................................................................ 53
5.3.9 Serial Port Console Redirection.......................................................................................... 55
5.4 Chipset ........................................................................................................................................ 58
5.4.1 Host Bridge ......................................................................................................................... 59
5.4.2 South Bridge ....................................................................................................................... 62
5.5 Boot ............................................................................................................................................. 64
5.6 Security ....................................................................................................................................... 66
5.6.1 Secure Boot Policy ............................................................................................................. 67
5.6.2 Key Management ................................................................................................................ 68
5.7 Save & Exit ................................................................................................................................. 70
5.8 BIOS-Update .............................................................................................................................. 71
6 Mechanical Drawings ......................................................................................................................... 72
6.1 PCB: Mounting Holes ................................................................................................................. 72
6.2 PCB: Pin 1 Dimensions .............................................................................................................. 73
6.3 PCB: Heat Sink ........................................................................................................................... 74
7 Technical Data ................................................................................................................................... 75
7.1 Electrical Data ............................................................................................................................. 75
7.2 Environmental Conditions ........................................................................................................... 75
7.3 Thermal Specifications ............................................................................................................... 76
8 Support and Service .......................................................................................................................... 77
8.1 Beckhoff's Branch Offices and Representatives ........................................................................ 77
8.2 Beckhoff Headquarters ............................................................................................................... 77
8.2.1 Beckhoff Support ................................................................................................................ 77
8.2.2 Beckhoff Service ................................................................................................................. 77
I Annex: Post-Codes ............................................................................................................................ 79
II Annex: Resources .............................................................................................................................. 80
IO Range ................................................................................................................................................ 80
Memory Range ....................................................................................................................................... 80
Interrupt .................................................................................................................................................. 80
PCI Devices ............................................................................................................................................ 81
SMB Devices .......................................................................................................................................... 81
page 4 Beckhoff New Automation Technology CB4058
Notes on the Documentation Chapter: Document History
Beckhoff New Automation Technology CB4058 page 5
Chapter: Document History Notes on the Documentation
Version
Changes
0.1
first pre-release
1.0
updated photographs
1.1
updated BIOS settings
1.2
chapter 3.2: added information on power supply for PCI adapter boards.
1.3
chapter 3.17: corrected pinout pin 7 and 9
0 Document History
NOTE
All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law.
page 6 Beckhoff New Automation Technology CB4058
Notes on the Documentation Chapter: Introduction
1 Introduction
1.1 Notes on the Documentation
This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components.
1.1.1 Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards. The documentation has been prepared with care. The products described are, however, constantly under development. For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics. None of the statements of this manual represents a guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Copyright
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.
Beckhoff New Automation Technology CB4058 page 7
Chapter: Introduction Safety Instructions
1.2 Safety Instructions
Please consider the following safety instructions and descriptions. Product specific safety instructions are to be found on the following pages or in the areas mounting, wiring, commissioning etc.
1.2.1 Disclaimer
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.
page 8 Beckhoff New Automation Technology CB4058
Safety Instructions Chapter: Introduction
1.2.2 Description of Safety Symbols
The following safety symbols are used in this documentation. They are intended to alert the reader to the associated safety instructions.
ACUTE RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health of individuals!
RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is danger to life and health of individuals!
HAZARD TO INDIVIDUALS, ENVIRONMENT, DEVICES, OR DATA!
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data.
NOTE OR POINTER
This symbol indicates information that contributes to better understanding.
Beckhoff New Automation Technology CB4058 page 9
Chapter: Introduction Essential Safety Measures
1.3 Essential Safety Measures
1.3.1 Operator's Obligation to Exercise Diligence
The operator must ensure that
o the product is only used for its intended purpose o the product is only operated in sound condition and in working order o the instruction manual is in good condition and complete, and always available for reference at the
location where the products are used
o the product is only used by suitably qualified and authorised personnel o the personnel is instructed regularly about relevant occupational safety and environmental protection
aspects
o the operating personnel is familiar with the operating manual and in particular the safety notes
contained herein
1.3.2 National Regulations Depending on the Machine Type
Depending on the type of machine and plant in which the product is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. These regulations cover, amongst other things, the intervals between inspections of the controller. The operator must initiate such inspections in good time.
1.3.3 Operator Requirements
o Read the operating instructions All users of the product must have read the operating instructions for the system they work with. o System know-how All users must be familiar with all accessible functions of the product.
page 10 Beckhoff New Automation Technology CB4058
Functional Range Chapter: Introduction
1.4 Functional Range
NOTE
The descriptions contained in the present documentation represent a detailed and extensive product description. As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. Due to several models of Industrial PCs, variations in the component placement of the motherboards are possible. Support and service benefits for the built-in motherboard will be rendered by Beckhoff Automation GmbH exclusively as specified in the product description (inclusive operation system) of the particular Industrial PC.
Beckhoff New Automation Technology CB4058 page 11
Chapter: Overview Features
ICH9M-E
Intel® 82801IUX
SoDIMM204
DDR3-800/
1066
MEMORY
Power VCCCore;
DDRVTT; GFXVCC;
1.05V; 1.5V; 1.8V; 3.3V
BIOS
SATA1-2
RealTek®
ALC889
HDA Link
USB1-8
Intel® Atom
N2600 (DC, 1.6GHz,
3.5W TDP)
CRT LCD
LVDS 18Bit, single pixel
DMI
1.5GB/3.0GB
Intel®
82567
LAN1
10/100/1000
SMBus
SPI
(PCIe Mini Card
1x PCIe x1, USB11)
USB 2.0
NXP®
PCA9535
SMBus
16x GPIO
MIC 1/2
7.1 Audio AUX l/r
SPDIF i/o
SMSC®
SCH3114
LPC
MS
KB
COM1-2
FAN 1-3
Intel®
82574L
DP/HDMI
DVI/HDMI
LAN2
10/100/1000
PCIe (x1)
PCIe/104 connector (type 2)
4x (3x)
PCIe x1
USB9-10
SATA3-4
USB 2.0
1.5GB/3.0GB
2 Overview
2.1 Features
The CB4058 is a highly complex computer motherboard in the PC/104™ form factor, complying with the
state-of-the-art "PCIe/104™" standard. It's based on Intel®'s Atom® N2600 CPUs combined with the ICH9M-E chip (SFF). Modern DDR3 technology provides top-notch memory performance, accomodating up to 2 GByte of RAM (DDR3-800/1066) via SO-DIMM204. PCI-Express is available through the PCI/104-Express Type 2 connector, giving system builders a great deal of flexibility as far as expansion cards are concerned. An optional PCIe Mini Card socket adds to that picture. Additional onboard peripheral devices include two serial interfaces, two Gigabit Ethernet interfaces (LAN), up to four SATA channels, an audio interface (HDA 7.1), and up to eleven USB channels. DisplayPort/HDMI and DVI/HDMI interfaces are available as well CRT and LVDS/TFT support. There are also 16 discrete programmable GPIO signals.
o Processor Intel® Atom® N2600 (Dualcore, 1.6 GHz, 3.5W TDP) o Chipset Intel® ICH9M-E (SFF) o SO-DIMM204 socket for one DDR3-800/1066 module of up to 2 GByte o Two serial interfaces COM1-2 o Two LAN interfaces Ethernet 10/100/1000 (Base-T) o Four SATA channels (two of which on the PCI104-Express connector) o PS2 keyboard / mouse interface o Up to eleven USB 2.0 interfaces (two on PCI104-Express connector, one on Mini Card) o BIOS AMI® Aptio® o DisplayPort/HDMI interface o DVI/HDMI interface o CRT connection
page 12 Beckhoff New Automation Technology CB4058
Features Chapter: Overview
o LCD connection via LVDS 18Bit (single pixel) o HDA compatible sound controller with SPDIF in and out o RTC with external CMOS battery o PCI-Express bus via PCI/104-Express connector (type 2, four x1 lanes) o PCI-Express Mini Card connector (option, one x1 lane) o 16x GPIO o 5V and 12V supply voltage o Size: 96 mm x 90 mm
Beckhoff New Automation Technology CB4058 page 13
Chapter: Overview Specifications and Documents
2.2 Specifications and Documents
In making this manual and for further reading of technical documentation, the following documents, specifications and web-pages were used and are recommended.
PC/104™ Specification
Version 2.5
www.pc104.org
PC/104-Plus™ Specification
Version 2.3
www.pc104.org
PCI104-Express™ Specification
Version 1.1
www.pc104.org
PCI-Express® Mini Card Specification
Version 1.2
www.pcisig.com
PCI Specification
Version 2.3 and 3.0
www.pcisig.com
ACPI Specification
Version 3.0
www.acpi.info
ATA/ATAPI Specification
Version 7 Rev. 1
www.t13.org
USB Specifications
www.usb.org
SM-Bus Spedifidation
Version 2.0
www.smbus.org
Intel®-Chip Description
Atom® Processor D2000 and N2000 Series
www.intel.com
Intel® Chip Description
Intel® ICH9 Datasheet
www.intel.com
Intel® Chip Description
82567 Datasheet
www.intel.com
Intel® Chip Description
82574L Datasheet
www.intel.com
SMSC® Chip Description
SCH3114 Datasheet
www.smsc.com
IDT® Chip Description
ICS9LPRS501SKLF Datasheet
www.idt.com
Realtek® Chip Description
ALC889 Datasheet
www.realtek.com.tw
page 14 Beckhoff New Automation Technology CB4058
Specifications and Documents Chapter: Connectors
3 Connectors
This section describes all the connectors found on the CB4058.
CAUTION
For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. Please refer to the respective specifications and use suitable cables at all times.
Beckhoff New Automation Technology CB4058 page 15

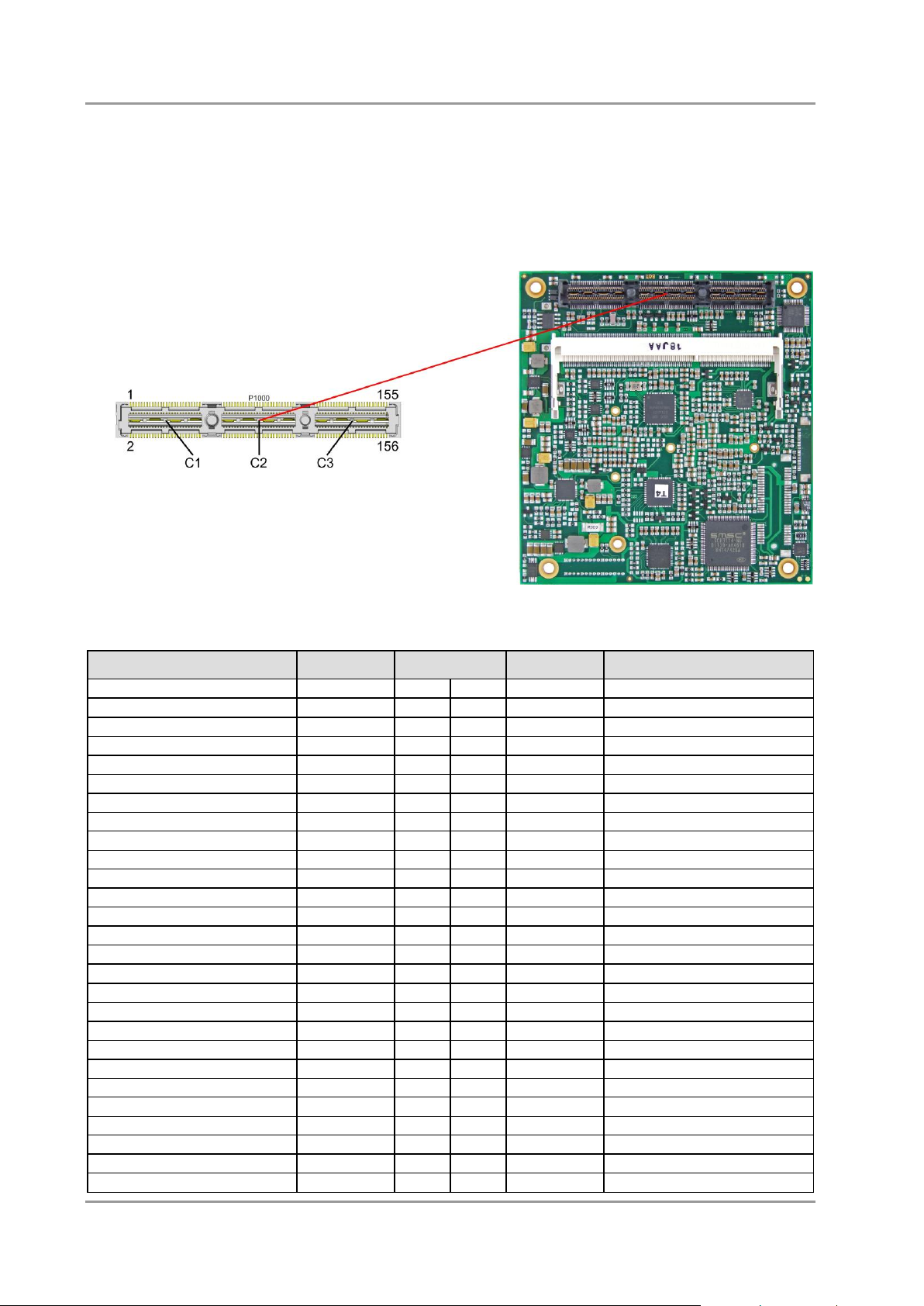

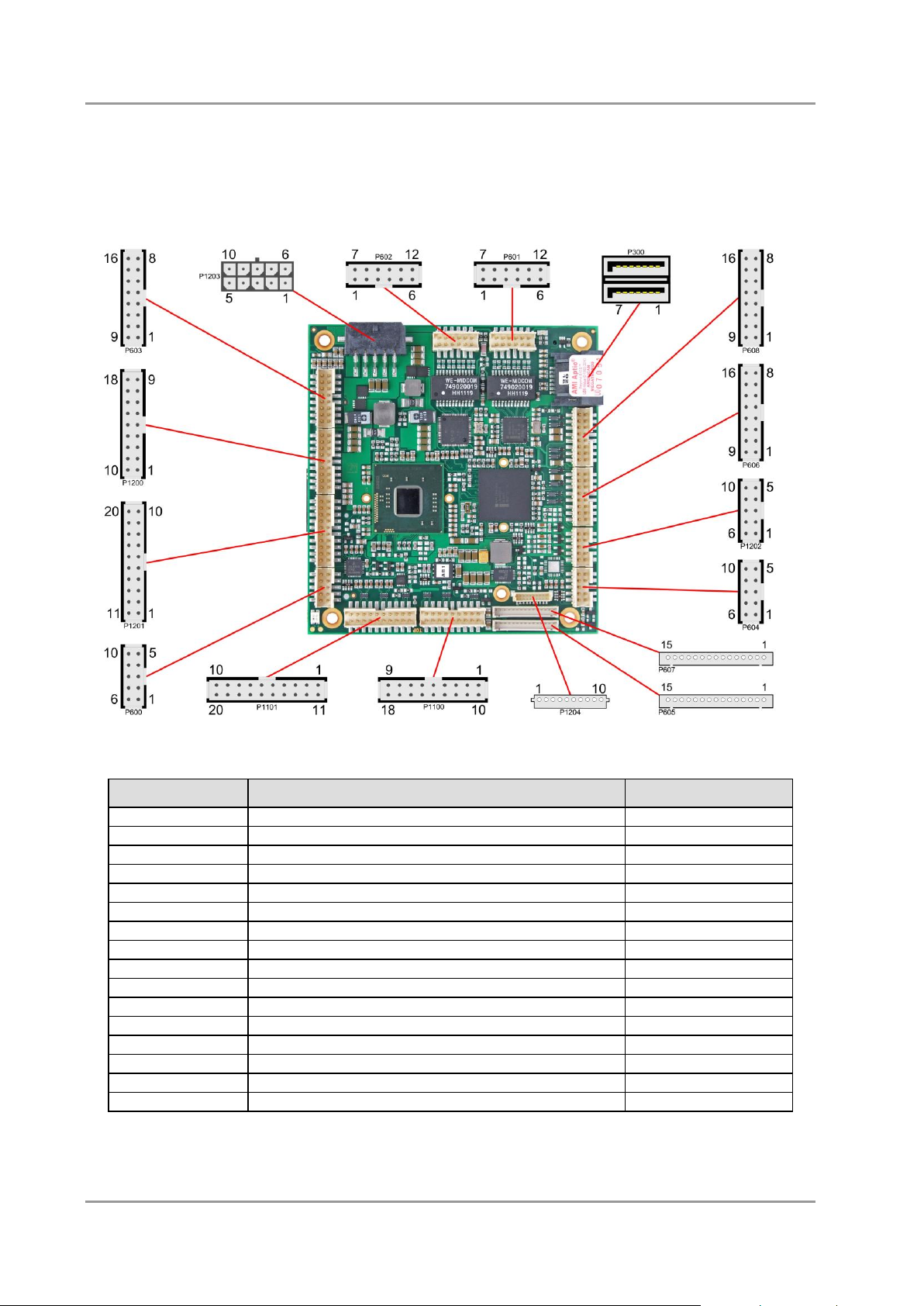

Chapter: Connectors Connector Map
Ref-No.
Function
Page
P300
"SATA Interfaces"
p. 34
U400*
"Memory"
p. 19
P600/P604

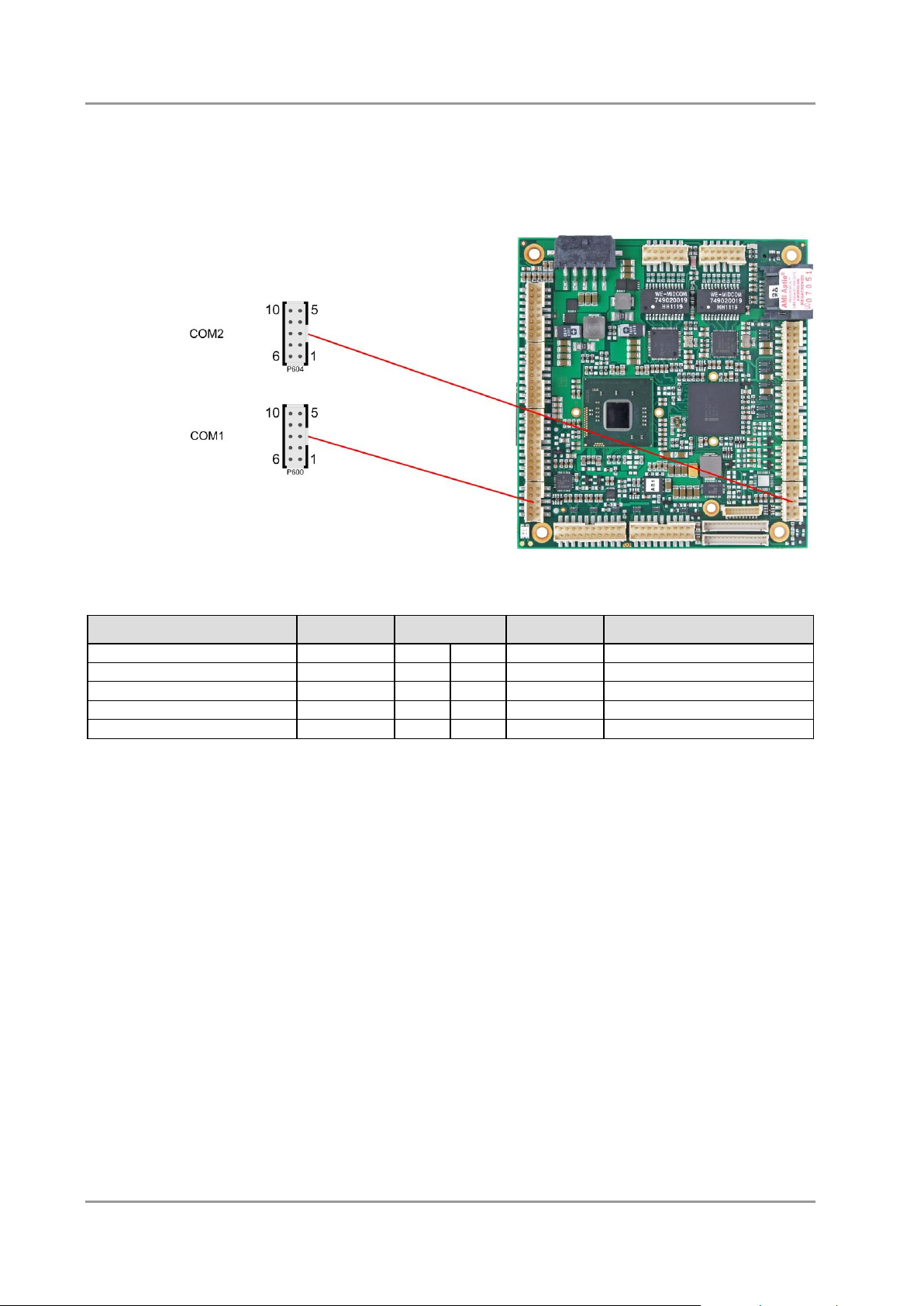

"COM1 and COM2"
p. 35
P601/P602
"LAN"
p. 33
P603
"Audio"
p. 30
P605/P607
"LCD"
p. 28
P606/P607

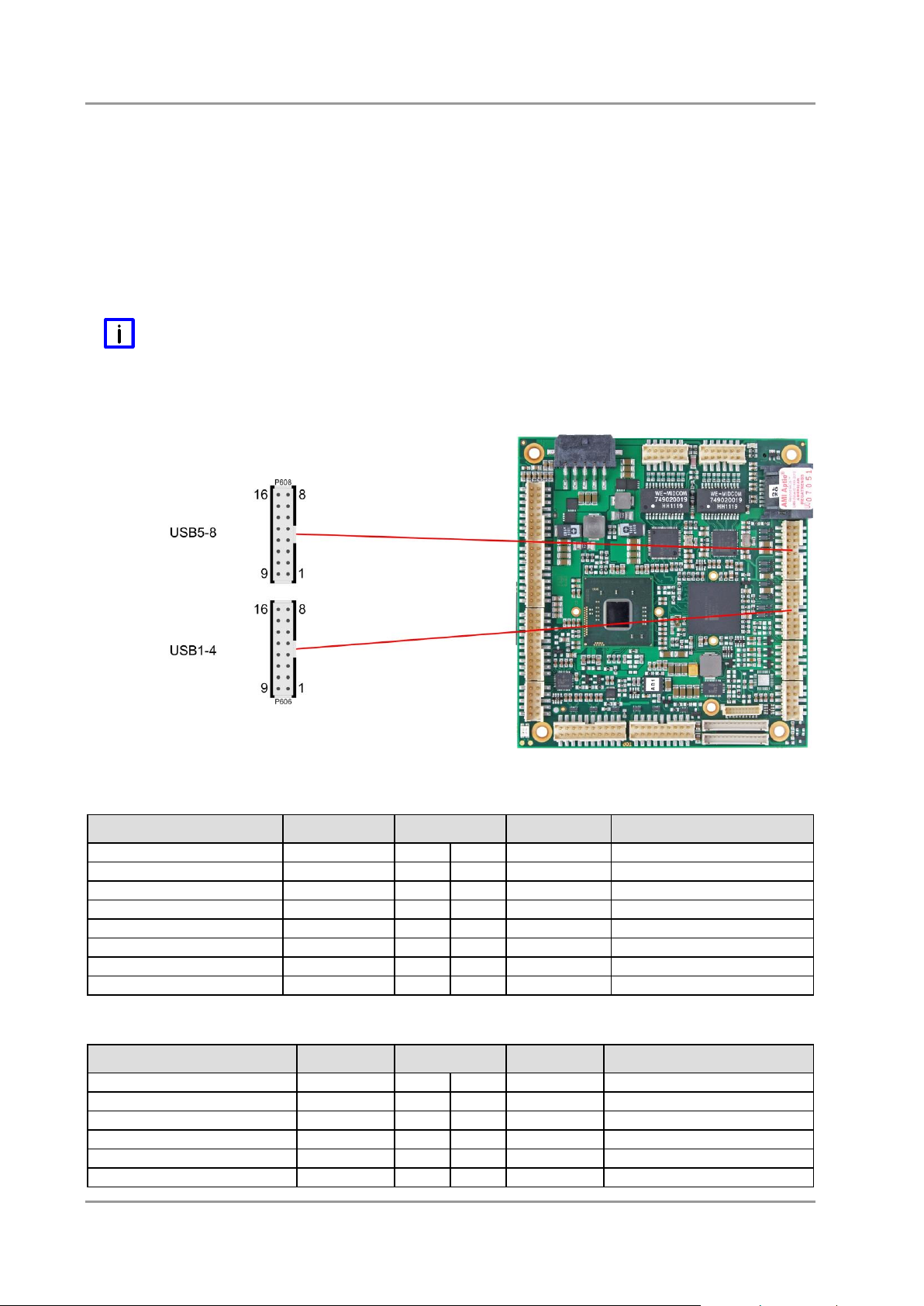

"USB"
p. 31
P1000*
"PCI/104-Express Bus"
p. 22
P1001*
"PCI-Express Mini Card"
p. 24
P1100
"DVI/HDMI"
p. 25
P1101
"DisplayPort"
p. 26
P1200
"System/SM-Bus"
p. 18
P1201
"GPIO"
p. 36
P1202
"VGA"
p. 27
P1203
"Power Supply"
p. 17
P1204
"Monitoring Functions"
p. 37

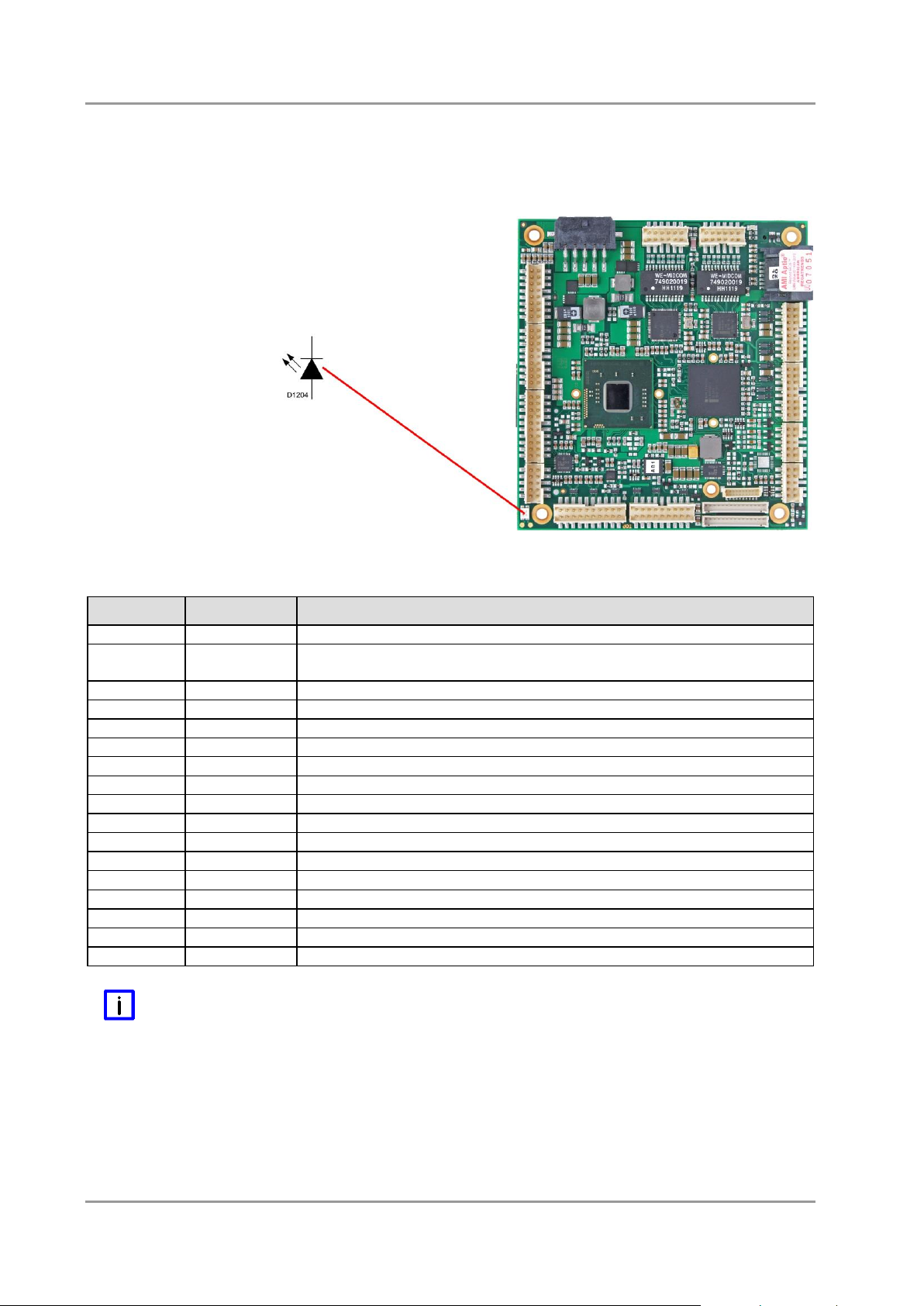

3.1 Connector Map
Please use the connector map below for quick reference. Only connectors on the component side are shown. For more information on each connector refer to the table below.
* not in the picture above (cf. bottom side of board)
page 16 Beckhoff New Automation Technology CB4058
Power Supply Chapter: Connectors
Description
Name
Pin
Name
Description
12 volt supply
12V
1 6 12V
12 volt supply
ground
GND
2 7 GND
ground
ground
GND
3 8 SVCC
standby-supply 5V
ground
GND
4 9 GND
ground
5 volt supply
VCC
5
10
VCC
5 volt supply
3.2 Power Supply

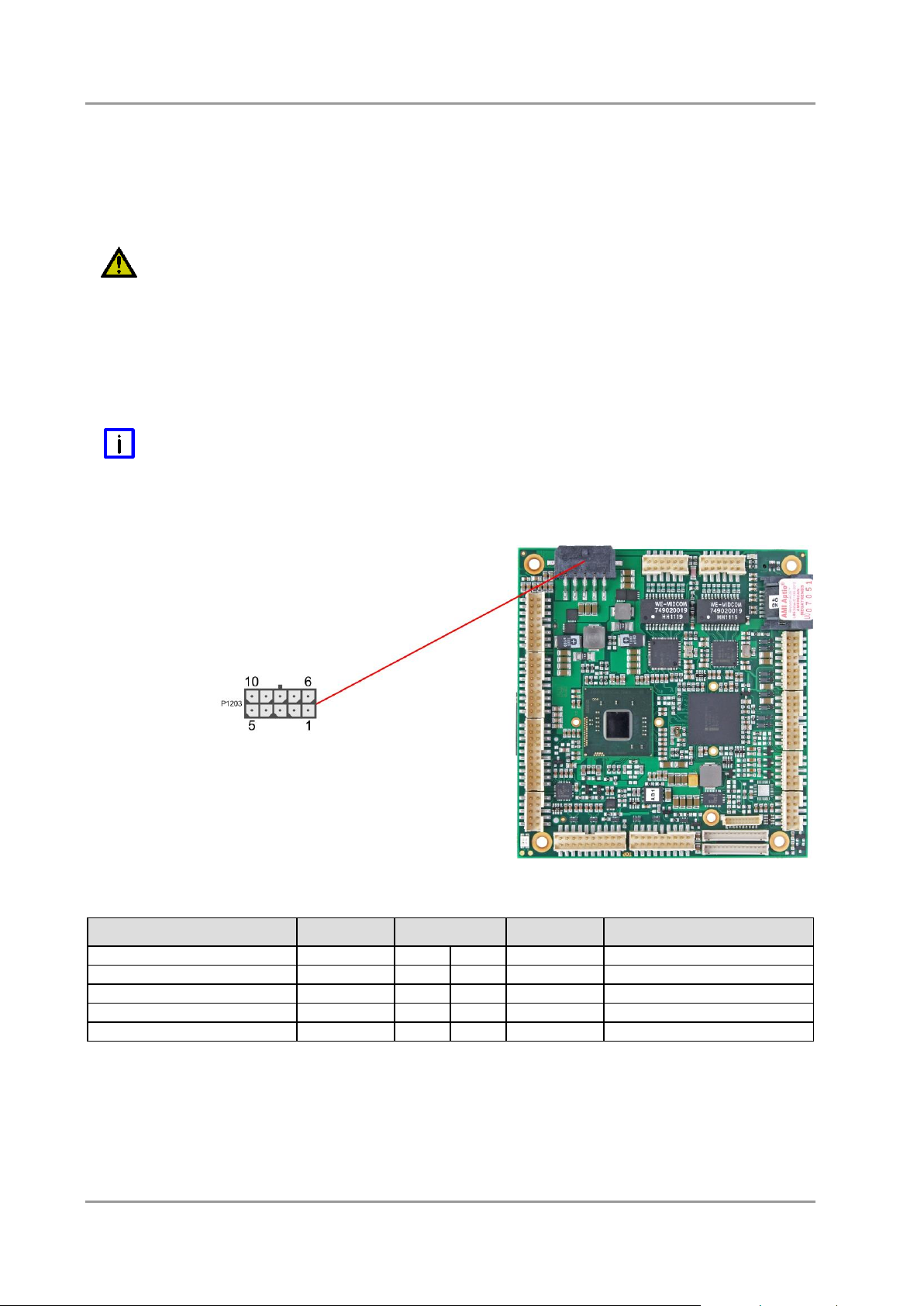

The power supply of the hardware module is realized via a 2x5-pin connector (Molex PS 43045-10xx, mating connector: Molex PS 43025-10xx). The 12V input can be left unconnected if not required by attached peripherals. Peripherals which require the 12V input are those which provide PCI- or PCIe-functionality.
CAUTION
The CB4058 includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector. When PS_ON# is no longer pulled low, an intelligent power supply would take this as a signal to shut down power. For this to work, PS_ON# must be connected to the power supply's PS_ON input. If PS_ON# is not otherwise connected, the CB4058 can be damaged beyond repair if a thermal shutdown event occurs. In rare instances, if power is not shut down, the board will continue to heat up until failure occurs.
NOTE
Since this is a 90 degree connector, the symbol in the drawing below represents the connector face as seen from the side (PCB on bottom) rather than from above.
Beckhoff New Automation Technology CB4058 page 17
Chapter: Connectors System/SM-Bus
Description
Name
Pin
Name
Description
speaker to 5V
SPEAKER
1
10
GND
ground
reset to ground
RSTBTN#
2
11
N/C
reserved
keyboard data
KDAT
3
12
KCLK
keyboard clock
mouse data
MDAT
4
13
MCLK
mouse clock
battery
BATT
5
14
VCC
5 volt supply
power supply on
PS-ON#
6
15
SMBCLK
SMB clock
standby supply 3.3V
S3.3V
7
16
SMBDAT
SMB data
power button
PWRBTN#
8
17
SMBALERT#
SMB alert
ground
GND
9
18
3.3V
3.3 volt supply
3.3 System/SM-Bus

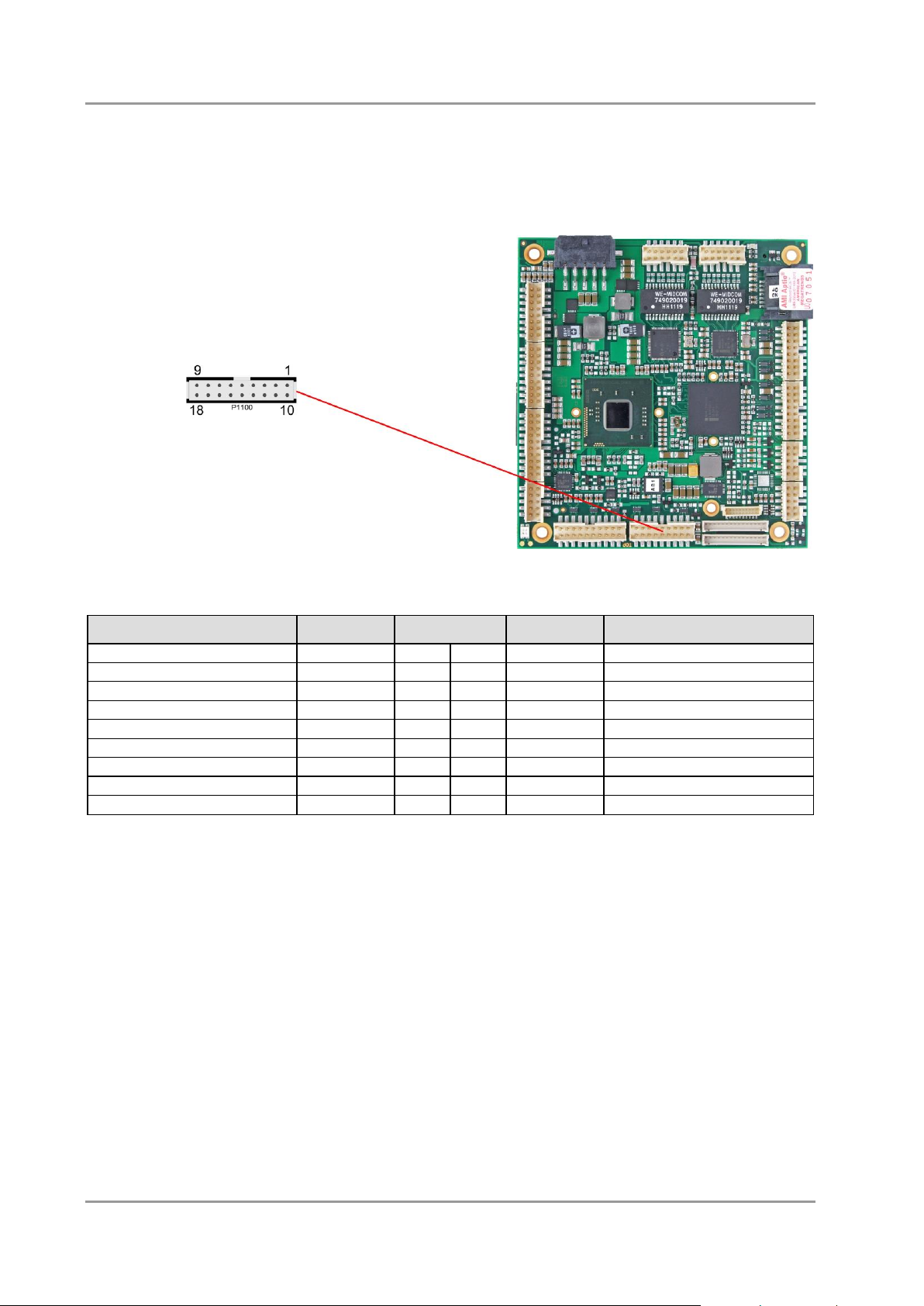

Both SM-Bus signals, and signals for PS/2 keyboard, PS/2 mouse and speaker are provided through a 2x9pin connector (FCI 98424-G52-18LF, mating connector e.g. FCI 90311-018LF). For the #PSON signal, please refer to the cautionary note in the chapter "Power Supply" (page 17).
Pinout 2x9pin connector:
page 18 Beckhoff New Automation Technology CB4058
Memory Chapter: Connectors
Description
Name
Pin
Name
Description
memory reference current
REF-DQ
1 2 GND
ground
ground
GND
3 4 DQ4
data 4
data 0
DQ0
5 6 DQ5
data 5
data 1
DQ1
7 8 GND
ground
ground
GND
9
10
DQS0#
data strobe 0 -
data mask 0
DM0
11
12
DQS0
data strobe 0 +
ground
GND
13
14
GND
ground
data 2
DQ2
15
16
DQ6
data 6
data 3
DQ3
17
18
DQ7
data 7
ground
GND
19
20
GND
ground
data 8
DQ8
21
22
DQ12
data 12
data 9
DQ9
23
24
DQ13
data 13
ground
GND
25
26
GND
ground
data strobe 1 -
DQS1#
27
28
DM1
data mask 1
data strobe 1 +
DQS1
29
30
RESET#
Reset
ground
GND
31
32
GND
ground
data 10
DQ10
33
34
DQ14
data 14
data 11
DQ11
35
36
DQ15
data 15
3.4 Memory
There is one conventional SO-DIMM204 socket available to equip the board with memory (DDR3-800/1066). It is located on the bottom side of the board. For technical and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your sales representative for recommended memory modules. With currently available SO-DIMM modules a memory extension up to 2 GByte is possible. The timing parameters for different memory modules are automatically set by BIOS.
NOTE
It is not necessary that the memory modules' rated speed and the motherboard's specified memory bus speed match exactly. The system will automatically configure the fastest mutually supported memory bus speed available. For best performance, however, the memory modules' rated speed should be equal to or faster than the motherboard's specified memory bus speed.
Pinout SO-DIMM204:
Beckhoff New Automation Technology CB4058 page 19
Chapter: Connectors Memory
Description
Name
Pin
Name
Description
ground
GND
37
38
GND
ground
data 16
DQ16
39
40
DQ20
data 20
data 17
DQ17
41
42
DQ21
data 21
ground
GND
43
44
GND
ground
data strobe 2 -
DQS2#
45
46
DM2
data mask 2
data strobe 2 +
DQS2
47
48
GND
ground
ground
GND
49
50
DQ22
data 22
data 18
DQ18
51
52
DQ23
data 23
data 19
DQ19
53
54
GND
ground
ground
GND
55
56
DQ28
data 28
data 24
DQ24
57
58
DQ29
data 29
data 25
DQ25
59
60
GND
ground
ground
GND
61
62
DQS3#
data strobe 3 -
data mask 3
DQM3
63
64
DQS3
data strobe 3 +
ground
GND
65
66
GND
ground
data 26
DQ26
67
68
DQ30
data 30
data 27
DQ27
69
70
DQ31
data 31
ground
GND
71
72
GND
ground
clock enables 0
CKE0
73
74
CKE1
clock enables 1
1.5 volt supply
1.5V
75
76
1.5V
1.5 volt supply
reserved
N/C
77
78
(A15)
reserved
SDRAM bank 2
BA2
79
80
A14
address 14
1.5 volt supply
1.5V
81
82
1.5V
1.5 volt supply
address 12 (burst chop)
A12/BC#
83
84
A11
address 11
address 9
A9
85
86
A7
address 7
1.5 volt supply
1.5V
87
88
1.5V
1.5 volt supply
address 8
A8
89
90
A6
address 6
address 5
A5
91
92
A4
address 4
1.5 volt supply
1.5V
93
94
1.5V
1.5 volt supply
address 3
A3
95
96
A2
address 2
address 1
A1
97
98
A0
address 0
1.5 volt supply
1.5V
99
100
1.5V
1.5 volt supply
Clock 0 +
CK0
101
102
CK1
clock 1 +
Clock 0 -
CK0#
103
104
CK1#
clock 1 -
1.5 volt supply
1.5V
105
106
1.5V
1.5 volt supply
address 10 (auto precharge)
A10/AP
107
108
BA1
SDRAM bank 1
SDRAM Bank 0
BA0
109
110
RAS#
row address strobe
1.5 volt supply
1.5V
111
112
1.5V
1.5 volt supply
write enable
WE#
113
114
S0#
chip select 0
column address strobe
CAS#
115
116
ODT0
on die termination 0
1.5 volt supply
1.5V
117
118
1.5V
1.5 volt supply
address 13
A13
119
120
ODT1
on die termination 1
Chip Select 1
S1#
121
122
N/C
reserved
1.5 volt supply
1.5V
123
124
1.5V
1.5 volt supply
reserved
(TEST)
125
126
REF-CA
reference current
ground
GND
127
128
GND
ground
data 32
DQ32
129
130
DQ36
data 36
data 33
DQ33
131
132
DQ37
data 37
ground
GND
133
134
GND
ground
data strobe 4 -
DQS4#
135
136
DQM4
data mask 4
data strobe 4 +
DQS4
137
138
GND
ground
ground
GND
139
140
DQ38
data 38
data 34
DQ34
141
142
DQ39
data 39
data 35
DQ35
143
144
GND
ground
ground
GND
145
146
DQ44
data 44
page 20 Beckhoff New Automation Technology CB4058
Memory Chapter: Connectors
Description
Name
Pin
Name
Description
data 40
DQ40
147
148
DQ45
data 45
data 41
DQ41
149
150
GND
ground
ground
GND
151
152
DQS5#
data strobe 5 -
data mask 5
DQM5
153
154
DQS5
data strobe 5 +
ground
GND
155
156
GND
ground
data 42
DQ42
157
158
DQ46
data 46
data 43
DQ43
159
160
DQ47
data 47
ground
GND
161
162
GND
ground
data 48
DQ48
163
164
DQ52
data 52
data 49
DQ49
165
166
DQ53
data 53
ground
GND
167
168
GND
ground
data strobe 6 -
DQS6#
169
170
DQM6
data mask 6
data strobe 6
DQS6
171
172
GND
ground
ground
GND
173
174
DQ54
data 54
data 50
DQ50
175
176
DQ55
data 55
data 51
DQ51
177
178
GND
ground
ground
GND
179
180
DQ60
data 60
data 56
DQ56
181
182
DQ61
data 61
data 57
DQ57
183
184
GND
ground
ground
GND
185
186
DQS7#
data strobe 7 -
data mask 7
DQM7
187
188
DQS7
data strobe 7 +
ground
GND
189
190
GND
ground
data 58
DQ58
191
192
DQ62
data 62
data 59
DQ59
193
194
DQ63
data 63
ground
GND
195
196
GND
ground
SPD address 0
SA0
197
198
EVENT#
Event
3.3 volt supply
3.3V
199
200
SDA
SMBus data
SPD address 1
SA1
201
202
SCL
SMBus clock
termination current
VTT
203
204
VTT
termination current
Beckhoff New Automation Technology CB4058 page 21
Chapter: Connectors PCI/104-Express Bus
Description
Name
Pin
Name
Description
USB overcurrent
USBOC#
1 2 PERST#
PCIe reset
3.3 volt supply
3.3V
3 4 3.3V
3.3 volt supply
USB11 +
USB11
5 6 USB10
USB10 +
USB11 -
USB11#
7 8 USB10#
USB10 -
ground
GND
9
10
GND
ground
transmit lane 2 +
PET2
11
12
PET1
transmit Lane 1 +
transmit lane 2 -
PET2#
13
14
PET1#
transmit lane 1 -
ground
GND
15
16
GND
ground
transmit lane 3 +
PET3
17
18
PET4
transmit lane 4 +
transmit lane 3 -
PET3#
19
20
PET4#
transmit lane 4 -
ground
GND
21
22
GND
ground
receive lane 2 +
PER2
23
24
PER1
receive lane 1 +
receive lane 2 -
PER2#
25
26
PER1#
receive lane 1 -
ground
GND
27
28
GND
ground
receive lane 3 +
PER3
29
30
PER4
receive lane 4 +
receive lane 3 -
PER3#
31
32
PER4#
receive lane 4 -
ground
GND
33
34
GND
ground
clock slot 1 +
PECLK1
35
36
PECLK0
clock slot 0 +
clock slot 1 -
PECLK1#
37
38
PECLK0#
clock slot 0 -
5 volt standby supply
SVCC
39
40
SVCC
5 volt standby supply
clock slot 2 +
PECLK2
41
42
PECLK3
clock slot 3 +
clock slot 2 -
PECLK2#
43
44
PECLK3#
clock slot 3 -
CPU direction
CPU_DIR
45
46
PWRGOOD
powergood
SMBus data
SMBDAT
47
48
N/C
reserved
SMBus clock
SMBCLK
49
50
N/C
reserved
SMBus alert
SMBALERT
51
52
PSON#
power supply on
link reactivation
PEWAKE#
53
54
ST1-ERR#
stacking error 1
3.5 PCI/104-Express Bus
Expansion modules for the PCI-Express bus can be connected to the board using the PCI/104-Express™ connector. This is a "type 2" connector with only those signals connected that are supported by the chipset. "Stacking Error" functionality is available. For specifics, please refer to the PCI/104-Express™ documentation (rev. 2.01).
Pinout PCI104-Express connector (type 2):
page 22 Beckhoff New Automation Technology CB4058
PCI/104-Express Bus Chapter: Connectors
Description
Name
Pin
Name
Description
ground
GND
55
56
GND
ground
reserved
N/C
57
58
N/C
reserved
reserved
N/C
59
60
N/C
reserved
ground
GND
61
62
GND
ground
reserved
N/C
63
64
N/C
reserved
reserved
N/C
65
66
N/C
reserved
ground
GND
67
68
GND
ground
reserved
N/C
69
70
N/C
reserved
reserved
N/C
71
72
N/C
reserved
ground
GND
73
74
GND
ground
reserved
N/C
75
76
N/C
reserved
reserved
N/C
77
78
N/C
reserved
ground
GND
79
80
GND
ground
SATA5 send +
SATA5TX
81
82
SATA4TX
SATA4 send +
SATA5 send -
SATA5TX#
83
84
SATA4TX#
SATA4 send -
ground
GND
85
86
GND
ground
reserved
N/C
87
88
N/C
reserved
reserved
N/C
89
90
N/C
reserved
ground
GND
91
92
GND
ground
reserved
N/C
93
94
N/C
reserved
reserved
N/C
95
96
N/C
reserved
ground
GND
97
98
GND
ground
SATA5 detect
SATADET5#
99
100
SATADET4#
SATA4 detect
SATA5 power
SATAPW5#
101
102
SATAPW4#
SATA4 power
ground
GND
103
104
GND
ground
stacking error 2
ST2-ERR#
105
106
PCLKPCIE
PCI clock
ground
GND
107
108
GND
ground
reserved
N/C
109
110
N/C
reserved
reserved
N/C
111
112
N/C
reserved
ground
GND
113
114
GND
ground
reserved
N/C
115
116
N/C
reserved
reserved
N/C
117
118
N/C
reserved
ground
GND
119
120
GND
ground
reserved
N/C
121
122
N/C
reserved
reserved
N/C
123
124
N/C
reserved
ground
GND
125
126
GND
ground
reserved
N/C
127
128
N/C
reserved
reserved
N/C
129
130
N/C
reserved
ground
GND
131
132
GND
ground
SATA5 receive +
SATA5RX
133
134
SATA4RX
SATA4 receive +
SATA5 receive -
SATA5RX#
135
136
SATA4RX#
SATA4 receive -
ground
GND
137
138
GND
ground
reserved
N/C
139
140
N/C
reserved
reserved
N/C
141
142
N/C
reserved
ground
GND
143
144
GND
ground
LPC address/data 0
PELAD0
145
146
PEDRQ#
LPC DMA request
LPC address/data 1
PELAD1
147
148
PESIRQ#
LPC serial IRQ
ground
GND
149
150
GND
ground
LPC address/data 2
PELAD2
151
152
PEFRAME#
LPC frame
LPC address/data 3
PELAD3
153
154
RTCBATT
battery 3.3V
ground
GND
155
156
GND
ground
5 volt supply
VCC
C1
5 volt supply
VCC
C2
12 volt supply
12V
C3
Beckhoff New Automation Technology CB4058 page 23
Chapter: Connectors PCI-Express Mini Card
Description
Name
Pin
Name
Description
PCIe ake
PEWAKE#
1 2 S3.3V
3.3 volt standby supply
reserved
N/C
3 4 GND
ground
reserved
N/C
5 6 1.5V
1.5 volt supply
clock enable
PEMCLKen#
7 8 N/C
reserved
ground
GND
9
10
N/C
reserved
clock -
PECLKMC#
11
12
N/C
reserved
clock +
PECLKMC
13
14
N/C
reserved
ground
GND
15
16
N/C
reserved
reserved
N/C
17
18
GND
ground
reserved
N/C
19
20
WDISABLE#
wireless disable
ground
GND
21
22
PERST#
PCIe reset
PCIe receive -
PERMC#
23
24
S3.3V
3.3 volt standby supply
PCIe receive +
PERMC
25
26
GND
ground
ground
GND
27
28
1.5V
1.5 volt supply
ground
GND
29
30
SMB-CLK
SM-bus clock
PCIe transmit -
PETMC#
31
32
SMB-DAT
SM-bus data
PCIe transmit +
PETMC
33
34
GND
ground
ground
GND
35
36
USBMC#
USB -
ground
GND
37
38
USBMC
USB +
3.3 volt standby supply
S3.3V
39
40
GND
ground
3.3 volt standby supply
S3.3V
41
42
N/C
reserved
ground
GND
43
44
N/C
reserved
reserved
N/C
45
46
N/C
reserved
reserved
N/C
47
48
1.5V
1.5 volt supply
reserved
N/C
49
50
GND
ground
reserved
N/C
51
52
S3.3V
3.3 volt standby supply
3.6 PCI-Express Mini Card
As a soldering option, the CB4058 can be equipped with PCI-Express Mini Card connector to interface with approved peripherals, such as Wi-FI and storage cards.
page 24 Beckhoff New Automation Technology CB4058
DVI/HDMI Chapter: Connectors
Description
Name
Pin
Name
Description
HDMI panel detected
HPD_SINK
1
10
N/C
reserved
SMBus clock (DDC)
SCL_SINK
2
11
SDA_SINK
SMBus dat (DDC)
5 volt supply
VCC
3
12
GND
ground
ground
GND
4
13
TMDS_CLK#
DVI clock -
DVI data 0 -
TMDS_D0#
5
14
TMDS_CLK
DVI clock +
DVI data 0 +
TMDS_D0
6
15
GND
ground
ground
GND
7
16
TMDS_D1#
DVI data 1 -
DVI data 2 -
TMDS_D2#
8
17
TMDS_D1
DVI data 1 +
DVI data 2 +
TMDS_D2
9
18
GND
ground
3.7 DVI/HDMI
The CB4058 provides a DVI/HDMI interface which is realized as a 2x9pin header (FCI 98424-G52-18LF, mating connector e.g. FCI 90311-018LF).
Pinout 2x9pin connector DVI/HDMI:
Beckhoff New Automation Technology CB4058 page 25
Chapter: Connectors DisplayPort
Description
Name
Pin
Name
Description
hotplug detect
DPHPD
1
11
HDMIEN
HDMI enable
displayport aux +
DPAUX
2
12
DPAUX#
displayport aux -
3.3V supply
3.3V
3
13
GND
ground
ground
GND
4
14
DPL3#
displayport lane 3 -
displayport lane 2 -
DPL2#
5
15
DPL3
displayport lane 3 +
displayport lane 2 +
DPL2
6
16
GND
ground
ground
GND
7
17
DPL1#
displayport lane 1 -
displayport lane 0 -
DPL0#
8
18
DPL1
displayport lane 1 +
displayport lane 0 +
DPL0
9
19
GND
ground
reserved
N/C
10
20
GND
ground
3.8 DisplayPort
The CB4058 offers a DisplayPort interface which is realized as 2x10pin connector (TFM-110-02-S-D-WT). This interface can also be operated in HDMI/DVI mode. To achieve this, pin 11 must be connected to 3.3V (e.g. pin 3).
Pinout 2x10pin DisplayPort connector:
page 26 Beckhoff New Automation Technology CB4058
VGA Chapter: Connectors
Description
Name
Pin
Name
Description
analog red
RED
1 6 GND
ground
analog green
GREEN
2 7 DDDA
DD data
analog blue
BLUE
3 8 DDCK
DD clock
vertikal sync
VSYNC
4 9 GND
ground
horizontal sync
HSYNC
5
10
GND
ground
3.9 VGA
The CRT-VGA signals are provided by a 2x5pin connector (FCI 98424-G52-10LF, mating connector e.g. FCI 90311-010LF). This interface allows the connection of a standard VGA-monitor. I2C communication is supported.
Beckhoff New Automation Technology CB4058 page 27
Chapter: Connectors LCD
Pin
Name
Description
1
GND
ground
2
GND
ground
3
TXO00#
LVDS even data 0 -
4
TXO00
LVDS even data 0 +
5
TXO01#
LVDS even data 1 -
6
TXO01
LVDS even data 1 +
7
TXO02#
LVDS even data 2 -
8
TXO02
LVDS even data 2 +
9
TXO0C#
LVDS even clock -
10
TXO0C
LVDS even clock +
11
N/C
reserved
12
N/C
reserved
13
BL_VCC
switched 5 volt for backlight
14
FP_3.3V
switched 3.3 volt for display
15
FP_3.3V
switched 3.3 volt for display
3.10 LCD
The LCD is connected via two 15 pin connectors (Hirose DF13-15P-1.25DSA, mating connector: DF13-15S-xxx). The power supply for the display is also provided through these connectors. The CB4058 board only supports displays with LVDS interface. For displays with digital interface an extra receiver board is available. There is no support for DSTN displays. With the LVDS interface it is possible to trigger LVDS displays with a maximum of 18 Bit colour depth and one pixel per clock. The second connector provides an interface to the display's EDID data, and can be left unconnected if EDID data are not required. The display type can be chosen over the BIOS setup. Please contact your sales representative regarding an appropriate cable to connect your display.
The following table shows the pin description for the first bit ("even" pixel).
page 28 Beckhoff New Automation Technology CB4058
LCD Chapter: Connectors
Pin
Name
Description
1
GND
ground
2
GND
ground
3
N/C
reserved
4
N/C
reserved
5
N/C
reserved
6
N/C
reserved
7
N/C
reserved
8
N/C
reserved
9
N/C
reserved
10
N/C
reserved
11
N/C
reserved
12
N/C
reserved
13
DDC_CLK
EDID clock for LCD
14
DDC_DAT
EDID data for LCD
15
VCC
5 volt supply
The following table shows the pin description for the second connector used for evaluating the display's EDID data.
Beckhoff New Automation Technology CB4058 page 29
Chapter: Connectors Audio
Description
Name
Pin
Name
Description
digital output SPDIF
SPDIFO
1 9 3.3V
3.3 volt supply
digital input SPDIF
SPDIFI
2
10
S_AGND
analog ground sound
sound output right
LOUT_R
3
11
LOUT_L
sound output left
AUX input right
AUXA_R
4
12
AUXA_L
AUX input left
microphone input 1
MIC1
5
13
MIC2
microphone input 2
surround out right
SOUT_R
6
14
SOUT_L
surround out left
center output
CENOUT
7
15
LFEOUT
LFE output
side surround out right
SSOUT_R
8
16
SSOUT_L
side surround out left
3.11 Audio
The CB4058's audio functions are provided via a 2x8pin connector (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). This interface provides eight output channels for full 7.1 sound output. Two microphone inputs and two AUX inputs are also available. The signals "SPDIFI" and "SPDIFO" provide digital input and output. If a transformation to a coaxial or optical connector is necessary this must be performed externally.
Pinout Audio:
page 30 Beckhoff New Automation Technology CB4058
USB Chapter: Connectors
Description
Name
Pin
Name
Description
5 volt for USB1
USB1 VCC
1 9 USB2VCC
5 volt for USB2
minus channel USB1
USB1#
2
10
USB2#
minus channel USB2
plus channel USB1
USB1
3
11
USB2
plus channel USB2
ground
GND
4
12
GND
ground
ground
GND
5
13
GND
ground
plus channel USB3
USB3
6
14
USB4
plus channel USB4
minus channel USB3
USB3#
7
15
USB4#
minus channel USB4
5 volt for USB3
USB3VCC
8
16
USB4VCC
5 volt for USB4
Description
Name
Pin
Name
Description
5 volt for USB5
USB5 VCC
1 9 USB6VCC
5 volt for USB6
minus channel USB5
USB5#
2
10
USB6#
minus channel USB6
plus channel USB5
USB5
3
11
USB6
plus channel USB6
ground
GND
4
12
GND
ground
ground
GND
5
13
GND
ground
plus channel USB7
USB7
6
14
USB8
plus channel USB8
3.12 USB
USB channels 1 to 8 are provided via two 2x8pin connectors (FCI 98424-G52-16LF, mating connector e.g. FCI 90311-016LF). All USB-channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. Running a USB supporting OS (such as Microsoft® Windows®) with these features enabled may lead to significant performance or functionality limitations. Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
NOTE
There are two more USB channels available on the PCI104-Express connector (page 22) and another one on the Mini Card connector (if populated, "PCI-Express Mini Card").
Pinout USB 1-4:
Pinout USB 5-8:
Beckhoff New Automation Technology CB4058 page 31
Chapter: Connectors USB
Description
Name
Pin
Name
Description
minus channel USB7
USB7#
7
15
USB8#
minus channel USB8
5 volt for USB7
USB7VCC
8
16
USB8VCC
5 volt for USB8
page 32 Beckhoff New Automation Technology CB4058

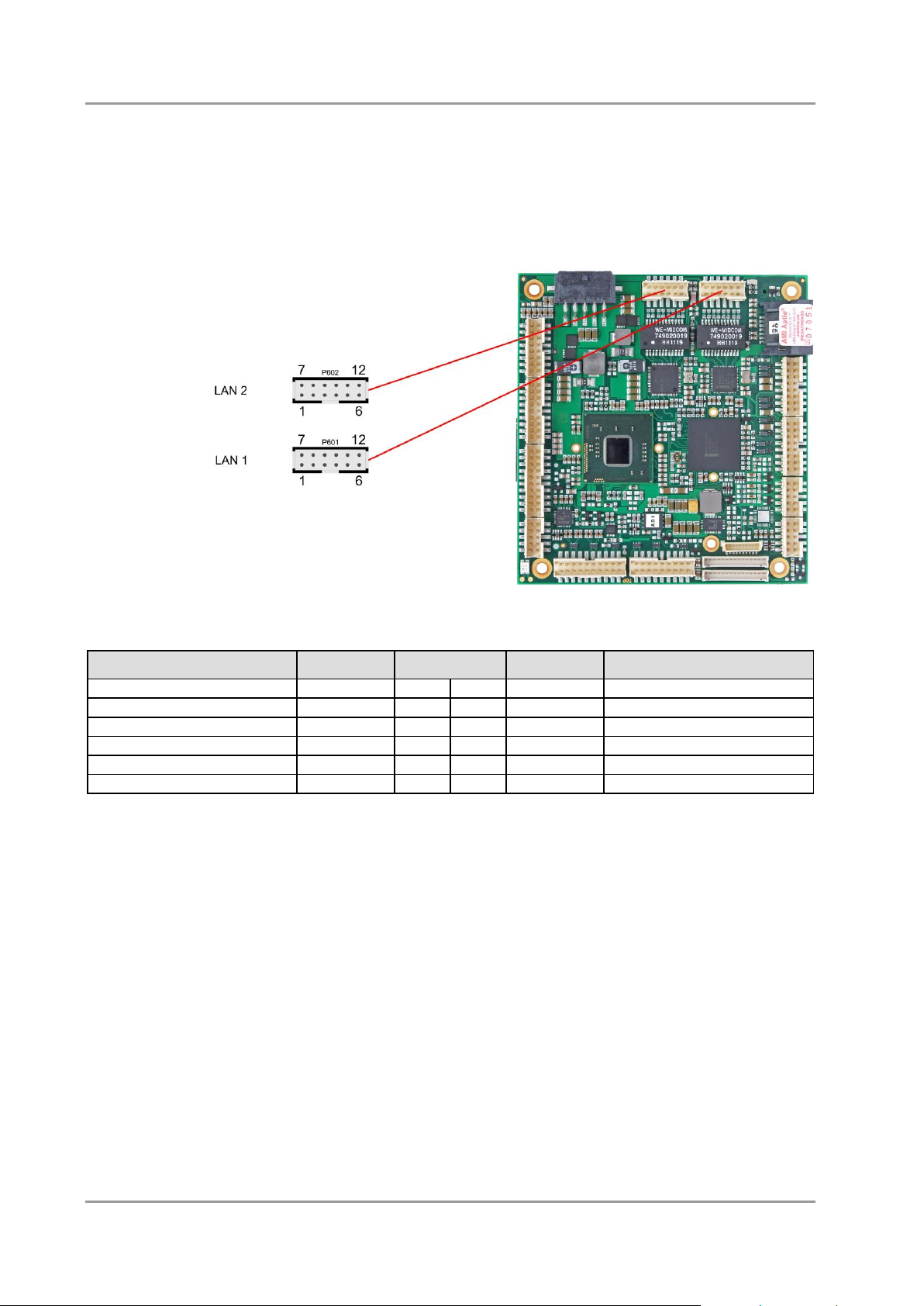

LAN Chapter: Connectors
Description
Name
Pin
Name
Description
LAN activity
LINKACT
1 7 SPEED1000
LAN speed 1000Mbit
LAN channel 1 plus
LAN1
2 8 LAN0
LAN channel 0 plus
LAN channel 1 minus
LAN1#
3 9 LAN0#
LAN channel 0 minus
LAN channel 3 plus
LAN3
4
10
LAN2
LAN channel 2 plus
LAN channel 3 minus
LAN3#
5
11
LAN2#
LAN channel 2 minus
LAN speed 100Mbit
SPEED100
6
12
3.3V
3.3 volt supply
3.13 LAN
Both LAN interfaces are provided via a 2x6pin connector (FCI 98424-G52-12LF, mating connector e.g. FCI 90311-012LF). The interfaces support 10BaseT, 100BaseT, and 1000BaseT compatible network components with automatic bandwidth selection. Additional outputs are provided for status LEDs. Auto-negotiate and auto-cross functionality is available, PXE and RPL are available on request.
Pinout LAN interface:
Beckhoff New Automation Technology CB4058 page 33
Chapter: Connectors SATA Interfaces
Pin
Name
Description
1
GND
ground
2
SATATX
SATA transmit +
3
SATATX#
SATA transmit -
4
GND
ground
5
SATARX
SATA receive -
6
SATARX#
SATA receive +
7
GND
ground
3.14 SATA Interfaces
The CB4058 provides two SATA interfaces allowing transfer rates of up to 3 Gbit per second. These interfaces are made available via two 7 pin connectors. The required settings are made in the BIOS setup.
NOTE
There are two more SATA channels available on the PCI104-Express connector (page 22), extending the available RAID options to 0/1/5/10.
Pinout SATA:
page 34 Beckhoff New Automation Technology CB4058
COM1 and COM2 Chapter: Connectors
Description
Name
Pin
Name
Description
data carrier detect
DCD
1 6 DSR
data set ready
receive data
RXD
2 7 RTS
request to send
transmit data
TXD
3 8 CTS
clear to send
data terminal ready
DTR
4 9 RI
ring indicator
ground
GND
5
10
VCC
5 volt supply
3.15 COM1 and COM2
The serial interfaces COM1 and COM2 are provided via a 2x5pin connector (FCI 98424-G52-10LF, mating connector e.g. FCI 90311-010LF).
Pinout COM connector:
Beckhoff New Automation Technology CB4058 page 35
Chapter: Connectors GPIO
Description
Name
Pin
Name
Description
ground
GND
1
11
3.3V
3.3 volt supply
GP input/output 00
GPIO00
2
12
GPIO10
GP input/output 10
GP input/output 01
GPIO01
3
13
GPIO11
GP input/output 11
GP input/output 02
GPIO02
4
14
GPIO12
GP input/output 12
GP input/output 03
GPIO03
5
15
GPIO13
GP input/output 13
GP input/output 04
GPIO04
6
16
GPIO14
GP input/output 14
GP input/output 05
GPIO05
7
17
GPIO15
GP input/output 15
GP input/output 06
GPIO06
8
18
GPIO16
GP input/output 16
GP input/output 07
GPIO07
9
19
GPIO17
GP input/output 17
3.3 volt supply
3.3V
10
20
GND
ground
3.16 GPIO
The General Purpose Input/Output interface is made available through a 2x10 pin connector (FCI 98424-G52-20LF, mating connector e.g. FCI 90311-020LF). To make use of this interface the SIO unit must be programmed accordingly. Please refer to your sales representative for information on available software support.
page 36 Beckhoff New Automation Technology CB4058
Monitoring Functions Chapter: Connectors
Pin
Name
Description
1
3.3V
3.3 volt supply
2
CS-SMB-CLK
SMBus clock
3
CS-SMB-DAT
SMBus data
4
GND
ground
5
VCC
5 volt supply
6
FANCTRL1
fan 1 monitoring signal
7
FANON1
ground (switched)
8
FANCTRL2
fan 2 monitoring signal
9
FANON2
ground (switched)
10
FANCTRL3
fan 3 (external) monitoring signal
3.17 Monitoring Functions
Additional monitoring functions, such as the status of the fan or of other devices connected over SM-Bus (e. g. temperature sensor), are accessible via an 8 pin connector (JST BM08B-SRSS-TB, mating connector: SHR-08V-S(-B)).
Beckhoff New Automation Technology CB4058 page 37
Chapter: State LEDs HD LED
4 State LEDs
4.1 HD LED
Harddisk activity is signalled by a dedicated LED.
page 38 Beckhoff New Automation Technology CB4058
RGB LED Chapter: State LEDs
Color
Interval
Meaning
none
solid
Invalid system state
White
solid
The microcontroller has just been flashed and is being prepared for normal operation after reboot
Cyan
solid
Reserved
Magenta
solid
Reserved
Blue
solid
Reserved
Yellow
solid
Reserved
Green
solid
Board operates normal
Red
solid
Board is in Reset
Green/Yellow
flashing
Bootloader operates normal
Red
flashing
Firmware is being started (start sequence still running)
Red/Yellow
flashing
Bootloader is being started (start sequence still running)
Red/Magenta
flashing
Checksum error during I2C transmission in bootloader
Red/Blue
flashing
Update completed, waiting for manual Reset
Yellow
flashing (10s)
S5 state
Yellow
flashing (6s)
S4 state
Yellow
flashing (3s)
Reserved
Yellow
flashing (0.5s)
Reserved
4.2 RGB LED
The CB4058 has an RGB LED, which can signal status messages by using different colors and flash intervals.
Status Codes RGB LED:
NOTE
If the board appears to be in Reset (Red LED lit) then this could also indicate a PCI104-Express "stacking error". Such an error could occur when the stack contains a peripheral card which has the wrong type of connector (PCI104-Express Type 1 instead of Type 2 or vice versa).
Beckhoff New Automation Technology CB4058 page 39
Chapter: BIOS Settings General Remarks
5 BIOS Settings
5.1 General Remarks
In each setup page, standard values for all setup entries can be loaded. Previously saved settings are loaded by pressing F2 and factory defaults are loaded with F3. Both F2 and F3, and also F4 ("Save & Exit") always affect the whole set of setup entries.
Setup entries starting with a „►" sign represent submenus. Navigation between entries is done using the
arrow keys on the keyboard, with the <Enter> key being used to select an entry, which either opens up a dialog box or opens a whole new submenu of setup entries. Each setup entry has a short help text associated with it. This is displayed in the upper right hand corner of the screen.
NOTE
BIOS features and setup options are subject to change without notice. The settings displayed in the screenshots on the following pages are meant to be examples only. They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used.
page 40 Beckhoff New Automation Technology CB4058
Main Chapter: BIOS Settings
5.2 Main
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. MAIN Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Set the Date. Use Tab to │ │ Board Information │switch between Data elements. │ │ Board CB4058 │ │ │ Revision 3 │ │ │ Bios Version 0.13 │ │ │ │ │ │ System Date [Mon 24/02/2014] │ │ │ System Time [00:47:04] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Board
Options: none
Revision
Options: none
Bios Version
Options: none
System Date
Options: The system date can be adjusted here.
System Time
Options: The system time can be adjusted here.
Beckhoff New Automation Technology CB4058 page 41
Chapter: BIOS Settings Advanced
5.3 Advanced
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main ADVANCED Chipset Boot Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Enable or Disable Boot Option │ │ Legacy OpROM Support │for Legacy Network Devices. │ │ Launch PXE OpROM [Disabled] │ │ │ │ │ │ Power-Supply Type [ATX] │ │ │ │ │ │► PCI Subsystem Settings │ │ │► ACPI Settings │ │ │► CPU Configuration │ │ │► SATA Configuration │ │ │► Power Controller Options │ │ │► USB Configuration │ │ │► Super IO Configuration │────────────────────────────────│ │► H/W Monitor │→←: Select Screen │ │► Serial Port Console Redirection │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Launch PXE OpROM
Options: Enabled / Disabled
Power-Supply Type
Options: ATX / AT
PCI Subsystem Settings
Sub menu: see "PCI Subsystem Settings" (page 43)
ACPI Settings
Sub menu: see "ACPI Settings" (page 45)
CPU Configuration
Sub menu: see "CPU Configuration" (page 46)
SATA Configuration
Sub menu: see "SATA Configuration" (page 48)
Power Controller Options
Sub menu: see "Power Controller Options" (page 49)
USB Configuration
Sub menu: see "USB Configuration" (page 50)
Super IO Configuration
Sub menu: see "Super IO Configuration" (page 51)
H/W Monitor
Sub menu: see "H/W Monitor" (page 53)
Serial Port Console Redirection
Sub menu: see "Serial Port Console Redirection" (page 55)
page 42 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.1 PCI Subsystem Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Bus Driver Version V 2.05.01 │In case of multiple Option │ │ │ROMs (Legacy and EFI │ │ PCI Option ROM Handling │Compatible), specifies what │ │ PCI ROM Priority [UEFI Compatible ROM] │PCI Option ROM to launch. │ │ │ │ │ PCI Common Settings │ │ │ PCI Latency Timer [32 PCI Bus Clocks] │ │ │ │ │ │► PCI Express Settings │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
PCI ROM Priority
Options: Legacy ROM / UEFI Compatible ROM
PCI Latency Timer
Options: 32, 64,...224, 248 PCI Bus Clocks
PCI Express Settings
Sub menu: see "PCI Express Settings" (page 44)
Beckhoff New Automation Technology CB4058 page 43
Chapter: BIOS Settings Advanced
5.3.1.1 PCI Express Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ PCI Express Device Register Settings │Enables or Disables PCI │ │ Relaxed Ordering [Disabled] │Express Device Relaxed │ │ Extended Tag [Disabled] │Ordering │ │ No Snoop [Enabled] │ │ │ Maximum Payload [Auto] │ │ │ Maximum Read Request [Auto] │ │ │ │ │ │ PCI Express Link Register Settings │ │ │ ASPM Support [Disabled] │ │ │ WARNING: Enabling ASPM may cause some │ │ │ PCI-E devices to fail │ │ │ Extended Synch [Disabled] │ │ │ │────────────────────────────────│ │ Link Training Retry [5] │→←: Select Screen │ │ Link Training Timeout (uS) 100 │↑↓: Select Item │ │ Unpopulated Links [Disable Link] │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Relaxed Ordering
Options: Enabled / Disabled
Extended Tag
Options: Enabled / Disabled
No Snoop
Options: Enabled / Disabled
Maximum Payload
Options: Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes
Maximum Read Request
Options: Auto / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048 Bytes / 4096 Bytes
ASPM Support
Options: Disabled / Auto / Force L0s
Extended Synch
Options: Enabled / Disabled
Link Training Retry
Options: Disabled / 2 / 3 / 5
Link Training Timeout (uS)
Options: 10...1000
Unpopulated Links
Options: Keep Link ON / Disable Link
page 44 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.2 ACPI Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ ACPI Settings │Enables or Disables BIOS ACPI │ │ │Auto Configuration. │ │ Enable ACPI Auto Configuration [Disabled] │ │ │ │ │ │ Enable Hilbernation [Enabled] │ │ │ ACPI Sleep State [S1 (CPU Stop Clock)] │ │ │ Lock Legacy Resources [Disabled] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enable ACPI Auto Configuration
Options: Enabled / Disabled
Enable Hibernation
Options: Enabled / Disabled
ACPI Sleep State
Options: Suspend Disabled / S1 (CPU Stop Clock)
Lock Legacy Resources
Options: Enabled / Disabled
Beckhoff New Automation Technology CB4058 page 45
Chapter: BIOS Settings Advanced
5.3.3 CPU Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ CPU Configuration │Disabled for Windows XP │ │ │ │ │ Processor Type Intel(R) Atom(TM) CPU │ │ │ EMT64 Supported │ │ │ Processor Speed 2132 MHz │ │ │ System Bus Speed 533 MHz │ │ │ Ratio Status 16 │ │ │ Actual Ratio 16 │ │ │ System Bus Speed 533 MHz │ │ │ Processor Stepping 30661 │ │ │ Microcode Revision Not loaded │ │ │ L1 Cache RAM 2x56 k │ │ │ L2 Cache RAM 2x512 k │ │ │ Processor Core Dual │ │ │ Hyper-Threading Supported │ │ │ │────────────────────────────────│ │ Hyper-Threading [Enabled] │→←: Select Screen │ │ Execute Disable Bit [Enabled] │↑↓: Select Item │ │ Limit CPUID Maximum [Disabled] │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Processor Type
Options: none
EMT64
Options: none
Processor Speed
Options: none
System Bus Speed
Options: none
Ratio Status
Options: none
Actual Ratio
Options: none
System Bus Speed
Options: none
Processor Stepping
Options: none
Microcode Revision
Options: none
L1 Cache RAM
Options: none
L2 Cache RAM
Options: none
page 46 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings Processor Core
Options: none
Hyper-Threading
Options: none
Hyper-threading
Options: Enabled / Disabled
Execute Disable Bit
Options: Enabled / Disabled
Limit CPUID Maximum
Options: Enabled / Disabled
Beckhoff New Automation Technology CB4058 page 47
Chapter: BIOS Settings Advanced
5.3.4 SATA Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ SATA Configuration │Enable or Disable SATA Port │ │ │ │ │ SATA Mode [AHCI Mode] │ │ │ │ │ │ SATA Port0 Not Present │ │ │ Port 0 [Enabled] │ │ │ │ │ │ SATA Port1 SAMSUNG HM250H (250.0 │ │ │ Port 1 [Enabled] │ │ │ │ │ │ SATA Port4 Not Present │ │ │ Port 4 [Enabled] │ │ │ │────────────────────────────────│ │ SATA Port5 Not Present │→←: Select Screen │ │ Port 5 [Enabled] │↑↓: Select Item n │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
SATA Mode
Options: Disable / IDE Mode / AHCI Mode / RAID Mode
Port X
Options: Enabled / Disabled
page 48 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.5 Power Controller Options
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Bootloader Version 0.14-00 │WatchDog Timer Mode │ │ Firmware Version 0.17-27 │ │ │ Mainboard Serial No 0948283247507 │ │ │ Mainboard Prod. Date (Week.Year) 28.12 │ │ │ Mainboard BootCount 128 │ │ │ Mainboard Operation Time 12090min (201h) │ │ │ Voltage (Min/Max) 4.60V / 5.20V │ │ │ Temperature (Min/Max) 18'C /51'C │ │ │ │ │ │ WatchDogTimer Mode [Normal Mode] │ │ │ WDT OSBoot Timout [Disabled] │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Bootloader Version
Options: none
Firmware Version
Options: none
Mainboard Serial No
Options: none
Mainboard Prod. Date (Week.Year)
Options: none
Boot Count
Options: none
Minute Meter
Options: none
Voltage (Min/Max)
Options: none
Temperature (Min/Max)
Options: none
WatchDogTimer Mode
Options: Normal Mode / Compatibility Mode
WDT OSBoot Timeout
Options: Disabled / 45 Seconds ... 255 Seconds
Beckhoff New Automation Technology CB4058 page 49
Chapter: BIOS Settings Advanced
5.3.6 USB Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ USB Configuration │Enables Legacy USB support. │ │ │AUTO option disables legacy │ │ USB Devices: │support if no USB devices are │ │ 1 Drive, 1 Keyboard, 1 Mouse │connected. DISABLE option will │ │ │keep USB devices available │ │ Legacy USB Support [Auto] │only for EFI applications. │ │ USB3.0 Support [Enabled] │ │ │ XHCI Hand-off [Enabled] │ │ │ EHCI Hand-off [Enabled] │ │ │ │ │ │ USB hardware delays and time-outs: │ │ │ USB transfer time-out [5 sec] │ │ │ Device reset time-out [10 sec] │────────────────────────────────│ │ Device power-up delay [Manual] │→←: Select Screen │ │ Device power-up delay in seconds 5 │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
USB Devices
Options: none
Legacy USB Support
Options: Enabled / Disabled / Auto
USB3.0 Support
Options: Enabled / Disabled
XHCI Hand-off
Options: Enabled / Disabled
EHCI Hand-off
Options: Enabled / Disabled
USB transfer time-out
Options: 1 sec / 5 sec / 10 sec / 20 sec
Device reset time-out
Options: 10 sec / 20 sec / 30 sec / 40 sec
Device power-up delay
Options: Auto / Manual
Device power-up delay in seconds
Options: 1..40
Mass Storage Devices: [Device Name]
Options: Auto / Floppy / Forced FDD / Hard Disk / CD-ROM
page 50 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.7 Super IO Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Super IO Configuration │Set Parameters of Serial Port │ │ │0 (COMA) │ │ Super IO Chip SMSC SCH3114 │ │ │► Serial Port 0 Configuration │ │ │► Serial Port 1 Configuration │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Super IO Chip
Options: none
Serial Port X Configuration
Sub menu: see "Serial Port Configuration" (page 52)
Beckhoff New Automation Technology CB4058 page 51
Chapter: BIOS Settings Advanced
5.3.7.1 Serial Port Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Serial Port 0 Configuration │Enable or Disable Serial Port │ │ │(COM) │ │ Serial Port [Enabled] │ │ │ Device Settings IO=3F8h; IRQ=4; │ │ │ │ │ │ Change Settings [Auto] │ │ │ Device Mode [Normal] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Serial Port
Options: Enabled / Disabled
Device Settings
Options: none
Change Settings
Options: Auto / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3, ...12 / IO=2F8h; IRQ=3, ...12 / IO=3E8h;
IRQ=3, ...12 / IO=2E8h; IRQ=3, ...12
Device Mode
Options: Normal / High Speed
page 52 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.8 H/W Monitor
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ H/W Monitor │ │ │ │ │ │ CPU Temperature : +38'C │ │ │ Board Temperature : +25'C │ │ │ Memory Temperature : +40'C │ │ │ SYS FAN Speed : N/A │ │ │ CPU FAN Speed : N/A │ │ │ AUX FAN Speed : N/A │ │ │ +1.05V : +1.04 V │ │ │ VccCore : +1.07 V │ │ │ +3.3V : +3.33 V │ │ │ Vcc : +4.68 V │ │ │ +12V : +12.61 V │────────────────────────────────│ │ VTR : +3.31 V │→←: Select Screen │ │ Vbat : +0.13 V │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
CPU Temperature
Options: none
Board Temperature
Options: none
Memory Temperature
Options: none
SYS FAN Speed
Options: none
CPU FAN Speed
Options: none
AUX FAN Speed
Options: none
+1.05V
Options: none
VccCore
Options: none
+3.3V
Options: none
Vcc
Options: none
+12V
Options: none
Beckhoff New Automation Technology CB4058 page 53
Chapter: BIOS Settings Advanced VTR
Options: none
Vbat
Options: none
page 54 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings
5.3.9 Serial Port Console Redirection
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Console Redirection Enable or │ │ COM0 │Disable. │ │ Console Redirection [Enabled] │ │ │► Console Redirection Settings │ │ │ │ │ │ COM1 │ │ │ Console Redirection [Disabled] │ │ │► Console Redirection Settings │ │ │ │ │ │ COM2 (Disabled) │ │ │ Console Redirection Port Is Disabled │ │ │ │ │ │ │────────────────────────────────│ │ COM3 (Disabled) │→←: Select Screen │ │ Console Redirection Port Is Disabled │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Console Redirection
Options: Enabled / Disabled
Console Redirection Settings
Sub menu: see "Console Redirection Settings" (page 56)
Beckhoff New Automation Technology CB4058 page 55
Chapter: BIOS Settings Advanced
5.3.9.1 Console Redirection Settings
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ COM0 │Emulation: ANSI: Extended │ │ Console Redirection Settings │ASCII char set. VT100: ASCII │ │ │char set. VT100+: Extends │ │ Terminal Type [VT-UTF8] │VT100 to support color, │ │ Bits per second [115200] │function keys, etc. VT-UTF8: │ │ Data Bits [8] │Uses UTF8 encoding to map │ │ Parity [None] │Unicode chars onto 1 or more │ │ Stop Bits [1] │bytes. │ │ Flow Control [None] │ │ │ VT-UTF8 Combo Key Support [Enabled] │ │ │ Recorder Mode [Disabled] │ │ │ Resolution 100x31 [Enabled] │ │ │ Legacy OS Redirection Resolution [80x24] │────────────────────────────────│ │ Putty KeyPad [VT100] │→←: Select Screen │ │ Redirection After BIOS POST [Always Enable] │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Terminal Type
Options: VT100 / VT100+ / VT-UTF8 / ANSI
Bits per second
Options: 9600 / 19200 / 38400 / 57600 / 115200
Data Bits
Options: 7 / 8
Parity
Options: None / Even / Odd / Mark / Space
Stop Bits
Options: 1 / 2
Flow Control
Options: None / Hardware RTS/CTS
VT-UTF8 Combo Key Support
Options: Disabled / Enabled
Recorder Mode
Options: Disabled / Enabled
Resolution 100x31
Options: Disabled / Enabled
Legacy OS Redirection Resolution
Options: 80x24 / 80x25
Putty KeyPad
Options: VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400
page 56 Beckhoff New Automation Technology CB4058
Advanced Chapter: BIOS Settings Redirection After BIOS POST
Options: Always Enable / BootLoader
Beckhoff New Automation Technology CB4058 page 57
Chapter: BIOS Settings Chipset
5.4 Chipset
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │System Agent (SA) Parameters │ │ DMI Link ASPM Control [Disabled] │ │ │ │ │ │► Host Bridge │ │ │► South Bridge │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
DMI Link ASPM Control
Options: Disabled / Enabled
Host Bridge
Sub menu: see "Host Bridge" (page 59)
South Bridge
Sub menu: see "South Bridge" (page 62)
page 58 Beckhoff New Automation Technology CB4058
Chipset Chapter: BIOS Settings
5.4.1 Host Bridge
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │► Memory Frequency and Timing │Config Memory Frequency and │ │► Intel IGD Configuration │Timing Settings. │ │ │ │ │ ******* Memory Information ******* │ │ │ Memory Frequency 1067 MHz (DDR3) │ │ │ Total Memory 1024 MB │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Memory Frequency and Timing
Sub menu: see "Memory Frequency and Timing" (page 60)
Intel IGD Configuration
Sub menu: see "Intel IGD Configuration" (page 61)
Beckhoff New Automation Technology CB4058 page 59
Chapter: BIOS Settings Chipset
5.4.1.1 Memory Frequency and Timing
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Memory Frequency and Timing │Maximum Value of TOLUD. │ │ │Dynamic assignment would │ │ Max TOLUD [Dynamic] │adjust TOLUD automatically │ │ │based on largest MMIO length │ │ │of installed graphic controller │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Max TOLUD
Options: Dynamic / 1 GB ... 3.25 GB
page 60 Beckhoff New Automation Technology CB4058
Chipset Chapter: BIOS Settings
5.4.1.2 Intel IGD Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Intel IGD Configuration │Select the Video Device which │ │ IGFX BIOS 1071 │will be activated during POST. │ │ IGFX - Boot Type [VBIOS Default] │ This has no effect if │ │ Fixed Graphics Memory Size [128MB] │external graphics present. │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
IGFX BIOS
Options: none
IGFX - Boot Type
Options: VBIOS Default / CRT / EFP / CRT + EFP
Fixed Graphics Memory Size
Options: 128MB / 256MB
Beckhoff New Automation Technology CB4058 page 61
Chapter: BIOS Settings Chipset
5.4.2 South Bridge
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ │Enable/Disable LAN1. │ │ SB Chipset Configuration │ │ │ LAN1 [Enable] │ │ │ LAN1 MAC address 00:01:05:11:27:6C │ │ │ LAN2 [Enable] │ │ │ LAN2 MAC address 00:01:05:11:27:6D │ │ │ │ │ │ │ │ │ Audio Configuration │ │ │ Azalia HD Audio [Enabled] │ │ │ │ │ │ High Precision Event Timer Configuration │ │ │ High Precision Timer [Enabled] │────────────────────────────────│ │ │→←: Select Screen │ │ PCI Express Ports Configuration │↑↓: Select Item │ │ PCI Express Port 1 [Enabled] │Enter: Select │ │ PCI Express Port 2 [Enabled] │+/-: Change Opt. │ │ PCI Express Port 3 [Enabled] │F1: General Help │ │ PCI Express Port 4 [Enabled] │F2: Previous Values │ │ PCIE Port 5 is assigned to LAN2 │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │► USB Configurateion │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
LANx
Options: Disable / Enable
LANx MAC address
Options: none
Azalia HD Audio
Options: Disabled / Enabled
High Precision Timer
Options: Disabled / Enabled
PCI Express Port x
Options: Disabled / Enabled
USB Configuration
Sub menu: see "USB Configuration" (page 63)
page 62 Beckhoff New Automation Technology CB4058
Chipset Chapter: BIOS Settings
5.4.2.1 USB Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ All USB Devices [Enabled] │Enable / Disable All USB │ │ │Devices │ │ USB 2.0(EHCI) Support [Enabled] │ │ │ EHCI Controller 1 [Enabled] │ │ │ EHCI Controller 2 [Enabled] │ │ │ │ │ │ │ │ │ USB Ports Per-Port Disable Control [Enabled] │ │ │ USB Port 0 [Enabled] │ │ │ USB Port 1 [Enabled] │ │ │ USB Port 2 [Enabled] │ │ │ USB Port 3 [Enabled] │ │ │ USB Port 4 [Enabled] │────────────────────────────────│ │ USB Port 5 [Enabled] │→←: Select Screen │ │ USB Port 6 [Enabled] │↑↓: Select Item │ │ USB Port 7 [Enabled] │Enter: Select │ │ USB Port 8 [Enabled] │+/-: Change Opt. │ │ USB Port 9 [Enabled] │F1: General Help │ │ USB Port 10 [Enabled] │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
All USB Devices
Options: Disabled / Enabled
USB 2.0(EHCI) Support
Options: Disabled / Enabled
EHCI Controller 1
Options: Disabled / Enabled
EHCI Controller 2
Options: Disabled / Enabled
USB Ports Per-Port Disable Control
Options: Disabled / Enabled
USB Port x
Options: Disabled / Enabled
Beckhoff New Automation Technology CB4058 page 63
Chapter: BIOS Settings Boot
5.5 Boot
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Boot Configuration │Number of 1/10 sec. to wait │ │ Setup Prompt Timeout 5 │for setup activation key. 0 │ │ Bootup NumLock State [On] │means no wait. │ │ │ │ │ Full Screen Logo [Enabled] │ │ │ Fast Boot [Enabled] │ │ │ Skip VGA [Disabled] │ │ │ Skip USB [Disabled] │ │ │ Skip PS2 [Disabled] │ │ │ │ │ │ CSM16 Module Version 07.69 │ │ │ │ │ │ GateA20 Active [Upon Request] │────────────────────────────────│ │ INT19 Trap Response [Immediate] │→←: Select Screen │ │ CSM Support [Enabled] │↑↓: Select Item │ │ │Enter: Select │ │ Boot option Priorities │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Setup Prompt Timeout
Options: 0...65535 [x 1/10 sec.]
Bootup NumLock State
Options: On / Off
Full Screen Logo
Options: Disabled / Enabled
Fast Boot
Options: Disabled / Enabled
Skip VGA
Options: Disabled / Enabled
Skip USB
Options: Disabled / Enabled
Skip PS2
Options: Disabled / Enabled
CSM16 Module Version
Options: none
GateA20 Active
Options: Upon Request / Always
INT9 Trap Response
Options: Immediate / Postponed
CSM Support
Options: Disabled / Enabled / Auto
page 64 Beckhoff New Automation Technology CB4058
Boot Chapter: BIOS Settings Boot Option Priorities
Options: Review or change the sequence of available boot devices
Beckhoff New Automation Technology CB4058 page 65
Chapter: BIOS Settings Security
5.6 Security
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ The password length must be │Set Administrator Password. │ │ in the following range: │When set, this password has to │ │ Minimum length 3 │be entered to enter setup │ │ Maximum length 20 │ │ │ │ │ │ Administrator Password │ │ │ │ │ │ UEFI Secure Boot Management │ │ │ Secure Boot control [Enabled] │ │ │► Secure Boot Policy │ │ │► Key Management │ │ │ │ │ │ HDD Security Configuration: │────────────────────────────────│ │ P4:ExcelStor Te │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Administrator Password
Options: Press [Enter]
Secure Boot control
Options: Disabled / Enabled
Secure Boot Policy
Sub menu: see "Secure Boot Policy" (page 67)
Key Management
Sub menu: see "Key Management" (page 68)
HDD Security Configuration:
Options: Set user password for attached hard disk
page 66 Beckhoff New Automation Technology CB4058
Security Chapter: BIOS Settings
5.6.1 Secure Boot Policy
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Security
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Internal FV [Always Execute] │Image Execution Policy on │ │ Option ROM [Deny Execute] │Security Violation. Image load │ │ Removable Media [Deny Execute] │device path │ │ Fixed Media [Deny Execute] │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Internal FV
Options: Always Execute
Option ROM
Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query
User
Removable Media
Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query
User
Fixed Media
Options: Always Execute / Always Deny / Allow Execute / Defer Execute / Deny Execute / Query
User
Beckhoff New Automation Technology CB4058 page 67
Chapter: BIOS Settings Security
5.6.2 Key Management
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Security
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ System Mode Setup │Launches the Filebrowser to │ │ Secure Boot Mode Disabled │set the Platform Key from file │ │ │ │ │ Platform Key (PK) NOT INSTALLED │ │ │► Set PK from File │ │ │► Get PK to File │ │ │► Delete the PK │ │ │ Key Exchange Key Database(KEK) NOT INSTALLED │ │ │► Set KEK from File │ │ │► Get KEK to File │ │ │► Delete the KEK │ │ │► Append an entry to KEK │ │ │ Authorized Signature Database(DB) NOT INSTALLED │────────────────────────────────│ │► Set DB from File │→←: Select Screen │ │► Get DB to File │↑↓: Select Item │ │► Delete the DB │Enter: Select │ │► Append an entry to DB │+/-: Change Opt. │ │ Forbidden Signature Database(DBX) NOT INSTALLED │F1: General Help │ │► Set DBX from File │F2: Previous Values │ │► Get DBX to File │F3: Optimized Defaults │ │► Delete the DBX │F4: Save & Exit │ │► Append an entry to DBX │ESC: Exit │ │ │ │ │ Manage All Factory Keys (PK,KEK,DB,DBX) │ │ │ Install Factory Defaults │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
System Mode
Options: none
Secure Boot Mode
Options: none
Set PK from File
Options: Press [Enter]
Get PK to File
Options: Press [Enter]
Delete the PK
Options: Press [Enter]
Set KEK from File
Options: Press [Enter]
Get KEK to File
Options: Press [Enter]
Delete the KEK
Options: Press [Enter]
Append an entry to KEK
Options: Press [Enter]
Set DB from File
Options: Press [Enter]
Get DB to File
Options: Press [Enter]
page 68 Beckhoff New Automation Technology CB4058
Security Chapter: BIOS Settings Delete the DB
Options: Press [Enter]
Append an entry to DB
Options: Press [Enter]
Set DBX from File
Options: Press [Enter]
Get DBX to File
Options: Press [Enter]
Delete the DBX
Options: Press [Enter]
Append an entry to DBX
Options: Press [Enter]
Install Factory Defaults
Options: Press [Enter]
Beckhoff New Automation Technology CB4058 page 69
Chapter: BIOS Settings Save & Exit
5.7 Save & Exit
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐ │ Save Changes and Reset │Reset the system after saving │ │ Discard Changes and Reset │the changes. │ │ │ │ │ Restore Defaults │ │ │ Save as User Defaults │ │ │ Restore User Defaults │ │ │ │ │ │ Boot Override │ │ │ IBA GE Slot 00C8 v1381 │ │ │ │ │ │ │ │ │ │ │ │ │────────────────────────────────│ │ │→←: Select Screen │ │ │↑↓: Select Item │ │ │Enter: Select │ │ │+/-: Change Opt. │ │ │F1: General Help │ │ │F2: Previous Values │ │ │F3: Optimized Defaults │ │ │F4: Save & Exit │ │ │ESC: Exit │ │ │ │ │ │ │ │ │ │ │ │ │ └─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Save Changes and Reset
Options: Press [Enter]
Discard Changes and Reset
Options: Press [Enter]
Restore Defaults
Options: Press [Enter]
Save as User Defaults
Options: Press [Enter]
Restore User Defaults
Options: Press [Enter]
Boot Override
Options: Press [Enter]
IBA GE Slot 00C8 v1381
Options: none
page 70 Beckhoff New Automation Technology CB4058
BIOS-Update Chapter: BIOS Settings
5.8 BIOS-Update
If a BIOS update needs to be done, the program “DecdFlash” as well as a bootable medium which contains the newest BIOS version is used for this. It is important, that the program is started from a DOS environment without a virtual memory manager, for example “EMM386.EXE”. In case such a memory manager is loaded, the program will stop with an error message.
DescdFlash is a program which provides automatic BIOS updates on any AMI-BIOS boards. All files need to be copied from the .zip-file in another directory. The system may not be interrupted during the flash process, otherwise the update is stopped and the BIOS is destroyed afterwards. The program should be started as follows:
DecdFlsh BIOS-Filename
After checking the name of the BIOS file and its length the BIOS will be programmed. The flashing takes nearly 75 seconds. The firmware will get updated automatically.
CAUTION
Updating the BIOS in an improper way can render the board unusable. Therefore, you should only update the BIOS if you really need the changes/corrections which come with the new BIOS version.
CAUTION
Before you proceed to update the BIOS you need to make absolutely sure that you have the right BIOS file which was issued for the exact board and exact board revision that you wish to update. If you try to update the BIOS using the wrong file the board will not start up again.
Beckhoff New Automation Technology CB4058 page 71
Chapter: Mechanical Drawings PCB: Mounting Holes
6 Mechanical Drawings

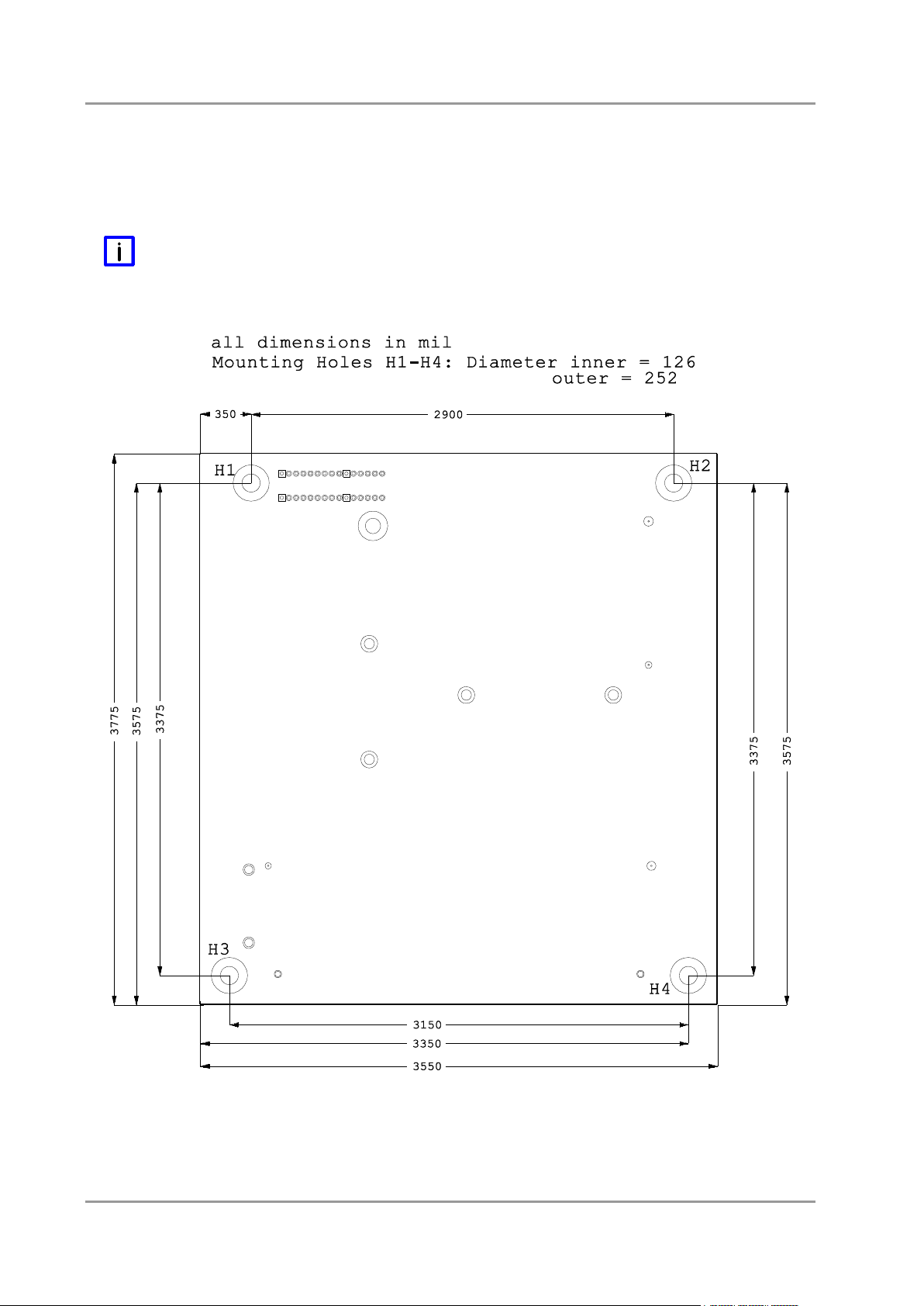

6.1 PCB: Mounting Holes
A true dimensioned drawing can be found in the PC/104 specification.
NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
page 72 Beckhoff New Automation Technology CB4058
PCB: Pin 1 Dimensions Chapter: Mechanical Drawings
6.2 PCB: Pin 1 Dimensions
NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
Beckhoff New Automation Technology CB4058 page 73
Chapter: Mechanical Drawings PCB: Heat Sink

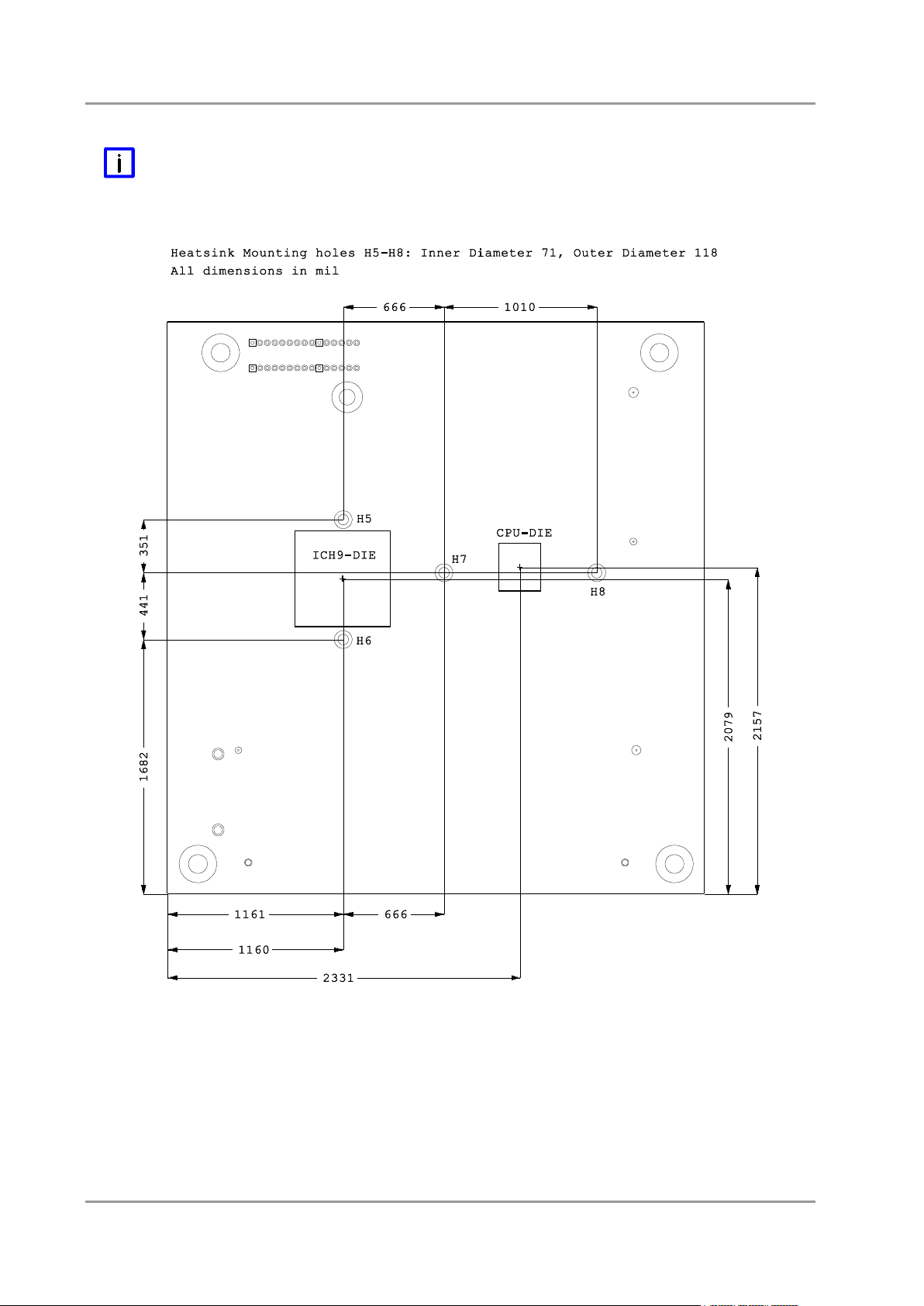

6.3 PCB: Heat Sink
NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
page 74 Beckhoff New Automation Technology CB4058
Electrical Data Chapter: Technical Data
7 Technical Data
7.1 Electrical Data
Power Supply:
Board: 5 Volt and 12 Volt (+/- 5%) RTC: >= 3 Volt
Electric Power Consumption:
RTC: <= 10A
7.2 Environmental Conditions
Temperature Range:
Operating: 0°C to +60°C (extended temperature on request) Storage: -25°C up to +85°C Shipping: -25°C up to +85°C, for packaged boards
Temperature Changes:
Operating: 0.5°C per minute, 7.5°C per 30 minutes Storage: 1.0°C per minute Shipping: 1.0°C per minute, for packaged boards
Relative Humidity:
Operating: 5% up to 85% (non condensing) Storage: 5% up to 95% (non condensing) Shipping: 5% up to 100% (non condensing), for packaged boards
Shock:
Operating: 150m/s2, 6ms Storage: 400m/s2, 6ms Shipping: 400m/s2, 6ms, for packaged boards
Vibration:
Operating: 10 up to 58Hz, 0.075mm amplitude 58 up to 500Hz, 10m/s2 Storage: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s2 Shipping: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s2, for packaged boards
CAUTION
Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc.
Beckhoff New Automation Technology CB4058 page 75
Chapter: Technical Data Thermal Specifications
7.3 Thermal Specifications
The board is specified to operate in an environmental temperature range from 0°C to +60°C (extended temperature on request). Maximum die temperature is 100°C. To keep the processor under this threshold an appropriate cooling solution needs to be applied. This solution has to take typical and maximum power consumption into account. The maximum power consumption may be twice as high and should be used as a basis for the cooling concept. Additional controllers may also affect the cooling concept. The power consumption of such components may be comparable to the consumption of the processor. The board design includes thermal solution mounting points that will provide the best possible thermal interface between die and solution. Since we take thermal solutions seriously we have several advanced, aggressive cooling solutions in our product portfolio. Please contact your sales representative to order or discuss your thermal solution needs.
CAUTION
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided.
CAUTION
The CB4058 includes circuitry that will notify an intelligent power supply to shut down if the processor reaches a critical temperature. This is achieved by deasserting the (low-active) PS_ON# signal found on the SM-Bus connector. When PS_ON# is no longer pulled low, an intelligent power supply would take this as a signal to shut down power. For this to work, PS_ON# must be connected to the power supply's PS_ON input. If PS_ON# is not otherwise connected, the CB4058 can be damaged beyond repair if a thermal shutdown event occurs. In rare instances, if power is not shut down, the board will continue to heat up until failure occurs.
page 76 Beckhoff New Automation Technology CB4058
Beckhoff's Branch Offices and Representatives Chapter: Support and Service
phone:
+49(0)5246/963-0
fax:
+49(0)5246/963-198
e-mail:
info@beckhoff.com
web:
www.beckhoff.com
hotline:
+49(0)5246/963-157
fax:
+49(0)5246/963-9157
e-mail:
support@beckhoff.com
hotline:
+49(0)5246/963-460
fax:
+49(0)5246/963-479
e-mail:
service@beckhoff.com
8 Support and Service
Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.
8.1 Beckhoff's Branch Offices and Representatives
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.
8.2 Beckhoff Headquarters
Beckhoff Automation GmbH Eiserstr. 5 33415 Verl Germany
8.2.1 Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
o support o design, programming and commissioning of complex automation systems o and extensive training programs for Beckhoff system components
8.2.2 Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
o on-site service o repair service o spare parts service o hotline service
Beckhoff New Automation Technology CB4058 page 77
Annex: Post-Codes
page 78 Beckhoff New Automation Technology CB4058
Annex: Post-Codes
Code
Description
87h
BIOS-API started
88h
PCA9535 started
89h
PWRCTRL-Firmware started
I Annex: Post-Codes
During boot, the BIOS generates a sequence of status codes (so-called "POST codes"), which can be viewed using a special output device (POST code card). The meaning of these codes is described in the
document "Aptio™ 4.x Status Codes" by American Megatrends®, which can be downloaded from their
website http://www.ami.com. The following additional OEM POST codes are generated:
Beckhoff New Automation Technology CB4058 page 79
Annex: Resources
Address
Function
0-FF
Reserved IO area of the board
170-17F
1F0-1F7
278-27F
2E8-2EF
2F8-2FF
COM2
370-377
378-37F
3BC-3BF
3E8-3EF
3F0-3F7
3F8-3FF
COM1
Address
Function
A0000-BFFFF
VGA RAM
C0000-CFFFF
VGA BIOS
D0000-E7FFF
AHCI BIOS / RAID / PXE (if available)
E8000-FFFFF
System BIOS
Address
Function
IRQ0
Timer
IRQ1
PS/2 Keyboard
IRQ2 (9)
IRQ3
COM1
IRQ4
COM2
IRQ5
IRQ6
IRQ7
IRQ8
RTC
IRQ9
IRQ10
IRQ11
IRQ12
PS/2 Mouse
II Annex: Resources
IO Range
The used resources depend on setup settings. The given values are ranges, which are fixed by AT compatibility. Other IO ranges are used, which are dynamically adjusted by Plug & Play BIOS while booting.
Memory Range
The used resources depend on setup settings. If the entire range is clogged through option ROMs, these functions do not work anymore.
Interrupt
The used resources depend on setup settings. The listed interrupts and their use are given through AT compatibility. If interrupts must exclusively be available on the ISA side, they have to be reserved through the BIOS setup. The exclusivity is not given and not possible on the PCI side.
page 80 Beckhoff New Automation Technology CB4058
Annex: Resources
Address
Function
IRQ13
FPU
IRQ14
IRQ15
AD
INTA
REQ
Bus
Dev.
Fct.
Controller / Slot
- - 0 0 0
Host Bridge ID0BF3h
A - 0 2 0
VGA Graphics ID0BE2h
A - 0
25 0 LAN ICH9 ID10F5h
A - 0
26 0 USB UHCI Controller #4 ID2937h
B - 0
26 1 USB UHCI Controller #5 ID2938h
C - 0
26 2 USB UHCI Controller #6 ID2939h
C - 0
26 7 USB 2.0 EHCI Controller #2 ID293Ch
A - 0
27 0 HDA Controller ID293Eh
A - 0
28 0 PCI Express Port 1 ID2940h
A - 0
28 1 [PCI Express Port 2] ID2942h
A - 0
28 2 [PCI Express Port 3] ID2944h
A - 0
28 3 [PCI Express Port 4] ID2946h
A - 0
28 4 PCI Express Port 5 ID2948h
A - 0
29 0 USB UHCI Controller #1 ID2934h
B - 0
29 1 USB UHCI Controller #2 ID2935h
C - 0
29 2 USB UHCI Controller #3 ID2936h
A - 0
29 7 USB 2.0 EHCI Controller #1 ID293Ah
- - 0
30 0 DMI-to-PCI Bridge ID2448h
- - 0
31 0 LPC Interface ID2917h
B - 0
31 2 SATA Interface #1 ID2929h
C - 0
31 3 SMBus Interface ID2930h
A - 2 0 0
82574L Ethernet ID10D3h
Address
Function
10-11
Standard slave address
40-41
GPIO
60-61
BIOS internal
70-73
POST code output
88-89
BIOS-defined slave address
A0-A1
DIMM 1
A2-A3
DIMM 2
A4-AF
BIOS internal
B0-BF
BIOS internal
PCI Devices
All listed PCI devices exist on the board. Some PCI devices or functions of devices may be disabled in the BIOS setup. Once a device is disabled other devices may get PCI bus numbers different from the ones listed in the table.
SMB Devices
The following table contains all reserved SM-Bus device addresses in 8-bit notation. Note that external devices must not use any of these addresses even if the component mentioned in the table is not present on the motherboard.
Beckhoff New Automation Technology CB4058 page 81
Annex: Resources
Address
Function
D2-D3
Clock
page 82 Beckhoff New Automation Technology CB4058
Loading...
