CB4021
Manual
rev. 1.7
Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0
Eiserstr. 5 fax: +49 (0) 52 46/963-198
33415 Verl email: info@beckhoff.de
Germany web: www.beckhoff.de
Contents
Contents
0 Document History ................................................................................................................................. 5
1 Introduction ........................................................................................................................................... 6
1.1 Notes on the Documentation ......................................................................................................... 6
1.1.1 Liability Conditions ................................................................................................................ 6
1.1.2 Copyright ............................................................................................................................... 6
1.2 Safety Instructions ......................................................................................................................... 7
1.2.1 Disclaimer .............................................................................................................................. 7
1.2.2 Description of Safety Symbols .............................................................................................. 7
1.3 Essential Safety Measures ............................................................................................................ 8
1.3.1 Operator's Obligation to Exercise Diligence .......................................................................... 8
1.3.2 National Regulations Depending on the Machine Type ........................................................ 8
1.3.3 Operator Requirements ......................................................................................................... 8
1.4 Functional Range .......................................................................................................................... 9
2 Overview ............................................................................................................................................. 10
2.1 Standard Features ....................................................................................................................... 10
2.2 Specifications and Documents .................................................................................................... 12
3 Detailed Description ........................................................................................................................... 13
3.1 Power Supply .............................................................................................................................. 13
3.2 CPU ............................................................................................................................................. 13
3.3 Memory ....................................................................................................................................... 13
4 Connectors ......................................................................................................................................... 14
4.1 Connector Map ............................................................................................................................ 15
4.2 Power Supply .............................................................................................................................. 16
4.3 System ........................................................................................................................................ 17
4.4 Memory ....................................................................................................................................... 18
4.5 PC/104-Bus ................................................................................................................................. 21
4.6 PC/104-Plus Bus ......................................................................................................................... 23
4.7 VGA ............................................................................................................................................. 25
4.8 LCD ............................................................................................................................................. 26
4.9 USB 1 to 4, LAN, Sound ............................................................................................................. 27
4.10 IDE Interface ............................................................................................................................... 29
4.11 Parallel Interface LPT .................................................................................................................. 30
4.12 Serial Interface COM1 ................................................................................................................. 31
4.13 Serial Interface COM2 ................................................................................................................. 32
4.14 SMBus ......................................................................................................................................... 33
4.15 Monitoring Functions ................................................................................................................... 34
4.16 Fan .............................................................................................................................................. 35
5 BIOS Settings ..................................................................................................................................... 36
5.1 Remarks for Setup Use ............................................................................................................... 36
5.2 Top Level Menu ........................................................................................................................... 36
5.3 Standard CMOS Features ........................................................................................................... 37
5.3.1 IDE Primary Master/Slave ................................................................................................... 38
5.4 Advanced BIOS Features ........................................................................................................... 39
5.4.1 Hard Disk Boot Priority ........................................................................................................ 41
5.5 Advanced Chipset Features ........................................................................................................ 42
5.5.1 PC Health Status ................................................................................................................. 44
Beckhoff New Automation Technology CB4021 page 3
Contents
5.5.2 TV Output Configuration...................................................................................................... 45
5.6 Integrated Peripherals ................................................................................................................. 46
5.7 Power Management Setup .......................................................................................................... 48
5.7.1 IRQ Wakeup Events ............................................................................................................ 49
5.8 PnP/PCI Configuration ................................................................................................................ 51
5.8.1 IRQ Resources .................................................................................................................... 52
5.8.2 Memory Resources ............................................................................................................. 53
5.9 PC Health Status ......................................................................................................................... 54
5.10 Load Fail-Safe Defaults ............................................................................................................... 55
5.11 Load Optimized Defaults ............................................................................................................. 55
5.12 Set Password .............................................................................................................................. 55
5.13 Save & Exit Setup ....................................................................................................................... 55
5.14 Exit Without Saving ..................................................................................................................... 55
6 BIOS update ....................................................................................................................................... 56
7 Mechanical Drawing ........................................................................................................................... 57
7.1 PCB: Mounting Holes .................................................................................................................. 57
7.2 PCB: Pin 1 Dimensions ............................................................................................................... 58
8 Technical Data .................................................................................................................................... 59
8.1 Electrical Data ............................................................................................................................. 59
8.2 Environmental Conditions ........................................................................................................... 59
8.3 Thermal Specifications ................................................................................................................ 60
9 Support and Service ........................................................................................................................... 61
9.1 Beckhoff's Branch Offices and Representatives ......................................................................... 61
9.2 Beckhoff Headquarters................................................................................................................ 61
9.2.1 Beckhoff Support ................................................................................................................. 61
9.2.2 Beckhoff Service ................................................................................................................. 61
I Annex: Post-Codes ............................................................................................................................. 62
II Annex: Resources .............................................................................................................................. 65
A IO Range ......................................................................................................................................... 65
B Memory Range ................................................................................................................................ 65
C Interrupt ........................................................................................................................................... 65
D PCI Devices ..................................................................................................................................... 66
E SMB Devices ................................................................................................................................... 66
page 4 Beckhoff New Automation Technology CB4021
Notes on the Documentation Chapter: Document History
0 Document History
Version Changes
0.1 first preliminary release
0.2 added LX900, numbering of USB channels starts at 1 everywhere
0.3 updated table of SMB devices
1.0 corrections to the SO-DIMM200 pinout (no ECC)
1.1 new images, SSD included, new connector map, 16bit ISA possible, temperature
ranges, several minor changes
1.2 updated block diagram (LX800 only), COM signal levels
1.3 updated contact details, minor changes
1.4 added pinout for RS-422/RS-485 COM soldering option, minor changes
1.5 minor changes
1.6 updated contact details
1.7 updated dimensional drawings, minor changes
NOTE
All company names, brand names, and product names referred to in this manual are registered or
unregistered trademarks of their respective holders and are, as such, protected by national and
international law.
Beckhoff New Automation Technology CB4021 page 5
Chapter: Introduction Notes on the Documentation
1 Introduction
1.1 Notes on the Documentation
This description is only intended for the use of trained specialists in control and automation engineering
who are familiar with the applicable national standards. It is essential that the following notes and
explanations are followed when installing and commissioning these components.
1.1.1 Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under
development. For that reason the documentation is not in every case checked for consistency with
performance data, standards or other characteristics. None of the statements of this manual represents a
guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the
contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In
the event that it contains technical or editorial errors, we retain the right to make alterations at any time
and without warning. No claims for the modification of products that have already been supplied may be
made on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Copyright
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in
whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.
page 6 Beckhoff New Automation Technology CB4021
Safety Instructions Chapter: Introduction
1.2 Safety Instructions
Please consider the following safety instructions and descriptions. Product specific safety instructions are
to be found on the following pages or in the areas mounting, wiring, commissioning etc.
1.2.1 Disclaimer
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.
1.2.2 Description of Safety Symbols
The following safety symbols are used in this documentation. They are intended to alert the reader to the
associated safety instructions.
ACUTE RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health
of individuals!
RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is danger to life and health of
individuals!
HAZARD TO INDIVIDUALS, ENVIRONMENT, DEVICES, OR DATA!
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to
environment, to materials, or to data.
NOTE OR POINTER
This symbol indicates information that contributes to better understanding.
Beckhoff New Automation Technology CB4021 page 7
Chapter: Introduction Essential Safety Measures
1.3 Essential Safety Measures
1.3.1 Operator's Obligation to Exercise Diligence
The operator must ensure that
o the product is only used for its intended purpose
o the product is only operated in sound condition and in working order
o the instruction manual is in good condition and complete, and always available for reference at the
location where the products are used
o the product is only used by suitably qualified and authorised personnel
o the personnel is instructed regularly about relevant occupational safety and environmental protection
aspects
o the operating personnel is familiar with the operating manual and in particular the safety notes
contained herein
1.3.2 National Regulations Depending on the Machine Type
Depending on the type of machine and plant in which the product is used, national regulations governing
the controllers of such machines will apply, and must be observed by the operator. These regulations
cover, amongst other things, the intervals between inspections of the controller. The operator must initiate
such inspections in good time.
1.3.3 Operator Requirements
o Read the operating instructions
All users of the product must have read the operating instructions for the system they work with.
o System know-how
All users must be familiar with all accessible functions of the product.
page 8 Beckhoff New Automation Technology CB4021
Functional Range Chapter: Introduction
1.4 Functional Range
NOTE
The descriptions contained in the present documentation represent a detailed and extensive product
description. As far as the described motherboard was acquired as an integral component of an Industrial
PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only
the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation
GmbH shall be relevant. Due to several models of Industrial PCs, variations in the component placement
of the motherboards are possible. Support and service benefits for the built-in motherboard will be
rendered by Beckhoff Automation GmbH exclusively as specified in the product description (inclusive
operation system) of the particular Industrial PC.
Beckhoff New Automation Technology CB4021 page 9
Chapter: Overview Standard Features
2 Overview
2.1 Standard Features
The CB4021 is a highly complex PC/104-Plus board with the functionalities of a motherboard. Based on
the AMD® Geode® CS5536 chipset it is equipped with an AMD® Geode® LX800 CPU, up to 1 GByte
RAM (DDR-400) memory capacity via SO-DIMM200, PCI and ISA bus and additional peripheral devices
such as two serial interfaces, one printer interface, LAN connection, audio in and out, four USB
interfaces, CRT, TFT and IDE connection. As an option the board can be equipped with an onboard SSD
with 2, 4 or 8 GB capacity (IDE master).
SPDIF/I
SPDIF/O
LINE
MIC
OUT
USB1
USB2
USB3
USB4
IDE1
(slave)
KB
MS
RealTek®
ALC655
USB 2.0
SSD
2/4/8GB
(master)
Winbond®
W83627HG
VCCCore; VTT; DDRVTT
Power
1,5V; 1,8V; 2,5V; 3,3V
ICS2305M-1LF
AMD® Geode™
CS5536
LPC
BIOS
LPCtoISA:
W83626G /
F85226F
Clock
PCI
SoDIMM200 DDR400
LVDS Transm.
NS DS90C385
MEMORY
AMD® Geode™
LX800 (500MHz)
PCI
Intel®
82551ER/
82562EZ
LVDS 18
LCD
CRT
Slot1
Slot2
Slot3
COM1
COM2
LPT/FDC
Watchdog
PC/104
PC/104 Plus
PC/104 Plus
PC/104 Plus
Slot4
PC/104 Plus
LAN
o Processor AMD® Geode® LX800 (500MHz)
o Chipset AMD® Geode® CS5536
o SO-DIMM200 socket for up to 1 GByte of RAM (DDR-400)
o Two serial interfaces COM1 and COM2
o LAN interface Ethernet 10/100 (Base-T)
o IDE interface
o Option: SSD flash disk of 2, 4 or 8GB (IDE master)
o PS2 keyboard / mouse interface
o LPT interface
o Four USB 2.0 interfaces (3x host, 1x host/device)
o AWARD® BIOS 6.10
o CRT connection
page 10 Beckhoff New Automation Technology CB4021
Standard Features Chapter: Overview
o TFT connection, LVDS 18Bit
o AC97 compatible sound controller with SPDIF in and out
o RTC with external CMOS battery
o 5V single supply voltage
o ISA via PC/104 connector
o PCI via PC/104-Plus connector
o Size: 96 mm x 90 mm
Beckhoff New Automation Technology CB4021 page 11
Chapter: Overview Specifications and Documents
2.2 Specifications and Documents
In making this manual and for further reading of technical documentation, the following documents,
specifications and web-pages were used and are recommended.
§ ISA specification
IEEE996P
www.ieee.org
§ PC/104™ specification
Version 2.5
www.pc104.org
§ PC/104-Plus™ specification
Version 2.0
www.pc104.org
§ PCI specification
Version 2.3 and 3.0
www.pcisig.com
§ ACPI specification
Version 3.0
www.acpi.info
§ ATA/ATAPI specification
Version 7 Rev. 1
www.t13.org
§ USB specifications
www.usb.org
§ SM-Bus specification
Version 2.0
www.smbus.org
§ AMD® chip description
CS5536® Datasheet
www.amd.com
§ AMD® chip description
Geode® LX Processors Data Book
www.amd.com
§ Winbond® chip description
W83627HG Datasheet
www.winbond-usa.com or www.winbond.com.tw
§ Winbond® chip description
W83626G Datasheet
www.winbond-usa.com or www.winbond.com.tw
§ Intel® chip description
82551ER Datasheet
www.intel.com
§ National Semiconductor® chip description
DS90C385 Datasheet
www.national.com
page 12 Beckhoff New Automation Technology CB4021
Power Supply Chapter: Detailed Description
3 Detailed Description
3.1 Power Supply
The power supply of the hardware module is effected via the power connector. The board only requires
an operating voltage of 5 volt ± 5%, it is not necessary to connect all indicated voltages. Additional
voltages may only be necessary for PC/104 expansion cards. For safety reasons it is recommended to
connect all power pins of the PC/104 connector to the power supply as well.
3.2 CPU
The board comes with an AMD® Geode® LX800 CPU running at a clock speed of 500MHz. The package
type allows operation under a maximum case temperature of 60 degrees Celsius (extended temperature
range on request) and accords highest possible security even in rough environment.
The processor includes a second level cache of 128 KByte. Furthermore, all Geode® LX processors offer
many features known from the desktop range such as MMX®, 3DNow!®, loadable microcode etc.
3.3 Memory
There is one conventional SO-DIMM200 socket available to equip the board with memory. For technical
and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask
your sales representative for recommended memory modules.
With currently available SO-DIMM200 modules a memory extension up to 1 GByte is possible
(DDR-400).
Beckhoff New Automation Technology CB4021 page 13
Chapter: Connectors Memory
4 Connectors
This section describes all the connectors found on the CB4021.
CAUTION
For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted
and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are
also in place for many high speed interfaces and for power supply. Please refer to the respective
specifications and use suitable cables at all times.
page 14 Beckhoff New Automation Technology CB4021
Connector Map Chapter: Connectors
4.1 Connector Map
Please use the connector map below for quick reference. Only connectors on the component side are
shown. For more information on each connector refer to the table below.
Ref-No. Function Page
U303* "Memory" p. 18
P600 "Serial Interface COM1" p. 31
P601 "USB 1 to 4, LAN, Sound" p. 27
P602 "Serial Interface COM2" p. 32
P603 "Parallel Interface LPT" p. 30
P604 "IDE Interface" p. 29
P606 "LCD" p. 26
P900 "System" p. 17
P901 "PC/104-Bus" p. 21
P902 "PC/104-Bus" p. 21
P903 "Power Supply" p. 16
P904 "SMBus" p. 33
P905 "Monitoring Functions" p. 34
P906 "PC/104-Plus Bus" p. 23
P907 "VGA" p. 25
P1000 "Fan" p. 35
* not in the picture above (cf. bottom side of board)
Beckhoff New Automation Technology CB4021 page 15
Chapter: Connectors Power Supply

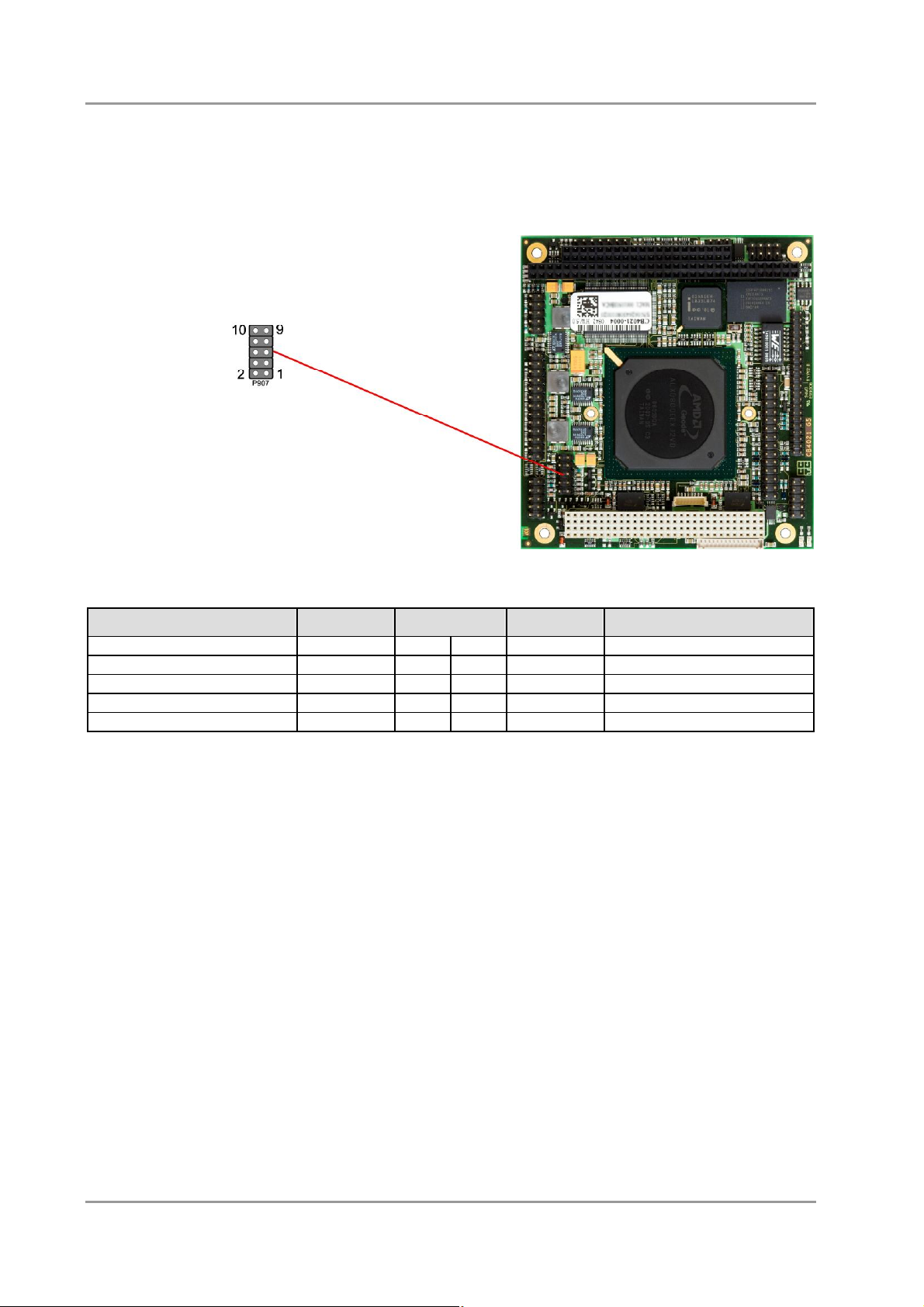

4.2 Power Supply
The connector for the power supply is a standard IDC socket connector with a spacing of 2.54 mm.
The board only requires an operating voltage of 5 volt ± 5%. 3.3V output to the PC/104-Plus bus is the
only off-board supply available.
Should additional voltages be needed for PC/104 expansion cards, these must be provided externally by
connecting the respective pins (see below).
For maximum current availability, it is recommended to use both this power connector and the PC/104
connector for power supply.
NOTE
For "Real Time Clock" an external battery (3.3V) must be connected. You can use pins 1 & 3 here or the
"System" connector (see next page).
Description Name Pin Name Description
ground GND 1 2 VCC 5 volt supply
CMOS battery >= 3 volt VBAT 3 4 12V 12 volt supply
-5 volt supply -5V 5 6 -12V -12 volt supply
ground GND 7 8 VCC 5 volt supply
page 16 Beckhoff New Automation Technology CB4021
System Chapter: Connectors

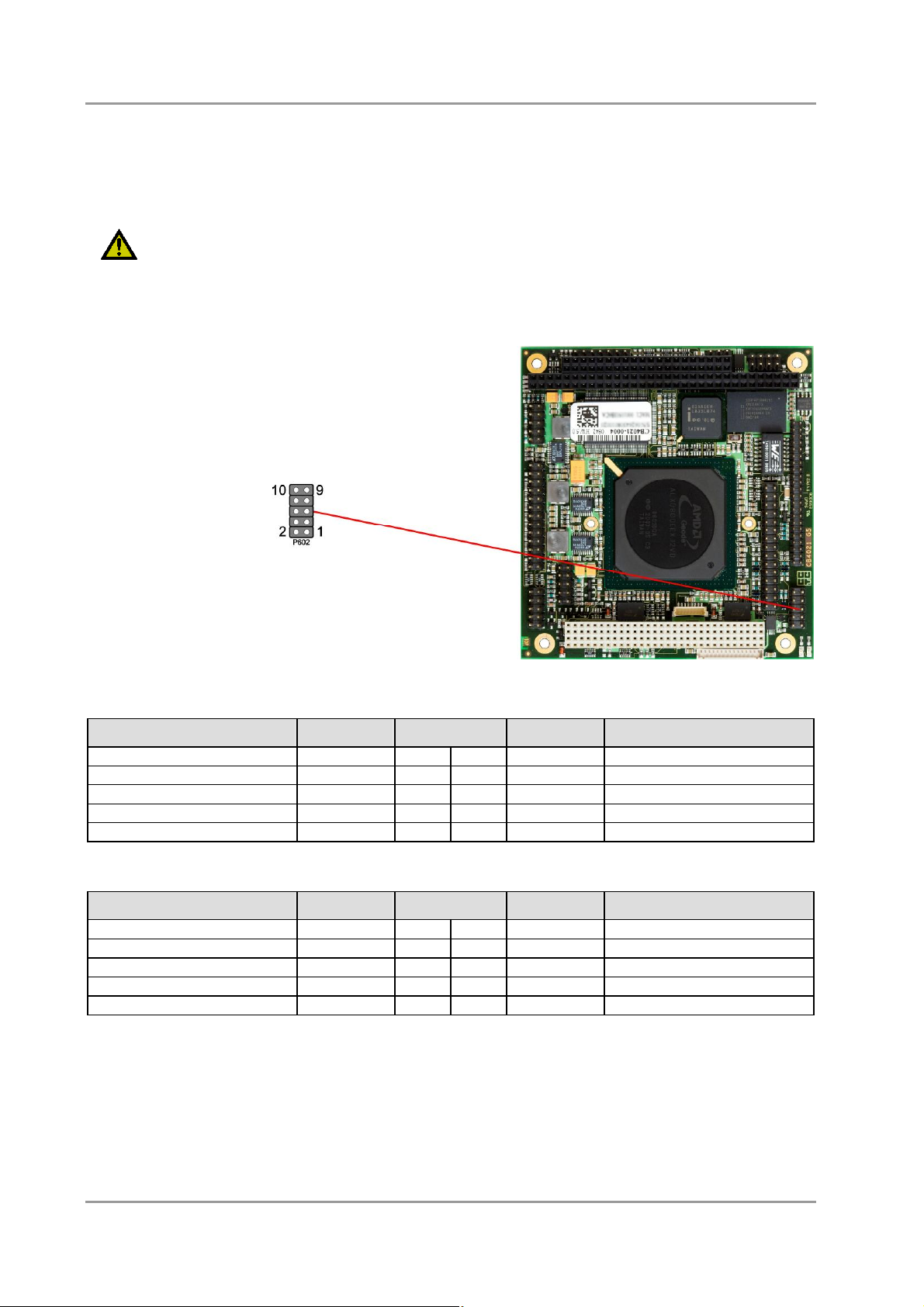

4.3 System
The system connector, which has the main functions that are necessary to start the board, is provided via
a standard IDC socket connector with a spacing of 2.54 mm.
This connector supports the following interfaces: PS/2 keyboard, PS/2 mouse, speaker, external
RTC-battery and reset of the board.
NOTE
For "Real Time Clock" an external battery (3.3V) must be connected. Connect "+" to VBAT and "-" to
GND.
Description Name Pin Name Description
speaker to 5 volt SPEAKER 1 2 GND ground
reset to ground RESET# 3 4 KLOCK# keyboard lock
keyboard Data KDAT 5 6 KCLK keyboard clock
mouse data MDAT 7 8 MCLK mouse clock
CMOS battery ≥ 3 volt VBAT 9 10 VCC 5 volt supply
Beckhoff New Automation Technology CB4021 page 17
Chapter: Connectors Memory
4.4 Memory
There is one conventional SO-DIMM200 socket available to equip the board with memory (DDR-400). It is
located on the bottom side of the board. For technical and mechanical reasons it is possible that
particular memory modules cannot be employed. Please ask your sales representative for recommended
memory modules.
With currently available SO-DIMM modules a memory extension up to 1 GByte is possible. The timing
parameters for different memory modules are automatically set by BIOS.
Description Name Pin Name Description
memory reference current REF 1 2 REF memory reference current
ground GND 3 4 GND ground
data 0 DQ0 5 6 DQ4 data 4
data 1 DQ1 7 8 DQ5 data 5
2.5 volt supply 2.5V 9 10 2.5V 2.5 volt supply
data strobe 0 DQS0 11 12 DQM0 data mask 0
data 2 DQ2 13 14 DQ6 data 6
ground GND 15 16 GND ground
data 3 DQ3 17 18 DQ7 data 7
data 8 DQ8 19 20 DQ12 data 12
2.5 volt supply 2.5V 21 22 2.5V 2.5 volt supply
data 9 DQ9 23 24 DQ13 data 13
data strobe 1 DQS1 25 26 DQM1 data mask 1
ground GND 27 28 GND ground
data 10 DQ10 29 30 DQ14 data 14
data 11 DQ11 31 32 DQ15 data 15
2.5 volt supply 2.5V 33 34 2.5V 2.5 volt supply
clock CK0 35 36 2.5V 2.5 volt supply
clock CK0# 37 38 2.5V 2.5 volt supply
ground GND 39 40 GND ground
data 16 DQ16 41 42 DQ20 data 20
data 17 DQ17 43 44 DQ21 data 21
2.5 volt supply 2.5V 45 46 2.5V 2.5 volt supply
data strobe 2 DQS2 47 48 DQM2 data mask 2
data 18 DQ18 49 50 DQ22 data 22
page 18 Beckhoff New Automation Technology CB4021
Memory Chapter: Connectors
Description Name Pin Name Description
ground GND 51 52 GND ground
data 19 DQ19 53 54 DQ23 data 23
data 24 DQ24 55 56 DQ28 data 28
2.5 volt supply 2.5V 57 58 2.5V 2.5 volt supply
data 25 DQ25 59 60 DQ29 data 29
data strobe 3 DQS3 61 62 DQM3 data mask 3
ground GND 63 64 GND ground
data 26 DQ26 65 66 DQ30 data 30
data 27 DQ27 67 68 DQ31 data 31
2.5 volt supply 2.5V 69 70 2.5V 2.5 volt supply
data check bit 0 CB0 71 72 N/C reserved
reserved N/C 73 74 N/C reserved
ground GND 75 76 GND ground
data strobe 8 DQS8 77 78 DQM8 data mask 8
reserved N/C 79 80 N/C reserved
2.5 volt supply 2.5V 81 82 2.5V 2.5 volt supply
reserved N/C 83 84 N/C reserved
reserved N/C 85 86 N/C reserved
ground GND 87 88 GND ground
clock CK2 89 90 GND ground
clock CK2# 91 92 2.5V 2.5 volt supply
2.5 volt supply 2.5V 93 94 2.5V 2.5 volt supply
clock enables CKE 95 96 CKE clock enables
address 13 A13 97 98 N/C reserved
address 12 A12 99 100 A11 address 11
address 9 A9 101 102 A8 address 8
ground GND 103 104 GND ground
address 7 A7 105 106 A6 address 6
address 5 A5 107 108 A4 address 4
address 3 A3 109 110 A2 address 2
address 1 A1 111 112 A0 address 0
2.5 volt supply 2.5V 113 114 2.5V 2.5 volt supply
address 10 A10 115 116 BA1 SDRAM bank 1
SDRAM bank 0 BA0 117 118 RAS# row address strobe
write enable WE# 119 120 CAS# column address strobe
chip select S0# 121 122 S1# chip select
reserved N/C 123 124 N/C reserved
ground GND 125 126 GND ground
data 32 DQ32 127 128 DQ36 data 36
data 33 DQ33 129 130 DQ37 data 37
2.5 volt supply 2.5V 131 132 2.5V 2.5 volt supply
data strobe 4 DQS4 133 134 DQM4 data mask 4
data 34 DQ34 135 136 DQ38 data 38
ground GND 137 138 GND ground
data 35 DQ35 139 140 DQ39 data 39
data 40 DQ40 141 142 DQ44 data 44
2.5 volt supply 2.5V 143 144 2.5V 2.5 volt supply
data 41 DQ41 145 146 DQ45 data 45
data strobe 5 DQS5 147 148 DQM5 data mask 5
ground GND 149 150 GND ground
data 42 DQ42 151 152 DQ46 data 46
data 43 DQ43 153 154 DQ47 data 47
2.5 volt supply 2.5V 155 156 2.5V 2.5 volt supply
2.5 volt supply 2.5V 157 158 CK1# clock
ground GND 159 160 CK1 clock
Beckhoff New Automation Technology CB4021 page 19
Chapter: Connectors Memory
Description Name Pin Name Description
ground GND 161 162 GND ground
data 48 DQ48 163 164 DQ52 data 52
data 49 DQ49 165 166 DQ53 data 53
2.5 volt supply 2.5V 167 168 2.5V 2.5 volt supply
data strobe 6 DQS6 169 170 DQM6 data mask 6
data 50 DQ50 171 172 DQ54 data 54
ground GND 173 174 GND ground
data 51 DQ51 175 176 DQ55 data 55
data 56 DQ56 177 178 DQ60 data 60
2.5 volt supply 2.5V 179 180 2.5V 2.5 volt supply
data 57 DQ57 181 182 DQ61 data 61
data strobe 7 DQS7 183 184 DQM7 data mask 7
ground GND 185 186 GND ground
data 58 DQ58 187 188 DQ62 data 62
data 59 DQ59 189 190 DQ63 data 63
2.5 volt supply 2.5V 191 192 2.5V 2.5 volt supply
SPD data SDA 193 194 SA0 SPD address
SPD clock SCL 195 196 SA1 SPD address
3.3 volt supply 3.3V 197 198 SA2 SPD address
reserved N/C 199 200 N/C reserved
page 20 Beckhoff New Automation Technology CB4021
PC/104-Bus Chapter: Connectors
4.5 PC/104-Bus
An onboard LPC-to-ISA bridge (Fintek® F85226F) makes it possible to expand the functionality of the
board with additional PC/104 cards. This interface offers full 16bit ISA compliance. For further information
on this interface please refer to the PC/104 specifications (see "Specifications and Documents", p. 12).
Pinning of the standard 8 bit PC/104 connector.
Description Name Pin Name Description
ISA - IO channel check IOCHK# A1 B1 GND ground
ISA – data 7 SD7 A2 B2 RSTDRV reset drive
ISA – data 6 SD6 A3 B3 VCC 5 volt supply
ISA – data 5 SD5 A4 B4 IRQ9 ISA – interrupt 9 (2)
ISA – data 4 SD4 A5 B5 -5V -5 volt supply
ISA – data 3 SD3 A6 B6 DRQ2 ISA – DMA request 2
ISA – data 2 SD2 A7 B7 -12V -12 volt supply
ISA – data 1 SD1 A8 B8 IOCHRDY ISA – IO channel ready
ISA – data 0 SD0 A9 B9 12V 12 volt supply
ISA – IO channel ready IOCHRDY A10 B10 N/C reserved
ISA – address enable AEN A11 B11 SMEMW# ISA – system memory write
ISA – address 19 SA19 A12 B12 SMEMR# ISA – system memory read
ISA – address 18 SA18 A13 B13 IOW# ISA – IO write
ISA – address 17 SA17 A14 B14 IOR# ISA – IO read
ISA – address 16 SA16 A15 B15 DACK3# ISA – DMA acknowledge 3
ISA – address 15 SA15 A16 B16 DRQ3 ISA – DMA request 3
ISA – address 14 SA14 A17 B17 DACK1# ISA – DMA acknowledge 1
ISA – address 13 SA13 A18 B18 DRQ1 ISA – DMA request 1
ISA – address 12 SA12 A19 B19 REFRESH# ISA – refresh
ISA – address 11 SA11 A20 B20 SYSCLK ISA – system clock
ISA – address 10 SA10 A21 B21 IRQ7 ISA – interrupt 7
ISA – address 9 SA9 A22 B22 IRQ6 ISA – interrupt 6
ISA – address 8 SA8 A23 B23 IRQ5 ISA – interrupt 5
ISA – address 7 SA7 A24 B24 IRQ4 ISA – interrupt 4
ISA – address 6 SA6 A25 B25 IRQ3 ISA – interrupt 3
ISA – address 5 SA5 A26 B26 DACK2# ISA – DMA acknowledge 2
ISA – address 4 SA4 A27 B27 T/C ISA – terminal count
ISA – address 3 SA3 A28 B28 BALE ISA – address latch en.
Beckhoff New Automation Technology CB4021 page 21
Chapter: Connectors PC/104-Bus
Description Name Pin Name Description
ISA – address 2 SA2 A29 B29 VCC 5 volt supply
ISA – address 1 SA1 A30 B30 OSC ISA – 14,318MHz
ISA – address 0 SA0 A31 B31 GND ground
ground GND A32 B32 GND ground
Pinning of the 16 bit expansion PC/104 connector.
Description Name Pin Name Description
ground GND C0 D0 GND ground
ISA – byte high enable SBHE# C1 D1 MEMCS16# ISA – memory chip select
ISA – latched address 23 LA23 C2 D2 IOCS16# ISA – IO chip select
ISA – latched address 22 LA22 C3 D3 IRQ10 ISA – interrupt 10
ISA – latched address 21 LA21 C4 D4 IRQ11 ISA – interrupt 11
ISA – latched address 20 LA20 C5 D5 IRQ12 ISA – interrupt 12
ISA – latched address 19 LA19 C6 D6 IRQ15 ISA – interrupt 15
ISA – latched address 18 LA18 C7 D7 IRQ14 ISA – interrupt 14
ISA – latched address 17 LA17 C8 D8 DACK0# ISA – DMA acknowledge 0
ISA – memory read MEMR# C9 D9 DRQ0 ISA – DMA request 0
ISA – memory write MEMW# C10 D10 DACK5# ISA – DMA acknowledge 5
ISA – data 8 SD8 C11 D11 DRQ5 ISA – DMA request 5
ISA – data 9 SD9 C12 D12 DACK6# ISA – DMA acknowledge 6
ISA – data 10 SD10 C13 D13 DRQ6 ISA – DMA request 6
ISA – data 11 SD11 C14 D14 DACK7# ISA – DMA acknowledge 7
ISA – data 12 SD12 C15 D15 DRQ7 ISA – DMA request 7
ISA – data 13 SD13 C16 D16 VCC 5 volt supply
ISA – data 14 SD14 C17 D17 MASTER# ISA – bus master
ISA – data 15 SD15 C18 D18 GND ground
reserved N/C C19 D19 GND ground
page 22 Beckhoff New Automation Technology CB4021
PC/104-Plus Bus Chapter: Connectors
4.6 PC/104-Plus Bus
Expansion cards can be connected to the board using the PCI connector first introduced with the
PC/104-Plus standard. A maximum of four PC/104-Plus cards are supported.
The interrupt routing and the IDSEL signals for the expansion cards are specified in the PC/104-Plus
specification (see "Specifications and Documents", p. 12).
Description Name Pin Name Description
ground GND A1 B1 N/C reserved
3.3 volt - IO buffer power VIO A2 B2 AD2 PCI – address/data 2
PCI – address/data 5 AD5 A3 B3 GND ground
PCI – com/byte enable 0 CBE0# A4 B4 AD7 PCI – address/data 7
ground GND A5 B5 AD9 PCI – address/data 9
PCI – address/data 11 AD11 A6 B6 VIO 3.3 volt - IO buffer power
PCI – address/data 14 AD14 A7 B7 AD13 PCI – address/data 13
3.3 volt supply 3.3V A8 B8 CBE1# PCI – com/byte enable 1
PCI – system error SERR# A9 B9 GND ground
ground GND A10 B10 PERR# PCI – parity error
PCI – stop stop# A11 B11 3.3V 3.3 volt supply
3.3 volt supply 3.3V A12 B12 TRDY# PCI – target ready
PCI – frame FRAME# A13 B13 GND ground
ground GND A14 B14 AD16 PCI – address/data 16
PCI – address/data 18 AD18 A15 B15 3.3V 3.3 volt supply
PCI – address/data 21 AD21 A16 B16 AD20 PCI – address/data 20
3.3 volt supply 3.3V A17 B17 AD23 PCI – address/data 23
PCI – ID select slot 1 IDSEL0 A18 B18 GND ground
PCI – address/data 24 AD24 A19 B19 CBE3# PCI – com/byte enable 3
ground GND A20 B20 AD26 PCI – address/data 26
PCI – address/data 29 AD29 A21 B21 VCC 5 volt supply
5 volt supply VCC A22 B22 AD30 PCI – address/data 30
PCI – bus request slot 1 REQ0# A23 B23 GND ground
ground GND A24 B24 REQ2# PCI – bus request slot 3
PCI – bus grant slot 4 GNT1# A25 B25 VIO 5 volt - IO buffer power
5 volt supply VCC A26 B26 CLK0 PCI – clock slot 1
PCI – clock slot 3 CLK2 A27 B27 VCC 5 volt supply
Beckhoff New Automation Technology CB4021 page 23
Chapter: Connectors PC/104-Plus Bus
Description Name Pin Name Description
ground GND A28 B28 INTD# PCI – interrupt D
12V supply 12V A29 B29 INTA# PCI – interrupt A
-12V supply -12V A30 B30 REQ3# PCI – bus request slot 4
5 volt supply VCC C1 D1 AD0 PCI – address/data 0
PCI – address/data 1 AD1 C2 D2 VCC 5 volt supply
PCI – address/data 4 AD4 C3 D3 AD3 PCI – address/data 3
ground GND C4 D4 AD6 PCI – address/data 6
PCI – address/data 8 AD8 C5 D5 GND ground
PCI – address/data 10 AD10 C6 D6 M66EN PCI – 66MHz enable
ground GND C7 D7 AD12 PCI – address/data 12
PCI – address/data 15 AD15 C8 D8 3.3V 3.3 volt supply
reserved N/C C9 D9 PAR PCI – parity bit
3.3 volt supply 3.3V C10 D10 N/C reserved
PCI – lock LOCK# C11 D11 GND ground
ground GND C12 D12 DEVSEL# PCI – device select
PCI – initiator ready IRDY# C13 D13 3.3V 3.3 volt supply
3.3 volt supply 3.3V C14 D14 CBE2# PCI – com/byte enable 2
PCI – address/data 17 AD17 C15 D15 GND ground
ground GND C16 D16 AD19 PCI – address/data 19
PCI – address/data 22 AD22 C17 D17 3.3V 3.3 volt supply
PCI – ID select slot 2 IDSEL1 C18 D18 IDSEL2 PCI – ID select slot 3
3,3 volt - IO buffer power VIO C19 D19 IDSEL3 PCI – ID select slot 4
PCI – address/data 25 AD25 C20 D20 GND ground
PCI – address/data 28 AD28 C21 D21 AD27 PCI – address/data 27
ground GND C22 D22 AD31 PCI – address/data 31
PCI – bus request slot 2 REQ1# C23 D23 VIO 3,3 volt - IO buffer power
5 volt supply VCC C24 D24 GNT0# PCI – bus grant slot 1
PCI – bus grant slot 3 GNT2# C25 D25 GND ground
ground GND C26 D26 CLK1 PCI – clock slot 2
PCI – clock slot 4 CLK3 C27 D27 GND ground
5 volt supply VCC C28 D28 RST# PCI – reset
PCI – interrupt B INTB# C29 D29 INTC# PCI – interrupt C
PCI – bus grant slot 4 GNT3# C30 D30 GND ground
page 24 Beckhoff New Automation Technology CB4021
VGA Chapter: Connectors
4.7 VGA
The CRT-VGA signals are provided by a standard IDC socket connector with a spacing of 2.54 mm.
This interface allows the connection of a standard VGA-monitor. I2C communication is supported.
Description Name Pin Name Description
analog red RED 1 2 GND ground
analog green GREEN 3 4 DDDA DD data
analog blue BLUE 5 6 DDCK DD clock
vertikal sync VSYNC 7 8 GND ground
horizontal sync HSYNC 9 10 GND ground
Beckhoff New Automation Technology CB4021 page 25
Chapter: Connectors LCD
4.8 LCD
The LCD is connected via a 15 pin connector (Hirose DF13-15P-1.25DSA, mating connector:
DF13-15S-xxx). The power supply for the display is also provided through this connector. The CB4021
board supports displays with LVDS interface. For displays with digital interface an extra receiver board is
available. There is no support for DSTN displays.
With the LVDS interface it is possible to trigger LVDS displays with a maximum of 18 Bit colour depth
and one pixel per clock.
The display type can be chosen over the BIOS setup. Please contact your sales representative regarding
an appropriate cable to connect your display.
The following table shows the pin description for the first bit ("even" pixel).
Pin
Name Description
1 GND ground
2 GND ground
3 TXO00# LVDS even data 0 4 TXO00 LVDS even data 0 +
5 TXO01# LVDS even data 1 6 TXO01 LVDS even data 1 +
7 TXO02# LVDS even data 2 8 TXO02 LVDS even data 2 +
9 TXO0C# LVDS even clock 10 TXO0C LVDS even clock +
11 TXO03# LVDS even data 3 12 TXO03 LVDS even data 3 +
13 BL_VCC switched 5 volt for backlight
14 FP_3.3V switched 3.3 volt for display
15 FP_3.3V switched 3.3 volt for display
page 26 Beckhoff New Automation Technology CB4021
USB 1 to 4, LAN, Sound Chapter: Connectors
4.9 USB 1 to 4, LAN, Sound
USB 1-4, LAN and sound are provided via a standard IDC socket connector with a spacing of 2.54 mm.
Necessary settings can be accomplished in BIOS setup.
All USB-channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse
support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup
can be changed with a USB keyboard without enabling USB keyboard support. Running a USB
supporting OS (such as Microsoft® Windows®) with these features enabled may lead to significant
performance or functionality limitations.
Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
The LAN-interface on this connector supports 10BaseT and 100BaseT compatible network components
with automatic bandwidth selection. Additional outputs are provided for status LEDs. Auto-negotiate and
auto-cross functionality is available, PXE and RPL are available on request.
AC'97 - 2.3 compatible audio I/O is available on this connector. There are two ways to use these signals.
Default functionality is the familiar audio in, audio out, and microphone (2-channel mode). OS dependent
device drivers can switch these signals to support an 5.1 output; thus in this mode no audio input signals
are available. In 2-channel mode LOUT is the only active audio output. Moth MIC inputs are available. In
6-channel mode the speaker outputs are: LOUT to Front, AUXA to Surround, MIC1 to Center and MIC2 to
LFE (Sub).
The signals "SPDIFI" and "SPDIFO" provide digital input and output. If a transformation to a coaxial or
optical connector is necessary this must be performed externally.
CAUTION
The same IDC socket connector supports all three devices and is not "keyed"! Misconnected support
cables may short two devices together and damage the board. Please check diagrams before installing
any connecting cables to ensure proper connection.
Beckhoff New Automation Technology CB4021 page 27
Chapter: Connectors USB 1 to 4, LAN, Sound
Description Name Pin Name Description
5 volt for USB1 USB1 VCC 1 2 USB2 VCC 5 volt for USB2
USB- channel 1 USB1# 3 4 USB2# USB- channel 2
USB+ channel 1 USB1 5 6 USB2 USB+ channel 2
ground GND 7 8 GND ground
USB+ channel 3 USB3 9 10 USB4 USB+ channel 4
USB- channel 3 USB3# 11 12 USB4# USB- channel 4
5 volt for USB3 USB3 VCC 13 14 USB4 VCC 5 volt for USB4
LAN activity ACTLED 15 16 SPEEDLED LAN 10/100 speed
LAN RX+ LANRX 17 18 LANTX LAN TX+
LAN RX- LANRX# 19 20 LANTX# LAN TXdigital output SPDIF SPDIFO 21 22 3.3V 3.3 volt supply
digital input SPDIF SPDIFI 23 24 S_AGND analog ground sound
sound output right /
frond output right
AUX input right /
rear output right
microphone input 1 /
center output
LOUT_R /
FRONT_R
AUXA_R /
REAR_R
MIC1 /
CENTER
25 26 LOUT_L /
FRONT_L
27 28 AUXA_L /
REAR_L
29 30 MIC2 /
LFE
sound output left /
frond output left
AUX input left /
rear output left
microphone input 2 /
LFE output
page 28 Beckhoff New Automation Technology CB4021
IDE Interface Chapter: Connectors
4.10 IDE Interface
The primary IDE interface is a standard IDC socket connector with a spacing of 2 mm. All commercial IDE
devices are supported but an adapter to connect may be necessary.
The required settings are made in the BIOS setup.
CAUTION
Pins are not keyed! Please be sure to connect the cable properly, otherwise you risk damaging the IDE
interface, the CPU and the drive, voiding respective warranties.
Pinout for primary IDE
Description Name Pin Name Description
reset PRST# 1 2 GND ground
data bit 7 PDD7 3 4 PDD8 data bit 8
data bit 6 PDD6 5 6 PDD9 data bit 9
data bit 5 PDD5 7 8 PDD10 data bit 10
data bit 4 PDD4 9 10 PDD11 data bit 11
data bit 3 PDD3 11 12 PDD12 data bit 12
data bit 2 PDD2 13 14 PDD13 data bit 13
data bit 1 PDD1 15 16 PDD14 data bit 14
data bit 0 PDD0 17 18 PDD15 data bit 15
ground GND 19 20 N/C reserved
DMA request signal PDDREQ 21 22 GND ground
write signal PDIOW# 23 24 GND ground
read signal PDIOR# 25 26 GND ground
ready signal PDRDY 27 28 N/C reserved
DMA acknowledge signal PDDACK# 29 30 GND ground
interrupt signal PDIRQ 31 32 N/C reserved
address bit 1 PDA1 33 34 PDMA66EN enable UDMA66
address bit 0 PDA0 35 36 PDA2 address bit 2
chip select signal 0 PDSC0# 37 38 PDCS1# chip select signal 1
reserved N/C 39 40 GND ground
supply HDD 5V VCC 41 42 VCC supply HDD 5V
ground GND 43 44 N/C reserved
Beckhoff New Automation Technology CB4021 page 29
Chapter: Connectors Parallel Interface LPT
4.11 Parallel Interface LPT
The parallel interface is a standard IDC socket connector with a spacing of 2.54 mm. The port address
and the interrupt are set via the BIOS setup.
The parallel port may be selected in BIOS-setup to interface to a standard PC floppy drive, but a special
cable is required for such operation. Please contact your sales representative for such a cable.
Pinout LPT interface (FDC signals in brackets):
Description Name Pin Name Description
strobe STB# 1 2 AFD#
(DRVDEN0)
LPT data 0 (Index) PD0 (IDX#) 3 4 ERR#
automatic line feed (drive
density 0)
error (head select)
(HDSL#)
LPT data 1 (track 0) PD1 (TR0#) 5 6 INIT# (DIR#) init (direction)
LPT data 2 (write protect) PD2
(WPRT#)
LPT data 3 (read data) PD3
7 8 SLIN#
select input (step)
(STP#)
9 10 GND ground
(RDATA#)
LPT data 4 (disk change) PD4 (DC#) 11 12 GND ground
LPT data 5 PD5 13 14 GND ground
LPT data 6 (motor 0) PD6 (MT0#) 15 16 GND ground
LPT data 7 (drive select 0) PD7 (DR0#) 17 18 GND ground
acknowledge (drive select 1) ACK#
19 20 GND ground
(DR1#)
busy (motor 1) BUSY
21 22 GND ground
(MT1#)
paper end (write data) PE (WD#) 23 24 GND ground
select printer (write enable) SLCT (WG#) 25 26 VCC 5 volt supply
page 30 Beckhoff New Automation Technology CB4021
Serial Interface COM1 Chapter: Connectors
4.12 Serial Interface COM1
The serial interface is a standard IDC socket connector with a spacing of 2.54 mm. Signals default to
RS-232 but can also be ordered as RS-422 or RS-485.
The port address and the interrupt are set via the BIOS setup.
CAUTION
COM 1 & 2 cables are not the same pin orientation and you may damage the COM interface and CPU
attached if you use the incorrect COM cable.
Description Name Pin Name Description
data carrier detect DCD 1 2 DSR data set ready
receive data RXD 3 4 RTS request to send
transmit data TXD 5 6 CTS clear to send
data terminal ready DTR 7 8 RI ring indicator
ground GND 9 10 VCC 5 volt supply
Pinout with RS422/485 soldering option:
Description Name Pin Name Description
transmit data + TX 1 2 TX# transmit data receive data + RX 3 4 RX# receive data reserved N/C 5 6 N/C reserved
reserved N/C 7 8 N/C reserved
ground GND 9 10 VCC 5 volt supply
Beckhoff New Automation Technology CB4021 page 31
Chapter: Connectors Serial Interface COM2
4.13 Serial Interface COM2
The serial interface is a standard IDC socket connector with a spacing of 2.54 mm. Signals default to
RS-232 but can also be ordered as RS-422 or RS-485.
The port address and the interrupt are set via the BIOS setup.
CAUTION
COM 1 & 2 cables are not the same pin orientation and you may damage the COM interface and CPU
attached if you use the incorrect COM cable.
Description Name Pin Name Description
data carrier detect DCD 1 2 DSR data set ready
receive data RXD 3 4 RTS request to send
transmit data TXD 5 6 CTS clear to send
data terminal ready DTR 7 8 RI ring indicator
ground GND 9 10 VCC 5 volt supply
Pinout with RS422/485 soldering option:
Description Name Pin Name Description
transmit data + TX 1 2 TX# transmit data receive data + RX 3 4 RX# receive data reserved N/C 5 6 N/C reserved
reserved N/C 7 8 N/C reserved
ground GND 9 10 VCC 5 volt supply
page 32 Beckhoff New Automation Technology CB4021
SMBus Chapter: Connectors
4.14 SMBus
The CB4021 can communicate with external devices via the SMBus protocol. The signals for this protocol
are available through a standard IDC socket connector with a spacing of 2.54 mm. A 3.3 volt power
supply is also available for these SMBus devices. Additionally, you can use this connector to access the
PWRBTN# and PS_ON# signals used for power control. If PWRBTN# is held low for four seconds an
unconditional hardware power-down event will occur.
Pin
Name Description
1 3.3V 3.3 volt supply
2 CS-SMB-CLK SMBus clock
3 CS-SMB-DAT SMBus data
4 SMB-ALERT# SMBus alert
5 PWRBTN# power button
6 PS_ON# power supply on
7 GND ground
Beckhoff New Automation Technology CB4021 page 33
Chapter: Connectors Monitoring Functions
4.15 Monitoring Functions
Additional monitoring functions, such as the status of the fan or of other devices connected over SM-Bus
(e. g. temperature sensor), are accessible via an 8 pin connector (JST BM08B-SRSS-TB, mating
connector: SHR-08V-S(-B)).
Pin
Name Description
1 3.3V 3.3 volt supply
2 CS-SMB-CLK SMBus clock
3 CS-SMB-DAT SMBus data
4 GND ground
5 FANON1 5 volt supply (switched)
6 FANCTRL1 fan 1 monitoring signal
7 VCC 5 volt supply
8 FANCTRL3 fan 3 monitoring signal
page 34 Beckhoff New Automation Technology CB4021
Fan Chapter: Connectors
4.16 Fan
A 3 pin connector is available for controlling and monitoring an external fan (5 volt). For the monitoring the
fan must provide a corresponding speed signal.
Pin
Name Description
1 GND ground
2 FANON2 5 volt supply (switched)
3 FANCTRL2 fan monitoring signal
Beckhoff New Automation Technology CB4021 page 35
Chapter: BIOS Settings Remarks for Setup Use
5 BIOS Settings
5.1 Remarks for Setup Use
In a setup page, standard values for its setup entries can be loaded. Fail-safe defaults are loaded with F6
and optimized defaults are loaded with F7. These standard values are independent of the fact that a
board has successfully booted with a setup setting before.
This is different if these defaults are called from the Top Menu. Once a setup setting was saved, which
subsequently leads to a successful boot process, those values are loaded as default for all setup items
afterwards.
See also the chapters “Load Fail-Safe Defaults" (5.10) and “Load Optimized Defaults” (5.11).
NOTE
BIOS features and setup options are subject to change without notice. The settings displayed in the
screenshots on the following pages are meant to be examples only. They do not represent the
recommended settings or the default settings. Determination of the appropriate settings is dependent
upon the particular application scenario in which the board is used.
5.2 Top Level Menu
► Standard CMOS Features ► PC Health Status
► Advanced BIOS Features Load Fail-Safe Defaults
► Advanced Chipset Features Load Optimized Defaults
► Integrated Peripherals Set Password
► Power Management Setup Save & Exit Setup
► PnP/PCI Configurations Exit Without Saving
Esc : Quit ↑ ↓ → ← : Select Item
F10 : Save & Exit Setup
The sign „►“ in front of an item means that there is a sub menu.
The „x“ sign in front of an item means, that the item is disabled but can be enabled by changing or
selecting some other item (usually somewhere above the disabled item on the same screen).
Phoenix – AwardBIOS CMOS Setup Utility
"brief description of selected item"
Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will
open either a sub menu or a dialog screen.
page 36 Beckhoff New Automation Technology CB4021
Standard CMOS Features Chapter: BIOS Settings
5.3 Standard CMOS Features
Date (mm:dd:yy) Thu, Jan 25 2007
Time (hh:mm:ss) 11 : 13 : 35
► IDE Primary Master [ None]
► IDE Primary Slave [ None]
Drive A [ None]
Base Memory 640K
Extended Memory 514816K
Total Memory 515584K
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
Item Help
ü Date (mm:dd:yy)
Options: mm: month
dd: day
yy: year
ü Time (hh:mm:ss)
Options: hh: hours
mm: minutes
ss: seconds
ü IDE Primary Master
Sub menu: see "IDE Primary Master/Slave" (p. 38)
ü IDE Primary Slave
Sub menu: see "IDE Primary Master/Slave" (p. 38)
ü Drive A
Options: None / 360K, 5.25 in. / 1.2M, 5.25 in. / 720K, 3.5 in. / 1.44M, 3.5 in. / 2.88M, 3.5 in.
ü Base Memory
Options: none
ü Extended Memory
Options: none
ü Total Memory
Options: none
Beckhoff New Automation Technology CB4021 page 37
Chapter: BIOS Settings Standard CMOS Features
5.3.1 IDE Primary Master/Slave
IDE HDD Auto-Detection [Press Enter]
IDE Primary Master [Auto]
Access Mode [Auto]
Capacity 0 MB
Cylinder 0
Head 0
Precomp 0
Landing Zone 0
Sector 0
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü IDE HDD Auto-Detection
Options: none
Phoenix – AwardBIOS CMOS Setup Utility
IDE Primary Master
Item Help
ü IDE Primary Master
Options: None / Auto / Manual
ü Access Mode
Options: CHS / LBA / Large / Auto
ü Capacity
Options: none
ü Cylinder
Options: none
ü Head
Options: none
ü Precomp
Options: none
ü Landing Zone
Options: none
ü Sector
Options: none
NOTE
The onboard SSD can be disabled by selecting "None" in the relevant "IDE Primary Master" or "IDE
Primary Slave" dialogue. Note that even when the SSD is disabled it still occupies it's Master or Slave line
so that you can't connect another device there.
page 38 Beckhoff New Automation Technology CB4021
Advanced BIOS Features Chapter: BIOS Settings
5.4 Advanced BIOS Features
► Hard Disk Boot Priority [Press Enter]
Anti-Virus Protection [Disabled]
CPU Internal Cache [Enabled]
Quick Power On Self Test [Enabled]
First Boot Device [HDD-0]
Second Boot Device [Disabled]
Third Boot Device [Disabled]
Boot Other Device [Enabled]
Boot Up Floppy Seek [Disabled]
Boot Up NumLock Status [On]
Gate A20 Option [Fast]
Typematic Rate Setting [Disabled]
x Typematic Rate (Chars/Sec) 6
x Typematic Delay (Msec) 250
Security Option [Setup]
OS Select For DRAM > 64MB [Non-OS2]
Full Screen LOGO Show [Enabled]
Summary Screen Show [Disabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Item Help
ü Hard Disk Boot Priority
Sub menu: see "Hard Disk Boot Priority" (p. 41)
ü Anti-Virus Protection
Options: Enabled / Disabled
ü CPU Internal Cache
Options: Enabled / Disabled
ü Quick Power On Self Test
Options: Enabled / Disabled
ü First Boot Device
Options: Floppy / LS120 / Hard Disk / CDROM / ZIP100 / USB-FDD / USB-ZIP / USB-CDROM /
Legacy LAN / Disabled
ü Second Boot Device
Options: Floppy / LS120 / Hard Disk / CDROM / ZIP100 / USB-FDD / USB-ZIP / USB-CDROM /
Legacy LAN / Disabled
ü Third Boot Device
Options: Floppy / LS120 / Hard Disk / CDROM / ZIP100 / USB-FDD / USB-ZIP / USB-CDROM /
Legacy LAN / Disabled
ü Boot Other Device
Options: Enabled / Disabled
ü Boot Up Floppy Seek
Options: Enabled / Disabled
ü Boot Up NumLock Status
Options: Off / On
ü Gate A20 Option
Options: Normal / Fast
Beckhoff New Automation Technology CB4021 page 39
Chapter: BIOS Settings Advanced BIOS Features
ü Typematic Rate Setting
Options: Enabled / Disabled
ü Typematic Rate (Chars/Sec)
Options: 6 / 8 / 10 / 12 / 15 / 20 / 24 / 30
ü Typematic Delay (Msec)
Options: 250 / 500 / 750 / 1000
ü Security Option
Options: Setup / System
ü OS Select For DRAM > 64MB
Options: Non-OS2 / OS2
ü Full Screen LOGO Show
Options: Enabled / Disabled
ü Summary Screen Show
Options: Enabled / Disabled
page 40 Beckhoff New Automation Technology CB4021
Advanced BIOS Features Chapter: BIOS Settings
5.4.1 Hard Disk Boot Priority
1. Bootable Add-in Cards
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
Item Help
ü [list of available devices]
Options: this dialog allows you to set the order in which the available bootable devices shall be
accessed for an attempt to boot.
ü Attention!
in this sub menu the buttons <Page Up>, <Page Down>, <+> and <-> have a different
function than in the rest of the setup: They serve to move the items of the list up or down.
Beckhoff New Automation Technology CB4021 page 41
Chapter: BIOS Settings Advanced Chipset Features
5.5 Advanced Chipset Features
CPU Frequency [Auto]
x Memory Frequency Auto
CAS Latency [Auto]
Interleave Select [LOI]
Video Memory Size [ 8 M]
Output Display [CRT]
x Flat Panel Configuration Press Enter
x TV Output Configuration Press Enter
Onboard Audio [Enabled]
Onboard USB1.1 [Enabled]
Onboard USB2.0 [Enabled]
Onboard IDE [Enabled]
Onboard LAN Controller [Enabled]
Overcurrent reporting [Disabled]
Port 4 assignment [Host]
Memory Hole At 15M-16M [Disabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Item Help
ü CPU Frequency
Options: Auto / 200 MHz / 333 MHz / 400 MHz / 433 MHz / 500 MHz / 600 MHz
ü Memory Frequency
Options: Auto / 100 MHz / 133 MHz / 166 MHz / 200 MHz
ü CAS Latency
Options: Auto / 1.5 / 2.0 / 2.5 / 3.0 / 3.5
ü Interleave Select
Options: HOI / LOI
ü Video Memory Size
Options: Disable / 8 M / 16 M / 32 M / 64 M / 128 M / 254 M
ü Output Display
Options: Flat Panel / TV Output / CRT / Panel & CRT
ü Flat Panel Configuration
Sub menu: see "PC Health Status" (p. 44)
ü TV Output Configuration
Sub menu: see "TV Output Configuration" (p. 45)
ü Onboard Audio
Options: Enabled / Disabled
ü Onboard USB1.1
Options: Enabled / Disabled
ü Onboard USB2.0
Options: Enabled / Disabled
ü Onboard IDE
Options: Enabled / Disabled
page 42 Beckhoff New Automation Technology CB4021
Advanced Chipset Features Chapter: BIOS Settings
ü Onboard LAN-Controller
Options: Enabled / Disabled
ü Overcurrent Reporting
Options: Enabled / Disabled
ü Port 4 Assignment
Options: Host / Device / Not Used
ü Memory Hole At 15M-16M
Options: Enabled / Disabled
Beckhoff New Automation Technology CB4021 page 43
Chapter: BIOS Settings Advanced Chipset Features
5.5.1 PC Health Status
Flat Panel Type [Auto]
x Resolution 800 x 600
x Data Bus Type 9-24 bits, 1 ppc
x Refresh Rate 60 Hz
x HSYNC Polarity Normal low
x VSYNC Polarity Active Normal low
SHFCLK Active Period [Free Running]
LP Active Period [Free Running]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü Flat Panel Type
Options: TFT / LVDS / Auto
Phoenix – AwardBIOS CMOS Setup Utility
Flat Panel Configuration
Item Help
ü Resolution
Options: 320 x 240 / 640 x 480 / 800 x 600 / 1024 x 768 / 1152 x 864 / 1280 x 1024 / 1600 x 1200
ü Data Bus Type
Options: 9-24 bits, 1 ppc / 18,24 bits, 2 ppc
ü Refresh Rate
Options: 60 Hz / 70 Hz / 72 Hz / 75 Hz / 85 Hz / 90 Hz / 100 Hz
ü HSYNC Polarity
Options: Normal high / Normal low
ü VSYNC Polarity Active
Options: Normal high / Normal low
ü SHFCLK Active Period
Options: Active only / Free running
ü LP Active Period
Options: Active only / Free running
page 44 Beckhoff New Automation Technology CB4021
Advanced Chipset Features Chapter: BIOS Settings
5.5.2 TV Output Configuration
TV Encoder [VT1622]
x TV Standard NTSC
x TV Resolution Low
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
TV Output Configuration
Item Help
ü TV Encoder
Options: ADV7171 / SAA7127 / ADV7301 / FS 454 / VT1622 / Auto
ü TV Standard
Options: NTSC / PAL / HDTV
ü TV Resolution
Options: Low / Medium / High
Beckhoff New Automation Technology CB4021 page 45
Chapter: BIOS Settings Integrated Peripherals
5.6 Integrated Peripherals
On-Chip IDE Channel 1 [Enabled]
Master Drive PIO Mode [Auto]
Slave Drive PIO Mode [Auto]
IDE Primary Master UDMA [Auto]
IDE Primary Slave UDMA [Auto]
IDE DMA transfer access [Enabled]
IDE HDD Block Mode [Enabled]
Onboard FDC Controller [Enabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
x RxD , TxD Active Hi,Lo
x IR Transmission Delay Enabled
x UR2 Duplex Mode Half
x Use IR Pins IR-Rx2Tx2
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
x EPP Mode Select EPP1.9
x ECP Mode Use DMA 3
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü On-Chip IDE Channel 1
Options: Enabled / Disabled
Phoenix – AwardBIOS CMOS Setup Utility
Integrated Peripherals
Item Help
ü Master Drive PIO Mode
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü Slave Drive PIO Mode
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü IDE Primary Master UDMA
Options: Disabled / Auto
ü IDE Primary Slave UDMA
Options: Disabled / Auto
ü IDE DMA transfer access
Options: Enabled / Disabled
ü IDE HDD Block Mode
Options: Enabled / Disabled
ü Onboard FDC Controller
Options: Enabled / Disabled
ü Onboard Serial Port 1
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3 / Auto
ü Onboard Serial Port 2
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3 / Auto
ü UART Mode Select
Options: IrDA / ASKIR / Normal
ü RxD , TxD Active
Options: Hi,Hi / Hi,Lo / Lo,Hi / Lo,Lo
page 46 Beckhoff New Automation Technology CB4021
Integrated Peripherals Chapter: BIOS Settings
ü IR Transmission Delay
Options: Enabled / Disabled
ü UR2 Duplex Mode
Options: Full / Half
ü Use IR Pins
Options: RxD2,TxD2 / IR-Rx2Tx2
ü Onboard Parallel Port
Options: Disabled / 378/IRQ7 / 278/IRQ5 / 3BC/IRQ7
ü Parallel Port Mode
Options: SPP / EPP / ECP / ECP+EPP / Normal
ü EPP Mode Select
Options: EPP1.9 / EPP1.7
ü ECP Mode Use DMA
Options: 1 / 3
Beckhoff New Automation Technology CB4021 page 47
Chapter: BIOS Settings Power Management Setup
5.7 Power Management Setup
x ACPI Function [Enabled]
ACPI Suspend Type [S1&S3]
Power Management [ACPI]
** PM Timers **
x Standby Mode Disabled
x Suspend Mode Disabled
MODEM Use IRQ [N/A]
PME Event Function [Enabled]
Soft-Off by PWR-BTTN [Instant-Off]
Power-On by Alarm [Disabled]
x Time(hh:mm:ss) Alarm 0
x 0
x 0
► IRQ Wakeup Events [Press Enter]
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü ACPI function
Options: none
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
Phoenix – AwardBIOS CMOS Setup Utility
Power Management Setup
Item Help
ü ACPI Suspend Type
Options: S1(POS) / S3(STR) / S1&S3
ü Power Management
Options: Disabled / Legacy / APM / ACPI
ü Standby Mode
Options: Disabled / 1 Sec / 5 Sec / 10 Sec / 15 Sec / 30 Sec / 45 Sec / 1 Min / 5 Min / 10 Min / 15
Min / 30 Min / 45 Min / 60 Min / 90 Min / 120 Min
ü Suspend Mode
Options: Disabled / 1 Sec / 5 Sec / 10 Sec / 15 Sec / 30 Sec / 45 Sec / 1 Min / 5 Min / 10 Min / 15
Min / 30 Min / 45 Min / 60 Min / 90 Min / 120 Min
ü MODEM Use IRQ
Options: NA / 3 / 4 / 5 / 7 / 9 / 10 / 11
ü PME Event Function
Options: Enabled / Disabled
ü Soft-Off by PWR-BTTN
Options: Instant-Off / Delay 4 Sec
ü Power-On by Alarm
Options: Enabled / Disabled
ü Time (hh:mm:ss) Alarm
Options: insert [hh], [mm] and [ss]
ü IRQ Wakeup Events
Sub menu: see "IRQ Wakeup Events" (p. 49)
page 48 Beckhoff New Automation Technology CB4021
Power Management Setup Chapter: BIOS Settings
5.7.1 IRQ Wakeup Events
IRQ1 (KeyBoard) [ON]
IRQ3 (COM 2) [OFF]
IRQ4 (COM 1) [OFF]
IRQ5 (LPT 2) [OFF]
IRQ6 (Floppy Disk) [OFF]
IRQ7 (LPT 1) [OFF]
IRQ8 (RTC Alarm) [OFF]
IRQ9 (IRQ2 Redir) [OFF]
IRQ10 (Reserved) [OFF]
IRQ11 (Reserved) [OFF]
IRQ12 (PS/2 Mouse) [OFF]
IRQ13 (Coprocessor) [OFF]
IRQ14 (Hard Disk) [OFF]
IRQ15 (Reserved) [OFF]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü IRQ1 (KeyBoard)
Options: Off / On
Phoenix – AwardBIOS CMOS Setup Utility
IRQ Wakeup Events :
Item Help
ü IRQ3 (COM 2)
Options: Off / On
ü IRQ4 (COM 1)
Options: Off / On
ü IRQ5 (LPT 2)
Options: Off / On
ü IRQ6 (Floppy Disk)
Options: Off / On
ü IRQ7 (LPT 1)
Options: Off / On
ü IRQ8 (RTC Alarm)
Options: Off / On
ü IRQ9 (IRQ2 Redir)
Options: Off / On
ü IRQ10 (Reserved)
Options: Off / On
ü IRQ11 (Reserved)
Options: Off / On
ü IRQ12 (PS/2 Mouse)
Options: Off / On
ü IRQ13 (Coprocessor)
Options: Off / On
Beckhoff New Automation Technology CB4021 page 49
Chapter: BIOS Settings Power Management Setup
ü IRQ14 (Hard Disk)
Options: Off / On
ü IRQ15 (Reserved)
Options: Off / On
page 50 Beckhoff New Automation Technology CB4021
PnP/PCI Configuration Chapter: BIOS Settings
5.8 PnP/PCI Configuration
Init Display First [PCI Slot]
Reset Configuration Data [Disabled]
Resources Controlled By [Auto(ESCD)]
x IRQ Resources [Press Enter]
x Memory Resources [Press Enter]
PCI/VGA Palette Snoop [Disabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Item Help
ü Init Display First
Options: PCI Slot / Onboard
ü Reset Configuration Data
Options: Enabled / Disabled
ü Resources Controlled By
Options: Auto(ESCD) / Manual
ü IRQ Resources
Sub menu: see "IRQ Resources" (p. 52)
ü Memory Resources
Sub menu: see "Memory Resources" (p. 53)
ü PCI/VGA Palette Snoop
Options: Enabled / Disabled
Beckhoff New Automation Technology CB4021 page 51
Chapter: BIOS Settings PnP/PCI Configuration
5.8.1 IRQ Resources
IRQ-3 assigned to [PCI Device]
IRQ-4 assigned to [PCI Device]
IRQ-5 assigned to [PCI Device]
IRQ-7 assigned to [PCI Device]
IRQ-10 assigned to [PCI Device]
IRQ-11 assigned to [PCI Device]
IRQ-15 assigned to [PCI Device]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
IRQ Resources
Item Help
ü IRQ-3 assigned to
Options: PCI Device / Reserved
ü IRQ-4 assigned to
Options: PCI Device / Reserved
ü IRQ-5 assigned to
Options: PCI Device / Reserved
ü IRQ-7 assigned to
Options: PCI Device / Reserved
ü IRQ-10 assigned to
Options: PCI Device / Reserved
ü IRQ-11 assigned to
Options: PCI Device / Reserved
ü IRQ-15 assigned to
Options: PCI Device / Reserved
page 52 Beckhoff New Automation Technology CB4021
PnP/PCI Configuration Chapter: BIOS Settings
5.8.2 Memory Resources
Reserved Memory Base [N/A]
x Reserved Memory Length 8K
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Memory Resources
Item Help
ü Reserved Memory Base
Options: N/A / C800 / CC00 / D000 / D400 / D800 / DC00
ü Reserved Memory Length
Options: 8K / 16K / 32K / 64K
Beckhoff New Automation Technology CB4021 page 53
Chapter: BIOS Settings PC Health Status
5.9 PC Health Status
Shutdown Temperature [70°C/158°F]
Temp. Board 51°C
Temp. CPU 49°C
CPU Core 1.24V
CPU VTT 1.28V
+2.5 V 2.54V
+3.3 V 3.40V
+5.0 V 5.04V
Fan1 Speed 5400 RPM
Fan2 Speed 0 RPM
Fan3 Speed 0 RPM
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü Shutdown Temperature
Options: 60°C/140°F / 65°C/149°F / 70°C/158°C / Disabled
Phoenix – AwardBIOS CMOS Setup Utility
PC Health Status
Item Help
ü Temp. Board
Options: none
ü Temp. CPU
Options: none
ü CPU Core
Options: none
ü CPU VTT
Options: none
ü +2.5 V
Options: none
ü +3.3 V
Options: none
ü +5.0 V
Options: none
ü Fan1 Speed
Options: none
ü Fan2 Speed
Options: none
ü Fan3 Speed
Options: none
page 54 Beckhoff New Automation Technology CB4021
Load Fail-Safe Defaults Chapter: BIOS Settings
5.10 Load Fail-Safe Defaults
If this option is chosen, the last working setup is loaded from flash. Working means that the setup setting
has already led to a successful boot process.
At the first setting of the BIOS setup, safe values are loaded which lets the board boot. This status is
reached again, if the board is reprogrammed with the corresponding flash-program and the required
parameters.
5.11 Load Optimized Defaults
This option applies like described under “Remarks for Setup Use” (5.1).
At first start of the BIOS, optimized values are loaded from the setup, which are supposed to make the
board boot. This status is achieved again, if the board is reprogrammed using the flash program with the
required parameters.
5.12 Set Password
Here you can enter a password to protect the BIOS settings against unauthorized changes. Use this
option with care! Forgotten or lost passwords are a frequent problem.
5.13 Save & Exit Setup
Settings are saved and the board is restarted.
5.14 Exit Without Saving
This option leaves the setup without saving any changes.
Beckhoff New Automation Technology CB4021 page 55
Chapter: BIOS update Exit Without Saving
6 BIOS update
If a BIOS update becomes necessary, the program “AWDFLASH.EXE” from Phoenix Technologies is
used for this. It is important, that the program is started from a DOS environment without a virtual memory
manager such as for example “EMM386.EXE”. In case such a memory manager is loaded, the program
will stop with an error message.
The system must not be interrupted during the flash process, otherwise the update is stopped and the
BIOS is destroyed afterwards.
The program should be started as follows:
awdflash [biosfilename] /sn /cc /cp
/sn Do not save the current BIOS
/cc Clear the CMOS
/cp Clear the PnP information
The erasure of CMOS and PnP is strongly recommended. This ensures, that the new BIOS works
correctly and that all chipset registers, which were saved in the setup, are reinitialized through the BIOS.
DMI should only be erased (option /cd) if the BIOS supplier advises to do so.
A complete description of all valid parameters is shown with the parameter “/?”.
In order to make the updating process run automatically, the parameter “/py” must be added. This
parameter bypasses all security checks during programming.
CAUTION
Updating the BIOS in an improper way can render the board unusable. Therefore, you should only update
the BIOS if you really need the changes/corrections which come with the new BIOS version.
CAUTION
Before you proceed to update the BIOS you need to make absolutely sure that you have the right BIOS
file which was issued for the exact board and exact board revision that you wish to update. If you try to
update the BIOS using the wrong file the board will not start up again.
page 56 Beckhoff New Automation Technology CB4021
PCB: Mounting Holes Chapter: Mechanical Drawing
7 Mechanical Drawing
7.1 PCB: Mounting Holes
NOTE
All dimensions are in mil.
Beckhoff New Automation Technology CB4021 page 57
Chapter: Mechanical Drawing PCB: Pin 1 Dimensions
7.2 PCB: Pin 1 Dimensions
NOTE
All dimensions are in mil.
page 58 Beckhoff New Automation Technology CB4021
Electrical Data Chapter: Technical Data
8 Technical Data
8.1 Electrical Data
Power Supply:
Board: 5 Volt +/- 5%
RTC: >= 3 Volt
Electric Power Consumption:
Board: 1,27A idle, 1,56A full (LX800, 2GB SSD, 25°C)
RTC: <= 10µA
8.2 Environmental Conditions
Temperature Range:
Operating: 0°C to +60°C (extended temperature on request)
Storage: -25°C up to +85°C
Shipping: -25°C up to +85°C, for packaged boards
Temperature Changes:
Operating: 0.5°C per minute, 7.5°C per 30 minutes
Storage: 1.0°C per minute
Shipping: 1.0°C per minute, for packaged boards
Relative Humidity:
Operating: 5% up to 85% (non condensing)
Storage: 5% up to 95% (non condensing)
Shipping: 5% up to 100% (non condensing), for packaged boards
Shock:
Operating: 150m/s2, 6ms
Storage: 400m/s2, 6ms
Shipping: 400m/s2, 6ms, for packaged boards
Vibration:
Operating: 10 up to 58Hz, 0.075mm amplitude
58 up to 500Hz, 10m/s2
Storage: 5 up to 9Hz, 3.5mm amplitude
9 up to 500Hz, 10m/s2
Shipping: 5 up to 9Hz, 3.5mm amplitude
9 up to 500Hz, 10m/s2, for packaged boards
CAUTION
Shock and vibration figures pertain to the motherboard alone and do not include additional components
such as heat sinks, memory modules, cables etc.
Beckhoff New Automation Technology CB4021 page 59
Chapter: Technical Data Thermal Specifications
8.3 Thermal Specifications
The board is specified to operate in an environmental temperature range from 0°C to +60°C (extended
temperature on request). Maximum die temperature is 100°C. To keep the processor under this threshold
an appropriate cooling solution needs to be applied. This solution has to take typical and maximum power
consumption into account. The maximum power consumption may be twice as high and should be used
as a basis for the cooling concept. Additional controllers may also affect the cooling concept. The power
consumption of such components may be comparable to the consumption of the processor.
The board design includes thermal solution mounting points that will provide the best possible thermal
interface between die and solution. Since we take thermal solutions seriously we have several advanced,
aggressive cooling solutions in our product portfolio. Please contact your sales representative to order or
discuss your thermal solution needs.
CAUTION
The end customer has the responsibility to ensure that the die temperature of the processor does not
exceed 100°C. Permanent overheating may destroy the board!
In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain
circumstances sufficient air circulation must be provided.
page 60 Beckhoff New Automation Technology CB4021
Beckhoff's Branch Offices and Representatives Chapter: Support and Service
9 Support and Service
Beckhoff and their partners around the world offer comprehensive support and service, making available
fast and competent assistance with all questions related to Beckhoff products and system solutions.
9.1 Beckhoff's Branch Offices and Representatives
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff
products.
The addresses of Beckhoff's branch offices and representatives around the world can be found on her
internet pages: http://www.beckhoff.com
You will also find further documentation for Beckhoff components there.
9.2 Beckhoff Headquarters
Beckhoff Automation GmbH
Eiserstr. 5
33415 Verl
Germany
phone: +49(0)5246/963-0
fax: +49(0)5246/963-198
e-mail: info@beckhoff.com
web: www.beckhoff.com
9.2.1 Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of
individual Beckhoff products, but also with other, wide-ranging services:
o support
o design, programming and commissioning of complex automation systems
o and extensive training programs for Beckhoff system components
hotline: +49(0)5246/963-157
fax: +49(0)5246/963-9157
e-mail: support@beckhoff.com
9.2.2 Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
o on-site service
o repair service
o spare parts service
o hotline service
hotline: +49(0)5246/963-460
fax: +49(0)5246/963-479
e-mail: service@beckhoff.com
Beckhoff New Automation Technology CB4021 page 61
Annex: Post-Codes
suitable Read/Write program into the run
I Annex: Post-Codes
Code Description
01h The Xgroup-program code is written in the random access memory from address 1000:0
onwards.
03h Initialise Variable/Routine "Superio_Early_Init".
05h 1. Cancel display
2. Cancel CMOS error flag
07h 1. Cancel 8042 (keyboard controller) Interface Register
2. Initialising and self testing of 8042 (keyboard controller)
08h 1. Test of special keyboard controllers (Winbond 977 super I/O Chip-series).
2. Enabling of the keyboard-interface register
0Ah 1. Disabling of the PS/2 mouse interface (optional).
2. Auto-detection of the connectors for Keyboard and mouse, optional: swap of PS/2 mouse
ports and PS/2 interfaces.
0Eh Test of the F000h-memory segment (Read/Write ability). In case of an error a signal will come
out of the loud speakers.
10h Auto-detection of the flash-rom-type and loading of the
time memory segment F000 (it is required for ESCD-data & the DMI-pool-support).
12h Interface-test of the CMOS RAM-logic (walking 1’s”-algorithm). Setting of the power status of
the real-time-clock (RTC), afterwards test of register overflow.
14h Initialising of the chip-set with default values. They can be modified through a software
(MODBIN) by the OEM-customer.
16h Initialise Variable/Routine "Early_Init_Onboard_Generator".
18h CPU auto-detection (manufacturer, SMI type (Cyrix or Intel), CPU-class (586 or 686).
1Bh Initialising if the interrupt pointer table. If nothing else is pretended, the hardware interrupts will
point on “SPURIOUS_INT_HDLR and the software interrupts will point on
SPURIOUS_soft_HDLR.
1Dh Initialise Variable/Routine EARLY_PM_INIT.
1Fh Load the keyboard table (Notebooks)
21h Initialising of the hardware power management (HPM) (Notebooks)
23h 1. Test the validity of the RTC-values (Example: “5Ah” is an invalid value for an RTC-minute).
2. Load the CMOS-values into the BIOS Stack. Default-values are loaded if CMOS-checksum
errors occur.
3. Preparing of the BIOS ‘resource map’ for the PCI & plug and play configuration. If ESCD is
valid, take into consideration the ESCD’s legacy information.
4. Initialise the onboard clock generator. Clock circuit at non-used PCI- and DIMM slots.
5. First initialising of PCI-devices: assign PCI-bus numbers - alot memory- & I/O resources -
search for functional VGA-controllers and VGA-BIOS and copy the latter into memory segment
C000:0 (Video ROM Shadow).
27h Initialise cache memory for INT 09
29h 1. Program the CPU (internal MTRR at P6 and PII) for the first memory address range (0-640K).
2. Initialising of the APIC at CPUs of the Pentium-class.
3. Program the chip-set according to the settings of the CMOS-set-up (Example: Onboard
IDE-controller).
4. Measuring of the CPU clock speed.
5. Initialise the video BIOS.
2Dh 1. Initialise the “Multi-Language”-function of the BIOS
2. Soft copy, e.g. Award-Logo, CPU-type and CPU clock speed…
33h Keyboard-reset (except super I/O chips of the Winbond 977 series)
3Ch Test the 8254 (timer device)
3Eh Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259.
40h Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259
43h Testing the function of the interrupt controller (8259).
47h Initialise EISA slot (if existent).
page 62 Beckhoff New Automation Technology CB4021
Annex: Post-Codes
Code Description
49h 1. Determination of the entire memory size by revising the last 32-Bit double word of each 64k
memory segment.
2. Program “write allocation” at AMD K5-CPUs.
4Eh 1. Program MTRR at M1 CPUs
2. Initialise level 2-cache at CPUs of the class P6 and set the “cacheable range” of the random
access memory.
3. Initialise APIC at CPUs of the class P6.
4. Only for multiprocessor systems (MP platform): Setting of the “cacheable range” on the
respective smallest value (for the case of non-identical values).
50h Initialise USB interface
52h Testing of the entire random access memory and deleting of the extended memory (put on “0”)
55h Only for multi processor systems (MP platform): Indicate the number of CPUs.
57h 1. Indicate the plug and play logo
2. First ISA plug and play initialising – CSN-assignment for each identified ISA plug and play
device.
59h Initialise TrendMicro anti virus program code.
5Bh (Optional:) Indication of the possibility to start AWDFLASH.EXE (Flash ROM programming)
from the hard disk.
5Dh 1. Initialise Variable/Routine Init_Onboard_Super_IO.
2. Initialise Variable/Routine Init_Onbaord_AUDIO.
60h Release for starting the CMOS set-up (this means that before this step of POST, users are not
able to access the BIOS set-up).
65h Initialising of the PS/2 mouse.
67h Information concerning the size of random access memory for function call (INT 15h with
AX-Reg. = E820h).
69h Enable level 2 cache
6Bh Programming of the chip set register according to the BIOS set-up and auto-detection table.
6Dh 1. Assignment of resources for all ISA plug and play devices.
2. Assignment of the port address for onboard COM-ports (only if an automatic junction has
been defined in the setup).
6Fh 1. Initialising of the floppy controller
2. Programming of all relevant registers and variables (floppy and floppy controller).
73h Optional feature:
Call of AWDFLASH.EXE if:
- the AWDFLASH program was found on a disk in the floppy drive.
- the shortcut ALT+F2 was pressed.
75h Detection and installation of the IDE drives: HDD, LS120, ZIP, CDROM…
77h Detection of parallel and serial ports.
7Ah Co-processor is detected and enabled.
7Fh 1. Switch over to the text mode, the logo output is supported.
- Indication of possibly emerged errors. Waiting for keyboard entry.
- No errors emerged, respective F1 key was pressed (continue):
Deleting of the EPA- or own logo.
82h 1. Call the pointer to the “chip set power management”.
2. Load the text font of the EPA-logo (not if a complete picture is displayed)
3. If a password is set, it is asked here.
83h Saving of the data in the stack, back to CMOS.
84h Initialising of ISA plug and play boot drives (also Boot-ROMs)
85h 1. Final initialising of the USB-host.
2. At network PCs (Boot-ROM): Construction of a SYSID structure table
3. Backspace the scope presentation into the text mode
4. Initialise the ACPI table (top of memory).
5. Initialise and link ROMs on ISA cards
6. Assignment of PCI-IRQs
7. Initialising of the advanced power management (APM)
8. Set back the IRQ-register.
Beckhoff New Automation Technology CB4021 page 63
Annex: Post-Codes
Code Description
93h Reading in of the hard disk boot sector for the inspection through the internal anti virus program
(trend anti virus code)
94h 1. Enabling of level 2 cache
2. Setting of the clock speed during the boot process
3. Final initialising of the chip set.
4. Final initialising of the power management.
5. Erase the onscreen and display the overview table (rectangular box).
6. Program “write allocation” at K6 CPUs (AMD)
7. Program “write combining” at P6 CPUs (INTEL)
95h 1. Program the changeover of summer-and winter-time
2. Update settings of keyboard-LED and keyboard repeat rates
96h 1. Multi processor system: generate MP-table
2. Generate and update ESCD-table
3. Correct century settings in the CMOS (20xx or 19xx)
4. Synchronise the DOS-system timer with CMOS-time
5. Generate an MSIRQ-Routing table..
C0h Chip set initialising:
- Cut off shadow RAM
- Cut off L2 cache (apron 7 or older)
- Initialise chip set register
C1h Memory detection:
Auto detection of DRAM size, type and error correction (ECC or none)
Auto detection of L2 cache size (apron 7 or older)
C3h Unpacking of the packed BIOS program codes into the random access memory.
C5h Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset
hook.
CFh Testing of the CMOS read/write functionality
FFh Boot trial over boot-loader-routine (software-interrupt INT 19h)
page 64 Beckhoff New Automation Technology CB4021
Annex: Resources
II Annex: Resources
A IO Range
The used resources depend on setup settings.
The given values are ranges, which are fixed by AT compatibility. Other IO ranges are used, which are
dynamically adjusted by Plug & Play BIOS while booting.
Address Function
0-FF Reserved IO area of the board
1F0-1F7 IDE1
278-27F LPT2
2F8-2FF COM2
370-377 FDC2
378-37F LPT1
3F0-3F7 FDC1
3F8-3FF COM1
B Memory Range
The used resources depend on setup settings.
If the entire range is clogged through option ROMs, these functions do not work anymore.
Address Function
A0000-BFFFF VGA RAM
C0000-CFFFF VGA BIOS
D0000-DFFFF AHCI BIOS / RAID / PXE (if available)
E0000-EFFFF System BIOS while booting
F0000-FFFFF System BIOS
C Interrupt
The used resources depend on setup settings.
The listed interrupts and their use are given through AT compatibility.
If interrupts must exclusively be available on the ISA side, they have to be reserved through the BIOS
setup. The exclusivity is not given and not possible on the PCI side.
Address Function
IRQ0 Timer
IRQ1 PS/2 Keyboard
IRQ2 (9)
IRQ3 COM1
IRQ4 COM2
IRQ5
IRQ6 FDC
IRQ7 LPT1
IRQ8 RTC
IRQ9
IRQ10
IRQ11
IRQ12 PS/2 Mouse
IRQ13 FPU
IRQ14 IDE Primary
IRQ15
Beckhoff New Automation Technology CB4021 page 65
Annex: Resources
D PCI Devices
All listed PCI devices exist on the board. Some PCI devices or functions of devices may be disabled in
the BIOS setup. Once a device is disabled other devices may get PCI bus numbers different from the
ones listed in the table.
AD INTA REQ PCI Dev. Fct. Controller / Slot
11 - - 0 1 0 Host Bridge (LX) ID2080
11 A - 0 1 1 VGA Graphics (LX) ID2081
11 A - 0 1 2 En/Decryption Controller (LX) ID2082
17 D 4 0 7 0 LAN Intel 82551ER ID1209
20 A 0 0 10 - External Slot 1
21 B 1 0 11 - External Slot 2
22 C 2 0 12 - External Slot 3
23 D 3 0 13 - External Slot 4
25 - - 0 15 0 ISA Bridge (CS5536) ID2090
25 - - 0 15 2 IDE Contoller (CS5536) ID209A
25 B - 0 15 3 Multimedia Device (CS5536) ID2093
25 D - 0 15 4 USB 1.0/1.1 OHCI Contr. (CS5536) ID2094
25 D - 0 15 5 USB 2.0 EHCI Controller (CS5536) ID2095
E SMB Devices
The following table contains all reserved SM-Bus device addresses in 8-bit notation. Note that external
devices must not use any of these addresses even if the component mentioned in the table is not present
on the motherboard.
Address Function
10-11 Standard slave address
40-41 GPIO
60-61 BIOS internal
70-73 POST code output
88-89 BIOS-defined slave address
A0-A1 DIMM 1
A2-A3 DIMM 2
A4-AF BIOS internal
B0-BF BIOS internal
D2-D3 Clock
page 66 Beckhoff New Automation Technology CB4021
Loading...
