Notes on the Documentation Chapter: Document History
Beckhoff New Automation Technology CB3060page 5
Chapter: Document History Notes on the Documentation
Version
Changes
0.1
first pre-release
1.0
first released version
1.1
updated BIOS setup
updated status code RGB LED
1.2
corrected LAN pinout;
corrected FAN pinout
0 Document History
NOTE
All company names, brand names, and product names referred to in this manual are registered or
unregistered trademarks of their respective holders and are, as such, protected by national and
international law.
page 6 Beckhoff New Automation Technology CB3060
Notes on the Documentation Chapter: Introduction
1 Introduction
1.1 Notes on the Documentation
This description is only intended for the use of trained specialists in control and automation engineering
who are familiar with the applicable national standards. It is essential that the following notes and
explanations are followed when installing and commissioning these components.
1.1.1 Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under
development. For that reason the documentation is not in every case checked for consistency with
performance data, standards or other characteristics. None of the statements of this manual represents a
guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the
contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In
the event that it contains technical or editorial errors, we retain the right to make alterations at any time
and without warning. No claims for the modification of products that have already been supplied may be
made on the basis of the data, diagrams and descriptions in this documentation.
Please consider the following safety instructions and descriptions. Product specific safety instructions are
to be found on the following pages or in the areas mounting, wiring, commissioning etc.
1.2.1 Disclaimer
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
page 8 Beckhoff New Automation Technology CB3060
Safety Instructions Chapter: Introduction
1.2.2 Description of Safety Symbols
The following safety symbols are used in this documentation. They are intended to alert the reader to the
associated safety instructions.
ACUTE RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health
of individuals!
RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is danger to life and health of
individuals!
HAZARD TO INDIVIDUALS, ENVIRONMENT, DEVICES, OR DATA!
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to
environment, to materials, or to data.
NOTE OR POINTER
This symbol indicates information that contributes to better understanding.
Beckhoff New Automation Technology CB3060page 9
Chapter: Introduction Essential Safety Measures
1.3 Essential Safety Measures
1.3.1 Operator's Obligation to Exercise Diligence
The operator must ensure that
o the product is only used for its intended purpose
o the product is only operated in sound condition and in working order
o the instruction manual is in good condition and complete, and always available for reference at the
location where the products are used
o the product is only used by suitably qualified and authorised personnel
o the personnel is instructed regularly about relevant occupational safety and environmental protection
aspects
o the operating personnel is familiar with the operating manual and in particular the safety notes
contained herein
1.3.2 National Regulations Depending on the Machine Type
Depending on the type of machine and plant in which the product is used, national regulations governing
the controllers of such machines will apply, and must be observed by the operator. These regulations
cover, amongst other things, the intervals between inspections of the controller. The operator must initiate
such inspections in good time.
1.3.3 Operator Requirements
o Read the operating instructions
All users of the product must have read the operating instructions for the system they work with.
o System know-how
All users must be familiar with all accessible functions of the product.
page 10 Beckhoff New Automation Technology CB3060
Functional Range Chapter: Introduction
1.4 Functional Range
NOTE
The descriptions contained in the present documentation represent a detailed and extensive product
description. As far as the described motherboard was acquired as an integral component of an Industrial
PC from Beckhoff Automation GmbH & Co. KG, this product description shall be applied only in limited
scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff
Automation GmbH & Co. KG shall be relevant. Due to several models of Industrial PCs, variations in the
component placement of the motherboards are possible. Support and service benefits for the built-in
motherboard will be rendered by Beckhoff Automation GmbH & Co. KG exclusively as specified in the
product description (inclusive operation system) of the particular Industrial PC.
Beckhoff New Automation Technology CB3060page 11
Chapter: Overview Features
PCI
MEMORY
Power VCCCore; VTT;
DDRVTT, GFXVCC
1,05V; 1,5V; 1,8V; 3,3V
PCIe to PCI
Bridge
PI7C9X111SL
BIOS
4x SATA
RealTek®
ALC889
MIC
LINE IN
LINE OUT
HDA Link
USB3-10
Intel® Core™ i7-
4700QE, i5-4400E,
i3-4100E, i3-4110E,
i5-4410E
FDI
1.5/3/6 Gb/s
SPDIF i
SPDIF o
mPCI
DMI
SPI
8x GPIO
SMBus
NXP®
PCA9535
Intel®
i210
LAN2
Intel®
i218
PCIe (x1)
LAN1
PCIe
SMSC®
SCH3114
LPC
MS
KB
COM1-4
FAN 1-3
SMBus
CRT
DVI/HDMI
DVI/HDMI/DP
(I-PEX)
Trusted
Platform
Module
USB 3.0
USB1-2
SPI
Watchdog
USB 3.0
USB11 (I-PEX)
USB 2.0
Intel® QM87-PCH
2x SO-DIMM204
DDR3L-1066/1333/
1600
(dual channel)
2 Overview
2.1 Features
The CB3060 is a highly complex 3,5-inch board which incorporates complete motherboard functionality.
It's based on Intel®'s QM87 chipset combined with Intel® CPUs of the 4th Generation Core™ families.
Modern low voltage DDR3L technology provides top-notch memory performance, accommodating up to
16 GByte of RAM (DDR3L-1600) via SO-DIMM204. It also provides a PCI bus (via mPCI connector), a
PCI-Express bus (via a 2x40 pin custom connector) and additional peripheral devices such as four serial
interfaces, two Gigabit Ethernet interfaces (LAN), four SATA channels (two of which offering up to 6Gb/s),
an audio interface (HDA 5.1), eleven USB channels, and two DVI/HDMI connectors with CRT available
through DVI-I, and DisplayPort available on a 30pin I-PEX connector. In addition the board serves via the
integrated Trusted Platform Module as Trusted Computing Platform and provides essential safety
functions.
o Suitable CPUs: Intel® Core™ i7-4700QE, i5-4400E, i3-4100E, i3-4110E, i5-4410E
o Chipset Intel® QM87 PCH
o Two SO-DIMM204-sockets for up to 16 GByte DDR3L-1600
o PCI bus via mPCI connector
o PCI-Express bus (four x1 or one x4) via 2x40pin custom connector
o Four serial interfaces COM1 to COM4
o Two LAN interfaces Ethernet 10/100/1000 (Base-T)
o Four SATA channels (2x 1.5/3/6Gb/s, 2x 1.5/3 Gb/s transfer rate)
o PS2 keyboard / mouse interface
o 11 USB 2.0 interfaces (4x external, 6x internal, 1x on I-PEX connector)
o BIOS AMI® Aptio
o CRT connection
o Two DVI/HDMI connectors (1x DVI-I, 1x I-PEX MiniCoax DVI/HCMI/DP)
page 12 Beckhoff New Automation Technology CB3060
Features Chapter: Overview
o HDA compatible sound controller with SPDIF in and out
o 8x GPIO
o TPM Modul
o Watchdog
o RTC with external CMOS battery
o Three regulated fan connectors
o 5V supply
o Format: 102 mm x 147 mm
Beckhoff New Automation Technology CB3060 page 13
Chapter: Overview Specifications and Documents
2.2 Specifications and Documents
In making this manual and for further reading of technical documentation, the following documents,
specifications and web-pages were used and are recommended.
PCI specification
Version 2.3 resp. 3.0
www.pcisig.com
Mini-PCI specification
Version 1.0
www.pcisig.com
PCI Express® Base specification
Version 2.0
www.pcisig.com
ACPI specification
Version 5.0
www.acpi.info
USB specifications
www.usb.org
SM-Bus specification
Version 2.0
www.smbus.org
Intel® Chip Description
4th Gen. Intel® Core™ Processor Family Mobile datasheet
www.intel.com
Intel® Chipset Description
Intel® 8 Series Chipset datasheet
www.intel.com
Intel® Chip Description
i210 Datasheet
www.intel.com
Intel® Chip Description
i218 Datasheet
www.intel.com
Realtek® Chip Description
ALC885/889 Datasheet
www.realtek.com.tw
SMSC® Chip Description
SCH3114 Datasheet
www.smsc.com
(NDA required)
American Megatrends®
Aptio™ Text Setup Environment (TSE) User Manual
www.ami.com
American Megatrends®
Aptio™ 4.x Status Codes
www.ami.com
page 14 Beckhoff New Automation Technology CB3060
Specifications and Documents Chapter: Connectors
3 Connectors
This section describes all the connectors found on the CB3060.
NOTICE
For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted
and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are
also in place for many high speed interfaces and for power supply. Please refer to the respective
specifications and use suitable cables at all times.
Beckhoff New Automation Technology CB3060page 15
Chapter: Connectors Connector Map
Ref-No.
Function
Page
P500/1/2/3
"SATA Interfaces"
p. 30
U600/1
"Memory"
p. 19
P700
"GPIO"
p. 38
P900
"PCI-Express"
p. 34
P901
"Mini-PCI"
p. 36
P1000/1100
"LAN"
p. 28
P1300
"VGA/DVI"
p. 22
P1301
"DVI/HDMI/DisplayPort"
p. 24
P1400/1504
"USB 5-10"
p. 27
P1401
"Fan Connectors"
p. 39
P1402
"System"
p. 18
P1403
"Audio"
p. 29
P1500
"Serial Interface COM1"
p. 31
P1503/5
"Serial Ports COM2 through COM4"
p. 32
P1501/2
"USB 1-4"
p. 26
P1700
"Power Supply"
p. 17
3.1 Connector Map
Please use the connector map below for quick reference. Only connectors on the component side are
shown. For more information on each connector refer to the table below.
page 16 Beckhoff New Automation Technology CB3060
Power Supply Chapter: Connectors
Description
Name
Pin
Name
Description
COM3 transmit data
TXD
1 9 RXD
COM3 receive data
PSU on
PS-ON
2
10
PWRGD
Powergood
powerbutton PSU
PWRBTN#
3
11
SVCC
standby-supply 5V
12 volt supply
12V
4
12
12V
12 volt supply
ground
GND
5
13
GND
ground
ground
GND
6
14
GND
ground
5 volt supply
VCC
7
15
VCC
5 volt supply
5 volt supply
VCC
8
16
VCC
5 volt supply
3.2 Power Supply
The power supply of the hardware module is realized via a 2x8-pin connector (Molex PS 43045-1619,
mating connector: Molex PS 43025-16xx). The 12 volt supply is needed for PCI-Express cards and for the
fan connector. COM3 RXD and TXD can also be used for connecting a second power supply unit, e. g.
for UPS. As an ordering option SMBus signals SCL/SDA can be provided (replacing COM3 TXD/RXD).
Beckhoff New Automation Technology CB3060page 17
Chapter: Connectors System
Description
Name
Pin
Name
Description
ground
GND
1
13
3.3V
3.3V supply
reset to ground
RSTBTN#
2
14
PWRBTN#
on/suspend button
LED suspend / ACPI
S-LED
3
15
S3.3V
standby supply 3.3V
LED harddisk
SATALED
4
16
GPIOLED3
LED GPIO device 3
LED GPIO device 1
GPIOLED1
5
17
BATT
battery
LED GPIO device 2
GPIOLED2
6
18
SMBALERT#
SMB alert
SMB Clock
SMBCLKEX
7
19
SMBDATEX
SMB data
speaker to 5V
SPEAKER
8
20
SVCC
standby supply 5V
keyboard clock
KCLK
9
21
KDAT
keyboard data
ground
GND
10
22
VCC
5V supply
ground
GND
11
23
VCC
5V supply
ground
GND
12
24
VCC
5V supply
3.3 System
A number of signals for system control and for SMBus communication are provided through a 2x12 pin
connector (FCI 98424-G52-24LF, mating connector FCI 90311-024LF). This connector combines signals
for power button, reset, keyboard, speaker, and several LEDs such as harddisk LED, and suspend LED,
and three additional LEDs which are driven by GPIOs. Of these three GPIO-LEDs, LED1 and LED2 are
already provided with a series resistor. SMBus capable devices can also be connected.
Pinout 2x12pin connector:
page 18 Beckhoff New Automation Technology CB3060
Memory Chapter: Connectors
Description
Name
Pin
Name
Description
memory reference current
REF-DQ
1 2 GND
ground
ground
GND
3 4 DQ4
data 4
data 0
DQ0
5 6 DQ5
data 5
data 1
DQ1
7 8 GND
ground
ground
GND
9
10
DQS0#
data strobe 0 -
data mask 0
DM0
11
12
DQS0
data strobe 0 +
ground
GND
13
14
GND
ground
data 2
DQ2
15
16
DQ6
data 6
data 3
DQ3
17
18
DQ7
data 7
ground
GND
19
20
GND
ground
data 8
DQ8
21
22
DQ12
data 12
data 9
DQ9
23
24
DQ13
data 13
ground
GND
25
26
GND
ground
data strobe 1 -
DQS1#
27
28
DM1
data mask 1
data strobe 1 +
DQS1
29
30
RESET#
Reset
ground
GND
31
32
GND
ground
data 10
DQ10
33
34
DQ14
data 14
data 11
DQ11
35
36
DQ15
data 15
ground
GND
37
38
GND
ground
data 16
DQ16
39
40
DQ20
data 20
data 17
DQ17
41
42
DQ21
data 21
ground
GND
43
44
GND
ground
data strobe 2 -
DQS2#
45
46
DM2
data mask 2
data strobe 2 +
DQS2
47
48
GND
ground
ground
GND
49
50
DQ22
data 22
3.4 Memory
Conventional SO-DIMM204 memory modules, as familiar from notebook computers, are used to equip
the board with memory. For technical and mechanical reasons it is possible that particular memory
modules cannot be employed. Please ask your distributor for recommended memory modules.
With currently available SO-DIMM204 modules a memory extension up to 16 GByte is possible
(DDR3L-1600).
All timing parameters for different memory modules are automatically set by BIOS.
Pinout SO-DIMM204:
Beckhoff New Automation Technology CB3060page 19
Chapter: Connectors Memory
Description
Name
Pin
Name
Description
data 18
DQ18
51
52
DQ23
data 23
data 19
DQ19
53
54
GND
ground
ground
GND
55
56
DQ28
data 28
data 24
DQ24
57
58
DQ29
data 29
data 25
DQ25
59
60
GND
ground
ground
GND
61
62
DQS3#
data strobe 3 -
data mask 3
DQM3
63
64
DQS3
data strobe 3 +
ground
GND
65
66
GND
ground
data 26
DQ26
67
68
DQ30
data 30
data 27
DQ27
69
70
DQ31
data 31
ground
GND
71
72
GND
ground
clock enables 0
CKE0
73
74
CKE1
clock enables 1
1.5 volt supply
1.5V
75
76
1.5V
1.5 volt supply
reserved
N/C
77
78
(A15)
reserved
SDRAM bank 2
BA2
79
80
A14
address 14
1.5 volt supply
1.5V
81
82
1.5V
1.5 volt supply
address 12 (burst chop)
A12/BC#
83
84
A11
address 11
address 9
A9
85
86
A7
address 7
1.5 volt supply
1.5V
87
88
1.5V
1.5 volt supply
address 8
A8
89
90
A6
address 6
address 5
A5
91
92
A4
address 4
1.5 volt supply
1.5V
93
94
1.5V
1.5 volt supply
address 3
A3
95
96
A2
address 2
address 1
A1
97
98
A0
address 0
1.5 volt supply
1.5V
99
100
1.5V
1.5 volt supply
Clock 0 +
CK0
101
102
CK1
clock 1 +
Clock 0 -
CK0#
103
104
CK1#
clock 1 -
1.5 volt supply
1.5V
105
106
1.5V
1.5 volt supply
address 10 (auto precharge)
A10/AP
107
108
BA1
SDRAM bank 1
SDRAM Bank 0
BA0
109
110
RAS#
row address strobe
1.5 volt supply
1.5V
111
112
1.5V
1.5 volt supply
write enable
WE#
113
114
S0#
chip select 0
column address strobe
CAS#
115
116
ODT0
on die termination 0
1.5 volt supply
1.5V
117
118
1.5V
1.5 volt supply
address 13
A13
119
120
ODT1
on die termination 1
Chip Select 1
S1#
121
122
N/C
reserved
1.5 volt supply
1.5V
123
124
1.5V
1.5 volt supply
reserved
(TEST)
125
126
REF-CA
reference current
ground
GND
127
128
GND
ground
data 32
DQ32
129
130
DQ36
data 36
data 33
DQ33
131
132
DQ37
data 37
ground
GND
133
134
GND
ground
data strobe 4 -
DQS4#
135
136
DQM4
data mask 4
data strobe 4 +
DQS4
137
138
GND
ground
ground
GND
139
140
DQ38
data 38
data 34
DQ34
141
142
DQ39
data 39
data 35
DQ35
143
144
GND
ground
ground
GND
145
146
DQ44
data 44
data 40
DQ40
147
148
DQ45
data 45
data 41
DQ41
149
150
GND
ground
ground
GND
151
152
DQS5#
data strobe 5 -
data mask 5
DQM5
153
154
DQS5
data strobe 5 +
ground
GND
155
156
GND
ground
data 42
DQ42
157
158
DQ46
data 46
data 43
DQ43
159
160
DQ47
data 47
page 20 Beckhoff New Automation Technology CB3060
Memory Chapter: Connectors
Description
Name
Pin
Name
Description
ground
GND
161
162
GND
ground
data 48
DQ48
163
164
DQ52
data 52
data 49
DQ49
165
166
DQ53
data 53
ground
GND
167
168
GND
ground
data strobe 6 -
DQS6#
169
170
DQM6
data mask 6
data strobe 6
DQS6
171
172
GND
ground
ground
GND
173
174
DQ54
data 54
data 50
DQ50
175
176
DQ55
data 55
data 51
DQ51
177
178
GND
ground
ground
GND
179
180
DQ60
data 60
data 56
DQ56
181
182
DQ61
data 61
data 57
DQ57
183
184
GND
ground
ground
GND
185
186
DQS7#
data strobe 7 -
data mask 7
DQM7
187
188
DQS7
data strobe 7 +
ground
GND
189
190
GND
ground
data 58
DQ58
191
192
DQ62
data 62
data 59
DQ59
193
194
DQ63
data 63
ground
GND
195
196
GND
ground
SPD address 0
SA0
197
198
EVENT#
Event
3.3 volt supply
3.3V
199
200
SDA
SMBus data
SPD address 1
SA1
201
202
SCL
SMBus clock
termination current
VTT
203
204
VTT
termination current
Beckhoff New Automation Technology CB3060page 21
Chapter: Connectors VGA/DVI
Pin
Name
Description
1
TMDSDAT2#
DVI data 2 -
2
TMDSDAT2
DVI data 2 +
3
GND
ground
4
N/C
reserved
5
N/C
reserved
6
DDC CLK
DDC clock (DVI/VGA)
7
DDC DAT
DDC data (DVI/VGA)
8
VSYNC
VGA vertical sync
9
TMDSDAT1#
DVI data 1 -
10
TMDSDAT1
DVI data 1 +
11
GND
ground
12
N/C
reserved
13
N/C
reserved
14
VCC
5 volt supply
15
GND
ground
16
HP_DETECT
hot plug detect
17
TMDSDAT0#
DVI data 0 -
18
TMDSDAT0
DVI data 0 +
19
GND
ground
20
N/C
reserved
21
N/C
reserved
22
GND
ground
23
TMDS CLK
DVI clock
24
TMDS CLK#
DVI clock
C1
RED
VGA red
C2
GREEN
VGA green
C3
BLUE
VGA blue
C4
HSYNC
VGA horizontal sync
3.5 VGA/DVI
The module is equipped with a standard DVI-I-connector, which can be used to connect a DVI capable
device, a standard VGA monitor or an HDMI capable device. External cable adapters that convert from
DVI to VGA or HDMI are required to connect standard VGA or HDMI devices.
Pinout DVI-I:
page 22 Beckhoff New Automation Technology CB3060
VGA/DVI Chapter: Connectors
Pin
Name
Description
C5
GND
ground
Beckhoff New Automation Technology CB3060page 23
Chapter: Connectors DVI/HDMI/DisplayPort
Pin
Name
Description
1
TMDS0#/DP2#
DVI Data 0 - / DP Lane 2 -
2
TMDS0/DP2
DVI Data 0 + / DP Lane 2 +
3
TMDS1#/DP1#
DVI Data 1 - / DP Lane 1 -
4
TMDS1/DP1
DVI Data 1 + / DP Lane 1 +
5
TMDS2#/DP0#
DVI Data 2 - / DP Lane 0 -
6
TMDS2/DP0
DVI Data 2 + / DP Lane 0 +
7
TMDSCLK#/DP3#
DVI Clock - / DP Lane 3 -
8
TMDSCLK/DP3
DVI Clock + / DP Lane 3 +
9
N/C
reserved
10
SEL_DVI/DP#
DVI-DisplayPort Select
11
DDCK/DPAUX
EDID Clock / DP Aux +
12
DDDA/DPAUX#
EDID Data / DP Aux -
13
VCC
5V supply
14
GND
ground
15
HPD
hot plug detect
16
USBVCC
5V supply for USB
17
USBVCC
5V supply for USB
18
N/C
reserved
19
N/C
reserved
20
SSTX#
Super Speed receiver -
21
SSTX
Super Speed receiver +
22
USB#
USB -
23
USB
USB +
24
SSRX#
Super Speed transmitter -
25
SSRX
Super Speed transmitter
26
3.3V
3.3V supply
27
3.3V
3.3V supply
3.6 DVI/HDMI/DisplayPort
The CB3060 provides a second DVI interface which is realized as a 30pin flat cable header (I-PEX
Cabline-VS 20455-030E-12). Analog VGA is not available on this connector. However, an HDMI device or
DisplayPort device can be connected. This custom connector also carries an additional USB interface.
Please note that a custom cable design is required.
Pinout 30pin connector DVI/HDMI/DisplayPort:
page 24 Beckhoff New Automation Technology CB3060
DVI/HDMI/DisplayPort Chapter: Connectors
Pin
Name
Description
28
VCC
5V supply
29
VCC
5V supply
30
VCC
5V supply
Beckhoff New Automation Technology CB3060page 25
Chapter: Connectors USB 1-4
Pin
Name
Description
1
VCC
5 volt for USBX
2
USBX#
minus channel USBX
3
USBX
plus channel USBX
4
GND
ground
Pin
Name
Description
1
VCC
5 volt for USBX
2
USBX#
Minus channel USBX
3
USBX
Plus channel USBX
4
GND
ground
5
StdA_SSRX-
SuperSpeed Receiver -
6
StdA_SSRX+
SuperSpeed Receiver +
7
GND
ground
8
StdA_SSTX-
SuperSpeed Transmitter -
9
StdA_SSTX+
SuperSpeed Transmitter +
3.7 USB 1-4
The USB channels 1 to 4 are available as standard USB connectors.
The USB channels 1 and 2 support USB 3.0, the USB channels 3 and 4 support USB 2.0.
You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only
necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB
keyboard without enabling USB keyboard support. Running Windows with these features enabled may
lead to significant performance or functionality limitations.
Each USB 2.0 interface provides up to 500 mA current. The USB 3.0 interfaces provide up to 900mA
current. All interfaces are protected by an electronically resettable fuse.
Pinout USB connector for channel X:
Pinout USB3.0 connector for channel X:
page 26 Beckhoff New Automation Technology CB3060
USB 5-10 Chapter: Connectors
Description
Name
Pin
Name
Description
5 volt for USB5
VCC
1 9 VCC
5 volt for USB6
minus channel USB5
USB5-
2
10
USB6-
minus channel USB6
plus channel USB5
USB5+
3
11
USB6+
plus channel USB6
ground
GND
4
12
GND
ground
ground
GND
5
13
GND
ground
plus channel USB7
USB7+
6
14
USB8+
plus channel USB8
minus channel USB7
USB7-
7
15
USB8-
minus channel USB8
5 volt for USB7
VCC
8
16
VCC
5 volt for USB8
Description
Name
Pin
Name
Description
5 volt for USB9
VCC
1 5 VCC
5 volt for USB10
minus channel USB9
USB9-
2 6 USB10-
minus channel USB10
plus channel USB9
USB9+
3 7 USB10+
plus channel USB10
ground
GND
4 8 GND
ground
3.8 USB 5-10
The USB channels 5 to 10 are provided via two connectors, one of which is 2x4pin (FCI
98424-G52-08LF, mating connector FCI 90311-08LF), the other 2x8pin (FCI 98424-G52-16LF, mating
connector FCI 90311-016LF).
The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse
support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup
can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with
these features enabled may lead to significant performance or functionality limitations.
Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
Pinout USB
Pinout USB 9/10
Beckhoff New Automation Technology CB3060page 27
Chapter: Connectors LAN
Pin
Name
Description
1
LAN-0
LAN channel 0 plus
2
LAN-0#
LAN channel 0 minus
3
LAN-1
LAN channel 1 plus
4
LAN-2
LAN channel 2 plus
5
LAN-2#
LAN channel 2 minus
6
LAN-1#
LAN channel 1 minus
7
LAN-3
LAN channel 3 plus
8
LAN-3#
LAN channel 3 minus
3.9 LAN
Both LAN interfaces are provided via a 8pole standard connector (JFM3811F-2101-4F). The interfaces
support 10BaseT, 100BaseT, and 1000BaseT compatible network components with automatic bandwidth
selection. Additional outputs are provided for status LEDs. Auto-negotiate and auto-cross functionality is
available as is PXE and WOL. Controller chips are Intel®'s i218 (PHY, LAN1) and i210 (MAC/PHY,
LAN2).
Pinout LAN 10/100/1000:
page 28 Beckhoff New Automation Technology CB3060
Audio Chapter: Connectors
Description
Name
Pin
Name
Description
digital output SPDIF
SPDIFO
1 6 3.3V
3.3 volt supply
digital input SPDIF
SPDIFI
2 7 S_AGND
analog ground sound
sound output right /
front output right
LOUT_R /
FRONT_R
3 8 LOUT_L /
FRONT_L
sound output left /
front output left
AUX input right /
rear output right
AUXA_R /
REAR_R
4 9 AUXA_L /
REAR_L
AUX input left /
rear output left
microphone input 1 /
center output
MIC1 /
CENTER
5
10
MIC2 /
LFE
microphone input 2 /
LFE output
3.10 Audio
Audio input and output functions can be accessed via a 2x5 pin connector (FCI 98424-G52-10LF, mating
connector FCI 90311-010LF). There are two ways to use this connector. Default functionality is the
familiar audio in, audio out, and microphone. OS dependent device drivers can switch these signals to
support a 5.1 output; thus in this mode no audio input signals are available.
Signals "SPDIFI" and "SPDIFO" provide digital input and output. If a transformation to a coaxial or optical
connector is necessary this must be performed externally.
Pinout audio 2x5 pin connector:
Beckhoff New Automation Technology CB3060page 29
Chapter: Connectors SATA Interfaces
Pin
Name
Description
1
GND
ground
2
SATATX
SATA transmit +
3
SATATX#
SATA transmit -
4
GND
ground
5
SATARX
SATA receive -
6
SATARX#
SATA receive +
7
GND
ground
3.11 SATA Interfaces
The CB3060 provides four SATA interfaces from which SATA 3 and 4 allow transfer rates of up to 3 Gb/s.
Additionally SATA 1 and 2 allow transfer rates up to 6 Gb/s. All these interfaces are made available via a
7pin connector and support RAID 0/1/5/10.
The required settings are made in the BIOS setup.
Pinout SATA:
page 30 Beckhoff New Automation Technology CB3060
Serial Interface COM1 Chapter: Connectors
Description
Name
Pin
Name
Description
data carrier detect
DCD
1 6 DSR
data set ready
receive data
RXD
2 7 RTS
request to send
transmit data
TXD
3 8 CTS
clear to send
data terminal ready
DTR
4 9 RI
ring indicator
ground
GND
5
3.12 Serial Interface COM1
The serial interface COM1 is made available via a 9-pin standard DSUB-connector (male, e.g. Foxconn
DM10152-H5W3-4F). Signal level is RS232.
The port address and the interrupt are set via the BIOS setup.
Pinout serial port (DSUB connector):
Beckhoff New Automation Technology CB3060page 31
Chapter: Connectors Serial Ports COM2 through COM4
Description
Name
Pin
Name
Description
data carrier detect COM2
DCDB
1
11
DSRB
data set ready COM2
receive data COM2
RXDB
2
12
RTSB
request to send COM2
transmit data COM2
TXDB
3
13
CTSB
clear to send COM2
data terminal ready COM2
DTRB
4
14
RIB
ring indicator COM2
ground
GND
5
15
SVCC
5 volt supply
data carrier detect COM4
DCDD
6
16
DSRD
data set ready COM4
receive data COM4
RXDD
7
17
RTSD
request to send COM4
transmit data COM4
TXDD
8
18
CTSD
clear to send COM4
data terminal ready COM4
DTRD
9
19
RID
ring indicator COM4
ground
GND
10
20
SVCC
5 volt supply
Description
Name
Pin
Name
Description
data carrier detect COM3
DCDC
1 6 DSRC
data set ready COM3
receive data COM3
RXDC
2 7 RTSC
request to send COM3
transmit data COM3
TXDC
3 8 CTSC
clear to send COM3
data terminal ready COM3
DTRC
4 9 RIC
ring indicator COM3
ground
GND
5
10
VCC
5 volt supply
3.13 Serial Ports COM2 through COM4
There are three more serial interfaces on the board. Of these, COM3 is available through the power
connector (cf. p. 17), or, as an option, through a 2x5pin connector (FCI 98424-G52-10LF). COM2 and
COM4 and made available via a 2x10 pin connector (FCI 98424-G52-20LF). Signal level is RS232.
The port address and the interrupt are set via the BIOS setup.
page 32 Beckhoff New Automation Technology CB3060
Serial Ports COM2 through COM4 Chapter: Connectors
Description
Name
Pin
Name
Description
keyboard clock
KCLK
1 6 MCLK
mouse clock
keyboard data
KDAT
2 7 MDAT
mouse data
reserved
N/C
3 8 N/C
reserved
reserved
N/C
4 9 N/C
reserved
ground
GND
5
10
3.3V
3.3 volt supply

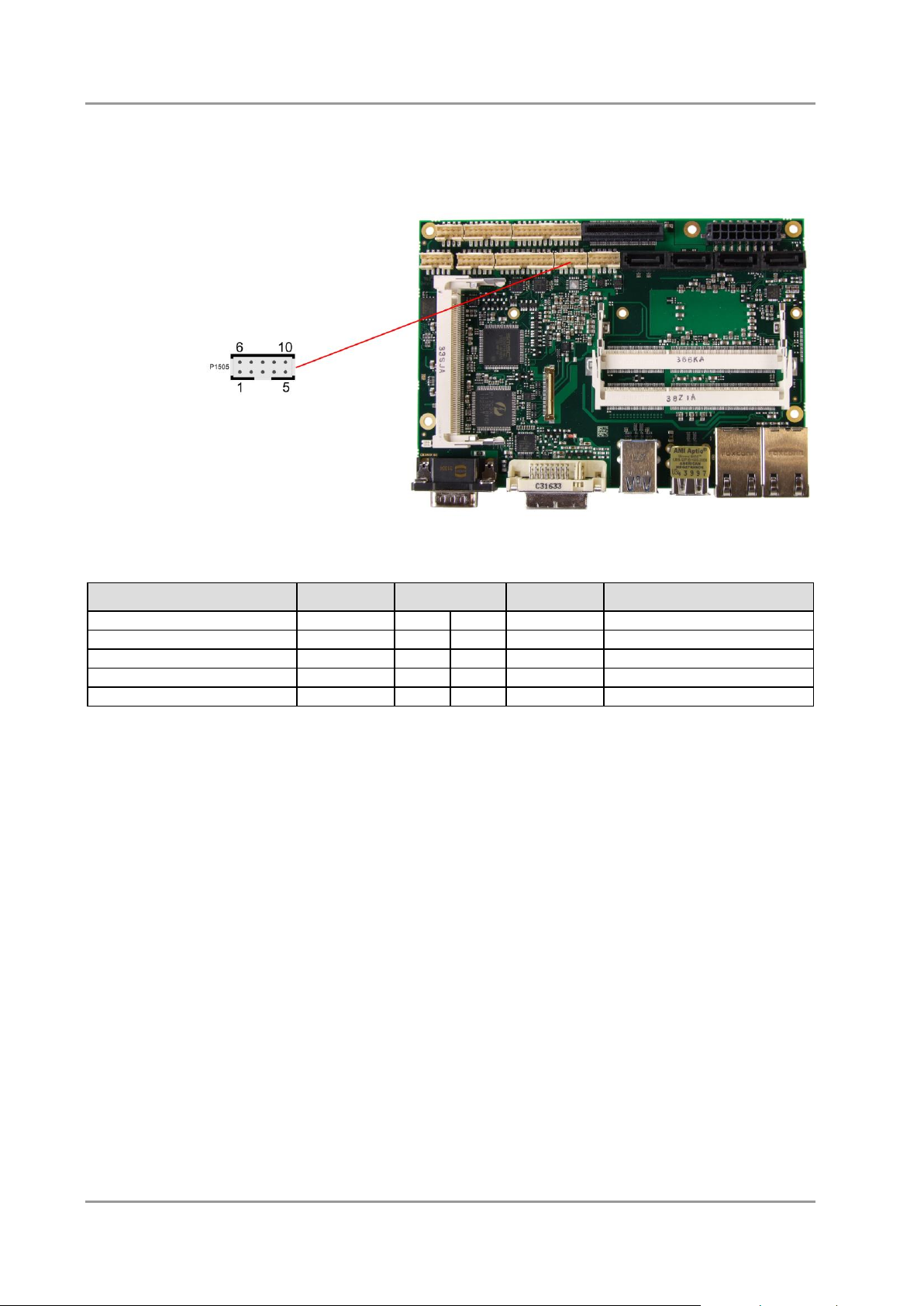

When the module is ordered in standard configuration, the 2x5pin connector offers mouse and keyboard
signals.
Alternative pinout of COM-connector:
Beckhoff New Automation Technology CB3060page 33
Chapter: Connectors PCI-Express
Description
Name
Pin
Name
Description
3.3 volt supply
3.3V
1 2 12V
12 volt supply
3.3 volt stand-by
S3.3V
3 4 SMBCLK1
SMB clock slot 1
PCIe reset
PLTPCIE#
5 6 SMBDAT1
SMB dat slot 1
link reactivation
PEWAKE#
7 8 GND
ground
ground
GND
9
10
PECLK0
PCIe clock 0 +
transmit lane 1 +
PET1
11
12
PECLK0#
PCIe clock 0 -
transmit lane 1 -
PET1#
13
14
GND
ground
ground
GND
15
16
PER1
receive lane 1 +
clock enable 1
PE1CLKEN#
17
18
PER1#
receive lane 1 -
ground
GND
19
20
GND
ground
3.3 volt supply
3.3V
21
22
12V
12 volt supply
3.3 volt stand-by
S3.3V
23
24
SMBCLK2
SMB clock slot 2
PCIe reset
PLTPCIE#
25
26
SMBDAT2
SMB dat slot 2
link reactivation
PEWAKE#
27
28
GND
ground
ground
GND
29
30
PECLK1
PCIe clock 1 +
transmit lane 2 +
PET2
31
32
PECLK1#
PCIe clock 1 -
transmit lane 2 -
PET2#
33
34
GND
ground
ground
GND
35
36
PER2
receive lane 2 +
clock enable 2
PE2CLKEN#
37
38
PER2#
receive lane 2 -
ground
GND
39
40
GND
ground
3.3 volt supply
3.3V
41
42
12V
12 volt supply
3.3 volt stand-by
S3.3V
43
44
SMBCLK3
SMB clock slot 3
PCIe reset
PLTPCIE#
45
46
SMBDAT4
SMB dat slot 3
link reactivation
PEWAKE#
47
48
GND
ground
ground
GND
49
50
PECLK2
PCIe clock 2 +
transmit lane 3 +
PET3
51
52
PECLK2#
PCIe clock 2 -
transmit lane 3 -
PET3#
53
54
GND
ground
3.14 PCI-Express
The CB3060 offers a 2x40pin custom connector for the PCI-Express bus. You can connect one PCIe4x
device here. Alternatively, up to four PCIe1x devices can be connected. Adapter cards featuring standard
PCIe sockets or a PCIe Mini Card connector are available. Please contact your sales representative for
these cards.
Pinout 2x40 pin connector PCIe:
page 34 Beckhoff New Automation Technology CB3060
PCI-Express Chapter: Connectors
Description
Name
Pin
Name
Description
ground
GND
55
56
PER3
receive lane 3 +
clock enable 3
PE3CLKEN#
57
58
PER3#
receive lane 3 -
ground
GND
59
60
GND
ground
3.3 volt supply
3.3V
61
62
12V
12 volt supply
3.3 volt stand-by
S3.3V
63
64
SMBCLK4
SMB clock slot 4
PCIe reset
PLTPCIE#
65
66
SMBDAT4
SMB dat slot 4
link reactivation
PEWAKE#
67
68
GND
ground
ground
GND
69
70
PECLK3
PCIe clock 3 +
transmit lane 4 +
PET4
71
72
PECLK3#
PCIe clock 3 -
transmit lane 4 -
PET4#
73
74
GND
ground
ground
GND
75
76
PER4
receive lane 4 +
clock enable 4
PE3CLKEN#
77
78
PER4#
receive lane 4 -
PCIe configure x1/x4
PECONF#
79
80
GND
ground
Beckhoff New Automation Technology CB3060page 35
Chapter: Connectors Mini-PCI
Description
Name
Pin
Name
Description
reserved
N/C
1 2 N/C
reserved
reserved
N/C
3 4 N/C
reserved
reserved
N/C
5 6 N/C
reserved
reserved
N/C
7 8 N/C
reserved
reserved
N/C
9
10
N/C
reserved
reserved
N/C
11
12
N/C
reserved
reserved
N/C
13
14
N/C
reserved
reserved
N/C
15
16
N/C
reserved
interrupt B
INTB#
17
18
VCC
5 volt supply
3.3 volt supply
3.3V
19
20
INTA#
interrupt A
serial interrupt (legacy)
SERIRQ
21
22
N/C
reserved
ground
GND
23
24
S3.3V
3.3 volt supply
PCI clock
PCLK
25
26
PRST#
reset
ground
GND
27
28
3.3V
3.3 volt supply
PCI request
REQ#
29
30
GNT#
PCI grant
3.3 volt supply
3.3V
31
32
GND
ground
address/data 31
AD31
33
34
PME#
power management event
address/data 29
AD29
35
36
N/C
reserved
ground
GND
37
38
AD30
address/data 30
address/data 27
AD27
39
40
3.3V
3.3 volt supply
address/data 25
AD25
41
42
AD28
address/data 28
interrupt C
INTC#
43
44
AD26
address/data 26
bus cmd/byte enables 3
CBE3#
45
46
AD24
address/data 24
address/data 23
AD23
47
48
IDSEL
init device select
ground
GND
49
50
GND
ground
address/data 21
AD21
51
52
AD22
address/data 22
address/data 19
AD19
53
54
AD20
address/data 20
ground
GND
55
56
PAR
parity
address/data 17
AD17
57
58
AD18
address/data 18
3.15 Mini-PCI
The CB3060 allows you to add expansion cards complying to the Mini-PCI standard (type III). One such
card can be inserted into the Mini-PCI slot available on the board.
page 36 Beckhoff New Automation Technology CB3060
Mini-PCI Chapter: Connectors
Description
Name
Pin
Name
Description
bus cmd/byte enables 2
CBE2#
59
60
AD16
address/data 16
initiator ready
IRDY#
61
62
GND
ground
3.3 volt supply
3.3V
63
64
FRAME#
cycle frame
clock running
CLKRUN#
65
66
TRDY#
target ready
system error
SERR#
67
68
STOP#
stop request by target
ground
GND
69
70
3.3V
3.3 volt supply
parity error
PERR#
71
72
DEVSEL#
device select
bus cmd/byte enables 1
CBE1#
73
74
GND
ground
address/data 14
AD14
75
76
AD15
address/data 15
ground
GND
77
78
AD13
address/data 13
address/data 12
AD12
79
80
AD11
address/data 11
address/data 10
AD10
81
82
GND
ground
ground
GND
83
84
AD9
address/data 9
address/data 8
AD8
85
86
CBE0#
bus cmd/byte enables 0
address/data 7
AD7
87
88
3.3V
3.3 volt supply
3.3 volt supply
3.3V
89
90
AD6
address/data 6
address/data 5
AD5
91
92
AD4
address/data 4
interrupt D
INTD#
93
94
AD2
address/data 2
address/data 3
AD3
95
96
AD0
address/data 0
5 volt supply
VCC
97
98
N/C
reserved
address/data 1
AD1
99
100
N/C
reserved
ground
GND
101
102
GND
ground
reserved
N/C
103
104
GND
ground
reserved
N/C
105
106
N/C
reserved
reserved
N/C
107
108
N/C
reserved
reserved
N/C
109
110
N/C
reserved
reserved
N/C
111
112
N/C
reserved
reserved
N/C
113
114
GND
ground
reserved
N/C
115
116
N/C
reserved
reserved
N/C
117
118
N/C
reserved
reserved
N/C
119
120
N/C
reserved
lock
PLOCK#
121
122
N/C
reserved
reserved
N/C
123
124
S3.3V
3.3 volt supply
Beckhoff New Automation Technology CB3060page 37
Chapter: Connectors GPIO
Description
Name
Pin
Name
Description
5 volt supply
VCC
1 7 VCC
5 volt supply
GP input/output 10
GPIO10
2 8 GPIO14
GP input/output 14
GP input/output 11
GPIO11
3 9 GPIO15
GP input/output 15
GP input/output 12
GPIO12
4
10
GPIO16
GP input/output 16
GP input/output 13
GPIO13
5
11
GPIO17
GP input/output 17
ground
GND
6
12
GND
ground
3.16 GPIO
The General Purpose Input/Output interface is made available through a 2x6 pin connector (FCI
98424-G52-12LF, mating connector FCI 90311-012LF). To make use of this interface the GPIO chip
(PCA9535BS) must be programmed accordingly. Please refer to your distributor for information on
available software support.
Pinout GPIO connector:
page 38 Beckhoff New Automation Technology CB3060
Fan Connectors Chapter: Connectors
Description
Name
Pin
Name
Description
ground regulated
FANON1
1 6 FANON2
ground regulated
12V supply
12V
2 7 12V
12V supply
Fan 1 monitoring signal
FANCTRL1
3 8 FANCTRL2
Fan 2 monitoring signal
12V supply
12V
4 9 FANCTRL3
Fan 3 monitoring signal
ground regulated
FANON3
5
10
GND
ground
3.17 Fan Connectors
Three external fans (12V) can be connected to the board using a 2x5pin connector (FCI
98424-G52-10LF, mating connector FCI 90311-010LF). Monitoring signals are available. For the
monitoring to work the fans must provide a corresponding speed signal.
Beckhoff New Automation Technology CB3060page 39
Chapter: State LEDs Fan Connectors
Color
Interval
Meaning
non
solid
Invalid system state
White
once
Powerfail
Cyan
solid
Reserved
Magenta
solid
if present: SUPS active
Blue
solid
Reserved
Yellow
solid
S5 state
Green
solid
S0 state
Red
solid
Reset/Start
Green/Yellow
flashing
Bootloader operates normal
Red/Yellow
flashing
Bootloader is being started (starting sequence still running)
Yellow
flashing (6s)
S4 state
Yellow
flashing (3s)
S3 state
Magenta
flashing (0,5s)
if present: SUPS test of capacity
4 State LEDs
Status Codes RGB LED:
NOTICE
If the board appears to be in Reset (Red LED lit) then this could also indicate a PCI104-Express "stacking
error". Such an error could occur when the stack contains a peripheral card which has the wrong type of
connector (PCI104-Express Type 1 instead of Type 2 or vice versa).
page 40 Beckhoff New Automation Technology CB3060
General Remarks Chapter: BIOS Settings
5 BIOS Settings
5.1 General Remarks
In each setup page, standard values for all setup entries can be loaded. Previously saved settings are
loaded by pressing F2 and factory defaults are loaded with F3. Both F2 and F3, and also F4 ("Save &
Exit") always affect the whole set of setup entries.
Setup entries starting with a „►" sign represent submenus. Navigation between entries is done using the
arrow keys on the keyboard, with the <Enter> key being used to select an entry, which either opens up a
dialog box or opens a whole new submenu of setup entries.
Each setup entry has a short help text associated with it. This is displayed in the upper right hand corner
of the screen.
NOTICE
BIOS features and setup options are subject to change without notice. The settings displayed in the
screenshots on the following pages are meant to be examples only. They do not represent the
recommended settings or the default settings. Determination of the appropriate settings is dependent
upon the particular application scenario in which the board is used.
Beckhoff New Automation Technology CB3060page 41
Chapter: BIOS Settings Main
5.2 Main
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
MAIN Advanced Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ │Set the Date. Use Tab to │
│ Board Information │switch between Data elements. │
│ Board CB3060 │ │
│ Revision 1 │ │
│ Bios Version 0.33 │ │
│ │ │
│ Processor Information │ │
│ Name Haswell │ │
│ Brand String Intel(R) Core(TM) i3-410 │ │
│ Frequency 2400MHz │ │
│ Processor ID 306c3 │ │
│ Stepping C0 │ │
│ Number of Processors 2Core(s) / 2Thread(s) │────────────────────────────────│
│ Microcode Revision 17 │→←: Select Screen │
│ GT Info GT2 (800 MHz) │↑↓: Select Item │
│ │Enter: Select │
│ IGFX VBIOS Version 2179 │+/-: Change Opt. │
│ Memory RC Version 1.6.2.1 │F1: General Help │
│ Total Memory 8192 MB (DDR3) │F2: Previous Values │
│ Memory Frequency 1600 Mhz │F3: Optimized Defaults │
│ │F4: Save & Exit │
│ System Date [Thu 19/03/2014] │ESC: Exit │
│ System Time [00:47:04] │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Board
Options: none
Revision
Options: none
Bios Version
Options: none
Processor Information
Options: none
Name
Options: none
Brand String
Options: none
Frequency
Options: none
Processor ID
Options: none
Stepping
Options: none
Number of Processors
Options: none
Microcode Revision
Options: none
page 42 Beckhoff New Automation Technology CB3060
Main Chapter: BIOS Settings
GT Info
Options: none
IGFX VBIOS Version
Options: none
Memory RC Version
Options: none
Total Memory
Options: none
Memory Frequency
Options: none
System Date
Options: The system date can be adjusted here.
System Time
Options: The system time can be adjusted here.
Beckhoff New Automation Technology CB3060page 43
Chapter: BIOS Settings Advanced
5.3 Advanced
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main ADVANCED Chipset Boot Security Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ Power-Supply Type [ATX] │Select the Type of the Power │
│ SoftOff on Overheat [Disabled] │Supply: AT/ATX │
│► PCI Subsystem Settings │ │
│► ACPI Settings │ │
│► Trusted Computing │ │
│► CPU Configuration │ │
│► SATA Configuration │ │
│► AMT Configuration │ │
│► Power Controller Options │ │
│► USB Configuration │ │
│► Super IO Configuration │ │
│► H/W Monitor │ │
│► Serial Port Console Redirection │────────────────────────────────│
│► Network Stack │→←: Select Screen │
│ │↑↓: Select Item │
│► Intel(R) Ethernet Connection I218-LM - 88:88:88:88:87:88 │Enter: Select │
│► Intel(R) I210 Gigabit Network Connection - 00:01:05:14:... │+/-: Change Opt. │
│► Driver Health │F1: General Help │
│ │F2: Previous Values │
│ │F3: Optimized Defaults │
│ │F4: Save & Exit │
│ │ESC: Exit │
│ │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Power-Supply Type
Options: ATX / AT
SoftOff on Overheat
Options: Disabled / Enabled
PCI Subsystem Settings
Sub menu: see "PCI Subsystem Settings" (page 46)
ACPI Settings
Sub menu: see "ACPI Settings" (page 48)
Trusted Computing
Sub menu: see "Trusted Computing" (page 49)
CPU Configuration
Sub menu: see "CPU Configuration" (page 50)
SATA Configuration
Sub menu: see "SATA Configuration" (page 53)
AMT Configuration
Sub menu: see "AMT Configuration" (page 56)
Power Controller Options
Sub menu: see "Power Controller Options" (page 58)
USB Configuration
Sub menu: see "USB Configuration" (page 60)
Super IO Configuration
Sub menu: see "Super IO Configuration" (page 61)
page 44 Beckhoff New Automation Technology CB3060
Advanced Chapter: BIOS Settings
H/W Monitor
Sub menu: see "H/W Monitor" (page 63)
Serial Port Console Redirection
Sub menu: see "Serial Port Console Redirection" (page 65)
Network Stack
Sub menu: see "Network Stack" (page 68)
Intel(R) Ethernet Connection I218
Sub menu: see "Intel(R) Ethernet Connection I218-LM" (page 69)
Driver Health
Sub menu: see "Driver Health" (page 73)
Beckhoff New Automation Technology CB3060page 45
Chapter: BIOS Settings Advanced
5.3.1 PCI Subsystem Settings
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Enable ACPI Auto Configuration
Options: Enabled / Disabled
Enable Hibernation
Options: Enabled / Disabled
ACPI Sleep State
Options: Suspend Disabled / S1 (CPU Stop Clock)
Lock Legacy Resources
Options: Enabled / Disabled
page 48 Beckhoff New Automation Technology CB3060
Advanced Chapter: BIOS Settings
5.3.3 Trusted Computing
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ Configuration │Enables or Disables BIOS │
│ Security Device Support [Disabled] │support for security device. │
│ │O.S. will not show Security │
│ Current Status Information │Device. TCG EFI protocol and │
│ NO Security Device Found │INT1A interface will not be │
│ │available. │
│ │ │
│ │ │
│ │ │
│ │ │
│ │ │
│ │ │
│ │────────────────────────────────│
│ │→←: Select Screen │
│ │↑↓: Select Item │
│ │Enter: Select │
│ │+/-: Change Opt. │
│ │F1: General Help │
│ │F2: Previous Values │
│ │F3: Optimized Defaults │
│ │F4: Save & Exit │
│ │ESC: Exit │
│ │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Security Device Support
Options: Enabled / Disabled
Beckhoff New Automation Technology CB3060page 49
Chapter: BIOS Settings Advanced
5.3.4 CPU Configuration
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ CPU Configuration ▲│Enabled for Windows XP and │
│ █│Linux (OS opimized for │
│ Intel(R) Core(TM) i3-4100E CPU @ 2.40GHz █│Hyper-Threading Technology) │
│ CPU Signature 306c3 █│and Disabled for other OS (OS │
│ Processor Family 6 █│not optimized for │
│ Microcode Patch 16 █│Hyper-Threading Technology). │
│ FSB Speed 100 MHz █│When Disabled only one thread │
│ Max CPU Speed 2400 MHz █│per enabled core is enabled. │
│ Min CPU Speed 800 MHz █│ │
│ CPU Speed 2400 MHz █│ │
│ Processor Cores 4 █│ │
│ Intel HT Technology Not Supported █│ │
│ Intel VT-x Technology Supported █│ │
│ Intel SMX Technology Not Supported █│ │
│ 64-bit Supported █│ │
│ EIST Technology Supported █│────────────────────────────────│
│ CPU C3 State Supported █│→←: Select Screen │
│ CPU C6 State Supported █│↑↓: Select Item │
│ CPU C7 State Supported █│Enter: Select │
│ ░│+/-: Change Opt. │
│ L1 Data Cache 32 kB x 2 ░│F1: General Help │
│ L1 Code Cache 32 kB x 2 ░│F2: Previous Values │
│ L2 Cache 256 kB x 2 ░│F3: Optimized Defaults │
│ L3 Cache 3072 kB ░│F4: Save & Exit │
│ ░│ESC: Exit │
│ ░│ │
│ ░│ │
│ ▼│ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
CPU Signature
Options: none
Processor Family
Options: none
Microcode Patch
Options: none
FSB Speed
Options: none
Max CPU Speed
Options: none
Min CPU Speed
Options: none
CPU Speed
Options: none
Processor Cores
Options: none
Intel HT Technology
Options: none
Intel VT-x Technology
Options: none
Intel SMX Technology
Options: none
page 50 Beckhoff New Automation Technology CB3060
Advanced Chapter: BIOS Settings
64-bit
Options: none
EIST Technology
Options: none
CPU C3 state
Options: none
CPU C6 state
Options: none
CPU C7 state
Options: none
L1 Data Cache
Options: none
L1 Code Cache
Options: none
L2 Cache
Options: none
L3 Cache
Options: none
Hyper-threading
Options: Enabled / Disabled
Active Processor Cores
Options: All
Overclocking lock
Options: Disabled / Enabled
Limit CPUID Maximum
Options: Enabled / Disabled
Execute Disable Bit
Options: Enabled / Disabled
Intel Virtualization Technology
Options: Enabled / Disabled
Hardware Prefetcher
Options: Disabled / Enabled
Adjacent Cache Line Prefetch
Options: Disabled / Enabled
EIST
Options: Disabled / Enabled
Turbo Mode
Options: Enabled / Disabled
Package power limit lock
Options: Disabled / Enabled
Beckhoff New Automation Technology CB3060page 51
Chapter: BIOS Settings Advanced CPU Power Limit1
Options: 0..255
CPU Power Limit1 Time
Options: 0..255
CPU Power Limit 2
Options: 0..255
Platform power limit lock
Options: Disabled / Enabled
CPU Power Limit3
Options: 0..255
CPU Power Limit3 Time
Options: 0..255
CPU Power Limit3 Duty Cycle
Options: 0..100
DDR Power Limit1
Options: 0..255
DDR Power Limit1 Time
Options: 0..255
DDR Power Limit2
Options: 0..255
1-Core Ratio Limit
Options: 0..255
2-Core Ratio Limit
Options: 0..255
TCC Activation Offset
Options: 0...15
ACPI T State
Options: Disabled / Enabled
CPU DTS
Options: Disabled / Enabled
page 52 Beckhoff New Automation Technology CB3060
Advanced Chapter: BIOS Settings
5.3.5 SATA Configuration
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ SATA Controller(s) [Enabled] ▲│Enable or disable SATA Device. │
│ SATA Mode Selection [RAID] █│ │
│ SATA Test Mode [Disabled] █│ │
│ SATA Controller Speed [Default] █│ │
│► Software Feature Mask Configuration █│ │
│ Alternate ID [Disabled] █│ │
│ █│ │
│ Serial ATA Port 0 Empty █│ │
│ Software Preserve Unknown █│ │
│ Port 0 [Enabled] █│ │
│ Hot Plug [Disabled] █│ │
│ External SATA [Disabled] █│ │
│ SATA Device Type [Hard Disk Drive] █│────────────────────────────────│
│ Spin Up Device [Disabled] ░│→←: Select Screen │
│ Serial ATA Port 1 Empty ░│↑↓: Select Item n │
│ Software Preserve Unknown ░│Enter: Select │
│ Port 1 [Inabled] ░│+/-: Change Opt. │
│ Hot Plug [Disabled] ░│F1: General Help │
│ External SATA [Disabled] ░│F2: Previous Values │
│ SATA Device Type [Hard Disk Drive] ░│F3: Optimized Defaults │
│ Spin Up Device [Disabled] ░│F4: Save & Exit │
│ Serial ATA Port 2 Empty ░│ESC: Exit │
│ Software Preserve Unknown ░│ │
│ Port 2 [Enabled] ░│ │
│ Hot Plug [Disabled] ░│ │
│ External SATA [Disabled] ░│ │
│ SATA Device Type [Hard Disk Drive] ▼│ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
SATA Controller(s)
Options: Enabled / Disabled
SATA Mode Selection
Options: IDE / AHCI / RAID
SATA Test Mode
Options: Enabled / Disabled
SATA Controller Speed
Options: Default / Gen1 / Gen2 / Gen3
Software Feature Mask Configuration
Sub menu: see "Software Feature Mask Configuration" (page 55)
Alternate ID
Options: Enabled / Disabled
Serial ATA Port X
Options: none
Software Preserve
Options: none
Port X
Options: Enabled / Disabled
Hot Plug
Options: Enabled / Disabled
Mechanical Presence Switch
Options: Disabled / Enabled
Beckhoff New Automation Technology CB3060page 53
Chapter: BIOS Settings Advanced External SATA
Options: Enabled / Disabled
SATA Device Type
Options: Hard Disk Drive / Solid State Drive
Spin Up Device
Options: Enabled / Disabled
page 54 Beckhoff New Automation Technology CB3060
Advanced Chapter: BIOS Settings
5.3.5.1 Software Feature Mask Configuration
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Launch CSM
Options: Enabled / Disabled
Boot option filter
Options: UEFI and Legacy / Legacy only / UEFI only
Launch PXE OpROM policy
Options: Disable / Enable
Launch Storage OpROM policy
Options: Do not launch / UEFI only / Legacy only
Launch Video OpROM policy
Options: Do not launch / UEFI only / Legacy only
Other PCI device ROM priority
Options: UEFI OpROM / Legacy OpROM
page 96 Beckhoff New Automation Technology CB3060
Security Chapter: BIOS Settings
5.6 Security
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Chipset Boot SECURITY Save & Exit
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ Password Description │Set Administrator Password. │
│ │When set, this password has to │
│ If ONLY the Administrator's password is set, │be entered to enter setup. │
│ then this only limits access to Setup and is │ │
│ only asked for when entering Setup. │ │
│ If ONLY the Users's password is set, then this │ │
│ is a power on password and must be entered to │ │
│ boot or enter Setup. In Setup the User will │ │
│ have Administrators rights. │ │
│ The password length must be │ │
│ in the following range: │ │
│ Minimum length 3 │ │
│ Maximum length 20 │────────────────────────────────│
│ │→←: Select Screen │
│ │↑↓: Select Item │
│ │Enter: Select │
│ Administrator Password │+/-: Change Opt. │
│ User Password │F1: General Help │
│ │F2: Previous Values │
│ │F3: Optimized Defaults │
│ │F4: Save & Exit │
│ │ESC: Exit │
│► Secure Boot menu │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Administrator Password
Options: Press [Enter]
User Password
Options: Press [Enter]
Secure Boot menu
Sub menu: see "Secure Boot Menu" (page 98)
Beckhoff New Automation Technology CB3060page 97
Chapter: BIOS Settings Security
5.6.1 Secure Boot Menu
Aptio Setup Utility - Copyright (C) 2012American Megatrends, Inc.
Security
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ │Secure Boot can be enabled if │
│ System Mode Setup │1.System running in User mode │
│ Secure Boot Not Active │with enrolled Platform Key(PK) │
│ │2.CSM function is disabled │
│ Secure Boot Support [Disabled] │ │
│ │ │
│ Secure Boot Mode [Custom] │ │
│► Key Management │ │
│ │ │
│ │ │
│ │ │
│ │ │
│ │────────────────────────────────│
│ │→←: Select Screen │
│ │↑↓: Select Item │
│ │Enter: Select │
│ │+/-: Change Opt. │
│ │F1: General Help │
│ │F2: Previous Values │
│ │F3: Optimized Defaults │
│ │F4: Save & Exit │
│ │ESC: Exit │
│ │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Secure Boot Support
Options: Disabled / Enabled
Secure Boot Mode
Options: Standard / Custom
Key Management
Sub menu: see "Key Management" (page 99)
page 98 Beckhoff New Automation Technology CB3060
Security Chapter: BIOS Settings
5.6.1.1 Key Management
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Security
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ Factory Default Key Provisioning [Disabled] │Install Factory default Secure │
│ │Boot Keys when system is in │
│► Enroll All Factory Default Keys │Setup Mode. │
│► Save All Secure Boot Variables │ │
│ │ │
│ Platform Key (PK) NOT INSTALLED │ │
│► Delete PK │ │
│► Set new PK │ │
│ │ │
│ Key Exchange Key Database(KEK) NOT INSTALLED │ │
│► Delete KEK │ │
│► Set new KEK │ │
│► Append KEK │────────────────────────────────│
│ │→←: Select Screen │
│ Authorized Signature Database(DB) NOT INSTALLED │↑↓: Select Item │
│► Delete DB │Enter: Select │
│► Set new DB │+/-: Change Opt. │
│► Append DB │F1: General Help │
│ │F2: Previous Values │
│ Forbidden Signature Database(DBX) NOT INSTALLED │F3: Optimized Defaults │
│► Delete DBX │F4: Save & Exit │
│► Set new DBX │ESC: Exit │
│► Append DBX │ │
│ │ │
│ │ │
│ │ │
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Factory Default Key Provisioning
Options: Disabled / Enabled
Enroll All Factory Default Keys
Options: Press [Enter]
Save All Secure Boot Variables
Options: Press [Enter]
Delete PK
Options: Press [Enter]
Set new PK
Options: Press [Enter]
Delete KEK
Options: Press [Enter]
Set new KEK
Options: Press [Enter]
Append KEK
Options: Press [Enter]
Delete DB
Options: Press [Enter]
Set new DB
Options: Press [Enter]
Append DB
Options: Press [Enter]
Beckhoff New Automation Technology CB3060page 99
Chapter: BIOS Settings Security Delete DBX
Options: Press [Enter]
Set new DBX
Options: Press [Enter]
Append DBX
Options: Press [Enter]
page 100 Beckhoff New Automation Technology CB3060
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
