BECKHOFF CB3052 User Manual

CB3052
Manual
rev. 1.2
Beckhoff Automation GmbH phone: +49 (0) 52 46/963-0 Eiserstr. 5 fax: +49 (0) 52 46/963-198 33415 Verl email: info@beckhoff.de Germany web: www.beckhoff.de

Contents

0 Document History ................................................................................................................................. 5
1 Introduction ........................................................................................................................................... 6
1.1 Notes on the Documentation ......................................................................................................... 6
1.1.1 Liability Conditions ................................................................................................................ 6
1.1.2 Copyright ............................................................................................................................... 6
1.2 Safety Instructions ......................................................................................................................... 7
1.2.1 Disclaimer .............................................................................................................................. 7
1.2.2 Description of Safety Symbols .............................................................................................. 7
1.3 Essential Safety Measures ............................................................................................................ 8
1.3.1 Operator's Obligation to Exercise Diligence .......................................................................... 8
1.3.2 National Regulations Depending on the Machine Type ........................................................ 8
1.3.3 Operator Requirements ......................................................................................................... 8
1.4 Functional Range .......................................................................................................................... 9
2 Overview ............................................................................................................................................. 10
2.1 Features ...................................................................................................................................... 10
2.2 Specifications and Documents .................................................................................................... 12
3 Connectors ......................................................................................................................................... 14
3.1 Connector Map ............................................................................................................................ 15
3.2 Power Supply .............................................................................................................................. 16
3.3 System ........................................................................................................................................ 17
3.4 External CMOS Battery ............................................................................................................... 18
3.5 Memory ....................................................................................................................................... 19
3.6 VGA/DVI ...................................................................................................................................... 22
3.7 DVI/HDMI .................................................................................................................................... 23
3.8 Touch Screen .............................................................................................................................. 24
3.9 USB 1-4 ....................................................................................................................................... 25
3.10 USB 5-8 ....................................................................................................................................... 26
3.11 LAN1............................................................................................................................................ 27
3.12 LAN2............................................................................................................................................ 28
3.13 Audio ........................................................................................................................................... 29
3.14 SATA Interfaces .......................................................................................................................... 30
3.15 IDE Interface ............................................................................................................................... 31
3.16 Serial Interface COM1 ................................................................................................................. 32
3.17 Serial Ports COM2 through COM4 .............................................................................................. 33
3.18 SMB/I2C ...................................................................................................................................... 34
3.19 PCI-Express ................................................................................................................................ 35
3.20 Mini-PCI ....................................................................................................................................... 37
3.21 GPIO............................................................................................................................................ 39
3.22 Fan Connectors ........................................................................................................................... 40
4 BIOS Settings ..................................................................................................................................... 41
4.1 Remarks for Setup Use ............................................................................................................... 41
4.2 Top Level Menu ........................................................................................................................... 41
4.3 Standard CMOS Features ........................................................................................................... 42
4.3.1 SATA channels .................................................................................................................... 43
4.3.2 PATA channel ..................................................................................................................... 44
4.4 Advanced BIOS Features ........................................................................................................... 45
Beckhoff New Automation Technology CB3052 page 3
Contents
4.4.1 CPU Feature ....................................................................................................................... 47
4.4.2 Hard Disk Boot Priority ........................................................................................................ 48
4.5 Advanced Chipset Features ........................................................................................................ 49
4.5.1 PCI Express Root Port Function ......................................................................................... 50
4.6 Integrated Peripherals ................................................................................................................. 51
4.6.1 OnChip IDE Devices ........................................................................................................... 52
4.6.2 Onboard Devices ................................................................................................................. 54
4.6.3 SuperIO Devices ................................................................................................................. 55
4.6.4 USB Device Setting ............................................................................................................. 56
4.7 Power Management Setup .......................................................................................................... 57
4.7.1 PCI Express PM Function ................................................................................................... 59
4.7.2 Intel DTS Feature ................................................................................................................ 60
4.8 PnP/PCI Configuration ................................................................................................................ 61
4.8.1 IRQ Resources .................................................................................................................... 63
4.9 PC Health Status ......................................................................................................................... 64
4.10 Frequency/Voltage Control ......................................................................................................... 65
4.11 Load Fail-Safe Defaults ............................................................................................................... 66
4.12 Load Optimized Defaults ............................................................................................................. 66
4.13 Set Password .............................................................................................................................. 66
4.14 Save & Exit Setup ....................................................................................................................... 66
4.15 Exit Without Saving ..................................................................................................................... 66
5 BIOS update ....................................................................................................................................... 67
6 Mechanical Drawing ........................................................................................................................... 68
6.1 PCB: Mounting Holes .................................................................................................................. 68
6.2 PCB: Pin 1 Dimensions ............................................................................................................... 69
6.3 PCB: Heat Sink ........................................................................................................................... 70
7 Technical Data .................................................................................................................................... 71
7.1 Electrical Data ............................................................................................................................. 71
7.2 Environmental Conditions ........................................................................................................... 71
7.3 Thermal Specifications ................................................................................................................ 72
8 Support and Service ........................................................................................................................... 73
8.1 Beckhoff's Branch Offices and Representatives ......................................................................... 73
8.2 Beckhoff Headquarters................................................................................................................ 73
8.2.1 Beckhoff Support ................................................................................................................. 73
8.2.2 Beckhoff Service ................................................................................................................. 73
I Annex: Post-Codes ............................................................................................................................. 74
II Annex: Resources .............................................................................................................................. 77
A IO Range ......................................................................................................................................... 77
B Memory Range ................................................................................................................................ 77
C Interrupt ........................................................................................................................................... 77
D PCI Devices ..................................................................................................................................... 78
E SMB Devices ................................................................................................................................... 78
page 4 Beckhoff New Automation Technology CB3052
Notes on the Documentation Chapter: Document History

0 Document History

Version Changes
0.1 first pre-release
1.0 first complete version
1.1 - added recommendation for PCIe adapter cards
- corrected pin-orientation for P700 and P1403
- updated annex (memory map & SMB device map)
- added note regarding cables
- minor changes
1.2 improved output quality of dimensional drawings, minor changes
NOTE
All company names, brand names, and product names referred to in this manual are registered or unregistered trademarks of their respective holders and are, as such, protected by national and international law.
Beckhoff New Automation Technology CB3052 page 5
Chapter: Introduction Notes on the Documentation

1 Introduction

1.1 Notes on the Documentation

This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components.
1.1.1 Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards. The documentation has been prepared with care. The products described are, however, constantly under development. For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics. None of the statements of this manual represents a guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Copyright
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.
page 6 Beckhoff New Automation Technology CB3052
Safety Instructions Chapter: Introduction

1.2 Safety Instructions

Please consider the following safety instructions and descriptions. Product specific safety instructions are to be found on the following pages or in the areas mounting, wiring, commissioning etc.
1.2.1 Disclaimer
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.
1.2.2 Description of Safety Symbols
The following safety symbols are used in this documentation. They are intended to alert the reader to the associated safety instructions.
ACUTE RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health of individuals!
RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is danger to life and health of individuals!
HAZARD TO INDIVIDUALS, ENVIRONMENT, DEVICES, OR DATA!
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to environment, to materials, or to data.
NOTE OR POINTER
This symbol indicates information that contributes to better understanding.
Beckhoff New Automation Technology CB3052 page 7
Chapter: Introduction Essential Safety Measures

1.3 Essential Safety Measures

1.3.1 Operator's Obligation to Exercise Diligence
The operator must ensure that
o the product is only used for its intended purpose o the product is only operated in sound condition and in working order o the instruction manual is in good condition and complete, and always available for reference at the
location where the products are used
o the product is only used by suitably qualified and authorised personnel o the personnel is instructed regularly about relevant occupational safety and environmental protection
aspects
o the operating personnel is familiar with the operating manual and in particular the safety notes
contained herein
1.3.2 National Regulations Depending on the Machine Type
Depending on the type of machine and plant in which the product is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. These regulations cover, amongst other things, the intervals between inspections of the controller. The operator must initiate such inspections in good time.
1.3.3 Operator Requirements
o Read the operating instructions All users of the product must have read the operating instructions for the system they work with. o System know-how All users must be familiar with all accessible functions of the product.
page 8 Beckhoff New Automation Technology CB3052
Functional Range Chapter: Introduction

1.4 Functional Range

NOTE
The descriptions contained in the present documentation represent a detailed and extensive product description. As far as the described motherboard was acquired as an integral component of an Industrial PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH shall be relevant. Due to several models of Industrial PCs, variations in the component placement of the motherboards are possible. Support and service benefits for the built-in motherboard will be rendered by Beckhoff Automation GmbH exclusively as specified in the product description (inclusive operation system) of the particular Industrial PC.
Beckhoff New Automation Technology CB3052 page 9
Chapter: Overview Features

2 Overview

2.1 Features

The CB3052 is a highly complex 3,5-inch board which incorporates complete motherboard functionality. It's based on Intel®'s GS45 chipset combined with the ICH9M-E chip (SFF). Several CPUs are available for this board, all from Intel®'s Core™2 Duo and Celeron® M series. Modern DDR3 technology provides top-notch memory performance, accomodating up to 8 GByte of RAM (DDR3-1066) via SO-DIMM204. It also provides a PCI bus (via mPCI connector), a PCI-Express bus (via a 2x40 pin custom connector) and additional peripheral devices such as four serial interfaces, two Gigabit Ethernet interfaces (LAN), two SATA channels, an IDE interface, an audio interface (HDA 5.1), eight USB channels, two DVI/HDMI connectors, and, in some variants, a touchscreen connector.
CRT
DVI/HDMI DVI/HDMI
IDE
USB1 USB2 USB3 USB4 USB5 USB6 USB7 USB8
LAN1
KB
MS
2x Fan
Clock
ICS9LPRS501
2x Chrontel® CH7318C
JMicron®
JMB363-LG
USB 2.0
Intel®
82567
SMSC®
SCH3114
LPC
COM4
PCIe
Elotouch®
COACh3
Intel® Core2 Duo,
Celeron® M
HOST
GMCH
Intel® GS45
DMI
ICH9M-E
Intel® 82801IUX
PCI
SPI
VCCCore; VTT; DDRVTT
Power
1,5V; 1,8V; 2,5V; 3,3V
MEMORY
BIOS
HDA Link
PCIe (x1 / x4)
2x
SoDIMM204
DDR3-1066
RealTek®
ALC885/889
Intel®
82574L
SMBus SPDIF i
SPDIF o LINE MIC OUT
SATA1 SATA2
COM3
COM1
COM2
Touch
mPCI
PCIe
LAN2
o Processor Intel® Core™2 Duo or Celeron® M o Chipset Intel® GS45 with integrated graphics and ICH9M-E (SFF) o Two SO-DIMM204 sockets for up to 8 GByte DDR3-1066 RAM o PCI bus via mPCI connector o PCI-Express bus (four x1 or one x4) via 2x40pin custom connector o Four serial interfaces COM1 to COM4 (COM4 occupied by Touch if present) o Two LAN interfaces Ethernet 10/100/1000 (Base-T) o Two SATA channels o IDE interface o PS2 keyboard / mouse interface
page 10 Beckhoff New Automation Technology CB3052
Features Chapter: Overview
o Eight USB 2.0 interfaces o AWARD BIOS 6.10 o CRT connection o Two DVI/HDMI connectors o AC97/HDA compatible sound controller with SPDIF in and out o RTC with external CMOS battery o 5V supply o Touchscreen connection (in some variants) o Format: 102 mm x 147 mm
Beckhoff New Automation Technology CB3052 page 11
Chapter: Overview Specifications and Documents

2.2 Specifications and Documents

In making this manual and for further reading of technical documentation, the following documents, specifications and web-pages were used and are recommended.
§ PCI specification Version 2.3 resp. 3.0
www.pcisig.com
§ Mini-PCI specification Version 1.0
www.pcisig.com
§ ACPI specification Version 3.0
www.acpi.info
§ ATA/ATAPI specification Version 7 Rev. 1
www.t13.org
§ USB specifications
www.usb.org
§ SM-Bus specification Version 2.0
www.smbus.org
§ Intel®-Chip Description Celeron® M, Core™ 2 Duo
www.intel.com
§ Intel® Chipset Description Intel® 4 Series Express Chipset Family datasheet
www.intel.com
§ Intel® Chip Description Intel® ICH9 Datasheet
www.intel.com
§ Intel® Chip Description 82574L Datasheet
www.intel.com
§ Intel® Chip Description 82567 Datasheet
www.intel.com
§ Realtek® Chip Description ALC885/889 Datasheet
www.realtek.com.tw
§ SMSC® Chip Description SCH3114 Datasheet
www.smsc.com
(NDA required)
§ IDT® Chip Description ICS9LPRS501SKLF Datasheet
www.idt.com
§ Chrontel® Chip Description Chrontel 7318C Datasheet
www.chrontel.com
page 12 Beckhoff New Automation Technology CB3052
Specifications and Documents Chapter: Overview
§ JMicron® Chip Description JMB363 Datasheet
www.jmicron.com
(NDA required)
§ Elo® TouchSystems Chip Description COACh3 Datasheet
www.elotouch.de
(NDA required)
Beckhoff New Automation Technology CB3052 page 13
Chapter: Connectors Specifications and Documents

3 Connectors

This section describes all the connectors found on the CB3052.
CAUTION
For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in place for many high speed interfaces and for power supply. Please refer to the respective specifications and use suitable cables at all times.
page 14 Beckhoff New Automation Technology CB3052
Connector Map Chapter: Connectors

3.1 Connector Map

Please use the connector map below for quick reference. Only connectors on the component side are shown. For more information on each connector refer to the table below.
Ref-No. Function Page
P501/2 "SATA Interfaces" p. 30 U600/1 "Memory" p. 19 P700 "GPIO" p. 39 P800 "PCI-Express" p. 35 P802 "Mini-PCI" p. 37 P900 "LAN1" p. 27 P1000 "LAN2" p. 28 P1100 "IDE Interface" p. 31 P1303 "VGA/DVI" p. 22 P1304 "DVI/HDMI" p. 23 P1400/J1400 "Touch Screen" p. 24 P1401 "SMB/I2C" p. 34 P1402 "Audio" p. 29 P1403 "System" p. 17 P1500 "Serial Interface COM1" p. 32 P1502/8 "Serial Ports COM2 through COM4" p. 33 P1501/3 "USB 1-4" p. 25 P1505/7 "USB 5-8" p. 26 P1509 "Fan Connectors" p. 40 P1600 "External CMOS Battery" p. 18 P1700 "Power Supply" p. 16
Beckhoff New Automation Technology CB3052 page 15
Chapter: Connectors Power Supply

3.2 Power Supply

The power supply of the hardware module is realized via a 2x8-pin connector (Molex PS 43045-16xx, mating connector: Molex PS 43025-16xx). The 12 volt supply is needed for PCI-Express cards and for the fan connector. COM3 RXD and TXD can also be used for connecting a second power supply unit, e. g. for UPS. As an ordering option SMBus signals SCL/SDA can be provided (replacing COM3 TXD/RXD).
Description Name Pin Name Description
COM3 transmit data TXD 1 9 RXD COM3 receive data PSU on PS-ON 2 10 RESET# PSU reset powerbutton PSU PWRBTN# 3 11 SVCC standby-supply 5V 12 volt supply 12V 4 12 12V 12 volt supply ground GND 5 13 GND ground ground GND 6 14 GND ground 5 volt supply VCC 7 15 VCC 5 volt supply 5 volt supply VCC 8 16 VCC 5 volt supply
page 16 Beckhoff New Automation Technology CB3052
System Chapter: Connectors

3.3 System

Some typical signals for system control are provided through a 2x9 pin connector (JST B18B-PHDSS, mating connector: PHDR-18VS). This connector combines signals for power button, reset, keyboard, speaker, and several LEDs such as harddisk LED, touch screen LED, suspend LED, and three additional LEDs which are driven by GPIOs. Of these three GPIO-LEDs, LED1 and LED2 are already provided with a series resistor. As can be seen from the pinout table below, corresponding signals are often placed vis-à-vis or at least near to each other.
Description Name Pin Name Description
ground GND 1 10 PWRBTN# on/suspend button ground GND 2 11 RESET# reset to ground LED touch screen TOUCHLED 3 12 3.3V 3.3 volt supply LED suspend / ACPI S-LED 4 13 S3.3V standby supply 3.3 volt LED harddisk HDLED 5 14 3.3V 3.3 volt supply LED GPIO device LED1 6 15 3.3V 3.3 volt supply LED GPIO device LED2 7 16 LED3 LED GPIO device speaker to 5 volt SPEAKER 8 17 KDAT keyboard data standby supply 5 volt (S)VCC 9 18 KCLK keyboard clock
Beckhoff New Automation Technology CB3052 page 17
Chapter: Connectors External CMOS Battery

3.4 External CMOS Battery

For keeping the internal clock alive even if the rest of the board is switched off, an external battery can be attached via a 2 pin connector (JST B2B-EH-A, mating connector: EHR-2).
Pin
Name Description
1 BATT battery 3.3 volt 2 GND ground
page 18 Beckhoff New Automation Technology CB3052
Memory Chapter: Connectors

3.5 Memory

Conventional SO-DIMM204 memory modules, as familiar from notebook computers, are used to equip the board with memory. For technical and mechanical reasons it is possible that particular memory modules cannot be employed. Please ask your distributor for recommended memory modules. With currently available SO-DIMM204 modules a memory extension up to 8 GByte is possible (DDR3-1066). All timing parameters for different memory modules are automatically set by BIOS.
Description Name Pin Name Description
memory reference current REF-DQ 1 2 GND ground ground GND 3 4 DQ4 data 4 data 0 DQ0 5 6 DQ5 data 5 data 1 DQ1 7 8 GND ground ground GND 9 10 DQS0# data strobe 0 ­data mask 0 DM0 11 12 DQS0 data strobe 0 + ground GND 13 14 GND ground data 2 DQ2 15 16 DQ6 data 6 data 3 DQ3 17 18 DQ7 data 7 ground GND 19 20 GND ground data 8 DQ8 21 22 DQ12 data 12 data 9 DQ9 23 24 DQ13 data 13 ground GND 25 26 GND ground data strobe 1 - DQS1# 27 28 DM1 data mask 1 data strobe 1 + DQS1 29 30 RESET# Reset ground GND 31 32 GND ground data 10 DQ10 33 34 DQ14 data 14 data 11 DQ11 35 36 DQ15 data 15 ground GND 37 38 GND ground data 16 DQ16 39 40 DQ20 data 20 data 17 DQ17 41 42 DQ21 data 21 ground GND 43 44 GND ground data strobe 2 - DQS2# 45 46 DM2 data mask 2 data strobe 2 + DQS2 47 48 GND ground ground GND 49 50 DQ22 data 22
Beckhoff New Automation Technology CB3052 page 19
Chapter: Connectors Memory
Description Name Pin Name Description
data 18 DQ18 51 52 DQ23 data 23 data 19 DQ19 53 54 GND ground ground GND 55 56 DQ28 data 28 data 24 DQ24 57 58 DQ29 data 29 data 25 DQ25 59 60 GND ground ground GND 61 62 DQS3# data strobe 3 ­data mask 3 DQM3 63 64 DQS3 data strobe 3 + ground GND 65 66 GND ground data 26 DQ26 67 68 DQ30 data 30 data 27 DQ27 69 70 DQ31 data 31 ground GND 71 72 GND ground clock enables 0 CKE0 73 74 CKE1 clock enables 1
1.5 volt supply 1.5V 75 76 1.5V 1.5 volt supply reserved N/C 77 78 (A15) reserved SDRAM bank 2 BA2 79 80 A14 address 14
1.5 volt supply 1.5V 81 82 1.5V 1.5 volt supply address 12 (burst chop) A12/BC# 83 84 A11 address 11 address 9 A9 85 86 A7 address 7
1.5 volt supply 1.5V 87 88 1.5V 1.5 volt supply address 8 A8 89 90 A6 address 6 address 5 A5 91 92 A4 address 4
1.5 volt supply 1.5V 93 94 1.5V 1.5 volt supply address 3 A3 95 96 A2 address 2 address 1 A1 97 98 A0 address 0
1.5 volt supply 1.5V 99 100 1.5V 1.5 volt supply Clock 0 + CK0 101 102 CK1 clock 1 + Clock 0 - CK0# 103 104 CK1# clock 1 -
1.5 volt supply 1.5V 105 106 1.5V 1.5 volt supply address 10 (auto precharge) A10/AP 107 108 BA1 SDRAM bank 1 SDRAM Bank 0 BA0 109 110 RAS# row address strobe
1.5 volt supply 1.5V 111 112 1.5V 1.5 volt supply write enable WE# 113 114 S0# chip select 0 column address strobe CAS# 115 116 ODT0 on die termination 0
1.5 volt supply 1.5V 117 118 1.5V 1.5 volt supply address 13 A13 119 120 ODT1 on die termination 1 Chip Select 1 S1# 121 122 N/C reserved
1.5 volt supply 1.5V 123 124 1.5V 1.5 volt supply reserved (TEST) 125 126 REF-CA reference current ground GND 127 128 GND ground data 32 DQ32 129 130 DQ36 data 36 data 33 DQ33 131 132 DQ37 data 37 ground GND 133 134 GND ground data strobe 4 - DQS4# 135 136 DQM4 data mask 4 data strobe 4 + DQS4 137 138 GND ground ground GND 139 140 DQ38 data 38 data 34 DQ34 141 142 DQ39 data 39 data 35 DQ35 143 144 GND ground ground GND 145 146 DQ44 data 44 data 40 DQ40 147 148 DQ45 data 45 data 41 DQ41 149 150 GND ground ground GND 151 152 DQS5# data strobe 5 ­data mask 5 DQM5 153 154 DQS5 data strobe 5 + ground GND 155 156 GND ground data 42 DQ42 157 158 DQ46 data 46 data 43 DQ43 159 160 DQ47 data 47
page 20 Beckhoff New Automation Technology CB3052
Memory Chapter: Connectors
Description Name Pin Name Description
ground GND 161 162 GND ground data 48 DQ48 163 164 DQ52 data 52 data 49 DQ49 165 166 DQ53 data 53 ground GND 167 168 GND ground data strobe 6 - DQS6# 169 170 DQM6 data mask 6 data strobe 6 DQS6 171 172 GND ground ground GND 173 174 DQ54 data 54 data 50 DQ50 175 176 DQ55 data 55 data 51 DQ51 177 178 GND ground ground GND 179 180 DQ60 data 60 data 56 DQ56 181 182 DQ61 data 61 data 57 DQ57 183 184 GND ground ground GND 185 186 DQS7# data strobe 7 ­data mask 7 DQM7 187 188 DQS7 data strobe 7 + ground GND 189 190 GND ground data 58 DQ58 191 192 DQ62 data 62 data 59 DQ59 193 194 DQ63 data 63 ground GND 195 196 GND ground SPD address 0 SA0 197 198 EVENT# Event
3.3 volt supply 3.3V 199 200 SDA SMBus data SPD address 1 SA1 201 202 SCL SMBus clock termination current VTT 203 204 VTT termination current
Beckhoff New Automation Technology CB3052 page 21
Chapter: Connectors VGA/DVI

3.6 VGA/DVI

The module is equipped with a standard DVI-I-connector, which can be used to connect a DVI capable device, a standard VGA monitor or an HDMI capable device. External cable adapters that convert from DVI to VGA or HDMI are required to connect standard VGA or HDMI devices.
Pinout DVI-I:
Pin
Name Description
1 TMDSDAT2# DVI data 2 ­2 TMDSDAT2 DVI data 2 + 3 GND ground 4 N/C reserved 5 N/C reserved 6 DDC CLK DDC clock (DVI/VGA) 7 DDC DAT DDC data (DVI/VGA) 8 VSYNC VGA vertical sync 9 TMDSDAT1# DVI data 1 ­10 TMDSDAT1 DVI data 1 + 11 GND ground 12 N/C reserved 13 N/C reserved 14 VCC 5 volt supply 15 GND ground 16 HP_DETECT hot plug detect 17 TMDSDAT0# DVI data 0 ­18 TMDSDAT0 DVI data 0 + 19 GND ground 20 N/C reserved 21 N/C reserved 22 GND ground 23 TMDS CLK DVI clock 24 TMDS CLK# DVI clock C1 RED VGA red C2 GREEN VGA green C3 BLUE VGA blue C4 HSYNC VGA horizontal sync C5 GND ground
page 22 Beckhoff New Automation Technology CB3052
DVI/HDMI Chapter: Connectors

3.7 DVI/HDMI

The CB3052 provides a second DVI interface which is realized as a 2x9pin header. Analog VGA is not available on this connector. However, an HDMI device can be connected.
Pinout 2x9pin connector DVI/HDMI:
Description Name Pin Name Description
HDMI panel detected HPD_SINK 1 2 N/C reserved SMBus clock (DDC) SCL_SINK 3 4 SDA_SINK SMBus dat (DDC) 5 volt supply VCC 5 6 GND ground ground GND 7 8 TMDS_CLK# DVI clock ­DVI data 0 - TMDS_D0# 9 10 TMDS_ClK DVI clock + DVI data 0 + TMDS_D0 11 12 GND ground ground GND 13 14 TMDS_D1# DVI data 1 ­DVI data 2 - TMDS_D2# 15 16 TMDS_D1 DVI data 1 + DVI data 2 + TMDS_D2 17 18 GND ground
Beckhoff New Automation Technology CB3052 page 23
Chapter: Connectors Touch Screen

3.8 Touch Screen

A key feature of the CB3052 is the possibility to connect a touch screen. Both 4-wire and 5-wire resistive touch screens are supported. For receiving the relevant signals a 5 pin standard IDC socket connector with a spacing of 2.54 mm is provided. If the connected touch screen is 4-wire then pin 1 will not be used. Next to this connector is a jumper which, if shorted at boot time, triggers the NVRST-signal in the controller, thereby resetting all parameters of NVRAM to default values. Conversion to the respective connector of the touch screen must be provided externally. Please consult the manufacturer’s documentation to figure out the relevant technical details. Note: In the pinout table below H, X, S, Y, and L are the signal names in the case of 5-wire, XL, XR, YT, and YB are the names in the case of 4-wire.
Pin
Name Description
1 H-DRV H driver control 2 X/XL-DRV X/XL driver control 3 S/XR-DRV S/XR driver control 4 Y/YT-DRV Y/YT driver control 5 L/YB-DRV L/YB driver control
page 24 Beckhoff New Automation Technology CB3052
USB 1-4 Chapter: Connectors

3.9 USB 1-4

The hardware module has eight USB channels four of which (USB1 to USB4) are available as standard USB connectors. The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with these features enabled may lead to significant performance or functionality limitations. Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
Pinout USB connector for channel X:
Pin
Name Description
1 VCC 5 volt for USBX 2 USBX# minus channel USBX 3 USBX plus channel USBX 4 GND ground
Beckhoff New Automation Technology CB3052 page 25
Chapter: Connectors USB 5-8

3.10 USB 5-8

The USB channels 5 to 8 are provided via two 2x5 pin connectors (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The USB channels support USB 2.0. You may note that the setting of USB keyboard or USB mouse support in the BIOS-setup is only necessary and advisable, if the OS offers no USB-support. BIOS-setup can be changed with a USB keyboard without enabling USB keyboard support. Running Windows with these features enabled may lead to significant performance or functionality limitations. Every USB interface provides up to 500 mA current and is protected by an electronically resettable fuse.
Pinout 2x5 pin connector USB 5/6
Description Name Pin Name Description
5 volt for USB5 VCC 1 6 VCC 5 volt for USB6 minus channel USB5 USB5# 2 7 USB6# minus channel USB6 plus channel USB5 USB5 3 8 USB6 plus channel USB6 ground GND 4 9 GND ground reserved N/C 5 10 N/C reserved
Pinout 2x5 pin connector USB 7/8
Description Name Pin Name Description
5 volt for USB7 VCC 1 6 VCC 5 volt for USB8 minus channel USB7 USB7# 2 7 USB8# minus channel USB8 plus channel USB7 USB7 3 8 USB8 plus channel USB8 ground GND 4 9 GND ground reserved N/C 5 10 N/C reserved
page 26 Beckhoff New Automation Technology CB3052
LAN1 Chapter: Connectors

3.11 LAN1

The module has two LAN interfaces. LAN1 supports 10BaseT, 100BaseT and 1000BaseT compatible net components with automatic bandwidth selection. It also offers auto-cross and auto-negotiate functionality. The controller chip is the Intel® 82567. PXE and RPL functions are also supported.
Pinout LAN 10/100/1000:
Pin
Name Description
1 LAN1-0 LAN1 channel 0 plus 2 LAN1-0# LAN1 channel 0 minus 3 LAN1-1 LAN1 channel 1 plus 4 LAN1-1# LAN1 channel 1 minus 5 LAN1-2 LAN1 channel 2 plus 6 LAN1-2# LAN1 channel 2 minus 7 LAN1-3 LAN1 channel 3 plus 8 LAN1-3# LAN1 channel 3 minus
Beckhoff New Automation Technology CB3052 page 27
Chapter: Connectors LAN2

3.12 LAN2

LAN2 supports 10BaseT, 100BaseT and 1000BaseT compatible net components with automatic bandwidth selection. It does not offer auto-cross and auto-negotiate functionality. The controller chip is the Intel® 82574L. PXE and RPL functions are not supported.
Pinout LAN 10/100/1000:
Pin
Name Description
1 LAN2-0 LAN2 channel 0 plus 2 LAN2-0# LAN2 channel 0 minus 3 LAN2-1 LAN2 channel 1 plus 4 LAN2-1# LAN2 channel 1 minus 5 LAN2-2 LAN2 channel 2 plus 6 LAN2-2# LAN2 channel 2 minus 7 LAN2-3 LAN2 channel 3 plus 8 LAN2-3# LAN2 channel 3 minus
page 28 Beckhoff New Automation Technology CB3052
Audio Chapter: Connectors

3.13 Audio

Audio input and output functions can be accessed via a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). There are two ways to use this connector. Default functionality is the familiar audio in, audio out, and microphone. OS dependent device drivers can switch these signals to support a 5.1 output; thus in this mode no audio input signals are available. Signals "SPDIFI" and "SPDIFO" provide digital input and output. If a transformation to a coaxial or optical connector is necessary this must be performed externally.
Description Name Pin Name Description
digital output SPDIF SPDIFO 1 6 3.3V 3.3 volt supply digital input SPDIF SPDIFI 2 7 S_AGND analog ground sound sound output right / front output right AUX input right / rear output right microphone input 1 / center output
LOUT_R / FRONT_R AUXA_R / REAR_R MIC1 / CENTER
3 8 LOUT_L /
FRONT_L
4 9 AUXA_L /
REAR_L
5 10 MIC2 /
LFE
sound output left / front output left AUX input left / rear output left microphone input 2 / LFE output
Beckhoff New Automation Technology CB3052 page 29
Chapter: Connectors SATA Interfaces

3.14 SATA Interfaces

The CB3052 provides two SATA interfaces allowing transfer rates of up to 3 Gbit per second. These interfaces are made available via two 7 pin connectors. The required settings are made in the BIOS setup.
Pin
Name Description
1 GND ground 2 SATA1TX SATA1 transmit + 3 SATA1TX# SATA1 transmit ­4 GND ground 5 SATA1RX SATA1 receive + 6 SATA1RX# SATA1 receive ­7 GND ground
Pin
Name Description
1 GND ground 2 SATA2TX SATA2 transmit + 3 SATA2TX# SATA2 transmit ­4 GND ground 5 SATA2RX SATA2 receive + 6 SATA2RX# SATA2 receive ­7 GND ground
page 30 Beckhoff New Automation Technology CB3052
IDE Interface Chapter: Connectors

3.15 IDE Interface

The primary IDE interface is a standard IDC socket connector with a spacing of 2 mm. All commercial IDE devices are supported but an adapter to connect may be necessary. The required settings are made in the BIOS setup.
CAUTION
Pins are not keyed! Please be sure to connect the cable properly, otherwise you risk damaging the IDE interface, the CPU and the drive, voiding respective warranties.
Pinout for primary IDE
Description Name Pin Name Description
reset PRST# 1 2 GND ground data bit 7 PDD7 3 4 PDD8 data bit 8 data bit 6 PDD6 5 6 PDD9 data bit 9 data bit 5 PDD5 7 8 PDD10 data bit 10 data bit 4 PDD4 9 10 PDD11 data bit 11 data bit 3 PDD3 11 12 PDD12 data bit 12 data bit 2 PDD2 13 14 PDD13 data bit 13 data bit 1 PDD1 15 16 PDD14 data bit 14 data bit 0 PDD0 17 18 PDD15 data bit 15 ground GND 19 20 N/C reserved DMA request signal PDDREQ 21 22 GND ground write signal PDIOW# 23 24 GND ground read signal PDIOR# 25 26 GND ground ready signal PDRDY 27 28 N/C reserved DMA acknowledge signal PDDACK# 29 30 GND ground interrupt signal PDIRQ 31 32 N/C reserved address bit 1 PDA1 33 34 PDMA66EN enable UDMA66 address bit 0 PDA0 35 36 PDA2 address bit 2 chip select signal 0 PDSC0# 37 38 PDCS1# chip select signal 1 reserved N/C 39 40 GND ground supply HDD 5V VCC 41 42 VCC supply HDD 5V ground GND 43 44 N/C reserved
Beckhoff New Automation Technology CB3052 page 31
Chapter: Connectors Serial Interface COM1

3.16 Serial Interface COM1

The serial interface COM1 is made available via a 9-pin standard DSUB-connector. According to the product order, TTL level signals or RS232 standard signals are provided.
The port address and the interrupt are set via the BIOS setup.
Pinout serial port (DSUB connector):
Description Name Pin Name Description
data carrier detect DCD 1 6 DSR data set ready receive data RXD 2 7 RTS request to send transmit data TXD 3 8 CTS clear to send data terminal ready DTR 4 9 RI ring indicator ground GND 5
page 32 Beckhoff New Automation Technology CB3052
Serial Ports COM2 through COM4 Chapter: Connectors

3.17 Serial Ports COM2 through COM4

There are three more serial interfaces on the board. Of these, COM3 is available through the power connector (cf. p. 16). COM2 and COM4 and made available via a 2x5 pin connector each (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). However, if the board has a touch screen interface, COM4 is used internally. On these boards, the COM4 connector is either not populated or it is used for mouse and keyboard signals (see pinning below). Signals default to RS232 level but can be ordered as TTL level also. The port address and the interrupt are set via the BIOS setup.
Description Name Pin Name Description
data carrier detect DCD 1 6 DSR data set ready receive data RXD 2 7 RTS request to send transmit data TXD 3 8 CTS clear to send data terminal ready DTR 4 9 RI ring indicator ground GND 5 10 VCC 5 volt supply
Alternative pinout of COM-connector when touchscreen feature is present:
Description Name Pin Name Description
keyboard clock KCLK 1 6 MCLK mouse clock keyboard data KDAT 2 7 MDAT mouse data reserved N/C 3 8 N/C reserved reserved N/C 4 9 N/C reserved ground GND 5 10 VCC 5 volt supply
Beckhoff New Automation Technology CB3052 page 33
Chapter: Connectors SMB/I2C

3.18 SMB/I2C

The CB3052 can communicate with external devices via the SMBus protocol or the I2C protocol. The signals for these protocols are available through a 2x5 pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). The SMBus signals are processed by the chipset, the I2C signals are processed by the SIO unit.
Pinout SMBus/I2C connector:
Description Name Pin Name Description
3.3 volt supply 3.3V 1 6 GND ground SMBus clock SMBCLK 2 7 SMBDAT SMBus data SMBus alarm SMBALRT# 3 8 SVCC standby supply 5V I2C bus clock I2CLK 4 9 I2DAT I2C bus data 5 volt supply VCC 5 10 GND ground
page 34 Beckhoff New Automation Technology CB3052
PCI-Express Chapter: Connectors

3.19 PCI-Express

The CB3052 offers a 2x40pin custom connector for the PCI-Express bus. You can connect one PCIe4x device here. Alternatively, up to four PCIe1x devices can be connected. Adapter cards featuring standard PCIe sockets or a PCIe Mini Card connector are available. Please contact your sales representative for these cards.
Pinout 2x40 pin connector PCIe:
Description Name Pin Name Description
3.3 volt supply 3.3V 1 2 12V 12 volt supply
3.3 volt stand-by S3.3V 3 4 SMBCLK1 SMB clock slot 1 PCIe reset PLTPCIE# 5 6 SMBDAT1 SMB dat slot 1 link reactivation PEWAKE# 7 8 GND ground ground GND 9 10 PECLK0 PCIe clock 0 + transmit lane 1 + PET1 11 12 PECLK0# PCIe clock 0 ­transmit lane 1 - PET1# 13 14 GND ground ground GND 15 16 PER1 receive lane 1 + clock enable 1 PE1CLKEN# 17 18 PER1# receive lane 1 ­ground GND 19 20 GND ground
3.3 volt supply 3.3V 21 22 12V 12 volt supply
3.3 volt stand-by S3.3V 23 24 SMBCLK2 SMB clock slot 2 PCIe reset PLTPCIE# 25 26 SMBDAT2 SMB dat slot 2 link reactivation PEWAKE# 27 28 GND ground ground GND 29 30 PECLK1 PCIe clock 1 + transmit lane 2 + PET2 31 32 PECLK1# PCIe clock 1 ­transmit lane 2 - PET2# 33 34 GND ground ground GND 35 36 PER2 receive lane 2 + clock enable 2 PE2CLKEN# 37 38 PER2# receive lane 2 ­ground GND 39 40 GND ground
3.3 volt supply 3.3V 41 42 12V 12 volt supply
3.3 volt stand-by S3.3V 43 44 SMBCLK3 SMB clock slot 3 PCIe reset PLTPCIE# 45 46 SMBDAT4 SMB dat slot 3 link reactivation PEWAKE# 47 48 GND ground ground GND 49 50 PECLK2 PCIe clock 2 + transmit lane 3 + PET3 51 52 PECLK2# PCIe clock 2 ­transmit lane 3 - PET3# 53 54 GND ground
Beckhoff New Automation Technology CB3052 page 35
Chapter: Connectors PCI-Express
Description Name Pin Name Description
ground GND 55 56 PER3 receive lane 3 + clock enable 3 PE3CLKEN# 57 58 PER3# receive lane 3 ­ground GND 59 60 GND ground
3.3 volt supply 3.3V 61 62 12V 12 volt supply
3.3 volt stand-by S3.3V 63 64 SMBCLK4 SMB clock slot 4 PCIe reset PLTPCIE# 65 66 SMBDAT4 SMB dat slot 4 link reactivation PEWAKE# 67 68 GND ground ground GND 69 70 PECLK3 PCIe clock 3 + transmit lane 4 + PET4 71 72 PECLK3# PCIe clock 3 ­transmit lane 4 - PET4# 73 74 GND ground ground GND 75 76 PER4 receive lane 4 + clock enable 4 PE3CLKEN# 77 78 PER4# receive lane 4 ­PCIe configure x1/x4 PECONF# 79 80 GND ground
page 36 Beckhoff New Automation Technology CB3052
Mini-PCI Chapter: Connectors

3.20 Mini-PCI

The CB3052 allows you to add expansion cards complying to the Mini-PCI standard (type III). One such card can be inserted into the Mini-PCI slot available on the board.
Description Name Pin Name Description
reserved N/C 1 2 N/C reserved reserved N/C 3 4 N/C reserved reserved N/C 5 6 N/C reserved reserved N/C 7 8 N/C reserved reserved N/C 9 10 N/C reserved reserved N/C 11 12 N/C reserved reserved N/C 13 14 N/C reserved reserved N/C 15 16 N/C reserved interrupt B INTB# 17 18 VCC 5 volt supply
3.3 volt supply 3.3V 19 20 INTA# interrupt A serial interrupt (legacy) SERIRQ 21 22 N/C reserved ground GND 23 24 S3.3V 3.3 volt supply PCI clock PCLK 25 26 PRST# reset ground GND 27 28 3.3V 3.3 volt supply PCI request REQ# 29 30 GNT# PCI grant
3.3 volt supply 3.3V 31 32 GND ground address/data 31 AD31 33 34 PME# power management event address/data 29 AD29 35 36 N/C reserved ground GND 37 38 AD30 address/data 30 address/data 27 AD27 39 40 3.3V 3.3 volt supply address/data 25 AD25 41 42 AD28 address/data 28 interrupt C INTC# 43 44 AD26 address/data 26 bus cmd/byte enables 3 CBE3# 45 46 AD24 address/data 24 address/data 23 AD23 47 48 IDSEL init device select ground GND 49 50 GND ground address/data 21 AD21 51 52 AD22 address/data 22 address/data 19 AD19 53 54 AD20 address/data 20 ground GND 55 56 PAR parity address/data 17 AD17 57 58 AD18 address/data 18
Beckhoff New Automation Technology CB3052 page 37
Chapter: Connectors Mini-PCI
Description Name Pin Name Description
bus cmd/byte enables 2 CBE2# 59 60 AD16 address/data 16 initiator ready IRDY# 61 62 GND ground
3.3 volt supply 3.3V 63 64 FRAME# cycle frame clock running CLKRUN# 65 66 TRDY# target ready system error SERR# 67 68 STOP# stop request by target ground GND 69 70 3.3V 3.3 volt supply parity error PERR# 71 72 DEVSEL# device select bus cmd/byte enables 1 CBE1# 73 74 GND ground address/data 14 AD14 75 76 AD15 address/data 15 ground GND 77 78 AD13 address/data 13 address/data 12 AD12 79 80 AD11 address/data 11 address/data 10 AD10 81 82 GND ground ground GND 83 84 AD9 address/data 9 address/data 8 AD8 85 86 CBE0# bus cmd/byte enables 0 address/data 7 AD7 87 88 3.3V 3.3 volt supply
3.3 volt supply 3.3V 89 90 AD6 address/data 6 address/data 5 AD5 91 92 AD4 address/data 4 interrupt D INTD# 93 94 AD2 address/data 2 address/data 3 AD3 95 96 AD0 address/data 0 5 volt supply VCC 97 98 N/C reserved address/data 1 AD1 99 100 N/C reserved ground GND 101 102 GND ground reserved N/C 103 104 GND ground reserved N/C 105 106 N/C reserved reserved N/C 107 108 N/C reserved reserved N/C 109 110 N/C reserved reserved N/C 111 112 N/C reserved reserved N/C 113 114 GND ground reserved N/C 115 116 N/C reserved reserved N/C 117 118 N/C reserved reserved N/C 119 120 N/C reserved lock PLOCK# 121 122 N/C reserved reserved N/C 123 124 S3.3V 3.3 volt supply
page 38 Beckhoff New Automation Technology CB3052
GPIO Chapter: Connectors

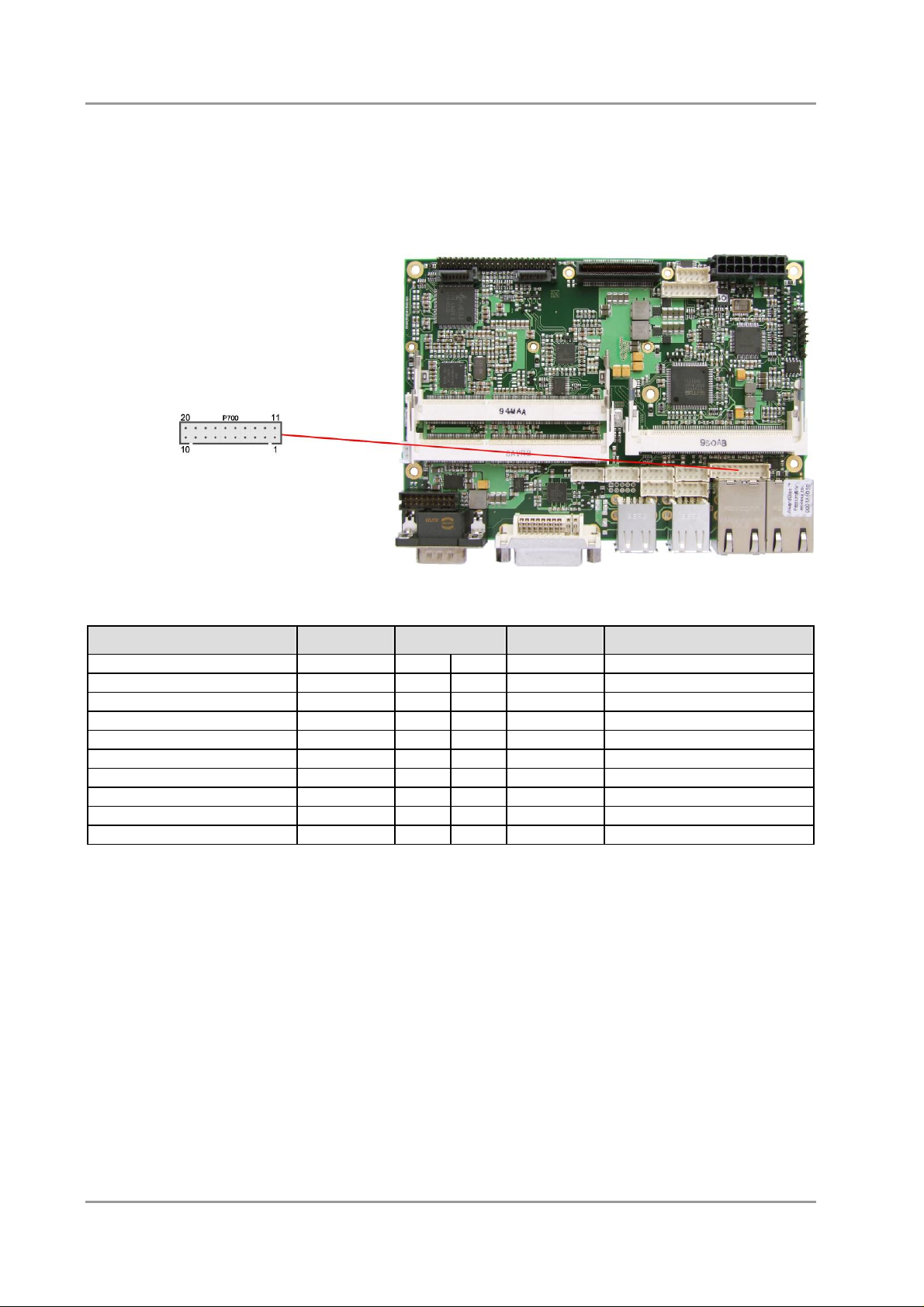

3.21 GPIO

The General Purpose Input/Output interface is made available through a 2x10 pin connector (JST B20B-PHDSSLFSN, mating connector: PHDR-20VS). To make use of this interface the SIO unit must be programmed accordingly. Please refer to your distributor for information on available software support.
Description Name Pin Name Description
5 volt supply VCC 1 11 VCC 5 volt supply GP input/output 10 GPIO10 2 12 N/C reserved GP input/output 11 GPIO11 3 13 N/C reserved GP input/output 12 GPIO12 4 14 N/C reserved GP input/output 13 GPIO13 5 15 N/C reserved GP input/output 14 GPIO14 6 16 N/C reserved GP input/output 15 GPIO15 7 17 N/C reserved GP input/output 16 GPIO16 8 18 N/C reserved GP input/output 17 GPIO17 9 19 N/C reserved ground GND 10 20 GND ground
Beckhoff New Automation Technology CB3052 page 39
Chapter: Connectors Fan Connectors

3.22 Fan Connectors

Two external fans (12V) can be connected to the board using a 2x5pin connector (JST B10B-PHDSSLFSN, mating connector: PHDR-10VS). Monitoring signals are available. For the monitoring to work the fans must provide a corresponding speed signal.
Pinout fan connector:
Description Name Pin Name Description
ground GND 1 6 GND ground 12V regulated fan 1 FANON1 2 7 FANON2 12V regulated fan 2 monitoring signal fan 1 FANCTL1 3 8 FANCTL2 monitoring signal fan 2 reserved N/C 4 9 N/C reserved reserved N/C 5 10 N/C reserved
page 40 Beckhoff New Automation Technology CB3052
Remarks for Setup Use Chapter: BIOS Settings

4 BIOS Settings

4.1 Remarks for Setup Use

In a setup page, standard values for its setup entries can be loaded. Fail-safe defaults are loaded with F6 and optimized defaults are loaded with F7. These standard values are independent of the fact that a board has successfully booted with a setup setting before. This is different if these defaults are called from the Top Menu. Once a setup setting was saved, which subsequently leads to a successful boot process, those values are loaded as default for all setup items afterwards. See also the chapters “Load Fail-Safe Defaults" (5.10) and “Load Optimized Defaults” (5.11).
NOTE
BIOS features and setup options are subject to change without notice. The settings displayed in the screenshots on the following pages are meant to be examples only. They do not represent the recommended settings or the default settings. Determination of the appropriate settings is dependent upon the particular application scenario in which the board is used.

4.2 Top Level Menu

Standard CMOS Features Frequency/Voltage Control
Advanced BIOS Features Load Fail-Safe Defaults
Advanced Chipset Features Load Optimized Defaults
Integrated Peripherals Set Password
Power Management Setup Save & Exit Setup
PnP/PCI Configurations Exit Without Saving
PC Health Status
Esc : Quit : Select Item F10 : Save & Exit Setup
The sign „“ in front of an item means that there is a sub menu. The „x“ sign in front of an item means, that the item is disabled but can be enabled by changing or selecting some other item (usually somewhere above the disabled item on the same screen). Use the arrow buttons to navigate from one item to another. For selecting an item press Enter which will open either a sub menu or a dialog screen.
Phoenix – AwardBIOS CMOS Setup Utility
"brief description of selected item"
Beckhoff New Automation Technology CB3052 page 41
Chapter: BIOS Settings Standard CMOS Features

4.3 Standard CMOS Features

Date (mm:dd:yy) Sat, Jun 5 2010 Time (hh:mm:ss) 11 : 13 : 35
SATA 1 [ None] SATA 2 [ None] PATA Master [ None] PATA Slave [ None] Halt On [No Errors]
Base Memory 640K Extended Memory 2027520K Total Memory 2028544K
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü Date (mm:dd:yy)
Options: mm: month dd: day yy: year
Phoenix – AwardBIOS CMOS Setup Utility
Standard CMOS Features
Item Help
ü Time (hh:mm:ss)
Options: hh: hours mm: minutes ss: seconds
ü SATA 1
Sub menu: see "SATA channels" (p. 43)
ü SATA 2
Sub menu: see "SATA channels" (p. 43)
ü PATA Master
Sub menu: see "PATA channel" (p. 44)
ü PATA Slave
Sub menu: see "PATA channel" (p. 44)
ü Halt On
Options: All Errors / No Errors / All, But Keyboard
ü Base Memory
Options: none
ü Extended Memory
Options: none
ü Total Memory
Options: none
page 42 Beckhoff New Automation Technology CB3052
Standard CMOS Features Chapter: BIOS Settings
4.3.1 SATA channels
IDE HDD Auto-Detection [Press Enter]
SATA 1/2 [Auto] Access Mode [Auto]
Capacity 0 MB
Cylinder 0 Head 0 Precomp 0 Landing Zone 0 Sector 0
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü IDE HDD Auto-Detection
Options: none
Phoenix – AwardBIOS CMOS Setup Utility
SATA 1/2
Item Help
ü SATA 1/2
Options: None / Auto / Manual
ü Access Mode
Options: CHS / LBA / Large / Auto
ü Capacity
Options: none
ü Cylinder
Options: none
ü Head
Options: none
ü Precomp
Options: none
ü Landing Zone
Options: none
ü Sector
Options: none
Beckhoff New Automation Technology CB3052 page 43
Chapter: BIOS Settings Standard CMOS Features
4.3.2 PATA channel
IDE Auto-Detection [Press Enter]
Extended IDE Drive [Auto] Access Mode [Auto]
Capacity 0 MB
Cylinder 0 Head 0 Precomp 0 Landing Zone 0 Sector 0
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü Extended IDE Drive
Options: None / Auto
Phoenix – AwardBIOS CMOS Setup Utility
PATA Master/Slave
Item Help
ü Access Mode
Options: Large / Auto
page 44 Beckhoff New Automation Technology CB3052
Advanced BIOS Features Chapter: BIOS Settings

4.4 Advanced BIOS Features

CPU Feature [Press Enter] Hard Disk Boot Priority [Press Enter] CPU L3 Cache [Enabled] Quick Power On Self Test [Enabled] First Boot Device [Hard Disk] Second Boot Device [Hard Disk] Third Boot Device [Disabled] Boot Other Device [Enabled] Boot Up NumLock Status [On] Gate A20 Option [Fast] Typematic Rate Setting [Disabled] x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250 Security Option [Setup] APIC Mode [Enabled] MPS Version Control For OS [1.4] OS Select For DRAM > 64MB [Non OS2] Full Screen LOGO Show [Disabled] Summary Screen Show [Enabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü CPU Feature
Sub menu: see "CPU Feature" (p. 47)
Phoenix – AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Item Help
ü Hard Disk Boot Priority
Sub menu: see "Hard Disk Boot Priority" (p. 48)
ü CPU L3 Cache
Options: Enabled / Disabled
ü Quick Power On Self Test
Options: Enabled / Disabled
ü First Boot Device
Options: LS120 / Hard Disk / CDROM / USB Device / ZIP100 / USB-FDD / USB-ZIP / Legacy LAN
/ IBA GE Slot 00C8 / Disabled
ü Second Boot Device
Options: LS120 / Hard Disk / CDROM / USB Device / ZIP100 / USB-FDD / USB-ZIP / Legacy LAN
/ IBA GE Slot 00C8 / Disabled
ü Third Boot Device
Options: LS120 / Hard Disk / CDROM / USB Device / ZIP100 / USB-FDD / USB-ZIP / Legacy LAN
/ IBA GE Slot 00C8 / Disabled
ü Boot Other Device
Options: Enabled / Disabled
ü Boot Up NumLock Status
Options: Off / On
ü Gate A20 Option
Options: Normal / Fast
ü Typematic Rate Setting
Options: Enabled / Disabled
Beckhoff New Automation Technology CB3052 page 45
Chapter: BIOS Settings Advanced BIOS Features ü Typematic Rate (Chars/Sec)
Options: 6 / 8 / 10 / 12 / 15 / 20 / 24 / 30
ü Typematic Delay (Msec)
Options: 250 / 500 / 750 / 1000
ü Security Option
Options: Setup / System
ü APIC Mode
Options: Enabled / Disabled
ü MPS Version Control For OS
Options: 1.1 / 1.4
ü OS Select For DRAM > 64MB
Options: Non-OS2 / OS2
ü Full Screen LOGO Show
Options: Enabled / Disabled
ü Summary Screen Show
Options: Enabled / Disabled
page 46 Beckhoff New Automation Technology CB3052
Advanced BIOS Features Chapter: BIOS Settings
4.4.1 CPU Feature
C1E Function [Disabled] CPU C State Capability [Disable] Execute Disable Bit [Enabled] Virtualization Technology [Enabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
CPU Feature
Item Help
ü C1E Function
Options: Auto / Disabled
ü CPU C State Capability
Options: Disable / C2 / C3 / C4 / Deep C4 / C6
ü Execute Disable Bit
Options: Enabled / Disabled
ü Virtualization Technology
Options: Enabled / Disabled
Beckhoff New Automation Technology CB3052 page 47
Chapter: BIOS Settings Advanced BIOS Features
4.4.2 Hard Disk Boot Priority
1. Bootable Add-in Cards
↑↓→←:Move PU/PD/+/-:Change Priority F10:Save ESC:Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
Item Help
ü [list of available devices]
Options: this dialog allows you to set the order in which the available bootable devices shall be
accessed for an attempt to boot.
ü Attention!
in this sub menu the buttons <Page Up>, <Page Down>, <+> and <-> have a different
function than in the rest of the setup: They serve to move the items of the list up or down.
page 48 Beckhoff New Automation Technology CB3052
Advanced Chipset Features Chapter: BIOS Settings

4.5 Advanced Chipset Features

System BIOS Cacheable [Enabled] Memory Hole At 15M-16M [Disabled] Support FSB and DDR3 667Mh Disabled PCI Express Root Port Func [Press Enter] VT-d [Disabled]
** VGA Setting ** PEG/Onchip VGA Control [Auto]
On-Chip Frame Buffer Size [ 64MB] DVMT Mode [Enable] Total GFX Memory [128MB] PAVP Mode [PAVP-Lite]
** VGA Boot Device Setting ** Boot Display [VBIOS Default]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Item Help
ü System BIOS Cacheable
Options: Enabled / Disabled
ü Memory Hole At 15M-16M
Options: Enabled / Disabled
ü Support FSB and DDR3 667Mhz
Options: none
ü PCI Express Root Port Func
Sub menu: see "PCI Express Root Port Function" (p. 50)
ü VT-d
Options: Enabled / Disabled
ü PEG/Onchip VGA Control
Options: Onchip VGA / PEG Port / Auto
ü On-Chip Frame Buffer Size
Options: 32MB / 64MB / 128MB
ü DVMT Mode
Options: Disable / Enable
ü Total GFX Memory
Options: 128MB / 256MB / MAX.
ü PAVP Mode
Options: Disable / PAVP-Lite / PAVP-High
ü Boot Display
Options: VBIOS Default / CRT / DVI / HDMI / CRT+DVI
Beckhoff New Automation Technology CB3052 page 49
Chapter: BIOS Settings Advanced Chipset Features
4.5.1 PCI Express Root Port Function
PCI Express Port 1 [Auto] PCI Express Port 2 [Auto] PCI Express Port 3 [Auto] PCI Express Port 4 [Auto] PCIe 5 -> LAN [Auto] PCI-E Compliancy Mode [v1.0a]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
PCI Express Root Port Func
Item Help
ü PCI Express Port 1
Options: Auto / Enabled / Disabled
ü PCI Express Port 2
Options: Auto / Enabled / Disabled
ü PCI Express Port 3
Options: Auto / Enabled / Disabled
ü PCI Express Port 4
Options: Auto / Enabled / Disabled
ü PCIe 5 -> LAN
Options: Auto / Enabled / Disabled
ü PCI-E Compliancy Mode
Options: v1.0a / v1.0
page 50 Beckhoff New Automation Technology CB3052
Integrated Peripherals Chapter: BIOS Settings

4.6 Integrated Peripherals

OnChip IDE Device [Press Enter] Onboard Device [Press Enter] SuperIO Device [Press Enter] USB Device Setting [Press Enter]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Integrated Peripherals
Item Help
ü OnChip IDE Device
Sub menu: see "OnChip IDE Devices" (p. 52)
ü Onboard Device
Sub menu: see "Onboard Devices" (p. 54)
ü SuperIO Device
Sub menu: see "SuperIO Devices" (p. 55)
ü USB Device Setting
Sub menu: see "USB Device Setting" (p. 56)
Beckhoff New Automation Technology CB3052 page 51
Chapter: BIOS Settings Integrated Peripherals
4.6.1 OnChip IDE Devices
IDE HDD Block Mode [Enabled] IDE DMA transfer access [Enabled] IDE Primary Master PIO [Auto] IDE Primary Slave PIO [Auto] IDE Primary Master UDMA [Auto] IDE Primary Slave UDMA [Auto] On-Chip Secondary PCI IDE [Enabled] IDE Secondary Master PIO [Auto] IDE Secondary Slave PIO [Auto] IDE Secondary Master UDMA [Auto] IDE Secondary Slave UDMA [Auto] SATA Mode [IDE] LEGACY Mode Support [Disabled] PATA-Controller [IDE Mode]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü IDE HDD Block Mode
Options: Enabled / Disabled
Phoenix – AwardBIOS CMOS Setup Utility
OnChip IDE Device
Item Help
ü IDE DMA transfer access
Options: Enabled / Disabled
ü IDE Primary Master PIO
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü IDE Primary Slave PIO
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü IDE Primary Master UDMA
Options: Disabled / Auto
ü IDE Primary Slave UDMA
Options: Disabled / Auto
ü On-Chip Secondary PCI IDE
Options: Enabled / Disabled
ü IDE Secondary Master PIO
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü IDE Secondary Slave PIO
Options: Auto / Mode 0 / Mode 1 / Mode 2 / Mode 3 / Mode 4
ü IDE Secondary Master UDMA
Options: Disabled / Auto
ü IDE Secondary Slave UDMA
Options: Disabled / Auto
ü SATA Mode
Options: IDE / RAID / AHCI
page 52 Beckhoff New Automation Technology CB3052
Integrated Peripherals Chapter: BIOS Settings ü LEGACY Mode Support
Options: Enabled / Disabled
ü PATA-Controller
Options: Disabled / IDE Mode
Beckhoff New Automation Technology CB3052 page 53
Chapter: BIOS Settings Integrated Peripherals
4.6.2 Onboard Devices
HD Audio [Disabled] ICH9-LAN [Enabled] PCIe-LAN is controlled as PCI Express Port 5
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Onboard Device
Item Help
ü HD Audio
Options: Auto / Disabled
ü ICH9-LAN
Options: Enabled / Disabled
page 54 Beckhoff New Automation Technology CB3052
Integrated Peripherals Chapter: BIOS Settings
4.6.3 SuperIO Devices
Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3] Onboard Serial Port 3 [3E8/IRQ4] Onboard Serial Port 4 [2E8/IRQ3]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
SuperIO Device
Item Help
ü Onboard Serial Port 1
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3
ü Onboard Serial Port 2
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3
ü Onboard Serial Port 3
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3
ü Onboard Serial Port 4
Options: Disabled / 3F8/IRQ4 / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3
Beckhoff New Automation Technology CB3052 page 55
Chapter: BIOS Settings Integrated Peripherals
4.6.4 USB Device Setting
USB 1.0 Controller [Enabled] USB 2.0 Controller [Enabled] USB Operation Mode [High Speed] USB Keyboard Function [Enabled] USB Mouse Function [Enabled] USB Storage Function [Enabled]
*** USB Mass Storage Device Boot Setting ***
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
USB Device Setting
Item Help
ü USB 1.0 Controller
Options: Enabled / Disabled
ü USB 2.0 Controller
Options: Enabled / Disabled
ü USB Operation Mode
Options: Full/Low Speed / High Speed
ü USB Keyboard Function
Options: Enabled / Disabled
ü USB Mouse Function
Options: Enabled / Disabled
ü USB Storage Function
Options: Enabled / Disabled
page 56 Beckhoff New Automation Technology CB3052
Power Management Setup Chapter: BIOS Settings

4.7 Power Management Setup

PCI Express PM Function [Press Enter] ACPI Function [Enabled] ACPI Suspend Type [S1(POS)] x Run VGABIOS if S3 Resume Auto Power Management [User Define] Video Off Method [DPMS] Video Off in Suspend [Yes] Suspend Type [Stop Grant] Modem Use IRQ [3] Suspend Mode [Disabled] HDD Power Down [Disabled] Soft-Off by PWR-BTTN [Instant-Off] PWRON After PWR-Fail [On] Wake-Up by PCI card [Disabled] Power On by Ring [Disabled] x USB KB Wake-Up From S3 Disabled Resume by Alarm [Disabled] x Date(of Month) Alarm 0 x Time(hh:mm:ss) 0 : 0 : 0
** Reload Global Timer Events ** Primary IDE 0 [Disabled] Primary IDE 1 [Disabled] Secondary IDE 0 [Disabled] Secondary IDE 1 [Disabled] FDD,COM,LPT Port [Disabled] PCI PIRQ[A-D]# [Disabled] HPET Support [Enabled] HPET Mode [32-bit mode] Intel DTS Feature [Press Enter]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Power Management Setup
Item Help
ü PCI Express PM Function
Sub menu: see "PCI Express PM Function" (p. 59)
ü ACPI function
Options: Enabled / Disabled
ü ACPI Suspend Type
Options: S1(POS) / S3(STR) / S1&S3
ü Run VGABIOS if S3 Resume
Options: Auto / Yes / No
ü Power Management
Options: User Define / Min Saving / Max Saving
ü Video Off Method
Options: Blank Screen / V/H SYNC+Blank / DPMS
ü Video Off In Suspend
Options: No / Yes
ü Suspend Type
Options: Stop Grant / PwrOn Suspend
ü MODEM Use IRQ
Options: NA / 3 / 4 / 5 / 7 / 9 / 10 / 11
Beckhoff New Automation Technology CB3052 page 57
Chapter: BIOS Settings Power Management Setup ü Suspend Mode
Options: Disabled / 1 Min / 2 Min / 4 Min / 8 Min / 12 Min / 20 Min / 30 Min / 40 Min / 1 Hour
ü HDD Power Down
Options: Disabled / 1 Min ... 15 Min
ü Soft-Off by PWR-BTTN
Options: Instant-Off / Delay 4 Sec
ü PWRON After PWR-Fail
Options: Former Sts / On / Off
ü Wake Up by PCI Card
Options: Enabled / Disabled
ü Power-On by Ring
Options: Enabled / Disabled
ü USB KB Wake Up From S3
Options: Enabled / Disabled
ü Resume by Alarm
Options: Enabled / Disabled
ü Date(of Month) Alarm
Options: 1 / ... / 31
ü Time (hh:mm:ss) Alarm
Options: insert [hh], [mm] and [ss]
ü Primary IDE 0
Options: Enabled / Disabled
ü Primary IDE 1
Options: Enabled / Disabled
ü Secondary IDE 0
Options: Enabled / Disabled
ü Secondary IDE 1
Options: Enabled / Disabled
ü FDD,COM,LPT Port
Options: Enabled / Disabled
ü PCI PIRQ[A-D]#
Options: Enabled / Disabled
ü HPET Support
Options: Enabled / Disabled
ü HPET Mode
Options: 32-bit mode / 64-bit mode
ü Intel DTS Feature
Sub menu: see "Intel DTS Feature" (p. 60)
page 58 Beckhoff New Automation Technology CB3052
Power Management Setup Chapter: BIOS Settings
4.7.1 PCI Express PM Function
Root Port ASPM [Disabled] DMI Port ASPM [Disabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
PCI Express PM Function
Item Help
ü Root Port ASPM
Options: Disabled / L0s / L1 / L1/L0s
ü DMI Port ASPM
Options: Enabled / Disabled
Beckhoff New Automation Technology CB3052 page 59
Chapter: BIOS Settings Power Management Setup
4.7.2 Intel DTS Feature
Intel DTS Feature [Enabled] DTS Active temperature [ 55°C] Passive Cooling Trip Point [ 95°C] Passive TC1 Value [ 2] Passive TC2 Value [ 0] Passive TSP Value [10] Critical Trip Point [ POR]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Intel DTS Feature
Item Help
ü Intel DTS Function
Options: Enabled / Disabled
ü DTS Active temperature
Options: 15°C / 23°C / 31°C / 39°C / 47°C / 55°C / 63°C / 71°C / 79°C / 87°C / 95°C / 103°C /
111°C / 119°C
ü Passive Cooling Trip Point
Options: 15°C / 23°C / 31°C / 39°C / 47°C / 55°C / 63°C / 71°C / 79°C / 87°C / 95°C / 103°C /
111°C / 119°C
ü Passive TC1 Value
Options: 0 / 1 / ... / 14 / 15
ü Passive TC2 Value
Options: 0 / 1 / ... / 14 / 15
ü Passive TSP Value
Options: 0 / 1 / ... / 14 / 15
ü Critical Trip Point
Options: POR / 15°C / 23°C / 31°C / 39°C / 47°C / 55°C / 63°C / 71°C / 79°C / 87°C / 95°C / 103°C
/ 111°C / 119°C / 127°C
page 60 Beckhoff New Automation Technology CB3052
PnP/PCI Configuration Chapter: BIOS Settings

4.8 PnP/PCI Configuration

Init Display First [PCI Slot] Reset Configuration Data [Disabled]
Resources Controlled By [Manual] IRQ Resources [Press Enter]
PCI/VGA Palette Snoop [Disabled] INT Pin 1 Assignment [Auto] INT Pin 2 Assignment [Auto] INT Pin 3 Assignment [Auto] INT Pin 4 Assignment [Auto] INT Pin 5 Assignment [Auto] INT Pin 6 Assignment [Auto] INT Pin 7 Assignment [Auto] INT Pin 8 Assignment [Auto]
** PCI Express relative items ** Maximum Payload Size [128]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
PNP/PCI Configurations
Item Help
ü Init Display First
Options: PCI Slot / Onboard
ü Reset Configuration Data
Options: Enabled / Disabled
ü Resources Controlled By
Options: Auto(ESCD) / Manual
ü IRQ Resources
Sub menu: see "IRQ Resources" (p. 63)
ü PCI/VGA Palette Snoop
Options: Enabled / Disabled
ü INT Pin 1 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 2 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 3 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 4 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 5 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 6 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü INT Pin 7 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
Beckhoff New Automation Technology CB3052 page 61
Chapter: BIOS Settings PnP/PCI Configuration ü INT Pin 8 Assignment
Options: Auto / 3 / 4 / 5 / 7 / 9 / 10 / 11 / 12 / 14 / 15
ü Maximum Payload Size
Options: none
page 62 Beckhoff New Automation Technology CB3052
PnP/PCI Configuration Chapter: BIOS Settings
4.8.1 IRQ Resources
IRQ-3 assigned to [PCI Device] IRQ-4 assigned to [PCI Device] IRQ-5 assigned to [PCI Device] IRQ-7 assigned to [PCI Device] IRQ-9 assigned to [PCI Device] IRQ-10 assigned to [PCI Device] IRQ-11 assigned to [PCI Device] IRQ-12 assigned to [PCI Device] IRQ-14 assigned to [PCI Device] IRQ-15 assigned to [PCI Device]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
ü IRQ-3 assigned to
Options: PCI Device / Reserved
Phoenix – AwardBIOS CMOS Setup Utility
IRQ Resources
Item Help
ü IRQ-4 assigned to
Options: PCI Device / Reserved
ü IRQ-5 assigned to
Options: PCI Device / Reserved
ü IRQ-7 assigned to
Options: PCI Device / Reserved
ü IRQ-9 assigned to
Options: PCI Device / Reserved
ü IRQ-10 assigned to
Options: PCI Device / Reserved
ü IRQ-11 assigned to
Options: PCI Device / Reserved
ü IRQ-12 assigned to
Options: PCI Device / Reserved
ü IRQ-14 assigned to
Options: PCI Device / Reserved
ü IRQ-15 assigned to
Options: PCI Device / Reserved
Beckhoff New Automation Technology CB3052 page 63
Chapter: BIOS Settings PC Health Status

4.9 PC Health Status

Shutdown Temperature [Disabled] Temp. CPU 60°C Temp. DDR 62°C Temp. Board 38°C VCC Core 0.95V +1.05V 1.00V +5 V 4.81V +12 V 12.62V VBatt 2.96V Fan1 Speed 13846 RPM Fan2 Speed 0 RPM Board Revision 1
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
PC Health Status
Item Help
ü Shutdown Temperature
Options: 60°C/140°F / 65°C/149°F / 70°C/158°C / Disabled
ü Temp. CPU
Options: none
ü Temp. DDR
Options: none
ü Temp. Board
Options: none
ü VCC Core
Options: none
ü +1.05 V
Options: none
ü +5 V
Options: none
ü +12 V
Options: none
ü VBatt
Options: none
ü Fan1 Speed
Options: none
ü Fan2 Speed
Options: none
ü Board Revision
Options: none
page 64 Beckhoff New Automation Technology CB3052
Frequency/Voltage Control Chapter: BIOS Settings

4.10 Frequency/Voltage Control

Spread Spectrum [Disabled]
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Phoenix – AwardBIOS CMOS Setup Utility
Frequency / Voltage Control
Item Help
ü Spread Spectrum
Options: Enabled / Disabled
Beckhoff New Automation Technology CB3052 page 65
Chapter: BIOS Settings Load Fail-Safe Defaults

4.11 Load Fail-Safe Defaults

If this option is chosen, the last working setup is loaded from flash. Working means that the setup setting has already led to a successful boot process. At the first setting of the BIOS setup, safe values are loaded which lets the board boot. This status is reached again, if the board is reprogrammed with the corresponding flash-program and the required parameters.

4.12 Load Optimized Defaults

This option applies like described under “Remarks for Setup Use” (5.1). At first start of the BIOS, optimized values are loaded from the setup, which are supposed to make the board boot. This status is achieved again, if the board is reprogrammed using the flash program with the required parameters.

4.13 Set Password

Here you can enter a password to protect the BIOS settings against unauthorized changes. Use this option with care! Forgotten or lost passwords are a frequent problem.

4.14 Save & Exit Setup

Settings are saved and the board is restarted.

4.15 Exit Without Saving

This option leaves the setup without saving any changes.
page 66 Beckhoff New Automation Technology CB3052
Exit Without Saving Chapter: BIOS update

5 BIOS update

If a BIOS update becomes necessary, the program “AWDFLASH.EXE” from Phoenix Technologies is used for this. It is important, that the program is started from a DOS environment without a virtual memory manager such as for example “EMM386.EXE”. In case such a memory manager is loaded, the program will stop with an error message. The system must not be interrupted during the flash process, otherwise the update is stopped and the BIOS is destroyed afterwards. The program should be started as follows:
awdflash [biosfilename] /sn /cc /cp
/sn Do not save the current BIOS /cc Clear the CMOS /cp Clear the PnP information
The erasure of CMOS and PnP is strongly recommended. This ensures, that the new BIOS works correctly and that all chipset registers, which were saved in the setup, are reinitialized through the BIOS. DMI should only be erased (option /cd) if the BIOS supplier advises to do so. A complete description of all valid parameters is shown with the parameter “/?”. In order to make the updating process run automatically, the parameter “/py” must be added. This parameter bypasses all security checks during programming.
CAUTION
Updating the BIOS in an improper way can render the board unusable. Therefore, you should only update the BIOS if you really need the changes/corrections which come with the new BIOS version.
CAUTION
Before you proceed to update the BIOS you need to make absolutely sure that you have the right BIOS file which was issued for the exact board and exact board revision that you wish to update. If you try to update the BIOS using the wrong file the board will not start up again.
Beckhoff New Automation Technology CB3052 page 67
Chapter: Mechanical Drawing PCB: Mounting Holes

6 Mechanical Drawing

6.1 PCB: Mounting Holes

A true dimensioned drawing can be found in the PC/104 specification.
NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
page 68 Beckhoff New Automation Technology CB3052
PCB: Pin 1 Dimensions Chapter: Mechanical Drawing

6.2 PCB: Pin 1 Dimensions

NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
Beckhoff New Automation Technology CB3052 page 69
Chapter: Mechanical Drawing PCB: Heat Sink

6.3 PCB: Heat Sink

NOTE
All dimensions are in mil (1 mil = 0,0254 mm)
page 70 Beckhoff New Automation Technology CB3052
Electrical Data Chapter: Technical Data

7 Technical Data

7.1 Electrical Data

Power Supply:
Board: 5 Volt +/- 5% (5 Volt Suspend / 12 Volt Fan) RTC: >= 3 Volt
Electric Power Consumption:
Board: tbd RTC: <= 10µA

7.2 Environmental Conditions

Temperature Range:
Operating: 0°C to +60°C (extended temperature on request) Storage: -25°C up to +85°C Shipping: -25°C up to +85°C, for packaged boards
Temperature Changes:
Operating: 0.5°C per minute, 7.5°C per 30 minutes Storage: 1.0°C per minute Shipping: 1.0°C per minute, for packaged boards
Relative Humidity:
Operating: 5% up to 85% (non condensing) Storage: 5% up to 95% (non condensing) Shipping: 5% up to 100% (non condensing), for packaged boards
Shock:
Operating: 150m/s2, 6ms Storage: 400m/s2, 6ms Shipping: 400m/s2, 6ms, for packaged boards
Vibration:
Operating: 10 up to 58Hz, 0.075mm amplitude 58 up to 500Hz, 10m/s2 Storage: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s2 Shipping: 5 up to 9Hz, 3.5mm amplitude 9 up to 500Hz, 10m/s2, for packaged boards
CAUTION
Shock and vibration figures pertain to the motherboard alone and do not include additional components such as heat sinks, memory modules, cables etc.
Beckhoff New Automation Technology CB3052 page 71
Chapter: Technical Data Thermal Specifications

7.3 Thermal Specifications

The board is specified to operate in an environmental temperature range from 0°C to +60°C (extended temperature on request). Maximum die temperature is 100°C. To keep the processor under this threshold an appropriate cooling solution needs to be applied. This solution has to take typical and maximum power consumption into account. The maximum power consumption may be twice as high and should be used as a basis for the cooling concept. Additional controllers may also affect the cooling concept. The power consumption of such components may be comparable to the consumption of the processor. The board design includes thermal solution mounting points that will provide the best possible thermal interface between die and solution. Since we take thermal solutions seriously we have several advanced, aggressive cooling solutions in our product portfolio. Please contact your sales representative to order or discuss your thermal solution needs.
CAUTION
The end customer has the responsibility to ensure that the die temperature of the processor does not exceed 100°C. Permanent overheating may destroy the board! In case the temperature exceeds 100°C the environmental temperature must be reduced. Under certain circumstances sufficient air circulation must be provided.
page 72 Beckhoff New Automation Technology CB3052
Beckhoff's Branch Offices and Representatives Chapter: Support and Service

8 Support and Service

Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.

8.1 Beckhoff's Branch Offices and Representatives

Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products. The addresses of Beckhoff's branch offices and representatives around the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there.

8.2 Beckhoff Headquarters

Beckhoff Automation GmbH Eiserstr. 5 33415 Verl Germany
phone: +49(0)5246/963-0 fax: +49(0)5246/963-198 e-mail: info@beckhoff.com web: www.beckhoff.com
8.2.1 Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
o support o design, programming and commissioning of complex automation systems o and extensive training programs for Beckhoff system components
hotline: +49(0)5246/963-157 fax: +49(0)5246/963-9157 e-mail: support@beckhoff.com
8.2.2 Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
o on-site service o repair service o spare parts service o hotline service
hotline: +49(0)5246/963-460 fax: +49(0)5246/963-479 e-mail: service@beckhoff.com
Beckhoff New Automation Technology CB3052 page 73
Annex: Post-Codes
type and loading of the suitable Read/Write program into the run

I Annex: Post-Codes

Code Description
01h The Xgroup-program code is written in the random access memory from address 1000:0
onwards. 03h Initialise Variable/Routine "Superio_Early_Init". 05h 1. Cancel display
2. Cancel CMOS error flag
07h 1. Cancel 8042 (keyboard controller) Interface Register
2. Initialising and self testing of 8042 (keyboard controller)
08h 1. Test of special keyboard controllers (Winbond 977 super I/O Chip-series).
2. Enabling of the keyboard-interface register
0Ah 1. Disabling of the PS/2 mouse interface (optional).
2. Auto-detection of the connectors for Keyboard and mouse, optional: swap of PS/2 mouse
ports and PS/2 interfaces. 0Eh Test of the F000h-memory segment (Read/Write ability). In case of an error a signal will come
out of the loud speakers. 10h Auto-detection of the flash-rom-
time memory segment F000 (it is required for ESCD-data & the DMI-pool-support). 12h Interface-test of the CMOS RAM-logic (walking 1’s”-algorithm). Setting of the power status of
the real-time-clock (RTC), afterwards test of register overflow. 14h Initialising of the chip-set with default values. They can be modified through a software
(MODBIN) by the OEM-customer. 16h Initialise Variable/Routine "Early_Init_Onboard_Generator". 18h CPU auto-detection (manufacturer, SMI type (Cyrix or Intel), CPU-class (586 or 686). 1Bh Initialising if the interrupt pointer table. If nothing else is pretended, the hardware interrupts will
point on “SPURIOUS_INT_HDLR and the software interrupts will point on
SPURIOUS_soft_HDLR. 1Dh Initialise Variable/Routine EARLY_PM_INIT. 1Fh Load the keyboard table (Notebooks) 21h Initialising of the hardware power management (HPM) (Notebooks) 23h 1. Test the validity of the RTC-values (Example: “5Ah” is an invalid value for an RTC-minute).
2. Load the CMOS-values into the BIOS Stack. Default-values are loaded if CMOS-checksum
errors occur.
3. Preparing of the BIOS ‘resource map’ for the PCI & plug and play configuration. If ESCD is
valid, take into consideration the ESCD’s legacy information.
4. Initialise the onboard clock generator. Clock circuit at non-used PCI- and DIMM slots.
5. First initialising of PCI-devices: assign PCI-bus numbers - alot memory- & I/O resources -
search for functional VGA-controllers and VGA-BIOS and copy the latter into memory segment
C000:0 (Video ROM Shadow). 27h Initialise cache memory for INT 09 29h 1. Program the CPU (internal MTRR at P6 and PII) for the first memory address range (0-640K).
2. Initialising of the APIC at CPUs of the Pentium-class.
3. Program the chip-set according to the settings of the CMOS-set-up (Example: Onboard
IDE-controller).
4. Measuring of the CPU clock speed.
5. Initialise the video BIOS.
2Dh 1. Initialise the “Multi-Language”-function of the BIOS
2. Soft copy, e.g. Award-Logo, CPU-type and CPU clock speed… 33h Keyboard-reset (except super I/O chips of the Winbond 977 series) 3Ch Test the 8254 (timer device) 3Eh Test the interrupt Mask bits of IRQ-channel 1 of the interrupt controller 8259. 40h Test the interrupt Mask bits of IRQ-channel 2 of the interrupt controller 8259 43h Testing the function of the interrupt controller (8259). 47h Initialise EISA slot (if existent).
page 74 Beckhoff New Automation Technology CB3052
Annex: Post-Codes
Code Description
49h 1. Determination of the entire memory size by revising the last 32-Bit double word of each 64k
memory segment.
2. Program “write allocation” at AMD K5-CPUs. 4Eh 1. Program MTRR at M1 CPUs
2. Initialise level 2-cache at CPUs of the class P6 and set the “cacheable range” of the random
access memory.
3. Initialise APIC at CPUs of the class P6.
4. Only for multiprocessor systems (MP platform): Setting of the “cacheable range” on the
respective smallest value (for the case of non-identical values). 50h Initialise USB interface 52h Testing of the entire random access memory and deleting of the extended memory (put on “0”) 55h Only for multi processor systems (MP platform): Indicate the number of CPUs. 57h 1. Indicate the plug and play logo
2. First ISA plug and play initialising – CSN-assignment for each identified ISA plug and play
device. 59h Initialise TrendMicro anti virus program code. 5Bh (Optional:) Indication of the possibility to start AWDFLASH.EXE (Flash ROM programming)
from the hard disk. 5Dh 1. Initialise Variable/Routine Init_Onboard_Super_IO.
2. Initialise Variable/Routine Init_Onbaord_AUDIO.
60h Release for starting the CMOS set-up (this means that before this step of POST, users are not
able to access the BIOS set-up). 65h Initialising of the PS/2 mouse. 67h Information concerning the size of random access memory for function call (INT 15h with
AX-Reg. = E820h). 69h Enable level 2 cache 6Bh Programming of the chip set register according to the BIOS set-up and auto-detection table. 6Dh 1. Assignment of resources for all ISA plug and play devices.
2. Assignment of the port address for onboard COM-ports (only if an automatic junction has
been defined in the setup). 6Fh 1. Initialising of the floppy controller
2. Programming of all relevant registers and variables (floppy and floppy controller).
73h Optional feature:
Call of AWDFLASH.EXE if:
- the AWDFLASH program was found on a disk in the floppy drive.
- the shortcut ALT+F2 was pressed. 75h Detection and installation of the IDE drives: HDD, LS120, ZIP, CDROM… 77h Detection of parallel and serial ports. 7Ah Co-processor is detected and enabled. 7Fh 1. Switch over to the text mode, the logo output is supported.
- Indication of possibly emerged errors. Waiting for keyboard entry.
- No errors emerged, respective F1 key was pressed (continue):
Deleting of the EPA- or own logo.
82h 1. Call the pointer to the “chip set power management”.
2. Load the text font of the EPA-logo (not if a complete picture is displayed)
3. If a password is set, it is asked here. 83h Saving of the data in the stack, back to CMOS. 84h Initialising of ISA plug and play boot drives (also Boot-ROMs) 85h 1. Final initialising of the USB-host.
2. At network PCs (Boot-ROM): Construction of a SYSID structure table
3. Backspace the scope presentation into the text mode
4. Initialise the ACPI table (top of memory).
5. Initialise and link ROMs on ISA cards
6. Assignment of PCI-IRQs
7. Initialising of the advanced power management (APM)
8. Set back the IRQ-register.
Beckhoff New Automation Technology CB3052 page 75
Annex: Post-Codes
Code Description
93h Reading in of the hard disk boot sector for the inspection through the internal anti virus program
(trend anti virus code)
94h 1. Enabling of level 2 cache
2. Setting of the clock speed during the boot process
3. Final initialising of the chip set.
4. Final initialising of the power management.
5. Erase the onscreen and display the overview table (rectangular box).
6. Program “write allocation” at K6 CPUs (AMD)
7. Program “write combining” at P6 CPUs (INTEL) 95h 1. Program the changeover of summer-and winter-time
2. Update settings of keyboard-LED and keyboard repeat rates 96h 1. Multi processor system: generate MP-table
2. Generate and update ESCD-table
3. Correct century settings in the CMOS (20xx or 19xx)
4. Synchronise the DOS-system timer with CMOS-time
5. Generate an MSIRQ-Routing table.. C0h Chip set initialising:
- Cut off shadow RAM
- Cut off L2 cache (apron 7 or older)
- Initialise chip set register C1h Memory detection:
Auto detection of DRAM size, type and error correction (ECC or none)
Auto detection of L2 cache size (apron 7 or older) C3h Unpacking of the packed BIOS program codes into the random access memory. C5h Copying of the BIOS program code into the shadow RAM (segments E000 & F000) via chipset
hook. CFh Testing of the CMOS read/write functionality FFh Boot trial over boot-loader-routine (software-interrupt INT 19h)
page 76 Beckhoff New Automation Technology CB3052
Annex: Resources

II Annex: Resources

A IO Range

The used resources depend on setup settings. The given values are ranges, which are fixed by AT compatibility. Other IO ranges are used, which are dynamically adjusted by Plug & Play BIOS while booting.
Address Function
0-FF Reserved IO area of the board 170-17F 1F0-1F7 IDE1 278-27F 2E8-2EF COM4 2F8-2FF COM2 370-377 378-37F 3BC-3BF 3E8-3EF COM3 3F0-3F7 3F8-3FF COM1

B Memory Range

The used resources depend on setup settings. If the entire range is clogged through option ROMs, these functions do not work anymore.
Address Function
A0000-BFFFF VGA RAM C0000-CFFFF VGA BIOS D0000-DFFFF AHCI BIOS / RAID / PXE (if available) E0000-EFFFF System BIOS while booting F0000-FFFFF System BIOS

C Interrupt

The used resources depend on setup settings. The listed interrupts and their use are given through AT compatibility. If interrupts must exclusively be available on the ISA side, they have to be reserved through the BIOS setup. The exclusivity is not given and not possible on the PCI side.
Address Function
IRQ0 Timer IRQ1 PS/2 Keyboard IRQ2 (9) COM3 IRQ3 COM1 IRQ4 COM2 IRQ5 COM4 IRQ6 IRQ7 IRQ8 RTC IRQ9 IRQ10 IRQ11 IRQ12 PS/2 Mouse
Beckhoff New Automation Technology CB3052 page 77
Annex: Resources
Address Function
IRQ13 FPU IRQ14 IDE Primary IRQ15

D PCI Devices

All listed PCI devices exist on the board. Some PCI devices or functions of devices may be disabled in the BIOS setup. Once a device is disabled other devices may get PCI bus numbers different from the ones listed in the table.
AD INTA REQ Bus Dev. Fct. Controller / Slot
- - 0 0 0 Host Bridge ID2A40h
- - 0 1 0 PCI Express Port 1 GS45 ID2A41h A - 0 2 0 VGA Graphics ID2A42h A - 0 25 0 LAN ICH9 ID10F5h A - 0 26 0 USB UHCI Controller #4 ID2937h B - 0 26 1 USB UHCI Controller #5 ID2938h D - 0 26 2 USB UHCI Controller #6 ID2939h C - 0 26 7 USB 2.0 EHCI Controller #2 ID293Ch A - 0 27 0 HDA Controller ID293Eh A - 0 28 0 PCI Express Port 1 ICH9 ID2940h B - 0 28 1 [PCI Express Port 2 ICH9 ID2942h] C - 0 28 2 [PCI Express Port 3 ICH9 ID2944h] D - 0 28 3 [PCI Express Port 4 ICH9 ID2946h] A - 0 28 4 PCI Express Port 5 ICH9 ID2948h A - 0 29 0 USB UHCI Controller #1 ID2934h B - 0 29 1 USB UHCI Controller #2 ID2935h C - 0 29 2 USB UHCI Controller #3 ID2936h A - 0 29 7 USB 2.0 EHCI Controller #1 ID293Ah
- - 0 30 0 DMI-to-PCI Bridge ID2448h
- - 0 31 0 LPC Interface ID2917h B - 0 31 2 SATA Interface #1 ID2928h B - 0 31 3 SMBus Interface ID2930h B - 0 31 5 SATA Interface #2 ID292Dh A - 1 0 0 JMB363 ID2363h A - m 0 0 LAN 82547L ID10D3h 21 A 0 n 5 0 mPCI Slot 1

E SMB Devices

The following table contains all reserved SM-Bus device addresses in 8-bit notation. Note that external devices must not use any of these addresses even if the component mentioned in the table is not present on the motherboard.
Address Function
10-11 Standard slave address 40-41 GPIO 60-61 BIOS internal 70-73 POST code output 88-89 BIOS-defined slave address A0-A1 DIMM 1 A2-A3 DIMM 2 A4-AF BIOS internal B0-BF BIOS internal D2-D3 Clock
page 78 Beckhoff New Automation Technology CB3052
Loading...
