BECKHOFF AX5805 Permitted motors User Manual

Documentation
AX5805
List of permitted motors
Version: 1.3.0 Date: 2013-08-13
Table of contents
Table of contents
1 Foreword 3
1.1 Notes on the manual 3
1.1.1 Disclaimer 3
1.1.2 Brands 3
1.1.3 Patents 3
1.1.4 Copyright 3
1.1.5 Delivery conditions 3
1.2 Safety instructions 4
1.2.1 Delivery state 4
1.2.2 Operator's obligation to exercise diligence 4
1.2.3 Safety symbols used in this manual 5
2 System description 6 3 List of permitted motors 7
3.1 Permitted motor types AM30xx 8
3.1.1 AM30xx with resolver (Harowe) 8
3.1.2 AM30xx with EnDAT SingleTurn Encoder (ECN1113) 8
3.1.3 AM30xx with EnDAT SingleTurn Encoder (ECN1313) 9
3.1.4 AM30xx with EnDAT MultiTurn Encoder (EQN1125) 9
3.1.5 AM30xx with EnDAT MultiTurn Encoder (EQN1325) 9
3.1.6 AM30xx with BISS SingleTurn Encoder (AD36/0019AF) 10
3.1.7 AM30xx with BISS SingleTurn Encoder (AD58/0022AX) 10
3.1.8 AM30xx with BISS MultiTurn Encoder (AD36/1219AF) 10
3.1.9 AM30xx with BISS MultiTurn Encoder (AD58/1222AX) 11
3.2 Permitted motor types AM35xx 11
3.2.1 AM35xx with BISS SingleTurn Encoder (AD34/0019AU) 11
3.2.2 AM35xx with BISS MultiTurn Encoder (AD34/1219AU) 11
3.3 Permitted motor types AM80xx/AM85xx 12
3.3.1 AM80xx/AM85xx with Resolver (TE) 12
3.3.2 AM80xx/AM85xx with SingleTurn Encoder OCT (EKS36) 13
3.3.3 AM80xx/AM85xx with MultiTurn Encoder OCT (EKM36) 14
3.4 Permitted motor types AM88xx 15
3.4.1 AM88xx with Resolver (TE) 15
3.4.2 AM88xx with SingleTurn Encoder OCT (EKS36) 15
3.4.3 AM88xx mit MultiTurn Encoder OCT (EKM36) 15
AX5805 1
Table of contents
4 Appendix 16
4.1 Beckhoff Support and Service 16
4.1.1 Beckhoff branches and partner companies Beckhoff Support 16
4.1.2 Beckhoff company headquarters 16
4.2 Certificate 17
2
AX5805
Foreword
1 Foreword
1.1 Notes on the manual
This description is only intended for the use of trained specialists in control and automation technology who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components. The responsible staff must ensure that the application or use of the products described satisfy all the safety requirements, including all the relevant laws, regulations, guidelines and standards.
1.1.1 Disclaimer
This documentation has been prepared with care. The products described are, however, constantly under development. For this reason, the documentation may not always have been fully checked for consistency with the performance data, standards or other characteristics described. If it should contain technical or editorial errors, we reserve the right to make changes at any time and without notice. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Brands
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE® and XFC® are registered and licensed brand names of Beckhoff Automation GmbH. The use by third parties of other brand names or trademarks contained in this documentation may lead to an infringement of the rights of the respective trademark owner.
1.1.3 Patents
The EtherCAT technology is patent protected, in particular by the following applications and patents: EP1590927, EP1789857, DE102004044764, DE102007017835 with the corresponding applications and registrations in various other countries.
The TwinCAT technology is patent protected, in particular by the following applications and patents: EP0851348, US6167425 with the corresponding applications and registrations in various other countries.
1.1.4 Copyright
©
Beckhoff Automation GmbH. The copying, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders shall be held liable for damages. All rights conferred by patent grant or registration of a utility model or registered design are reserved.
1.1.5 Delivery conditions
In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply.
AX5805 3
Foreword
1.2 Safety instructions
1.2.1 Delivery state
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.
1.2.2 Operator's obligation to exercise diligence
The operator must ensure that
the TwinSAFE products are only used as intended.
the TwinSAFE products are only operated in sound condition and in working order.
the TwinSAFE products are operated only by suitably qualified and authorized personnel.
the personnel is instructed regularly about relevant occupational safety and environmental
protection aspects, and is familiar with the operating instructions and in particular the safety instructions contained herein.
the operating instructions are in good condition and complete, and always available for reference at the location where the TwinSAFE products are used.
none of the safety and warning notes attached to the TwinSAFE products are removed, and all notes remain legible.
4
AX5805
Foreword
1.2.3 Safety symbols used in this manual
The following safety symbols are used in this manual to bring specific safety instructions to the reader’s attention.
Risk of immediate personal injury or death
DANGER
WARNING
CAUTION
Attention
Note
Failure to follow these instructions may immediately lead to personal injury or death.
Risk of personal injury or death
Failure to follow these instructions may lead to personal injury or death.
Risk of personal injury
Failure to follow these instructions may lead to personal injury.
Risk of property damage
Failure to follow these instructions may lead to property damage.
Important
This symbol identifies information that is critical for applying and understanding this product correctly.
AX5805 5
System description
2 System description
By integrating safety technology into its drive technology, Beckhoff has extended the TwinSAFE system philosophy into the drive in a manner consistent with existing TwinSAFE products. TwinSAFE enables integrated safety automation, ranging from digital inputs and logic systems to drives and digital outputs. Simple diagnostics and easy to use functions help the user implement the required application quickly and safely.
Significant hazards to persons arise from the dynamic movements of the electrical drive equipment of machines. Controlling these hazards while achieving smooth production flow can be a significant challenge.
The Beckhoff servo amplifiers from the AX5xxx series become fully-fledged safety drives with the addition of the AX5805 TwinSAFE drive option card.
The option card is able to completely remove torque from the motor or monitor speed, position and direction of rotation (in accordance with EN ISO 13849-1:2006 to PL e). No further circuits such as circuit breakers, contactors in the supply lines, or special encoder systems are necessary for this functionality.
This enables a lean installation and helps to lower costs and cabinet space. No special encoder system is required in order to implement the SDI (Safe Direction) or SLS (Safely Limited Speed) functions. All of Beckhoff’s motors listed in the document ‘AX5805 – List of permissible motors’ can be used without further expenditure and without additional encoder systems for these functions. Even safe position monitoring or position range monitoring is simple to implement with the aid of the AX5805 safety option card.
Adding the AX5805 does not require any additional wiring, since EtherCAT communication is used in the AX5xxx basic controllers. The AX5805 TwinSAFE drive option card is a self-contained EtherCAT Slave and communicates directly via the AX controller with a TwinSAFE logic terminal existing in the network.

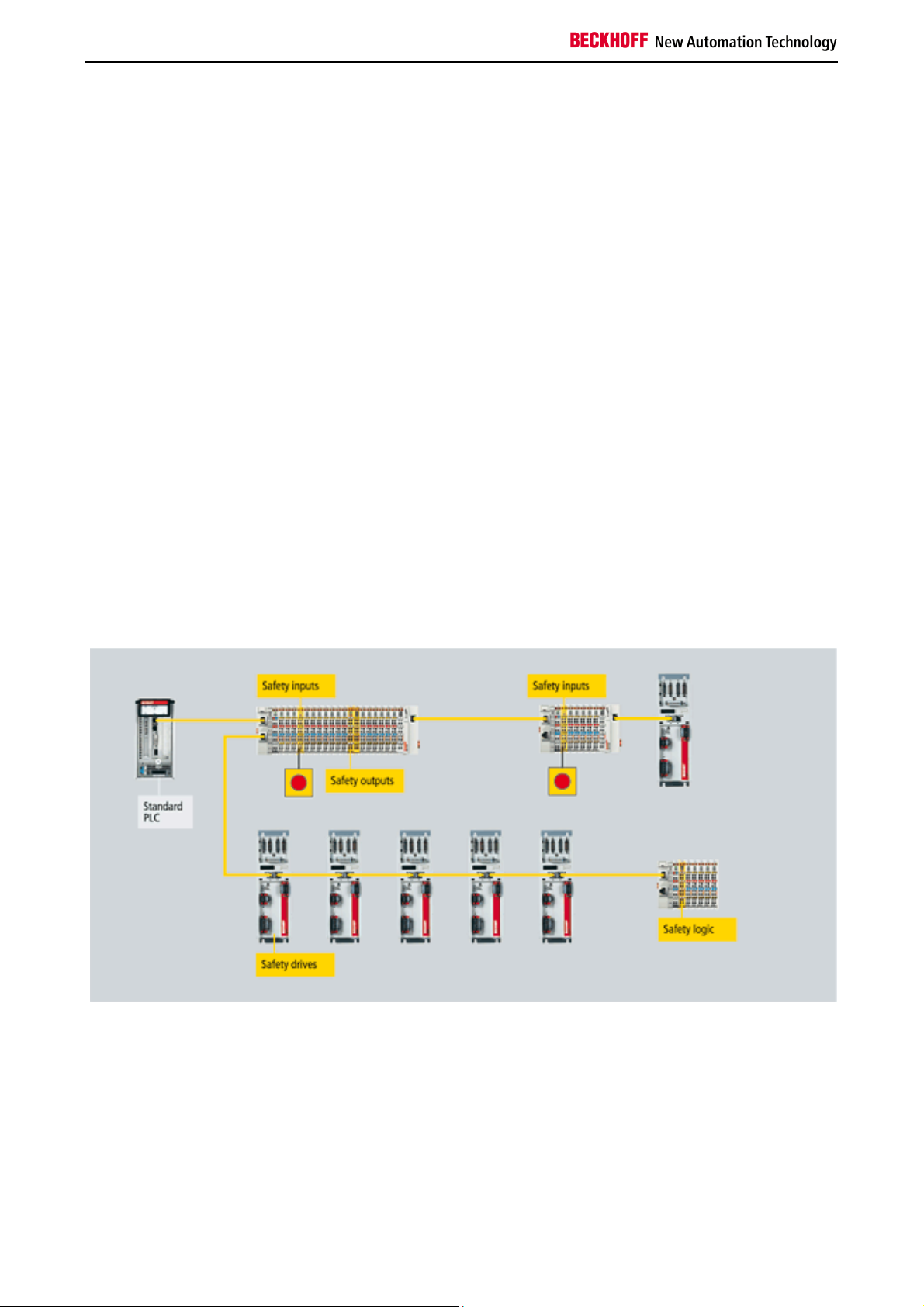

Figure 1: TwinSAFE system overview
6
AX5805
List of permitted motors
3 List of permitted motors
The AX5805 TwinSAFE drive option card is an optional extension for Beckhoff’s AX5000 servo drive series. The following safety functions can be implemented by installing the AX5805 in the AX5000:
Stop functions (STO, SOS, SS1, SS2)
Speed functions (SLS, SSM, SSR, SMS)
Position functions (SLP, SCA, SLI)
Acceleration functions (SAR, SMA)
Direction of rotation functions (SDIp, SDIn)
The AX5805 TwinSAFE Drive option card AX5805 (firmware version 02 or higher) supports only synchronous Beckhoff servo motors with encoders.
Restrictions for motors
Only specific Beckhoff rotary synchronous servo motors with position feedback
CAUTION
are permitted for use with the AX5805.
Modifying an approved motor is not permitted.
Use of another manufacturer’s motor is not permitted.
The following tables contain PFH values and the maximum category and performance level which can be achieved. The values are valid for an AX5xxx-xxxx-0200 servo drive with an AX5805 installed and the listed motor with feedback system.
Supported AX5000 devices
The following motor types can be used together with the AX5805 and the corresponding
CAUTION
servo drives of type AX5101 up to AX5140 or AX5201 up to AX5206. Other combinations are not allowed.
AX5805 7
List of permitted motors
3.1 Permitted motor types AM30xx
3.1.1 AM30xx with resolver (Harowe)
Motor type PFH Category Performance Level
AM3011-xx0x AM3012-xx0x AM3013-xx0x AM3021-xx0x AM3022-xx0x AM3023-xx0x AM3024-xx0x AM3031-xx0x AM3032-xx0x AM3033-xx0x AM3041-xx0x AM3042-xx0x AM3043-xx0x AM3044-xx0x AM3051-xx0x AM3052-xx0x AM3053-xx0x AM3054-xx0x AM3062-xx0x AM3063-xx0x AM3064-xx0x AM3065-xx0x AM3072-xx0x AM3073-xx0x AM3074-xx0x AM3082-xx0x AM3083-xx0x AM3084-xx0x
3,87E-9 4 e
3.1.2 AM30xx with EnDAT SingleTurn Encoder (ECN1113)
Motor type PFH Category Performance Level
AM3021-xx1x AM3022-xx1x AM3023-xx1x AM3024-xx1x AM3031-xx1x AM3032-xx1x AM3033-xx1x AM3041-xx1x AM3042-xx1x AM3043-xx1x AM3044-xx1x
8
8.76E-09
4
e
AX5805
List of permitted motors
3.1.3 AM30xx with EnDAT SingleTurn Encoder (ECN1313)
Motor type PFH Category Performance Level
AM3051-xx1x AM3052-xx1x AM3053-xx1x AM3054-xx1x AM3062-xx1x AM3063-xx1x AM3064-xx1x AM3065-xx1x AM3072-xx1x AM3073-xx1x AM3074-xx1x AM3082-xx1x AM3083-xx1x AM3084-xx1x
5.07E-09
4
e
3.1.4 AM30xx with EnDAT MultiTurn Encoder (EQN1125)
Motor type PFH Category Performance Level
AM3021-xx2x AM3022-xx2x AM3023-xx2x AM3024-xx2x AM3031-xx2x AM3032-xx2x AM3033-xx2x AM3041-xx2x AM3042-xx2x AM3043-xx2x AM3044-xx2x
8.76E-09
4
e
3.1.5 AM30xx with EnDAT MultiTurn Encoder (EQN1325)
Motor type PFH Category Performance Level
AM3051-xx2x AM3052-xx2x AM3053-xx2x AM3054-xx2x AM3062-xx2x AM3063-xx2x AM3064-xx2x AM3065-xx2x AM3072-xx2x AM3073-xx2x AM3074-xx2x AM3082-xx2x AM3083-xx2x AM3084-xx2x
5.07E-09
4
e
AX5805 9
List of permitted motors
3.1.6 AM30xx with BISS SingleTurn Encoder (AD36/0019AF)
Motor type PFH Category Performance Level
AM3021-xx3x AM3022-xx3x
1.16E-08
4
e
AM3023-xx3x AM3024-xx3x AM3031-xx3x AM3032-xx3x AM3033-xx3x AM3041-xx3x AM3042-xx3x AM3043-xx3x AM3044-xx3x
3.1.7 AM30xx with BISS SingleTurn Encoder (AD58/0022AX)
Motor type PFH Category Performance Level
AM3051-xx3x AM3052-xx3x
1.51E-08
4
e
AM3053-xx3x AM3054-xx3x AM3062-xx3x AM3063-xx3x AM3064-xx3x AM3065-xx3x AM3072-xx3x AM3073-xx3x AM3074-xx3x AM3082-xx3x AM3083-xx3x AM3084-xx3x
3.1.8 AM30xx with BISS MultiTurn Encoder (AD36/1219AF)
Motor type PFH Category Performance Level
AM3021-xx4x AM3022-xx4x AM3023-xx4x AM3024-xx4x AM3031-xx4x AM3032-xx4x AM3033-xx4x AM3041-xx4x AM3042-xx4x AM3043-xx4x AM3044-xx4x
1.45E-08
4
e
10
AX5805
List of permitted motors
3.1.9 AM30xx with BISS MultiTurn Encoder (AD58/1222AX)
Motor type PFH Category Performance Level
AM3051-xx4x AM3052-xx4x AM3053-xx4x AM3054-xx4x AM3062-xx4x AM3063-xx4x AM3064-xx4x AM3065-xx4x AM3072-xx4x AM3073-xx4x AM3074-xx4x AM3082-xx4x AM3083-xx4x AM3084-xx4x
1.24E-08
4
e
3.2 Permitted motor types AM35xx
3.2.1 AM35xx with BISS SingleTurn Encoder (AD34/0019AU)
Motor type PFH Category Performance Level
AM3541-xx3x AM3542-xx3x AM3543-xx3x AM3551-xx3x AM3552-xx3x AM3553-xx3x AM3562-xx3x AM3563-xx3x
3.2.2 AM35xx with BISS MultiTurn Encoder (AD34/1219AU)
Motor type PFH Category Performance Level
AM3541-xx4x AM3542-xx4x AM3543-xx4x AM3551-xx4x AM3552-xx4x AM3553-xx4x AM3562-xx4x AM3563-xx4x
1.16E-08
1.45E-08
4
4
e
e
AX5805 11
List of permitted motors
3.3 Permitted motor types AM80xx/AM85xx
3.3.1 AM80xx/AM85xx with Resolver (TE)
Motor type PFH Category Performance Level
AM 8021-xx0x AM 8022-xx0x AM 8023-xx0x AM 8031-xx0x AM 8032-xx0x AM 8033-xx0x AM 8041-xx0x AM 8042-xx0x AM 8043-xx0x AM 8051-xx0x AM 8052-xx0x AM 8053-xx0x AM 8061-xx0x AM 8062-xx0x AM 8063-xx0x AM 8071-xx0x AM 8072-xx0x AM 8073-xx0x AM 8521-xx0x AM 8522-xx0x AM 8523-xx0x AM 8531-xx0x AM 8532-xx0x AM 8533-xx0x AM 8541-xx0x AM 8542-xx0x AM 8543-xx0x AM 8551-xx0x AM 8552-xx0x AM 8553-xx0x AM 8561-xx0x AM 8562-xx0x AM 8563-xx0x AM 8571-xx0x AM 8572-xx0x AM 8573-xx0x
7.25E-09
4
e
12
AX5805
List of permitted motors
3.3.2 AM80xx/AM85xx with SingleTurn Encoder OCT (EKS36)
Motor type PFH Category Performance Level
AM 8021-xx1x AM 8022-xx1x AM 8023-xx1x AM 8031-xx1x AM 8032-xx1x AM 8033-xx1x AM 8041-xx1x AM 8042-xx1x AM 8043-xx1x AM 8051-xx1x AM 8052-xx1x AM 8053-xx1x AM 8061-xx1x AM 8062-xx1x AM 8063-xx1x AM 8071-xx1x AM 8072-xx1x AM 8073-xx1x AM 8521-xx1x AM 8522-xx1x AM 8523-xx1x AM 8531-xx1x AM 8532-xx1x AM 8533-xx1x AM 8541-xx1x AM 8542-xx1x AM 8543-xx1x AM 8551-xx1x AM 8552-xx1x AM 8553-xx1x AM 8561-xx1x AM 8562-xx1x AM 8563-xx1x AM 8571-xx1x AM 8572-xx1x AM 8573-xx1x
2.23E-08
4
e
AX5805 13
List of permitted motors
3.3.3 AM80xx/AM85xx with MultiTurn Encoder OCT (EKM36)
Motor type PFH Category Performance Level
AM 8021-xx2x AM 8022-xx2x AM 8023-xx2x AM 8031-xx2x AM 8032-xx2x AM 8033-xx2x AM 8041-xx2x AM 8042-xx2x AM 8043-xx2x AM 8051-xx2x AM 8052-xx2x AM 8053-xx2x AM 8061-xx2x AM 8062-xx2x AM 8063-xx2x AM 8071-xx2x AM 8072-xx2x AM 8073-xx2x AM 8521-xx2x AM 8522-xx2x AM 8523-xx2x AM 8531-xx2x AM 8532-xx2x AM 8533-xx2x AM 8541-xx2x AM 8542-xx2x AM 8543-xx2x AM 8551-xx2x AM 8552-xx2x AM 8553-xx2x AM 8561-xx2x AM 8562-xx2x AM 8563-xx2x AM 8571-xx2x AM 8572-xx2x AM 8573-xx2x
2.23E-08
4
e
14
AX5805
List of permitted motors
3.4 Permitted motor types AM88xx
3.4.1 AM88xx with Resolver (TE)
Motor type PFH Category Performance Level
AM 8831-xx0x AM 8832-xx0x AM 8833-xx0x AM 8841-xx0x AM 8842-xx0x AM 8843-xx0x AM 8851-xx0x AM 8852-xx0x AM 8853-xx0x AM 8861-xx0x AM 8862-xx0x AM 8863-xx0x
7.25E-09
4
e
3.4.2 AM88xx with SingleTurn Encoder OCT (EKS36)
Motor type PFH Category Performance Level
AM 8831-xx1x AM 8832-xx1x AM 8833-xx1x AM 8841-xx1x AM 8842-xx1x AM 8843-xx1x AM 8851-xx1x AM 8852-xx1x AM 8853-xx1x AM 8861-xx1x AM 8862-xx1x AM 8863-xx1x
2.23E-08
4
e
3.4.3 AM88xx mit MultiTurn Encoder OCT (EKM36)
Motor type PFH Category Performance Level
AM 8831-xx2x AM 8832-xx2x AM 8833-xx2x AM 8841-xx2x AM 8842-xx2x AM 8843-xx2x AM 8851-xx2x AM 8852-xx2x AM 8853-xx2x AM 8861-xx2x AM 8862-xx2x AM 8863-xx2x
2.23E-08
4
e
AX5805 15
Appendix
4 Appendix
4.1 Beckhoff Support and Service
Beckhoff and their partners around the world offer comprehensive support and service, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.
4.1.1 Beckhoff branches and partner companies Beckhoff Support
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies:
www.beckhoff.com. You will also find further documentation for Beckhoff components there.
4.1.2 Beckhoff company headquarters
Beckhoff Automation GmbH Eiserstr. 5 33415 Verl Germany
Phone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 E-mail: info@beckhoff.com Web: www.beckhoff.com
Beckhoff Support
Support offers you comprehensive technical assistance, helping you not only with the application of individual Beckhoff products, but also with other, wide-ranging services:
world-wide support
design, programming and commissioning of complex automation systems
and extensive training program for Beckhoff system components
Hotline: + 49 (0) 5246/963-157 Fax: + 49 (0) 5246/963-9157 E-mail: support@beckhoff.com
Beckhoff Service
The Beckhoff Service Center supports you in all matters of after-sales service:
on-site service
repair service
spare parts service
hotline service
Hotline: + 49 (0) 5246/963-460 Fax: + 49 (0) 5246/963-479 E-mail: service@beckhoff.com
16
AX5805
Appendix
4.2 Certificate
AX5805 17
