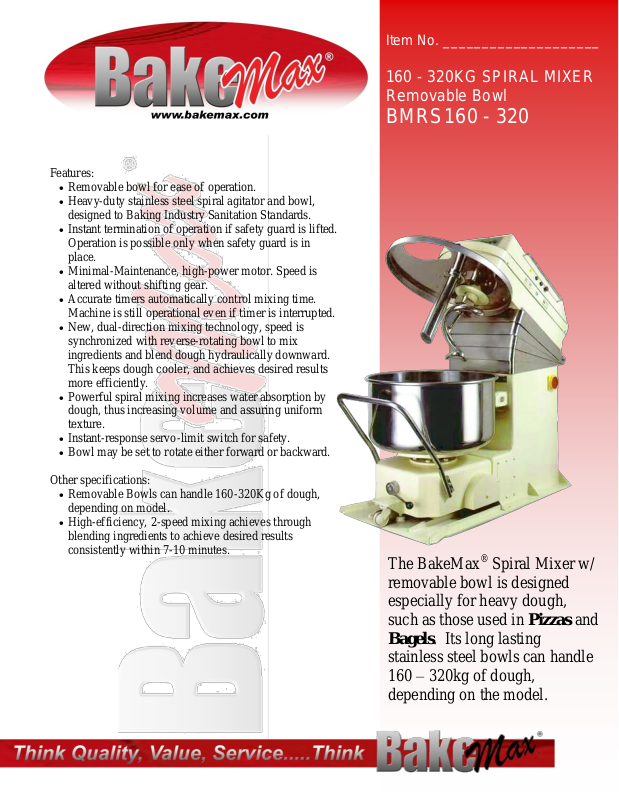

Bakemax BMRS160 User Manual

Item No. ____________________

160 - 320KG SPIRAL MIXER
Removable Bowl

BMRS160 - 320

The BakeMax® Spiral Mixer w/
removable bowl is designed
especially for heavy dough,
such as those used in Pizzas and
Bagels. Its long lasting
stainless steel bowls can handle
160 – 320kg of dough,
depending on the model.

Features:

 Removable bowl for ease of operation.
 Heavy-duty stainless steel spiral agitator and bowl,

designed to Baking Industry Sanitation Standards.

 Instant termination of operation if safety guard is lifted.

Operation is possible only when safety guard is in
place.

 Minimal-Maintenance, high-power motor. Speed is

altered without shifting gear.

 Accurate timers automatically control mixing time.

Machine is still operational even if timer is interrupted.

 New, dual-direction mixing technology, speed is

synchronized with reverse-rotating bowl to mix
ingredients and blend dough hydraulically downward.
This keeps dough cooler, and achieves desired results
more efficiently.

 Powerful spiral mixing increases water absorption by

dough, thus increasing volume and assuring uniform
texture.

 Instant-response servo-limit switch for safety.
 Bowl may be set to rotate either forward or backward.

Other specifications:

 Removable Bowls can handle 160-320Kg of dough,

depending on model.

 High-efficiency, 2-speed mixing achieves through

blending ingredients to achieve desired results
consistently within 7-10 minutes.

160 -320kg Spiral Mixers

BMSM160 - 320

Dimensions (Inches) please see chart to side.

Model

A

B

C

BMRS160

55

35

57

BMRS200

61

37

57

BMRS240

63

45.2

57

BMRS320

66.9

47.24

57

Capacity Information

Model No.

Flour (kg)

Dough (kg)
BMRS160

100

160

BMRS200

125

200

BMRS240

175

280

BMRS320

200

320

Model No.
Motor (HP)

Agitator

Bowl

BMRS160

10

2/1

BMRS200

12

3/2

BMRS240

15

3/2

BMRS320

16

3/2

Electrical Information

Model

Voltage

Phase

Hertz

BMSM160

208 3 60

BMSM200

208 3 60

BMSM240

208 3 60

BMSM320

208 3 60
