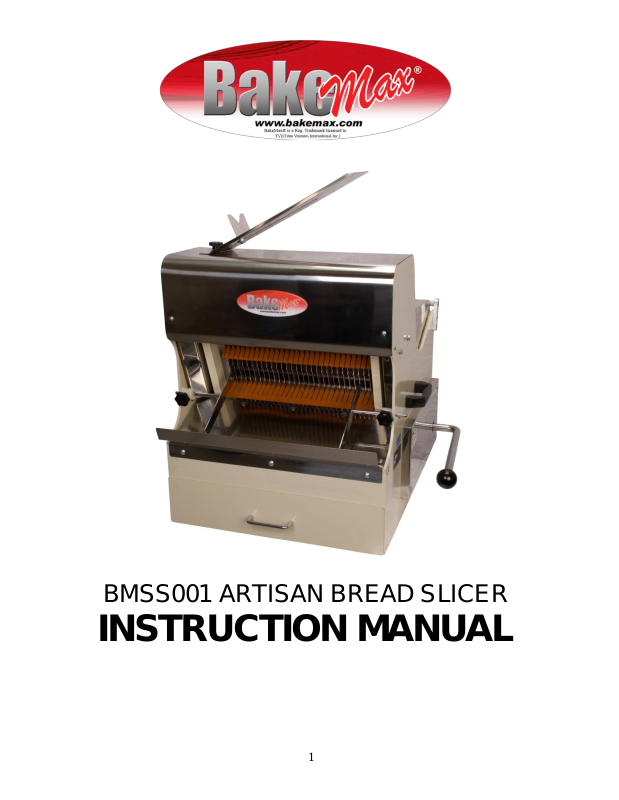

BMSS001 ARTISAN BREAD SLICER
INSTRUCTION MANUAL
1
Page 2
Page 3
1. SAFETY RULES
2. FEATURES
3. SPECIFICATIONS
4. INSTALLATION
LOCATION
ELECTRICAL CONNECTIONS OPERATION
CLEANING
5. MAINTENANCE
REPLACEMENT OF SLICING BLADES
ADJUSTING BELT OF DRIVE PULLEY
CLEANING
6. PARTS LIST
Page 4
1. SAFETY RULES
WHEN USING THIS MACHINE, ALWAYS MAKE SURE THE FOLLOWING CONDITIONS OR OPERATIONS ARE IN
EFFECT. FAILURE TO DO THIS WILL OR MAY BE THE CAUSE OF ACCIDENTS.
• THIS BREAD SLICER IS DESIGNED AND CONSTRUCTED FOR BREAD PROCESSING ONLY
• DO NOT PUT ANY INFLEXIBLE MATERIAL INTO SLICING AREA
• DO NOT PUT HANDS INTO THE FEED WHEN OPENING PUSHER OF SLICER
• WHEN SLICING, DO NOT PUT HANDS INTO SLICING AREA
• MAKE SURE YOUR ELECTRICAL SERVICE CORRESPONDS TO NAME PLATE SPECIFICATION
• ALL MAINTENANCE WORK SHOULD BE CARRIED OUT AFTER HAVING REMOVED THE PLUG
SOCKET
2. FEATURES
BMSS001 BREAD SLICER IS DESIGNED FOR SHOP COUNTERS
A SAFETY GUARD DEVICE IS DESIGNED ESPECIALLY FOR PROTECTING THE OPERATOR
THE MACHINE IS SAFETY-PROTECTED BY AN INTERLOCKED SAFETY LOAF PUSHER SYSTEM AND IS
POWERED BY A 1/2 HP MOTOR
A BAGGING SCOOP IS PROVIDED TO BAG BREAD EASILY
CRUMB DRAWER IS FITTED FOR COLLECTING BREAD PIECES
HEAVY CONSTRUCTION BLADE FRAME MAKE SLICING SMOOTHLY EVEN FRENCH BREAD
WARNING: THIS SLICER IS DESIGNED AND CONSTRUCTED FOR BREAD PROCESSING
ONLY, THEY WILL NOT WORK IN OTHER INDUSTRIES.
Page 5
QUANTITY OF SLICING BLADES
38 OR 32 OR 30 OR 26
SLICE THICKNESS
10 OR 12 OR 13 OR 15 MM
MAXIMUM LOAF LENGTH
38 CM
MOTOR
1/2 HP (0.375 KW)

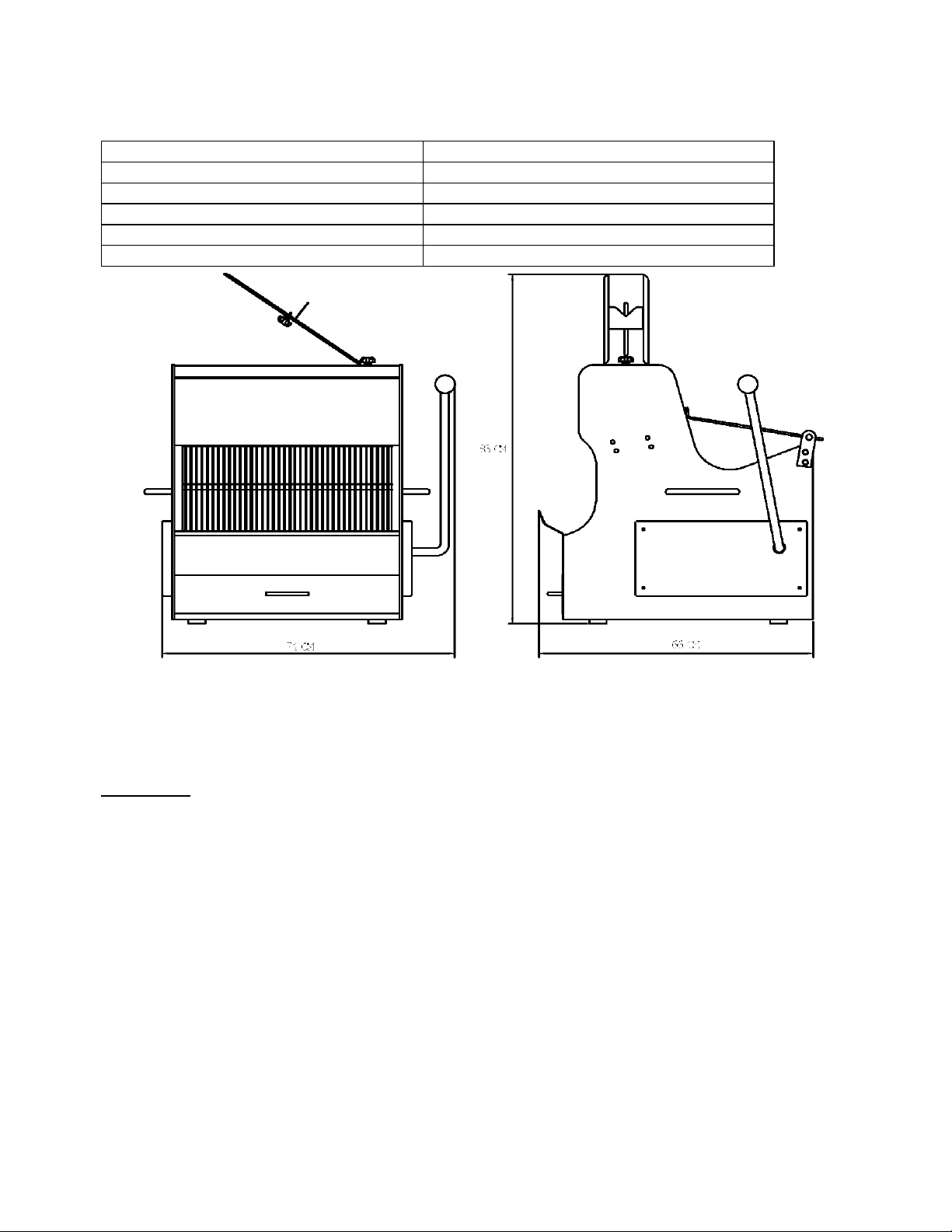

MACHINE SIZE (CM)
76 X 72 X 83 (W X D X H)
NET WEIGHT
115 KGS
3. SPECIFICATIONS
4. INSTALLATION
LOCATION
• CAREFULLY REMOVE PROTECTIVE CRATE AND SKIDS TO PREVENT THE MACHINE AND PARTS FROM
BEING SCRATCHED OR SHOCKED.
• PLACE THE BREAD SLICER ON A SMOOTH SURFACE. ALLOWING WORKING SPACE LARGE ENOUGH FOR
PUTTING BREAD ON GUIDE BOARD AND PACKING SLICED BREAD. IT IS NOT
NECESSARY TO FIX THE MACHINE TO TABLE, BUT SMOOTH SURFACE IS IMPORTANT TO PREVENT
FROM VIBRATING.
• COMMONLY, MACHINE IS CLEANED BEFORE SHIPMENT, IF MACHINE IS DIRTY FROM TRANSPORTATION;
PLEASE CLEAN IT WITH A DAMP CLOTH.
WARNING: IT IS NOT RECOMMENDED THAT GASOLINE OR ANY OTHER HIGHLY INFLAMMABLE CLEANING
AGENT IS USED.
Page 6
ELECTRICAL CONNECTIONS
• BEFORE MAKING THE ELECTRICAL CONNECTIONS, READ THE SPECIFICATIONS ON THE NAME PLATE TO
MAKE SURE THAT THEY AGREE WITH THOSE OF YOUR ELECTRIC SERVICE.
• ELECTRICAL CONNECTIONS SHOULD BE MADE BY QUALIFIED SERVICE TECHINICAN WHO WILL OBSERVE
ALL APPLICABLE SAFETY CODES AND THE NATIONAL ELECTRICAL CODES.
OPERATION
I. PULL STARTING HANDLE TO FORWARD DIRECTION, SAFETY GUARD IS OPENING AND POWER IS SHUT
OFF.
II. PLACE BREAD ON GUIDE BOARD.
III. PULL HANDLE BACK. SAFETY GUARD CLOSED AUTOMATICALLY AND POWER TURNS ON. THE
SAFETY LOAF PUSHER PASSED EACH LOAF COMPLETELY THROUGH THE SLICER BLADES
AND POWER IS SHUT OFF.
IV. TAKE BREAD OUR FROM FRONT GUIDE BOARD.
CLEANING
• THE SLICER SHOULD BE CLEANED DAILY; WIPE SLICER WITH A CLEAN DAMP CLOTH OR A
BRUSH TO AID IN CLEANING OPERATION.
• THE CRUMB DRAWER MUST BE EMPTIED AT REGULAR INTERVALS TO PREVENT FROM
MECHANICAL FAILURE.
WARNING: 1. A METAL-BRUSH IS PROHIBITED.
2. NEVER CLEAN THE SLICER WITH A WATER HOSE OR OTHER LIKENESS DEVICE.
Page 7
MAINTENANCE
FIGURE 1.
• SCREW OUT, THEN YOU CAN LOOSEN THE TENSION OF BLADE AND CHANGE BLADE (SEE
FIGURE 2).
FIGURE 2.
REPLACEMENT OF SLICING BLADES
• TO REMOVE FRONT KNIVES FRAME FOR REPLACEMENT OF BLADES, IT IS NECESSARY TO
TAKE OFF THE COMPONENTS OF KNIVES FRAME (SEE FIGURE 1).
Page 8
ADJUSTING BELT OF DRIVE PULLEY
SINGLE PHASE
THREE PHASE
• THE TENSION OF BELT OF DRIVE
PULLEY (NO.1) BECOMES IMPROPER
OCCASIONALLY AND
CAUSES SLICING INEFFICIENT.
• TO ADJUST BELT, FIRST, TAKING
OFF GUARD BOARD TO EXPOSE THE
TRANSMISSION MECHANISM,
THEN LOOSE BOLT (NO. 2) TO
MOVE MOTOR TO GET PROPER
TENSION.
• THE TENSION SHOULD BE
RECHECKED AFTER FIRST
WORKING DAY TO MAKE SURE IT IS
AT PROPER POSITION.

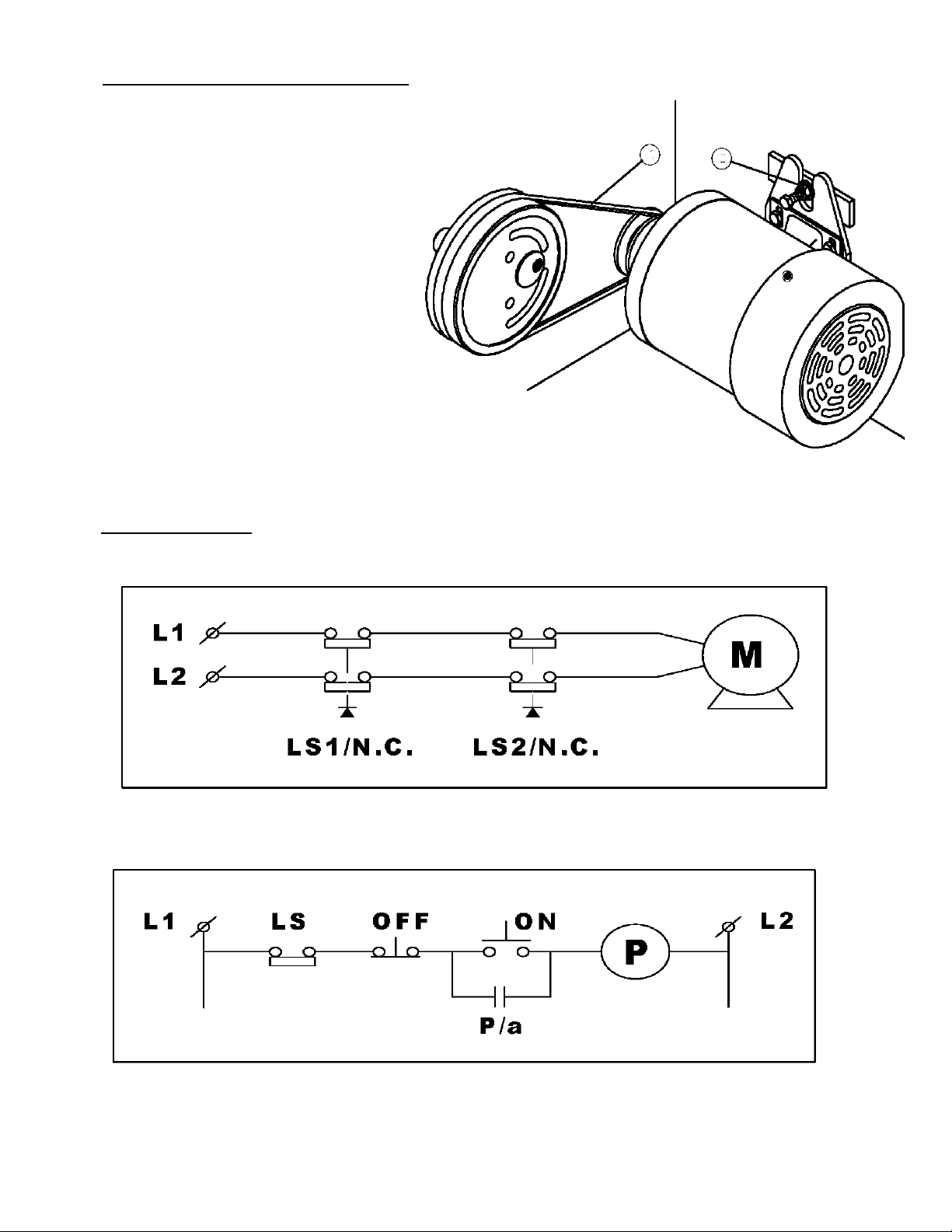

WIRING DIAGRAM
