Bakemax BMMDM02, BMMDM01 User Manual
Item No. ____________________

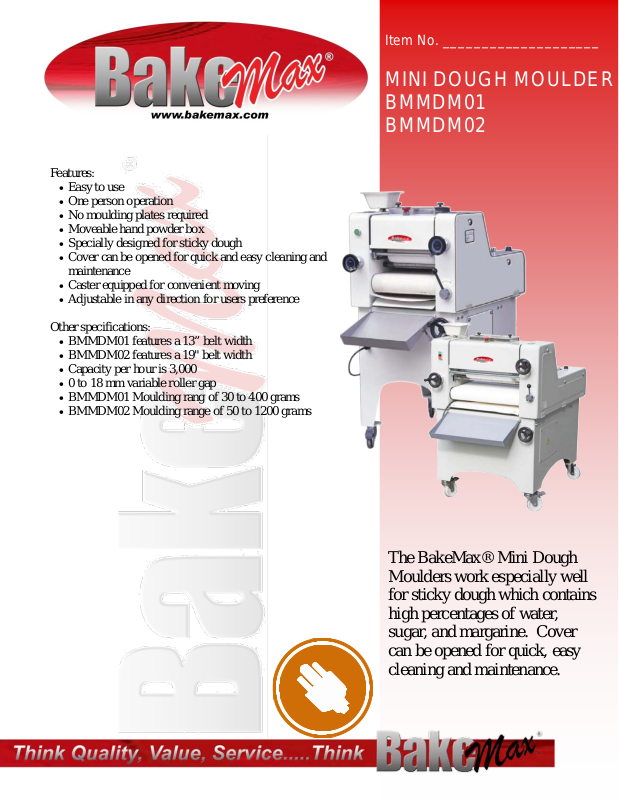

The BakeMax® Mini Dough
for sticky dough which contains
Features:
MINI DOUGH MOULDER
BMMDM01
• E asy to use
• One person operation
• No moulding plates required
• Mo veable hand powder box
• Spec ially designed for sticky dough
• Cover can be opened for quick and easy cleaning and
maintenance
• Caster equipped for convenient moving
• Adjust able in any direction for users pr eference
Other specifications:
• BMMDM01 features a 13” belt width
• BMMDM02 features a 19" belt width
• Capacity per hour is 3,000
• 0 to 18 mm variable roller gap
• BMMDM01 Mou lding rang of 30 to 400 grams
• BMMDM02 Mou lding range of 50 to 1200 grams
BMMDM02
Moulders work espec i al ly well
high p ercentages of water,
sugar, and mar g ar i ne . Cov e r
can be opened f o r quick, easy
cleaning and maintenance.
MINI DOUGH MOULDER
BMMDM01
Dimensions
Model
External
Belt Widt h
BMMDM01
45"D x 22"W x 48"H
13”
BMMDM02
45"D x 30"W x 46"H
19”
Model
Dough Weight
Pieces/Hour
BMMDM01
30 to 400g
3000 pcs/hr
BMMDM02
50 to 1200g
3000 pcs/hr
Elec trical Information
Model
Voltage
Phase
Amps
Hertz
NEMA
BMMDM01
110 1 4
60
5-15P
BMMDM02
110 1 7
60
5-15P
Shipping Information
Model
Net Weight
Crated Weight
Crate Dimensions
(D x W x H)
BMMDM01
390 lbs / 177 kg
48” x 26” x 52”
BMMDM02
450 lbs / 204 kg
48” x 34” x 50”
Authorized Dealer:
Titan Ventur es Int ernat ional, Inc.
BakeMax® is a registered trademark of Tit an Ventures International, Inc.
BMMDM02
Capacity Chart
170 Millenium Blvd, Moncton, NB, E1C 1M8
Toll Free: 1-800-565-BAKE
Telephone: 1-506-858-8990
Fax: 1-506-859-6929
Printed in Canada
