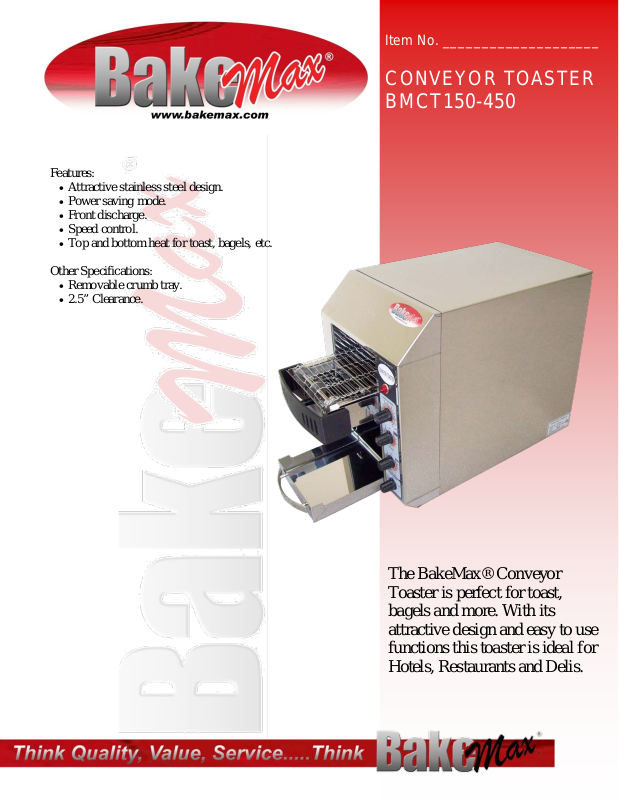

Bakemax BMCT150, BMCT450 User Manual
The BakeMax® Conveyor
functions this toaster is ideal for
Features:
• At tractive stainless steel design.
• Power saving mode.
• Fro nt discharge.
• S peed control.
• T op and bottom heat for toast, bagels, etc.
Ot her Specifications:
• Removable crumb tray.
• 2.5” Clearance.
Item No. ____________________
CONVEYOR TOASTER
BMCT150-450
Toaster is perfect for toast,
bagels and more. With its
attractive design and easy to use
Hotels, Restaurants and Delis.
CONVEYOR TOASTER
BMCT150-450
Dimensions
Model
External L x W x H
BMCT150
11.4” x 16.5” x 15”
BMCT300
25.2” x 17.7” x 19.3”
BMCT450
18.5” x 26.5” x 15”
Model
External L x W x H
BMCT150
6.7” x 11” x 1.45”
BMCT300
9.8” x 11” x 1.6”
BMCT450
13” x 21” x 1.6”
Model
Slices per Hour
BMCT150
180
BMCT300
350
BMCT450
500
ETL
Elec trical Information
Model
Voltage
Phase
Amps
Watts
Hertz
NEMA
BMCT150
110 1 13.8
1518
60
5-20P
BMCT300
110 1 14
1540
60
5-20P
BMCT300
220 1 12.5
2750
60
6-20P
BMCT450
220 1 15
3300
60
6-20P
Shipping Information
Model
Net Weight (kg)
Crated Weight(kg)
Crate Dimensions
(D x W x H)
BMCT150
N/A
40 lbs / 18 kg
18” x 28” x 21”
BMCT300
N/A
50 lbs / 23 kg
25” x 17” x 19.5”
BMCT450
N/A
66 lbs / 30 kg
24” x 21” x 19.5”
Toll Free: 1-800-565-BAKE Web Site: www.bakemax.com E-mail: sales@bakemax.com
Authorized Dealer:
Titan Ventur es Int ernat ional, Inc.
BakeMax® is a registere d trademark of Titan Ventures Internation a l, Inc.
Belt D imens ions
Capacity
*Toasting will vary depending on product and speed.
170 Millennium Blvd, Moncton, NB, E1C 1M8
Toll Free: 1-800-565-BAKE
Telephone: 1-506-858-8990
Fax: 1-506-859-6929
Printed in Canada
