1. Introduction

Congratulations on your purchase of the AV210 color sheet-fed image
scanner. Avision is one of the leading companies in the world to
develop high performance sheet-fed scanners.

Before you install and operate the new scanner, please take a few
minutes to read through this manual. It provides proper instructions
for you to unpack, install, operate and maintain the scanner.

The following figure indicates the package contents. Please check all
the items against your checklist. If you do not receive all the items,
please contact your authorized local dealer immediately.

1-1

4

1

2

5

6

1. AV210 Main Unit

2. ADF Paper Tray

3. Flatbed Paper Tray

4. USB Cable

5. Power Adapter

6. Power Cord

Note:

1. Only use the AC adapter (868-1030-I24 made by YHI) included in the
machine. Using other AC adapters may damage the machine and void
the warranty.

2. Please unpack the packing carefully, and check the contents against

the checklist. If any items are missing or damaged, please contact
your dealer immediately.

1-2

3

AV210 User’s Manual

2. Scanner Installation

Precautions

¡ Keep the scanner out of direct sunlight. Direct exposure to the

sun or excessive heat may cause damage to the unit.

¡ Do not install the scanner in a humid or dusty place.
¡ Be sure to use the proper AC power source.
¡ Place the scanner securely on an even, flat surface. Tilted or

uneven surfaces may cause mechanical or paper-feeding
problems.

¡ Retain the scanner box and packing materials for shipping

purposes.

2-1

2.1 Installing the ADF Paper Tray

1. Attach the ADF Paper Tray to the clip joint of the scanner as

indicated below. When properly insert, you will hear a snap-in
sound.

ADF Paper Tray

Scanner

Clip Joint

2-2

AV210 User’s Manual

Flatbed

2.2 Installing the ADF Output Paper Tray

1. Hold the Output paper tray some 30 degrees as shown in below.

2. Insert the right protrusion of the Output Paper Tray into the hole on

the front of the scanner.

3. Insert the left protrusion of the Output Paper Tray slightly into the

hole on the front of the scanner.

Scanner

Paper Tray

Output

Paper Tray

2-3

Hole

protrusion

2.3 Connecting the Cables

Make sure the power of scanner is off.

2.3.1 Connecting to Power

Plug the small end of the power adaptor into the power jack of your
scanner. Insert the other end to an appropriate power outlet.

Power Cable

2.3.2 Turning on the Power

After the power cable and the USB cable have all connected, press the
power switch to the “I” position to turn on the scanner. To turn off
the scanner, please press the power switch to the “O” position.

Power Switch

2-4

AV210 User’s Manual

2.4 Install the Software

NOTE:

1). The Windows system CD may be required when installing on some PC’s.

2). To ensure your computer can identify the USB scanner, please install

scanner driver first before connecting the scanner to your computer.

1. Place the supplied CD-ROM onto your CD-ROM drive.

2. The software installation graphic appears. If not, run

“cdsetup.exe”.

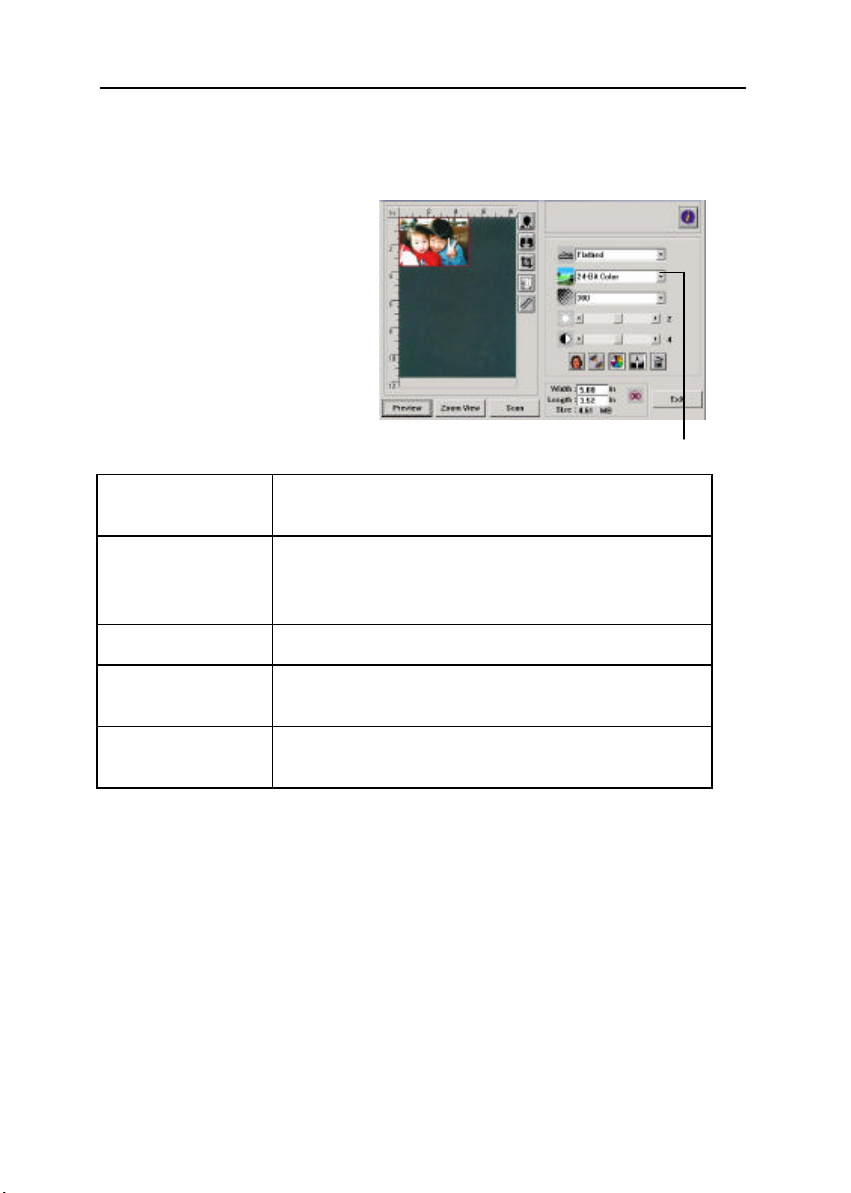

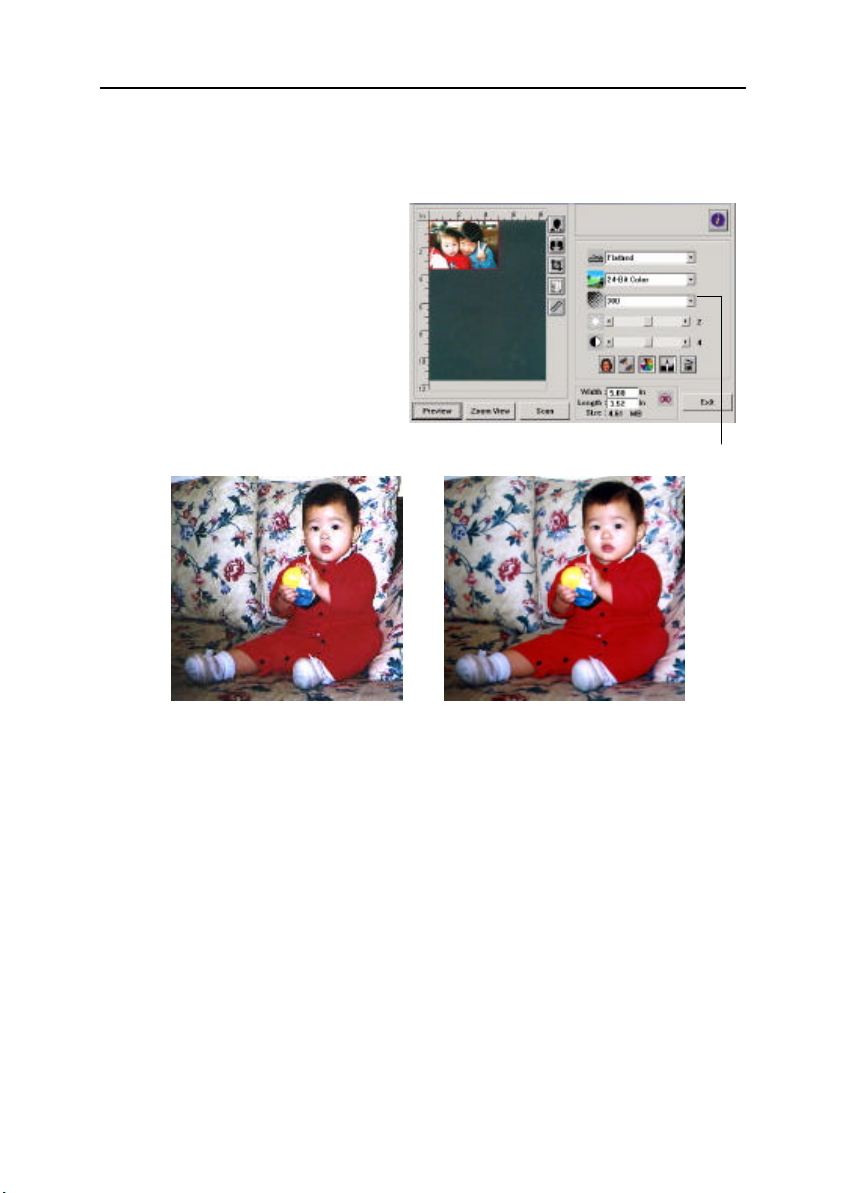

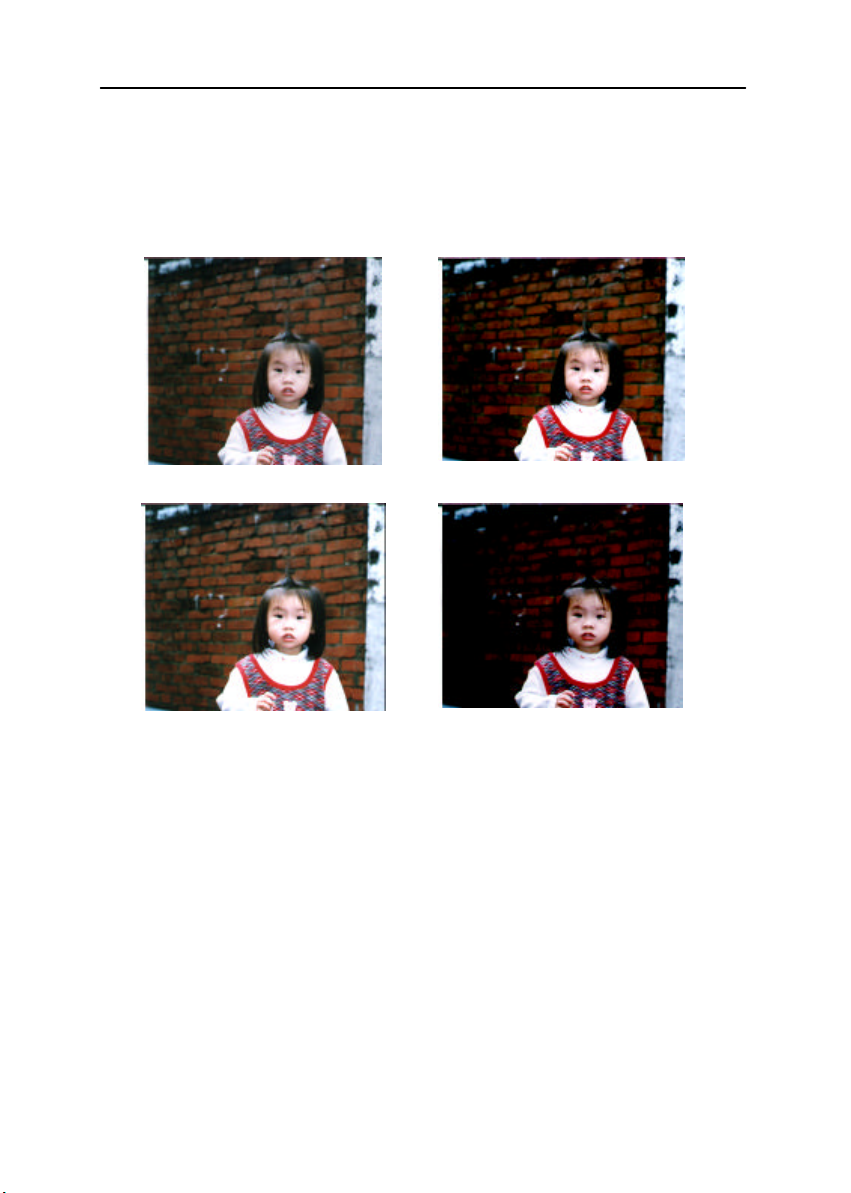

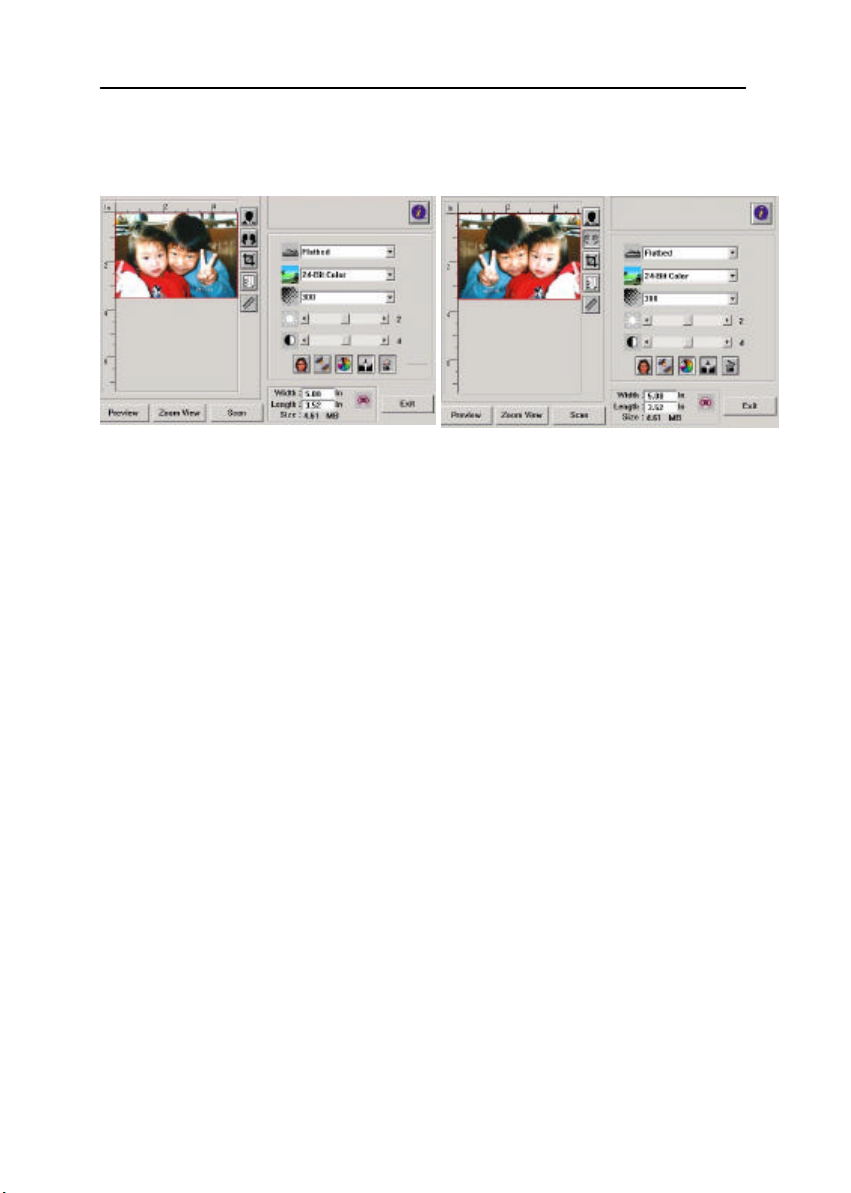

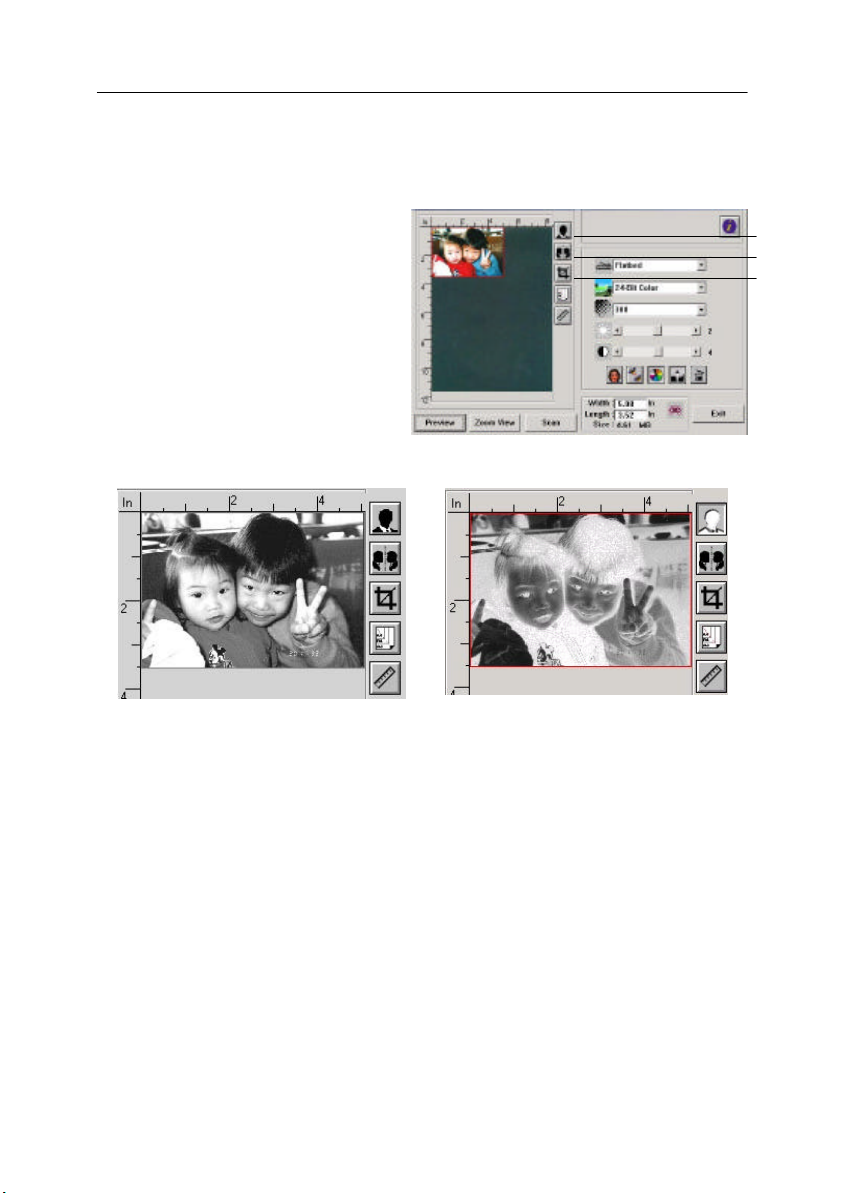

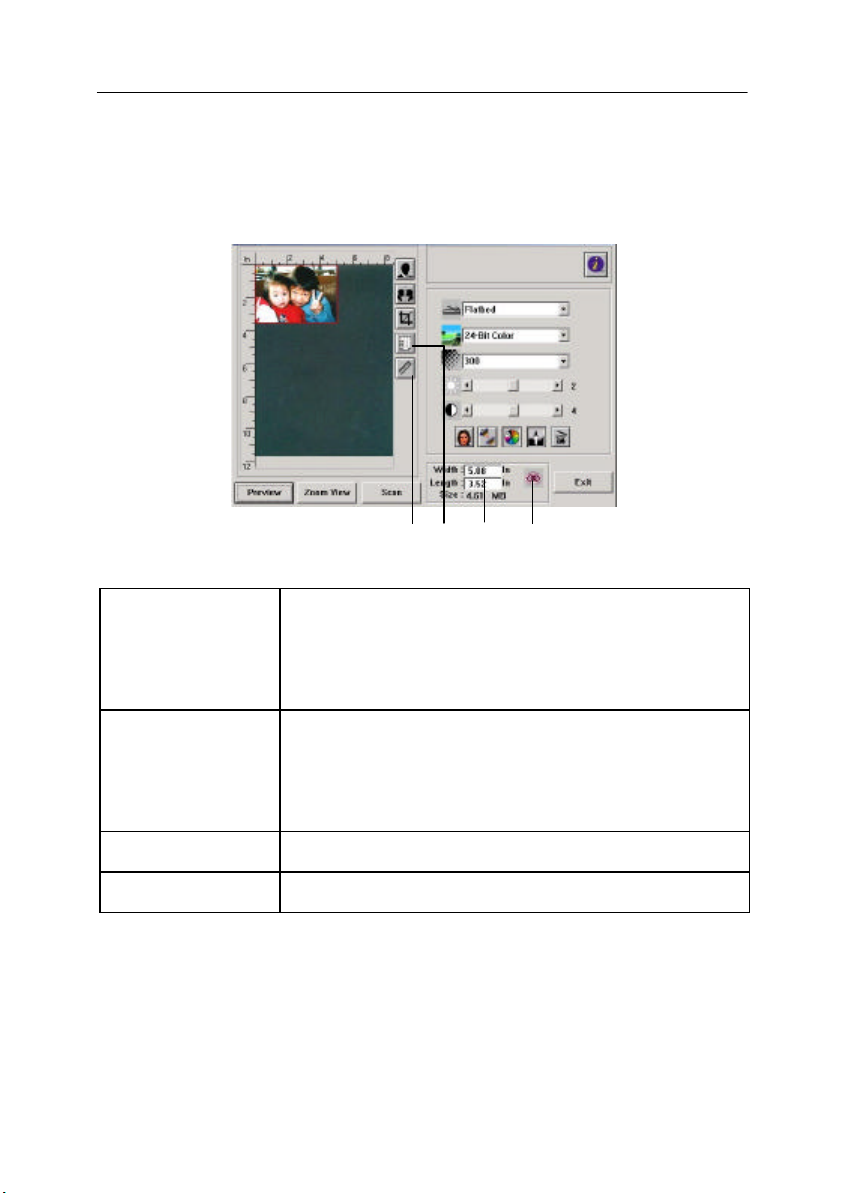

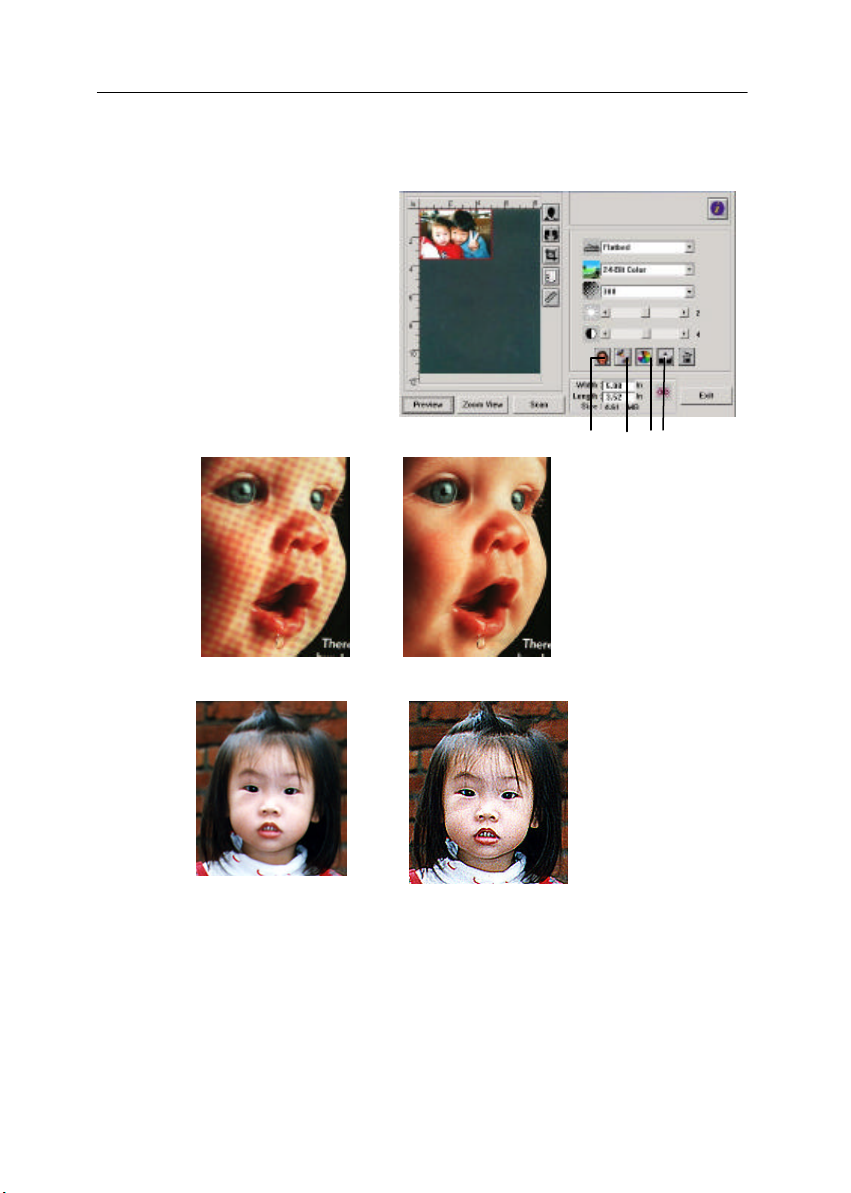

3. Choose Install TWAIN Driver to install the scanner driver.

2.5 Connecting to Computer

1. Connect the square end of the USB cable to the USB port of your

scanner. Connect the rectangle end to the USB port of your computer.

USB cable

2-5

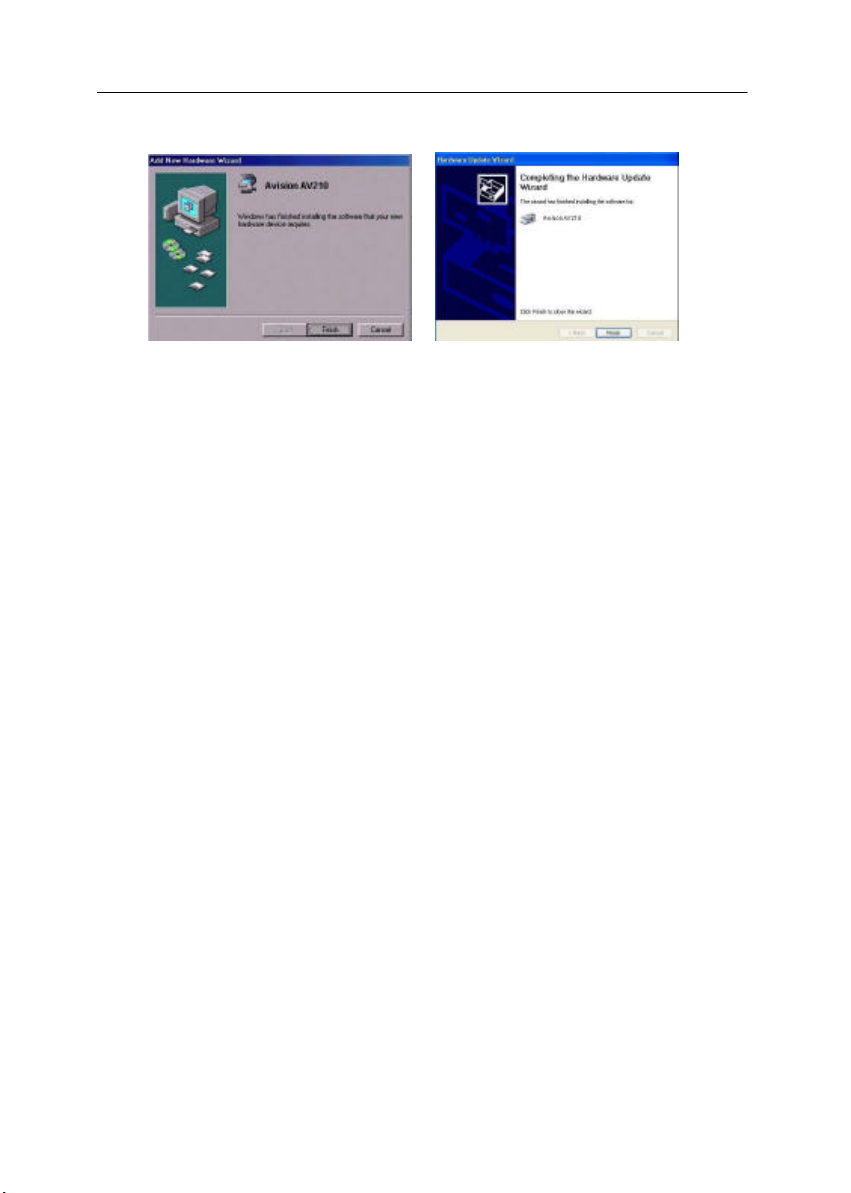

2. The computer should detect a new USB device and prompt a “New

Hardware Found” message.

(Windows 9X/Windows ME) (Windows 2000/XP)

3. In Windows 9X or Windows ME, confirm that the “Search for a

better driver.” is selected and click the “Next” button.

In Windows XP, click the Next button to continue. When the XP
certification screen appears, click Continue Anyway to complete the
installation.

2-6
