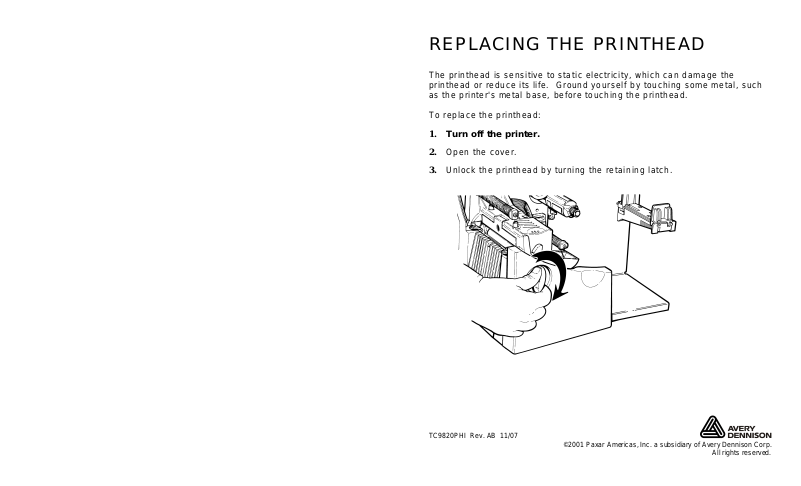

REPLACING THE PRINTHEAD

The printhead is sensitive to static electricity, which can damage the
printhead or reduce its life. Ground yourself by touching some metal, such
as the printer's metal base, before touching the printhead.

To replace the printhead:

1. Turn off the printer.

2. Open the cover.

3. Unlock the printhead by turning the retaining latch.

TC9820PHI Rev. AB 11/07
©2001 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp.

All rights reserved.

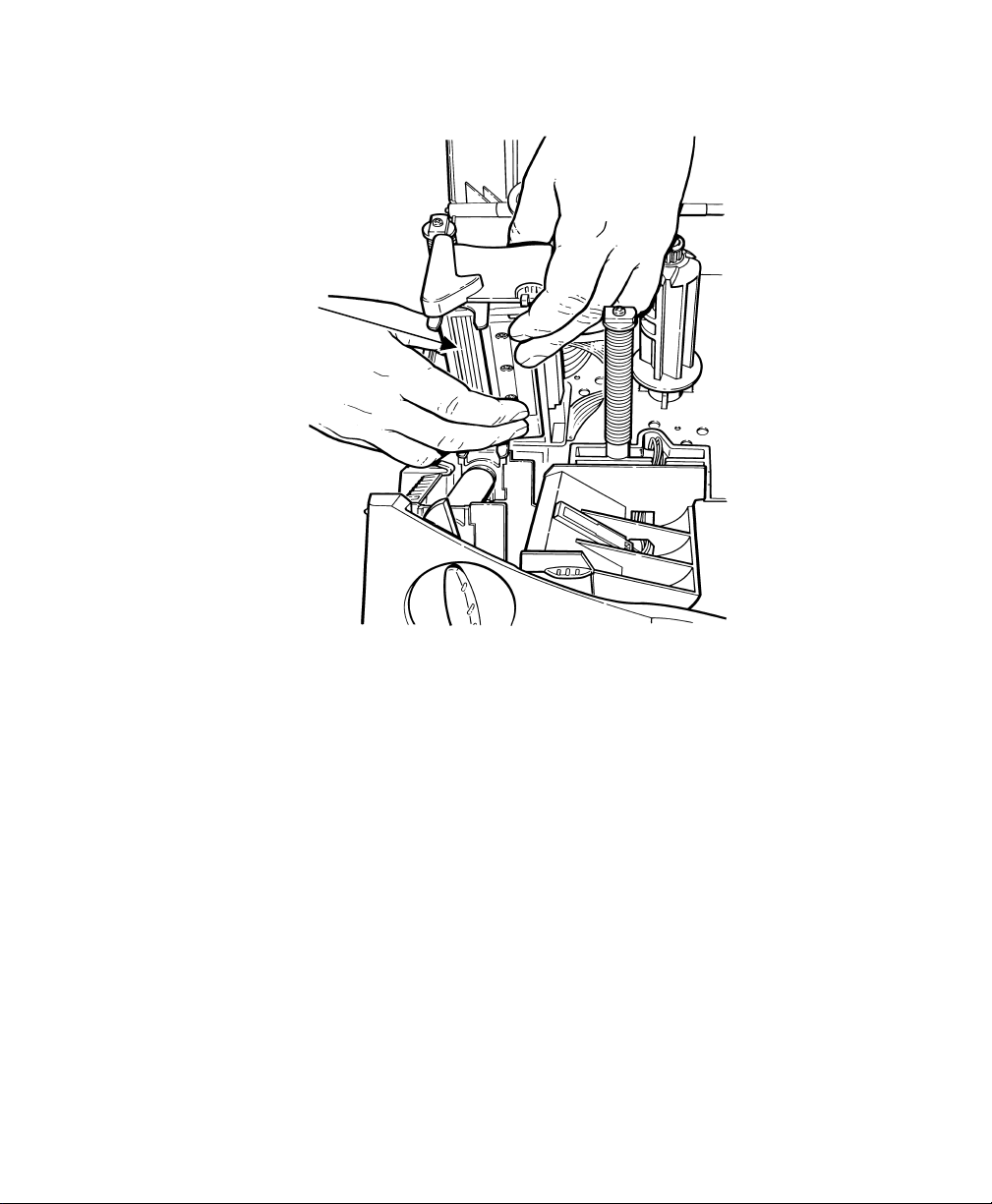

4. Press forward and down on the two latches on top of the printhead
assembly as shown. The printhead will drop out.

5. Lift the printhead assembly using the printhead tab and push back until
the printhead assembly clicks into place.
