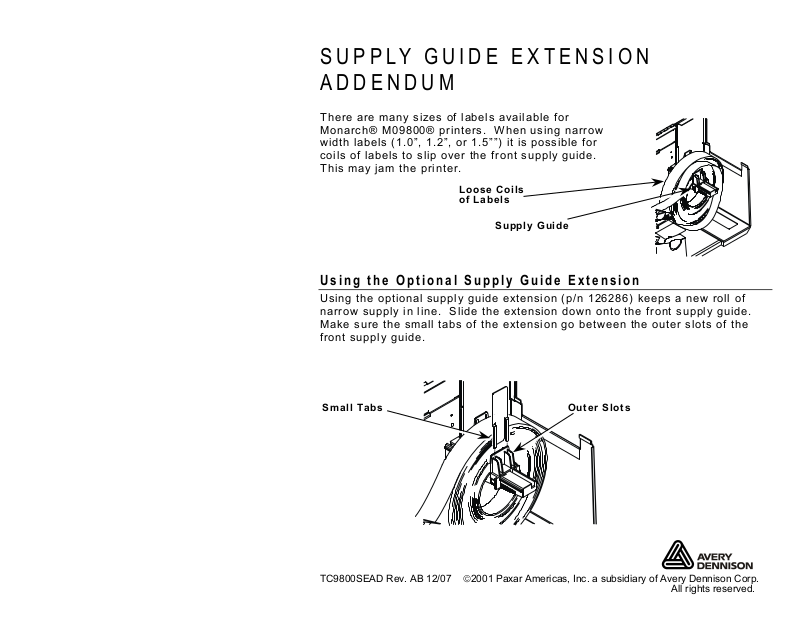

SUPPLY GUIDE EXTENSION
ADDENDUM

There are many sizes of labels available for
Monarch® M09800® printers. When using narrow
width labels (1.0”, 1.2”, or 1.5””) it is possible for
coils of labels to slip over the front supply guide.
This may jam the printer.

Loose Coils
of Labels

Supply Guide

Using the Optional Supply Guide Extension

Using the optional supply guide extension (p/n 126286) keeps a new roll of
narrow supply in line. Slide the extension down onto the front supply guide.
Make sure the small tabs of the extension go between the outer slots of the
front supply guide.

Outer SlotsSmall Tabs

TC9800SEAD Rev. AB 12/07 ©2001 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp.
All rights reserved.
