ATMEL ATmega640, ATmega640V, ATmega1280V, ATmega1281V, ATmega2560V User Manual

...

Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 135 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 16 MIPS Throughput at 16 MHz – On-Chip 2-cycle Multiplier

• Non-volatile Program and Data Memories

– 64K/128K/256K Bytes of In-System Self-Programmable Flash

Endurance: 10,000 Write/Erase Cycles

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program True Read-While-Write Operation

– 4K Bytes EEPROM

Endurance: 100,000 Write/Erase Cycles – 8K Bytes Internal SRAM – Up to 64K Bytes Optional External Memory Space – Programming Lock for Software Security

• JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard – Extensive On-chip Debug Support – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode – Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode – Real Time Counter with Separate Oscillator – Four 8-bit PWM Channels – Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits

(ATmega1281/2561, ATmega640/1280/2560) – Output Compare Modulator – 8/16-channel, 10-bit ADC (ATmega1281/2561, ATmega640/1280/2560) – Two/Four Programmable Serial USART (ATmega1281/2561,ATmega640/1280/2560) – Master/Slave SPI Serial Interface – Byte Oriented 2-wire Serial Interface – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator – Interrupt and Wake-up on Pin Change

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection – Internal Calibrated Oscillator – External and Internal Interrupt Sources – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,

and Extended Standby

• I/O and Packages

– 54/86 Programmable I/O Lines (ATmega1281/2561, ATmega640/1280/2560) – 64-pad QFN/MLF, 64-lead TQFP (ATmega1281/2561) – 100-lead TQFP, 100-ball CBGA (ATmega640/1280/2560) – RoHS/Fully Green

• Temperature Range:

–-40°C to 85°C Industrial

• Ultra-Low Power Consumption

– Active Mode: 1 MHz, 1.8V: 510 µA – Power-down Mode: 0.1 µA at 1.8V

• Speed Grade (see “Maximum speed vs. VCC” on page 377):

– ATmega640V/ATmega1280V/ATmega1281V:

0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega2560V/ATmega2561V:

0 - 2 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega640/ATmega1280/ATmega1281:

0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V

– ATmega2560/ATmega2561:

0 - 16 MHz @ 4.5 - 5.5V

8-Bit Microcontroller

8-bit

Microcontroller with 64K/128K/256K Bytes In-System Programmable Flash

ATmega640/V ATmega1280/V ATmega1281/V ATmega2560/V ATmega2561/V

Preliminary

2549K–AVR–01/07

Pin Configurations

Figure 1. TQFP-pinout ATmega640/1280/2560

8/PCINT16)

(OC0B) PG5

(RXD0/PCINT8) PE0

(TXD0) PE1

(XCK0/AIN0) PE2

(OC3A/AIN1) PE3

(OC3B/INT4) PE4

(OC3C/INT5) PE5

(T3/INT6) PE6

(CLKO/ICP3/INT7) PE7

VCC

GND

(RXD2) PH0

(TXD2) PH1

(XCK2) PH2

(OC4A) PH3

(OC4B) PH4

(OC4C) PH5

(OC2B) PH6

(SS/PCINT0) PB0

(SCK/PCINT1) PB1

(MOSI/PCINT2) PB2

(MISO/PCINT3) PB3

(OC2A/PCINT4) PB4

(OC1A/PCINT5) PB5

(OC1B/PCINT6) PB6

AVC

GND

AREF

PF1 (ADC1)

PF2 (ADC2)

PF3 (ADC3)

PF4 (ADC4/TCK)

PF0 (ADC0)

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 807978 77 76

100

26 28 29 3127 3630 32 35 3733 34 38 39 40 41 42 43 44 45 46 47 48 49 50

(T4) PH7

(TOSC2) PG3

INDEX CORNER

RESET

(TOSC1) PG4

PF5 (ADC5/TMS)

ATm ega640/1280/2560

VCC

GND

XTAL2

XTAL1

PK0 (ADC

PF6 (ADC6/TDO)

PF7 (ADC7/TDI)

(T5) PL2

(ICP4) PL0

(ICP5) PL1

PK1 (ADC9/PCINT17)

(OC5A) PL3

PK2 (ADC10/PCINT1

PK3 (ADC11/PCINT19)

PK4 (ADC12/PCINT20)

PK5 (ADC13/PCINT21)

PL6

PL7

(OC5B) PL4

(OC5C) PL5

INT23)

GND

PK6 (ADC14/PCINT22)

PK7 (ADC15/PC

(SCL/INT0) PD0

(SDA/INT1) PD1

(RXD1/INT2) PD2

PJ7

VCC

PA0 (AD0)

(ICP1) PD4

(XCK1) PD5

(TXD1/INT3) PD3

PA1 (AD1)

PA2 (AD2)

(T1) PD6

(T0) PD7

PA3 (AD3)

PA4 (AD4)

PA5 (AD5)

PA6 (AD6)

PA7 (AD7)

PG2 (ALE)

PJ6 (PCINT15)

PJ5 (PCINT14)

PJ4 (PCINT13)

PJ3 (PCINT12)

PJ2 (XCK3/PCINT11)

PJ1 (TXD3/PCINT10)

PJ0 (RXD3/PCINT9)

GND

VCC

PC7 (A15)

PC6 (A14)

PC5 (A13)

PC4 (A12)

PC3 (A11)

PC2 (A10)

PC1 (A9)

PC0 (A8)

PG1 (RD)

PG0 (WR)

(OC0A/OC1C/PCINT7) PB7

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Figure 2. CBGA-pinout ATmega640/1280/2560

1 2345678910

Top view

10987654321

Bottom view

Table 1. CBGA-pinout ATmega640/1280/2560.

12 345678910

A GND AREF PF0 PF2 PF5 PK0 PK3 PK6 GNDVCC

B AVCC PG5 PF1 PF3 PF6 PK1 PK4 PK7 PA0 PA2

C PE2 PE0 PE1 PF4 PF7 PK2 PK5 PJ7 PA1 PA3

D PE3 PE4 PE5 PE6 PH2 PA4 PA5 PA6 PA7 PG2

E PE7 PH0 PH1 PH3 PH5 PJ6 PJ5 PJ4 PJ3 PJ2

F VCC PH4 PH6 PB0 PL4 PD1 PJ1 PJ0 PC7 GND

G GND PB1 PB2 PB5 PL2 PD0 PD5 PC5 PC6 VCC

H PB3 PB4 RESET PL1 PL3 PL7 PD4 PC4 PC3 PC2

J PH7 PG3 PB6 PL0 XTAL2 PL6 PD3 PC1 PC0 PG1

K PB7 PG4 VCC GND XTAL1 PL5 PD2 PD6 PD7 PG0

2549K–AVR–01/07

Figure 3. Pinout ATmega1281/2561

AVCC

AREF

GND

PF0 (ADC0)

(OC0B) PG5

(RXD0/PCINT8/PDI) PE0

(TXD0/PDO) PE1

(XCK0/AIN0) PE2

(OC3A/AIN1) PE3

(OC3B/INT4) PE4

(OC3C/INT5) PE5

(T3/INT6) PE6

(ICP3/CLKO/INT7) PE7

(SS/PCINT0) PB0

(SCK/ PCINT1) PB1

(MOSI/ PCINT2) PB2

(MISO/ PCINT3) PB3

(OC2A/ PCINT4) PB4

(OC1A/PCINT5) PB5

(OC1B/PCINT6) PB6

PF1 (ADC1)

PF2 (ADC2)

INDEX CORNER

ATmega1281/2561

PF3 (ADC3)

PF5 (ADC5/TMS)

PF4 (ADC4/TCK)

PF6 (ADC6/TDO)

PF7 (ADC7/TDI)

GND

VCC

(AD1)

PA 1

PA0 (AD0)

(AD2)

PA 2

PA3 (AD3)

PA4 (AD4)

PA5 (AD5)

PA6 (AD6)

PA7 (AD7)

PG2 (ALE)

PC7 (A15)

PC6 (A14)

PC5 (A13)

PC4 (A12)

PC3 (A11)

PC2 (A10)

PC1 (A9)

PC0 (A8)

PG1 (RD)

PG0 (WR)

VCC

) PB7

PCINT7

(TOSC1) PG4

(TOSC2) PG3

(OC0A/OC1C/

RESET

GND

XTAL2

XTAL1

(SCL/INT0) PD0

(SDA/INT1) PD1

(TXD1/INT3) PD3

(RXD1/INT2) PD2

(ICP1) PD4

(XCK1) PD5

(T1) PD6

(T0) PD7

Note: The large center pad underneath the QFN/MLF package is made of metal and internally

connected to GND. It should be soldered or glued to the board to ensure good mechanical stability. If the center pad is left unconnected, the package might loosen from the board.

Disclaimer Typical values contained in this datasheet are based on simulations and characteriza-

tion of other AVR microcontrollers manufactured on the same process technology. Min. and Max values will be available after the device is characterized.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Overview

The ATmega640/1280/1281/2560/2561 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega640/1280/1281/2560/2561 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Block Diagram

Figure 4. Block Diagram

VCC

Powe r

RESET

GND

XTAL1

XTAL2

PA7..0

PG5..0 PORT G (6)

Supervision

POR / BOD &

RESET

Watchdog

Timer

Watchdog

Oscillator

Circuits /

Clock

Generation

PORT A (8)

PF7..0

PORT F (8)

JTAG

EEPROM

XRAM

PK7..0

PORT K (8)

A/D

Converter

Internal

Bandgap reference

CPU

SRAMFLASH

PJ7..0

PORT J (8)

Analog

Comparator

16bit T/C 3

16bit T/C 5

16bit T/C 4

16bit T/C 1

PE7..0

PORT E (8)

USART 0

USART 3

USART 1

PC7..0 PORT C (8)

2549K–AVR–01/07

NOTE:

Shaded parts only available in the 100-pin version.

Complete functionality for the ADC, T/C4, and T/C5 only available in the 100-pin version.

TWI SPI

PORT D (8)

PD7..0

PORT B (8)

PB7..0

8bit T/C 0 8bit T/C 2

PORT H (8)

PH7..0

USART 2

PORT L (8)

PL7..0

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATmega640/1280/1281/2560/2561 provides the following features: 64K/128K/256K bytes of In-System Programmable Flash with Read-While-Write capabilities, 4K bytes EEPROM, 8K bytes SRAM, 54/86 general purpose I/O lines, 32 general purpose working registers, Real Time Counter (RTC), six flexible Timer/Counters with compare modes and PWM, 4 USARTs, a byte oriented 2-wire Serial Interface, a 16-channel, 10bit ADC with optional differential input stage with programmable gain, programmable Watchdog Timer with Internal Oscillator, an SPI serial port, IEEE std. 1149.1 compliant JTAG test interface, also used for accessing the On-chip Debug system and programming and six software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or Hardware Reset. In Power-save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O modules except Asynchronous Timer and ADC, to minimize switching noise during ADC conversions. In Standby mode, the Crystal/Resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low power consumption. In Extended Standby mode, both the main Oscillator and the Asynchronous Timer continue to run.

The device is manufactured using Atmel’s high-density nonvolatile memory technology. The On-chip ISP Flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an On-chip Boot program running on the AVR core. The boot program can use any interface to download the application program in the application Flash memory. Software in the Boot Flash section will continue to run while the Application Flash section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel ATmega640/1280/1281/2560/2561 is a powerful microcontroller that provides a highly flexible and cost effective solution to many embedded control applications.

The ATmega640/1280/1281/2560/2561 AVR is supported with a full suite of program and system development tools including: C compilers, macro assemblers, program debugger/simulators, in-circuit emulators, and evaluation kits.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Comparison Between ATmega1281/2561 and ATmega640/1280/2560

Each device in the ATmega640/1280/1281/2560/2561 family differs only in memory size and number of pins. Table 2 summarizes the different configurations for the six devices.

Table 2. Configuration Summary

General

Device Flash EEPROM RAM

ATmega640 64KB 4KB 8KB 86 12 4 16

ATmega1280 128KB 4KB 8KB 86 12 4 16

ATmega1281 128KB 4KB 8KB 54 6 2 8

ATmega2560 256KB 4KB 8KB 86 12 4 16

ATmega2561 256KB 4KB 8KB 54 6 2 8

Purpose I/O pins

16 bits resolution

PWM channels

Serial

USARTs

ADC

Channels

Pin Descriptions

VCC Digital supply voltage.

GND Ground.

Port A (PA7..PA0) Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up resistors are activated. The Port A pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port A also serves the functions of various special features of the ATmega640/1280/1281/2560/2561 as listed on page 91.

Port B (PB7..PB0) Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port B has better driving capabilities than the other ports.

Port B also serves the functions of various special features of the ATmega640/1280/1281/2560/2561 as listed on page 92.

Port C (PC7..PC0) Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port C output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port C also serves the functions of special features of the ATmega640/1280/1281/2560/2561 as listed on page 95.

Port D (PD7..PD0) Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source

2549K–AVR–01/07

current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATmega640/1280/1281/2560/2561 as listed on page 97.

Port E (PE7..PE0) Port E is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port E output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port E pins that are externally pulled low will source current if the pull-up resistors are activated. The Port E pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port E also serves the functions of various special features of the ATmega640/1280/1281/2560/2561 as listed on page 99.

Port F (PF7..PF0) Port F serves as analog inputs to the A/D Converter.

Port F also serves as an 8-bit bi-directional I/O port, if the A/D Converter is not used. Port pins can provide internal pull-up resistors (selected for each bit). The Port F output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port F pins that are externally pulled low will source current if the pull-up resistors are activated. The Port F pins are tri-stated when a reset condition becomes active, even if the clock is not running. If the JTAG interface is enabled, the pull-up resistors on pins PF7(TDI), PF5(TMS), and PF4(TCK) will be activated even if a reset occurs.

Port F also serves the functions of the JTAG interface.

Port G (PG5..PG0) Port G is a 6-bit I/O port with internal pull-up resistors (selected for each bit). The Port G

output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port G pins that are externally pulled low will source current if the pull-up resistors are activated. The Port G pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port G also serves the functions of various special features of the ATmega640/1280/1281/2560/2561 as listed on page 105.

Port H (PH7..PH0) Port H is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port H output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port H pins that are externally pulled low will source current if the pull-up resistors are activated. The Port H pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port H also serves the functions of various special features of the ATmega640/1280/2560 as listed on page 107.

Port J (PJ7..PJ0) Port J is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port J output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port J pins that are externally pulled low will source current if the pull-up resistors are activated. The Port J pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port J also serves the functions of various special features of the ATmega640/1280/2560 as listed on page 109.

Port K (PK7..PK0) Port K serves as analog inputs to the A/D Converter.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Port K is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port K output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port K pins that are externally pulled low will source current if the pull-up resistors are activated. The Port K pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port K also serves the functions of various special features of the ATmega640/1280/2560 as listed on page 111.

Port L (PL7..PL0) Port L is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

bit). The Port L output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port L pins that are externally pulled low will source current if the pull-up resistors are activated. The Port L pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port L also serves the functions of various special features of the ATmega640/1280/2560 as listed on page 113.

RESET

XTAL1 Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

XTAL2 Output from the inverting Oscillator amplifier.

AVCC AVCC is the supply voltage pin for Port F and the A/D Converter. It should be externally

AREF This is the analog reference pin for the A/D Converter.

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in Table 26 on page 58. Shorter pulses are not guaranteed to generate a reset.

connected to V nected to V

, even if the ADC is not used. If the ADC is used, it should be con-

through a low-pass filter.

Resources

A comprehensive set of development tools and application notes, and datasheets are available for download on http://www.atmel.com/avr.

About Code Examples

This documentation contains simple code examples that briefly show how to use various parts of the device. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

2549K–AVR–01/07

These code examples assume that the part specific header file is included before compilation. For I/O registers located in extended I/O map, "IN", "OUT", "SBIS", "SBIC", "CBI", and "SBI" instructions must be replaced with instructions that allow access to extended I/O. Typically "LDS" and "STS" combined with "SBRS", "SBRC", "SBR", and "CBR".

AVR CPU Core

Introduction This section discusses the AVR core architecture in general. The main function of the

CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

Architectural Overview Figure 5. Block Diagram of the AVR Architecture

Data Bus 8-bit

Flash

Program

Memory

Instruction

Decoder

Control Lines

Program

Counter

Direct Addressing

Status

and Control

32 x 8 General Purpose

Registrers

ALU

Indirect Addressing

Data

SRAM

EEPROM

Interrupt

Unit

SPI

Unit

Watchdog

Timer

Analog

Comparator

I/O Module1

I/O Module 2

I/O Module n

I/O Lines

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the program memory. This concept enables instructions to be executed in every clock cycle. The program memory is InSystem Reprogrammable Flash memory.

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two operands are output from the Register File,

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

the operation is executed, and the result is stored back in the Register File – in one clock cycle.

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing – enabling efficient address calculations. One of the these address pointers can also be used as an address pointer for look up tables in Flash program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the ALU. After an arithmetic operation, the Status Register is updated to reflect information about the result of the operation.

Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every program memory address contains a 16- or 32-bit instruction.

Program Flash memory space is divided in two sections, the Boot Program section and the Application Program section. Both sections have dedicated Lock bits for write and read/write protection. The SPM instruction that writes into the Application Flash memory section must reside in the Boot Program section.

During interrupts and subroutine calls, the return address Program Counter (PC) is stored on the Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the Reset routine (before subroutines or interrupts are executed). The Stack Pointer (SP) is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps.

A flexible interrupt module has its control registers in the I/O space with an additional Global Interrupt Enable bit in the Status Register. All interrupts have a separate Interrupt Vector in the Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, SPI, and other I/O functions. The I/O Memory can be accessed directly, or as the Data Space locations following those of the Register File, 0x20 - 0x5F. In addition, the ATmega640/1280/1281/2560/2561 has Extended I/O space from 0x60 - 0x1FF in SRAM where only the ST/STS/STD and LD/LDS/LDD instructions can be used.

ALU – Arithmetic Logic Unit

The high-performance AVR ALU operates in direct connection with all the 32 general purpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed. The ALU operations are divided into three main categories – arithmetic, logical, and bit-functions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

Status Register The Status Register contains information about the result of the most recently executed

arithmetic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Reference. This will in many cases

2549K–AVR–01/07

remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

The Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt. This must be handled by software.

SREG – AVR Status Register The AVR Status Register – SREG – is defined as:

Bit 76543210

0x3F (0x5F) I T H S V N Z C SREG

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The Ibit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry Is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

⊕ V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the “Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

General Purpose Register File

The Register File is optimized for the AVR Enhanced RISC instruction set. In order to achieve the required performance and flexibility, the following input/output schemes are supported by the Register File:

• One 8-bit output operand and one 8-bit result input

• Two 8-bit output operands and one 8-bit result input

• Two 8-bit output operands and one 16-bit result input

• One 16-bit output operand and one 16-bit result input

Figure 6 shows the structure of the 32 general purpose working registers in the CPU.

Figure 6. AVR CPU General Purpose Working Registers

7 0 Addr.

R0 0x00

R1 0x01

R2 0x02

…

R13 0x0D

General R14 0x0E

Purpose R15 0x0F

Working R16 0x10

Registers R17 0x11

…

R26 0x1A X-register Low Byte

R27 0x1B X-register High Byte

R28 0x1C Y-register Low Byte

R29 0x1D Y-register High Byte

R30 0x1E Z-register Low Byte

R31 0x1F Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

As shown in Figure 6 on page 13, each register is also assigned a data memory address, mapping them directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y- and Z-pointer registers can be set to index any register in the file.

2549K–AVR–01/07

The X-register, Y-register, and Z-register

The registers R26..R31 have some added functions to their general purpose usage. These registers are 16-bit address pointers for indirect addressing of the data space. The three indirect address registers X, Y, and Z are defined as described in Figure 7.

Figure 7. The X-, Y-, and Z-registers

15 XH XL 0

X-register 707 0

R27 (0x1B) R26 (0x1A)

15 YH YL 0

Y-register 707 0

R29 (0x1D) R28 (0x1C)

15 ZH ZL 0

Z-register 70 7 0

R31 (0x1F) R30 (0x1E)

In the different addressing modes these address registers have functions as fixed displacement, automatic increment, and automatic decrement (see the instruction set reference for details).

Stack Pointer The Stack is mainly used for storing temporary data, for storing local variables and for

storing return addresses after interrupts and subroutine calls. The Stack Pointer Register always points to the top of the Stack. Note that the Stack is implemented as growing from higher memory locations to lower memory locations. This implies that a Stack PUSH command decreases the Stack Pointer.

The Stack Pointer points to the data SRAM Stack area where the Subroutine and Interrupt Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above 0x0200. The initial value of the stack pointer is the last address of the internal SRAM. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two for ATmega640/1280/1281 and three for ATmega2560/2561 when the return address is pushed onto the Stack with subroutine call or interrupt. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instruction, and it is incremented by two for ATmega640/1280/1281 and three for ATmega2560/2561 when data is popped from the Stack with return from subroutine RET or return from interrupt RETI.

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The number of bits actually used is implementation dependent. Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present.

Bit 151413121110 9 8

0x3E (0x5E) SP15 SP14 SP13 SP12 SP11 SP10 SP9 SP8 SPH

0x3D (0x5D) SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 SPL

76543210

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 1 0 0 0 0 1

11111111

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

RAMPZ – Extended Z-pointer Register for ELPM/SPM

ATmega640/1280/1281/2560/2561

Bit 765432 1 0

0x3B (0x5B)

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value000000 0 0

For ELPM/SPM instructions, the Z-pointer is a concatenation of RAMPZ, ZH, and ZL, as shown in Figure 8. Note that LPM is not affected by the RAMPZ setting.

Figure 8. The Z-pointer used by ELPM and SPM

RAMPZ7 RAMPZ6 RAMPZ5 RAMPZ4 RAMPZ3 RAMPZ2 RAMPZ1 RAMPZ0

RAMPZ

EIND – Extended Indirect Register

Bit ( Individually)

Bit (Z-pointer) 23 16 15 8 7 0

707070

RAMPZ ZH ZL

The actual number of bits is implementation dependent. Unused bits in an implementation will always read as zero. For compatibility with future devices, be sure to write these bits to zero.

Bit 765432 1 0

0x3C (0x5C) EIND7 EIND6 EIND5 EIND4 EIND3 EIND2 EIND1 EIND0 EIND

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value000000 0 0

For EICALL/EIJMP instructions, the Indirect-pointer to the subroutine/routine is a concatenation of EIND, ZH, and ZL, as shown in Figure 9. Note that ICALL and IJMP are not affected by the EIND setting.

Figure 9. The Indirect-pointer used by EICALL and EIJMP

Bit (Individually)

Bit (Indirectpointer)

707070

EIND ZH ZL

23 16 15 8 7 0

2549K–AVR–01/07

The actual number of bits is implementation dependent. Unused bits in an implementation will always read as zero. For compatibility with future devices, be sure to write these bits to zero.

Instruction Execution Timing

This section describes the general access timing concepts for instruction execution. The AVR CPU is driven by the CPU clock clk

, directly generated from the selected clock

CPU

source for the chip. No internal clock division is used.

Figure 10 shows the parallel instruction fetches and instruction executions enabled by the Harvard architecture and the fast-access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 10. The Parallel Instruction Fetches and Instruction Executions

T1 T2 T3 T4

clk

CPU

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

Figure 11 shows the internal timing concept for the Register File. In a single clock cycle an ALU operation using two register operands is executed, and the result is stored back to the destination register.

Figure 11. Single Cycle ALU Operation

T1 T2 T3 T4

clk

CPU

Total Execution Time

ALU Operation Execute

Result Write Back

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Reset and Interrupt Handling

The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate program vector in the program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt Enable bit in the Status Register in order to enable the interrupt. Depending on the Program Counter value, interrupts may be automatically disabled when Boot Lock bits BLB02 or BLB12 are programmed. This feature improves software security. See the section “Memory Programming” on page 342 for details.

The lowest addresses in the program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in “Interrupts” on page 69. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request 0. The Interrupt Vectors can be moved to the start of the Boot Flash section by setting the IVSEL bit in the MCU Control Register (MCUCR). Refer to “Interrupts” on page 69 for more information. The Reset Vector can also be moved to the start of the Boot Flash section by programming the BOOTRST Fuse, see “Memory Programming” on page 342.

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the Interrupt Flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding Interrupt Flag. Interrupt Flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.

2549K–AVR–01/07

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Interrupt Flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be handled by software.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction, even if it occurs simulta-

neously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence.

Assembly Code Example

in r16, SREG ; store SREG value

cli ; disable interrupts during timed sequence

sbi EECR, EEMPE ; start EEPROM write

sbi EECR, EEPE

out SREG, r16 ; restore SREG value (I-bit)

C Code Example

char cSREG;

cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

__disable_interrupt();

EECR |= (1<<EEMPE); /* start EEPROM write */

EECR |= (1<<EEPE);

SREG = cSREG; /* restore SREG value (I-bit) */

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in this example.

Assembly Code Example

sei ; set Global Interrupt Enable

sleep ; enter sleep, waiting for interrupt

; note: will enter sleep before any pending

; interrupt(s)

C Code Example

__enable_interrupt(); /* set Global Interrupt Enable */

__sleep(); /* enter sleep, waiting for interrupt */

/* note: will enter sleep before any pending interrupt(s) */

Interrupt Response Time The interrupt execution response for all the enabled AVR interrupts is five clock cycles

minimum. After five clock cycles the program vector address for the actual interrupt handling routine is executed. During these five clock cycle period, the Program Counter is pushed onto the Stack. The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by five clock cycles. This increase comes in addition to the start-up time from the selected sleep mode.

A return from an interrupt handling routine takes five clock cycles. During these five clock cycles, the Program Counter (three bytes) is popped back from the Stack, the Stack Pointer is incremented by three, and the I-bit in SREG is set.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

AVR Memor ies

ATmega640/1280/1281/2560/2561

This section describes the different memories in the ATmega640/1280/1281/2560/2561. The AVR architecture has two main memory spaces, the Data Memory and the Program Memory space. In addition, the ATmega640/1280/1281/2560/2561 features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

In-System Reprogrammable Flash Program Memory

The ATmega640/1280/1281/2560/2561 contains 64K/128K/256K bytes On-chip In-System Reprogrammable Flash memory for program storage, see Table 3 on page 19. Since all AVR instructions are 16 or 32 bits wide, the Flash is organized as 32K/64K/128K x 16. For software security, the Flash Program memory space is divided into two sections, Boot Program section and Application Program section.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATmega640/1280/1281/2560/2561 Program Counter (PC) is 15/16/17 bits wide, thus addressing the 32K/64K/128K program memory locations. The operation of Boot Program section and associated Boot Lock bits for software protection are described in detail in “Boot Loader Support – Read-While-Write Self-Programming” on page 323. “Memory Programming” on page 342 contains a detailed description on Flash data serial downloading using the SPI pins or the JTAG interface.

Constant tables can be allocated within the entire program memory address space (see the LPM – Load Program Memory instruction description and ELPM - Extended Load Program Memory instruction description).

Timing diagrams for instruction fetch and execution are presented in “Instruction Execution Timing” on page 16.

Table 3. Program Flash Memory Map

Address (HEX)

Application Flash Section

2549K–AVR–01/07

0x7FFF/0xFFFF/0x1FFFF

Boot Flash Section

SRAM Data Memory Table 4 on page 21 shows how the ATmega640/1280/1281/2560/2561 SRAM Memory

is organized.

The ATmega640/1280/1281/2560/2561 is a complex microcontroller with more peripheral units than can be supported within the 64 location reserved in the Opcode for the IN and OUT instructions. For the Extended I/O space from $060 - $1FF in SRAM, only the ST/STS/STD and LD/LDS/LDD instructions can be used.

The first 4,608/8,704 Data Memory locations address both the Register File, the I/O Memory, Extended I/O Memory, and the internal data SRAM. The first 32 locations address the Register file, the next 64 location the standard I/O Memory, then 416 locations of Extended I/O memory and the next 8,192 locations address the internal data SRAM.

An optional external data SRAM can be used with the ATmega640/1280/1281/2560/2561. This SRAM will occupy an area in the remaining address locations in the 64K address space. This area starts at the address following the internal SRAM. The Register file, I/O, Extended I/O and Internal SRAM occupies the lowest 4,608/8,704 bytes, so when using 64KB (65,536 bytes) of External Memory, 60,478/56,832 Bytes of External Memory are available. See “External Memory Interface” on page 26 for details on how to take advantage of the external memory map.

When the addresses accessing the SRAM memory space exceeds the internal data memory locations, the external data SRAM is accessed using the same instructions as for the internal data memory access. When the internal data memories are accessed, the read and write strobe pins (PG0 and PG1) are inactive during the whole access cycle. External SRAM operation is enabled by setting the SRE bit in the XMCRA Register.

Accessing external SRAM takes one additional clock cycle per byte compared to access of the internal SRAM. This means that the commands LD, ST, LDS, STS, LDD, STD, PUSH, and POP take one additional clock cycle. If the Stack is placed in external SRAM, interrupts, subroutine calls and returns take three clock cycles extra because the three-byte program counter is pushed and popped, and external memory access does not take advantage of the internal pipe-line memory access. When external SRAM interface is used with wait-state, one-byte external access takes two, three, or four additional clock cycles for one, two, and three wait-states respectively. Interrupts, subroutine calls and returns will need five, seven, or nine clock cycles more than specified in the instruction set manual for one, two, and three wait-states.

The five different addressing modes for the data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register file, registers R26 to R31 feature the indirect addressing pointer registers.

The direct addressing reaches the entire data space.

The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-register.

When using register indirect addressing modes with automatic pre-decrement and postincrement, the address registers X, Y, and Z are decremented or incremented.

The 32 general purpose working registers, 64 I/O registers, and the 4,196/8,192 bytes of internal data SRAM in the ATmega640/1280/1281/2560/2561 are all accessible through

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

all these addressing modes. The Register File is described in “General Purpose Register File” on page 13.

Table 4. Data Memory Map

Address (HEX)

0 - 1F 32 Registers

20 - 5F 64 I/O Registers

60 - 1FF

200

21FF

2200

FFFF

416 External I/O Registers

Internal SRAM

(8192 x 8)

External SRAM

(0 - 64K x 8)

Data Memory Access Times This section describes the general access timing concepts for internal memory access.

The internal data SRAM access is performed in two clk

cycles as described in Figure

CPU

12.

Figure 12. On-chip Data SRAM Access Cycles

T1 T2 T3

clk

CPU

Address

Compute Address

Address valid

Data

Write

2549K–AVR–01/07

Data

Memory Access Instruction

Read

Next Instruction

EEPROM Data Memory The ATmega640/1280/1281/2560/2561 contains 4K bytes of data EEPROM memory. It

is organized as a separate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and the EEPROM Control Register.

For a detailed description of SPI, JTAG and Parallel data downloading to the EEPROM, see “Serial Downloading” on page 356, “Programming via the JTAG Interface” on page 361, and “Programming the EEPROM” on page 350 respectively.

EEPROM Read/Write Access The EEPROM Access Registers are accessible in the I/O space, see “Register Descrip-

tion” on page 32.

The write access time for the EEPROM is given in Table 5 on page 22. A self-timing function, however, lets the user software detect when the next byte can be written. If the user code contains instructions that write the EEPROM, some precautions must be taken. In heavily filtered power supplies, V up/down. This causes the device for some period of time to run at a voltage lower than specified as minimum for the clock frequency used. See “Preventing EEPROM Corruption” on page 24. for details on how to avoid problems in these situations.

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed. See the description of the EEPROM Control Register for details on this, “Register Description” on page 32.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

is likely to rise or fall slowly on power-

The calibrated Oscillator is used to time the EEPROM accesses. Table 5 lists the typical programming time for EEPROM access from the CPU.

Table 5. EEPROM Programming Time

Symbol Number of Calibrated RC Oscillator Cycles Typ Programming Time

EEPROM write (from CPU)

The following code examples show one assembly and one C function for writing to the EEPROM. The examples assume that interrupts are controlled (e.g. by disabling interrupts globally) so that no interrupts will occur during execution of these functions. The examples also assume that no Flash Boot Loader is present in the software. If such code is present, the EEPROM write function must also wait for any ongoing SPM command to finish.

26,368 3.3 ms

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_write

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Write data (r16) to Data Register

out EEDR,r16

; Write logical one to EEMPE

sbi EECR,EEMPE

; Start eeprom write by setting EEPE

sbi EECR,EEPE

ret

C Code Example

void EEPROM_write(unsigned int uiAddress, unsigned char ucData)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address and Data Registers */

EEAR = uiAddress;

EEDR = ucData;

/* Write logical one to EEMPE */

EECR |= (1<<EEMPE);

/* Start eeprom write by setting EEPE */

EECR |= (1<<EEPE);

}

(1)

()

2549K–AVR–01/07

Note: 1. See “About Code Examples” on page 9.

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_read

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Start eeprom read by writing EERE

sbi EECR,EERE

; Read data from Data Register

in r16,EEDR

ret

C Code Example

unsigned char EEPROM_read(unsigned int uiAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address register */

EEAR = uiAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from Data Register */

return EEDR;

}

(1)

Preventing EEPROM Corruption

ATmega640/1280/1281/2560/2561

Note: 1. See “About Code Examples” on page 9.

During periods of low V

the EEPROM data can be corrupted because the supply volt-

CC,

age is too low for the CPU and the EEPROM to operate properly. These issues are the same as for board level systems using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

EEPROM data corruption can easily be avoided by following this design recommendation:

Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can be done by enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V

reset Protection circuit can be used. If a reset occurs while a write operation is in

progress, the write operation will be completed provided that the power supply voltage is sufficient.

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

I/O Memory The I/O space definition of the ATmega640/1280/1281/2560/2561 is shown in “Register

Summary” on page 416.

All ATmega640/1280/1281/2560/2561 I/Os and peripherals are placed in the I/O space. All I/O locations may be accessed by the LD/LDS/LDD and ST/STS/STD instructions, transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 0x3F must be used. When addressing I/O Registers as data space using LD and ST instructions, 0x20 must be added to these addresses. The ATmega640/1280/1281/2560/2561 is a complex microcontroller with more peripheral units than can be supported within the 64 location reserved in Opcode for the IN and OUT instructions. For the Extended I/O space from 0x60 - 0x1FF in SRAM, only the ST/STS/STD and LD/LDS/LDD instructions can be used.

For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

Some of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI instructions will only operate on the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

The I/O and peripherals control registers are explained in later sections.

General Purpose I/O Registers The ATmega640/1280/1281/2560/2561 contains three General Purpose I/O Registers.

These registers can be used for storing any information, and they are particularly useful for storing global variables and Status Flags. General Purpose I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI, CBI, SBIS, and SBIC instructions. See “Register Description” on page 32.

2549K–AVR–01/07

External Memory Interface

With all the features the External Memory Interface provides, it is well suited to operate as an interface to memory devices such as External SRAM and Flash, and peripherals such as LCD-display, A/D, and D/A. The main features are:

•

Four different wait-state settings (including no wait-state).

• Independent wait-state setting for different External Memory sectors (configurable sector

size)

• The number of bits dedicated to address high byte is selectable

• Bus keepers on data lines to minimize current consumption (optional)

Overview When the eXternal MEMory (XMEM) is enabled, address space outside the internal

SRAM becomes available using the dedicated External Memory pins (see Figure 3 on page 4, Table 39 on page 91, Table 45 on page 95, and Table 57 on page 105). The memory configuration is shown in Figure 13.

Figure 13. External Memory with Sector Select

Memory Configuration A

0x0000

Internal memory

0x21FF

Lower sector

SRW01 SRW00

0x2200

Using the External Memory Interface

SRL[2..0]

External Memory

(0-60K x 8)

Upper sector

SRW11 SRW10

0xFFFF

The interface consists of:

• AD7:0: Multiplexed low-order address bus and data bus.

• A15:8: High-order address bus (configurable number of bits).

• ALE: Address latch enable.

•RD

• WR

: Read strobe.

: Write strobe.

The control bits for the External Memory Interface are located in two registers, the External Memory Control Register A – XMCRA, and the External Memory Control Register B – XMCRB.

When the XMEM interface is enabled, the XMEM interface will override the setting in the data direction registers that corresponds to the ports dedicated to the XMEM interface.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

For details about the port override, see the alternate functions in section “I/O-Ports” on page 83. The XMEM interface will auto-detect whether an access is internal or external. If the access is external, the XMEM interface will output address, data, and the control signals on the ports according to Figure 15 (this figure shows the wave forms without wait-states). When ALE goes from high-to-low, there is a valid address on AD7:0. ALE is low during a data transfer. When the XMEM interface is enabled, also an internal access will cause activity on address, data and ALE ports, but the RD toggle during internal access. When the External Memory Interface is disabled, the normal pin and data direction settings are used. Note that when the XMEM interface is disabled, the address space above the internal SRAM boundary is not mapped into the internal SRAM. Figure 14 illustrates how to connect an external SRAM to the AVR using an octal latch (typically “74 x 573” or equivalent) which is transparent when G is high.

Address Latch Requirements Due to the high-speed operation of the XRAM interface, the address latch must be

selected with care for system frequencies above 8 MHz @ 4V and 4 MHz @ 2.7V. When operating at conditions above these frequencies, the typical old style 74HC series latch becomes inadequate. The External Memory Interface is designed in compliance to the 74AHC series latch. However, most latches can be used as long they comply with the main timing parameters. The main parameters for the address latch are:

• D to Q propagation delay (t

• Data setup time before G low (t

• Data (address) hold time after G low (

The External Memory Interface is designed to guaranty minimum address hold time after G is asserted low of t

= 5 ns. Refer to t

LAXX_LD/tLLAXX_ST

Timing” Tables 173 through Tables 180 on pages 385 - 387. The D-to-Q propagation delay (t

) must be taken into consideration when calculating the access time require-

ment of the external component. The data setup time before G low (t exceed address valid to ALE low (t

) minus PCB wiring delay (dependent on the

AVLLC

capacitive load).

and WR strobes will not

in “External Data Memory

) must not

Figure 14. External SRAM Connected to the AVR

AVR

AD7:0

ALE

A15:8

SRAM

D[7:0]

A[7:0]

A[15:8]

2549K–AVR–01/07

Pull-up and Bus-keeper The pull-ups on the AD7:0 ports may be activated if the corresponding Port register is

written to one. To reduce power consumption in sleep mode, it is recommended to disable the pull-ups by writing the Port register to zero before entering sleep.

The XMEM interface also provides a bus-keeper on the AD7:0 lines. The bus-keeper can be disabled and enabled in software as described in “XMCRB – External Memory Control Register B” on page 36. When enabled, the bus-keeper will keep the previous value on the AD7:0 bus while these lines are tri-stated by the XMEM interface.

Timing External Memory devices have different timing requirements. To meet these require-

ments, the XMEM interface provides four different wait-states as shown in Table 8. It is important to consider the timing specification of the External Memory device before selecting the wait-state. The most important parameters are the access time for the external memory compared to the set-up requirement. The access time for the External Memory is defined to be the time from receiving the chip select/address until the data of this address actually is driven on the bus. The access time cannot exceed the time from the ALE pulse must be asserted low until data is stable during a read sequence (See t

LLRL

+ t

RLRH

- t

in Tables 173 through Tables 180 on pages 385 - 387). The different

DVRH

wait-states are set up in software. As an additional feature, it is possible to divide the external memory space in two sectors with individual wait-state settings. This makes it possible to connect two different memory devices with different timing requirements to the same XMEM interface. For XMEM interface timing details, please refer to Table 173 to Table 180 and Figure 163 to Figure 166 in the “External Data Memory Timing” on page 385.

Note that the XMEM interface is asynchronous and that the waveforms in the following figures are related to the internal system clock. The skew between the internal and external clock (XTAL1) is not guarantied (varies between devices temperature, and supply voltage). Consequently, the XMEM interface is not suited for synchronous operation.

Figure 15. External Data Memory Cycles without Wait-state (SRWn1=0 and SRWn0=0)

T1 T2 T3

System Clock (CLK

DA7:0 (XMBK = 0)

DA7:0 (XMBK = 1)

CPU

ALE

A15:8

DA7:0

)

AddressPrev. addr.

Address DataPrev. data XX

DataPrev. data Address

XXXXX

DataPrev. data Address

Note: 1. SRWn1 = SRW11 (upper sector) or SRW01 (lower sector), SRWn0 = SRW10 (upper

sector) or SRW00 (lower sector). The ALE pulse in period T4 is only present if the next instruction accesses the RAM (internal or external).

XXXXXXXX

Write

Read

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Figure 16. External Data Memory Cycles with SRWn1 = 0 and SRWn0 = 1

System Clock (CLK

DA7:0 (XMBK = 0)

DA7:0 (XMBK = 1)

CPU

ALE

A15:8

DA7:0

T1 T2 T3

)

AddressPrev. addr.

Address DataPrev. data XX

DataPrev. data Address

(1)

Note: 1. SRWn1 = SRW11 (upper sector) or SRW01 (lower sector), SRWn0 = SRW10 (upper

sector) or SRW00 (lower sector). The ALE pulse in period T5 is only present if the next instruction accesses the RAM (internal or external).

Figure 17. External Data Memory Cycles with SRWn1 = 1 and SRWn0 = 0

System Clock (CLK

CPU

T1 T2 T3

)

T4 T5

(1)

Write

Read

ALE

A15:8

DA7:0

DA7:0 (XMBK = 0)

DA7:0 (XMBK = 1)

Address DataPrev. data XX

AddressPrev. addr.

DataPrev. data Address

Note: 1. SRWn1 = SRW11 (upper sector) or SRW01 (lower sector), SRWn0 = SRW10 (upper

sector) or SRW00 (lower sector). The ALE pulse in period T6 is only present if the next instruction accesses the RAM (internal or external).

Write

Read

2549K–AVR–01/07

Figure 18. External Data Memory Cycles with SRWn1 = 1 and SRWn0 = 1

System Clock (CLK

CPU

)

T1 T2 T3

ALE

T4 T5 T6

(1)

Using all Locations of External Memory Smaller than 64 KB

A15:8

DA7:0

DA7:0 (XMBK = 0)

DA7:0 (XMBK = 1)

Address DataPrev. data XX

AddressPrev. addr.

DataPrev. data Address

Note: 1. SRWn1 = SRW11 (upper sector) or SRW01 (lower sector), SRWn0 = SRW10 (upper

sector) or SRW00 (lower sector). The ALE pulse in period T7 is only present if the next instruction accesses the RAM (internal or external).

Since the external memory is mapped after the internal memory as shown in Figure 13, the external memory is not addressed when addressing the first 8,704 bytes of data space. It may appear that the first 8,704 bytes of the external memory are inaccessible (external memory addresses 0x0000 to 0x21FF). However, when connecting an external memory smaller than 64 KB, for example 32 KB, these locations are easily accessed simply by addressing from address 0x8000 to 0xA1FF. Since the External Memory Address bit A15 is not connected to the external memory, addresses 0x8000 to 0xA1FF will appear as addresses 0x0000 to 0x21FF for the external memory. Addressing above address 0xA1FF is not recommended, since this will address an external memory location that is already accessed by another (lower) address. To the Application software, the external 32 KB memory will appear as one linear 32 KB address space from 0x2200 to 0xA1FF. This is illustrated in Figure 19.

Write

Read

Figure 19. Address Map with 32 KB External Memory

AVR Memory Map

0x0000

Internal Memory

0x21FF 0x2200

0x7FFF 0x8000

External

Memory

0x90FF 0x9100

ATmega640/1280/1281/2560/2561

External 32K SRAM

0x0000

0x7FFF

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Using all 64KB Locations of External Memory

Since the External Memory is mapped after the Internal Memory as shown in Figure 13, only 56KB of External Memory is available by default (address space 0x0000 to 0x21FF is reserved for internal memory). However, it is possible to take advantage of the entire External Memory by masking the higher address bits to zero. This can be done by using the XMMn bits and control by software the most significant bits of the address. By setting Port C to output 0x00, and releasing the most significant bits for normal Port Pin operation, the Memory Interface will address 0x0000 - 0x2FFF. See the following code examples.

Care must be exercised using this option as most of the memory is masked away.

Assembly Code Example

; OFFSET is defined to 0x4000 to ensure ; external memory access ; Configure Port C (address high byte) to ; output 0x00 when the pins are released ; for normal Port Pin operation

ldi r16, 0xFF out DDRC, r16 ldi r16, 0x00 out PORTC, r16

; release PC7:6

ldi r16, (1<<XMM1) sts XMCRB, r16

; write 0xAA to address 0x0001 of external ; memory

ldi r16, 0xaa sts 0x0001+OFFSET, r16

; re-enable PC7:6 for external memory

ldi r16, (0<<XMM1) sts XMCRB, r16

; store 0x55 to address (OFFSET + 1) of ; external memory

ldi r16, 0x55 sts 0x0001+OFFSET, r16

C Code Example

#define OFFSET 0x4000

(1)

2549K–AVR–01/07

void XRAM_example(void)

{

unsigned char *p = (unsigned char *) (OFFSET + 1);

DDRC = 0xFF;

PORTC = 0x00;

XMCRB = (1<<XMM1);

*p = 0xaa;

XMCRB = 0x00;

*p = 0x55;

}

Note: 1. See “About Code Examples” on page 9.

Register Description

EEPROM registers

EEARH and EEARL – The EEPROM Address Register

EEDR – The EEPROM Data Register

Bit 1514131211 10 9 8

0x22 (0x42) ––––EEAR11EEAR10EEAR9EEAR8EEARH

0x21 (0x41) EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 EEARL

7654 3 2 10

Read/WriteRRRRR/W R/W R/W R/W

R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value0000X XXX

XXXX X X XX

• Bits 15:12 – Res: Reserved Bits

These bits are reserved bits and will always read as zero.

• Bits 11:0 – EEAR8:0: EEPROM Address

The EEPROM Address Registers – EEARH and EEARL specify the EEPROM address in the 4K bytes EEPROM space. The EEPROM data bytes are addressed linearly between 0 and 4096. The initial value of EEAR is undefined. A proper value must be written before the EEPROM may be accessed.

Bit 76543210

0x20 (0x40) MSB LSB EEDR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

EECR – The EEPROM Control Register

• Bits 7:0 – EEDR7:0: EEPROM Data

For the EEPROM write operation, the EEDR Register contains the data to be written to the EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the EEDR contains the data read out from the EEPROM at the address given by EEAR.

Bit 76543210

0x1F (0x3F) – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE EECR

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 X X 0 0 X 0

• Bits 7:6 – Res: Reserved Bits

These bits are reserved bits and will always read as zero.

• Bits 5, 4 – EEPM1 and EEPM0: EEPROM Programming Mode Bits

The EEPROM Programming mode bit setting defines which programming action that will be triggered when writing EEPE. It is possible to program data in one atomic operation (erase the old value and program the new value) or to split the Erase and Write operations in two different operations. The Programming times for the different modes are shown in Table 6. While EEPE is set, any write to EEPMn will be ignored. During reset, the EEPMn bits will be reset to 0b00 unless the EEPROM is busy programming.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Table 6. EEPROM Mode Bits

Programming

EEPM1 EEPM0

0 0 3.4 ms Erase and Write in one operation (Atomic Operation)

0 1 1.8 ms Erase Only

1 0 1.8 ms Write Only

1 1 – Reserved for future use

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I bit in SREG is set. Writing EERIE to zero disables the interrupt. The EEPROM Ready interrupt generates a

constant interrupt when EEPE is cleared.

• Bit 2 – EEMPE: EEPROM Master Programming Enable

The EEMPE bit determines whether setting EEPE to one causes the EEPROM to be written. When EEMPE is set, setting EEPE within four clock cycles will write data to the EEPROM at the selected address If EEMPE is zero, setting EEPE will have no effect. When EEMPE has been written to one by software, hardware clears the bit to zero after four clock cycles. See the description of the EEPE bit for an EEPROM write procedure.

• Bit 1 – EEPE: EEPROM Programming Enable

Time Operation

The EEPROM Write Enable Signal EEPE is the write strobe to the EEPROM. When address and data are correctly set up, the EEPE bit must be written to one to write the value into the EEPROM. The EEMPE bit must be written to one before a logical one is written to EEPE, otherwise no EEPROM write takes place. The following procedure should be followed when writing the EEPROM (the order of steps 3 and 4 is not essential):

1. Wait until EEPE becomes zero.

2. Wait until SPMEN in SPMCSR becomes zero.

3. Write new EEPROM address to EEAR (optional).

4. Write new EEPROM data to EEDR (optional).

5. Write a logical one to the EEMPE bit while writing a zero to EEPE in EECR.

6. Within four clock cycles after setting EEMPE, write a logical one to EEPE.

The EEPROM can not be programmed during a CPU write to the Flash memory. The software must check that the Flash programming is completed before initiating a new EEPROM write. Step 2 is only relevant if the software contains a Boot Loader allowing the CPU to program the Flash. If the Flash is never being updated by the CPU, step 2 can be omitted. See “Memory Programming” on page 342 for details about Boot programming.

Caution: An interrupt between step 5 and step 6 will make the write cycle fail, since the EEPROM Master Write Enable will time-out. If an interrupt routine accessing the EEPROM is interrupting another EEPROM access, the EEAR or EEDR Register will be modified, causing the interrupted EEPROM access to fail. It is recommended to have the Global Interrupt Flag cleared during all the steps to avoid these problems.

2549K–AVR–01/07

When the write access time has elapsed, the EEPE bit is cleared by hardware. The user software can poll this bit and wait for a zero before writing the next byte. When EEPE has been set, the CPU is halted for two cycles before the next instruction is executed.

General Purpose registers

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal EERE is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to a logic one to trigger the EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed.

The user should poll the EEPE bit before starting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

GPIOR2 – General Purpose I/O Register 2

GPIOR1 – General Purpose I/O Register 1

GPIOR0 – General Purpose I/O Register 0

External Memory registers

XMCRA – External Memory Control Register A

Bit 76543210

0x2B (0x4B) MSB LSB GPIOR2

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

0x2A (0x4A) MSB LSB GPIOR1

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

0x1E (0x3E) MSB LSB GPIOR0

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

Bit 76543210

“(0x74)” SRE SRL2 SRL1 SRL0 SRW11 SRW10 SRW01 SRW00 XMCRA

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bit 7 – SRE: External SRAM/XMEM Enable

Writing SRE to one enables the External Memory Interface.The pin functions AD7:0, A15:8, ALE, WR

, and RD are activated as the alternate pin functions. The SRE bit overrides any pin direction settings in the respective data direction registers. Writing SRE to zero, disables the External Memory Interface and the normal pin and data direction settings are used.

• Bit 6:4 – SRL2:0: Wait-state Sector Limit

It is possible to configure different wait-states for different External Memory addresses. The external memory address space can be divided in two sectors that have separate wait-state bits. The SRL2, SRL1, and SRL0 bits select the split of the sectors, see Table 7 and Figure 13. By default, the SRL2, SRL1, and SRL0 bits are set to zero and the entire external memory address space is treated as one sector. When the entire SRAM

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

address space is configured as one sector, the wait-states are configured by the SRW11 and SRW10 bits.

Table 7. Sector limits with different settings of SRL2:0

SRL2 SRL1 SRL0 Sector Limits

00x

010

011

100

101

110

111

Lower sector = N/A Upper sector = 0x2200 - 0xFFFF

Lower sector = 0x2200 - 0x3FFF Upper sector = 0x4000 - 0xFFFF

Lower sector = 0x2200 - 0x5FFF Upper sector = 0x6000 - 0xFFFF

Lower sector = 0x2200 - 0x7FFF Upper sector = 0x8000 - 0xFFFF

Lower sector = 0x2200 - 0x9FFF Upper sector = 0xA000 - 0xFFFF

Lower sector = 0x2200 - 0xBFFF Upper sector = 0xC000 - 0xFFFF

Lower sector = 0x2200 - 0xDFFF Upper sector = 0xE000 - 0xFFFF

• Bit 3:2 – SRW11, SRW10: Wait-state Select Bits for Upper Sector

The SRW11 and SRW10 bits control the number of wait-states for the upper sector of the external memory address space, see Table 8.

• Bit 1:0 – SRW01, SRW00: Wait-state Select Bits for Lower Sector

The SRW01 and SRW00 bits control the number of wait-states for the lower sector of the external memory address space, see Table 8.

Table 8. Wait States

SRWn1 SRWn0 Wait States

00No wait-states

01Wait one cycle during read/write strobe

10Wait two cycles during read/write strobe

11Wait two cycles during read/write and wait one cycle before driving out

Note: 1. n = 0 or 1 (lower/upper sector).

For further details of the timing and wait-states of the External Memory Interface, see Figures 15 through Figures 18 for how the setting of the SRW bits affects the timing.

(1)

new address

2549K–AVR–01/07

XMCRB – External Memory Control Register B

Bit 765 4 3 210

(0x75) XMBK – – – – XMM2 XMM1 XMM0 XMCRB

Read/Write R/W RR R RR/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7– XMBK: External Memory Bus-keeper Enable

Writing XMBK to one enables the bus keeper on the AD7:0 lines. When the bus keeper is enabled, AD7:0 will keep the last driven value on the lines even if the XMEM interface has tri-stated the lines. Writing XMBK to zero disables the bus keeper. XMBK is not qualified with SRE, so even if the XMEM interface is disabled, the bus keepers are still activated as long as XMBK is one.

• Bit 6:3 – Res: Reserved Bits

These bits are reserved and will always read as zero. When writing to this address location, write these bits to zero for compatibility with future devices.

• Bit 2:0 – XMM2, XMM1, XMM0: External Memory High Mask

When the External Memory is enabled, all Port C pins are default used for the high address byte. If the full 60KB address space is not required to access the External Memory, some, or all, Port C pins can be released for normal Port Pin function as described in Table 9. As described in “Using all 64KB Locations of External Memory” on page 31, it is possible to use the XMMn bits to access all 64KB locations of the External Memory.

Table 9. Port C Pins Released as Normal Port Pins when the External Memory is Enabled

XMM2 XMM1 XMM0 # Bits for External Memory Address Released Port Pins

0 0 0 8 (Full 56KB space) None

0017 PC7

0106 PC7 - PC6

0115 PC7 - PC5

1004 PC7 - PC4

1013 PC7 - PC3

1102 PC7 - PC2

111No Address high bits Full Port C

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

System Clock and

This section describes the clock options for the AVR microcontroller.

Clock Options

Overview Figure 20 presents the principal clock systems in the AVR and their distribution. All of

the clocks need not be active at a given time. In order to reduce power consumption, the clocks to modules not being used can be halted by using different sleep modes, as described in “Power Management and Sleep Modes” on page 50. The clock systems are detailed below.

Figure 20. Clock Distribution

Asynchronous Timer/Counter

General I/O

Modules

clk

I/O

clk

ASY

ADC

clk

AVR Clock

Control Unit

ADC

CPU Core RAM

clk

CPU

clk

FLASH

Reset Logic

Watchdog Timer

Flash and EEPROM

Timer/Counter

Oscillator

External Clock

Source clock

System Clock

Prescaler

Clock

Multiplexer

Oscillator

Crystal

Watchdog clock

Watchdog

Oscillator

Low-frequency

Crystal Oscillator

Calibrated RC

Oscillator

2549K–AVR–01/07

Clock Systems and their Distribution

CPU Clock – clk

I/O Clock – clk

Flash Clock – clk

CPU

I/O

FLASH

Asynchronous Timer Clock – clk

ASY

ADC Clock – clk

ADC

The CPU clock is routed to parts of the system concerned with operation of the AVR core. Examples of such modules are the General Purpose Register File, the Status Register and the data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

The I/O clock is used by the majority of the I/O modules, like Timer/Counters, SPI, and USART. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted. Also note that start condition detection in the USI module is carried out asynchronously when clk

is halted, TWI address recognition in

I/O

all sleep modes.

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

The Asynchronous Timer clock allows the Asynchronous Timer/Counter to be clocked directly from an external clock or an external 32 kHz clock crystal. The dedicated clock domain allows using this Timer/Counter as a real-time counter even when the device is in sleep mode.

The ADC is provided with a dedicated clock domain. This allows halting the CPU and I/O clocks in order to reduce noise generated by digital circuitry. This gives more accurate ADC conversion results.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Clock Sources The device has the following clock source options, selectable by Flash Fuse bits as

shown below. The clock from the selected source is input to the AVR clock generator, and routed to the appropriate modules.

Table 10. Device Clocking Options Select

Device Clocking Option CKSEL3:0

Low Power Crystal Oscillator 1111 - 1000

Full Swing Crystal Oscillator 0111 - 0110

Low Frequency Crystal Oscillator 0101 - 0100

Internal 128 kHz RC Oscillator 0011

Calibrated Internal RC Oscillator 0010

External Clock 0000

Reserved 0001

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

(1)

Default Clock Source The device is shipped with internal RC oscillator at 8.0 MHz and with the fuse CKDIV8

programmed, resulting in 1.0 MHz system clock. The startup time is set to maximum and time-out period enabled. (CKSEL = "0010", SUT = "10", CKDIV8 = "0"). The default setting ensures that all users can make their desired clock source setting using any available programming interface.

Clock Start-up Sequence Any clock source needs a sufficient V

to start oscillating and a minimum number of

oscillating cycles before it can be considered stable.

To ensure sufficient V

, the device issues an internal reset with a time-out delay (t

TOUT

after the device reset is released by all other reset sources. “On-chip Debug System” on page 53 describes the start conditions for the internal reset. The delay (t

TOUT

) is timed from the Watchdog Oscillator and the number of cycles in the delay is set by the SUTx and CKSELx fuse bits. The selectable delays are shown in Table 11. The frequency of the Watchdog Oscillator is voltage dependent as shown in “Typical Characteristics” on page 390.

)

2549K–AVR–01/07

Table 11. Number of Watchdog Oscillator Cycles

Typ Time-out (VCC = 5.0V) Typ Time-out (VCC = 3.0V) Number of Cycles

0 ms 0 ms 0

4.1 ms 4.3 ms 512

65 ms 69 ms 8K (8,192)

Main purpose of the delay is to keep the AVR in reset until it is supplied with minimum Vcc. The delay will not monitor the actual voltage and it will be required to select a delay longer than the Vcc rise time. If this is not possible, an internal or external Brown-Out Detection circuit should be used. A BOD circuit will ensure sufficient Vcc before it releases the reset, and the time-out delay can be disabled. Disabling the time-out delay without utilizing a Brown-Out Detection circuit is not recommended.

The oscillator is required to oscillate for a minimum number of cycles before the clock is considered stable. An internal ripple counter monitors the oscillator output clock, and keeps the internal reset active for a given number of clock cycles. The reset is then released and the device will start to execute. The recommended oscillator start-up time

is dependent on the clock type, and varies from 6 cycles for an externally applied clock to 32K cycles for a low frequency crystal.

The start-up sequence for the clock includes both the time-out delay and the start-up time when the device starts up from reset. When starting up from Power-save or Powerdown mode, Vcc is assumed to be at a sufficient level and only the start-up time is included.

Low Power Crystal Oscillator

Pins XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be configured for use as an On-chip Oscillator, as shown in Figure 21. Either a quartz crystal or a ceramic resonator may be used.

This Crystal Oscillator is a low power oscillator, with reduced voltage swing on the XTAL2 output. It gives the lowest power consumption, but is not capable of driving other clock inputs, and may be more susceptible to noise in noisy environments. In these cases, refer to the “Full Swing Crystal Oscillator” on page 42.

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 12. For ceramic resonators, the capacitor values given by the manufacturer should be used.

Figure 21. Crystal Oscillator Connections

XTAL2

XTAL1

GND

The Low Power Oscillator can operate in three different modes, each optimized for a specific frequency range. The operating mode is selected by the fuses CKSEL3:1 as shown in Table 12.

Table 12. Low Power Crystal Oscillator Operating Modes

Frequency Range

0.4 - 0.9 100

0.9 - 3.0 101 12 - 22

3.0 - 8.0 110 12 - 22

8.0 - 16.0

Notes: 1. The frequency ranges are preliminary values. Actual values are TBD.

2. This option should not be used with crystals, only with ceramic resonators.

3. If 8 MHz frequency exceeds the specification of the device (depends on V CKDIV8 Fuse can be programmed in order to divide the internal frequency by 8. It must be ensured that the resulting divided clock meets the frequency specification of the device.

(1)

(MHz) CKSEL3:1

(4)

ATmega640/1280/1281/2560/2561

(3)

Recommended Range for Capacitors

C1 and C2 (pF)

(2)

111 12 - 22

–

), the

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

4. Max frequency when using ceramic oscillator is 10 MHz.

The CKSEL0 Fuse together with the SUT1:0 Fuses select the start-up times as shown in Table 13.

Table 13. Start-up Times for the Low Power Crystal Oscillator Clock Selection

Oscillator Source / Power Conditions

Ceramic resonator, fast

Start-up Time from

Power-down and

Power-save

258 CK 14CK + 4.1 ms

Additional Delay

from Reset

= 5.0V) CKSEL0 SUT1:0

(1)

000

rising power

Ceramic resonator,

258 CK 14CK + 65 ms

(1)

001

slowly rising power

Ceramic resonator,

1K CK 14CK

(2)

010

BOD enabled

Ceramic resonator, fast

1K CK 14CK + 4.1 ms

(2)

011

rising power

Ceramic resonator,

1K CK 14CK + 65 ms

(2)

100

slowly rising power

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

16K CK 14CK

16K CK 14CK + 4.1 ms

16K CK 14CK + 65 ms

Notes: 1. These options should only be used when not operating close to the maximum fre-

quency of the device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2. These options are intended for use with ceramic resonators and will ensure frequency stability at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

2549K–AVR–01/07

Full Swing Crystal Oscillator

This Crystal Oscillator is a full swing oscillator, with rail-to-rail swing on the XTAL2 output. This is useful for driving other clock inputs and in noisy environments. The current consumption is higher than the “Low Power Crystal Oscillator” on page 40. Note that the Full Swing Crystal Oscillator will only operate for Vcc = 2.7 - 5.5 volts.

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 15. For ceramic resonators, the capacitor values given by the manufacturer should be used.

The operating mode is selected by the fuses CKSEL3:1 as shown in Table 14.

Table 14. Full Swing Crystal Oscillator operating modes

Frequency Range

Notes: 1. The frequency ranges are preliminary values. Actual values are TBD.

2. If 8 MHz frequency exceeds the specification of the device (depends on V CKDIV8 Fuse can be programmed in order to divide the internal frequency by 8. It must be ensured that the resulting divided clock meets the frequency specification of the device.

(1)

(MHz) CKSEL3:1

0.4 - 16 011 12 - 22

(2)

Recommended Range for Capacitors

C1 and C2 (pF)

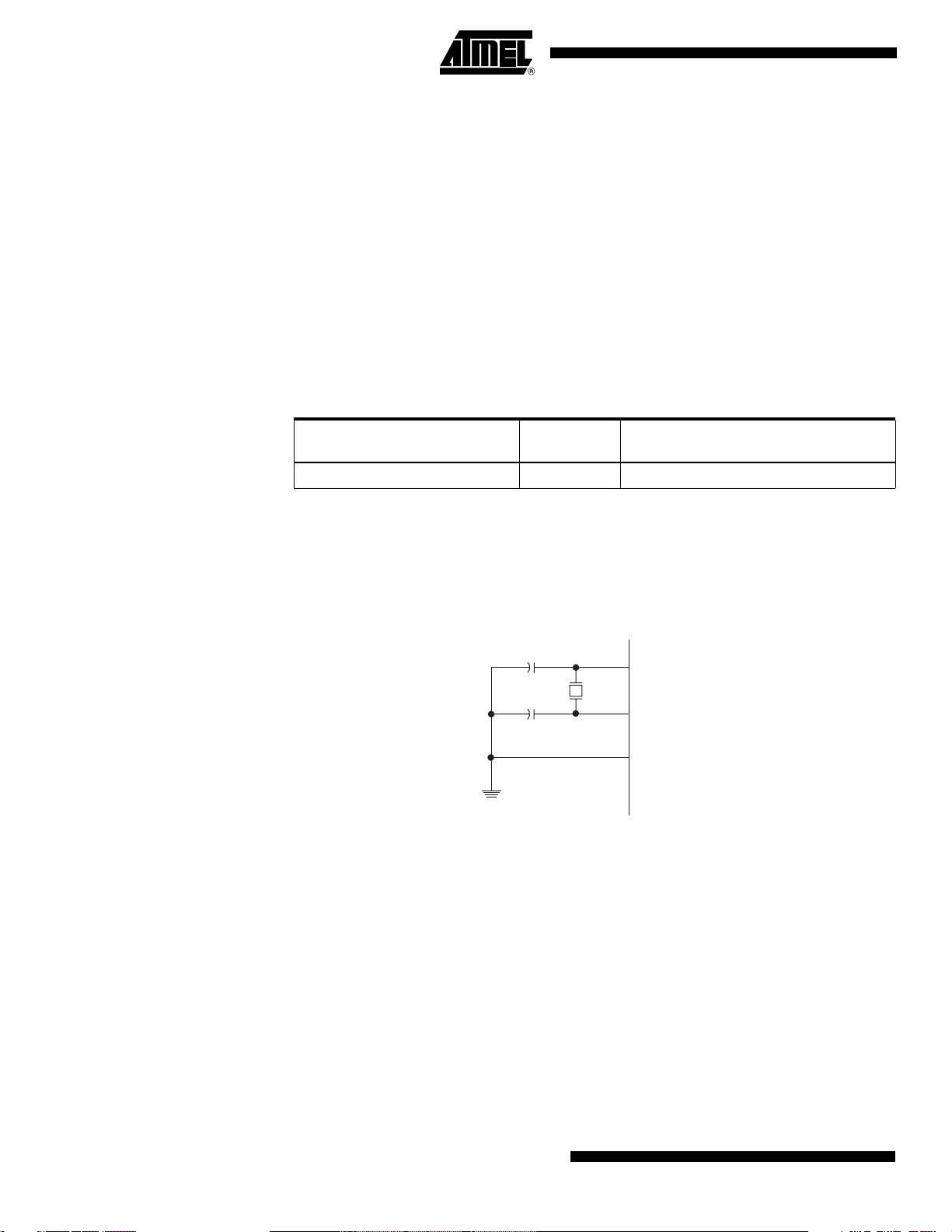

Figure 22. Crystal Oscillator Connections

XTAL2

XTAL1

GND

), the

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Table 15. Start-up Times for the Full Swing Crystal Oscillator Clock Selection

Oscillator Source / Power Conditions

Ceramic resonator, fast

Start-up Time from

Power-down and

Power-save

258 CK 14CK + 4.1 ms

Additional Delay

from Reset

= 5.0V) CKSEL0 SUT1:0

(1)

000

rising power

Ceramic resonator,

258 CK 14CK + 65 ms

(1)

001

slowly rising power

Ceramic resonator,

1K CK 14CK

(2)

010

BOD enabled

Ceramic resonator, fast

1K CK 14CK + 4.1 ms

(2)

011

rising power

Ceramic resonator,

1K CK 14CK + 65 ms

(2)

100

slowly rising power

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

16K CK 14CK

16K CK 14CK + 4.1 ms

16K CK 14CK + 65 ms

Notes: 1. These options should only be used when not operating close to the maximum fre-

quency of the device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

2549K–AVR–01/07

Low Frequency Crystal Oscillator

The device can utilize a 32.768 kHz watch crystal as clock source by a dedicated Low Frequency Crystal Oscillator. The crystal should be connected as shown in Figure 21. When this Oscillator is selected, start-up times are determined by the SUT Fuses and CKSEL0 as shown in Table 16.

Table 16. Start-up Times for the Low Frequency Crystal Oscillator Clock Selection

Calibrated Internal RC Oscillator

Start-up Time from

Power-down and

Power Conditions

BOD enabled 1K CK 14CK

Fast rising power 1K CK 14CK + 4.1 ms

Slowly rising power 1K CK 14CK + 65 ms

BOD enabled 32K CK 14CK 1 00

Fast rising power 32K CK 14CK + 4.1 ms 1 01

Slowly rising power 32K CK 14CK + 65 ms 1 10

Note: 1. These options should only be used if frequency stability at start-up is not important

for the application.

Power-save

Reserved 0 11

Reserved 1 11

Additional Delay

from Reset

(VCC = 5.0V) CKSEL0 SUT1:0

(1)

000

001

010

By defaylt, the Internal RC Oscillator provides an approximate 8 MHz clock. Though voltage and temperature dependent, this clock can be very accurately calibrated by the user. See Table 172 on page 384 and “Internal Oscillator Speed” on page 409 for more details. The device is shipped with the CKDIV8 Fuse programmed. See “System Clock Prescaler” on page 47 for more details.

This clock may be selected as the system clock by programming the CKSEL Fuses as shown in Table 17. If selected, it will operate with no external components. During reset, hardware loads the pre-programmed calibration value into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. The accuracy of this calibration is shown as Factory calibration in Table 172 on page 384.

By changing the OSCCAL register from SW, see “OSCCAL – Oscillator Calibration Reg- ister” on page 48, it is possible to get a higher calibration accuracy than by using the factory calibration. The accuracy of this calibration is shown as User calibration in Table 172 on page 384.

When this Oscillator is used as the chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the Reset Time-out. For more information on the preprogrammed calibration value, see the section “Calibration Byte” on page 345.

Table 17. Internal Calibrated RC Oscillator Operating Modes

Frequency Range

7.3 - 8.1 0010

Notes: 1. The device is shipped with this option selected.

2. The frequency ranges are preliminary values. Actual values are TBD.

3. If 8 MHz frequency exceeds the specification of the device (depends on V CKDIV8 Fuse can be programmed in order to divide the internal frequency by 8.

(2)

(MHz) CKSEL3:0

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in Table 18 on page 45.

ATmega640/1280/1281/2560/2561

(1)(3)

), the

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Table 18. Start-up times for the internal calibrated RC Oscillator clock selection

128 kHz Internal Oscillator

Start-up Time from Power-

Power Conditions

BOD enabled 6 CK 14CK 00

Fast rising power 6 CK 14CK + 4.1 ms 01

Slowly rising power 6 CK 14CK + 65 ms

Note: 1. The device is shipped with this option selected.

down and Power-save

Reserved 11

Additional Delay from

Reset (VCC = 5.0V) SUT1:0

(1)

The 128 kHz internal Oscillator is a low power Oscillator providing a clock of 128 kHz. The frequency is nominal at 3V and 25°C. This clock may be select as the system clock by programming the CKSEL Fuses to “11” as shown in Table 19.

Table 19. 128 kHz Internal Oscillator Operating Modes

Nominal Frequency CKSEL3:0

128 kHz 0011

Note: 1. The frequency is preliminary value. Actual value is TBD.

When this clock source is selected, start-up times are determined by the SUT Fuses as

shown in Table 20.

Table 20. Start-up Times for the 128 kHz Internal Oscillator

Start-up Time from Power-

Power Conditions

BOD enabled 6 CK 14CK 00

Fast rising power 6 CK 14CK + 4 ms 01

Slowly rising power 6 CK 14CK + 64 ms 10

down and Power-save

Reserved 11

Additional Delay from

Reset SUT1:0

External Clock To drive the device from an external clock source, XTAL1 should be driven as shown in

Figure 23. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”.

Figure 23. External Clock Drive Configuration

EXTERNAL

CLOCK

SIGNAL

XTAL2

XTAL1

GND

2549K–AVR–01/07

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in Table 23.

Table 21. Crystal Oscillator Clock Frequency

Nominal Frequency CKSEL3:0

0 - 16 MHz 0000

Table 22. Start-up Times for the External Clock Selection

Start-up Time from Power-

Power Conditions

BOD enabled 6 CK 14CK 00

Fast rising power 6 CK 14CK + 4.1 ms 01

Slowly rising power 6 CK 14CK + 65 ms 10

down and Power-save

Reserved 11

Additional Delay from

Reset (VCC = 5.0V) SUT1:0

When applying an external clock, it is required to avoid sudden changes in the applied clock frequency to ensure stable operation of the MCU. A variation in frequency of more than 2% from one clock cycle to the next can lead to unpredictable behavior. If changes of more than 2% is required, ensure that the MCU is kept in Reset during the changes.

Note that the System Clock Prescaler can be used to implement run-time changes of the internal clock frequency while still ensuring stable operation. Refer to “System Clock Prescaler” on page 47 for details.

Clock Output Buffer The device can output the system clock on the CLKO pin. To enable the output, the

CKOUT Fuse has to be programmed. This mode is suitable when the chip clock is used to drive other circuits on the system. The clock also will be output during reset, and the normal operation of I/O pin will be overridden when the fuse is programmed. Any clock source, including the internal RC Oscillator, can be selected when the clock is output on CLKO. If the System Clock Prescaler is used, it is the divided system clock that is output.

Timer/Counter Oscillator The device can operate its Timer/Counter2 from an external 32.768 kHz watch crystal or

a external clock source. See Figure 21 on page 40 for crystal connection.

Applying an external clock source to TOSC1 requires EXCLK in the ASSR Register written to logic one. See “Asynchronous Operation of Timer/Counter2” on page 188 for further description on selecting external clock as input instead of a 32 kHz crystal.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

System Clock Prescaler The ATmega640/1280/1281/2560/2561 has a system clock prescaler, and the system

clock can be divided by setting the “CLKPR – Clock Prescale Register” on page 48. This feature can be used to decrease the system clock frequency and the power consumption when the requirement for processing power is low. This can be used with all clock source options, and it will affect the clock frequency of the CPU and all synchronous peripherals. clk

23.

When switching between prescaler settings, the System Clock Prescaler ensures that no glitches occurs in the clock system. It also ensures that no intermediate frequency is higher than neither the clock frequency corresponding to the previous setting, nor the clock frequency corresponding to the new setting.

The ripple counter that implements the prescaler runs at the frequency of the undivided clock, which may be faster than the CPU's clock frequency. Hence, it is not possible to determine the state of the prescaler - even if it were readable, and the exact time it takes to switch from one clock division to the other cannot be exactly predicted. From the time the CLKPS values are written, it takes between T1 + T2 and T1 + 2 * T2 before the new clock frequency is active. In this interval, 2 active clock edges are produced. Here, T1 is the previous clock period, and T2 is the period corresponding to the new prescaler setting.

To avoid unintentional changes of clock frequency, a special write procedure must be followed to change the CLKPS bits:

1. Write the Clock Prescaler Change Enable (CLKPCE) bit to one and all other bits in CLKPR to zero.

2. Within four cycles, write the desired value to CLKPS while writing a zero to CLKPCE.

I/O

, clk

ADC

, clk

, and clk

CPU

are divided by a factor as shown in Table

FLASH

Interrupts must be disabled when changing prescaler setting to make sure the write procedure is not interrupted.

2549K–AVR–01/07

Register Description

OSCCAL – Oscillator Calibration Register

Bit 76543210

(0x66) CAL7 CAL6 CAL5 CAL4 CAL3 CAL2 CAL1 CAL0 OSCCAL

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value Device Specific Calibration Value

• Bits 7:0 – CAL7:0: Oscillator Calibration Value

The Oscillator Calibration Register is used to trim the Calibrated Internal RC Oscillator to remove process variations from the oscillator frequency. A pre-programmed calibration value is automatically written to this register during chip reset, giving the Factory calibrated frequency as specified in Table 172 on page 384. The application software can write this register to change the oscillator frequency. The oscillator can be calibrated to frequencies as specified in Table 172 on page 384. Calibration outside that range is not guaranteed.

Note that this oscillator is used to time EEPROM and Flash write accesses, and these write times will be affected accordingly. If the EEPROM or Flash are written, do not calibrate to more than 8.8 MHz. Otherwise, the EEPROM or Flash write may fail.

The CAL7 bit determines the range of operation for the oscillator. Setting this bit to 0 gives the lowest frequency range, setting this bit to 1 gives the highest frequency range. The two frequency ranges are overlapping, in other words a setting of OSCCAL = 0x7F gives a higher frequency than OSCCAL = 0x80.

The CAL6..0 bits are used to tune the frequency within the selected range. A setting of 0x00 gives the lowest frequency in that range, and a setting of 0x7F gives the highest frequency in the range.

CLKPR – Clock Prescale Register

Bit 7 6543210

(0x61)

Read/Write R/W RRRR/W R/W R/W R/W

Initial Value 0 0 0 0 See Bit Description

CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 CLKPR

• Bit 7 – CLKPCE: Clock Prescaler Change Enable

The CLKPCE bit must be written to logic one to enable change of the CLKPS bits. The CLKPCE bit is only updated when the other bits in CLKPR are simultaneously written to zero. CLKPCE is cleared by hardware four cycles after it is written or when CLKPS bits are written. Rewriting the CLKPCE bit within this time-out period does neither extend the time-out period, nor clear the CLKPCE bit.

• Bits 3:0 – CLKPS3:0: Clock Prescaler Select Bits 3 - 0

These bits define the division factor between the selected clock source and the internal system clock. These bits can be written run-time to vary the clock frequency to suit the application requirements. As the divider divides the master clock input to the MCU, the speed of all synchronous peripherals is reduced when a division factor is used. The division factors are given in Table 23.

The CKDIV8 Fuse determines the initial value of the CLKPS bits. If CKDIV8 is unprogrammed, the CLKPS bits will be reset to “0000”. If CKDIV8 is programmed, CLKPS bits are reset to “0011”, giving a division factor of 8 at start up. This feature should be used if the selected clock source has a higher frequency than the maximum frequency of the

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

device at the present operating conditions. Note that any value can be written to the CLKPS bits regardless of the CKDIV8 Fuse setting. The Application software must ensure that a sufficient division factor is chosen if the selected clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. The device is shipped with the CKDIV8 Fuse programmed.

Table 23. Clock Prescaler Select

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

0000 1

0001 2

0010 4

0011 8

0100 16

0101 32

0110 64

0111 128

1000 256

1001 Reserved

1010 Reserved

1011 Reserved

1100 Reserved

1101 Reserved

1110 Reserved

1111 Reserved

2549K–AVR–01/07

Power Management and Sleep Modes

Sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

Sleep Modes Figure 20 on page 37 presents the different clock systems in the

ATmega640/1280/1281/2560/2561, and their distribution. The figure is helpful in selecting an appropriate sleep mode. Table 24 shows the different sleep modes and their wake-up sources.

Table 24. Active Clock Domains and Wake-up Sources in the Different Sleep Modes.

Active Clock Domains Oscillators Wake-up Sources

CPU

FLASH

Sleep Mode

clk

clkIOclk

Idle X X X X X

ADCNRM X X X X

Power-down X

Power-save X X

Standby

(1)

Extended Standby X

Notes: 1. Only recommended with external crystal or resonator selected as clock source.

2. If Timer/Counter2 is running in asynchronous mode.

3. For INT7:4, only level interrupt.

ADC

ASY

clk

Main Clock

Source

Enabled

Timer Osc

Enabled

INT7:0 and

Pin Change

TWI Address

(2)

Match

XXXXXXX

(3)

XX X

Timer2

SPM/

EEPROM Ready

(2)

XXX

ADC

WDT Interrupt

Other I/O

To enter any of the sleep modes, the SE bit in “SMCR – Sleep Mode Control Register” on page 54 must be written to logic one and a SLEEP instruction must be executed. The SM2, SM1, and SM0 bits in the SMCR Register select which sleep mode will be activated by the SLEEP instruction. See Table 25 on page 54 for a summary.

If an enabled interrupt occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from sleep. If a reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Idle Mode When the SM2:0 bits are written to 000, the SLEEP instruction makes the MCU enter

Idle mode, stopping the CPU but allowing the SPI, USART, Analog Comparator, ADC, 2-wire Serial Interface, Timer/Counters, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk clocks to run.

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow and USART Transmit Complete interrupts. If wake-up from the Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion starts automatically when this mode is entered.

CPU

and clk

, while allowing the other

FLASH

ADC Noise Reduction Mode

When the SM2:0 bits are written to 001, the SLEEP instruction makes the MCU enter ADC Noise Reduction mode, stopping the CPU but allowing the ADC, the external interrupts, 2-wire Serial Interface address match, Timer/Counter2 and the Watchdog to continue operating (if enabled). This sleep mode basically halts clkI/O, clkCPU, and clkFLASH, while allowing the other clocks to run.

This improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the ADC Conversion Complete interrupt, only an External Reset, a Watchdog System Reset, a Watchdog interrupt, a Brown-out Reset, a 2-wire serial interface interrupt, a Timer/Counter2 interrupt, an SPM/EEPROM ready interrupt, an external level interrupt on INT7:4 or a pin change interrupt can wakeup the MCU from ADC Noise Reduction mode.

Power-down Mode When the SM2:0 bits are written to 010, the SLEEP instruction makes the MCU enter

Power-down mode. In this mode, the external Oscillator is stopped, while the external interrupts, the 2-wire Serial Interface, and the Watchdog continue operating (if enabled). Only an External Reset, a Watchdog Reset, a Brown-out Reset, 2-wire Serial Interface address match, an external level interrupt on INT7:4, an external interrupt on INT3:0, or a pin change interrupt can wake up the MCU. This sleep mode basically halts all generated clocks, allowing operation of asynchronous modules only.

Note that if a level triggered interrupt is used for wake-up from Power-down mode, the changed level must be held for some time to wake up the MCU. Refer to “External Interrupts” on page 77 for details.

When waking up from Power-down mode, there is a delay from the wake-up condition occurs until the wake-up becomes effective. This allows the clock to restart and become stable after having been stopped. The wake-up period is defined by the same CKSEL Fuses that define the Reset Time-out period, as described in “Clock Sources” on page

39.

Power-save Mode When the SM2:0 bits are written to 011, the SLEEP instruction makes the MCU enter

Power-save mode. This mode is identical to Power-down, with one exception:

If Timer/Counter2 is enabled, it will keep running during sleep. The device can wake up from either Timer Overflow or Output Compare event from Timer/Counter2 if the corresponding Timer/Counter2 interrupt enable bits are set in TIMSK2, and the Global Interrupt Enable bit in SREG is set.

If Timer/Counter2 is not running, Power-down mode is recommended instead of Powersave mode.

2549K–AVR–01/07

The Timer/Counter2 can be clocked both synchronously and asynchronously in Powersave mode. If the Timer/Counter2 is not using the asynchronous clock, the Timer/Counter Oscillator is stopped during sleep. If the Timer/Counter2 is not using the synchronous clock, the clock source is stopped during sleep. Note that even if the synchronous clock is running in Power-save, this clock is only available for the Timer/Counter2.

Standby Mode When the SM2:0 bits are 110 and an external crystal/resonator clock option is selected,

the SLEEP instruction makes the MCU enter Standby mode. This mode is identical to Power-down with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in six clock cycles.

Extended Standby Mode When the SM2:0 bits are 111 and an external crystal/resonator clock option is selected,

the SLEEP instruction makes the MCU enter Extended Standby mode. This mode is identical to Power-save mode with the exception that the Oscillator is kept running. From Extended Standby mode, the device wakes up in six clock cycles.Power Reduction Register

The Power Reduction Register (PRR), see “PRR0 – Power Reduction Register 0” on page 55 and “PRR1 – Power Reduction Register 1” on page 56, provides a method to stop the clock to individual peripherals to reduce power consumption. The current state of the peripheral is frozen and the I/O registers can not be read or written. Resources used by the peripheral when stopping the clock will remain occupied, hence the peripheral should in most cases be disabled before stopping the clock. Waking up a module, which is done by clearing the bit in PRR, puts the module in the same state as before shutdown.

Module shutdown can be used in Idle mode and Active mode to significantly reduce the overall power consumption. See “Supply Current of IO modules” on page 395 for examples. In all other sleep modes, the clock is already stopped.

Minimizing Power Consumption

Analog to Digital Converter If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should

Analog Comparator When entering Idle mode, the Analog Comparator should be disabled if not used. When

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

be disabled before entering any sleep mode. When the ADC is turned off and on again, the next conversion will be an extended conversion. Refer to “ADC – Analog to Digital Converter” on page 279 for details on ADC operation.

entering ADC Noise Reduction mode, the Analog Comparator should be disabled. In other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to “AC – Analog Comparator” on page 275 for details on how to configure the Analog Comparator.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Brown-out Detector If the Brown-out Detector is not needed by the application, this module should be turned

off. If the Brown-out Detector is enabled by the BODLEVEL Fuses, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Brown-out Detection” on page 60 for details on how to configure the Brown-out Detector.

Internal Voltage Reference The Internal Voltage Reference will be enabled when needed by the Brown-out Detec-

tion, the Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to “Internal Voltage Reference” on page 61 for details on the start-up time.

Watchdog Timer If the Watchdog Timer is not needed in the application, the module should be turned off.

If the Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to “Interrupts” on page 69 for details on how to configure the Watchdog Timer.

Port Pins When entering a sleep mode, all port pins should be configured to use minimum power.

The most important is then to ensure that no pins drive resistive loads. In sleep modes where both the I/O clock (clk ers of the device will be disabled. This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will then be enabled. Refer to the section “Digital Input Enable and Sleep Modes” on page 87 for details on which pins are enabled. If the input buffer is enabled and the input signal is left floating or have an analog signal level close to V the input buffer will use excessive power.

) and the ADC clock (clk

I/O

) are stopped, the input buff-

ADC

/2,

For analog input pins, the digital input buffer should be disabled at all times. An analog signal level close to V

/2 on an input pin can cause significant current even in active

mode. Digital input buffers can be disabled by writing to the Digital Input Disable Registers (DIDR2, DIDR1 and DIDR0). Refer to “DIDR2 – Digital Input Disable Register 2” on page 300, “DIDR1 – Digital Input Disable Register 1” on page 278 and “DIDR0 – Digital Input Disable Register 0” on page 300 for details.

On-chip Debug System If the On-chip debug system is enabled by the OCDEN Fuse and the chip enters sleep

mode, the main clock source is enabled, and hence, always consumes power. In the deeper sleep modes, this will contribute significantly to the total current consumption.

There are three alternative ways to disable the OCD system:

• Disable the OCDEN Fuse.

• Disable the JTAGEN Fuse.

• Write one to the JTD bit in MCUCR.

2549K–AVR–01/07

Register Description

SMCR – Sleep Mode Control Register

The Sleep Mode Control Register contains control bits for power management.

Bit 76543210

0x33 (0x53) ––––SM2SM1SM0SESMCR

Read/WriteRRRRR/W R/W R/W R/W

Initial Value00000000

• Bits 3, 2, 1 – SM2:0: Sleep Mode Select Bits 2, 1, and 0

These bits select between the five available sleep modes as shown in Table 25.

Table 25. Sleep Mode Select

SM2 SM1 SM0 Sleep Mode

000Idle

0 0 1 ADC Noise Reduction

0 1 0 Power-down

011Power-save

1 0 0 Reserved

1 0 1 Reserved

1 1 0 Standby

1 1 1 Extended Standby

(1)

Note: 1. Standby modes are only recommended for use with external crystals or resonators.

• Bit 1 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the sleep mode unless it is the programmer’s purpose, it is recommended to write the Sleep Enable (SE) bit to one just before the execution of the SLEEP instruction and to clear it immediately after waking up.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

PRR0 – Power Reduction Register 0

ATmega640/1280/1281/2560/2561

Bit 7 6 543 2 1 0

(0x64) PRTWI PRTIM2 PRTIM0 – PRTIM1 PRSPI PRUSART0 PRADC PRR0

Read/Write R/W R/W R/W RR/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7 - PRTWI: Power Reduction TWI

Writing a logic one to this bit shuts down the TWI by stopping the clock to the module. When waking up the TWI again, the TWI should be re initialized to ensure proper

operation.

• Bit 6 - PRTIM2: Power Reduction Timer/Counter2

Writing a logic one to this bit shuts down the Timer/Counter2 module in synchronous mode (AS2 is 0). When the Timer/Counter2 is enabled, operation will continue like before the shutdown.

• Bit 5 - PRTIM0: Power Reduction Timer/Counter0

Writing a logic one to this bit shuts down the Timer/Counter0 module. When the Timer/Counter0 is enabled, operation will continue like before the shutdown.

• Bit 4 - Res: Reserved bit

This bit is reserved bit and will always read as zero.

• Bit 3 - PRTIM1: Power Reduction Timer/Counter1

Writing a logic one to this bit shuts down the Timer/Counter1 module. When the Timer/Counter1 is enabled, operation will continue like before the shutdown.

• Bit 2 - PRSPI: Power Reduction Serial Peripheral Interface

Writing a logic one to this bit shuts down the Serial Peripheral Interface by stopping the clock to the module. When waking up the SPI again, the SPI should be re initialized to ensure proper operation.

• Bit 1 - PRUSART0: Power Reduction USART0

Writing a logic one to this bit shuts down the USART0 by stopping the clock to the module. When waking up the USART0 again, the USART0 should be re initialized to ensure proper operation.

• Bit 0 - PRADC: Power Reduction ADC

Writing a logic one to this bit shuts down the ADC. The ADC must be disabled before shut down. The analog comparator cannot use the ADC input MUX when the ADC is shut down.

2549K–AVR–01/07

PRR1 – Power Reduction Register 1

Bit 76543 2 1 0

(0x65) – – PRTIM5 PRTIM4 PRTIM3 PRUSART3 PRUSART2 PRUSART1 PRR1

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7:6 - Res: Reserved bits

These bits are reserved and will always read as zero.

• Bit 5 - PRTIM5: Power Reduction Timer/Counter5

Writing a logic one to this bit shuts down the Timer/Counter5 module. When the Timer/Counter5 is enabled, operation will continue like before the shutdown.

• Bit 4 - PRTIM4: Power Reduction Timer/Counter4

Writing a logic one to this bit shuts down the Timer/Counter4 module. When the Timer/Counter4 is enabled, operation will continue like before the shutdown.

• Bit 3 - PRTIM3: Power Reduction Timer/Counter3

Writing a logic one to this bit shuts down the Timer/Counter3 module. When the Timer/Counter3 is enabled, operation will continue like before the shutdown.

• Bit 2 - PRUSART3: Power Reduction USART3

Writing a logic one to this bit shuts down the USART3 by stopping the clock to the module. When waking up the USART3 again, the USART3 should be re initialized to ensure proper operation.

• Bit 1 - PRUSART2: Power Reduction USART2

Writing a logic one to this bit shuts down the USART2 by stopping the clock to the module. When waking up the USART2 again, the USART2 should be re initialized to ensure proper operation.

• Bit 0 - PRUSART1: Power Reduction USART1

Writing a logic one to this bit shuts down the USART1 by stopping the clock to the module. When waking up the USART1 again, the USART1 should be re initialized to ensure proper operation.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

System Control and Reset

Resetting the AVR During reset, all I/O Registers are set to their initial values, and the program starts exe-

cution from the Reset Vector. The instruction placed at the Reset Vector must be a JMP – Absolute Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. This is also the case if the Reset Vector is in the Application section while the Interrupt Vectors are in the Boot section or vice versa. The circuit diagram in Figure 24 shows the reset logic. Table 26 defines the electrical parameters of the reset circuitry.

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the SUT and CKSEL Fuses. The different selections for the delay period are presented in “Clock Sources” on page 39.

Reset Sources The ATmega640/1280/1281/2560/2561 has five sources of reset:

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset threshold (V

• External Reset. The MCU is reset when a low level is present on the RESET longer than the minimum pulse length.

• Watchdog Reset. The MCU is reset when the Watchdog Timer period expires and the Watchdog is enabled.

• Brown-out Reset. The MCU is reset when the supply voltage V Brown-out Reset threshold (V

• JTAG AVR Reset. The MCU is reset as long as there is a logic one in the Reset Register, one of the scan chains of the JTAG system. Refer to the section “IEEE

1149.1 (JTAG) Boundary-scan” on page 308 for details.

POT

) and the Brown-out Detector is enabled.

BOT

is below the

pin for

2549K–AVR–01/07

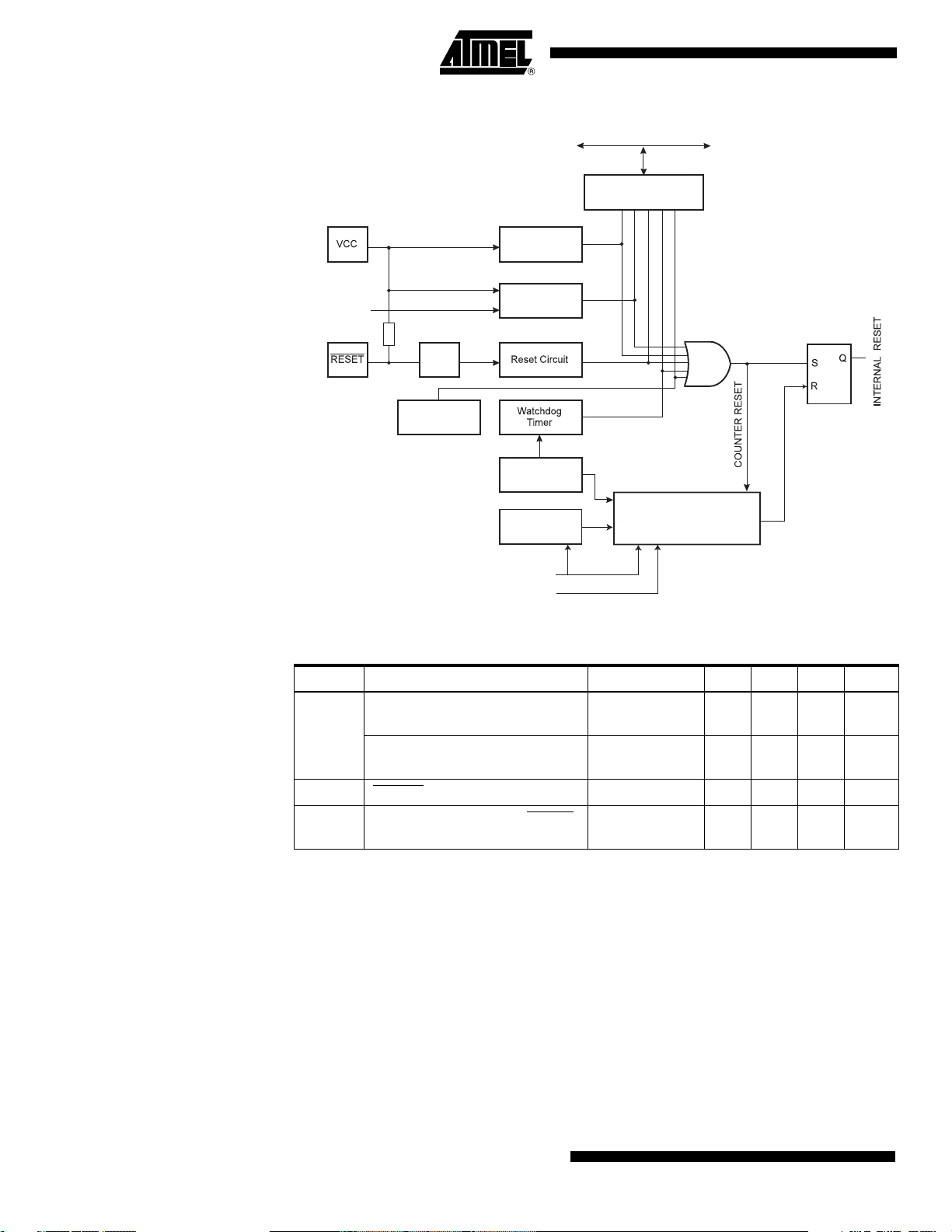

Figure 24. Reset Logic

Power-on Reset

Circuit

DATA BU S

MCU Status

JTRF

BORF

PORF

WDRF

EXTRF

BODLEVEL [2..0]

Pull-up Resistor

SPIKE

FILTER

JTAG Reset

Table 26. Reset Characteristics

Brown-out

Reset Circuit

Watchdog

Oscillator

Clock

Generator

CKSEL[3:0]

SUT[1:0]

(1)

Delay Counters

TIMEOUT

Symbol Parameter Condition Min Typ Max Units

Power-on Reset Threshold Voltage (rising)

POT

Power-on Reset Threshold Voltage (falling)

(2)

TBD TBD TBD V

RST

RESET Pin Threshold Voltage TBD TBD TBD V

Minimum pulse width on RESET Pin

TBD TBD TBD ns

Notes: 1. Values are guidelines only. Actual values are TBD.

2. The Power-on Reset will not work unless the supply voltage has been below V

POT

(falling)

Power-on Reset A Power-on Reset (POR) pulse is generated by an On-chip detection circuit. The detec-

tion level is defined in Table 26. The POR is activated whenever V

is below the

detection level. The POR circuit can be used to trigger the start-up Reset, as well as to detect a failure in supply voltage.

A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the Power-on Reset threshold voltage invokes the delay counter, which determines

how long the device is kept in RESET after V again, without any delay, when V

decreases below the detection level.

ATmega640/1280/1281/2560/2561

rise. The RESET signal is activated

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

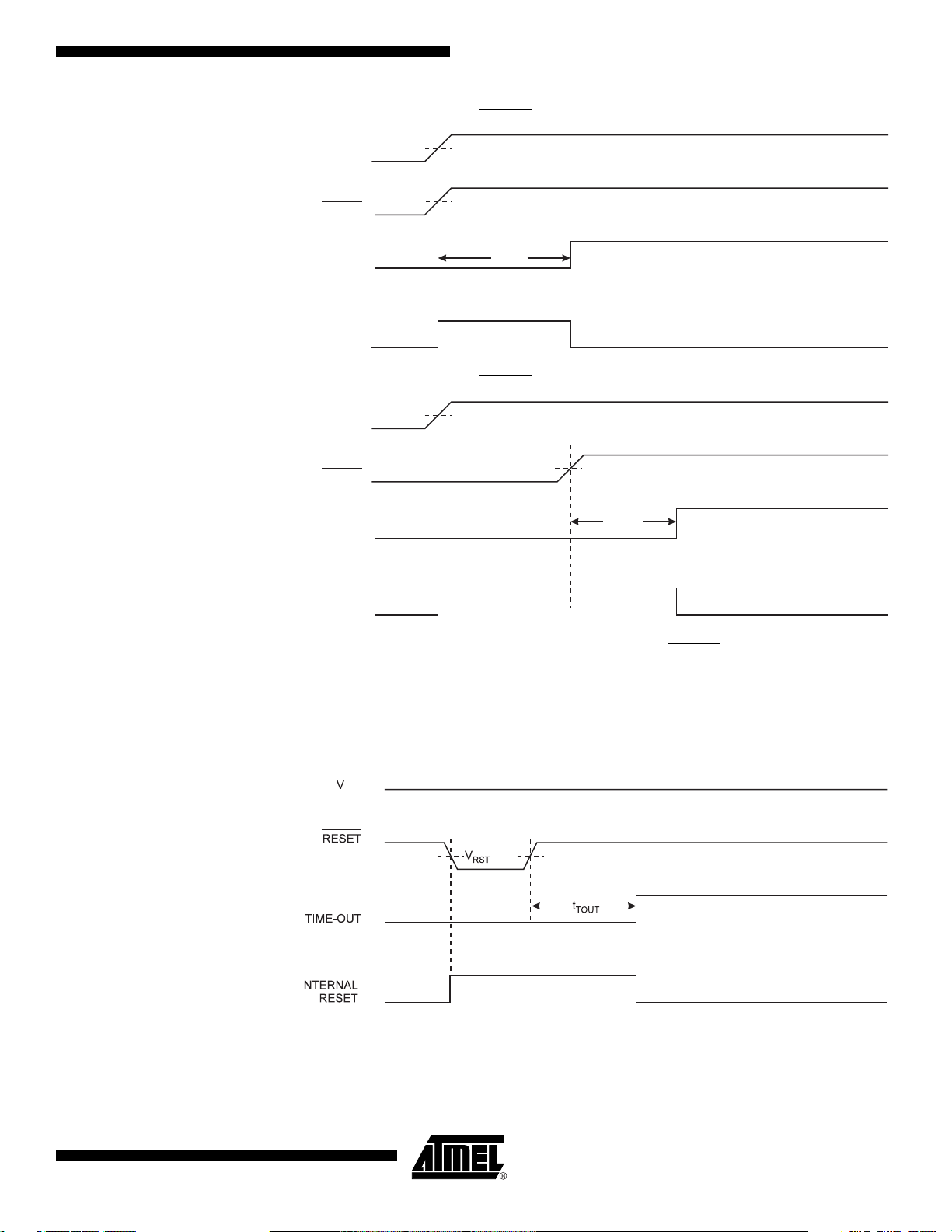

Figure 25. MCU Start-up, RESET Tied to V

RESET

TIME-OUT

INTERNAL

RESET

POT

RST

TOUT

Figure 26. MCU Start-up, RESET Extended Externally

RESET

TIME-OUT

POT

RST

TOUT

INTERNAL

RESET

External Reset An External Reset is generated by a low level on the RESET

than the minimum pulse width (see Table 26) will generate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V counter starts the MCU after the Time-out period – t

– on its positive edge, the delay

RST

TOUT –

has expired.

Figure 27. External Reset During Operation

pin. Reset pulses longer

2549K–AVR–01/07

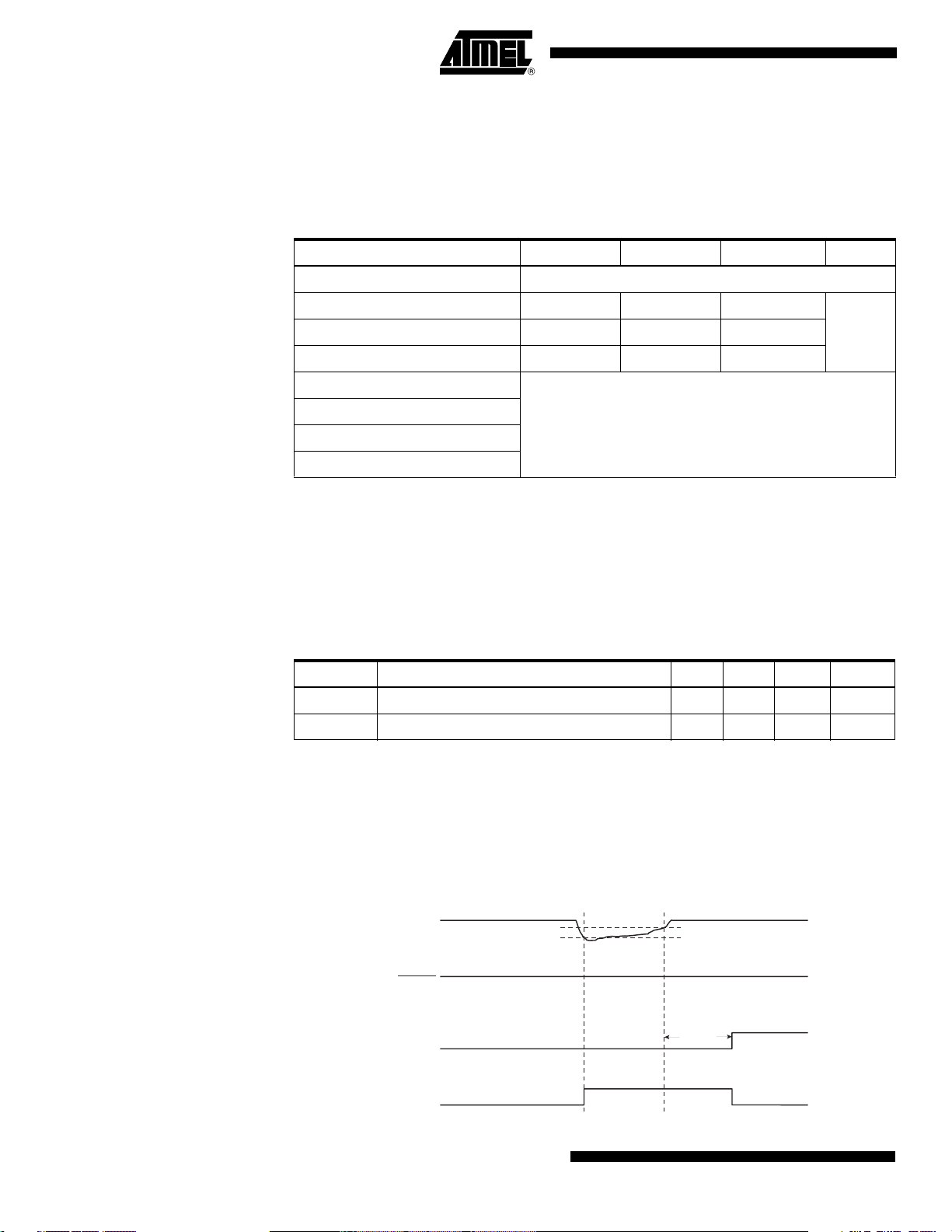

Brown-out Detection ATmega640/1280/1281/2560/2561 has an On-chip Brown-out Detection (BOD) circuit

for monitoring the V

level during operation by comparing it to a fixed trigger level. The

trigger level for the BOD can be selected by the BODLEVEL Fuses. The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V

Table 27. BODLEVEL Fuse Coding

BOT+

(1)

= V

BOT

+ V

HYST

/2 and V

BOT-

= V

BOT

- V

HYST

/2.

BODLEVEL 2:0 Fuses Min V

BOT

Typ V

BOT

Max V

BOT

Units

111 BOD Disabled

110 1.7 1.8 2.0

100 4.1 4.3 4.5

011

010

Reserved

001

000

Note: 1. V

may be below nominal minimum operating voltage for some devices. For

BOT

devices where this is the case, the device is tested down to VCC = V

during the

BOT

production test. This guarantees that a Brown-Out Reset will occur before V

to a voltage where correct operation of the microcontroller is no longer guaranteed. The test is performed using BODLEVEL = 110 for 4 MHz operation of ATmega640V/1280V/1281V/2560V/2561V, BODLEVEL = 101 for 8 MHz operation of ATmega640V/1280V/1281V/2560V/2561V and ATmega640/1280/1281, and BODLEVEL = 100 for 16 MHz operation of ATmega640/1280/1281/2560/2561.

Table 28. Brown-out Characteristics

Symbol Parameter Min Typ Max Units

BOD

HYST

Brown-out Detector Hysteresis 50 mV

Min Pulse Width on Brown-out Reset ns

V101 2.5 2.7 2.9

drops

When the BOD is enabled, and VCC decreases to a value below the trigger level (V in Figure 28), the Brown-out Reset is immediately activated. When VCC increases above the trigger level (V out period t

has expired.

TOUT

in Figure 28), the delay counter starts the MCU after the Time-

BOT+

The BOD circuit will only detect a drop in V for longer than t

given in Table 26.

BOD

Figure 28. Brown-out Reset During Operation

RESET

TIME-OUT

INTERNAL

RESET

BOT-

ATmega640/1280/1281/2560/2561

if the voltage stays below the trigger level

BOT+

TOUT

2549K–AVR–01/07

BOT-

ATmega640/1280/1281/2560/2561

Watchdog Reset When the Watchdog times out, it will generate a short reset pulse of one CK cycle dura-

tion. On the falling edge of this pulse, the delay timer starts counting the Time-out period t

. See “Watchdog Timer” on page 53. for details on operation of the Watchdog

TOUT

Timer.

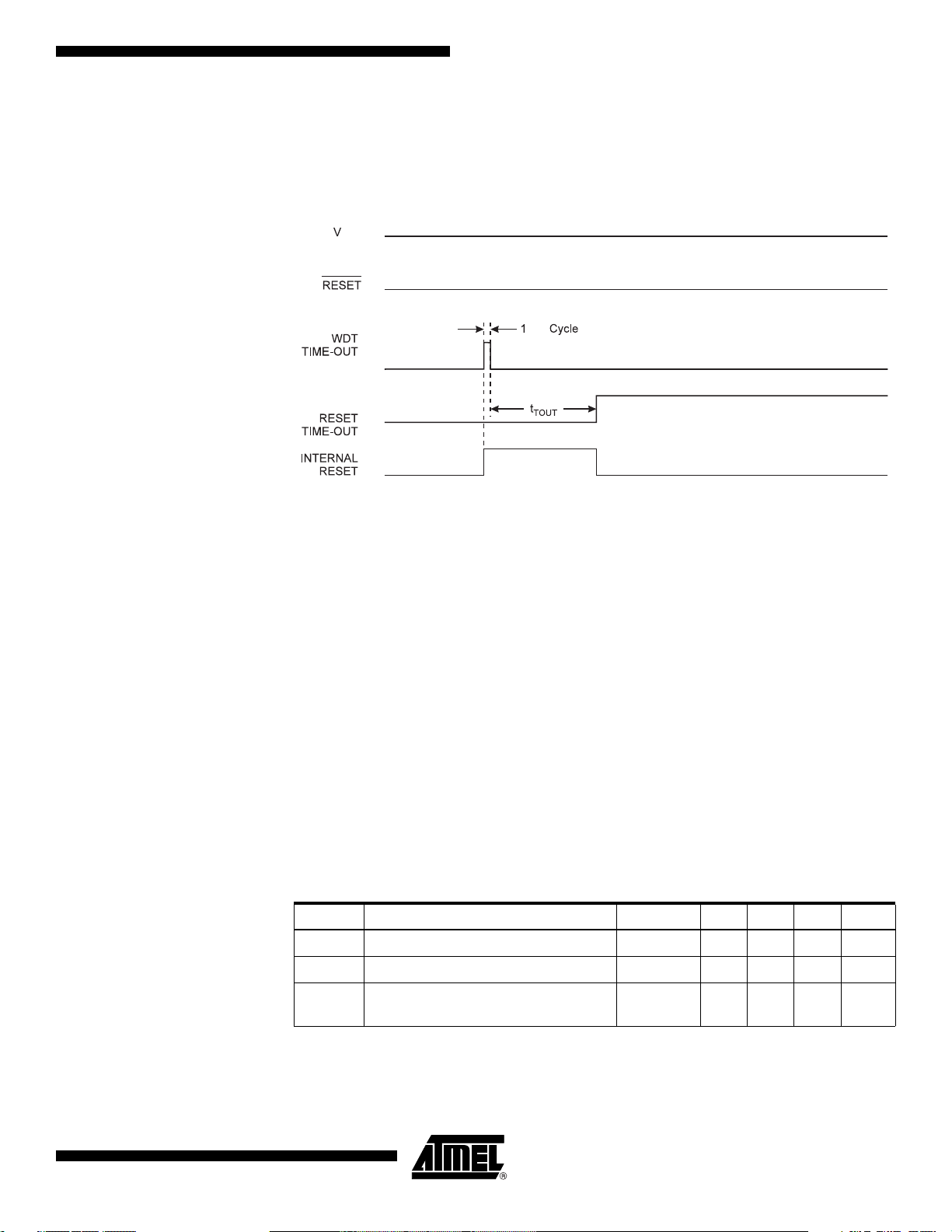

Figure 29. Watchdog Reset During Operation

Internal Voltage Reference

Voltage Reference Enable Signals and Start-up Time

ATmega640/1280/1281/2560/2561 features an internal bandgap reference. This reference is used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the ADC.

The voltage reference has a start-up time that may influence the way it should be used. The start-up time is given in Table 29. To save power, the reference is not always turned on. The reference is on during the following situations:

1. When the BOD is enabled (by programming the BODLEVEL [2:0] Fuse).

2. When the bandgap reference is connected to the Analog Comparator (by setting the ACBG bit in ACSR).

3. When the ADC is enabled.

Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user must always allow the reference to start up before the output from the Analog Comparator or ADC is used. To reduce power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

Table 29. Internal Voltage Reference Characteristics

Symbol Parameter Condition Min Typ Max Units

Bandgap reference voltage TBD TBD 1.1 TBD V

Bandgap reference start-up time TBD 40 70 µs

Bandgap reference current consumption

(1)

TBD 10 TBD µA

2549K–AVR–01/07

Note: 1. Values are guidelines only. Actual values are TBD.

Watchdog Timer ATmega640/1280/1281/2560/2561 has an Enhanced Watchdog Timer (WDT). The

main features are:

Clocked from separate On-chip Oscillator

•

• 3 Operating modes

– Interrupt – System Reset – Interrupt and System Reset

• Selectable Time-out period from 16ms to 8s

• Possible Hardware fuse Watchdog always on (WDTON) for fail-safe mode

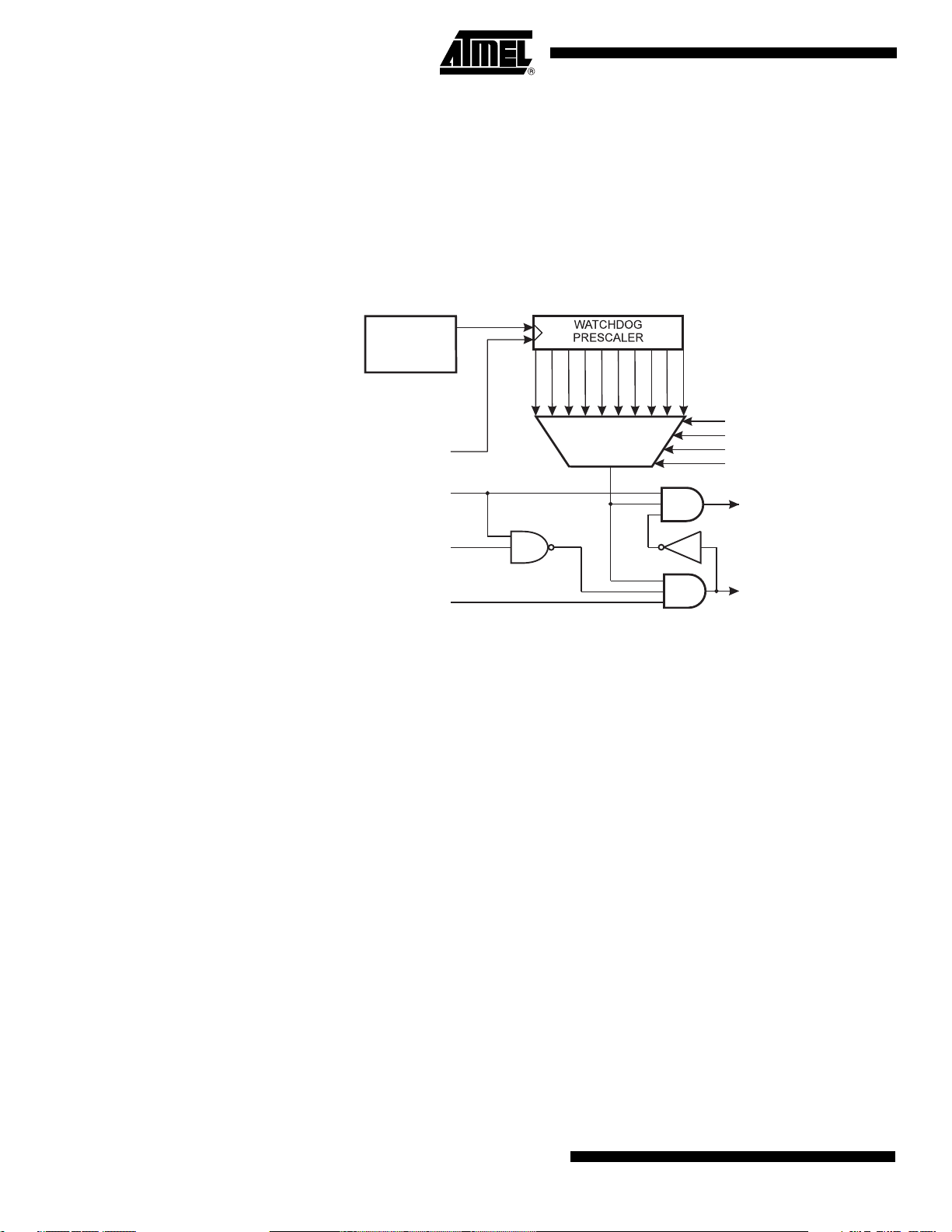

Figure 30. Watchdog Timer

128kHz

OSCILLATOR

OSC/2K

OSC/4K

OSC/8K

OSC/16K

OSC/32K

OSC/64K

OSC/128K

OSC/256K

OSC/512K

OSC/1024K

WDP0

WATCHDOG RESET

WDP1 WDP2 WDP3

WDE

WDIF

WDIE

MCU RESET

INTERRUPT

The Watchdog Timer (WDT) is a timer counting cycles of a separate on-chip 128 kHz oscillator. The WDT gives an interrupt or a system reset when the counter reaches a given time-out value. In normal operation mode, it is required that the system uses the WDR - Watchdog Timer Reset - instruction to restart the counter before the time-out value is reached. If the system doesn't restart the counter, an interrupt or system reset will be issued.

In Interrupt mode, the WDT gives an interrupt when the timer expires. This interrupt can be used to wake the device from sleep-modes, and also as a general system timer. One example is to limit the maximum time allowed for certain operations, giving an interrupt when the operation has run longer than expected. In System Reset mode, the WDT gives a reset when the timer expires. This is typically used to prevent system hang-up in case of runaway code. The third mode, Interrupt and System Reset mode, combines the other two modes by first giving an interrupt and then switch to System Reset mode. This mode will for instance allow a safe shutdown by saving critical parameters before a system reset.

The Watchdog always on (WDTON) fuse, if programmed, will force the Watchdog Timer to System Reset mode. With the fuse programmed the System Reset mode bit (WDE) and Interrupt mode bit (WDIE) are locked to 1 and 0 respectively. To further ensure program security, alterations to the Watchdog set-up must follow timed sequences. The sequence for clearing WDE and changing time-out configuration is as follows:

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

1. In the same operation, write a logic one to the Watchdog change enable bit (WDCE) and WDE. A logic one must be written to WDE regardless of the previous value of the WDE bit.

2. Within the next four clock cycles, write the WDE and Watchdog prescaler bits (WDP) as desired, but with the WDCE bit cleared. This must be done in one operation.

The following code example shows one assembly and one C function for turning off the Watchdog Timer. The example assumes that interrupts are controlled (e.g. by disabling interrupts globally) so that no interrupts will occur during the execution of these functions.

2549K–AVR–01/07

Assembly Code Example

WDT_off:

; Turn off global interrupt

cli

; Reset Watchdog Timer

wdr

; Clear WDRF in MCUSR

in r16, MCUSR

andi r16, (0xff & (0<<WDRF))

out MCUSR, r16

; Write logical one to WDCE and WDE

; Keep old prescaler setting to prevent unintentional time-out

ldi r16, WDTCSR

ori r16, (1<<WDCE) | (1<<WDE)

sts WDTCSR, r16

; Turn off WDT

ldi r16, (0<<WDE)

sts WDTCSR, r16

; Turn on global interrupt

sei

ret

C Code Example

(1)

void WDT_off(void)

{

__disable_interrupt();

__watchdog_reset();

/* Clear WDRF in MCUSR */

MCUSR &= ~(1<<WDRF);

/* Write logical one to WDCE and WDE */

/* Keep old prescaler setting to prevent unintentional time-out

WDTCSR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCSR = 0x00;

__enable_interrupt();

}

Note: 1. The example code assumes that the part specific header file is included.

Note: If the Watchdog is accidentally enabled, for example by a runaway pointer or

brown-out condition, the device will be reset and the Watchdog Timer will stay enabled. If the code is not set up to handle the Watchdog, this might lead to an eternal loop of time-out resets. To avoid this situation, the application software should always clear the Watchdog System Reset Flag (WDRF) and the WDE control bit in the initialisation routine, even if the Watchdog is not in use.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

The following code example shows one assembly and one C function for changing the time-out value of the Watchdog Timer.

Assembly Code Example

WDT_Prescaler_Change:

; Turn off global interrupt

cli

; Reset Watchdog Timer

wdr

; Start timed sequence

in r16, WDTCSR

ori r16, (1<<WDCE) | (1<<WDE)

out WDTCSR, r16

; -- Got four cycles to set the new values from here -

; Set new prescaler(time-out) value = 64K cycles (~0.5 s)

ldi r16, (1<<WDE) | (1<<WDP2) | (1<<WDP0)

out WDTCSR, r16

; -- Finished setting new values, used 2 cycles -

; Turn on global interrupt

sei

ret

C Code Example

void WDT_Prescaler_Change(void)

{

__disable_interrupt();

__watchdog_reset();

/* Start timed equence */

WDTCSR |= (1<<WDCE) | (1<<WDE);

/* Set new prescaler(time-out) value = 64K cycles (~0.5 s) */

WDTCSR = (1<<WDE) | (1<<WDP2) | (1<<WDP0);

__enable_interrupt();

}

(1)

2549K–AVR–01/07

Note: 1. The example code assumes that the part specific header file is included.

Note: The Watchdog Timer should be reset before any change of the WDP bits, since a

change in the WDP bits can result in a time-out when switching to a shorter time-out period.

Register Description

MCUSR – MCU Status Register

The MCU Status Register provides information on which reset source caused an MCU reset.

Bit 76543210

0x35 (0x55)

Read/Write R R R R/W R/W R/W R/W R/W

Initial Value 0 0 0 See Bit Description

– – – JTRF WDRF BORF EXTRF PORF MCUSR

• Bit 4 – JTRF: JTAG Reset Flag

This bit is set if a reset is being caused by a logic one in the JTAG Reset Register selected by the JTAG instruction AVR_RESET. This bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

WDTCSR – Watchdog Timer Control Register

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag.

To make use of the Reset Flags to identify a reset condition, the user should read and then Reset the MCUSR as early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the Reset Flags.

Bit 76543210

(0x60) WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 WDTCSR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value0000X000

• Bit 7 - WDIF: Watchdog Interrupt Flag

This bit is set when a time-out occurs in the Watchdog Timer and the Watchdog Timer is configured for interrupt. WDIF is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, WDIF is cleared by writing a logic one to the flag. When the I-bit in SREG and W DIE are set, the Watchdog Time-out Interrupt is executed.

• Bit 6 - WDIE: Watchdog Interrupt Enable

When this bit is written to one and the I-bit in the Status Register is set, the Watchdog Interrupt is enabled. If WDE is cleared in combination with this setting, the Watchdog

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Timer is in Interrupt Mode, and the corresponding interrupt is executed if time-out in the Watchdog Timer occurs.

If WDE is set, the Watchdog Timer is in Interrupt and System Reset Mode. The first time-out in the Watchdog Timer will set WDIF. Executing the corresponding interrupt vector will clear WDIE and WDIF automatically by hardware (the Watchdog goes to System Reset Mode). This is useful for keeping the Watchdog Timer security while using the interrupt. To stay in Interrupt and System Reset Mode, WDIE must be set after each interrupt. This should however not be done within the interrupt service routine itself, as this might compromise the safety-function of the Watchdog System Reset mode. If the interrupt is not executed before the next time-out, a System Reset will be applied.

Table 30. Watchdog Timer Configuration

WDTON

(1)

1 0 0 Stopped None

1 0 1 Interrupt Mode Interrupt

1 1 0 System Reset Mode Reset

111

WDE WDIE Mode Action on Time-out

Interrupt and System Reset Mode

Interrupt, then go to System Reset Mode

0 x x System Reset Mode Reset

Note: 1. WDTON Fuse set to “0“ means programmed and “1” means unprogrammed.

• Bit 4 - WDCE: Watchdog Change Enable

This bit is used in timed sequences for changing WDE and prescaler bits. To clear the WDE bit, and/or change the prescaler bits, WDCE must be set.

Once written to one, hardware will clear WDCE after four clock cycles.

• Bit 3 - WDE: Watchdog System Reset Enable

WDE is overridden by WDRF in MCUSR. This means that WDE is always set when WDRF is set. To clear WDE, WDRF must be cleared first. This feature ensures multiple

resets during conditions causing failure, and a safe start-up after the failure.

• Bit 5, 2:0 - WDP3:0: Watchdog Timer Prescaler 3, 2, 1 and 0

The WDP3:0 bits determine the Watchdog Timer prescaling when the Watchdog Timer is running. The different prescaling values and their corresponding time-out periods are shown in Table 31 on page 68.

2549K–AVR–01/07

Table 31. Watchdog Timer Prescale Select

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

0 0 0 0 2K (2048) cycles 16 ms

0 0 0 1 4K (4096) cycles 32 ms

0 0 1 0 8K (8192) cycles 64 ms

0 0 1 1 16K (16384) cycles 0.125 s

0 1 0 0 32K (32768) cycles 0.25 s

0 1 0 1 64K (65536) cycles 0.5 s

0 1 1 0 128K (131072) cycles 1.0 s

0 1 1 1 256K (262144) cycles 2.0 s

1 0 0 0 512K (524288) cycles 4.0 s

1 0 0 1 1024K (1048576) cycles 8.0 s

1010

1011

1100

1101

1110

1111

Cycles

Reserved

Typical Time-out at

VCC = 5.0V

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Interrupts This section describes the specifics of the interrupt handling as performed in

ATmega640/1280/1281/2560/2561. For a general explanation of the AVR interrupt handling, refer to “Reset and Interrupt Handling” on page 17.

Interrupt Vectors in ATmega640/1280/1281/2560/2561

Table 32. Reset and Interrupt Vectors

Vector

No.

2 $0002 INT0 External Interrupt Request 0

3 $0004 INT1 External Interrupt Request 1

4 $0006 INT2 External Interrupt Request 2

5 $0008 INT3 External Interrupt Request 3

6 $000A INT4 External Interrupt Request 4

7 $000C INT5 External Interrupt Request 5

8 $000E INT6 External Interrupt Request 6

9 $0010 INT7 External Interrupt Request 7

10 $0012 PCINT0 Pin Change Interrupt Request 0

11 $0014 PCINT1 Pin Change Interrupt Request 1

12 $0016

13 $0018 WDT Watchdog Time-out Interrupt

14 $001A TIMER2 COMPA Timer/Counter2 Compare Match A

15 $001C TIMER2 COMPB Timer/Counter2 Compare Match B

16 $001E TIMER2 OVF Timer/Counter2 Overflow

Program

Address

(1)

$0000

(3)

(2)

Source Interrupt Definition

RESET External Pin, Power-on Reset, Brown-out Reset,

Watchdog Reset, and JTAG AVR Reset

PCINT2 Pin Change Interrupt Request 2

2549K–AVR–01/07

17 $0020 TIMER1 CAPT Timer/Counter1 Capture Event

18 $0022 TIMER1 COMPA Timer/Counter1 Compare Match A

19 $0024 TIMER1 COMPB Timer/Counter1 Compare Match B

20 $0026 TIMER1 COMPC Timer/Counter1 Compare Match C

21 $0028 TIMER1 OVF Timer/Counter1 Overflow

22 $002A TIMER0 COMPA Timer/Counter0 Compare Match A

23 $002C TIMER0 COMPB Timer/Counter0 Compare match B

24 $002E TIMER0 OVF Timer/Counter0 Overflow

25 $0030 SPI, STC SPI Serial Transfer Complete

26 $0032 USART0 RX USART0 Rx Complete

27 $0034 USART0 UDRE USART0 Data Register Empty

28 $0036 USART0 TX USART0 Tx Complete

29 $0038 ANALOG COMP Analog Comparator

30 $003A ADC ADC Conversion Complete

31 $003C EE READY EEPROM Ready

Table 32. Reset and Interrupt Vectors (Continued)

Vector

No.

Program

Address

(2)

Source Interrupt Definition

32 $003E TIMER3 CAPT Timer/Counter3 Capture Event

33 $0040 TIMER3 COMPA Timer/Counter3 Compare Match A

34 $0042 TIMER3 COMPB Timer/Counter3 Compare Match B

35 $0044 TIMER3 COMPC Timer/Counter3 Compare Match C

36 $0046 TIMER3 OVF Timer/Counter3 Overflow

37 $0048 USART1 RX USART1 Rx Complete

38 $004A USART1 UDRE USART1 Data Register Empty

39 $004C USART1 TX USART1 Tx Complete

40 $004E TWI 2-wire Serial Interface

41 $0050 SPM READY Store Program Memory Ready

42 $0052

(3)

TIMER4 CAPT Timer/Counter4 Capture Event

43 $0054 TIMER4 COMPA Timer/Counter4 Compare Match A

44 $0056 TIMER4 COMPB Timer/Counter4 Compare Match B

45 $0058 TIMER4 COMPC Timer/Counter4 Compare Match C

46 $005A TIMER4 OVF Timer/Counter4 Overflow

(3)

47 $005C

TIMER5 CAPT Timer/Counter5 Capture Event

48 $005E TIMER5 COMPA Timer/Counter5 Compare Match A

49 $0060 TIMER5 COMPB Timer/Counter5 Compare Match B

50 $0062 TIMER5 COMPC Timer/Counter5 Compare Match C

51 $0064 TIMER5 OVF Timer/Counter5 Overflow

52 $0066

53 $0068

54 $006A

55 $006C

56 $006E

57 $0070

(3)

USART2 RX USART2 Rx Complete

USART2 UDRE USART2 Data Register Empty

(3)

USART2 TX USART2 Tx Complete

(3)

USART3 RX USART3 Rx Complete

(3))

USART3 UDRE USART3 Data Register Empty

USART3 TX USART3 Tx Complete

Notes: 1. When the BOOTRST Fuse is programmed, the device will jump to the Boot Loader

address at reset, see “Memory Programming” on page 342.

2. When the IVSEL bit in MCUCR is set, Interrupt Vectors will be moved to the start of the Boot Flash Section. The address of each Interrupt Vector will then be the address in this table added to the start address of the Boot Flash Section.

3. Only available in

ATmega640/1280/2560

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Reset and Interrupt Vector placement

Table 33 on page 71 shows Reset and Interrupt Vectors placement for the various combinations of BOOTRST and IVSEL settings. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. This is also the case if the Reset Vector is in the Application section while the Interrupt Vectors are in the Boot section or vice versa.

Table 33. Reset and Interrupt Vectors Placement

BOOTRST IVSEL Reset Address Interrupt Vectors Start Address

1 0 0x0000 0x0002

1 1 0x0000 Boot Reset Address + 0x0002

0 0 Boot Reset Address 0x0002

0 1 Boot Reset Address Boot Reset Address + 0x0002

Note: 1. The Boot Reset Address is shown in Table 140 on page 335 through Table 148 on

page 339. For the BOOTRST Fuse “1” means unprogrammed while “0” means programmed.

(1)

The most typical and general program setup for the Reset and Interrupt Vector Addresses in ATmega640/1280/1281/2560/2561 is:

Address Labels Code Comments

0x0000 jmp RESET ; Reset Handler

0x0002 jmp INT0 ; IRQ0 Handler

0x0004 jmp INT1 ; IRQ1 Handler

0x0006 jmp INT2 ; IRQ2 Handler

0x0008 jmp INT3 ; IRQ3 Handler

0x000A jmp INT4 ; IRQ4 Handler

0x000C jmp INT5 ; IRQ5 Handler

0x000E jmp INT6 ; IRQ6 Handler

0x0010 jmp INT7 ; IRQ7 Handler

0x0012 jmp PCINT0 ; PCINT0 Handler

0x0014 jmp PCINT1 ; PCINT1 Handler

0x0016 jmp PCINT2 ; PCINT2 Handler

0X0018 jmp WDT ; Watchdog Timeout Handler

0x001A jmp TIM2_COMPA ; Timer2 CompareA Handler

0x001C jmp TIM2_COMPB ; Timer2 CompareB Handler

0x001E jmp TIM2_OVF ; Timer2 Overflow Handler

0x0020 jmp TIM1_CAPT ; Timer1 Capture Handler

0x0022 jmp TIM1_COMPA ; Timer1 CompareA Handler

0x0024 jmp TIM1_COMPB ; Timer1 CompareB Handler

0x0026 jmp TIM1_COMPC ; Timer1 CompareC Handler

0x0028 jmp TIM1_OVF ; Timer1 Overflow Handler

0x002A jmp TIM0_COMPA ; Timer0 CompareA Handler

0x002C jmp TIM0_COMPB ; Timer0 CompareB Handler

0x002E jmp TIM0_OVF ; Timer0 Overflow Handler

0x0030 jmp SPI_STC ; SPI Transfer Complete Handler

0x0032 jmp USART0_RXC ; USART0 RX Complete Handler

0x0034 jmp USART0_UDRE ; USART0,UDR Empty Handler

0x0036 jmp USART0_TXC ; USART0 TX Complete Handler

0x0038 jmp ANA_COMP ; Analog Comparator Handler

0x003A jmp ADC ; ADC Conversion Complete Handler

0x003C jmp EE_RDY ; EEPROM Ready Handler

0x003E jmp TIM3_CAPT ; Timer3 Capture Handler

2549K–AVR–01/07

0x0040 jmp TIM3_COMPA ; Timer3 CompareA Handler

0x0042 jmp TIM3_COMPB ; Timer3 CompareB Handler

0x0044 jmp TIM3_COMPC ; Timer3 CompareC Handler

0x0046 jmp TIM3_OVF ; Timer3 Overflow Handler

0x0048 jmp USART1_RXC ; USART1 RX Complete Handler

0x004A jmp USART1_UDRE ; USART1,UDR Empty Handler

0x004C jmp USART1_TXC ; USART1 TX Complete Handler

0x004E jmp TWI ; 2-wire Serial Handler

0x0050 jmp SPM_RDY ; SPM Ready Handler

0x0052 jmp TIM4_CAPT ; Timer4 Capture Handler

0x0054 jmp TIM4_COMPA ; Timer4 CompareA Handler

0x0056 jmp TIM4_COMPB ; Timer4 CompareB Handler

0x0058 jmp TIM4_COMPC ; Timer4 CompareC Handler

0x005A jmp TIM4_OVF ; Timer4 Overflow Handler

0x005C jmp TIM5_CAPT ; Timer5 Capture Handler

0x005E jmp TIM5_COMPA ; Timer5 CompareA Handler

0x0060 jmp TIM5_COMPB ; Timer5 CompareB Handler

0x0062 jmp TIM5_COMPC ; Timer5 CompareC Handler

0x0064 jmp TIM5_OVF ; Timer5 Overflow Handler

0x0066 jmp USART2_RXC ; USART2 RX Complete Handler

0x0068 jmp USART2_UDRE ; USART2,UDR Empty Handler

0x006A jmp USART2_TXC ; USART2 TX Complete Handler

0x006C jmp USART3_RXC ; USART3 RX Complete Handler

0x006E jmp USART3_UDRE ; USART3,UDR Empty Handler

0x0070 jmp USART3_TXC ; USART3 TX Complete Handler

;

0x0072 RESET: ldi r16, high(RAMEND) ; Main program start

0x0073 out SPH,r16 ; Set Stack Pointer to top of RAM

0x0074 ldi r16, low(RAMEND)

0x0075 out SPL,r16

0x0076 sei ; Enable interrupts

0x0077 <instr> xxx

... ... ... ...

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

When the BOOTRST Fuse is unprogrammed, the Boot section size set to 8K bytes and the IVSEL bit in the MCUCR Register is set before any interrupts are enabled, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

Address Labels Code Comments

0x00000 RESET: ldi r16,high(RAMEND) ; Main program start

0x00001 out SPH,r16 ; Set Stack Pointer to top of RAM

0x00002 ldi r16,low(RAMEND)

0x00003 out SPL,r16 0x00004 sei ; Enable interrupts

0x00005 <instr> xxx

;

.org 0x1F002

0x1F002 jmp EXT_INT0 ; IRQ0 Handler

0x1F004 jmp EXT_INT1 ; IRQ1 Handler

... ... ... ;

0x1FO70 jmp USART3_TXC ; USART3 TX Complete Handler

When the BOOTRST Fuse is programmed and the Boot section size set to 8K bytes, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

Address Labels Code Comments

.org 0x0002

0x00002 jmp EXT_INT0 ; IRQ0 Handler

0x00004 jmp EXT_INT1 ; IRQ1 Handler

... ... ... ;

0x00070 jmp USART3_TXC ; USART3 TX Complete Handler

;

.org 0x1F000 0x1F000 RESET: ldi r16,high(RAMEND) ; Main program start

0x1F001 out SPH,r16 ; Set Stack Pointer to top of RAM

0x1F002 ldi r16,low(RAMEND)

0x1F003 out SPL,r16 0x1F004 sei ; Enable interrupts

0x1F005 <instr> xxx

2549K–AVR–01/07

When the BOOTRST Fuse is programmed, the Boot section size set to 8K bytes and the IVSEL bit in the MCUCR Register is set before any interrupts are enabled, the most typical and general program setup for the Reset and Interrupt Vector Addresses is:

Address Labels Code Comments

;

.org 0x1F000 0x1F000 jmp RESET ; Reset handler 0x1F002 jmp EXT_INT0 ; IRQ0 Handler

0x1F004 jmp EXT_INT1 ; IRQ1 Handler

... ... ... ;

0x1F070 jmp USART3_TXC ; USART3 TX Complete Handler

;

0x1F072 RESET: ldi r16,high(RAMEND) ; Main program start

0x1F073 out SPH,r16 ; Set Stack Pointer to top of RAM

0x1F074 ldi r16,low(RAMEND)

0x1F075 out SPL,r16 0x1F076 sei ; Enable interrupts

0x1FO77 <instr> xxx

Moving Interrupts Between Application and Boot Section

The MCU Control Register controls the placement of the Interrupt Vector table, see Code Example below. For more details, see “Reset and Interrupt Handling” on page 17.

Assembly Code Example

Move_interrupts:

; Get MCUCR

in r16, MCUCR

mov r17, r16

; Enable change of Interrupt Vectors

ori r16, (1<<IVCE)

out MCUCR, r16

; Move interrupts to Boot Flash section

ori r16, (1<<IVSEL)

out MCUCR, r17

ret

C Code Example

void Move_interrupts(void)

{

uchar temp;

/* Get MCUCR*/

temp = MCUCR;

/* Enable change of Interrupt Vectors */

MCUCR = temp|(1<<IVCE);

/* Move interrupts to Boot Flash section */

MCUCR = temp|(1<<IVSEL);

}

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

Register Description

MCUCR – MCU Control Register

Bit 76543210

0x35 (0x55)

Read/Write R/W RRR/W RRR/W R/W

Initial Value 0 0 0 0 0 0 0 0

JTD – – PUD – – IVSEL IVCE MCUCR

• Bit 1 – IVSEL: Interrupt Vector Select

When the IVSEL bit is cleared (zero), the Interrupt Vectors are placed at the start of the Flash memory. When this bit is set (one), the Interrupt Vectors are moved to the beginning of the Boot Loader section of the Flash. The actual address of the start of the Boot Flash Section is determined by the BOOTSZ Fuses. Refer to the section “Memory Programming” on page 342 for details. To avoid unintentional changes of Interrupt Vector tables, a special write procedure must be followed to change the IVSEL bit (see “Moving Interrupts Between Application and Boot Section” on page 74):

1. Write the Interrupt Vector Change Enable (IVCE) bit to one.

2. Within four cycles, write the desired value to IVSEL while writing a zero to IVCE.

Interrupts will automatically be disabled while this sequence is executed. Interrupts are disabled in the cycle IVCE is set, and they remain disabled until after the instruction following the write to IVSEL. If IVSEL is not written, interrupts remain disabled for four cycles. The I-bit in the Status Register is unaffected by the automatic disabling.

Note: If Interrupt Vectors are placed in the Boot Loader section and Boot Lock bit BLB02 is pro-

grammed, interrupts are disabled while executing from the Application section. If Interrupt Vectors are placed in the Application section and Boot Lock bit BLB12 is programed, interrupts are disabled while executing from the Boot Loader section. Refer to the section “Memory Programming” on page 342 for details on Boot Lock bits.

• Bit 0 – IVCE: Interrupt Vector Change Enable

The IVCE bit must be written to logic one to enable change of the IVSEL bit. IVCE is cleared by hardware four cycles after it is written or when IVSEL is written. Setting the IVCE bit will disable interrupts, as explained in the IVSEL description.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

External Interrupts The External Interrupts are triggered by the INT7:0 pin or any of the PCINT23:0 pins.

Observe that, if enabled, the interrupts will trigger even if the INT7:0 or PCINT23:0 pins are configured as outputs. This feature provides a way of generating a software interrupt.

The Pin change interrupt PCI2 will trigger if any enabled PCINT23:16 pin toggles, Pin change interrupt PCI1 if any enabled PCINT15:8 toggles and Pin change interrupts PCI0 will trigger if any enabled PCINT7:0 pin toggles. PCMSK2, PCMSK1 and PCMSK0 Registers control which pins contribute to the pin change interrupts. Pin change interrupts on PCINT23 :0 are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode.

The External Interrupts can be triggered by a falling or rising edge or a low level. This is set up as indicated in the specification for the External Interrupt Control Registers – EICRA (INT3:0) and EICRB (INT7:4). When the external interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT7:4 requires the presence of an I/O clock, described in “Overview” on page 37. Low level interrupts and the edge interrupt on INT3:0 are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode. The I/O clock is halted in all sleep modes except Idle mode.

Note that if a level triggered interrupt is used for wake-up from Power-down, the required level must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If the level disappears before the end of the Start-up Time, the MCU will still wake up, but no interrupt will be generated. The start-up time is defined by the SUT and CKSEL Fuses as described in “System Clock and Clock Options” on page 37.

Pin Change Interrupt Timing

An example of timing of a pin change interrupt is shown in Figure 31.

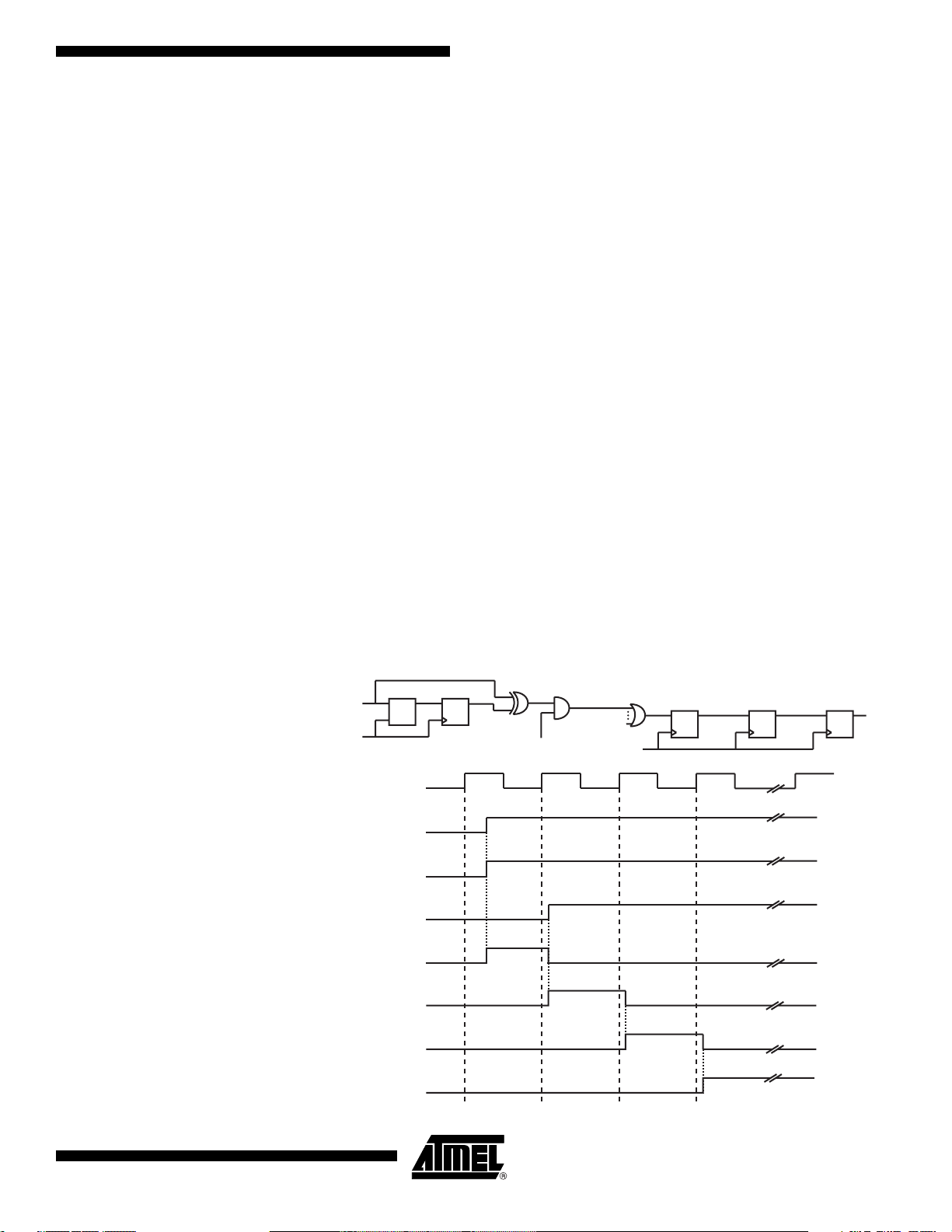

Figure 31. Normal pin change interrupt.

PCINT(0)

clk

pin_lat

D Q

pin_sync

PCINT(0) in PCMSK(x)

pcint_in_(0)

clk

pcint_syn

clk

PCINT(n)

pin_lat

pin_sync

pcint_in_(n)

pcint_syn

pcint_setflag

PCIF

2549K–AVR–01/07

PCIF

Register Description

EICRA – External Interrupt Control Register A

The External Interrupt Control Register A contains control bits for interrupt sense control.

Bit 76543210

(0x69) ISC31 ISC30 ISC21 ISC20 ISC11 ISC10 ISC01 ISC00 EICRA

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 7:0 – ISC31, ISC30 – ISC00, ISC00: External Interrupt 3 - 0 Sense Control Bits

The External Interrupts 3 - 0 are activated by the external pins INT3:0 if the SREG I-flag and the corresponding interrupt mask in the EIMSK is set. The level and edges on the external pins that activate the interrupts are defined in Table 34. Edges on INT3:0 are registered asynchronously. Pulses on INT3:0 pins wider than the minimum pulse width given in Table 35 will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt. If enabled, a level triggered interrupt will generate an interrupt request as long as the pin is held low. When changing the ISCn bit, an interrupt can occur. Therefore, it is recommended to first disable INTn by clearing its Interrupt Enable bit in the EIMSK Register. Then, the ISCn bit can be changed. Finally, the INTn interrupt flag should be cleared by writing a logical one to its Interrupt Flag bit (INTFn) in the EIFR Register before the interrupt is reenabled.

Table 34. Interrupt Sense Control

(1)

ISCn1 ISCn0 Description

0 0 The low level of INTn generates an interrupt request.

0 1 Any edge of INTn generates asynchronously an interrupt request.

1 0 The falling edge of INTn generates asynchronously an interrupt request.

1 1 The rising edge of INTn generates asynchronously an interrupt request.

Note: 1. n = 3, 2, 1or 0.

When changing the ISCn1/ISCn0 bits, the interrupt must be disabled by clearing its

Interrupt Enable bit in the EIMSK Register. Otherwise an interrupt can occur when the bits are changed.

Table 35. Asynchronous External Interrupt Characteristics

Symbol Parameter Condition Min Typ Max Units

INT

Minimum pulse width for asynchronous external interrupt

50 ns

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

EICRB – External Interrupt Control Register B

ATmega640/1280/1281/2560/2561

Bit 76543210

(0x6A) ISC71 ISC70 ISC61 ISC60 ISC51 ISC50 ISC41 ISC40 EICRB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 7:0 – ISC71, ISC70 - ISC41, ISC40: External Interrupt 7 - 4 Sense Control Bits

The External Interrupts 7 - 4 are activated by the external pins INT7:4 if the SREG I-flag and the corresponding interrupt mask in the EIMSK is set. The level and edges on the external pins that activate the interrupts are defined in Table 36. The value on the INT7:4 pins are sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. Observe that CPU clock frequency can be lower than the XTAL frequency if the XTAL divider is enabled. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt. If enabled, a level triggered interrupt will generate an interrupt request as long as the pin is held low.

EIMSK – External Interrupt Mask Register

Table 36. Interrupt Sense Control

ISCn1 ISCn0 Description

0 0 The low level of INTn generates an interrupt request.

0 1 Any logical change on INTn generates an interrupt request

Note: 1. n = 7, 6, 5 or 4.

When changing the ISCn1/ISCn0 bits, the interrupt must be disabled by clearing its

Interrupt Enable bit in the EIMSK Register. Otherwise an interrupt can occur when the bits are changed.

Bit 76543210

0x1D (0x3D) INT7 INT6 INT5 INT4 INT3 INT2 INT1 INT0 EIMSK

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The falling edge between two samples of INTn generates an interrupt request.

The rising edge between two samples of INTn generates an interrupt request.

(1)

• Bits 7:0 – INT7:0: External Interrupt Request 7 - 0 Enable

When an INT7:0 bit is written to one and the I-bit in the Status Register (SREG) is set (one), the corresponding external pin interrupt is enabled. The Interrupt Sense Control bits in the External Interrupt Control Registers – EICRA and EICRB – defines whether the external interrupt is activated on rising or falling edge or level sensed. Activity on any of these pins will trigger an interrupt request even if the pin is enabled as an output. This provides a way of generating a software interrupt.

2549K–AVR–01/07

EIFR – External Interrupt Flag Register

Bit 76543210

0x1C (0x3C) INTF7 INTF6 INTF5 INTF4 INTF3 INTF2 INTF1 IINTF0 EIFR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 7:0 – INTF7:0: External Interrupt Flags 7 - 0

When an edge or logic change on the INT7:0 pin triggers an interrupt request, INTF7:0 becomes set (one). If the I-bit in SREG and the corresponding interrupt enable bit, INT7:0 in EIMSK, are set (one), the MCU will jump to the interrupt vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. These flags are always cleared when INT7:0 are configured as level interrupt. Note that when entering sleep mode with the INT3:0 interrupts disabled, the input buffers on these pins will be disabled. This may cause a logic change in internal signals which will set the INTF3:0 flags. See “Digital Input Enable and Sleep Modes” on page 87 for more information.

PCICR – Pin Change Interrupt Control Register

Bit 76543210

(0x68)

Read/WriteRRRRRR/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

– – – – – PCIE2 PCIE1 PCIE0 PCICR

• Bit 2 – PCIE2: Pin Change Interrupt Enable 1

When the PCIE2 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt 2 is enabled. Any change on any enabled PCINT23:16 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI2 Interrupt Vector. PCINT23:16 pins are enabled individually by the PCMSK2 Register.

• Bit 1 – PCIE1: Pin Change Interrupt Enable 1

When the PCIE1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt 1 is enabled. Any change on any enabled PCINT15:8 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI1 Interrupt Vector. PCINT15:8 pins are enabled individually by the PCMSK1 Register.

• Bit 0 – PCIE0: Pin Change Interrupt Enable 0

When the PCIE0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt 0 is enabled. Any change on any enabled PCINT7:0 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI0 Interrupt Vector. PCINT7:0 pins are enabled individually by the PCMSK0 Register.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

PCIFR – Pin Change Interrupt Flag Register

Bit 76543210

0x1B (0x3B)

Read/WriteRRRRRR/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

– – – – – PCIF2 PCIF1 PCIF0 PCIFR

• Bit 2 – PCIF2: Pin Change Interrupt Flag 1

When a logic change on any PCINT23:16 pin triggers an interrupt request, PCIF2 becomes set (one). If the I-bit in SREG and the PCIE2 bit in PCICR are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

• Bit 1 – PCIF1: Pin Change Interrupt Flag 1

When a logic change on any PCINT15:8 pin triggers an interrupt request, PCIF1 becomes set (one). If the I-bit in SREG and the PCIE1 bit in PCICR are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

• Bit 0 – PCIF0: Pin Change Interrupt Flag 0

When a logic change on any PCINT7:0 pin triggers an interrupt request, PCIF0 becomes set (one). If the I-bit in SREG and the PCIE0 bit in PCICR are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

PCMSK2 – Pin Change Mask Register 2

PCMSK1 – Pin Change Mask Register 1

Bit 76543210

(0x6D)

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

PCINT23 PCINT22 PCINT21 PCINT20 PCINT19 PCINT18 PCINT17 PCINT16 PCMSK2

• Bit 7:0 – PCINT23:16: Pin Change Enable Mask 23:16

Each PCINT23:16-bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT23:16 is set and the PCIE2 bit in PCICR is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT23:16 is cleared, pin change interrupt on the corresponding I/O pin is disabled.

Bit 76543210

(0x6C)

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

PCINT15 PCINT14 PCINT13 PCINT12 PCINT11 PCINT10 PCINT9 PCINT8 PCMSK1

• Bit 7:0 – PCINT15:8: Pin Change Enable Mask 15:8

Each PCINT15:8-bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT15:8 is set and the PCIE1 bit in EIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT15:8 is cleared, pin change interrupt on the corresponding I/O pin is disabled.

2549K–AVR–01/07

PCMSK0 – Pin Change Mask Register 0

Bit 76543210

(0x6B) PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 PCMSK0

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

• Bit 7:0 – PCINT7:0: Pin Change Enable Mask 7:0

Each PCINT7:0 bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT7:0 is set and the PCIE0 bit in PCICR is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT7:0 is cleared, pin change interrupt on the corresponding I/O pin is disabled.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

I/O-Ports

Introduction All AVR ports have true Read-Modify-Write functionality when used as general digital

I/O ports. This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as input). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

and Ground as indicated in Figure 32. Refer to “Electrical Characteristics” on page

374 for a complete list of parameters.

Figure 32. I/O Pin Equivalent Schematic

Pxn

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used. For example, PORTB3 for bit no. 3 in Port B, here documented generally as PORTxn. The physical I/O Registers and bit locations are listed in “Table 70 and Table 71 relates the alternate functions of Port L to the overriding signals shown in Figure 36 on page 89.” on page 114.

Three I/O memory address locations are allocated for each port, one each for the Data Register – PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins I/O location is read only, while the Data Register and the Data Direction Register are read/write. However, writing a logic one to a bit in the PINx Register, will result in a toggle in the corresponding bit in the Data Register. In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

See Figure

"General Digital I/O" for

Logic

Details

2549K–AVR–01/07

Using the I/O port as General Digital I/O is described in “Ports as General Digital I/O” on page 84. Most port pins are multiplexed with alternate functions for the peripheral features on the device. How each alternate function interferes with the port pin is described in “Alternate Port Functions” on page 89. Refer to the individual module sections for a full description of the alternate functions.

Note that enabling the alternate function of some of the port pins does not affect the use of the other pins in the port as general digital I/O.

Ports as General Digital I/O

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 33 shows a functional description of one I/O-port pin, here generically called Pxn.

Figure 33. General Digital I/O

Pxn

(1)

SLEEP

SYNCHRONIZER

DLQ

PINxn

PUD

DDxn

CLR

RESET

PORTxn

CLR

RESET

RRx

WDx

RDx

RPx

DATA BUS

WRx

WPx

clk

I/O

WDx: WRITE DDRx PUD: PULLUP DISABLE SLEEP: SLEEP CONTROL

: I/O CLOCK

clk

I/O

RDx: READ DDRx

WRx: WRITE PORTx

RRx: READ PORTx REGISTER

RPx: READ PORTx PIN

WPx: WRITE PINx REGISTER

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port.

clk

, SLEEP, and PUD are common to all ports.

I/O

Configuring the Pin Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in

“Table 70 and Table 71 relates the alternate functions of Port L to the overriding signals shown in Figure 36 on page 89.” on page 114, the DDxn bits are accessed at the DDRx I/O address, the PORTxn bits at the PORTx I/O address, and the PINxn bits at the PINx I/O address.

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one, Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when reset condition becomes active, even if no clocks are running.

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Toggli n g t h e P i n Writing a logic one to PINxn toggles the value of PORTxn, independent on the value of

DDRxn. Note that the SBI instruction can be used to toggle one single bit in a port.

Switching Between Input and Output

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn} = 0b11), an intermediate state with either pull-up enabled {DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn} = 0b11) as an intermediate step.

Table 37 summarizes the control signals for the pin value.

Table 37. Port Pin Configurations

DDxn

0 0 X Input No Tri-state (Hi-Z)

0 1 0 Input Yes Pxn will source current if ext. pulled low.

011 Input No Tri-state (Hi-Z)

1 0 X Output No Output Low (Sink)

1 1 X Output No Output High (Source)

PORTxn

PUD

(in MCUCR)

I/O Pull-up Comment

Reading the Pin Value Independent of the setting of Data Direction bit DDxn, the port pin can be read through

the PINxn Register bit. As shown in Figure 33, the PINxn Register bit and the preceding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also introduces a delay. Figure 34 shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t

pd,max

and t

pd,min

respectively.

2549K–AVR–01/07

Figure 34. Synchronization when Reading an Externally Applied Pin value

SYSTEM CLK

INSTRUCTIONS

XXX in r17, PINx

XXX

SYNC LATCH

PINxn

r17

0x00 0xFF

pd, max

pd, min

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the suc- ceeding positive clock edge. As indicated by the two arrows tpd,max and tpd,min, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a software assigned pin value, a nop instruction must be inserted as indicated in Figure 35. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay tpd through the synchronizer is 1 system clock period.

Figure 35. Synchronization when Reading a Software Assigned Pin Value

SYSTEM CLK

r16

INSTRUCTIONS

out PORTx, r16 nop in r17, PINx

0xFF

SYNC LATCH

PINxn

r17

0x00 0xFF

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 7 as input with pull-ups assigned to port pins 6 and 7. The

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to some of the pins.

Assembly Code Example

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi r16,(1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0)

ldi r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out PORTB,r16

out DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in r16,PINB

...

(1)

C Code Example

unsigned char i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB7)|(1<<PB6)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

__no_operation();

/* Read port pins */

i = PINB;

...

Digital Input Enable and Sleep Modes

2549K–AVR–01/07

Note: 1. For the assembly program, two temporary registers are used to minimize the time

from pull-ups are set on pins 0, 1, 6, and 7, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

As shown in Figure 33, the digital input signal can be clamped to ground at the input of the schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in Power-down mode, Power-save mode, and Standby mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

/2.

SLEEP is overridden for port pins enabled as external interrupt pins. If the external interrupt request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in “Alternate Port Functions” on page 89.

If a logic high level (“one”) is present on an asynchronous external interrupt pin configured as “Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while the external interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned Sleep mode, as the clamping in these sleep mode produces the requested logic change.

Unconnected Pins If some pins are unused, it is recommended to ensure that these pins have a defined

level. Even though most of the digital inputs are disabled in the deep sleep modes as described above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode and Idle mode).

The simplest method to ensure a defined level of an unused pin, is to enable the internal pull-up. In this case, the pull-up will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pull-up or pull-down. Connecting unused pins directly to V cause excessive currents if the pin is accidentally configured as an output.

or GND is not recommended, since this may

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Alternate Port Functions Most port pins have alternate functions in addition to being general digital I/Os. Figure

36 shows how the port pin control signals from the simplified Figure 33 can be overridden by alternate functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

Figure 36. Alternate Port Functions

PUOExn

Pxn

PUOVxn

DDOExn

DDOVxn

PVOExn

PVOVxn

DIEOExn

DIEOVxn

SLEEP

(1)

SYNCHRONIZER

SET

DLQ

CLR

PINxn

CLR

PORTxn

CLR

RESET

DDxn

PUD

CLR

WDx

RDx

RRx

RPx

clk

I/O

WRx

PTOExn

WPx

DATA B U S

DIxn

AIOxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE PUOVxn: Pxn PULL-UP OVERRIDE VALUE DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE PVOExn: Pxn PORT VALUE OVERRIDE ENABLE PVOVxn: Pxn PORT VALUE OVERRIDE VALUE DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE SLEEP: SLEEP CONTROL PTOExn: Pxn, PORT TOGGLE OVERRIDE ENABLE

PUD: PULLUP DISABLE WDx: WRITE DDRx RDx: READ DDRx RRx: READ PORTx REGISTER WRx: WRITE PORTx RPx: READ PORTx PIN WPx: WRITE PINx clk

: I/O CLOCK

I/O

DIxn: DIGITAL INPUT PIN n ON PORTx AIOxn: ANALOG INPUT/OUTPUT PIN n ON PORTx

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port.

clk

, SLEEP, and PUD are common to all ports. All other signals are unique for each

I/O

pin.

2549K–AVR–01/07

Table 38 summarizes the function of the overriding signals. The pin and port indexes from Figure 36 are not shown in the succeeding tables. The overriding signals are generated internally in the modules having the alternate function.

Table 38. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

PUOE Pull-up Override

Enable

PUOV Pull-up Override

Valu e

DDOE Data Direction

Override Enable

DDOV Data Direction

Override Value

PVOE Port Value

Override Enable

PVOV Port Value

Override Value

PTOE Port Toggle

Override Enable

DIEOE Digital Input

Enable Override Enable

DIEOV Digital Input

Enable Override Valu e

DI Digital Input This is the Digital Input to alternate functions. In the

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when PUOV is set/cleared, regardless of the setting of the DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If PTOE is set, the PORTxn Register bit is inverted.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital Input Enable is determined by MCU state (Normal mode, sleep mode).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep mode).

figure, the signal is connected to the output of the schmitt trigger but before the synchronizer. Unless the Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

AIO Analog

Input/Output

This is the Analog Input/output to/from alternate functions. The signal is connected directly to the pad, and can be used bi-directionally.

The following subsections shortly describe the alternate functions for each port, and relate the overriding signals to the alternate function. Refer to the alternate function description for further details.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Alternate Functions of Port A The Port A has an alternate function as the address low byte and data lines for the

External Memory Interface.

Table 39. Port A Pins Alternate Functions

Port Pin Alternate Function

PA7 AD7 (External memory interface address and data bit 7)

PA6 AD6 (External memory interface address and data bit 6)

PA5 AD5 (External memory interface address and data bit 5)

PA4 AD4 (External memory interface address and data bit 4)

PA3 AD3 (External memory interface address and data bit 3)

PA2 AD2 (External memory interface address and data bit 2)

PA1 AD1 (External memory interface address and data bit 1)

PA0 AD0 (External memory interface address and data bit 0)

Table 40 and Table 41 relates the alternate functions of Port A to the overriding signals shown in Figure 36 on page 89.

Table 40. Overriding Signals for Alternate Functions in PA7:PA4

Signal Name PA7/AD7 PA6/AD6 PA5/AD5 PA4/AD4

PUOE SRE SRE SRE SRE

PUOV ~(WR | ADA

PORTA7 • PUD

DDOE SRE SRE SRE SRE

DDOV WR

PVOE SRE SRE SRE SRE

PVOV A7 • ADA | D7

DIEOE 0 0 0 0

DIEOV 0 0 0 0

DI D7 INPUT D6 INPUT D5 INPUT D4 INPUT

AIO – – – –

Note: 1. ADA is short for ADdress Active and represents the time when address is output. See

| ADA WR | ADA WR | ADA WR | ADA

OUTPUT • WR

“External Memory Interface” on page 26 for details.

(1)

) •

~(WR | ADA) • PORTA6 • PUD

A6 • ADA | D6 OUTPUT • WR

~(WR | ADA) • PORTA5 • PUD

A5 • ADA | D5 OUTPUT • WR

~(WR | ADA) • PORTA4 • PUD

A4 • ADA | D4 OUTPUT • WR

2549K–AVR–01/07

Table 41. Overriding Signals for Alternate Functions in PA3:PA0

Signal Name PA3/AD3 PA2/AD2 PA1/AD1 PA0/AD0

PUOE SRE SRE SRE SRE

PUOV ~(WR | ADA) •

PORTA3 • PUD

DDOE SRE SRE SRE SRE

DDOV WR

PVOE SRE SRE SRE SRE

PVOV A3 • ADA | D3

DIEOE 0 0 0 0

DIEOV 0 0 0 0

DI D3 INPUT D2 INPUT D1 INPUT D0 INPUT

AIO – – – –

| ADA WR | ADA WR | ADA WR | ADA

OUTPUT • WR

~(WR | ADA) • PORTA2 • PUD

A2• ADA | D2 OUTPUT • WR

~(WR | ADA) • PORTA1 • PUD

A1 • ADA | D1 OUTPUT • WR

Alternate Functions of Port B The Port B pins with alternate functions are shown in Table 42.

Table 42. Port B Pins Alternate Functions

Port Pin Alternate Functions

PB7

PB6

OC0A/OC1C/PCINT7 (Output Compare and PWM Output A for Timer/Counter0, Output Compare and PWM Output C for Timer/Counter1 or Pin Change Interrupt 7)

OC1B/PCINT6 (Output Compare and PWM Output B for Timer/Counter1 or Pin Change Interrupt 6)

~(WR | ADA) • PORTA0 • PUD

A0 • ADA | D0 OUTPUT • WR

PB5

PB4

PB3 MISO/PCINT3 (SPI Bus Master Input/Slave Output or Pin Change Interrupt 3)

PB2 MOSI/PCINT2 (SPI Bus Master Output/Slave Input or Pin Change Interrupt 2)

PB1 SCK/PCINT1 (SPI Bus Serial Clock or Pin Change Interrupt 1)

PB0 SS

OC1A/PCINT5 (Output Compare and PWM Output A for Timer/Counter1 or Pin Change Interrupt 5)

OC2A/PCINT4 (Output Compare and PWM Output A for Timer/Counter2 or Pin Change Interrupt 4)

/PCINT0 (SPI Slave Select input or Pin Change Interrupt 0)

The alternate pin configuration is as follows:

• OC0A/OC1C/PCINT7, Bit 7

OC0A, Output Compare Match A output: The PB7 pin can serve as an external output for the Timer/Counter0 Output Compare. The pin has to be configured as an output (DDB7 set “one”) to serve this function. The OC0A pin is also the output pin for the PWM mode timer function.

OC1C, Output Compare Match C output: The PB7 pin can serve as an external output for the Timer/Counter1 Output Compare C. The pin has to be configured as an output (DDB7 set (one)) to serve this function. The OC1C pin is also the output pin for the PWM mode timer function.

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

PCINT7, Pin Change Interrupt source 7: The PB7 pin can serve as an external interrupt source.

• OC1B/PCINT6, Bit 6

OC1B, Output Compare Match B output: The PB6 pin can serve as an external output for the Timer/Counter1 Output Compare B. The pin has to be configured as an output (DDB6 set (one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer function.

PCINT6, Pin Change Interrupt source 6: The PB6 pin can serve as an external interrupt source.

• OC1A/PCINT5, Bit 5

OC1A, Output Compare Match A output: The PB5 pin can serve as an external output for the Timer/Counter1 Output Compare A. The pin has to be configured as an output (DDB5 set (one)) to serve this function. The OC1A pin is also the output pin for the PWM mode timer function.

PCINT5, Pin Change Interrupt source 5: The PB5 pin can serve as an external interrupt source.

• OC2A/PCINT4, Bit 4

OC2A, Output Compare Match output: The PB4 pin can serve as an external output for the Timer/Counter2 Output Compare. The pin has to be configured as an output (DDB4 set (one)) to serve this function. The OC2A pin is also the output pin for the PWM mode timer function.

PCINT4, Pin Change Interrupt source 4: The PB4 pin can serve as an external interrupt source.

• MISO/PCINT3 – Port B, Bit 3

MISO: Master Data input, Slave Data output pin for SPI channel. When the SPI is enabled as a master, this pin is configured as an input regardless of the setting of DDB3. When the SPI is enabled as a slave, the data direction of this pin is controlled by DDB3. When the pin is forced to be an input, the pull-up can still be controlled by the PORTB3 bit.

PCINT3, Pin Change Interrupt source 3: The PB3 pin can serve as an external interrupt source.

• MOSI/PCINT2 – Port B, Bit 2

MOSI: SPI Master Data output, Slave Data input for SPI channel. When the SPI is enabled as a slave, this pin is configured as an input regardless of the setting of DDB2. When the SPI is enabled as a master, the data direction of this pin is controlled by DDB2. When the pin is forced to be an input, the pull-up can still be controlled by the PORTB2 bit.

2549K–AVR–01/07

PCINT2, Pin Change Interrupt source 2: The PB2 pin can serve as an external interrupt source.

• SCK/PCINT1 – Port B, Bit 1

SCK: Master Clock output, Slave Clock input pin for SPI channel. When the SPI is enabled as a slave, this pin is configured as an input regardless of the setting of DDB1.

When the SPI0 is enabled as a master, the data direction of this pin is controlled by DDB1. When the pin is forced to be an input, the pull-up can still be controlled by the PORTB1 bit.

PCINT1, Pin Change Interrupt source 1: The PB1 pin can serve as an external interrupt source.

•SS

/PCINT0 – Port B, Bit 0

: Slave Port Select input. When the SPI is enabled as a slave, this pin is configured as an input regardless of the setting of DDB0. As a slave, the SPI is activated when this pin is driven low. When the SPI is enabled as a master, the data direction of this pin is controlled by DDB0. When the pin is forced to be an input, the pull-up can still be controlled by the PORTB0 bit.

Table 43 and Table 44 relate the alternate functions of Port B to the overriding signals shown in Figure 36 on page 89. SPI MSTR INPUT and SPI SLAVE OUTPUT constitute the MISO signal, while MOSI is divided into SPI MSTR OUTPUT and SPI SLAVE INPUT.

PCINT0, Pin Change Interrupt source 0: The PB0 pin can serve as an external interrupt source.

Table 43. Overriding Signals for Alternate Functions in PB7:PB4

Signal Name PB7/OC0A/OC1C PB6/OC1B PB5/OC1A PB4/OC2A

PUOE 0 0 0 0

PUOV 0 0 0 0

DDOE 0 0 0 0

DDOV 0 0 0 0

PVOE OC0/OC1C ENABLE OC1B ENABLE OC1A ENABLE OC2A ENABLE

PVOV OC0/OC1C OC1B OC1A OC2A

DIEOE PCINT7 • PCIE0 PCINT6 • PCIE0 PCINT5 • PCIE0 PCINT4 • PCIE0

DIEOV 1 1 1 1

DI PCINT7 INPUT PCINT6 INPUT PCINT5 INPUT PCINT4 INPUT

AIO – – – –

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Table 44. Overriding Signals for Alternate Functions in PB3:PB0

Signal Name PB3/MISO PB2/MOSI PB1/SCK PB0/SS

PUOE SPE • MSTR SPE • MSTR SPE • MSTR SPE • MSTR

PUOV PORTB3 • PUD PORTB2 • PUD PORTB1 • PUD PORTB0 • PUD

DDOE SPE • MSTR SPE • MSTR SPE • MSTR SPE • MSTR

DDOV 0 0 0 0

PVOE SPE • MSTR

PVOV SPI SLAVE OUTPUT SPI MSTR OUTPUT SCK OUTPUT 0

DIEOE PCINT3 • PCIE0 PCINT2 • PCIE0 PCINT1 •

DIEOV 1 1 1 1

DI SPI MSTR INPUT

PCINT3 INPUT

AIO – – – –

SPE • MSTR SPE • MSTR 0

PCIE0

SPI SLAVE INPUT PCINT2 INPUT

SCK INPUT PCINT1 INPUT

PCINT0 • PCIE0

SPI SS PCINT0 INPUT

Alternate Functions of Port C The Port C alternate function is as follows:

Table 45. Port C Pins Alternate Functions

Port Pin Alternate Function

PC7 A15(External Memory interface address bit 15)

PC6 A14(External Memory interface address bit 14)

PC5 A13(External Memory interface address bit 13)

PC4 A12(External Memory interface address bit 12)

PC3 A11(External Memory interface address bit 11)

PC2 A10(External Memory interface address bit 10)

PC1 A9(External Memory interface address bit 9)

PC0 A8(External Memory interface address bit 8)

Table 46 and Table 47 relate the alternate functions of Port C to the overriding signals shown in Figure 36 on page 89.

2549K–AVR–01/07

Table 46. Overriding Signals for Alternate Functions in PC7:PC4

Signal Name PC7/A15 PC6/A14 PC5/A13 PC4/A12

PUOE SRE • (XMM<1) SRE • (XMM<2) SRE • (XMM<3) SRE • (XMM<4)

PUOV 0 0 0 0

DDOE SRE • (XMM<1) SRE • (XMM<2) SRE • (XMM<3) SRE • (XMM<4)

DDOV 1 1 1 1

PVOE SRE • (XMM<1) SRE • (XMM<2) SRE • (XMM<3) SRE • (XMM<4)

PVOV A15 A14 A13 A12

DIEOE 0 0 0 0

DIEOV 0 0 0 0

DI – – – –

AIO – – – –

Table 47. Overriding Signals for Alternate Functions in PC3:PC0

Signal Name PC3/A11 PC2/A10 PC1/A9 PC0/A8

PUOE SRE • (XMM<5) SRE • (XMM<6) SRE • (XMM<7) SRE • (XMM<7)

PUOV0000

DDOE SRE • (XMM<5) SRE • (XMM<6) SRE • (XMM<7) SRE • (XMM<7)

DDOV 1 1 1 1

PVOE SRE • (XMM<5) SRE • (XMM<6) SRE • (XMM<7) SRE • (XMM<7)

PVOV A11 A10 A9 A8

DIEOE0000

DIEOV0000

DI––––

AIO––––

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Alternate Functions of Port D The Port D pins with alternate functions are shown in Table 48.

Table 48. Port D Pins Alternate Functions

Port Pin Alternate Function

PD7 T0 (Timer/Counter0 Clock Input)

PD6 T1 (Timer/Counter1 Clock Input)

PD5 XCK1 (USART1 External Clock Input/Output)

PD4 ICP1 (Timer/Counter1 Input Capture Trigger)

PD3 INT3/TXD1 (External Interrupt3 Input or USART1 Transmit Pin)

PD2 INT2/RXD1 (External Interrupt2 Input or USART1 Receive Pin)

PD1 INT1/SDA (External Interrupt1 Input or TWI Serial DAta)

PD0 INT0/SCL (External Interrupt0 Input or TWI Serial CLock)

The alternate pin configuration is as follows:

• T0 – Port D, Bit 7

T0, Timer/Counter0 counter source.

• T1 – Port D, Bit 6

T1, Timer/Counter1 counter source.

• XCK1 – Port D, Bit 5

XCK1, USART1 External clock. The Data Direction Register (DDD5) controls whether the clock is output (DDD5 set) or input (DDD5 cleared). The XCK1 pin is active only when the USART1 operates in Synchronous mode.

• ICP1 – Port D, Bit 4

ICP1 – Input Capture Pin 1: The PD4 pin can act as an input capture pin for Timer/Counter1.

• INT3/TXD1 – Port D, Bit 3

INT3, External Interrupt source 3: The PD3 pin can serve as an external interrupt source to the MCU.

TXD1, Transmit Data (Data output pin for the USART1). When the USART1 Transmitter is enabled, this pin is configured as an output regardless of the value of DDD3.

• INT2/RXD1 – Port D, Bit 2

INT2, External Interrupt source 2. The PD2 pin can serve as an External Interrupt source to the MCU.

2549K–AVR–01/07

RXD1, Receive Data (Data input pin for the USART1). When the USART1 receiver is enabled this pin is configured as an input regardless of the value of DDD2. When the USART forces this pin to be an input, the pull-up can still be controlled by the PORTD2 bit.

• INT1/SDA – Port D, Bit 1

INT1, External Interrupt source 1. The PD1 pin can serve as an external interrupt source to the MCU.

SDA, 2-wire Serial Interface Data: When the TWEN bit in TWCR is set (one) to enable the 2-wire Serial Interface, pin PD1 is disconnected from the port and becomes the Serial Data I/O pin for the 2-wire Serial Interface. In this mode, there is a spike filter on the pin to suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain driver with slew-rate limitation.

•INT0/SCL – Port D, Bit 0

INT0, External Interrupt source 0. The PD0 pin can serve as an external interrupt source to the MCU.

SCL, 2-wire Serial Interface Clock: When the TWEN bit in TWCR is set (one) to enable the 2-wire Serial Interface, pin PD0 is disconnected from the port and becomes the Serial Clock I/O pin for the 2-wire Serial Interface. In this mode, there is a spike filter on the pin to suppress spikes shorter than 50 ns on the input signal, and the pin is driven by an open drain driver with slew-rate limitation.

Table 49 and Table 50 relates the alternate functions of Port D to the overriding signals shown in Figure 36 on page 89.

Table 49. Overriding Signals for Alternate Functions PD7:PD4

Signal Name PD7/T0 PD6/T1 PD5/XCK1 PD4/ICP1

PUOE000 0

PUOV000 0

DDOE 0 0 XCK1 OUTPUT ENABLE 0

DDOV 0 0 1 0

PVOE 0 0 XCK1 OUTPUT ENABLE 0

PVOV 0 0 XCK1 OUTPUT 0

DIEOE000 0

DIEOV000 0

DI T0 INPUT T1 INPUT XCK1 INPUT ICP1 INPUT

AIO––– –

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATmega640/1280/1281/2560/2561

Table 50. Overriding Signals for Alternate Functions in PD3:PD0

Signal Name PD3/INT3/TXD1 PD2/INT2/RXD1 PD1/INT1/SDA PD0/INT0/SCL

PUOE TXEN1RXEN1TWEN TWEN

(1)

PUOV 0 PORTD2 • PUD

DDOE TXEN1RXEN1TWEN TWEN

DDOV 1 0 SDA_OUT SCL_OUT

PVOE TXEN10 TWEN TWEN

PVOV TXD1 0 0 0

DIEOE INT3 ENABLE INT2 ENABLE INT1 ENABLE INT0 ENABLE

DIEOV 1 1 1 1

DI INT3 INPUT INT2 INPUT/RXD1 INT1 INPUT INT0 INPUT

AIO – – SDA INPUT SCL INPUT

Note: 1. When enabled, the 2-wire Serial Interface enables Slew-Rate controls on the output

pins PD0 and PD1. This is not shown in this table. In addition, spike filters are connected between the AIO outputs shown in the port figure and the digital logic of the TWI module.

PORTD1 • PUD PORTD0 • PUD

Alternate Functions of Port E The Port E pins with alternate functions are shown in Table 51.

Table 51. Port E Pins Alternate Functions

Port Pin Alternate Function

PE7

PE6 INT6/ T3 (External Interrupt 6 Input or Timer/Counter3 Clock Input)

PE5

PE4

INT7/ICP3/CLK0 (External Interrupt 7 Input, Timer/Counter3 Input Capture Trigger or Divided System Clock)

INT5/OC3C (External Interrupt 5 Input or Output Compare and PWM Output C for Timer/Counter3)

INT4/OC3B (External Interrupt4 Input or Output Compare and PWM Output B for Timer/Counter3)

2549K–AVR–01/07

PE3

PE2

PE1 PDO

PE0

Note: 1. Only for ATmega1281/2561. For ATmega640/1280/2560 these functions are

AIN1/OC3A (Analog Comparator Negative Input or Output Compare and PWM Output A for Timer/Counter3)

AIN0/XCK0 (Analog Comparator Positive Input or USART0 external clock input/output)

(1)

/TXD0 (Programming Data Output or USART0 Transmit Pin)

(1)

/RXD0/PCINT8 (Programming Data Input, USART0 Receive Pin or Pin

PDI Change Interrupt 8)

placed on MISO/MOSI pins.

• INT7/ICP3/CLKO – Port E, Bit 7

INT7, External Interrupt source 7: The PE7 pin can serve as an external interrupt source.

ICP3, Input Capture Pin 3: The PE7 pin can act as an input capture pin for Timer/Counter3.

CLKO - Divided System Clock: The divided system clock can be output on the PE7 pin. The divided system clock will be output if the CKOUT Fuse is programmed, regardless of the PORTE7 and DDE7 settings. It will also be output during reset.

• INT6/T3 – Port E, Bit 6

INT6, External Interrupt source 6: The PE6 pin can serve as an external interrupt source.

T3, Timer/Counter3 counter source.

• INT5/OC3C – Port E, Bit 5

INT5, External Interrupt source 5: The PE5 pin can serve as an External Interrupt source.

OC3C, Output Compare Match C output: The PE5 pin can serve as an External output for the Timer/Counter3 Output Compare C. The pin has to be configured as an output (DDE5 set “one”) to serve this function. The OC3C pin is also the output pin for the PWM mode timer function.

• INT4/OC3B – Port E, Bit 4

INT4, External Interrupt source 4: The PE4 pin can serve as an External Interrupt source.

OC3B, Output Compare Match B output: The PE4 pin can serve as an External output for the Timer/Counter3 Output Compare B. The pin has to be configured as an output (DDE4 set (one)) to serve this function. The OC3B pin is also the output pin for the PWM mode timer function.

• AIN1/OC3A – Port E, Bit 3

AIN1 – Analog Comparator Negative input. This pin is directly connected to the negative input of the Analog Comparator.

OC3A, Output Compare Match A output: The PE3 pin can serve as an External output for the Timer/Counter3 Output Compare A. The pin has to be configured as an output (DDE3 set “one”) to serve this function. The OC3A pin is also the output pin for the PWM mode timer function.

• AIN0/XCK0 – Port E, Bit 2

AIN0 – Analog Comparator Positive input. This pin is directly connected to the positive input of the Analog Comparator.

XCK0, USART0 External clock. The Data Direction Register (DDE2) controls whether the clock is output (DDE2 set) or input (DDE2 cleared). The XCK0 pin is active only when the USART0 operates in Synchronous mode.

• PDO/TXD0 – Port E, Bit 1

PDO, SPI Serial Programming Data Output. During Serial Program Downloading, this pin is used as data output line for the ATmega1281/2561. For ATmega640/1280/2560 this function is placed on MISO.

TXD0, USART0 Transmit pin.

100

ATmega640/1280/1281/2560/2561

2549K–AVR–01/07

ATMEL ATmega640, ATmega640V, ATmega1280V, ATmega1281V, ATmega2560V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

Pin Configurations

Disclaimer Typical values contained in this datasheet are based on simulations and characteriza-

Overview

Block Diagram

Comparison Between ATmega1281/2561 and ATmega640/1280/2560

Pin Descriptions

Port A (PA7..PA0) Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port B (PB7..PB0) Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port C (PC7..PC0) Port C is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port D (PD7..PD0) Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port E (PE7..PE0) Port E is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port F (PF7..PF0) Port F serves as analog inputs to the A/D Converter.

Port G (PG5..PG0) Port G is a 6-bit I/O port with internal pull-up resistors (selected for each bit). The Port G

Port H (PH7..PH0) Port H is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port J (PJ7..PJ0) Port J is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

Port K (PK7..PK0) Port K serves as analog inputs to the A/D Converter.

Port L (PL7..PL0) Port L is a 8-bit bi-directional I/O port with internal pull-up resistors (selected for each

RESET

XTAL1 Input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

XTAL2 Output from the inverting Oscillator amplifier.

AVCC AVCC is the supply voltage pin for Port F and the A/D Converter. It should be externally

AREF This is the analog reference pin for the A/D Converter.

Resources

About Code Examples

AVR CPU Core

Introduction This section discusses the AVR core architecture in general. The main function of the

Architectural Overview Figure 5. Block Diagram of the AVR Architecture

Status Register The Status Register contains information about the result of the most recently executed

General Purpose Register File

The X-register, Y-register, and Z-register

Stack Pointer The Stack is mainly used for storing temporary data, for storing local variables and for

Instruction Execution Timing

Reset and Interrupt Handling

Interrupt Response Time The interrupt execution response for all the enabled AVR interrupts is five clock cycles

AVR Memor ies

In-System Reprogrammable Flash Program Memory

SRAM Data Memory Table 4 on page 21 shows how the ATmega640/1280/1281/2560/2561 SRAM Memory

Data Memory Access Times This section describes the general access timing concepts for internal memory access.

EEPROM Data Memory The ATmega640/1280/1281/2560/2561 contains 4K bytes of data EEPROM memory. It

EEPROM Read/Write Access The EEPROM Access Registers are accessible in the I/O space, see “Register Descrip-

Preventing EEPROM Corruption

I/O Memory The I/O space definition of the ATmega640/1280/1281/2560/2561 is shown in “Register

General Purpose I/O Registers The ATmega640/1280/1281/2560/2561 contains three General Purpose I/O Registers.

External Memory Interface

Overview When the eXternal MEMory (XMEM) is enabled, address space outside the internal

Using the External Memory Interface

Address Latch Requirements Due to the high-speed operation of the XRAM interface, the address latch must be

Pull-up and Bus-keeper The pull-ups on the AD7:0 ports may be activated if the corresponding Port register is

Timing External Memory devices have different timing requirements. To meet these require-

Using all Locations of External Memory Smaller than 64 KB

Using all 64KB Locations of External Memory

Register Description

EEPROM registers

General Purpose registers

External Memory registers

Overview Figure 20 presents the principal clock systems in the AVR and their distribution. All of

Clock Systems and their Distribution

Clock Sources The device has the following clock source options, selectable by Flash Fuse bits as

Default Clock Source The device is shipped with internal RC oscillator at 8.0 MHz and with the fuse CKDIV8

Clock Start-up Sequence Any clock source needs a sufficient V

Low Power Crystal Oscillator

Full Swing Crystal Oscillator

Low Frequency Crystal Oscillator

Calibrated Internal RC Oscillator

128 kHz Internal Oscillator

External Clock To drive the device from an external clock source, XTAL1 should be driven as shown in

Clock Output Buffer The device can output the system clock on the CLKO pin. To enable the output, the

Timer/Counter Oscillator The device can operate its Timer/Counter2 from an external 32.768 kHz watch crystal or

System Clock Prescaler The ATmega640/1280/1281/2560/2561 has a system clock prescaler, and the system

Register Description

Power Management and Sleep Modes

Sleep Modes Figure 20 on page 37 presents the different clock systems in the

Idle Mode When the SM2:0 bits are written to 000, the SLEEP instruction makes the MCU enter

ADC Noise Reduction Mode

Power-down Mode When the SM2:0 bits are written to 010, the SLEEP instruction makes the MCU enter
