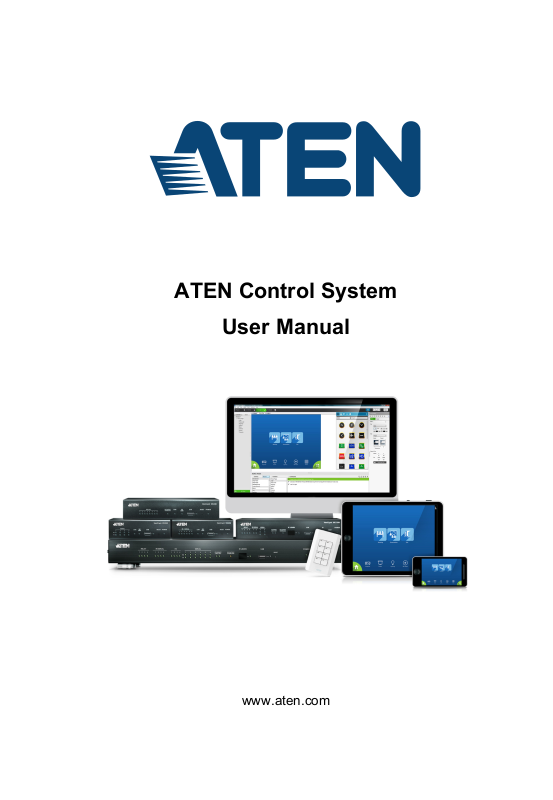

ATEN Control System
User Manual
www.aten.com
ATEN Control System User Manual
EMC Information
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
Warning: Operation of this equipment in a residential environment could cause radio interference.
KCC Statement
/ A ( )
(A ),.
RoHS
This product is RoHS compliant.
Safety
This product has been classified as Information Technology Equipment.
ii
ATEN Control System User Manual
User Information
Online Registration
Be sure to register your product at our online support center:
International http://eservice.aten.com
Telephone Support
For telephone support, call this number:
International |
886-2-8692-6959 |
|
|
China |
86-400-810-0-810 |
|
|
Japan |
81-3-5615-5811 |
|
|
Korea |
82-2-467-6789 |
|
|
North America |
1-888-999-ATEN ext 4988 |
|
1-949-428-1111 |
|
|
User Notice
All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior to operation. PLEASE VERIFY THAT THE VOLTAGE SETTING IS CORRECT BEFORE USE.
iii
ATEN Control System User Manual
Package Contents
VK0100
The VK0100 package consists of:
1 VK0100 8-Button Control Pad (US, 1 Gang)
1 Button Pack
6 Terminal Blocks
1 Faceplate
1 User Instructions*
VK0200
The VK0200 package consists of:
1 VK0200 12-Button Control Pad (EU, 2 Gang)
1 Button Pack
6 Terminal Blocks
1 Faceplate
1 User Instructions*
VK1100
The VK1100 package consists of:
1 VK1100 Compact Control Box
4 Terminal Blocks
1 Power Cord
1 User Instructions*
VK2100
The VK2100 package consists of:
1 VK2100 Control Box
1 Rack Mount Kit
9 Terminal Blocks
1 Power Cord
1 User Instructions*
iv
ATEN Control System User Manual
Note:
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the ATEN controller and other connected devices.
The VK2100 product firmware may have been updated with new features after the release of this manual. For an up-to-date VK2100 user manual, visit http://www.aten.com/global/en/
v
ATEN Control System User Manual
Contents
EMC Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv VK0100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv VK0200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv VK1100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv VK2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
1. Introduction
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Intelligent Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ATEN Control Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ATEN Configurator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ATEN Control System App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ATEN Keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. Hardware Setup
ATEN Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 VK2100 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 VK2100 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 VK1100 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 VK1100 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Rack Mounting the ATEN Control Box . . . . . . . . . . . . . . . . . . . . . . . . 16 VK2100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 VK1100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Control Box Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 12VDC Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 IR / Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 One IR Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Two IR Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
vi
ATEN Control System User Manual
Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
RS-232 / 422 / 485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ATEN Control Pad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installing the Control Pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Installation Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
RS-232 Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Relay Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Digital Input Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ATEN Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Layout Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3. Browser Operation
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Licenses for Mobile Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
4. ATEN Configurator (VK6000)
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Getting Started Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Main Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Adding Devices to ATEN Configurator . . . . . . . . . . . . . . . . . . . . . . . . 82
The Device Configuration List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Left Sidebar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Device Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
vii
ATEN Control System User Manual
Select Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Left Sidebar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Right Sidebar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Page Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Windows OS Button Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Page Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Button / Slider Bar Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Adding Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Advanced Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Layering Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Graphic Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Device Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Condition & Action Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Creating an If Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Creating a Switch Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Creating a Bypass Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Scheduled Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Synced Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
For Devices that Return Feedback Messages . . . . . . . . . . . . . . 152
Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Viewing Controller Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
5. ATEN Database Generator
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
My Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Managing My Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Edit / Add New Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Text Command Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
ATEN Library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
6. Remote PC Control Using ControlAssist
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
179 |
Setting Up Remote PC Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
181 |
viii
ATEN Control System User Manual
Installing ControlAssist to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 Adding the Computer to the Control System . . . . . . . . . . . . . . . . . . . . . . . . 183 Configuring a Control Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 Supported PC Control Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
7. ATEN Control System App
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Installing the App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
ATEN Control System App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
WinViewer1 / iPad / Android1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Demo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Edit Viewer Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Manage LAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Set Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Log Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Report History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Download Viewer Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Downloading Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Datapoint Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
VK2100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
VK1100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
VK0100/VK0200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
ix
ATEN Control System User Manual
About this Manual
This user manual is provided to help you get the most from your ATEN Control System. It covers all aspects of installation, configuration, and operation of the ATEN controllers and their accessories, including:
Device Category |
Device Model |
Device Name |
|
|
|
ATEN Control Box |
VK1100 |
ATEN Compact Control Box |
|
|
|
|
VK2100 |
ATEN Control Box |
|
|
|
ATEN Control Pad |
VK0100 |
8-Button Control Pad (US, 1 Gang) |
|
|
|
|
VK0200 |
12-Button Control Pad (EU, 2 Gang) |
|
|
|
ATEN Keypad |
VK108US |
8-Button Keypad (US, 1 Gang) |
|
|
|
|
VK112EU |
12-Button Keypad (EU, 2 Gang) |
|
|
|
ATEN Extension Box |
VK224 |
4-Port Serial Expansion |
|
|
|
|
VK236 |
6-Port IR/Serial Expansion Box |
|
|
|
|
VK248 |
8-Channel Relay Expansion Box |
|
|
|
An overview of the information found in the manual is provided below.
Chapter 1, Introduction
Introduces you to the ATEN Control System. Its purpose, features, and benefits are presented, and panel components of the Control Box and Control Pad are described.
Chapter 2, Hardware Setup
Provides the necessary steps to setup the ATEN Control System installation, including how to wire the different types of hardware connections.
Chapter 3, Browser Operation
Provides information on Control Box and Control Pad’s web interface and how to use it to remotely configure parts of the ATEN Control System installation.
Chapter 4, ATEN Configurator (VK6000)
Provides a complete description of the ATEN Configurator (VK6000) software and how to use it to configure and operate the ATEN Control System.
Chapter 5, ATEN Database Generator
Provides a complete description of the Database Generator software and how to use it to configure new devices to add to the VK6000 device library.
x
ATEN Control System User Manual
Chapter 6, Remote PC Control
Explains how to set up your computer for remote control from a licensed device and provide a complete description of the supported control actions.
Chapter 7, ATEN Control System App
Provides a complete description of the ATEN mobile app and how to use it to operate devices connected to the ATEN Control System.
An Appendix
Provides specifications and other technical information regarding the ATEN Control System.
Conventions
This manual uses the following conventions:
Monospaced |
Indicates text that you should key in. |
[ ] |
Indicates keys you should press. For example, [Enter] means to |
|
press the Enter key. If keys need to be chorded, they appear |
|
together in the same bracket with a plus sign between them: |
|
[Ctrl+Alt]. |
1.Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
→Indicates selecting the option (on a menu or dialog box, for example), that comes next. For example, Start →Run means to open the Start menu, and then select Run.
Indicates critical information.
xi
ATEN Control System User Manual
Terminology
Terminology |
Description |
|
|
Control Box |
The term is used to refer to all models of ATEN Control Box, |
|
including the VK2100 Control Box and the VK1100 Compact |
|
Control Box. |
|
|
controller |
The term is used to refer to all models of ATEN Control Box |
|
(VK1100 and VK2100) and ATEN Control Pad (VK0100 and |
|
VK0200). |
|
|
Viewer or profile |
A Viewer or profile is a software interface created using ATEN |
|
Configurator to be used on mobile devices to control devices |
|
managed by controllers. |
|
|
project |
A project is a set of settings created using ATEN Configurator to |
|
specify how devices are to be managed by ATEN controllers. |
|
|
Product Information
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America |
http://www.aten-usa.com |
xii
Chapter 1
Introduction
Overview
The ATEN Control System, incorporating the ATEN Control Box/ATEN Control Pad (controller), the ATEN Configurator software (VK6000), and the ATEN Control System App is a standard Ethernet-based management system that connects all hardware devices in a room or large facility to provide centralized control of devices directly and effortlessly via a mobile device. The ATEN controller works as the main controller that provides great connectivity to all sorts of hardware devices commonly seen in a room. After connecting the hardware, the ATEN Configurator (VK6000) provides simple setup of the devices with easy step by step configuration. The ATEN Control System App then connects you to the controller from any iOS, Android or Windows mobile device / tablet computer which empowers you with mobility to control all the hardware devices, in different rooms, whenever and however you like.
ATEN Control Box/Control Pad easily deploys into an existing installation and integrates seamlessly with ATEN VanCryst pro-AV products and nearly any other hardware devices found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches and many more. The controller serves as the central platform where hardware devices are connected – to be monitored, managed, and controlled directly via a tailor-made GUI from any iOS, Android, or Windows mobile device.
The VK6000 Configurator software facilitates quick setup and control of the devices in a few easy steps via an intuitive GUI. The VK6000 walks you through configuring the hardware, designing the interface and uploading Profiles to the controller. To provide control of the hardware devices, Profiles, which contain Viewers, are imported via the ATEN Control System App from any iOS, Android or Windows mobile device. Through an Ethernet connection, the ATEN Control System App enables you to import and update Profiles from the controller via a point-n-tap user interface. Each Viewer is a customized control interface that grants you quick access to target and control hardware devices. Use of any profile is protected with password authentication to ensure secure access.
1
ATEN Control System User Manual
The ATEN Control System is perfectly applicable in meeting rooms, conference centers, boardrooms, classrooms or any room that requires central and mobile control of a variety of hardware devices through a streamlined management system with optimum efficiency and performance.
2
Chapter 1. Introduction
Benefits
Intelligent Control
The ATEN Control System makes the interactions between your hardware devices smarter. Pre-programmed actions and triggers can provide a fully automated series of advanced operations that allow your devices to respond to each other intelligently, making your whole solution run smarter and smoother.
Optimized Performance
The ATEN Control System has optimized the communication protocols that not only maintain a near-zero response time but also feature data encryption for extra protection.
Simplified Setup
No matter how large the room or how complicated the hardware, the ATEN Control System can be deployed in 3 easy steps: connect the hardware, configure the system and upload profiles via a smart mobile app. Through an intuitive GUI, the process for setting up the controls for every room is simple and customizable, via straightforward predefined commands and macros, that do not require you to have complicated programming skills.
Effortless Expandability
With a range of expansion boxes available, the ATEN Control System installation can grow to accommodate additional Serial, Relay and IR devices. Furthermore, the ATEN Library has 10,000+ device drivers and grows as you add new devices to the existing database via the Database Generator, making it expandable and easily manageable, whatever the size or scope of the installation.
User Centered Convenience
An advanced, single-software solution creates an intuitive interface for any mobile device, while specific needs are customizable by selecting from an extensive library of actions and design elements to customize the control panel.
3
ATEN Control System User Manual
In addition, the ATEN Control System provides various support services that include driver downloads, database generation and upgrade tools – to help system integrators build easy-to-control environments effortlessly.
On-the-Go Control
Intuitive system control can start with one room and scale up to multiple rooms in the same area or across regions. Toggling between profiles on an iOS, Android or Windows mobile device facilitates control of different rooms with simple point-n-tap operations. In addition, multiple mobile devices can be authorized with access to control the same room or multiple rooms, providing you with flexible, enhanced mobility, and tight security.
4
Chapter 1. Introduction
Features
ATEN Control Box
Supports various connection interfaces:
Interface |
VK2100 Control Box |
VK1100 Compact Control Box |
|
|
|
Serial Port |
6 |
2 |
|
|
|
IR/Serial Port |
4 |
2 |
|
|
|
Relay Channel |
4 |
4 |
|
|
|
I/O Channel |
4 |
- |
|
|
|
Ethernet Port |
1 |
1 |
|
|
|
DC outputs for power supply connections
VK2100: equipped with 4 DC outputs
VK1100: equipped with 1 DC output
1 x USB port for easy profile upload
IR Learning function for adding IR device drivers
Supports native KNX IP for building management systems
Telnet, TCP, UDP, ONVIF, PJLink, HTTP, and HTTPS compliant
Supports project file backup
Supports up to 8 ATEN Keypads
Web GUI for easy system configuration
2 free licenses for mobile control*
Supports SSH communication for data monitoring
Rack-mountable
Note: If you need more than two licenses for mobile control, contact your local sales representative.
5
ATEN Control System User Manual
ATEN Control Pad
Supports various connection interfaces:
2 RS-232 serial ports
2 relay channels
1 digital input port
1 Ethernet port
Designed to mount in 2-gang EU type and MK type junction boxes (for VK0200)
Fully customizable layout
VK0100: 14 layout variations using 4 to 8 buttons
VK0200: 125 layout variations using 6 to 12 buttons
Customizable button text engraving service
System LED indicators for quick connection status check
Dual-color LEDs for clear indication in dark environments
Redundant power supplies (DC power and PoE)
Supports native KNX IP for building management systems
Telnet, TCP, UDP, ONVIF, PJLink, HTTP, and HTTPS compliant
Supports project file backup
Web GUI for easy system configuration
Supports SSH communication for data monitoring
Note: To control your setup using a mobile device, contact your local sales representative to purchase licenses for mobile control.
6
Chapter 1. Introduction
ATEN Configurator
Simple profile setup with easy configuration steps via intuitive GUI
Customizable GUI to be used on mobile devices and PC
Supports ControlAssist that allows PC control (PC shutdown, media files, PowerPoint files)*
Built-in Database Generator for device driver setup and overall device management.
Built-in ATEN Library comprising 10,000+ device drivers and complete ATEN VanCryst product drivers
Event scheduling
Two-way communication enables user-defined event monitoring to automatically trigger the next actions
Test tool to verify commands in action before uploading the profile to the ATEN controller
Simulator to simulate and review the customized GUI before uploading
Note: For details on the supported PC control actions, see Supported PC Control Actions, page 188.
ATEN Control System App
Allows administrators central control of multiple rooms via profiles on a mobile device or tablet computer
Restrict user access to profiles via password authentication
Synchronization of system controls amongst multiple mobile devices and tablet computers
Any iOS, Android, or Windows mobile device can be used to control the system – no need to purchase costly
7
ATEN Control System User Manual
ATEN Keypads
Fully customizable layout
VK108US: 14 layout variations using 4 to 8 buttons
VK112EU: 125 layout variations using 6 to 12 buttons
System LED indicators for quick connection status check
Dual-color LEDs for clear indication in dark environments
Easy ID pairing with ATEN controller for Ethernet communication
Scalability – an ATEN controller can connect up to 8 Keypads
Versatile modes support flexible behavior settings for each button
Intuitive Web GUI for easy configuration
Redundant power supplies (DC power and PoE)
Button engraving service
8
Chapter 1. Introduction
Requirements
Prepare the following equipment and make sure your equipment meets the minimum requirements specified below.
Hardware devices to be controlled by your ATEN controller
Bi-directional RS-232/422/485 serial devices
One-way IR or serial transmitter hardware devices (for Control Box only)
Relay hardware devices
Digital input hardware devices (for VK2100 and Control Pad only)
Digital output hardware devices (for VK2100 only)
Ethernet-controlled PJLink, Telnet, ONVIF, TCP, UDP, HTTP, or HTTPS devices
KNX IP interfaces for connecting KNX-compliant devices
Cables
One Cat 5e/6 Ethernet cable used to connect the ATEN controller to the local area network
(Optional) For serial devices with DB9 connectors, use standard straight-through cables.
A computer for configuring your ATEN Control System
Make sure the computer runs Windows 7, 8, 8.1, 10, or any of the later versions.
(Optional) Up to 10 mobile devices for remote control
Note: A license is required for each mobile device. For detailed information, see Licenses for Mobile Control, page 57.
9
ATEN Control System User Manual
Accessories
Optionally purchase ATEN accessories to enhance the functionality of your Control System. For more information, visit the ATEN website. Contact your ATEN dealer to purchase these accessories.
Model |
Description |
|
|
2XRT-0004G |
Full Range IR Emitter (1.8 m) |
|
|
2X-031G |
Single Rack Mount Kit for VK1100 |
|
|
VK108US |
8-button Keypad (US, 1 Gang) |
|
|
VK112EU |
12-button Keypad (EU, 2 Gang) |
|
|
VK224 |
4-Port Serial Expansion Box |
|
|
VK236 |
6-Port IR/Serial Expansion Box |
|
|
VK248 |
8-Channel Relay Expansion Box |
|
|
SA0141 |
DB9-F to RJ45-F Adapter |
|
|
SA0145 |
RJ45-F to DB9-M Adapter |
|
|
10
Chapter 2
Hardware Setup
1.Important safety information regarding the placement of this device is provided on Safety Instructions, page 207. Please review it before proceeding.
2.Make sure that the power to all devices connected to the installation are turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.
ATEN Control Box
Panel Components
VK2100 Front View
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
|
|
|
|
|
|
|
|||
No. |
Component |
|
|
|
|
Description |
|
|||
|
|
|
|
|
||||||
1 |
Relay LED |
|
|
The LED lights green to indicate an active device connection |
||||||
|
|
|
|
(closed loop). |
|
|
|
|
|
|
|
|
|
|
|||||||
2 |
IR/Serial LED |
|
The LED lights green to indicate an active device connection |
|||||||
|
|
|
|
and IR/Serial signals are being transmitted. |
|
|||||
|
|
|
|
|
||||||
3 |
I/O LED |
|
|
The LED lights green to indicate an active device connection |
||||||
|
|
|
|
and I/O signals are being transmitted. |
|
|||||
|
|
|
|
|
||||||
4 |
Serial LED |
|
|
The LED (1~6) lights green to indicate serial signals are |
||||||
|
|
|
|
being transmitted. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
11
ATEN Control System User Manual
|
|
|
|
|
|
|
|
No. |
Component |
Description |
|
|
|
|
|
5 |
Ethernet LED |
The LEDs provide information about the network |
|
|
|
connection: |
|
|
|
Link: The LED blinks green to indicate Ethernet signals |
|
|
|
are being transmitted. |
|
|
|
ACT: The LED lights green to indicate 100Mbps transmis- |
|
|
|
sions. |
|
|
|
|
|
6 |
DC Overload LED |
The LED lights orange to indicate DC output exceeds |
|
|
|
maximum output. |
|
|
|
Note: When the LED lights orange, please unplug any of the |
|
|
|
connected devices to keep its total output under 24W. |
|
|
|
|
|
7 |
IR Receiver / LED |
This IR receiver passes the functions of a remote control to |
|
|
|
the VK2100 in learning mode. The distance between the IR |
|
|
|
remote and the receiver window should be kept under 10cm |
|
|
|
with a direct line of sight. |
|
|
|
The LED blinks green to indicate the unit is ready to |
|
|
|
receive signals from an IR remote control. |
|
|
|
|
|
8 |
USB Port / LED |
This is where a USB device plugs in to upload Viewer files to |
|
|
|
the VK2100. |
|
|
|
The LED blinks green to indicate Viewer files are being |
|
|
|
uploaded, and lights green to indicate a successful upload |
|
|
|
of Viewer files. |
|
|
|
The LED lights orange to indicate Viewer files failed to |
|
|
|
upload. |
|
|
|
|
|
9 |
Reset |
This semi-recessed pushbutton can be pressed to reset the |
|
|
|
VK2100’s network settings. |
|
|
|
|
|
10 |
Power LED |
Lights green when the unit is turned on. |
|
|
|
|
|
12
Chapter 2. Hardware Setup
VK2100 Rear View
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
|
|
|
|
|
|
|
|
|
|
|
No. |
|
|
Component |
|
|
|
Description |
|
|
|
|
|
|
|
|
|
|
||||
1 |
|
Grounding Terminal |
|
The grounding wire attaches here. |
|
|
||||
|
|
|
|
|
|
|||||
2 |
|
Power Socket |
|
|
This is a standard 3-pin AC power socket. The power |
|||||
|
|
|
|
|
|
cord from an AC source plugs in here. |
|
|
||
|
|
|
|
|
|
|||||
3 |
|
Power Switch |
|
|
This is a standard rocker switch that powers the unit |
|||||
|
|
|
|
|
|
on and off. |
|
|
|
|
|
|
|
|
|
||||||
4 |
|
DC Output Ports |
|
Four outputs provide a total power output of 24W /2A |
||||||
|
|
|
|
|
|
max. |
|
|
|
|
|
|
|
|
|
||||||
5 |
|
Relay Channels |
|
Four channels; normally open, isolated relays with a |
||||||
|
|
|
|
|
|
contact rating of 24VDC, 2A max. |
|
|
||
|
|
|
|
|
||||||
6 |
|
IR / Serial Ports |
|
Four IR ports that can also be configured as RS-232 |
||||||
|
|
|
|
|
|
TX ports. pin1: Signal / pin2: Ground. |
|
|
||
|
|
|
|
|
|
|||||
7 |
|
I/O Channels |
|
|
Four channels that can be configured as digital input |
|||||
|
|
|
|
|
|
or digital output ports. |
|
|
||
|
|
|
|
|
|
Digital Input: 0-24VDC programmable input range or |
||||
|
|
|
|
|
|
contact closure with +12VDC pull-up |
|
|
||
|
|
|
|
|
|
Digital Output: 250mA sink from 12VDC |
|
|
||
|
|
|
|
|
|
Pin1~4: Signal / Pin5: Ground |
|
|
||
|
|
|
|
|
|
|||||
8 |
|
RS-232 Serial Ports |
|
Two RS-232 ports with TX/RX functions supported. |
|
|||||
|
|
|
|
|
||||||
9 |
|
RS-232/422/485 |
|
Four ports with supported RS-232/422/485 conversion |
||||||
|
|
Serial Ports |
|
|
by pin assignment and RTS/CTS flow control. The |
|
||||
|
|
|
|
|
|
RS232, RS422, or RS485 connection is defined by |
|
|||
|
|
|
|
|
|
pin. For pin assignments, see page 32. |
|
|
||
|
|
|
|
|
|
|||||
10 |
|
Ethernet Port |
|
|
This RJ-45 port is used for the network connection. If |
|||||
|
|
|
|
|
|
no IP address is assigned within 30 seconds, the |
|
|||
|
|
|
|
|
|
default IP settings will be used: |
|
|
||
|
|
|
|
|
|
IP: 192.168.0.60 / mask: 255.255.255.0 |
|
|
||
|
|
|
|
|
|
|||||
11 |
|
Controller ID Switch |
|
This 16-segment switch is used for controller ID |
|
|||||
|
|
|
|
|
|
selection. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13
ATEN Control System User Manual
VK1100 Front View
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
|
|
|
|
|
|
|
|
||
No. |
Component |
|
|
|
Description |
|
|
|
||
|
|
|
|
|
||||||
1 |
Relay LED |
|
|
The LED lights green to indicate an active device |
||||||
|
|
|
|
connection (closed loop). |
|
|
|
|
||
|
|
|
|
|||||||
2 |
IR/Serial LED |
|
The LED lights green to indicate an active device |
|||||||
|
|
|
|
connection and IR/Serial signals are being transmitted. |
||||||
|
|
|
|
|
||||||
3 |
Serial LED |
|
|
The LED (1~2) lights green to indicate serial signals |
||||||
|
|
|
|
are being transmitted. |
|
|
|
|
||
|
|
|
||||||||
4 |
Ethernet Link / ACT |
The LEDs provide information about the network |
||||||||
|
LED |
|
|
connection: |
|
|
|
|
|
|
|
|
|
|
Link: The LED blinks green to indicate Ethernet sig- |
||||||
|
|
|
|
nals are being transmitted. |
|
|
|
|||
|
|
|
|
ACT: The LED lights green to indicate 100Mbps |
||||||
|
|
|
|
transmissions. |
|
|
|
|
||
|
|
|
||||||||
5 |
DC Output Overload |
The LED lights orange to indicate DC output exceeds |
||||||||
|
LED |
|
|
maximum output. |
|
|
|
|
||
|
|
|
|
Note: When the LED lights orange, please unplug any |
||||||
|
|
|
|
of the connected devices to keep its total output under |
||||||
|
|
|
|
12W. |
|
|
|
|
|
|
|
|
|
|
|||||||
6 |
IR Receiver / LED |
|
This IR receiver passes the functions of a remote |
|||||||
|
|
|
|
control to the VK1100 in learning mode. The distance |
||||||
|
|
|
|
between the IR remote and the receiver window |
||||||
|
|
|
|
should be kept under 10cm with a direct line of sight. |
||||||
The LED blinks green to indicate the unit is ready to receive signals from an IR remote control.
14
|
|
Chapter 2. Hardware Setup |
|
|
|
|
|
|
|
|
|
No. |
Component |
Description |
|
|
|
7 |
USB Port / LED |
This is where a USB device plugs in to upload Viewer |
|
|
files to the VK1100. |
|
|
The LED blinks green to indicate Viewer files are |
|
|
being uploaded, and lights green to indicate a |
|
|
successful upload of Viewer files. |
|
|
The LED lights orange to indicate Viewer files failed |
|
|
to upload. |
|
|
|
8 |
Controller ID Switch |
This 16-segment switch is used for controller ID |
|
|
selection. |
|
|
|
9 |
Reset |
This semi-recessed pushbutton can be pressed to |
|
|
reset the VK1100’s network settings. |
|
|
|
10 |
Power LED |
Lights green when the unit is turned on. |
|
|
|
VK1100 Rear View
8
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
|
|
|
|
|
|
|
No. |
|
Component |
|
|
|
Description |
|
|
|
|
|
||||
1 |
Power Socket |
|
This is a standard 3-pin AC power socket. The power |
||||
|
|
|
|
cord from an AC source plugs in here. |
|
||
|
|
|
|
||||
2 |
Power Switch |
|
This is a standard rocker switch that powers the unit |
||||
|
|
|
|
on and off. |
|
|
|
|
|
|
|
||||
3 |
Relay Channels |
|
Four channels; normally open, isolated relays with a |
||||
|
|
|
|
contact rating of 24VDC, 2A max. |
|
||
|
|
|
|
||||
4 |
DC Output Ports |
|
One output provides a total power output of 12W max. |
||||
|
|
|
|
||||
5 |
IR / Serial Ports |
|
Two IR ports that can also be configured as RS-232 |
||||
|
|
|
|
TX ports. pin1: Signal / pin2: Ground. |
|
||
|
|
|
|
|
|
|
|
15
ATEN Control System User Manual
|
|
|
|
|
|
No. |
Component |
Description |
|
|
|
6 |
RS-232/422/485 |
Two ports with supported RS-232/422/485 conversion |
|
Serial Ports |
by pin assignment and RTS/CTS flow control. The |
|
|
RS232, RS422, or RS485 connection is defined by |
|
|
pin. For pin assignments, see page 32. |
|
|
|
7 |
Ethernet Port |
This RJ-45 port is used for the network connection. If |
|
|
no IP address is assigned within 30 seconds, the |
|
|
default IP settings will be used: |
|
|
IP: 192.168.0.60 / mask: 255.255.255.0 |
|
|
|
8 |
Grounding Terminal |
The grounding wire attaches here. |
|
|
|
Rack Mounting the ATEN Control Box
VK2100
The VK2100 can be mounted in a 19” (1U) system rack. To install the device in a rack, do the following:
1.Use the M3 x 8 Phillips head hex screws supplied with the Rack Mount Kit to screw the rack mounting brackets onto the front of the unit.
2.Position the unit in the front of the rack and align the holes in the mounting brackets with the holes in the rack.
16
Chapter 2. Hardware Setup
3. Screw the mounting brackets to the rack.
VK1100
Optionally purchase an ATEN Rack Mount Kit to install VK1100 in a 19” (1U) system rack. To install the device in a rack, do the following:
1. Remove the side and bottom screws from the front of the VK1000.
17
ATEN Control System User Manual
2.Use the two bottom screws removed in step 1 to secure the bottom of the brackets, and two M3X6 hexagon screws (from the rack mount kit) to secure the side of the bracket to the VK1100.
M3X6
Hexagon
Screw
3. Screw the mounting brackets to the rack.
18
