NVG34x Installation guide

1. Introduction of ARRIS NVG34x series

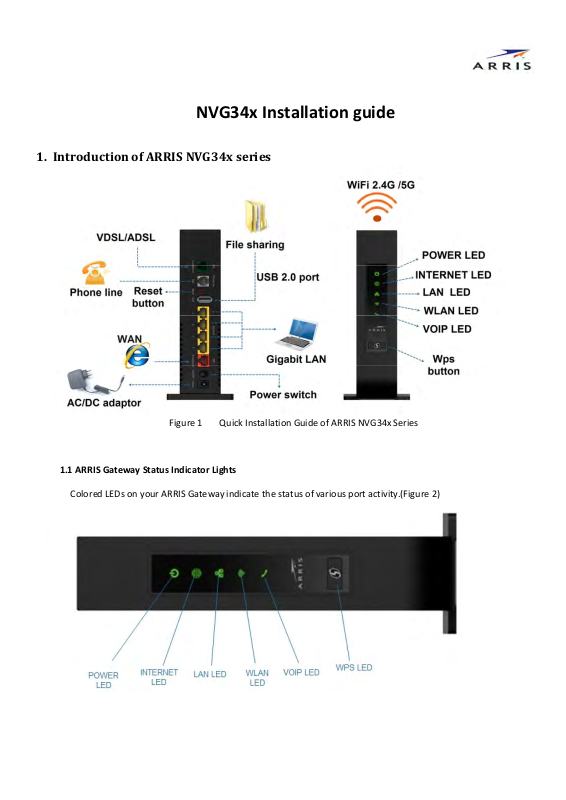

Figure 1 Quick Installation Guide of ARRIS NVG34x Series

1.1 ARRIS Gateway Status Indicator Lights

Colored LEDs on your ARRIS Gateway indicate the status of various port activity.(Figure 2)

LED

Action

POWER

Solid Green = The device is powered.

INTERNET

Solid Green = Good broadband connection.

Solid Green =

This led will flash follow the

LAN data.

Solid Green =

5G

WIFI

is

connected

.

Solid Green = T

his led will turn on when VOIP is calling.

Yellow=The device is bootting up.
Off = The device is not powered.

Red = No broadband connection.
Off = The device is not powered.

LAN

WLAN

VOIP

1.2. Rear Panel Introduction.（Figure3）

Yellow=The led will turn on when the LAN ports exist connect ,and this led will turn
off when the LAN ports disconnect .
Off = The device is not powered, no cable or no powered devices connected to the
Ethernet.

yellow =2.4G WIFI is connected.
Red=WLAN function was turned off.
Off = The device is not powered.

Yellow=The LED will turn on when the VOIP ports exist connect ,and this led will
turn off when the VOIP ports disconnect .
Off = VOIP not in use, line not registered or Gateway power off.

Figure 2

Item I/O interface Description

b ADSL/VDSL Port Connect to a modem.

c VOIP port Voice ports, please use RJ14 Y cable to connect a phone

d USB port USB 2.0 connector

e LAN port Ethernet RJ-45 LAN connect to PC

f WAN port Ethernet RJ-45 WAN connect to PC

h POWER 12V/2A DC Connect to the 12V/2A DC power adapter

Figure 3

2. Set up the ARRIS Gateway

Refer to your Quick start Guide for instructions on how to connect your ARRIS gateway to your power source, PC or
local area network, and your Internet access point, whether it is a Fiber connection or a Gigabit Ethernet connection.
Different ARRIS Gateway models are supplied for any of these connections. If Dynamic Addressing is not enabled on
your PC, perform the following. (Figure 4)

Figure 4

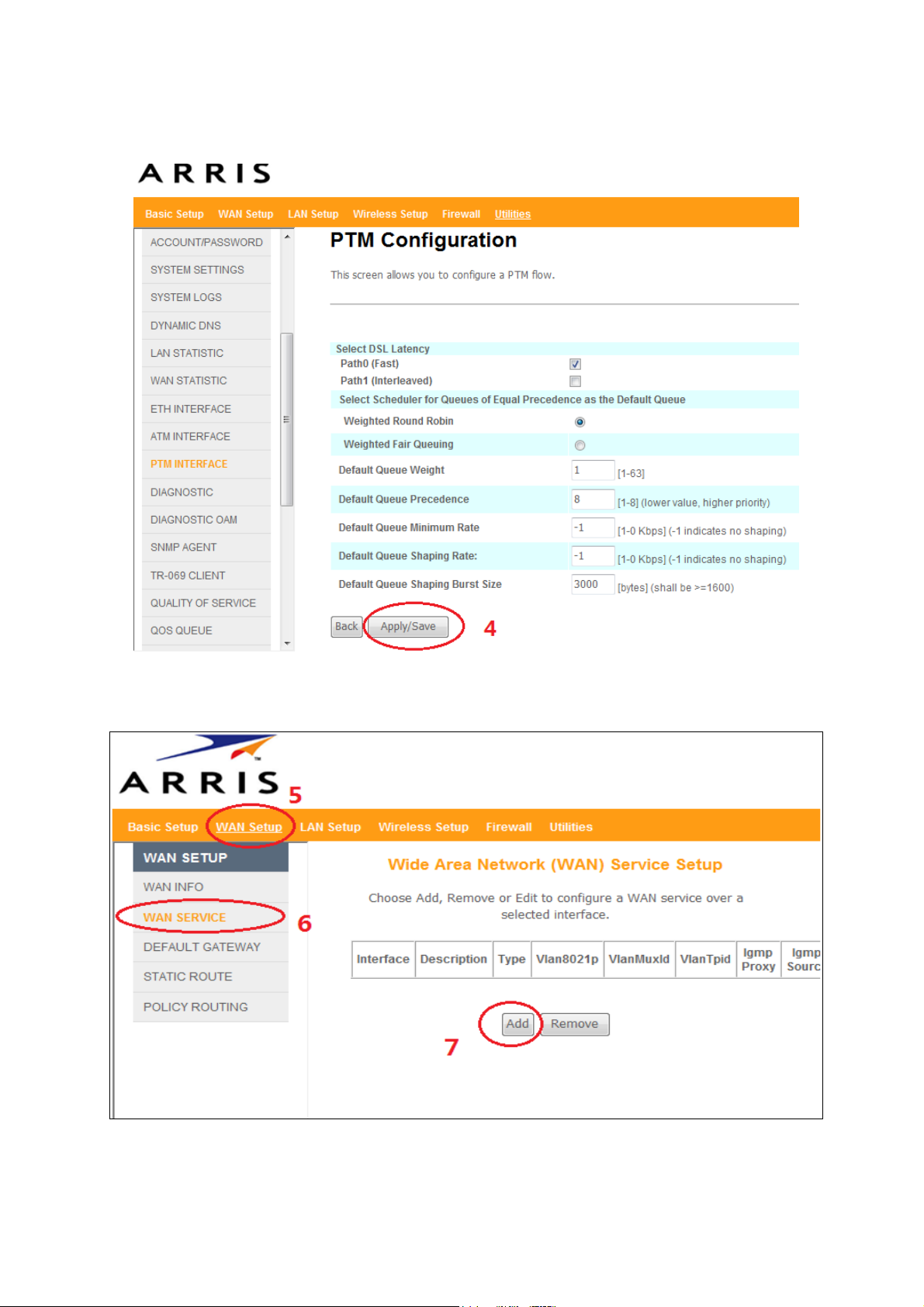

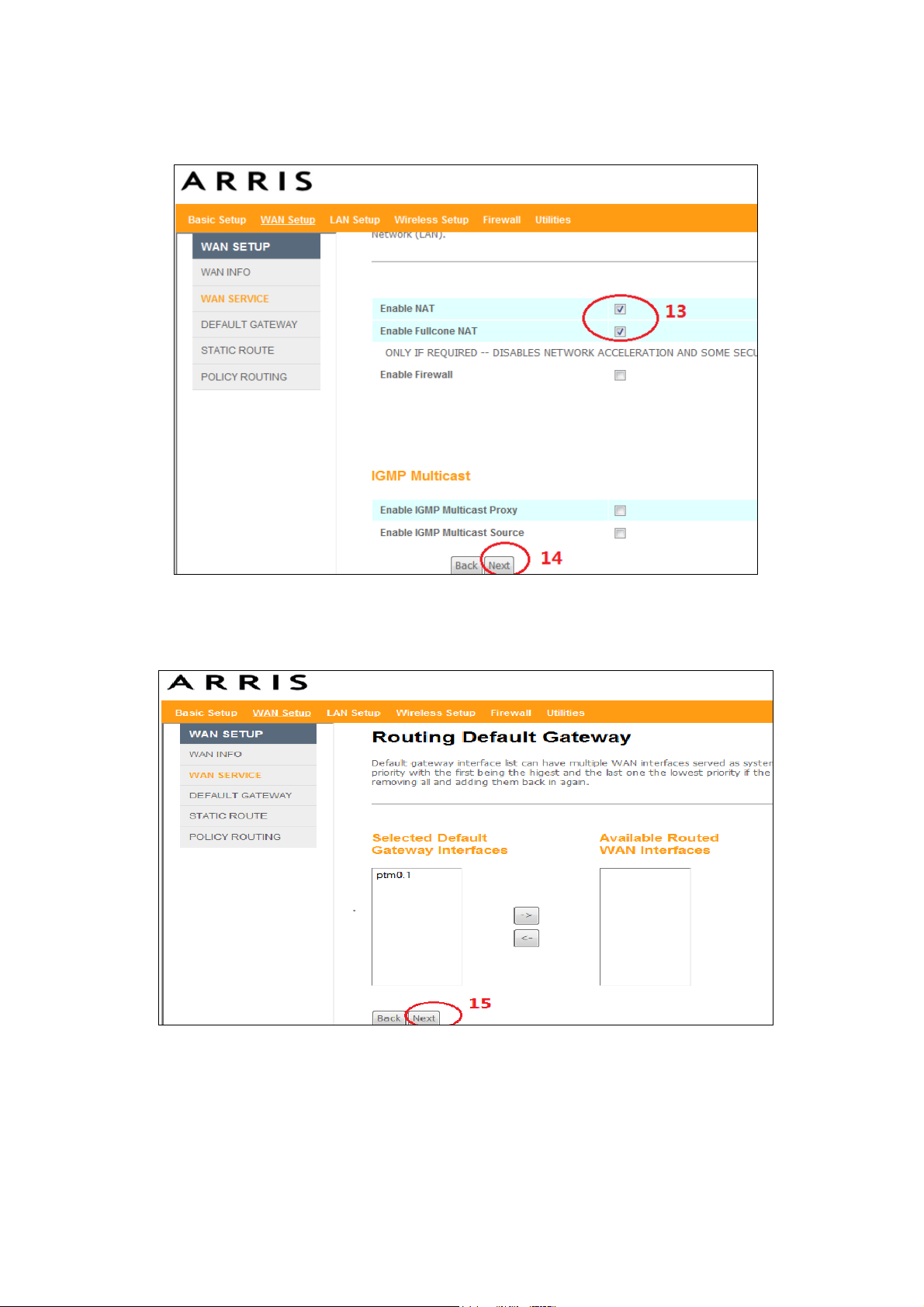

3. Accessing the Web Management Interface

Run your Web browser application, such as Firefox or Microsoft Internet Explorer, from the computer connected to

the ARRIS Gateway.

Enter http://192.168.1.254 in the Location text box. Once the network type is determined, The device Status Page

opens. Enter your user name and password and click "OK" button.username and password are both "admin".(Figure 5)

Figure 5

The Device Status Page opens.

The Device Status displays the following information in the center section. (Figure 6)

Figure 6
