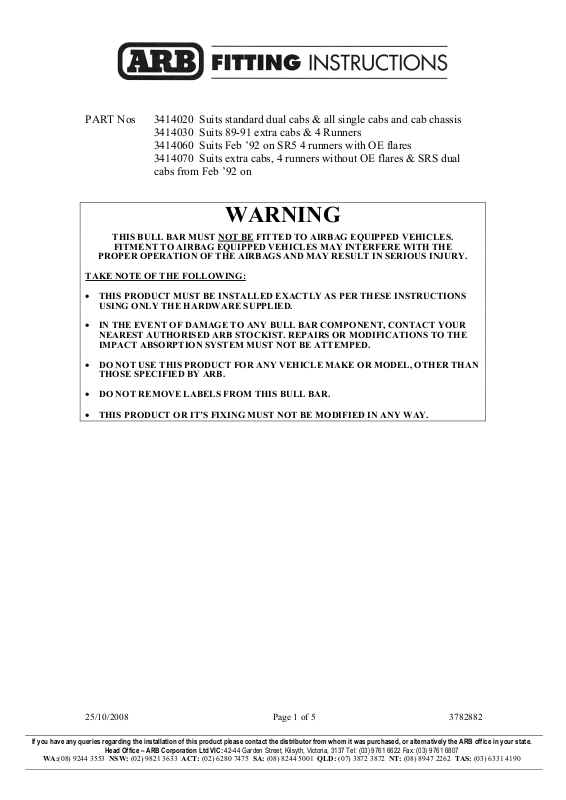

ARB 3782882 User Manual

25/10/2008 Page 1 of 5 3782882

If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.

Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]

WA:[phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

PART Nos 3414020 Suits standard dual cabs & all single cabs and cab chassis
3414030 Suits 89-91 extra cabs & 4 Runners
3414060 Suits Feb ’92 on SR5 4 runners with OE flares

3414070 Suits extra cabs, 4 runners without OE flares & SRS dual
cabs from Feb ’92 on

WARNING

THIS BULL BAR MUST NOT BE FITTED TO AIRBAG EQUIPPED VEHICLES.

FITMENT TO AIRBAG EQUIPPED VEHICLES MAY INTERFERE WITH THE

PROPER OPERATION OF THE AIRBAGS AND MAY RESULT IN SERIOUS INJURY.

TAKE NOTE OF THE FOLLOWING:

• THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE INSTRUCTIONS
USING ONLY THE HARDWARE SUPPLIED.

• IN THE EVENT OF DAMAGE TO ANY BULL BAR COMPONENT, CONTACT YOUR
NEAREST AUTHORISED ARB STOCKIST. REPAIRS OR MODIFICATIONS TO THE
IMPACT ABSORPTION SYSTEM MUST NOT BE ATTEMPED.

• DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL, OTHER THAN
THOSE SPECIFIED BY ARB.

• DO NOT REMOVE LABELS FROM THIS BULL BAR.

• THIS PRODUCT OR IT’S FIXING MUST NOT BE MODIFIED IN ANY WAY.

25/10/2008 Page 2 of 5 3782882

TOOLS REQUIRED –

Basic Tool Kit
½” drill and ½” drill bit

PROCEDURE – Refer to winch fitment details overleaf before
proceeding

1. Remove the standard bumper and skirt.

2. Remove splash pan and strengthening plates where fitted.

3. FRONT LEAF SPRING MODELS ONLY

Remove the bolts that retain the front shackle pin retaining plates. Remove
shackle pin nuts and washer. With a soft hammer knock pins back flush with
chassis. Do not remove pins.

4. FOR 4 RUNNER VEHICLES ONLY

Refit 2 indicator plastic plugs to square holes in indicator brackets in bull bar.

Using 2 self-tapping screws from ARB kit and 2 original screws refit
indicators into bull bar. Use the 2 original screws where the plastic plugs were
fitted and the 2 new screws from the back of the bar through the bracket and
into the light.

When the bull bar is fitted reconnect to original plugs.

5. ALL MODELS

Lift bull bar into position. Fit four 12mm bolts (with 17mm head) and spring
washers supplied and four 14mm bolts, spring and flat washers supplied
through bull bar holes into chassis.

6. Fit two 12mm x 40mm bolts & spring washers behind air deflectors into front
chassis cross member. Do not fully tighten yet.

7. Fit 4 original bumper bar mounting bolts through bull bar wing brackets into
side bumper bar chassis mounts.

Part Nos:

3414020
3414030
3414060
3414070

8. Fit two 12mm x 35mm bolts, flat & spring washers supplied with offset 38mm
washer to rear of bull bar to chassis with offset washer clamping bar to
chassis.
