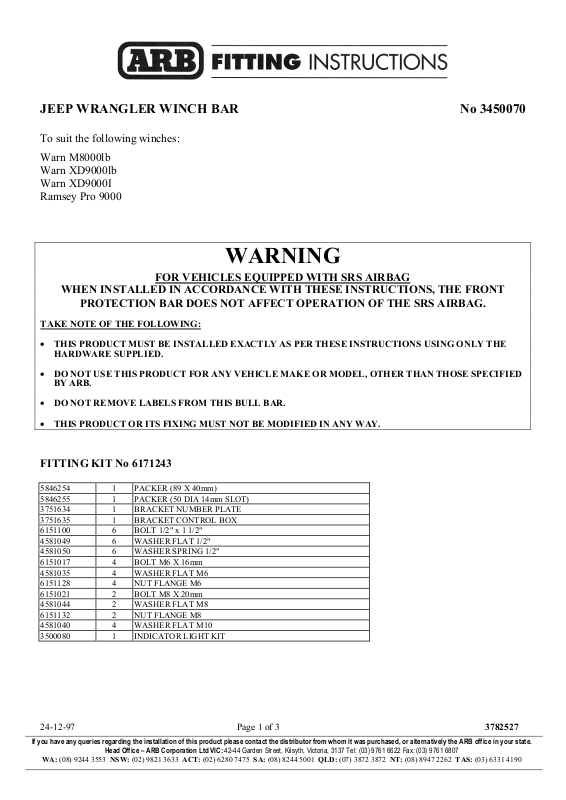

ARB 3450070 User Manual

24-12-97 Page 1 of 3 3782527

If you have any queries regarding the installation of this product please contact the distributor from whom it was purchased, or alternatively the ARB office in your state.

Head Office – ARB Corporation Ltd VIC: 42-44 Garden Street, Kilsyth, Victoria, 3137 Tel: [phone] Fax: [phone]

WA: [phone] NSW: [phone] ACT: [phone] SA: [phone] QLD: [phone] NT: [phone] TAS: [phone]

JEEP WRANGLER WINCH BAR No 3450070

To suit the following winches:

Warn M8000lb
Warn XD9000lb
Warn XD9000I
Ramsey Pro 9000

WARNING

FOR VEHICLES EQUIPPED WITH SRS AIRBAG

WHEN INSTALLED IN ACCORDANCE WITH THESE INSTRUCTIONS, THE FRONT

PROTECTION BAR DOES NOT AFFECT OPERATION OF THE SRS AIRBAG.

TAKE NOTE OF THE FOLLOWING:

• THIS PRODUCT MUST BE INSTALLED EXACTLY AS PER THESE INSTRUCTIONS USING ONLY THE

HARDWARE SUPPLIED.

• DO NOT USE THIS PRODUCT FOR ANY VEHICLE MAKE OR MODEL, OTHER THAN THOSE SPECIFIED

BY ARB.

• DO NOT REMOVE LABELS FROM THIS BULL BAR.

• THIS PRODUCT OR ITS FIXING MUST NOT BE MODIFIED IN ANY WAY.

FITTING KIT No 6171243

5846254

1

PACKER (89 X 40mm)
5846255

1

PACKER (50 DIA 14mm SLOT)
3751634

1

BRACKET NUMBER PLATE
3751635

1

BRACKET CONTROL BOX
6151100

6

BOLT 1/2" x 1 1/2"
4581049

6

WASHER FLAT 1/2"
4581050

6

WASHER SPRING 1/2"
6151017

4

BOLT M6 X 16mm
4581035

4

WASHER FLAT M6
6151128

4

NUT FLANGE M6
6151021

2

BOLT M8 X 20mm
4581044

2

WASHER FLAT M8
6151132

2

NUT FLANGE M8
4581040

4

WASHER FLAT M10
3500080

1

INDICATOR LIGHT KIT

24-12-97 Page 2 of 3 3782527

TOOLS REQUIRED

Basic tool kit

PROCEDURE

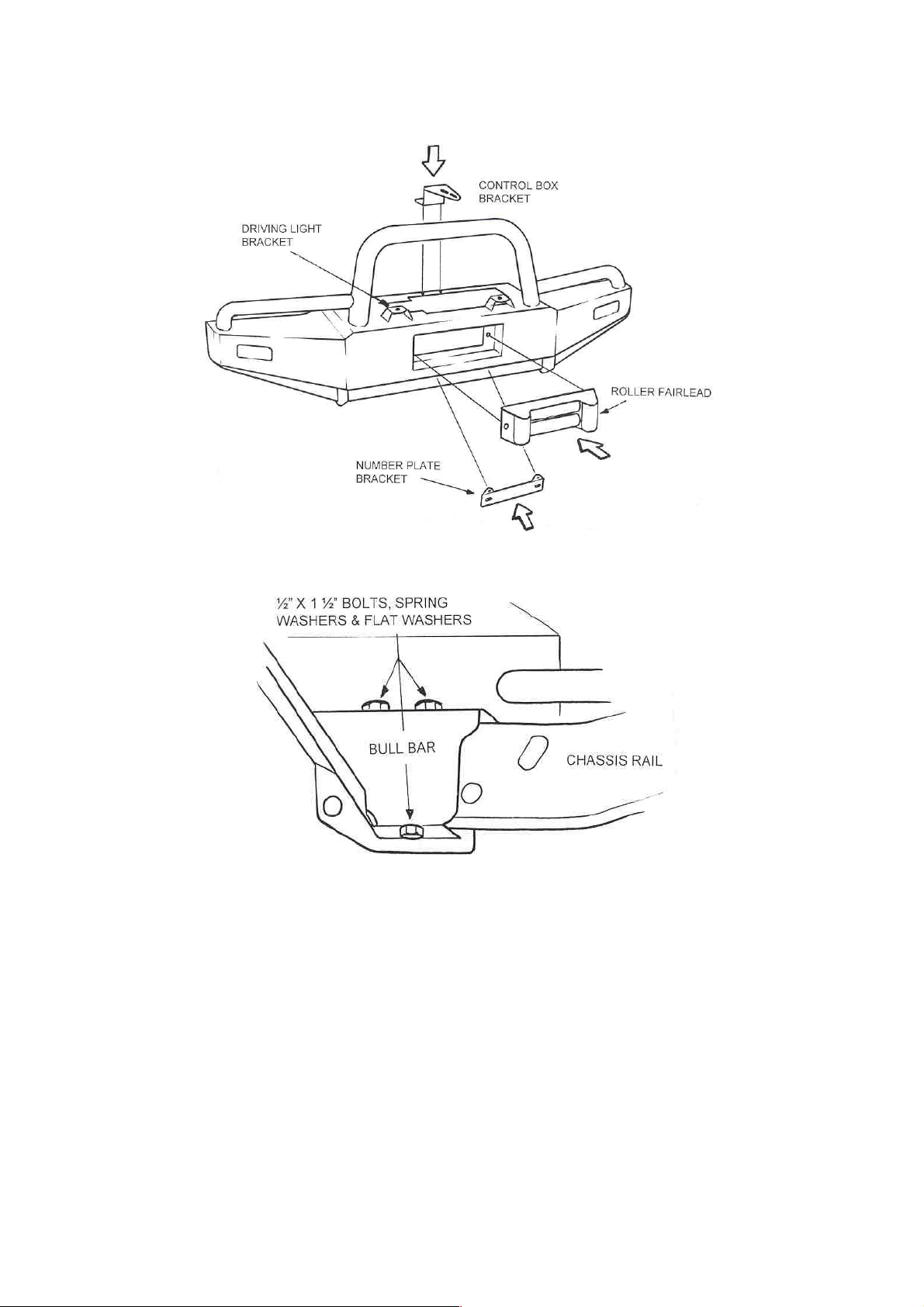

1. Fit the number plate bracket to the number plate mount holes on the front of the winch bar using the

M6 x 16mm bolts, flat washers and flange nuts (2 of each item). Refer to diagram 1.

2. Install the roller fairlead to the front of the winch bar using the bolts, nuts and spring washers

supplied by Warn. Refer to diagram 1.

3. Fit the indicators to the bar and Scotchlok to the original indicator loom.

4. Remove the bumper from the vehicle.

5. Slide the winch bar onto the chassis rails. On certain vehicles, the winch bar may not be correctly

aligned to the front of the vehicle. If this occurs, fit the packers between the chassis and the winch
bar chassis brackets for correct alignment. Otherwise, discard these packers.

6. Secure the winch bar into place using the ½” x 1/1/2” bolts, flat washers and spring washers (3 of

each item per side). Note: the bolts fit into ½” nuts welded on the chassis. Tighten all the bolts.
Refer to diagram 2.

7. Carefully lower the winch through the top of the bar cutout. Secure using the bolts supplied by

Warn and the M10 washers supplied in the ARB fitting kit. Refer to the Warn installation
instructions for the correct procedure. Adjust the winch in the slots until the winch clutch lever can
rotate freely in the opening on the winch bar. Connect the winch control box cables to the winch
motor. Refer to the Warn handbook for additional information. Connect the long winch + & - cables
to the vehicle after the winch bar has been installed. Refer to the Warn winch manual for the
vehicle wiring instructions.

8. Fit the control box bracket to the bar using the M8 x 20mm bolts, flat washers and flange nuts (2 of

each item).

9. Fit the control box to the control box bracket and wire up as per Warn instructions. Pull the winch

cable through the roller fairlead and attach to the winch bar tow point.

10. Fit the number plate to the number plate bracket using the M6 bolts, flat washers and flange nuts (2
of each item).
