MP1632C
Digital Data Analyzer
50 MHz to 3.2 GHz
3.2 Gb/s PPG and ED in One Cabinet
Eye Diagram Measurement and Burst Signal Measurement Supported
Sophisticated Low-Cost 3.2 GHz Digital Data
2
Core networks and computer networks are becoming increasingl y rapid
as the volume of data transmitted in this multimedia data is growing.
In addition to the STM-16/OC-48 (2.488 Gbit/s), Fibre channel, Giga-bit
Ethernet, etc. are being commercialized. Compact and high performance
digital data analyzer are required for production inspections of all kinds
of digital transmission systems, optical modules, and logic devices.

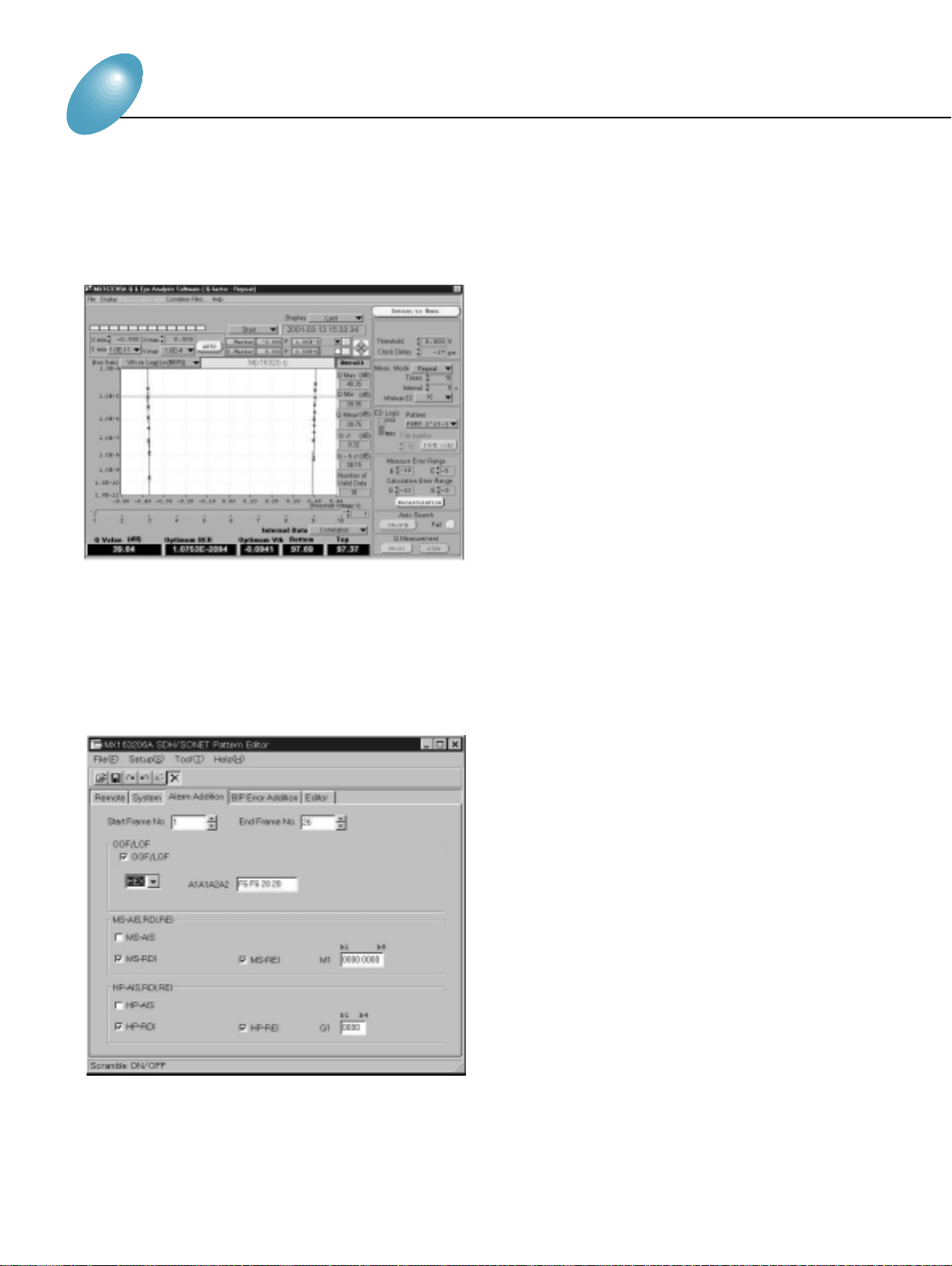

MX163201A TEXT to MP1632A/C Pattern Conversion Software,
MX163202A MP165X to MP1632A/C Pattern Conversion Software,
MX163205A Q and Eye Analysis Software, and MX163206A SDH/
SONET Pattern Editor are available as application software.
Analyzer
3
■Easy to View, Superb Operability
The MP1632C comes with a large color LCD with touch
screen. Moreover, it employs Microsoft
®
Windows®operating system Version 3.1. In addition to the graphic display of
measurement results, customized screens enable one-key
and one-parameter operation.
■High-Quality Pulse Pattern Generator
Programmable patterns of 8 Mbit max, PRBS patterns
[(2
7
–1) to (231–1), variable mark ratio], and zero substitution
patterns can be generated. Moreover, variable cross-point
of data output waveform is also supported.
■Error Detector with Many Functions
High input sensitivity (25 mVp-p*) and wide phase margin
(250 ps*) performance is provided. The autosearch function
enables PRBS pattern search with usual phase and threshold search. Insertion error and omission error can be measured simultaneously.
*Typical values at 3 Gb/s, PRBS 223–1
■Internal synthesizer with High Signal Purity
(Option)
Generates highly pure signals with SSB phase noise characteristics of –85 dBc/Hz or less (10 kHz offset).
■Support of Various Applications
●Testing of SDH/SONET (STM–0, 1, 4, 16/OC–1, 3, 12,
48) devices and modules
●Research and development on WDM components, Fibre
channels, Giga-bit Ethernet
●Evaluation of E/O and O/E module, GaAs IC and highspeed ASIC/FPGAs
■Eye margin measurement for evaluating
waveform quality
Phase margin and threshold margin can be measured using
various error rate. Eye diagram display is also supported.
Eye margin
Eye diagram
H: 100 ps/div, V: 1 V/div.
MU163220C Output Waveform (3.2 GHz)
DATA
Clock
■Burst Signal Measurement
It is popular to use optical fiber circulating loop for testing
long distance transmission. In this case, data signal is
burst signal. Pulse Pattern Generator unit can generate
burst signals and Error Detector unit can measure BER of
input burst signal.
Burst signal measurement for fiber loop test
4
PG
O/E
Burst gate signal
LiNbO3
Modulator
Data
SW2
SW1
Tunable BPF
Fiber
EDFA
Clock
Burst data
