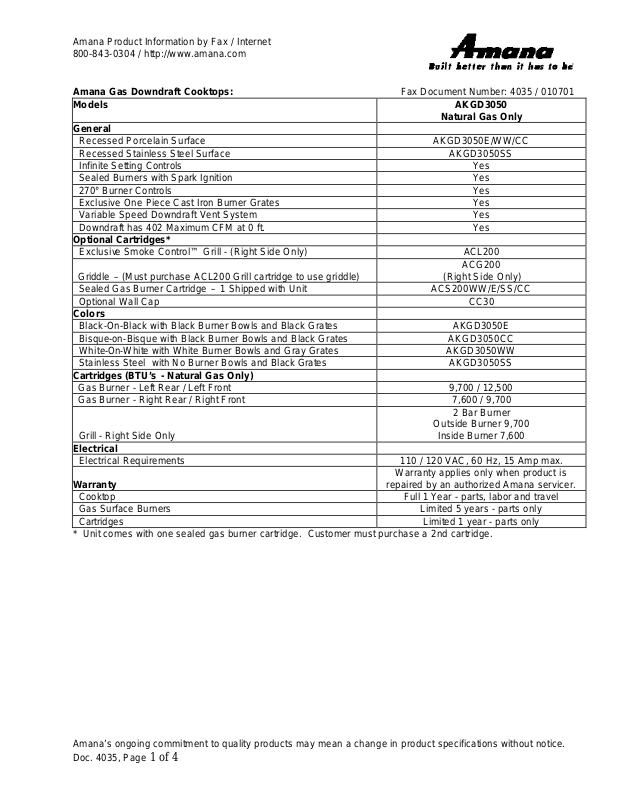

Amana Gas Downdraft Cooktops: |
Fax Document Number: 4035 / 010701 |
Models |
AKGD3050 |
|
Natural Gas Only |
General |
|
Recessed Porcelain Surface |
AKGD3050E/WW/CC |
Recessed Stainless Steel Surface |
AKGD3050SS |
Infinite Setting Controls |
Yes |
Sealed Burners with Spark Ignition |
Yes |
270° Burner Controls |
Yes |
Exclusive One Piece Cast Iron Burner Grates |
Yes |
Variable Speed Downdraft Vent System |
Yes |
Downdraft has 402 Maximum CFM at 0 ft. |
Yes |
Optional Cartridges* |
|
Exclusive Smoke Control™ Grill - (Right Side Only) |
ACL200 |
|
ACG200 |
Griddle – (Must purchase ACL200 Grill cartridge to use griddle) |
(Right Side Only) |
Sealed Gas Burner Cartridge – 1 Shipped with Unit |
ACS200WW/E/SS/CC |
Optional Wall Cap |
CC30 |
Colors |
|
Black-On-Black with Black Burner Bowls and Black Grates |
AKGD3050E |
Bisque-on-Bisque with Black Burner Bowls and Black Grates |
AKGD3050CC |
White-On-White with White Burner Bowls and Gray Grates |
AKGD3050WW |
Stainless Steel with No Burner Bowls and Black Grates |
AKGD3050SS |
Cartridges (BTU’s - Natural Gas Only) |
|
Gas Burner - Left Rear / Left Front |
9,700 / 12,500 |
Gas Burner - Right Rear / Right Front |
7,600 / 9,700 |
|
2 Bar Burner |
|
Outside Burner 9,700 |
Grill - Right Side Only |
Inside Burner 7,600 |
Electrical |
|
Electrical Requirements |
110 / 120 VAC, 60 Hz, 15 Amp max. |
|
Warranty applies only when product is |
Warranty |
repaired by an authorized Amana servicer. |
Cooktop |
Full 1 Year - parts, labor and travel |
Gas Surface Burners |
Limited 5 years - parts only |
Cartridges |
Limited 1 year - parts only |
* Unit comes with one sealed gas burner cartridge. Customer must purchase a 2nd cartridge.
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice. Doc. 4035, Page 1 of 4
Amana Product Information by Fax / Internet 800-843-0304 / http://www.amana.com
Models |
AKGD3050 |
|
|
Exterior Dimensions (in Inches) |
|
A: Width |
29 1/2 |
B: Depth |
21 1/2 |
Cutout Dimensions (in Inches) |
|
A: Side Countertop Overlap – Minimum, 3 3/16 Each Side |
6 3/8 |
B: Width |
28 7/8 |
C: Depth |
20 5/8 |
D: Back Countertop Overlap - Minimum |
2 1/2 |
E: Front Countertop Overlap - Minimum |
1 7/8 |
Approximate Shipping Weight (lbs.) |
74 |
Cooktop Dimensions |
Cabinet Requirements for Countertop Cutout |
||
|
Single cabinet installation requires |
||
|
a 36" width base cabinet. |
||
B |
A |
|
|
|
|
|
|
|
A |
C |
B |
|
|
|
|
|
|
|
D |
|
|
A |
E |
A - 29 1/2” |
A – 6 3/8, 3 3/16 each side |
B - 21 1/2” |
B - 28 7/8” |
|
C - 20 5/8" |
|
D - 2 1/2” minimum |
|
E - 1 7/8” minimum |
Minimum Requirements Below Cooktop |
|
Front View of Cooktop |
Side View of Cooktop |
|
Front |
|
B |
A |
B |
|
A |
|
C |
|
D |
A - 7 1/2" |
A - 7 1/2" |
B - 4" |
B - 4" |
C - 8 3/16" |
D - 6 7/16" |
Amana’s ongoing commitment to quality products may mean a change in product specifications without notice. Doc. 4035, Page 2 of 4
