DHA-S680

DVD/VIDEO CD/CD Changer

•OWNER'S MANUAL Please read before using this equipment.

•MODE D'EMPLOI Veuillez lire avant d’utiliser cet appareil.

•MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

DIGITAL VIDEO

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku, Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

Sankei Kikaku Co., Ltd. 1-13-38, Hinodai, Hino, T okyo, Japan

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Phone 03-9769-0000

ALPINE ELECTRONICS GmbH

Kreuzerkamp 7, 40878 Ratingen,

ALPINE ELECTRONICS OF U.K., LTD.

Germany

Phone 02102-4550

13 Tanners Drive, Blakelands,

Milton Keynes MK14 5BU, U.K.

Phone 01908-611556

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris

Nord II, B.P. 50016, 95945 Roissy Charles de Gaulle Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8,

20090 Trezzano Sul Naviglio (MI), Italy

Phone 02-484781

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava) - APDO 133,

Spain

Phone 945-283588

Printed in Japan (S)

68P41262Y36-C

ENGLISH

Contents

Operating Instructions

Precautions

WARNING.................................................. 2

CAUTION................................................... 3

PRECAUTIONS ......................................... 4

Before Operation

About DVDs ..................................................................... 5

Discs playable on this DVD changer................................6

When using remote control .............................................. 7

Replacing the batteries ..................................................... 7

Handling the magazine ..................................................... 8

Loading discs.................................................................... 8

Removing discs ................................................................ 9

Quick Guide

Turning the power on and off ......................................... 10

Switching between NTSC and

PAL configuration .......................................................... 11

Adjusting the volume ..................................................... 11

Selecting the disc ............................................................ 11

Playing discs ................................................................... 12

Stopping playback .......................................................... 13

Fast-forwarding/fast-reversing ....................................... 13

Finding the beginnings of chapters or tracks.................. 14

Playing still frames (pausing) ......................................... 14

Frame-by-frame playback .............................................. 14

Slow motion playback .................................................... 14

Convenient Functions

Searching by title number............................................... 15

Searching directly by chapter or track number............... 15

Searching by elapsed time .............................................. 16

Chapter/track/title repeat playback................................. 16

Switching the audio tracks.............................................. 17

Switching the angle ........................................................ 17

Switching the subtitles (subtitle language)..................... 18

Displaying the subtitles .................................................. 18

Displaying the disc status ............................................... 19

To output the DVD video while listening to other source

(CD/radio etc.) (only when using Ai-NET).................... 20

Default Settings (SET UP)

Changing the language settings ...................................... 21

Changing the TV screen settings .................................... 22

Changing the country code setting ................................. 23

Setting the rating level (parental lock) ........................... 24

Changing the down sampling setting ............................. 26

Changing the digital output setting ................................ 27

Changing the LED indicator setting ............................... 28

Custom setting – Changing the Closed Caption setting ...

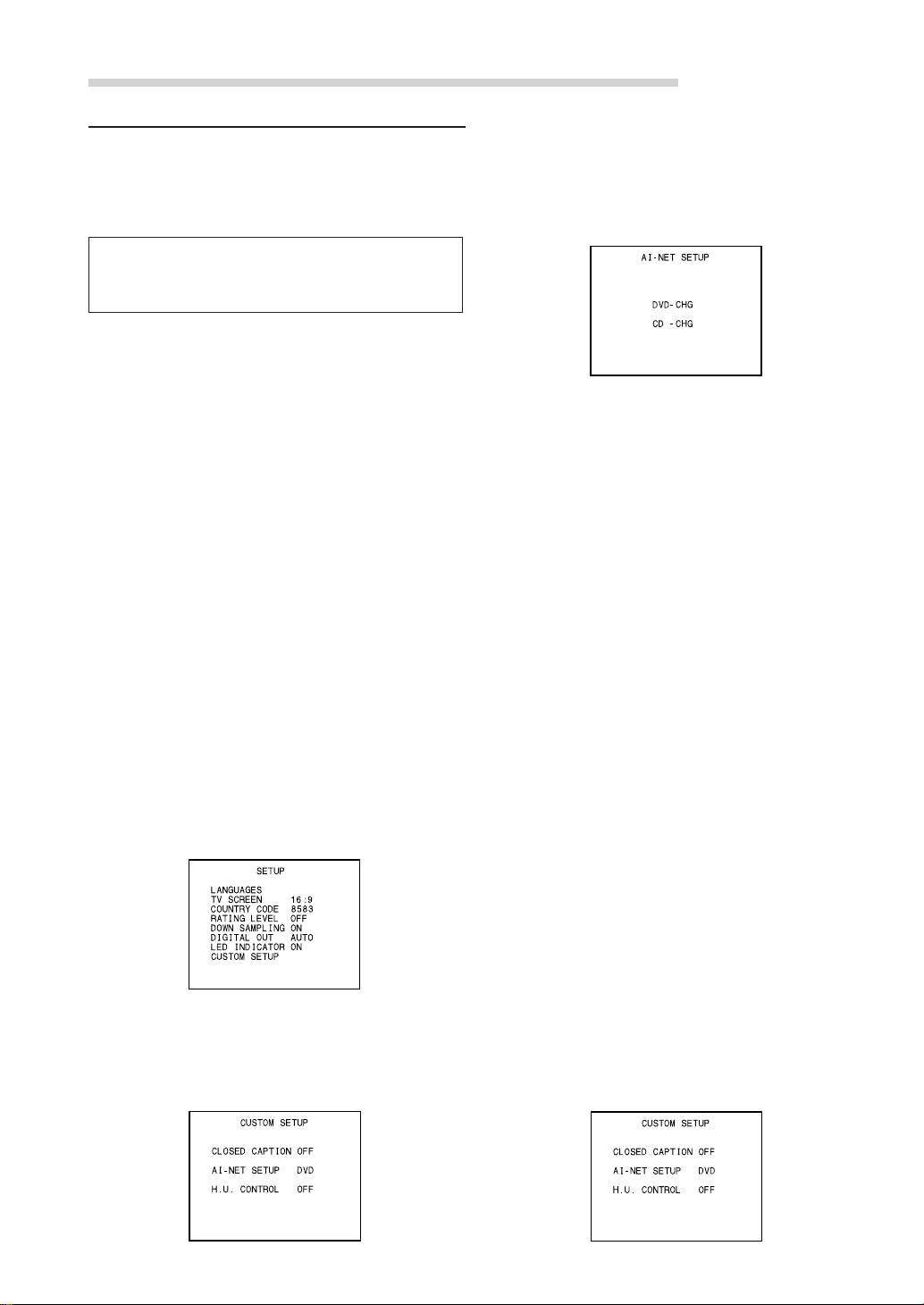

Custom setting – Changing the Ai-NET settings ........... 30

Custom setting – Changing the H.U. CONTROL settings ...

Digital Audio Processor (Optional)

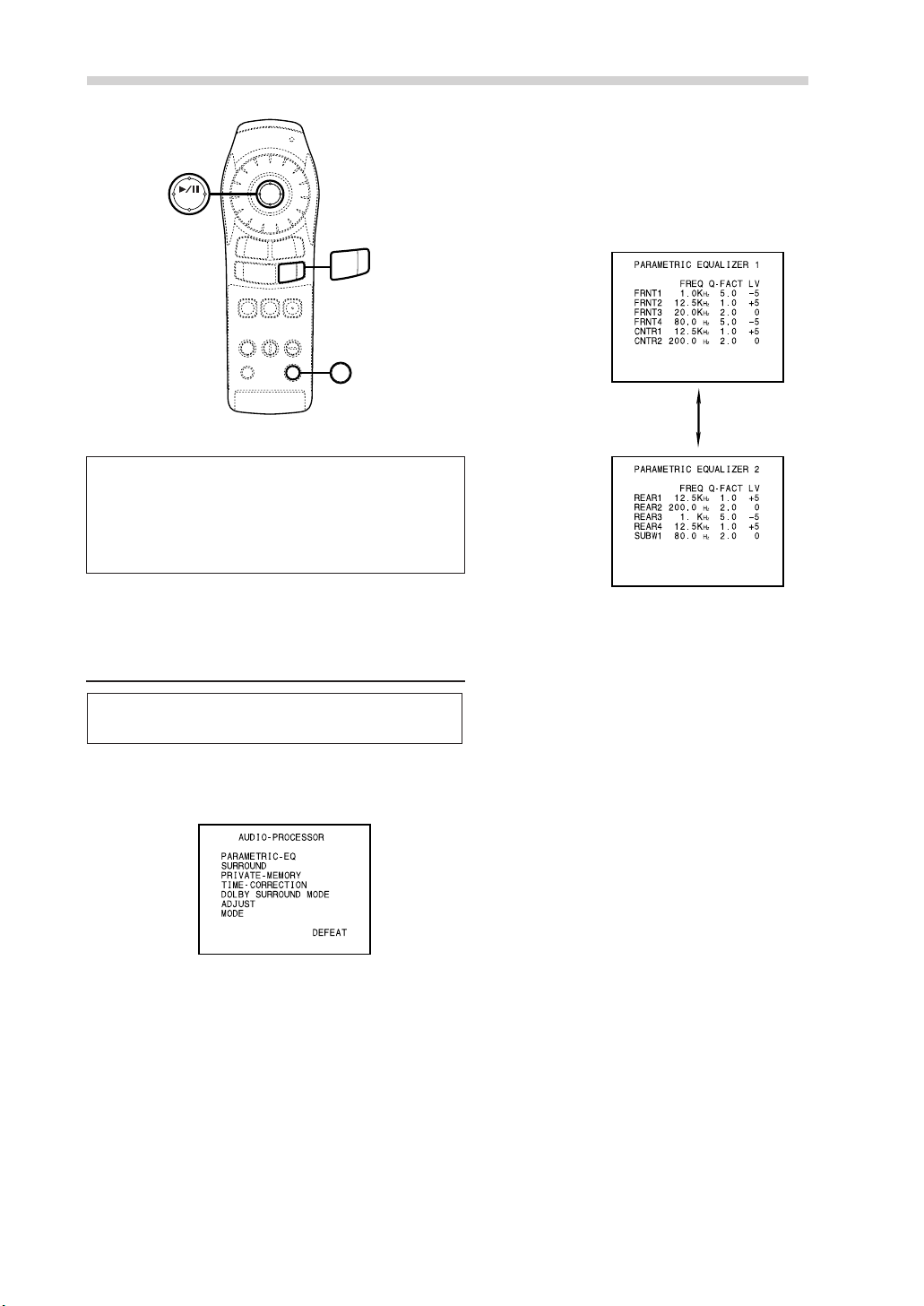

Adjusting the parametric equalizer (only when

connected with PXA-H510) ........................................... 32

Adjusting the surround settings ...................................... 33

Storing the surround settings .......................................... 33

Recalling the surround settings ...................................... 34

Adjusting the time correction (only when

connected with PXA-H510) ............................................ 34

Using the Pro Logic mode .............................................. 35

ADJUST – Setting the speaker mode ............................. 35

ADJUST – Adjusting the acoustic image....................... 36

ADJUST – Mixing the rear audio channels ................... 36

ADJUST – Center speaker time compensation .............. 37

ADJUST – Rear speaker time compensation ................. 37

ADJUST –

Achieving powerful sound at low volumes .................... 38

ADJUST – Adjusting the speaker level..........................38

MODE – Adjusting the volume, fader and balance........38

MODE – Adjusting the subwoofer................................. 39

MODE – Turning the defeat function on and off ........... 39

Other Useful Features

Operating from the head unit.......................................... 40

Playing DVDs,video CDs and CDs................................ 40

Operating from the head unit's remote control unit........ 41

Installation and Connections

Warning .......................................................................... 42

Caution ........................................................................... 42

Precautions ..................................................................... 43

Preparation...................................................................... 43

Connecting...................................................................... 43

Mounting ........................................................................ 44

Installation ...................................................................... 44

Check .............................................................................. 46

Connections .................................................................... 47

Changing the System Settings ........................................ 48

Examples of System Upgrades ....................................... 49

Others

Terminology ................................................................... 58

List of language codes .................................................... 59

List of country codes ...................................................... 60

In case of difficulty......................................................... 62

Specifications ................................................................. 62

Operating the DHA-S680 DVD Video Player................ 63

Operating audio for the Alpine Ai-NET ......................... 64

1-EN

Precautions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR GEARSHIFT.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT DAMAGE PIPES OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

2-EN

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire’s insulation from being cut by the metal edge of the hole.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

CAUTION

CAUTION-Laser radiation when open, DO NOT STARE INTO BEAM

(Rear side of player)

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause fire or personal injury.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

3-EN

Precautions

PRECAUTIONS

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Damaged Disc

Do not attempt to play cracked, warped, or otherwise damaged discs. Playing a bad disc could severely damage the playback mechanism.

Proper Handling

Handle your disc as shown. Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. If the surface is scratched, it may cause the pickup to skip. Do not affix tape, paper, or gummed labels on the disc. Do not write on the disc.

Keep Your Discs Clean

Fingerprints, dust, or soil on the surface could cause the pickup to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the center of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

Various disc accessories for protecting the surface of the disc and improving sound quality are available on the market. However, many of them will increase the thickness and/or diameter of the disc. Using such accessories may place the disc beyond the specified size limitations and cause the changer to malfunction. Because of the high precision electronics of the DHA-S680 and the highly stable mechanism, these accessories are not necessary and therefore not recommended for use with discs placed in the DHA-S680.

Storage

When not in use, place your discs in their individual cases and store them in a cool place away from the sun, heat, and dust.

Irregular Shaped Discs

Make sure the discs you use in this unit do not have any irregularities. The outer and inner edges should be round and smooth. Use of irregularly shaped discs may cause damage to the mechanism.

Installation Location

Make sure the DHA-S680 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

Caution for new discs

When a newly purchased disc is inserted into the changer magazine, the disc may fail to play after initial loading. This is caused by small bumps around the center hole and outside of the disc, which prevent stable loading into the correct position. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

NOTE

The mechanism automatically prevents this type of disc from playing as a protective measure. This is not an indication of faulty operation.

4-EN

Before Operation

About DVDs

Music CDs and DVDs have grooves (tracks) in which the digital data is recorded. The data is represented as microscopic pits recorded into the track – these pits are read by a laser beam to play the disc. On DVDs, the density of the tracks and pits is twice that of CDs, so DVDs can contain more data in less space.

CDs

Minimum pit length -

0.9 µm

DVDs

Minimum pit length -

0.9 µm

A 12 cm disc can contain one movie or about four hours of music. In addition, DVDs provide sharp picture quality with vivid colors thanks to a horizontal resolution of over 500 lines (compared to less than 300 for VHS tape). With the addition of an optional, digital audio processor (PXA-H900/PXA-H510), you can recreate the power and presence of a movie theater with Dolby Digital 5.1-channel Surround.

1.2 mm

0.6 mm

Track pitch -

1.6 µm

Track pitch -

0.74 µm

Moreover, DVDs offer a variety of functions.

• Multiple audio* (page 17)

Movies can be recorded in up to eight languages. The desired language can be selected from the remote control unit.

• Subtitles function* (page 18)

Movies can include subtitles in up to 32 languages. The desired subtitle language can be selected from the remote control unit.

• Multi angle function* (page 17)

When the DVD contains a movie shot from multiple angles, the desired angle can be selected from the remote control unit.

• Multi story function*

With this function, a single movie includes various story lines. You can select different story lines to view various versions of the same movie. Operation differs from disc to disc. Story line selection screens including instructions appear during the movie. Just follow the instructions.

NOTE

* The functions audio languages, subtitle languages,

angles, etc., differ from disc to disc. For details, refer to the disc’s instructions.

5-EN

Before Operation

Discs playable on this DVD changer

• Playable discs

The discs listed below can be played on this DVD changer.

Max.

playing time

One-sided disc Approx. 4 hours

Two-sided disc Approx. 8 hours

One-sided disc Approx. 80 Minutes

Two-sided disc Approx. 160 Minutes

Approx. 74 Minutes

Approx. 20 Minutes

Approx. 74 Minutes

Approx. 20 Minutes

• Discs that cannot not be played

• DVD region number (playable region number)

• Video CDs

• Disc terminology

* This product incorporates copyright protection

DVD

Video

Music

Mark (logo) Recorded

DIGITAL VIDEO

VIDEO CD

content

Audio Video

(Moving

pictures)

Audio Video

(Moving

pictures)

Audio

Disc size

12 cm*

8 cm

12 cm

8 cm

12 cm

8 cm

(CD single)

* Two-layer DVD disc compatible

This unit can play back music CD-R (CD-Recordable) and CD-RW (CD-ReWritable) discs. MP3 file format CD-R/CD-RW discs cannot be played

•

The following Disc types may not be playable: Discs with fingerprints or scratches/Discs that have been left in the car or in the equipment for a long period/ Discs for which data writing condition was not stable

To customers using CD-R/CD-RW

•

If a CD-R/CD-RW cannot be played back, make sure close session (finalization) has been performed

•Finalize the CD-R/CD-RW if necessary, and attempt playback again.

Handling of Compact Discs (CD/CD-R/CD-RW)

Please observe the following points to avoid breakdown and operation faults: Don’t touch the disc surface/Don’t leave in direct sunlight/Don’t affix labels or write on the disc/ Wipe away dust or dirt that adheres to the disc/ Check that there are no burrs/Don’t use commercial accessories.

Pay special attention to the following for CD-R/CD-RW discs:

Do not leave discs in the car or in the equipment for long periods. Never leave discs exposed to direct sunlight. The discs are susceptible to the effects of environments having high temperature and humidity and may deteriorate and exhibit play faults.

DVD-ROMs, DVD-R/DVD-RAMs, CD-ROMs, photo CDs, etc.

This DVD changer will play back any disc whose region number is 1 (or All). DVDs with a region number other than those listed below, cannot be played on this DVD player.

This DVD changer is compatible with playback control (PBC) compatible video CDs (version 2.0). “PBC” is a function by which you can use menu screens recorded on the disc to find the scene you want to watch and view various types of information in dialog style.

ALL

Title

If titles are programmed for the DVD, these are the largest unit of division of the information recorded on the disc.

Chapter

Each Title may also be divided into smaller divisions called Chapters. These can be specific scenes or musical selections.

technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

6-EN

* Manufactured under license from Dolby Laboratories.

* “DTS” and “DTS Digital Out” are trademarks of

Digital Theater Systems, inc.

When using remote control

• Mode Switch

To operate the DVD Changer, make sure the mode switch is on “DVD”. DVD operations are shown as the blue characters on the remote control unit.

DVD / A UDIO

Replacing the batteries

1 Opening the battery cover

Push on the cover and slide it as indicated by the arrows then the cover will be removed.

2 Replacing the battery

Remove the old batteries. Insert new ones matching the (+) and (–) polarities as shown in the diagram inside the remote control.

Switching to “AUDIO” mode, makes it possible to operate Alpine audio products as well. Audio operations are shown as the white characters on the remote control unit.

• Point the remote control at the remote sensor within about 2 meter.

• It may not be possible to operate the remote control unit if the remote control sensor is exposed to direct sunlight.

• The remote control is a small, light weight precision device. To avoid damage, short battery life, operational errors and poor button response, observe the following.

- Do not apply any shock.

- Do not put in a trouser pocket.

- Keep away from food, moisture and dirt.

- Do not place in direct sunshine.

3 Closing the cover

Push the cover in the arrow direction until a click is heard.

NOTE

Use two AA size batteries.

Warning

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

7-EN

Before Operation

Sliding door

COMPACT

DIGITAL AUDIO

INSERT IN THIS DIRECTION

INSERT EACH COMPACT DISC WITH THE LABEL SURFACE FACING UP

Handling the magazine

Turn the power on before loading and unloading discs. (See “Turning the power on and off” on page

10.)

Loading discs

1 Pull the tray lever with your finger and draw the

disc tray out of the magazine. Be careful not to drop the disc.

Magazine

INSERT IN THIS DIRECTION

COMPACT

DIGITAL AUDIO

INSERT EACH COMPACT DISC WITH THE LABEL SURFACE FACING UP

NOTE

Do not remove the disc tray from the magazine. When the disc tray is pulled out from the magazine, do not pull it out with excessive force. Doing so may damage the tray or magazine.

Tray lever

3 Grasp the handle on the door and slide fully to

the right until the door locks.

4 Check for proper orientation of the magazine

(top/bottom and front/back). Then, insert it fully into the changer until a click is heard and the magazine is locked in place.

2 Set discs in the disc tray with the labeled side

facing up. Set one disc in the tray at a time (up to 6 discs). Be careful not to drop the disc. After loading the discs, press the disc tray fully into the magazine until it closes and a click is heard.

INSERT EACH COMPACT DISC WITH THE LABEL SURFACE FACING UP

INSERT IN THIS DIRECTION

COMPACT

DIGITAL AUDIO

NANDAKANDA

HARAHOREHI

PAPARAPA-

1234567890 AAA

1. APO APO PIPIPI

2. APO APO

3. APO APO PIPIPI OYOYO

4. APO APO PIP

5. APO

6. APO APO PIPIPI DOHYA

7. APO APO PIPIPI

8. APO APO PIPIPI KEROYON

9. APO APO

ABC12345-6789

COMPACT

DIGITAL AUDIO

Disc tray

5 After inserting the magazine, grasp the sliding

door handle and slide the door all the way to the left until it locks with a “click.”

NOTES

• When the magazine is inserted, the changer will run a check of its contents automatically.

• If a CD changer is connected to the DHA-S680 input, its output will be muted during this disc check.

8-EN

Removing discs

1 Grasp the handle on the door and slide fully to

the right until the door locks.

Sliding door

2 Press the eject button to eject the magazine,

then remove the magazine.

Eject button

INSERT IN THIS DIRECTION

COMPACT

DIGITAL AUDIO

INSERT EACH COMPACT DISC WITH

THE LABEL SURFACE FACING UP

Cautions on using the magazine

• The CD magazines or accessories included with the CD changer cannot be used with this product.

• Disc trays for the CD changer magazines cannot be used with this product's magazine. Although these trays will fit, using them may damage this product. Never use disc trays for CD changer magazines in the DVD changer magazine.

• Do not forcibly remove the magazine.

• Only one disc can be inserted per slot. Attempting to insert two or more discs will result in damage.

• Never remove the tray from the magazine.

• When the ignition key is set to ACC or ON, the magazine can be removed even when the power setting of the unit is set to OFF.

3 Pull the tray lever with your finger and pull the

disc tray out of the magazine. Take care not to touch the disc’s data side when removing discs . (See “PRECAUTIONS” on page 4.)

Magazine

INSERT IN THIS DIRECTION

COMPACT

DIGITAL AUDIO

INSERT EACH COMPACT DISC WITH THE LABEL SURFACE FACING UP

NOTE

Do not remove the disc tray from the magazine. When the disc tray is pulled out from the magazine, do not pull it out with excessive force. Doing so will cause breakdown.

Tray lever

9-EN

Quick Guide

ENT

DISP.

TUNER

DISC DN

POWER

NTSC/PAL

Play Position Memory Function

• Even if you turn power off or switch the Ignition Key to OFF during playback or change the source, playback will continue from the point where playback stopped when the power is turned ON again. The play position memory is cancelled when the magazine is removed or the disc is changed.

RPT

DISC

DISC UP

Turning the power on and off

• When connected with a head unit by using an Ai-NET

Caution

• When connected with an Alpine head unit When using the DHA-S680 with an AiNET compatible AV head unit or AiNET compatible head unit, read the section “Changing the system settings” (page 48) thoroughly and make the “Ai-NET setting” and “H.U. CONTROL setting” before using it.

• With this unit connected to an Ai-NET compatible AV head unit or Ai-NET compatible head unit, there will be about a 3 second delay during powerup from the remote control unit. This is caused by the systems communications being carried out by the various components and is not a defect.

• When connected with an Ai-NET compatible AV head unit and Ai-NET compatible head unit, the power cannot be turned off from the remote control unit. Turn off the DHA-S680 power by switching the head unit’ s source . For details, refer to “Operating from the head unit” (page 40).

1 Set the head unit’s source to DVD Changer or

CD Changer. The power turns on.

NOTE

The head unit’s sources vary depending on the head unit connected, system components and Ai-NET setting of DHA-S680.

2 To turn the power off, change the head unit’s

source.

• When not connected with a head unit by using an Ai-NET

Caution

When not connected with a head unit by using an Ai-NET If the DHA-S680 is not connected to an Ai-NET compatible head unit, read the section “Changing the system settings” (page 48) thoroughly and set the “H.U . CONTROL setting” to OFF before using it.

1 Press the POWER button of the remote control

unit. The power turns on.

2 To turn the power off, press the POWER button

again.

10-EN

Switching between NTSC and PAL configuration

Switch the video output configuration to NTSC or PAL according to the type of television and the disc recording method.

1 Press and hold the NTSC/PAL button for at least

5 seconds.

NOTES

• NTSC is the standard and there is no need to change the setting. The system is set to NTSC at time of shipment from the factory.

• The image output configuration must be correct. Otherwise the following message appears and playback does not start: “VIDEO SIGNAL SYSTEM IS NOT CORRECT”.

Adjusting the volume

Adjust the volume when using with a Digital Audio Processor (PXA-H510/PXA-H900).

1 Rotate the rotary encoder clockwise or counter-

clockwise. Turn clockwise to increase the volume. Turn counter-clockwise to decrease the volume.

NOTE

If an Ai-NET product (head unit or AV head unit) is being used with the Digital Audio Processor (PXAH510/PXA-H900), or if this equipment is connected directly to a TV monitor, use each devices’ control to adjust the volume.

Selecting the disc

• Using the Number Keys

Tips

This describes use of the Number Keys, particularly the “+10” key.

To input 10: Press the “+10” key once and then press the “0” key. To input 16: Press the “+10” key once and then press the “6” key. To input 23: Press the “+10” key twice and then press the “3” key.

* Each time the “+10” key is pressed, the

number increases by 10.

• Reading this manual

Stopping playback

Tips

Press the stop button during playback to stop playback. That position is stored in the memory.

Press the L button during playback.

• Using the PRE-STOP function (DVD,

Tips

Video CD only)

When the PRE-STOP function is used, the position at which playback is stopped is stored in the memory, and playback resumes from that position.

Press the L button once during playback. “PRE-STOP” is displayed.

DVD

Video CD

DVD

1 Press the DISC DN or DISC UP button to select

the side you want to play. The DHA-S680 automatically detects the type of disc (DVD, Video CD, CD) and starts playback.

NOTE

For CDs, if repeat is OFF, there will be an automatic changeover to the next disc after the disc finishes playing. For DVD and video CD, discs will not be switched even if repeat is OFF. For further information about repeat switching, see “Chapter/track/title repeat playback” (on Page 16).

These indicate the discs for which

Video CD

the function can be used.

DVD

...DVDs

Video CD

...Video CDs

...Music CDs

This indicates supplementary explanation of operation of this system.

Press the mode. Playback starts from the position at which it was stopped.

button in the PRE-STOP

11-EN

Quick Guide

DVD

Video CD

ENT

LIST

DISP

SET

SOURCE

SLOW

A. PROC

Playing discs

GO TO

TITLE

CHG

DEFEAT

1 Press the

button.

Playback starts.

NOTES

• During play, the front panel indicators of this unit flash. Playing a DVD: The DVD VIDEO indicator flashes Playing a video CD: The VIDEO CD indicator flashes Playing a CD: The AUDIO CD indicator flashes

• The reverse side of a double-sided DVD will not be played automatically. Remove the disc, turn it over, and reinsert it.

• For CDs, if repeat is OFF, there will be an automatic changeover to the next disc after the disc finishes

+10

playing.

• For DVD and video CD, discs will not be switched even if repeat is OFF.

• For further information about repeat switching, see

DVD

Video CD

“Chapter/track/title repeat playback” (on Page 16).

Caution

• Not all functions will operate for every DVD. See the individual DVD’s instructions for details on the features supported.

• Fingerprints on a disc may adversely affect playback. If a problem occurs, remove the disc and check for fingerprints on the playback side. Clean the disc if necessary.

• When using the remote control, be careful to press one button at time. Pressing multiple buttons at the same time may cause erroneous operation.

• If you switch the power or Ignition Key OFF or change sources during playback, playback will continue where you left off when you resume playback. If the magazine is removed or the disc is changed, this play position memory is erased.

• If you try to perform an invalid operation (based on the type of disc being played), the following mark is displayed on the screen:

• If a menu screen appears

On DVDs and video CDs with playback control (PBC), menu screens may appear automatically. If this happens, perform the operation described below to start playback.

NOTE

For many discs, the menu screen can also be displayed by pressing the MENU or TITLE button (for at least 2 seconds).

DVD menu

Use the Joystick to select the desired item, then press the

ENT or : button.

NOTE

For some discs it is possible to select items directly from the menu screen using the number keys (“0” to “9” and “+10”).

Video CD menu

Use the number keys (“0” to “9” and “+10”) to select the desired number.

NOTE

The menu screen does not appear when the PBC function is turned off. If this is the case, press the MENU button to turn on the PBC function.

12-EN

Stopping playback

DVD

Video CD

DVD

Press the stop button during playback to stop playback. That position is stored in the memory.

1 Press the

button during playback.

Video CD

Fast-forwarding/ fast-reversing

1 During playback, press and hold the

reverse) or 2 seconds.

::.

(fast-forward) button for at least

.;;

(fast-

• Using the PRE-STOP function (DVD,

Tips

Video CD only)

When the PRE-STOP function is used, the position at which playback is stopped is stored in the memory, and playback resumes from that position.

1Press the

playback. “PRE-STOP” is displayed.

2Press the

mode. Playback starts from the position at which it was stopped.

• Canceling the PRE-STOP function

Either press the L button again in the PRE-STOP mode, remove the magazine, switch the disc, switch the source, or turn the ignition key off to clear the memory.

NOTES

• For some discs, the position at which playback was stopped may not be accurate.

• Playback starts at the beginning of the disc whenever ignition is turned off or another Ai-NET source is selected.

button once during

button in the PRE-STOP

2 Press the

NOTES

• No sound or subtitles are played during fastforwarding/fast-reversing.

• For DVDs and video CDs with playback control (PBC), the menu screen may reappear during fastforwarding/fast-reversing.

button to return to normal playback.

13-EN

Quick Guide

1/2 speed

1/4 speed

1/16 { ‹

1/8 speed

1/16 speed

Normal playback

ENT

LIST

DISP

SET

SOURCE

SLOW

A. PROC

GO TO

TITLE

BAND

RTN

V.OUT

MUTE

DEFEAT

CLR

Finding the beginnings of chapters or tracks

1 During playback, press the

The chapter/track switches each time the button is pressed, and playback of the selected chapter/ track starts.

::.

: Press this to start playback from the

beginning of the following chapter or track.

.;;

: Press this to start playback from the

beginning of the current chapter or track.

NOTE

Some DVDs do not have chapters.

.;;

::.

button.

DVD

UP +10

Video CD

Playing still frames

DVD

Video CD

(pausing)

1 During playback, press the button once. 2 Press the

NOTES

• No sound is played during the still frame mode.

• Playback starts automatically if the picture is in still mode (paused) for more than 5 minutes. The picture or sound may be interrupted for an instant, but this is not a failure.

Frame-by-frame playback

button to resume playback.

DVD

Video CD

1 In the pause mode, press the button.

The picture advances by one frame each time the button is pressed.

2 Press the

button to resume normal playback.

NOTE

No sound is played during frame-by-frame playback.

Slow motion playback

Video CD

1 During playback, press the SLOW button for at

least 2 seconds. The slow motion playing speed changes each time the button is pressed.

DVD

Supplementary explanation

“Chapters” are divisions of movies or musical

selections on DVDs. “Tracks” are divisions of mo vies or m usical selections on video and music CDs.

14-EN

2 Press the

button to resume normal playback.

NOTES

• No sound is played during slow motion playback.

• Slow playback is not available when playing back a slide show.

• 1/2, 1/4, 1/8 and 1/16 are approximate speeds. The actual speed differs from disc to disc.

Convenient Functions

DVD

Video CD

Searching by title number

Use this function to easily find positions on the DVD using the DVD’s title menu.

1 During playback, press the GO TO button.

The mode switches each time the button is pressed. Select “TITLE”.

TITLE CHAPT TIME

Normal playback

2 Input the number of the title you want to play

using the number keys (“0” to “9”).

DVD

Searching directly by chapter or track number

Use this function to easily move to the beginnings of the chapters or tracks on the disc.

1 During playback, press the GO TO button.

The mode switches each time the button is pressed. Select “CHAPT” or “TRACK”.

DVD Video

TITLE CHAPT TIME

Video-CD/CD

TRACK TIME

Normal playback

2 Input the number of the chapter or track you

want to play using the number keys (“0” to “9”).

(When title number 1 is input)

NOTES

• This function cannot be used on discs on which no title numbers are recorded.

• To input the title number, the “+10” key is not used. Use the number keys “0” to “9”.

• Press the CLR button to delete the last digit in the title number. Press the CLR button for at least 2 seconds to clear all title numbers.

• Press the RTN button to cancel the title search mode and resume normal playback.

3 Press the ENT button.

Playback starts from the selected title number.

(When chapter number 12 is input)

3 Press the ENT button.

Playback starts from the selected chapter or track.

NOTES

• This function cannot be used on discs on which no chapter numbers are recorded.

• To input the chapter or track number, the “+10” key is not used. Use the number keys “0” to “9”.

• Press the CLR button to delete the last digit in the chapter/track number. Press the CLR button for at least 2 seconds to clear “Chapter” and “Track” numbers.

• Press the RTN button to cancel the chapter/track search mode and resume normal playback.

• With video discs containing playback control (PBC), function of “searching directly by track number” is not available under the PBC ON status. Press the MENU button to turn the PBC function off.

• If the chapter/track number is known, you can search directly using the number keys (“0” to “9” and “+10”) during playback mode, PRE-STOP mode, etc.

15-EN

Convenient Functions

RPT CHAPT

The chapter is played repeatedly.

The title is played repeatedly.

The mode returns to normal playback. (factory default)

RPT TITLE

RPT OFF

NOTES

• To input the elapsed time, the “+10” key is not used. Use the number keys “0” to “9”.

• Press the CLR button to delete the last digit in the elapsed time. Press the CLR button for at least 2

ENT

DISP

SET

GO TO

TITLE

BAND

RTN

V.OUT

RPT

DISC

DISC UP

LIST

AUDIO

CLR

ANGLE

seconds to erase all the set times.

• Press the RTN button to cancel the elapsed time search mode and resume normal playback.

• With DVDs, the precision of the elapsed time search function differs from disc to disc.

• With video discs containing playback control (PBC), function of “searching by elapsed time” is not available under the PBC ON status. Press the MENU button to turn the PBC function off.

3 Press the ENT button.

Playback starts from the specified elapsed time.

DVD

Searching by elapsed time

Use this function to search by specifying the elapsed time.

1 During playback, press the GO TO button.

The mode switches each time the button is pressed. Select “TIME”.

DVD Video

TITLE CHAPT TIME

Video-CD/CD

TRACK TIME

Normal playback

2 Input the elapsed time from which you want to

start playback using the number keys (“0” to “9”).

(Input the hours first, followed by the minutes, then the seconds.)

Video CD

Chapter/track/title

DVD

repeat playback

Use this function to play the disc’s titles, chapters or tracks repeatedly.

1 During playback, press the RPT button.

The repeat mode switches each time the button is pressed.

DVD

Video CD

RPT TRACK

RPT DISK

RPT OFF

The track is played repeatedly.

The entire disc is played repeatedly.

(factory default)

Video CD

16-EN

(When 1 hour, 30 minutes is input as the elapsed time)

NOTES

• The track/disc repeat modes cannot be used on video CDs with playback control (PBC). Press the MENU button to turn the PBC function off.

• For some discs it is not possible to switch the repeat mode.

• For CDs, if repeat is OFF, there will be an automatic changeover to the next disc after the disc finishes playing. For DVD and video CD, discs will not be switched even if repeat is OFF. Use the remote control to switch these discs. For further information about disc switching, see “Selecting the disc” (on Page 11).

Switching the audio tracks

DVD

Video CD

Switching the angle

DVDs can have up to 8 different audio tracks. These alternate tracks can be switched during playback.

1 During playback, press and hold the AUDIO

button for at least 2 seconds. The sound switches between the alternate audio tracks recorded on the disc each time the button is pressed.

NOTES

• The alternate track selected becomes the default setting every time the power is turned on or the disc is replaced. If the disc does not include that track, the disc’s default language is selected instead.

• Not all discs will allow changing the alternate audio tracks during playback. In these cases, select audio tracks from the DVDs menu.

• There may be a delay before the selected alternate track begins to play.

• Video CDs with multiplex audio

1 During playback, press and hold the AUDIO

button for at least 2 seconds. The left and right channels will be output as shown in the figure below, each time the button is pressed.

RR LR

On DVDs in which scenes have been filmed from multiple angles, the angle can be switched during playback.

1 During playback, press and hold the ANGLE

button for at least 2 seconds. The angle switches between the angles recorded on the disc each time the button is pressed.

NOTES

• Some time may be required for the angle to change.

• Depending on the disc, the angle may switch in one of two ways.

- Seamless: The angle switches smoothly.

- Non-seamless: When the angle is switched, a still

picture is displayed first, after which the angle switches.

17-EN

Convenient Functions

Tips

ENT

DISP

SET

SOURCE

SLOW

DISP .

TUNER

LIST

GO TO

TITLE

SUB T.

Switching the subtitles (subtitle language)

With DVDs on which multiple subtitle languages are recorded, the subtitle language can be switched during playback.

1 During playback, press and hold the SUB T.

button for at least 2 seconds. The subtitle switches between the languages recorded on the disc each time the button is pressed.

NOTES

• There may be a delay before the selected subtitle appears.

• Not all discs will allow changing the subtitles during playback. In these cases, select subtitles from the DVDs menu.

• The subtitle language selected becomes the default setting every time the power is turned on or the disc is replaced. If the disc does not include that language, the disc’s default language is selected instead.

Displaying the subtitles

DVD

With DVDs on which subtitles are recorded, you can select whether to display the subtitles or not during playback.

ON/OFF

1 During playback, press and hold the – ON/OFF

button for at least 2 seconds. The currently displayed subtitles are turned on and off each time the button is pressed.

NOTES

UP +10

DVD

• For some discs, the subtitles will be displayed even when this is set to off.

• For some discs, it is not possible to switch the subtitles (subtitle language) during playback. In this case, make the selection from the disc menu.

• Switching from the disc menu For some discs, the audio language, angle and subtitles can be switched from the disc menu.

1Press the MENU or TITLE button (for

at least 2 seconds), select the item, then press the ENT button.

2Use the Joystick to select the

language or angle, then press the ENT or : button. (For some discs, they can be selected using the number keys (“0” to “9” and “+10”) while the language or the angle menu is displayed.)

18-EN

Displaying the disc status

DVD

Displaying the disc status

Video CD

Use the procedure described below to display the status (title number, chapter number, etc.) of the currently playing DVD on the screen.

1 During playback, press the DISP. button.

The playback status is displayed.

Current playback disc number

Current title number

Current subtitle language

Current angle number

Current chapter number

Current audio language

Audio recording system

TV system (NTSC or PAL)

Repeat setting (Default setting – disc repeat)

Title playback time

2 Press the DISP. button once more to turn the

display off.

Use the procedure described below to display the status (track number, etc.) of the currently playing video CD or music CD on the screen.

1 During playback, press the DISP. button.

The playback status is displayed.

Playback control (PBC)

ON/OFF (For video CDs only)

Current playback disc number

Playback disc (CD: Music CD VCD: Video CD)

Repeat setting (Default setting-disc repeat)

NOTE

For music CDs, the playing status is displayed even when the DISP. button is not pressed.

(Example of Video CD display)

TV system (NTSC or PAL)

Current track number

Track playback time

2 Press the DISP. button once more to turn the

display off.

19-EN

Convenient Functions

5 After using this function, press and hold the

V.OUT button for at least 2 seconds to cancel the video output mode.

ENT

DISP

SET

CHG

BAND

RTN

V.OUT

To output the DVD video while listening to other source (CD/radio etc.) (only when using Ai-NET)

When the DHA-S680 is connected to an Ai-NET compatible head unit or Ai-NET compatible AV head unit, the DVD video can be output independently on the monitor. If the rear monitor is connected, the DVD video and audio can be output independently on the rear monitor. For example, the DVD video can be output on the front or rear monitor, while listening to the CD/ radio from the head unit.

DVD

1 See “Rear Monitor Select Function (AUX OUT)”

in the AV head unit or front monitor’s owner’s manual to set to AUX 1.

NOTES

• When DHA-S680 is connected to AUX1.

• When connecting the DVD player (DVA-5205), be sure to connect the DVA-5205’s video output/audio output to the AV head unit’s or Front monitor’s AUX1. Connect the DHA-S680’s video output/audio output to the AUX2.

Caution

NOTES

• Also refer to the Owner’s Manual of the other

• If the monitor has no rear monitor select function, the

Tips

If the power or the ignition key is turned off without canceling the video output mode, the set will start up in the video output mode the next time the power is turned on, and the DHA-S680’s power will remain on even if the source is switched with the head unit/AV head unit or if you try to turn off the power with the DHA-S680’s remote control unit. If this happens, press the V.OUT button for at least 2 seconds to cancel the video output mode.

product connected. rear monitor cannot be connected.

• Watching the DVD/video CD with

CVA-1005/IVA-C800

1Change the CVA-1005/IVA-C800’s

source side to CD changer. The DHA-S680 turns ON.

2Use the “Playing 2 Sources

Simultaneously” function on the CVA-1005/IVA-C800 to select AUX1 with the V.SEL button.

3Press and hold the V.OUT button on

the remote control unit for this equipment at least 2 seconds. You can watch the DVD/video CD.

4After using this function, be sure to

press and hold the V.OUT button for at least 2 seconds to cancel the video output mode.

2 Change the source on the head unit or AV head

unit’s to CD or radio, etc.

3 See “Playing 2 Sources Simultaneously” in the

AV head unit or front monitor’s owner’s manual to watch AUX1 with the V.SEL button.

4 Press and hold the V.OUT button on the remote

control unit for this unit for at least 2 seconds. You can watch the DVD/video CD.

20-EN

Default Settings (SET UP)

Changing the language settings

The audio language, subtitle language and menu language can be set according to your preferences.

NOTE

When the settings are changed, the old settings are overwritten. Make a note of the current settings before making changes. The settings are not cleared even when the vehicle’s battery is disconnected.

The setup screen for the selected language is displayed.

AUDIO (audio languages)

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “LANGUAGES”, then

press the ENT button.

3 Use the Joystick to make the selection, then

press the ENT button.

4 Use the Joystick to select the desired language,

then press the ENT button.

AUDIO

Set the audio language produced from the speakers.

SUBTITLE

Set the language of the subtitles displayed on the screen.

MENU LANGUAGE

Set the language used for the menus (title menu, etc.).

SUBTITLE (subtitle languages)

MENU LANGUAGE (menu languages)

ORIGINAL

The disc is played with the audio language set as the priority language for the disc. (AUDIO only)

AUTO

The disc is played with the subtitle language set as the priority language for the disc. (SUBTITLE/ MENU LANGUAGE only)

OTHERS

Set this to play the disc with a language other than one of the languages displayed. Use the keys “0” to “9” to input the 4-digit language code, then press the ENT button. For the language codes, refer to “List of language codes” (page 59).

NOTES

• If the disc does not include the selected language, the disc’s default language is set.

• Languages set upon shipment from the factory: Audio language : ORIGINAL Subtitle language : AUTO Menu language : AUTO

• Press the RTN button to return to the previous screen.

5 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

21-EN

Default Settings (SET UP)

4 : 3 PAN-SCAN

3 Use the Joystick to make the selection, then

press the ENT button.

ENT

DISP

SET

Changing the TV screen settings

Use the procedure described below to set the output screen according to the type of TV monitor being used.

CHG

BAND

RTN

V.OUT

CLR

4 : 3 LETTERBOX

Select this when connected to a conventional 4:3

size (normal TV aspect ratio) monitor. There may be black stripes visible at the top and bottom of the screen. The width of these stripes will depend upon the original aspect ratio of the theatrical release of the movie.

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “TV SCREEN”, then

press the ENT button.

Select this when connected to a conventional 4:3 size monitor. The picture will fill the entire TV screen. However, due to the mismatch in aspect ratio, parts of the movie at the extreme left and right sides will not be visible.

16 : 9 WIDE

Select this when connected to a wide screen TV. This is selected upon shipment from the factory.

22-EN

NOTES

• For some discs, the picture may not be set to the selected screen size. (For details, refer to the explanation on the disc’s jacket.)

• Press the RTN button to return to the previous screen.

4 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

4 Use keys “0” to “9” to input the 4-digit country

code, then press the ENT button.

Changing the country code setting

Set the country code when setting the rating level (Parental lock).

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “COUNTRY CODE”,

then press the ENT button.

US : 8583

NOTES

• For the country codes, refer to “List of country codes” (Page 60).

• Can be erased one digit at a time each time the CLR button is pressed.

• Press the RTN button to return to the previous screen.

5 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

3 Press the ENT button to reset the country code.

23-EN

Default Settings (SET UP)

3 Press the ENT button.

The password input mode is set.

ENT

DISP

SET

BAND

RTN

V.OUT

CHG

Setting the rating level (parental lock)

Use this function to restrict the viewing of movies to children of appropriate age levels only.

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

4 Use keys “0” to “9” to input the 4-digit

password. The default password is 1111 upon shipment from the factory.

Input numbers are displayed “ ”.

5 Press the ENT button.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “RATING LEVEL”,

then press the ENT button.

24-EN

6 Use the Joystick to select the rating level, then

press the ENT button. Select “OFF” to cancel the parental lock or if you do not want to set a rating lev el. The higher the number, the higher the r ating level.

NOTE

Press the RTN button to return to the previous screen.

7 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

NOTES

• If you want to change the password, select “CHANGE PASSWORD”, then input the new password (4 digits).

• Write down the password on a piece of paper and store the piece of paper somewhere in case you forget it.

• On unrated DVDs, playback will not be restricted even if the rating level is set.

• Once set, this rating level remains in memory until changed. To enable the play of discs of higher rating levels or to cancel the parental lock, the setting must be changed.

• Not all DVDs provide a Parental Lock feature. If you are unsure about a DVD, play it first to confirm. Do not leave DVDs accessible to young children for whom you deem them inappropriate.

• Changing the rating level temporarily Some discs may request that you

Tips

change the rating level set in the default settings during playback. In this case, the following message appears on the screen:

Still picture

Still Picture

If this screen appears, change the level as follows:

• To change parental level and play,

press the ENT button.

• To play without changing the

parental level, press the ■ button.

(When the ■ button is pressed, playback will be at the parental level set with “Setting Parental Lock.” )

25-EN

Default Settings (SET UP)

3 Move the Joystick up and down to choose “ON”

or “OFF” and, then press the ENT button.

ENT

DISP

SET

BAND

RTN

V.OUT

Changing the down sampling setting

Some DVDs are recorded using a 24-Bit/96 kHz linear PCM (LPCM) signal. In order to play these discs, the signal must be downsampled to 48 kHz/16 bit digital signals before being output from the optical output.

NOTE

The digital signals recorded on the DVD disc with 96 kHz/24bit, 96 kHz/20bit, 96 kHz/16bit, 48 kHz/ 24bit, 48 kHz/20bit sampling are converted into digital signals with 48 kHz/16bits sampling for output from the optical cable. Set to ON at time of shipment from factory.

OFF

The digital signals recorded on the DVD disc with 96 kHz/24bit, 96 kHz/20bit, 96 kHz/16bit, 48 kHz/ 24bit, 48 kHz/20bit sampling are not converted into digital signals with 48 kHz/16bits sampling. There is no output from the optical cable.

NOTE

Press the RTN button to return to the previous screen.

4 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “DOWN SAMPLING”,

then press the ENT button.

26-EN

Changing the digital output setting

Use the following procedure to set the digital audio signal output from the DHA-S680.

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

Audio output/Optical digital audio output

Disc Audio recording

DVD

VIDEO CD

format

Dolby Digital

Linear

PCM

MPEG2 MPEG1

Linear PCM

DTS

48kHz/

16bit

48kHz/

20bit

48kHz/

24bit

96kHz/

16bit

96kHz/

20bit

96kHz/

24bit

Digital output

setting

AUTO LPCM AUTO LPCM AUTO LPCM AUTO LPCM AUTO LPCM

AUTO

LPCM

AUTO

LPCM

AUTO

LPCM

AUTO or LPCM AUTO or LPCM

AUTO or LPCM

AUTO LPCM

Down sampling

2 Use the Joystick to select “DIGITAL OUT”, then

press the ENT button.

3 Use the Joystick to make the selection, then

press the ENT button.

AUTO

The digital output is switched automatically according to the type of audio signals being played. Be sure to select “AUTO” when you want to connect a digital audio processor and play Dolby Digital audio. “AUTO” is selected upon shipment from the factory.

LPCM

The audio signals recorded on the disc are converted into 48 kHz/16 bit (for DVDs) or 44.1 kHz (for video CDs and CDs) linear PCM audio signals for output.

NOTE

Press the RTN button to return to the previous screen.

4 Press and hold the SET button for at least 2

seconds. The set up are stored and the set up mode is canceled.

setting

OFF

ON or OFF ON or OFF

ON or OFF

OFF

Optical digital audio output (when a digital audio processor is connected)

DTS DTS

NG Dolby Digital Dolby Digital

LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit)

LPCM (48kHz/16bit) LPCM (48kHz/16bit) LPCM (48kHz/16bit)

LPCM (48kHz/16bit) LPCM (48kHz/16bit)

LPCM

(48kHz/16bit)

LPCM

(44.1kHz)

LPCM

(44.1kHz)

DTS DTS

Analog audio output (Ai-NET, RCA output)

NG NG NG NG OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK

OK OK

OK NG

NG NG NG

27-EN

Default Settings (SET UP)

3 Use the Joystick to select the “ON” or “OFF”,

then press the ENT button.

ENT

DISP

SET

CHG

BAND

RTN

V.OUT

Changing the LED indicator setting

Use the following procedure to set whether or not the product’s LED indicators are on or off.

NOTE

The LED indicators are lit, indicating the product’s operating status. “ON” is selected upon shipment from the factory.

OFF

The LED indicators are turned off. When “OFF” is set, the indicators do not light even when the power is on.

NOTE

Press the RTN button to return to the previous screen.

4 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “LED INDICATOR”,

then press the ENT button.

28-EN

Custom setting – Changing the Closed Caption setting

DVD includes so-called “closed captions” which describe the scene to persons with impaired hearing. It is possible to turn the closed captions ON and OFF.

NOTE

4 Move the Joystick up and down to select “ON”

or “OFF”, then press the ENT button.

Displays the closed captions.

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “CUSTOM SETUP”,

then press the ENT button.

3 Move the Joystick up and down to select

“CLOSED CAPTION”, then press the ENT button.

OFF

Does not display the closed captions. Set to OFF at time of shipment from factory.

NOTES

• A closed caption compatible monitor is required to display the closed captions.

• Please be aware that closed captions are different from titles.

• Press the RTN button to return to the previous screen.

5 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

29-EN

Default Settings (SET UP)

CD-CHG

4 Use the Joystick to select “DVD-CHG” or “CD-

CHG”, then press the ENT button.

ENT

DISP

SET

BAND

RTN

V.OUT

CHG

Custom setting – Changing the AiNET settings

The Ai-NET settings are used to output the sound of connected Ai-NET products.

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

DVD-CHG

When connected to an Ai-NET head unit (e.g., CDA-7990, CDA-7977, and CDA-7878) or an AiNET AV head unit (e.g., CVA-1006, CVA-1003, and IVA-C801) that were available after January

2001. DVD-CHG is the factory setting.

1. When connected an Ai-NET head unit (excluding CDA-7990) that was available prior to January 2001 or AV head unit (e.g., CVA-1005 and IVA-C800).

If the DVD-CHG setting is selected with the aforementioned head units, the DHA-S680 will no longer be identified on the bus and operation from the head unit will no longer be possible.

2. When the optional VERSATILE LINK TERMINAL (KCA-410C) is used and DHAS680 is connected.

NOTES

• Press the RTN button to return to the previous screen.

• If the Ai-NET setting is “CD-CHG” when used with

the CVA-1006/CVA-1003/IVA-C801, operation from the main menu screen is not possible.

• If the Ai-NET setting is “DVD-CHG” when used with

any Ai-NET compatible head unit other than the CVA-1006/CVA-1003/IVA-C801, volume is the only operation possible from the head unit.

• To call the DVD video by using the CVA-1005/

IVA-C800, switch the mode to “AUX” with the V. SEL button on the CVA-1005/IVA-C800.

• When the Ai-NET setting is “CD-CHG”, the operable

functions and displays may differ depending on the Ai-NET compatible head unit connected.

2 Use the Joystick to select “CUSTOM SETUP”,

then press the ENT button.

3 Use the Joystick to select “Ai-NET SETUP”,

then press the ENT button.

30-EN

5 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

6 Turn off the vehicle’s ignition, then turn it on

again.

NOTES

When the DVD-CHG mode cannot be called at the CVA-1006/CVA-1003/IVA-C801 side

• “DVD-CHG” is not displayed on the menu screen at the CVA-1006/CVA-1003/IVA-C801 side

The cause of this is that the DHA-S680 Ai-NET setting is “CD-CHG.” Use the following method to change the setting.

1. Press the CVA-1006/CVA-1003/IVA-C801 SOURCE switch and select CD-CHG from the menu.

2. Select “AUX1” with the V.SEL switch. This will display the DHA-S680 screen (when DHA-S680 is connected to AUX1).

3. Set the Ai-NET setting to “DVD-CHG” with the DHA-S680. See “Custom Setting – Changing the AiNET settings” (on Page 30).

4. Switch OFF the car’s ignition switch, then switch it back ON again.

Custom setting – Changing the H.U. CONTROL settings

When connecting the equipment with an Ai-NET compatible head unit or an Ai-NET compatible AV-head unit, set the equipment so that it is possible to control from the head unit.

NOTE

1 In the stop mode, press and hold the SET button

for at least 2 seconds. The setup menu appears.

4 Move the Joystick up and down to select “ON”

or “OFF”, then press the ENT button.

Set to “ON” with ALPINE Ai-NET system connected. Operations can be performed from the Ai-NET compatible head unit or Ai-NET compatible AV head unit.

OFF

Set to “OFF” without ALPINE Ai-NET system connected.

NOTE

Press the RTN button to return to the previous screen.

5 Press and hold the SET button for at least 2

seconds. The settings are stored and the set up mode is canceled.

6 Turn off the vehicle’s ignition, then turn it on

again.

NOTE

This operation cannot be performed in the PRE-STOP mode. When the disc is being played, press the ■ button twice to set the stop mode.

2 Use the Joystick to select “CUSTOM SETUP”,

then press the ENT button.

3 Move the Joystick up and down to select “H.U.

CONTROL”, then press the ENT button.

31-EN

Digital Audio Processor (Optional)

3 Use the Joystick to select the band to be set,

then press the ENT button. The band whose frequency is indicated in yellow can be adjusted. The parametric equalizer’s

ENT

BAND

RTN

V.OUT

A. PROC

BAND

When used with a digital audio processor (PXAH510/PXA-H900), operation is possible from the remote control unit included with the DHA-S680. Also refer to the PXA-H510/PXA-H900’s operating instructions.

setting screen consists of two pages. Press and hold the BAND button for at least 2 seconds to switch between pages 1 and 2.

Adjusting the parametric equalizer (only when connected with PXAH510)

Adjust the parametric equalizer's band frequency, band width and level.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “PARAMETRIC-EQ”,

then press the ENT button.

4 Use the Joystick to adjust the frequency, then

press the ENT button.

5 Use the Joystick to select the band width (Q-

FACT), then press the ENT button.

6 Use the Joystick to adjust the band width, then

press the ENT button.

7 Use the Joystick to select the level (LV), then

press the ENT button.

8 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

9 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

NOTE

When connected with PXA-H900, DHA-S680 cannot make parametric equalizer adjustment.

32-EN

Adjusting the surround settings

Storing the surround settings

This adjustment is not possible when Dolby Digital or Pro Logic is turned on for the DHAS680’s audio output.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “SURROUND”, then

press the ENT button.

3 Use the Joystick to select the surround mode,

then press the ENT button. There are six surround modes.

Six kinds of parametric EQ adjustment or setting contents can be memorized.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “PRIVATE-

MEMORY”, then press the ENT button.

3 Use the Joystick to select “WRITE”, then press

the ENT button.

4 Press the ENT button.

The level (LV) value turns yellow.

5 Use the Joystick to adjust the level (LV), then

press the ENT button.

6 Use the Joystick to select the time (echo time),

then press the ENT button.

7 Use the Joystick to adjust the time, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

8 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

4 Use the Joystick to select the memory location

at which you want to store the settings (“PRIVATE-MEMORY 1” to “PRIVATE-MEMORY 6”), then press the ENT button.

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

33-EN

Digital Audio Processor (Optional)

Adjusting the time correction (only when connected with PXA-H510)

ENT

BAND

RTN

V.OUT

A. PROC

BAND

Eliminate time delays resulting from the distance between the listening position and the speakers.

1 During playback, press the A.PROC button.

The setting menu appears.

DVD

Video CD

Recalling the surround settings

DVD

Video CD

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “SURROUND”, then

press the ENT button.

3 Use the Joystick to select the memory location

you want to recall (“PRIVATE-MEMORY 1” to “PRIVATE-MEMORY 6”), then press the ENT button.

2 Use the Joystick to select “TIME-

CORRECTION”, then press the ENT button.

3 Use the Joystick to select the speaker to be

adjusted, then press the ENT button.

4 Use the Joystick to adjust the time, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

NOTE

When connected with PXA-H900, the DHA-S680 cannot make time correction adjustment. (The adjustment menu is displayed.)

NOTE

Press the RTN button to return to the previous screen.

4 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

34-EN

DVD

Video CD

Using the Pro Logic mode

Switch between the Dolby Digital input and the Pro Logic input.

1 During playback, press the A.PROC button.

The setting menu appears.

Video CD

ADJUST – Setting the speaker mode

NOTE

This adjustment cannot be made when Dolby Pro Logic is set to “OFF”.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “DOLBY SURROUND

MODE”, then press the ENT button.

3 Use the Joystick to make the selection, then

press the ENT button.

DOLBY DIGITAL

“DOLBY DIGITAL” is set automatically when the disc is Dolby Digital compatible and the DVD video player’s audio output setting is set to “AUTO”.

DOLBY PRO LOGIC

“DOLBY PRO LOGIC” or “OFF” can be selected when the disc is Dolby Pro Logic compatible and the DVD video player’s audio output setting is set to “LPCM”. When “OFF” is selected, the surround settings cannot be adjusted.

NOTE

Press the RTN button to return to the previous screen.

4 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Use the Joystick to select the speaker to be set

(“FRONT”, “CENTER” or “REAR”), then press the ENT button.

4 Use the Joystick to switch the mode.

FRONT

LARGE/SMALL

CENTER

OFF/LARGE/SMALL

REAR

OFF/LARGE/SMALL

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

35-EN

Digital Audio Processor (Optional)

6 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

ENT

BAND

RTN

V.OUT

Press the RTN button to return to the previous screen.

7 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

A. PROC

BAND

ADJUST – Adjusting

DVD

the acoustic image

NOTE

This adjustment cannot be made when Dolby Pro Logic is set to “OFF”.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

Video CD

ADJUST – Mixing the rear

DVD

audio channels

Use this function to mix the audio signals for the front to those output from the rear speakers.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Use the Joystick to select “REAR MIX”, then

press the ENT button.

Video CD

3 Use the Joystick to select “BI-PHANTOM”, then

press the ENT button.

4 Use the Joystick to select the mode (“ON” or

“OFF”), then press the ENT button.

NOTE

The “BI-PHANTOM” setting is automatically set to “OFF” when the center speaker is set to “OFF”.

5 Use the Joystick to select the level item, then

press the ENT button.

36-EN

4 Use the Joystick to select the mode (“ON” or

“OFF”), press the ENT button.

NOTE

The “REAR MIX” setting is automatically set to “OFF” when the rear speaker is set to “OFF”.

5 Use the Joystick to select the level item, then

press the ENT button.

6 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

7 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

ADJUST – Center speaker

DVD

Video CD

time compensation

DVD

Video CD

ADJUST – Rear speaker time compensation

NOTE

Compensation is not possible when the center speaker is set to “OFF”.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Use the Joystick to select “CENTER DELAY”,

then press the ENT button.

NOTE

Compensation is not possible when the rear speakers are set to “OFF”.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Use the Joystick to select “REAR DELAY”, then

press the ENT button.

4 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

4 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

37-EN

Digital Audio Processor (Optional)

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

ENT

BAND

RTN

V.OUT

A. PROC

BAND

ADJUST – Achieving powerful

DVD

sound at low volumes

NOTE

This setting is only possible with Dolby Digital outputs.

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Use the Joystick to select “LISTENING”, then

press the ENT button.

4 Use the Joystick to select the mode.

L-NIGHT

For powerful sound at low volumes (to compensate for high levels of background noise such as road noise)

STANDARD

For more powerful sound at regular volumes

MAXIMUM

For the regular sound

NOTE

Press the RTN button to return to the previous screen.

38-EN

Video CD

ADJUST – Adjusting the speaker level

DVD

Video CD

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “ADJUST”, then

press the ENT button.

3 Press and hold the BAND button for at least 2

seconds to switch the “ADJUST” screen.

4 Use the Joystick to select “TEST TONE”, then

press the ENT button.

5 Use the Joystick to select “ON”, then press the

ENT button.

Test tones are produced for two seconds from each speaker.

NOTE

Test tones are not produced from the center and rear speakers when these speakers are set to “OFF”.

6 Use the Joystick to select the speaker, then

press the ENT button. Adjust so that the volume level from the different speakers is the same.

7 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

8 Once the levels of all the speakers ha ve been

adjusted, either set “TEST T ONE” to “OFF” or press the A.PROC button to close the digital audio processor screen and return to the playback screen.

MODE – Adjusting the volume, fader and balance

When a head unit is connected using Ai-NET connections, adjust the volume, fader and balance from the head unit.

DVD

Video CD

1 During playback, press the A.PROC button.

DVD

Video CD

The setting menu appears.

2 Use the Joystick to select “MODE”, then press

the ENT button.

3 Use the Joystick to select the item to be

adjusted, then press the ENT button.

4 Use the Joystick to select the mode (“ON” or

“OFF” ), then press the ENT button.

NOTE

The subwoofer cannot be adjusted when set to “OFF”.

5 Use the Joystick to select the level item, then

press the ENT button.

6 Use the Joystick to adjust the level, then press

the ENT button.

NOTE

Press the RTN button to return to the previous screen.

7 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

4 Use the Joystick to adjust.

NOTE

Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

MODE –

DVD

Video CD

Adjusting the subwoofer

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “MODE”, then press

the ENT button.

MODE – Turning the defeat function on and off

1 During playback, press the A.PROC button.

The setting menu appears.

2 Use the Joystick to select “MODE”, then press

the ENT button.

3 Use the Joystick to select “DEFEAT”, then press

the ENT button.

3 Use the Joystick to select “SUB-W”, then press

the ENT button.

4 Use the Joystick to select the mode (“ON” or

“OFF”), press the ENT button. ON : The response is flat. OFF : Off

NOTES

• When “DEFEAT” is set to “ON”, the “PARAMETRIC-EQ”, “SURROUND”, “PRIVATEMEMORY” and “TIME-CORRECTION” settings cannot be adjusted.

• Press the RTN button to return to the previous screen.

5 Press the A.PROC button to close the digital

audio processor screen and return to the playback screen.

39-EN

Other Useful Features

SOURCE

Rotary Encoder

Operating from the head unit

The DHA-S680 can also be operated from the ALPINE Ai-NET compatible head unit. Refer to the manual of the head unit. Note that some of the functions cannot be operated from the DHA-S680.

Functions operable from the head unit

Switch Operation

Switches the audio source.

SOURCE

TITLE

REPEAT

Rotary

Encoder

Turns the DVD player's power ON in the changer mode . Turns OFF in a mode other than main changer.

Switches the display pattern or the head unit. / Sets the title input mode.

DVD: Repeat switching Video CD/CD: Repeat switching

Starts playback from the beginning of the following chapter/track. When pressed and held in, fast-forwards the disc.

Starts playback from the beginning of the current chapter/track. When pressed and held in, fast-reverses the disc.

Switches between play and pause.

Adjust the volume.

CDA-7977 (Head unit)

REPEATTITLE

Playing DVDs, video CDs and CDs

1 Press the SOURCE button and select the

changer mode. Changer mode:

The power of the DHA-S680 turns ON and playback starts automatically. Other modes: The power of the DHA-S680 turns OFF automatically.

2 To set the pause mode, press the button.

Press the

NOTES

• For video CDs with playback control (PBC), turn PBC off.

• Titles can be input for video CDs and CDs. For details, refer to the operating instructions of the connected head unit (only when "Ai-NET setting" of DHA-S680 is set to CD-CHG mode).

• The disc name, track name, and other information can be displayed on the display of the head unit for music CDs that support CD text. This can only be used with alphanumeric text (only when "Ai-NET setting" of DHA-S680 is set to CD-CHG mode). See the instruction manual of the head unit side for further details. The information cannot be displayed on TV monitors.

• SCAN and M.I.X. play for CDs and video CDs cannot be performed.

button again to resume playback.

40-EN

ENT

SOURCE

RUE-4187 RUE-4185 RUE-4165 RUE-4160

Operating from the head unit’s remote control unit

The DHA-S680 can be operated from the remote control unit included with the head unit.

ENT

A.SEL

ENT

AUDIO

SEL

Remote control operations

Remote Control

Operation

unit

P10 Power on/off P11 Selecting the disc

P13 Fast-forward/fast-reverse P14 Still picture (pause)

P14 Chapter/track search

NOTES

• There may be restrictions to some of the functions and displays depending on the Ai-NET compatible product (head unit/remote control unit) being used.

• For adjusting the volume and other basic operations, refer to the head unit’s operating instructions.

• For video CDs with playback control (PBC), turn PBC off.

• If the remote control unit is not included in the head unit, optional remote control is necessary.

RUE-4187 RUE-4185 RUE-4165 RUE-4160

SOURCE

(Press and hold)

SOURCE A.SEL AUDIO SEL

Tilt the joystick in up or down direction.

Tilt and hold the joystick in

(Press and hold) (Press and hold)

Warning

left or right direction.

ENT

Tilt the joystick in left or right direction.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

41-EN

Installation and Connections

Before installing or connecting the unit, please read the following and pages 2 and 3 of this manual thoroughly for proper use.

Warning

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

Caution

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

42-EN

Precautions

Preparation

• Be sure to disconnect the cable from the (–) battery post before installing your DHA-S680. This will reduce any chance of damage to the unit in case of a short-circuit.

• Be sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage the vehicle’s electrical system.

• When making connections to the car’s electrical system, be aware of the factory installed components (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the DHA-S680 to the fuse box, make sure the fuse for the intended circuit of the DHA-S680 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle. When in doubt, consult your ALPINE dealer.

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record. The serial number plate is located on the bottom of the unit.

Park the vehicle in a flat, safe place. Apply the

parking brake, then remove the ignition key. Check the included parts and organize the tools

and installation instructions.

Ai-NET cable

(5.5m)

Hexagonal

washer

faced

self-tapping

screw

(M5x15)

x 4 x 2 x 2 x 8 x 4

Double washer

screw

(M4x8)

x 4 x 4

Protective plastic bag

for shipping

keys

Remote control

holder

RCA connection cable

(Video signal) (5m)

21345

L-shaped

bracket

Shouldered

hexagonal

bolts (M6x50)

CD magazine

Mounting strap

x 1

8 Double-sided

adhesive tape

Fiber optical

cable (5m)

Floor base Shouldered

Sheet of

dust-prevention

Infrared remote

control unit

(5.5m)

(Double-sided adhesive tape)

Battery (AA) 9 Self-tapping

hexagonal

nuts (M6)

seals

Power cable

Remote control

(5m)

Hexagonal

(M6x25)

Input/output identification

seal

screw

(M4x12)

bolt

SERIAL NUMBER: INSTALLATION DATE: INSTALLATION TECHNICIAN: PLACE OF PURCHASE:

Index seal sheet

Disconnect the battery’s negative terminal.

Cover label

Connecting

Connect as described on the basic connection

diagram on page 47.

• These instructions also include examples of connections with other products. (See page 50 to 57.)

• Check which combination of products you will be using and proceed accordingly.

Check that all connections are correct. Connect the battery’s negative terminal.

x 4x 2

43-EN

Installation and Connections

When the DHA-S680 is connected with an Alpine Ai-NET products (AV head unit, regular head unit, etc.), it’s system settings (Ai-NET and H.U. Control settings) must be selected. Before finalizing installation, be sure to change the system settings as described on page 48.

5 Turn off the DHA-S680’s power. 6 Remove the ignition key and disconnect the

battery’s negative terminal.

Mounting the remote control holder

• If the remote control is in direct sunlight, remove it from the holder and keep it in the glove box.

• When the holder cannot be mounted securely with Velcro tape, mount it by using screws.

Reinforcement Screws

Blue Protective

Paper

Console Box etc.

Remote Control Remote Control Holder

Mounting

Mounting the remote control sensor unit

NOTES

• When using a monitor with a built-in remote control sensor, such as the CVA-1006, the external sensor is not used.

• When mounting the unit with double-sided adhesive tape, make sure the mounting surface is dry and free from dirt or grease.

Press the double-sided adhesive tape onto the

back of the remote control sensor unit.

Before completing the sensor mounting, make sure the location selected is within the operating range of the remote control. Peel off the backing of the adhesive tape and press the sensor onto the selected mounting location, or inside of the remote control holder.

Remote Control Holder

Velcro tape (Before putting on the holder,

clean dirt on the mounting location.)

Installation

Caution

Be careful that the vehicle's wiring does not touch the DHA-S680. If the wiring comes in contact with the DHAS680, their insulation may be damaged due to vibrations generated while the vehicle is running. This can result in short-circuits. Make sure there is enough clearance between the DHA-S680 and the vehicle’s wiring to prevent contact.

NOTES

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors. Contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

44-EN

Remote Control Sensor Unit

Remove the shipping keys.

Change the position of the springs.

Three keys are mounted to the DHA-S680’s bottom panel to protect the product during transportation. Be sure to remove these keys before installing the DHA-S680. So as not to lose the keys, store them in the special plastic pouch provided with the DHA-S680 and cover the key holes with the included dust-prevention seals.

NOTE

The eject operation cannot be performed if the keys are mounted when the power is turned on. Turn the power off, then remove the keys.

2 Install the L-shaped bracket.

1 Determine the position and angle of

installation.

2 Referring to step 3, change the position of

the springs according to the angle of installation.

3 Install the L-shaped bracket 2 according to

the angle of installation. Fasten it in place using the double washer screws (M4x8) 6.

With this product, the positions of the built-in anti-vibration springs must be changed according to the angle of installation. The product will not provide the regular resistance to vibration if the anti-vibration springs are not in the correct positions or if the left and right springs are in different positions. The anti-vibration springs can be placed at one of five angles. The springs are set to the “H” angle upon shipment from the factory. To change this angle, follow the instructions given below. 1 Change the position of

the springs using a

finger.

2 Stick on the left and right

side surface cover labels . Be sure to apply the cover labels after setting the position of the

0°

90°

springs so as to protect the interior of the product from dust or dirt which may cause malfunction.

3 Check the position of the springs. Make a

final check of the position of the springs using the five small holes in the left and right side surface cover labels.

• Floor base installation

1 Determine the position under the carpet at

which the unit is to be installed.

0°

L-shaped bracket holes

■ Example of Installation Using Attached Lshaped bracket.

Vertical Horizontal

Use one of each of holes and and fasten the two screws diagonally.

Use one of each

6 613

of holes and fasten the two screws diagonally.

and ,

Diagonal

To be fastened using the holes

and .

2 Insert the hexagonal bolts (M6x25) 5 into

the floor base 3, then mount directly on the floor using the hexagonal washer faced selftapping screws (M5x15) 1.

45-EN

Installation and Connections

3 Make X-shaped cuts in the carpet.

4 Install on top of the carpet using the

hexagonal washer faced nuts (M6) 4.

Horizontal installation

NOTE

When installing horizontally, make sure that the DVD magazine’s slot is on the left side.

Vertical installation

2 To install vertically, attach to the floor using the

hexagonal washer faced self-tapping screws (M5x15) 1.

NOTE

When installing vertically and using an audio RCA cable, always use an L shaped connector. Using a straight shaped connector could damage the connector and cause a malfunction.

• Suspension from the Rear Tray

WARNING

Do not damage pipe or wiring when drilling holes.

Fasten the L-shaped brackets 2 to both sides

of this unit.

NNOTES

• When installing vertically, make sure that the DVD magazine’s slot is on the top side.

• When installing vertically and using an audio RCA cable, always use an L shaped connector. Using a straight shaped connector could damage the connector and cause a malfunction.

• Installing directly on the floor

WARNING

Do not damage pipe or wiring when drilling holes.

To install horizontally, attach to the floor using

the hexagonal washer faced self-tapping screws (M5x15) 1.

Drill holes about 6mm in diameter and fasten

securely with shouldered hexagonal bolts (M6x50) 7 and shouldered hexagonal nuts (M6) 4.

Check

Turn the ignition key on and check that the unit is operating properly, referring to the operating instructions.

Check that the vehicle’s equipment (horn, stop lights, etc.) are operating properly.

46-EN

Connections

White/Brown

Fuse

(5A)

Black

Yellow

Red

Cable Color Cable Specifications

Yellow

White (L)

Red (R)

REMOTE IN

BATTERY

IGNITION

White/ Brown

GND

Black

Yellow

Red

• Digital Output Terminal (Optical)

This terminal is used to connect DHA-S680 to ALPINE digital audio processor (PXA-H510 or PXA-H900). These products include a fiber optic cable that will plug directly into the Digital Output Terminal of the DHA-S680.

• Video Output Connector

This connector is used in combination with the video inputs of another video product (AV head unit or TV monitor).

• Audio Output Connectors

This output may be connected to a Rear Monitor with a volume control or an auxiliary audio preamp. This is used to monitor the DVD audio while the main audio system is being driven by another source (such as Radio or CD).

• Ai-NET Connector (Black)

Connect this to the output or input connector of other product (AV head unit, Head unit, Digital Audio Processor or DVD Player DVA-5205) equipped with Ai-NET.

• Remote Control Eye Jack

Connect this to the remote control sensor unit. Not used when using a monitor with a built-in remote control sensor unit. A remote control sensor unit is needed when a monitor or navigation unit made by other company is connected.

• Ai-NET Connector (Gray)

Connect this to the output or input connector of other product (CD Changer) equipped with Ai-NET.

• Remote Control Input Lead

This lead is used in combination with the Ai-NET compatible AV head unit or the ALPINE monitor with a remote control output lead.

• Ground Lead

Connect this lead to a good chassis ground on the vehicle. Make sure the connection is made to bare metal and is securely fastened using the sheet metal screw provided.

• Battery Lead

Connect this lead to the positive (+) post of the vehicle's battery.

• Switched Power Lead (Ignition)

Connect this lead to an open terminal on the vehicle's fuse box or another unused power source which provides (+)12V only when the ignition is turned on or in the accessory position. When connecting with the Ai-NET compatible AV head unit or the Ai-NET compatible head unit, do not connect the ignition lead.

Remote Control Eye

To remote control output lead

Connect to a metal part of chassis body with a screw

Ignition Key

NOTES

• Connect properly. Never connect to parts other than the ones indicated in these operating instructions.

• Also refer to the operating instructions of the other products in the system.

47-EN

Installation and Connections

Changing the System Settings

When the DHA-S680 is connected to an Alpine AV head unit or a regular Alpine head unit, its system settings must be made. Be sure to change the system settings before fastening the DHA-S680 in place.

•

Turning on the power

Depending on the system components, the DHAS680’s may not turn on. If so, use the procedure described below to turn on the power.

1 Connect the remote control sensor unit to the

DHA-S680. Remote control operation is not possible unless the remote control sensor unit is connected.

2 Press and hold the V.OUT button on the remote

control unit for at least 2 seconds to turn the power on.

3 Display the DHA-S680’s screen on the monitor.

When using an AV head unit, switch with the V.SEL button. When using a TV monitor, switch with the AUX button.

This completes preparations for making the settings. Now change the Ai-NET setting and H.U. Control setting as described below. Do not insert discs yet.

•

Making the Ai-NET setting

Make the setting for signal transfer with the connected Ai-NET products.

4 Press and hold the SET button on the remote

control unit for at least 2 seconds. The setup menu appears.

Select “DVD-CHG” or “CD-CHG” using the Joystick, then press the ENT button.

• Set to “DVD-CHG” in the following cases: When connected to an Ai-NET head unit (e.g., CDA-7990, CDA-7977, and CDA-7878) or an Ai-NET AV head unit (e.g., CVA-1006, CVA-1003, and IVA-C801) that were available after January 2001. DVD-CHG is the factory setting.

• Set to “CD-CHG” in the following cases:

When connected to an Ai-NET head unit

(excluding CDA-7990) that was available prior to January 2001 or AV head unit (e.g., CVA-1005 and IVA-C800). If the DVD-CHG setting is selected with the aforementioned head units, the DHA-S680 will no longer be identified on the bus and operation from the head unit will no longer be possible.

When the DHA-S680 is connected using

the KCA-410C Versatile Link Terminal.

Next make the “H.U. CONTROL” setting.

5 Select “CUSTOM SETUP” using the Joystick,

then press the ENT button.

6 Select “Ai-NET SETUP” using the Joystick, then

press the ENT button.

48-EN

• Making the “H.U. CONTROL” setting

When the DHA-S680 is connected to an Ai-NET compatible head unit or an Ai-NET compatible AV head unit, make the following setting so the DHAS680 can be operated from the head unit.

Select “H.U. CONTROL SETUP” using the Joystick, then press the ENT button.

Select “ON” or “OFF” using the Joystick, then press the ENT button.

Examples of System Upgrades

Precautions when Making System Upgrades

• After connections are completed, it will be necessary to change the system settings of the DHA-S680. Before installing the product, please see page 48 and change the settings.

• Set to “ON” in the following cases: When the DHA-S680 is connected to an AiNET compatible head unit or an Ai-NET compatible A V head unit. In this case, if set to “OFF” the DHA-S680 cannot be controlled from the head unit, and the sound of external products (CD changer, etc.) cannot be heard. “ON” is set upon shipment from the factory.

• Set to “OFF” in the following cases: When using a head unit that is not Ai-NET compatible or another brand of head unit.

Press and hold the SET button for at least 2 seconds. The settings are stored in the memory and the setting mode is canceled.

Press and hold the V.OUT button on the remote control unit for at least 2 seconds to turn the power off. Disconnect the remote control sensor unit.

NOTE

When not connecting an Ai-NET compatible head unit, do not disconnect the Remote Control Sensor Unit.

Turn the vehicle’s ignition key off, then turn it back on.

Switch the head unit’s source to check that the DHA-S680’s power turns on. Insert a disc and check that the picture and sound are properly output. If the power does not turn on, start the setting procedure over from the beginning.

• When connecting the DHA-S680 to a head unit or AV head unit, do not connect the switched power lead (ignition).

• When connecting the optical digital output to an ALPINE digital audio processor (such as the PXA-H510 and PXA-H900), be sure to make connection to the CHANGER connectors of the digital audio processor optical digital input connectors. This arrangement allows you to enjoy Dolby Digital 5.1 Channel Surround and other effects even when connection is made to the CHANGER connectors.

• When using the Alpine Versatile Link Terminal (KCA-410C) and connecting the DHA-S680, connect the DHA-S680 Ai-NET cable to the CHANGER1 connector of the KCA-410C. Also note that when using the KCA-410C and making connections, system setting changes of the DHA-S680 will be required before connecting the KCA-410C. See page 48 and make the settings.

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot be used.

• When connecting the DHA-S680 to an Alpine TV monitor and AV head unit together, be sure to connect the mutual remote control input cable (white/brown). Failing to do so will result in a loss of remote control operation. When making connections to another brand of TV monitor, please use the supplied remote control sensor unit.

49-EN

Installation and Connections

•

Connecting a non Ai-NET compatible Head Unit, Digital Audio

Processor (PXA-H510/PXA-H900) and TV Monitor

Remote Control

DVD Changer

DHA-S680

Eye Jack

Digital Output Terminal (Optical)

Remote Control Eye

Digital Input Terminal (Optical) (Changer)

Audio Output Connector

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Remote Control Input Lead (White/Brown)

Head Unit non-compatible

Ai-NET (Sold Separately)

AUX Video Input Terminal (AUX1)

RCA Extension Cable

Remote Control Output Lead (AUX1) (White/Brown)

AV-Interface Unit

TME-M790 etc.

(Sold Separately)

AUX Audio Input Terminal (AUX1)

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Monitor

TME-M790 etc.

(Sold Separately)

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

CD-CHG

OFF

NOTES

• If using in a system with a head unit that is not fully Ai-NET compatible (no processor control) and a digital audio processor, do not connect the head unit’s Ai-NET cable. Only connect the DHA-S680 and digital audio processor using an optical fiber cable and its own Ai-NET cable. Use the head unit’s analog output (Front or rear) connected to the analog input of the processor. This will allow some of the processors functions to be controlled from the DHA-S680.

• When connecting only to a digital audio processor (with a non-Alpine head unit or Alpine head unit without Ai-NET), it is possible to use both an optical fiber cable and an Ai-NET output cable. In this case the digital audio processor can be controlled from the DHA-S680.

• When connecting another brand of TV monitor, there is no need to connect the remote control input cord (white/ brown). Use the remote control sensor unit included with the DHA-S680.

• Be sure to connect the switched Power Lead (Ignition).

• Also refer to the operating instructions of the other products in the system.

50-EN

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

DVD-CHG

• Connecting an Ai-NET compatible AV Head Unit (AV Head Units available after January 2001: CVA-1006/CVA-1003/IVA-C801 etc.), and Digital Audio Processor (PXA-H510/PXA-H900)

AV Head Unit

CVA-1006/CVA-1003/IVA-C801

(Sold Separately)

AUX Video Input Terminal (AUX1)

AUX Audio Input

Terminal (AUX1)

Remote Control Input Lead (White/Brown)

RCA Extension Cable

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Audio Output Connector

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position.

Ai-NET Connector

Remote Control Output Lead (AUX1) (White/Brown)

Digital Output Terminal (Optical)

DVD Changer

DHA-S680

System Switch

Fiber Optic Cable

DIV

Ai-NET Cable

Ai-NET Connector (Black)

Ai-NET Connector (Gray)

Ai-NET Input Connector

Digital Input Terminal (Optical) (Changer)

Ai-NET Cable

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Ai-NET Cable

Ai-NET Output Connector

CD Changer

(Sold Separately)

Digital Output Terminal (Optical), Not Usable

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• Be sure to connect the DHA-S680's video output/audio output (when using a rear monitor) to the AUX1 of AV head unit.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box).

• Inserting a magazine into the DHA-S680 while a connected CD changer is playing, causes the CD Changer audio to mute. The CD Changer will unmute as soon as the DHA-S680 Disc Check is completed.

• Connect the optical digital output of the DHA-S680 to the CHANGER connectors of the digital audio processor. This ensures the proper transfer of the digital data stream so the Dolby Digital 5.1 Channel Surround and other effects can be fully enjoyed.

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot be used.

51-EN

Installation and Connections

DIV

AV Head Unit

CVA-1006/CVA-1003/IVA-C801

(Sold Separately)

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Remote Control Output Lead (AUX1) (White/Brown)

DVD Player

DVA-5205

(Sold Separately)

Ai-NET Connector (Gray)

Ai-NET Connector

Remote Control Input Lead (White/Brown)

Ai-NET Cable

AUX Video Input Terminal (AUX1)

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Audio Output Connector

RCA Extension Cable

AUX Audio Input

Terminal (AUX1)

AUX Video Input

Terminal (AUX2)

Ai-NET Connector (Black)

Ai-NET Cable

Digital Input Terminal (Optical) (DVD)

Fiber Optic Cable

Digital Output Terminal (Optical)

Digital Input Terminal (Optical) (Changer)

Fiber Optic Cable

Ai-NET Output Connector

Ai-NET Input Connector

Ai-NET Cable

CD Changer

(Sold Separately)

Digital Output Terminal (Optical),

Not Usable

Ai-NET Cable

Ai-NET Connector (Gray)

Ai-NET Connector (Black)

DVD Changer

DHA-S680

Video Output Connector

Remote Control Output Lead (AUX2) (White/Brown)

Remote Control Input Lead (White/Brown)

Only when connecting with rear monitor

RCA Extension Cable

AUX Audio Input

Terminal (AUX2)

Audio Output Connector

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position.

RCA Extension Cable

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

DVD-CHG

•

Connecting an Ai-NET compatible AV Head Unit (AV Head Units available after January 2001: CVA-1006/CVA-1003/IVA-C801 etc.), DVD Player (DVA-5205) and Digital Audio Processor (PXA-H510/PXA-H900)

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• When connecting the DVD player (DVA-5205), be sure to connect the DVA-5205's video output/audio output (when using a rear monitor) to the AV head unit's AUX1. Connect the DHA-S680's video output to the AUX2.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box). Inserting a magazine into the DHA-S680 while a connected CD changer is playing, causes the CD Changer audio to

• mute. The CD Changer will unmute as soon as the DHA-S680 Disc Check is completed Connect the optical digital output of the DHA-S680 to the CHANGER connectors of the digital audio processor. This

•

52-EN

ensures the proper transfer of the digital data stream so the Dolby Digital 5.1 Channel Surround and other effects can be fully enjoyed

• When combining the DHA-S680 and the CD c hanger (CHA-S624), the optical dig ital output of the CHA-S624 cannot be used.

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

DVD-CHG

• Connecting an Ai-NET compatible Head Unit (Head Unit available after January 2001: CDA-7990/CDA-7977/CDA-7878 etc.), Digital Audio Processor (PXA-H510/PXA-H900) and TV Monitor

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the

Monitor

TME-M790 etc

(Sold Separately)

AV-Interface Unit

TME-M790 etc

(Sold Separately)

AUX Video Input Terminal (AUX1)

AUX Audio Input

Terminal (AUX1)

Remote Control Input Lead (White/Brown)

RCA Extension Cable

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Audio Output Connector

Remote Control Output Lead (AUX1) (White/Brown)

Digital Output Terminal (Optical)

DVD Changer

DHA-S680

Head Unit

with Ai-NET

(Sold Separately)

Fiber Optic Cable

Ai-NET Connector (Black)

Ai-NET Connector (Gray)

EQ/DIV position.

Ai-NET Connector

Digital Input Terminal (Optical) (Changer)

Ai-NET Cable

DIV

Ai-NET Cable

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Ai-NET Input Connector

Ai-NET Output Connector

CD Changer

(Sold Separately)

Digital Output Terminal (Optical), Not Usable

Connecting more than 2 CD Changers using the Versatile Link Terminal KCA-410C

•

Remote Control Input Lead (White/Brown)

Video Output

RCA Extension Cable

Connector

Digital Output Terminal (Optical), can't be connected

Digital Output Terminal (Optical)

CD Changer

(Sold Separately)

DVD Changer

DHA-S680

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box).

•

Inserting a magazine into the DHA-S680 while a connected CD changer is playing, causes the CD Changer audio to mute. The CD Changer will unmute as soon as the DHA-S680 Disc Check is completed Connect the optical digital output of the DHA-S680 to the CHANGER connectors of the digital audio processor. This

• ensures the proper transfer of the digital data stream so the Dolby Digital 5.1 Channel Surround and other effects can be fully enjoyed

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot be used.

Fiber Optic Cable

Ai-NET Connector (Black)

Ai-NET Connector (CHANGER 2)

Ai-NET Cable

Digital Input Terminal (Optical) (Changer)

Ai-NET Connector (Gray)

VERSATILE LINK Terminal

Ai-NET Cable

KCA-410C

(Sold Separately)

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Ai-NET Connector (HEAD UNIT)

Ai-NET Connector (CHANGER1)

Ai-NET Input Connector

Ai-NET Output Connector

Ai-NET Cable

CD Changer

(Sold Separately)

Digital Output Terminal (Optical), Not Usable

53-EN

Installation and Connections

DIV

Monitor

TME-M790 etc.

(Sold Separately)

AV-Interface Unit

TME-M790 etc

(Sold Separately)

Head Unit

with Ai-NET

(Sold Separately)

Ai-NET Connector

AUX Video Input

Terminal (AUX2)

AUX Audio Input

Terminal (AUX1)

AUX Video Input Terminal (AUX1)

Video Output Connector

RCA Extension Cable

Remote Control Output Lead (AUX1) (White/Brown)

Remote Control Input Lead (White/Brown)

Ai-NET Connector (Gray)

Ai-NET Cable

Only when connecting with rear monitor

Audio Output Connector

RCA Extension Cable

DVD Player

DVA-5205

(Sold Separately)

Digital Input Terminal (Optical) (DVD)

Fiber Optic Cable

Digital Output Terminal (Optical)

Digital Input Terminal (Optical) (Changer)

Fiber Optic Cable

Ai-NET Cable

Ai-NET Connector (Black)

Ai-NET Cable

Ai-NET Output Connector

Ai-NET Input Connector

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

CD Changer

(Sold Separately)

Ai-NET Cable

Ai-NET Connector (Gray)

DVD Changer

DHA-S680

Video Output Connector

Remote Control Output Lead (AUX2) (White/Brown)

Remote Control Input Lead (White/Brown)

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position.

RCA Extension Cable

Digital Output Terminal (Optical), Not Usable

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

DVD-CHG

•

Connecting an Ai-NET compatible Head Unit (Head Unit available after

January 2001: CDA-7990/CDA-7977/CDA-7878 etc.), DVD Player (DVA-

5205), Digital Audio Processor (PXA-H510/PXA-H900) and TV Monitor

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box).

•

Inserting a magazine into the DHA-S680 while a connected CD changer is playing, causes the CD Changer audio to mute. The CD Changer will unmute as soon as the DHA-S680 Disc Check is completed

•

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot

54-EN

Connect the optical digital output of the DHA-S680 to the CHANGER connectors of the digital audio processor. This ensures the proper transfer of the digital data stream so the Dolby Digital 5.1 Channel Surround and other effects can be fully enjoyed.

be used.

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

CD-CHG

• Connecting an Ai-NET compatible AV Head Unit (IVA-C800/ CVA-1005), DVD Player (DVA-5205) and Digital Audio Processor (PXA-H510/PXA-H900)

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position

DIV

AV Head Unit

AUX Video Input

Terminal (AUX2)

IVA-C800/CVA-1005

(Sold Separately)

AUX Video Input Terminal (AUX1)

AUX Audio Input

Terminal (AUX1)

RCA Extension Cable

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Audio Output Connector

Ai-NET Connector

Remote Control Output Lead (AUX1) (White/Brown)

Remote Control Input Lead (White/Brown)

DVD Player

DVA-5205

(Sold Separately)

Ai-NET Cable

Ai-NET Connector (Gray)

Ai-NET Connector (Black)

Digital Output Terminal (Optical)

Ai-NET Cable

RCA Extension Cable

Remote Control Input Lead (White/Brown)

Video Output Connector

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box).

• Even when the DHA-S680 Ai-NET settings are set to CD-CHG, making connection of the optical digital output to the digital audio processor allows you to enjoy Dolby Digital 5.1 Channel Surround and other effects.

• The Versatile Link Terminal (KCA-410C) cannot be connected.

Remote Control Output Lead (AUX2) (White/Brown)

Digital Output Terminal (Optical)

DVD Changer

DHA-S680

Fiber Optic Cable

Ai-NET Connector (Black)

Fiber Optic Cable

Digital Input Terminal (Optical) (DVD)

Digital Input Terminal (Optical) (Changer)

Ai-NET Cable

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Ai-NET Input Connector

Ai-NET Output Connector

55-EN

Installation and Connections

• Precautions when Connecting and Using the DHA-S680 with the Versatile Link T erminal (KCA-410C)

When connecting the DHA-S680 with the Versatile Link Terminal (KCA-410C), change the system settings of the DHA-S680 according to the following procedure before connecting the KCA-410C.

Make the connections for making the DHA-S680 system settings.

NOTE

After connecting the DHA-S680 to the KCA-410C, DHA-S680 system setting changes will not be possible.

Monitor

AUX Video Input

Terminal (AUX2)

TME-M790 etc

(Sold Separately)

AV-Interface Unit

TME-M790 etc

(Sold Separately)

AUX Audio Input

Terminal (AUX1)

AUX Video Input Terminal (AUX1)

Ai-NET Connector

Remote Control Output Lead (AUX1) (White/Brown)

Ai-NET Cable

Head Unit

with Ai-NET

(Sold Separately)

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position.

DIV

Remote Control Input Lead

RCA Extension Cable

Video Output Connector

Audio Output

Only when connecting with rear monitor

RCA Extension Cable

Remote Control Input Lead (White/Brown)

Video Output Connector

Refer to “Changing the System Settings” (page 48) to change the system.

Connector

Remote Control Output Lead (AUX2) (White/Brown)

DVD Changer

DHA-S680

(White/Brown)

DVD Player

DVA-5205

(Sold Separately)

Fiber Optic Cable

Digital Output Terminal (Optical)

Ai-NET Connector (Gray)

Digital Output Terminal (Optical)

Fiber Optic Cable

Ai-NET Connector (Black)

Digital Input Terminal (Optical) (DVD)

Digital Input Terminal (Optical) (Changer)

• Ai-NET setting: CD-CHG

• H.U.CONTROL: ON

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Ai-NET Cable

Ai-NET Input Connector

Ai-NET Output Connector

Once the system settings have been changed and the operation check completed remove the battery,

refer to Page 57, and connect the Versatile Link Terminal (KCA-410C)

NOTES

• When using the Versatile Link Terminal (KCA-410C) and connecting the DHA-S680, connect the DHA-S680 Ai-NET cable to the CHANGER1 connector of the KCA-410C.

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot be used.

56-EN

Setting of DHA-S680

The DHA-S680’s system settings must be made after connections are completed. Before fixing the unit in place, refer to page 48 to change the system setting.

Setting Item

Ai-NET setting H.U.CONTROL setting

Setting

CD-CHG

•

Connecting an Ai-NET compatible Head Unit (Head Units available after January 2001, except CDA-7990), DVD Player (DVA-5205), Digital Audio Processor (PXA-H510/PXA-H900) and TV Monitor

Monitor

TME-M790 etc

(Sold Separately)

AV-Interface Unit

TME-M790 etc

(Sold Separately)

AUX Video Input Terminal (AUX1)

Ai-NET Connector

Ai-NET Cable

Head Unit

with Ai-NET

(Sold Separately)

System Switch

When connecting a digital audio processor using Ai-NET feature, place this switch in the EQ/DIV position.

DIV

AUX Video Input

Terminal (AUX2)

RCA Extension Cable

AUX Audio Input

Terminal (AUX1)

Video Output Connector

RCA Extension Cable

Only when connecting with rear monitor

Remote Control Output Lead (AUX2) (White/Brown)

Remote Control Input Lead (White/Brown)

Video Output Connector

Audio Output Connector

DVD Changer

DHA-S680

Remote Control Output Lead (AUX1) (White/Brown)

Remote Control Input Lead (White/Brown)

(Sold Separately)

Fiber Optic Cable

Digital Output Terminal (Optical)

DVD Player

DVA-5205

Ai-NET Connector (Black)

Ai-NET Connector (Gray)

Digital Output Terminal (Optical)

Fiber Optic Cable

Ai-NET Connector (CHANGER 1)

Ai-NET Cable

Ai-NET Connector (Black)

Digital Input Terminal (Optical) (DVD)

Digital Input Terminal (Optical) (Changer)

Ai-NET Connector (CHANGER 2)

Ai-NET Cable

Digital Audio Processor

PXA-H510/PXA-H900

(Sold Separately)

Versatile Link Terminal

KCA-410C

(Sold Separately)

Ai-NET Connector (HEAD UNIT)

CD Changer

Ai-NET Input Connector

Ai-NET Output Connector

Ai-NET Cable

Digital Output Terminal (Optical), Not Usable

NOTES

• Be sure to switch the head unit's system switch before turning the power on.

• When connecting the DVD player (DVA-5205), be sure to connect the DVA-5205's video output/audio output (when using a rear monitor) to the TV monitor's AUX1. Connect the DHA-S680's video output to the AUX2.

• The switched Power Lead (Ignition) connection is not needed.

• Also refer to the operating instructions of the other products in the system.

• To connect a rear monitor, connect to the front monitor's RCA output (TV Tuner Box).

• When using the Versatile Link Terminal (KCA-410C) and connecting the DHA-S680, connect the DHA-S680 Ai-NET cable to the CHANGER1 connector of the KCA-410C. Before connecting KCA-410C, change the system setting (page

56) of DHA-S680. Even when the DHA-S680 Ai-NET settings are set to CD-CHG, making connection of the optical digital output to the digital

• audio processor allows you to enjoy Dolby Digital 5.1 Channel Surround and other effects.

• When combining the DHA-S680 and the CD changer (CHA-S624), the optical digital output of the CHA-S624 cannot be used.

57-EN

Others

Terminology

Dolby Digital

Dolby Digital is a digital audio compression technology developed by Dolby Laboratories that allows large quantities of audio data to be efficiently recorded on discs. It is compatible with audio signals from mono (1 channel) all the way up to 5.1-channel surround sound. The signals for the different channels are completely independent, and since the sound is high quality digital there is no loss of sound quality. * The separately sold digital audio processor (PXA-

H510/PXA-H900) is required to enjoy full 5.1channel surround sound.

DTS

This is a home-use digital sound format of the DTS Sound System. This is a high quality sound system, developed by Digital Theater Systems Corp for use in movie theaters. DTS has six independent sound tracks. The theater presentation is fully realized in the home and other settings. DTS is the abbreviation for Digital Theater System. * To enjoy DTS surround sound you need the

separately sold DTS digital audio processor. The DVD video software must also have a DTS sound track.

The DHA-S680 performs Dolby Digital decoding when it outputs analog audio signals, it just happens to be 2-channel audio not 5.1-channel.

Center speaker

Front speakers

Rear speakers

Dolby Pro Logic

Dolby Pro Logic is the technology used to decode programs encoded in Dolby Surround. Pro logic decoding will provide you with four channels of sound (front left/right, center and monaural rear surround) from a 2-channel (stereo) source. * The separately sold digital audio processor (PXA-

H510/PXA-H900) is required to enjoy Dolby Pro Logic surround sound.

Linear PCM audio (LPCM)

LPCM is a signal recording format used for music CDs. Whereas music CDs are recorded at 44.1 kHz/ 16 bits, DVDs are recorded at 48 kHz/16 bits to 96 kHz/24 bits, thereby achieving higher sound quality than music CDs.

Rating levels (parental lock)

This is a function of the DVD for restricting the viewing age as stipulated by laws in different countries. The way in which viewing is restricted differs from DVD to DVD. Sometimes the DVD cannot be played at all, other times certain scenes are skipped, and other times certain scenes are replaced with other scenes.

Subwoofer

Speaker layout for enjoying

Dolby Digital sound/dts sound

58-EN

List of language codes

(For details, see page 21.)

Abbreviation

AA AB AF

AR AS AY AZ BA BE BG BH

BI BN BO BR CA

CS CY DA DE DZ EL EN EO ES ET EU FA

FI FJ FO FR FY GA

GN GU

HI HR HU HY

Code

6565 6566 6570 6577 6582 6583 6589 6590 6665 6669 6671 6672 6673 6678 6679 6682 6765 6779 6783 6789 6865 6869 6890 6976 6978 6979 6983 6984 6985 7065 7073 7074 7079 7082 7089 7165 7168 7176 7178 7185 7265 7273 7282 7285 7289 7365

Language

Afar Abkhazian Afrikaans Amharic Arabic Assamese Aymara Azerbaijani Bashkir Byelorussian Bulgarian Bihari Bislama Bengali, Bangla Tibetan Breton Catalan Corsican Czech Welsh Danish German Bhutani Greek English Esperanto Spanish Estonian Basque Persian Finnish Fiji Faroese French Frisian Irish Scots Gaelic Galician Guarani Gujarati Hausa Hindi Croatian Hungarian Armenian Interlingua

Abbreviation

IE IK IN IS

JI JW KA KK KL KM KN KO KS KU KY LA LN LO

LT LV

MN MO MR MS MT MY

NA NE NL

NO OC OM OR

PA PL PS PT

QU RM

Code

7369 7375 7378 7383 7384 7387 7465 7473 7487 7565 7575 7576 7577 7578 7579 7583 7585 7589 7665 7678 7679 7684 7686 7771 7773 7775 7776 7778 7779 7782 7783 7784 7789 7865 7869 7876 7879 7967 7977 7982 8065 8076 8083 8084 8185 8277

Language

Interlingue Inupiak Indonesian Icelandic Italian Hebrew Japanese Yiddish Javanese Georgian Kazakh Greenlandic Cambodian Kannada Korean Kashmiri Kurdish Kirghiz Latin Lingala Laotian Lithuanian Latvian, Lettish Malagasy Maori Macedonian Malayalam Mongolian Moldavian Marathi Malay Maltese Burmese Nauru Nepali Dutch Norwegian Occitan (Afan) Oromo Oriya Punjabi Polish Pashto, Pushto Portuguese Quechua Rhaeto-Romance

Abbreviation

RN RO RU

SA SD SG SH

SL SM SN SO SQ SR SS ST SU SV SW

TA TE TG TH

TL TN TO TR TS

TT TW UK UR UZ

VI VO

XH YO ZH ZU

Code

8278 8279 8285 8287 8365 8368 8371 8372 8373 8375 8376 8377 8378 8379 8381 8382 8383 8384 8385 8386 8387 8465 8469 8471 8472 8473 8475 8476 8478 8479 8482 8483 8484 8487 8575 8582 8590 8673 8679 8779 8872 8979 9072 9085

Language

Kirundi Romanian Russian Kinyarwanda Sanskrit Sindhi Sangho Serbo-Croatian Singhalese Slovak Slovenian Samoan Shona Somali Albanian Serbian Siswati Sesotho Sundanese Swedish Swahili Tamil Telugu Tajik Thai Tigrinya Turkmen Tagalog Setswana Tongan Turkish Tsonga Tatar Twi Ukrainian Urdu Uzbek Vietnamese Volapuk Wolof Xhosa Yoruba Chinese Zulu

59-EN

Others

List of country codes

(For details, see page 23.)

Abbreviation

AD AE AF AG

AN AO AQ AR AS AT AU

AZ BA BB BD BE BF BG BH

BN BO BR BS BT BV

BY BZ CA CC CD

CI CK CL

CR CU CV CX CY CZ DE DJ DK

Code

Andorra

6568

United Arab Emirates

6569

Afghanistan

6570

Antigua and Barbuda

6571

Anguilla

6573

Albania

6576

Armenia

6577

Netherlands Antilles

6578

Angola

6579

Antarctica

6581

Argentina

6582

American Samoa

6583

Austria

6584

Australia

6585

Aruba

6587

Azerbaijan

6590

Bosnia and Herzegovina

6665

Barbados

6666

Bangladesh

6668

Belgium

6669

Burkina Faso

6670

Bulgaria

6671

Bahrain

6672

Burundi

6673

Benin

6674

Bermuda

6677

Brunei Darussalam

6678

Bolivia

6679

Brazil

6682

Bahamas

6683

Bhutan

6684

Bouvet Island

6686

Botswana

6687

Belarus

6689

Belize

6690

Canada

6765

Cocos (Keeling) Islands

6767

Congo, the Democratic

6768

Republic of the Central African Republic

6770

Congo

6771

Switzerland

6772

Cote d’lvoire

6773

Cook Islands

6775

Chile

6776

Cameroon

6777

China

6778

Colombia

6779

Costa Rica

6782

Cuba

6785

Cape Verde

6786

Christmas Island

6788

Cyprus

6789

Czech Rempublic

6790

Germany

6869

Djibouti

6874

Denmark

6875

Country

DM DO

EE EG EH ER

FI FJ FK

FM FO

GA GB GD GE GF GH

GI GL

GM GN GP GQ GR GS

GT GU

GY HK HM

HN HR

IT JM JO JP KE

KG KH

6877 6879 6890 6967 6969 6971 6972 6982 6983 6984 7073 7074 7075 7077 7079 7082 7165 7166 7168 7169 7170 7172 7173 7176 7177 7178 7180 7181 7182 7183

7184 7185 7187 7189 7275 7277

7278 7282 7284 7285 7368 7369 7376 7378 7379 7381 7382 7383 7384 7477 7479 7480 7569 7571 7572

Country CountryCode CodeAbbreviation Abbreviation

Dominica Dominican Republic Algeria Ecuador Estonia Egypt Western Sahara Eritrea Spain Ethiopia Finland Fiji Falkland Islands Micronesia, Federated States of Faroe Islands France Gabon United Kingdom Grenada Georgia French Guiana Ghana Gibraltar Greenland Gambia Guinea Guadeloupe Equatorial Guinea Greece South Georgia and the

South Sandwich Islands Guatemala

Guam Guinea-Bissau Guyana Hong Kong Heard Island and

McDonald Islands Honduras Croatia Haiti Hungary Indonesia Ireland Israel India British Indian Ocean Territory Iraq Iran, Islamic Republic of Iceland Italy Jamaica Jordan Japan Kenya Kyrgyzstan Cambodia

KN KP

KY KZ LA

LB LC

LI LK LR LS

LT LU LV LY

MA MC MD MG MH MK

MM MN MO MP MQ MR MS

MU MV MW MX MY

MZ NA NC NE NF

NI NL

NP NR NU NZ

7573

Kiribati

7577

Comoros

7578

Saint Kitts and Nevis

7580

Korea, Democratic People’s Republic of

7582

Korea, Republic of

7587

Kuwait

7589

Cayman Islands

7590

Kazakstan

7665

Lao People’s Democratic Republic

7666

Lebanon

7667

Saint Lucia

7673

Liechtenstein

7675

Sri Lanka

7682

Liberia

7683

Lesotho

7684

Lithuania

7685

Luxembourg

7686

Latvia

7689

Libyan Arab Jamahiriya

7765

Morocco

7767

Monaco

7768

Moldova, Republic of

7771

Madagascar

7772

Marshall Islands

7775

Macedonia, The former Yugoslav Republic of

7776

Mali

7777

Myanmar

7778

Mongolia

7779

Macau

7780

Northern Mariana Islands

7781

Martinique

7782

Mauritania

7783

Montserrat

7784

Malta

7785

Mauritius

7786

Maldives

7787

Malawi

7788

Mexico

7789

Malaysia

7790

Mozambique

7865

Namibia

7867

New Caledonia

7869

Niger

7870

Norfolk Island

7871

Nigeria

7873

Nicaragua

7876

Netherlands

7879

Norway

7880

Nepal

7882

Nauru

7885

Niue

7890

New Zealand

7977

Oman

8065

Panama

60-EN

Abbreviation

PE PF

PH PK PL

PN PR PT

SA SB SC SD SE

Country

Peru

8069

French Polynesia

8070

Papua New Guinea

8071

Philippines

8072

Pakistan

8075

Poland

8076

Saint Pierre and Miquelon

8077

Pitcairn

8078

Puerto Rico

8082

Portugal

8084

Palau

8087

Paraguay

8089

Qatar

8165

Reunion

8269

Romania

8279

Russian Federation

8285

Rwanda

8287

Saudi Arabia

8365

Solomon Islands

8366

Seychelles

8367

Sudan

8368

Sweden

8369

Singapore

8371

Saint Helena

8372

Slovenia

8373

Abbreviation CountryCode

SL SM SN SO SR ST SV SY SZ TC TD

TF TG TH

TJ TK TM TN TO TP TR

TT TV

Code

Svalbard and Jan Mayen

8374

Slovakia

8375

Sierra Leone

8376

San Marino

8377

Senegal

8378

Somalia

8379

Suriname

8382

Sao Tome and Principe

8384

El Salvador

8386

Syrian Arab Republic

8389

Swaziland

8390

Turks and Caicos Islands

8467

Chad

8468

French Southern Territories

8470

Togo

8471

Thailand

8472

Tajikistan

8474

Tokelau

8475

Turkmenistan

8477

Tunisia

8478

Tonga

8479

East Timor

8480

Turkey

8482

Trinidad and Tobago

8484

Tuvalu

8486

CountryCode

Abbreviation

UA UG UM

VI VN VU

WF WS

YE YT YU ZA

ZM ZW

8487 8490 8565 8571 8577

8583 8589 8590 8665 8667

8669 8671 8673 8678 8685 8770 8783 8969 8984 8985 9065 9077 9087

Taiwan, Province of China Tanzania, United Republic of Ukraine Uganda United States Minor

Outlying Islands United States Uruguay Uzbekistan Holy See (Vatican City State) Saint Vincent and the

Grenadines Venezuela Virgin Island, British Virgin Islands, U.S Viet Nam Vanuatu Wallis and Futuna Samoa Yemen Mayotte Yugoslavia South Africa Zambia Zimbabwe

61-EN

Others

In case of difficulty

• If operation freezes, the screen goes black or the unit should otherwise not function properly, try turning the power off then back on. Alternatively, try the following methods in the order listed until the DHA-S680 returns to normal playback mode:

1) Change the source from DVD to another source then return to DVD mode.

Turn the car’s ignition OFF and back ON again.

• This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer.

Symptom

Unit does not operate.

Operation is unstable.

No picture is produced.

Playback does not start.

Picture is unclear or noisy .

Image stops sometimes. CD-R/CD-RW playback not possible NO MAG NO DISC

REGIONAL CODE VIOLATION

VIDEO SIGNAL SYSTEM IS NOT CORRECT

HI-TEMP

Fuse is blown. Monitor’s power is not turned on. Condensation. Remote control unit’s batteries are worn. Remote control sensor or transmitter is dirty. Monitor’s mode is not switched to the

mode you want to see. Monitor’s parking brake cord is not

connected. Monitor’s parking brake is not set. Disc is loaded upside-down. Disc is dirty. A disc not able to playback with this unit is loaded. Parental lock is set. Setup menu is displayed. Disc is being fast-forwarded or fast-reversed. Vehicle’s battery power is weak.

Monitor’s fluorescent tube is worn. Disc is scratched. Close session (finalization) has not been performed No magazine is loaded. No disc is loaded. Disc is dirty. Remote control operation is not

possible. Disc does not match regional code

number. PAL disc is loaded.

Protective circuit is activated to high temperature.

Cause

Remedy

Replace with a fuse of the specified capacity. (See installation instructions.) Turn on the monitor’s power. Wait a while (about 1 hour) for the condensation to dry. Replace the remote control unit’s batteries with new ones. Clean the sensor or transmitter. Switch to the mode you want to see.

Connect the monitor’s parking brake cord and set the parking brake. (For details, refer to the monitor’s instructions.)

Check the disc and load it with the labeled side facing upward. Clean the disc. Check if the disc is able to be played back. Cancel the parental lock or change the rating level. Press “SET” for at least 2 seconds to turn the menu off. The picture may be slightly disturbed, but this is normal. Check the battery power and wiring.

(The unit may malfunction if the battery power is under 11 volts with a load applied.) Replace the monitor’s fluorescent tube. Replaced with a non-scratched disc.

Perform finalization and attempt playback again. Load a magazine. Load a disc. Clean the disc. For some discs or playing modes, certain operations are not possible.

This is not a malfunction. Load a disc that matches the regional code number.

Load an NTSC disc.

Turn the power (main unit power when not connected) OFF on the connected head unit and then turn the power ON again. If the display still does not disappear, leave the power OFF until the temperature decreases and then turn the power ON again.

Specifications

Signal system ................................................................................................................................................................................ NTSC/PAL

Horizontal resolution .......................................................................................................................................................500 lines or greater

Video output level................................................................................................................................................................ 1Vp-p (75 ohms)

Video S/N ratio ........................................................................................................................................................................... DVD: 70 dB

Audio S/N ratio .................................................................................................................................................... DVD: 120 dB/CD: 120 dB

Frequency response ....................................................................................................... DVD: 5 Hz to 22 kHz (±1 dB) (48 kHz sampling)

DVD: 5 Hz to 44 kHz (±1 dB) (96 kHz sampling)/CD: 5 Hz to 20 kHz (±1 dB)

Dynamic range ...................................................................................................................................................................... 90 dB or greater

Wow & flutter ........................................................................................................................................................... Below measurable limit

Channel separation............................................................................................................. .................................................................... 90 dB

Harmonic distortion ............................................................................................................................................................................ 0.007%

Audio output ............................................................................................................................................. RCA: 1200mV/Ai-NET: 850 mV

Power supply.................................................................................................................................. DC 14.4V (operating range: 11 to 16V)

Operating temperature range ................................................................................................................................................... –10° to +60°C

Weight ............................................................................................................................................................................... 2.8 kg (6 lbs. 3 oz)

External dimensions (W x H x D)..................................................................................................................

255 x 77.5 x 203 mm (10” x 3” x 8”)

Pickup wave length .............................................................................................................................................................................. 655nm

Laser power..................................................................................................................................................................................... CLASS II

NOTES

• For improvement purposes, specifications and design are subject to change without notice.

• The illustrations in this manual may appear different from the actual product due to printing conditions.

62-EN

Operating the DHA-S680 DVD Video Player

When operating the DHA-S680 set the DVD/ AUDIO switch to the “DVD” side.

8 9 p

u i

;

Joystick (→ P12, 18, 21, 22, 23, 24, 25, 26, 27, 28, 29,

30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 48, 49)

Selects the items displayed on the screen.

ENT button (→ P12, 15, 16, 18, 21, 22, 23, 24, 25, 26,

27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 48,

49)

Determines the selected item.

Rotary Encoder (→ P11)

Adjusts the volume when only the Digital Audio Processor is connected.

MENU button (→ P12, 15, 16, 18, 21)

Displays the DVD menu.

SET button (→ P21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 48, 49)

Press and hold for 2 seconds to summon the SET UP (initial setting) screen.

Button (→ P12, 13, 14, 18)

Playback.

SLOW Button (→ P14)

Press and hold for 2 seconds for slow motion playback.

.;;

Button (→ P13, 14)

Seeks the start for video and audio data. Press and hold for 2 seconds for Rewind of video and

audio data.

::.

Button (→ P13, 14)

Seeks the start for video and audio data. Press and hold for 2 seconds for Fast Forward of video

and audio data.

ENT

DISP

SET

SOURCE

SLOW

DEFEAT

A. PROC

RPT

DISP.

TUNER

DISC

DISC DN

DISC UP

V. SEL

POWER

NTSC/PAL

SUB T. ON/OFF AUDIO

ANGLE

OP/

CLR

LIST

GO TO

TITLE

BAND

RTN

V.OUT

MUTE

CHG

A. PROC

BAND

UP +10

DISP. Button (→ P19)

Displays the playback state on the screen.

DISC DN (→ P11)

Press and hold the button for at least 2 seconds to select the disc in the magazine. (Disc No. down)

RPT Button (→ P16)

Repeat playback.

DISC UP (→ P11)

Press and hold the button for at least 2 seconds to select the disc in the magazine. (Disc No. up)

POWER Button (→ P10)

Turns the power ON and OFF.

NTSC/PAL Button (→ P11)

Press and hold for 5 seconds to change between NTSC and PAL.

DVD/AUDIO Switch (→ P7)

Used to switch between DVD and Audio operation.

GO TO Button (→ P15, 16)

Used to go directly to start of selection.

TITLE Button (→ P12, 18)

Press and hold for 2 seconds to display the Title Menu.

RTN Button (→ P15, 16, 21, 23, 25, 26, 27, 28, 29, 30,

31, 32, 33, 34, 35, 36, 37, 38, 39)

Used to return the selection screen just prior to the present screen.

V.OUT Button (→ P20, 48, 49)

Outputs the DVD video to the monitor when in other source.

..:

Button (→ P14)

Used for Pause and Frame-by-Frame playback.

■ Button (→ P13, 21, 22, 23, 24, 25, 26, 27, 28, 29,

30, 31)

Used to stop playback.

A.PROC Button (→ P32, 33, 34, 35, 36, 37, 38, 39)

Used to summon the processor control screen when connected with the Digital Audio Processor.

BAND Button (→ P32, 38)

Press and hold for 2 seconds to switch the menu screen when controlling the Digital Audio Processor.

SUB T. Button (→ P18)

Press and hold for 2 seconds to change the subtitles.

–ON/OFF Button (→ P18)

Press and hold for 2 seconds to turn the subtitles ON and OFF.

ANGLE Button (→ P17)

Press and hold for 2 seconds to change the angle.

CLR Button (→ P15, 16, 23)

;

Remove numbers (one character at a time) that have been selected and input. Press and hold for 2 seconds. All the characters which were selected and input are erased.

AUDIO Button (→ P17)

Press and hold for 2 seconds to change the audio output.

10-Key Pad (→ P11, 12, 15, 16, 18, 21, 23, 24)

Used to input numbers.

NOTE

Operation may not be accepted depending on the type of disc and the playback conditions. At such a time the following mark is displayed on the screen:

63-EN

Others

Operating audio for the Alpine AiNET

When operating audio for the Alpine Ai-NET, set the DVD/AUDIO switch to the “AUDIO” side.

8 9 p

SOURCE

A. PROC

DISP.

TUNER

DISC DN

POWER

NTSC/PAL

SLOW

DISP

SET

ENT

DEFEAT

RPT DISC

DISC UP

V. SEL

LIST

GO TO

TITLE

BAND

RTN

V.OUT

MUTE

CHG

A. PROC

BAND

CHG Button

Switches to CHANGER Mode (DVD changer/CD Changer).

Changer switching (In case two or more changers are connected.)

V.SEL Button

V.SEL Switching

NOTE

Some controls may not be possible depending on the audio device being used.

Joy Stick

Music Sensor/Fast Forward/Rewind/Disc Change/ Preset Selection/SEEK

ENT Button

Play/Pause

Rotary Encoder

Head unit's volume adjustment

DISP Button

Head unit's display switching

SOURCE Button

Source switching

A.PROC Button

Audio Processor Switch

DEFEAT Button

Defeat Mode ON/OFF

TUNER Button

Switches to Radio Mode.

DISC Button

Switches to built-in CD/MD mode.

Power Button

Power ON/OFF switching

DVD/AUDIO Switch

Switching between DVD and Audio operation

LIST Button

Changes the title list display. Head unit's display switching

BAND Button

Radio Band switching

MUTE Button

Mute

64-EN

Alpine DHA-S680 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
