LCD TV
Service Manual
- 2 -
MODEL:
LCT-37EL0SST
Model No.: LCT-37ELOSST.doc
Version: 1.0
- 3 -
CONTENTS
SAFETY PRECAUTION......................................................................................................................4
SPECIFICATION..................................................................................................................................... 6
CHASSIS OVERVIEW............................................................................................................................8
KEY COMPONENT.............................................................................................................................. 11
SERVICE MODE ADJUSTMENT.................................................................................................. 12
FIRMWARE UPDATE........................................................................................................................ 14
BLOCK DIAGRAM ..............................................................................................................................17
CIRCUIT DIAGRAM............................................................................................................................21
OSD MANUAL STRUCTURE. ............................................................................................................30
BILL OF MATERIAL............................................................................................................................ 40

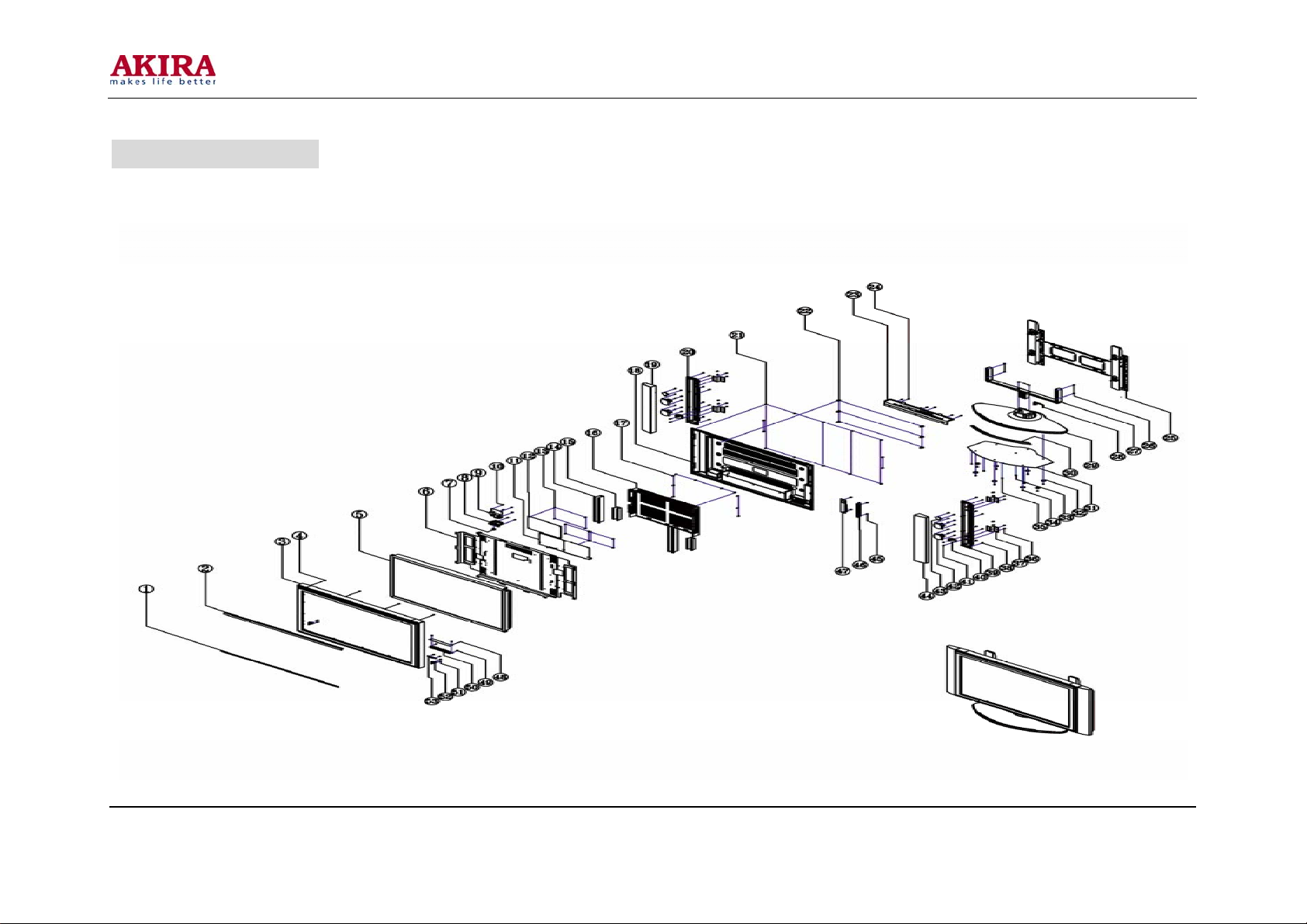

EXPLODED VIEW................................................................................................................................51
PART LIST.............................................................................................................................................52
WALL MOUNT INSTALLATION GUIDE...........................................................................................53
Model No.: LCT-37ELOSST.doc
Version: 1.0
- 4 -
IMPORTANT SAFETY PRECAUTION
Model No.: LCT-37ELOSST.doc
Version: 1.0
- 5 -
Model No.: LCT-37ELOSST.doc
Version: 1.0
6
SPECIFICATION
Panel Type 37” Wide TFT Color LCD
Display Area 819.6mm × 460.8mm(37.02 inch(940.3mm)diagonal
Display Color (8bit) 16.7 million
Panel
In/Out
Pixel Pitch 0.2 mm × 0.6 mm × RGB
Recommended Resolution 1366 × 768
Contrast Ratio 500:1 (typical)
Luminance white 500cd/㎡(Center 1 Point Typ.)
Viewing Angle Free View Angle(R/L 176, U/D 176)
PC Analog RGB 15 pin D-Sub Input
S-video input
SCART input
Video input(RCA) × 2
Video
Component input
PC (Analog RGB) input
HDMI
Component/S-Video input
SCART input
Audio input(RCA) × 2
Audio
Audio output (RCA)
RF Signal
Others
PC Audio input
COAXIAL/OPTICAL output
Euro A/V SCART (Half)
Antenna 75Ω Coaxial cable (Analog)
Color System PAL / SECAM
Sound System B/G , D/K , I , L
Stereo Type NICAM , A2
Text TELETEXT
Power Consumption 192 Watts
Power Save Mode Less than 6 Watts
Speaker
Model No.: LCT-37ELOSST.doc
Version: 1.0
10 Watts *2
Size
Weight 2.2Kg/4.84 pounds(gross)
19(W) * 11.5(D) * 59(H) cm
7.48(W) * 4.52(D) * 23.22(H) inch
7
Plug & Play DDC 1/2 B
Screen Control True Colour On Screen Display Menu, Bit Map
Remote Controller Yes
Body
Size 111.5(W) * 8 33.5(D) * 69(H) cm
Weight 28.5Kg/62.7 pounds(gross)
Stand
Size 72(W) * 32.5(D) * 28.5(H) cm
Weight 5.9Kg/12.98pounds(gross)
Dimension
Specification are subject to changes without prior notice.
Model No.: LCT-37ELOSST.doc
Version: 1.0
108.6(W) * 30.4(D) *64(H)cm : Speaker(stand include)
42.74(W) * 11.96(D) * 25.19(H) inch
43.89(W) * 13.18(D) * 27.16(H) inch
28.34(W) * 12.79(D) * 11.22(H) inch
8
CHASSIS OVERVIEW
ITEMS SPECIFICTION
Target Panel Size LCD 37/42 inch
Aspect Ratio 16:9
Resolution WXGA (1280X768, 1366X768)
Display
Refresh Rate 50Hz, 60Hz
Maximum Pixel Rate
Interface Single or Dual Channel LVDS
Supports dual link up to 135MHz dot clock for
SXGA
H Frequency Range : 20 ~ 82 kHz
V Frequency Range : 55 ~ 90 kHz
Supported Signals
Analog PC
Digital PC (DE Mode)
CVBS, S-Video
Component 1080i, 720p, 480i/576i, 480p/576p
TV All PAL/SECAM System
TV Ant in (75 ohms coaxial cable)
SCART SCART in (75 ohms 0.7/1.0 Vp-p) CVBS
AV1 AV1 in (75 ohms 0.7/1.0 Vp-p) CVBS
Maximum resolution : 1600 x 1200 60Hz
Maximum pixel rate : 165 MHz
DTV mode support : 720p/1080i
Separate / SOG sync support
H Frequency Range : 20 ~ 82 kHz
V Frequency Range : 55 ~ 75 kHz
Maximum resolution : 1600 x 1200 60Hz
Maximum pixel rate : 165 MHz
DTV mode support : 720p/1080i
NTSC-M, PAL-BGHI, NTSC-4.43, SECAM,
PAL-60
Connection (Video)
Connection (Audio)
Model No.: LCT-37ELOSST.doc
Version: 1.0
AV2 AV2 in (75 ohms 0.7/1.0 Vp-p) CVBS
S-Video S-Video in
Component Y-Pb-Pr DTV RCA in (75 ohms 0.7Vp-p)
PC Analog D-sub in (Analog : 75 ohms±10%, 0.7Vp-p±5%)
HDMI HDMI Type (Support HDMI ver 1.0)
TV Tuner SIF in
9
SCART SCART Stereo Sound in (500mVrms)
AV1 AV1 Stereo Sound in (500mVrms)
AV2 AV2 Stereo Sound in (500mVrms)
PC Stereo Audio Line in (500mVrms)
S-Video RCA Stereo Audio Line in (500mVrms) – Shared
Component 1 RCA Stereo Audio Line in (500mVrms) – Shared
Speaker Out 7W x 2 Stereo Speaker (8 ohms)
Audio Out RCA Stereo Audio Line Out (500mVrms)
Digital Audio Out HDMI SPDIF Audio (Optical)
Tuning System PAL/SECAM System
TV
OSD
User Functions
Tuning Range 48.25MHz ~ 863.25MHz
No of Programs 100 Channels
Sound System BG, DK, I, L, L
MTS Support Mono/Stereo/Nicam/Bi-Lingual
Color
OSD Type Graphic & text
Language Support
Image Adjustment
8 Bit color (256 color palette from 565 16
bit color)
Unicode string format
(later) All language support
(later) Supports Arabic reversed string
order
Contrast / Brightness / Sharpness / Color
/ Tint
Color Temperature
Picture Standard Select
Image aspect ratio
TV Function
Model No.: LCT-37ELOSST.doc
Version: 1.0
Country Option Select
Auto Frequency Scan
Manual Channel Edit -Color System
-Sound System -Channel Edit -Manual
Frequency Search
Channel Add/Erase
Channel Name Edit
10
Channel Sort
Manual Fine Tune
Volume
Balance
Sound Function
PC Function
PIP Function
TTX 252 Pages
5 Band Equalizer
Mono / Stereo / Nicam Dual / Nicam
Sound
Sound Standard Select
Auto Adjustment
Frequency Adjustment
Phase Adjustment
H/V Position Adjustment
Up to 32 analog pc mode memorize
PIP On/Off
PIP Source Select
PIP Size
PIP Position
PIP Swap
PIP Sound Select
Sleep Time Select
Timer
Miscellaneous
Back Light Power Panel Dependent
Standby Power DC 5V / 1.5A
Power
Board/Panel Power DC 12V or 5V (depend on Panel)
Power Save Mode Under 5W
Model No.: LCT-37ELOSST.doc
Version: 1.0
Current / On / Off Time Adjustment
On Time Channel / Volume
User Default Reset
OSD Language Select
Blue Screen
11
KEY COMPONENT
Chip Model Key Components Maker Comments
MST5151A SCALER, ADC, DVI(HDCP), LVDS MStar
VCT49XYI AV, IF, TTX Micronas
TA2024 Audio AMP Tripath
HY5DU281622ET DDR Hynix
MX29LV8000BTTC-70 Flash Mx
IC62LV2568LL SRAM CSI
TEA6422 Audio Mux ST
WT61P4 Expand I/O Weltrend
TS5V330DBQR Component Mux Pericom DTT Option
74CBTLV3257 UART Input Mux
AK4386 DAC
DTT Option
HDMI Option
Model No.: LCT-37ELOSST.doc
Version: 1.0
12
SERVICE MODE
Press Still -> Sleep -> Mute -> Enter in the order from the remote controller to enter
the service (factory) mode.
SERVICE MENU Sub menu Initial Remarks
1. Calibration PC calibration
2. Option Table Last Power On On <-> Off
Melody Volume 10 0 ~ 20
Logo Off On <-> Off
3. Color Control Sub-Brightness 128 0 ~255
Red Offset 128 0 ~255
Green Offset 128 0 ~255
Blue Offset 128 0 ~255
Sub-Contrast 128 0 ~255
Red Gain 128 0 ~255
Green Gain 128 0 ~255
Auto Color Gain adjustment:
PC and DTV mode
Blue Gain 128 0 ~255
4. Device Adjustment MST5151A
MST5151A Memory
MST5151A Option
ADC
VCT
5. Heat Run MST5151A Pattern
VCT49xyl Pattern
Full White
Model No.: LCT-37ELOSST.doc
Version: 1.0
Stop – Power off (Tact
switch)
13
6. Version Version Saturn VCT-PAL
Release Firmware Version
Panel used time Show panel used time
TTX252PAGE
7. Reset Reset Initialize to factory mode
Model No.: LCT-37ELOSST.doc
Version: 1.0
14
FIRMWARE UPDATE
(1) With the TV power turned off with the master switch, connect the
RS232C to the firmware update cable and open the executable file of the
program (WareCubeDownload.exe).
(2) Click on “File Open” to select Update File. Click on “Go” and it will be in
standby condition for firmware update.
(3) Turn the power of the TV on with the master switch to start the firmware
update.
(4) When the firmware update is complete, you will see a message saying
“Download is Completed.”. When completed, turn the power of the TV Off/On
with the master switch.
Model No.: LCT-37ELOSST.doc
Version: 1.0
15
Model No.: LCT-37ELOSST.doc
Version: 1.0
16
Model No.: LCT-37ELOSST.doc
Version: 1.0
17
BLOCK DIAGRAM
Main Board
Model No.: LCT-37ELOSST.doc
Version: 1.0
18

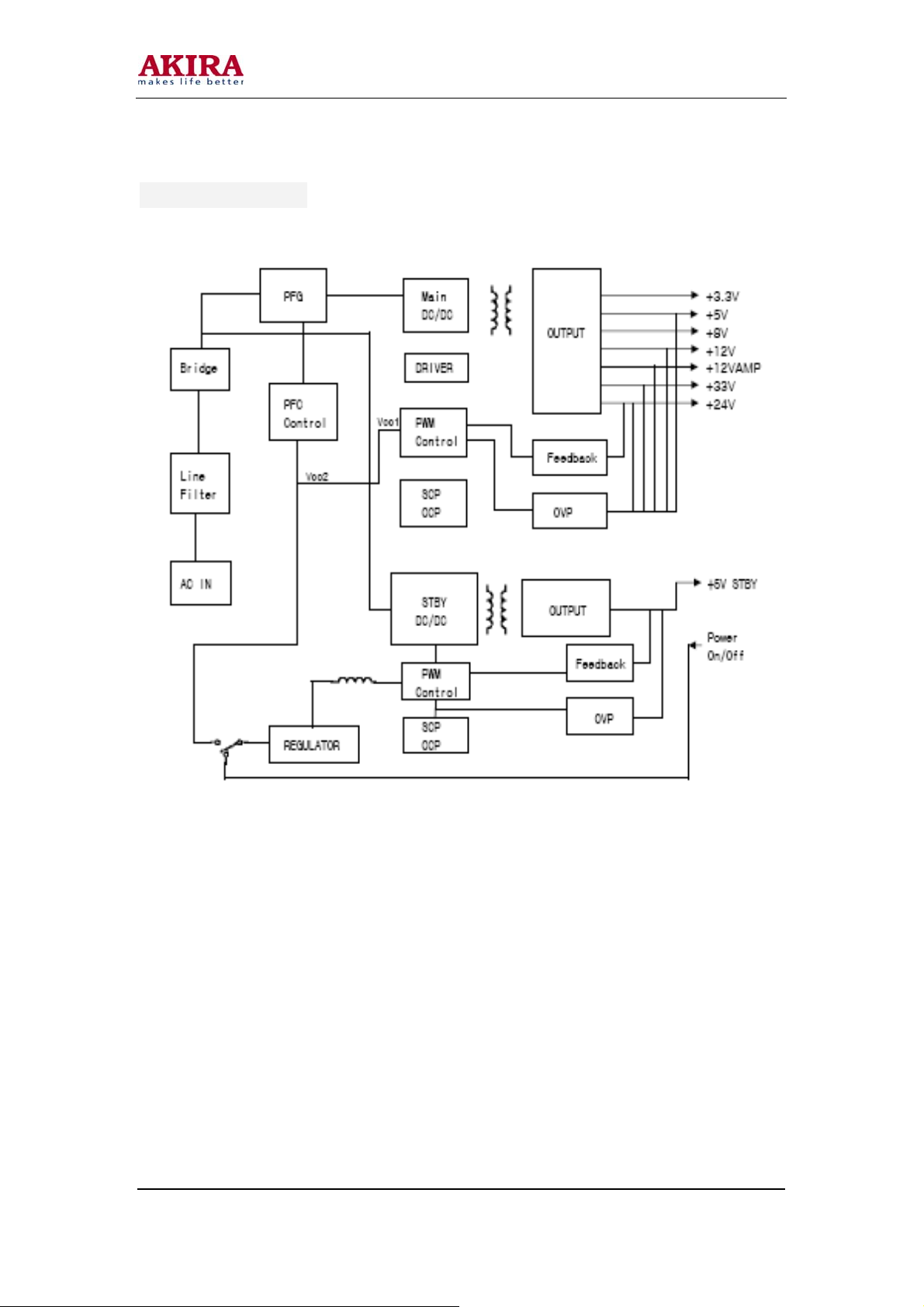

POWER BOARD
Model No.: LCT-37ELOSST.doc
Version: 1.0
19

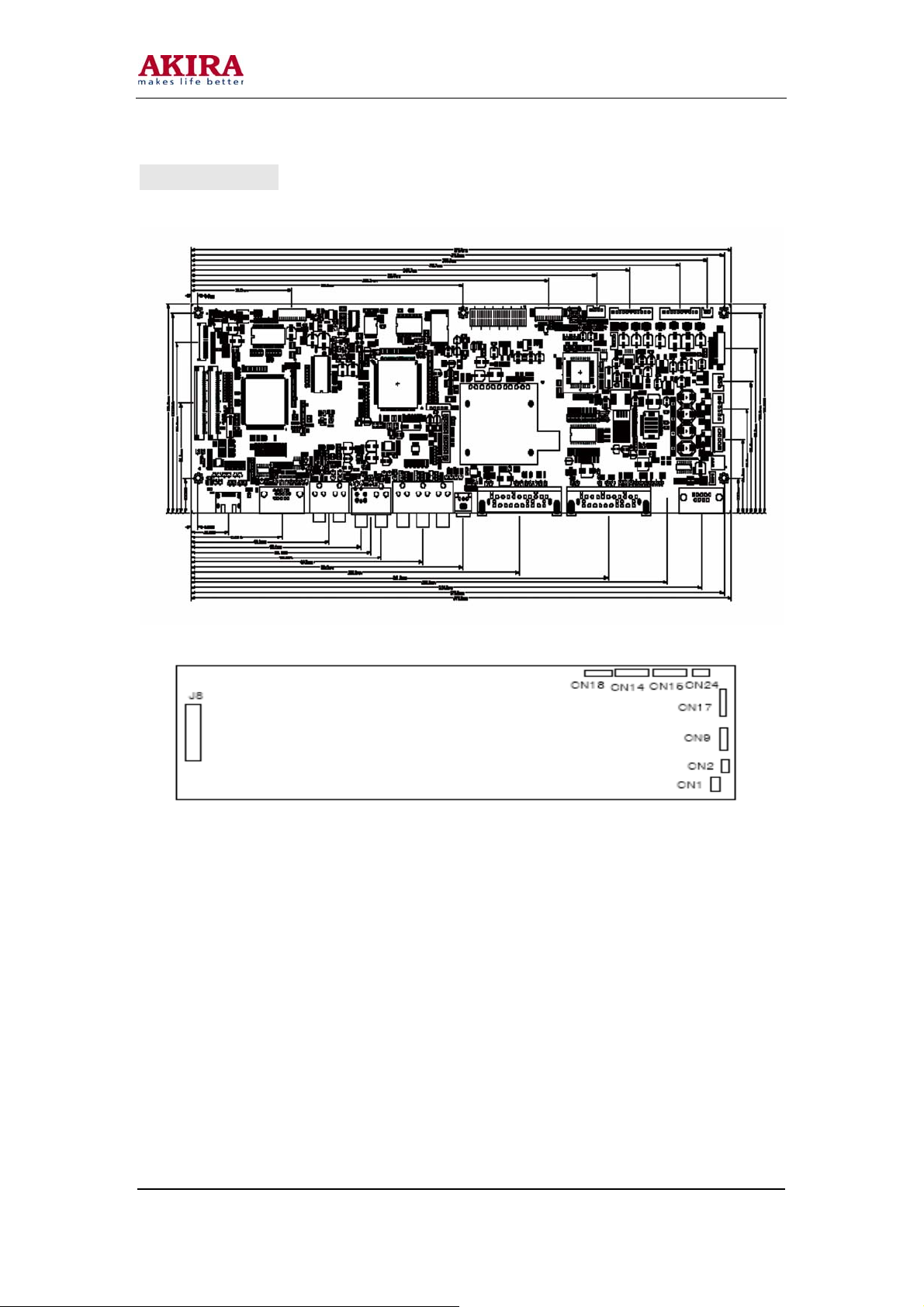

PCB LAYOUT
1. JB : LVDS Signal
2. CN18 : To Power Board
3. CN14 : Main Power
4. CN15 : Sub Power
5. CN24 : N.C
6. CN17 : Key Pad
7. CN9 : Speaker
8. CN2 : To PC
9. CN1 : To Module
Model No.: LCT-37ELOSST.doc
Version: 1.0
20

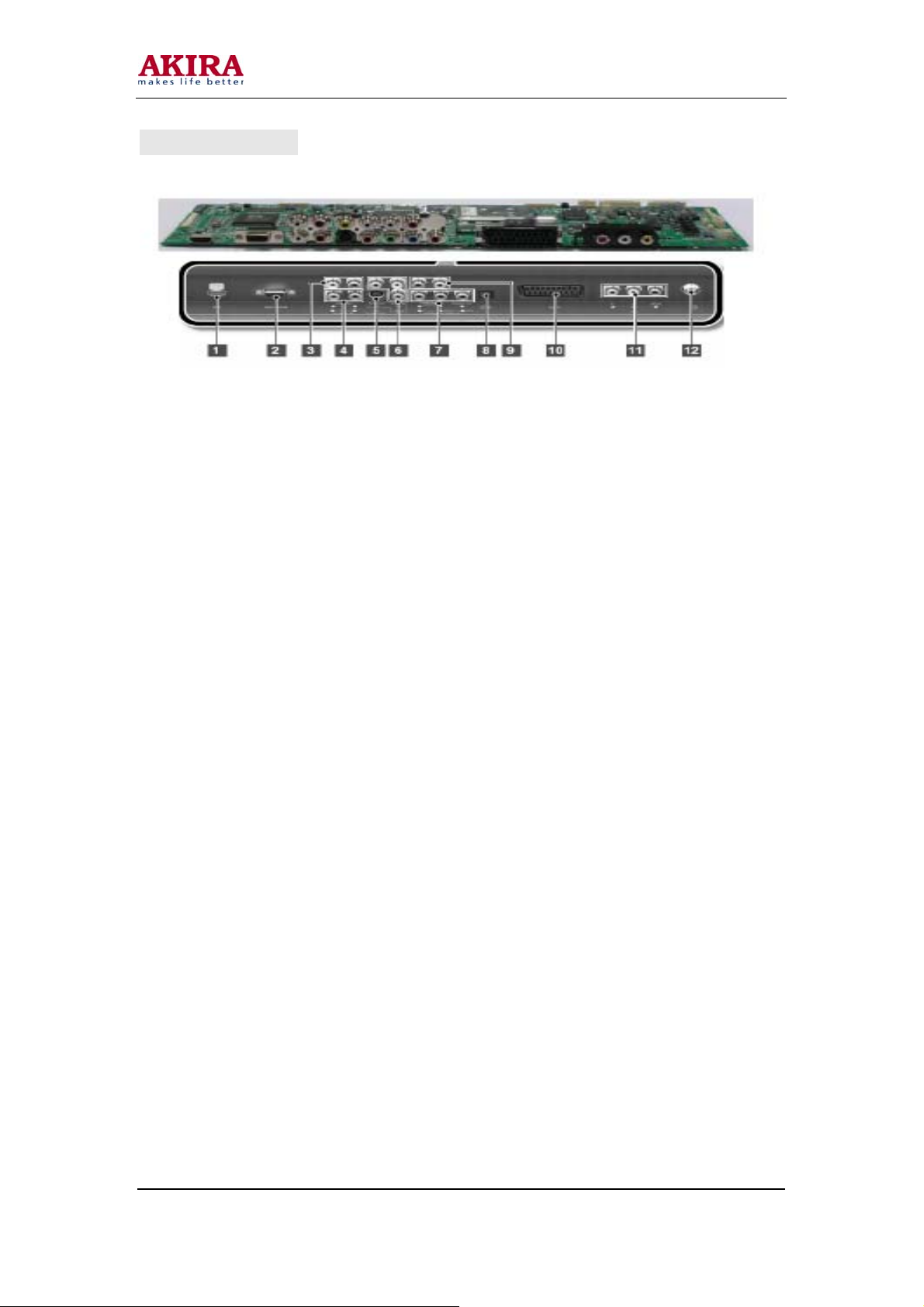

INPUT LAYOUT
1 HDMI
Connects the HDMI cable to the HDMI connector on the computer.
(or DVD player, Set-top Box etc)
2 ANALOG RGB
Connects the VGA signal cable to the VGA connector on the computer.
3 AUDIO OUT
Jack for connecting on Audio AMP.
4 PC AUDIO IN
Connect to the audio-output port of a PC.
5 S-VIDEO IN
Input the S-VIDEO signal from an S-VHS VCR or Laserdisc player.
6 AV2 : COMPOSITE VIDEO IN/AUDIO IN(Left/Right)
COMPOSITE VIDEO IN : Connects with the VIDEO input terminal from a VCR.(or DVD Player)
AUDIO L/R IN : Connects with the Audio Left/Right from a VCR. (or DVD Player)
7 COMPONENT VIDEO IN
Jack for connecting the DVD player (or VCR player or Digital TV playback player)
video input connector (for both DVD and DTV).
8 OPTICAL OUT
Digital Audio out
9 COMPONENT AUDIO IN
Connects with the Audio-Left/Right from an S-VHS VCR. (or DVD Player)
10 SCART (Half)
Connects PAL-method TV Audio/Video.
11 AV1 : COMPOSITE VIDEO IN/AUDIO IN (Left/Right)
12 COMPOSITE VIDEO IN : Connects with the Video input terminal from a VC R.(or DVD
Player)
AUDIO L/R IN : Connects with the Audio Left/Right from a VCR. (or DVD Player)
13 ANT (VHF/UHF) Connector
Connect with an external cable from the external antenna.
Model No.: LCT-37ELOSST.doc
Version: 1.0
21

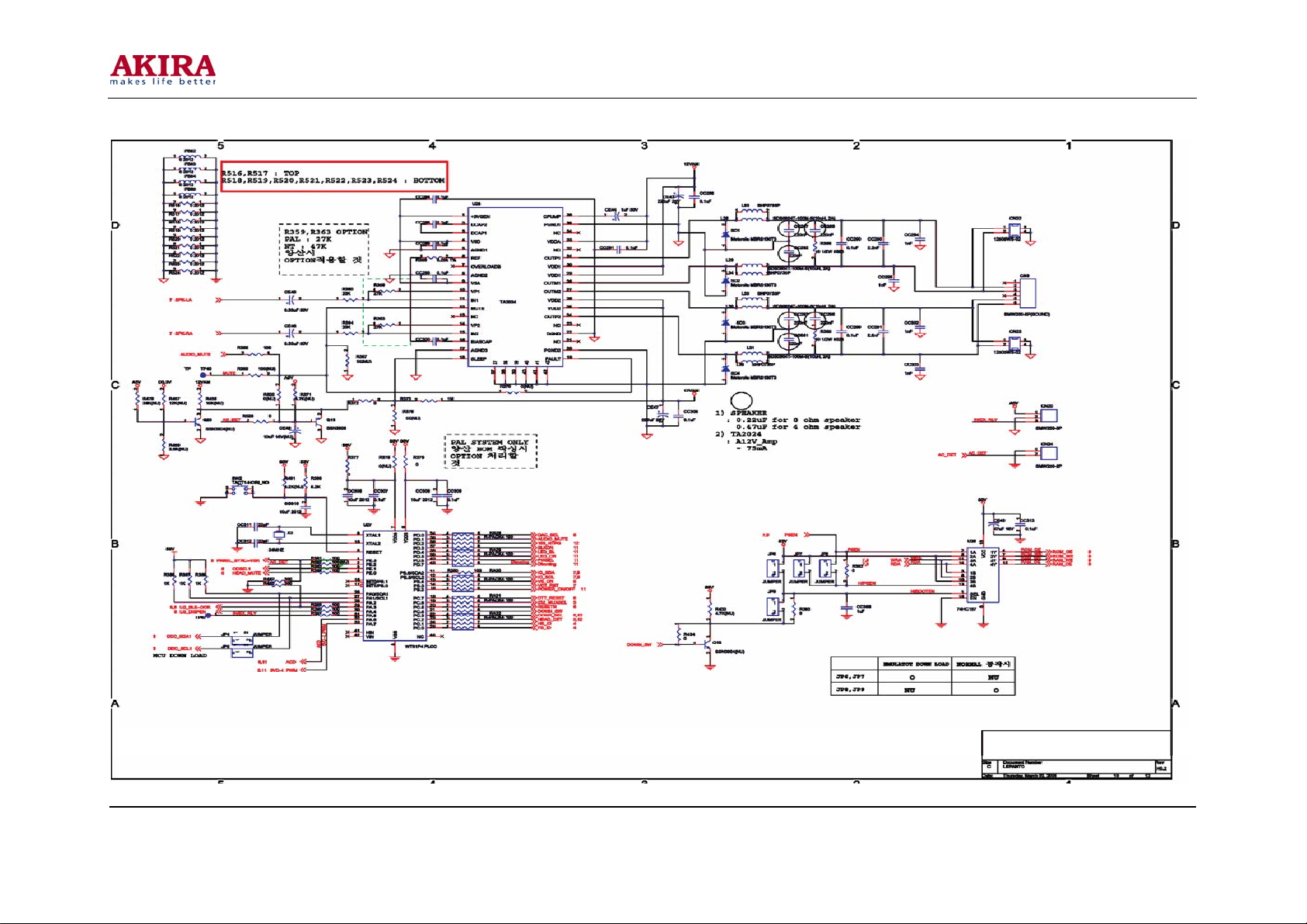

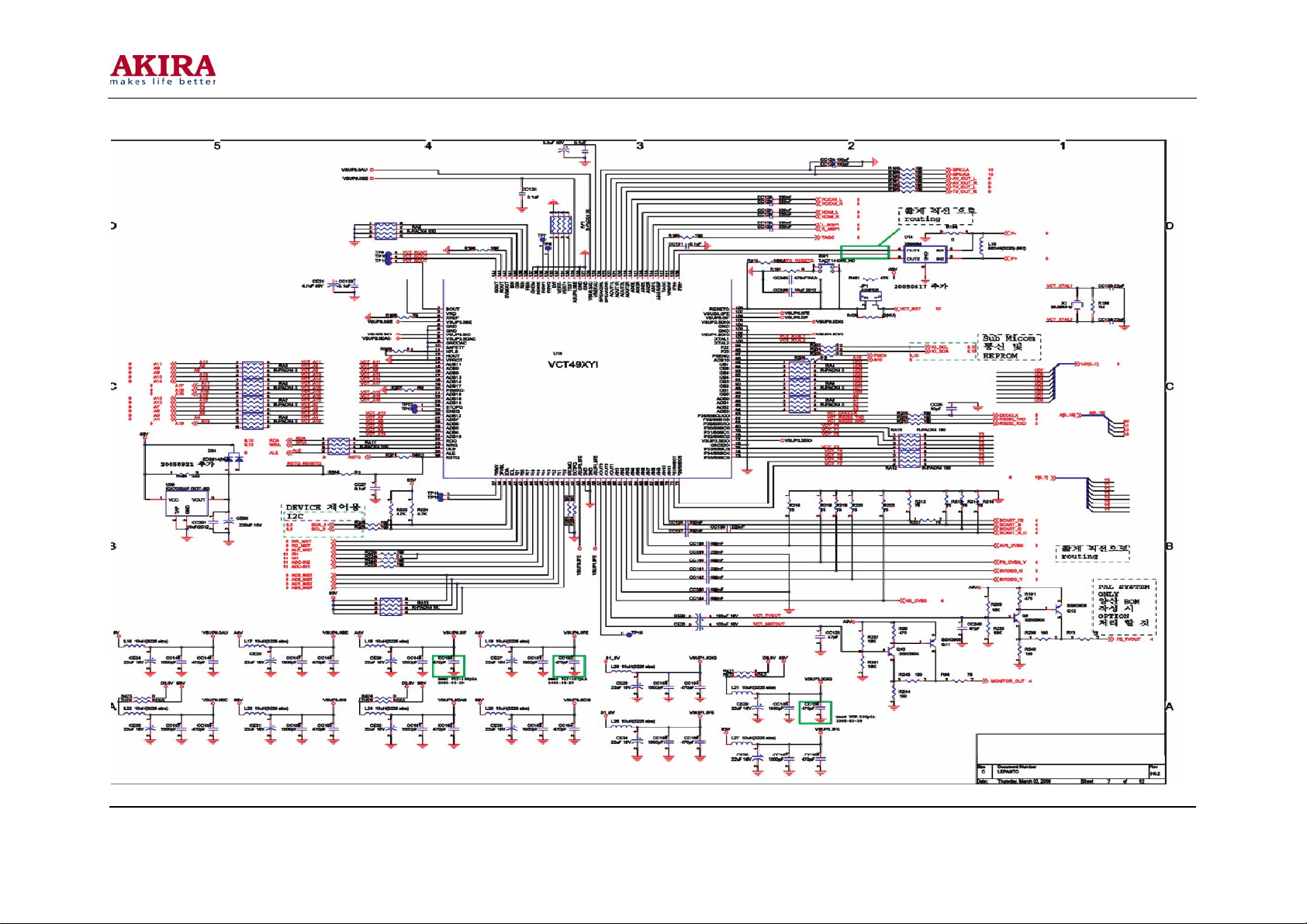

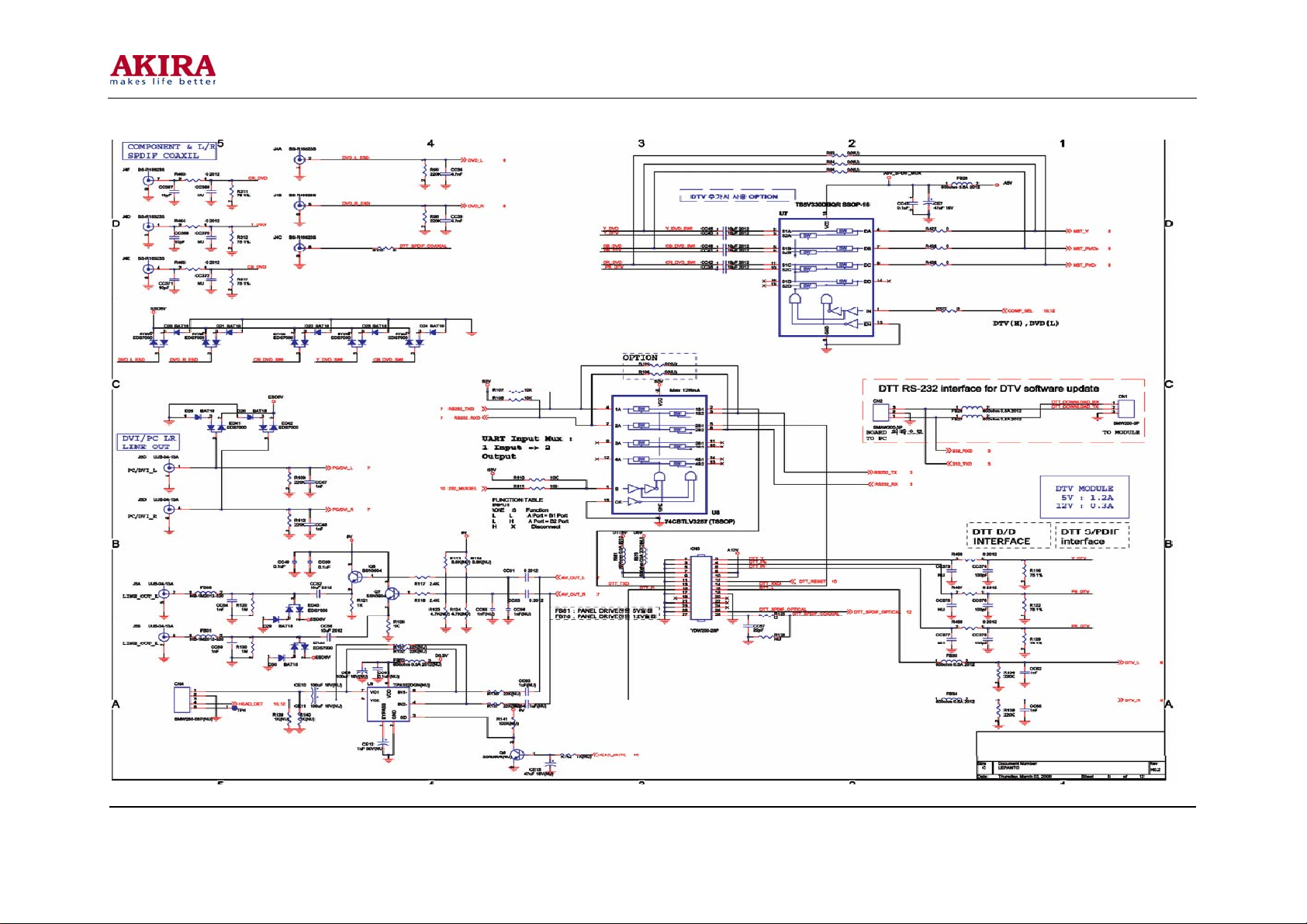

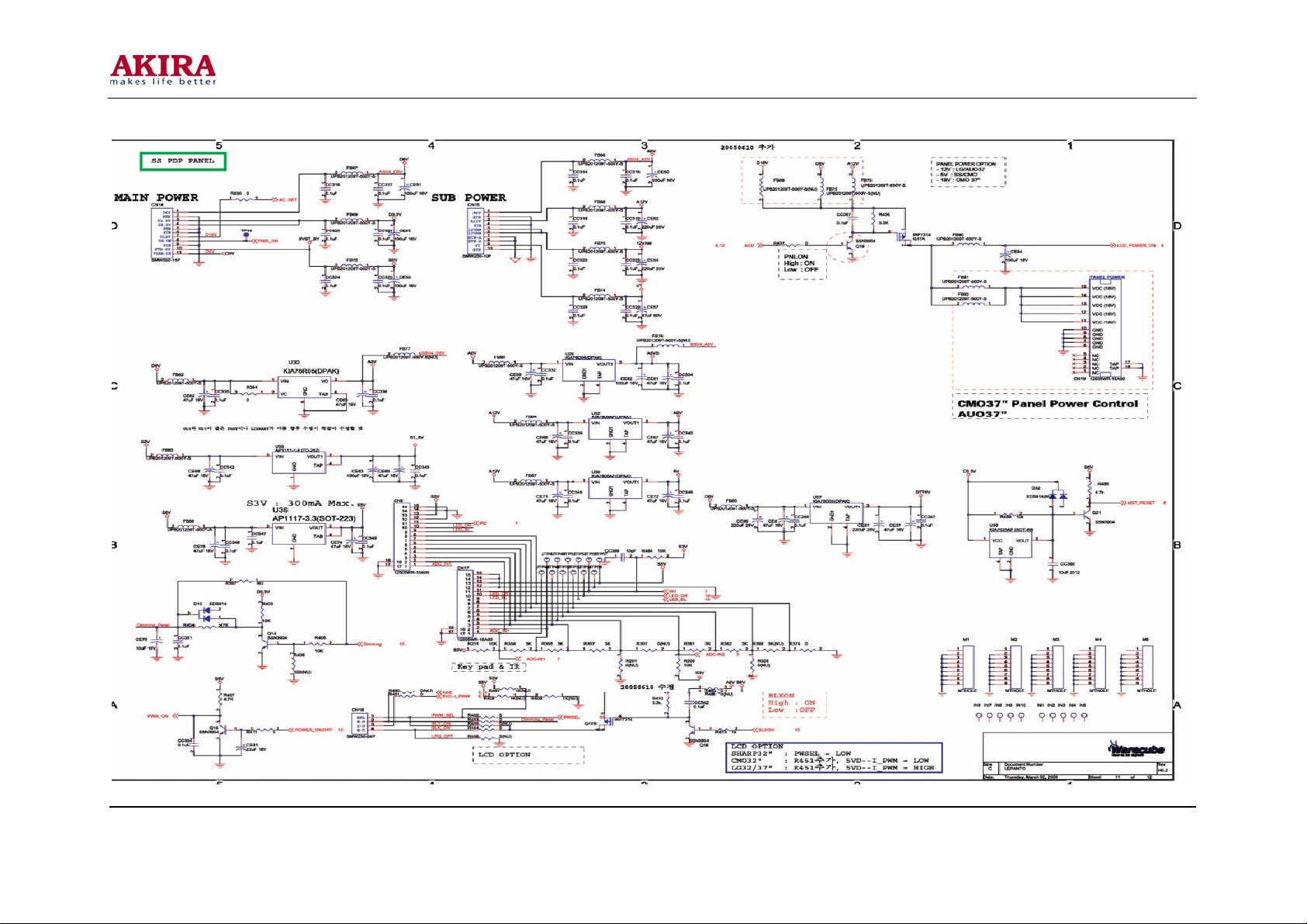

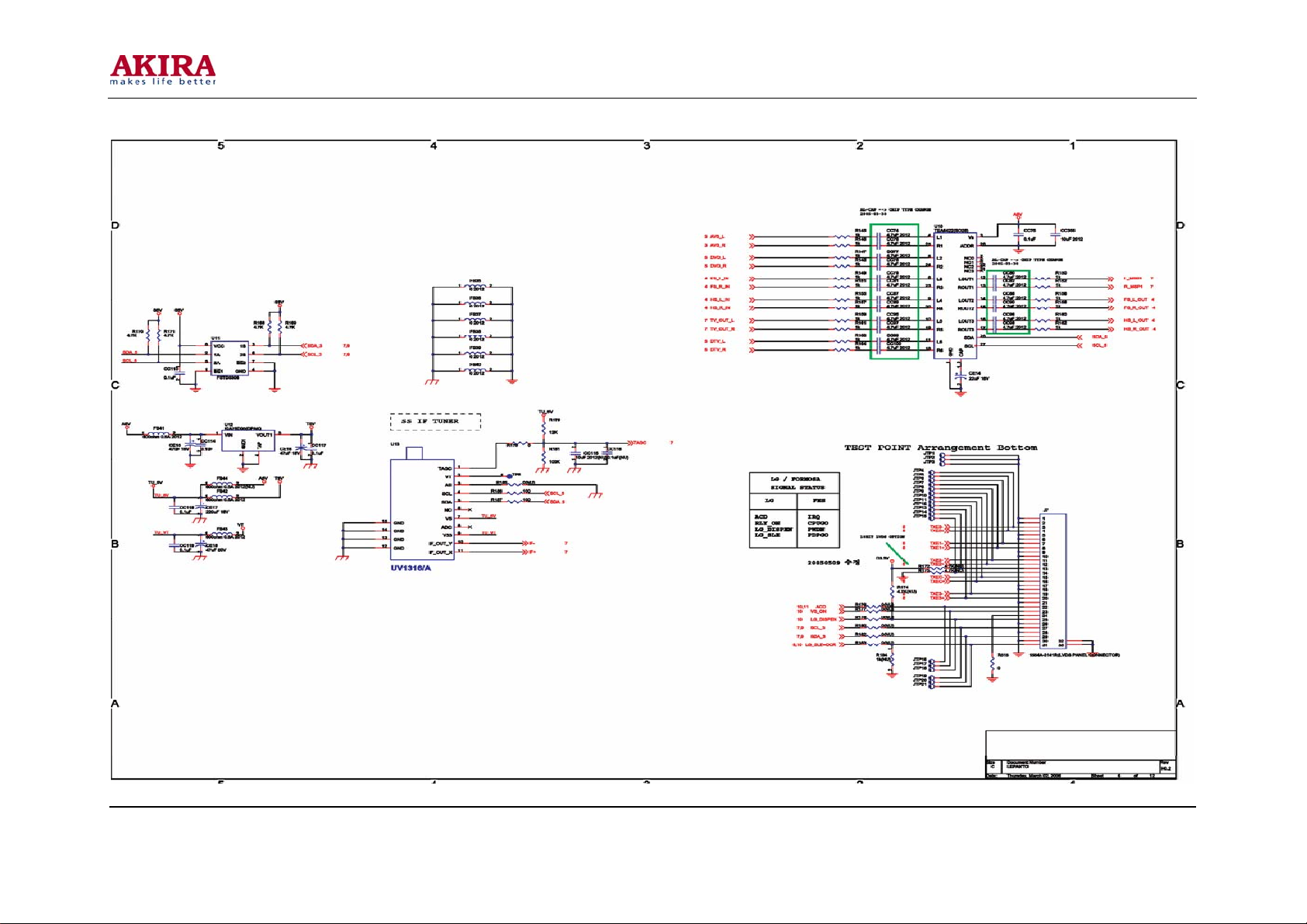

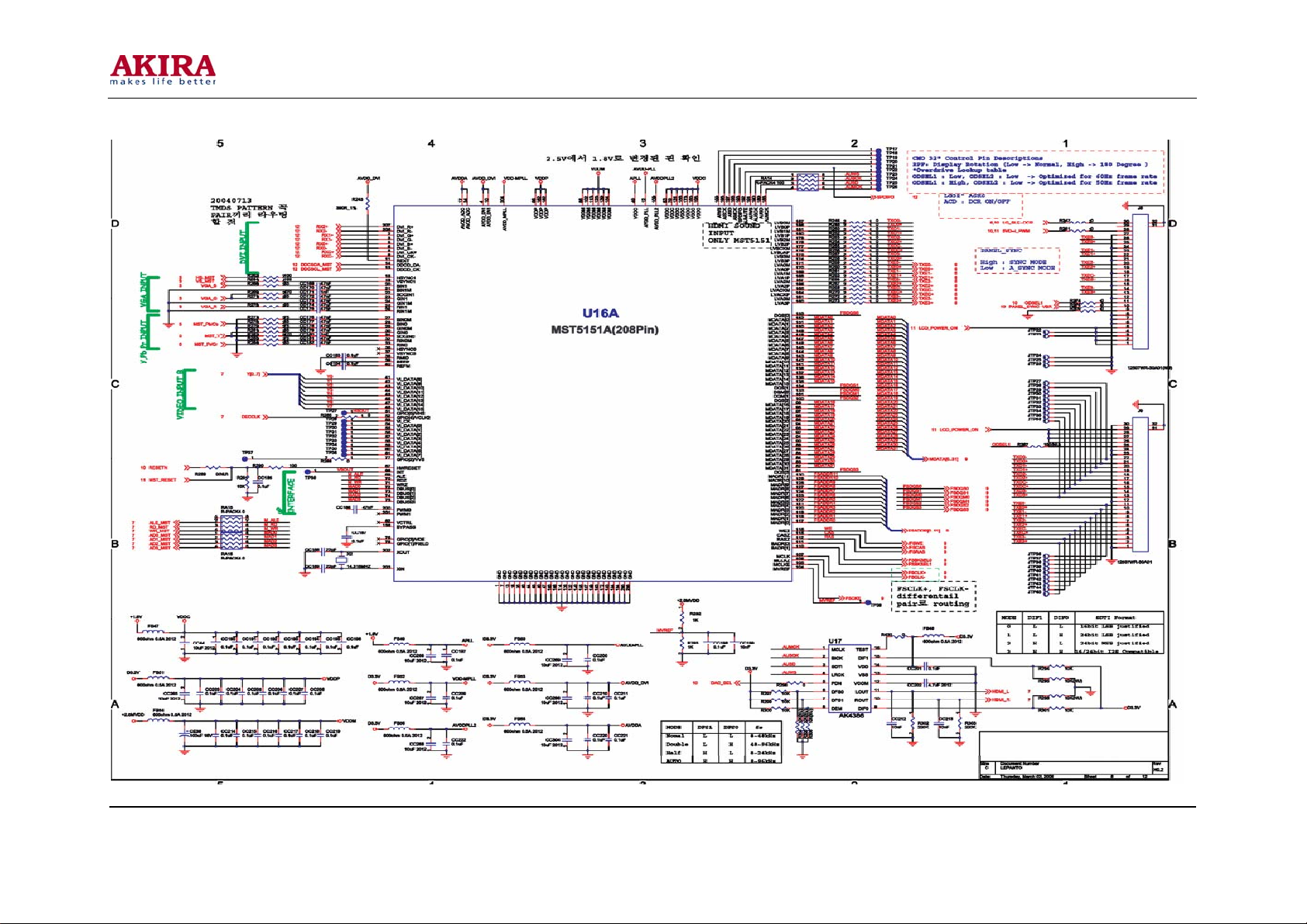

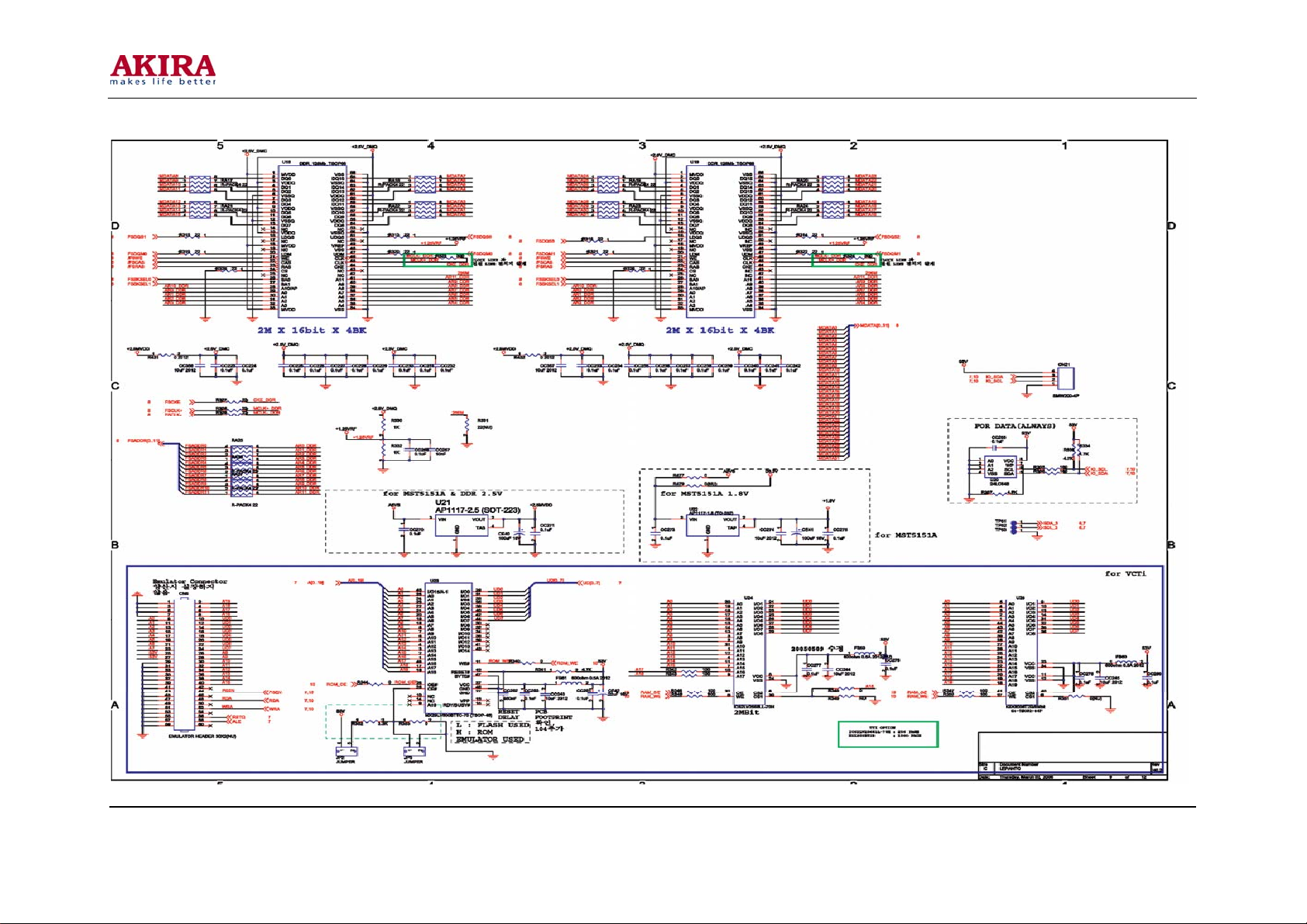

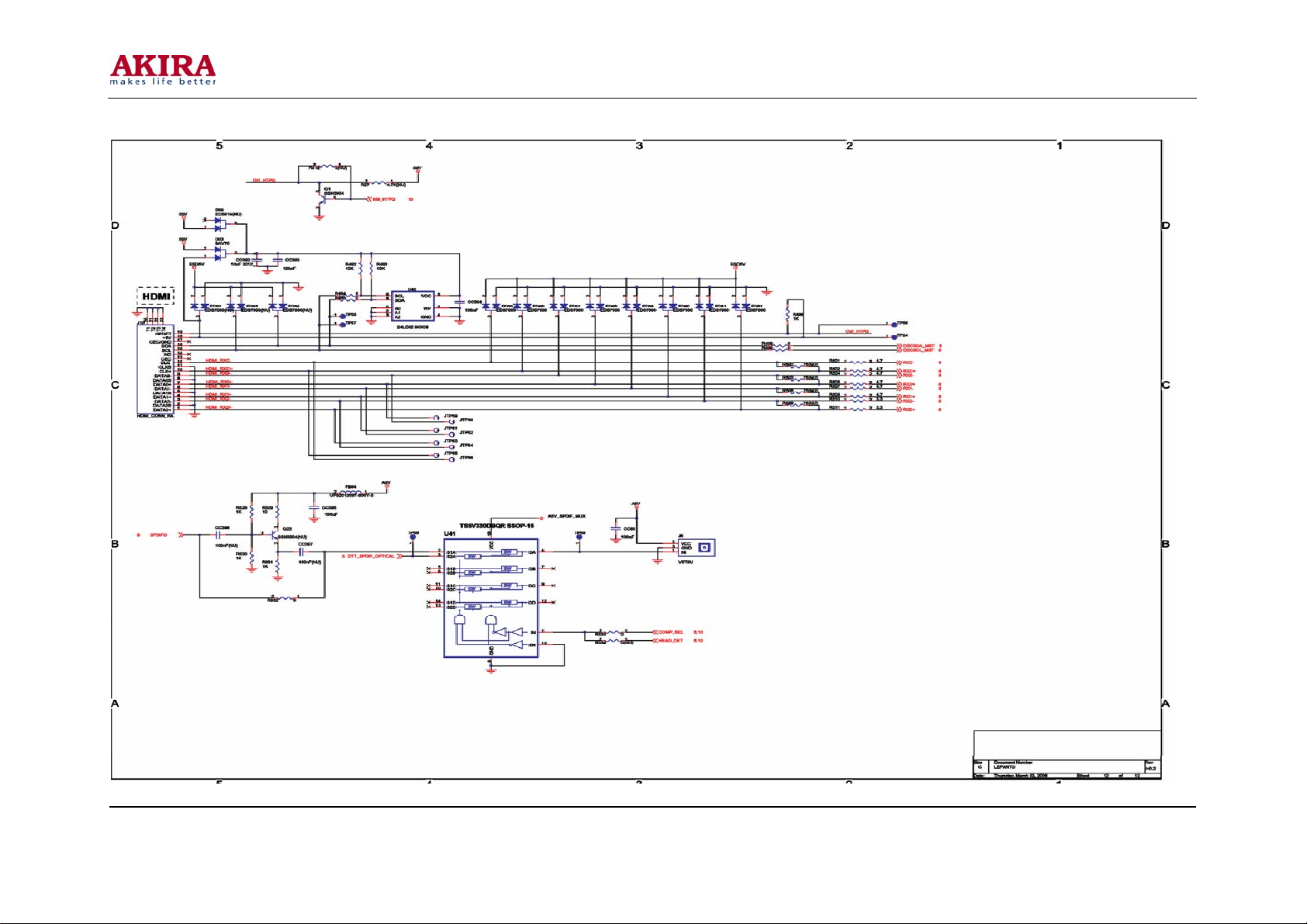

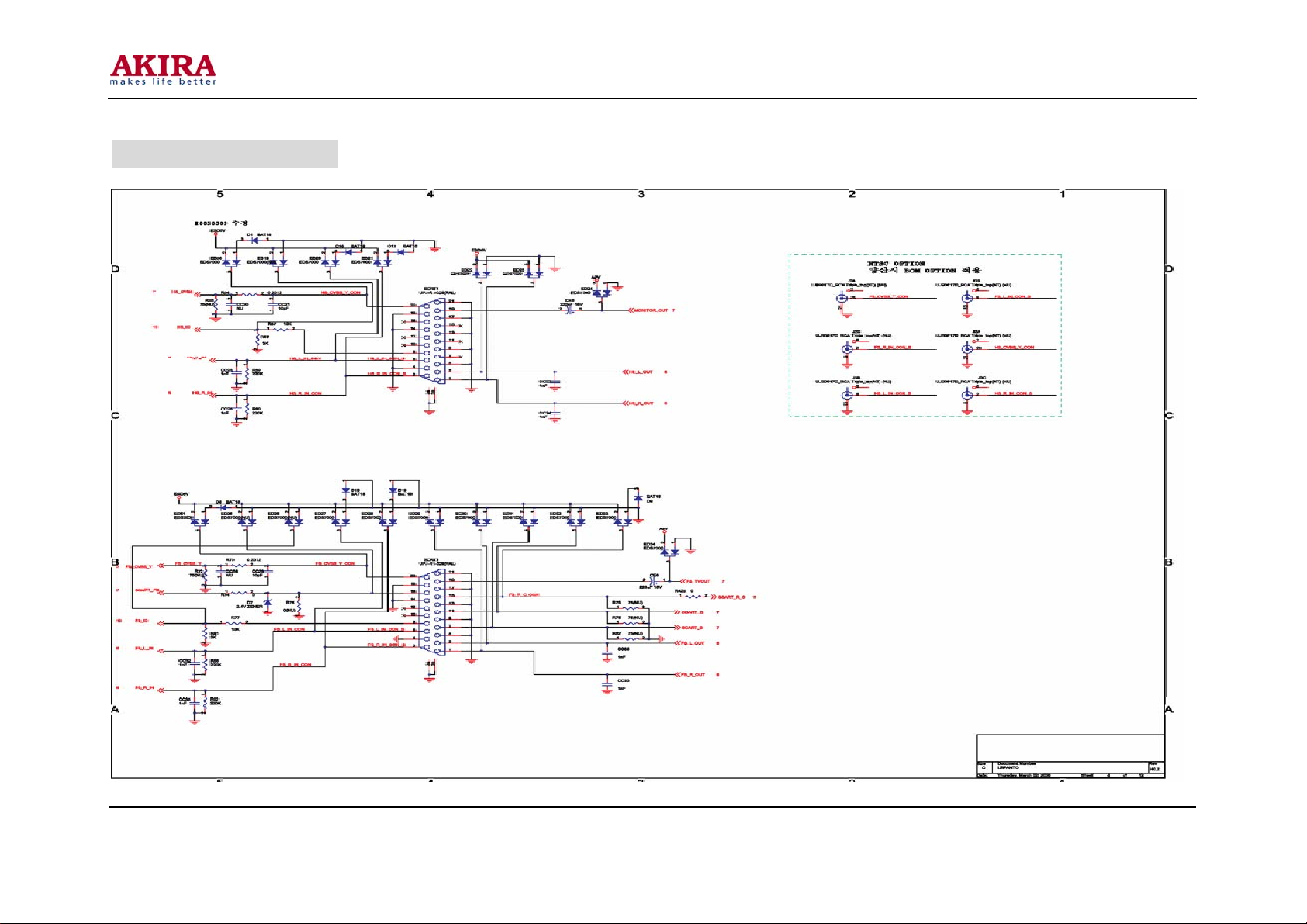

CIRCUIT DIAGRAM
Model No.: LCT-37ELOSST.doc
Version: 1.0
22
Model No.: LCT-37ELOSST.doc
Version: 1.0
23
Model No.: LCT-37ELOSST.doc
Version: 1.0
24
Model No.: LCT-37ELOSST.doc
Version: 1.0
25
Model No.: LCT-37ELOSST.doc
Version: 1.0
26
Model No.: LCT-37ELOSST.doc
Version: 1.0
27
Model No.: LCT-37ELOSST.doc
Version: 1.0
28
Model No.: LCT-37ELOSST.doc
Version: 1.0
29
Model No.: LCT-37ELOSST.doc
Version: 1.0
30
OSD MANUAL STRUCTURE
Level 1 Level 2 Level 3 Lever 4 Description Min Max Step Default
Custom
Dynamic
Picture(Video)
Picture Mode Select Picture Standard
Brightness Dir_Birghtness Adjust brightness of image 0 100 1 50
Contrast Dir_Contrast Adjust contrast of image 0 100 1 50
Standard
Movie
Mild
1 Standard
Custom
Color Dir_Color Adjust color saturation of image 0 100 1 50
Tint Dir_Tint Adjust tint angle of image 0 100 1 50
Sharpness Dir_Sharpness Adjust sharpness of image 0 100 5 50
Phase Dir_Fine Adjust phase(fine) of image 0 100 100/32 50
Color Tone Select color temperature
Model No.: LCT-37ELOSST.doc
Version: 1.0
Cool 2
Cool 1
Normal
Warm1
Warm 2
Normal
Size
31
Auto-wide
Wide
Adjust screen aspect ratio
Panorama
Zoom
Auto-wide
(Video)
Picture(PC)
Size Adjust screen aspect ration
mode
Select picture standard
Brightness Dir_Brightness Adjust brightness of image 0 100 1 50
Custom
Contrast Dir_Contrast Adjust contrast of image 0 100 1 50
Sharpness Dir_Sharpness Adjust sharpness of image 0 100 5 50
Color Tone Select color temperature
Color Tone
RED Dir_RED Adjust contrast of red color 0 100 1 50
4:3
14:9
Custom
High
Middle
Low
Custom
Cool2
Cool1
Normal
Worm1
Worm2
Auto-wide
1 Middle
Custom
GREEN Dir_GREEN Adjust contrast of green color 0 100 1 50
BLUE Dir_BLUE Adjust contrast of blue color 0 1010 1 50
Model No.: LCT-37ELOSST.doc
Version: 1.0
32
Size Adjust screen aspect ratio
Auto in
Progress
PC
(Image
Phase Adjust phase of PC image 0 100 100/64
Execute auto image adjustment EXE_Auto
lock)
H-Position Adjust horizontal position 0 100
V-Position Adjust vertical position 0 100
Frequency
Adjust sampling clock
frequency
Mode Select sound standard
Wide
4:3
Wide
0 100
Custom
Standard
Music Movie
1 Custom
Speech
Sound
Volume Adjust sound volume 0 100 1 20
Balance Adjust sound balance L50 R50 1 0
10kHz Adjust volume of 10kHz band 0 100 5 60
Equalizer
3kHz Adjust volume of 3kHz band 0 100 5 50
1kHz Adjust volume of 1kHz band 0 100 5 45
Model No.: LCT-37ELOSST.doc
Version: 1.0
33
300kHz Adjust volume of 300kHz band 0 100 5 50
100kHz Adjust volume of 100kHz band 0 100 5 60
Auto
Volume
Auto volume level On/Off
Off
On
1 On
Mono
Stereo
Dual I
Dual II
Nicam
Sound Mode
Select MTS according to sound
format
Mono
Nicam
Stereo
Nicam Dual
I
Nicam Dual
II
DTV Sound
Select
Model No.: LCT-37ELOSST.doc
Version: 1.0
Select SPDIF/Analog sound of
DTV
Digital
Analog
Analog
34
Austria
Belgium
Croatia
Denmark
Finland
Country Set up country for TV tuning
Auto Store
Execute auto program
searching
Prog Select program channel 0 99 1 1
Auto
France
Deutschland
Iceland
Ireland
Italia
Netherlands
Norway
Poland
Spain
Sverige
Schweiz
East Europe
UK
Others
Model No.: LCT-37ELOSST.doc
Version: 1.0
35
PAL
Color
System
Sound
System
Select color system in current
program
Select sound system in current
program
SECAM
NT4.43
BG
DK
I
L
Manual
Store
Real
Channel
Select cable/broadcast channel
Channel
Real
Channel
Select channel number 0
Number
Search Frequency
Store
Execute frequency up/down
searching
Store channel setting to current
program
Add/Delete Add/Erase selected channel Add/Erase
Sort Sort selected channel
Name Edit name of selected channel
Fine Tune
Model No.: LCT-37ELOSST.doc
Version: 1.0
DIR fine
tune
Adjust fine tune of current
program
C
S
Yes
No
-32 32 1 0
36
Reset Reset user setting to default EXE_Reset
Setup
Time
Clock
On Time
Off Time
On Time
Channel
On Time
Volume
Hour Adjust hours of current time 0 23 1
Minute Adjust minutes of current time 0 59 1
Hour Adjust hours of on time 0 23 1 0
Minute Adjust minutes of on time 0 59 1 0
Off/On Enable/Disable on time Off / On 1 Off
Hour Adjust hours of off time 0 23 1 0
Minute Adjust minutes of off time 0 59 1 0
Off/On Enable/Disable off time Off / On 1 Off
Select program when TV is on
by on time
0 99 1 1
Adjust volume when TV is on
by
0 100 1 20
on time
English
Model No.: LCT-37ELOSST.doc
Version: 1.0
37
German
Select language of OSD
Enable/Disable
On/Off 1 On
OSD Tone
OSD background blending
Select blue/black screen for
Blue
French
Spanish
Italian
1 English
On/Off 1 Off
Blanking screen
Screen
Off
Setup
Model No.: LCT-37ELOSST.doc
Version: 1.0
OSD Language
Enable/Disable PIP 1 Off
38
On
TV
PIP
Input Source
Input Source Select PIP source
Size Adjust PIP screen size
Scart
AV1
AV2
S-Video
Component
PC
HDMI
Large
Double1
Double2
1 Large
Model No.: LCT-37ELOSST.doc
Version: 1.0
Position
39
Position Select PIP position 1 Large
Right
Bottom
Swap
Swap main screen for PIP
screen
Right Top
Left Top
1 Right Buttom
Left Bottom
Sound
Select main or PIP sound input
source
Main
Sub
Main
Model No.: LCT-37ELOSST.doc
Version: 1.0
40
B.O.M - Main
No L Parts Code Part Name Q'ty Reference
1 Main Board Ass'y LHP11-37LLAT-M10D2
1 2 CNJ05150
2 2 CNJ13211
3 2 CNJ02067
4 2 CNJ02040 RCA2X2 Ni WW/RR 1 J5
5 2 CNJ09010 CXPTIC JACK 1 J6
6 2 CNJ04030 DIN Y/W/S-VIDEO/R 1 J1
7 2 CNW04321 4P 2.50 DIP_ST 1 CN18
8 2 CNW06320 6P 2.50 DIP_ST 1 CN9
9 2 CNW10321 10P 2.50 DIP_ST 1 CN15
D-SUB 15PIN
FEMAIL
SCART
21P(SCREW)
RCA3X2(6P) Ni
WR/GB
1 DSUB2
1 SCRT1
1 J4
10 2 CNW11321 11P 2.50 DIP_ST 1 CN14
11 2 CNW04220 4P 2.00 DIP_ST 1 CN21
12 2 CCS12301 TACT SW DIP_ST 1 SW01
13 2 CC05012 SAW FILTER PAL 1 U14
14 2 CCP10140
15 2 CCP20140
16 2 CCP50110 PAD 480X410 0.15
17 2 CCP30110 BOX 490X420X290 0.06
18 2 COP40120 BUBBLE BAG 1
19 2 COT20130 TU PAL(IF_A) 1 U13
20 2 CNJ02035
21 2 ASS'Y CODE LHP11-37LLAT-M1002T
1 3 CCC10000 CC 1506 50V 10pJ 13
2 3 CCC22000 CC 1506 50V 22pJ 7 CC57,CC133,CC134,CC188,CC189,CC311,CC312
Separate (paper)
490X127 2th
Separate (paper)
410X127 2th
RCA 3X1 Ni
RWY(SCART)
0.6
0.2
1 J2
CC7,CC21,CC25,CC29,CC361,CC363,CC365,CC367,
CC369,CC371,CC382,CC384,CC389
3 3 CCC47000 CC 1608 50V 47pJ 3 CC16,CC123,CC248
4 3 CCC10100 CC1608 50V 100pJ 2 CC121,CC122
5 3 CCC47100 CC1608 50V 470pJ 12
6 3 CCC68100 CC 1608 50V 680pJ 1 CC18
Model No.: LCT-37ELOSST.doc
Version: 1.0
CC146,CC148,CC150,CC152,CC154,CC156,CC158,
CC160,CC162,CC164,CC166,CC158
41
CC8,CC9,CC22,CC23,CC24,CC25,CC30,CC32,
7 3 CCC10210 CC 1608 50V 1nK 20
8 3 CCC15210 CC 1608 50V 1.5nK 12
9 3 CCC22210 CC 1608 50V 2.2nK 2 CC250,CC251
10 3 CCC47210 CC 1608 50V 4.7nK 2 CC35,CC39
11 3 CCC10310 CC 1608 50V 10nK 4 CC199,CC212,CC213,CC257
CC33,CC35,CC47,CC48,CC54,CC59,CC171,CC180
CC294,CC295,CC302,CC303
CC145,CC147,CC149,CC151,CC153,CC155,CC157
CC159,CC161,CC163,CC165,CC167
12 3 CCC47320 CC 1608 25V 47nK 13
13 3 CCC10440 CC 1608 50V 100n Z 133
14 3 CCC22450 CC 1608 25V 220n Z 11
CC169,CC170,CC172,CC173,CC174,CC175,CC176,
CC177,CC178,CC179,CC181,CC182,CC186
CC12,CC13,CC14,CC15,CC27,CC43,CC49,CC50,CC60
CC75,CC113,CC114,CC117,CC118,CC119,CC120,CC124
CC131,CC132,CC183,CC184,CC185,CC187,CC190,
CC191,CC192,CC193,CC194,CC195,CC196,CC197,
CC198,CC200,CC201,CC203,CC204,CC205,CC206,
CC207,CC208,CC209,CC210,CC211,CC214,CC215,
CC216,CC217,CC218,CC219,CC220,CC221,CC222
CC223,CC224,CC225,CC226,CC227,CC228,CC229
CC230,CC231,CC232,CC233,CC234,CC235,CC236,
CC237,CC238,CC239,CC240,CC241,CC242,CC246,
CC247,CC255,CC256,CC270,CC271,CC273,CC275
CC276,CC277,CC278,CC280,CC281,CC283,CC284
CC285,CC286,CC289,CC290,CC291,CC293,CC299
CC300,CC305,CC307,CC309,CC313,CC314,CC315,
CC316,CC317,CC318,CC319,CC320,CC321,CC322
CC323,CC324,CC325,CC328,CC329,CC332,CC334,
CC335,CC336,CC339,CC340,CC342,CC343,CC345
CC346,CC347,CC348,CC349,CC351,CC352,CC354,
CC387,CC393,CC394,CC395
CC135,CC136,CC137,CC141,CC287,CC288,CC292
CC297,CC298,CC301,CC379
15 3 CCC33460 CC 1608 16V 330n Z 6 CC125,CC126,CC127,CC128,CC129,CC130
16 3 CCC68470 CC 1608 10V 680n Z 6 CC138,CC140,CC142,CC144,CC282,CC380
17 3 CCC10570 CC 1608 10V 1u Z 6 CC1,CC2,CC3,CC4,CC5,CC386,
CC74,CC75,CC77,CC78,CC79,CC80,CC81,CC82,
18 3 CCC47511 CC2012 10V 4.7u Z 19
19 3 CCC10611 CC 2012 10V 10u Z 25
20 3 CCCE33130 CE 4X5.3 50V 0.33u 2 CE45,CE46
21 3 CCCE10230 CE 4X5.2 50V 1u 1 CE44
22 3 CCCE33230 CE 4X5.3 50V 3.3u 1 CE19
Model No.: LCT-37ELOSST.doc
Version: 1.0
CC87,CC88,CC89,CC90,CC95,CC96,CC97,CC98
CC99,CC100,CC202
CC44,CC52,CC58,CC243,CC244,CC245,CC265,
CC266,CC267,CC268,CC269,CC274,CC295,CC304,
CC306,CC308,CC310,CC355,CC356,CC357,CC359,
CC360,CC388,CC390,CC391,CC392
42
23 3 CCE47230 CE 4X5.3 50V 4.7u 1 CE21
24 3 CCE10300 CE 4X5.3 16V 10u 1 CE70
25 3 CCE22300 CE 4X5.3 16V 22u 15
26 3 CCE47300 CE 5X5.3 16V 47u 16
27 3 CCE47330 CE 6.3X7.7 50V 47u 2 CE18,CE57
28 3 CCE10400
29 3 CCE22410 CE 8X10.5 25V 220u 8 CE5,CE6,CE17,CE43,CE47,CE52,CE54,CE85
30 3 CDD30350
31 3 CDD30851
32 3 CDD30850
33 3 CDD30700
CE 6.3X5.3 16V
100u
SW DIODE 100mA
35V
SW DIODE 300mA
85V
SW DIODE 300mA
85V
SW DIODE 70V
450mA
CE14,CE24,CE25,CE26,CE27,CE28,CE29,CE30,
CE31,CE32,CE33,CE34,CE35,CE42,CE81,
CE7,CE15,CE16,CE49,CE59,CE61,CE62,CE63,
CE66,CE67,CE68,CE69,CE71,CE72,CE74,CE75,
CE1,CE22,CE23,CE38,CE40,CE41,CE50,CE51,
13
CE53,CE55,CE82,CE83,CE84
D1,D8,D9,D11,D12,D13,D14,D15,D16,D17,D18,
22
D19,D20,D21,D22,D23,D24,D25,D26,D28,D29,D30
ED11,ED12,ED13,ED20,ED21,ED22,ED23,ED24,ED27,
ED28,ED29,ED30,ED31,ED32,ED33,ED34,ED35,ED36,
42
ED38,ED39,ED40,ED41,ED42,ED43,ED44,ED45,ED46,
ED47,ED48,ED49,ED50,ED51,ED53,ED54,ED55,ED56,
ED57,ED58,ED59,ED60,ED61,ED62,
4 D4,D5,D6,D10,
1 D33
34 3 CDD12940 ZENER 200mW 2.4V 1 D7
35 3 CDD20300 SCHDTTKY 1A 30V 4 SD1,SD2,SD3,SD4
36 3 CBD20600
37 3 CBD20320
38 3 CBD20050
39 3 CLI10100
40 3 CLI32940 P.IND 0804 2.4A 10U 4 L28,L29,L30,L31
41 3 CTR20100 T3904 NPN SOT-23 11 Q1,Q5,Q7,Q9,Q10,Q14,Q15,Q16,Q18,Q20,Q21
42 3 CTR10100 T3906 PNP SOT-23 2 Q11,Q12
43 3 CTR20140
FER-BEAD 600Ω
2012
FER-BEAD 32Ω
2012
FER-BEAD 50Ω
2012
F.IND 3225 10U ±
10%
MOSFET 0.0680
SD-8
FB1,FB2,FB4,FB5,FB25,FB41,FB42,FB43,FB47,
21
FB48,FB49,FB50,FB51,FB52,FB53,FB54,FB55
FB56,FB59,FB61,FB71
2 FB30,FB31
FB66,FB67,FB68,FB69,FB70,FB72,FB73,FB74,
16
FB80,FB82,FB84,FB85,FB87,FB88,FB90,FB93
12 L16,L17,L18,L19,L20,L21,L22,L23,L24,L25, L26,L27
1 Q17
44 3 CRA00010 RA 1608 0 1/10J 9 RA3,RA4,RA5,RA6,RA7,RA8,RA9,RA15,RA16
45 3 CRA22010 RA 1608 22 1/10J 11
Model No.: LCT-37ELOSST.doc
Version: 1.0
RA17,RA18,RA19,RA20,RA21,RA22,RA23,RA24,RA25,
RA26,RA27
43
46 3 CRA10110 RA 1608 100 1/10J 8 RA2,RA11,RA14,RA28,RA29,RA30,RA31,RA32,
47 3 CRA10210 RA 1608 1K 1/10J 2 RA1,RA13
R3,R8,R30,R45,R74,R83,R84,R90,R100,R105,
R106,R125,R179,R194,R197,R202,R203,R204,R205,
R206,R234,R246,R247,R248,R250,R251,R252,R253,
R254,R255,R256,R257,R258,R259,R260,R261,R263,
48 3 CRC00010 RC 1608 0 1/10J 83
49 3 CRC00030 RC 2012 0 1/8J 21
50 3 CRC30030 RC 1608 3.3 1/10J 2 R510,R511
51 3 CRC40070 RC 1608 4.7 1/10J 6 R501,R502,R504,R505,R507,R508
52 3 CRC10010 RC 1608 10 1/10J 1 R529
R265,R267,R268,R270,R272,R273,R274,R276,R285,
R288,R296,R309,R340,R344,R345,R353,R372,R374,
R377,R379,R392,R393,R394,R411,R423,R424,R425,
R430,R434,R437,R451,R452,R453,R454,R471,R473,
R474,R477,R485,R494,R495,R498,R499,R514,
FB39,FB40,CC51,CC53,R54, FB62,FB63,FB64, FB65,
R70,R431,R432,R460,R461,R462,R463,
R464,R465,R469,R470,R516,
53 3 CRC10091 RC 5025 10 1/2J 2 R356,R365
54 3 CRC22010 RC 1608 22 1/10J 13
55 3 CRC33010 RC 1608 33 1/10J 6 R266,R271,R275,R278,R281,R284
56 3 CRC75010 RC 1608 75 1/10J 15
57 3 CRC75020 RC 1608 75 1/10F 6 R41,R43,R49,R311,R312,R317
58 3 CRC10110 RC 1608 100 1/10J 41
59 3 CRC15110 RC 1608 150 1/10J 4 R238,R240,R243,R244
60 3 CRC20110 RC 1608 200 1/10J 1 R490
61 3 CRC30110 RC 1608 300 1/10J 5 R206,R323,R324,R482,R483
62 3 CRC39120 RC 1608 390 1/10F 1 R245
R313,R314,R315,R316,R319,R320,R321,R322,
R325,R326,R327,R328,R329
R56,R73,R212,R213,R214,R215,R216,R218,
R219,R220,R222,R227,R277,R279,R283
R25,R42,R50,R111,R186,R187,R188,R189,
R190,R191,R192,R193,R195,R209,R210,R225
R226,R228,R229,R230,R232,R262,R264,R290,
R335,R336,R342,R343,R346,R347,R348,R350,
R366,R381,R383,R384,R385,R389,R390,R391, R422
63 3 CRC47110 RC 1608 470 1/10J 6 R45,R52,R99,R101,R269,R282
R9,R44,R51,R121,R126,R145,R146,R147,R148,R149,
64 3 CRC10210 RC 1608 1K 1/10J 36
65 3 CRC24210 RC 1608 2.4K 1/10J 3 R46,R117,R118
Model No.: LCT-37ELOSST.doc
Version: 1.0
R150,R151,R152,R155,R156,R157,R158,R159,R160,
R161,R162,R163,R164,R199,R292,R293,R330,R332,
R385,R387,R388,R413,R496,R528,R530,R531
44
66 3 CRC30210 RC 1608 3K 1/10J 7 R58,R81,R354,R356,R357,R361,R362
67 3 CRC33210 RC 1608 3.3K 1/10J 3 R352,R410,R436
68 3 CRC47210 RC 1608 4.7K 1/10J 14
69 3 CRC82210 RC1608 8.2K 1/10J 1 R380
70 3 CRC82221 RC1608 8.25K 1/10J 1 R358
71 3 CRC10310 RC 1608 10K 1/10J 16
72 3 CRC12310 RC1608 12K 1/10J 2 R176,R457
73 3 CRC18310 RC1608 18K 1/10J 4 R233,R235,R237,R241
74 3 CRC20310 RC1608 20K 1/10J 2 R360,R364
75 3 CRC27310 RC1608 27K 1/10J 2 R359,R363
76 3 CRC47310 RC1608 47K 1/10J 2 R404,R481
77 3 CRC10410 RC1608 100K 1/10J 1 R181
78 3 CRC22410 RC1608 220K 1/10J 12
R29,R30,R168,R169,R170,R171,R223,R224,R333,
R334,R337,R341,R407,R488
R110,R195,R200,R231,R291,R294,R297,R299,
R300,R301,R403,R405,R458,R484,R489,R492,
R19,R22,R59,R60,R88,R92,R96,R98,R109
R112,R302,R303
79 3 CRC10510 RC 1608 1M 1/10J 4 R120.R130.R198,R373
80 3 CIR29510
81 3 CIR19810
82 3 CIR39310
83 3 CIR05013
84 3 CIR05010 REG 1A 5VITO-252 2 U12,U29
85 3 CIR09010 REG 1A 9V(TO-252) 1 U32
86 3 CIR08010 REG 1A 8V(TO-252) 1 U35
87 3 CIC26010
88 3 CIC04014 EEPROM 2K SOIC-8 2 U3,U40
89 3 CIC30010
90 3 CIC10012
91 3 CIC16011 BUS S/W TSSOP-8 1 U11
REG 1A
2.5VISOT-223T
REG 1A
1.8VITO-252T
REG 1A
3.3VISOT-223J
REG 1A
5VIOPAK-5T
Dual RS-232
SOIC-16
HEX INVERTER
SOIC-14
QUAD VIDEO
MUX/DEMUX
1 U21
2 U22,U33
1 U35
1 U30
1 U1
1 U4
1 U41
92 3 CIC31010 AUDIO MUX 6-3 1 U10
Model No.: LCT-37ELOSST.doc
Version: 1.0
45
93 3 CIC14011
94 3 CIC11010
95 3 CIC21010 DAC 24-BIT 2ch 1 U17
96 3 CIC01010
97 3 CIC04016
98 3 CIC03014 FLASH 8M TSOP-4B 1 U23
99 3 CIC07013 AUDIO AMP 15W/ch 1 U26
100 3 CIC19010 CPU 8051 PLCC-44 1 U27
101 3 CIC17011 2-in Multipleaser 1 U28
102 3 CIC24010
103 3 CNW30110 30P 1.25 SVD RA 1 J8
104 3 CNH06190 HDMI 19 SMT RA 1 J10
105 3 CNW15110 15P 1.25 SMD RA 1 CN17
VIDEO
CONTROLLER
PROCESSOR
DDR 128M 8X16
TSOP66
EEPROM 64Kbit
SOCI-8
V-DETECT 500mA
2.5V
1 U15
1 U16
2 U18,U19
1 U20
2 U38,U39
106 3 CXT20130 X-TAL 20.25M 13p 1 X1
107 3 CXT14150
108 3 CXT24200 X-TAL 24.000M 20p 1 X3
109 3 CPB50109 LEP MAIN H02
110 3 CRA18110 RA 1608 180 1/10J 2 RA10,RA12
111 3 CXC05012 SRAM 256K 1 U24
112 3 CRC36210 RC 1608 3.6K 1/10J 1 R459
X-TAL 14.31818M
16p
1 X2
Model No.: LCT-37ELOSST.doc
Version: 1.0
46
B.O.M – POWER BOARD
NO Part Name LOCATION SPEC1 Q'TY SPEC 2
1 PCB
2 FUSE F1
3 SCR SCR1 BT169D(TO-92) 1 PCR406J
4 VARISTOR VA1 TVR14D621K(7.5mm) 1 CNR 14D 621K
5 THERMISTOR TH1,2,3 DSC 10D-15(7.5mm) 3
6 CAP M.P CX1 275VAC X2 684K(22.5mm) 1
7 CAP M.P CX2 275VAC X2 224K(22.5mm) 1
8 CAP CERAMIC CY5 250VAC AD102M 1 250VAC NK102M
9 CAP CERAMIC C46 1KV 102K(5mm) 1
10 CAP CERAMIC C47 1KV 222K(5mm) 1
11 CAP CERAMIC C20,27,CY2,4 250VAC AD471K 4 250VAC NK471K
APAT-42(FR-4, .6T,
245*140mm)
T5A H 250V(LEAD TYPE)
50CT
1
12 CAPACITOR M.F C6 MPP500V 474J(22.5mm) 1 PMS 500V 474J(22.5mm)
13 CAPACITOR M.F C25,31 MPP 800V 104J(16mm) 2 PHS 800V 104J
14 CAPELECT C8
15 CAPELECT C59,60,63,65 RD 25V 47uF(5*11m) 4 KM 25V 47uF(5*11m)
16 CAPELECT C7 RD 25V 100uF(6.3*11mm) 1 KM 25V 100uF(6.3*11mm)
17 CAPELECT C2,3,4,5 RD 35V 1000uF(12.5*20mm) 4
18 CAPELECT C49,51 RD 10V 1000uF(10*12.5mm) 2
19 CAPELECT C50 RD 10V 2200uF(10*20mm) 1
20 CAPELECT C54,55,61 RD 10V 4700uF(12.5*25mm) 3
21 CAPELECT C32 RD 50V 4.7uF(5*11mm) 1 KM 50V 4.7uF(5*11mm)
22 CAPELECT C41,44 RD 16V 470uF(8*12mm) 2 KM 16V 470uF(8*12mm)
23 CAPELECT C39,43 RD 35V 470uF(10*16mm) 2 KM 35V 470uF(10*16mm)
24 CAPELECT C30,115 RD 50V 10uF(5*11mm) 2 KM 50V 10uF(5*11mm)
25 CAPELECT C73,74 RD 50V 100uF(8*11.5mm) 2 KM 50V 100uF(8*11.5mm)
26 CAPELECT C72 RD 10V 220UF(5.0*11mm) 1 KM 10V 220UF(5.0*11mm)
HE 450V 220uF
(P35*H30*10mm)
1 HP,PDA 450V 220uF
KM 35V
1000uF(12.5*20mm)
KM 10V
1000uF(10*12.5mm)
KM 10V 2200uF
(10*20mm)
KM 10V
4700uF(12.5*25mm)
27 DIODE BRIDGE BD1 D15SB60 1 D15XB60
28 DIODE D1 1N5406 1
29 DIODE D15,16 SB560 2
30 DIODE D2 STTH15R06D(TO-220) 1
31 DIODE F.R D9,17,20,21,23,24 HER108 6 HER108
32 DIODE D13 1N4148 1
Model No.: LCT-37ELOSST.doc
Version: 1.0
47
33 DIODE D3 STPS40H100CW(TO-3P) 1
34 DIODE D18 SFF1606G(TO-220FP) 1
35 DIODE D14 STPS2045CT(TO-220) 1
36 DIODE D12 SFF1604G(TO-220FP) 1
37 IC IC5 IR21571PBF(DIP-16) 1
38 IC IC8 AP1501 T5L(TO-220-5L) 1
39 IC IC13 KA317L(TO-92) 1
40 IC IC11 KA278R33(TO-220FP-4L) 1 KIA278R33
41 IC REGULATOR IC3,9 KA78L15(TO-92) 2
42 IC SHUNT IC7,10 SL431A(TO-92) 2 KIA431A
43 RTANSFORMER T1 APWS-37-T1(EER4954) 1 APWS-37-T1(EER4954)
44 RTANSFORMER T3 ACRP-32S-T3(EFD225) 1 ACRP32S-T3(EFD2525)
45 CHOKE-BAR L5 120uH(DR12*11mm) 1
46 CHOKE-BAR T2
47 CHOKE-NORMAL L7,8 NVA175-60110ND 2
APWS-42-T2
(EER4042-250uH)
1
APWS-42-T2(EER4042250uH)
48 LINE FILTER LF2 DV505180BS 1
49 CHOKE-BAR L2,3,4,6 0.6uH(3*10)-7mm 4
50 CHOKE-BAR L1 3uH(5*20) 1
51 PHOTO COUPLER PC1,2,3,4,5 LTV817B 5
52 CONNECTOR P801 YW396-03AV 1
53 FET Q3 STW26NM60(TO-3P) 1
54 FET Q8 STP4NK80ZFP(TO-220FP) 1
55 FET Q4,6 STP11NM60FP(TO-220) 2 SPP11N60C3
56 TRANSISTOR Q14 KTD1691Y(TO-126) 1 KSD1691Y(TO-126)
57 RESISTOR SURGE R21 1/2W 910K 5% 1
58 RESISTOR SURGE R26 1/2W 4.7M 5% 1
59 RESISTOR M.O.R R86 1W 1 1
60 RESISTOR W/W R59 3N 0.2 5% 1
61 RESISTOR MPR R35 10W 0.12 5%(10mm) 1
62 RESISTOR TFR R30 TFR 5W 4.7 OHM J 131(10mm) 1
63 RESISTOR R22,23 1Φ 0.01 10%(10mm) 2
64 RESISTOR R65 1/8W 8.2KF 1
65 RESISTOR M.O.R R107,108 3W 68K 5%(MINI) 2
66 RESISTOR M.O.R R33 3W 470 5%(MINI) 1
67 RESISTOR M.O.R R67 1W 47K 5% 1
Model No.: LCT-37ELOSST.doc
Version: 1.0
48
68 RESISTOR W/W R99 1N 0.8 5% 1
69 RESISTOR M.O.R R66 1W 22 5% 1
70 BEAD CORE BEAD1 SAT3580L 1
71 CONNECTOR CN4 SMW250-11P 1
72 CONNECTOR CN5 SMW250-10P 1
73 CONNECTOR CN2A,CN2B 20010WS-14P 2
74 CONNECTOR CN3 SMW250-4P 1
75 H/SINK HS101(Q4,Q6)
76 H/SINK HS102(BD1)
77 H/SINK HS103(Q3,Q8,D2)
78 H/SINK
79 H/SINK
80 SCREW-MACHINE
81 SCREW-MACHINE BD1, Q3, D3 MA PH 3*12 Ni(PW/SW) 2
HS104
(D3,D12,D14,D18)
HS105(IC8),
HS106(IC11)
Q4,Q6,Q8,D2,D12,
D14,D18
HS101-ACRP-32S
(L50*H31*T10)
HS102-ACRP-32S
(L70*H31*T10)
HS103-ACRP-32S
(L90*H31*T10)
HS104-ACRP-32S
(L110*H31*T10)
HS:TO-220P(15*30*11) 2
MA PH 3*10 Ni(PW/SW) 7 3
1
1
1
1
82 SCREW-MACHINE IC8, IC11 TAPTITE P3*8 2
83 SIL PAD D2,D14
84 SIL PAD Q3,D3
85 SCREW-BUSHING D2,D14 3PH1 2
86 TUBE F101 25mm*7mm 1
CAP
87
CERAMIC(SMD)
CAP
88
CERAMIC(SMD)
CAP
89
CERAMIC(SMD)
CAP
90
CERAMIC(SMD)
CAP
91
CERAMIC(SMD)
CAP
92
CERAMIC(SMD)
CAP
93
CERAMIC(SMD)
CAP
94
CERAMIC(SMD)
CAP
95
CERAMIC(SMD)
CAP
96
CERAMIC(SMD)
CAP
97
CERAMIC(SMD)
CAP
98
CERAMIC(SMD)
99 RESISTOR(SMD) R106 2012, 2R2 1
C22,28,53 0805 X7R 25V 103K 3
C14 0805 X7R 25V 202K 1
C23,33,66 0805 X7R 25V 102K 3
C17 0805 NPO 25V 101J 1
C36 0805 NPO 25V 221J 1
C71 0805 NPO 25V 681J 1
C40,70 0805 X7R 25V 474K 2
C69 0805 NPO 50V 471J 1
C9,13,16,21,24,26,38,
C42,45,48,52,56,62,
C64,67
C1,19,29,37,57,58,68 0805 X7R 25V 104K 7
C35 0805 X7R 25V 472K 1
C34,76 0805 Y5V 25V 225Z 2
SIL-PAD 900S
(TO-220:L13*H18)
SIL-PAD 900S
(TO-3:L19*H23)
0805 X7R 25V 105K 15
2
2
100 RESISTOR(SMD) R84 2012, 000J 1
101 RESISTOR(SMD) R103 2012, 1.2KF 1
102 RESISTOR(SMD) R115 2012, 1.5K 1
Model No.: LCT-37ELOSST.doc
Version: 1.0
49
103 RESISTOR(SMD) R37 2012, 1.8K 1
104 RESISTOR(SMD) R10,39,48,81,98 2012, 10K 5
105 RESISTOR(SMD) R36,58 2012, 10KF 2
106 RESISTOR(SMD) R42 2012, 11K 1
107 RESISTOR(SMD) R28 2012, 130KF 1
108 RESISTOR(SMD) R47,88 2012, 100KF 2
109 RESISTOR(SMD) R45,54 2012, 15 2
110 RESISTOR(SMD) R117 2012, 15K 1
111 RESISTOR(SMD) R31 2012, 27K 1
112 RESISTOR(SMD) R63 2012, 18KF 1
113 RESISTOR(SMD) R38,41,50,57,89,109 2012, 1K 6
114 RESISTOR(SMD) R76,79 2012, 2.2K 2
115 RESISTOR(SMD) R32 2012, 200 1
116 RESISTOR(SMD) R90,91,92,93,95 2012, 20K 5
117 RESISTOR(SMD) R63 2012, 20KF 1
118 RESISTOR(SMD) R53 2012, 22K 1
119 RESISTOR(SMD) R64 2012, 240 1
120 RESISTOR(SMD) R24 2012, 240K 1
121 RESISTOR(SMD) R19 2012, 270K 1
122 RESISTOR(SMD) R43,71,83 2012, 2KF 3
123 RESISTOR(SMD) R12 2012, 3.3KF 1
124 RESISTOR(SMD) R7,13,25 2012, 300K 3
125 RESISTOR(SMD) R14,44,46,60 2012, 30K 4
126 RESISTOR(SMD) R100 2012, 330F 1
127 RESISTOR(SMD) R52,49,27,62 2012, 33K 4
128 RESISTOR(SMD) R102 2012, 7.5K 1
129 RESISTOR(SMD) R18 2012, 3KF 1
130 RESISTOR(SMD) R11,80 2012, 4.7K 2
131 RESISTOR(SMD) R87,61 2012, 43KF 2
132 RESISTOR(SMD) R29,73 2012, 47 2
133 RESISTOR(SMD) R78,116 2012, 470 2
134 RESISTOR(SMD) R96,105 2012, 47K 2
135 RESISTOR(SMD) R5 2012, 4R7 1
136 RESISTOR(SMD) R96 2012, 5.6KF 1
137 RESISTOR(SMD) R40 2012, 510 1
138 RESISTOR(SMD) R75 2012, 560 1
Model No.: LCT-37ELOSST.doc
Version: 1.0
50
139 RESISTOR(SMD) R82 2012, 6.2KF 1
140 RESISTOR(SMD) R56 2012, 6.8KF 1
141 RESISTOR(SMD) R1,2,3,4 2012, 62K 1
142 RESISTOR(SMD) R97 2012, 680 1
143 RESISTOR(SMD) R68 2012, 7.5KF 1
144 RESISTOR(SMD) R74 2012, 8.2KF 1
145 RESISTOR(SMD) R101 2012, 1M 1
146 RESISTOR(SMD) R77,85 3216, 000J 2
147 RESISTOR(SMD) R70,72 3216, 100K 2
148 RESISTOR(SMD) R16,114 3216, 1K 2
149 RESISTOR(SMD) R110,111,112,113 3216, 33K 4
150 RESISTOR(SMD) R20 3216, 390KF 1
151 RESISTOR(SMD) R9,15 3216, 470KF 2
152 RESISTOR(SMD) R104 3216, 6.8KF 1
153 IC(SMD)-PFC IC2 13002(SO-8) 1
154 IC(SMD)-INVERTER IC4 KA2904D(SO-8) 1
155 IC(SMD)-PWM IC12 FAN7601MX(SO-8) 1
156 DIODE SW(SMD) D5,6,7,8,10,11,19 BAV70(SOT-23) 7
DIODE
157
ZENNER(SMD)
DIODE
158
ZENNER(SMD)
DIODE
159
ZENNER(SMD)
DIODE
160
ZENNER(SMD)
DIODE
161
ZENNER(SMD)
DIODE
162
ZENNER(SMD)
163 TR(SMD) Q2,5,7,12 SBT2907A(SOT-23) 4
164 TR(SMD) Q1,9,10,11,13 SBT2222A(SOT-23) 5
165 BOX A05-404 BOX 0.0625
166 PAD APKT-32 PAD 0.125
167 PARTITION PARTITION-A APKT-32 PA 0.56
168 PARTITION PARTITION-B APKT-32 PB 0.19
ZD3,4 5.6VY(SOT-23) 2
ZD9 18VY(SOT-23) 1
ZD5,6 15VY(SOT-23) 2
ZD10,11 20VY(SOT-23) 2
ZD8 36VY(SOT-23) 1
ZD1,2,7 27VY(SOT-23) 3
169 LABEL 38*6mm 1
170 SILICON OIL
171 SILANT LDC-737 1.0ml
172 BUBBLE BAG 290*150mm 1
173 SMD-BOND HT-130A 0.016ml
BD1,Q4,Q6,Q8,D12,D18
IC8,IC11
HC-300 0.2g
Date are subject to changes without prior notice
Model No.: LCT-37ELOSST.doc
Version: 1.0
51
EXPLODED VIEW
Model No.: LCT-37ELOSST.doc
Version: 1.0
52
PART LIST
NO. PART NAME QTY REMARKS
1 Deco Lower 1 Mirror
2 Deco Upper 1 AL
3 Front Cover 1 ABS
4 Screw 4 M3x5 (ZN)
5 LCD Panel 1 LC420W02
6 Cover LCD 1 SECC 1.2T
7 Power Switch 1 ABS
8 Cover AC Socket 1 ABS
9 PCB Cord Power 1 PCB ASSY
10 SCREW 5 M3x5 (ZN)
11 PCB Main 1 PCB ASSY
12 PCB Power 1 PCB ASSY
13 SCREW 12 M3x5 (ZN)
14 Wall Mounting Bracket 2 SEC 1.6T
15 Bracket Hint Support 2 SECC 1.0T
16 Case Shield 1 SECC 1.0T
17 Screw 9 M3x5 (ZN)
18 Cover Back 1 ABS
19 Speaker Cover L 1 ABS
20 Speaker Cover R 1 ABS
21 Screw 12 PTC4x14 (BK)
22 Screw 6 M8 x15 (BK)
23 Bracket I/O 1 SECC 1.0T
24 Screw 1 M4 x 12 (BK)
25 Wall Mount Assy 1 Assy
26 Screw 6 M6 x 15 (BK)
27 Support Stand 1 Die Casting
28 Cover Wire 1 ABS
29 Stand Base 1 ABS
30 Deco Stand 1 ABS
31 Stand Base Plate 1 GI 3.0T
32 Foot Rubber 8 NBR
33 Screw 1 M4 x 12 (BK)
34 Screw 8 PTC 4 x 14 (BK)
35 Screw 4 PTC3 x 10 (BK)
36 Screw 16 PTC4 x 14 (BK)
37 Bracket Speaker 4 SECC 1.6T
38 Screw 16 PTC3 x 10 (BK)
39 Speaker Cover Back R 1 ABS
40 Speaker Elbow 2 ABS
41 Screw 12 PTC3 x 10 (BK)
42 Woofer 4
43 Tweeter 2
44 Speaker Cover Front R 1 ABS
45 Screw 4 M3 x5 (BK)
46 Cover Side AV 1 ABS
47 PCB Side AV 1 PCB Assy
48 PCB OSD 1 PCB Assy
49 Screw 4 PTC 3 x10 (BK)
50 Knob Function 1 ABS
51 Screw 4 PTC 3 x10 (BK)
52 PCB Speaker Earphone 2 PCB Assy
53 PCB LED 1
Data are subject to changes without prior notice
Model No.: LCT-37ELOSST.doc
Version: 1.0
53
WALL-MOUNTING BRACKET INSTALLATION GUIDE
READ CAREFULLY BEFORE INSTALLATION!
THE INSTALLATION GUIDE SHOULD BE RETAINED FOR FUTURE REFERENCE.
Caution:
1. Do NOT attempt to install the TV by yourself to avoid mistakes or hazard. Refer all
installation to qualified servicing personnel.
2. DO NOT install the TV on a wall aslope or a wall that makes the TV screen sloping over
25º off plumb line. Otherwise, it may cause tumble or injury.
3. One must follow the instructions in this guide to correctly install the TV.
4. It requires more than one person to install the TV.
5. Before installation, examine whether the wall conforms to the specifications and whether
the supplied parts can be fixed on it. The wall for mounting should sustain the weight of TV
and speakers e.g. cement wall or brick wall. DO NOT attempt to install an area with
standard building rigidity, which sustains the weight of the TV and speakers. If the rigidity
of the wall can not be measured, every mounting hole should sustain a frontal force over
75N, and a shearing force of over 150N.
6. Use the specified electric drill and drill bit for drilling. The drilling holes should conform to
the specifications.
7. To avoid fire and shock, do NOT place radiator, heater or humidifier below the installed TV.
8. The TV should be kept away from moisture, sensors and power line. The TV should be
kept away from impact and vibration.
9. Ensure that the power supply be disconnected before installation for fear of fire and shock.
Wall-mounting Installation Steps:
1. Take out the bracket form the package and check if there are serious defects (e.g. infirm
juncture).
2. Adjust the bracket to the desired angle. Use bolt 7 to adjust the angle by meeting holes of
column beam2 and holes of lever 4.
3. Drill locating holes in the specified dimension in a vertical wall of concrete or brick. The
hole size should be 11mm. The hole depth should accommodate the expanding tube of the
bolt.
4. Fix the bolts into the drilled holes in step3, and then cover each bolt with a metal washer.
Meet the four mounting holes in the bracket with the four bolts in the wall, cover each bolt
with a metal washer, and then fasten with a screw nut. Check its rigidity by pulling the
bracket.
5. Fix the fixture disk to the back cover of the TV using six M4x20 bolts.
6. Wall-mount the TV by putting the six-fixture disk into the six mounting holes A.
Model No.: LCT-37ELOSST.doc
Version: 1.0
Loading...
