Microwave oven
900W
E
MC_170
Operating instructions
ADVANCED ENGINEERING FROM GERMANY
Dear customer,
Thank you for buying an AEG microwave oven and putting your trust
in the AEG brand name.
Before using your AEG microwave for the first time, please read the
instruction book thoroughly. This will enable you to take advantage
of all the features that the appliance offers. It will also ensure
trouble-free operation and minimize unnecessary service calls.
1
Important information concerning your safety or the operation of
your appliance is noted by this symbol and/or mentions such as
«Warning», «Take care». Be sure to follow all instructions carefully.
0
Throughout the manual, this symbol assists you in the proper use of
your appliance.
3
This symbol indicates further information concerning the use of the
appliance.
2
The clover indicates energy-saving tips and hints for environmentally
friendly use of your appliance.
In the event of malfunctioning, please follow the instructions given in
the section «What to do if...»
2
Contents
Important information
Ecologically responsible disposal of packaging
and old appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
For trouble free and safe operation . . . . . . . . . . . . . . . . . . 5
Microwaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General operating instructions
Suitable ovenware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
What else to look out for.. . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation and Connection
Installation.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting to the mains . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Product Description
The Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

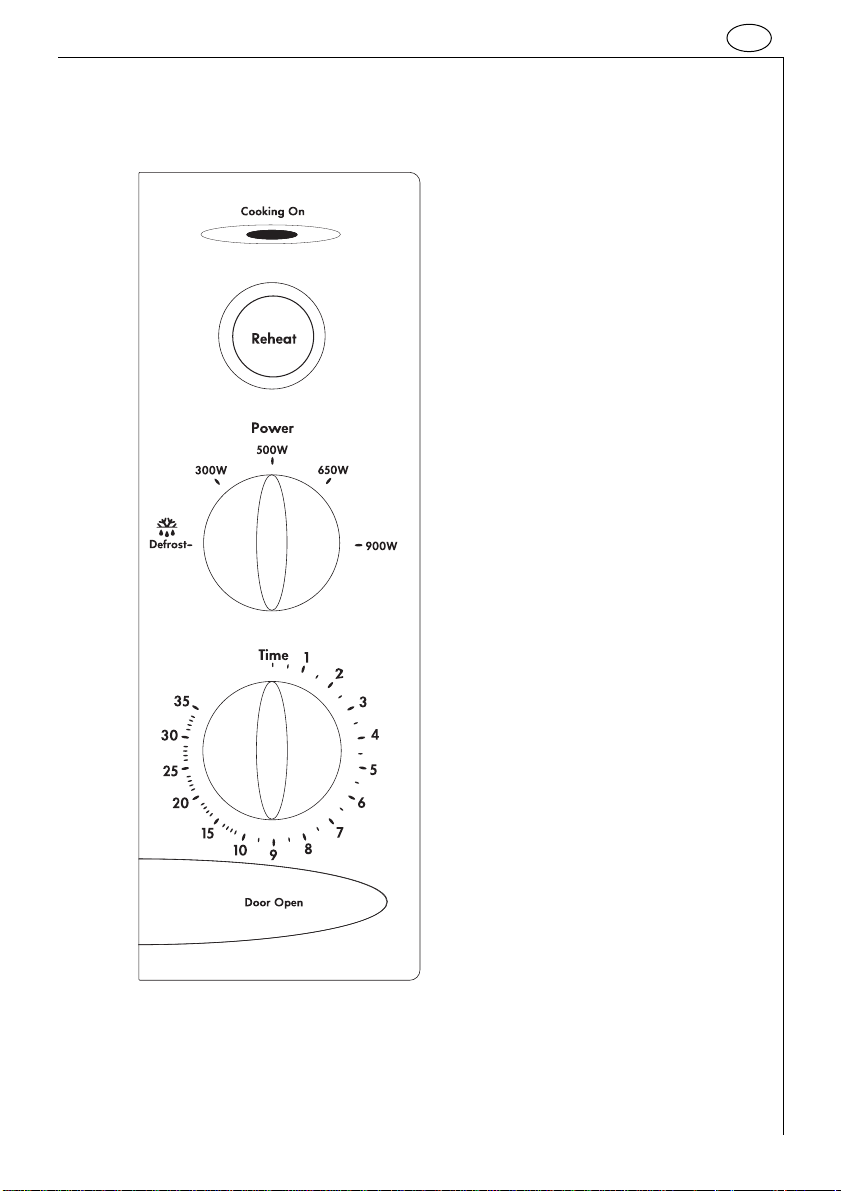

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
UK
“At a glance” operating instructions . . . . . . . . . . . . . . . . 15
Cooking charts and Tips
Microwave Power setting Guide . . . . . . . . . . . . . . . . . . . . . 16
Defrosting instructions using 180W . . . . . . . . . . . . . . . . . . 17
Tips on microwaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Comet
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
3
Important information
2
1
2
2
Ecologically responsible disposal of packaging
materials and old appliances
Packaging materials
AEG microwave ovens require effective packaging to protect them
during transportation. Only the minimum packaging necessary is
used.
Packaging materials (e.g. foil or styrofoam) can place children at risk.
Danger of suffocation. Keep packaging material away from childr en.
All packaging materials used are environment friendly and recyclable.
The cardboard is made from recycled paper and the wooden parts are
untreated. Plastic items are marked as follows :
«PE» polyethylene eg packaging film
«PS» polystyrene eg packaging (CFC-free)
«PP» polypropylene eg packaging straps
By using and re-using the packaging, raw materials are saved and
waste volume is reduced.
Packaging should be taken to your nearest recycling centre. Contact
your local council for information.
Disposal of old appliances
Old appliances should be made safe before disposal by removing the
plug, and cutting off and disposing of the power cable.
It should then be taken to the nearest recycling centre or returned to
your electrical retailer, who may dispose of it for a small charge.
4
Safety instructions
UK
1
1
General
·The appliance should only be operated with the turntable and
turntable support inserted.
·Only suitable microwave ovenware should be used.
To protect the appliance against corrosion from moisture
·
(condensation) in the cavity or on the door, wipe these areas dry
after each use.
Do not leave the appliance unattended when warming or cooking
·
food in disposable containers made of plastic, paper, or other
flammable materials.
·If smoke is observed, keep the oven door closed and disconnect
the power supply. Never use the microwave oven if it is no longer
functioning properly.
·This appliance complies with all relevant safety instructions. In
order to maintain the safety of the appliance, repairs should only
be carried out by a fully qualified electrician, trained by the
manufacturer. Repairs carried out by unqualified electricians can
place the user in severe danger. In the case of any defect or
breakdown, please therefore contact your local electrical dealer or
the Comet Service Department directly.
·Should the door seals and/or door seal surfaces be damaged, the
appliance should not be operated until it has been repaired by the
Comet Service Centre or by an AEG-trained electrician.
·Damaged appliance parts can only be replaced by exactly the
same make of parts. Special tools are required for this operation.
·W
ARNING : Do not allow children to use the microwave oven
without supervision unless they have been thoroughly instructed in
the proper use and the dangers of improper operation
.
For trouble free and safe operation
·Never jam anything between the door and the door frame.
·Always keep the door seals and their surfaces clean.
·Do not keep any flammable items in the microwave.They could
ignite when the unit is switched on.
·Switch the appliance on only when the food has been placed inside
the cooking space, as it could overload if there is no food
present.
5
Safety instructions
Microwaves
1
· When heating liquids, e.g. soups, sauces and beverages in your
microwave oven, overheating the liquid beyond boiling point can
occur without evidence of bubbling. This could result in a sudden
boil over of the hot liquid - with the risk of scalding the user.
To prevent this possibility the following steps should be taken:
1. Avoid using straight-sided containers with narrow necks.
2. Do not overheat.
3. Stir the liquid before placing the container in the oven and
again halfway through the heating time.
4. After heating, allow to stand in the oven for a short time,
stirring again before carefully removing the container.
· Food with «skin» or «peel», such as potatoes, tomatoes, sausages,
and the like, should be pierced with a fork so that any steam
present can escape and the food will not burst.
· Make sure that a minimum temperature of 70°C is attained for the
cooking/heating of food. Never use a mercury or liquid
thermometer for measuring the temperature of the food.
· Baby food in jars or bottles should always be heated without a lid
or top, and well stirred or shaken after heating, to ensure
uniform distribution of the heat. Always check the
temperature before feeding your child.
· The hot food in a microwave oven will heat up the ovenware.For
this reason always use oven gloves for handling hot dishes.
· Never cook your food for too long or at too high a power
setting. Some areas of the food can dry out or even ignite.
6
UK
1
Do not use your microwave oven for the
following :
· to boil eggs or escargots in their shells, as they
will burst. Eggs can be poached or «fried» in a
microwave oven as long as the yolks are pricked.
· to heat large quantities of cooking oil (fondue or
deep frying) and drinks containing a high
percentage of alcohol - there is danger of
spontaneous combustion!
· to heat unopened cans, bottles, etc.
· to dry animals, textiles or paper.
· for crockery like porcelain, ceramics, or porous
earthenware (e.g. on the handles or unglazed
bases) that can fill up with water. This can cause
vapour pressure to build up during cooking which
could shatter the dish.
7
3 General operating instructions
Suitable ovenware
Ovenware material Mode of operation
Defrost- Heating Cooking
ing
Ovenproof glass and ceramic
dishes (without any metal parts, X X X
e.g. Pyrex, Oven-to-tableware)
Non ovenproof glass and porcelain X - (e.g. table crockery)
Glass ceramic and vitro-ceramic X X X
made of fire/frost proof material
(e.g. Arcoflam)
Ovenproof earthenware
Plastic, heat-resistant up to X X X
3)
200°C
Paper, cardboard X - Cling film X - Microwave cling film
Black-lacquered or silicone-coated - - -
baking tins
1)
2)
3)
X X X
X X X
X suitable - non suitable
1
) excluding silver, gold, platinum or metal decoration
2
) does not include glaze containing metal
3
) please note the maximum temperature stated by the manufacturer
8
UK
50mm200mm
3
What else to note...
· Food comes in all shapes, sizes and textures. The quantities also
vary. For these reasons the time and amount of energy needed to
defrost, heat or cook will also vary. As a general rule :
Double the power = nearly half the time
Please refer to the cooking charts.To be on the safe side, always
select the shorter cooking time.Then extend the time as necessary.
· Microwaves work by making the food heat itself up. Because of this,
not all areas of the food will be heated at the same time. When
heating larger quantities of food, it is particularly important to stir or
turn them over.
· “Standing time” is referred to in the cooking charts. This is the
time you should leave the food to stand without power (either
inside or outside the appliance). This ensures even distribution of
heat throughout the food.
Installation and Connection
Installation
A gap all around the oven is
necessary in order to ensure
perfect ventilation: 200 mm
above the oven and any objects,
50mm on the sides and behind
the oven.
This appliance complies with the following EC Directives :
EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC with
amendment 90/683/EEC and the CE marking Directive
93/68/EEC.
9
Installation and Connection
Installation
1. Remove any promotion label from the door.
2. Install the oven on a flat, level surface. The surface must be strong enough
to safely bear the weight (22 kg) of the oven, and the contents. To avoid the
possibility of causing vibration or noise the oven must be in a stable
position.
3. Keep the oven away from heat and water. Exposure to heat and water can
lower oven efficiency and lead to malfunctioning, so be sure to install the
oven away from heat and water sources.
4. Do not block air vents on the top and the sides of the cabinet and also do
not place any articles on the top of the oven. If air vents are blocked during
operation, the oven may overheat, and this may lead to malfunctioning. Hot
air escapes from the vents, so be sure not to obstruct it or let curtains come
between the oven and the rear wall.
5. Place the oven as far away from radios and TV’s as possible. This oven does
conform to EEC requirements* of radio interference suppression, but some
interference may occur if it is placed too close to a radio or TV, so keep
them as far apart as possible.
•
This appliance conforms to the requirements of EEC Radio Interference
Directive 87/308/EEC.
Connecting to the mains
• The oven is delivered with the power cord and a plug for 230 –240 V, 50Hz,
earthed socket outlet.
• Earth protection minimizes the risks should a short circuit occur. Check to
ensure the voltage of the oven matches the supply.
10
1
N.B. If the oven is connected to the socket via an extension cord, make sure the
cord is earthed.
WARNING! This appliance must not be used on a nonearth protected power
supply.
• Contact an electrician if you are uncertain regarding electrical connection of
the oven or provision of earth protection of the supply.
• This appliance must be earthed. If this appliance is fitted with a nonrewirable plug for which your socket is unsuitable, the plug should be cut
off and the appropriate plug fitted. If it is necessary to change the fuse in a
nonrewirable plug, the fuse cover must be refitted. If the fuse cover is lost
or damaged, the plug must not be used until a replacement is obtained.
Electrical connections
GREEN & YELLOW
13 AMP FUSE
BROWN
CORD CLAMP
BLUE
P0329
13 AMP
UK
1
· WARNING!THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this safety measure not be
observed.
• If the plug that is fitted to your appliance is not suitable for your socket outlet,
it must be cut off and the appropriate plug fitted.
• Remove the fuse from the cut off plug. The cut off plug should then be
disposed of to prevent the hazard of shocks in case it should be plugged into a
13 Amp socket in another part of your home.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
GREEN ANDYELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
If you fit your own plug, the colours of the wires in the mains lead of your
appliance may not correspond with the markings identifying the terminals in your
plug, proceed as follows:
• Connect the green and yellow (earth) wire to the terminal in the plug which is
marked with the letter ”E” or the earth symbol ( ) or coloured green and
yellow.
• Connect the blue
(neutral) wire to the
terminal in
the plug which is
marked with the letter
”N” or coloured black.
GREEN & YELLOW
13 AMP FUSE
• Connect the brown
(live) wire to the
terminal in the plug
which is marked with
the letter ”L” or
coloured red.
BROWN
BLUE
CORD CLAMP
11
Product Description
2
3
1
7
5
6
8
10
4
9
The appliance
1 Cooking compartment. Wipe the compartment clean after using the
oven.
2 Viewing window. Food can be checked while the microwave oven is in
operation.
3 Oven door. The door must always be firmly closed while cooking.
4 Latch hook.
5 Safety interlock system.
6 Control panel.
7 Turntable. Made of special heat-resistant glass. Food in a suitable
container is placed on this tray for cooking. Do not use the oven without
the turntable.
8 Turntable support. Place the support on the floor of the cooking
chamber to support the turntable.
9 Door open.
10 Drive shaft for turntable.
12
The control panel
UK
Quick Reheat
Power Selector
Adjust this knob to select the correct
power for your food.
Timer
Set for desired cooking time. Cooking
will start.
All clockwork timers will operate
more accurately if wound past the
desired time first, and then back.
13
Product Description
Accessories
Turntable Installation
1. Place the turntable support on the cavity bottom.
2. Place the turntable on top of the turntable support as shown in the diagram.
Make sure that the turntable hub is securely locked in the turntable shaft.
Never place the turntable upside down.
• Both turntable and turntable support must always be used during cooking.
• All food and containers of food are always placed on the turntable for
cooking.
• The turntable rotates clockwise and anticlockwise; this is normal.
Turntable
14
Turntable support
Turntable shaft
Before using the appliance
Cleaning
Wipe over the front of the appliance with a damp cloth. Do not use
abrasive cleaning agents (these can damage the surface).
Before you first use the appliance, remove the turntable from the cooking
area. Wash the turntable in warm water and washing up liquid. Wipe
clean the cooking space with a soft, damp cloth. Replace the turntable.
0«At a glance» operating instructions
UK
Action
1. Press door open.
2.Place food on the turntable.
3.Shut the door.
4.Set the Power Selector to the desired
power level.
5.Set the timer to the desired time,
6.End of cooking sequence.
• To turn off the oven during
cooking, simply turn the Timer to 0.
Comments
The door opens.
The door will click audibly when it is
properly shut. If the door is not shut
properly, the appliance will not function.
See Microwave Power setting Guide,
and Defrosting Instructions using
180W
The oven begins cooking. 1) When
cooking for less than 2 minutes, turn
the Timer for a longer period and
then return to the desired time.
The end of the cooking sequence is
indicated by an audible tone. The
appliance and the interior light will
switch off.
3
• Reheat
1. Open door and place food
on turntable.
2. Touch ‘Reheat’
1)
After use, be sure to return the Timer to 0, or the oven will continue to
operate.
2)
If you open the door during reheating, the oven will automatically shut
This mode enables you to reheat food or
liquids faster
The oven begins cooking for
approximately 2 minutes. Reheating
time will count down. The oven will
automatically shut down. 2)
down. When you close the door again, IT DOES NOT RESTART
15
Cooking charts and tips
Microwave Power setting Guide
Notes on microwave power levels
The following list shows you the power settings and what they can be
used for during microwave operation :
900 Watt - boiling liquids
- baking fish
- baking vegetables
- preheating a browning dish
700 Watt - baking cakes
- reheating precooked foods
550 Watt - completing the cooking cycle of pot roasts.
- completing the cooking cycle of some
casseroles and stews
- baked custards or cheese cakes
- soaking rice
- heating delicate dishes
- melting of gelatin
16
350 Watt - completing the cooking cycle of some
casseroles and stews
180 Watt - thawing foods
- keeping foods warm
Defrosting instructions using 180W
Some foods such as bread and fruit, can successfully be thawed manually by using the
“180W” power setting.
UK
Food (180W) Standing Preparation
Bread
Small loaf 8 -10 min 10 - 15 Place on microwave proof rack or kitchen
Sliced large loaf 10 - 13 min 10 Place on microwave proof rack or kitchen
2 slices 45 - 60 sec 5 Place on kitchen paper.
1 bread roll 45 - 60 sec 5 Place on kitchen paper.
2 bread rolls 1 - 11/2 min 5 Place on kitchen paper.
Cakes and Pastry
Gateau 450g/1 lb 9 -10 min 15 - 30 Remove from packaging, place on plate.
Cheesecake 450g/1 lb 9 -10 min 15 - 30 Remove from packaging, place on plate.
Pie (cooked) 450g/1 lb7 - 9 min 15 - 30 Remove from packaging, place on plate.
Butter
250g/8.8oz 3 - 4 min 5 - 10 If foil wrapped, remove from wrapper and
(1 packet) place on plate.
Fruit
225g/8oz 5 - 6 min 5 - 10 Place in a single layer in a shallow dish.
Soft berry fruits
time(min)
paper.
Turn over halfway through defrosting time.
paper.
Turn over halfway through defrosting time.
450g/1 lb 7 - 8 min 5 - 10 Place in a single layer in a shallow dish.
Soft berry fruits
Plated meal
400g/14oz 7 - 8 min 5 - 10 Cover with a plate or non P.V.C. cling film.
To reheat, microwave on HIGH for 3 - 4
minutes.
Vegetables - - It is not necessary to defrost vegetables
before cooking. All vegetables can be
thawed and cooked on HIGH.
17
Cooking Charts and Tips
Practical tips for use
General
·After switching off your appliance, let food stand inside for a
few minutes to allow even heat distribution (standing time).
·Remove any aluminium foil or metal containing packaging before
preparing the food.
·Metal objects must be placed at least 2 cm away from the
cooking space walls and door. Otherwise arcing can occur,
resulting in damage to the appliance.
Cooking
–Whenever possible cook covered. Only pastry dishes with crust
should be cooked uncovered.
–Refrigerated or frozen food require longer cooking times.
–Foods containing sauces should be stirred from time to time.
–Cook soft vegetables such as carrots, peas and cauliflower with a little
water.
–Cook soft vegetables such as mushrooms, peppers and tomatoes
without liquid.
–Increase cooking time by approximately 50% for larger pieces.
Whenever possible, cut vegetables into equal-sized pieces.
Defrosting of meat, poultry and fish
–Place frozen, unpacked meat on an inverted plate in a glass or
porcelain container, or use a sieve, so that the meat juice can drain.
–Halfway through defrosting, turn the food, dividing it where
possible and removing the pieces that have defrosted.
18
UK
3
3
Defrosting of butter, pieces of layer cake and cottage cheese
–Do not fully defrost in the appliance, but leave to adjust out-
side. This will give a more even result.
–Remove any metal or aluminium foil packaging and/or
accessories before defrosting
Defrosting of fruit and vegetables
– Fruit and vegetables that are to be used raw later should not be
fully defrosted in the appliance, but left to complete defrosting at
room temperature outside.
– Fruit and vegetables that are to be cooked immediately afterwards
can be cooked straight from frozen using a higher power level.
Ready made meals
– Ready made meals in metal packages or plastic containers with
metal lids should be heated or defrosted in your microwave oven
only if they are explicitly marked as being suitable for microwave
use. Please follow the operating instructions printed on the packages
(e.g. remove the metal lid and prick the plastic foil).
Tips on microwaving
You can’t find cooking details for
specific quantity of food.
Base programming on a similar
type of food. Lengthen or shorten
the cooking time accordingly:
The food is too dry.
The food is not yet defrosted,
heated through or cooked on
completion of programme time.
The food is overcooked on the
outside and undercooked in the
middle on completion of cooking
time.
Double quantity = almost double
time
Half quantity = half time
Set a shorter cooking time or
reduce the microwave power
output.
Select a longer programme time
or a higher microwave power
setting. Note that larger food will
require a longer time.
Next time, try a lower power
setting for a longer time. Stir
liquids, such as soup, periodically.
19
3 Cleaning and care
The Appliance Exterior
Wipe the front of the appliance using a soft cloth and a mild, warm
detergent solution.
Do not use abrasive cleaning substances, strong detergents or coarse
abrasive cleaning materials.
Cooking area
The interior will remain in good condition for a long time so long as
you don't use scouring pads or rough abrasive materials. Use mild
dishwashing liquid to clean the interior. You can neutralise odours
inside the cooking area by boiling a cup of water with a little lemon
juice for a few minutes in your oven.
Through normal operation, liquid may evaporate and condensation
may occur. This is normal and is especially noticeable when the room
temperature is high and the humidity of the air is low. After operation,
be sure and wipe off the condensation with a soft cloth.
Turntable and Turntable support
Clean the turntable using washing-up liquid, or put it in the dishwasher.
Clean the turntable support with washing-up liquid.
This should be removed straight after each use and cleaned using
washing-up liquid or in the dishwasher.
20
What to do if...
UK
0
0
0
0
0
..the microwave appliance is not working properly ?
Check that
–the fuses in the fuse box are working,
–there has not been a power outage.
-If the fuses continue to blow, please contact a qualified electrician.
...the microwave mode is not working ?
Check that
–the door is properly closed,
–the door seals and their surfaces are clean,
...the turntable is not turning ?
Check that
–the turntable support is correctly connected to the drive,
–the ovenware does not extend beyond the turntable,
–food does not extend beyond the edge of the turntable preventing
it from rotating.
-there is nothing in the well beneath the turntable.
...the microwave will not switch off ?
-Isolate the appliance from the fuse box.
-Contact your local Comet Service Centre.
...the interior light is not working ?
-Call your local Comet Service Centre. The interior light bulb can be
exchanged only by trained AEG technicians.
0
...the food is taking longer to heat through and cook than before ?
-Set a longer cooking time (double quantity = nearly double time) or
–if the food is colder than usual, rotate or turn from time to time or
–set a higher power setting.
21
Service Information
You can perform certain maintenance on your own; these operations
are listed in section «What to do if...». First verify the pr oblem, then look
it up in the section. If you do not find the solution therein, then please
contact your local Comet Service Centre.
22
Technical Data
Overall dimension Width 520 mm
Cavity dimension Width 349 mm
Power source 230 - 240 V, 50 Hz
Fuse 13A
Power consumption 1450W
Power output 900W
Weight 22kg
UK
Depth 407 mm
Height 292 mm
Depth 350 mm
Height 198 mm
Volume 24 litre
23
Comet After Sales Service
Thank you for purchasing this A.E.G. microwave oven.
We are sure that this product will provide many years of trouble free
service to you, however, should you experience any faults with this
appliance please contact your local Comet Service Centre for help or
advice.
Our number can be found in your local telephone directory.
Metric/Imperial Weight Conversion Chart
Imperial to Metric
1 oz = 28.35 g
1 lb = 454 g
AEG
Cornwall House
55 - 57 High Street
SLOUGH
SL1 1BQ
Telephone: 08705 350350
©Copyright by AEG
8221911-84
Revision 2 /21.09.1999
Metric to Imperial
1 g = 0.0353 oz
1 kg = 2.20 lb
Loading...
