USER MANUAL

EFC70710

We were thinking of you

when we made this product

IMPORTANT SAFETY INFORMATION 4

YOUR APPLIANCE 5

OPERATING INSTRUCTIONS 6

MAINTENANCE AND CLEANING 8

SOMETHING NOT WORKING 11

GUARANTEE/CUSTOMER SERVICE 12

GUARANTEE CONDITIONS 13

INSTALLATION INSTRUCTIONS 15

ELECTRICAL CONNECTIONS 16

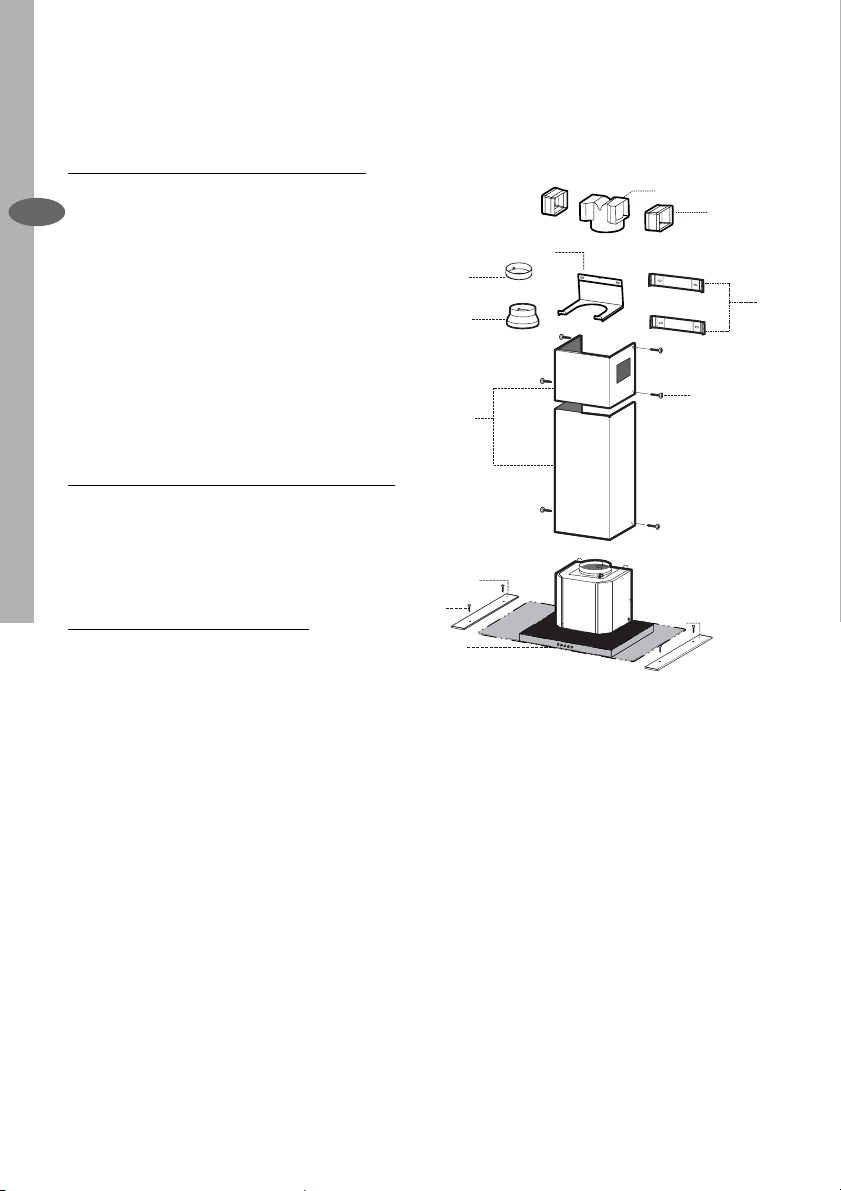

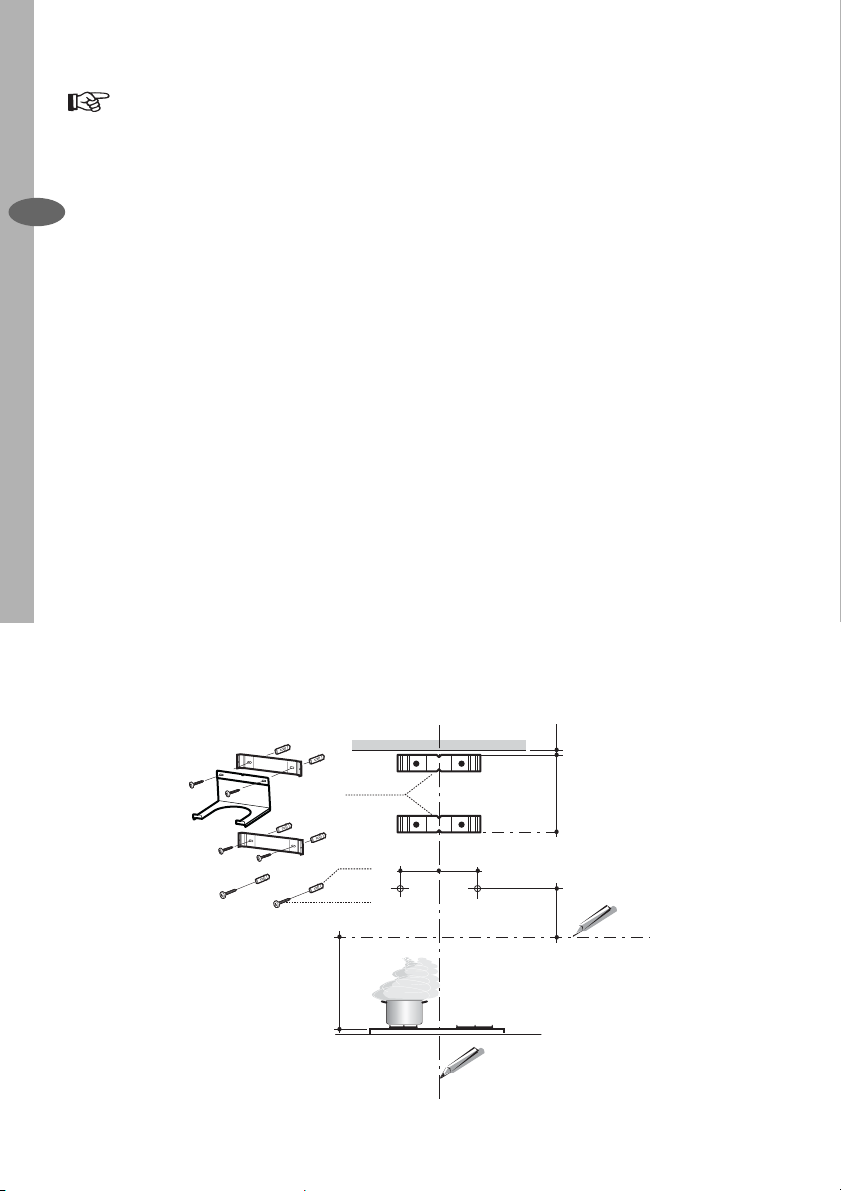

INSTALLING THE COOKER HOOD 17

Welcome to the world of Electrolux

Thank you for choosing a ﬁ rst class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You ﬁ nd some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the beneﬁ ts of your new machine. We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good luck!

electrolux 3

Guide to use the instruction book

The following Symbols will be found in the text to guide you through the instruction book

Safety instructions Step by step instructions

4 electrolux IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you

understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these

warnings contact the Customer Care Department.

Installation

• Any installation work must be undertaken by a qualiﬁ ed electrician or a competent person.

• This hood must be installed in accordance with the installation instructions and all measurements must be adhered to.

• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.

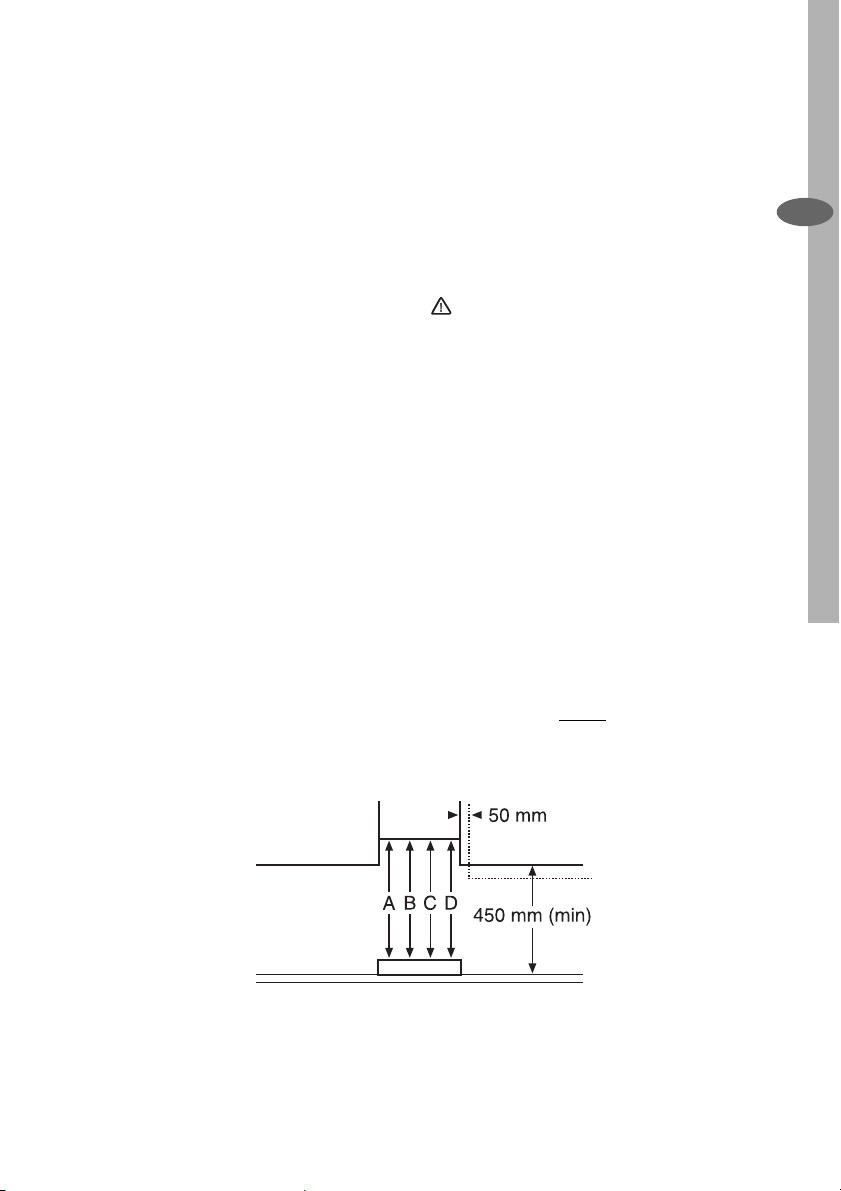

• The fan motor of this cooker hood incorporates a cut-out device which will operate if the cooker hood is installed below the minimum height recommended under section ‘Clearance Height’, or if the motor becomes overheated. If the cutout device is activated, switch off the fan motor and allow the cooker hood to cool. The cut-out device will reset itself when the fan motor has cooled signiﬁ cantly.

• It is dangerous to alter the speciﬁ cations or modify this product in any way.

• When installed between adjoining wall cabinets the wall cabinets must not overhang the hob.

• If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its ﬂ ue must be of the room sealed or balanced ﬂ ue type.

• If other types of ﬂ ue or appliances are ﬁ tted ensure that there is an adequate supply of air to the room.

• The ducting system for this appliance

• Do not install above a cooker with a high

Child Safety

• This appliance is designed to be operated

During Use

• This product is for domestic use only.

• Never leave frying pans unattended during

• Never do flambé cooking under this

• Do not leave naked ﬂ ames under the

• This cooker hood is designed to extract

Maintenance and Service

• This appliance can be a hazard if the

• Under no circumstances should you

must not be connected to any existing ventilation system which is being used for any other purpose.

level grill.

by adults. Children should not be allowed to tamper with the controls or play with the appliance.

use as over-heated fats and oils might catch ﬁ re.

cooker hood.

hood.

unpleasant odours from the kitchen, it will not extract steam.

synthetic paper and charcoal ﬁ lters are not replaced as recommended.

attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunction. Refer to your local Electrolux Service Force Centre. Always insist on genuine spare parts.

YOUR APPLIANCE AND OPERATING INSTRUCTIONS electrolux 5

YOUR APPLIANCE

740

520

420

252

300

50 50

108

150

530

598

698

870

260

1200

126

4181

650 min.

6 electrolux YOUR APPLIANCE AND OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.

Cooker Hood Controls

The cooker hood functions are controlled by four push button switches located centrally in the control fascia.

L Turns the worktop lighting On and

Off

S Mains light - illumination indicates

fan motor is running

V1 Turns the fan motor On and Off

at low speed, suitable for one pan or when simmering.

V2 Medium fan speed, suitable for

use when cooking with a number of pots and pans.

V3 Maximum fan speed, suitable

for cooking foods with strong odours.

V1 V2 V3

To Operate

Select the required fan speed and light if required.

electrolux 7

Recirculation

In the recirculation mode the contaminated air enters the cooker hood through the grease ﬁ lters. The air is cleaned by passing through the charcoal ﬁ lters before being passed back into the kitchen through the grilles in either side of the chimney stack.

Extraction

In the extraction mode the contaminated air enters the cooker hood passing through the grease ﬁ lters and is passed out through the ducting into the atmosphere. To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes before you start cooking and leave it running for about 15 minutes after ﬁ nishing.

When used in the ducting mode the

charcoal ﬁ lters are not required.

Never do ﬂ ambé cooking under this

cooker hood.

Never leave frying pans unattended

during use, as over-heated fats and oils can catch ﬁ re.

Do not leave naked ﬂ ames under the

cooker hood.

Ensure heating areas on your hob

are covered with pots and pans when using the hob and cooker hood simultaneously.

8 electrolux MAINTENANCE AND CLEANING

MAINTENANCE AND CLEANING

Before carrying out any maintenance

or cleaning isolate the cooker hood

from the mains supply.

The cooker hood must be kept clean,

as a build up of grease or fat can be a ﬁ re hazard.

External Cleaning

Wipe the cooker hood frequently with warm soapy water using a mild detergent.

Never use scouring pads or abrasive

cleaners.

Never use excessive amounts of wa-

ter when cleaning particularly around the control panel.

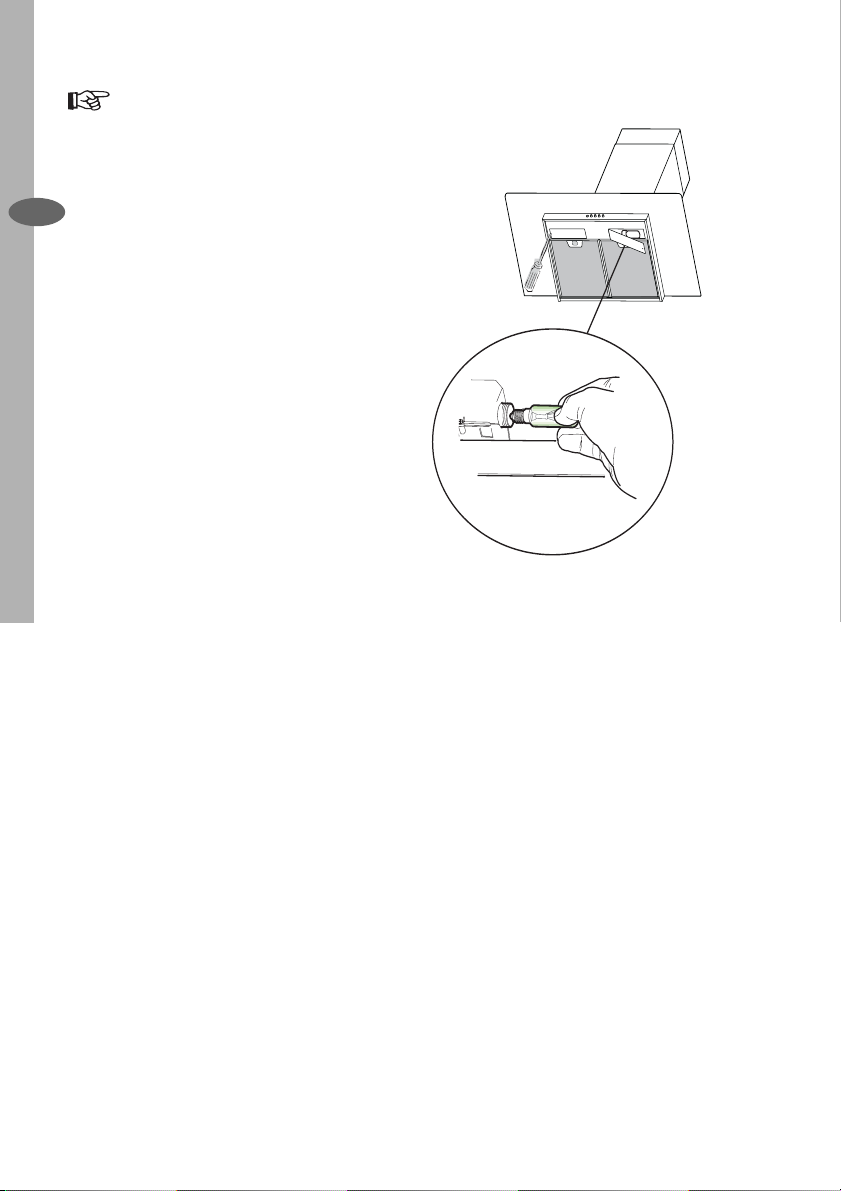

Remove the metal grease

ﬁ lters one at a time by:

Releasing the catches on

the ﬁ lters, the ﬁ lters can be removed.

The metal grease ﬁ lters should be washed, by hand, in mild soapy water or in a dishwasher. Allow to dry completely before replacing.

Before carrying out any maintenance

or cleaning isolate the cooker hood from the mains supply.

MAINTENANCE AND CLEANING electrolux 9

Charcoal Filters

In the recirculation mode the charcoal ﬁ lters absorb smells and unwanted odours.

The charcoal ﬁ lters cannot be cleaned, we recommend they should be replaced approximately every three months or more often if the hood is used for more than three hours per day.

To Remove/Replace the

Charcoal Filters

1. Remove the saturated activated charcoal ﬁ lter by releasing the ﬁ xing hooks as illustrated.

2. Position the new charcoal ﬁ lter in the position marked and while holding the ﬁ lter replace the ﬁ xing hooks as illustrated.

3. This appliance can be a possible ﬁ re hazard if the grease and charcoal ﬁ lters are not cleaned and replaced as recommended.

This appliance can be a possible ﬁ re

hazard if the grease and charcoal ﬁ l- ters are not cleaned and replaced as recommended.
