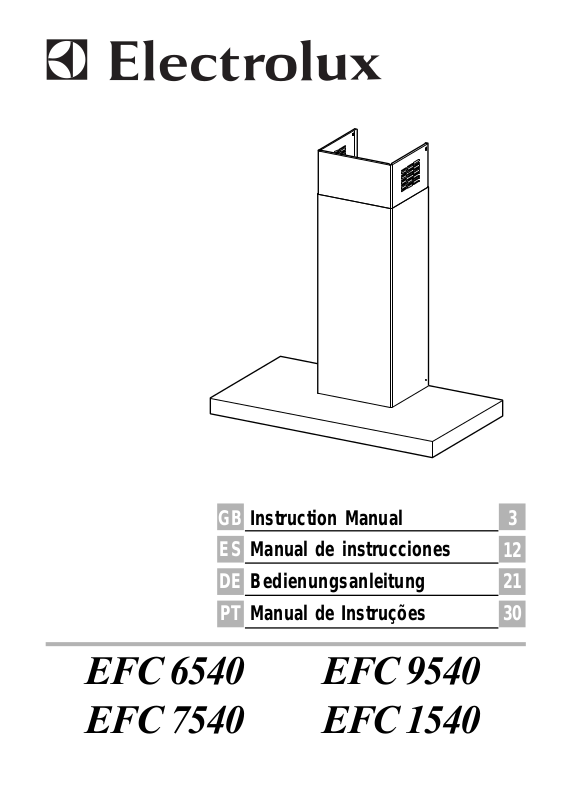

AEG EFC1540X, EFC6540X, EFC6540U, EFC9540U User Manual
|
GB |
Instruction Manual |
3 |
|
|
|
|
|
ES |
Manual de instrucciones |
12 |
|
|
|
|
|
DE |
Bedienungsanleitung |
21 |
|
|
|
|
|
|
Manual de Instruções |
|
|
PT |
30 |
|
|
|
|
|
EFC 6540 |
EFC 9540 |
EFC 7540 |
EFC 1540 |
Dear Customer,
If you follow the recommendations contained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come.
CONTENTS
RECOMMENDATIONS AND SUGGESTIONS |
4 |
CHARACTERISTICS |
5 |
INSTALLATION |
6 |
USE |
9 |
MAINTENANCE |
10 |
GB |
|
3 |
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
•For Class I appliances, check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
•Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
•If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
USE |
|
|
|
|
|
|
|
|
|
|
|||
• |
The extractor hood has been designed exclusively for domestic use |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||
|
to eliminate kitchen smells. |
|
|
|
|
|
|
|
|||||
|
|
|
650 mm min. |
|
|
||||||||
• |
Never use the hood for purposes other than for which it has ben |
|
|
|
|
|
|
|
|
|
|
||
|
designed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•Never leave high naked flames under the hood when it is in operation.
•Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
•Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.
MAINTENANCE
•Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
•Clean and/or replace the Filters after the specified time period.
•Clean the hood using a damp cloth and a neutral liquid detergent.
GB |
|
4 |
