ENGLISH

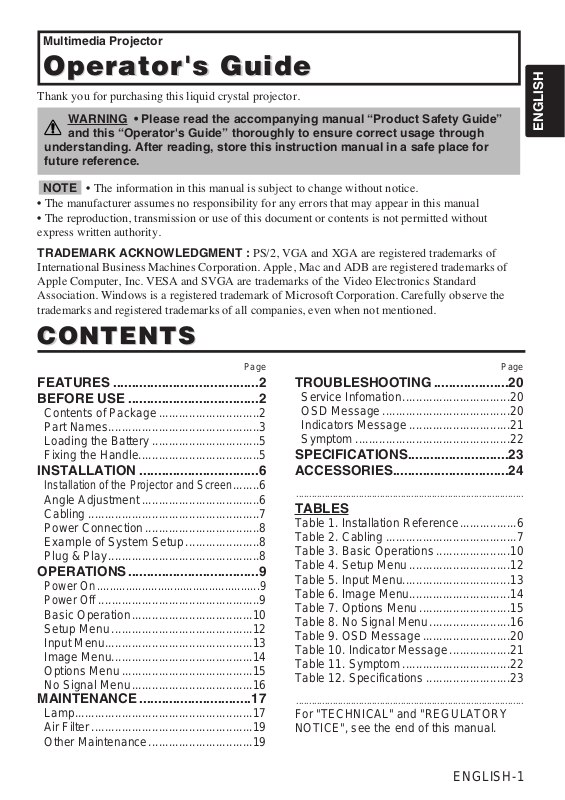

Multimedia Projector

Operator's Guide

ENGLISH-1

Thank you for purchasing this liquid crystal projector.

CONTENTS

Page

FEATURES .......................................2

BEFORE USE ...................................2

Contents of Package..............................2

Part Names.............................................3

Loading the Battery ................................5

Fixing the Handle....................................5

INSTALLATION ................................6

Installation of the Projector and Screen

........6

Angle Adjustment ...................................6

Cabling ...................................................7

Power Connection..................................8

Example of System Setup......................8

Plug & Play.............................................8

OPERATIONS...................................9

Power On...................................................9

Power Off

................................................9

Basic Operation....................................10

Setup Menu..........................................12

Input Menu............................................13

Image Menu..........................................14

Options Menu.......................................15

No Signal Menu....................................16

MAINTENANCE ..............................17

Lamp.....................................................17

Air Filter................................................19

Other Maintenance...............................19

Page

TROUBLESHOOTING ....................20

Service Infomation................................20

OSD Message......................................20

Indicators Message ..............................21

Symptom ..............................................22

SPECIFICATIONS...........................23

ACCESSORIES...............................24

.......................................................................................

TABLES

Table 1. Installation Reference.................6

Table 2. Cabling .......................................7

Table 3. Basic Operations......................10

Table 4. Setup Menu..............................12

Table 5. Input Menu................................13

Table 6. Image Menu..............................14

Table 7. Options Menu...........................15

Table 8. No Signal Menu........................16

Table 9. OSD Message..........................20

Table 10. Indicator Message..................21

Table 11. Symptom ................................22

Table 12. Specifications .........................23

.......................................................................................

For "TECHNICAL" and "REGULATORY NOTICE", see the end of this manual.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned.

NOTE

WARNING • Please read the accompanying manual “Product Safety Guide”

and this “Operator's Guide” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference.

ENGLISH-2

FEATURES

This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Outstanding Brightness

The UHB lamp and high-efficiency optical system assure a high level of brightness.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Distortion Correction Function

Distortion-free images are quickly available.

BEFORE USE

Contents of package

Make sure all of the following items are included in the package. If anything is missing, please contact your dealer.

• Keep the original packing material for future reshipment.

NOTE

Projector

Operator's Guide

Product Safety Guide

Power Cord x 3

(US, UK, Europe)

RGB Cable Video/Audio Cable

(with white lead)

Mouse cable

(PS/2)

S-Video Cable

(Mini DIN4-pin)

Handle

VIDEO

STANDBY/ON

POSITION

FREEZE

MAGNIFY

VOLUME

AUTO

OFF

TIMER BLANK

MENU SELECT

RGB

MUTE

MENU RESET

Remote Control

Transmitter

containing Battery

MP8647 Multimedia Projector

Operator's Guide

MP8647 Projecteur multimedia - Guide de I' opérateur MP8647 Multimedia-Projektor - Benutzerhandbuch MP8647 Proyector de Multimedia - Guía del usuario MP8647 Proiettore Multimediale - Guida dell' operatore MP8647 Projector dos Multimedia - Guia da operador MP8647 Multimedia Projector - Gebruiksaanwijzing

ENGLISH-3

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

ENGLISH

Part Names

Control Panel (Refer to P.9 "OPERATIONS")

Power Switch

AC Inlet

(to the Power Cord)

Ventilation Openings

(Intake)

Zoom Knob Focus Ring

Remote Control Sensor

Lens Slide Lens Door Foot Adjuster

FRONT/LEFT VIEW OF THE PROJECTOR

Speaker

Handle Hook

STANDBY/ON Button

MUTE Button

Foot Adjuster Button

Air Filter and Intake

(for the Cooling Fan)

Rear Foot Adjuster

INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button

Ventilation Openings (exhaust)

REAR/RIGHT VIEW OF THE PROJECTOR

Terminal Panel (Refer below)

TERMINAL PANEL

S-VIDEO Terminal

VIDEO IN Terminal

AUDIO IN L

Terminal

AUDIO IN R

Terminal

AUDIO IN 1

Terminal

AUDIO IN 2

Terminal

AUDIO OUT

Terminal

Remote Control Sensor RGB IN 1 Terminal RGB IN 2 Terminal

CONTROL Terminal RGB OUT Terminal USB Terminal

AUDIO IN VIDEO IN S-VIDEO IN

AUDIOINAUDIO OUT

2 USB

RGB IN

RGB OUT CONTROL

ENGLISH-4

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Part Names (continued)

REMOTE CONTROL TRANSMITTER

(Refer to P.9 "OPERATIONS")

To prevent any malfunction;

• Do not exert excessive physical force on the remote control transmitter. Take care not to drop.

• Do not place the heavy objects on the remote control transmitter.

• Do not wet the remote control transmitter or place it on any wet object.

• Do not place the remote control transmitter close to the cooling fan of the projector.

• Do not disassemble the remote control transmitter in case of malfunction. Please send to a servicing dealer.

NOTE

These functions work when the mouse control function is activated. Remember, the POSITION,

BLANK ON and MENU ON functions disable the mouse control function.

VIDEO Button RGB Button MENU SELECT Button

POSITION Button RESET Button

VOLUME Button VOLUME Button FREEZE Button MUTE Button BLANK Button

STANDBY/ON Button

Button

MENU Button

MAGNIFY Button

MAGNIFY Button MAGNIFY Button

AUTO Button

TIMER Button

Battery Holder

OFF

Used to operate the mouse shift function .

Used to click the left mouse button.

Used to click the right mouse button.

VIDEO

STANDBY/ON

POSITION

FREEZE

MAGNIFY

VOLUME

AUTO

OFF

TIMER BLANK

SELECT

RGB

MUTE

MENU RESET

ENGLISH-5

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

ENGLISH

Loading the Battery

Replace the batteries when remote control transmitter operation becomes difficult.

NOTE

CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause

battery cracking or leakage, which could result in fire or personal injury.

• When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. Incorrect orientation could cause battery cracking or leakage, which could result in personal injury or pollution of the surrounding environment.

• When you dispose the battery, you should obey the law in the relative area or country.

• Keep the battery away from children and pets.

• When not to be used for an extended period, remove the batteries from the remote control transmitter.

Fixing the Handle

Fix the enclosed handle if you need.

1. Raise up the handle hook, and pass one end of the handle through the hole of handle hook.

2. Buckle the end of the handle, as the right drawing.

3. Fix the other end of the handle to the other handle hook in the same way.

First Loading:

In original packing, the battery is installed in the battery holder of the remote control transmitter with protection film(the transparent filmsome of which is inside the battery holder). Pull out the protection film to load the battery.

Replacing:

1. See the reverse side of the remote control transmitter.

2. Pinch the groove and pull out battery holder as the drawing right.

3. Remove the worn battery.

4. Install the new battery (3V micro lithium battery type no.CR2025) with “+” side facing.

5. Push in and click the battery holder.

Pull out

“+” side

Battery Holder

CAUTION Make sure the handle is fixed before carrying the projector with the handle. If the projector should be dropped from the handle should be off, it could result in an injury, and continued use could result in fire or electrical shock. Do not flourish the projector with the handle.

ENGLISH-6

INSTALLATION

Installation of the Projector and Screen

Refer to the drawing and table below for determining the screen size and projection distance.

Top View

Side View

Screen size [inches (m)]

a [inches (m)]

Min. Max. 40 (1.0) 65 (1.7) 78 (2.0) 60 (1.5) 98 (2.5) 117 (3.0) 80 (2.0) 131 (3.3) 157 (4.0)

100 (2.5) 163 (4.1) 196 (5.0) 120 (3.0) 196 (5.0) 236 (6.0) 150 (3.8) 246 (6.2) 295 (7.5) 200 (5.0) 328 (8.3) 394 (10.0)

Angle Adjustment

Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately.

1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle.

2. Release the button to lock at the desired angle.

3. Use the rear foot adjuster to adjust the left-right slope. Do not force the foot adjuster screws. This could damage the adjusters or cause the lock to fail.

Lens center

Screen

CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “Product Safety Guide” and this

manual.

• Please basically use liquid crystal projector at the horizontal position.

If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and cause damage.

Be especially

careful not to install it with ventilation holes blocked.

• Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.).

CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or fingers could get

caught and cause personal injury.

Foot Adjuster

Press the foot adjuster button

Rear Foot Adjuster

Variable within the range of approximately 0˚-9˚

The projection distances shown in the table below are for full size (800 x 600 dots) a: Distance from the projector to the screen. (±10%)

Table 1 Installation Reference

ENGLISH-7

ENGLISH

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

• Before connecting, read instruction manuals of the devices to be connected, and make sure that the

projector is compatible with the device.

• Secure the screws on the connectors and tighten.

• For some RGB input modes, the optional Mac adapter is necessary.

• Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector.

• Refer to the “TECNICAL” section for the pin assignment of connectors and RS-232C communication data.

NOTE

CAUTION • Incorrect connecting could result in fire or electrical shock. Please read this manual and the separate “Product Safety Guide”.

• Before connecting, turn off to all devices to be connected, except for the USB cable.

• The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified.

Cabling

Refer to the table below for connecting each terminal of the projector to a device.

Table 2. Cabling

Function Terminal Cable

Analog RGB input

RGB IN 1

Accessory RGB cable or optional RGB cable with D-sub 15-pin shrink jack and inch thread screws

RGB IN 2

Analog RGB output RGB OUT

Audio input (from the computer)

AUDIO IN 1

(interlocked with RGB IN 1)

Optional audio cable with stereo mini jack

AUDIO IN 2

(interlocked with RGB IN 2)

PS/2 mouse control

CONTROL

Accessory PS/2 mouse cable ADB mouse control Optional ADB mouse cable Serial mouse control Optional Serial mouse cable RS-232C communication Optional RS-232C cable USB mouse control USB Optional USB cable

S-video input S-VIDEO

Accessory S-video cable with mini DIN 4-

pin jack Video input VIDEO IN Accessory video/audio cable

Audio input (from video equipment)

AUDIO IN L

Accessory video/audio cable or optional

audio cable with RCA jack

AUDIO IN R

Audio output AUDIO OUT Optional audio cable with stereo mini jack

Example of system setup

• When connecting with a notebook computer, set the proper RGB external image output (setting CRT display or simultaneous display of LCD and CRT). Please read instruction manual of the notebook for more information.

Plug & Play

This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer that is VESA DDC (Display Data Channel) compatible. Please use this function by connecting the accessory RGB cable with RGB IN 1 terminal (DDC 1/2B compatible). Plug & play may not operate by other connections.

• Plug & play is a system configured with peripheral equipment including a computer, display and an operating system.

• This projector is recognized as a plug & play monitor. Use the standard display drivers.

• Plug & play may not operate by the computer to connect. Plug & play will not operate in the connection with Apple computer.

NOTE

ENGLISH-8

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd))

))

Power Connection

Use the correct power cord depending on the power outlet to be used. Connect the AC inlet of the projector to the power outlet firmly by the power cord.

AC Inlet

Power

Cord

Power outlet

CAUTION • Be carful in handling the power

cord according to instructions of the accompanying manual "Product Safety Guide" and this manual.

• Connect the power cord firmly. Avoid using a loose, unsound outlet or failed contact .

Video tape recorder with S jack

Video tape recorder

Computer

(desktop type)

Computer

(notebook type)

RGB Cable

RS-232C Cable

Speaker (with amplifier)

Display monitor

RGB OUT CONTROL

AUDIO IN VIDEO IN S-VIDEO IN

AUDIOINAUDIO OUT

2USB

RGB IN

+ 18 hidden pages
