3M™ MicroTouch™

Software MT 7

User Guide

For Microsoft® Windows®, Windows® CE,

and Linux® Operating Systems

Read and understand all safety information contained in this document before using this product.

3M Touch Systems, Inc. Proprietary Information – 25695M

2	3M™ MicroTouch™ Software MT 7 User Guide

The information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of 3M Touch Systems, Inc. 3M may have patents or pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you license to these patents, trademarks, copyrights, or other intellectual property except as expressly provided in any written license agreement from 3M Touch Systems, Inc.

The information provided in this document is intended as a guide only. For the latest detailed engineering specifications, please contact your 3M Touch Systems, Inc. Application Engineer. 3M Touch Systems, Inc. is committed to continually improving product designs, as a result, product specifications may be subject to change without notification.

"RoHS 2011/65/EU" means that the product or part does not contain any of the substances in excess of the maximum concentration values (“MCVs”) in EU RoHS Directive 2011/65/EU, unless the substance is in an application that is exempt under EU RoHS. The MCVs are by weight in homogeneous materials. This information represents 3M's knowledge and belief, which may be based in whole or in part on information provided by third party suppliers to 3M.

NOTICE: Given the variety of factors that can affect the use and performance of a 3M Touch Systems, Inc. Product (the “Product”), including that solid state equipment ha s operation characteristics different from electromechanical equipment, some of which factors are uniquely within User’s knowledge and control, it is essential that User evaluate the 3M Touch Systems, Inc. Product and software to determine whether it is suitable for User’s particular purpose and suitable for User’s method of application. 3M Touch Systems, Inc. statements, engineering/technical information, and recommendations are provided for User’s convenience, but their accuracy or completeness is not warranted. 3M Touch Systems, Inc. products and software are not specifically designed for use in medical devices as defined by United States federal law. 3M Touch Systems, Inc. products and software should not be used in such applications without 3M Touch Systems, Inc. express written consent. User should contact its sales representative if User’s opportunity involves a medical device application.

IMPORTANT NOTICE TO PURCHASER: Specifications are subject to change without notice. These 3M Touch Systems, Inc. Products and software are warranted to meet their published specifications from the date of shipment and for the period stated in the specification. 3M Touch Systems, Inc. makes no additional warranties, express or implied, including but not limited to any implied warranties of merchantability or fitness for a particular purpose. User is responsible for determining whether the 3M Touch Systems, Inc. Products and software are fit for User’s particular purpose and suitable for its method of production, including intellectual property liability for User's application. If the Product, software or software media is proven not to have met 3M Touch Systems, Inc. warranty, then 3M Touch Systems, Inc. sole obligation and User’s and Purchaser’s exclusive remedy, will be, at 3M Touch Systems, Inc. option, to repair or replace that Product quantity or software media or to refund its purchase price. 3M Touch Systems, Inc. has no obligation under 3M Touch Systems, Inc. warranty for any Product, software or software media that has been modified or damaged through misuse, accident, neglect, or subsequent manufacturing operations or assemblies by anyone other than 3M Touch Systems, Inc. 3M Touch Systems, Inc. shall not be liable in any action against it in any way related to the Products or software for any loss or damages, whether non-specified direct, indirect, special, incidental or consequential (including downtime, loss of profits or goodwill) regardless of the legal theory asserted.

Document Title: 3MTM MicroTouchTM Software MT 7 User Guide

Document Number: TSD-25695, Version M

3M, the 3M logo, MicroTouch, and the MicroTouch logo are either registered trademarks or trademarks of 3M in the United States and/or other countries.

Windows and/or other Microsoft products referenced herein are either registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.

Linux® is a registered trademark of Linus Torvalds in the U.S. and/or other countries.

Java® is a registered trademark of Oracle® in the U .S. and/or other countries.

All other trademarks are the property of their respective owners.

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

Contents

About This Manual
	Introduction ................................................................................................................	5
	Sensor Care and Cleaning ..........................................................................................	5
	3M Touch Systems Support Services ........................................................................	6
	Contact 3M Touch Systems .......................................................................................	6
Chapter 1	Installing MT 7 Software
	MT 7 Software Overview...........................................................................................	7
	Installing MT 7 Software ...........................................................................................	8
	Performing a Silent Install .......................................................................................	11
	Customizing Your Settings ......................................................................................	12
	Uninstalling MT 7 Software ....................................................................................	12
Chapter 2	MT 7 Software Control Panel
	Overview ..................................................................................................................	13
	Opening the MT 7 Control Panel .............................................................................	13
	Main Tab ..................................................................................................................	14
	Touch Settings Tab ..................................................................................................	18

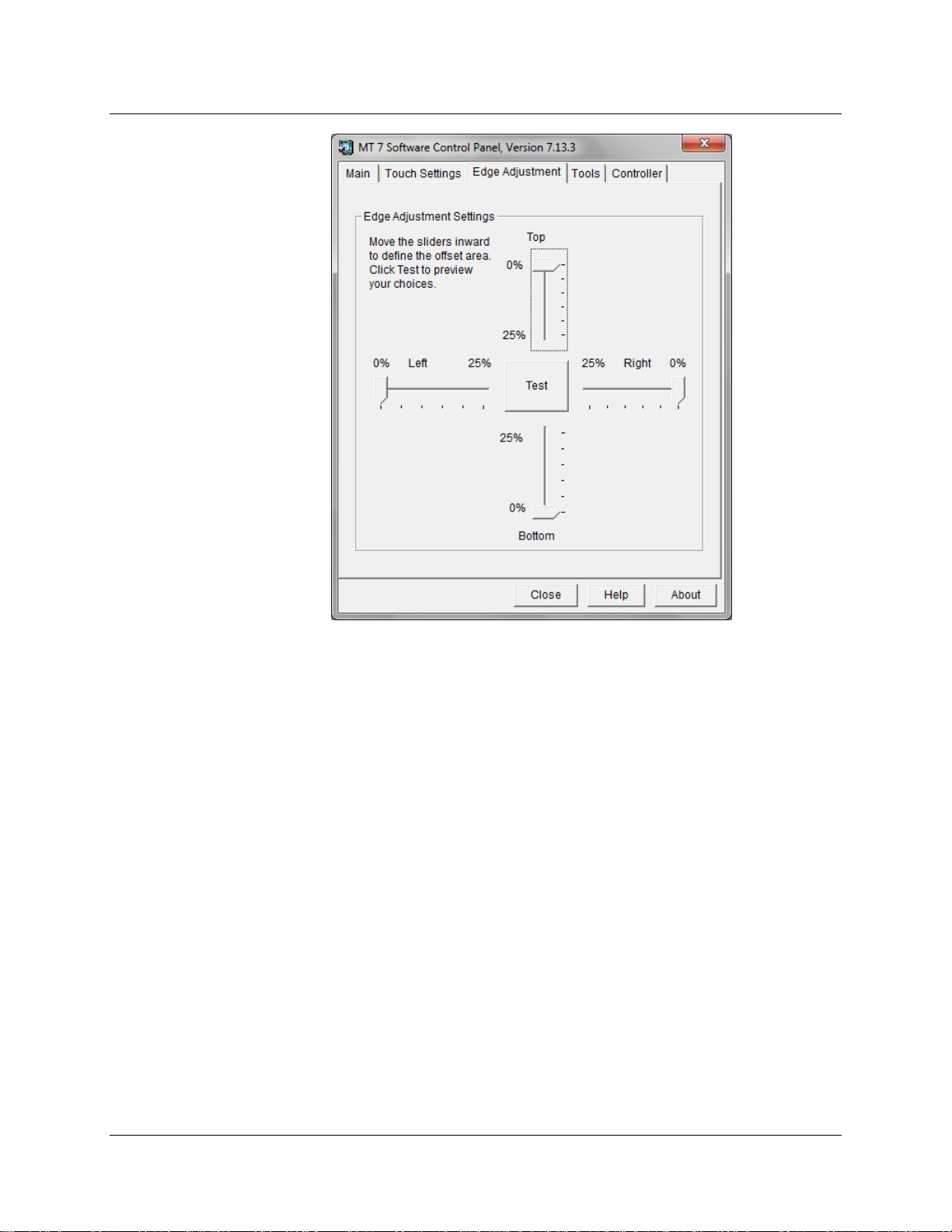

	Edge Adjustment Tab...............................................................................................	20
	Edge Adjustment Setting..........................................................................................	21
	Tools Tab .................................................................................................................	23

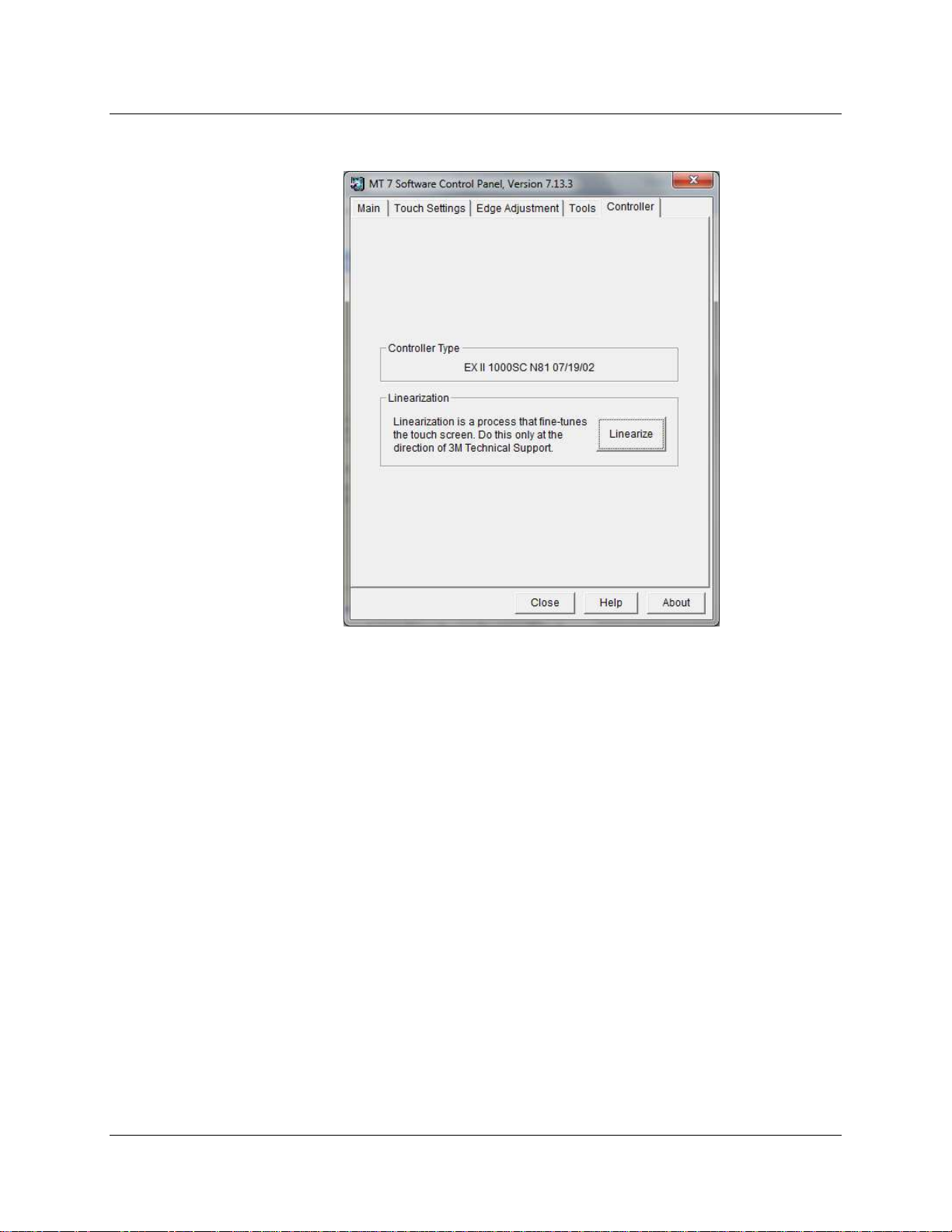

	Controller Tab ..........................................................................................................	26
Chapter 3	Windows® CE Overview

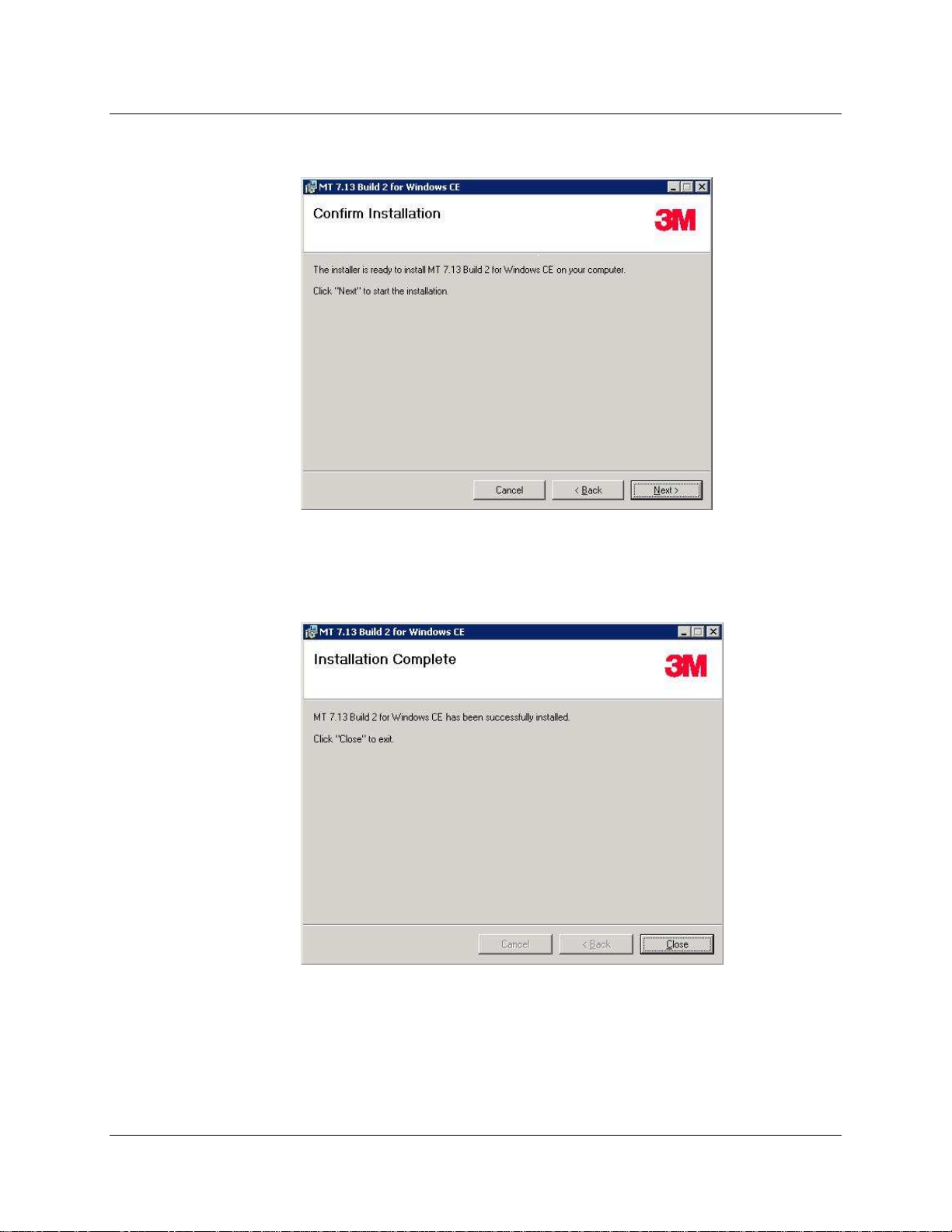

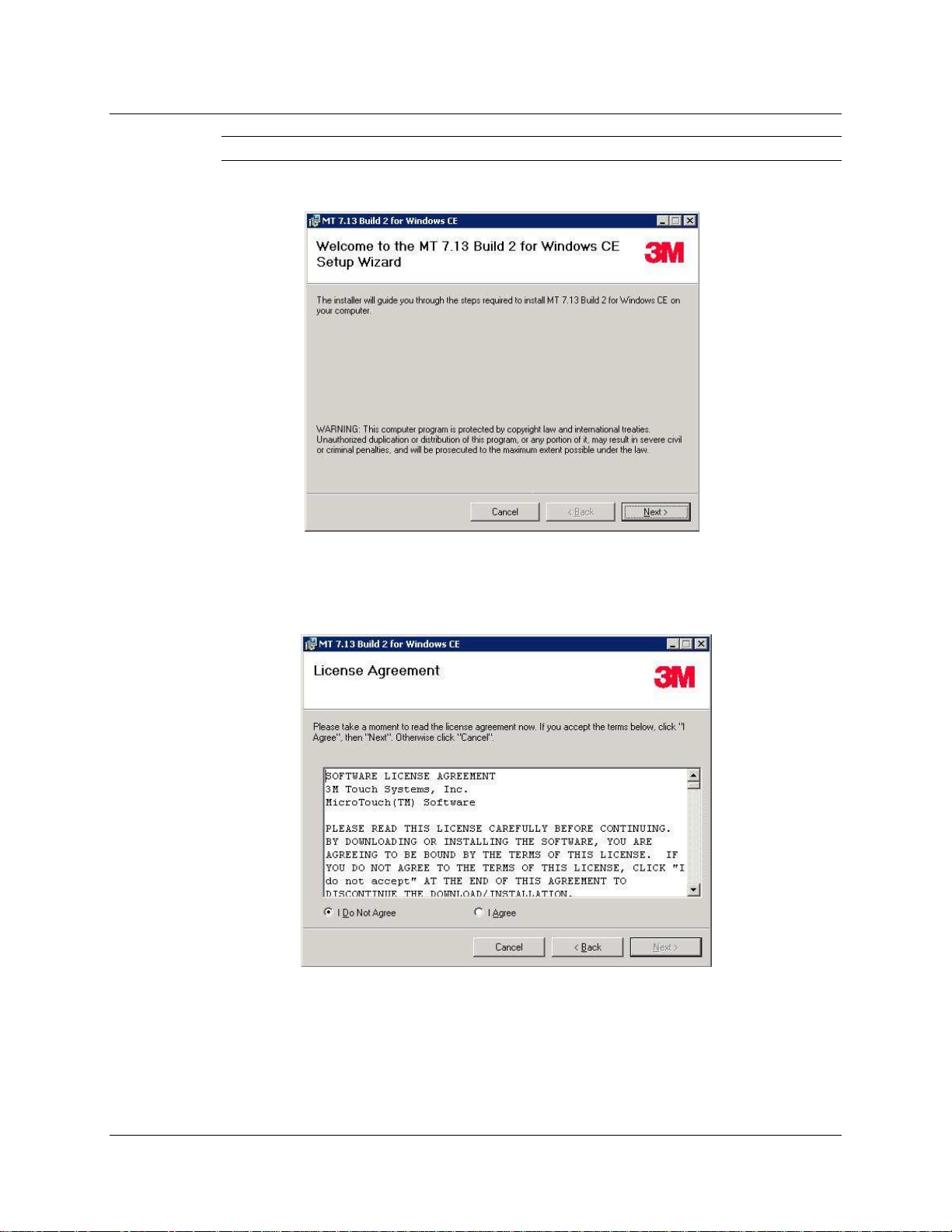

	Installation Instructions ............................................................................................	31

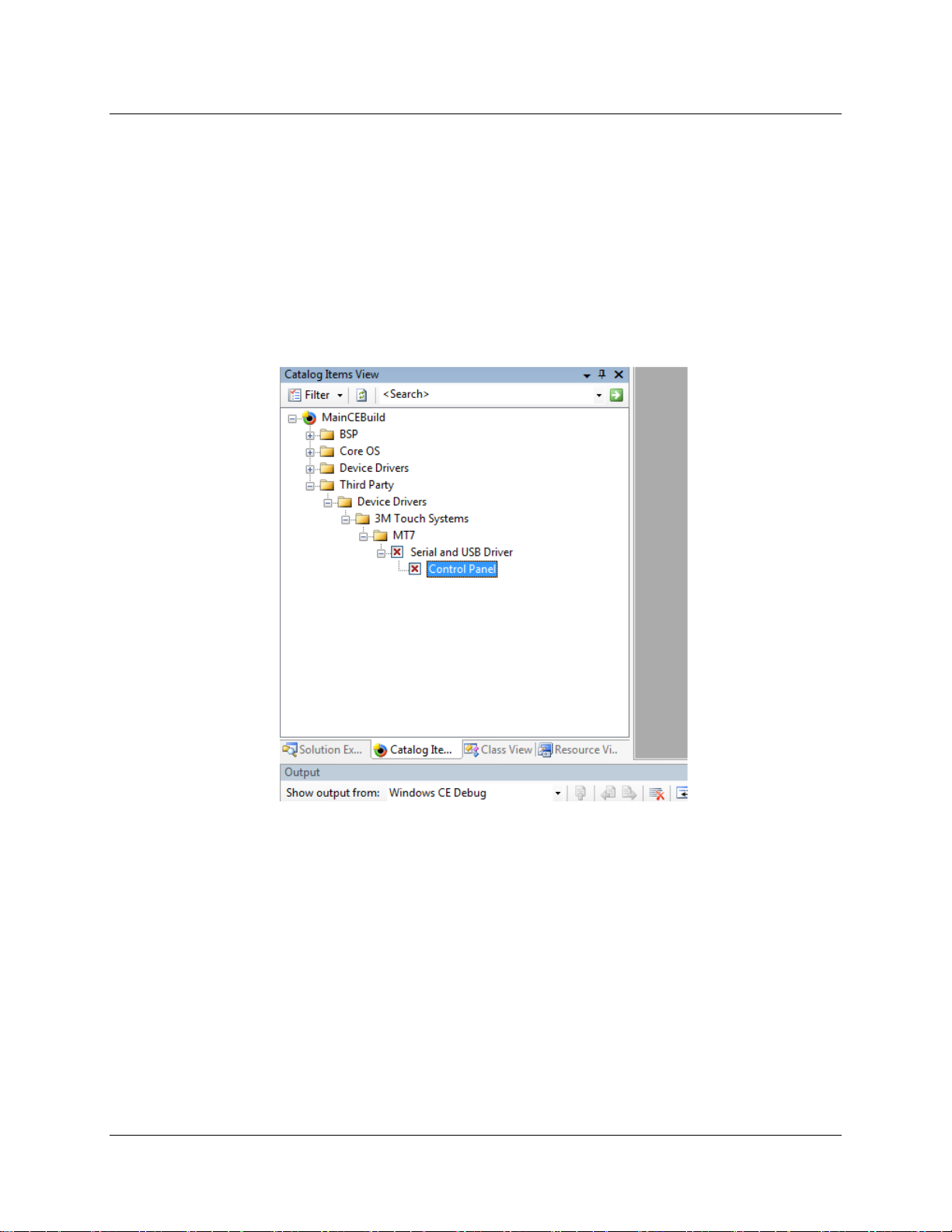

	Instructions for Platform Builder for Microsoft Windows® CE 6.0 R3 .................	35
	Supporting Multiple Windows® CE Versions .......... ..............................................	36
	Supporting Multiple Projects ...................................................................................	36
	Slow Draw Anomalies .............................................................................................	37
Chapter 4	Windows® XP Embedded Overview
	Installation Instructions ............................................................................................	39
	Loading MT 7 Into The Components Database Manager........................................	39
	MT 7 Component Selection In Target Designer ......................................................	39
	MT 7 Components....................................................................................................	40

3M Touch Systems, Inc. Proprietary Information – 25695M

4	3M™ MicroTouch™ Software MT 7 User Guide

Chapter 5	MT 7 for Linux® Overview
	System Requirements ...............................................................................................	41
	Installation Instructions ............................................................................................	42
	Error Messages During Installation .........................................................................	45
	Removing MT 7 For Linux ......................................................................................	47
	Troubleshooting The Init Script ...............................................................................	47
	Troubleshooting Touch Behavior ............................................................................	48
	Running Touch Applications ...................................................................................	48
	Calibration Messages Are Unreadable.....................................................................	49
	Known Issues ...........................................................................................................	49
Appendix A	Multiple Monitor Setup (Windows® Only)
	Overview ..................................................................................................................	51
	Changing the Controller ID......................................................................................	51
	Setting Up Multiple Monitors ..................................................................................	51
Appendix B	Troubleshooting the Touch System
	Overview ..................................................................................................................	55
	Other Serial Devices Do Not Work .........................................................................	55
	Multiple Display Support.........................................................................................	56
	Cursor Does Not Reach Edges of Display ...............................................................	56
	Cursor is Jittery ........................................................................................................	56
	Cursor Jumps or Bounces Suddenly Across the Display .........................................	56
	Double-Click Doesn't Work (not available on Windows® CE or Linux®) ............	56
	Drawing Lines Are Not Straight and Smooth ..........................................................	57
	Find Sensor (for Serial Plug & Play Controllers) ....................................................	57
	Touch Is Not Working..............................................................................................	57
	Touch Driver Did Not Load .....................................................................................	58
	Right-click Tool Buttons Are Swapped ...................................................................	58
	A Previous Version of TouchWare Software Was Detected ...................................	59

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

About This Manual

Introduction

This manual describes how to:

∙ Install 3M™ MicroTouch™ Software MT 7 for your touc h system and specific operating system.

∙Use the MT 7 control panel to customize your work environment.

∙Troubleshoot the sensor.

Before installing MT 7 software, you must complete the appropriate hardware connections for your controller. For instructions, refer to your appropriate 3M™ MicroTouch™ Controller Reference Guide. All technic al documentation can be found on the 3M Touch Systems, Inc. website at www.3m.com/touch.

The drivers included in MT 7 will support the following:
∙	All current 3M™ MicroTouch™ controllers (no legacy	controllers) and chipset
	designs.
∙ Capacitive and resistive touch technologies
∙	Both USB and RS-232 communication protocols.

Sensor Care and Cleaning

The sensor requires very little maintenance. 3M Touch Systems, Inc. recommends that you periodically clean the glass surface.

CAUTION

To reduce the risk of the potentially hazardous situations associated with the use of isopropyl alcohol which may result in minor or moderate injury or property damage:

Follow all instructions and recommendations in the alcohol manufacturer's Material Safety Data Sheet and product label.

Typically, an isopropyl alcohol and water solution ratio of 50:50 is the best cleaning agent for your sensor. You can also use straight isopropyl alcohol. Be sure to follow solvent manufacturer's precautions and directions for use when using any solvents.

3M Touch Systems, Inc. Proprietary Information – 25695M

6	3M™ MicroTouch™ Software MT 7 User Guide

∙It is important to avoid using any caustic chemicals on the sensor.

∙Always dampen the cloth and then clean the sensor. Be sure to spray the cleaning liquid onto the cloth, not the sensor, so that drips do not seep inside the display or stain the bezel.

∙Apply the cleaner with a soft, lint-free cloth. Avoid using gritty cloths.

∙Always handle the sensor with care. Do not pull on or stress flex tail.

3M Touch Systems Support Services

3M Touch Systems, Inc. provides extensive support services through our website and technical support organization. Visit the 3M Touch Systems website at m.com/http://www.3m.com/touch, where you can download touch system software and drivers, obtain regularly updated technical documentation on 3M Touch Systems products, and learn more about our company.

Whenever you contact Technical Support, please provide the following information:

∙Touch display size, part number and serial number

∙Current driver version

∙Operating system used

∙Information on additional peripherals

Technical Support is available Monday through Friday 8:30 a.m. to 5:30 p.m. with limited call back service after 5:30 p.m. until 8:00 p.m. US Eastern Standard Time – 9 a.m. to 5 p.m. throughout Europe.

You can contact 3M Touch Systems, Inc. Technical Support (US only -- Eastern Standard Time) by calling the hot line, sending email or a fax.

∙Technical Support Hot Line: 978-659-9200

∙Technical Support Fax: 978-659-9400

∙Toll Free: 1-866-407-6666 (Option 3)

∙Email: US-TS-techsupport@mmm.com

Contact 3M Touch Systems

Contact information for all offices can be found on our website at:

http://www.3Mtouch.com/

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

CHAPTER 1

Installing MT 7 Software

3M™ MicroTouch™ Software MT 7 allows users to selec t, launch, and drag objects using the sensor. MT 7 provides support for MicroTouch™ sensor operation for all applications running under the following operating systems:

∙Microsoft® Windows® 7

∙Microsoft® Windows® Vista

∙Microsoft® Windows® XP

∙Linux®

MT 7 Software Overview

Your product includes several software tools to help you work with and customize the touch sensor. Specifically, MT 7 Software includes the following programs and utilities:

∙Touch drivers

∙Control panel

∙Software uninstall utility

∙Calibration tool

∙Multi Display tool – Windows® only

Touch Drivers

Touch drivers are the software the system uses to communicate with the touch controllers. MT 7 Software includes drivers for applications running in different operating environments. You can run programs and use touch (finger or stylus) input without any program modifications.

MT 7 Control Panel

You can use the MT 7 control panel to set your preferences for the sensor. For example, you can define the following preferences:

3M Touch Systems, Inc. Proprietary Information – 25695M

8	3M™ MicroTouch™ Software MT 7 User Guide

∙Whether the touch action occurs when you touch the sensor or when you lift your finger (or stylus) off the sensor.

∙Whether you hear a sound when you touch the sensor.

∙Define a frame around the active touch area in which the cursor moves closer to the edges of the sensor.

You can also use the MT 7 control panel to calibrate the touch sensor and run optional programs.

Online Help

MT 7 Software enables you to launch a fully searchable PDF of this User Guide from the Control Panel.

MT 7 Windows® Software Uninstall Utility

The Uninstall utility automatically deletes all MT 7 software components from your computer and removes most MT 7 Software entries from the system files. For details on how to uninstall MT 7 for Windows® CE, Windows® XP Embedded, and Linux, refer to Chapters 3, 4, and 5.

Calibration Tool

This tool enables you to calibrate your touch sensor without launching the control panel.

∙For Linux® use /etc/twscreen/TwCalib

∙For all other operating systems use twcalib.exe

Multiple Display Manager

This tool enables you to set up an arrangement of multiple displays with sensors.

Microsoft WHQL Certification

Note that the MT 7 touch driver is WHQL certified. WHQL certification is designed to ensure that the new hardware device complies with operating system requirements. Without the WHQL certificate, the user is notified of ‘potential compatibility issues’ when installing the device.

Installing MT 7 Software

Note: For specific installation instructions for Windows® CE, Windows® XP

Embedded, and Linux®, refer to Chapters 3, 4, and 5 .

When you install MT 7 software, you have several installation options:

∙Typical Install (basic features needed to support touch)

∙Full Install (installs all components)

∙Custom Install (select which components you wish to install)

∙Upgrade (if you have MT 7 software already, will update the components you have installed)

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

To install MT 7 software:

1.Make sure you have completed the appropriate hardware connections. Serial controllers should be connected before you begin. USB controllers can be plugged in either before or after. The controller can then be automatically detected and there will be no need to reboot.

2.Power on your system. Make sure no other applications are open.

3.Download the MT 7 Software program from the www.3m.com/touch website. Unzip the file into a directory of your choice. Using Windows® Explorer, browse to that MT 7 folder and double-click the Setup.exe file.

4.Follow the onscreen instructions to begin the installation.

5.When prompted to choose the installation type, select whether to perform a Typical Install, Full Install, or Custom Install (or, if available, Upgrade).

During installation, you may get messages about finding new hardware. This is the MT7 driver searching your serial ports for touch controllers.

The Typical option automatically installs the minimum required MT 7 software files, creates a MT 7 program group and control panel.

If you choose Custom or Upgrade, you can select which components to install. The following components are available: Controller Support, User Interface and Utilities and Tools.

Driver Selection

3M Touch Systems offers drivers that leverage Microsoft Windows' native support for touch devices and mice. Because of this, a dialog appears during installation asking you to select a driver.

3M Touch Systems, Inc. Proprietary Information – 25695M

10	3M™ MicroTouch™ Software MT 7 User Guide

∙If this is a new installation, the default option reflects the driver that best suits your system.

∙If this is not a new installation, the chosen option reflects the driver you currently use.

Note that some systems may not show a touch digitizer driver option. This option appears only if your system supports Windows' Tablet PC. Tablet PC is supported on Windows® 7, Vista, and some XP operating systems.

Also, note that each driver presents different functions. Choose a driver based on what will suit your needs best.

Touch Digitizer- Has tablet features when used in conjunction with Windows 7. This includes flicking, an onscreen keyboard, and a press, hold, liftoff action for the rightclick function.

HID Mouse- Has right-click desktop button.

Legacy Mouse- Enables multi-display mapping and has right-click desktop button.

User Interface

The User Interface provides the following components:

∙The Control Panel is used to configure the sensor

∙The Help button launches a searchable PDF of this guide. (Linux® and CE both need their respective versions of PDF reader and Java.)

∙The Calibration Tool is recommended if you are not loading the Control Panel.

∙The Multiple Display Manager enables you to set up multiple displays with sensors. You must load this file in order to configure multiple displays.

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

Utilities and Tools

The Blank Cursor option enables you to hide the cursor. By selecting this, MT 7 Software installs a blank cursor on your system. To always hide the cursor, open the Windows® Control Panel, select mouse settings and t hen browse to the MicroTouch folder and select blank cursor.

Performing a Silent Install

If you have to perform multiple system installations, you may want to take advantage of the MT 7 software silent install.

To begin, you must create a silent install script that contains the recorded installation instructions. You create this script by running the Setup program in record mode. During a silent install, the Setup program receives input from the recorded install script rather than from a user. Once you record an installation script, you can run it on as many similar systems as you like.

The first step in producing a silent installation is to record your standard installation. Open a command line window and set your working directory to the directory containing the MT 7 for Windows® setup program. Issue the comm and "setup -r" and run the installation normally.

When the installation finishes, it creates a recording file, setup.iss, in your Windows® system directory (such as C:\Windows). Copy this file to the directory containing the MT 7 for Windows® setup program.

To run the silent installation, simply issue the command "setup -s". This replays the installation you recorded above.

3M Touch Systems, Inc. Proprietary Information – 25695M

12	3M™ MicroTouch™ Software MT 7 User Guide

Note that the silent installation fails if the installer reacts differently than when it was recorded. For example, if you record an installation using the "Upgrade" option and replay it on a system without MT 7 for Windows, the installation may fail. You should test the silent installation on all expected configurations.

Since the recording process creates a file, the MT 7 program must be on a hard drive and not on a CD-ROM. Once the file is created, you can make a CD-ROM, or equivalent media, with the distribution files and the setup.iss file. Your use of this CD-ROM is subject to the license agreement of this software. This feature does not give you the right to distribute this software if that right is not already granted to you by the license agreement.

Customizing Your Settings

Once you have installed MT 7 software, you can optimize the performance of the sensor using the MT 7 Control Panel. You can adjust settings for touch sounds, double-click speed, and double-click area (not applicable to WIN CE or Linux® systems).

Note: You can define touch settings using the MT 7 Control Panel. MT 7 stores the touch settings in the Windows® system registry. Whe never you save changes to the MT7 Control Panel, MT 7 software records the new settings in the system registry. These changes take effect immediately.

Uninstalling MT 7 Software

The Uninstall program removes all MT 7 software components from your computer. These components include MT 7 software files, directories, folders, and registry key items. The Uninstall program also removes all MT 7 software entries from the system registry files.

Note: For details on how to uninstall MT 7 for Windows® CE, Windows® XP

Embedded, and Linux, refer to Chapters 3, 4, and 5.

To uninstall MT 7 software:

1.Close MT 7 software if it is open.

2.Click on Start → Programs → MicroTouch MT 7 → Uninstall MT 7 Software

The path may be different if you performed a custom installation and chose a custom name for the MT 7 software program group.

3.Follow the onscreen instructions to remove MT 7 software. 3M Touch Systems strongly suggests you reboot your system when complete.

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

CHAPTER 2

MT 7 Software Control Panel

Overview

The MT 7 software control panel consists of tabs that allow you to determine the best settings for your touch system configuration.

∙Use the Main tab to run a 3-point calibration routine for optimum accuracy of your sensor.

∙Use the Touch Settings tab to define the touch actions that equate to mouse actions and add right-click functionality to the touch sensor.

∙Use the Edge Adjustment tab to define a frame around the active touch area in which the cursor moves closer to the edges of the sensor.

∙Use the Tools tab to restore hardware or software defaults, reset controller, run Draw Test from the desktop, and to enable Advanced Options for your touch sensor.

∙Use the Controller tab to activate linearization, select frequency, set controller ID, and determine pen/finger modes. Note that this tab appears only if you have selected the appropriate options from the Advanced Options from the Tools tab and have the specific type of controller attached to your system.

Opening the MT 7 Control Panel

You can open the MT 7 control panel by clicking:

Start → Programs → MicroTouch MT 7 → Control Panel.

Note: In Linux, use StartCP to launch the control panel

3M Touch Systems, Inc. Proprietary Information – 25695M

14	3M™ MicroTouch™ Software MT 7 User Guide

Main Tab

This tab covers sensor calibration as well as basic support information.

Calibration

The calibration process aligns the sensor with the underlying video. Specifically, calibration defines the dimensions of the active area of the sensor and locates the center of the sensor. If the sensor is not calibrated, the active area of the sensor may not be aligned properly or may be unnecessarily small.

You should calibrate the sensor in the following cases:

∙Any time you change the size and position of the video image by adjusting the horizontal and vertical controls on your display.

∙Any time the cursor does not follow the movement of your finger, or does not reach the edges of the sensor. If you continue to need additional accuracy along the edges, use the Edge Adjustment tab.

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

Calibrating the Sensor

1.Select the Main tab.

2.Click the Calibrate button.

Note: If you are using a stylus (pen) and you are in Pen/Finger mode, a dialog will ask whether you wish to calibrate using Pen or Finger. Calibrate using each option separately and when you are done, MT 7 will restore your touch mode to Pen/Finger.

3.A calibration target appears in the lower left corner of the sensor.

Note: If you press Escape or do not touch the sensor within twenty seconds, the system automatically cancels the calibration process with no change to the current settings.

4.Touch the sensor positioning your fingertip to completely cover the green target. This position is calculated upon liftoff and when you remove your finger, the target should turn red.

When touching the calibration target, make sure to:

∙Face the display directly.

∙Perform the calibration in the position (sitting or standing) you expect to normally use the sensor.

∙Touch the calibration target firmly and precisely with your fingertip. During Calibration, be careful to keep your fingernails and other fingers away from the sensor as you touch the target.

5.Repeat these instructions for additional calibration targets.

6.Once you have calibrated the sensor, a dialog box will appear to ask if you wish to test, accept or cancel this calibration.

∙If you select Accept, then the new calibration settings are automatically accepted.

∙If you select Test, then a Draw (refer to the Tools tab for more details) screen appears. When you exit Draw mode, a dialog will prompt, “Are you satisfied with the results?”

∙Selecting Yes will keep the new calibration settings.

∙Selecting No will restore the original (pre-calibration) settings.

∙If you select Cancel, the original settings will be restored without change

3M Touch Systems, Inc. Proprietary Information – 25695M

16	3M™ MicroTouch™ Software MT 7 User Guide

Testing the Calibration

If you accidentally liftoff from the sensor in the wrong place during calibration, you will distort the sensor calibration. Test by touching several points on the sensor to make sure you are satisfied with the calibration results. The cursor should be located underneath your finger or pen when you touch the sensor. Repeat the Calibration process until you are satisfied. Recalibrate the sensor if any of the following tests fail. Touch random points on the sensor. The cursor should be located underneath your finger or pen when you touch the sensor.

∙Drag your finger across the sensor and check that the cursor follows your movements.

∙Touch each corner and along the edges of the sensor. Verify that the cursor reaches the full image area of the sensor. Be sure you can touch and activate all icons and menus across the entire sensor.

∙If you are using a pen stylus, be sure to perform the calibration procedure using the pen.

∙If you need to recalibrate the sensor, make sure to touch the targets carefully. It is possible that one of your touches did not register properly or you accidentally touched the sensor in the wrong place during calibration. For example, if you touch beyond the targets or into the non-image area, you will distort the sensor calibration.

Support Information

This information helps identify your system setup for troubleshooting purposes. If for any reason you need to call Technical Support, this information will be useful.

Controller ID

On the Main tab, this is an information-only field in a single controller situation – if you have more than one controller you can select the specific controller you want to adjust.

This field identifies the controller(s) attached to your system. It will display unique identifiers for each controller attached to your system in a drop box. When you select a controller from this list, the Controller tab will reflect only this controller – any changes will be made only to this controller.

∙USB controller values include USB00000001, USB00000002, or USB00000003.

∙For EX serial controllers values include PORTCOM1, PORTCOM2, PORTCOM3, etc.

∙For other serial controllers values include SER00000001, SER00000002, etc.

Note: If there are multiple controllers in use, then a dropdown menu will appear next to ‘Controller ID.’ Each controller may be calibrated separately by choosing a specific one from the dropdown menu and then hitting ‘Calibrate.’

3M Touch Systems, Inc. Proprietary Information – 25695M

3M™ MicroTouch™ Software MT 7 User Guide

Controller Type

This field displays the type of controller currently attached to your system. This data may be useful for Technical Support issues. The touch controllers supported with this release are as follows:

∙EX USB, HID, and Serial capacitive and resistive controllers

∙DX Dual mode (USB and Serial) controllers

∙PX Dual mode (USB and Serial) controllers

∙RX USB and Serial resistive controllers

∙SX Serial pen controllers

Firmware Version

These digits represent the version number and revision level of the touch controller firmware.

Sensor Status

Sensor Status refers to whether or not the sensor has been found and is operational.

Some of the possible messages include:

∙OK – Sensor found and operational.

∙BLK Error – Hardware error such as a checksum error in controller EEPROM.

∙ CBL Error – Cable NOVRAM missing – this is only an error in systems requiring cable NOVRAM.

∙HDW Error – Hardware error.

∙LIN Error – Linearity data error.

∙NOV Error – Checksum error in NOVRAM, using default s.

∙PWM Error – Hardware error.

∙ROM Error – Checksum error in ROM.

∙SET Error – Unable to establish operating range at power-up.

Any other condition indicates a hardware failure. Contact Technical Support for more information.

3M Touch Systems, Inc. Proprietary Information – 25695M

18	3M™ MicroTouch™ Software MT 7 User Guide

Touch Settings Tab

The Touch Settings tab enables you to customize the response of your sensor. You can change the way the system responds to your touch, add a right-click tool to your desktop, tell your system to beep on touch, and define the double-click speed and area of your touch.

Touch Modes

The available Touch Mode options are Drawing, Touchdown, and Liftoff.

Drawing Mode (Default Value)

Drawing Mode is most useful for draw, paint, illustration, and graphics applications. In Drawing Mode, a touch is equivalent to pressing and holding down the mouse button. This is considered the easiest mode to use with an immediate reaction to touch. Lifting off is equivalent to releasing the mouse button.

∙To click, touch the object. Lift off the sensor.

∙To double-click; touch the object twice quickly at the same location.

∙To drag, touch the object. Slide your finger to the new location. Lift off the sensor.

3M Touch Systems, Inc. Proprietary Information – 25695M

+ 41 hidden pages
