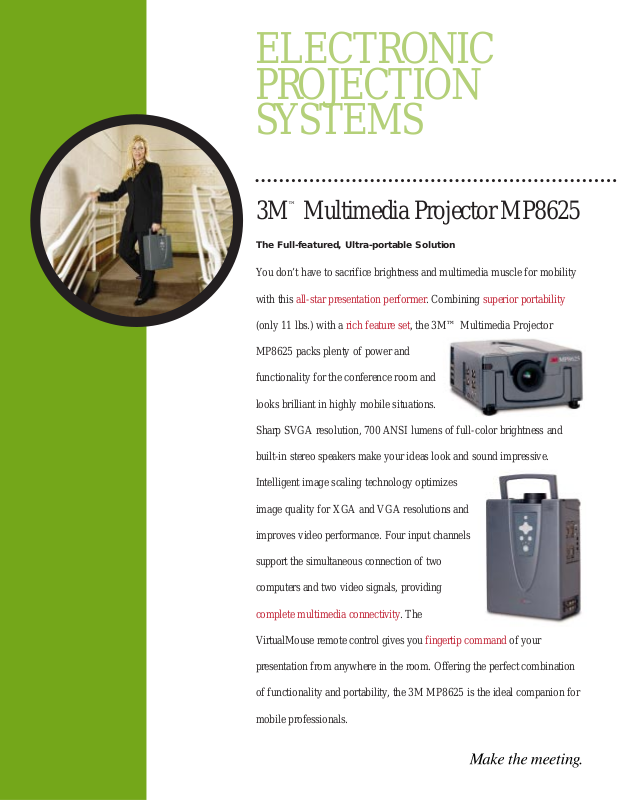

3M MP8625 Product Sheet
The Full-featured, Ultra-portable Solution
You don’t have to sacrifice brightness and multimedia muscle for mobility
with this all-star presentation performer. Combining superior portability
(only 11 lbs.) with a rich feature set, the 3M™ Multimedia Projector
MP8625 packs plenty of power and
functionality for the conference room and
looks brilliant in highly mobile situations.
Sharp SVGA resolution, 700 ANSI lumens of full-color brightness and
built-in stereo speakers make your ideas look and sound impressive.
Intelligent image scaling technology optimizes
image quality for XGA and VGA resolutions and
improves video performance. Four input channels
support the simultaneous connection of two
computers and two video signals, providing
complete multimedia connectivity. The
VirtualMouse remote control gives you fingertip command of your
presentation from anywhere in the room. Offering the perfect combination
of functionality and portability, the 3M MP8625 is the ideal companion for
mobile professionals.
3M™Multimedia Projector MP8625
ELECTRONIC
PROJECTION
SYSTEMS
KEY FEATURES
1-800-328-1371
• 700 ANSI lumens of on-screen brightness
• Active-matrix TFT LCD technology with 16.7 million
colors at true SVGA (800 x 600) resolution
• Compact lightweight design without sacrificing
brightness and image quality
• Intelligent image scaling technology optimizes image
quality for XGA and VGA resolution and video
• VirtualMouse remote control with laser pointer
• Manual zoom and manual focus
• Digital image magnification
• Four input channels for the simultaneous connection of
two computers and two video signals
• Monitor loop-through lets you view an external monitor
and your projected image simultaneously
• Kensington®Security Slot for protection from theft
(Kensington Microsaver needed)
• Built-in stereo speakers and audio output that allow you
to hook up external speakers
Computer Compatibility:
• PC-compatible — XGA, SVGA, VGA
• Apple®Macintosh®(II, LC, Quadra, Power Macintosh and
PowerBook®)
Video Compatibility:
• NTSC, PAL,SECAM, PAL-M, PAL- (BGDHI)
Accessories Included:
• Detachable power cords
• VGA (RGB) cable, Mac adapter
• RCA video cable, S-video cable, dual RCA audio cable
• Serial, ADB, PS/2®mouse cables
• Remote control with discpad and laser pointer
(with batteries)
• Stereo mini-jack
• Seven language operator’s guide
TECHNICAL SPECIFICATIONS
• LCD type: 0.9" Active-matrix TFT (x3)
• Resolution: 800 W x 600 H pixels (SVGA)
• Brightness: 700 ANSI lumens
• Colors: 16.7 million (maximum)
• Contrast ratio: 100:1 ANSI (200:1peak)
• Aspect ratio: 4:3
• Zoom lens: Manual 1:1.3
• Screen size: 21" (minimum) to 240" (maximum) diagonal
• Horizontal scan: 25-60 kHz
• Vertical scan: 56-85 Hz
• Input terminals:
S-Video: (2) mini DIN 4-pin
Video: (2) RCA jack
Audio: (2) RCA jack
RGB: (2) mini D-sub 15-pin
Audio: (2) stereo mini jack
• Output terminals:
Audio: (1) stereo mini jack
RGB: (1) mini D-sub 15-pin (female)
Mouse control and RS-232C: (1) mini D-sub 15-pin (male)
• Lamp type: 120-watt UHP
• Lamp life: 2,000 hours
• Dimensions: 9.4" (23.9cm) W x 4.9" (12.5 cm) H x 13.3" (33.7 cm) L
• Speakers: 2 x 1 watt
• Weight: 11 lbs. (5 kg)
• Operating temperature: 32°F (0°C) to 95°F (35°C)
• Storage temperature: -4°F (-20°C ) to 140°F (60°C)
• Power consumption: 230 watts (maximum)
• Power supply: AC 100-120V, AC 200-240V
• Regulatory approvals: FCC Part 15 Class A, UL, cUL
• Warranty:Two-year limited warranty on parts and labor. See warranty for details.
Lamp: 90 days or 180 hours, whichever comes first.
Optional Accessories
• Hard (ATA) cover shipping case: 78-6969-8584-1
• Soft cover carry case: 78-6969-8585-8
• User replaceable lamp kit: 78-6969-8583-3
• Ceiling mount: 78-6969-8748-2
• Object display camera: 78-6969-8578-3
• Monitor Splitter box kiy: XX-0034-1736-5
3M™Multimedia Projector MP8625
3M Visual Systems Division
Building A145-5N-01
6801 River Place Blvd.
Austin, TX 78726-9000
3M Canada
P.O. Box 5757
London, Ontario, Canada
N6A 4T1
3M Mexico, S.A. de C.V.
Apartado Postal 14-139
Mexico, D.F. 07070
Mexico
Recycled paper,
40% pre-consumer,
10% post-consumer
Litho in U.S.A. © 3M 1998
78-6970-7826-5 (09840.0)LP
www.3M.com/meetings
Specifications subject to change without notice.
