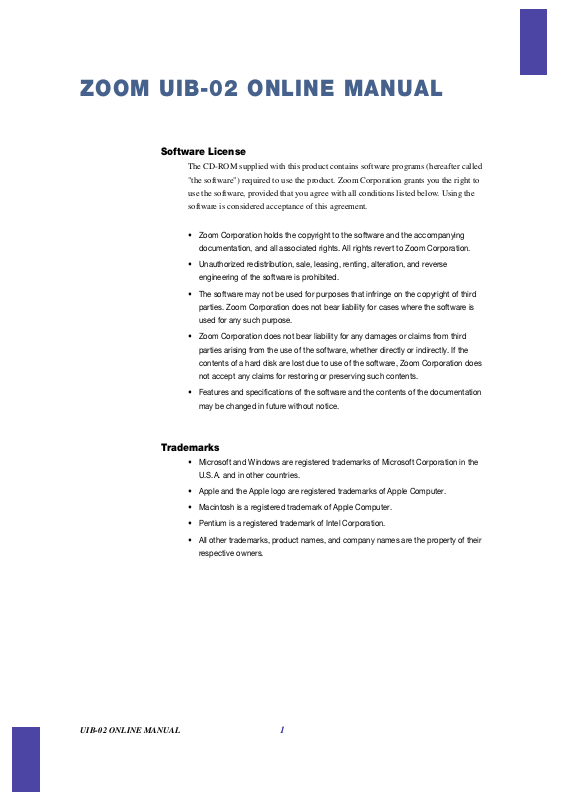

ZOOM UIB-02 ONLINE MANUAL
Software License
The CD-ROM supplied with this product contains software programs (hereafter called
"the software") required to use the product. Zoom Corporation grants you the right to
use the software, provided that you agree with all conditions listed below. Using the
software is considered acceptance of this agreement.
• Zoom Corporation holds the copyright to the software and the accompanying
documentation, and all associated rights. All rights revert to Zoom Corporation.
• Unauthorized redistribution, sale, leasing, renting, alteration, and reverse
engineering of the software is prohibited.
• The software may not be used for purposes that infringe on the copyright of third
parties. Zoom Corporation does not bear liability for cases where the software is
used for any such purpose.
• Zoom Corporation does not bear liability for any damages or claims from third
parties arising from the use of the software, whether directly or indirectly. If the
contents of a hard disk are lost due to use of the software, Zoom Corporation does
not accept any claims for restoring or preserving such contents.
• Features and specifications of the software and the contents of the documentation
may be changed in future without notice.
Trademarks
•Microsoft and Windows are registered trademarks of Microsoft Corporation in the
U.S.A. and in other countries.
• Apple and the Apple logo are registered trademarks of Apple Computer.
• Macintosh is a registered trademark of Apple Computer.
• Pentium is a registered trademark of Intel Corporation.
•All other trademarks, product names, and company names are the property of their
respective owners.
UIB-02 ONLINE MANUAL
1
\
I
NTRODUCTION
ABOUT THE UIB-02
The UIB-02 is a USB interface board designed for installation in the expansion slot of
products belonging to the ZOOM MRS series (hereafter simply called “MRS series”).
When the UIB-02 is installed in the MRS series, you can establish a USB connection
between the unit and a computer (Windows/Macintosh), allowing you to backup and
restore project data, and to convert audio track data of the MRS series into audio data
for use on the computer.
CONTENTS OF THE SUPPLIED CD-ROM
The CD-ROM supplied with the UIB-02 contains the following items.
UIB_02
\DRIVERS
\WIN98 UIB-02 drivers for Windows98/SE
Deldev.ini
Uninst.exe
Unplug.exe
Zmusat2s.ini
Zmusat2s.mpd
Zmusat2u.ini
Zmusat2u.sys
\UTILITY Application folder
\MAC Application for Macintosh folder
os_9.sit Installer for Mac OS 9
os_X.dmg Installer for Mac OS X
AFM_mac_E.pdf On-line manual (Eng)
AFM_mac_J.pdf On-line manual (Jpn)
\WIN Application for Windows folder
TakeWave.exe Application excutable file
AFM2_0J.pdf On-line manual (Jpn)
AFM2_0E.pdf On-line manual (Eng)
UIB02E.pdf UIB-02 on-line manual (Eng)
UIB02J.pdf UIB-02 on-line manual (Jpn)
UIB-02 ONLINE MANUAL
2
--
OPERATING ENVIRONMENT
The UIB-02 has the following hardware and software requirements.
●
Compatible MRS series models
MRS-1044
MRS-1044CD
MRS-1266
MRS-1266CD
* The UIB-02 cannot be used in the MRS-4.
* As of December 2002
●
Computer
Windows PC (166 MHz Pentium or higher recommended) with USB connector or
Apple Macintosh series computer with USB connector
* NEC PC-9800 series is not supported.
●
Free hard disk space
100 MB or more
●
RAM
32 MB or more
●
Supported operating systems
OS support when the UIB-02 is installed in the MRS series is shown in the table below.
OS
Windows 98/98SE
Windows Me
Windows 2000
Windows XP
MacOS 9.1
MacOS 9.2
MacOS X
●
: Using standard OS drivers
: Using original driver provided by ZOOM
❍
[NOTE]
- In the Macintosh environment, UIB-02 operation conforms to USB 1.1 specifications.
- In the Windows environment, UIB-02 operation conforms to USB 2.0 specifications if the USB
port of the PC also corresponds to USB 2.0. specifications. Otherwise UIB-02 operation
conforms to USB 1.1 specifications.
- For Windows 98/98SE, a special driver provided by ZOOM must be installed (
- The MRS-1044 (including MRS-1044CD) with UIB-02 does not support MacOS.
MRS-1266 MRS-1044
❍❍
●●
●●
●●
●
●
--
--
●
→
p. 7
).
UIB-02 ONLINE MANUAL
3
4
●
Other requirements
• CD-ROM drive x 1
• USB cable x 1
[NOTE]
Even when the above requirements are met, correct operation on all types of computers is not
assured. Depending on individual specifications and system conditions, there may be cases where
incompatibilities exist.
EXPLANATIONS IN THIS MANUAL
This manual has separate sections for Windows PCs and Macintosh computers. In the
Windows environment, operation under Windows 98 (including Windows 98SE) is
slightly different. Therefore explanations are separate for Windows 98 and for
Windows Me/2000/XP.
UIB-02 ONLINE MANUAL
U
SING
UIB-02
IN
THE
W
INDOWS
NVIRONMENT
E
SETTING THE COMPUTER AND MRS SERIES TO THE
ONLINE STATE (WINDOWS ME/2000/XP)
1. Install the UIB-02 in the expansion slot of the MRS series.
For details on installation, refer to the separate leaflet supplied with the UIB-02.
2. Turn power to the computer on and start up Windows Me/2000/XP.
3. Start the MRS series in USB mode.
In USB mode, the MRS series acts as a USB device for use with a computer. To
activate the USB mode, proceed as follows.
• MRS-1044/MRS-1044CD
While holding down the [CLEAR] key, press the [POWER] switch on the rear panel to
turn the unit on. When the indication “ROM UTY MRS-1044” appears on the display,
release the [CLEAR] key and press the [AUTO PUNCH IN/OUT] key. The display
now shows the indication “USB WORKING”.
• MRS-1266/MRS-1266CD
While holding down the [CLEAR] key, press the [POWER] switch on the rear panel to
turn the unit on. When the indication “ROM UTY MRS-1266” appears on the display,
release the [CLEAR] key and press the [AUTO PUNCH IN/OUT] key. The display
now shows the indication “I/F WORKING”.
[NOTE]
For information on how to activate the USB mode for other MRS series models, refer to the
documentation of the product.
4. Connect the computer to the UIB-02 in the MRS series using an USB cable.
The computer recognizes the MRS series as a general USB device and automatically
installs the driver.
5. Open “My computer” and verify that a new local disk has been added.
If the driver has been properly installed and the computer and MRS series are in the
online state, a new local disk (volume) will be added to “My computer”. This volume
represents the hard disk in the MRS series.
UIB-02 ONLINE MANUAL
5
[HINT]
If no new local disk is shown
→
p. 17
When the computer and MRS series are in the online state, a program for safely
removing the USB device will be added to the task tray on the Windows desktop. (The
name of this program differs slightly, depending on the OS: “Unplug or eject
hardware”, etc.) Use this program when wishing to terminate the USB connection
between the MRS series and the computer.
[HINT]
The driver will be automatically installed the first time only. Once the driver is installed, simply
starting up the MRS series in the USB mode and connecting it to the USB port of the computer
will establish the online state.
SETTING THE COMPUTER AND MRS SERIES TO THE
OFFLINE STATE (WINDOWS ME/2000/XP)
If you simply unplug the USB cable or turn power to the MRS series off while the
computer and MRS series are in the online state, computer operation may become
unstable, and serious damage to files may occur. Always perform the steps listed below
to terminate the USB connection between MRS series and computer.
1. Left-click on the icon for the remove hardware program in the task tray.
A list of connected USB devices appears. Depending on the version of Windows, the
MRS series will be shown as “USB Mass Storage Device” , etc.
2. Select the name corresponding to the MRS series device.
When the offline state is established, a message indicating that the hardware can safely
be disconnected appears.
3. When using Windows Me/Windows 2000, click on the [OK] button in the
dialog box.
With the above operating systems, the USB connection can safely be terminated in this
condition.
[HINT]
- With Windows XP, you can terminate the USB connection when the message appears.
- In the offline state, the remove hardware icon should disappear from the task tray.
4. Press the [POWER] switch of the MRS series and then press the [ENTER]
key.
Power to the MRS series is turned off. When you turn the power on again in this state,
the unit starts up normally.
UIB-02 ONLINE MANUAL
6
