Quick Start
ADSL USB Modem
This Quick Start contains all the information you should need
to install and use your Zoom ADSL USB modem. Instructions for
both Windows and Macintosh computers are included.
Important! Before You Begin
Before you install your ADSL modem, you must have ADSL
service enabled on your telephone line. To do this, you need
to sign up with an ADSL service provider. Your service
provider may refer to “ADSL service” as “DSL service.”)
Package Contents
Your package contains the items shown below:
Zoom ADSL
USB Modem
Phone Cord USB Cable
The CD contains the installation software, documentation,
warranty, and Customer Support information.
In addition, the package may include:
• Phone-jack adapter to adapt the phone cord to a particular
phone jack (certain countries only)
• ADSL line filter(s) (certain modem model only).
If anything is missing or damaged, please contact Zoom Customer
Support or your retailer or distributor.
Software
CD-ROM
You Will Also Need
• A Windows 98/98SE/Me/2000/XP or Macintosh computer
equipped with a USB port.
• An ADSL-enabled telephone wall jack to plug the modem into.
2 ADSL USB Modem Quick Star t
Quick Start
If you have a Macintosh computer, please go to page 15. If you
have a Windows computer, please continue below.
Step 1: Installing the Software and Hardware for Windows
Make sure that your computer is on.
1111
2222
Insert the supplied CD into the CD-ROM drive of your
computer. The CD should start automatically and the
Language Selection screen should appear. (If the CD does
not start automatically, on the desktop, click the Start button,
click Run, and then type D:\setup.exe, where D is the letter
of your CD-ROM drive.)
3333
Select your language. The Main Menu screen then opens.
4444
Click Installation Wizard.
Click USB to start the software installation, then click Next
5555
when prompted.
3
6666
In the Country Selection dialog box, select your country and
click Next. If your country is not listed, select Other.
Depending on your selection, one of the following will happen:
! If your country only has one type of ADSL service, the
Start Copying Files dialog box opens. Go to Step 9.
! If your country has more than one type of ADSL service,
the Service Provider Selection dialog box opens. Go to
Step 7.
! If you selected Other, the Internet Settings Selection
dialog box opens. Go to Step 8.
4 ADSL USB Modem Quick Star t
7777
If your country has more than one type of ADSL service, the
Service Provider Selection dialog box opens.
Select your service.
If you do not know which service to select, please contact your
ADSL service provider to get the information. If you cannot
or do not want to contact your service provider, we
recommend that you first try the entry labeled (1). If you
cannot connect once you have completed the installation, you
will have to go to page 24 for additional instructions on
changing your settings.
Go to Step 9.
5
8888
If you selected Other in Step 6, the Internet Settings
Selection dialog box opens.
Enter the VPI and VCI numbers in their corresponding boxes,
select the Encapsulation Type from the drop-down list, and
click Next.
If you do not know your service provider’s settings, please
contact your provider and ask for them.
9999
In the Start Copying Files dialog box, review the settings
displayed. Click the Back button if you want to change
anything, or click Next to begin the installation.
6 ADSL USB Modem Quick Star t
10
10
1010
When the installation is complete, click Finish to restart
your computer. As your computer restarts, do the
following:
aaaa
Click OK when you are prompted to connect the USB
hardware, and then plug one end of the USB cable
into the modem’s USB port and the other end into
your computer’s USB port.
bbbb
Plug one end of the supplied phone cord into the
modem’s jack labeled LINE and the other end into
the ADSL wall jack.
cccc
As the modem performs a startup sequence, you may
see a Found New Hardware box indicating the
progression of the installation. Typically no user action
is necessary. When the startup sequence is complete,
you will see a message that you have successfully
connected the USB hardware. Depending on your
operating system, you may be prompted to restart your
computer.
7
11
11
1111
Congratulations! You have installed the modem software and
hardware. Now continue with the next section, Configuring Your
Web Browser.
If you want to plug a phone in through the modem, you
can do so by plugging it into the modem’s jack labeled
PHONE. If you do this, you should use a filter for that
phone as discussed below.
We HIGHLY RECOMMEND that you install a filter
for EVERY phone and fax that is sharing the ADSL
phone line. (Do not plug a filter between the wall jack
and the modem.) Phone filters block the ADSL
frequencies so that someone making a phone call will not
hear modem noise on the line. Filters also keep phone
conversations from interfering with ADSL performance.
You may have received ADSL phone filters with your
modem. If you did not, or if you need more filters, they
are available at most retail stores that carry consumer
electronics.
To attach a filter, plug the phone or fax machine’s cord
into the filter’s PHONE end and plug the filter’s LINE
end into the wall jack.
8 ADSL USB Modem Quick Star t
Step 2: Configuring Your Web Browser
The software that you use to make an Internet connection must be
set for a network connection, not a dial-up connection.
This section includes instructions for recent versions of two
popular Web browsers: Internet Explorer Version 5.0 (or later) and
Netscape Navigator Version 7.2. Netscape Navigator instructions
are on page 11, and Internet Explorer instructions are below.
Tip:
If you are using an earlier version of one of these browsers, the
configuration may be slightly different from below. In those
cases—or if you are using another browser altogether—configure
the browser to use a network connection (this might be called a
“Local Area Network” or “broadband” connection).
Configuring Internet Explorer
The following instructions are for Internet Explorer Version 5.0 or
later. (If you do not have this version, you can get a free upgrade
from Microsoft Corp. If you are not sure what version you have,
open Internet Explorer and from the Help menu, choose About
Internet Explorer. The version number is directly below the
Microsoft Internet Explorer logo. You can ignore all the numbers
after the period following the first digit.)
1111
On the desktop, right-click the Internet Explorer icon, and
select Properties.
Tip:
If you cannot access Internet Explorer in this way, open your
computer’s Control Panel (click the Start button and then,
depending on your computer, either click Control Panel, or
click Settings and then Control Panel). In the Control Panel,
double-click the Internet Options icon. If this icon does not
appear, double-click the Network and Internet Options icon
and then double-click the Internet Options icon.
9
2222
On the Internet Properties dialog box, select the
Connections tab, then click the Setup button.
3333
The setup process will proceed differently, depending on your
operating system. The following table details the process for
your Windows computer.
Windows XP Windows 98/Me/2000
a. On the
b. On the
c. On the
d. On the
e. On the
Welcome to the
New Connection Wizard
dialog box, click
(If you see a
Information
Cancel
click
when asked if you are sure
you want to cancel, click
Yes
to return to the
Welcome
Connection Type
box, select
the Internet
Next
.
dialog box, select
my connection manually
then click
Connection
select
broadband connection
that is always on
Next
click
New Connection Wizard
dialog box, click
Location
dialog box,
and then
dialog box.)
Network
Connect to
, then click
Getting Ready
Next
.
Internet
dialog box,
Connect using a
.
Completing the
Next
dialog
Set up
, then
Finish
a. On the
.
b. On the
c. On the
,
d. On the
e. On the
.
Internet
Connection Wizard
dialog box, select
to set up my Internet
connection manually, or
I want to connect
through a local area
network (LAN)
Next
.
Setting up your
Internet connection
dialog box,
through a local area
network (LAN)
Next
.
Local area
network Internet
configuration
uncheck the
discovery of proxy
server
check box, then
Next
click
Internet Mail Account
dialog box select No, then
click
New Connection Wizard
dialog box, uncheck the
To connect to the
Internet immediately,
select this box…
box (if it appears) and click
Finish
.
Set Up Your
Next
.
Completing the
.
I want
, then click
I connect
, then click
dialog box,
Automatic
check
10 ADSL USB Modem Quick Star t
4444
If you accessed Internet Explorer’s settings from the Control
Panel (as explained in the “Tip” following step 1), the Control
Panel window will still be open. Close it before continuing.
Congratulations! You have configured Internet Explorer. Now
continue with Connecting to the Internet, starting on page 12.
Configuring Netscape Navigator
The following instructions are for Netscape Navigator Version 7.2.
(If you do not have Version 7.2, you can get a free upgrade from
Netscape Communication Corp. If you are not sure what version
you have, open Netscape Navigator and from the Help menu,
choose About Netscape. The version number is at the top of the
screen.)
1111
Double-click the Netscape Navigator icon on your desktop
to open the browser.
2222
From the Edit menu, choose Preferences to open the
Preferences dialog box.
In the Category list, click the triangle to the left of Advanced
3333
to display a list of choices below it, then select Proxies. The
Preferences dialog box changes to show the Proxies you can
specify.
When you click
this triangle,
more options
appear below
Advanced.
11
4444
Select Direct connection to the Internet, then click OK.
Congratulations! You have configured Netscape Navigator. Now
continue with Connecting to the Internet, starting on page 12.
Step 3: Connecting to the Internet
How you connect to the Internet depends on whether you have a
Zoom icon on your computer desktop.
•
If you have a Zoom icon: Follow the steps below.
•
If you do not have a Zoom icon: Go to page 13.
If You Have a Zoom Desktop Icon
If you have a Zoom icon, it means that your service provider uses
a form of PPP Encapsulation and you need to enter a Username
and Password to connect to the Internet.
1111
Click the Zoom icon to open a box that looks like this.
12 ADSL USB Modem Quick Star t
2222
Enter your User name and a Password, then click Dial or
Connect, depending on your operating system. Your service
provider should have given you a User ID or Username
(usually your email address or the characters preceding the @
sign in your email address) and a Password.
If you are using Windows Me, you may see a Location
Information dialog box. Enter your area code and click Close.
Wait until the red triangular icon on your computer’s
3333
system tray turns green. This color indicates that the
connection has been made. (The icon will be yellow while the
modem is negotiating the connection.)
Verify that your Internet connection is working. Open your
4444
Web browser (i.e., Internet Explorer or Netscape Navigator)
and try to connect to a familiar Web address.
If you connect successfully, your installation is complete
and you are ready to browse the Web!
If you did not connect, see Connection Troubleshooting
Tips on page 20.
If You Do Not Have a Zoom Icon
If you do not have a Zoom icon on your desktop, your service
provider uses a form of 1483 Encapsulation, and typically no
additional configuration is required.
Verify that your Internet connection is working. Open your Web
browser (i.e., Internet Explorer or Netscape Navigator) and try to
connect to a familiar Web address.
If you connect successfully, your installation is complete and
you are ready to browse the Web!
If you did not connect, see Connection Troubleshooting Tips
on page 20.
13

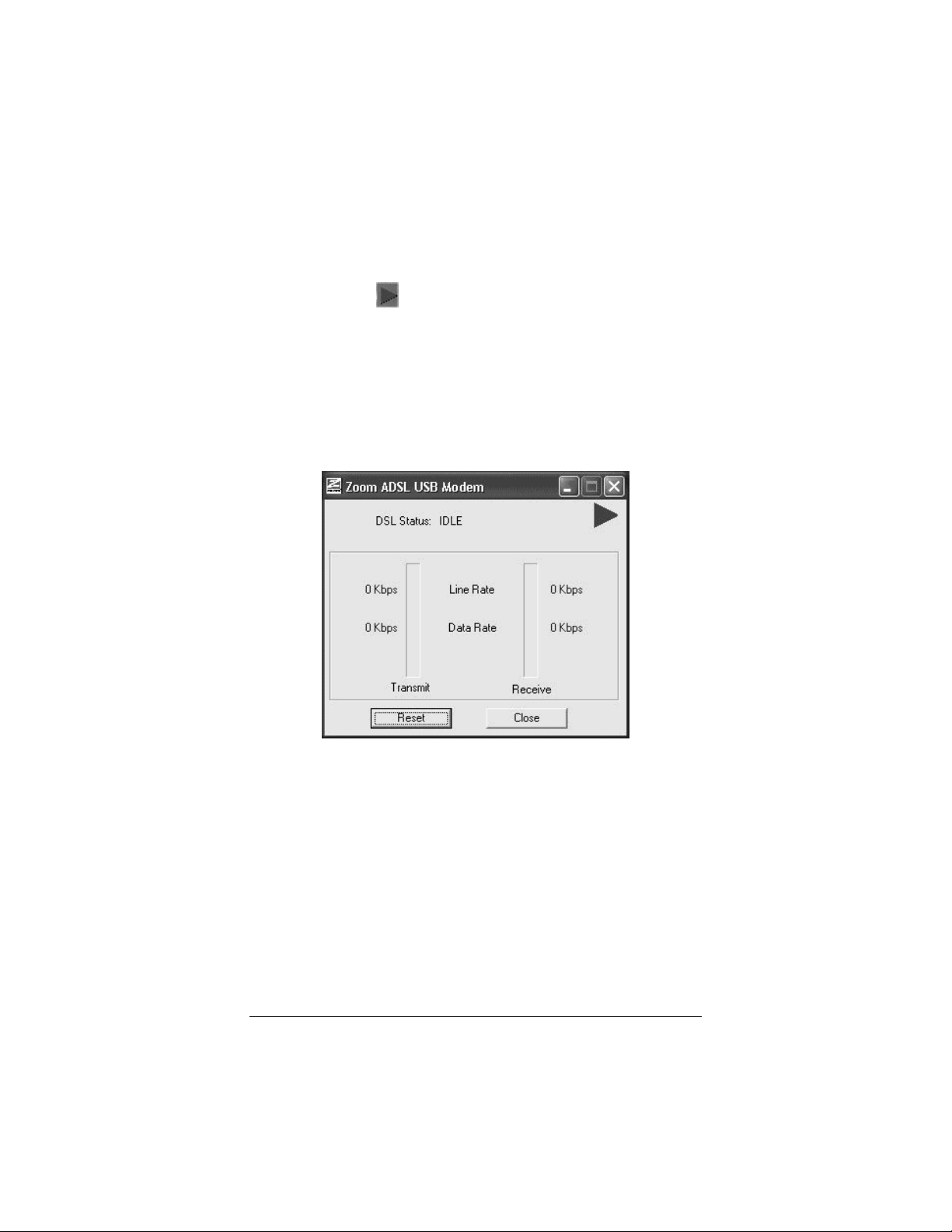

About the DSL Monitor
Your modem includes a DSL monitor application. This application
lets you check the status of your Internet connection. Double-click
the triangular icon
bottom of your desktop to open the application. You can:
• Check if your DSL connection is active or idle.
• View data transmit and receive rates.
• Disconnect and reconnect your DSL line by clicking the Reset
button.
on your computer’s system tray at the
14 ADSL USB Modem Quick Star t
Macintosh Quick Start
• Mac OS X users, follow the steps below.
• Mac OS 9 users, go to page 18.
Mac OS X
Launch the CD and drag the Zoom ADSL USB OS X Installer
1111
onto the desktop. Double-click the ADI USB ADSL OSX
icon.
Enter your Macintosh User Name and Password when the
2222
Authenticate box opens.
3333
Double-click the Install application, and then click the Install
button.
4444
Once the software installation is complete, you will be
prompted to restart your computer and connect the modem
hardware. Plug one end of the USB cable into the modem’s
USB port and the other end into your computer’s USB port.
5555
Plug one end of the supplied phone cord into the modem’s
phone jack labeled LINE and the other end into the ADSL
wall jack.
15
6666
Double-click the triangular icon on your computer’s
desktop to open the ADI Monitor application.
7777
Click the Configuration tab, then enter the VPI and VCI
numbers in the corresponding ATM Channel VPI and ATM
Channel VPI boxes, select the Encapsulation Type from the
drop-down list, and click Save Changes. Do not change any
other fields. Restart your computer if you are prompted to do
so.
Note:
If you do not know your ADSL service provider’s settings,
refer to the tables beginning on page 27 or contact your service
provider.
8888
From the Dock, click System Preferences, then Network.
16 ADSL USB Modem Quick Star t
9999
What happens next depends on the type of encapsulation you
selected above.
! Bridged or Routed: No additional configuration is
usually required. Go to Step 10.
! PPP:
—You must change the highlighted entry in the Show
pulldown list from Internal Modem to Ethernet
Adaptor. If you see two Ethernet Adaptor entries, select
the first one. The screen will change so that the Configure
pulldown entry says Using PPP. If it says Using DHCP,
select the second Ethernet Adaptor entry to force the
change to take effect.
–-At the TCP/IP tab, click the PPPoE tab and then click
checkbox labeled Connect Using PPPoE.
Important! This tab and checkbox covers both PPPoE
and PPPoA, so click it if you are using either type of PPP.
Then enter the Username (Account Na me ) and
Password your service provider gave you, and click Apply
Changes.
-Click the Internet Connect icon from the Dock, select
Ethernet Adaptor from the Configuration pulldown list,
and click Save Changes.
10
10
1010
Verify that your Internet connection is working. Open
your Web browser (i.e., Internet Explorer or Netscape
Navigator) and try to connect to a familiar Web address.
If you connect successfully, your installation is
complete and you are ready to browse the Web!
If you did not connect, see Connection Troubleshooting
Tips on page 20.
17
Mac OS 9
1111
Launch the CD and double-click the ADI USB ADSL OS9
Installer.
Double-click the ADI USB ADSL Classic application, and
2222
then click the Install button.
3333
Once the software installation is complete, you will be
prompted to restart your computer. Do not connect the
modem hardware until the restart is complete. Then plug one
end of the USB cable into the modem’s USB port and the
other end into your computer’s USB port.
4444
Plug one end of the supplied phone cord into the modem’s
phone jack labeled LINE and the other end into the ADSL
wall jack.
5555
Double-click the ADI Monitor icon on your computer’s
desktop to open the ADI Monitor application.
18 ADSL USB Modem Quick Star t
6666
Click the Configuration tab, then enter the VPI and VCI
numbers in the corresponding ATM Channel VPI and ATM
Channel VPI boxes, select the Encapsulation Type from the
drop-down list, and click Save Changes. Do not change any
other fields. Restart your computer if you are prompted to do
so.
Note:
If you do not know your ADSL service provider’s settings,
refer to the tables beginning on page 27 or contact your service
provider.
7777
What happens next depends on the type of Encapsulation you
selected in the step above.
! If you selected Bridged or Routed: No additional
configuration is usually required. Go to Step 8.
! If you selected PPP: From the Apple menu, select
Control Panel and then Remote Access. Then enter the
Username and Password your ADSL service provider
gave you, and click Connect.
Note:
If you change your Encapsulation settings in the ADI monitor
from this point on, you must unplug your modem’s USB cable
and then plug it back in after you restart your computer.
Verify that your Internet connection is working. Open your
8888
Web browser (i.e., Internet Explorer or Netscape Navigator)
and try to connect to a familiar Web address.
If you connect successfully, your installation is complete
and you are ready to browse the Web!
If you did not connect, see Connection Troubleshooting
Tips on page 20.
19
Connection Troubleshooting Tips
The following are some problems you may experience and some
possible solutions to remedy the situation.
Problem
My modem’s LINK light continually blinks and does not stay
solidly lit.
Solution
There are several issues that could cause this problem. Check these
items:
• Ensure that the phone cord is firmly plugged into the wall jack
and the LINE jack on the back of the modem.
• Verify that the jack the phone cord is connected to is enabled
for ADSL service. Unless your service provider has enabled it,
you cannot use a standard telephone jack for ADSL service.
Problem
My modem’s LINK light is solidly lit, but I cannot connect to the
Internet.
Solution
There are several issues that could cause this problem. Check these
items:
• Ensure that you are using the correct VPI, VCI and
Encapsulation settings.
• If your Encapsulation begins with PPP, ensure that you have
typed your ADSL Username and Password correctly.
20 ADSL USB Modem Quick Star t
• Verify that your ADSL service provider’s ADSL connection is
functioning properly. (Place a call to your ISP’s customer
support department to verify this.)
• Verify that your computer’s TCP/IP properties are correct.
How you do this depends on your operating system:
Windows XP
1111
Open the Internet Protocol (TCP/IP) Properties dialog
box.
From the desktop, click the Start button, point to
aaaa
Control Panel, and then click Network and Internet
Connections.
Click Network Connections.
bbbb
Right-click the Local Area Connection icon, and
cccc
select Properties.
Select your NIC card’s TCP/IP entry (it should
dddd
include “TCP/IP” in it, but not “AOL,” “Dial-up,” or
“Adapter”) and click the Properties button.
Ensure the following is selected, depending on whether
2222
you are using dynamic (DHCP) or static IP addressing:
! If you are using DHCP (most users): Ensure that
Obtain an IP address automatically is selected and
that either Obtain a DNS server address
automatically or Enable DNS is selected. All fields
should be blank.
! If you are using a static IP address: Ensure that
Use the following IP address and Use the
following DNS server addresses are selected. The
IP address, Subnet mask, Default gateway, and
Preferred DNS server settings should match those
given to you by your Internet provider when you
arranged for a static IP address.
21
Windows 2000
1111
Open the Internet Protocol (TCP/IP) Properties dialog
box.
From the desktop, click the Start button, point to
aaaa
Settings, then Network and Dial-up Connections.
Right-click the Local Area Connection icon, and
bbbb
select Properties.
Select your NIC card’s TCP/IP entry (it should
cccc
include “TCP/IP” in it, but not “AOL,” “Dial-up,” or
“Adapter”) and click the Properties button.
2222
Ensure the following is selected, depending on whether
you are using dynamic (DHCP) or static IP addressing:
! If you are using DHCP (most users): Ensure that
Obtain an IP address automatically is selected and
that either Obtain a DNS server address
automatically or Enable DNS is selected. All fields
should be blank.
! If you are using a static IP address: Ensure that
Use the following IP address and Use the
following DNS server addresses are selected. The
IP address, Subnet mask, Default gateway, and
Preferred DNS server settings should match those
given to you by your Internet provider when you
arranged for a static IP address.
22 ADSL USB Modem Quick Star t
Windows 98/Me
1111
Open the Internet Protocol (TCP/IP) Properties dialog
box.
From the desktop, click the Start button, point to
aaaa
Settings, then Control Panel .
Double-click the Network icon to display the
bbbb
Network dialog box.
Select your NIC card’s TCP/IP entry (it should include
cccc
“TCP/IP” in it, but not “AOL,” “Dial-up,” or
“Adapter”) and click the Properties button and then
click OK
2222
Ensure the following is selected, depending on whether
you are using dynamic (DHCP) or static IP addressing:
! If you are using DHCP (most users): Ensure that
Obtain an IP address automatically is selected and
that either Obtain a DNS server address
automatically or Enable DNS is selected. All fields
should be blank.
! If you are using a static IP address: Ensure that
Specify an IP address is selected and that the IP
Address and Subnet Mask settings match those
given to you by your Internet service provider when
you arranged for a static IP address. On the DNS
Configuration tab, ensure that Enable DNS is
selected and that something appears in the Host box.
(If not, enter any name, word, or combination of
letters and numbers.)
23
How To Determine Your Service Provider’s Settings if You Do Not Know Them
This section is only for those Windows users who have more than
one ADSL service listed in the Service Provider Selection dialog
box on page 5, and who do not have their service’s settings. If you
selected an entry in the list (either your service’s first PPP or first
1483 setting) and you cannot connect to the Internet, you can use
your modem’s DSL monitor application to change your settings to
try to match your situation.
1111
Double-click the triangular icon on your computer’s system
tray at the bottom of your desktop to open the DSL monitor
application.
2222
Position your cursor anywhere inside the application screen,
press the <alt> key and the “d” key simultaneously on your
keyboard to open the Administrative dialog box, and then
click the CONFIG tab.
24 ADSL USB Modem Quick Star t
3333
Refer to the tables beginning on page 27 and find your service
provider. You have already tried one or more entries, so now
you should try the next entries in order until you are successful
or you run out of settings to try. In the drop-down list, select
the Encapsulation Type that matches your service provider’s
next entry (if any) in the table. If the Encapsulation type you
are looking for is not there, see the Note box below.
Otherwise, enter the VPI and VCI numbers in their
corresponding boxes, and click Apply. Do not change any
other fields.
Restart your computer and try to surf the Web. If you cannot
surf the Web, repeat Step 3, working your way down the listed
entries for your service provider. If none of these entries work,
you will have to contact your service provider.
Note:
The Administrative dialog box displays one of two sets of
Encapsulation settings, PPP or Bridged/Routed, depending on
the type of Encapsulation used during the software installation.
If you have tried all the settings for the PPP set and none has
worked, you should try the other set. To do this, you will have
to uninstall your modem as described below, and follow the
Quick Start instructions again. This time, when the Service
Provider Selection dialog box opens, select the first 1483
Bridged or Routed entry for your service provider.
To Uninstall Your Modem:
Click the Start button and then, depending on your computer,
either click Programs, or All Programs , and then Zoom
ADSL USB. Select Uninstall and follow the prompts.
25
If You Need Help
Zoom has many Technical Support services available to its
customers. You can access these services in a variety of ways:
• Windows users: Insert the CD, select your language, and then
click the Customer Support link to view comprehensive
support information, including how to reach our support
experts.
• Macintosh users: You will find Customer Support information
and Documentation in the appropriately named folders in the
CD-ROM’s directory.
• Visit our Web site at www.zoom.com and select Techn ical
Support. From here, you can send email to our technical
support experts and/or do a smart search through our
intelligent database by using SmartFacts
Tip:
From time to time, Zoom may release improved firmware.
This is also available at www.zoom.com , along with upgrade
instructions. We recommend that you check our Web site
periodically for updates.
• Call our support office in the United States at (561) 241-7170
or in the United Kingdom at 44 (0)1276 704440.
™
.
• Some retailers of Zoom products provide support or can
recommend a convenient support center.
26 ADSL USB Modem Quick Star t
Service Provider
Settings
Tables
These tables are for customers whose service providers do not
supply them with the ADSL settings to connect to the Internet.
Many ADSL providers use different settings depending on the
region in which they are operating, which is why there may be
more than one setting for your service provider. We post updated
tables on our Web site. If your country is not listed in the tables
below, please consult www.zoom.com
Note to USA customers
If your ADSL service provider is not shown below, first use the settings
Service Provider Not Shown
for
settings do not work, use the settings for the company that provides
local telephone service in your area.
Table A: USA
Service Provider VPI VCI Encapsulation
AllTel (1) 0 35 PPPoE LLC
AllTel (2) 0 35 1483 Bridged IP LLC
August.net (1) 0 35 1483 Bri dg ed IP LLC
August.net (2) 8 35 1483 Bri dg ed IP LLC
BellSouth 8 35 PPPoE LLC
CenturyTel (1) 8 35 PPPoE LLC
CenturyTel (2) 8 35 1483 Bridged IP LLC
Covad 0 35 PPPoE LLC
Earthlink (1) 0 35 PPPoE LLC
Earthlink (2) 8 35 PPPoE LLC
GWI 0 35 1483 Bridged IP LLC
Qwest (1) 0 32 PPPoA LLC
Qwest (2) 0 32 PPPoA VC-MUX
SBC (1) 0 35 PPPoE LLC
SBC (2) 0 35 1483 Bridged IP LLC
SBC (3) 8 35 1483 Bridged IP LLC
Sprint (1) 0 35 PPPoA LLC
Sprint (2) 8 35 PPPoE LLC
Verizon (1) 0 35 PPPoE LLC
Verizon (2) 0 35 1483 Bridged IP LLC
Service Provider Not Shown 0 35 PPPoE LLC
at the bottom of the table. If those
27
Table B: Countries Other Than The USA
Service Provider or Country VPI VCI Encapsulation
Australia-Telstra 8 35 PPPoA LLC
Argentina 1 33 PPPoA VC-MUX
Belgium-ADSL Office 8 35 1483 Routed IP LLC
Belgium-Turboline 8 35 PPPoA LLC
Bolivia 0 34 1483 Routed IP LLC
Brazil-Brasil Telcom 0 35 PPPoE LLC
Brazil-Telefonica 8 35 PPPoE LLC
Brazil-Telmar 0 33 PPPoE LLC
Brazil-South Region 1 32 PPPoE LLC
Colombia-EMCALI 0 33 PPPoA VC-MUX
Denmark-Cybercity, Tiscali 0 35 PPPoA VC-MUX
France (1) 8 35 PPPoE LLC
France (2) 8 67 PPPoA LLC
France (3) 8 35 PPPoA VC-MUX
Germany 1 32 PPPoE LLC
Hungary-Sci-Network 0 35 PPPoE LLC
Iceland-Islandssimi 0 35 PPPoA VC-MUX
Iceland-Siminn 8 48 PPPoA VC-MUX
Israel 8 48 PPPoA VC-MUX
Italy 8 35 PPPoA VC-MUX
Jamaica (1) 8 35 PPPoA VC-MUX
Jamaica (2) 0 35 PPPoA VC-MUX
Jamaica (3) 8 35 1483 Bridged IP LLC SNAP
Jamaica (4) 0 35 1483 Bridged IP LLC SNAP
Kazakhstan 0 33 PPPoA VC-MUX
Mexico 8 35 PPPoE LLC
Netherlands-BBNED 0 35 PPPoA VC-MUX
Netherlands-MX Stream 8 48 PPPoA VC-MUX
Portugal 0 35 PPPoE LLC
Saudi Arabia (1) 0 33 PPPoE LLC
Saudi Arabia (2) 0 35 PPPoE LLC
Saudi Arabia (3) 0 33 1483 Bridged IP LLC
Saudi Arabia (4) 0 33 1483 Routed IP LLC
Saudi Arabia (5) 0 35 1483 Bridged IP LLC
Saudi Arabia (6) 0 35 1483 Routed IP LLC
28 ADSL USB Modem Quick Star t
Table B (Continued): Countries Other Than The USA
Service Provider or Country VPI VCI Encapsulation
Spain-Albura, Tiscali 1 32 PPPoA VC-MUX
Spain-Colt Telecom, Ola Internet 0 35 PPPoA VC-MUX
Spain-EresMas, Retevision 8 35 PPPoA VC-MUX
Spain-Telefonica (1) 8 32 PPPoE LLC
Spain-Telefonica (2), Terra 8 32 1483 Routed IP LLC
Spain-Wanadoo (1) 8 35 PPPoA VC-MUX
Spain-Wanadoo (2) 8 32 PPPoE LLC
Spain-Wanadoo (3) 8 32 1483 Routed IP LLC
Sweden-Telenordia 8 35 PPPoE
Sweden-Telia 8 35 1483 Bridged IP LLC
Switzerland 8 35 PPPoE LLC
Turkey (1) 8 35 PPPoE LLC
Turkey (2) 8 35 PPPoA VC-MUX
UK 0 38 PPPoA VC-MUX
Venezuela-CANTV 0 33 1483 Routed IP LLC
Vietnam 0 35 PPPoE LLC
29
Regulatory Information
U.S. FCC Part 68 Statement
This equipment complies with Part 68 of the FCC ru les and the requirements adopted by the
ACTA. The unit bears a label on the back which contains among other information a
product identifier in the format US: AAAEQ## T XX XX. If requested, this number must be
provided to the telephone company.
This equipment uses the following standard jack types for network connection: RJ11C.
This equipment contains an FCC compliant modular jack. It is designed to be connected to
the telephone network or premises wiring using compatible modular plugs and cabling
which comply with the requirements of FCC Part 68 rules.
The Ringer Equivalence Number, or REN, is used to determine the number of devices
which may be connected to the telephone line. An excessive REN may cause the equipment
to not ring in response to an incoming call. In most areas, the sum of the RENs of all
equipment on a line should not exceed five (5.0).
In the unlikely event that this equipment causes harm to the telephone network, the
telephone company can temporarily disconnect your service. The telephone company will try
to warn you in advance of any such disconnection, but if advance notice isn't practical, it
may disconnect the service first and notify you as soon as possible afterwards. In the event
such a disconnection is deemed necessary, you will be advised of your right to file a
complaint with the FC C .
From time to time, the telephone company may make changes in its facilities, equipment, or
operations which could affect the operation of this equipment. If this occurs, the telephone
company is required to provide you with advance notice so you can make the modifications
necessary to obtain uninterrupted service.
There are no user serviceable components within this equipment. See Warranty flyer for
repair or warranty information.
It shall be unlawful for any person within the United States to use a computer or other
electronic device to send any message via a telephone facsimile unless such message clearly
contains, in a margin at the top or bottom of each transmitted page or on the first page of
the transmission, the date and time it is sent and an identification of the business, other
entity, or individual sending the message and the telephone number of the sending machine
or of such business, other entity, or individual. The telephone number provided may not be
a 900 number or any other number for which charges exceed local or long distance
transmission charges. Telephone facsimile machines manufactured on and after December
20, 1992, must clearly mark such identifying information on each transmitted me ssage.
Facsimile modem boards manufactured on and after December 13, 1995, must comply with
the requirements of this section.
This equipment cannot be used on public coin phone service provided by the telephone
company. Connection to Party Line Service is subject to state tariffs. Contact your state
public utility commission, public service commission, or corporation commission for more
information.
U.S. FCC Part 15 Emissions Statement
This equipment has been tested and found to com p ly with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interf erence will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
30 ADSL USB Modem Quick Star t
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the
•
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
•
Industry Canada Emissions Statement
This Class B digital apparatus meets all requirements o f the Canadian Interference-Ca usin g Equipment
Regulations. Cet appa reil n umérique de la classe B respecte toute s les ex igences du Règlement sur le
matériel brouilleur du Canada.
Industry Canada CS03 Statement
Notice: The Industry Cana da la b el iden tif ies certified equipment. This certifi cation means that the
equipment meets telecommunications network protective, operational and safety requirements as
prescribed in the approp ria te T erm in a l Eq uip m en t T ech n ica l Requirements documen t(s). T h e
Department does not gua ra n t ee t h e equip m en t w ill o perate to the user's satisfa ct io n .
Before installing the eq uipment, users should en sure that it is permissible t o b e co n n ect ed to t h e facilit ies
of the local telecommunication s co m p a ny. The equipment must also be insta lled using an acceptable
method of concern. The custom er sh o uld be a w a re th a t co m p lia n ce w ith th e abo ve co n ditio ns may not
prevent degradation of service in so m e situations.
Repairs to certified equipmen t sh o uld be co o rdin a ted b y a rep resen ta tive designated by the supplier. Any
repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the
telecommunications com p a n y ca use to request the user to disconnect the equipment.
Users should ensure for their own protection tha t th e elect rica l g round connections of t h e p ower utility,
telephone lines and internal metallic water pipe system, if present, are connected to geth er. T h is p reca ution
may be particularly important in rural areas. Caution: Users should not attempt to make such connections
themselves, but should contact th e a p p ro p ria te electri c inspection authority, or electr icia n , as appropriate.
Notice: The Ringer Equivalen ce Number (REN) assigned to each term in a l device provides an indication
of the maximum number of terminals allowed to be connected to a telephone interface. The termination
on an interface may consist of an y co m b in a tion of devices subject only to the requiremen t th a t th e sum o f
the Ringer Equivalence N um b ers o f a ll th e devices does not exceed 5.
European Declaration of Conformity
The manufacturer declares under sole responsibility that this equipment is compliant to Directive
1999/5/EC (R&TTE Directive) via th e following. This product is CE Mar ked.
Directive Standard Test Report
73/23/EEC-Low
Voltage
89/336/EEC-EMC EN 55024 : 1998
EN 60950 : 2000
IEC 60950 : 3
EN 55022 : 1998
e
éd. 1999
electrical safety
EMC-immunity
EMC-emissions
Electrosta ti c Di sc harge Statem ent
The unit may require resett in g a f ter a severe electrostatic discharge event.
CAUTION: To reduce the risk o f f ire, use o n ly N o . 26 AWG o r la rger UL Listed or CSA Certifi ed
telecommunication lin e cord.
31
3364-B 27338 ©2004
Loading...
