Operation Manual

Reproduction of this manual, in whole or in part, by any means, is prohibited.

SAFETY PRECAUTIONS Usage Precautions

Handling

•Never place objects ﬁlled with liquids, such as vases, on

SAFETY PRECAUTIONS

In this manual, symbols are used to highlight warnings and cautions for you to read so that accidents can be prevented. The meanings of these symbols are as follows:

This symbol indicates explanations about extremely dangerous matters. If users ignore this symbol and handle the device the wrong way, serious injury or

arning

death could result.

This symbol indicates explanations about dangerous matters. If users ignore this symbol and handle the device the wrong way, bodily injury and damage to

Caution

the equipment could result.

Please observe the following safety tips and precautions to ensure hazard-free use of the A2.1u.

Power requirements

Since power consumption of this unit is fairly high, we

arning

recommend the use of an AC adapter whenever possible. When powering the unit from batteries, use only alkaline types.

[AC adapter operation]

• Be sure to use only an AC adapter which supplies 9 V DC, 300 mA and is equipped with a "center minus" plug (Zoom AD-0006). The use of an adapter other than the speciﬁed type may damage the unit and pose a safety hazard.

• Connect the AC adapter only to an AC outlet that supplies the rated voltage required by the adapter.

• When disconnecting the AC adapter from the AC outlet, always grasp the adapter itself and do not pull at the cable.

• During lightning or when not using the unit for an extended period, disconnect the AC adapter from the AC outlet.

[Battery operation]

• Use four conventional IEC R6 (size AA) batteries (alkaline).

• The A2.1u cannot be used for recharging.

•Pay close attention to the labelling of the battery to make sure you choose the correct type.

• When not using the unit for an extended period, remove the batteries from the unit.

• If battery leakage has occurred, wipe the battery compartment and the battery terminals carefully to remove all remnants of battery ﬂuid.

• While using the unit, the battery compartment cover should be closed.

Environment

To prevent the risk of ﬁre, electric shock or

arning

malfunction, avoid using your A2.1u in environments where it will be exposed to:

• Extreme temperatures

• Heat sources such as radiators or stoves

• High humidity or moisture

• Excessive dust or sand

• Excessive vibration or shock

arning

the A2.1u since this can cause electric shock.

• Do not place naked ﬂame sources, such as lighted candles, on the A2.1u since this can cause ﬁre.

• The A2.1u is a precision instrument. Do not exert undue pressure on the keys and other controls. Also take care not to drop the unit, and do not subject it to shock or excessive pressure.

•Take care that no foreign objects (coins or pins etc.) or liquids can enter the unit.

Connecting cables and input and output jacks

Caution

You should always turn off the power to the A2.1u and all other equipment before connecting or disconnecting any cables. Also make sure to disconnect all connection cables and the power cord before moving the A2.1u.

Alterations

Never open the case of the A2.1u or attempt to modify

arning

the product in any way since this can result in damage to the unit.

Volume

Do not use the A2.1u at a loud volume for a long time

Caution

since this can cause hearing impairment.

Usage Precautions

Electrical interference

For safety considerations, the A2.1u has been designed to provide maximum protection against the emission of electromagnetic radiation from inside the device, and protection from external interference. However, equipment that is very susceptible to interference or that emits powerful electromagnetic waves should not be placed near the A2.1u, as the possibility of interference cannot be ruled out entirely.

With any type of digital control device, the A2.1u included, electromagnetic interference can cause malfunctioning and can corrupt or destroy data. Care should be taken to minimize the risk of damage.

Cleaning

Use a soft, dry cloth to clean the A2.1u. If necessary, slightly moisten the cloth. Do not use abrasive cleanser, wax, or solvents (such as paint thinner or cleaning alcohol), since these may dull the ﬁnish or damage the surface.

Please keep this manual in a convenient place for future reference.

*Windows and Windows XP are registered trademarks of

Microsoft Corporation. * Macintosh is a registered trademark of Apple Computer. * All other product names, trademarks, and company names

mentioned in this manual are the property of their respective

owners.

ZOOM A2.1u

Contents

SAFETY PRECAUTIONS Usage Precautions.................................... 2

Features ............................................................................................... 4

Terms Used in This Manual ................................................................5

Controls and Functions / Connections ............................................. 6

Selecting a Patch ................................................................................ 8

Using the Tuner .................................................................................10

Using the Rhythm Function ..............................................................12

Editing a Patch .................................................................................. 14

Storing/Copying Patches .................................................................. 16

Using the Built-in Expression Pedal ................................................ 18

Using the Feedback Control ............................................................ 20

Manual operation of feedback control .............................................. 20

Automatic detection of feedback frequency ....................................21

Using the built-in expression pedal to operate the feedback

control function ..................................................................................22

Using Manual Mode ..........................................................................23

Other Functions .................................................................................24

Making settings for the built-in expression pedal ............................24

Adjusting the sensitivity of the built-in expression pedal ................ 24

Using an external expression pedal (FP01/FP02) ............................. 25

Using a foot switch (FS01) ................................................................. 25

Using the A2.1u as audio interface for a computer .......................... 26

Use as a direct box ............................................................................27

Starting the A2.1u in HI-GAIN mode .................................................28

Restoring Factory Defaults ................................................................ 28

Linking Effects ...................................................................................29

CONTROL module and GLOBAL module .........................................29

Effect Types and Parameters ........................................................... 30

How to read the parameter table ......................................................30

MODEL ........................................................................................... 31

MIC ................................................................................................ 32

COMP/LIMIT .................................................................................. 32

LO EQ ............................................................................................ 32

HI EQ .............................................................................................. 33

ZNR ................................................................................................ 33

MOD/EFX ....................................................................................... 33

DELAY/REVERB ............................................................................. 35

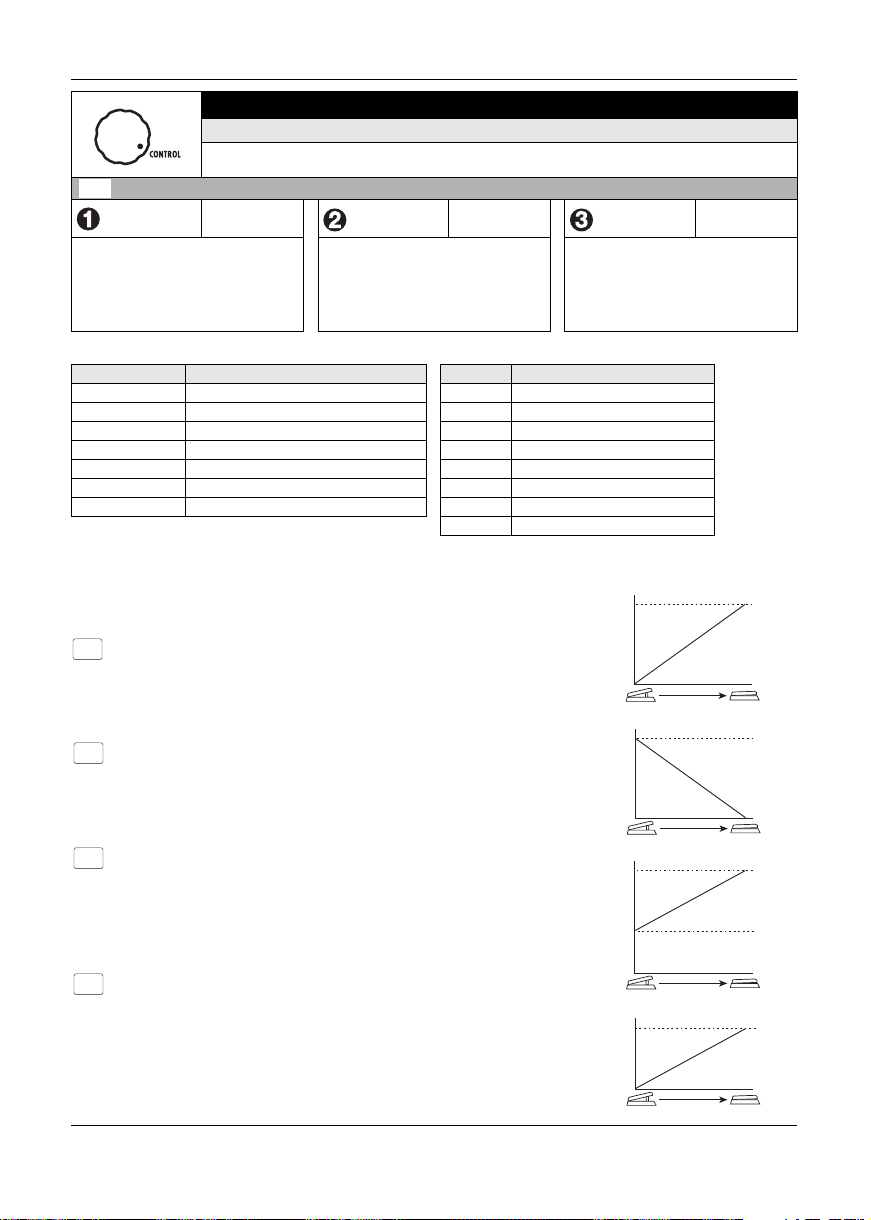

CONTROL ...................................................................................... 37

Troubleshooting ................................................................................ 38

Specifications .................................................................................... 39

GLOBAL ......................................................................................... 38

A2.1u Preset Pattern..............................................................

Back cover

The FCC regulation warning (for U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ZOOM A2.1u

Features

Thank you for selecting the sophisticated effect processor for acoustic guitar with the following features.

Latest technology for top performance

●

Excellent sound quality is assured by signal processing circuitry featuring 96 kHz/24 bit sampling and internal 32-bit processing. Frequency response remains flat to 40 kHz, and signal-to-noise ratio is an amazing 100 dB or better. A built-in USB port serves for direct connection to a computer. You can use the A2.1u as audio interface for the computer, allowing direct recording with the supplied DAW software.

Full array of effects optimized for acoustic guitar

●

Out of a versatile palette of 47 effects, up to eight (including ZNR) can be used simultaneously. The A2.1u offers effects which simulate the sound of famous acoustic guitars, a mic simulator that creates the ambience of microphone recording, and other specialized acoustic guitar effects.

Select optimum characteristics for pickups and amps

●

The A2.1u allows you to select the best frequency response for your pickup and amp. This is great for eliminating sonic problems that can occur when playing an acoustic guitar through a guitar amplifier.

Automatic suppression of acoustic feedback

●

The feedback control feature pinpoints the frequency where acoustic feedback (howling) occurs and provides an efficient cure. The function can be activated by foot switch during a performance.

●

XLR connector for direct output

In addition to the regular output jack, the A2.1u features an XLR connector for sending a balanced linelevel signal to equipment such as a PA mixer or recording console. The signal can be derived from a point before or after effect processing. A ground lift switch is also provided, which is useful to prevent hum in the direct output caused by ground loops.

●

Advanced interface

Rotary selectors and three parameter knobs make operation extremely quick and intuitive. The muting interval when switching patches has been reduced to less than 8 milliseconds, allowing virtually seamless patch changes.

●

Rhythm function and auto-chromatic tuner

Rhythm patterns created from highly realistic PCM sources are built in. The auto-chromatic tuner designed for guitar makes tuning easy and quick.

●

Support for foot switch and expression pedal operation

Adjust effect parameters or volume in real time with the expression pedal that is built right into the unit. In addition, the CONTROL IN jack on the rear panel lets you connect an optional external pedal (FP01/ FP02) or a foot switch (FS01).

●

Dual power supply principle allows use anywhere

The A2.1u can be powered from four IEC R6 (size AA) batteries or an AC adapter. Continuous operating time is approximately 6 hours with alkaline batteries.

ZOOM A2.1u

(simply called the "

A2.1u

" in this manual). The A2.1u is a

Please take the time to read this manual carefully, in order to get the most out of your A2.1u and to ensure optimum performance and reliability.

ZOOM A2.1u

Terms Used in This Manual

This section explains some important terms that are used throughout the A2.1u documentation.

IN MODEL MIC

■

Effect module

As shown in the illustration above, the A2.1u can be thought of as a combination of several single effects. Each of these is referred to as an effect module. Among others, there is a module for ZNR (ZOOM Noise Reduction), as well as a modeling (sound simulation) module (MODEL), compressor/limiter module (COMP/LIMIT), modulation/special effects module (MOD/EFX). Parameters such as effect intensity can be adjusted for each module individually, and modules can be switched on and off.

■

Effect type

Most effect modules comprise several different effects which are referred to as effect types. For example, the MOD/EFX module comprises chorus, flanger, delay, phaser, and other effect types. Only one of these can be selected at any time.

■

Effect parameter

All effect modules have various parameters that can be adjusted. These are called effect parameters.

In the A2.1u, effect parameters are adjusted with the parameter knobs 1 – 3. Similar to the knobs on a compact effect, these change aspects such as tonal character and effect intensity. Which parameter is assigned to each knob depends on the currently selected effect module and effect type.

■

Patch

In the A2.1u, effect module combinations are stored and called up in units referred to as patches. A patch

COMP/LIMIT

LO EQ HI EQ ZNR

MOD/EFX

comprises information about the on/off status of each effect module, about the effect type used in each module, and about effect parameter settings. The internal memory of the A2.1u holds 80 patches (40 of these can be rewritten by the user).

●

Bank and area

A group of ten patches is called a bank. The memory of the A2.1u comprises a total of eight banks, labelled A to d and 0 to 3. Banks A – d form the user area which allows read/write patches. Banks 0 to 3 are the preset area of read-only.

The patches within each bank are numbered 0 through 9. To specify a patch, you use the format "A1" (patch number 1 from bank A), "06" (patch number 6 from bank 0), etc.

■

Modes

The A2.1u has the following operation modes.

●

Play mode

In this mode, patches can be selected and played.

●

Manual mode

In this mode, you play your instrument while using the foot switches to turn the MOD/EFX module or the feedback control function on and off. The mode also is used for automatic detection of acoustic feedback frequency.

●

Edit mode

In this mode, the effect parameters of a patch can be edited (changed).

DELAY/REVERB

OUT

Operating the A2.1u on batteries

Turn the A2.1u over and open the cover

of the battery compartment on the bottom.

A2.1u bottom view

Latch

Cover

Press the latch to release it and then raise the cover.

ZOOM A2.1u

Insert four fresh IEC

R6 (size AA) batteries.

Four IEC R6 (size AA) batteries

Insert batteries facing in alternate directions.

Use four IEC R6 (size AA) batteries.

When the batteries are getting low, the indication "bt" appears on the display.

Close the cover of

the battery compartment.

Push the cover in until the latch audibly snaps into place.

Controls and Functions / Connections

Module selector

Switches between play/manual mode and edit mode. In edit mode, the knob selects the module for operation.

BANK [-]/[+] keys

In play mode and manual mode, the keys serve for directly switching to the next lower or higher bank. In edit mode, the keys switch the effect type for the currently selected module.

[STORE] key

Serves for storing edited patches in memory.

Display

Shows patch numbers, setting values, and other information about operating the A2.1u.

[W]/[Q] foot switches

These switches serve for selecting patches, turning effect modules on and off, controlling the tuner, and other functions.

Computer

[USB] connector

Allows you to connect the A2.1u to a computer, for use as an audio interface.

Top Panel

Rear Panel

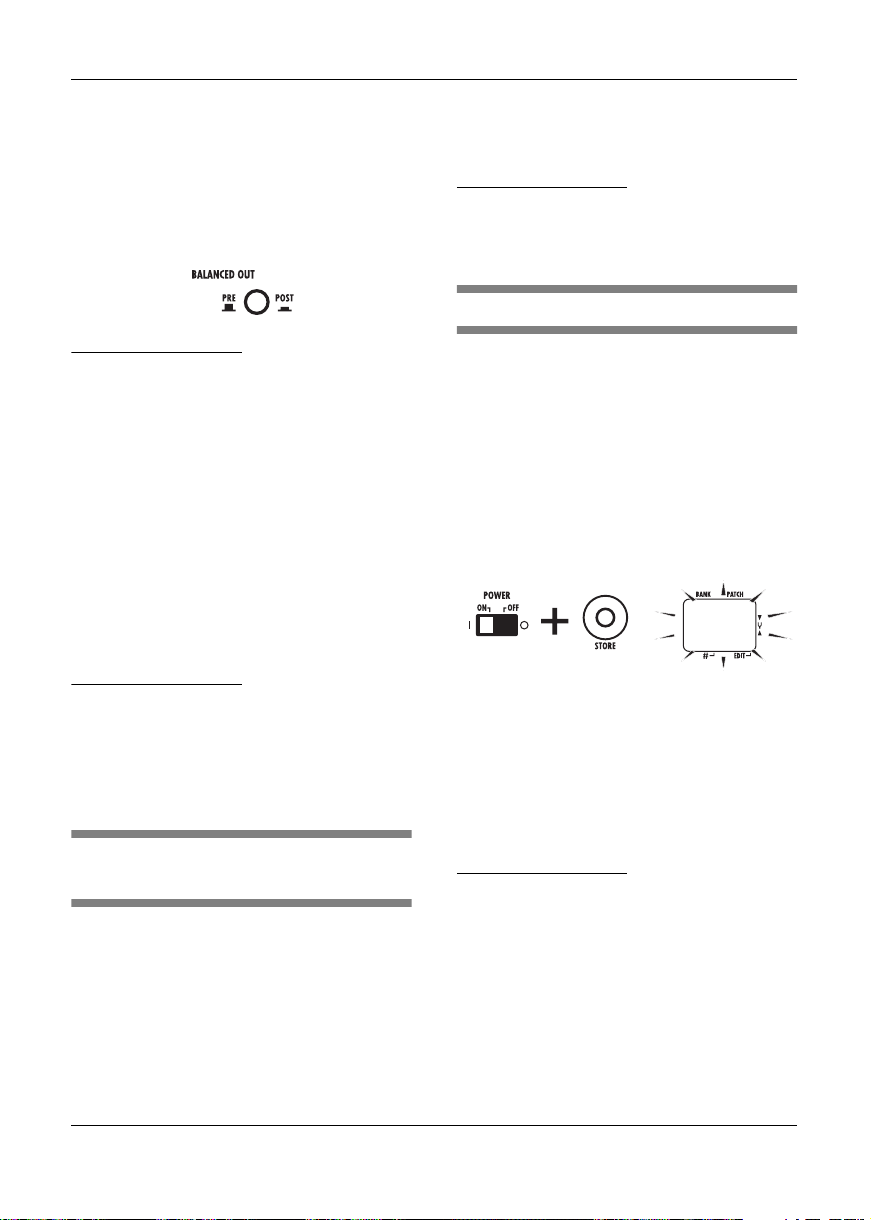

[BALANCED OUT] connector

This XLR connector can be used to send a balanced line-level signal to PA equipment, recording devices, or similar.

[PRE/POST] switch

Selects the point where the signal supplied at the [BALANCED OUT] connector is branched off.

[GROUND] switch

Determines whether the [BALANCED OUT] connector is grounded or not.

Mixer

Headphones

PA system

ZOOM A2.1u

Parameter knobs 1 - 3

These knobs allow changing the value of effect parameters or the level of the overall patch. During rhythm playback, the knobs let you select a pattern, set the tempo, and adjust the rhythm volume.

[PEDAL ASSIGN] key

This key lets you select the function of the built-in expression pedal. The currently selected function is shown by a lit LED.

[MANUAL] key

Switches between play mode and manual mode. The key is lit when the A2.1u is in manual mode.

RHYTHM [R/P] key

Serves to start and stop rhythm playback.

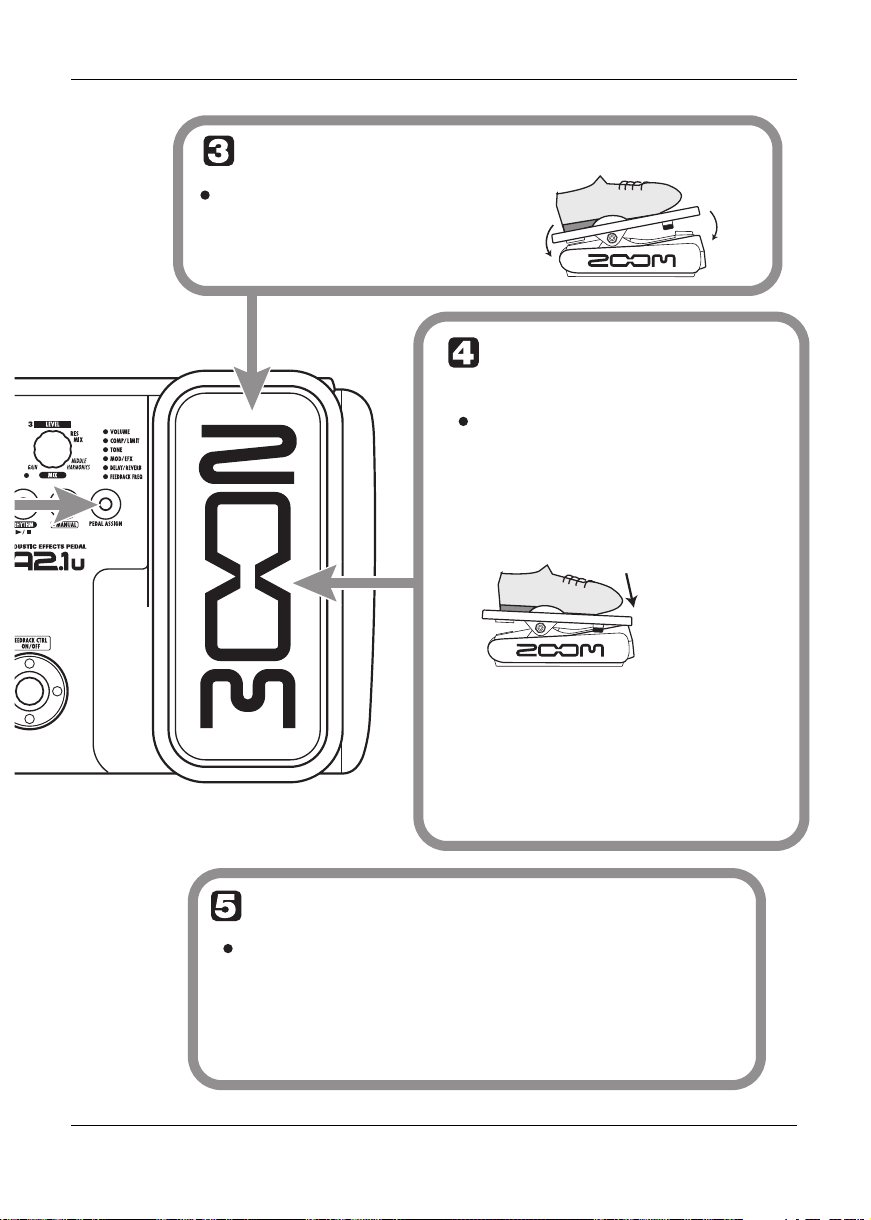

Expression pedal

Lets you adjust the volume or various effect parameters in real time during play.

Acoustic Guitar

Controls and Functions / Connections

[INPUT] jack

Serves for connecting an acoustic guitar with a pickup, an electroacoustic guitar, or an electric guitar.

NOTE

When using a guitar with low output level, the input gain of the A2.1u can be increased by selecting the HI-GAIN mode (→ p. 28).

[OUTPUT/PHONES] jack

This stereo phone jack can be used for connection to a guitar amplifier or hi-fi system. It is also possible to use a Y cable for sending the output to two amplifiers, or to plug a pair of stereo headphones into this jack.

ZOOM A2.1u

FP01/FP02

FS01

[DC 9V] jack

An AC adapter (ZOOM AD-0006) with a rated output of 9 volts DC, 300 mA (center minus plug) can be plugged into this jack.

AC adapter

[POWER] switch

Turns the unit on and off.

[CONTROL IN] jack

Serves for connection of an optional foot switch (FS01) or expression pedal (FP01/FP02).

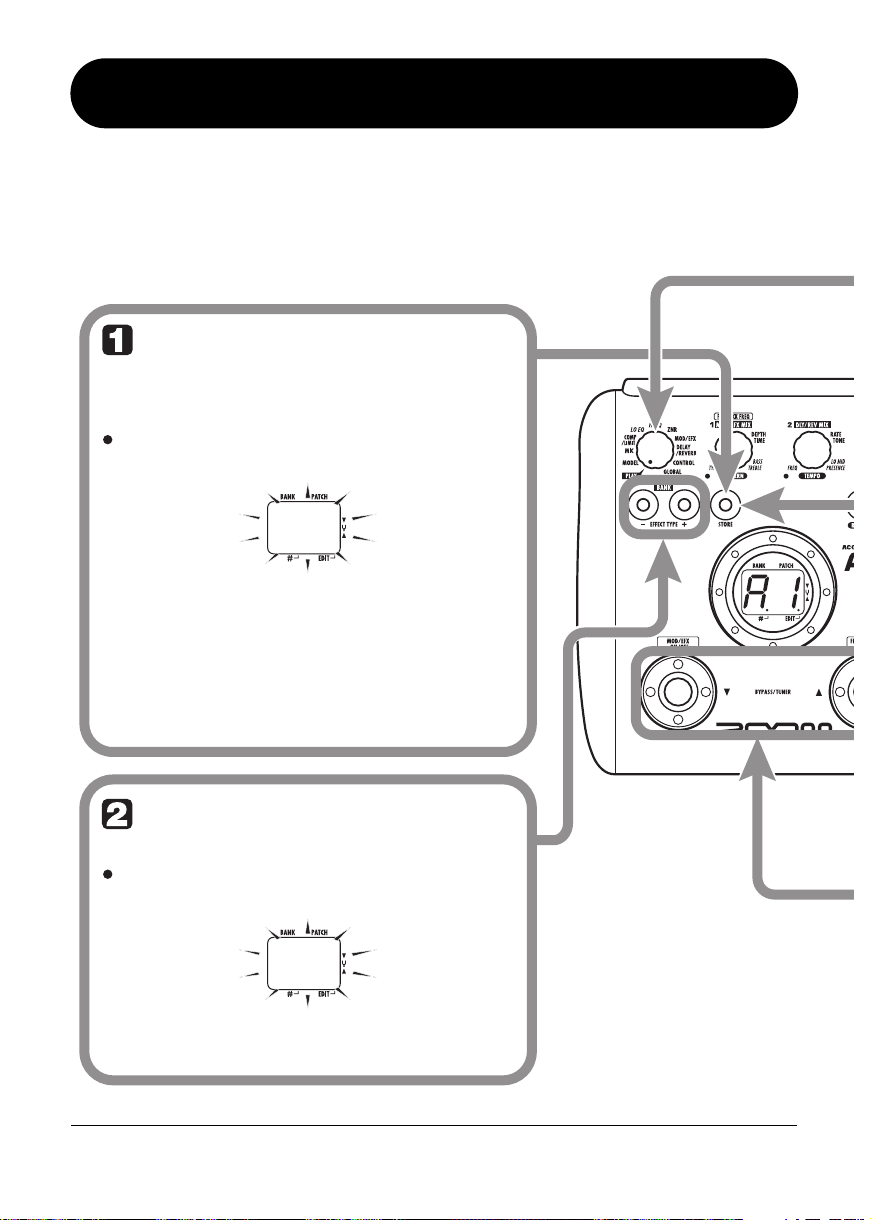

Selecting a Patch

While playing your instrument, try out various patches to see what the A2.1u can do.

Turn power on

Use a shielded cable with mono phone plug to connect your guitar to the [INPUT] jack of the A2.1u.

To power the A2.1u from the AC adapter, plug the adapter into a wall outlet and plug the cable from the adapter into the [DC 9V] jack on the A2.1u.

Set the [POWER] switch on the rear panel of the A2.1u to ON.

Turn the playback system on and adjust the volume to a suitable position.

Set the A2.1u to play mode

If the Module selector is set to a position other than "PLAY", set it to "PLAY".

The bank and patch that were selected when the power was last turned off will appear on the display.

Bank name Patch number

HINT

Immediately after turning the A2.1u on, the unit will be in play mode, even if the Module selector is set to a position other than "PLAY".

Select a patch

To switch the patch, press one of the [W]/[Q] foot switches.

Pressing the [W] foot switch calls up the next lower patch, and pressing the [Q] foot switch calls up the next higher patch.

Repeatedly pressing one foot switch cycles through patches in the order A0 – A9 ... d0 – d9 → 00 – 09 ... 30 – 39 → A0, or the reverse order.

ZOOM A2.1u

Selecting a Patch

Adjust tone and volume

To adjust the effect sound and volume levels in play mode, the Parameter knobs 1 – 3 can be used. Each knob controls a specific parameter.

Parameter knob 1

Mainly adjusts the MIX parameter of the MOD/EFX module (the level of the effect sound mixed to the orignal sound).

Parameter knob 2

Adjusts the MIX parameter of the DELAY/REVERB module (the level of the effect sound mixed to the orignal sound).

When you turn a Parameter knob, the corresponding LED lights up and the display briefly shows the current value of the respective parameter.

Parameter knob 3

Adjusts the PATCH LEVEL parameter (output level of the entire patch).

Directly selecting a bank

To select the banks A – d, 0 – 3 directly, use the BANK [-]/[+] keys.

Pressing the BANK [-] key calls up the next lower bank, and pressing the BANK [+] key calls up the next higher bank.

ZOOM A2.1u

NOTE

• If the MOD/EFX module or DELAY/REVERB module is set to off for the currently selected patch (display shows "oF"), the respective parameter knobs (1 or 2) have no effect.

• Changes made here are temporary and will be lost when you select another patch. To retain the changes, store the patch (→ p. 16).

• Besides the individual patch levels, the A2.1u also allows adjusting the master level. This setting affects all patches (→ p. 37).

Using the Tuner

The A2.1u incorporates an auto-chromatic tuner. To use the tuner function, the built-in effects must be bypassed (temporarily turned off) or muted (original sound and effect sound turned off).

Switch to bypass or mute

Setting the A2.1u to the bypass condition

In play mode (or manual mode), press both [W]/[Q] foot switches together briefly and release.

Setting the A2.1u to the mute condition

In play mode (or manual mode), press both [W]/[Q] foot switches together and hold for at least 1 second.

Patch change at bypass/mute

When you press both [W]/[Q] foot switches together while playing your instrument, the bypass/mute condition is activated. However, the sound may change momentarily just before the condition is activated. This is because the A2.1u switches to the next higher or lower patch when one of the foot switches is pressed slightly earlier. (When you cancel the bypass/mute condition, the original patch number will be active again.) This kind of behavior is not a defect. It is due to the very high speed at which the A2.1u responds to patch switching. To prevent the sound change caused by the above condition, do not produce sound with your instrument until the bypass/mute condition is fully established.

B P

Play the string to tune

Play the open string to tune, and adjust the pitch.

The left side of the display shows the note which is closest to the current pitch.

ZOOM A2.1u

Using the Tuner

Adjusting the reference pitch of the tuner

If required, you can fine-adjust the reference pitch of the A2.1u tuner. The default setting after power-on is center A = 440 Hz.

Turn parameter knob 1.

The current reference pitch is shown. The adjustment range is 35 – 45 (center A = 435 to 445 Hz).

While the reference pitch value is shown, turn parameter knob 1 to adjust it.

When you release the parameter knob, the display indication will return to the previous condition after a while.

NOTE

When you turn the A2.1u off and on again, the reference pitch setting will be reset to 40 (center A = 440 Hz).

4 0

The right side of the display shows a symbol that indicates by how much the tuning is off.

Tune other strings in the same way.

ZOOM A2.1u

Return to play mode

Press one of the [W]/[Q] foot switches.

Pitch is high Pitch is correct

Indication turns faster the more the pitch is off.

Pitch is low

Using the Rhythm Function

The A2.1u has a built-in rhythm function that plays realistic drum sounds in various patterns. The rhythm function is available in play mode or in the bypass/mute condition.

Set the A2.1u to play mode (or manual mode)

If the Module selector is set to a position other than "PLAY", set it to "PLAY".

HINT

The rhythm function can be used both in play mode and manual mode.

Start the rhythm function

To start the rhythm function, press the RHYTHM [R/P] key.

NOTE

While the rhythm is playing, the DELAY/REVERB module is set to off.

Select a rhythm pattern

The A2.1u has 40 built-in rhythm patterns. For more information on the pattern contents, see the back cover of this manual.

To continuously switch rhythm patterns, turn parameter knob 1.

To select the next higher or next lower rhythm pattern, press one of the BANK [-]/[+] keys.

When the above steps are carried out, the current rhythm pattern number (01 – 40) is briefly shown on the display.

ZOOM A2.1u

Using the Rhythm Function

Adjust the rhythm volume

To adjust the rhythm volume, turn parameter knob 3.

When you turn the parameter knob, the current setting (0 – 30) is shown on the display.

Adjust the tempo

The rhythm pattern tempo can be adjusted in the range of 40 – 250 BPM (beats per minute).

To continuously change the rhythm tempo, turn parameter knob 2.

By connecting a foot switch (FS01) to the [CONTROL IN] jack and assigning the "tap tempo" function to it, you can specify the tempo by tapping the foot switch in the desired interval (→ p 25).

2 5

Stop the rhythm

To stop the rhythm, press the RHYTHM [R/P] key.

The A2.1u returns to the previous condition.

ZOOM A2.1u

When you tap the foot switch the first time, the current tempo setting is shown. The setting is then adjusted automatically at the second and subsequent taps.

While the above steps are carried out, the current tempo value (40 - 250) is shown on the display. For values in the range from 100 to 199, a dot is shown in the center. For values of 200 and above, dots are shown in the center and at right.

040

Dot is shown

Tempo = 120 BPM Tempo =240 BPM

Dots are shown

Editing a Patch

The patches of the A2.1u can be freely edited by changing the effect parameter settings. Try editing the currently selected patch to create your own sound.

Select the effect module

Turn the Module selector to select the effect module to edit. The following settings are available.

(1) MODEL module (2) MIC module (3) COMP/LIMIT module (4) LO EQ module (5) HI EQ module (6) ZNR module (7) MOD/SFX module (8) DELAY/REVERB module (9) CONTROL module (10) GLOBAL module

When you set the Module selector to a position other than "PLAY", the A2.1u switches to edit mode, and the effect type currently selected for the respective module is shown. In edit mode, a dot appears in the bottom right of the display.

(3)

(2) (1)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

Effect type

HINT

M D

You can switch to edit mode from play mode or manual mode.

Dot indicates that unit is in edit mode

To switch an effect module on and off

To switch the selected effect module between on and off, press one of the [W]/[Q] foot switches.

When the module is off, the indication "oF" appears on the display.

O F

HINT

CONTROL and GLOBAL are special modules that serve for making settings that affect the entire unit, such as selection of pedal operation. These modules cannot be switched on/off.

ZOOM A2.1u

Editing a Patch

Terminate the edit mode

To terminate the edit mode and return to the play mode, set the Module selector to the "PLAY" position.

A2.1u returns to play mode (or manual mode).

Change the parameter value

To change the setting value of effect parameters, use the parameter knobs 1 – 3.

Which parameter is assigned to a knob depends on which effect module/effect type is selected (→ p. 30 – 38).

When you turn a parameter knob, the corresponding LED lights up and the display briefly shows the current value of the respective parameter.

NOTE

When you select another patch after editing, the changes you have made in edit mode will be lost unless you store the patch first. To retain the changes, store the patch as described on page 16.

5 5

Select the effect type

To switch the effect type of the selected module, use the BANK [-]/[+] keys.

S C

ZOOM A2.1u

NOTE

When a module that is set to off is selected, the display shows "oF".

• When you press the BANK [-]/[+] keys while a module is set to off, the module is switched on.

• If you press the BANK [-]/[+] keys for a module that has only one effect type, nothing happens.

Storing/Copying Patches

An edited patch can be stored in a bank of the user area (A – d). It is also possible to store an existing patch in another location to create a copy.

In play mode, manual mode, or edit mode, press the [STORE] key.

The bank and patch number are shown on the display as a flashing indication.

A 0

NOTE

Patches of banks in the preset area (0 –

3) are read-only. No patches can be stored or copied into these locations. If you press the [STORE] key while a patch from the preset area is selected, the patch "A0" (bank A, patch number 0) will be selected automatically as default store/copy target.

Select the store/copy target bank

To select the store/copy target bank, use the BANK [-]/[+] keys.

D 0

NOTE

Only a bank of the user area (A – d) can be selected as store/copy target bank.

ZOOM A2.1u

To cancel the store process

To cancel the store process, operate the Module selector before pressing the [STORE] key again (step ).

Press the [STORE] key once more

When the store/copy process is completed, the unit returns to the previous mode, with the target patch being selected.

Storing/Copying Patches

ZOOM A2.1u

Specify the store/copy target patch number

To specify the store/copy target patch number, use the [W]/[Q] foot switches.

D 4

Using the Built-in Expression Pedal

The expression pedal on the top panel of the A2.1u lets you adjust effect parameters or the volume in real time during play, or alter the feedback control frequency. Which element is controlled by the pedal can be selected for each patch individually.

Select the patch for which the expression pedal is to be used

Select the element to be controlled by the expression pedal

Press the [PEDAL ASSIGN] key to select the element to be controlled by the expression pedal. The row of LEDs above the key shows which element is currently selected.

The respective selection is indicated as follows.

• All LEDs are out

The expression pedal has no effect.

• VOLUME

The expression pedal controls the volume for the entire patch.

• TONE

The expression pedal controls the TONE parameter of the MODEL module.

• COMP/LIMIT, MOD/EFX, DELAY/REVERB

The expression pedal controls a parameter from the respective module.

• FEEDBACK FREQ

The expression pedal controls the feedback control frequency.

HINT

• Which parameter will be changed by the expression pedal depends on the effect type selected for the respective module. For details, see pages 30 –

38.

•

You can select the pattern in which the parameter changes when

COMP/LIMIT, TONE, MOD/EFX, or DELAY/REVERB is selected and the expression pedal is operated. For details, see page 37.

• If the parameter or module assigned to the expression pedal is currently off, the LED flashes. In this case, operating the pedal has no effect.

ZOOM A2.1u

Using the Built-in Expression Pedal

Operate the pedal

While playing your instrument, move the expression pedal up or down.

When you push the expression pedal fully down, the parameter or module selected with the [PEDAL ASSIGN] key will be switched between on and off.

HINT

• When the expression pedal is assigned to the TONE parameter, the MODEL module can be switched on and off.

•

When the expression pedal is assigned to

FEEDBACK FREQ, the feedback control function will be switched on and off.

Move up or down

To switch a module on or off

Push fully down

ZOOM A2.1u

Store the patch as necessary

The expression pedal setting can be stored for each patch individually.

NOTE

If you select another patch in play mode without storing the patch, any changes that you have made to the settings will be lost.

Using the Feedback Control

The feedback control function of the A2.1u allows automatic or manual detection of the frequency range where acoustic feedback occurs. This frequency range is then attenuated to eliminate feedback. The feedback control function can be set in edit mode and can also be operated by foot switch or the built-in expression pedal.

Turn parameter knob 2 to set the

Manual operation of feedback control

This section describes how to detect the feedback frequency manually.

Set the Module selector to "GLOBAL".

feedback frequency, using the setting range from 1 – 30.

The frequency range corresponding to the selected value will be cut. Select the value that yields best reduction of acoustic feedback (howling).

3 0

When the setting is complete, return

When the GLOBAL module is selected, parameter knob 2 can be used to adjust the feedback control parameter (FEEDBACK FREQ). The following settings are available.

the Module selector to the "PLAY" position.

●

This turns the feedback control function off. When this setting is selected, the foot switch can be used in play mode or manual mode to turn the function on and perform automatic detection of feedback frequency. When you assign Feedback Freq to the built-in expression pedal and press it fully down, the feedback control function will be activated, using a setting of "30".

●

Feedback frequency is detected automatically, and the respective range is attenuated.

1 – 30

●

This allows you to manually set the feedback frequency. Higher setting values correspond to higher frequency.

HINT

• If you select "At" in step 2, the automatic feedback frequency detection starts. During the process, the indication "SC" (Scan) is shown on the display.

• The feedback control setting applies to all patches, and the most recent value is always active. There is no need to store the setting.

ZOOM A2.1u

Automatic detection of feedback frequency

The A2.1u can automatically detect the frequency range where acoustic feedback is occurring. If acoustic feedback should suddenly develop during a performance, you can simply hit the foot switch to turn the function on and suppress the feedback sound. This is possible both in play mode and manual mode.

Refer to the section "Manual operation of feedback control" and set the FEEDBACK FREQ value to "oF" or "At".

O F

Using the Feedback Control

foot switch to turn feedback control on.

NOTE

If no external foot switch is connected, automatic detection of feedback frequency in play mode is not possible.

In manual mode

■

Press the [Q control on.

In either case, automatic feedback frequency detection starts when the function is turned on. The indication "SC" appears on the display.

To repeat the automatic detection process, press

] foot switch (in manual mode) or the

the [Q external foot switch twice to turn the feedback control function first off and then on again. Automatic detection will then be performed once more.

] foot switch to turn feedback

When you select the "oF" setting for the FEEDBACK FREQ value, the feedback control function is off, but it can be turned on by pressing

] foot switch (in manual mode only) or an

the [Q external foot switch. The setting will change to "At" and feedback frequency detection starts automatically.

When you select the "At" setting, the feedback control function is on. In this condition, pressing the foot switch twice initiates automatic detection of feedback frequency.

HINT

In manual mode, you can change the FEEDBACK FREQ value by turning parameter knob 1.

To automatically detect the feedback

frequency while playing your guitar, proceed as follows.

In play mode

■

Use an external foot switch (FS01) connected to the [CONTROL IN] jack. Set the function to be controlled by the foot switch to "Fb"

→

(feedback control on/off) (

p. 25). Press the

HINT

• You can use built-in expression pedal to adjust the feedback control frequency with your foot (setting range 1 – 30). For details, see the following section.

• For information about making foot switch or pedal settings, see pages 30 – 38.

ZOOM A2.1u

Using the Feedback Control

Using the built-in expression pedal to operate the feedback control function

The built-in expression pedal of the A2.1u can be used to switch the feedback control function on and off, and to adjust the feedback frequency. This is possible both in play mode and manual mode.

Refer to the section "Manual operation of feedback control" and set the FEEDBACK FREQ value to "oF".

O F

Repeatedly press the [PEDAL

ASSIGN] key until "FEEDBACK FREQ" is shown as control target for the built-in expression pedal.

this condition is "30".

Push fully down

3 0

Operate the built-in expression pedal until you have found the position where feedback is suppressed most effectively.

NOTE

• The built-in expression pedal cannot be used to perform automatic detection of feedback frequency.

• The above operation is possible only with the builtin expression pedal. The external expression pedal (FP01/FP02) can only be used as a volume pedal

p. 25).

(

→

In this condition, the built-in expression pedal can be used to switch the feedback control function on and off, and to adjust the feedback frequency.

Store the patch if necessary.

The expression pedal setting can be stored for each patch individually.

If acoustic feedback occurs while you are playing your instrument, push the built-in expression pedal fully down.

When the built-in expression pedal is pushed fully down while the FEEDBACK FREQ parameter setting is "oF", the feedback control function will be turned on. The feedback frequency setting in

ZOOM A2.1u

Using Manual Mode

The condition where the foot switches are used to switch the MOD/EFX module or the feedback control function on and off during play is called "manual mode".

In play mode, select a patch.

When you enter manual mode, the [W switches are assigned different functions and cannot be used to select patches. Therefore you should select the patch to use before entering manual mode.

Press the [MANUAL] key.

The [MANUAL] key lights up, and the A2.1u switches to manual mode.

Lit

In manual mode, the switches and knobs on the panel function as follows.

[W] foot switch

Switches the MOD/EFX module on and off.

HINT

• The other controls of the unit operate in the same way as in play mode.

• In manual mode, you can also activate edit mode by turning the Module selector.

[Q] foot switch

Switches the feedback control function on and off.

Parameter knob 1

Switches the feedback control function on/off and allows manual setting of feedback frequency.

]/[Q

] foot

To switch feedback control between

on and off, press the [Q

The operation of the unit when the [Q switch is pressed depends on feedback control setting value.

●

When you press the foot switch, the unit automatically detects the feedback frequency and attenuates it. Pressing the foot switch once more turns feedback control off.

●

When you press the foot switch, the feedback control function is turned off. When you press the foot switch once more, the function is turned on again, the unit automatically detects the feedback frequency and attenuates it.

1 – 30

●

Each time you press the foot switch, the feedback control is switched back and forth between on and off. When it is on, the feedback frequency as specified by this numeric setting will be attenuated.

To switch the MOD/EFX module

between on and off, press the [W foot switch.

To return to play mode, press the

[MANUAL] key.

The [MANUAL] key goes out and the A2.1u returns to play mode.

] foot switch.

] foot

]

Out

ZOOM A2.1u

Other Functions

This section describes how to use the internal expression pedal as well as an external pedal or foot switch. Use of the A2.1u as an audio interface or direct box is also explained.

●

EU, Ed, EH, EL

Making settings for the built-in expression pedal

The expression pedal on the top panel of the A2.1u lets you adjust effect parameters or the volume in real time during play. It also can serve to adjust the feedback control frequency with your foot. Which element is controlled by the pedal can be selected for each patch individually.

For information about parameters that can be controlled by expression pedal, see pages 30 – 38.

Select the patch for which the expression pedal is to be used.

Set the Module selector to "CONTROL".

MOD/EFX module

●

dU, dd, dH, dL

DELAY/REVERB module

●

Feedback control frequency

HINT

• The module to be controlled can also be selected with the [PEDAL ASSIGN] key (

• Which parameter changes when the expression pedal is operated depends on the effect type selected for the module. For details, see pages 30 –

38.

• When the COMP/LIMIT, TONE, MOD/EFX, or DELAY/REVERB module is selected, the pattern in which the parameter changes when the expression pedal is operated can be selected. For details, see page 37.

If necessary, store the patch.

The expression pedal setting is stored as part of the patch.

→

p. 18).

The A2.1u switches to edit mode, allowing you to make expression pedal and foot switch settings.

Turn parameter knob 1 to select one of the following modules or parameters to be controlled by the expression pedal.

●

Pedal is inactive.

●

Volume

CU, Cd, CH, CL

●

COMP/LIMIT module

tU, td, tH, tL

●

TONE parameter (MODEL module)

Select the patch in play mode and operate the expression pedal.

The selected function will be activated.

When the A2.1u is in the bypass condition, the expression pedal always functions as a volume pedal, regardless of the setting made in step 3.

Adjusting the sensitivity of the built-in expression pedal

The expression pedal of the A2.1u is adjusted for optimum operation at the factory, but sometimes, readjustment may be necessary. If the volume or sound does not change much also when the pedal is fully pushed down, or if it changes excessively even if the pedal is only lightly pushed, adjust the pedal as follows.

ZOOM A2.1u

Turn power to the A2.1u on while keeping the [PEDAL ASSIGN] key depressed.

The indication "dn" appears on the display.

Other Functions

Using an external expression pedal (FP01/ FP02)

With the expression pedal fully raised, press the [STORE] key.

The display indication changes to "UP".

Push the expression pedal fully down

and then lift your foot off the pedal.

Push strongly, so that pedal touches here.

When foot is lifted, pedal returns slightly.

Press the [STORE] key once more.

The expression pedal adjustment is completed, and the unit returns to play mode.

HINT

• The point where the module is switched on or off when the pedal is depressed is always the same, regardless of the action taken in step 3.

• If "Er" appears on the display, repeat the procedure from step 2.

When you connect an optional expression pedal (FP01/FP02) to the [CONTROL IN] jack of the A2.1u, you can use that pedal as a volume pedal, separately from the built-in expression pedal.

Plug the cable from the external expression pedal into the [CONTROL IN] jack, and then turn the A2.1u on.

Operate the external expression pedal in play mode or edit mode.

The volume changes.

HINT

The external expression pedal always functions as a volume pedal.

Using a foot switch (FS01)

Connecting an optional foot switch (FS01) to the [CONTROL IN] jack of the A2.1u allows bank switching in play mode. It is also possible to switch bypass/mute on and off, control the tap tempo function, or perform other functions with the foot switch.

Plug the cable from the FS01 into the [CONTROL IN] jack, and then turn the A2.1u on.

Set the Module selector to the "CONTROL" position.

The A2.1u goes into edit mode. You can now make settings for the expression pedal or foot switch.

ZOOM A2.1u

Other Functions

Turn parameter knob 2 to select one of the following functions for the foot switch.

●

bP (bypass/mute)

The foot switch controls bypass or mute on/off. This has the same effect as pressing both [W

] foot switches at the same time in play

[Q mode or manual mode.

●

tP (tap tempo)

Pressing the foot switch repeatedly can be used to set the interval for the rhythm function or to make settings for effect parameters supporting the tap function.

●

bU (bank up)

Each push of the foot switch switches to the next higher bank. This has the same effect as pressing the BANK [+] key.

●

rH (rhythm on/off)

The foot switch controls start/stop of the rhythm function. This has the same effect as

pressing the RHYTHM [R

●

dH (delay hold)

] key.

The foot switch controls on/off of the delay hold function. When a patch using the hold function is selected, pressing the foot switch will activate hold, causing the current delay sound to be repeated (see illustration below). Pressing the foot switch once more cancels the hold condition, and the delay sound will decay normally.

●

dM (delay input mute)

The foot switch controls muting on/off for the DELAY input of the DELAY/REVERB module.

Mn (Manual mode)

●

The foot switch toggles between play mode and manual mode. This has the same effect as pressing the [MANUAL] key.

●

Fb (Feedback control)

The foot switch toggles the feedback control function between on and off. This has the same effect as pressing the [Q

] foot switch in manual mode. For details on the feedback control function, see page 20.

HINT

• For information on effect parameters supporting the

tap function, see pages 30 – 38.

• To use the hold function, an effect type that

supports the hold function must be selected in the patch. For details, see pages 30 – 38.

• While the DELAY/REVERB module is set to hold or

mute, the dot in the center of the display flashes.

Select the patch in play mode and operate the foot switch.

The selected function will be activated.

This setting applies to all patches, and the most recent value is always active. There is no need to store the setting.

Using the A2.1u as audio interface for a computer

By connecting the [USB] connector of the A2.1u to a computer, the A2.1u can be used as an audio interface with integrated AD/DA converter and effects. The operating environment conditions for this type of use are as follows.

Compatible operating systems

■

• Windows XP

•Mac OS X (10.2 and later)

Quantization

■

16-bit

Original sound

Delay sound

Foot switch is pressed

Hold

Foot switch is pressed again

ZOOM A2.1u

Sampling frequencies

■

32 kHz / 44.1 kHz / 48 kHz

HINT

With the operating systems listed above, the A2.1u will function as an audio interface simply by connecting the USB cable. There is no need to install any special driver software.

To use the A2.1u as an audio interface for the computer, connect the USB port of the A2.1u to a USB port on the computer. The A2.1u will be recognized as an audio interface.

HINT

• If the [POWER] switch of the A2.1u is set to OFF, power will be supplied via the USB connection.

• If the [POWER] switch of the A2.1u is set to ON, power will be supplied from the batteries in the A2.1u or the AC adapter. Care should be taken especially when running on battery power, because setting the switch to ON may result in faster depletion of the batteries.

In this condition, the sound of a guitar connected to the [INPUT] jack of the A2.1u can be processed with the effects of the A2.1u and then be recorded on the audio tracks of a DAW (Digital Audio Workstation) software application on the computer.

At the same time, the [OUTPUT/PHONES] jack of the A2.1u carries the playback sound from the audio tracks of the DAW application, mixed with the guitar sound processed by the effects of the A2.1u (see illustration below).

For details on recording and playback, refer to the documentation of the DAW application.

Other Functions

NOTE

• Also when using the A2.1u as an audio interface, the signal after effect processing is always available directly at the [OUTPUT/PHONES] jack.

• If the DAW application has an echo back function (input signal during recording is supplied directly to an output), this must be disabled when using the A2.1u. If recording is carried out with this function enabled, the output signal will sound as if processed by a flanger effect.

• Use a high-quality USB cable and keep the connection as short as possible. If power is supplied to the A2.1u via a USB cable that is more than 3 meters in length, the low voltage warning indication may appear.

Use as a direct box

The [BALANCED OUT] connector on the rear panel lets you use the A2.1u as a direct box for sending the guitar signal directly to a PA mixer or recording console. (Gain: 0 dB, output impedance: 200 ohms, HOT-COLD)

To use this function, connect the [BALANCED OUT] connector of the A2.1u to the PA mixer or recording console, using XLR balanced cable. At the same time, you can also connect the [OUTPUT/PHONES] jack to a guitar amplifier for monitoring.

Mixer

[BALANCED OUT] connector

A2.1u

Acoustic Guitar

[OUTPUT/PHONES] jack

Guitar amp

ZOOM A2.1u

[INPUT]

[OUTPUT/PHONES]

[INPUT]

[OUTPUT/PHONES]

A2.1u

Effects

Record

A2.1u

Effects

Playback

[USB]

USB

DAW

application

DAW

application

Other Functions

The [PRE/POST] switch lets you control the position where the signal supplied at the [BALANCED OUT] connector is branched off. To use the signal after effect processing, select the "POST" position (switch engaged). To use the signal before effect processing, select the "PRE" position (switch disengaged).

HINT

When the [PRE/POST] switch is set to "POST", the signal at the [BALANCED OUT] connector reflects the setting of the AMP SELECT parameter (→ p. 29). If the [OUTPUT/PHONES] jack is not connected directly to a guitar amplifier and only the [BALANCED OUT] connector is used, setting the AMP SELECT parameter to "oF" may be preferable.

In certain configurations, a ground loop (electrical signal loop created because devices within the same system are connected to a separate ground) may occur, leading to noise problems (audible hum). In such a case, try setting the [GROUND] switch to "LIFT". This may help to eliminate or reduce the noise.

foot switch. The indication "Hi-GAin" scrolls on the display, and input gain will be set to a higher value.

NOTE

The input gain setting is not stored in memory and will be canceled when the unit is turned off. Perform the above procedure every time at power-on, as needed.

Restoring Factory Defaults

In the factory default condition, the patches of the user area (A0 – d9) contain the same settings as the patches of the preset area (00 – 39). Even after overwriting the user patches, their original content can be restored in a single operation ("All Initialize" function).

Turn the A2.1u on while holding down

the [STORE] key.

The indication "AL" appears on the display.

A L

HINT

The [GROUND] switch controls the [BALANCED OUT] connector ground connection. In the "LIFT" position (switch engaged), the ground pin of the [BALANCED OUT] connector is uncoupled from the signal path. This can be effective in eliminating or reducing hum noise caused by a ground loop.

Starting the A2.1u in HIGAIN mode

When using a magnetic pickup, an electric guitar with a single-coil pickup, or any other guitar with low output level, the input gain of the A2.1u may have to be increased by starting it in HI-GAIN mode, as explained below.

To start the A2.1u in HI-GAIN mode

■

Turn power on while holding down the [W

To carry out the All Initialize function, press the [STORE] key once more.

All patch settings are returned to the factory default condition, and the unit switches to play mode. To cancel All Initialize, press the

RHYTHM [R key.

NOTE

When you carry out All Initialize, any newly created patches that were stored in the user area will be deleted (overwritten). Perform this operation with care to prevent losing any patches that you want to keep.

]

] key instead of the [STORE]

ZOOM A2.1u

Linking Effects

The patches of the A2.1u can be thought of as eight serially linked effect modules, as shown in the illustration below. You can use all effect modules together or selectively set certain modules to off to use just specific effect modules.

Effect module

MODEL MIC COMP/LIMIT ZNR MOD/EFX DELAY/REVERBHI EQLO EQ

DREADNOUGHT

GIBSON SUPER

JUMBO

MARTIN

AUDITORIUM

GIBSON ROUND

SHOULDER

TACOMA

OVATION

NYLON

MACCAFERRI

DOBRO

NATIONAL

RESOPHONIC

TUBE PRE AMP

MICMARTIN

COMPRESSOR

LIMITER

PARAMETRIC

* Manufacturer names and product names mentioned in this table are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with ZOOM CORPORATION.

LO EQ

HI EQ

PARAMETRIC

ZNR

CHORUS

STEREO CHORUS

CHORUS

ENSEMBLE

AIR

FLANGER

RESONATOR

DELAY

TAPE ECHO

REVERSE DELAY

DETUNE

PHASER

AUTO WAH

TREMOLO

STEP

HALL

ROOM

SPRING

ARENA

TILED ROOM

MODERN SPRING

BRIGHT

SLAP REVERB

DARK SLAP

REVERB

EARLY

REFLECTION

MULTI TAP DELAY

DELAY

ECHO

PINGPONG DELAY

Effect type

For some effect modules, you can select an effect type from several possible choices. For example, the MOD/EFX module comprises CHORUS, FLANGER, and other effect types from which you can choose one. The MODEL module is an effect for simulating the sound of various types of acoustic guitars. Switching effect types here means selecting different guitar body sounds.

CONTROL module and GLOBAL module

Besides the above modules, the A2.1u also incorporates a CONTROL module and GLOBAL module. The CONTROL module comprises settings such as expression pedal and foot switch function allocation, as well as the master level that applies to all patches.

The GLOBAL module lets you optimize the A2.1u characteristics to fit the requirements of

ZOOM A2.1u

pickup and guitar amp. It contains the following settings.

●

AMP SELECT

This parameter serves to optimize the frequency response of the A2.1u to fit the type of amplifier. It can be helpful to reduce the trebly sound that can be a problem when playing an acoustic guitar with a pickup through an amplifier. Settings with different effect depth are available for Combo, Stack, and other amp types.

●

PICKUP SELECT

This parameter serves to optimize the frequency response of the A2.1u to fit the type of pickup. It can also be used as a simulator for turning the sound of an electric guitar into that of an acoustic guitar.

Effect Types and Parameters

How to read the parameter table

Module selector

The Module selector symbol shows the position of the selector knob at which this module/parameter is called up.

Effect module

This effect mixes a variable pitch-shifted component to the original signal, resulting in full-bodied resonating sound.

Adjusts the modulation depth.

These three effect types have the same parameters.

TAP

Effect parameters 1 – 3

These are the parameters that can be adjusted with parameter knobs 1 - 3 when the effect type is selected. The setting range for each parameter is shown.Three-digit setting values are shown with a dot between the two numerals. Example: 0 - 98, 1.0 = 0 - 98, 100

Effect type

MOD/EFX

MOD/EFX (Modulation/Effects) module

Comprises modulation and delay effects such as chorus, wah, delay, and echo.

CHORUS

DEPTH

HOLD

TIME

0 – 98, 1.0

This is a warm sounding long delay of up to 5000 ms duration.

PINGPONG DELAY

This is a ping-pong type delay wher e the delay sound alter nates between left and right.

1 – 99, 1.0 –

5.0

Adjusts the delay time. In the range from 10 – 990 ms, the adjustment is made in 10-ms steps (1 – 99). For 1 second and above, the adjustment is made in 100-ms steps (1.0 – 5.0)."

RATE

Adjusts the level of the effect sound mixed to the original sound.

FEEDBACK

Adjusts the feedback amount.

1 – 50

Adjusts the modulation rate.

0 – 98, 1.0

MIX

Adjusts the level of the effect sound mixed to the original sound.

Expression pedal

A pedal icon ( ) in the listing indicates a parameter that can be controlled with the built-in expression pedal. To control a parameter with the expression pedal, specify the respective module (or parameter) as control target for the pedal (→ p. 24), and then select the respective effect type of the module.

Ta p

A tap icon ( ) in the listing indicates a parameter that can be set by repeatedly hitting (tapping) the foot switch (FS01). The tap function must have been assigned to the foot switch beforehand (→ p. 25), and a module that includes this parameter must be on. In edit mode, tapping the foot switch will cause the respective parameter to be set according to the tapping interval (modulation cycle, delay time, etc.). In play mode and manual mode, tapping the foot switch will cause the TIME parameter of the delay effect type in the DELAY/REVERB module to be temporarily changed. (In play mode and manual mode, only the delay effect in the DELAY/REVERB module can be controlled by tap input.)

TAP

Hold

A hold icon ( ) in the listing indicates an effect type for which hold can be turned on and off with the foot switch (FS01). Set the foot switch function to "dH" (delay hold) (→ p. 25) for the respective patch. When this patch is then selected in play mode or manual mode, the hold function can be switched on and off by pressing the foot switch.

HOLD

0 – 98, 1.0

ZOOM A2.1u

Effect Types and Parameters

MODEL

MODEL module

This module provides 12 types of acoustic guitar and mic preamp simulations.

Manufacturer names and product names mentioned in this table are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any afﬁliation with ZOOM CORPORATION.

Simulation of the MARTIN D-28, one of the most popular acoustic guitar.

Simulation of the GIBSON SJ-200, known as the "King of Flat-Tops".

Simulation of the MARTIN 000-18 with a small-sized body and clear sound.

Simulation of the GIBSON J-45 that has a warm and rich sound.

Simulation of the TACOMA C3C that has a unique body and sound.

Simulation of the OVATION ADAMAS that has a unique round backed body.

Simulation of the NYLON guitar sound that is suitable for Bossa Nova music.

Simulation of the SELMER MACCAFERRI that is known for its gypsy jazz sound.

Simulation of the DOBRO MODEL 27 with a wood body and metal resonator.

Simulation of the NATIONAL RESO-PHONIC STYLE O with a brass body and metal resonator.

ZOOM original resonator guitar sound with strong character.

All above effect types have the same parameters.

DEPTH

Adjusts the simulation intensity.

ZOOM original tube preampliﬁer sound that allows adjusting the balance from an all solid-state path to a tube-based preamp.

TUBE BLEND

Adjusts the amount of tube sound blended into the signal.

MARTIN DREADNOUGHT

GIBSON SUPER JUMBO

MARTIN AUDITORIUM

GIBSON ROUND SHOULDER

TACOMA

OVATION

NYLON

MACCAFERRI

DOBRO

NATIONAL

RESOPHONIC

0 – 98, 1.0

TUBE PRE AMP

0 – 98, 1.0

TONE

Adjusts the sound quality.

TONE

Adjusts the sound quality.

0 – 10

LEVEL

Adjusts the signal level after passing the module.

LEVEL

Adjusts the signal level after passing the module.

2 – 98, 1.0

ZOOM A2.1u

Effect Types and Parameters

MIC

MIC module

This module simulates mic directional characteristics when recording the acoustic guitar type selected with the MODEL module by microphone.

Simulates the sound that is recorded by microphone. You can select the mic type and position.

MIC TYPE

Selects the mic type. "dy" simulates the frequency response of a dynamic mic and "Co" simulates the frequency response of a condenser mic.

MIC

dy, Co

POSITION

Lets you select different microphone characteristics according to sound pickup position. The following settings are available. 0: Mic in front of soundhole 1: Mic near the 15th fret 2: Mic near the 12th fret

0 – 2

MIC DISTANCE

Lets you select different microphone characteristics according to sound pickup distance. The following settings are available. 0: Mic near the guitar 1: Mic about 50cm away 2: Mic about 1m away

0 – 2

COMP/LIMIT

COMP/LIMIT (Compressor/Limiter) module

This module includes a compressor that keeps the overall signal level within a certain range by attenuating high-level signal components or boosting low-level signal components, and a limiter that suppresses peak components.

The compressor attenuates high-level signal components and boosts low-level signal components to keep the overall signal level within a certain range.

SENSE

Adjusts the compressor sensitivity.Higher setting values result in higher sensitivity.

This is a limiter that suppresses signal peaks above a certain reference level.

THRESHOLD

Adjusts the reference signal level for the limiter action.

COMPRESSOR

0 – 10

LIMITER

0 – 10

ATTACK

Adjusts the time between the sound attack point and the start of compression. Higher setting values result in faster compression action.

RATIO

Adjusts the limiter intensity. Higher setting values result in stronger compression of the input signal.

1 – 10

LEVEL

Adjusts the signal level after passing the module.

LEVEL

Adjusts the signal level after passing the module.

2 – 98, 1.0

LO EQ

LO EQ module

This is an equalizer for the low frequency range. You can select either a 3-band equalizer or parametric equalizer.

This is a 3-band equalizer that adjusts the frequency range below 500 Hz.

60Hz

60 Hz, shelving type equalizer. 320 Hz, peaking type equalizer. 500 Hz, peaking type equalizer.

This is a parametric equalizer that adjusts the frequency range below 600 Hz.

TYPE

Selects the type of ﬁlter. "1" gives a peaking type ﬁlter with narrow Q, "2" gives a peaking type ﬁlter with wide Q, and "SH" produces a shelving type LO EQ.

LO EQ (Low EQ)

±12

320Hz

±12

LO PARAMETRIC EQ (Low Parametric EQ)

1, 2, SH

FREQUENCY

Selects a frequency within the range of 50 – 600 Hz.

See Table 1

500Hz

GAIN

Adjusts the gain.

±12

ZOOM A2.1u

Effect Types and Parameters

[Table 1] Display Frequency

510204060

50Hz 100Hz 200Hz 400Hz 600Hz

HI EQ

HI EQ module

This is an equalizer for the high frequency range. You can select either a 3-band equalizer or parametric equalizer.

This is a 3-band equalizer that adjusts the frequency range above 1.2 kHz.

1.2kHz

1.2 kHz, peaking type equalizer. 6.3 kHz, peaking type equalizer. 12 kHz, shelving type equalizer.

This is a parametric equalizer for the frequency range above 800 Hz.

TYPE

Selects the type of ﬁlter. "1" gives a peaking type ﬁlter with narrow Q, "2" gives a peaking type ﬁlter with wide Q, and "SH" produces a shelving type HI EQ.

[Table 2] Display Frequency

HI EQ (High EQ)

±12

HI PARAMETRIC EQ (High Parametric EQ)

1, 2, SH

80 2 . 0 4 . 0 8 . 0 10

800Hz 2kHz 4kHz 8kHz 10kHz

6.3kHz

FREQUENCY

Selects a frequency within the range of 800 Hz – 10 kHz.

±12

See Table 2

12kHz

GAIN

Adjusts the gain.

±12

ZNR

ZNR (ZOOM Noise Reduction) module

This module serves for reducing noise during playing pauses.

ZOOM original noise reduction which reduces noise in playing pauses without affecting the overall tone.

THRESHOLD

Adjusts the sensitivity. For maximum noise reduction, set the value as high as possible without causing the sound to decay unnaturally.

ZNR (ZOOM Noise Reduction)

1 – 16

MOD/EFX

MOD/EFX (Modulation/Effects) module

Comprises modulation and delay effects such as chorus, wah, delay, and echo.

This effect mixes a variable detuned component to the original signal, resulting in full-bodied resonating sound.

DEPTH

Adjusts the modulation depth.

This is a stereo chorus with clear sound.

This is a chorus ensemble with complex undulation.

CHORUS

0 – 98, 1.0

STEREO CHORUS

CHORUS ENSEMBLE

RATE

Adjusts the modulation rate.

1 – 50

MIX

Adjusts the level of the effect sound mixed to the original sound.

0 – 98, 1.0

ZOOM A2.1u

Effect Types and Parameters

The two effect types on the preceding page have the same parameters.

DEPTH

Adjusts the modulation depth. Adjusts the modulation rate.

Simulates the ambience of a room, giving the sound spatial depth.

SIZE

Adjusts the spatial width. Adjusts the sound quality.

This effect produces a resonating and strongly undulating sound.

DEPTH

Adjusts the modulation depth.

Emphasizes a speciﬁc frequency, and produces an undulating sound such as from a resonator guitar. It is possible to use this effect as pedal wah too.

FREQUENCY

Adjusts the frequency that is emphasized. When an expression pedal is used, the effect is the same as pedal wah.

This is a delay with a maximum setting of 5000 ms.

This effect simulates a tape echo.

The above two effect types have the same parameters.

TIME

Adjusts the delay time. In the

TAP

range from 10 – 990 ms, the adjustment is made in 10-ms steps (1 – 99). For 1 second and above, the adjustment is made in 100-ms steps (1.0 – 5.0).

Produces a sound like a tape played in reverse.

TIME

Adjusts the delay time. In the

TAP

range from 10 – 990 ms, the adjustment is made in 10-ms steps (1 – 99). For 1 second and above, the adjustment is made in 100-ms steps (1.0 – 2.5).

0 – 98, 1.0

AIR

2 – 98, 1.0

FLANGER

0 – 98, 1.0

RESONATOR

1 – 50

DELAY

TAPE ECHO

1-99, 1.0-5.0

REVERSE DELAY

1 – 99, 1.0 –

2.5

RATE

TONE

RATE

Adjusts the modulation rate.

TAP

RESONATOR LEVEL

Adjusts the mixing balance of the effect sound.

FEEDBACK

Adjusts the feedback amount.

FEEDBACK

Adjusts the feedback amount.

1 – 50

0 – 10

0 – 50

0 – 98, 1.0

MIX

Adjusts the level of the effect sound mixed to the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

RESONANCE

Adjusts the modulation resonance intensity.

DIRECT LEVEL

Adjusts the mixing balance of the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

BALANCE

Adjusts the balance between original sound and effect sound.

0 – 98, 1.0

-10 – -1, 0, 1 – 10

0 – 98, 1.0

ZOOM A2.1u

Effect Types and Parameters

This effect mixes a pitch-shifted component to the original signal, resulting in resonating sound such as from a 12string guitar.

DEPTH

Adjusts the modulation depth. Adjusts the sound quality.

This effect produces sound with a pulsating character.

COLOR

Adjusts the type of sound.

This effect varies wah in accordance with playing intensity.

SENSE

Adjusts the effect sensitivity.

This effect periodically varies the volume.

DEPTH

Adjusts the modulation depth.

Special effect for acoustic guitar that changes the sound in a staircase pattern.

DEPTH

Adjusts the modulation depth.

DETUNE

-15 – -1, 0, 1 – 15

PHASER

1 – 4

AUTO WAH

-10 – -1, 1 – 10

TREMOLO

0 – 98, 1.0

STEP

0 – 98, 1.0

TONE

RATE

Adjusts the modulation rate.

TAP

RESONANCE

Adjusts the resonance of the sound.

RATE

Adjusts the effect rate.

TAP

RATE

Adjusts the modulation rate.

TAP

0 – 10

0 – 50

0 – 10

0 – 50

MIX

Adjusts the level of the effect sound mixed to the original sound.

RESONANCE

Adjusts the modulation resonance intensity.

DIRECT MIX

Adjusts the level of the original sound mixed to the effect sound.

WAVE

Allows selection of the modulation waveform. Available settings are "u" (rising sawtooth), "d" (falling sawtooth), and "t" (triangular). Higher setting values result in more clipping of wave peaks, which reinforces the effect.

MIX

Adjusts the level of the effect sound mixed to the original sound.

0 – 98, 1.0

0 – 10

0 – 98, 1.0

u0 – u9, d0 – d9, t0 – t9

0 – 98, 1.0

DELAY/REVERB

DELAY/REVERB module

This module comprises various reverb and delay functions. Delay effect allows use of the hold function.

Simulates the acoustics of a concert hall.

Simulates the acoustics of a room.

Simulates a spring-type reverb.

Simulates the acoustics of a big concert hall such as an arena.

Simulates the acoustics of a tiled room.

HALL

ROOM

SPRING

ARENA

TILED ROOM

ZOOM A2.1u

Effect Types and Parameters

This effect simulates a spring-type reverb with bright sound.

The above six effect types have the same parameters.

DECAY

Adjusts the duration of the reverb. Adjusts the sound quality.

This is a reverb with bright sound which allows adjusting the pre-delay parameter.

This is a reverb with dark sound which allows adjusting the pre-delay parameter.

The above two effect types have the same parameters.

DECAY

Adjusts the duration of the reverb.

This effect isolates only the early reﬂection components of the reverb.

DECAY

Adjusts the duration of the reverb.

This effect produces several delay components with different delay times.

TIME

Adjusts the delay time. In the

TAP

range from 10 – 990 ms, the adjustment is made in 10-ms steps (1 – 99). For 1 second and above, the adjustment is made in 100-ms steps (1.0 – 5.0).

This is a delay with a maximum setting of 5000 ms.

HOLD

This is a warm sounding long delay of up to 5000 ms duration.

HOLD

This is a ping-pong type delay where the delay sound alternates between left and right.

HOLD

These three effect types have the same parameters.

TIME

Adjusts the delay time. In the

TAP

range from 10 – 990 ms, the adjustment is made in 10-ms steps (1 – 99). For 1 second and above, the adjustment is made in 100-ms steps (1.0 – 5.0).

MODERN SPRING

1 – 30

TONE

BRIGHT SLAP REVERB

DARK SLAP REVERB

1 – 30

PRE DELAY

Adjusts the pre-delay time. The adjustment is made in 10-ms steps in the range of 0-300 ms.

EARLY REFLECTION

1 – 30

SHAPE

Adjusts the envelope of the effect sound. In the negative range, the envelope is reversed. At 0, the effect is a gate reverb. In the positive range, the envelope is a decay-type envelope.

MULTI TAP DELAY

1 – 99,

1.0 – 5.0

PATTERN

Selects the combination pattern for the taps. The selection ranges from rhythmical to random patterns.

DELAY

ECHO

PINGPONG DELAY

1 – 99,

1.0 – 5.0

FEEDBACK

Adjusts the feedback amount.

0 – 10

0 – 30

-10 – -1, 0, 1 – 10

1 – 8

0 – 98, 1.0

MIX

Adjusts the level of the effect sound mixed to the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

MIX

Adjusts the level of the effect sound mixed to the original sound.

0 – 98, 1.0

ZOOM A2.1u

CONTROL

CONTROL module

Serves for making built-in expression pedal settings and lets you control the foot switch function and master level setting applying to all patches.

RTM DESTINATION

Selects the modulation target module that is controlled with the built-in expression pedal (see Table 3).

[Table 3] [Table 4]

Setting Modulation target Setting Function

oF vL

CU, Cd, CH, CL

tU, td, tH, tL EU, Ed, EH, EL dU, dd, dH, dL

CONTROL

See Table 3

OFF Volume COMP/LIMIT module (*) TONE parameter of MODEL module (*) MOD/EFX module (*) DELAY/REVERB module (*) Frequency of feedback control function.

When a foot switch (FS01) is connected to the [CONTROL IN] jack, this selects the function that can be operated with the foot switch (see Table 4). The function selected here applies to all patches.

See Table 4

rH dH dM Mn Fb

Bypass/Mute Tap tempo Bank up Rhythm function on/off Delay hold Delay input mute Manual mode on/off Feedback control function on/off

Effect Types and Parameters

MASTER LEVEL

Adjusts the master level for all patches.

0 – 98, 1.0

The operation of modules denoted by (*) changes as follows, according to the letter at right.

The parameter is at minimum when the pedal is fully raised and at maximum when the pedal is fully pushed down.

DOWN

"UP"

Maximum value

Minimum value

"DOWN"

Maximum value

The parameter is at maximum when the pedal is fully raised and at minimum when the pedal is fully pushed down.

HIGH

When the pedal is fully raised, the parameter is at the value set in

Minimum value

"HIGH"

Maximum value

the patch. When the pedal is fully pushed down, the parameter is at maximum.

LOW

When the pedal is fully raised, the parameter is at minimum. When the pedal is fully pushed down, the parameter is at the value set in the patch.

ZOOM A2.1u

alue set in patch

"LOW"

alue set in patch

Minimum value

Troubleshooting

GLOBAL

GLOBAL module

Serves for making settings to match the guitar ampliﬁer and pickup in use and to control the feedback control function. The settings of this module apply to all patches.

PICK UP SELECT

Modiﬁes the sound quality depending on the guitar or pickup that is used, to fully bring out the simulation capabilities of the MODEL module (see table 5).

[Table 5] [Table 6]

Setting Content Setting Content

OFF

Designed for use with a piezo pickup

having a bright sound.

Designed for use with a piezo pickup

having a dark sound. Designed for use with a magnetic pickup

having a bright sound. Designed for use with a magnetic pickup

having a dark sound. Designed for use with an electric guitar

and single-coil pickup(s). Designed for use with an electric guitar

and humbucker pickup(s).

GLOBAL

See Table 5

FEEDBACK FREQ

Reduces acoustic feedback by attenuating the frequency band where the feedback occurs. The frequency can be detected automatically or manually. For details on how to use the FEEDBACK CONTROL function, see page 20.

oF, At,1 – 30

Sets the AMP SELECT parameter to OFF.

Designed for use with combo type ampliﬁers having a

b1 – b9

bright sound. Higher values result in stronger attenuation effect.

Designed for use with regular combo type ampliﬁers.

C1 – C9

Higher values result in stronger attenuation effect. Designed for use with stack type ampliﬁers. Higher

S1 – S9

values result in stronger attenuation effect.

AMP SELECT

This parameter serves for attenuating frequency band that can sound harsh when an acoustic guitar is reproduced via a guitar ampliﬁer (see table 6). Choose the suitable setting depending on the ampliﬁer that is used, and adjust the value as required.

See table 6

Troubleshooting

●

Volume is low

Adjust the patch level (→ p. 9) or master level

→

p. 37). When using a pickup with low

( output, start the A2.1u in HI-GAIN mode (

28). Try ajusting the expression pedal.

●

Matching problem with particular pickup or guitar amplifier

Check the PICKUP SELECT and AMP SELECT settings.

●

Delay/reverb effect does not work

DELAY/REVERB module is inactive while a rhythm pattern is playing. Stop rhythm

→

playback (

●

No effect processing (when using [BALANCED OUT] connector)

Check whether the [PRE/POST] switch is set to

p. 12).

→

"POST" (effect processing enabled).

●

High level of noise

Adjust ZNR module. Be sure to use only a ZOOM AC adapter (ZOOM AD-0006).

●

Hum is heard (when using [BALANCED OUT] connector)

A ground loop has occurred among connected devices. Try setting the [GROUND] switch to "LIFT". This may help to eliminate or reduce the noise.

●

Battery life is short

Are manganese batteries being used? Continuous operation time is 6 hours with alkaline batteries. The use of alkaline batteries is recommended.

ZOOM A2.1u

Specifications

Number of effect types

Number of effect modules

Patch memory

User area

Preset area

Sampling frequency

A/D conversion

D/A conversion

Signal processing

Frequency response

Display

Input

Rated input level:

Input impedance:

Outputs

XLR connector (balanced output)

Control input

USB interface

PC interface

Sampling frequencies

Power requirements

AC adapter

Batteries

Dimensions

Weight

Optional accessory

8 simultaneously usable modules

10 patches x 4 banks

96 kHz

24-bit, 64-times oversampling

24-bit, 128-times oversampling

32-bit

20 Hz – 40 kHz +1 dB, -3 dB (10 kilohm load)

2-digit 7-segment LED display, parameter LEDs, pedal assign LEDs

Standard monaural phone jack

-20 dBm

1 megohm

Standard stereo phone jack (line/headphones)

Line output maximum rating: +5 dBm (output impedance 10 kilohms or more)

Headphone output maximum rating: 20 mW + 20 mW (into 32-ohm load)

Input/output gain: 0 dB

Output impedance: 100 ohms (HOT-GND), (COLD-GND), 200 ohms (HOT-COLD)

FP02 (FP01)/FS01 input

16-bit (record/play, stereo)

32 kHz, 44.1 kHz, 48 kHz

9 V AC, 300 mA (ZOOM AC adapter AD-0006)

Four IEC R6 (size AA) batteries, continuous operating time 6 hours (with alkaline batteries)

165 (D) x 255 (W) x 79 (H) mm

1200 g (without batteries)

Expression pedal FP02/Foot switch FS01

* 0 dBm = 0.775 Vrms * Design and specifications subject to change without notice.

ZOOM A2.1u

A2.1u Preset Pattern

No PatternName TimSig No PatternName TimSig

8beat_1 4/4

8beat_2 4/4

8beat_3 4/4

8shuffle 4/4

16beat_1 4/4

16beat_2 4/4

16shufle 4/4

ROCK 4/4

FUNK_1 4/4

FUNK_2 4/4

HIPHOP 4/4

R'nR 4/4

POP_1 4/4

POP_2 4/4

POP_3 4/4

POP_4 4/4

DANCE_1 4/4

DANCE_2 4/4

DANCE_3 4/4

DANCE_4 4/4

3per4 3/4

6per8 3/4

5per4_1 5/4

5per4_2 5/4

COUNTRY 4/4

REGGAE 4/4

LATIN1 4/4

LATIN2 4/4

LATIN3 4/4

BALLAD_1 4/4

BALLAD_2 3/4

BLUES_1 4/4

BLUES_2 3/4

JAZZ_1 4/4

JAZZ_2 3/4

JAZZ_3 4/4

METRO_3 3/4

METRO_4 4/4

METRO_5 5/4

METRO

ZOOM CORPORATION

ITOHPIA Iwamotocho 2chome Bldg. 2F, 2-11-2, Iwamoto-cho, Chiyoda-ku, Tokyo 101-0032, Japan Web Site: http://www.zoom.co.jp

A2.1u - 5000-1

A2.1u Patch List

Zoom A2.1U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
