User's Manual

IR200 Infrared Gas Analyzer

IM 11G02M01-01E

3rd Edition

PREFACE

We are grateful for your purchase of Yokogawa’s Infrared Gas Analyzer (Model : IR200).

• First read this instruction manual carefully until an adequate understanding is acquired, and then proceed to installation, operation and maintenance of the analyzer. Wrong handling may cause an accident or injury.

• The specifications of this analyzer are subject to change without prior notice for further product improvement.

• Modification of this analyzer is strictly prohibited unless a written approval is obtained from the manufacturer. Yokogawa will not bear any responsibility for a trouble caused by such a modification.

• This instruction manual shall be stored by the person who actually uses the analyzer.

• After reading the manual, be sure to store it at a place easier to access.

• This instruction manual should be delivered to the end user without fail.

Manufacturer: Yokogawa Electric Corporation. Type: Described in Yokogawa’s company nameplate on main frame Date of manufacture: Described in Yokogawa’s company nameplate on main frame Product nationality: Japan

Request

• It is prohibited to transfer part or all of this manual without Yokogawa’s permission.

• Description in this manual is subject to change without prior notice for further improvement.

iIM 11G02M01-01E

CAUTION ON SAFETY

First of all, read this “Caution on safety” carefully, and then use the analyzer in the correct way.

• The cautionary descriptions listed here contain important information about safety, so they should always be observed. Those safety precautions are ranked in 3 levels, “DANGER”, “CAUTION” and “PROHIBITION”.

Wrong handling may cause a dangerous situation, in which

DANGER

CAUTION

there is a risk of death or heavy injury.

Wrong handling may invite a dangerous situation, in which there is a possibility of medium-level trouble or slight injury or only physical damage is predictable.

PROHIBITION

Caution on installation and transport of gas analyzer

DANGER

CAUTION

Items which must not be done are noted.

• This unit is not explosion-proof type. Do not use it in a place with explosive gases to prevent explosion, fire or other serious accidents.

• For installation, observe the rule on it given in the instruction manual and select a place where the weight of gas analyzer can be endured.

Installation at an unsuited place may cause turnover or fall and

there is a risk of injury.

• For lifting the gas analyzer, be sure to wear protective gloves. Bare hands may invite an injury.

• Before transport, fix the casing so that it will not open. Otherwise, the casing may be separated and fall to cause an injury.

• During installation work, care should be taken to keep the unit free from cable chips or other foreign objects. Otherwise, it may cause fire, trouble or malfunction of the unit.

ii IM 11G02M01-01E

Caution on piping

DANGER

CAUTION

In piping, the following precautions should be observed. Wrong piping may cause gas leakage.

If the leaking gas contains a toxic component, there is a risk of serious accident being induced.

Also, if combustible gas is contained, there is a danger of explosion, fire or the like occurring.

• Connect pipes correctly referring to the instruction manual.

• Exhaust should be led outdoors so that it will not remain in the locker and installation room.

• Exhaust from the analyzer should be relieved in the atmospheric air in order that an unnecessary pressure will not be applied to the analyzer. Otherwise, any pipe in the analyzer may be disconnected to cause gas leakage.

• For piping, use a pipe and a pressure reducing valve to which oil and grease are not adhering. If such a material is adhering, a fire or the like accident may be caused.

Caution on wiring

• Wiring work must be performed with the main power set to

OFF to prevent electric shocks.

• Enforce construction of class-D grounding wire by all means.

If the specified grounding construction is neglected, a shock hazard or fault may be caused.

• Wires should be the proper one meeting the ratings of this

instrument. If using a wire which cannot endure the ratings, a fire may occur.

• Be sure to use a power supply of correct rating. Connection of

power supply of incorrect rating may cause fire.

DANGER

CAUTION

Caution on use

• For correct handling of calibration gas or other reference gases, carefully read their instruction manuals beforehand. Otherwise, carbon monoxide or other hazardous gases may cause an intoxication particularly.

• Before leaving unused for a long time or restarting after left at such a status for an extended length of time, follow the directions of each instruction manual because they are different from normal starting or shutdown. Otherwise, the performance may be poor and accidents or injuries may be caused.

• Do not operate the analyzer for a long time with its door left open. Otherwise, dust, foreign matter, etc. may stick on internal walls, thereby causing faults.

iiiIM 11G02M01-01E

• Do not allow metal, finger or others to touch the input/output

PROHIBITION

Caution on maintenance and check

DANGER

CAUTION

terminals in the instrument. Otherwise, shock hazard or injury may occur.

• Do not smoke nor use a flame near the gas analyzer. Otherwise, a fire may be caused.

• Do not allow water to go into the gas analyzer. Otherwise, hazard shock or fire in the instrument may be caused.

• When doors are open during maintenance or inspection, be sure to purge sufficiently the inside of the gas analyzer as well as the measuring gas line with nitrogen or air, in order to prevent poisoning, fire or explosion due to gas leak.

Be sure to observe the following for safe operation avoiding the shock hazard and injury.

• Remove the watch and other metallic objects before work.

• Do not touch the instrument wet-handed.

Caution on use

CAUTION

• If the fuse is blown, eliminate the cause, and then replace it with the one of the same capacity and type as before. Otherwise, shock hazard or fault may be caused.

• Do not use a replacement part other than specified by the instrument maker. Otherwise, adequate performance will not be provided. Besides, an accident or fault may be caused.

• Replacement parts such as a maintenance part should be disposed of as incombustibles. For details, follow the local ordinance.

Others

• If the cause of any fault cannot be determined despite reference to the instruction manual, be sure to contact your dealer or Fuji Electric’s technician in charge of adjustment. If the instrument is disassembled carelessly, you may have a shock hazard or injury.

iv IM 11G02M01-01E

r After - Sales Warranty

d Do not modify the product. d During the warranty period, for repair under warranty carry or send the product to

the local sales representative or service office. Yokogawa will replace or repair any damaged parts and return the product to you.

d Before returning a product for repair under warranty, provide us with the model

name and serial number and a description of the problem. Any diagrams or data explaining the problem would also be appreciated.

d If we replace the product with a new one, we won’t provide you with a repair report. d Yokogawa warrants the product for the period stated in the pre-purchase quotation.

Yokogawa shall conduct defined warranty service based on its standard. When the customer site is located outside of the service area, a fee for dispatching the maintenance engineer will be charged to the customer.

d In the following cases, customer will be charged repair fee regardless of warranty

period.

• Failure of components which are out of scope of warranty stated in instruction manual.

• Failure caused by usage of software, hardware or auxiliary equipment, which Yokogawa did not supply.

• Failure due to improper or insufficient maintenance by user.

• Failure due to misoperation, misuse or modification which Yokogawa does not authorize.

• Failure due to power supply (voltage, frequency) being outside specifications or abnormal.

• Failure caused by any usage out of scope of recommended usage

• Any damage from fire, earthquake, a storm and flood, lightning, disturbance, riot, warfare, radiation and other natural changes.

d Yokogawa does not warrant conformance with the specific application at the user

site. Yokogawa will not bear direct/indirect responsibility for damage due to a specific application.

d Yokogawa will not bear responsibility when the user configures the product into

systems or resells the product.

d Maintenance service and supplying repair parts will be covered for five years after

the production ends. For repair this product, please contact the nearest sales office described in this instruction manual.

vIM 11G02M01-01E

PREFACE.............................................................................................................................. i

CAUTION ON SAFETY .................................................................................................... ii

r After - Sales Warranty ................................................................................................... v

1. OVERVIEW ................................................................................................................. 1-1

2. NAME AND DESCRIPTION OF EACH PART ..................................................... 2-1

2.1 Description of each unit.................................................................................. 2-1

3. INSTALLATION ......................................................................................................... 3-1

3.1 Selection of installation location ..................................................................... 3-1

3.2 Installation of analyzer.................................................................................... 3-2

3.3 Piping ............................................................................................................... 3-2

3.4 Sampling.......................................................................................................... 3-3

3.5 Wiring method ................................................................................................ 3-6

4. OPERATION ...............................................................................................................4-1

4.1 Preparation for operation ................................................................................ 4-1

4.2 Warm-up operation and regular operation ...................................................... 4-1

5. DESCRIPTION OF DISPLAY AND OPERATION PANELS .............................. 5-1

5.1 Name and description of operation panel....................................................... 5-1

5.2 Overview of display and operation panel....................................................... 5-2

5.3 Overview of display screen ............................................................................. 5-3

5.4 General operation ............................................................................................ 5-6

6. SETTING AND CALIBRATION .............................................................................. 6-1

6.1 Changeover of range ....................................................................................... 6-1

6.2 Calibration setting ........................................................................................... 6-2

6.2.1 Setting of calibration concentration ........................................................ 6-2

6.2.2 Setting of calibration gas......................................................................... 6-4

6.2.3 Setting of manual zero calibration .......................................................... 6-6

6.2.4 Setting of calibration range ..................................................................... 6-8

6.2.5 Setting of auto-calibration component .................................................. 6-10

6.3 Alarm setting ................................................................................................. 6-12

6.3.1 Setting of alarm values.......................................................................... 6-12

6.3.2 Hysteresis setting................................................................................... 6-14

6.4 Setting of auto calibration............................................................................. 6-15

6.4.1 Auto calibration ..................................................................................... 6-15

6.4.2 Forced stop of auto calibration ............................................................. 6-17

6.5 Setting of auto zero calibration..................................................................... 6-19

6.5.1 Auto zero calibration ............................................................................. 6-19

6.5.2 Forced stop of auto zero calibration ..................................................... 6-21

6.6 Peak alarm setting ......................................................................................... 6-23

6.7 Parameter setting ........................................................................................... 6-25

6.8 Maintenance mode ........................................................................................ 6-29

6.9 Calibration ..................................................................................................... 6-32

6.9.1 Zero calibration ..................................................................................... 6-32

6.9.2 Span calibration ..................................................................................... 6-33

vi IM 11G02M01-01E

7. MAINTENANCE ......................................................................................................... 7-1

7.1 Daily check ...................................................................................................... 7-1

7.2 Daily check and maintenance procedures ...................................................... 7-1

7.3 Replacement of power fuse ............................................................................. 7-2

7.4 Moisture interference compensation adjustment ............................................ 7-3

7.5 Cleaning of measuring cell ............................................................................. 7-4

7.5.1 Disassembly and assembly of measuring cell ........................................ 7-4

7.5.2 How to clean cell..................................................................................... 7-9

7.6 Inspection and maintenance of limited service-life components ................... 7-9

8. TROUBLESHOOTING .............................................................................................. 8-1

8.1 Error message.................................................................................................. 8-1

8.2 Other Troubleshooting .................................................................................... 8-3

9. SPECIFICATIONS...................................................................................................... 9-1

9.1 Specifications .................................................................................................. 9-1

9.2 Model and Suffix codes .................................................................................. 9-5

9.3 External Dimensions .................................................................................... 9-10

Customer Maintenance Parts List ............................................... CMPL 11G02M01-01E

Revision Record .................................................................................................................... i

viiIM 11G02M01-01E

1. OVERVIEW

The infrared gas analyzer (IR200) measures the concentrations of CO2, CO, CH4, SO2, NO and O2 contained in sample gas.

2, CO, CH4, SO2, and NO are measured by non-dispersion infrared method, while O2 is measured by

CO paramagnetic or fuel cell method. Up to 4 components including O of components other than O

2) can be measured simultaneously.

A high-sensitivity mass flow sensor is used in the detector unit of infrared method. Due to use of single beam system for measurement, maintenance is easy and an excellent stability is ensured for a long period of time.

In addition, a microprocessor is built in and a large sized liquid crystal display is provided for easier operation, higher accuracy and more functions.

This analyzer is thus optimum for combustion control of various industrial furnaces, botanical study and global atmospheric research.

2 (3 at the maximum for measurement

1 - 1IM 11G02M01-01E

2. NAME AND DESCRIPTION OF EACH PART

2.1 Description of each unit

INFRARED GAS ANALYZER

(1) Handle (2) Power switch

POWER

MODE

ESC

ENT

(11) Terminal block 5 (10) Terminal block 4

(13) Connector 2

(7) Terminal block 1 (8) Terminal block 2 (9) Terminal block 3

ZERO

SPAN

(3) Display and operation panel

(6) Purge gas inlet (5) Sampling gas outlet

(4) Sampling gas inlet

(12) Power inlet

Name Description

(1) Handle Draws the analyzer unit from the case. (2) Power switch Turns ON/OFF this analyzer. (3) Display/Operation panel Liquid crystal display and keys for various operational settings are arranged. (4) Sampling gas inlet Port for connecting the sample gas injection pipe (5) Sampling gas outlet Port for connecting the pipe for discharging the gas after analysis (6) Purge gas inlet Port for connecting the purge gas pipe (7) Terminal block 1 Analog output terminals (8) Terminal block 2 O2 analyzer signal and contact input terminals (9) Terminal block 3 Contact input/output terminals (10) Terminal block 4 Contact output terminal (11) Terminal block 5 Alarm output terminal (12) Power inlet Used to connect the power cable. (13) Connector for Used to connect the communication cable.

communication

Fig. 2-1 Name and description of each unit

2 - 1IM 11G02M01-01E

3. INSTALLATION

DANGER

This unit is not explosion-proof type. Do not use it in a place with explosive gases to prevent

explosion, fire or other serious accidents.

CAUTION

•For installation, observe the rule on it given in the instruction manual and select a place where the weight of gas analyzer can be endured. Installation at an unsuited place may cause turnover or fall and there is a risk of injury.

•For lifting the gas analyzer, be sure to wear protective gloves. Bare hands may invite an injury.

•Before transport, fix the casing so that it will not open. Otherwise, the casing may be separated and fall to cause an injury.

•The gas analyzer is heavy. It should be transported carefully by two or more persons if manually required. Otherwise, body may be damaged or injured.

•During installation work, care should be taken to keep the unit free from cable chips or other foreign objects. Otherwise, it may cause fire, trouble or malfunction of the unit.

3.1 Selection of installation location

To install the analyzer for optimum performance, select a location that meets the following conditions;

(1) Use this instrument indoors. (2) A vibration-free place (3) A place which is clean around the analyzer.

(4) Power supply

Voltage rating ;100 V AC to 240 V AC Allowable range ; 85 to 264 V AC Frequency ; 50 Hz / 60 Hz Power consumption; 70 VA max. Inlet ; Conform to EN60320

Protection Class 1

(5) Operation conditions

Ambient temperature : -5 to 45°C Ambient humidity : 90% RH or less, no condensation

3 - 1IM 11G02M01-01E

3.2 Installation of analyzer

There are two methods of installing the analyzer. For detailed dimensions, see Chapter 9.3.

Types

External dimensions

Mounting dimensions

(Unit:mm)

Mounting method

Guide rail

Slide rail

19 inch rack mounting (Note)

INFRARED GAS ANALYZER

POWER

MODE

ZERO

ESC

ENT

SPAN

429 483

177

101.6

450 or more

465

Guide rail

Slide rail

Note) The mounting method should be selected to meet the installation requirements since the top

cover must be detached from the gas analyzer for maintenance and check.

Mounting method

Slide rail Guide rail Maintenance space is provided at the top.

Recommended slide rail: 305A-20, Accuride International Inc.

No maintenance space is provided at the top.

Conditions

These methods must be rigid enough to withstand the mass (about 10 kg) of the gas analyzer.

Remarks

3.3 Piping

CAUTION

Caution on piping

In piping, the following precautions should be observed. Wrong piping may cause gas leakage.

If the leaking gas contains a toxic component, there is a risk of serious accident being induced.

Also, if combustible gas is contained, there is a danger of explosion, fire or the like occurring.

• Connect pipes correctly referring to the instruction manual.

• Exhaust should be led outdoors so that it will not remain in the locker and installation room.

• For piping, use a pipe and a pressure reducing valve to which oil and grease are not adhering. If such a material is adhering, a fire or the like accident may be caused.

3 - 2 IM 11G02M01-01E

Observe the following when connecting the gas pipes.

• The pipes should be connected to the gas inlet and outlet at the rear panel of the analyzer, respectively.

• Connect the sampling system to the instrument by using corrosion-resistant tube such as Teflon, stainless steel, or polyethylene. In case where there is no danger of corrosion, don't use rubber or soft vinyl tube. Analyzer indication may become inaccurate due to the adsorption of gases.

• Piping connections are Rc1/4 (1/4 NPT) female-threaded. Cut the pipe as short as possible for quick response. Pipe of ø 4mm (inside diameter) is recommendable .

• Entry of dust in the instrumant may cause operation fault. Use clean pipes and couplings.

Purge gas inlet Sampling gas outlet

Sampling gas inlet

Sampling gas inlet: Connect the pipe so that zero/span calibration standard gas or

Sampling gas outlet: Measured gas is exhausted after measurement.

Purge gas inlet: It is used for purging the inside of the total gas analyzer. When the

3.4 Sampling

(1) Conditions of sample gas

1. The dust contained in sample gas should be eliminated completely with filters. The filter at the final stage should be capable of eliminating dust of 0.3 microns.

2. The dew point of sample gas must be lower than the ambient temperature for preventing formation of drain in the analyzer. If water vapor is contained in sample gas, its dew point should be reduced down to about 0°C through a dehumidifier.

3. If SO

4. If a large amount of highly corrosive gas such as Cl

5. Sample gas temperature is allowed within a range from 0 to 50°C. Pay attention not to flow

3 mist is contained in sample gas, the mist should be eliminated with a mist filter,

cooler, etc. Eliminate other mist in the same way.

the service life of analyzer will be shortened. So, avoid such gases.

hot gas directly into the analyzer.

Fig. 3-1 Piping

measured gas pretreated with dehumidification is supplied properly. The gas flow rate should be kept constant within the range of 1 ± 0.5L/min.

Connect the pipe so that the gas may escape through the gas outlet into the atmosphere.

analyzer must be purged, refer to Item 3.4, Purging inside Analyzer. Use dry gas N

2 or instrumentation air for purge gas. (flow rate of

1L/min or more should be used and no dust or mist is contained).

2, F2 or HCl is contained in sample gas,

3 - 3IM 11G02M01-01E

(2) Sampling gas flow rate

A flow rate of sampling gas must be 1 ± 0.5L/min. A flow meter should be provided as shown in Fig. 3-2 to measure flow rate values.

(3) Preparation for standard gas

Prepare the standard gas for zero/span calibration.

Without O

Zero gas

Span gas except for O

Span gas for O

* We recommend you to feed the zero gas shown above by humidifying it, if NO or SO

components to be analyzed.

gas

Gas with concentration of 90% or more of full scale

Analyzer Built in O2 Analyzer

gas Dry air, air or gas in

Gas with concentration of 90% or more of full scale

Gas with concentration of 90% or more of full scale or atmospheric air (21%)

Externally mounted

zirconia O

concentration of 80% or higher of the O be contained in zero gas if CO meter is provided.)

Gas with concentration of 90% or more of full scale

1 to 2% O

range (CO2 should not

Analyzer

gas

is included in

(Note) It is understood to influence the calibration model of the infrared gas analyzer when a lot of H

2 ,

He, and Ar are included in the measurment gas (pressure broadening). The span gas must use a gas near the composition of the measurement gas when you measure the

gas like the above-mentioned.

(4) Reduction of moisture interference

NO and SO

2 measurement is subject to moisture interference.

As shown by the configuration example on the next page, provide a device for humidifying zero calibration gas, thus controlling the moisture content at a constant level (moisture content in sample gas should also be controlled here) in configuring a sampling system. That allows the same moisture content as in the case of measurement to be contained in zero gas for calibration.

(5) Purging of instrument inside

The inside of instrument need not be purged generally except for the following cases.

1. A combustible gas component is contained in sample gas.

2. Corrosive gas is contained in the atmospheric air at the installation site.

3. The same gas as the sample gas component is contained in the atmospheric air at the installation site.

In such cases as above, the inside of analyzer should be purged with the air for instrumentation

2. Purging flow rate should be about 1L/min.

or N If dust or mist is contained in purging gas, it should be eliminated completely in advance.

(6) Pressure at sampling gas outlet

Pressure at the sampling gas outlet should be set to atmospheric pressure.

3 - 4 IM 11G02M01-01E

(7) Example of sampling system configuration

Pump

4-way selector cock

Primary filter

Safety drain trap

Electronic dehumidifier

Drain pot

Standard gas

for zero calibration

Standard gas for span calibration

Ball valve

Drain

Sample gas inlet

Flow meter

Exhaust (atmospheric pressure)

Secondary filter

Gas

analyzer

(IR200)

External

O2 analyzer

F03.EPS

Measurement of sample gas with low moisture content (room-temperature saturation level or below): CO, CO

and CH4 measurement

A dehumidifier must be used for CO (0-200 ppm) and SO

measurements (to prevent saturation at 28C). Even in any other gas measurements, if sample gas has a high moisture content or if condensation is likely to occur, a safety drain trap and a dehumidifier should be used.

The system configuration may vary depending upon the nature of measured gas, coexistent gases or application. A typical configuration diagram is shown in Fig. 3-2. Since a system configuration depends upon measured gas, consult with Yokogawa.

Measurement of sample gas with high moisture content or NO, SO2, or CO (0-200 ppm range) measurement

Primary filter

Pump

Atmosphere

Safety dran trap

Drain

A dehumidifier must be used for NO, SO2, and CO (0-200 ppm) measurements (to prevent saturation at 28C). Use either atmospheric air or cylinder gas as a zero calibration gas and supply it through a bubbler (humidifying) to reduce interference of water.

Solenoid

valve

Standard gas for zero calibration

Pump

3-way solenoid valve

Bubbler

Electronic dehumidifier

Drain pot

Ball valve

Solenoid valve

Flow meter

Solenoid valve

Standard gas for span calibration

NO2/NO

converter

Secondary filter

Gas analyzer

(IR200)

External O2 analyzer

Exhaust (atmospheric pressure)

No.

Primary filter (mist filter) Remove dust and mist

Safety drain trap

Pump

Electronic dehumidifier

Drain pot

Ball valve

4-way selector cock

Standard gas for calibration

Flow meter

Secondary filter (membrane filter) Remov fine dust

10 11

NO2/NO converter Convert NO2 gas into NO gas 3-way solenoid valve Used for introducing humidified gas

Bubbler Humidify calibration gas

Solenoid valve Used for switching sampling and calibration lines

Item

Fig. 3-2 A typical example of sampling system

Separate and discharges drain Suck in sample ga Dehumidify sample gas Collect discharged water from dehumidifier Used for discharging drain Used for switching sampling and calibration lines Used for zero/span calibration Adjust and monitor sample gas flow rate

Description

T03.EPS

3 - 5IM 11G02M01-01E

3.5 Wiring method

Caution on wiring

• Wiring work must be performed with the main power set to OFF to prevent electric shocks.

CAUTION

Each external terminal is provided on the rear panel of the analyzer. (See Fig. 3-3) Wire each terminal, referring to Fig. 3-3 and (1) to (7).

• Enforce construction of class-D grounding wire by all means, 100V or less. If the specified grounding construction is neglected, a shock hazard or fault may be caused.

• Wires should be the proper one meeting the ratings of this instrument. If using a wire which cannot endure the ratings, a fire may occur.

• Be sure to use a power supply of correct rating. Connection of power supply of incorrect rating may cause fire.

Terminal block 4

Terminal block 5 Terminal block 3 Terminal block 2

Terminal block 1

Connector for communication

Fig. 3-3 Rear panel

(1) Power inlet

When using supplied power cable, connect the female side to the power inlet at the rear panel of the analyzer, and insert the male side into a receptacle matching the rating.

Power inlet (3 pins)

Female side

Supplied power cable

(

Fig. 3-4

)

Male side

100 to 240V AC 50/60Hz

3 - 6 IM 11G02M01-01E

When noise source is in the vicinity

Do not install the instrument near an electric device that generates noise from the power supply (such as high-frequency furnace and electric welder). If there is no other choice but to install it near such devices, provide completely separate power line to eliminate noise.

IR200 power supply

Varistor or spark killer

Locate and connect in close proximity

In case noise may enter from a relay, solenoid valve, etc. through power supply, connect a varistor or

Noise source

spark killer to the noise source as shown below. If the varistor or spark killer is located away from the noise source, no effect is obtainable. So, locate near the noise source.

(2) Analog output signal (AO): terminal block 1, 1 to 10, 15 to 20.

Output signal: 4 to 20 mA DC or 0 to 1 V DC (selected when ordering)

Non-insulated output

Allowable load: 4 to 20 mA DC, 550Ω or less

0 to 1 V DC, 100kΩ or more

• Analog output is provided from each terminal corresponding to the channel displayed in the

measurement screen.

Note) All of analog output signals for the instrument are not isolated. It is recommended to

isolate signals individually to prevent interference from unnecessary signals or to prevent external interference, especially leading the cable of more than 30 meters to

outdoor.

2 sensor input: terminal block 2,

(3) O

– 2.

Input signal:

External zirconia O External O

2 analyzer: 0 to 1 V DC (DC input resistor of 1MΩ or more)

• It is used when the external zirconia O

• To connect to the output of the external Zirconia analyzer or external O

2 analyzer: Zirconia O2 sensor signal (ZX8D*C output)

2 analyzer or external O2 analyzer is specified as order.

2 analyzer prepared

separately.

• In case of an external O

2 analyzer, input a signal of 0 to 1 V DC with respect to O2 full scale

of the analyzer.

• In case of built-in O

Note) O

2 senser input is not isolated. It is recommended to isolate input signal to prevent

2 analyzer, do not use the terminals.

inter ference from unnecessary signals or to prevent external interference. Zirconia O

2 sensor should be installed at a location that is as close to this instrument

as possible.

3 - 7IM 11G02M01-01E

(4) Contact input (DI): terminal block 2, 13 to 20, terminal block 3, 5 to 10.

• It is for a contact input at no voltage. An input is provided when switching to short circuit

(on) or open (off).

• No voltage is applied to the terminals.

(5) Contact output (DO): terminal block 3,

to 20, terminal block 4 and terminal block 5

• Contact rating: 250 V AC/2 A, load resistance

• An output is for a relay contact output. An output is provided when switching to conductive

(on) or open (off).

Note) The wires of analog output signals, O2 senser input and contact input should be fixed

separately from power supply wiring and contact output wiring.

(6) Communication interface: connector for communication (RS-232C interface)

• Please refer to the manual (IM 11G02P01-01E) about communication function.

3 - 8 IM 11G02M01-01E

(7) List of terminal blocks 1 to 5

CH5 output

(AO)

CH4 output

(AO)

CH3 output

(AO)

CH2 output

(AO

CH1 output

(AO)

Unused

Remote hold input

Average value reset

Auto calibration

(DI)

input (DI)

remote start

input (DI)

Terminal block 1

<TN1>

2 1

(M3.5 screw)

Terminal block 3

<TN3>

(M3.5 screw)

Unused

CH8 output

2 1

(AO)

CH7 output

2 1

(AO)

CH6 output

2 1

(AO)

Instrument error (DO)

CH4 range identification signal output (DO)

CH3 range identification signal output (DO)

CH2 range identification signal output (DO)

CH1 range identification signal output (DO)

Terminal block 2

Unused

2 1

2 sensor input

Terminal block 4

Contact output for CH4

span calibration

(DO)

Contact output for CH3

span calibration

(DO)

Contact output for CH2

span calibration

(DO)

Contact output for CH1

span calibration

(DO)

Contact output for

zero calibration

(DO)

<TN2>

(M3.5 screw)

<TN4>

(M3.5 screw)

Unused

CH4 remote range changeover input (DI)

CH3 remote range changeover input (DI)

CH2 remote range changeover input (DI)

CH1 remote range changeover input (DI)

Unused

Auto calibration status contact output (DO)

Calibration error contact output (DO)

Pump ON/OFF contact output (DO)

Unused

CH3 alarm output

CH2 alarm output

CH1 alarm output

(DO)

Terminal block 5

<TN5>

(M3.5 screw)

Unused

Peak count alarm output (DO)

CH4 alarm output (DO)

*1) Unused terminals are used for internal connection.

So they should not be used as repeating terminals either.

sensor input is used when an external O2 analyzer is selected.

*2) O

3 - 9IM 11G02M01-01E

(8) Description on terminal block

Terminal block 1

<TN1>

CH5 output

(AO)

CH4 output

(AO)

CH3 output

(AO)

CH2 output

(AO

CH1 output

(AO)

2 1

2 3

4 5

6 7

8 9

(M3.5 screw)

Unused

12 13

Unused

14 15

CH8 output

2 1

(AO)

16 17

CH7 output

2 1

(AO)

18 19

CH6 output

2 1

(AO)

Terminal block 1 <TN1>

Terminal block for analog output (non-isolated output) Output : 4 to 20 mA or 0 to 1 V DC Between 1 – 2 : CH5 output Between 3 – 4 : CH4 output Between 5 – 6 : CH3 output Between 7 – 8 : CH2 output Between 9 – 10 : CH1 output Between 11 to 14 : For internal connection. Must not be

wired. (Must not be used as junction

terminal.) Between 15 – 16 : CH8 output Between 17– 18 : CH7 output Between 19– 20 : CH6 output

Terminal block 2 <TN2>

sensor input

Terminal block 2

2 1

Unused

<TN2>

(M3.5 screw)

Unused

CH4 remote range changeover input (DI)

CH3 remote range changeover input (DI)

CH2 remote range changeover input (DI)

CH1 remote range changeover input (DI)

Between 1– 2 : For O

2 sensor input. (Input for our

Zirconia oxygen sensor or exernal

2 sensor. Must not be used unless 2 meter is added.)

O Between 3 to12 : For internal connection. Must not be

wired. (Must not be used as junction

terminal.) Between 13 – 14 : CH4 remote range changeover input Between 15 – 16 : CH3 remote range changeover input Between 17– 18 : CH2 remote range changeover input Between 19– 20 : CH1 remote range changeover input

Note) High range is selected when

open. Low range is selected when short-circuited. For details of action, refer to “6.1 Changeover of range”.

3 - 10 IM 11G02M01-01E

Unused

Remote hold input

Average value reset

Auto calibration

(DI)

input (DI)

remote start

input (DI)

Terminal block 3

<TN3>

(M3.5 screw)

Instrument error (DO)

CH4 range identification signal output (DO)

CH3 range identification signal output (DO)

CH2 range identification signal output (DO)

CH1 range identification signal output (DO)

Terminal block 3 <TN3>

Between 1 to 4 : For internal connection. Must

not be wired. (Must not be used as junction terminal.)

Between 5 – 6 : Remote hold input. No hold

when open. Output hold when short-circuited.

Between 7 – 8 : Average value reset input.

Short-circuiting the contact input (for at 1.5 sec or more) resets O average and O2 correction average simultaneously. Opening it restarts the average value.

Between 9 – 10 : Automatic calibration remote

start input. Open input after strapping for at least 1.5 seconds starts the automatic calibration whether automatic calibration setting is ON or OFF.

Between 11 – 12 : Conductive when analyzer unit

error is producted. Normally

open. Between 13 – 14 : CH4 range identification signal Between 15 – 16 : CH3 range identification signal Between 17– 18 : CH2 range identification signal Between 19– 20 : CH1 range identification signal

Note) Range identification

signal is conductive at Low range or open at High range. In case of 1-range system, the signal remains open.

3 - 11IM 11G02M01-01E

Terminal block 4

Contact output for CH4

span calibration

Contact output for CH3

span calibration

Contact output for CH2

span calibration

Contact output for CH1

span calibration

Contact output for

(DO)

zero calibration

(DO)

<TN4>

(M3.5 screw)

Unused

Auto calibration status contact output (DO)

Calibration error contact output (DO)

Pump ON/OFF contact output (DO)

Unused

Terminal block 4 <TN4>

Between 1 – 2 : CH4 span calibration contact

output

Between 3 – 4 : CH3 span calibration contact

output

Between 5 – 6 : CH2 span calibration contact

output

Between 7 – 8 : CH1 span calibration contact

output

Between 9 – 10 : Zero calibration contact output

When the calibration contact output is measured with manual calibration, the calibration contact corresponding to cali-

bration channel is conductive.

For the automatic calibration,

they are worked sequentially according to “6.4 Auto calibration setting”. If calibration is not performed, all of them are open.

Between 11– 12 : For internal connection. Must

not be wired. (Must not be used as junction terminal.)

Between 13– 14 : Automatic calibration in

progress, contact output. Conductive during automatic calibration. Open otherwise.

Between 15– 16 : Calibration error contact output.

Conductive when error is produced at zero or span calibration. Normally open.

Between 17– 18 : Pump ON/OFF contact output.

(Used for turning ON/OFF the pump. Conductive during measurement and open at zero span calibration.)

For the output of calibration contacts, see

Note:

Item 3.5 (9) “Timing of calibration contact output”.

3 - 12 IM 11G02M01-01E

Unused

CH3 alarm output

CH2 alarm output

CH1 alarm output

(DO)

Terminal block 5

<TN5>

(M3.5 screw)

Unused

Peak count alarm output (DO)

CH4 alarm output (DO)

Terminal block 5 <TN5>

1 and 11 – 14 : For internal connection. Must not

be wired. (Must not be used as

junction terminal.) Between 2– 3 and 3– 4

: CH3 alarm output. Conductive at 2–

3 and open at 3–

4 when set value is

exceeded. Open at 2– 3 and conduc-

tive at 3– 4 otherwise. Between 5– 6 and 6– 7

: CH2 alarm output. Conductive at 5–

6 and open at 6– 7 when set value is

exceeded. Open at 5– 6 and conduc-

tive at 6– 7 otherwise. Between 8– 9 and 9– 10

: CH1 alarm output. Conductive at 8–

9 and open at 9– 10 when set value

is exceeded. Open at 8– 9 and

conductive at 9– 10 otherwise. Between 15–16 and 16– 17

: Peak count alarm contact output.

Conductive at 15 – 16 and open at

16 – 17 when preset peak count is

exceed. Otherwise, open at 15 – 16

and conductive at 16 – 17. For

setting and action, refer to instruc-

tion manual “6.6 Peak Alarm

Setting”. Between 18–19 and 19– 20

: CH4 alarm output. Conductive at

18– 19 and open at 19– 20 when set

value is exceeded. Open at 18– 19

and conductive at 19– 20 otherwise.

3 - 13IM 11G02M01-01E

(9) Timing of calibration contact output

1. Manual calibration (See “6.9 Calibration”).

•

Zero calibration

Pump ON/OFF contact

Zero calibration contact

CH1 to CH4 span calibration contact

Output hold function (with hold ON setting)

• Span calibration

Pump ON/OFF contact Zero calibration contact

Span 1 calibration contact

Span 2 calibration contact

ZERO

SPAN

When selecting CH2 using and keys.

ENT ENT

Output signal hold

ENT ENT

Calibration end

Hold extension time

Calibration end

on off

off

on off

off off

on off

Output hold function (with hold ON setting)

Output signal hold

2. In case of automatic calibration (example shown in 6.4.1, Automatic calibration settings)

Pump ON/OFF contact

Zero calibration contact

CH1 span calibration contact

CH2 span calibration contact

CH3 span calibration contact

Automatic calibration

start

Zero gas

350s

Zero

calibration

CH1 span gas

CH1 span

calibration

350s

CH2 span gas

CH2 span

calibration

350s

CH3 span gas

350s

Hold extension time

The hold extension time

Note)

depends on the gas flow time of the automatic calibration settings.

CH3 span calibration

(automatic calibration end)

Automatic calibration contact

Output hold function

(With hold ON setting)

Output signal hold

Hold extension time

3 - 14 IM 11G02M01-01E

4. OPERATION

4.1 Preparation for operation

(1) Check of gas sampling tube, exhaust tube and wiring

Check that the pipes are correctly connected to the gas sampling port and drain port. Check that the analyzer is correctly wired as specified.

4.2 Warm-up operation and regular operation

(1) Operation procedure

1. Turn ON the power switch at the left of the front panel. In one or two seconds, the measurement screen will appear at the front panel.

2. About 2 hour warm-up operation About 2 hours are needed until the operating performance is stabilized. Warm-up operation

should be continued with the power ON.

3. Setting of various set values Set required set values according to Chapter 6, “Setting and calibration”.

4. Zero and span calibration Perform zero calibration and span calibration after warm-up operation. See Chapter 6.9, “Calibration”.

5. Make moisture interference compensation adjustment (NO Analyzer and SO (See “6.8 Maintenance mode” and “7.4 Moisture interference compensation adjustment” for details.)

Be sure to perform individual moisture interference compensation adjustment according to the system in the case of NO Analyzer and SO affected by moisture interference.

6. Introduction and measurement of measured gas Start measurement by introducing measured gas into the analyzer.

2 Analyzer. Otherwise measurement is

2 Analyzer).

Note) While in warm-up operation, the concentration reading may be beyond the

upper limit of the range (range-over) or below the lower limit (range-under) .

But this is not an error.

4 - 1IM 11G02M01-01E

DESCRIPTION OF DISPLAY AND OPERATION PANEL

This section describes the display and operation panel of the gas analyzer. It also explains the name and description of function on the operation panel. See Fig. 5-1.

5.1 Name and description of operation panel

Display

INFRARED GAS ANALYZER

Power switch

POWER

Controls

(1)MODE key

MODE

ZERO

ESC

ENT

SPAN

• Display : The measurement screen and the setting items are displayed.

• Controls : The configuration is as shown below.

(3)UP key

MODE ESC ZERO

(2)SIDE key

(4)DOWN key

(5)ESCAPE key

(7)ZERO key

ENT SPAN

(8)SPAN key

(6)ENTRY key

Name

(1) MODE key

(2) SIDE key

(3) UP key

(4) DOWN key

Description

Used to switch the mode.

Used to change the selected item (by moving the cursor) and numeral digit.

Used to change the selected

Name

(5) ESCAPE key

(6) ENTRY key

(7) ZERO key

Used to return to a previous screen or cancel the setting midway.

Used for confirmation of selected items or values, and for execution of calibration.

Used for zero calibration.

Description

item (by moving the cursor) and to increase numeral value.

Used to change the selected

(8) SPAN key

Used for span calibration. item (by moving the cursor) and to decrease numeral value.

Fig. 5-1 Name and description of operation display and panel

5 - 1IM 11G02M01-01E

5.2 Overview of display and operation panel

*1) The screen configuration depends upon the display channel.

• Measurement mode

MODE

• User mode

1. Changeover of Range

Setting about Calibration

3. Alarm Setting

Setting of Auto Calibration

Setting of

Auto zero

calibration

6. Setting of Peak Alarm

7. Parameter Setting

*2) Peak alarm is displayed only when specified as an option.

ESC

• Changeover of Range

• Setting about Calibration

• Alarm Setting

• Setting of Auto

Calibration

• Setting of Auto zero calibration

• Setting of Peak Alarm

• Parameter Setting

When channel 5 or later is displayed on the screen, scroll the screen by using the UP or DOWN key.

ZERO

ZERO Calibration SPAN Calibration

SPAN

• Selection of items Calibration value

Calibration gas

About Zero calibration About Calibration range Auto calibration component

*3) "Calibration gas" is displayed if NO or SO included in components to be analyzed.

• Selection of items Start time Cycle Flow time Auto calibration ON/OFF Auto zero calibration stop

• Selection of items Start time Cycle Flow time ON/OFF Auto zero calibration stop

• Selection of items Peak alarm ON/OFF Peak alarm value Peak alarm count Hysteresis

• Selection of items Current time : Current time setting Key lock : Key lock ON/OFF Remote range : Remote range ON/OFF Output hold : ON/OFF Reset Average : Average value resetting

output Response time : Response time (filter) Average period : Average time setting To maintenance : Maintenance mode

mode (entry of password)

Fig. 5-2

5 - 2 IM 11G02M01-01E

5.3 Overview of display screen

(1) Measurement mode screen

On turning on the power switch, the Measurement Mode screen will appear. The measurement screen depends on the number of components. The following screen configura-

tion shown as an example is for CO When channel 5 or later is displayed, scroll or key to view another configuration which is

beyond the screen.

2, CO, O2 (Output at channel 6).

3 4

No,

Name

Component display

Function

Displays component of instantaneous value, converted instantaneous value, converted average value, etc.

Concentration

display

Range display

Unit display

Displays measured value of concentration.

Displays range values.

Displays unit with ppm and vol%.

Fig. 5-3 Name and function of measurement mode screen

• Instantaneous value and concentration value:

The concentration display of CH (component) where sampling components such as “CO “CO” or “O

2 are displayed in the component display, indicates current concentration values of

the measured components contained in gas that is now under measurement.

2 correction concentration value:

• O

CH (components) where “cv**” is displayed as “cv CO” in the component display are calculated from the following equation, by setting sampling components, O values and O

2 correction reference value (see item 6.8).

No,

Peak alarm component display

Peak alarm

concentration display

Name

Peak alarm count

Peak alarm unit display

Description

Displays peak alarm component.

Displays peak alarm concentration (Upper limit value).

Displays the alarm times exceeding the peak value.

Displays unit of peak alarm with times/h.

2 instantaneous/concentration

2”,

Conversion output=

21 21

× Cs

The correction components are CO and SO

On: The value of the O

2 correction referance value

(Value set by application) Os: Oxygen concentration (%) Cs: Concentration of relevant measured component K: The value of the fractional part is this equation. where, K is When K

4, K=4. When K < 0, K=4.

When Cs < 0, K=0.

2 only.

5 - 3IM 11G02M01-01E

• O2 correction concentration average value:

CH (component) where “ ** ” is displayed as “ CO” in the component display and O

AV CV

average value, a value obtained by averaging O2 conversion concentration value or O2 concentration value in a fixed time is output every 30 seconds.

Averaging time can be changed between 1 minute and 59 minutes or 1 hour and 4 hours according to the average time settings (See 6.7 Parameter setting).

(The set time is displayed as “1h” , for instance, in the Range display.)

* The measurement ranges of O

2 correction concentration value and O2 correction concentration

average value are the same as that of the measuring components. Also, the measurement range of O

2 average value is the same as that of O2.

(2) Setting/selection screen

The setting/selection screen is configured as shown below:

• In the status display area, the current status is displayed.

• In the message display area, messages associated with operation are displayed.

• In the setting item and selection item display area, items or values to be set are displayed, as required. To work on the area, move the cursor to any item by using

keys.

Status display area

Cursor

Message display area

Setting item/selection item display area

, and

Fig. 5-4 Display screen

5 - 4 IM 11G02M01-01E

(3) Contents of measured channel (CH)

The contents in each measured CH corresponding to the type are given below:

Measurable

component

analyzer

O2 correction CH1 CH2 CH3 CH4 CH5 CH6 CH7

- A N Not specified SO

- B N Not specified CO

Suffix/Option Code

- C N Not specified CO

- D N Not specified CH

2 4

- E N Not specified NO

- F N Not specified CO

- G N Not specified CH

- H N Not specified CO

- J N Not specified CO

2 4 2 2

CO CO

CO CH

- K N Not specified NO SO

- L N Not specified NO CO

- M N Not specified NO SO

- A 1, 2, 3 Not specified SO

- B 1, 2, 3 Not specified CO O

- C 1, 2, 3 Not specified CO

- D 1, 2, 3 Not specified CH

2 4

O O

- E 1, 2, 3 Not specified NO O

- F 1, 2, 3 Not specified CO

- G 1, 2, 3 Not specified CH

- H 1, 2, 3 Not specified CO

- J 1, 2, 3 Not specified CO

2 4 2 2

CO O CO O

CO CH

- K 1, 2, 3 Not specified NO SO

- L 1, 2, 3 Not specified NO CO O

- M 1, 2, 3 Not specified NO SO

- A 1, 2, 3 /K SO

- B 1, 2, 3 /K CO O

- E 1, 2, 3 /K NO

- F 1, 2, 3 /K CO

- G 1, 2, 3 /K CH

- J 1, 2, 3 /K CO

- K 1, 2, 3 /K NO

- L 1, 2, 3 /K NO

- M 1, 2, 3 /K NO

X 2 4 2 X X X

O2Correct NOXCorrect NOX av. CO O CO O CO CH

CO O

Output and Corresponding Channel

2 2 2 2 2 2

2 2 2

2 2

CO O Correct SO2Correct SO2 av. Correct CO

2 2

CO O2Correct NOXCorrect SO2 Correct

O2 av.

Correct CO av.

O2 av.

O2 av. Correct CO Correct CO

Correct CO av. Correct CO av.

Correct CO

O2 av. O2 av.

Correct CO av.

O2 av. Correct NOXCorrect SO2Correct NOX av. Correct SO2 av. Correct NOXCorrect CO

Correct NOX av. Correct CO av.

CH8

O2 av.

O2 av. O2 av.

* How to Read the Table “SO2” in the CH1 column means that the display and output of CH1 correspond to SO2 component. “Correct XX” means an instantaneous XX

value after O2 correction, “Correct XX av.” an average XX value after O2 correction, and “O2 av.” an average O2 value.

5 - 5IM 11G02M01-01E

5.4 General operation

• Measurement mode

The measurement mode can be displayed for up to 5 channels in a single screen. When viewing a channel beyond the 5 channels,

press the ( screen can be scrolled one by one channel at a time.

or ) key and the

ZERO

See 6.9.1, Zero calibration

See 6.9.2, Span calibration

SPAN

• User mode displays the follow-

ing settings.

Changeover of range Calibration setting Alarm setting Setting of auto calibration Setting of auto zero calibration Peak alarm setting Parameter setting

For setting settings, refer to “6, Setting and calibration”.

MODE

ESC

5 - 6 IM 11G02M01-01E

6. SETTING AND CALIBRATION

6.1 Changeover of range

This mode is used to select the ranges of measured components.

1. During measurement, press the

MODE

key to

display the User mode.

2. Point the cursor to “Changeover of Range”. Press the

ENT

key.

3. The “Channel Selection” screen appears. Press the “

“ or “ ” key until the “ ” cursor moved selects a desired CH (component).

4. After selection, press the

Note) The range of O

2 correction instanta-

neous values and O

ENT

key.

2 correction aver-

age values is automatically switched by changing the range of instantaneous value of each CH (component).

5. In the Range Setting screen that appears, move the cursor by pressing the key to select the range. (The range with a mark of is currently selected.)

▲

MODE

ENT

( )

ENT

6. After selection, press the

key.

7. Measurement is conducted within the selected range. The range identification signal (CO) is shorted with the low range (Range 1), and open with the high range (Range 2).

Note) If the Remote Range is set to ON, the

changeover of range cannot be performed on the screen.

To close Changeover of range

To close Changeover of range, or cancel the commad midway, press the key.

ESC

A previous screen will return.

( )

End of Range Changeover

ENT

6 - 1IM 11G02M01-01E

6.2 Calibration setting

This mode is used to set calibration concentration and actions. The calibration setting involves calibration concentration, calibration gas, zero calibration, calibration range and auto-calibration component.

“Calibration Gas” is displayed if NO or SO

6.2.1 Setting of calibration concentration

It allows you to set concentrations of the standard gas (zero and span) of each channel used for calibration.

2 is included in components to be analyzed.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting about Calibration” by pressing the or key.

ENT

Press the

key.

3. In the “Setting about Calibration” screen that appears, point the cursor to “Calibration Value” by pressing the key. Press the

ENT

key.

( )

ENT

( )

ENT

4. In the “Calibration Concentration CH Selection” screen that appears, point the cursor to CH you want to set by using the

or key. Press the

ENT

key.

( )

ENT

6 - 2 IM 11G02M01-01E

5. In the “Calibration Concentration Selection” screen that appears, select any concentration item you want to set by pressing the

, key.

Note) Analyzers other than the zirconia

instrument cannot perform

zero setting.

6. In the “Calibration Concentration Value Setting” screen that appears, enter calibration gas concentration values (zero and span). For value entry, press the

key, and a 1-digit value increases or

decreases. By pressing the

, the digit moves. After setting, save the entry by pressing

ENT

the

key. The saved value becomes

valid from the next calibration process.

Note) Enter the set values corresponding

to each range. When the O

2 mea-

surement uses atmospheric air for the zero gas, set the concentration value to 21.00. When the cylinder air is used, set to the concentration value as indicated on the cylinder.

To close the setting

To close the calibration concentration value setting process or cancel this mode midway, press the key.

ESC

A previous screen will return.

Cursor for setting value

End of Calibration

Concentration Setting

ENT

Setting range of values

Paramagnetic O2, CO2, CO,

2, CH4 and NO measurement :

Zero gas : Fixed at 0

Span gas : Minimum digit, 1 to 105% of full scale

(Full scale (FS) is the same as each range value.)

Zirconia O

2 measurement :

Zero gas : 5 to 25 vol% Span gas : 0.01 to 5 vol%

The setting cannot be performed beyond the range.

6 - 3IM 11G02M01-01E

6.2.2 Setting of calibration gas

Whether moisture is contained in zero gas and span gas used for calibration can be set in advance as follows. Make the setting according to the sampling system created.

If sampling system controls the moisture content in the calibration gas (ZERO or SPAN) to become the same as that in the sample gas to be fed to the analyzer using an electronic cooler, etc., set “With” water vapor.

MODE

(1) Press the

MODE

key in measurement state to

display the User mode.

(2) Move the cursor to Setting about

Calibration using the and then press the

or the key,

ENT

key.

(3) On the Setting about Calibration screen

that appears, move the cursor to “Calibration Gas” using the

and then press the

or the key,

ENT

key.

( )

ENT

( )

ENT

(4) On the “Gas Selection” screen that

appears, move the cursor to the gas to be selected using the and then press the

or the key,

ENT

key.

( )

ENT

6 - 4 IM 11G02M01-01E

(5) On the “Gas Selection” screen that

appears, select “with” or “without” of moisture content in calibration gas using the

or the key.

• Select “with” to have the calibration gas

contain a certain amount of moisture.

• Select “without” to use dry gas (moisture

content: saturated at 70°C or lower) such as cylinder gas as calibration gas.

• When “without” is selected for zero gas,

“with” cannot be selected for span gas.

After the selection is made, press the key.

To close the setting

To terminate or cancel calibration gas setting, press the key.

ESC

The previous screen appears again.

ENT

( )

End of Calibration gas

Setting

ENT

Note: Be sure to make the setting according to the sampling system created. We recommend

you to select “with” moisture in zero gas for the measurement of NO and SO

2. In this

case, be sure to perform bubbling (humidification) of zero gas to make its moisture content kept at constant level before feeding the gas. (See “(7) Example of sampling system configuration” in “3.4 Sampling system.”)

6 - 5IM 11G02M01-01E

6.2.3 Setting of manual zero calibration

If zero calibration is to be made manually, select whether to calibrate all components at once or each of them separately upon selection.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting about Calibration” by pressing the or key.

ENT

Press the

key.

3. In the “Setting about Calibration” screen that appears, point the cursor to “About ZERO Calibration” by pressing the

key. Press the

ENT

key.

( )

ENT

( )

ENT

4. In the “CH Selection” screen that appears, point the cursor to CH you want to set by using the

ENT

the

key.

or key. Press

( )

ENT

6 - 6 IM 11G02M01-01E

5. In the “Zero Calibration Selection” screen that appears, select “at once” or “each” by pressing the

or key. When selecting “at once”, the CH (components) to be set can be zero-calibrated at the same time. When selecting “each”, either of the CH (components) to be selected is zero-calibrated. After setting, press the

ENT

key, and the calibration you

specified is carried out.

To close “About ZERO Calibration”

( )

ENT

To close “About ZERO Calibration” setting or to cancel this mode midway, press the key.

ESC

End of Manual Zero Calibration Setting

A previous screen will return.

Example

Whether upon selection “each” or “at once” can be determined for each CH (component).

•Setting “each” Select the CH (component) and then perform zero calibration on the manual zero calibration screen.

•Setting “at once” At a manual zero calibration, CHs (components) for which “at once” was selected can simultaneously be calibrated.

* When the zirconia O

analyzer uses the cylinder air or atmospheric air for the zero gas,

select “at once”.

Manual Calibration screen

When “each” is set for each CH

A single cursor will appear.

When “at once” is set for CH1 and CH2 (CH3 is set “each”)

Cursors will appear on all components where "at once" is set.

6 - 7IM 11G02M01-01E

6.2.4 Setting of calibration range

This mode is used to set if the range of each CH (component) at the zero and span calibration (manual calibration or auto calibration) should be calibrated with a single range or 2 ranges.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting about Calibration” by pressing the Press the

ENT

key.

or key.

3. In the “Setting about Calibration” screen that appears, point the cursor to “About Calibration Range” by pressing the

key. Press the

ENT

key.

( )

ENT

( )

ENT

4. In the “Calibration Range CH Selection” screen that appears, point the cursor to the CH you want to set by pressing the

or key. Press the

ENT

key.

( )

ENT

6 - 8 IM 11G02M01-01E

5. In the “Calibration Range Selection” screen

In case of both setting

Two cursors will appear in both ranges

Manual Calibration screen

that appears, select “both” or “current” by pressing the

or key.

• When selecting “both”, Range 1 and Range 2 of the set CH are calibrated together.

• When selecting “current”, the range alone displayed at the set CH is calibrated.

To close Setting of Calibration Range

To close Setting of Calibration Range or to cancel this mode midway, press the ESC key.

ESC

A previous screen will return.

Example

( )

End of Calibtation Range Setting

ENT

CH1

CH2 CO

CH1: Range 1 and Range 2 are calibrated together, with zero or span calibration. CH2: Only currently displayed range is calibrated, with zero or span calibration.

Range 1: 0 to 10 vol% Range 2: 0 to 20 vol%

Range 1: 0 to 500 ppm Range 2: 0 to 2000 ppm

both

current

Note) When calibration is performed by the “both” setting under the normal operating

condition, prepare a span gas cylinder on the normal operating range side. It is recommend to perform span gas calibration in the normal operating range.

The other range that is calibrated by “both” may result in some error (max. of FS).

±5% of

6 - 9IM 11G02M01-01E

6.2.5 Setting of auto-calibration component

It sets the CH (component) to be calibrated in the auto-calibration.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting about Calibration” by pressing the

ENT

Press the

key.

or key.

3. In the “Setting about Calibration” screen that appears, point the cursor to “Auto Calibration Components” by pressing the

or key. Press the

ENT

key.

( )

ENT

( )

ENT

4. In the “Auto Calibration Components” selection screen that appears, point the cursor to the CH you want to set by pressing the

ENT

key.

or key. Press the

( )

ENT

6 - 10 IM 11G02M01-01E

5. In the “Auto Calibration component Selection” screen that appears, select “enable” or “disable” by pressing the or key. After setting, press the

ENT

key.

To close Auto Calibration Component setting

To close “Setting of Auto Calibration Component” or to cancel this mode midway,

ESC

press the

ESC

key.

( )

ENT

A previous screen will return.

End of Auto Calibtation Component Setting

Example

Auto calibration is made in the following rules according to the setting.

1. Zero calibration at once of CHs (components) which were set to enable .

2. The span of CHs (components) which were set to enable is calibrated in the ascending order of CH number.

Example 1. In case all of CH1: CO Zero calibration (at once) of CH1 to CH3 span calibration of CH1 (CO span calibration of CH2 (CO) span calibration of CH3 (O

Example 2. In case, out of CH1: CO CH2 (CO) was set to enable an CH3 (O Zero calibration (at once) of CH1 and 2 span calibration of CH1 (CO

, CH2: CO, CH3: O2, were set to enable .

)

, CH2: CO and CH3: O2, CH1 ( CO2) was set to enable ,

) was set to disable .

)

span calibration of CH2 (CO)

Caution

The components which were set to enable is calibrated to zero at once at the time of auto calibration regardless of setting in 6.2.3 Setting of manual zero calibration .

6 - 11IM 11G02M01-01E

6.3 Alarm setting

6.3.1 Setting of alarm values

This mode is used to set the upper and lower limit value to provide an alarm output against measured concentration during measurement. Before changing the alarm setting, set the ON/OFF to OFF.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Alarm Setting” by pressing the

or key. Press the

key.

3. After the alarm setting, CH selection screen has appeared, operate the

key until the cursor is aligned with a

desired CH and press the

ENT

key.

ENT

( )

ENT

( )

ENT

4. After the alarm item selection screen has appeared, operate the

or key until the cursor is aligned with a desired item and press the key.

ENT

Caution

Set the values so that upper limit value > lower

limit value and that (upper limit value

lower limit value) > hysteresis error. The alarm is activated in each range independently from the settings of each range.

( )

ENT

6 - 12 IM 11G02M01-01E

After setting, the alarm setting is now

Caution

•

For 10 minutes after turning on power, the alarm judgment is inactive.

ENT

completed by pressing the

key.

Cursor for setting value

To close the Alarm Setting

To close the " Alarm Setting" or to cancel

ESC

this mode midway, press the

key.

A previous screen will return.

Setting Range

0 to 100%FS (Settable in each range)

End of Alarm Setting

ENT

Description of setting items

Upper limit value: Sets the upper limit value (concentration) of alarm. Lower limit value: Sets the lower limit value (concentration) of alarm. Contact action: Selects one of upper limit alarm, lower limit alarm, and upper limit

or lower limit alarm. Upper limit alarm ... Alarm contact operates when above upper limit value. Lower limit alarm ... Alarm contact operates when below lower limit value. Upper limit alarm or lower limit alarm ...Alarm contact operates when

above upper limit value or below lower limit value. ON/OFF: Enables the alarm function if set at "ON", or disables the alarm function if set at "OFF".

* The upper limit value cannot be set below the lower limit value, and the lower limit value

cannot be set above the upper limit value. If it is desired to set the upper limit value below the lower limit value already stored in the memory, reduce the lower limit value beforehand, or vice versa.

Typical on-screen display when an alarm occurs

When an upper limit alarm has occurred, the “High alarm” message lights at CH (component) (“Low alarm” at lower limit alarm).

C H

High alarm

0-100

C H

0-100

C H

0-10

C H

0-100

C H

0-25

---- .

0003

2100

ppm

vol%

ppm

vol%

6 - 13IM 11G02M01-01E

6.3.2 Hysteresis setting

To prevent chattering of an alarm output near the alarm setting values, set hysteresis.

1. In the “Alarm Setting CH Selection” screen that appears, point the cursor to “Hysteresis” by pressing the key. Press the

ENT

key.

2. In the “Hysteresis Value Setting” screen that appears, enter hysteresis values.

For the value entry, 1-digit value is increased or decreased by pressing the

or key, and pressing the key

moves the digit. After setting, press the

ENT

key to carry out hysteresis.

To close Hysteresis Setting

To close the "Hysteresis Setting" or cancel the mode midway, press the key.

ESC

A previous screen will return.

Setting range

0 to 20% of full scale A full scale means each range provides a full scale of width.

( )

End of Hysteresis Setting

ENT

Caution

The hysteresis is common to all CHs (components).

Hysteresis (In case of upper limit alarm)

If hysteresis values exceed the upper limit value as shown in graph, an alarm output is provided. Once the alarm output is turned “ON”, it remains “ON” until the value falls below the set lower limit of the hysteresis indication.

Upper limit value

Hysteresis width

ON (conductive)

Alarm

OFF (open)

6 - 14 IM 11G02M01-01E

6.4 Setting of auto calibration

6.4.1 Auto calibration

Auto calibration is automatically carried out when zero calibration and span calibration are set.

Before changing the setting of auto calibration, set the ON/OFF to “OFF”.

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting of Auto Calibration” by pressing the key. Press the

ENT

key.

3. In the “Setting of Auto Calibration” screen that appears, point the cursor to any item you want by pressing the or

key. Press the

ENT

key.

4. In the “Auto Calibration Parameter Setting” screen that appears, perform the value entry or the setting. For the value entry or setting change, use the

or key. To change the setting, use the key to move the cursor to the right.

MODE

( )

ENT

After setting, press the

key, and auto calibration is carried out by the entered setting value.

Description of setting items

• Start Time : Setting at the first calibration (day of the week, hour, minute)

• Cycle : A period between the start time of one calibration and another (unit : hour/day)

• Flow Time : The time required for the calibration gas to be replaced in the cell

• ON/OFF : Auto zero calibration ON or OFF

To close Setting of Auto calibration

To close the "Setting of Auto calibration" or cancel

ESC

this mode midway, press the

key.

A previous screen will return.

( )

End of Auto Calibration Setting

ENT

6 - 15IM 11G02M01-01E

The auto calibration status contact output is closed while auto calibration is in progress (hold extension time by the length of time the same as gas replacement time included if the hold setting is set to “ON”), and open in other cases.

Example

Start Time Cycle Flow Time

ON/OFF

In case where auto calibration is carried out at the above setting.

Sunday

12:00

Zero calibration

350sec. 350sec.

Cycle

CH1

Span calibration

Flow Time

SUN

350

Monday

12:00

CH2

Span calibration

350sec.

12:00

day sec

Tuesday

12:00

: Under Auto calibration

CH3

Span calibration

(An example of “CH1: through CH3: enable”, as given in Item 6.2.5 “Auto Calibration Components”.)

Setting range

Cycle : 1 to 99 hours or 1 to 40 days (initial value 7days) Flow Time : 60 to 599 sec (initial value 300sec)

Caution

When an auto calibration starts, the measurement screen automatically appears.

•

Any key operation other than key lock ON/OFF and forced stop of auto calibration

•

(see Item 6.4.2) is not permitted during auto calibration. Auto Calibration Cancel cannot be performed with the key lock to ON . To cancel auto calibration forcedly, set the key lock to OFF and then execute Auto Calibration Cancel . Turn on the power again after it is turned off (including the case of power failure) at

•

the time set as the next start time in auto calibration, and then repeat it in the set cycle.

Remote start

Whether the auto calibration is set at ON or OFF, an auto calibration is available by keeping the remote start input short-circuited for at least 1.5 seconds.

Short-circuit (keep at least 1.5 sec.)

Remote start input

Open

6 - 16 IM 11G02M01-01E

6.4.2 Forced stop of auto calibration

This mode is used to cancel the auto calibration forcedly.

1. In the User mode that is displayed, point the cursor to “Setting of Auto Calibration” by pressing the Press the

ENT

key.

or key.

2. In the “Setting of Auto Calibration” item selection screen that appears, point the cursor to “Stop Auto Calibration” by pressing the

or key. Press the

key.

3. “Stop Auto Calibration” is inverted. A message appears, prompting you to verify that you want to cancel or continue auto calibration. To cancel the auto calibration forcibly, press the

ESC

you press the

key, auto calibration is

ENT

key. If

cancel (not stopped).

ENT

( )

ENT

6 - 17IM 11G02M01-01E

“Auto Calibration” screen

Example

In case where setting the auto calibration components (see Item 6.2.5) to “CH1: enable” and “CH2: enable”.

• Zero calibration A message, “Zero calibration” blinks

at CH1 and CH2.

• CH1 span calibration A message, “Span calibration” blinks

at CH1.

• CH2 span calibration A message, “Span calibration” blinks

at CH2.

Caution

During auto calibration, any key operation is not permitted other than operations such as key lock ON/OFF and “Forced Stop of Auto Calibration”. When the key lock is set at “ON”, even the “Forced Stop of Auto Calibration” cannot be used. To stop “Auto Calibration” forcedly, set the key lock to “OFF” and then execute “Stop Auto Calibration”.

6 - 18 IM 11G02M01-01E

6.5 Setting of auto zero calibration

6.5.1 Auto zero calibration

Auto zero calibration is automatically carried out when zero calibration are set. Components for which a calibration is to be made are determined by setting of auto calibration component in 6.2.5.

Before changing the setting of auto zero calibration, set the ON/OFF to “OFF”.

MODE

1. During measurement, press the

MODE

key

to display the User mode.

2. Point the cursor to “Setting of Auto Zero Calibration” by pressing the or key. Press the

ENT

key.

3. In the “Setting of Auto Zero Calibration” screen that appears, point the cursor to any item you want by pressing the

key. Press the

ENT

key.

4. In the “Auto Zero Calibration Parameter Setting” screen that appears, perform the value entry or the setting. For the value entry or setting change, use the

or key. To change the setting, use the key to move the cursor to the right.

After setting, press the

ENT

key, and auto zero calibration is carried out by the entered setting value.

( )

ENT

Description of setting items

• Start Time : Setting at the first calibration (day of the week, hour, minute)

• Cycle : A period between the start time of one calibration and another (unit : hour/day)

• Flow Time : The time required for the calibration gas to be replaced in the cell

• ON/OFF : Auto zero calibration ON or OFF

To close "Auto Zero Calibration"

To close the " Auto Zero Calibration " or cancel

ESC

this mode midway, press the

ESC

key.

A previous screen will return.

End of Auto Zero Calibration Setting

ENT

6 - 19IM 11G02M01-01E

The auto calibration status contact output is closed while auto zero calibration is in progress (hold extension time by the length of time the same as gas replacement time included if the hold setting is set to ON), and open in other cases.

Example

Start Time SUN 12:00 Cycle 12 hour Flow Time 300 sec ON/OFF ON

In case where auto zero calibration is carried out at the above setting.

Sunday

12:00

Zero calibration

300sec

Flow Time

Cycle

Monday

12:00

Tuesday

12:00

Setting range

: Under Auto zero calibration

(An example of “CH1: through CH3: enable”, as given in Item 6.2.5 “Auto Calibration Components”.)

Setting range

Cycle : 1 to 99 hours or 1 to 40 days (initial value 7days) Flow Time : 60 to 599 sec (initial value 300sec)

Caution

When an auto zero calibration starts, the measurement screen automatically appears.

•

Any key operation other than key lock ON/OFF and forced stop of auto zero calibration

•

(see Item 6.5.2) is notpermitted during auto zero calibration. Auto Zero Calibration Cancel cannot be performed with the key lock to ON. To cancel auto zero calibration forcedly, set the key lock to OFF and then execute Auto Zero Calibration Cancel . If the auto calibration period and auto zero calibration period have

•

overlapped, the auto calibration is retained, ignoring the auto zero calibration of that period. Turn on the power again after it is turned off (including the case of power failure) at

•

the time set as the next start time in auto zero calibration, and then repeat it in the set cycle.

6 - 20 IM 11G02M01-01E

6.5.2 Forced stop of auto zero calibration

This mode is used to cancel the auto zero calibration forcedly.

1. In the User mode that is displayed, point the cursor to “Setting of Auto Zero Calibration” by pressing the key. Press the

ENT

key.

2. In the “Setting of Auto Zero Calibration” item selection screen that appears, point the cursor to “Stop Auto Zero Calibration” by pressing the

or key.

Press the key.

3. “Stop Auto Zero Calibration” is inverted. A message appears, prompting you to verify that you want to cancel or continue auto zero calibration. To cancel the auto zero calibration forcibly, press the key. If you press the

ESC

key, auto zero

ENT

calibration is cancel (not stopped).

( )

ENT

6 - 21IM 11G02M01-01E

“Auto Zero Calibration” screen

Example

In case where setting the auto calibration components (see Item 6.2.5) to “CH1: enable” and “CH2: enable”.

• Zero calibration A message, “Zero calibration” blinks

at CH1 and CH2.

Caution

During auto zero calibration, any key operation is not permitted other than operations such as key lock ON/OFF and “Forced Stop of Auto Zero Calibration”. When the key lock is set at “ON”, even the “Forced Stop of Auto Zero Calibration” cannot be used. To stop “Auto Zero Calibration” forcedly, set the key lock to “OFF” and then execute “Stop Auto Zero Calibration”.

6 - 22 IM 11G02M01-01E

6.6 Peak alarm setting

When the number of peaks of which CO concentration exceeds the upper limit value exceeds the setting time, a peak alarm is outputted.

This section describes how to perform various settings of peak alarm.

Note)

The setting is optional and is valid only when peak alarm function is provided.

1. Press the

MODE

key in the Measurement

mode, and the User mode appears.

2. Point the cursor to “Setting of Peak Alarm” by pressing the

ENT

key.

or key. Press the

3. In the “Peak Alarm Setting” item selection screen that appears, point the cursor to any item you want by pressing the key. Press the

ENT

key.

MODE

( )

ENT

4. Then, enter numeric values and perform the setting.

Entering or setting the numeric values should be carried out by using the key.

ENT

After setting, press the

key, and the set

values you entered are saved.

Description of setting items

• Peak Alarm : Setting of peak alarm is performed with ON/OFF.

• Alarm value : If peak concentrations exceed the set alarm value, a peak counter counts 1 time.

• Alarm Count : When a peak in excess of the setting time occurs, a peak count alarm output is provided.

• Hysteresis : To prevent possible chattering when the peak value may exceed the set peak concentration by only 1 time, the peak count has an allowance in the hysteresis width.

( )

End of Peak Alarm Setting

ENT

6 - 23IM 11G02M01-01E

Setting range

• Alarm Value : 0 to 1000 ppm 5 ppm step (initial value: 500 ppm)

• Alarm Count : 1 to 99 times (initial value: 5 times)

• Hysteresis : 0 to 20% of full scale (initial value: 0% of full scale) * The hysteresis setting is made in terms of full scale.

Action of peak alarm

Example

(ON)

(OFF)

If CO concentration exceeds the alarm value, counting will begin. If the number of peaks is over the set times per hour, a peak count alarm becomes closed (ON). If it is less than the set times per hour, it is open (OFF). Since 5 times of peaks /hour is marked at (1) section from the above graph, the peak count alarm is turned ON. Since peaks of more than 5 times per 1 hour occur at the interval between (1) and (2) , the peak count alarm remains ON. Since at (2), peaks are reduced to 4 times per hour, it is turned OFF.

Like the hysteresis of the alarm setting , the hysteresis prevents possible chattering when measured gas is fluctuated near the alarm value.

* For 10 minutes after the power is turned ON, a peak alarm counting is not carried out.

Releasing peak alarm

To release the peak alarm, set the peak alarm to OFF. Turning on the peak alarm initiates counting from 0.

6 - 24 IM 11G02M01-01E

6.7 Parameter setting

• Current Time : Sets the current day of the week, hour and time. Note: The clock backup time is 2 days. If power is turned on after it is kept off for 2 days or louger, make the time setting again.

• Key Lock : Sets with ON/OFF so that any key operation except the key

lock OFF cannot be performed.

• Remote Range : Sets with ON/OFF whether the Range Switching is

made valid or invalid by external input.

• Output Hold : Sets whether Calibration Output is held or not.

• Reset Average Output : Resets the average value.

• Response Time : Sets the response time of electrical system.

• Average Period : Sets the moving average time.

• Maintenance mode : Enters passwords to switch to the Maintenance mode.

Description of setting items

It allows you to carry out the parameter setting such as time, key lock, etc., as required. Items to be set are as follows:

* For the maintenace mode, see Item 6.8.

1. To display the User mode, press the key in the measurement mode.

2. Point the cursor to “Parameter Setting” by pressing the

ENT

key.

or key. Press the

3. In the “Parameter Setting” screen that appears, point the cursor to any item you want by pressing the

ENT

Press the

key.

or key.

MODE

( )

ENT

( )

ENT

6 - 25IM 11G02M01-01E

4. In the Parameter Setting screen that appears, enter the numeric values and set the items. Entering the numeric values or setting the items should be carried out by using the

or key. To move the cursor to the right, press the After setting, press the

ENT

key.

key, that the parameter setting is carried out with the value you set.

To close Parameter Setting

To close the "Parameter Setting" screen or cancel this mode midway, press the

ESC

key. A previous screen will return.

End of Parameter Setting

ENT

Setting range

• Response time : 1 to 60sec. (initial value: 3 sec)

• Average period : 1 to 59 min or 1 to 4 hours (initial value: 1 hour) When setting the unit of 1 to 59 minutes in terms of minute or 1 to 4 hours with hour

• Maintenance mode : 0000 to 9999 (initial value: 0000)

Remote Range

A range can be switched via an external input by setting the Remote Range to ON. (The switching action affects all of instantaneous value, O

correction value, O2 correction average value and O2 average value) . If the Remote Range is set to OFF, the external input becomes invalid. Opening the input gives the High range, or short-circuiting the input gives the Low range.

For the terminal input, refer to 3.5, Wiring method. Switching the range cannot be performed by on-screen operation when the REMOTE RANGE is

set to ON.

Note) In case of 1 range system, this function is overridden.

Output Hold

By setting an output hold to ON, an output signal of each channel are held during the calibration (manual calibration and auto calibration) and for the gas flow time (refer to 6.4, Setting of Auto Calibration). Regardless of Hold ON/OFF setting, an output signal can be held via an external input.

(1) Manual calibration

ZERO

Calibration

Output hold

SPAN

Press the key to flow gas. To execute calibration, press the ENT key.

ENT

Hold extending time

Time set to gas flow time (See 6.4 Setting of Auto Calibration)

6 - 26 IM 11G02M01-01E

(2) Auto calibration

Auto calibration start Auto calibration end

Calibration

Output hold

Time hold set to the gas flow time

Hold extending time

(3) External hold

Strapped

Remote hold

Output hold

Open

(4) Screen display during holding

The “Holding” message blinks on the measuring screen. Since the screen displays the process of calibration is displayed during the manual calibration,

“Holding” is not displayed even if it is holding, but the screen is displayed with the hold extending time.

(5) If calibration is cancelled after the calibration gas is supplied regardless of manual calibration or

auto calibration, an output hold will be performed during the holding extending time.

Average value reset

This mode is used to clear O

correction average value and O2 average value, and restarts averaging. All average values are reset at a time. The indication value and output value is 0 ppm, vol% or so at the time of the reset input.

Short-circuit (hold at least 1.5 sec.)

Reset input

So long as short-circuited, resetting lasts. At the edge of changing from short circuit to opening, the average action restarts.

Open

Response time

The response time of the electrical system can be changed.

Setting is available by components.

Note) It does not provide exact seconds for

the setting time, but it gives a guide of the setting time.

The setting value can be modified as requested by the customer.

6 - 27IM 11G02M01-01E

Average period

It allows you to set an average period of the average value of O2 correction.

It enables you to set an average time of 1 to 59 minutes (1-minute step) or 1 to 4 hours (1-hour step). Changing the setting resets the average value of

correction and O2 average value. (Pressing

O the ENT validates the resetting only for components whose setting was changed.)

Example of average action

Suppose the average period is 1 hour.

Reset

Average value

Time

• Sampling occurs every 30 seconds.

• Every 30 seconds, the average for last 1 hour (time setting) is output.

• At the instant of resetting, zero is assumed for all past values. It means that the average value will not be correct for 1 hour after resetting.

Maintenance mode

To open the maintenance mode, enter a password. After entering the password, press the

ENT

The password can be used for the Password Setting in the Maintenance mode. A password is set to “0000” before factory-shipment. This value is available for the Maintenance mode.

key.

6 - 28 IM 11G02M01-01E

6.8 Maintenance mode

Check of sensor input value, display of error log file, setting of O2 correction reference value, adjustment of moisture interference, setting of auto off time of display backlight, and password setting can be performed as follows. A password is selected first. The password must be entered to perform measurement from next time onward. Select the maintenance mode in “6.7 Parameter setting,” and this screen is displayed. (Moisture interference adjustment is displayed only when NO of SO

2 is included in components to be analyzed.)

1. Select the Maintenance mode from the Parameter Setting screen to display the Password Setting screen.

2. Enter the password, and the Maintenance Mode item selection screen will be displayed. Point the cursor to the item you want by pressing the and press the

ENT

key.

3. Next, each Maintenance screen is displayed.

Note) “To Factory Mode” is used for our

service engineers only. Refrain from using this mode.

or key

( )

ENT

• Sensor Input Value screen

Description of Sensor Input Value screen

•

CO2 :CO2 sensor input value

•

CO :CO sensor input value

•

:O2 sensor input value

•

Temperature:Temperature sensor input value

• Error Log screen

Description of Error Log screen

Error history For error number, date and time (days, period) of occurrence, channel and other details of error, refer to “8 TROUBLESHOOTING”.

Each “Maintenance” screen

6 - 29IM 11G02M01-01E

• O

2 correction reference value setting screen

Description of O2 corection

reference value setting screen

correction value is calculated from the

following equation by values set herein:

correction concentration value

The value of the fractional part in this calculation is limited to 4. If it is 4 or more, it is fixed at 4.

Setting range

O2 correction reference value : 00 to 19% in 1% step (initial value: 12%)

21 set value

21 - O2 concentration

measured value

component

concentration measured value

• Password Setting screen

Description of Password Setting screen

It enables you to set a password to be used when switching the parameter setting mode to the maintenance mode.

Note) The password set herein must be

managed for safety. Failure to enter the correct password will not open the Maintenance mode.

• Station No. setting screen (option)

Setting range

• Station No. : 00 to 31 (initial No.: 00)

* Please refer to another manual (IM 11G02P01-01E)

about the communication function.

6 - 30 IM 11G02M01-01E

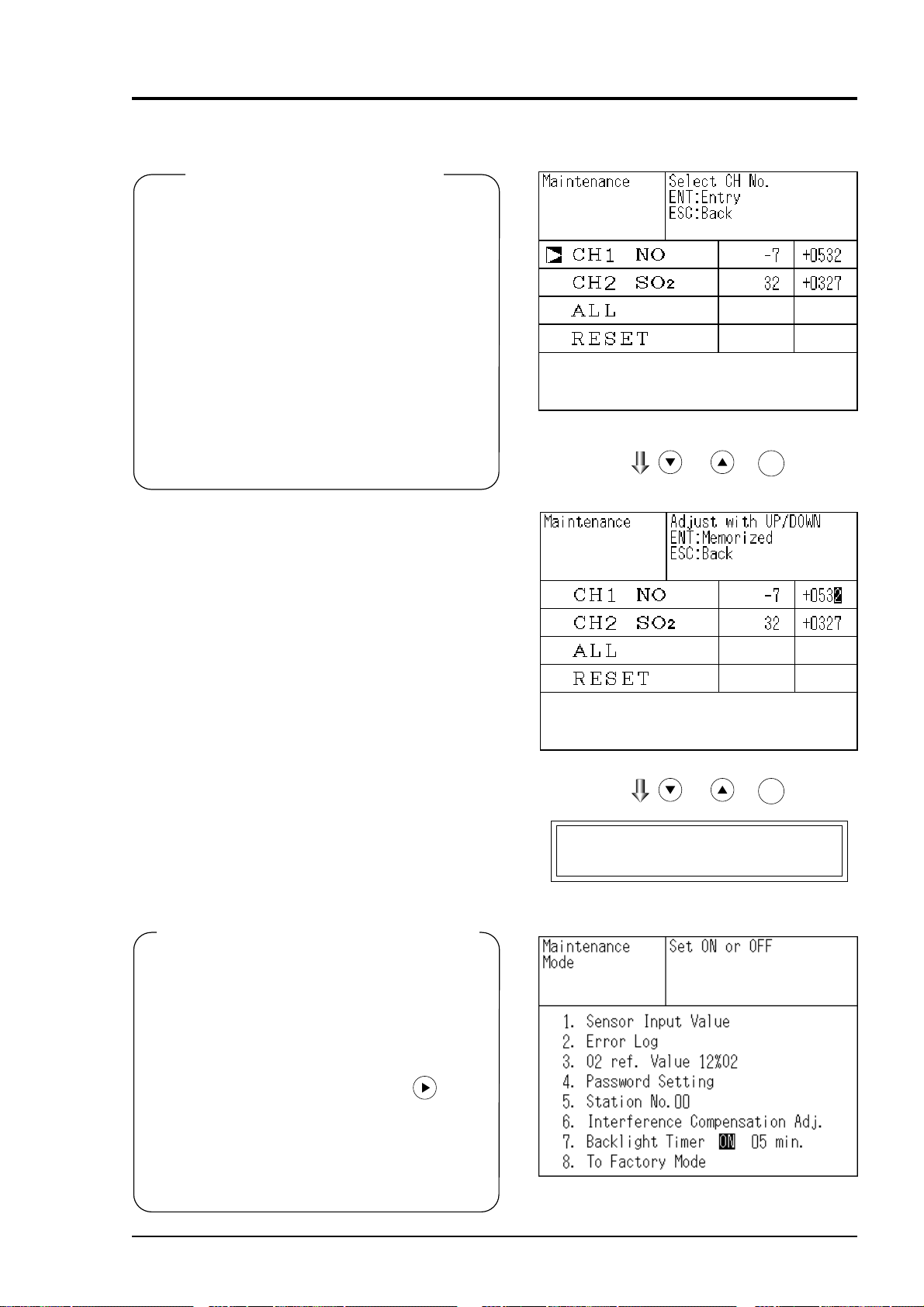

• Moisture interference compensation adjustment screen

Description of moisture interference

compensation adjustment screen

By setting the effect of moisture content in measured gas on this screen, the value of the effect is subtracted to find the measurement value. Adjustment is carried out by one of the following methods.

• Select a desired channel (CH) and change the

• value displayed at right. Select ALL and perform auto calculation for all the channels in batch.

Select RESET, and the interference compensation settings for all the channels are reset to 0.

* See “7.4 Moisture interference compensation

adjustment” for details of moisture interference compensation adjustment procedure.

( )

ENT

• Backlight Timer setting screen

Description of backlight timer setting screen

Automatic OFF of the backlight in the LCD can be selected. When the length of time set here elapses after the measurement screen appears, the backlight is automatically turned off. Only when "ON" is selected, the time until automatic OFF is displayed. Press the key in this state, and you can change the time until auto backlight OFF. Press an arbitrary key while the backlight is kept off, and the backlight comes on again.

( )

ENT

End of moisture interference

correction adjustment

6 - 31IM 11G02M01-01E

6.9 Calibration

6.9.1 Zero calibration

It is used for zero point adjustment. For zero calibration gas, see 3.4 (3), Preparation for standard gas in Sampling. Use a gas according to application.

ZERO

1. Press the

ZERO

key on the Measurement

screen to display the Manual Zero Calibration screen.

2. Select the CH (component) to be calibrated by pressing the After selection, press the

or key.

ENT

key, and

zero gas will be supplied.

Caution

For the CH (components) that is set to “at once” in the “Zero Calibration” of the Calibration Setting mode, zero calibration is also carried out at the same time.

3. Wait until the indication is stabilized with the zero gas supplied. After the indication has been stabilized, press the

ENT

key. Zero calibration in Range

selected by the cursor is carried out.

( )

ENT

To close Zero Calibration

To close the "Zero Calibration " or

ESC

cancel this mode midway, press the

ENT

key. A previous screen will return.

To Measurement screen after executing Manual Zero Calibration

6 - 32 IM 11G02M01-01E

6.9.2 Span calibration

It is used to perform a span point adjustment. Supply calibration gas with concentration set to the span value to perform the span calibration. For the span calibration gas for the NO, SO CO, CH

4 masurement, use the standard gas with a concentration of 90% or more of the range

value. For the calibration gas for the O use the standard gas of 1 to 2 vol%.

2 measurement,

2, CO2,

SPAN

1. Press the

SPAN

key on the Measurement

screen to display the Manual Span Calibration screen.

2. Press the

or key to select CH (com-

ponent) to be calibrated. After selection,

ENT

press the

key, and the span calibration

contact output on corresponding to CH is turned ON. And supply span gas.

Caution

When Range Interlock from “Calibration Range” of the Calibration Setting mode is set, span calibration is performed together with 2 Ranges.

3. Wait until the indication is stabilized in the state where the calibration gas is supplied. After the indication has been stabilized, press the

ENT

key. Span calibration of

Range selected by the cursor is performed.

To close Span Calibration

To close the " Span Calibration " or cancel this mode midway, press the key.

ESC

A previous screen will return.

( )

ENT

To Measurement screen after executing Manual Span Calibration

ENT

6 - 33IM 11G02M01-01E

7. MAINTENANCE

7.1 Daily check

(1) Zero calibration and span calibration

1. It is used for zero point adjustment. For calibration, refer to 6.9.1, Zero calibration.

2. After zero calibration, perform span calibration. For calibration, refer to 6.9.2, Span calibration.

3. Zero calibration and span calibration should be performed once a week, if required.

(2) Flow check

1. Sampling gas flow rate and purge gas flow rate should be as follows; Sampling gas flow rate: 1.0±0.5L/min (stable) Purge gas flow rate: About 1L/min

2. Maintenance and check should be carried out every day, if required.

7.2 Daily check and maintenance procedures

Table 7-1 Maintenance and check list

Every day

Every week

Recorder indication

Check for purge gas flow if purging the sampling gas flow instrument.

Replacement of Monitor filter (membrane filter)

Zero point of gas analyzer

Span point of gas analyzer

Lower indication

Standard flow rate is 1L/min. It is not within the range of the specified flow rate of

0.5 to 1.5 L/min. Much clogged

Out of zero point

Out of the span point

Dust is mixed in the sample cell.

Air is sucked in anywhere in the sampling tube.

Primary filter is damaged.

RemedyCausePhenomenaParts to be checked

Clean sampling cell and check for sampling device, especially gas filter.

Check for leak of the sampling line and repair, if required.

Adjust the flow rate with flow rater needle valve.

Replace primary filter. Replace filter (filter paper).

Zero calibration

Span calibration

Replacement of monitor filter (membrane filter)

Every year Gas analyzer

Irrespective of phenomena

Replace filter (paper).

Overhaul.

7 - 1IM 11G02M01-01E

7.3 Replacement of power fuse

Note) Before fuse replacement, locate the probable cause of a blown fuse.

1. Turn OFF the power switch.

2. Detach two mounting screws fastening to the top cover.

Power switch

3. Slide the top cover backward, and pull it upward.

Mounting screws (2 places)

INFRARED GAS ANALYZER

POWER

MODE

ESC

ZERO

ENT

SPAN

Top cover

4. The fuse is arranged at the end of the left when viewing from the front panel. Pull the fuse upward while rotating the fuse holder cap counterclockwise to separate the cap and fuse from the fuse holder.

5. Replace the fuse with new one (fuse: 250 VAC/1A delay type).

6. Screw the fuse holder cap in the fuse holder in the reverse procedure as the detachment of the top cover.

Part No. of fuse :K9218RB

POWER

INFRARED GAS ANALYZER

POWER

MODE

ESC

ENT

Fuse holder

MODE

Cap

Fuse

ZERO

SPAN

INFRARED GAS ANALYZER

ESC

ZERO

ENT

SPAN

Measuring element

7 - 2 IM 11G02M01-01E

7.4 Moisture interference compensation adjustment

(1) Be sure to carry out moisture interference compensation adjustment at the following timing

when NO or SO

1) Before starting operation for the first time after the analyzer is incorporated into the system

2) At periodic inspection to be performed at 6 month to 1 year intervals

3) After the cell is cleaned

(2) Adjustment procedure (See “Moisture Interference Compensation Adjustment screen” in

“6.8 Maintenance mode.”).

1) Set the moisture interference correction value to 0 in advance. (Press RESET on the moisture interference adjustment screen.)

Select “Without” for moisture content in calibration gas. (See “6.2.2 Setting of calibration gas.”)

2) Perform zero/span calibration after warm-up operation of the main unit is completed. Calibrate zero gas and span gas also by feeding dry gas to the analyzer.

3) Perform bubbling (humidification) of zero gas, and feed it to the analyzer through the dehumidifier (such as electronic cooler) installed within the sampling system so that the moisture content becomes the same as that of the sample gas. (See the figure shown below.)

4) Select Moisture Interference Adjustment screen in “6.8 Maintenance mode”.

5) When the numeric value (measurement value) at left in the moisture interference adjustment

screen (see figure at right) stabilizes, change the numeric value at right (interference correction value), adjusting so that the value falls within 0 ±10, and press the key to confirm the selection.

2 is included in components to be analyzed.

Gas analyzer

Dehumidifier

(such as

electronic cooler)

Flow meter

Bubbler (humidification)

Zero calibration is performed with dry gas in this line.

Span gas

Zero gas

(IR200)

OUT

7 - 3IM 11G02M01-01E

7.5 Cleaning of measuring cell

Entry of dust or water drops in the measuring cell contaminates the interior of the cell, thus resulting in a drift. Clean the inside if dirty. Then, check the sampling device, especially the filter, to prevent the cell from being contaminated by dust or mist.

7.5.1 Disassembly and assembly of measuring cell

There are two kinds of measuring cells, on block cells (cell length: 4 mm, 8 mm, 16 mm, 32 mm) and pipe cells (Cell length: 64 mm, 125 mm and 250 mm).

2-component analyzer may incorporate both measuring cells in optical unit. In such a case, detach the pipe cell and then block cell (See Fig. 7-1).

(1) How to remove pipe cell (See Fig. 7-1)

1. Stop measured gas. If it is harmful, purge in the measuring cell thoroughly with zero gas.

2. Turn OFF the power switch.

3. Detach the top cover.

4. Remove the pipe connected to the measuring cell.

5. Slide the infrared ray light source unit (No. 5) toward the front panel by loosening the screw (No. 1) fastened to the base plate to provide clearance between the pipe cell (No. 12) and light source unit.

6. Loosen and remove a screw (No. 7) from the cell retainer (No. 11) fastening the pipe cell.

7. Remove the cell from the measuring unit and unscrew the infrared transmission window (No.

14) at the both ends in the right direction.

Note) The reflection plate in the cell is not closely attached to the cell.

8. For assembly, reverse the disassembly procedure. Provide 0.5 mm clearance between the infrared ray light source unit and cell, and the cell and detector, respectively.

7 - 4 IM 11G02M01-01E

No. Name

1 Screw (for fixing light source unit) 2 Screw (for fixing detector) 3 Screw (for fixing base plate) 4 Base plate 5 Light source unit 6 Screw (for fixing support) 7 Screw (Fixing cell retainer) 8 Chopper motor connector

(9) Filter

10 Support 11 Cell retainer 12 Pipe cell 13 O-ring 14 Infrared transmission window 15 Detector 16 Bridge PCB 17 Bridge resistance

(18) Detector: Installed in 2-component analyzer only

(9)

(18)

Fig. 7-1 Configuration of measuring unit (pipe cell)

7 - 5IM 11G02M01-01E

(2) How to remove block cell (See Fig. 7-2)

1. For Step 1 to 4., see Item 7.5.1, (1) How to remove pipe cell.

5. Remove the connector to the detector output cord from the printed board. For the 2-component analyzer, remove the output cord connector of the 2-component analyzer detector (No.

13) from the printed board, and then remove the 2-component detector by unscrewing two mounting screws (No. 14) fastening the 2-component detector.

6. Unscrew the two screws (No. 10) that hold the detector to the infrared ray light source unit to remove the detector from the measuring unit. The cell can be removed together with the detector.

7. To remove the cell, unscrew the two screws (No. 6) holding the cell to the detector. The infrared transmission window is just sandwiched (not fixed) between the detector and block cell. Keep the detector facing up, when removing this window.

8. For assembly, reverse the disassembly procedures.

Note) The O-ring is placed between the window holder and cell. Take care about the O-

ring position. With 2-component analyzer, install 2-component detector last. Take care so that no space is left between the 1-component and 2-component detectors. When inserting the detector output cord connector into the printed board, plug the connectors for 1-component detector and 2-component detector into position. The 1-component connector should be plugged into CN11 and 2-component connector into CN1, respectively.

7 - 6 IM 11G02M01-01E

No. Name

1 Screw (for fixing light source unit)

(2) Filter

3 Screw (for fixing detector) 4 Base plate 5 Light source unit 6 Screw (for fixing block cell) 7 Block cell 8 Infrared transmission window (window holder)

9 O-ring 10 Screw (for fixing base plate) 11 Chopper motors connector 12 Detector

(13) Detector: Install in the 2-component analyzer (14) Screws: For mounting the 2-component detector

(14)

(13)

(2)

Fig. 7-2 Configuration of measuring unit (block cell)

7 - 7IM 11G02M01-01E

3) How to remove measuring unit (See Fig. 7-3)

1. For Step 1. to 4., see Item 7.5.1(1), How to remove pipe cell.5. Remove the detector output cord connector from the printed board.

6. Remove wiring to the 2-pin terminals of the infrared ray light source assembly and chopper motor pin connector (No. 8) from the printed board.

7. Detach the 4 screws (No. 3) fastening the base plate (No. 4) to remove the measuring unit.

Note) Special care should be taken when assembling or disassembling the measuring cell

to avoid the application of force to the detector pipe or infrared ray light source unit pipe. If the pipe is deformed or damaged by excessive force, there is a danger of gas leak, thus resulting in misoperation.

No. Name

1 Screw (for fixing light source unit) 2 Screw (for fixing detector) 3 Base plate 4 Light source unit 5 Screw (for fixing block cell) 6 Block cell 7 Infrared transmission window 8 O-ring

9 Detector 10 Screw (for fixing base plate) 11 Support 12 Screw (Fixing cell retainer) 13 Cell retainer 14 Pipe cell 15 O-ring 16 Infrared transmission window 17 Screw (fixing detector) 18 Detector

Fig. 7-3 Configuration of measuring unit (2-component analyzer: block cell + pipe cell)

7 - 8 IM 11G02M01-01E

7.5.2 How to clean cell

1. To clean the cell inside or infrared ray transmission window, first clear large dirt of it with a soft brush and then wipe with soft cloth lightly.

Don’t use hard cloth.

Note) Handle the fragile window with care. Use care not to rub off the dirt from the

window roughly.

2. If the window or the cell interior is very dirty, use a soft cloth moistened with absolute alcohol.

3. If the window is corroded, rub off the scale from the window lightly with a soft cloth to which chrome oxide powder is applied. If it is excessively corroded, it should be replaced with new one.

4. When cell or window cleaning is completed, assemble according to the cell disassembly and assembly procedures. Especially, the pipe should be closely connected without gas leak, and repair if the pipe is bent.

7.6 Inspection and maintenance of limited service-life components

The analyzer uses limited-life components. The recommended replacement periods are listed in the below table.

1. Limited service-life components are those which wear out or for which failure is presumed within five years under normal operating or storage conditions. Components with more than five years of service life are the exception.

2. The previous table only involves the recommended periods for conducting preventive main-

tenance for limited service-life components; these periods do not guarantee that accidental failures will not occur.

3. The recommended replacement preiods are tentative and depend on operating conditions.

4. The recommended replacement preiods may vary depending on the field date.

Recommended check and

Checkpoint

Check and maintenance items

1. Light source Recommended replacement period: Every five years (*1)

Infrared gas analyzer

2. Sector motor Recommended replacement periods: Every two years (*1)

3. Detector without Recommended replacement period: Every five years (*1) O2 sensor

4. O-ring Recommended replacement period: Every two years,

inspect it when cleaning of measuring cell. See Sec. 7.4

5. LCD panel Recommended replacement period: Every five years (*1)

6. Power supply Recommended replacement period: Every five years (*1)

7. Measuring cell Set up an appropriate maintenance period

( by refering to the check results)

(*) In the check and maintenance columns, place a check mark ( s ) for check and confirmation work, a dark star ( w ) for replacement, and a white star ( q ) for parts preparation for preventive maintenance.

(*1) These are seviceperson’s work, contact our sevicepersons.

Procedure and criteria

maintenance periods

Every six months

Every three months

Once a month

Once a week

Routine

Every five years

Every two years

Once a year

q q

T7.5E.eps

7 - 9IM 11G02M01-01E

d Precautions to be taken while checking

1. When handling reference gas (during calibration), carefully read the reference-gas instruction manual to use the gas correcrtly. In particular, special attention must be taken in handling carbon monoxide gases; otherwise, you may suffer from gas poison-ing.

2. During maintenance checks, be sure to keep the near fan on. If any gas leaks, you may suffer

from gas poisoning.

3. When replacing the analyzer gas filter or conducting maintenance service of the washer, completely shut the calibration-gas valve. Otherwise, you may suffer from gas poisoning.

7 - 10 IM 11G02M01-01E

Error No.1

Error No.3 Error No.4

Error No.5

Error No.6

Error No.7

Error No.8

Error No.9

Error No.10

• Infrared ray light source is faulty.

• Sector motor rotation is faulty or stopped.

• Motor rotation detector circuit is faulty.

• Amplifier circuit is faulty.

• Circuit is faulty.

• Zero gas is not supplied.

• Zero point is deflected much due to a dirty cell.

• Detector is faulty.

• Span gas is not supplied.

• Calibrated concentration setting does not match cylinder concentration.

• Zero calibration is not performed properly.

• Span is deflected much due to dirty cell.

• Detector sensitivity is deteriorated.

• Calibration gas is not supplied.

• Time for supplying calibration gas is not short.

• Error corresponding to No. 4 to No. 8 occurred during auto calibration.

• Wiring is detached between analyzer and interface module.

• Wiring is disconnected between analyzer and interface module.

Error display Error contents Probable causes

Sector motor rotation detector signal is faulty.

A/D conversion signal is faulty. Zero calibration is not within the

allowable range. A amount of zero calibration

(indication value) is over 50% of full scale.

Span calibration is not within the allowable range.

A amount of span calibration (difference between indication value and calibrated concentration value) is over 50% of full scale.

Measured values fluctuate to much during zero and span calibration.

Calibration is abnormal during auto calibration.

Output cable connection is improper.

8. TROUBLESHOOTING

8.1 Error message

If errors occur, the following contents are displayed.

Note) When errors No. 1, No. 3 and No. 10 occur, instrument error output contacts are conductive.

Screen display and operation at the occurrence of error

When errors No. 4 to No. 9 occur, calibration error output contacts are conductive.

In case of Error No. 1 to No. 4, No. 6, No. 8 to No. 10

Display of error contents

Measurement screen

ENT

ESC

Press the key to delete the error display. When more than one error occurs, the error displays disappear one by one.

If the key is pressed without removing the cause of an error, the error will be displayed again.

ESC

When more than one error occurs, pressing

the key moves to another error display.

8 - 1IM 11G02M01-01E

In case of Error No. 5 and No. 7

ENT

Pressing delete the error display.

ESC

ENT

Calibration is continued. Unless another calibration error occurs, calibration is carried out to the end, the Measurement screen returns.

ESC

Error log file

If error occurs, the history is saved in an error log file. The error log file exists in the maintenance mode.

Error log screen

Day of the week and time when an error occurred.

Component with which the error occurred.

New

Errors that occurred

Old

* Up to 14 errors can be saved in the error history; the oldest error will be deleted one by one every

time a new occurs.

* If the power display supply is turned OFF, the contents in the error log file will not be lost or

damaged.

Deletion of error history

Press the

ENT

key on the above screen, and the “Error Log Clear” will be inverted. Further

pressing the key will clear the error history.

8 - 2 IM 11G02M01-01E

8.2 Other Troubleshooting

Symptom Checking Item Remedy, etc.

Drift

* Locate and check gas leaking points, and take the proper remedy. (See Section 3.3.) * Clean the cell and window. Replace the part. (See Section 7.5.)

* Check if the sample gas is supplied to the analyzer at the specified flow rate. * Check the optical system, e.g., the sample cell window, O-ring, detector window and inside of the cell for heavy dirt.

Readings are abnormally high

* Check if the sample gas contains interfering components (water and CO

) in large quantities

or not.

* Investigate the components of the samplegas and then contact our serviceperson. See address information on the end cover.

Readings do not increase

* Check if the sample gas is supplied to the analyzer at the specified flow rate. * Check if the zero and span calibration is enabled.

* Locate and check gas leaking points, and take the proper remedy. (See Section 3.3.) * If enabled, sampling (check the points relating only to the sample gas and take the proper remedy.) * If not enabled, check the calibration related error items. (See Error Nos. 4 to 8 in Section 8.1.)

T8.2E.EPS

The following table shows how to remedy other troubles, such as faulty readings.

8 - 3IM 11G02M01-01E

9. SPECIFICATIONS

9.1 Specifications

(1) Standard specifications

CO2, CO, CH4, SO2, NO: Non-dispersive infrared method

Single light source-single beam

2: Paramagnetic type (built-in), or

zirconia type (external)

Measurable gas components and measuring range:

Component

Range

CH SO

NO 0 – 500 ppm 0 – 5000 ppm

(paramagnetic)

(zirconia)

• Max. 4 components measurement including O

• 1 or 2 measuring range per component.

• Measuring range ratio ≤ 1:5 (except built in O

Measured value indication:

Analog output signals:

Analog input signal:

Relay contact output:

Minimum range

0 – 500 ppm 0 – 200 ppm 0 – 1000 ppm 0 – 500 ppm

0 – 5 vol%

≤ 1:20 (built in O

Maximum range

0 – 100 vol% 0 – 100 vol% 0 – 100 vol% 0 – 5000 ppm

0 – 100 vol%

0 – 25 vol%0 – 5 vol%

Max. 4 components and 2 ranges are selectable including an O

2 measurement.

For measurable components and possible combinations of measuring ranges, refer to Tables 1 to 8.

Digital indication in 4 digits

(LCD with back light)

• Instantaneous value of each component

• Instantaneous value after O (only in CO, SO with O

2, NO measurement

• Average value after O (only in CO, SO with O

• O

2 average value

2, NO measurement

2 correction

4 to 20 mA DC or 0 to 1 V DC, non-isolated output. Analog output corresponds to measured value indication in 1:1. Permissible load; 550Ω max. for 4 to 20

mA DC 100kΩ min. for 0 to 1 V DC

* Refer to Table 6, for the channel No. of

displayed values and analog output signals.

For signal input from externally installed O

2 sensor.

Signal requirement;

(1) Signal from Yokogawa’s Zirconia O

sensor (Model : ZX8D*C or ZX8D*D)

(2) 0 to 1 V DC from an O

2 sensor

Input section is not isolated. This feature is effective when an O

2 sensor is not built

in.

1a contact (250 V AC/2 A, resistive load)

Instrument error, calibration error, range identification, auto calibration status and maintenance status, solenoid valve drive for auto calibration, pump ON/OFF.

T01.EPS

1c contact (250 V AC/2 A, resistive load)

Upper/lower alarm contact output. Peak count alarm contact output.

* All relay contacts are isolated mutually

and from the internal circuit.

Contact input:

Non-voltage contact (ON/0 V, OFF/5 V DC, 5 mA flowing at ON)

Remote range changeover, auto calibration remote start, remote holding,

average value resetting Isolated from the internal circuit with a photocoupler. Contact inputs are not isolated from one another. *Only M3.5 screw terminals are used for

all signal inputs and outputs.

Power supply: Voltage rating ;100 V AC to 240 V AC

Allowable range; 85 to 264 V AC Frequency; 50 Hz / 60 Hz

Operating conditions:

Power consumption; 70 VA max. Inlet ; Conform to EN60320

Protection Class 1

Ambient temperature; -5˚C to 45˚C Ambient humidity; 90% RH max., non-

condensing

Storage conditions:

Ambient temperature; -20˚C to 60˚C Ambient humidity; 90% RH max., non-

condensing

Dimensions (H x W x D):

19-inch rack mounting type; 177 x 483 x 493 mm

Weight: Approx. 10 kg

Finish color: Front panel; Off-white (Munsell 10Y7.5/

0.5 or equivalent)

Casing; Steel-blue

Enclosure: Steel casing, for indoor use Material of gas-contacting parts:

Gas inlet/outlet; SUS304 Sample cell; SUS304/neoprene rubber Infrared-ray transmitting window; CaF Internal tubing; Toaron tube

Gas inlet/outlet:

/4 or 1/4 NPT internal thread

Purge gas flow rate:

1L/min (when required)

Installation Altitude: 2000 m or less Safety and EMC conforming standards:

Safety: EN61010-1

Pollution degree 2 (Note) Installation category II (Note)

Note: Installation category, called over voltage category, specifies impulse withstanding voltage. Category II is for electrical equipment.

Pollution degree indicates the degree

of existence of solid, liquid, gas or other inclusions which may reduce dielectric strength. Degree 2 is the normal indoor environment.

EMC: EN61326

EN61000-3-2 EN61000-3-3

9 - 1IM 11G02M01-01E

(2) Standard functions

Output signal holding:

Output signals are held during manual and auto calibrations by activation of holding (turning on its setting). The values to be held are the ones just before start calibration mode. Indication values will not be held.

Remote output holding:

Output signal is held at the latest value by short-circuiting the remote output holding input terminals. Holding is maintained while the terminals are short-circuited. Indication values will not be held.

Remote range changeover:

Measuring range can be changed according to an external signal when remote range changeover input is received. Changeover is effective only when remote range setting is turned on. In this case, measuring range cannot be changed manually. When the contact input terminals for each component are short-circuited, the first range is selected, and it is changed over to the second range when the terminals are open.

Range identification signal:

The present measuring range is identified by a contact signal. The contact output terminals for each component are short-circuited when the first range is selected, and when the second range is selected, the terminals are open.

Auto calibration:

Auto calibration is carried out periodically at the preset cycle. When a standard gas cylinder for calibration and a solenoid valve for opening/closing the gas flow line are prepared externally by the customer, calibration will be carried out with the solenoid valve drive contacts for zero calibration and each span calibration turned on/off sequentially at the set auto calibration timing.

Auto calibration cycle setting:

Auto calibration cycle is set. Setting is variable within 1 to 99 hours (in increments of 1 hour) or 1 to 40 days (in increments of 1 day).

Gas flow time setting:

The time for flowing each calibration gas in auto calibration is set. Settable within 60 to 599 seconds (in increments of 1 second)

Auto calibration remote start:

Auto calibration is carried out only once according to an external input signal. Calibration sequence is settable in the same way as the cyclic auto calibration. Calibration starts when a non-voltage rectangular wave is applied to the auto calibration remote start input terminals (opened after short-circuiting for 1.5 seconds or longer). Auto calibration is started when the contacts open.

Auto zero calibration:

Auto zero calibration is carried out periodically at the preset cycle. This cycle is independent on “Auto calibration” cycle. When zero calibration gas and solenoid valve for opening/closing the calibration gas flow line are prepared externally by the customer, zero calibration will be carried out with the solenoid valve drive contact for zero calibration turned on/off at the set auto zero calibration timing.

Auto zero calibration cycle setting:

Auto zero calibration cycle is set. Setting is variable within 1 to 99 hours (in increments of 1 hour) or setting is variable within 1 to 40 days (in increments of 1 day).

Gas flow time setting:

The timing for flowing zero gas in auto zero calibration is set. Settable 60 to 599 seconds (in increments of 1 second)

Upper/lower limit alarm:

Alarm contact output turns on when the preset upper or lower limit alarm value is reached. Contacts close when the instantaneous value of each component becomes larger than the upper alarm limit value or smaller than the lower alarm limit value.

Instrument error contact output:

Contacts close at occurrence of analyzer error No. 1, 3 or 10.

Calibration error contact output:

Contacts close at occurrence of manual or auto calibration error (any of errors No. 4 to 9).

Auto calibration status contact outputs:

Contacts close during auto calibrationl.

Pump ON/OFF contact output:

During measurement, this contact close. While calibration gas is flowing, this contact open. This contact is connected in power supply of pump, and stop the sample gas while calibration gas flowing.

9 - 2 IM 11G02M01-01E

(3) Optional functions

O2 correction:

Conversion of measured CO , SO NO gas concentrations into values at reference O

Correction formula: C = –––––––– x C C : Sample gas concentration after O 2

: Measured concentration of sample

: Measured O2 concentration

: Standard O2 concentration (value

*The upper limit value of the fractional

part in this calculation is 4. The result of calculation is indicated and output in an analog output signal.

Average value after O

2 average value calculation:

and O

The result of O neous O erage value in the determined period of time.

Used for averaging is the moving average method in which sampling is carried out at intervals of 30 seconds. (Output is updated every 30 seconds. It is the average value in the determined period of time just before the latest updating.) Averaging time is settable within 1 to 59 minutes (in increments of 1 minute) or 1 to 4 hours (in increments of 1 hour).

Average value reset:

The above-mentioned output of average value is started from the initial state by applying a non-voltage rectangular wave to the average value resetting input terminals (opened after short-circuiting for

1.5 seconds or longer). Output is reset by short-circuiting and restarted by opening.

CO concentration peak count alarm:

(added only for CO 1 O Alarm output turns on according to the preset concentration and count. Whenever the instantaneous value of CO exceeds the preset concentration value, count increments. If the count exceeds the preset value in one hour, the alarm contacts close.

Communication function:

RS-232C (9 pins D-sub) Half-duplex bit serial Start-stop synchronization Modbus Contents :

Read/Write parameters Read measurement concentration and instrument status.

Remark : When connecting via RS-485 interface,

2 concentration.

correction

gas

changeable by setting)

2 correction

2 value can be output as an av-

protocol

an RS-232C,/RS-485 converter should be used.

2 and

21-O 21-O

2 correction or instanta-

2 measurement)

(4) Performance

Repeatability : ±0.5% of full scale Linearity : ±1% of full scale Zero drift : ±2% of full scale/week Span drift : ±2% of full scale/week

Response time (for 90% FS response):

1 or 2 component measurement;

Within 15 seconds including replacement time of sample gas

More than 2 component measurement;

Within 30 seconds including replacement time of sample gas

Interference from other gases:

Built-in

Interference component

CO 1000 ppm

CO2 15%

H2O saturation at 208C

H at 28C

CH4 1000 ppm2% 1%FS % 1%FS % 50ppm

pThe H2O interference of NO and SO2 analyzer can be reduced by the interference compensation.

analyzer

% 1%FS

% 1%FS % 1%FS

O saturation

analyzer

% 1%FS

for 200 ppm

analyzer,

% 2.5%FS % 1%FS

for 500 ppm analyzer,

% 2.5%FS

for 200 ppm analyzer

analyzer

% 1%FS% 1%FS

% 1%FS % 1%FS

% 50ppm

% 2%FS with interference compensation

analyzer

% 1%FS

% 60ppm

% 2%FS with interference compensation

paramagnetic O2 analyzer

% 2% FS

222

T02.EPS

(5) Standard Requirements for Sample Gas

Flow rate : 1±0.5 L / min Temperature : 0 to 50˚C Pressure : 10 kPa or less (Gas outlet side should be open

to the atmospheric air.)

Dust : 100 µg/Nm Mist : Unallowable Moisture : Below a level where saturation occurs at room

temperature (condensation unallowable). Below a level to cause saturation at 2˚C for CO measurement with 0 to 200 ppm range and SO

Corrosive component: HCl, H Standard gas for calibration:

Zero gas ; Dry N Span gas ; Each sample gas having concen-

In case a zirconia O externally and calibration is carried out on the same calibration gas line: Zero gas ; Dry air or atmospheric air

Span gas ; For other than O

It is understood that a large quantity of hydrogen, helium, or argon in sample gas affects the calibration model of an infrared gas analyzer (pressure broadening). When measuring such sample gas, use a gas which has similar composition to the sample gas as a span gas.

in particle size of 0.3 µm or less

2 measurement.

2S, HF: 1 ppm or less

tration 90 to 100% of its measuring range (recommended). Gas beyond concentration 100% FS is unusable.

2 analyzer is installed

(provided without CO

2 measurement,

each sample gas having concentration 90 to 100% of its measuring range.

2 measurement, O2 gas of 1

For O to 2 vol%

2 sensor)

9 - 3IM 11G02M01-01E

(6) Installation Requirements

• Use this instrument .(Select a place where the equipment does not receive direct sunlight, draft/rain or radiation from hot substances.)

• Avoid a place where receives heavy vibration.

• Select a place where atmospheric air is clean.

9 - 4 IM 11G02M01-01E

9.2 Model and Suffix codes

Model Suffix code IR200

-A

Measurable components

(note 8)

analyzer

1st Component 1st Range (note 2)

1st Component 2nd Range (note 2)

2nd Component 1st Range (note 2)

-B

-C

-D

-E

-F

-G

-H

-J

-K

-L

-M N

1 2

A B C D E F G H J K L M P Q R S T

B C D E F G H K L M P R T N

B C D E F G H J K L M P Q R S T N

Option code

[Style: S3]

Description

Infrared gas analyzer 19-inch rack mounting type with slide rail

SO CO CO

NO CO

+ CO

CH CO

+ CH CO2 + CO + CH NO + SO

NO + CO

NO + SO Without O

+ CO

analyzer External zirconia type O2 sensor (purchase separately: ZX8D ) External O Built-in paramagnetic type O

analyzer (note 1)

sensor

02200 ppm (note 3) 02500 ppm (note 4) 021000 ppm 022000 ppm 022500 ppm 025000 ppm 021% 022% 023% 025% 0210% 0220% 0225% 0240% 0250% 0270% 02100%

02500 ppm 021000 ppm 022000 ppm 022500 ppm 025000 ppm 021% 022% 025% 0210% 0220% 0225% 0250% 02100% Not available

02500 ppm 021000 ppm 022000 ppm 022500 ppm 025000 ppm 021% 022% 023% 025% 0210% 0220% 0225% 0240% 0250% 0270% 02100% Not available

T04-1.EPS

continued to next page

9 - 5IM 11G02M01-01E

Model and Suffix Codes

Model Suffix code

IR200

2nd Component 2nd Range

(note 2)

C D E F G H K L M P R T N

3rd Component 1st Range

(note 2)

3rd Component 2nd Range

(note 2)

2 Analyzer

1st Range

(note 2)

2 Analyzer

2nd Range

(note 2)

Output

Piping

Indication, Power Cable (note 6)

Option O

2 Correction and O2 Average (note 5)

Peak count alarm (note 5) Communication Internal Purge

Option code

Description

Infrared gas analyzer 19-inch rack mounting type with slide rail 021000 ppm

022000 ppm 022500 ppm 025000 ppm 021% 022% 025% 0210% 0220% 0225% 0250% 02100% Not available

B C D E F G H J K L M P Q R S T N

C D E F G H K L M P R T N

1 2 3 4 5 N

2 3 4 5 N

-4

-1 R

J E U

/K /A /C /P

02500 ppm 021000 ppm 022000 ppm 022500 ppm 025000 ppm 021% 022% 023% 025% 0210% 0220% 0225% 0240% 0250% 0270% 02100% Not available

021000 ppm 022000 ppm 022500 ppm 025000 ppm 021% 022% 025% 0210% 0220% 0225% 0250% 02100% Not available

025% 0210% 0225% 0250% 02100% Not available

0210% 0225% 0250% 02100% Not available

4220 mA DC, non-isolation 021 V DC, non-isolation

Rc 1/4 1/4 NPT

Japanese, Power Cable; rated voltage 125 V AC English, Power Cable; rated voltage 125 V AC (UL) English, Power Cable; rated voltage 250 V AC (CEE)

2 correction and O2 average value

With O With peak count alarm (CO gas Only) RS2232C (note 7) Analyzer internal purging

T04-2.EPS

Footnotes: 1: A signal from the external O2 analyzer should be 0-1 V DC linear to full scale. 2: Possible combinations of ranges are specified in separate tables.

9 - 6 IM 11G02M01-01E

3: Only available for CO measurement. 4: Only available for CO2, CO, SO2 or NO measurements. 5: O2 correction is available only for CO, SO2, and NO. Both average value output after O2 correction and average O2 value output are provided at the same time. A peak count alarm can be provided only for CO measurement. 6: Suffix Codes “E” and “U” are power cables with different voltage rating and plug type. Select appropriate code according to the operating power supply voltage to be used in the field. Suffix Code “E” is of the North American plug type and “U” of the European type. 7: Should be specified when using ModbusTM communication. 8: For NOx measurement, a NO2/NO converter (P/N K9350LE or K9350LF) should be purchased separately.

Measurable component and range - availability check table -

Table 1: Single-component analyzer (CO2, CO, CH4, SO2, NO)

2nd range

1st range A02200ppm B

500ppm C021000ppm D022000ppm

E022500ppm F

5000ppm

0 G021% H022%

J023% K025%

L0210% M0220% P0225% Q0240% R0250%

S0270%

T02100%

: CO

analyzer measurable range : NO analyzer measurable range

: SO

pNote:Single range is also available.

02500ppm

s s

}

} }

}

} }

}

} }

}

analyzer measurable range : CO analyzer measurable range : CH4 analyzer measurable range

Table 2: Two-component analyzer (CO

1st component

), 1st range

(CO

025000ppm

021% H022% K025%

L0210%

0220% R0250%

02100

: Available as single range, : 2 ranges of 2 and 2.5 times each range available

2nd component (CO), 1st range CO

02500ppm

}

021000ppmD022000ppm 022500ppm 025000ppm

}

} }

}

} }

}

} }

}

hsn

}

} }

}

} }

}

} }

}

hsn

}

} }

}

} }

}

} }

}

hsn

} }

}

} }

}

} }

2 and CO)

021000ppmD022000ppmE022500ppmF025000ppmG021%H022%K025%L0210%M0220%P0225%

021%

}

} }

}

} }

022%

}

} }

s s

}

} }

}

} }

}

0210%

025%

}

} }

}

} }

}

} }

0220%

}

} }

}

} }

}

} }

}

0250%

}

} }

}

} }

}

02100%

}

} }

}

} }

}

} }

0250%

02100%

T06.EPS

Table 3: Two-component analyzer (CH

1st component

),1st range

(CH

025000ppm

021% H022% K025%

L0210%

0220% R0250%

02100

: Available as single range, : 2 ranges of 2 and 2.5 times each range available

2nd component (CO), 1st range

021000ppmD022000ppm

}

02500ppm

}

022500ppm

}

4 and CO)

}

025000ppmG021%H022%K025%L0210%M0220%

}

0225%

0250%T02100%

}

T07.EPS

9 - 7IM 11G02M01-01E

Table 4: Two-component analyzer (CO2 and CH4)

2nd component (CH

1st component (CO

2),1st range

0 – 2000ppm

0 – 2500ppm

0 to 5000ppm

0 – 1%

H 0 – 2%

K 0 – 5%

L 0 – 10%

M 0 – 20%

R 0 – 50% T

0 – 100

: Available as single range, : 2 ranges of 2 and 2.5 times each range available

0 – 1000ppm

––– ––– –––

––– –––

0 – 2000ppm

Table 5. Two-component analyzer (NO and SO

2nd component (SO

1st component (NO),1st range

02500ppm

021000ppm

022000ppm

022500ppm

025000ppm

:Two components measurable range. 1st component ; NO, 2nd component ; SO

p 1st range (low range) must meet the combination in above table.

2nd range, both NO and SO and 2nd max. range is 0 to 5000ppm.

BCD

02500ppm

s s s s s

4), 1st range CH4

––– ––– –––

0 – 2500ppm

––– ––– –––

021000ppm 022000ppm 025000ppm

s s s s s

measurements are up to 5 times of the 1st range,

0 – 5000ppmG0 – 1%

), 1st range

s s s s s

0– 2%K0 – 5%L0 – 10%M0 – 20%

2500ppm

s s s s s

0 – 25%

––– –––

––– ––– –––

0 – 50%T0 – 100%

––– ––– ––– ––– –––

––– ––– –––

–––

T08.EPS

s s s s s

T05-1

Table 6. Two-component analyzer (NO and CO)

2nd component (CO), 1st range

1st component (NO),1st range

02500ppm

021000ppm

022000ppm

022500ppm

025000ppm

:Two components measurable range. 1st component ; NO, 2nd component ; CO

p 1st range (low range) must meet the combination in above table.

2nd range, both NO and CO measurements are up to 5 times of the 1st range. 2nd max. range of NO 2nd max. range of CO2 is 0 to 1%.

02200ppm

s s s s

is 0 to 5000ppm.

BCD

02500ppm

s s s s s

021000ppm 022000ppm 025000ppm

s s s s s

2500ppm

s s s s s

021%

s s s s s

T05-1

Table 7. Three-component analyzer (CO2 + CO + CH4 and NO + SO2 + CO)

See Table 4 for CO2 + CH4 measurement of three-component analyzer (CO2 + CO + CH4) and Table 5 for NO +

Table 8: O

1st range

025% 20210% 30225% 40250%

02100%

: Built-in O : External zirconia type O measurable range

p O

analyzer is selectable indifferently to combination with other components.

2 measurement of three-component analyzer (NO + SO2 + CO). See Table 1 for CO measurement.

2 analyzer

2nd range

0210%30225%40250%502100%

2 2 2 2

analyzer measurable range,

2 2 2

analyzer (in this case, Yokogawa9s ZX8D Style C)

2 2

T09.EPS

9 - 8 IM 11G02M01-01E

Table 9. Measurable Components and Their Corresponding Channel Numbers

Measurable

component

analyzer

O2 correction CH1 CH2 CH3 CH4 CH5 CH6 CH7

- A N Not specified SO

- B N Not specified CO

Suffix/Option Code

- C N Not specified CO

- D N Not specified CH

2 4

- E N Not specified NO

- F N Not specified CO

- G N Not specified CH

- H N Not specified CO

- J N Not specified CO

2 4 2 2

CO CO

CO CH

- K N Not specified NO SO

- L N Not specified NO CO

- M N Not specified NO SO

- A 1, 2, 3 Not specified SO

- B 1, 2, 3 Not specified CO O

- C 1, 2, 3 Not specified CO

- D 1, 2, 3 Not specified CH

2 4

O O

- E 1, 2, 3 Not specified NO O

- F 1, 2, 3 Not specified CO

- G 1, 2, 3 Not specified CH

- H 1, 2, 3 Not specified CO

- J 1, 2, 3 Not specified CO

2 4 2 2

CO O CO O

CO CH

- K 1, 2, 3 Not specified NO SO

- L 1, 2, 3 Not specified NO CO O

- M 1, 2, 3 Not specified NO SO

- A 1, 2, 3 /K SO

- B 1, 2, 3 /K CO O

- E 1, 2, 3 /K NO

- F 1, 2, 3 /K CO

- G 1, 2, 3 /K CH

- J 1, 2, 3 /K CO

- K 1, 2, 3 /K NO

- L 1, 2, 3 /K NO

- M 1, 2, 3 /K NO

X 2 4 2 X X X

O CO O CO O CO CH

CO O

2 2 2 2 2 2

2 2 2 2

Output and Corresponding Channel

2 2

CO O

Correct SO2Correct SO2 av.

Correct CO

Correct CO av.

Correct NOXCorrect NOX av.

Correct CO

Correct NOXCorrect SO2Correct NOX av. Correct SO2 av.

Correct NOXCorrect CO

CO O

Correct CO av. Correct CO av.

Correct CO

Correct NOXCorrect SO2 Correct

O2 av. O2 av. O2 av.

O2 av. O2 av.

Correct CO av.

Correct NOX av. Correct CO av.

O2 av.

CH8

O2 av.

O2 av. O2 av.

* How to Read the Table “SO2” in the CH1 column means that the display and output of CH1 correspond to SO2 component. “Correct XX” means an instantaneous XX

value after O2 correction, “Correct XX av.” an average XX value after O2 correction, and “O2 av.” an average O2 value.

STANDARD ACCESSORIES

Item

Power cable K9218SA Fuse

Slide rail

Note:

Quantity in this table is the number of accessories supplied as standard. For instance, two K9218RC parts, i.e., two slide rails, are supplied as standard. When ordering separately, the required number of parts should be considered.

Part No.

K9218RB

K9218RC

Description

Standard inlet type (2.5 m) Replacement fuse (250 V AC, 1 A, delay type) x1

Slide rail x1

Qty

1 2 2

T11.EPS

9 - 9IM 11G02M01-01E

9.3 External Dimensions (unit: mm)

(24)

500 max

88.5

123.8

111.1

101.5

M4 (for slide rail)

254

336.5

355.6

365

Power Switch

POWER

MODE

INFRARED GAS ANALYZER

ZERO

ESC

ENT

7.5 177

100.8

SPAN

Applicable both for JIS 100 mm and EIA 101.6 mm

465 483

NPT

429

Purge gas inlet, Rc Sample gas outlet, Rc Sample gas inlet, Rc

<REAR>

RS232C connector

Terminal block 1

Terminal block 2

Terminal block 3

Terminal block 4

Terminal block 5

AC inlet (100 to 240 V AC, 50/60 Hz)

F04.EPS

9 - 10 IM 11G02M01-01E

(2) Accessory slide rail (unit: mm)

Model : 305A-20/Accuride International Inc.

Closed

530±3

(22.7) (9.5)

4.535.3

365.1±0.3

505.0±0.8

15.9±0.5

25.4±0.3

The same or less

Open

508.0±0.8

476.2±0.3

463.5±0.3

352.8±0.3

111.1±0.3

12.7±0.3

4.535.3

35.3±0.3

19.1±0.3

Reinforcement plate

Cabinet member

1.52t Intermediate

member

Drawer member

1.27t

(24.4)

12.7±0.3

123.8±0.3

238.1±0.3

15.9±0.5

19-inch rack mounting method:

The mass of the instrument should be supported at the bottom of the unit (or the side of the unit when mounted with the slide rails). Also, for facilitate maintenance, a structure which allows extraction of the main unit by using the slide rail is recommended.

Slide rail mounted type

Guide rail mounted type

Rack size

450 or more

465

Mounting diagram

Slide rails

101.6

EIA standard

Rack size

450 or more

465

Mounting diagram

Guide rails

101.6

EIA standard

Guide rails

For the guide rail mounted type, a maintenance space (200 mm or more) should be provided on top of the main unit.

F06.EPS

9 - 11IM 11G02M01-01E

Dedicated Zirconia O2 Sensor (to be purchased separately)

2 correction, the IR200 can accept linealized 0 to 1 V

For O DC signal coming from an analyzer calibrated to 0 to 25%

2 of full scale. Dedicated zirconia O2 sensor, Model

O ZX8D, is available from Yokogawa.

Measuring method: Zirconia system Measurable component and measuring range:

Measurable component

Oxygen (O2)

Minimum range Maximum range

025 vol% 0225 vol%

T12.EPS

Repeatability: Within ±0.5% of full scale Linearity: Within ±1% of full scale Zero drift: Within ±1% of full scale/week Span drift: Within ±2% of full scale/week Response time: Approx. 20 seconds (for 90% response) Sample gas flow rate: 0.5 ±0.25 L/min Note: The Zirconia system, due to its principle, may

produce a measuring error depending on the relative concentration versus the combustible O

gas concentration. Also, a corrosive gas (SO2 of

250 ppm or more, etc.) may affect the life of the

sensor Gas inlet/outlet size: Rc1/4 Power supply: 90 to 126 V AC or 200 to 240 V AC,

50/60 Hz Enclosure: Steel casing, for indoor application Indication: Temperature indication (LED)

Temperature alarm output:

Contact output 1a contact, Contact capacity 220 V AC, 1 A (resistive load)

Safety and EMC conforming standards:

Safety: EN61010-1

Pollution degree 2 (Note)

Installation category II (Note) Note: Installation category, called over voltage category, specifies impulse withstanding voltage. Category II is for electrical equipment. Pollution degree indicates the degree

of existence of solid, liquid, gas or other

inclusions which may reduce dielectric

strength. Degree 2 is the normal indoor

environment.

EMC: EN61326

EN61000-3-2

EN61000-3-3

Dimensions (H x W x D): 140 3 170 3 190 mm Weight: Approx. 3 kg Finish color: Munsell 5Y 7/1

Model ZX8D

Power supply

Style code

Suffix code

25 23

Option code

Style C (Non-CE conformity) Style D

Description

Dedicated zirconia O 902126 V AC, 50/60 Hz

2002240 V AC, 50/60 Hz

conformity)

(CE

sensor

T13.EPS

External Dimensions of ZX8D Unit: mm

170

152

OXYGEN ANALYZER

800

7-M4

1234567

AC E

OUT ALM

110

Gas inlet17 Gas outlet172.3

F08.EPS

140

131

TEMP

FUSE3A

POWER

OFF

External Connection Diagram

1234567

AC power 50/60Hz

supply E Output

to IR400

Temperature alarm output

F09-2.EPS

Caution on Safety

Before using this product, be sure to read its instruction manual in advance.

9 - 12 IM 11G02M01-01E

NO2/NO Converter

Part number: K9350LE (Non-CE conformity) K9350LF (CE conformity) Mounting: Indoor surface mounting Target gases: General boiler exhaust gas,

atmosphere

Catalyst: Amount; 2 cm

Replacement cycle; Approx. 12 months (at flow rate of 0.3 L/min with 5% O 10 ppm NO) Temperature setpoint; 2106108C

(Sensing tip: K thermocouple) Wetted materials: Ceramic, Viton, glass filter, SUS316 Conversion efficiency: 90% or higher, conforms to JIS Gas flow rate: 0.5 L/min Ambient temperature:

-5 to +458C

Power supply: 100 VAC, 50/60 Hz (K9350LE)

100 to 240 V AC, 50/60 Hz (K9350LF)

External Dimensions

(

Gas Outlet

150

135

Power consumption:

Approx. 85 VA

Safety conforming standards:

EN61010-1 Pollution degree 2 Installation category II

Weight: Approx. 1.1 kg (K9350LE)

Sample gas requirements:

Approx. 1.2 kg (K9350LF)

Dust/drain removed, gas temperature at 1508C or less

One-year-Use Spare Parts

Item Catalyst for NO2/NO converter Glass wool for NO Fitting for NO

/NO converter

Part No.

K9350LP

K9350LQ

K9350LV

Qty

2 2 2

T15.eps

Unit: mm

)

[

9.5/[5.5

110

Gas Inlet

4-[5

[

9.5/[5.5

K9350LE

Wiring Diagram

105

(120)

(210)

(Shared with internal wiring)

Approx.130

100V AC

7 8

K9350LF

9 - 13IM 11G02M01-01E

Customer

Model IR200

Maintenance Parts List

Infrared Gas Analyzer

Measuring cell (Next Page)

INFRARED GAS ANALYZER

POWER

MODE

ESC

ZERO

ENT

SPAN

Item Parts No. Qty. Description

1 K9218RB 1 Fuse (Time Lag Fuse) 2 K9358LM 1 Fuse holder

CMPL 11G02M01-01E

1st Edition : July. 2002 (YK)

d Measuring Cell

CMPL 11G02M01-01E

Item Parts No. Qty. Description 1 K9358MG 8 Screw 2 K9358MH 1 Base plate

K9358MJ 1 Base plate for 250 mm 3 K9358MW 1 O-ring for Block cell 4 K9358MX 1 Screw 5 K9358MY 2 Screw 6 K9358MZ 1 Cover 7 K9358NF 2 Washer 8 K9358NT 4 Screw 9 K9358NU 4 Screw 10 K9358NV 2 Support 11 K9358NW 2 Pushing for pipe cell 12 K9358PJ 2 O-ring for pipe cell

1st Edition : July. 2002 (YK)

Revision Record

Manual Title : IR200 Infrared Gas Analyzer Manual Number : IM 11G02M01-01E

Edition Date Remark (s)

1st Oct. 2002 Newly published

2nd Aug. 2006 Fully revised due to style change to S3

P. v., Added "After-Sales Warranty". Section 2.1, "Description of each unit": Changed Fig. 2-1. Section 3.4, (6), "Example of sampling system configuration": Changed Fig. 3-2 Section 5.1, "Name and description of operation panel": Changed Fig. 5-1. Section 5.3, (3), "Contents of measured channel (CH)": Changed the table. Section 6.2.2, Added Section "Setting of calibration gas". Section 9.1, (1), "Standard specifications": Changed table "Measurable gas components and measuring range". Section 9.1, (4), "Performance": Changed table "Interference from other gases". Section 9.2, "Model and Suffix codes": Changed table. Section 9.2, "Measurable component and range - availability check table-": Changed Tables 1, 5 and 6. Section 9.3, "External Dimensions": Changed drawing, and added NO2/NO converter's specifications and external dimensions.

3rd Jul. 2007 Section 3.4, "Sampling," (3) "Preparation for standard gas": Partially changed the table.

Section 5.2, "Overview of display and operation panel": Partially changed the figure. Section 6.1, "Changeover of range": Partially changed the figure. Section 6.2, "Calibration setting": Added descriptions. Section 6.3.1, "Setting of alarm values": Changed descriptions. Section 6.4.1, "Auto calibration": Partially changed the figure. Section 6.6, "Peak alarm setting": Partially changed descriptions in the figure. Section 7.2, "Daily check and maintenance procedures": Partially changed Table 7-1, Maintenance and check list. Section 8.1, "Error message": Partially changed the figure. Section 9.1, "Specifications," Safety and EMC conforming standards: Changed descriptions and added Note. Section 9.2, "Model and Suffix codes": Deleted Footnote 7 and changed descriptions of Footnote 8 (former 9). Section 9.3, "External Dimensions," Dedicated Zirconia O Added "Safety and EMC conforming standards" descriptions and revised "Model and Suffix code" table.

2 Sensor (to be purchased separately):

Yokogawa IR200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

PREFACE

CAUTION ON SAFETY

r After - Sales Warranty

CONTENTS

1. OVERVIEW

2. NAME AND DESCRIPTION OF EACH PART

2.1 Description of each unit

3. INSTALLATION

3.1 Selection of installation location

3.2 Installation of analyzer

3.3 Piping

3.4 Sampling

3.5 Wiring method

4. OPERATION

4.1 Preparation for operation

4.2 Warm-up operation and regular operation

DESCRIPTION OF DISPLAY AND OPERATION PANEL

5.1 Name and description of operation panel

5.2 Overview of display and operation panel

5.3 Overview of display screen

5.4 General operation

6. SETTING AND CALIBRATION

6.1 Changeover of range

6.2 Calibration setting

6.2.1 Setting of calibration concentration

6.2.2 Setting of calibration gas

6.2.3 Setting of manual zero calibration

6.2.4 Setting of calibration range

6.2.5 Setting of auto-calibration component

6.3 Alarm setting

6.3.1 Setting of alarm values

6.3.2 Hysteresis setting

6.4 Setting of auto calibration

6.4.1 Auto calibration

6.4.2 Forced stop of auto calibration

6.5 Setting of auto zero calibration

6.5.1 Auto zero calibration

6.5.2 Forced stop of auto zero calibration

6.6 Peak alarm setting

6.7 Parameter setting

6.8 Maintenance mode

6.9 Calibration

6.9.1 Zero calibration

6.9.2 Span calibration

7. MAINTENANCE

7.1 Daily check

7.2 Daily check and maintenance procedures

7.3 Replacement of power fuse

7.4 Moisture interference compensation adjustment

7.5 Cleaning of measuring cell

7.5.1 Disassembly and assembly of measuring cell

7.5.2 How to clean cell

7.6 Inspection and maintenance of limited service-life components

8. TROUBLESHOOTING

8.1 Error message

8.2 Other Troubleshooting

9. SPECIFICATIONS

9.1 Specifications

9.2 Model and Suffix codes

9.3 External Dimensions (unit: mm)

Revision Record
