Yamaha TSX-14 User Manual

OWNER'S MANUAL ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

En Ru

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this

manual carefully. Keep it in a safe place for future reference.

2 Install this unit in a well ventilated, cool, dry, clean

place - away from direct sunlight, heat sources, vibration, dust, moisture and cold. For proper ventilation, allow the following minimum clearances. Top: 15 cm (6 in) Rear: 10 cm (4 in) Sides: 10 cm (4 in)

3 Locate this unit away from other electrical

appliances, motors, or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature

changes from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may

fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:

– Other components, as they may cause damage

and/or discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause

fire, damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall

and liquid may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth,

curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all

connections are complete.

8 Do not operate this unit upside-down. It may

overheat, possibly causing damage. 9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall

outlet, grasp the plug; do not pull the cable. 11 Do not clean this unit with chemical solvents; this

might damage the finish. Use a clean, dry cloth. 12 Only voltage specified on this unit must be used.

Using this unit with a higher voltage than specified is

dangerous and may cause fire, damage to this unit,

and/or personal injury. Yamaha will not be held

responsible for any damage resulting from use of this

unit with a voltage other than specified. 13 To prevent damage by lightning, keep the power

cable disconnected from a wall outlet or this unit

during a lightning storm. 14 Do not attempt to modify or fix this unit. Contact

qualified Yamaha service personnel when any

service is needed. The cabinet should never be

opened for any reasons. 15 When not planning to use this unit for long periods of

time (i.e. vacation), disconnect the AC power plug

from the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section

on common operating errors before concluding that this unit is faulty.

17 Before moving this unit, press to set the system to

off, and disconnect the AC power plug from the wall outlet.

18 Condensation will form when the surrounding

temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone.

19 When using this unit for a long time, this unit may

become warm. Turn the system off, then leave this unit alone for cooling.

20 Install this unit near the wall outlet and where the AC

power plug can be reached easily.

21 Be sure to use the AC adaptor supplied with this unit.

Using an AC adaptor other than the one provided may cause fire or damage to this unit.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off by . In this state, this unit is designed to consume a very small quantity of power.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

• This unit’s speakers use magnets. Do not place items that are sensitive to magnetism, such as CRT-type TVs, clocks, credit cards, floppy disks, etc., on or beside this unit.

• There is a chance that placing this unit too close to a CRT-based (Braun tube) TV set might impair picture color. Should this happen, move this unit away from the TV set.

We, Yamaha Music Europe GmbH hereby declare that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Yamaha Music Europe GmbH

Siemensstr. 22-34 25462 Rellingen, Germany Tel: +49-4101-303-0

i En

PREPARATION

CONTENTS

NAMES OF PARTS AND THEIR FUNCTIONS .................................................................................... 2

BASIC FUNCTIONS................................................................................................................................... 4

LISTENING TO FM STATIONS .............................................................................................................. 6

LISTENING TO iPod.................................................................................................................................. 7

LISTENING TO EXTERNAL SOURCES ............................................................................................... 8

TROUBLESHOOTING .............................................................................................................................. 9

SPECIFICATIONS ................................................................................................................................... 11

■ Features

– Playback of iPod/iPhone (with Lightning connector), FM radio, and external devices with an AUX

connector. – Setting alarm using iPod/iPhone (with Lightning connector), or FM radio. – Supplying power to iPod/iPhone (with Lightning connector). – Rich sound by 5cm full-range custom speaker and DSP (Digital Signal Processor) made by Yamaha. – Enhanced treble and thick mid/bass, even when playing a compressed audio source, such as MP3, etc.

(Music Enhancer)

■ iPod/iPhone

Supported models:

iPhone 5/iPhone 5c/iPhone 5s

iPod touch (5th generation)

iPod nano (7th generation)

(as of August 2014)

* This unit is iPod and also iPhone-compatible. “iPod” described in this manual may also refer to “iPhone”.

• An iPod may not be detected by the unit or some features may not be compatible, depending on the

model or software version of the iPod.

Note

• indicates precautions for use of the unit and its feature limitations.

• indicates supplementary explanations for better use.

■ Supplied accessories

AC adaptor FM antenna

DC 12 V, 1.5 A, model number: MU18-D120150-C5

1 En

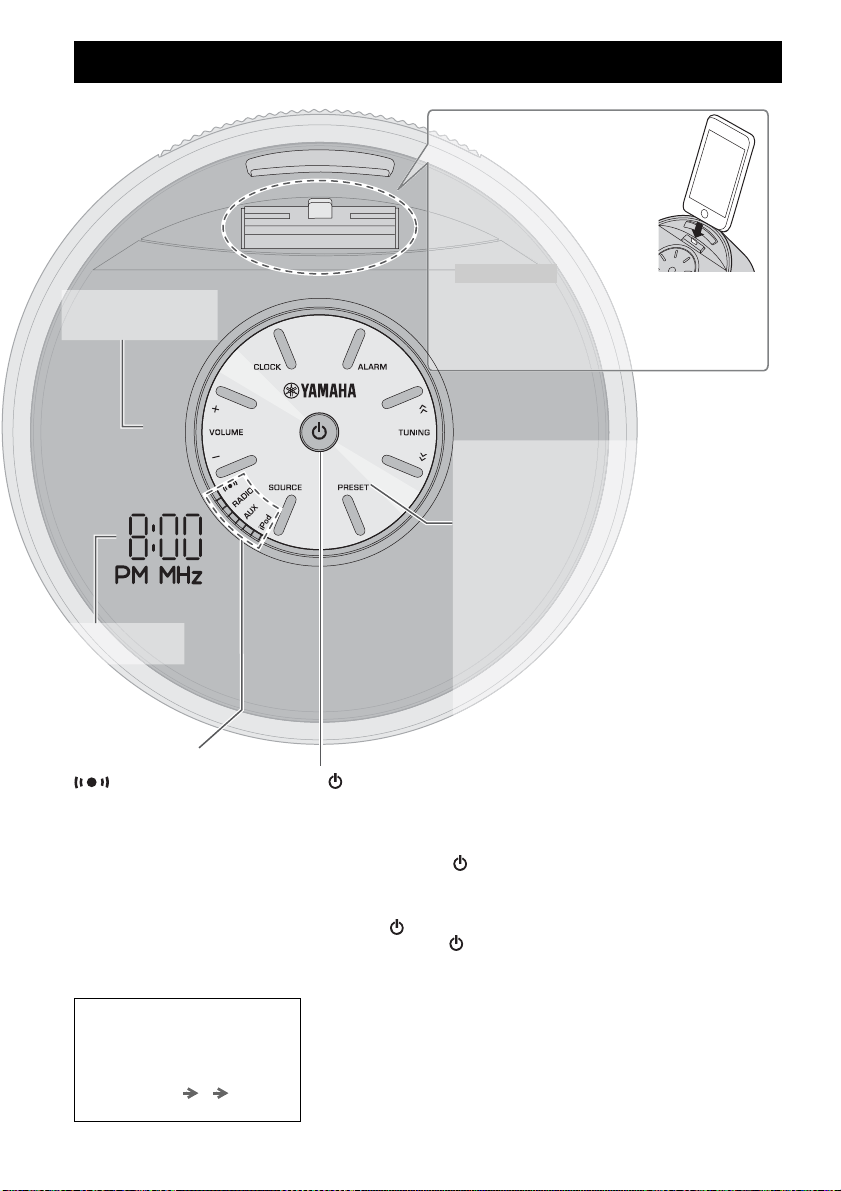

NAMES OF PARTS AND THEIR FUNCTIONS

■ Top panel

A Grille (☞ page 3)

B Display

C Indicators

(Alarm): Lights when the

alarm function is on

RADIO: Lights when the radio is

AUX: Lights when AUX is selected

iPod: Lights when iPod is selected

Press CLOCK repeatedly to set the brightness of the display and indicators. 3 (brightest) 2 1 (darkest)

(☞ page 4).

selected as an input source (☞ page 6).

as an input source (☞ page 8).

as an input source (☞ page 7).

Dimmer function

E iPod dock

Set your iPod on the Lightning connector of the iPod dock.

An iPod is charged when set in the iPod dock.

Note

• The iPod may not be set in the iPod dock securely if it is in its protective case.

• This unit stops supplying power when it is in Eco Standby mode.

F VOLUME

Controls volume. When you control the volume, the volume level will be displayed on the display for a while.

G CLOCK

Sets the clock (☞ page 4).

H ALARM

Sets the alarm (☞ page 4).

I TUNING

Adjust the time or radio frequency (☞ page 4, 6).

J PRESET

Stores up to five favorite FM radio stations (☞ page 6).

K SOURCE

Selects an input source from iPod, AUX, or RADIO.

Press to turn on the system or enter standby mode.

Eco Standby mode

• This can reduce power consumption. Press and hold for more than 3 seconds to set the system to power saving mode. All the indicators and display turn off, and audio playback and input via buttons except are disabled. To cancel Eco Standby mode, press .

• Even in standby mode or Eco Standby mode, the alarm function is available.

Auto Standby (☞ page 5)

• This unit has a function that automatically activates standby mode when no audio signal is input from a connecting device, or when the connecting device is playing at a low volume for a certain period (about 20 minutes).

2 En

NAMES OF PARTS AND THEIR FUNCTIONS

Caution

A grille is attached to this product to protect the speakers.

• Since the grille cloth is made of soft material, it can be easily damaged, so do not scratch it with a sharp object.

• Do not overstress the grille cloth. If it is overstressed, it will become contorted and damaged. This may cause damage to the speakers. Be careful when handling the grille cloth.

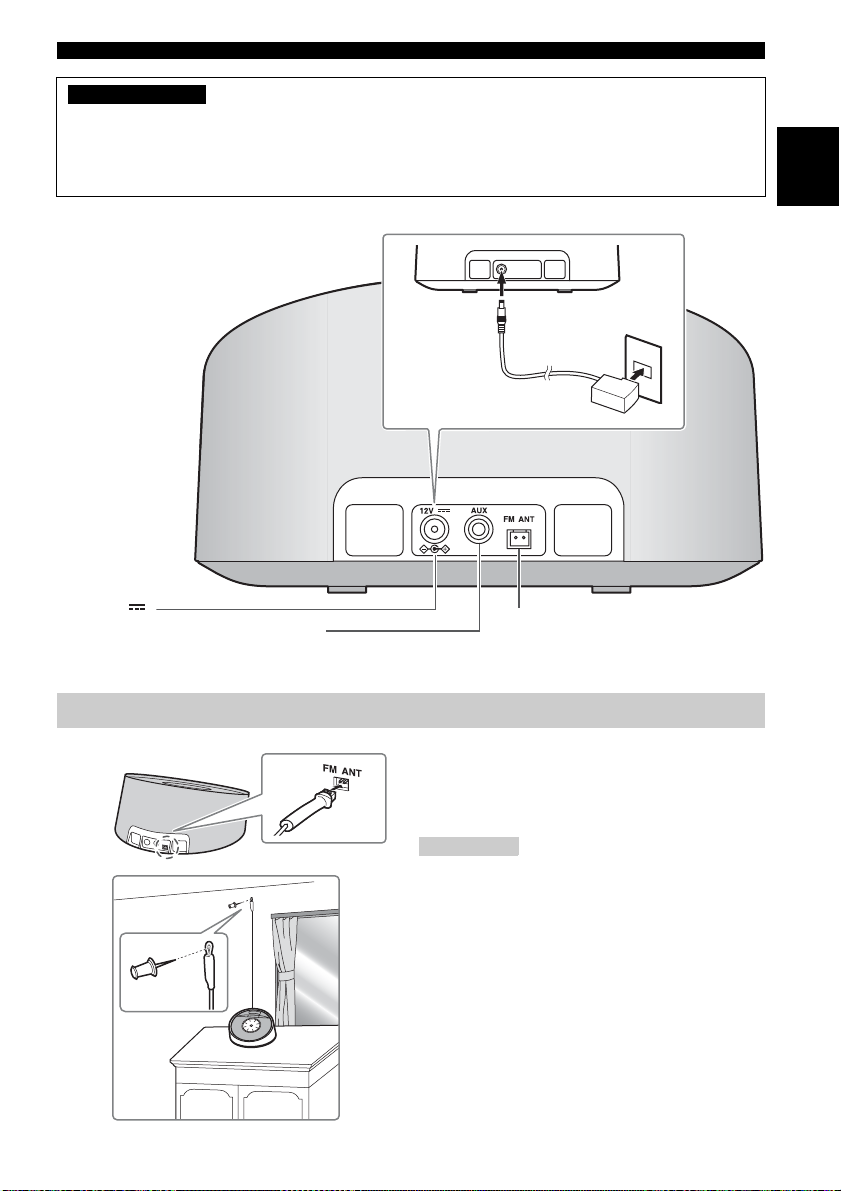

■ Rear panel

To AC wall outlet

L 12 V

Connect the supplied AC adaptor.

M AUX

Connect external devices with ø3.5mm stereo mini plug cables (☞ page 8).

Connecting the FM antenna

N FM ANT

FM antenna terminal

A Connect the supplied antenna to the

unit.

B Pin the antenna where the best

reception is obtained.

Note

• Be sure to stretch out the antenna as the illustration shows.

• If FM reception is poor, change the height or direction of the antenna, or relocate the unit.

3 En

OPERATION

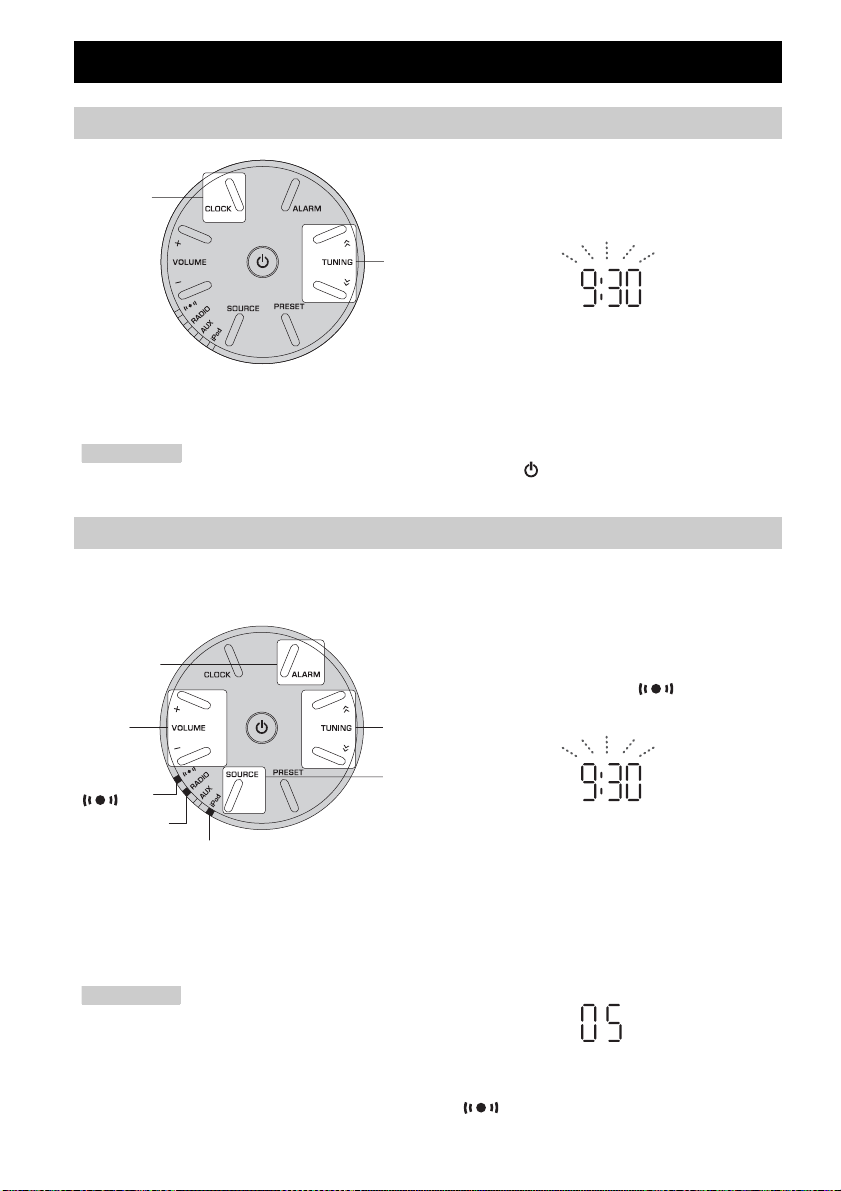

BASIC FUNCTIONS

Adjusting the clock

A Press and hold CLOCK for more than

2 seconds.

A, C

Alarm setting

You can play back the radio, the iPod, and emit beeps at a set time with this unit.

■ Setting the time and sound

The display flashes.

B Adjust the time with TUNING.

If you press and hold TUNING, the numbers advance quickly.

C Press CLOCK.

If you want to cancel clock setting mode, press .

If you press PRESET in step B, you can select the time display method (12 hours/24 hours).

Note

The time settings are lost approximately one week after unplugging the unit.

A, E

Alarm indicator ()

RADIO indicator

• The alarm type of this unit are the radio and beeping, and iPod and beeping.

• The radio/iPod turns on 3 minutes before the alarm time and beeping starts at the set alarm time.

Note

• I f you press without changi ng the alarm time and volume, the al arm setting mode will be cancelled and the alarm will not be set to on.

• When iPod is selected as a source, set the iPod in the iPod dock (☞ page 7). If the iPod is not set at the alarm time, the unit emits beeps.

iPod indicator

ALARM

to complete the setting of the alarm

4 En

A Press and hold ALARM for more than

2 seconds.

The alarm indicator ( ), the (or the iPod indicator), and display flash.

Set the alarm time with

Press

SOURCE

• iPod: this unit resumes the song you listened to last time.

• RADIO: this unit plays back the radio station you listened to last time.

to select the alarm type.

RADIO

TUNING

indicator

D Set the alarm volume with VOLUME.

The volume level is displayed.

E Press ALARM.

Alarm is set and the alarm indicator ( ) lights.

■ Switching the alarm on/off

Press ALARM.

When the alarm is on, the alarm indicator ( ) and the RADIO indicator (or the iPod indicator) light and the alarm time is displayed for a while.

Alarm indicator ()

RADIO indicator

iPod indicator

Operations during playing back alarm sound

At the set time, alarm sound plays back. During playback, operations below are available.

■ Stopping the alarm

Press ALARM or .

• Unless you stop the alarm, the alarm stops after 60 minutes automatically.

• When you stop the alarm, the alarm time setting, etc., is saved for convenient use next time.

• Press any button except ALARM and once to stop the

Alarm indicator ()

RADIO indicator

iPod indicator

beeping, and twice to stop the radio source or iPod (snooze function). 4 minutes after the radio source or iPod is stopped, it will start fading in again and after another minute the beeping will resume.

• When the snooze function is activated, the display, alarm indicator ( ) and RADIO indicator (or the iPod indicator) flash.

BASIC FUNCTIONS

Auto Standby

The system automatically enters standby mode under the following circumstance.

• No audio signal is input from a connecting device or when the connecting device is playing at a low volume for a certain period (about 20 minutes).

• If no operation is performed for more than 8 hours while music is being played back or stopped.

5 En

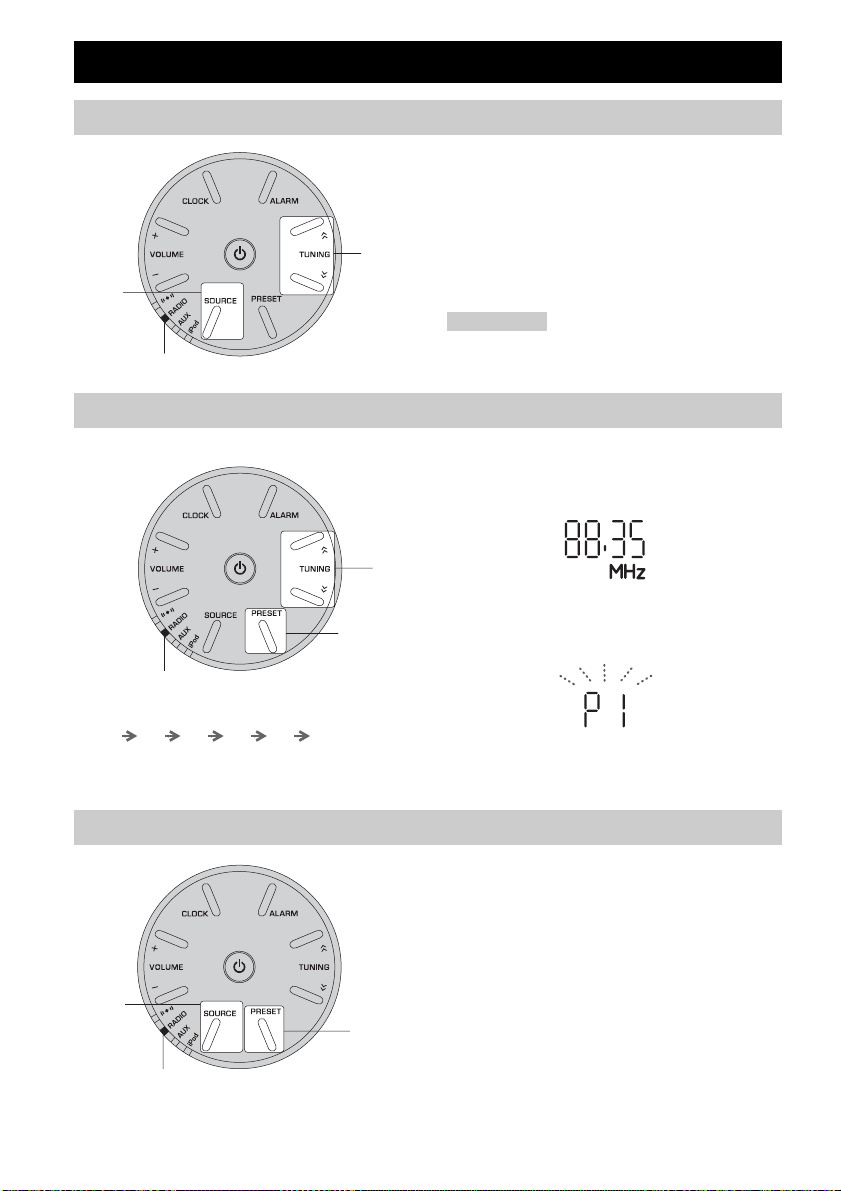

LISTENING TO FM STATIONS

Tuning radio stations

A Press SOURCE to select RADIO.

The RADIO indicator lights.

B For automatic tuning, press and hold

TUNING. For manual tuning, press TUNING

RADIO indicator

Presetting radio stations

You can store up to five favorite FM radio stations with the preset function.

B, C, D

RADIO indicator

repeatedly.

Note

If you tune into a station manually, the sound is monaural.

A Press TUNING to select a favorite radio

station.

The radio frequency is displayed temporally.

B Press and hold PRESET for more than

2 seconds.

The preset number is displayed on the display and flashes.

Selecting preset radio stations

RADIO indicator

6 En

C Press PRESET to select the preset

number you want to store to.

The preset number is displayed as follows:

P2 P3 P4 P5 P1

D Press and hold PRESET for more than

2 seconds to complete.

A Press SOURCE to select RADIO.

The RADIO indicator lights.

B Press PRESET repeatedly to select the

preset radio station.

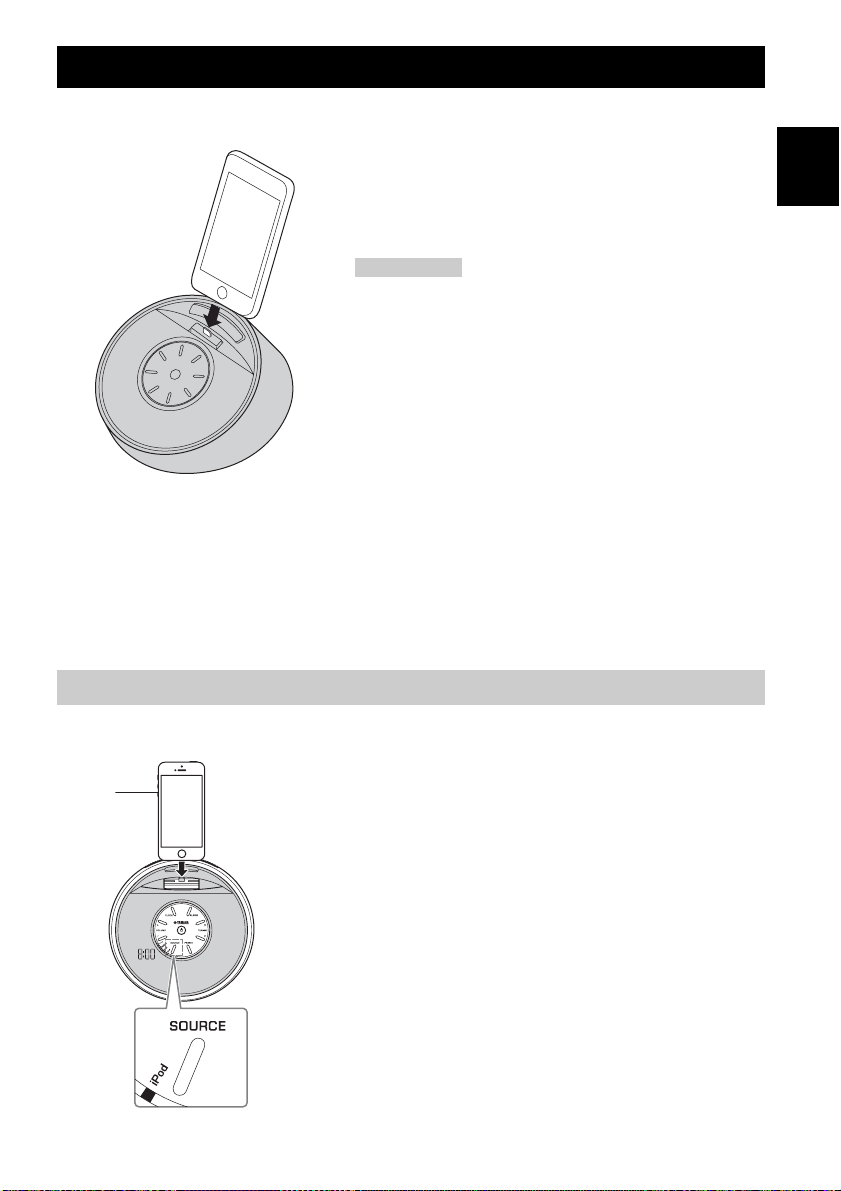

LISTENING TO iPod

■ Connecting an iPod to the iPod dock

• An iPod will be recharged while it is connected to the dock. The iPod will not be recharged when the unit is in Eco Standby mode.

• If an iPod in protective case is connected by force, the connector may be damaged. Remove the protective case before connection.

Note

• Slowly connect or remove the iPod.

• Insert the iPod straight in the right angle without adding pressure to it. If you insert the iPod in the wrong angle and forcibly insert it into the unit, a malfunction may occur.

• Do not connect an unsupported iPod to this unit. The operation of an unsupported iPod is not guaranteed.

• Remove the iPod when carrying this unit.

• If the battery of the iPod is very low, charge the iPod for a while before operating.

• If the iPod is not turned on, the iPod will not operate even if it is set on the unit. Check if the iPod is turned on before operating.

• Remove the iPod if you will not use the unit for a long time.

• Connect your iPod without any other iPod accessories (such as headphones, a wired remote control, an FM transmitter, etc.) connected.

• It is recommended that you update your iPod software before using it with this unit. The updater for the iPod software is available at the Apple website.

Playing the iPod

For details on compatible iPod models, refer to “SPECIFICATIONS” (☞ page 11).

A Connect an iPod to the B Press SOURCE and set

source.

Play the iPod.

• You can remove the iPod during playback.

• When the unit is used with the iPod’s shake shuffle function on, the iPod might shuffle due to the vibration of speaker depending on the music played back. If this happens, turn the shake shuffle function off. (Refer to the instruction manual of the iPod to turn the function off.)

• Although this unit may operate or display differently depending on the model or the software of the iPod, it does not affect the basic playback operation.

• For how to operate the iPod itself, etc., refer to the owner’s manual supplied with each product.

iPod dock

iPod

as the playback

7 En

+ 19 hidden pages
