AV Receiver

TSR-5B3D

Owner's Manual

• This unit is a product for enjoying video and music at home.

• This manual explains preparations and operations for everyday users of the unit.

• Read the supplied booklet “Quick Start Guide” before using the unit.

BEFORE USING THE UNIT 5

Accessories................................................................................................ 5

How to use this manual............................................................................ 5

Remote control.......................................................................................... 5

Insert the batteries................................................................................................................................................................... 5

Operating range of the remote control........................................................................................................................... 5

FEATURES 6

What you can do with the unit................................................................. 6

Part names and functions...................................................................... 10

Front panel............................................................................................................................................................................... 10

Front display (indicators).................................................................................................................................................... 11

Rear panel................................................................................................................................................................................. 12

Remote control....................................................................................................................................................................... 13

PREPARATIONS 14

4 Connecting the FM/AM antennas.................................................... 29

5 Preparing for connecting to a network........................................... 30

Connecting a network cable............................................................................................................................................. 30

Preparing a wireless antenna............................................................................................................................................ 30

6 Connecting the power cable............................................................ 31

7 Selecting an on-screen menu language.......................................... 32

8 Configuring the necessary speaker settings.................................. 33

9 Optimizing the speaker settings automatically (YPAO)................ 34

Error messages....................................................................................................................................................................... 36

Warning messages................................................................................................................................................................ 37

10 Connecting to a network wirelessly................................................ 38

Selecting the connection method................................................................................................................................... 38

Connecting the unit to a wireless network.................................................................................................................. 39

Connecting a mobile device to the unit directly (Wireless Direct)...................................................................... 44

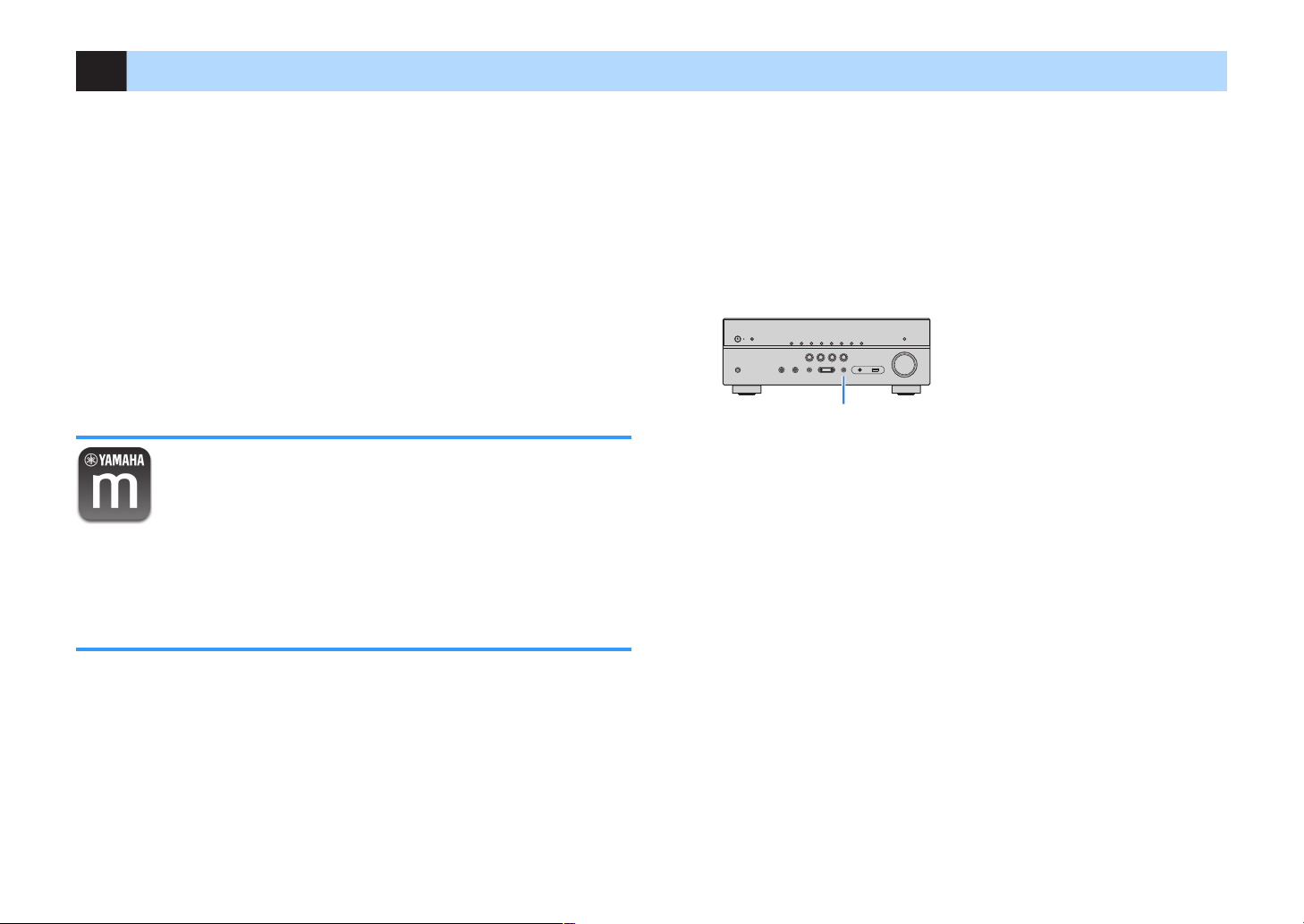

11 Setting the MusicCast....................................................................... 46

MusicCast CONTROLLER..................................................................................................................................................... 46

Adding the unit to the MusicCast network.................................................................................................................. 46

1 Placing speakers............................................................................... 15

Typical speaker layouts....................................................................................................................................................... 16

Other speaker layouts.......................................................................................................................................................... 18

Presence speaker layout..................................................................................................................................................... 20

Setting the speaker impedance....................................................................................................................................... 21

2 Connecting speakers........................................................................ 22

Connecting speaker cables................................................................................................................................................ 23

Connecting the subwoofer (with built-in amplifier)................................................................................................. 23

Connecting front speakers that support bi-amp connections............................................................................. 23

Connecting Zone B speakers............................................................................................................................................. 23

3 Connecting a TV/playback devices.................................................. 24

Input/output jacks and cables.......................................................................................................................................... 24

Connecting a TV..................................................................................................................................................................... 25

Connecting video devices (such as BD/DVD players).............................................................................................. 26

Connecting audio devices (such as CD players)......................................................................................................... 28

Connecting to the jack on the front panel................................................................................................................... 28

PLAYBACK 47

Basic playback procedure...................................................................... 47

Enjoying playback................................................................................................................................................................. 47

Switching information on the front display................................................................................................................. 48

Selecting the input source and favorite settings with one touch

(SCENE).................................................................................................... 49

Selecting a registered scene.............................................................................................................................................. 49

Registering a scene............................................................................................................................................................... 49

Selecting the sound mode..................................................................... 50

Enjoying stereoscopic sound fields (CINEMA DSP 3D)............................................................................................ 51

Enjoying unprocessed playback...................................................................................................................................... 53

Enjoying pure high fidelity sound (direct playback)................................................................................................. 54

Enhancing the bass (Extra Bass)....................................................................................................................................... 54

Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed Music Enhancer)

Listening to FM/AM radio....................................................................... 55

Setting the frequency steps............................................................................................................................................... 55

Selecting a frequency for reception............................................................................................................................... 55

Registering favorite radio stations (presets)................................................................................................................ 56

Radio Data System tuning.................................................................................................................................................. 59

Playing back music stored on a Bluetooth® device.............................. 60

Playback Bluetooth® device music on the unit........................................................................................................... 60

Enjoying audio using Bluetooth® speakers/headphones....................................................................................... 61

Playing back music with AirPlay............................................................ 62

Playback of iTunes/iPhone music contents................................................................................................................. 62

Playing back music stored on a USB storage device............................ 64

Connecting a USB storage device................................................................................................................................... 64

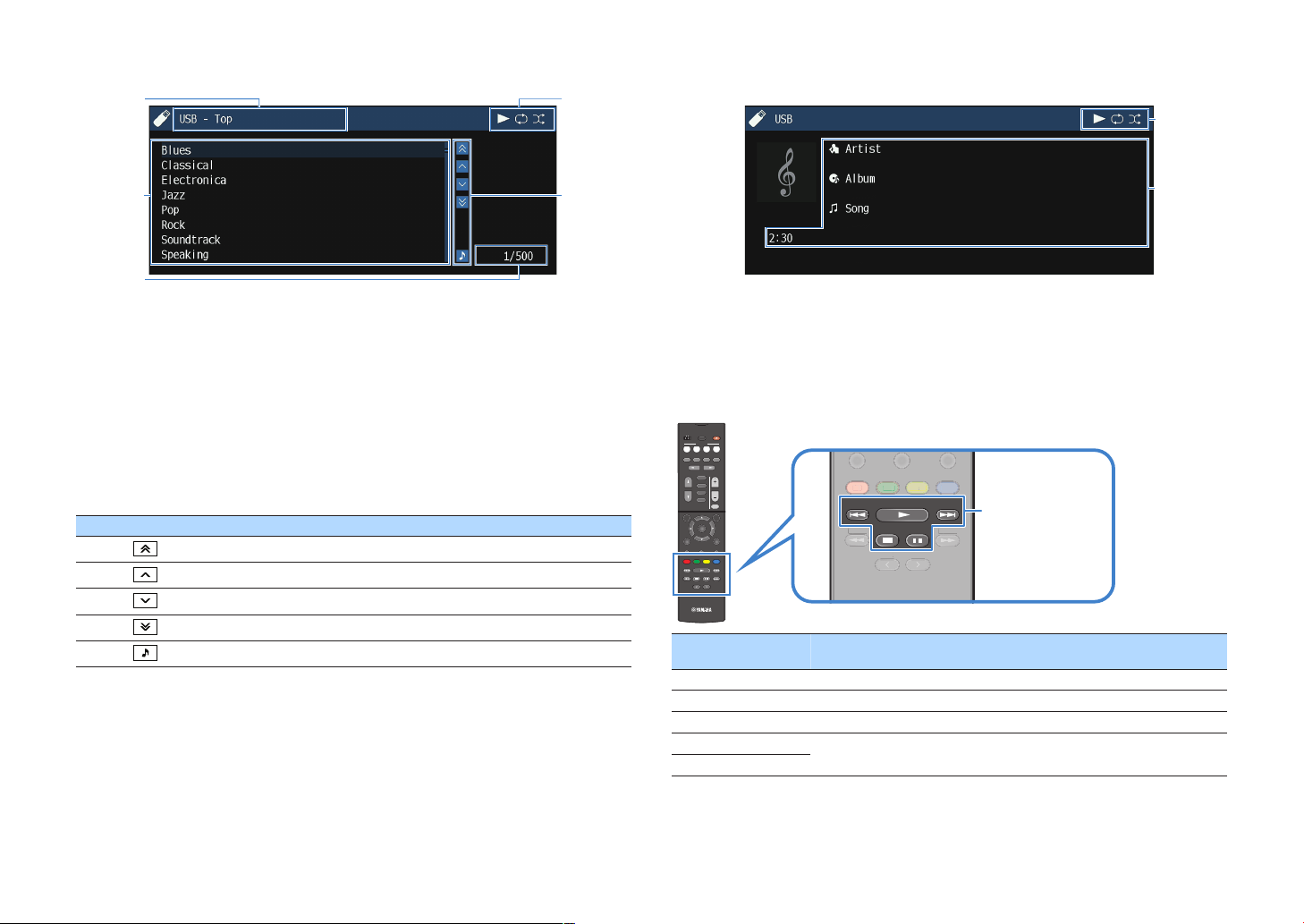

Playback of USB storage device contents..................................................................................................................... 64

Playing back music stored on media servers (PCs/NAS)...................... 67

Media sharing setup............................................................................................................................................................. 67

Playback of PC music contents......................................................................................................................................... 68

Listening to Internet radio..................................................................... 70

Playback of Internet radio.................................................................................................................................................. 70

Registering favorite Internet radio stations................................................................................................................. 71

Playing back more high-quality sounds with bi-amp connections

..................................................................................................................................................................... 54

.................................................................................................................. 72

Connecting front speakers that support bi-amp connections............................................................................. 72

Playing back music in multiple rooms.................................................. 73

Connecting Zone B speakers............................................................................................................................................. 73

Operating the Zone B........................................................................................................................................................... 74

Useful functions...................................................................................... 76

Registering favorite items (shortcut).............................................................................................................................. 76

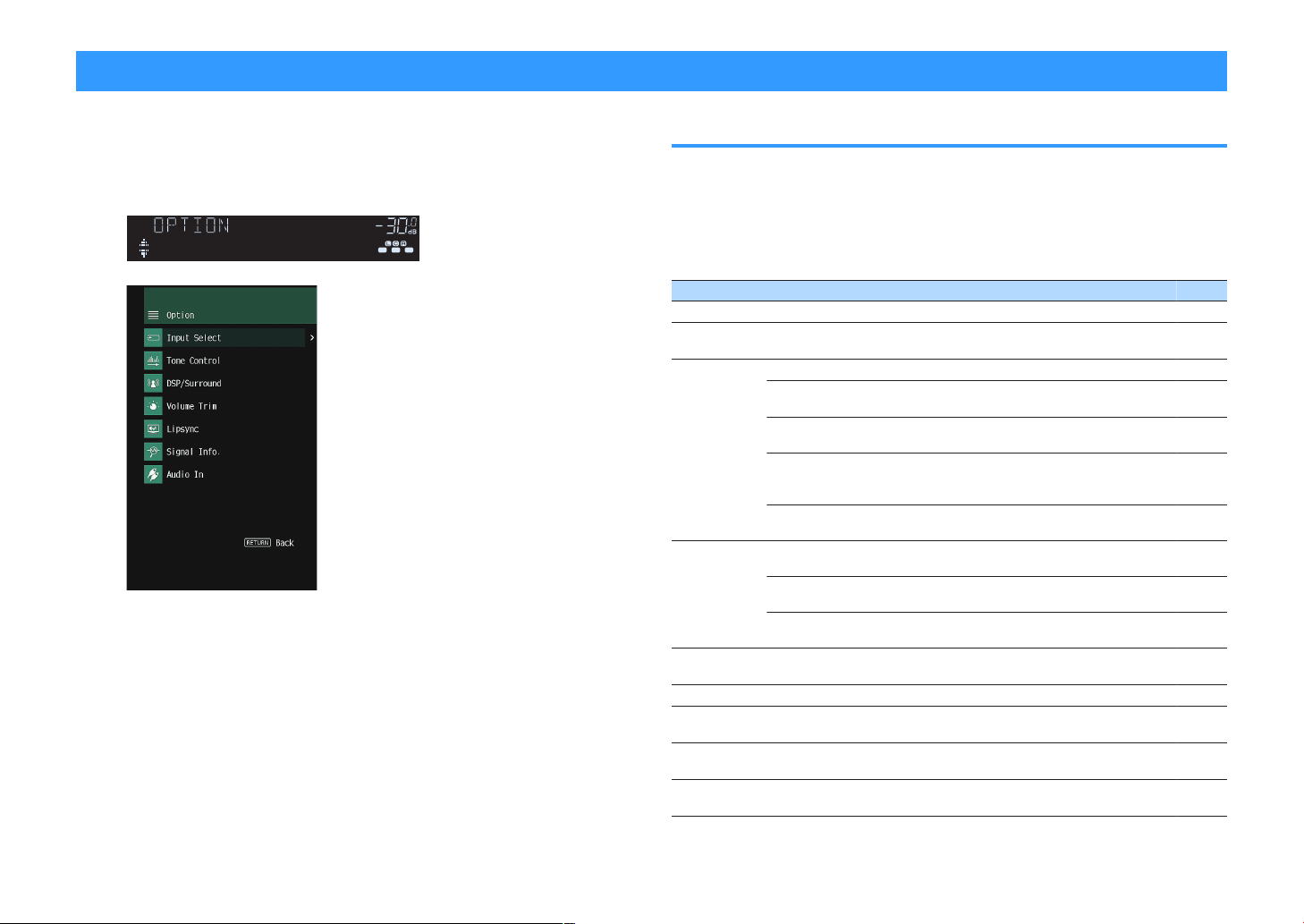

Configuring playback settings for different playback sources

(Option menu)......................................................................................... 78

Option menu items............................................................................................................................................................... 78

CONFIGURATIONS 82

Configuring various functions (Setup Menu)....................................... 82

Setup menu items................................................................................................................................................................. 83

Speaker...................................................................................................................................................................................... 85

HDMI........................................................................................................................................................................................... 90

Sound......................................................................................................................................................................................... 92

ECO............................................................................................................................................................................................. 95

Function.................................................................................................................................................................................... 96

Network..................................................................................................................................................................................... 99

Bluetooth............................................................................................................................................................................... 101

Language............................................................................................................................................................................... 102

Configuring the system settings (ADVANCED SETUP menu)............ 103

ADVANCED SETUP menu items..................................................................................................................................... 103

Changing the speaker impedance setting (SP IMP.).............................................................................................. 104

Selecting the remote control ID (REMOTE ID).......................................................................................................... 104

Changing the FM/AM tuning frequency setting (TU)............................................................................................ 104

Switching the video signal type (TV FORMAT)......................................................................................................... 104

Selecting the HDMI 4K signal format (4K MODE).................................................................................................... 105

DTS Format Notification Setting (DTS MODE).......................................................................................................... 105

Restoring the default settings (INIT)............................................................................................................................. 105

Updating the firmware (UPDATE)................................................................................................................................. 106

Checking the firmware version (VERSION)................................................................................................................. 106

Updating the unit’s firmware via the network................................... 107

Updating the unit’s firmware immediately............................................................................................................... 107

Updating the unit’s firmware at power off................................................................................................................ 107

APPENDIX 109

Frequently asked questions................................................................ 109

Troubleshooting................................................................................... 111

First, check the following:................................................................................................................................................ 111

Power, system and remote control............................................................................................................................... 111

Audio....................................................................................................................................................................................... 112

Video........................................................................................................................................................................................ 114

FM/AM radio......................................................................................................................................................................... 115

USB and network................................................................................................................................................................. 116

Bluetooth®............................................................................................................................................................................. 117

Error indications on the front display................................................. 118

Glossary................................................................................................. 119

Audio information.............................................................................................................................................................. 119

HDMI and video information.......................................................................................................................................... 120

Network information......................................................................................................................................................... 121

Yamaha technologies........................................................................................................................................................ 121

Supported devices and file formats.................................................... 122

Supported devices.............................................................................................................................................................. 122

File formats............................................................................................................................................................................ 122

Video signal flow.................................................................................. 123

Information on HDMI........................................................................... 124

HDMI Control........................................................................................................................................................................ 124

Audio Return Channel (ARC)........................................................................................................................................... 126

HDMI signal compatibility............................................................................................................................................... 126

Trademarks........................................................................................... 127

Specifications........................................................................................ 128

BEFORE USING THE UNIT

Within 6 m (20 ft)

30° 30°

Accessories

Remote control

Check that the following accessories are supplied with the product.

£ AM antenna £ FM antenna

* One of the above is supplied depending on

the region of purchase.

£ YPAO microphone £ Remote control

£ Batteries (AAA, R03, UM-4) (x2)

£ CD-ROM (Owner's Manual

£ Quick Start Guide

How to use this manual

• Some features are not available in certain regions.

• Due to product improvements, specifications and appearance are subject to change without notice.

• This manual explains operations using the supplied remote control.

• This manual describes all the “iPod touch”, “iPhone” and “iPad” as the “iPhone”. “iPhone” refers to “iPod touch”, “iPhone” and “iPad”, unless otherwise specified.

Notice:

Indicates precautions for use to avoid the possibility of malfunction/damage to the unit.

Note:

Indicates instructions and supplementary explanations for optimum use.

The supplied remote control is used as follows.

Insert the batteries

Insert the batteries the right way round.

)

Operating range of the remote control

Point the remote control at the remote control sensor on the unit and remain within the operating range shown below.

FEATURES

What you can do with the unit

The unit is equipped with full of useful functions.

Supports 2- to 7.1-channel speaker system

You can enjoy your favorite acoustic spaces in various styles.

YPAO automatically optimizes the speaker settings to suit your room.

• “Optimizing the speaker settings automatically (YPAO)”

(p.34)

CINEMA DSP allows you to create stereo or multichannel sounds with the sound fields like actual movie theaters and concert halls in your own room.

• “Enjoying stereoscopic sound fields (CINEMA DSP 3D)” (p.51)

You can enjoy compressed music with enhanced sound (Compressed Music Enhancer).

• “Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed Music Enhancer)” (p.54)

The Zone A/B function allows you to playback an input source in the room where the unit is installed (Zone A) and in another room (Zone B).

• “Playing back music in multiple rooms” (p.73)

Change the input source and favorite settings with one touch (SCENE)

The SCENE function allows you to select the input source and settings registered to the corresponding scene, such as sound program and Compressed Music Enhancer on/off, with just one touch.

• “Selecting the input source and favorite settings with one touch (SCENE)”

4K Ultra HD signal and HDCP 2.2

(p.49)

supported

You can enjoy the high definition video quality of 4K with HDCP 2.2 that complies with the latest copyright protection.

• “Selecting the HDMI 4K signal format (4K MODE)” (p.105)

Support for the Latest Surround Format, Dolby Atmos® and DTS:X™ with presence speakers

The unit supports Dolby Atmos and DTS:X that will fill the room with multidimensional sound. You can enjoy Dolby Atmos, DTS:X or CINEMA DSP 3D with the layout for presence speakers that suits your listening environment.

• “Typical speaker layouts” (p.16)

• “Presence speaker layout” (p.20)

Wide variety of supported content via network

When the unit is connected to a network by establishing a wired or wireless connection, you can enjoy various contents via network on the unit.

You can select a wired or wireless connection to a network.

• “Preparing for connecting to a network” (p.30)

• “Connecting to a network wirelessly” (p.38)

You can play back music files stored on your PC or DLNA-compatible NAS on the unit.

• “Playing back music stored on media servers (PCs/ NAS)” (p.

You can listen to Internet radio stations from all over the world.

• “Listening to Internet radio” (p.70)

The AirPlay function allows you to play back iTunes or iPhone/iPad/iPod touch music on the unit via network.

• “Playing back music with AirPlay” (p.62)

67)

The ECO mode (power saving function) allows you to create an eco-friendly home theater system

When the ECO mode is enabled, you can reduce the unit's power consumption.

• “ECO Mode” (p.95)

Sequential operation of a TV, AV receiver, and BD/DVD player (HDMI Control)

When the unit is connected to an HDMI Controlcompatible TV and BD/DVD player with each HDMI cable, you can control the unit (such as power and volume) and BD/DVD player with TV remote control operations.

• “HDMI Control” (p.124)

Supports Bluetooth® devices

You can play back music stored on a Bluetooth device.

• “Playing back music stored on a Bluetooth

Supports USB storage devices

You can play back music stored on a USB storage device.

• “Playing back music stored on a USB storage

device”

(p.60)

(p.64)

Connecting various devices

A number of HDMI jacks and various input/output jacks on the unit allow you to connect video devices (such as BD/DVD players), audio devices (such as CD players), game consoles, portable audio player, and other devices.

• “Connecting a TV/playback devices” (p.24)

Playing back TV audio in surround sound with a single HDMI cable connection (Audio Return Channel: ARC)

When using an ARC-compatible TV, you only need one HDMI cable to enable video output to the TV, audio input from the TV, and the transmission of HDMI Control signals.

• “Connecting a TV” (p.25)

Creating 3-dimensional sound fields

Connecting presence speakers allows you to create a natural 3-dimensional sound field in your own room (CINEMA DSP 3D). Even when no presence speakers are connected, the Virtual Presence Speaker (VPS) function produces 3D surround sound. In addition, the unit creates Virtual Surround Back Speaker (VSBS) using the surround speakers to add a sense of depth to the rear sound field even when no surround back speakers are connected.

• “Enjoying stereoscopic sound fields (CINEMA DSP 3D)” (p.51)

Surround playback with 5 speakers placed in front

You can enjoy the surround sound even when the surround speakers are placed in front.

• “Enjoying surround sound with 5 speakers placed in front (Virtual CINEMA FRONT)” (p.52)

Enjoying pure high fidelity sound

When the direct playback mode is enabled, the unit plays back the selected source with the least circuitry, which lets you to enjoy Hi-Fi sound quality.

• “Enjoying pure high fidelity sound (direct playback)” (p.54)

Enhanced bass reproduction

Extra Bass allows you to enjoy enhanced bass reproduction that does not depend on the speakers used.

• “Enhancing the bass (Extra Bass)” (p.54)

Listening to FM/AM radio

The unit is equipped with a built-in FM/AM tuner. You can register up to 40 favorite radio stations as presets.

• “Listening to FM/AM radio” (p.55)

Easy operation with a TV screen

You can operate the USB storage device, view information, or easily configure the settings using the on-screen menu.

Auto Rename function

The unit automatically creates input source names according to the HDMI-compatible devices connected, and displays the respective input source names on the front display.

• “Input Rename” (p.96)

Useful applications

The useful application for connections and operations of the unit is as follows.

Application for tablets “AV SETUP

GUIDE”

AV SETUP GUIDE is an application that assists you with cable connections between AV Receiver and source devices as well as AV Receiver This app guides you through the various settings such as speaker connections, TV and source device connections and assigning the power amp.

Functions:

1) Connection support guide – Speaker connection – TV/source devices connection

2) Setup support guide – Automatic network setup of HDMI, power amp

assign, etc. – Various setup assistance with illustrations. – YPAO setting guidance

3) View Owner's Manual

* This application is for tablets only.

setup.

Application for smartphone /

tablets “AV CONTROLLER”

AV CONTROLLER is an application that assists you with various operations of AV Receiver without the remote control. This app allows you not only to control the unit’s power and volume but also to select the input source and start/stop playback, as shown below.

Functions:

• Power on/off

Volume up/down

•

• Mute

• Music Play

• Input Selection

• DSP Mode Selection

• SCENE selection

• Blu-ray player fundamental control

• Seamless control between the Yamaha AV Receiver and Blu-ray player

• Demo mode - Explains how to use this app

For details, search for “AV CONTROLLER” on the App Store or Google Play.

For details, search for “AV SETUP GUIDE” on the App Store or Google Play™.

Application for smartphone /

tablets "MusicCast CONTROLLER"

MusicCast CONTROLLER is an application that allows you to link a MusicCast compatible device to other MusicCast compatible devices in other rooms and play them back simultaneously. This app lets you use your smartphone or other mobile device instead of the remote control to easily select music to play back as well as configure the unit and MusicCast compatible devices.

Functions:

• Selecting and playing back various content – Play back music from your mobile device – Select an Internet radio station – Play back music files stored on media servers

(PCs/NAS)

– Play back music files stored on a USB storage

device

• Operating and configuring the unit – Select the input source, adjust the volume and

mute the audio output

– Select from a wide variety of sound processing

features

For details, search for “MusicCast CONTROLLER” on the App Store or Google Play.

Part names and functions

PROGRAM

TONE CONTROL

STRAIGHT

(CONNECT)

AUX USB

AUDIO

5V 1A

SCENE

INPUT

PHONES

SILENT CINEMA

YPAO MIC

MEMORY

INFO (WPS)

PRESET

FM AM TUNING

DIRECT

VOLUME

BD DVD

NET

RADIO

3 4 6 7 8

51 09

B C D E F H I JG

The part names and functions of the unit and the supplied remote control are as follows.

Front panel

z (power) key

Turns on/off (standby) the unit.

Standby indicator

Lights up when the unit is in standby mode under any of the following conditions.

• HDMI Control is enabled (p.90)

• Standby Through is enabled (p.90)

• Network Standby is enabled (p.100)

YPAO MIC jack

For connecting the supplied YPAO microphone (p.34).

Remote control sensor

Receives remote control signals (p.5).

INFO (WPS) key

Selects the information displayed on the front display (p.48).

Enters the wireless LAN connection setup (WPS button configuration) by holding down for 3 seconds (

MEMORY key

Registers FM/AM radio stations as preset stations (p.56).

PRESET keys

Select a preset FM/AM radio station (p.58).

FM and AM keys

Switch between FM and AM (p.55).

TUNING keys

Select the radio frequency (p.55).

Front display

Displays information (p.11).

DIRECT key

Enables/disables the direct playback mode (p.54).

PHONES jack

For connecting headphones.

INPUT keys

Select an input source.

TONE CONTROL key

p.40).

Adjusts the level of high-frequency range (Treble) and lowfrequency range (Bass

) individually (p.79).

SCENE keys

Select the registered input source and sound program with one touch. Also, turns on the unit when it is in standby mode (p.49).

PROGRAM keys

Select a sound program or a surround decoder (p.50).

STRAIGHT (CONNECT) key

Enables/disables the straight decode mode (p.53).

Enters the MusicCast network addition and the wireless LAN setup by holding down for 5 seconds (p.

AUX jack

46).

For connecting devices, such as portable audio players (p.28).

USB jack

For connecting a USB storage device (p.64).

VOLUME knob

Adjusts the volume.

Front display (indicators)

ResHi

YPAO

VOL.

PARTY

ENHANCER

ECO

OUT

A-DRC

SLEEP

STEREO

TUNED

VOL.

SBL SB SBR

MUTE VIRTUAL

ZONE

LINK

MASTER

FPRFPL

1 5 7

9342 0 A6

CB C

FED G

HDMI

Lights up when HDMI signals are being input or output.

OUT

Lights up when HDMI signals are being output.

LINK MASTER

Lights up when the unit is the master device of the MusicCast network.

Firmware update indicator

Lights up when a firmware update is available via the network.

Bluetooth indicator

Light up while the unit is connected to a Bluetooth device.

CINEMA DSP

Lights up when CINEMA DSP (p.51) or CINEMA DSP 3D

51) is working.

(p.

SLEEP

Lights up when the sleep timer is on.

STEREO

Lights up when the unit is receiving a stereo FM radio signal.

TUNED

Lights up when the unit is receiving an FM/AM radio station signal.

ZONE indicators

Indicate the zone to which the sound is output (p.75).

A-DRC

Lights up when Adaptive DRC (p.79) is working.

Volume indicator

Indicates the current volume.

VIRTUAL

Lights up when the Virtual Surround Back Speaker (VSBS) (p.16), Virtual Presence Speaker (VPS) (p. CINEMA DSP (p.52) or Virtual CINEMA FRONT (p.52) is working.

ECO

Lights up when the eco mode (p.95) is enabled.

Cursor indicators

Indicate the remote control cursor keys currently operational.

Information display

Displays the current status (such as input name and sound mode name). You can switch the information by pressing

48).

INFO (p.

Signal strength indicator

Indicates the strength of the wireless signal (p.38).

Note

This indicator may light up when the unit is added to the MusicCast network. For details, see MusicCast” (p.46).

ENHANCER

Lights up when Compressed Music Enhancer (p.54) is working.

“Setting the

51), Virtual

Speaker indicators

Indicate speaker terminals from which signals are output.

A Front speaker (L) S Front speaker (R) D Center speaker F Surround speaker (L) G Surround speaker (R) H Surround back speaker (L) J Surround back speaker (R) K Surround back speaker B Presence speaker (L) N Presence speaker (R) L Subwoofer

MUTE

Blinks when audio is temporarily muted.

Rear panel

OPTICAL

COAXIAL

VIDEOVIDEOVID

75Ω

NTENNA

ADIO)

MONIT

OUT

EOUT

SUBWOOF

D/DV

ARC

ETWORK

(NET)

RONT

CENTER

SPEA

ERS

RROUND

SING

3

AUDIO

1

AUDI0

2

1

(TV)

HDMI

(HDCP2.2)

DMIO

(HDC

P2.2)

7 8

▪ The area around the video/audio output jacks is marked in white

on the actual product to prevent improper connections.

HDMI OUT jack

For connecting to an HDMI-compatible TV and outputting video/audio signals ( signal can also be input through the HDMI OUT jack.

HDMI 1–4 jacks

For connecting to HDMI-compatible playback devices and inputting video/audio signals (

ANTENNA jacks

For connecting to FM and AM antennas (p.29).

NETWORK jack

For a wired connection to a network (p.30).

Wireless antenna

For a wireless (Wi-Fi) connection to a network (p.30) and a Bluetooth connection (

Power cable

For connecting to an AC wall outlet (p.31).

p.24). When using ARC, TV audio

p.26).

p.60).

AV jacks AUDIO jacks

For connecting to video/audio playback devices and inputting video/audio signals (

MONITOR OUT jack

p.26).

For connecting to a TV and outputting video signals (p.24).

SUBWOOFER PRE OUT 1–2 jacks

For connecting to a subwoofer (with built-in amplifier)

22).

(p.

SPEAKERS terminals

For connecting to speakers (p.22).

VOLTAGE SELECTOR

(Taiwan, Brazil and General models only) Selects the switch position according to your local voltage (p.31).

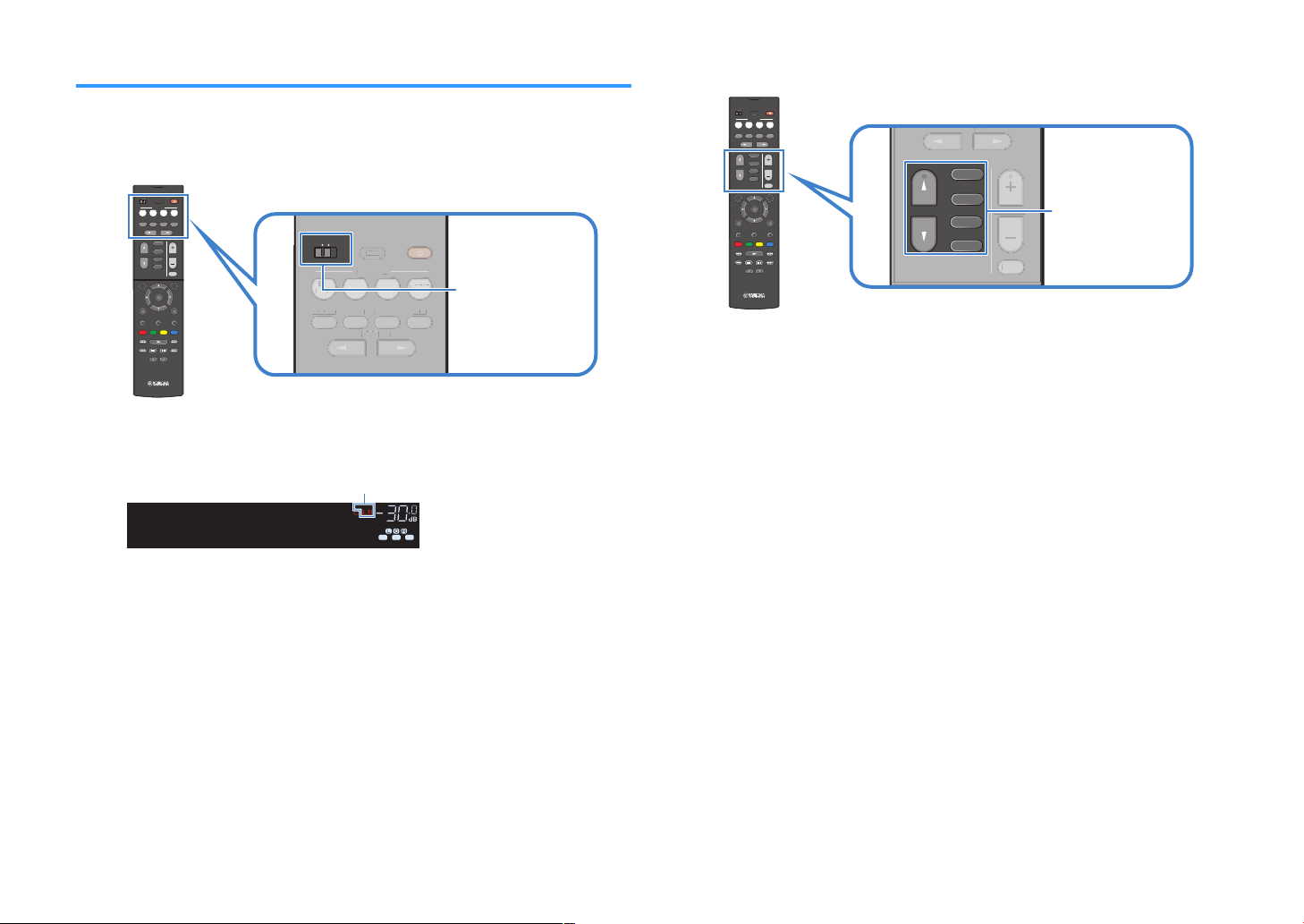

Remote control

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROG RAM

USB

STRAIGHT

ENHANCER

BASS

INP UT

DVD

SC ENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

3 4

Remote control signal transmitter

Transmits infrared signals.

z (receiver power) key

Turns on/off (standby) the unit.

SLEEP key

Pressing this key repeatedly will specify the time (120 min, 90 min, 60 min, 30 min, off), in which the unit switches to the standby mode.

ZONE switch

Changes the zone that is controlled by the remote control

74).

(p.

SCENE keys

Select the registered input source and sound program with one touch. Also, turn on the unit when it is in standby mode (p.49).

Sound mode keys

Select a sound mode (p.50).

Input selection keys

Select an input source for playback.

You can select directly each input source by pressing the following keys.

FM/AM

USB

NET

FM/AM radio

USB jack (on the front panel)

SERVER, NET RADIO, MusicCast Link, AirPlay and network sources (press repeatedly to select a desired source)

BLUETOOTH

SETUP key

Bluetooth device

Displays the setup menu (p.82).

Menu operation keys

Cursor keys

ENTER

RETURN

Select a menu or the parameter.

Confirms a selected item.

Returns to the previous screen.

9:A External device operation keys

Let you perform playback operations when “USB” or “NET” is selected as the input source, or control playback of the HDMI Control-compatible playback device.

Note

▪ The playback devices must support HDMI Control. Some

HDMI Control-compatible devices cannot be used.

▪ You can assign the unit's functions to the RED/GREEN/

YELLOW/BLUE keys (

Radio keys

p.98).

Operate the FM/AM radio when “TUNER” is selected as the input source (p.55).

MEMORY

Registers FM/AM radio stations as presets.

PRESET

TUNING

VOLUME keys

Select a preset station.

Select the radio frequency.

Adjust the volume.

MUTE key

Mutes the audio output.

OPTION key

Displays the option menu (p.78).

DISPLAY key

Turns on/off the browse screen, playback screen, etc.

PREPARATIONS

General setup procedure

1 Placing speakers................................................................................................................................ (p.15)

2 Connecting speakers........................................................................................................................ (p.22)

3 Connecting a TV/playback devices.................................................................................................. (p.24)

4 Connecting the FM/AM antennas.................................................................................................... (p.29)

5 Preparing for connecting to a network........................................................................................... (p.30)

6 Connecting the power cable............................................................................................................ (p.31)

7 Selecting an on-screen menu language.......................................................................................... (p.32)

8 Configuring the necessary speaker settings................................................................................... (p.33)

9 Optimizing the speaker settings automatically (YPAO)................................................................ (p.34)

10 Connecting to a network wirelessly................................................................................................ (p.38)

11 Setting the MusicCast....................................................................................................................... (p.46)

This completes all the preparations. Enjoy playing movies, music, radio and other content with the unit!

1 Placing speakers

Select the speaker layout for the number of speakers that you are using and place the speakers and subwoofer in your room. This section describes the representative speaker layout examples.

Notice

▪ (U.S.A. and Canada models only)

Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the unit’s speaker impedance to “6

▪ (Except for U.S.A. and Canada models)

Use speakers with an impedance of at least 6 W.

▪ Use a subwoofer with built-in amplifier.

▪ Be sure to connect the front left and right speakers.

Ω MIN”. For details, see “Setting the speaker impedance” (p.21).

Typical speaker layouts

39 9

E R

10° to 30° 10° to 30°

0.5 to 1 m

(1.6 to 3.3 ft)

0.5 to 1 m

(1.6 to 3.3 ft)

1.8 m (5.9 ft) 1.8 m (5.9 ft)

5.1.2-channel system (using presence speakers)

This speaker system uses the presence speakers to produce a natural 3-dimensional sound field, and also creates Virtual Surround Back Speaker (VSBS) using the surround speakers to add a sense of depth to the rear sound field. This system is suited for enjoying not only 5.1-channel but also for 7.1-channel contents.

Speaker type Abbr. Function

Front (L/R)

Center

Surround (L/R)

Presence (L/R)

Subwoofer

1/2

4/5

E/R

Produce front left/right channel sounds (stereo sounds).

Produces center channel sounds (such as movie dialogue and vocals).

Produce surround left/right channel sounds.

Produce CINEMA DSP effect sounds or heights channel sounds of Dolby Atmos and DTS:X contents.

Produces LFE (low-frequency effect) channel sounds and reinforces the bass parts of other channels. This channel is counted as “0.1”. You can connect two subwoofers to the unit and place them on the left/right (or front/rear) sides of the room.

Note

▪ “5.1.2-channel” denotes “standard 5.1-channel plus 2 for overhead speaker channels”. For details on how

to place overhead speakers (presence speakers), see

▪ To have a full effect of Dolby Atmos contents, we recommend using this speaker system. However, you

can also play back Dolby Atmos contents with the 7.1 system (using surround back speakers).

▪ To have a full effect of DTS:X contents, we recommend using this speaker system.

▪ You can connect two subwoofers (with built-in amplifier) to the unit. Two subwoofers connected to the unit

output the same sounds.

▪ When using only one subwoofer, you can place it either in the left or right side.

“Presence speaker layout” (p.20).

4 5

39 9

6 7

10° to 30° 10° to 30°

30 cm (1 ft) or more

7.1-channel system

This speaker system creates Virtual Presence Speaker (VPS) using the front, center and surround speakers to produce a 3-dimensional sound field, and also allows you to enjoy extended surround sounds using the surround back speakers.

Speaker type Abbr. Function

Front (L/R)

Center

Surround (L/R)

Surround back (L/R)

Subwoofer

1/2

4/5 6/7

Produce front left/right channel sounds (stereo sounds).

Produces center channel sounds (such as movie dialogue and vocals).

Produce surround left/right channel sounds.

Produce surround back left/right channel sounds.

Note

▪ When using only one surround back speaker (6.1-channel system), place it straight behind the listening

position (middle of 6 and 7

▪ You can connect two subwoofers (with built-in amplifier) to the unit. Two subwoofers connected to the unit

output the same sounds.

▪ When using only one subwoofer, you can place it either in the left or right side.

in the diagram).

Other speaker layouts

4 5

1 2

10° to 30° 10° to 30°

1 2

4 5

E R

The following speaker layouts are also available.

5.1-channel system

Note

▪ You can enjoy surround sound even without the center speaker

(4.1-channel system).

▪ In addition to this speaker layout, you can use bi-amp connections

or the Zone B function that allows you to play back an input source in another room (Zone B). For details, see high-quality sounds with bi-amp connections” (p.72) or “Playing back music in multiple rooms” (p.73).

“Playing back more

5.1 system (front 5.1-channel)

(using surround speakers)

Note

▪ To utilize this configuration, set “Virtual CINEMA FRONT” (p.88)

in the “Setup” menu to “

▪ You can enjoy surround sound even without the center speaker

(front 4.1-channel system).

▪ In addition to this speaker layout, you can use bi-amp connections

On”.

“Playing back more

3.1.2 system

Note

You can also play back Dolby Atmos and DTS:X contents with this speaker system.

1 2

3.1-channel system

2.1-channel system

Note

In addition to this speaker layout, you can use bi-amp connections or the Zone B function that allows you to play back an input source in another room (Zone B). For details, see with bi-amp connections” (p.72) or “Playing back music in multiple rooms” (p.73).

“Playing back more high-quality sounds

Note

“Playing back more high-quality sounds

Presence speaker layout

The unit provides three layout patterns for presence speakers (Front Height, Overhead and Dolby Enabled SP). Choose a layout pattern that suits your listening environment.

Note

▪ You can enjoy Dolby Atmos, DTS:X or Cinema DSP 3D with any layout pattern.

▪ When using presence speakers installed to the ceiling or when using the Dolby Enabled speakers as the

presence speakers, configure the “Layout” setting in the “

Front Height

Install the presence speakers on the front wall.

It delivers a natural sound field with excellent linkage of left, right, top and bottom sound spaces, and sound extensity effectively.

Overhead

Install the presence speakers to the ceiling above the listening position.

It delivers realistic overhead sound effects and sound field with excellent linkage of front and rear sound spaces effectively.

Setup” menu before performing YPAO (p.34).

Dolby Enabled SP

Use the Dolby Enabled speakers as the presence speakers.

This utilizes sounds reflected from ceiling and lets you enjoy overhead sounds only from speakers that are placed at the same level as traditional speakers.

Note

Place the Dolby Enabled speakers on top of or near the traditional front speakers. A Dolby Enabled speaker unit may be integrated into a traditional speaker. For details, refer to the instruction manual of the Dolby Enabled speakers.

(power)

STRAIGHT

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

VOL.

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

SP IMP.••8¬MIN

Notes on installation of ceiling speakers

When installing presence speakers to a ceiling, install them just above the listening position, or the ceiling between the extensions of the front speakers and listening position.

Notice

▪ Be sure to use speakers that are made for ceiling use and take anti-drop measures. Ask a qualified

contractor or dealer personnel for installation works.

Setting the speaker impedance

(U.S.A. and Canada models only)

Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the speaker impedance to “6 Ω MIN”.

Before connecting speakers, connect the power cable to an AC

wall outlet.

While holding down STRAIGHT on the front panel, press z

(power).

Check that “SP IMP.” is displayed on the front display.

Press STRAIGHT to select “6 Ω MIN”.

Press z (power) to set the unit to standby mode and remove the

power cable from the AC wall outlet.

You are now ready to connect the speakers.

2 Connecting speakers

–

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

PREOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

OUT

SUBWOOF

WORK

(NET)

RONT

CENTER

ERS

RRO

SING

R E

2 1

7 6

Audio pin cable

Use a subwoofer with built-in amplifier.

Subwoofer

Surround (L)Surround (R)

CenterFront (R) Front (L)

10 mm (3/8”)

Surround back (R) Surround back (L)

Presence (R) Presence (L)

* You cannot use the surround back speakers and the presence

speakers at the same time.

Precaution for connecting of the speaker cables

▪ Prepare speaker cables in a place away from the unit, to avoid accidentally dropping wire

strands into the unit's interior which could result in a short circuit or malfunction of the unit.

▪ Improper connecting of the speaker cables may cause short circuit and also damage the unit

or the speakers.

– Twist the bare wires of the speaker cables firmly together.

– Do not let the bare wires of the speaker cable touch one

another.

– Do not let the bare wires of the speaker cable come into

contact with the unit’s metal parts (rear panel and screws).

▪ If “Check SP Wires” appear on the front display when the unit is turned on, turn off the unit,

and then check the speaker cables short circuit.

Connect the speakers placed in your room to the unit. The following diagrams provide connections for 5.1- and 7.1-channel system as an example. For other systems, connect speakers while referring to the connection diagram for the 5.1‑channel system.

Notice

▪ Remove the unit’s power cable from an AC wall outlet and turn off the subwoofer before connecting the speakers.

▪ The speaker has the polarity (+/-). Connect the speaker cable correctly between the positive (+) terminal of the unit and the speaker, and also between the negative (-) terminal of them.

Cables required for connection (commercially available)

Speaker cables (x the number of speakers)

Audio pin cable (x1: for connecting a subwoofer)

FRONT

+ (red)

- (black)

FRONT

Banana plug

AUDIO 3

Audio pin cable

Connecting speaker cables

Connecting the subwoofer (with built-in amplifier)

Speaker cables have two wires. One is for connecting the negative (-) terminals of the unit and the speaker to each other, and the other is for the positive (+) terminals. If the wires are colored to prevent confusion, connect the black wire to the negative and the other wire to the positive terminal.

Remove approximately 10 mm (3/8”) of insulation from the ends of

the speaker cable, and twist the bare wires of the cable firmly together.

Loosen the speaker terminal.

Insert the bare wires of the cable into the gap on the side (upper

right or bottom left) of the terminal.

Tighten the terminal.

Using a banana plug

(U.S.A., Canada, China, Taiwan, Brazil and General models only)

Tighten the speaker terminal.

Insert a banana plug into the end of the terminal.

Use an audio pin cable to connect the subwoofer.

Connecting front speakers that support bi-amp connections

When using front speakers that support bi-amp connections, connect them to the FRONT terminals and details, see “Playing back more high-quality sounds with bi-amp connections” (p.72).

Note

Surround back speakers, presence speakers, bi-amp speakers or Zone B speakers cannot be connected simultaneously.

Connecting Zone B speakers

The Zone A/B function allows you to playback an input source in the room where the unit is installed (Zone A) and in another room (Zone B). To connect the Zone B speakers, see “Playing back music in multiple rooms”

Note

Surround back speakers, presence speakers, bi-amp speakers or Zone B speakers cannot be connected simultaneously.

SURROUND BACK/PRESENCE/BI-AMP/ZONE B terminals. For

(p.73).

3 Connecting a TV/playback devices

HDMI cable

Video pin cable

OPTICAL

Digital optical cable

Digital coaxial cable

Stereo pin cable

Stereo mini-plug cable

The unit is equipped with a variety of input jacks including HDMI input jacks to allow you to connect different types of playback devices. For information on how to connect a Bluetooth device or a USB storage device, see the following pages.

• Connecting a Bluetooth device (p.60)

• Connecting a USB storage device (p.64)

Input/output jacks and cables

Video/audio jacks

HDMI jacks

Transmit digital video and digital sound through a single jack. Use an HDMI cable.

Note

▪ Use a 19-pin HDMI cable with the HDMI logo. We

recommend using a cable less than 5.0 m (16.4 ft) long to prevent signal quality degradation.

▪ The unit’s HDMI jacks support the HDMI Control, Audio

Return Channel (ARC), and 3D and 4K Ultra HD video transmission (through output) features.

▪ Use a Premium High Speed HDMI Cable or Premium High

Speed Cable with Ethernet to enjoy 3D or 4K Ultra HD videos.

Video jacks

VIDEO jacks

Transmit analog video signals. Use a video pin cable.

Audio jacks

OPTICAL jack

Transmit digital audio signals. Use a digital optical cable. If there is a protective cap on the tip of the cable, remove it before using the cable.

COAXIAL jacks

Transmit digital audio signals. Use a digital coaxial cable.

AUDIO jacks

(Stereo L/R jacks)

Transmit analog stereo audio signals. Use a stereo pin cable (RCA cable).

(Stereo mini jack)

Transmits analog stereo audio signals. Use a stereo mini-plug cable.

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

HDMIOUT

(HDCP2.2)

OPTICAL

AUDIO1

(TV)

HDMI

OPTICAL

O O

HDMI

OPTICAL

O O

The unit (rear)

AUDIO 1 (OPTICAL) jack

HDMI OUT jack HDMI input

Audio output

(digital optical)

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

OPTICAL

AUDIO1

(TV)

MONITOR OUT

VIDEO

OPTICAL

O O

The unit (rear)

AUDIO 1 (OPTICAL) jack

MONITOR OUT (VIDEO) jack

Video input

(composite video)

Audio output

(digital optical)

Connecting a TV

Connect a TV to the unit so that video input to the unit can be output to the TV. You can also enjoy playback of TV audio on the unit.

To maximize the performance of the unit, we recommend connecting a TV with an HDMI cable.

HDMI connection

Connect the TV to the unit with an HDMI cable and a digital optical cable.

Note

▪ A digital optical cable connection allows audio from the TV to be played back on the unit. A digital optical

cable connection is not needed in the following cases:

– If your TV supports Audio Return Channel (ARC)

– If you will receive TV broadcasts only from the set-top box

▪ If you connect a TV that supports HDMI Control to the unit with an HDMI cable, you can control the unit’s

power and volume with the TV’s remote control.

To use HDMI Control and ARC, you need to configure the HDMI settings on the unit. For details on the settings, see “Information on HDMI”

About Audio Return Channel (ARC)

▪ ARC allows audio signals to travel both ways. If you connect a TV that supports ARC to the unit with a

single HDMI cable, you can output video/audio to the TV or input TV audio to the unit.

▪ When using ARC, connect a TV with an HDMI cable that supports ARC.

(p.124).

Composite video connection

When connecting any video device with a video pin cable, connect the TV to the MONITOR OUT

Note

▪ If you connect your TV to the unit with a cable other than HDMI, video input to the unit via HDMI cannot be

output to the TV.

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI.

▪ If you will receive TV broadcasts only from the set-top box, you do not need to make an audio cable

connection between the TV and the unit.

VIDEO (composite video) connection

(VIDEO) jack.

Connect the TV to the unit with a video pin cable and a digital optical cable.

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

HDMI

The unit (rear)

HDMI OUT jack

HDMI 1–4 jacks

Video device

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

COAXIAL

VIDEO

COAXIAL

VIDEO

AV 1

C C

The unit (rear)

AV 1 (COAXIAL) jack or AV 2–3

(AUDIO) jacks

AV 1–3 (VIDEO) jacks

Video output

(composite video)

Audio output

(digital coaxial or analog

stereo)

Video device

Connecting video devices (such as BD/DVD players)

Connect video devices such as BD/DVD players, set-top boxes (STBs) and game consoles to the unit. Depending on the video/audio output jacks available on your video device, choose one of the following connections. We recommend using an HDMI connection if the video device has an HDMI output jack.

Note

If the combination of video/audio input jacks available on the unit does not match your video device, change its combination according to the output jacks of your device (p.27).

HDMI connection

Connect a video device to the unit with an HDMI cable.

Composite video connection

Connect a video device to the unit with a video pin cable and an audio cable (digital coaxial or stereo pin cable). Choose a set of input jacks (on the unit) depending on the audio output jacks available on your video device.

Output jacks on video device

Video Audio

Composite video

Digital coaxial AV 1 (VIDEO + COAXIAL)

Analog stereo AV 2–3 (VIDEO + AUDIO)

Digital optical

Input jacks on the unit

You need to change the combination

of video/audio input jacks (p.27).

Note

To watch videos input to the HDMI 1–4 jacks, you need to connect your TV to the HDMI OUT jack of the unit (p.25).

Note

If you connect a video device to the unit via composite video connection, you need to connect your TV to the MONITOR OUT (VIDEO) jack of the unit (p.25).

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

VIDEO

OPTICAL

AUDIO1

(TV)

DEO

AV2

O O

The unit (rear)

AUDIO 1 (OPTICAL) jack

AV 2 (VIDEO) jack

Video output

(composite video)

Audio output

(digital optical)

Set-top box

MUTE

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

ENTER

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

MUTE

P MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETU

OPTION

ENTER

Cursor keys

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

Audio In

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

Audio•••AUDIO1

Changing the combination of video/audio input jacks

If the combination of video/audio input jacks available on the unit does not match your video device, change its combination according to the output jacks of your device. You can connect a video device that has the following video/audio output jacks.

Output jacks on video device Input jacks on the unit

Video Audio Video Audio

Digital optical HDMI 1–4 AUDIO 1 (OPTICAL)

HDMI

Digital coaxial HDMI 1–4

Analog stereo HDMI 1–4

AUDIO 2 (COAXIAL)

AV 1 (COAXIAL)

AUDIO 3 (AUDIO)

AV 2–3 (AUDIO)

Composite video Digital optical AV 1–3 (VIDEO) AUDIO 1 (OPTICAL)

Necessary setting

For example, if you have connected a video device to AV 2 (VIDEO) and AUDIO 1 (OPTICAL) jack of the unit, change the combination setting as follows.

Press OPTION.

Use the cursor keys (q/w) to select “Audio In” and press

ENTER.

Use the cursor keys (e/r) to select “AUDIO 1” (audio input

jack to be used).

Press OPTION.

This completes the necessary settings.

If you select “AV 2” as the input source by pressing INPUT, the video/audio

played back on the video device will be output from the unit.

After connecting external devices (such as a TV and playback

1 2

devices) and power cable of the unit, turn on the unit.

Press INPUT to select “AV 2” (video input jack to be used) as the input source.

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

COAXIAL

OPTICAL

COAXIAL

AUDI02

OPTICAL

AUDIO1

(TV)

C C

O O

The unit (rear)

AV 1–3 jacks

AUDIO 1–3 jacks

Audio output

(either digital optical, digital coaxial,

or analog stereo)

Audio device

PROGRAM

TONE CONTROL

STRAIGHT

(CONNECT)

AUX USB

AUDIO

5V 1A

INPUT

BD DVD

NET

RADIO

The unit (front)

Portable audio player

Connecting audio devices (such as CD players)

Connecting to the jack on the front panel

Connect audio devices such as CD players and MD players to the unit. Depending on the audio output jacks available on your audio device, choose one of the following connections.

Audio output jacks on audio device Audio input jacks on the unit

Digital optical AUDIO 1 (OPTICAL)

Digital coaxial

Analog stereo

AUDIO 2 (COAXIAL)

AV 1 (COAXIAL)

AUDIO 3 (AUDIO)

AV 2–3 (AUDIO)

Use the AUX jack on the front panel to temporarily connect devices such as portable audio players to the unit.

Before making a connection, stop playback on the device and turn down the volume on the unit.

If you select “AUX” as the input source by pressing INPUT, the audio played back on the device will be output from the unit.

Note

▪ You need to prepare the audio cable that matches the output jacks on your device.

▪ For details on how to connect a USB storage device, see “Connecting a USB storage device” (p.64).

OPTICAL

COAXIAL

VIDEO

75Ω

ANTENNA

(RADIO)

MONITOROUT

EOUT

SUBWOOFER

(BD/DVD)

231

ARC

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

AV3

AUDIO1

AUDI02

AUDI03

AV2

AV1

(TV)

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

The unit (rear)

FM antenna

AM antenna

ReleaseHold down Insert

4 Connecting the FM/AM antennas

Connect the supplied FM/AM antennas to the unit.

Fix the end of the FM antenna to a wall, and place the AM antenna on a flat surface.

Assembling and connecting the AM antenna

Note

▪ Unwind only the length of cable needed from the AM antenna unit.

▪ The wires of the AM antenna have no polarity.

5 Preparing for connecting to a network

5Ω

ANTENNA

(RADIO)

(BD/DVD)

314

ARC

ETWORK

(NET)

EAK

ERS

HDMI

(HDCP2.2)

HDMIOUT

(HDCP2.2)

LAN

WAN

Network Attached Storage

(NAS)

Internet

Modem

Wireless

router

Network cable

The unit (rear)

WIRELESS

Connect the unit to a router (access point) with a network cable, or prepare the wireless antenna for establishing a wireless network connection.

You can enjoy Internet radio or music files stored on media servers, such as PCs and Network Attached Storage (NAS), on the unit.

Connecting a network cable

Connect the unit to your router with a commercially-available STP network cable (CAT-5 or higher straight cable).

Note

▪ If you are using a router that supports DHCP, you do not need to configure any network settings for the

unit, as the network parameters (such as the IP address) will be assigned automatically to it. You only need to configure the network settings if your router does not support DHCP or if you want to configure the network parameters manually (

p.99).

▪ You can check whether the network parameters (such as IP address) are properly assigned to the unit in

“Information” (p.99) in the “Setup” menu.

▪ Some security software installed on your PC or the firewall settings of network devices (such as a router)

may block the access of the unit to the network devices or the Internet. In these cases, configure the security software or firewall settings appropriately.

▪ Each server must be connected to the same subnet as the unit.

▪ To use the service via the Internet, broadband connection is strongly recommended.

Preparing a wireless antenna

If you connect the unit wirelessly, erect the wireless antenna.

For information on how to connect the unit to a wireless network, see “Connecting to a network wirelessly”

(p.38).

Erect the wireless antenna.

Note

Do not apply excessive force on the wireless antenna. Doing so may damage the antenna.

6 Connecting the power cable

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

110V

120V

20V

40V

VOLT

GESELE

CTOR

The unit (rear)

VOLTAGE SELECTOR

ETWORK

(NET)

FRONT

CENTER

SPEAKERS

SURROUND

SINGLE

The unit (rear)

To an AC wall outlet

Warning

(Taiwan, Brazil and General models only)

Make sure you set VOLTAGE SELECTOR of the unit BEFORE plugging the power cable into an AC wall outlet. Improper setting of fire hazard.

Before connecting the power cable

Set the switch position of VOLTAGE SELECTOR according to your local voltage. Voltages are AC 110– 120/220–240 V, 50/60 Hz.

After all the connections are complete, plug in the power cable.

VOLTAGE SELECTOR

may cause damage to the unit and create a potential

7 Selecting an on-screen menu language

Select the desired on-screen menu language.

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the

unit (HDMI OUT jack).

Note

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If

not, carry out operations while viewing the front display.

▪ When you turn on the unit for the first time, a message regarding the network setup appears.

You can switch the language on this message screen.

Press SETUP.

Use the cursor keys to select “Language” and press ENTER.

To exit from the menu, press SETUP.

Note

The information on the front display is provided in English only.

Use the cursor keys to select the desired language.

8 Configuring the necessary speaker settings

If you use any of the following speaker configurations, follow the procedure below to configure the corresponding speaker settings manually before performing YPAO.

• Using surround back speakers (p.17), bi-amp connection (p.72) or Zone B speakers (p.

• Using the surround speakers for front 5.1-channel system (Virtual CINEMA FRONT)

18)

(p.

• Using the presence speakers for Dolby Atmos or DTS:X playback (p.20)

1 2

3 4 5 6

73)

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the unit (HDMI OUT jack).

Note

If you turn on the unit for the first time, the message regarding the network setup appears. For now, press RETURN and proceed to Step 3.

Press SETUP.

Use the Cursor keys to select “Speaker” and press ENTER.

Use the Cursor keys to select “Configuration” and press ENTER.

Configure the corresponding speaker settings.

▪ When using surround back speakers, bi-amp connections or Zone B

speakers, select system.

▪ When using the surround speakers for front 5.1-channel system (Virtual

CINEMA FRONT), select “Virtual CINEMA FRONT” (p.88), then select “On”.

▪ When using the presence speakers for Dolby Atmos or DTS:X playback,

“Layout” (p.87), then select your presence speaker layout.

select

“Power Amp Assign” (p.85), then select your speaker

To exit from the menu, press SETUP.

VOLUME HIGH CUT

CROSSOVER/

MIN MAXMIN MAX

1 2

4 5

The unit (front)

Ear height

9 Optimizing the speaker settings automatically (YPAO)

The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections, measures the distances from them to your listening position(s), and then automatically optimizes the speaker settings, such as volume balance and acoustic parameters, to suit your room.

Note

▪ When you use the front 5.1-channel speaker (Virtual CINEMA FRONT) configuration (p.18), set “Virtual

CINEMA FRONT” (p.88) in the “

▪ Please note the following when using YPAO.

– Use YPAO after connecting a TV and speakers to the unit.

– During the measuring process, test tones are output at high volume. Ensure that the test tones do not

frighten small children.

– During the measuring process, you cannot adjust the volume.

– During the measuring process, keep the room as quiet as possible.

– Do not connect headphones.

– Do not stand between the speakers and the YPAO microphone during the measurement process (about

3 minutes).

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the

unit (HDMI OUT jack).

Note

Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry out operations while viewing the front display.

” menu to “On” beforehand.

Setup

Place the YPAO microphone at your listening position and

connect it to the YPAO MIC jack on the front panel.

Note

Place the YPAO microphone at your listening position (same height as your ears). We recommend the use of a tripod as a microphone stand. You can use the tripod screws to stabilize the microphone.

Turn on the subwoofer and set the volume to half. If the crossover

frequency is adjustable, set it to maximum.

The following screen appears on the TV.

“Power Amp Assign” setting (p.85)

To start the measurement, use the cursor keys to select “Start”

and press ENTER.

The measurement will start in 10 seconds. Press ENTER to start the

measurement immediately.

Note

To stop the measurement temporarily, press RETURN and follow the procedure in “Error messages”

The following screen appears on the TV when the measurement finishes.

Note

Confirm the results displayed on the screen and press ENTER.

(p.36).

The number of speakers (front side/rear side/subwoofer)

Speaker distance (nearest/farthest)

Adjustment range of speaker output level

Warning message (if available)

▪ If any error message (such as E-1) or warning message (such as W-1) appears, see “Error

messages”

▪ A speaker with a problem is indicated by blinking of the speaker indicators in the front display. ▪ If multiple warnings are given (when operating with the front display), use the cursor keys (q/w)

to check the other warning messages.

or “Warning messages” (p.37).

(p.36)

Use the cursor keys (e/r) to select “SAVE” and press ENTER.

The adjusted speaker settings are applied.

Note

To finish the measurement without saving the result, select “CANCEL”.

Disconnect the YPAO microphone from the unit.

This completes optimization of the speaker settings.

Notice

▪ The YPAO microphone is sensitive to heat, so should not be placed anywhere where it could be

exposed to direct sunlight or high temperatures (such as on top of AV equipment).

Error messages

Error message

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

E-5:NOISY

VOL.

SLSWSR

E-5:NOISY

If any error message is displayed during the measurement, resolve the problem and perform YPAO again.

TV screen

Front display

Procedure to handle errors

Check the content of error message and press ENTER.

Use the cursor keys (e/r) to select the desired operation.

To exit the YPAO measurement:

Select “EXIT” and press ENTER.

Use the cursor keys (q/w) to select “Exit” and press ENTER.

Disconnect the YPAO microphone from the unit.

To retry the YPAO measurement from beginning:

Select “RETRY” and press ENTER.

To proceed with the current YPAO measurement (for E-5 and E-9 only):

Select “PROCEED” and press ENTER.

Error message Cause Remedy

E-1:No Front SP

(E-1:NO FRNT SP)

E-2:No Sur. SP

(E-2:NO SUR SP)

E-3:No F.PRNS SP

(E-3:NO FPR SP)

E-4:SBR → SBL

(E-4:SBR → SBL)

E-5:Noisy

E-5:NOISY)

(

E-6:Check Sur.

(E-6:CHECK SUR)

E-7:No MIC

(E-7:NO MIC)

E-8:No Signal

(E-8:NO SIGNAL)

E-9:User Cancel

(

E-9:CANCEL)

E-10:Internal Err.

(E-10:INTERNAL)

Note

Texts in parentheses denote indicators on the front display.

Front speakers are not detected.

One of the surround speakers cannot be detected.

One of the presence speakers cannot be detected.

A surround back speaker is connected to the R side only.

The noise is too loud.

Surround back speakers are connected, but no surround speakers are connected.

The YPAO microphone has been removed.

The YPAO microphone cannot detect test tones.

The measurement has been canceled.

An internal error has occurred.

Exit YPAO, turn off the unit, and then check the speaker connections.

When using only one surround back speaker, you need to connect it to the SINGLE the unit, and then reconnect the speaker.

Keep the room quiet and retry YPAO. If you select “PROCEED”, YPAO takes the measurement again and ignores any noise detected.

Surround speakers need to be connected in order to use surround back speakers. Exit YPAO, turn off the unit, and then reconnect the speakers.

Connect the YPAO microphone to the YPAO MIC jack firmly and retry YPAO.

Connect the YPAO microphone to the YPAO MIC this error occurs repeatedly, contact the nearest authorized Yamaha dealer or service center.

Retry or exit YPAO as necessary.

Exit YPAO, and turn off and on the unit. If this error occurs repeatedly, contact the nearest authorized Yamaha dealer or service center.

jack (L side). Exit YPAO, turn off

jack firmly and retry YPAO. If

Warning messages

Warning message

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

SLSWSR

W-1:PHASE

Problem speaker (blinks)

If a warning message is displayed after the measurement, you can still save the measurement results by following on-screen instructions.

However, we recommend you perform YPAO again in order to use the unit with the optimal speaker settings.

TV screen

Front display

Procedure to handle warnings

Check the content of warning message and press ENTER.

Warning message Cause Remedy

Check the cable connections (+/-) of the problem speaker.

If the speaker is connected incorrectly:

Turn off the unit, reconnect the speaker

W-1:Out of Phase

(W-1:PHASE)

A speaker cable may be connected with the reverse polarity (+/-).

cable.

If the speaker is connected correctly:

Depending on the type of speakers or room environment, this message may appear even if the speakers are connected correctly. In this case, you can ignore the message.

W-2:Over Distance

(W-2:DISTANCE)

A speaker is placed more than 24 m (80 ft) from the listening position.

Exit YPAO, turn off the unit, and place the problem speaker within 24 m (80 ft) of the listening position.

Check the usage environment and cable connections (+/-) of each speaker, and the volume of the subwoofer. If there is

W-3:Level Error

(W-3:LEVEL)

There are significant volume differences between the speakers.

any problem, exit YPAO, turn off the unit, and then reconnect speaker cable or correct the speaker positions. We recommend using the same speakers or speakers with specifications that are as similar as possible.

Note

Texts in parentheses denote indicators on the front display.

Use the cursor keys (e/r) to select the desired operation.

To save the measurement results:

Select “SAVE” and press ENTER.

To discard the measurement result:

Select “CANCEL” and press ENTER.

Disconnect the YPAO microphone from the unit.

10 Connecting to a network wirelessly

Mobile device (such as iPhone)

Internet

Modem

Wireless router

The unit

Mobile device (such as iPhone)

The unit

Connect the unit to a wireless router (access point) or a mobile device by establishing a wireless connection.

Note

When you connect the unit to a router with a network cable, you need not do this procedure.

Selecting the connection method

Select a connection method according to your network environment.

Connecting with a wireless router (access point)

Connect the unit to a wireless router (access point).

You can enjoy Internet radio, AirPlay, or music files stored on media servers (PC/NAS) on the unit.

You can also use the application for smartphone / tablet “AV CONTROLLER” (p.8) to control the unit from mobiles devices or enjoy music files stored on mobiles devices on the unit.

Connecting without a wireless router (access point)

Connect a mobile device to the unit directly.

You can use the application for smartphone / tablet “AV CONTROLLER” (p.8) to control the unit from mobiles devices or enjoy music files stored on mobiles devices on the unit.

For details on connection, see “Connecting a mobile device to the unit directly (Wireless Direct)”

Note

▪ You cannot use Wireless Direct simultaneously with the wired LAN connection (p.30) or the wireless LAN

connection (p.

▪ When Wireless Direct is enabled, the unit cannot connect to the Internet. Therefore, you cannot use any

kind of Internet service such as Internet radio.

▪ Also the mobile device cannot connect to the Internet, so we recommend you disconnect the mobile

device from the unit.

(p.44).

39).

For details on connection, see “Connecting the unit to a wireless network” (p.39).

Note

▪ You cannot use the wireless LAN connection simultaneously with the wired LAN connection (p.30) or

▪ If the unit and the wireless router (access point) are too far apart, the unit may not connect to a wireless

Wireless Direct (

router (access point). In such case, place them close to each other.

p.44).

Connecting the unit to a wireless network

There are several methods to connect the unit to a wireless network.

Select a connection method according to your environment.

• The connection setting to MusicCast network.

– “Setting the MusicCast” (p.46)

• The connection settings on iOS devices

– “Sharing the iOS device setting” (p.39)

• The WPS button configuration method

– “Using the WPS button configuration” (p.40)

• Other connection methods

– “Using other connection methods” (p.41)

Sharing the iOS device setting

You can easily setup a wireless connection by applying the connection settings on iOS devices (iPhone/iPad/iPod touch).

Before proceeding, confirm that your iOS device is connected to a wireless router.

Note

▪ The sharing process will restore the default settings for the following.

– Network settings

– Bluetooth settings

– USB and network items registered as shortcuts

– Internet radio stations registered to “Favorites”

– Account information for the network services

▪ You need iOS device with iOS 7 or later. (The following procedure is a setup example for iOS 10.)

▪ This configuration does not work if the security method of your wireless router (access point) is WEP. In

this case, use other connection method.

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the

unit (HDMI OUT jack).

Note

Operations with TV screen are available only when your TV is connected to the unit via HDMI.

Use the cursor keys (q/w) to select “Network Connection” and

press ENTER.

Use the cursor keys (e/r) to select “Wireless(Wi-Fi)” and press

ENTER.

Use the cursor keys (q/w) to select “WAC(iOS)” and press

ENTER.

Read the on-screen description and press ENTER.

Note

When you use wired network connection, a warning message is displayed on the screen. Disconnect the network cable from the unit, and then press

ENTER.

Press SETUP.

Use the cursor keys (q/w) to select “Network” and press ENTER.

On the iOS device, select the unit as the AirPlay speaker in the Wi-

The name of the unit

The network currently selected

Tap here to start setup

Fi screen.

iOS 10 (example of English version)

Select the network (access point) of which you want to share the

settings with the unit.

When the sharing process finishes, the unit is automatically connected to

the selected network (access point) and “ front display.

If “Not shared” or “Not connected” appears, press ENTER to repeat from

step 5 or try another connection method.

Completed” appears on the

Using the WPS button configuration

You can easily set up a wireless connection with one push of the WPS button.

Press z (receiver power) to turn on the unit.

Hold down INFO (WPS) on the front panel for 3 seconds.

“Press WPS button on Access Point” appears on the front display.

Push the WPS button on the wireless router (access point).

When the connection process finishes, “Completed” appears on the front

display.

If “Not connected” appears, repeat from step 1 or try another connection

method.

Note

▪ Depending on the model of the wireless router (access point), the unit may not connect to it. In this case,

try connection with “Access Point Scan” or “Manual Setting” (p.41).

▪ You can use “WPS Button” (p.41) in the “Setup” menu to set up a wireless connection with the WPS

button.

About WPS

▪ WPS (Wi-Fi Protected Setup) is a standard established by the Wi-Fi Alliance, which allows easy

establishment of a wireless home network.

To exit from the menu, press SETUP.

Using other connection methods

If your wireless router (access point) does not support WPS button configuration method, follow the procedure below to configure the wireless network settings.

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the

unit (HDMI OUT jack).

Note

Operations with TV screen are available only when your TV is connected to the unit via HDMI.

Press SETUP.

Use the cursor keys (q/w) to select “Network” and press ENTER.

Use the cursor keys (q/w) to select “Network Connection” and

press ENTER.

Use the cursor keys (e/r) to select “Wireless(Wi-Fi)” and press

ENTER.

Use the cursor keys (q/w) to select the desired connection

method and press ENTER.

The following connection methods are available.

You can set up a wireless connection with the WPS button while

WPS Button

WAC(iOS)

Access Point Scan

Manual Setting

PIN Code

viewing the TV screen. Follow the instructions displayed on the TV screen.

See “Sharing the iOS device setting” (p.39).

You can set up a wireless connection by searching for an access point. For details on settings, see “Searching for an access point” (p.42).

You can setup a wireless connection by entering the required information (such as SSID) manually. For details on settings, see “Setting up the wireless connection manually”

You can set up a wireless connection by entering the unit’s PIN code into the wireless router (access point). The method is available if the wireless router (access point) supports the WPS PIN code method. For details on settings, see “Using the WPS PIN code” (p.44).

(p.

43).

Note

The unit may connect automatically to the access point to which it has connected previously. In this case, the message indicating the successful connection will appear. You can ignore this message and proceed to the next step.

Access Point X

Searching for an access point

If you select “Access Point Scan” as the connection method, the unit starts searching for access points. After a while, the list of available access points appears on the TV screen.

Use the cursor keys (q/w) to select the desired access point

and press ENTER.

The wireless connection setting screen appears on the TV.

Press ENTER.

Use the cursor keys and ENTER to enter the security key.

Button functions

[¬]/[→]:

[Aa]: Switches the letter cases (upper/lower).

[BKSP]: Deletes the character to the left of the selected one.

[Space]: Enters a space.

[DEL]: Deletes the selected character.

When finished entering the key, select “OK” to return to the previous

screen.

Use the cursor keys (q/w) to select “Connect” and press

ENTER to start the connection process.

When the connection process finishes, “Completed” appears on the

TV screen.

If “Not connected” appears, repeat from step 1 or try another

connection method.

Moves the cursor left and right.

To exit from the menu, press SETUP.

Setting up the wireless connection manually

If you select “Manual Setting” as the connection method, the wireless connection setting screen appears on the TV.

You need to setup the SSID (network name), encryption method and security key for your network.

Use the cursor keys (q/w) to select “SSID” and press ENTER.

Use the cursor keys and ENTER to enter the SSID of the

access point.

Use the cursor keys (q/w) to select “Security” and the cursor

keys (e/r) to select the encryption method.

Choices

None, WEP, WPA-PSK(AES), Mixed Mode

Note

If you select “None”, the connection may be insecure since the communication is not encrypted.

Use the cursor keys (q/w) to select “Security Key” and press

ENTER.

Note

If you select “None” in step 3, this item is not available.

Use the cursor keys and ENTER to enter the security key.

If you select “WEP” in step 3, enter either 5 or 13 character string, or

10 or 26 hexadecimal digits.

If you select the method other than “WEP” in step 3, enter either 8 to

63 character string, or 64 hexadecimal digits.

When finished entering the key, select “OK” to return to the previous

screen.

Use the cursor keys (q/w) to select “Connect” and press

ENTER to start the connection process.

When the connection process finishes, “Completed” appears on the

TV screen.

If “Not connected” appears, check that all the information is entered

correctly, and repeat from step 1.

When finished entering the key, select “OK” to return to the previous

screen.

To exit from the menu, press SETUP.

Using the WPS PIN code

If you select “PIN Code” as the connection method, the list of available access points appears on the TV screen.

Use the cursor keys (q/w) to select the desired access point

and press ENTER.

The PIN code of the unit appears on the TV screen.

Enter the unit’s PIN code into the wireless router (access

point).

For details on settings, refer to the instruction manual of the wireless

router (access point).

Press ENTER to start the connection process.

When the connection process finishes, “Completed” appears on the

TV screen.

If “Not connected” appears, repeat from step 1 or try another

connection method.

Connecting a mobile device to the unit directly (Wireless Direct)

Follow the procedure below to connect a mobile device to the unit directly.

Note

Wireless Direct connection may be insecure since the communication is not strongly encrypted. The unit may operate by playback operation on wireless devices connected to the unit without permission.

Press z (receiver power) to turn on the unit.

Turn on the TV and switch the TV input to display video from the

unit (HDMI OUT jack).

Note

Operations with TV screen are available only when your TV is connected to the unit via HDMI.

Press SETUP.

Use the cursor keys (q/w) to select “Network” and press ENTER.

To exit from the menu, press SETUP.

Use the cursor keys (q/w) to select “Network Connection” and

press ENTER.

Use the cursor keys (e/r) to select “Wireless Direct” and press

ENTER.

Use the cursor keys (q/w) to select “Security” and the cursor

keys (e/r) to select the encryption method.

Choices

None, WPA2-PSK(AES)

Note

If you select “None”, the connection may be insecure since the communication is not encrypted.

Use the cursor keys (q/w) to select “Security Key” and press

ENTER.

Note

If you select “None” in step 7, this item is not available.

Use the cursor keys and ENTER to enter the security key.

Enter either 8 to 63 character string, or 64 hexadecimal digits.

When finished entering the key, select “OK” to return to the previous

screen.

Note

Before proceeding to the next step, record the following information. These information will be needed to configure the Wi-Fi setting of a mobile device.

▪ SSID displayed on the TV screen

▪ Security key you have just entered

Use the cursor keys (q/w) to select “Save” and press ENTER to

save the setting.

This completes the settings and “Completed” appears on the TV screen.

Next, configure the Wi-Fi settings of a mobile device.

Configure the Wi-Fi settings of a mobile device.

For details on settings of your mobile device, refer to the instruction

manual of the mobile device.

Enable the Wi-Fi function on the mobile device.

Select the SSID displayed in step 9 from the list of available access

points.

When you are prompted for a password, enter the security key

displayed in step 9.

To exit from the menu, press SETUP.

11 Setting the MusicCast

CONNECT

MusicCast is a brand new wireless musical solution from Yamaha, allowing you to share music among all of your rooms with a variety of devices. You can enjoy music from your smartphone, PC, NAS drive and music streaming service anywhere in your house with one easy-to-use application. For more details and a lineup of MusicCast compatible products, refer to the following site: http://www.yamaha.com/musiccast/

• Seamlessly control all MusicCast compatible devices with the dedicated application “MusicCast CONTROLLER”.

• Link a MusicCast compatible device to another device in a different room and play them back simultaneously.

• Play back music from music streaming services. (The compatible music streaming services may differ depending on your region and product).

Note

Access the Yamaha Downloads site (http://download.yamaha.com/) to download MusicCast Setup Guide.

MusicCast CONTROLLER

To use the network features on the MusicCast compatible device, you need the dedicated application “MusicCast CONTROLLER” for the operation. Search for the free application “MusicCast CONTROLLER” on the App Store or Google Play and install it to your device.

Adding the unit to the MusicCast network

Follow the procedure below to add the unit to the MusicCast network. You can also configure the unit’s wireless network settings at once.

Note

The SSID and security key for your network will be needed.

Tap the “MusicCast CONTROLLER” application icon on your

mobile device and tap “Setup”.

Note

If you have already connected other MusicCast compatible devices to the network, tap “Settings” and then “Add New Device”.

Operate the “MusicCast CONTROLLER” application following the

on screen instructions, then hold down CONNECT on the front panel of the unit for 5 seconds.

Operate the “MusicCast CONTROLLER” application following the

onscreen instructions to set up the network.

Operate the “MusicCast CONTROLLER” application to playback.

Note

▪ AirPlay and DSD audio cannot be delivered.

▪ When the direct playback mode is enabled, input sources other than the network sources and

USB cannot be delivered.

▪ If you configure the unit's wireless settings with this method, the signal strength indicator of the

front display lights up when the unit is connecting to a network (even if a wired connection is used).

▪ You can interlock the power of MusicCast devices with the power of the unit (the MusicCast

master). For details, see

“MusicCast Link Power Interlock” (p.101) in the “Setup” menu.

Press z (receiver power) to turn on the unit.

PLAYBACK

MUTE

FM/AM

VOLUME

PROG RAM

USB

INP UT

NET

BLUETOOTH

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

OGR

VOLUME

MUTE

Input selection keys

Basic playback procedure

Enjoying playback

Turn on the external devices (such as a TV or BD/DVD player)

connected to the unit.

Use the input selection keys to select an input source.

Start playback on the external device or select a radio station.

Refer to the instruction manual for the external device.

For details on the following operations, see the corresponding pages.

▪ “Listening to FM/AM radio” (p.55)

▪ “Playing back music stored on a Bluetooth® device” (p.60

▪ “Playing back music stored on a USB storage device” (p.64)

▪ “Playing back music stored on media servers (PCs/NAS)” (p.67)

▪ “Listening to Internet radio” (p.70)

▪ “Playing back music with AirPlay” (p.62)

Press VOLUME to adjust the volume.

Note

▪ To mute the audio output, press MUTE. Press MUTE again to unmute.

▪ To adjust the treble/bass settings, use the “Option” menu or TONE CONTROL on the front panel

(p.79).

)

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

SLSWSR

Audio Decoder

Item name

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

SBL SB SBR

MUTE VI RTUAL

VOL.

SLSWSR

†‡ Dsur

FPL FPR

Information

Switching information on the front display

Press INFO repeatedly to select between the various display

items.

About 3 seconds after a display item is selected, its corresponding

information appears.

Note

Available items vary depending on the selected input source. The displayed item can also be applied separately to each input group which is shown in the table below and divided by ruled lines.

Currently input source Item

HDMI

AUX

Input (input source name), DSP Program (sound mode name), Audio Decoder (decoder name*)

AUDIO

Bluetooth

USB

SERVER

AirPlay

Song (song title), Artist (artist name), Album (album name), DSP Program (sound mode name), Audio Decoder (decoder name*)

Song (song title), Artist (artist name), Album (album name), DSP Program (sound mode name), Audio Decoder (decoder name*), IP Address, Ethernet MAC, Wi-Fi MAC

Song (song title), Album (album name), Station (station name), DSP

NET RADIO

Program (sound mode name), Audio Decoder (decoder name*), IP Address, Ethernet MAC, Wi-Fi MAC

MusicCast Link

DSP Program (sound mode name), Audio Decoder (decoder name*), IP Address, Ethernet MAC, Wi-Fi MAC

Frequency (frequency), DSP Program (sound mode name), Audio Decoder (decoder name*)

TUNER

(U.K. and Europe models only) Radio Data System data is also available when the unit is tuned into a Radio Data System broadcasting station (p.

59).

* The name of the audio decoder currently activated is displayed. If no audio decoder

is activated, “Decoder Off” appears.

Selecting the input source and favorite settings with one touch (SCENE)

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

PROG RAM

STRAIGHT

ENHANCER

BASS

DVD

SC ENE

RADIO

SLEEP

DIRECT

ZONE A ZONE B

NET

OGR

STRAIGHT

ENHANCERBASS

SLEEP

DIRECT

ZONE

A ZONE

SCENE

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

SLSWSR

SET Complete

The SCENE function allows you to select the assigned input source, sound program, Compressed Music Enhancer on/off, and target zones with just one touch.

Selecting a registered scene

Press SCENE.

The input source and settings registered to the corresponding scene are

selected. The unit turns on automatically when it is in standby mode.

By default, the following settings are registered for each scene.

SCENE

Registering a scene

Perform the following operations to prepare the settings you want

to assign to a scene.

▪ Select an input source (p.47)

▪ Select a sound program (p.50) or straight decode (p.53)

▪ Enable/disable Compressed Music Enhancer (p.54)

▪ Enable/disable the audio output to Zone A/B (p.74)

Hold down the desired SCENE key until “SET Complete” appears

on the front display.

Input

Sound program

Compressed Music Enhancer

SCENE link playback

Target zone

Note

The SCENE link playback function allows you to automatically turn on the TV or start playback of an external device connected to the unit via HDMI, in conjunction with a scene selection. To enable playback, set “SCENE” (p.91) in the “Setup” menu to “On”.

HDMI1 AUDIO1 NET RADIO TUNER

Sci-Fi STRAIGHT 7ch Stereo 7ch Stereo

Off On On On

On On Off Off

Zone A Zone A Zone A Zone A

SCENE link

Selecting the sound mode

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

PROG RAM

STRAIGHT

ENHANCER

BASS

DVD

SC ENE

RADIO

SLEEP

DIRECT

ZONE A ZONE B

NET

BDDVD

SC EN

ADIO

SLEEP

ZONE

A ZONE

NET

STRAIGHT DIRECT ENHANCER BASS PROGRAM

The unit is equipped with a variety of sound programs and surround decoders that allow you to enjoy playback sources with your favorite sound mode (such as sound field effect or stereo playback).

I want to enjoy viewing video sources such as movies, TV programs, or games.

• Select a sound program suitable for each video source by pressing PROGRAM repeatedly (

I want to enjoy listening to music sources or stereo playback.

• Select a sound program suitable for music or stereo playback by pressing PROGRAM

I want to enjoy multichannel playback from 2-channel sources.

• Select a surround decoder in the “Option” menu (p.78).

I want to enjoy unprocessed sounds in original channels.

• Switch to the straight decode mode by pressing STRAIGHT (p.53).

p.51).

repeatedly (p.52).

I want to enjoy enhanced bass sounds.

• Enable Extra Bass by pressing BASS (p.54).

I want to enjoy listening to compressed music.

• Enable Compressed Music Enhancer by pressing ENHANCER (p.54).

This mode lets you enjoy listening to compressed music from Bluetooth devices, USB devices, etc. as it gives the music additional depth and breadth (p.

Note

▪ The sound mode can be applied separately to each input source.

▪ You can check which speakers are currently outputting sound by looking at the speaker indicators on the

unit’s front panel (p.11).

Precaution for enjoying Dolby Atmos

▪ Dolby Atmos contents are decoded as Dolby TrueHD or Dolby Digital Plus in the following situations.

(Dolby Atmos PCM format is always decoded as Dolby Atmos.)

– Any of CINEMA DSP programs is selected.

– Neither surround back nor presence speakers are used.

– Headphones are used (2-channel playback).

▪ When the Dolby Atmos decoder is working, virtual surround processing (such as Virtual CINEMA

FRONT) (p.51) or Compressed Music Enhancer (p.54) does not work.

Precaution for enjoying DTS:X™

▪ DTS:X contents are decoded as DTS-HD format when any of CINEMA DSP programs is selected.

▪ When the DTS:X decoder is working, virtual surround processing (such as Virtual CINEMA FRONT)

(p.51), Dialogue Level (

p.93), Extra Bass (p.87) or Compressed Music Enhancer (p.54) does

not work.

▪ When DTS:X contents are played back, you can adjust the volume of dialogue sounds in “DTS

Dialogue Control”

(p.93) in the “Setup” menu.

54).

I want to enjoy pure high fidelity sounds.

• Enable the direct playback mode by pressing DIRECT (p.54).

This mode reduces the electrical noise from other circuitry to allow you to enjoy Hi-Fi sound quality.

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

SLEEP

STEREO

VOL.

SLSWSR

Sci-Fi

Sound program category

“CINEMA DSP” lights up

Sound program

Enjoying stereoscopic sound fields (CINEMA DSP 3D)

The unit is equipped with a variety of sound programs that utilize Yamaha's original DSP technology (CINEMA DSP 3D). It allows you to easily create sound fields like actual movie theaters or concert halls in your room and enjoy natural stereoscopic sound fields.

Note

▪ You can adjust the sound field effect level in “DSP Level (DSP Level)” (p.79) in the “Option” menu.

▪ To use the conventional CINEMA DSP, set “CINEMA DSP 3D Mode” (p.92) in the “Setup” menu to “Off”.

Sound programs suitable for movies (MOVIE)

The following sound programs are optimized for viewing video sources, such as movies, TV programs, and games.

Standard

Spectacle

Sci-Fi

Adventure

This program creates a sound field that emphasizes the surround feeling without disturbing the original acoustic positioning of multichannel audio, such as Dolby Digital and DTS. Its design is based on the concept of the ideal movie theater, in which the audience is surrounded by beautiful reverberations from the left, right, and rear.

This program delivers the scale and grandeur of spectacular movie productions. It delivers an expansive sound space to match the cinemascope wide-screen, and boasts a broad dynamic range, providing everything from small delicate sounds to powerful loud booms.

This program clearly reproduces the finely elaborated sound design of the latest Sci-Fi and SFX movies. You can enjoy a variety of cinematographically created virtual spaces reproduced with clear separation between dialogue, sound effects, and background music.

This program is ideal for reproducing the sound design of action and adventure movies precisely. The sound field restrains reverberations, but puts emphasis on reproducing a sensation of expansiveness on both sides, powerful space expanded widely to the left and right. The restrained depth creates a clear and powerful space, while also maintaining the articulation of the sounds and the separation of the channels.

Drama

Mono Movie

Sports

Action Game

Roleplaying Game

This program features stable reverberations that match a wide range of movie genres, from serious dramas to musicals and comedies. The reverberations are modest, but suitably stereophonic. The sound effects and background music are reproduced with a gentle echo that does not impinge on the articulation of the dialogue. You’ll never get tired listening for long periods.

This program reproduces monaural video sources, such as classic movies, in an atmosphere of a good old movie theater. The program creates a pleasant space with depth, by adding breadth and the appropriate reverberation to the original audio.

This program allows listeners to enjoy the rich vividness of sport broadcasts and light entertainment programs. In sports broadcasts, the commentators’ voices are positioned clearly at the center, while the atmosphere inside the stadium is realistically conveyed by the peripheral delivery of the sounds of the fans in a suitable space.

This program is suitable for action games, such as car racing and fighting games. The reality of, and emphasis on, various effects makes the player feel like they are right in the middle of the action, allowing for greater concentration. Use this program in combination with Compressed Music Enhancer for a more dynamic and strong sound field.

This program is suitable for role-playing and adventure games. This program adds depth to the sound field for natural and realistic reproduction of background music, special effects, and dialogue from a wide variety of scenes. Use this program in combination with Compressed Music Enhancer for a clearer and more spatial sound field.

Sound programs suitable for music (MUSIC)

The following sound programs are optimized for listening to music sources.

This program simulates a Munich concert hall with approximately 2,500

Hall in Munich

Hall in Vienna

Chamber

Cellar Club

The Roxy Theatre

The Bottom Line

Music Video

seats that uses stylish wood for the interior finishing. Fine, beautiful reverberations spread richly, creating a calming atmosphere. The listener’s virtual seat is at the center left of the arena.

This program simulates a 1700-seat, middle-sized concert hall with a shoebox shape that is traditional in Vienna. Pillars and ornate carvings create extremely complex reverberations from all around the audience, producing a very full, rich sound.

This program creates a relatively wide space with a high ceiling, like an audience hall in a palace. It offers pleasant reverberations that are suitable for courtly music and chamber music.

This program simulates an intimate concert venue with a low ceiling and homey atmosphere. A realistic, live sound field delivers powerful sounds that make you feel as if you are sitting in the front row in front of a small stage.

This program creates the sound field of a 460-seat rock music concert venue in Los Angeles. The listener’s virtual seat is at the center left of the hall.

This program creates the sound field at stage front in The Bottom Line, a famous New York jazz club once. The floor can seat 300 people to the left and right in a sound field offering real and vibrant sound.

This program allows you to enjoy videos of pop, rock, and jazz concerts, as if you were there yourself. Immerse yourself in the hot concert atmosphere thanks to the vividness of the singers and solos on stage, a presence sound field that emphasizes the beat of rhythm instruments, and a surround sound field that reproduces the space of a big live hall.

Sound programs suitable for stereo playback (STEREO)

You can select stereo playback.

Use this program to mix down multichannel sources to 2 channels. When

2ch Stereo

7ch Stereo

Note

CINEMA DSP 3D (p.51) and Virtual CINEMA DSP (p.52) do not work when “2ch Stereo” or “7ch Stereo” is selected.

Enjoying sound field effects without surround speakers

multichannel signals are input, they are down mixed to 2 channels and output from the front speakers (this program does not utilize CINEMA DSP).

Use this program to output sound from all speakers. When you play back multichannel sources, the unit mixes down the source to 2 channels, and then outputs the sound from all speakers. This program creates a larger sound field and is ideal for background music at parties.

(Virtual CINEMA DSP)

If you select one of the sound programs (except 2ch Stereo and 7ch Stereo) when no surround speakers are connected, the unit automatically creates the surround sound field using the front-side speakers.

Enjoying surround sound with 5 speakers placed in

front (Virtual CINEMA FRONT)

You can enjoy the surround sound even when the surround speakers are placed in front.

When “Virtual CINEMA FRONT” (p.88) in the “Setup” menu is set to “On”, the unit creates the virtual surround speakers in the rear side to allow you to enjoy multichannel surround sound with the 5 speakers placed in the front.

Enjoying surround sound with headphones (SILENT

CINEMA)

You can enjoy surround or sound field effects, like a multichannel speaker system, with stereo headphones by connecting the headphones to the a sound program or a surround decoder.

PHONES jack and selecting

LINK

ECO

MASTER

OUT

A-DRC

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

SLEEP

STEREO

PARTY

TUNED

ResHi

YPAO

VOL.

ENHANCER

VOL.

SLSWSR

STRAIGHT

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

PROG RAM

STRAIGHT

ENHANCER

BASS

DVD

SC ENE

RADIO

SLEEP

DIRECT

ZONE A ZONE B

NET

STRAIGHT

ENHANCER

BDDVD

SC EN

ADIO

SLEEP

DIRECT

ZONE

A ZONE

NET

PROGRAM

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

SBL SB SBR

MUTE VI RTUAL

VOL.

SLSWSR

†‡ Dsur

FPL FPR

“SUR. DECODE” appears

Enjoying unprocessed playback

You can play back input sources without any sound field effect processing.

Playing back in original channels (straight decode)

When the straight decode mode is enabled, the unit produces stereo sound from the front speakers for 2-channel sources such as CDs, and produces unprocessed multichannel sounds for multichannel sources.

Press STRAIGHT.

Each time you press the key, the straight decode mode is enabled or

disabled.

Note

If “Virtual CINEMA FRONT” (p.88) in the “Setup” menu is set to “On”, Virtual CINEMA FRONT (p.52) works when multichannel source is played back.

Playing back 2-channel sources in multichannel

(surround decoder)

The surround decoder enables unprocessed multichannel playback from 2-channel sources. When a multichannel source is input, it works the same way as the straight decode mode.

For details on each decoder see “Glossary” (p.119).

Press PROGRAM repeatedly to select a surround decoder.

The previously selected surround decoder is selected. You can change

the surround decoder in “Sur.Decode

Uses the decoder automatically selected by input source. The

Auto

bDsur

Neural:X

Neo:6 Cinema

Neo:6 Music

” (p.78) in the “Option” menu.

Note

▪ You can adjust the surround decoder parameters in “DSP Parameter” (p.92) in the “Setup” menu.

▪ When the Dolby Surround decoder is selected, virtual surround processing (such as Virtual CINEMA

FRONT) (p.51) or Compressed Music Enhancer (p.54) does not work.

▪ If the Dolby Surround decoder is selected when only one surround back speaker is used, no sound is

output from the surround back speaker (except when a Dolby Atmos content is played).

▪ When the Neural:X decoder is selected, Dialogue Level (p.93), Extra Bass (p.87) or Compressed

Music Enhancer (p.

54) does not work.

▪ The selected surround decoder may not work for some input sources.

DTS Neural:X decoder is selected for DTS sources and the Dolby Surround decoder is selected for other sources.

Use the Dolby Surround decoder suitable for all sources. A real acoustic space (including overhead) will be created especially when object-based audio (such as Dolby Atmos content) is played.

Use the DTS Neural:X decoder suitable for all sources. A real acoustic space (including overhead) will be created especially when object-based audio (such as DTS:X content) is played.

Uses the DTS Neo:6 decoder (or DTS-ES Matrix decoder) suitable for movies. Sounds will be output from the surround/ surround back speakers.

Uses the DTS Neo:6 decoder (or DTS-ES Matrix decoder) suitable for music. Sounds will be output from the surround/ surround back speakers.

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

SLSWSR

DIRECT

LINK

ECO

MASTER

OUT

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

ResHi

YPAO

VOL.

SLSWSR

Enhancer On

ENHANCER

“ENHANCER” lights up

Enjoying pure high fidelity sound (direct playback)

When the direct playback mode is enabled, the unit plays back the selected source with the least circuitry in order to reduce the electrical noise from other circuitry (such as the front display). It allows you to enjoy Hi-Fi sound quality.

Press DIRECT.

Each time you press the key, the direct playback mode is enabled or

disabled.

Note

When the direct playback mode is enabled, the following functions are not available.

▪ Selecting sound programs

▪ Adjusting the tone control

▪ Operating the on-screen and “Option” menus

▪ Viewing information on the front display (when not in operation)

Enhancing the bass (Extra Bass)

Extra Bass allows you to enjoy enhanced bass sounds, regardless of the size of the front speakers and the presence or absence of the subwoofer.

Press BASS.

Each time you press the key, Extra Bass is enabled or disabled.

Note

You can also use “Extra Bass” (p.87) in the “Setup” menu to enable/disable Extra Bass.

Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed Music Enhancer)

Compressed Music Enhancer adds depth and breadth to the sound, allowing you to enjoy a dynamic sound close to the original sound before it was compressed. This function can be used along with any other sound modes.

Press ENHANCER.

Each time you press the key, Compressed Music Enhancer is enabled or

disabled.

Note

▪ Compressed Music Enhancer does not work on the following audio sources.

– Signals whose sampling frequency is over 48 kHz

– DSD audio

▪ You can also use “Enhancer (Enhancer)” (p.80) in the “Option” menu to enable/disable

Compressed Music Enhancer.

Listening to FM/AM radio

(power)

STRAIGHTPROGRAM

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

VOL.

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

TU••••FM50/AM9

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

MUTE VI RTUAL

VOL.

FM 87.50MHz

You can tune into a radio station by specifying its frequency or selecting from registered radio stations.

Note

▪ The radio frequencies differ depending on the country or region where the unit is being used. The

explanation of this section uses a display with frequencies used in U.K. and Europe models.

▪ If you cannot obtain good reception on the radio, adjust the direction of the FM/AM antennas.

Setting the frequency steps

(Asia, Taiwan, Brazil and General models only)

At the factory, the frequency step setting is set to 50 kHz for FM and 9 kHz for AM. Depending on your country or region, set the frequency steps to 100 kHz for FM and 10 kHz for AM.

Set the unit to standby mode.

When holding down STRAIGHT on the front panel, press z

(power).

Press STRAIGHT to select “FM100/AM10”.

Press z (power) to set the unit to standby mode and turn it on

again.

Selecting a frequency for reception

Press FM/AM to select a band.

“TUNER” is selected as the input source and then the frequency currently

selected is displayed.

Press PROGRAM repeatedly to select “TU”.

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

PRESET

MEMO

TOPMENU

HOME

POP

UP/MENU

BLUE

YELLOWG

REE

TUNING

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

SLSWSR

STEREO

TUNED

FM 98.50MHz

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

Preset

Press TUNING repeatedly to set a frequency.

Hold down the key for about a second to search stations automatically.

Registering favorite radio stations (presets)

You can register up to 40 radio stations as presets. Once you have registered stations, you can easily tune into them by selecting their preset numbers.

Registering radio stations automatically (Auto Preset)

Automatically register FM radio stations with strong signals (up to 40 stations).

Note

▪ To register AM radio stations, follow “Registering a radio station manually” (p.57).

▪ (U.K. and Europe models only)

Only Radio Data System broadcasting stations are registered automatically by the Auto Preset function.

Press FM/AM to select “TUNER” as the input source.

Press OPTION.

“TUNED” lights up when the unit is receiving an FM/AM radio station

signal.

“STEREO” lights up when the unit is receiving a stereo FM radio signal.

Note

▪ You can switch between “Stereo” (stereo) and “Mono” (monaural) for FM radio reception by

selecting “ unstable, switching to monaural may improve it.

▪ You can watch videos input from external devices while listening to radio by selecting the video

input jack in

FM Mode” in the “Option” menu. When the signal reception for an FM radio station is

“Video Out (Video Out)” (p.81) in the “Option” menu.

Use the cursor keys to select “Preset” and press ENTER.

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

STEREO

TUNED

FPR

SBL SB SBR

FPL

SLSWSR

VOL.

01:FM 87.50MHz

“SEARCH” appears during Auto Preset

Preset number from which to start the registration

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

Auto Preset

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

PRESET

TUNING

TOPMENU

HOME

POP

UP/MENU

BLUE

YELL

REE

MEMORY

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

VOL.

SLSWSR

01:FM 98.50MHz

STEREO

TUNED

Preset number

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

PARTY

ZONE

3B2A

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

SLEEP

VOL.

SLSWSR

02:Empty

TUNED

STEREO

“Empty” (not in use) or the frequency currently registered

To start the Auto Preset process, press ENTER.

Note

▪ To specify the preset number from which to start the registration, press cursor keys (e/r) or

PRESET to select a preset number.

▪ To cancel the Auto Preset process, press RETURN.

When the Auto Preset process finishes, “FINISH” appears and the “Option” menu closes automatically.

Registering a radio station manually

Select a radio station manually and register it to a preset number.

Follow “Selecting a frequency for reception” (p.55) to tune into

the desired radio station.

Hold down MEMORY for a few seconds.

The first time that you do register a station, the selected radio station will

be registered to the preset number “01”. Thereafter, each radio station you select will be registered to the next empty (unused) preset number after the most recently registered number.

Note

To select a preset number for registering, press MEMORY once after tuning into the desired radio station, press PRESET

to select a preset number, and then press MEMORY again.

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

MEMO

TOPMENU

HOME

POP

UP/MENU

BLUE

YELL

REE

PRESET

ENHANCER-ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

LINK

ECO

MASTER

OUT

VOL.

SLSWSR

STEREO

TUNED

01:FM 98.50MHz

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

ZONE

3B2A

FPR SLSWSR SBL SB SBR

FPL

MUTE VI RTUAL

VOL.

Preset

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

VOL.

SLSWSR

STEREO

TUNED

01:FM 98.50MHz

Preset station to be cleared

01:Cleared

Selecting a preset station

Tune into a registered radio station by selecting its preset number.

Clearing preset stations

Clear radio stations registered to the preset numbers.

Press FM/AM to select “TUNER” as the input source.

Press PRESET repeatedly to select the desired radio station.

Note

“No Presets” appears when no radio stations are registered.

Press FM/AM to select “TUNER” as the input source.

Press OPTION.

Use the cursor keys to select “Preset” and press ENTER.

Use the cursor keys (q/w) to select “CLEAR”.

Use the cursor keys (e/r) to select a preset station to be cleared

and press ENTER.

If the preset station is cleared, “Cleared” appears and then the next in-use

preset number is displayed.

Repeat step 5 until all desired preset stations are cleared.

To exit from the menu, press OPTION.

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

VOL.

SLSWSR

STEREO

TUNED

Program Type

Item name

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

VOL.

SLSWSR

STEREO

TUNED

CLASSICS

Information

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

VOL.

SLSWSR

STEREO

TUNED

TP FM101.30MHz

Traffic information station (frequency)

Radio Data System tuning

(U.K. and Europe models only)

Radio Data System is a data transmission system used by FM stations in many countries. The unit can receive various types of Radio Data System data, such as “Program Service”, “Program Type”, “Radio Text

” and “Clock Time”, when it is tuned

into a Radio Data System broadcasting station.

Receiving traffic information automatically

When “TUNER” is selected as the input source, the unit automatically receives traffic information. To enable this function, follow the procedure below to set the traffic information station.

When “TUNER” is selected as the input source, press OPTION.

Displaying the Radio Data System information

Tune into the desired Radio Data System broadcasting station.

Note

We recommend using “Auto Preset” to tune into the Radio Data System broadcasting stations (p.56).

Press INFO repeatedly to select between the various display

items.

About 3 seconds after a display item is selected, its corresponding

information appears.

Program Service

Program Type

Radio Text

Clock Time

DSP Program

Audio Decoder

Frequency

Program service name

Current program type

Information on the current program

Current time

Sound mode name

Decoder name

Frequency

Use the cursor keys to select “Traffic Program” (TrafficProgram)

and press ENTER.

The traffic information station search will start in 5 seconds. Press ENTER

again to start the search immediately.

Note

▪ To search upward/downward from the current frequency, press the cursor keys (q/w) while

“READY” is displayed.

▪ To cancel the search, press RETURN.

▪ Texts in parentheses denote indicators on the front display.

The following screen appears for about 3 seconds when the search

finishes.

Note

“TP Not Found” appears for about 3 seconds when no traffic information stations are found.

Note

“Program Service”, “Program Type”, “Radio Text”, and “Clock Time” are not displayed if the radio station does not provide the Radio Data System service.

Playing back music stored on a Bluetooth® device

Bluetooth device

(such as smartphones)

The unit

Bluetooth speakers/headphones

The unit

You can play back music files stored on a Bluetooth device (such as smartphones) on the unit. Also, you can enjoy audio played back on the unit using Bluetooth speakers/ headphones.

Note

▪ To use the BLUETOOTH function, set “Bluetooth” (p.101) in the “Setup” menu to “On”.

▪ You cannot make Bluetooth connections to a Bluetooth device (such as smartphones) and Bluetooth

speakers/headphones at the same time.

▪ For details on supported Bluetooth devices, see “Supported devices and file formats” (p.122).

▪ Stand the wireless antenna upright for connecting to a Bluetooth device wirelessly. For details, see

“Preparing a wireless antenna”

(p.30).

Playback Bluetooth® device music on the unit

Follow the procedure below to establish a Bluetooth connection between a Bluetooth device (such as smartphones) and the unit, and play back music stored the Bluetooth device on the unit.

Note

The unit does not support video playback via Bluetooth.

Press BLUETOOTH to select “Bluetooth” as the input source.

On the Bluetooth device, select the unit (network name of the unit)

from the available device list.

A connection between the Bluetooth device and the unit will be made.

If the pass key is required, enter the number “0000”.

On the Bluetooth device, select a song and start playback.

The playback screen (artist name, album name and song title) is

displayed on the TV.

Note

▪ If the unit detects the Bluetooth device previously connected, the unit automatically connects to

the Bluetooth device after Step 1. To establish another Bluetooth connection, first terminate the current Bluetooth connection.

▪ To terminate the Bluetooth connection, perform one of the following operations.

– Perform the disconnect operation on the Bluetooth device.

– Select an input source other than “Bluetooth” on the unit.

– Select “Disconnect” in “Audio Receive” (p.83) in the “Setup” menu.

▪ You can use the external device operation keys (a, s, d, f, g) on the remote control

to control playback.

Enjoying audio using Bluetooth® speakers/ headphones

Follow the procedure below to establish a Bluetooth connection between Bluetooth speakers/headphones and the unit.

Use the input selection keys on the remote control to select an

input source.

Select an input source other than Bluetooth.

Press SETUP.

Use the cursor keys to select “Bluetooth” and press ENTER.

Use the cursor keys to set “Bluetooth” to “On”, and then set

“Transmitter” to “On” in the same way.

Use the cursor keys to select “Device Search” to search the

Bluetooth devices.

The list of Bluetooth devices is displayed.

Select the Bluetooth speakers/headphones to be connected with

the unit and press ENTER.

When the connection process finishes, audio played back on the unit will

be reproduced from the Bluetooth speakers/headphones.

Note

▪ If the desired Bluetooth device is not displayed on the list, set the Bluetooth device to the pairing

mode and then select “

▪ Follow one of the procedures below to terminate the Bluetooth connection.

– Perform the disconnect operation on the Bluetooth speakers/headphones.

– Press the SETUP key, then use the cursor keys to select "Bluetooth", then "Transmitter", and

then "Off".

Device Search”.

Playing back music with AirPlay

iTunes

(Wired network or wireless network)

iPhone/iPad/iPod touch

The unit

Router

iOS 10 (example) iOS 9 (example) iTunes (example)

The AirPlay function allows you to play back iTunes or iPhone/iPad/iPod touch music on the unit via network.

Note

▪ To use this function, the unit and your PC or iPhone must be connected to the same router (p.30). You can

check whether the network parameters (such as the IP address) are properly assigned to the unit in “Information” (p.99) in the “Setup” menu.

▪ If the iPhone does not recognize the unit, check your network environment (p.30).

▪ For details on supported iPhone devices, see “Supported devices and file formats” (p.122).

Playback of iTunes/iPhone music contents

Follow the procedure below to play back iTunes/iPhone music contents on the unit.

Turn on the unit, and start iTunes on the PC or display the

playback screen on the iPhone.

If the iTunes/iPhone recognizes the unit, the AirPlay icon appears.

Note

If the icon does not appear, check whether the unit and PC/iPhone are connected to the router properly.

On the iTunes/iPhone, click (tap) the AirPlay icon and select the

unit (network name of the unit) as the audio output device.

Select a song and start playback.

The unit automatically selects “AirPlay” as the input source and starts

playback.

The playback screen is displayed on the TV.

Note

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

PRESET

TUNING

BLUE

YELL

REE

External device operation keys

▪ The playback screen is available only when your TV is connected to the unit via HDMI.

▪ You can turn on the unit automatically when starting playback on iTunes or iPhone by setting “Network

Standby” (p.100) in the “Setup” menu to “On”.

▪

You can edit the network name (the unit’s name on the network) displayed on iTunes/iPhone in “Network Name” (p.101) in the “Setup” menu.

You can adjust the unit’s volume from the iTunes/iPhone during playback. To disable volume controls from

▪

iTunes/iPhone, set “Volume Interlock (Vol.Interlock)” (p.81) in the “Option” menu to “Off”.

Notice

▪ When you use iTunes/iPhone controls to adjust volume, the volume may be unexpectedly loud. This

could result in damage to the unit or speakers. If the volume suddenly increases during playback, stop playback on the iTunes/iPhone immediately.

Playback screen

Playback indicator

Playback information

Displays the artist name, album name, song title, and elapsed time/song length.

Use the following remote control keys to control playback.

External device operation keys

a s d

Function

Resumes playback from pause.

Stops playback.

Stops playback temporarily.

Skips forward/backward.

STRAIGHT

(CONNECT)

AUX USB

AUDIO

5V 1A

RADIO

The unit (front)

USB storage device

Playing back music stored on a USB storage device

You can play back music files stored on a USB storage device on the unit.

Note

For details on playable USB devices, see “Supported devices and file formats” (p.122).

Connecting a USB storage device

Connect the USB storage device to the USB jack.

Note

▪ If the USB storage device contains many files, it may take time to load them. In this case, “Loading…”

appears in the front display.

▪ Stop playback of the USB storage device before disconnect it from the USB jack.

▪ Connect a USB storage device directly to the USB jack of the unit. Do not use extension cables.

▪ The unit cannot charge USB devices while it is in standby mode.

Playback of USB storage device contents

Follow the procedure below to operate the USB storage device contents and start playback.

You can control the USB memory device with the menu displayed on the TV screen.

Note

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI.

▪ “_” (underscore) will be displayed for characters not supported by the unit.

Press USB to select “USB” as the input source.

The browse screen (p.65) is displayed on the TV.

Note

If playback is ongoing on your USB storage device, the playback screen is displayed.

Use the cursor keys to select an item and press ENTER.

If a song is selected, playback starts and the playback screen (p.65) is

displayed.

Note

▪ To return to the previous screen, press RETURN.

▪ To return to the top level while on the browse screen, hold down RETURN.

▪ To switch the screen mode browse/playback/off, press DISPLAY.

▪ Files not supported by the unit cannot be selected.

1 4

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

PRESET

TUNING

BLUE

YELL

REE

External device operation keys

Browse screen

Playback screen

List name

Contents list

Displays the list of USB storage device contents. Use the cursor keys to select an item and press ENTER to confirm the selection.

Item number/total

Status indicators

Display the current shuffle/repeat settings (p.66) and playback status (such as play/pause).

Operation menu

Press the cursor key (r) and then use the cursor keys (q/w) to select an item. Press ENTER to confirm the selection.

Icon Function

Moves 10 pages backward.

Moves to the previous page of the list.

Moves to the next page of the list.

Moves 10 pages forward.

Moves to the playback screen.

Note

A content selected by the cursor is displayed on the front display.

Status indicators

Display the current shuffle/repeat settings (p.66) and playback status (such as play/pause).

Playback information

Displays the artist name, album name, song title, and elapsed time.

Use the following remote control keys to control playback.

External device operation keys

a s

d f g

Note

A content name of a current playback is displayed on the front display. To switch the displayed item, press

(p.48).

INFO

Function

Resumes playback from pause.

Stops playback.

Stops playback temporarily.

Skips forward/backward.

Shuffle/repeat settings

You can configure the shuffle/repeat settings for playback of USB storage device contents.

When “USB” is selected as the input source, press OPTION.

Use the cursor keys to select “Shuffle” (Shuffle) or “Repeat”

(Repeat) and press ENTER.

Note

▪ To return to the previous screen during menu operations, press RETURN.

▪ Texts in parentheses denote indicators on the front display.

Use the cursor keys (e/r) to select a setting.

Item Setting Function

Shuffle

(Shuffle)

Repeat

(Repeat)

Off (Off) Turns off the shuffle function.

Plays back songs in the current album (folder)

On (On)

Off (Off) Turns off the repeat function.

One (One)

All (All)

in random order. “x” appears on the TV screen.

Plays back the current song repeatedly. “c” appears on the TV screen.

Plays back all songs in the current album (folder) repeatedly. “v” appears on the TV screen.

To exit from the menu, press OPTION.

Playing back music stored on media servers (PCs/NAS)

You can play back music files stored on your PC or DLNA-compatible NAS on the unit.

Note

▪ To use this function, the unit and your PC must be connected to the same router (p.30). You can check

whether the network parameters (such as the IP address) are properly assigned to the unit in “Information” (p.99) in the “Setup” menu.

▪ The audio may be interrupted while using the wireless network connection. In this case, use the wired

network connection.

▪ For details on playable file formats, see “Supported devices and file formats” (p.122).

Media sharing setup

To play back music files stored on your PC or DLNA-compatible NAS, first you need to configure the media sharing setting on each music server.

For a PC with Windows Media Player 12 installed

Start Windows Media Player 12 on your PC.

Select “Stream”, then “Turn on media streaming”.

Click “Turn on media streaming”.

Select “Allowed” from the drop-down list next to the unit’s model

name.

For a PC or a NAS with other DLNA server software

installed

Refer to the instruction manual for the device or software and configure the media sharing settings.

Click “OK” to exit.

Note

For details on media sharing settings, refer to Windows Media Player help.

1 4

Playback of PC music contents

Follow the procedure below to operate the PC music contents and start playback.

You can control the PC/NAS with the menu displayed on the TV screen.

Note

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry

out operations while viewing the front display.

▪ “_” (underscore) will be displayed for characters not supported by the unit.

Press NET repeatedly to select “SERVER” as the input source.

The browse screen (p.68) is displayed on the TV.

Note

If playback of a music file selected from the unit is ongoing on your PC, the playback screen is displayed.

Use the cursor keys to select a music server and press ENTER.

Use the cursor keys to select an item and press ENTER.

If a song is selected, playback starts and the playback screen (p.69) is

displayed.

Note

▪ To return to the previous screen, press RETURN.

▪ To return to the top level while on the browse screen, hold down RETURN.

▪ To switch the screen mode browse/playback/off, press DISPLAY.

▪ Files not supported by the unit cannot be selected.

Browse screen

List name

Contents list

Displays the list of PC content. Use the cursor keys to select an item and press ENTER to confirm the selection.

Item number/total

Status indicators

Display the current shuffle/repeat settings (p.69) and playback status (such as play/pause).

Operation menu

Press the cursor key (r) and then use the cursor keys (q/w) to select an item. Press ENTER to confirm the selection.

Icon Function

Moves 10 pages backward.

Moves to the previous page of the list.

Moves to the next page of the list.

Moves 10 pages forward.

Moves to the playback screen.

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

PRESET

TUNING

BLUE

YELL

REE

External device operation keys

Playback screen

Shuffle/repeat settings

You can configure the shuffle/repeat settings for the playback of PC music content.

When “

Use the cursor keys to select “Shuffle” (Shuffle) or “Repeat”

(Repeat) and press ENTER.

SERVER” is selected as the input source, press OPTION.

Note

▪ To return to the previous screen during menu operations, press RETURN.

▪ Text in parentheses denotes indicators on the front display.

Status indicators

Display the current shuffle/repeat settings (p.69) and playback status (such as play/pause).

Playback information

Displays the artist name, album name, song title, and elapsed time.

Use the following remote control keys to control playback.

Use the cursor keys (e/r) to select a setting.

Item Setting Function

Off (Off) Turns off the shuffle function.

Shuffle

(Shuffle)

On (On)

Plays back songs in the current album (folder) in random order. “x” appears on the TV screen.

Off (Off) Turns off the repeat function.

Repeat

(Repeat)

One (One)

All (All)

Plays back the current song repeatedly. “c” appears on the TV screen.

Plays back all songs in the current album (folder) repeatedly. “v” appears on the TV screen.

To exit from the menu, press OPTION.

External device operation keys

d f g

Note

You can also use a DLNA-compatible Digital Media Controller (DMC) to control playback. For details, see “DMC Control” (p.100

Function

Resumes playback from pause.

Stops playback.

Stops playback temporarily.

Skips forward/backward.

Listening to Internet radio

1 4

You can listen to Internet radio stations from all over the world.

Note

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry

out operations while viewing the front display.

▪ To use this function, the unit must be connected to the Internet (p.30). You can check whether the network

parameters (such as the IP address) are properly assigned to the unit in “Setup” menu.

▪ You may not be able to receive some Internet radio stations.

▪ The unit uses the airable.Radio service. airable is a service of Tune In GmbH.

▪ This service may be discontinued without notice.

▪ Folder names are different depending on the language.

Playback of Internet radio

Follow the procedure below to select an Internet radio station and start playback.

You can control the Internet radio with the menu displayed on the TV screen.

Press NET repeatedly to select “NET RADIO” as the input source.

“Information”

The browse screen (p.70) is displayed on the TV.

Use the cursor keys to select an item and press ENTER.

If an Internet radio station is selected, playback starts and the playback

screen (p.

Note

▪ To return to the previous screen, press RETURN.

▪ To return to the top level while on the browse screen, hold down RETURN.

▪ To switch the screen mode browse/playback/off, press DISPLAY.

71) is displayed.

(p.99) in the

Browse screen

List name

Contents list

Displays the list of Internet radio content. Use the cursor keys to select an item and press ENTER to confirm the selection.

Item number/total

Playback indicator

Operation menu

Press the cursor key (r) and then use the cursor keys (q/w) to select an item. Press

ENTER to confirm the selection.

Icon Function

Moves 10 pages backward.

Moves to the previous page of the list.

Moves to the next page of the list.

Moves 10 pages forward.

Moves to the playback screen.

Station

Playback screen

Playback indicator

Playback information

Displays the station name, album name, song title, and elapsed time.

Note

▪ Use the external device operation key (s) to stop playback.

▪ Some information may not be available depending on the station.

Registering favorite Internet radio stations

You can register your favorite Internet radio stations to the “Favorites” folder.

Note

You can also register up to 40 favorite USB, Bluetooth and network contents as shortcuts (p.76).

Registering the station with the Option menu

Follow the procedure below to register your favorite station to the “Favorites” folder.

While listening to Internet radio, press OPTION.

Use the cursor keys to select “Add to favorites” and press

ENTER.

Note

▪ On the playback screen, the current station is added to the “Favorites” folder. On the browse screen, the

station selected in the list is added to the “

Radio stations registered to favorites are displayed with “«”.

▪

▪ To remove a station that is registered to favorites, select the station and then select “Remove from

favorites”.

Favorites” folder.

Playing back more high-quality sounds with bi-amp connections

1 2

4 5

ETWORK

(NET)

RONT

CENTER

SPEAK

ERS

SURROUND

SINGLE

The unit (rear)

Using the four internal amplifiers for front speakers allows you to have more highquality sounds.

For example, you can use 2-way bi-amp speakers with a woofer and tweeter for front speakers. It produces expansive sound in a bi-amp system featuring a woofer and tweeter. By directly driving each speaker individually, it produces powerful sound while maintaining the feeling of a high S/N ratio.

Note

When using the four internal amplifiers in bi-amp system, the unit supports only 2- to 5.1-channel speaker system.

Connecting front speakers that support bi-amp connections

When using front speakers that support bi-amp connections, connect them to the FRONT terminals and

To enable the bi-amp function, set “Power Amp Assign” (p.85) in the “Setup” menu to “BI-AMP” after connecting the power cable to an AC wall outlet.

SURROUND BACK/PRESENCE/BI-AMP/ZONE B terminals.

Note

▪ Surround back speakers, presence speakers, bi-amp speakers or Zone B speakers cannot be connected

simultaneously.

▪ The FRONT terminals and SURROUND BACK/PRESENCE/BI-AMP/ZONE B terminals output the same

signals.

Notice

▪ Before making bi-amp connections, remove any brackets or cables that connect a woofer with a

tweeter. Refer to the instruction manual of the speakers for details. If you are not making bi-amp connections, make sure that the brackets or cables are connected before connecting the speaker cables.

Playing back music in multiple rooms

Living room (Zone A)

Study room (Zone B)

1 2

4 5

PREOUT

SUBWOOF

ETWORK

(NET)

RONT

CENTER

SPEAK

ERS

RROUND

SINGLE

The unit (rear)

Zone A

Zone B

The Zone A/B function allows you to play back an input source in the room where the unit is installed (Zone A) and in another room (Zone B).

For example, you can turn on Zone A (turn off Zone B) when you are in the living room, and turn on Zone B (turn off Zone A) when you are in the study room. Also, you can turn on both zones when you want to enjoy the same input source in those rooms simultaneously.

Note

▪ Multichannel sources are mixed down to 2 channels and output to the Zone B.

▪ The same input source is applied to both Zone A and Zone B.

▪ By default, the volume for Zone B changes in conjunction with the volume for Zone A. If there is volume

difference between Zone A/B, you can correct it in “ZoneB Trim” in the “Option” menu (p.75). Also, you can adjust the volume for Zone B separately (

▪ You can automatically enable/disable the audio output to Zone A/B in conjunction with a scene selection

(p.49)

p.75).

Connecting Zone B speakers

Connect the device that will be used in Zone B to the unit.

Notice

▪ Remove the unit’s power cable from the AC wall outlet before connecting speakers.

▪ Ensure that the bare wires of the speaker cable do not touch one another or come into contact with the

unit’s metal parts. Doing so may damage the unit or the speakers. If the speaker cables short circuit, “Check SP Wires

” will appear on the front display when the unit is turned on.

Connect the speakers placed in Zone B to the unit with speaker cables.

To utilize the SURROUND BACK/PRESENCE/BI-AMP/ZONE B terminals for Zone B speakers, set “Power Amp Assign” (p.85) in the “Setup” menu to “Zone B” after connecting the power cable to an AC wall outlet.

Note

Surround back speakers, presence speakers, bi-amp speakers or Zone B speakers cannot be connected simultaneously.

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

PROG RAM

STRAIGHT

ENHANCER

BASS

DVD

SC ENE

RADIO

SLEEP

DIRECT

ZONE A ZONE B

NET

OGR

STRAIGHT

ENHANCER

BDDVD

SC EN

ADIO

SLEEP

DIRECT

NET

ZONE A ZONE B

ENHANCER

LINK

ECO

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

STEREO

PARTY

TUNED

FPR

SBL SB SBR

FPL

MUTE VI RTUAL

MASTER

VOL.

SLSWSR

ZONE

HDMI1

“ZONE B” lights up

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

MUTE

FM/AM

VOLUME

PROG RAM

USB

INP UT

NET

BLUETOOTH

MUTE

OLUME

OGR

Input selection keys

Operating the Zone B

Basic playback procedure

Slide the Zone switch to “ZONE B”.

Press z (receiver power).

Each time you press the key, the ZONE B audio output is on or off.

Use the input selection keys to select an input source.

Start playback on the external device or select a radio station.

Press VOLUME to adjust the volume.

Note

To adjust the volume for Zone B separately, see “Adjusting the volume for Zone B separately”

(p.75).

Correcting volume difference between Zone A and

Zone B

If you are bothered by volume difference between Zone A/B, follow the procedure below to adjust the volume for Zone B.

Press OPTION.

Note

Slide the Zone switch to “ZONE A” in menu operations.

Use the cursor keys to select “Volume Trim” (Volume Trim) and

press ENTER.

Note

▪ To return to the previous screen during menu operations, press RETURN.

▪ Text in parentheses denotes indicators on the front display.

Use the cursor keys (q/w) to select “ZoneB Trim” (ZB.Trim) and

the cursor keys (e/r) to adjust the setting.

Setting range

-10.0 dB to +10.0 dB (0.5 dB increments)

Default

0.0 dB

To exit from the menu, press OPTION.

Note

This setting is not effective when “ZoneB Volume” (p.94) in the “Setup” menu is set to “Async.”.

Adjusting the volume for Zone B separately

You can separately adjust the volume for Zone B using the remote control when “ZoneB Volume”

Slide the Zone switch to “ZONE B”.

Press VOLUME to adjust the volume for Zone B.

Note

To mute the audio output to Zone B, press MUTE.

(p.94) in the “Setup” menu is set to “Async.”.

Useful functions

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

PRESET

TUNING

TOPMENU

HOME

POP

UP/MENU

BLUE

YELL

REE

MEMORY

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

STEREO

TUNED

VOL.

SLSWSR

01:Empty

Shortcut number (flashes)

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

STEREO

TUNED

VOL.

SLSWSR

02:Empty

“Empty” (not in use) or item currently registered

Registering favorite items (shortcut)

You can register up to 40 favorite USB, Bluetooth and network contents as shortcuts and access them directly by selecting the shortcut numbers.

Note

▪ You can also use the “Favorites” feature to register Internet radio stations (p.71).

▪ The unit registers Bluetooth or AirPlay as an input source. No individual content can be registered.

Registering an item

Select a desired item and register it to a shortcut number.

Play back a song or a radio station to be registered.

Hold down MEMORY for 3 seconds.

Note

To change a shortcut number to which the item will be registered, use PRESET to select the shortcut number after step 2.

To confirm the registration, press MEMORY.

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

MUTE

FM/AM

VOLUME

PROG RAM

USB

INP UT

NET

BLUETOOTH

MUTE

FM/AM

OLUME

OGR

INPUT

USB NET BLUETOOTH

TUNING

PRESET

MUTE

TUNING

MEMORY

TOP MENU

HOME

POP-UP/MENU

DISPLAYRETURN

SETUP

OPTION

FM/AM

VOLUME

PROGRAM

USB

STRAIGHT

ENHANCER BASS

INPUT

DVD

SCENE

RADIO

SLEEP

ENTER

BLUE

YELLOWGREEN

RED

DIRECT

ZONE A ZONE B

NET

BLUETOOTH

TUNING

PRESET

TUNING

MEMORY

TOP MENU

HOME

POP UP/MENU

BLUE

YELLOWGREEN

RED

TUNING

MEMO

TOPMENU

HOME

POP

UP/MENU

BLUE

YELL

REE

PRESET

ENHANCER

LINK

ECO

MASTER

OUT

ResYPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

STEREO

TUNED

VOL.

SLSWSR

01:USB

Recalling a registered item

Recall a registered item by selecting the shortcut number.

Press BLUETOOTH, NET or USB.

Press PRESET repeatedly to select a desired item.

Note

▪ “No Presets” appears when no items are registered.

▪ The registered item cannot be recalled in the following cases.

– A USB storage device which contains the registered item is not connected to this unit.

– A PC which contains the registered item is turned off or not connected to the network.

– The registered network content is temporarily unavailable or out of service.

– The registered item (file) has been deleted or moved to another location.

– A Bluetooth connection cannot be established.

▪ When you register music files stored on a USB storage device or a PC, this unit memorizes the

relative position of the music files in the folder. If you have added or deleted any music files to or from the folder, this unit may not recall the music file correctly. In such cases, register the items again.

▪ The registered content (songs and Internet radio stations) can be displayed as a list and easily

recalled by using MusicCast CONTROLLER (

p.46) on your mobile device.

Configuring playback settings for different playback sources (Option menu)

ENHANCER

LINK

ECO

MASTER

OUT

ResHi

YPAO

VOL.

A-DRC

SLEEP

PARTY

ZONE

3B2A

MUTE VI RTUAL

FPR

SBL SB SBR

FPL

STEREO

TUNED

VOL.

SLSWSR

Input Select

You can configure separate playback settings for different playback sources. This menu is available on the front panel (or on the TV screen), allowing you to easily configure settings during playback.

Press OPTION.

Front display

TV screen

Use the cursor keys to select an item and press ENTER.

Note

To return to the previous screen during menu operations, press RETURN.

Use the cursor keys (e/r) to select a setting.

To exit from the menu, press OPTION.

Option menu items

Note

▪ Available items vary depending on the selected input source.

▪ Text in parentheses denotes indicators on the front display.

▪ Default settings are underlined.

▪ Depending on the region of purchase, some menu items for audio streaming services are also available.

For details, refer to each manual on the supplied CD-ROM.

Item Function Page

Input Select (Input Select)

Tone Control (

Tone Control)

Program (PRG)

Sur.Decode (SrDec)

DSP/Surround (DSP/ Surround)

DSP Level (DSP Level)

Adaptive DRC (A.DRC)

Enhancer (Enhancer)

Input Trim (In.Trim)

Volume Trim (Volume Trim)

Subwoofer Trim (SW.Trim)

ZoneB Trim (ZB.Trim)

Lipsync (Lipsync)

(

Signal Info.

Signal Info.)

Audio In (Audio In)

Video Out (Video Out)

FM Mode (FM Mode)

Switches the input source. p.79

Adjusts the level of high-frequency range and lowfrequency range individually.

Select the sound programs and stereo playback. p.51

Select which surround decoder is used when Sur.Decode

Adjusts the sound field effect level. p.79

Sets whether the dynamic range (from maximum to minimum) is automatically adjusted when the volume is adjusted.

Enables/disables Compressed Music Enhancer. p.80

Corrects volume differences between input sources. p.80

Fine-adjusts the subwoofer volume. p.80

Corrects volume differences between Zone A/B. p.75

Enables/disables the “Lipsync” setting in the “Setup” menu.

Displays information about the video/audio signal. p.80

Combines the video jack of the selected input source with an audio jack of others.

Selects a video to be output with the selected audio source.

Switches between “Stereo” and “Mono” for FM radio reception.

is selected as the program.

p.79

p.53

p.79

p.80

p.81

p.55

Item Function Page

Automatically registers FM radio stations with strong signals as presets.

Clear radio stations registered to preset numbers. p.58

(U.K. and Europe models only)

Automatically searches for a traffic information station.

Configures the shuffle setting for the USB storage device (p.66) or media server (p.69).

Configures the repeat setting for the USB storage device (p.66) or media server (p.69).

Enables/disables volume controls from iTunes/iPhone via AirPlay.

Adds your favorite Internet radio station to the “Favorites folder.

” folder, or removes it from the “Favorites”

(Preset)

Auto Preset

Clear Preset

Preset

Traffic Program (TrafficProgram)

Shuffle (Shuffle)

Repeat (Repeat)

Volume Interlock (Vol.Interlock)

Add to favorites (Add to Fav.)

Remove from favorites (RemovefromFav.)

Input Select (Input Select)

Switches the input source. Press ENTER to switch to the selected input source.

p.56

p.59

—

p.81

p.71

Tone Control (Tone Control)

Adjusts the level of high-frequency range (Treble) and low-frequency range (Bass) individually.

Choices

Treble (Treble), Bass (Bass)

Setting range

-6.0 dB to 0.0 dB to +6.0 dB (0.5 dB increments)

Note

▪ When both “Treble” and “Bass” are 0.0 dB, “Bypass” appears.

▪ You can also adjust the tone with the front panel controls. Press TONE CONTROL to select “Treble” or

“Bass”, then press PROGRAM to make an adjustment.

▪ If you set an extreme value, sounds may not match those from other channels.

DSP/Surround (DSP/Surround)

Configures the sound field program and surround settings.

DSP Level (DSP Level)

Adjusts the sound field effect level.

Setting range

-6 dB to 0 dB to +3 dB (1 dB increments)

Adaptive DRC (A.DRC)

Sets whether the dynamic range (from maximum to minimum) is automatically adjusted when the volume level is adjusted. When it is set to “ listening to playback at a low volume at night.

Settings

On (On) Automatically adjusts the dynamic range.

Off (Off) The dynamic range is not automatically adjusted.

If “On” is selected, the dynamic range becomes narrow at a low volume and wide at a high volume.

On”, it is useful for

Enhancer (Enhancer)

Enables/disables Compressed Music Enhancer (p.54).

Note

▪ This setting is applied separately to each input source.

▪ You can also use ENHANCER on the remote control to enable/disable Compressed Music Enhancer

(p.54).

Settings

Off (Off) Disables Compressed Music Enhancer.

On (On) Enables Compressed Music Enhancer.

Default

TUNER, (network sources), AirPlay, SERVER, NET RADIO, Bluetooth, USB: On (On)

Others: Off (Off)

Volume Trim (Volume Trim)

Fine-adjusts volume difference between input sources or subwoofer volume.

Input Trim (In.Trim)

Corrects volume differences between input sources. If you are bothered by volume differences when switching between input sources, use this function to correct it.

Note

This setting is applied separately to each input source.

Setting range

-6.0 dB to 0.0 dB to +6.0 dB (0.5 dB increments)

Lipsync (Lipsync)

Enables/disables the adjustment configured in “Lipsync” (p.92) in the “Setup” menu.

Note

This setting is applied separately to each input source.

Settings

Off (Off) Disables the “Lipsync” adjustment.

On (On) Enables the “Lipsync” adjustment.

Signal Info. (Signal Info.)

Displays information about the video/audio signal.

Choices

Format (FORMAT) Audio format of the input signal

The number of source channels in the input signal (front/surround/LFE)

Channel (CHANNEL)

Sampling (SAMPLING) The number of samples per second of the input digital signal

Video In (VIDEO IN) Type and resolution of the input digital signal

Video Out (VIDEO OUT

Note

To switch the information on the front display, press the cursor keys (q/w) repeatedly.

)

For example, “3/2/0.1” means 3 front channels, 2 surround channels, and LFE.

For example, “7.1.4” denotes “standard 7.1-channel plus 4 for overhead speaker channels”.

Type and resolution of the output digital signal

Subwoofer Trim (SW.Trim)

Fine-adjusts the subwoofer volume.

Setting range

-6.0 dB to

0.0 dB to +6.0 dB (0.5 dB increments)

Audio In (Audio In)

Combines the video jack of the selected input source with an audio jack of others. For example, use this function in the following cases.

• Connecting a playback device that supports HDMI video output, but not HDMI audio output

Input sources

HDMI 1-4, AV 1-3

Settigns

AV 1-3, AUDIO 1-3

Setup procedure

See “Changing the combination of video/audio input jacks” (p.27).

Video Out (Video Out)

Selects a video to be output with the selected audio source. For example, you can watch the video while listening to the radio.

Input sources

AUX, AUDIO 1-3, TUNER, (network sources), AirPlay, MusicCast Link, SERVER, NET RADIO, Bluetooth, USB

Settings

Off(Off) Does not output video.

HDMI 1-4, AV 1-3 Outputs video input through the corresponding video input jacks.

Volume Interlock (Vol.Interlock)

Enables/disables volume controls from iTunes/iPhone via AirPlay.

Settings

Off (Off) Disables volume controls from iTunes/iPhone.

Limited(Ltd)

Full (Full)

Enables volume controls from iTunes/iPhone within the limited range (-80 dB to -20 dB and mute).

Enables volume controls from iTunes/iPhone in the full range (-80 dB to +16.5 dB and mute).

CONFIGURATIONS

Configuring various functions (Setup Menu)

You can configure the unit’s various function with the menu displayed on the TV screen.

Note

▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry

out operations while viewing the front display.

▪ If new firmware is available, the message screen appears. For details, see “Updating the unit’s firmware

via the network” If new firmware is available, the envelope icon (p) appears in the screen.

▪

1 2

(p.107).

Press SETUP.

Use the cursor keys to select a menu and press ENTER.

To exit from the menu, press SETUP.

Use the cursor keys to select an item and press ENTER.

Note

To return to the previous screen during menu operations, press RETURN.

Use the cursor keys (e/r) to select a setting and press ENTER.

Setup menu items

Menu Item Function Page

Selects a speaker system. p.85

Selects whether or not a subwoofer is connected. p.85

Selects the size of the front speakers. p.85

Selects whether or not a center speaker is connected and its size. p.86

Selects whether or not surround speakers are connected and their size. p.86

Selects whether or not surround back speakers are connected and their size. p.86

Selects whether or not presence speakers are connected and their size. p.86

Selects the layouts of the presence speakers. p.87

Sets the lower limit of the low-frequency component that can be output from speakers whose size is set to “Small”. p.87

Sets the phase of the subwoofer. p.87

Enables/disables Extra Bass. p.87

Selects whether to use the front 5-channel speaker (Virtual CINEMA FRONT) configuration. p.88

Sets the distance between each speaker and listening position. p.88

Adjusts the volume of each speaker. p.88

Adjusts the tone with an equalizer. p.88

Enables/disables the test tone output. p.89

Enables/disables HDMI Control. p.90

Enables/disables the audio output from a TV. p.90

Selects whether to output videos/audio (input through HDMI jacks) to the TV when the unit is in standby mode. p.90

Enables/disables the upscaling function. p.90

Selects an audio input jack of the unit to be used for TV audio input. p.90

Selects whether to use HDMI control to link the standby behavior of the TV and the unit. p.91

Enables/disables ARC. p.91

Enables/disables SCENE link playback. p.91

Speaker

HDMI

Configuration

Distance

Level

Equalizer

Test Tone

HDMI Control

Audio Output

Standby Through

4K Upscaling

TV Audio Input

Standby Sync

ARC

SCENE

Power Amp Assign

Subwoofer

Front

Center

Surround

Surround Back

Presence

Layout

Crossover

Subwoofer Phase

Extra Bass

Virtual CINEMA FRONT

Menu Item Function Page

Enables/disables CINEMA DSP 3D. p.92

Selects whether to spread the center channel signals to left and right when 2-channel source is played. p.92

Adjusts the center localization (broadening effect) of the front sound field. p.92

Selects the method to adjust the delay between video and audio output. p.92

Adjusts the delay between video and audio output manually. p.92

Adjusts the volume of dialogue sounds. p.93

Adjusts the volume of dialogue sounds for DTS contents. p.93

Adjusts the perceived height of dialogue sounds. p.93

Switches the scale of the volume display. p.94

Selects the dynamic range adjustment method for bitstream audio (Dolby Digital and DTS signals) playback. p.94

Sets the limit value of the volume. p.94

Sets the initial volume for when this receiver is turned on. p.94

Selects whether to adjust the volume for Zone B in conjunction with the volume for Zone A. p.94

Set the amount of time for the auto-standby function. p.95

Enables/disables the eco mode (power saving mode). p.95

Changes the input source name displayed on the front display. p.96

Set which input source is skipped when operating the INPUT key. p.97

Adjusts the brightness of the front display. p.97

Prevents accidental changes to the settings. p.97

Set the unit's functions for the RED/GREEN/YELLOW/BLUE key of the remote control. p.98

Displays the network information on the unit. p.99

Selects the network connection method. p.99

Configures the network parameters (such as IP address). p.99

Sets the MAC address filter to limit access to the unit from other network devices. p.100

Selects whether to allow a DLNA-compatible Digital Media Controller (DMC) to control playback. p.100

Selects whether to enable/disable the function that turns on the unit from other network devices. p.100

Edits the network name (the unit’s name on the network) displayed on other network devices. p.101

Selects whether turning on the power of the master device of the MusicCast network (this unit) also turns on the power of other devices of the network.

Updates the firmware via the network. p.101

Enables/disables the Bluetooth functions. p.101

Terminates the Bluetooth connection between the Bluetooth device (such as smartphones) and the unit. p.60

Selects whether to enable/disable the function that turns on the unit from Bluetooth devices (Bluetooth standby). p.101

Enables/disables the Bluetooth audio transmitter function. p.102

Searches available Bluetooth devices (speakers/headphones) when the unit is used as a Bluetooth audio transmitter. p.61

Select an on-screen menu language. p.102

p.101

Sound

ECO

Function

Network

Bluetooth

Language

CINEMA DSP 3D Mode

DSP Parameter

Lipsync

Dialogue

Volume

Auto Power Standby

ECO Mode

Input Rename

Input Skip

Dimmer

Memory Guard

Remote Color Key

Information

Network Connection

IP Address

MAC Address Filter

DMC Control

Network Standby

Network Name

MusicCast Link Power Interlock

Network Update

Bluetooth

Audio Receive

Audio Send

Center Spread

Center Image

Select

Adjustment

Dialogue Level

DTS Dialogue Control

Dialogue Lift

Scale

Dynamic Range

Max Volume

Initial Volume

ZoneB Volume

Disconnect

Bluetooth Standby

Transmitter

Device Search

Speaker

Configures the speaker settings manually.

Note

Default settings are underlined.

Configuration

Configures the output characteristics of the speakers.

Note

When configuring the speaker size, as a general guideline, select “Large” if the woofer diameter of your speaker is 16 cm (6‑1/4”) or larger, or “Small

Power Amp Assign

Selects a speaker system.

In addition to the 5.1- or 7.1-channel speaker system, various speaker configurations are possible using the presence speakers, Zone B speakers or biamp connections.

Settings

Presence

Sur.Back

BI-AMP

Zone B

5.1ch

Select this option when you use presence speakers in the 5.1.2 system.

Select this option when you use a normal speaker system (not using the presence speakers, Zone B speakers or bi-amp connections).

Select this option when you connect front speakers that support biamp connections (

Select this option when you use Zone B speakers (p.73) in addition to the speaker system in the main zone (Zone A).

Select this option when you don't use the SURROUND BACK/ PRESENCE/BI-AMP/ZONE B

” if it is smaller than 16 cm (6‑1/4”).

p.72).

terminals.

Subwoofer

Selects whether or not a subwoofer is connected.

Settings

Select this option when a subwoofer is connected.

Use

None

Front

The subwoofer will produce LFE (low-frequency effect) channel audio and low-frequency components from other channels.

Select this option when no subwoofer is connected.

The front speakers will produce LFE (low-frequency effect) channel audio and low-frequency components from other channels.

Selects the size of the front speakers.

Settings

Select this option for small speakers.

Small

Large

Note

“Front” is automatically set to “Large” when “Subwoofer” is set to “None”.

The subwoofer will produce front channel low-frequency components (configurable in “

Select this option for large speakers.

The front speakers will produce all of the front channel frequency components.

Crossover”).

Center

Surround Back

Selects whether or not a center speaker is connected and its size.

Settings

Select this option for small speakers.

Small

Large

None

Surround

The subwoofer or front speakers will produce center channel lowfrequency components (configurable in “

Select this option for large speakers.

The center speaker will produce all of the center channel frequency components.

Select this option when no center speaker is connected.

The front speakers will produce center channel audio.

Crossover”).

Selects whether or not surround speakers are connected and their sizes.

Settings

Select this option for small speakers.

Small

Large

None

The subwoofer or front speakers will produce surround channel lowfrequency components (configurable in “

Select this option for large speakers.

The surround speakers will produce all of the surround channel frequency components.

Select this option when no surround speakers are connected.

The front speakers will produce surround channel audio. Virtual CINEMA DSP works when you select a sound program.

Crossover”).

Selects whether or not surround back speakers are connected and their sizes.

Settings

Select this option when one small speaker is connected.

Small x1

Small x2

Large x1

Large x2

None

Note

▪ “Surround Back” is automatically set to “None” when “Power Amp Assign” is set to other than

“Sur.Back”, or when “Surround” is set to “None”.

▪ “Surround Back” is not available when “Virtual CINEMA FRONT” is set to “On”.

Presence

The subwoofer or front speakers will produce surround back channel low-frequency components (configurable in “

Select this option when two small speakers are connected.

The subwoofer or front speakers will produce surround back channel low-frequency components (configurable in “

Select this option when one large speaker is connected.

The surround back speaker will produce all of the surround back channel frequency components.

Select this option when two large speakers are connected.

The surround back speakers will produce all of the surround back channel frequency components.

Select this option when no surround back speakers are connected.

The surround speakers and subwoofer (or front speakers) will produce surround back channel audio.

Crossover”).

Selects whether or not presence speakers are connected and their size.

Settings

Small Select this option for small speakers.

Large Select this option for large speakers.

None Select this option when no presence speakers are connected.

Note

“Presence” is automatically set to “None” when “Power Amp Assign” is set to other than “Presence”.

Layout

Subwoofer Phase

Selects a presence layout when presence speakers are used. This setting facilitates the optimization of the sound field effect.

Settings

Front Height

Overhead Select this option when presence speakers are installed to the ceiling.

Dolby Enabled SP

Note

▪ This setting is not available when “Presence” is set to “None”.

▪ To play Dolby Atmos contents using the presence speakers, see “Presence speaker layout” (p.20).

Crossover

Select this option when presence speakers are installed on the front side wall.

Select this option when using the Dolby Enabled speakers as the presence speakers.

Sets the lower limit of the low-frequency components that can be output from a speaker whose size is set to “

Small”. A frequency sound lower than the specified

value will be produced from the subwoofer or front speakers.

Settings

40 Hz, 60 Hz,

Note

If the volume and crossover frequency are adjustable on your subwoofer, set the volume to half and crossover frequency to maximum.

80 Hz, 90 Hz, 100 Hz, 110 Hz, 120 Hz, 160 Hz, 200 Hz

Sets the phase of the subwoofer. When the bass sound is lacking or unclear, switch the subwoofer phase.

Settings

Normal Does not reverse the subwoofer phase.

Reverse Reverses the subwoofer phase.

Extra Bass

Enables/disables Extra Bass. When Extra Bass is enabled, you can enjoy enhanced bass sounds, regardless of the size of the front speakers and the presence or absence of the subwoofer.

Settings

Off Disables Extra Bass.

On Enables Extra Bass.

Note

You can also use BASS on the remote control to enable/disable Extra Bass (p.54).

Virtual CINEMA FRONT

Selects whether to use the front 5-channel speaker (Virtual CINEMA FRONT) configuration.

Settings

Off Disables the front 5-channel speaker configuration.

On Enables the front 5-channel speaker configuration.

Note

▪ Select “On” only when utilizing the Virtual CINEMA FRONT configuration (p.18).

▪ This setting is not available when “Surround” is set to “None”.

Distance

Sets the distance between each speaker and listening position so that sounds from the speakers reach the listening position at the same time. First, select the unit of distance from “Meter” or “Feet”.

Choices

Front L, Front R, Center, Surround L, Surround R, Surround Back L, Surround Back R, Presence L, Presence R, Subwoofer

Setting range

0.30 m to 3.00 m to 24.00 m (1.0 ft to 10.0 ft to 80.0 ft), 0.05 m (0.2 ft) increments

Level

Adjusts the volume of each speaker.

Choices

Front L, Front R, Center, Surround L, Surround R, Surround Back L, Surround Back R, Presence L

Setting range

-10.0 dB to

Adjusts the tone with an equalizer.

, Presence R, Subwoofer

0.0 dB to +10.0 dB (0.5 dB increments)

Equalizer

EQ Select

Selects the type of equalizer to be used.

Settings

PEQ

GEQ

Off Does not use the equalizer.

Note

“PEQ” is available only when the YPAO has been performed (p.34).

Applies the parametric equalizer values obtained by the YPAO measurement (

Select this option when you want to adjust the equalizer manually.

For details, see “Manual equalizer adjustment”.

p.34).

Manual equalizer adjustment

Set “EQ Select” to “GEQ”.

Use the cursor keys (q/w) to select “Channel” and the cursor

keys (e/r) to select the desired speaker channel.

Use the cursor keys (q/w) to select the desired band

(frequency) and the cursor keys (e/r) to adjust the gain.

Setting range

-6.0 dB to +6.0 dB

To exit from the menu, press SETUP.

Test Tone

Enables/disables the test tone output. Test tone output helps you to adjust the speaker balance or equalizer while confirming its effect.

Settings

Off Does not output test tones.

Outputs test tones automatically when you adjust the speaker balance or equalizer.

HDMI

Configures the HDMI settings.

Note

Default settings are underlined.

HDMI Control

Enables/disables HDMI Control (p.124).

Settings

Off Disables HDMI Control.

Enables HDMI Control.

Note

To use HDMI control, you need to perform the HDMI Control link setup (p.124) after connecting HDMI Control-compatible devices.

Audio Output

Enables/disables the audio output from a TV connected to the HDMI OUT jack.

Settings

Off Disables the audio output from the TV.

On Enables the audio output from the TV.

Note

This setting is available only when “HDMI Control” is set to “Off”.

Configure the settings in “TV Audio Input”, “Standby Sync”, “ARC”, and “SCENE”.

Standby Through

Select whether to output videos/audio (input through HDMI jacks) to the TV when the unit is in standby mode. If this function is set to “ selection keys (HDMI 1–4) to select an HDMI input even when the unit is in standby mode (the standby indicator on the unit blinks).

Settings

Off

Auto

4K Upscaling

Enables/disables the upscaling function. When it is enabled, 1080p content is displayed at 4K resolution.

Settings

Off Disables the upscaling function.

On Enables the upscaling function.

TV Audio Input

Selects an audio input jack of the unit to be used for TV audio input when “HDMI Control” is set to “On”. The unit’s input source automatically switches to TV audio when the TV input is switched to its built-in tuner.

Settings

AV 1–3, AUDIO 1–3

Default

AUDIO1

Note

When using ARC to input TV audio to the unit, you cannot use the input jacks selected here for connecting an external device because the input will be used for TV audio input.

(When “HDMI Control” is set to “Off”)

Does not output videos/audio to the TV.

Automatically selects whether to output videos/audio depending on the status of the connected device.

Outputs videos/audio to the TV. (The unit consumes more power than when “

On” or “Auto”, you can use the input

Off” is selected.)

Standby Sync

Select whether to use HDMI control to link the unit's standby mode to the TV's power when “HDMI Control

Settings

Off Does not set the unit to standby mode when the TV is turned off.

On Sets the unit to standby mode when the TV is turned off.

Auto

ARC

Enables/disables ARC (p.25) when “HDMI Control” is set to “On”.

Settings

Off Disables ARC.

On Enables ARC.

Note

You do not need to change this setting normally. In case noises are produced from the speakers connected to the unit because TV audio signals input to the unit via ARC are not supported by the unit, set “ARC” to “Off” and use the TV’s speakers.

” is set to “On”.

Sets the unit to standby mode when the TV is turned off only when the unit is receiving TV audio or HDMI signals.

SCENE

Enables/disable SCENE link playback when “HDMI Control” is set to “On”.

When SCENE link playback is enabled, HDMI Control-compatible devices connected to the unit via HDMI automatically works as follows, with a scene selection.

• TV: turning on and displaying video from the playback device

• Playback device: starting playback

Choices (SCENE keys)

BD / DVD, TV, NET, RADIO

Settings

Off Disables SCENE link playback for the selected SCENE key.

On Enables SCENE link playback for the selected SCENE key.

Default

BD / DVD, TV: On

NET, RADIO: Off

Note

SCENE link playback may not work properly due to the compatibility between devices. We recommend using TV and playback devices from the same manufacturer so that HDMI Control works more effectively.

Sound

Configures the audio output settings.

Note

Default settings are underlined.

DSP Parameter

Configures the surround decoder settings.

CINEMA DSP 3D Mode

Enables/disables CINEMA DSP 3D (p.51). If this function is set to “On”, CINEMA DSP 3D functions with the selected sound programs (except 2ch Stereo and 7ch Stereo).

Settings

Off Disables CINEMA DSP 3D.

On Enables CINEMA DSP 3D.

Center Spread

Selects whether to spread the center channel signals to left and right when 2channel source is played. If you feel the center sound is too strong, set this function to “On”. This setting is effective when “bDsur” is selected.

Settings

Off Disables Center Spread.

On Enables Center Spread.

Center Image

Adjusts the center localization (broadening effect) of the front sound field. Adjust this higher to strengthen the center localization (less broadening effect) or lower to weaken it (more broadening effect). This setting is effective when “ selected.

Setting range

0.3 to 1.0

0.0 to

Neo:6 Music” is

Lipsync

Adjusts the delay between video and audio output.

Note

You can enable/disable the Lipsync function by input sources in “Lipsync (Lipsync)” (p.80) in the “Option” menu.

Select

Selects the method to adjust the delay between video and audio output.

Setting range

Select this option when you want to adjust the delay between video

Manual

Auto

Note

“Select” is automatically set to “Manual” depending on the TV connected to the unit.

Adjustment

Adjusts the delay between video and audio output manually when “Select” is set to

”. You can fine-adjust the audio output timing when “Select” is set to

“Manual “Auto”.

Setting range

0 ms to 500 ms (1 ms increments)

and audio output manually.

Adjust the audio output timing in “Adjustment”.

Adjusts the delay between video and audio output automatically when a TV that supports an automatic lipsync function is connected to the unit via HDMI.

If necessary, you can fine-adjust the audio output timing in “Adjustment”.

Ideal position

Dialogue

Adjusts the volume of dialogue sounds.

Dialogue Level

Adjusts the volume of the center orientation sounds such as dialogue.

Setting range

0 to 3 (higher to strengthen)

Note

This setting is not available when DTS:X content is played back, or when the Dolby Surround or Neural:X decoder is working.

DTS Dialogue Control

Adjusts the volume of dialogue sounds for DTS contents.

Setting range

0 to 6 (higher to strengthen)

Note

This setting is available only when DTS:X content which supports the DTS Dialogue Control feature is played back.

Dialogue Lift

Adjusts the perceived height of dialogue sounds. If the dialogue sounds as if it is coming from below the TV screen, you can raise its perceived height by increasing this setting.

Note

This setting is available only when one of the following conditions is met.

▪ One of the sound programs (except for 2ch Stereo and 7ch Stereo) is selected when presence

speakers are used.

▪ Virtual Presence Speaker (VPS) (p.7) is working.

(You may hear dialogue sounds from the surround speakers depending on the listening position.)

Setting range

0 to 5 (The bigger the value the higher the position)

Volume

Configures the volume settings.

Scale

Switches the scale of the volume display.

Settings

dB Displays the volume in the “dB” unit.

0-97 Displays the volume in the numeric value (0.5 to 97.0).

Dynamic Range

Selects the dynamic range adjustment method for bitstream audio (Dolby Digital and DTS signals) playback.

Settings

Maximum Produces audio without adjusting the dynamic range.

Standard Optimizes the dynamic range for regular home use.

Sets the dynamic range for clear sound even at night or at low

Min/Auto

volumes.

When playing back Dolby TrueHD signals, the dynamic range is automatically adjusted based on the input signal information.

Max Volume

Sets the limit value of the volume.

Setting range

-30.0 dB to +15.0 dB (5.0 dB increments),

97.0]

Initial Volume

Sets the initial volume when the receiver is turned on.

Settings

Off

Mute Sets the unit to mute the audio output.

-80.0 dB to +16.5 dB (0.5 dB increments) [0.5 to 97.0 (0.5 increments)]

ZoneB Volume

Selects whether to adjust the volume for Zone B in conjunction with the volume for Zone A.

Settings

Sync.

Async.

Sets the level to the volume level of the unit when it last entered standby mode.

Sets the level to the specified volume level.

Adjusts the volume for Zone B in conjunction with the volume for Zone A.

Does not adjust the volume for Zone B in conjunction with the volume for Zone A. Adjust the volume for Zone B separately (p.75).

+16.5 dB [50.0 to 95.0 (5.0 increments),

Note

If “ZoneB Volume” is set to “Async.”, the volume for Zone B is temporarily set to -40 dB. As necessary, adjust the volume using the remote control (

p.75).

ECO

Configures the power supply settings.

Note

Default settings are underlined.

Auto Power Standby

Set the amount of time for the auto-standby function.

Settings

Off Does not set the unit to standby mode automatically.

20 minutes

2 hours, 4 hours, 8 hours, 12 hours

Default

U.K. and Europe models: 20 minutes

Other models: Off

Note

Just before the unit enters standby mode, “AutoPowerStdby” appears and then countdown starts in the front display.

ECO Mode

You can reduce the unit’s power consumption by setting the eco mode to “On”. After setting, be sure to press ENTER to restart the unit.

When the eco mode is enabled, you can reduce the unit’s power consumption.

Settings

Off Disables the eco mode.

On Enables the eco mode.

Sets the unit to standby mode when you have not operated the unit and the unit has not detected any input signal for the specified time.

Sets the unit to standby mode when you have not operated the unit for the specified time.

Note

▪ When “ECO Mode” is set to “On”, the front panel display may become dark.

▪ If you want to play audio at high volume, set “ECO Mode” to “Off”.

Function

Configures the functions that make the unit easier to use.

Note

Default settings are underlined.

Input Rename

Changes the input source name displayed on the front display. You can also select a name created by the Auto Rename function.

Input sources

HDMI 1-4, AV 1-2, AUX, AUDIO 1-3, TUNER, MusicCast Link, SERVER, NET RADIO, Bluetooth, USB

Default

HDMI 1-4: Auto Others: Manual (For AUX, AUDIO 3, TUNER, MusicCast Link, SERVER, NET RADIO, Bluetooth, USB only “Manual” can be selected.)

Procedure to rename manually

Use the cursor keys (q/w) to select an input source to be

renamed.

Use the cursor keys (e/r) to select “Manual” and press

ENTER.

The edit screen is displayed.

Use the cursor keys and ENTER key to edit the name, and then

select “OK” and press ENTER.

Note

▪ To cancel the entry, select “CANCEL”.

▪ If you select "RESET", the default input name will be inserted into the editing area.

Procedure to rename automatically

Use the cursor keys (q/w) to select an input source to be

renamed.

Use the cursor keys (e/r) to select “Auto”.

The unit creates a name automatically according to the connected device.

To change another input source, repeat steps 1 to 2.

To exit from the menu, press SETUP.

Note

During selecting “Auto”, the created name is saved even after the device connection is terminated. To reset to the default setting, switch the setting to “Manual” at once and then set it again to “Auto”.

To change another input source name, repeat steps 1 to 4.

To exit from the menu, press SETUP.

Input Skip

Set which input source is skipped when operating the INPUT key.

You can select the desired input source quickly by using this function.

Input sources

HDMI 1-4, AV 1-3, AUX, AUDIO 1-3, TUNER, NET, Bluetooth, USB

Settings

Off Does not skip the selected input source.

On Skips the selected input source.

Dimmer

Adjusts the brightness of the front display.

Setting range

0 (higher to brighten)

-4 to

Note

The front display may become dark when “ECO Mode” (p.95) is set to “On”.

Memory Guard

Prevents accidental changes to the settings.

Settings

Off Does not protect the settings.

On Protects the settings until “Off” is selected.

Note

When “Memory Guard” is set to “On”, the lock icon (o) is displayed on the menu screen.

Remote Color Key

Set the unit's functions for the RED/GREEN/YELLOW/BLUE key of the remote control.

Settings

Default

Input

Program

Assigns the functions of playback devices connected to the unit with an HDMI cable.

Assigns the unit's input sources to each key. The assigned input sources can be set separately.

Input sources

HDMI 1-4, AV 1-3, AUX, AUDIO 1-3, TUNER, NET, Bluetooth, USB

Default

RED: HDMI2, GREEN: HDMI4, YELLOW: AV 2, BLUE: AUX

Assigns the functions of sound mode to each key.

RED: MOVIE

GREEN: MUSIC

YELLOW: STEREO

BLUE: SUR.DECODE

For example, if you press the RED key repeatedly, you can select your favorite sound program from the sound programs (MOVIE for the video source.

) (p.51) suitable

Network

Configures the network settings.

Note

Default settings are underlined.

Information

Displays the network information on the unit.

Status The connection status of the NETWORK jack

Connection Connection method

SSID The access point to which the unit is connected

Security The encryption method for your network

MusicCast Network Readiness or not for the MusicCast Network

MAC Address (Ethernet)

MAC Address (Wi-Fi)

IP Address IP address

Subnet Mask Subnet mask

Default Gateway The IP address of the default gateway

DNS Server (P) The IP address of the primary DNS server

DNS Server (S) The IP address of the secondary DNS server

Network Connection

Selects the network connection method.

Choices

Wired

Wireless(Wi-Fi)

Wireless Direct

MAC address

Select this option when you want to connect the unit to a network with a commercially-available network cable.

Select this option when you want to connect the unit to a network via the wireless router (access point). For details on settings, see “Connecting the unit to a wireless network”

Select this option when you want to connect a mobile device to the unit directly. For details on settings, see “Connecting a mobile device to the unit directly (Wireless Direct)”

(p.39).

(p.44).

IP Address

Configures the network parameters (such as IP address).

DHCP

Select whether to use a DHCP server.

Settings

Off

Manual network settings

Set “DHCP” to “Off”.

Use the cursor keys (q/w) to select a parameter type.

IP Address Specifies an IP address.

Subnet Mask Specifies a subnet mask.

Default Gateway Specifies the IP address of the default gateway.

DNS Server (P) Specifies the IP address of the primary DNS server.

DNS Server (S) Specifies the IP address of the secondary DNS server.

Use the cursor keys (e/r) to move the edit position and the

cursor keys (q/w) to select a value.

To exit from the menu, press SETUP.

Does not use a DHCP server. Configure the network parameters manually. For details, see “Manual network settings”.

Uses a DHCP server to automatically obtain the unit’s network parameters (such as IP address).

MAC Address Filter

Sets the MAC address filter to limit access to the unit from other network devices.

Note

Operation of the AirPlay function (p.62) or the DMC is not limited by this setting.

Filter

Enables/disables the MAC address filter.

Settings

Off Disables the MAC address filter.

MAC Address 1–10

Specifies the MAC addresses (up to 10) of the network devices that will be permitted access to the unit when “Filter” is set to “On”.

Procedure

Use the cursor keys (

(1 to 10).

Use the cursor keys (e/r) to move the edit position and the

cursor keys (q/w) to select a value.

Enables the MAC address filter. In “MAC Address 1–10”, specify the MAC addresses of the network devices that will be permitted access to the unit.

q/w) to select an MAC address number

DMC Control

Selects whether to allow DLNA-compatible Digital Media Controller (DMC) to control playback.

Settings

Disable Does not allow DMCs to control playback.

Enable Allows DMCs to control playback.

Note

A Digital Media Controller (DMC) is a device that can control other network devices through the network. When this function is enabled, you can control playback of the unit from DMCs (such as Windows Media Player 12) on the same network.

Network Standby

Selects whether the unit can be turned on from other network devices (network standby).

Settings

Off Disables the network standby function.

Auto

Enables the network standby function.

(The unit consumes more power than when “Off” is selected.)

Enables the network standby function.

(If “Network Connection” is set to “Wired”, the unit is set to the power saving mode when the network cable is disconnected.)

To exit from the menu, press SETUP.

With an advanced energy saving design, this product achieves a low power consumption of not more than two watts when in Network Standby mode.

100

Yamaha TSR-5830 Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual

CONTENTS

BEFORE USING THE UNIT
