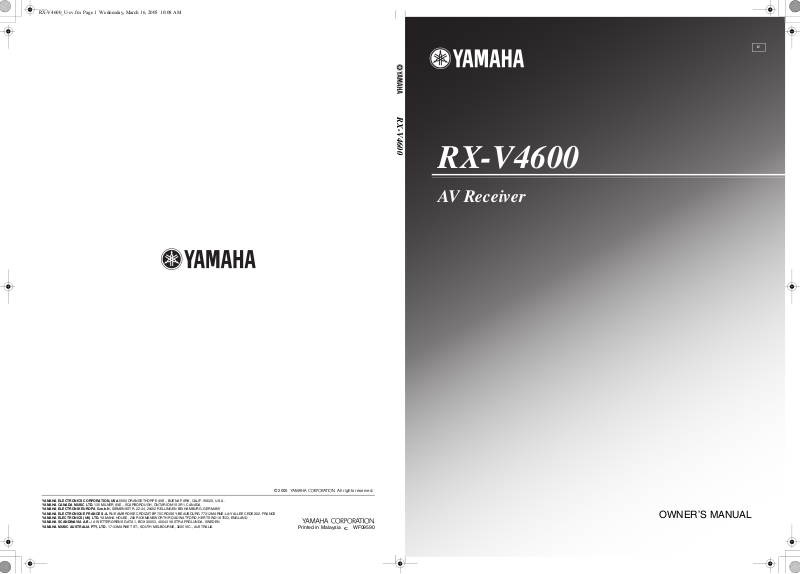

Page 1

RX-V4600

AV R e c e i ver

OWNER’S MANUAL

Page 2

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1 Read Instructions – All the safety and operating instructions

should be read before the product is operated.

2 Retain Instructions – The safety and operating instructions

should be retained for future reference.

3 Heed Warnings – All warnings on the product and in the

operating instructions should be adhered to.

4 Follow Instructions – All operating and use instructions

should be followed.

5 Cleaning – Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners.

6 Attachments – Do not use attachments not recommended by

the product manufacturer as they may cause hazards.

7 Water and Moisture – Do not use this product near water –

for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8 Accessories – Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9 A product and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10 Ventilation – Slots and openings in the cabinet are provided

for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11 Power Sources – This product should be operated only from

the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12 Grounding or Polarization – This product may be equipped

with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14 Lightning – For added protection for this product during a

lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

15 Power Lines – An outside antenna system should not be

located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16 Overloading – Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17 Object and Liquid Entry – Never push objects of any kind

into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18 Servicing – Do not attempt to service this product yourself

as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19 Damage Requiring Service – Unplug this product from the

wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the

product,

c) If the product has been exposed to rain or water,

Page 3

IMPORTANT SAFETY INSTRUCTIONS

d) If the product does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e) If the product has been dropped or damaged in any

way, and

f) When the product exhibits a distinct change in

performance - this indicates a need for service.

20 Replacement Parts – When replacement parts are required,

be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21 Safety Check – Upon completion of any service or repairs to

this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22 Wall or Ceiling Mounting – The unit should be mounted

to a wall or ceiling only as recommended by the manufacturer.

23 Heat – The product should be situated away from heat

sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

24 Outdoor Antenna Grounding – If an outside antenna or

cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810–20)

GROUNDING CONDUCTORS (NEC SECTION 810–21)

GROUND CLAMPS

ELECTRIC SERVICE EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

MAST

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2 IMPORTANT: When connecting this product to

accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3 NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA

90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

Page 4

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. Allow ventilation space of at least 30 cm on the top, 20 cm on the left and right, and 20 cm on the back of this unit.

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place: – Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, disconnect the AC power

cable and disconnect the antenna cable when there is an electrical storm.

14 Do not attempt to modify or fix this unit. Contact qualified

YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that this unit is faulty.

17 Before moving this unit, press STANDBY/ON to set this unit

in the standby mode, and disconnect the AC power plug from the wall outlet.

18 VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are:

General model .............AC 110/120/220/230–240 V, 50/60 Hz

Asia model ................................ AC 220/230–240 V, 50/60 Hz

WAR NING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-003.

POUR LES CONSOMMATEURS CANADIENS

Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

iii

Page 5

CONTENTS

INTRODUCTION

FEATURES ............................................................. 2

GETTING STARTED............................................ 3

Supplied accessories .................................................. 3

Installing batteries in the remote controls.................. 4

CONTROLS AND FUNCTIONS ......................... 5

Front panel ................................................................. 5

Remote control........................................................... 7

Zone 2/Zone 3 remote control ................................... 9

Using the remote controls .......................................... 9

Front panel display .................................................. 10

Rear panel ................................................................ 12

PREPARATION

SPEAKER SETUP ............................................... 13

Speaker placement ................................................... 13

Speaker connections ................................................ 15

CONNECTIONS .................................................. 18

Before connecting components................................ 18

Connecting video components................................. 19

Connecting audio components................................. 22

Connecting the antennas .......................................... 24

Connecting the power cable..................................... 25

Speaker impedance setting ...................................... 26

Turning on the power............................................... 26

AUTO SETUP....................................................... 27

Introduction.............................................................. 27

Optimizer microphone setup.................................... 27

Starting the setup ..................................................... 28

Confirming the results ............................................. 30

BASIC OPERATION

PLAYBACK.......................................................... 33

Basic operations....................................................... 33

Selecting sound field programs ............................... 34

Additional operations............................................... 35

Selecting audio input modes .................................... 40

TUNING ................................................................ 41

Automatic and manual tuning.................................. 41

Presetting stations .................................................... 42

Selecting preset stations........................................... 44

Exchanging preset stations ...................................... 44

Using HD Radio HD Radio Selecting HD Radio Displaying HD Radio

™

................................................... 45

™

tuning................................................... 45

™

audio programs .................... 46

™

information ....................... 46

RECORDING ....................................................... 47

SOUND FIELD PROGRAMS

SOUND FIELD PROGRAM

DESCRIPTIONS .............................................. 48

For movie/video sources.......................................... 48

For music sources .................................................... 50

ADVANCED OPERATION

ADVANCED OPERATIONS ..............................51

Using the sleep timer ............................................... 51

SYSTEM OPTIONS .............................................52

Changing parameter settings ................................... 54

Input Select .............................................................. 55

Manual Setup (Sound) ............................................. 58

Manual Setup (Basic) .............................................. 61

Manual Setup (Option) ............................................ 66

System Memory....................................................... 69

REMOTE CONTROL FEATURES ...................70

Control area ............................................................. 70

Setting remote control codes ................................... 71

Programming codes from other

remote controls (Learn) ....................................... 73

Changing source names in the display window....... 75

Using the Macro feature .......................................... 76

Clearing function sets .............................................. 78

Clearing individual functions .................................. 79

Controlling each component.................................... 81

ZONE 2/ZONE 3 ...................................................82

Zone 2/Zone 3 connections...................................... 82

Controlling Zone 2/Zone 3 from the front panel ..... 83

Controlling Zone 2/Zone 3 using

the remote control................................................ 84

FRONT PANEL DISPLAY MENUS ..................86

Advanced setup menu.............................................. 86

Front panel display system options menu................ 87

USING i.LINK.......................................................91

What is i.LINK? ...................................................... 91

Connecting i.LINK components .............................. 91

Basic i.LINK operations .......................................... 92

Changing i.LINK Select parameters ........................ 92

i.LINK display messages ......................................... 94

USING HDMI........................................................95

What is HDMI? ....................................................... 95

Connecting HDMI components ............................... 96

Basic HDMI operations ........................................... 97

Changing HDMI parameters.................................... 97

ADDITIONAL INFORMATION

EDITING SOUND FIELD PARAMETERS ......99

What is a sound field? ............................................. 99

Changing parameter settings ................................... 99

SOUND FIELD PARAMETER

DESCRIPTIONS.............................................100

TROUBLESHOOTING .....................................105

GLOSSARY.........................................................110

Audio formats ........................................................ 110

Sound field programs............................................. 111

Audio information ................................................. 111

Video signal information ....................................... 113

PARAMETRIC EQUALIZER

INFORMATION .............................................114

SPECIFICATIONS.............................................115

PREPARATIONINTRODUCTION

OPERATION

BASIC

SOUND FIELD

PROGRAMS

OPERATION

ADVANCED

INFORMATION

ADDITIONAL

Page 6

FEATURES

Built-in 7-channel power amplifier

◆ Minimum RMS Output Power

(0.04% THD, 20 Hz to 20 kHz, 8 Ω) Front: 130 W + 130 W Center: 130 W Surround: 130 W + 130 W Surround Back: 130 W + 130 W

Sound field features

◆ Proprietary YAMAHA technology for the creation of

sound fields

◆ THX Select2

◆ SRS CS (U.S.A. model only)

◆ Dolby Digital/Dolby Digital EX decoder

◆ DTS/DTS-ES Matrix 6.1, Discrete 6.1,

DTS Neo:6 decoder, DTS 96/24

◆ Dolby Pro Logic/Dolby Pro Logic /

Dolby Pro Logic x decoder

◆ Virtual CINEMA DSP

◆ SILENT CINEMA

™

Sophisticated AM/FM tuner

◆ 40-station random access preset tuning

◆ Automatic preset tuning

◆ Preset station shifting capability (preset editing)

◆ HD Radio

™

digital broadcast reception capability

Other features

◆ YPAO: YAMAHA Parametric Room Acoustic

Optimizer for automatic speaker setup

◆ 192-kHz/24-bit D/A converter

◆ GUI (graphical user interface) menus that allow you to

optimize this unit to suit your individual audio/video system

◆ 6 or 8-channel additional input jacks for discrete

multi-channel input

◆ Short message function

◆ PURE DIRECT for pure fidelity sound with analog,

DSD, PCM and multi-channel PCM sources

◆ S-video signal input/output capability

◆ Component video input/output capability

◆ Video signal conversion (composite video ↔

S-video → component video) capability for monitor out

◆ i.LINK interface for direct digital transfer of digital

audio signals

◆ HDMI interface for standard, enhanced or

high-definition video as well as multi-channel digital audio

◆ Optical and coaxial digital audio signal jacks

◆ Sleep timer

◆ Cinema and music night listening mode

◆ Remote control with preset remote control codes and

learning/macro capability

◆ Zone 2/Zone 3 custom installation facility

◆ Zone 2/Zone 3 remote control for controlling

Zone 2/Zone 3 components connected to this unit

• y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the main unit or on the remote control. In cases when the button names differ between the main unit and the remote control, the button name on the remote control is given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In case of differences between the manual and product, the product has priority.

Manufactured under license from Dolby Laboratories. “Dolby”, “Surround EX”, and the double-D symbol are trademarks of Dolby Laboratories.

“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of Digital Theater Systems, Inc.

“HDMI”, the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC.

HD Radio iBiquity Digital Corporation. “iBiquity Digital” and the “HD Radio” and “HD” symbols are registered trademarks of iBiquity Digital Corporation. U.S. and Foreign Patents.

™

technology manufactured under license from

“i.LINK” and the “i.LINK” logo are trademarks of Sony Corporation.

“SILENT CINEMA” is a trademark of YAMAHA CORPORATION.

Circle Surround , Dialog Clarity, TruBass, SRS and the symbol are trademarks of SRS Labs, Inc.

Circle Surround , Dialog Clarity and TruBass technologies are incorporated under license from SRS Labs, Inc.

Page 7

GETTING STARTED

Supplied accessories

Please check that you received all of the following parts.

Remote control

POWER POWER POWER

PHONO TUNER CD

V-AUX

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

TOP

TITLE

BAND

RETURN

STEREO

THX

5678

REC

DISC SKIP

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

MULTI CH IN

CD-R

CBL/SAT MD/TAPE

SELECT

AMP

SOURCE

VOL

–

MUTE

PRESET

EXIT

PURE DIRECT

PRG SELECT

NIGHT

ENTER

AUDIO

A/B/C/D/E

STRAIGHT

DISPLAY

EFFECT

MUSIC ENTERTAIN MOVIE

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

CLEAR

LEARN

MACROONOFF

RE–NAME

Batteries (4) (AAA, LR03)

Zone 2/Zone 3

remote control

POWER

CBL/SAT MD/TAPE

DVR/VCR2

PRESET/CH

A/B/C/D/E

ID2ID1

DVD

VOLUME

MUTE

STANDBY

–

DISPLAY

ZONE 3ZONE 2

TUNER CD CD-R

DTV

VCR 1

PRG SELECT

INTRODUCTION

Batteries (2)

(AAA, R03)

Power cable

AM loop antenna

(U.S.A. model)

Speaker terminal

wrench

AM loop antenna

(Canada, Asia,

General, China, Korea,

Australia, U.K. and

Europe models)

Optimizer microphone

Indoor FM antenna

(U.S.A., Canada, Asia,

General, China and

Korea model s)

75-ohm/300-ohm antenna adapter (U.K. model only)

Indoor FM antenna

(Australia, U.K. and

Europe models)

Page 8

GETTING STARTED

Installing batteries in the remote controls

Notes on batteries

• Change all of the batteries if you notice conditions such as the operation range of the remote control decreases, the indicator does not flash, or its light or display window become dim.

• Do not use old batteries together with new ones.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

• Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.

■ Remote control

1 Press the part and slide the battery

compartment cover off.

2 Insert four supplied batteries (AAA, LR03)

according to the polarity markings on the inside of the battery compartment.

3 Slide the cover back until it snaps into place.

■ Zone 2/Zone 3 remote control

1 Press the part and slide the battery

compartment cover off.

2 Insert two supplied batteries (AAA, R03)

according to the polarity markings (+ and –) on the inside of the battery compartment.

3 Slide the cover back until it snaps into place.

If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. When the memory is cleared, insert new batteries, set up the remote control code and program any acquired functions that may have been cleared.

Page 9

Front panel

CONTROLS AND FUNCTIONS

INTRODUCTION

STRAIGHT

PROGRAM

TONE

CONTROL

1 2 34 5 6 7 890A B D E

MULTI CH

STANDBY

AUDIO

INPUT

SELECT

INPUT

/ON

CBL/SAT

VCR 1

DVR/ VCR 2

DTV

REC OUT/ZONE 2

SOURCE/ REMOTE

A/B/C/D/E

SPEAKERS

MD/TAPEDVD

CD-R

TUNER

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

AUDIO R OPTICAL

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

FI MNLKJHG

1 STANDBY/ON

Turns on the main unit only or sets it to the standby mode. When you turn on the main unit, there will be a 6 to 7 second delay before the main unit can reproduce sound.

6 PRESET/TUNING l / h

Selects preset station number 1 to 8 when the unit is in the tuner mode and the colon (:) is displayed next to the band indication in the front panel display. Selects the tuning frequency when the unit is in the tuner

Notes

• In the standby mode, this unit consumes a small amount of power in order to receive infrared-signals from the remote control.

• You can turn on the main unit, Zone 2 and Zone 3 or set them to the standby mode simultaneously using the remote control. For details, see page 85.

2 INPUT selector

Selects the input source you want to listen to or watch.

3 AUDIO SELECT

Toggles the priority for the type of audio input jack (AUTO, i.LINK, HDMI, COAX/OPT, ANALOG) when one component is connected to two or more input jacks on this unit (see page 40).

4 MULTI CH INPUT

Selects the source connected to the MULTI CH INPUT jacks. When selected, the MULTI CH INPUT source takes priority over the source selected with the INPUT selector (or the input selector buttons on the remote control).

5 A/B/C/D/E

Selects one of the 5 preset station groups (A to E) when

mode and the colon (:) is not displayed. See pages 41 to 44 for details.

7 Front panel display

Shows information about the operational status of this unit.

8 PRESET/TUNING (EDIT)

Switches the function of PRESET/TUNING l / h between selecting preset station numbers and tuning when the unit is in the tuner mode (see pages 41 to 44).

9 FM/AM

Switches the reception band (FM or AM) when the unit is in the tuner mode (see page 41).

0 MEMORY (MAN’L/AUTO FM)

Stores a station in the memory when the unit is in the tuner mode. Hold down this button for more than 3 seconds to start automatic preset tuning (see pages 42 to 43).

A TUNING MODE (AUTO/MAN’L)

Switches the tuning mode between automatic (“AUTO” indicator on) and manual (“AUTO” indicator off) when the unit is in the tuner mode.

the unit is in the tuner mode (see page 44).

PURE DIRECT

VOLUME

Page 10

CONTROLS AND FUNCTIONS

B STRAIGHT/EFFECT

Switches the sound fields off or on. When STRAIGHT is selected, input signals (2-channel or multi-channel) are output directly from their respective speakers without effect processing.

C Remote control sensor

Receives signals from the remote controls.

D TONE CONTROL

Use to adjust the bass/treble balance for the front left/right and center channels (see page 35).

E PURE DIRECT

Turns on or off the PURE DIRECT mode. Lights up when turned on (see page 38).

F REC OUT/ZONE 2

Selects the source you want to direct to the audio/video recorder and ZONE 2 outputs independently of the source you are listening to or watching in the main room. When set to the SOURCE/REMOTE position, the input source is directed to all outputs. The source in Zone 2 and the source you record are always identical.

G OPTIMIZER MIC jack

Use to connect and input audio signals from the supplied microphone for use with the AUTO SETUP function (see page 27).

L ZONE CONTROL

Press to control the input or adjust the volume level for the currently selected zone (the main unit, Zone 2 or Zone 3) (see page 83). After you press ZONE CONTROL, the indicator for the currently selected zone flashes in the front panel display for approximately 5 seconds. While the indicator is flashing, perform the desired operation.

M PROGRAM selector

Use to select sound field programs or adjust bass/treble balance (in conjunction with TONE CONTROL).

N VOLUME

Controls the output level of all audio channels. This does not affect the REC OUT level.

■ Opening and closing the front panel door

When you want to use the controls behind the front panel door, open the door by gently pressing on the lower part of the panel. Keep the door closed when not using these controls.

H SPEAKERS A/B

Turn on or off the set of front speakers connected to the A and/or B terminals on the rear panel each time the corresponding button is pressed.

I PHONES (SILENT CINEMA) jack

Outputs audio signals for private listening with headphones. When you connect headphones, no signals are output at the PRE OUT jacks or to the speakers. All Dolby Digital and DTS audio signals are mixed down to the front left and right channels.

J VIDEO AUX jacks

Input audio and video signals from an external source such as a game console. To reproduce source signals at these jacks, select V-AUX as the input source.

K ZONE ON/OFF

MAIN

Turns on the power of the main unit or sets it to the standby mode (see page 83).

ZONE 2

Turns on the power of Zone 2 or sets it to the standby mode (see page 83).

ZONE 3

Turns on the power of Zone 3 or sets it to the standby mode (see page 83).

To open, press gently on the lower part of the panel.

Page 11

Remote control

CONTROLS AND FUNCTIONS

This section describes the function of each control on the remote control used to control this unit. To operate other components, see “REMOTE CONTROL FEATURES” on page 70. Set AMP/SOURCE/TV to AMP to operate this unit.

POWER POWER POWER

AVTV

STANDBY

AUDIO SELECT

SYSTEM

SLEEP

D E F

PHONO TUNER CD

MULTI CH IN

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DV D

TV VOL

–

TV MUTE TV INPUT

PRESET

TOP

TITLE

BAND

ENTER

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARD SELECT EXTD SUR.

5678

REC

DISC SKIP

LEARN

MACROONOFF

EXIT

PRG SELECT

A/B/C/D/E

DISPLAY

3421

+10

VOL

–

MUTE

SPEAKERSMEMORY

CLEAR

CD-R

SELECT

AMP

SOURCE

PURE DIRECT

NIGHT

AUDIO

STRAIGHT

EFFECT

ENT.

RE–NAME

L M

N O

R S t

1 Infrared window

Outputs infrared control signals. Aim this window at the component you want to operate.

2 Transmission indicator

Flashes while the remote control is sending signals.

3 Input selector buttons

Select the input source and change the control area. Set AMP/SOURCE/TV to SOURCE, then press TUNER to select the TUNER mode.

4 Display window

Shows the name of the selected source component that you can control.

5 LIGHT button

Press to light up remote control buttons and display window.

6 TOP, BAND

Displays the top screen in the graphical user interface (GUI) menu on your video monitor when AMP/SOURCE/TV is set to AMP. Switches the reception band (FM or AM) when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode.

7 Cursor buttons k / n / l / h / ENTER

Use to select and adjust DSP program parameters or GUI menu items when AMP/SOURCE/TV is set to AMP. Press l / h to select a preset station group (A to E) when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode. Press k / n to select a preset station number (1 to 8) when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode.

8 RETURN

Returns to the upper directory when in the front panel display menu mode.

9 Sound field program / numeric buttons

Use to select sound field programs or input numbers when AMP/SOURCE/TV is set to AMP. Use numbers 1 through 8 to select preset stations when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode. Use SELECT to play back 2-channel sources in multi-channel format (see page 37). Use EXTD SUR. to switch between 5.1 or 6.1/7.1 channel playback of multi-channel software (see page 36).

INTRODUCTION

0 MEMORY 1/2

Use to recall favorite sound field programs, YPAO settings or additional preset stations (see page 69).

A MACRO ON/OFF

Turns the macro function on and off.

Page 12

CONTROLS AND FUNCTIONS

B MACRO

Use to program a series of operations for control by a single button (see page 76).

C STANDBY

Sets this unit in the standby mode.

D SYSTEM POWER

Turns on the power of this unit.

E AUDIO SELECT

Toggles the priority for the type of audio input jack (AUTO, i.LINK, HDMI, COAX/OPT, ANALOG) when one component is connected to two or more input jacks on this unit (see page 40).

F SLEEP

Sets the sleep timer.

G MULTI CH IN

Selects MULTI CH INPUT when using an external decoder (etc.).

H SELECT k / n

Selects another component that you can control independently of the input component selected with the input selector buttons.

I VOL +/–

Increases or decreases the volume level.

J AMP/SOURCE/TV

Selects the component you want to control with the remote control.

AMP: Set to this position to operate this unit. SOURCE: Set to this position to operate the component

selected with an input selector button. TV: Set to this position to operate the television. To set the remote control codes for components, see page 71.

O DISPLAY

Use to enter into the front panel display menu mode when AMP/SOURCE/TV is set to AMP.

(U.S.A. model only)

Toggles between HD Radio information displays when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode (see page 46).

P STRAIGHT/EFFECT

Switches the sound fields off or on. When STRAIGHT is selected, input signals (2-channel or multi-channel) are output directly from their respective speakers without effect processing.

Q SPEAKERS A/B

Use to turn on or off the set of front speakers connected to the A and/or B terminals on the rear panel when AMP/SOURCE/TV is set to AMP, then the corresponding button is pressed each time.

R RE-NAME

Used to change the input source name in the display window (see page 75).

S CLEAR

Used to clear functions acquired when using the learn, macro and rename features, or setting remote control codes (see page 78).

T LEARN

Used to set up the remote control code or program functions from other remote controls (see page 73).

K MUTE

Mutes the sound. Press again to restore the audio output to the previous volume level.

L PURE DIRECT

Turns on or off PURE DIRECT mode (see page 38).

M EXIT, PRG SELECT

Use to exit the graphical user interface (GUI) mode when AMP/SOURCE/TV is set to AMP.

(U.S.A. model only)

Selects the HD Radio audio program when AMP/SOURCE/TV is set to SOURCE and the unit is in the tuner mode (see page 46).

N NIGHT

Turns on or off the night listening modes (see page 38).

Page 13

Zone 2/Zone 3 remote control

CONTROLS AND FUNCTIONS

This section describes the controls and functions of the Zone 2/Zone 3 remote control. Use the Zone 2/Zone 3 remote control to control components connected to this unit in Zone 2 (the second room) or Zone 3 (the third room).

POWER

TUNER CD CD-R

STANDBY

DTV

CBL/SAT MD/TAPE

VCR 1

DVR/VCR2

DVD

PRESET/CH

A/B/C/D/E

PRG SELECT

VOLUME

–

MUTE

DISPLAY

7 8 9 0

ID2ID1

ZONE 3ZONE 2

A B

1 Infrared window

Outputs infrared control signals. Aim this window at the component you want to operate.

2 POWER

Turns on the power of this unit.

3 STANDBY

Sets this unit in the standby mode.

4 Input selector buttons

Select the input source and change the control area.

5 PRESET/CH k / n

Press k / n to select a preset station number (1 to 8) when the unit is in tuner mode.

6 VOLUME +/–

Increases or decreases the volume level.

7 MUTE

Mutes the sound. The MUTE indicator turns on when the MUTE function is on. Press again to restore the audio output to the previous volume level.

8 A/B/C/D/E

Press repeatedly to select a preset station group (A to E) when the unit is in tuner mode.

9 DISPLAY

Use to enter into the front panel display menu mode.

(U.S.A. model only)

Toggles between HD Radio information displays when the unit is in the tuner mode (see page 46).

0 PRG SELECT

(U.S.A. model only)

Selects the HD Radio audio program when the unit is in the tuner mode (see page 46).

A ID1/ID2

Slide to set the remote control AMP/tuner ID for this unit (see page 72).

B ZONE 2/ZONE 3

Slide to set the operation of this unit to Zone 2 or Zone 3 (see page 82).

INTRODUCTION

Using the remote controls

The remote controls transmit a directional infrared ray. Be sure to aim the remote controls directly at the remote control sensor on the main unit during operation.

PURE DIRECT

STANDBY

AUDIO SELECTAB

VOL

–

MUTE

EXIT

PRG SELECT

A/B/C/D/E

DISPLAY

3421

SPEAKERSMEMORY

+10

CLEAR

LEARN

VOLUME

TONE

CONTROL

STRAIGHT

PROGRAM

30 30

SYSTEM

POWER

STANDBY

TUNER CD CD-R

SLEEP

DTV

CBL/SATMD/TAPE

MULTI CH IN

VCR 1

DVR/VCR2

DVD

CD-R

PRESET/CH

VOLUME

–

A/B/C/D/E

SELECT

MUTE

DISPLAY

PRG SELECT

AMP

SOURCE

ZONE 3ZONE 2

ID2ID1

PURE DIRECT

NIGHT

AUDIO

STRAIGHT

EFFECT

ENT.

RE–NAME

MULTI CH

AUDIO

INPUT

SELECT

INPUT

SOURCE/ REMOTE

MD/TAPEDVD CD-R

DTV

CBL/SAT

VCR 1

STANDBY /ON

DVR/ VCR2

REC OUT/ZONE 2

Approximately 6 m (20 ft)

TUNER

A/B/C/D/E

SPEAKERS

OPTIMIZER

MIC

PRESET/ TUNING

SILENT CINEMA S VIDEO VIDEO L

PHONES

PRESET/ TUNING

EDIT

MAIN ZONE 2

FM/AM

ZONE ON/OFF

VIDEO/AUX

TUNING

MEMORY

MODE

MAN'L/AUTO FMAUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

POWER POWER POWER

AVTV

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

PRESET

TOP

TITLE

BAND

ENTER

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARDSELECT EXTD SUR.

5678

REC

DISC SKIP

MACROONOFF

■ Handling the remote controls

• Do not spill water or other liquids on the remote controls.

• Do not drop the remote controls.

• Do not leave or store the remote controls in the following types of conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or

stove – extremely low temperatures – dusty places

Page 14

CONTROLS AND FUNCTIONS

Front panel display

13 4 5 6 78 90AB

MULTI CH

DIGITAL PL EX

1 i.LINK indicator

Lights up when an i.LINK component is connected, and this unit is playing back signals input via i.LINK connections. Flashes when an i.LINK component is connected, but this unit is playing back signals input via connections other than i.LINK or no signals are being input via i.LINK connections. Turns off when no i.LINK component is connected. See page 94 for details.

2 HDMI indicator

Lights up when an HDMI component is connected, and this unit is playing back audio signals input via HDMI connections. Flashes when an HDMI component is connected, but this unit is playing back audio signals input via connections other than HDMI or no audio signals are being input via HDMI connections. Turns off when no HDMI component is connected. See page 96 for details.

3 NIGHT indicator

Lights up when you select night listening mode.

4 VIRTUAL indicator

Lights up when Virtual CINEMA DSP is active (see page 39).

5 Sound field indicators

Light to indicate the active DSP sound fields.

6 Input source indicators

A cursor lights to show the current input source.

7 CINEMA DSP indicator

Lights up when you select a CINEMA DSP sound field program.

V-A UX

96 24

PL x

CDEFHIJKL M N OPQRS

DISCRETE MATRIX

THX

PCM

DSD

DVR/VCR2

VIRTUAL

NIGHT

STANDARD

ZONE2 ZONE3 SLEEP

VCR 1

SP A B

CBL/SAT

SILENT CINEMA

DTV DVD

MD/TAPE

YPAO HiFi DSP

CD-R

CD TUNER

AUTO

MEMORY

STEREO

TUNED

8 YPAO indicator

Lights up during the auto setup procedure and when the auto setup speaker settings are used without any modifications.

9 AUTO indicator

Lights up when this unit is in the automatic tuning mode.

0 STEREO indicator

Lights up when this unit is receiving a stereo signal for an FM stereo broadcast while the AUTO indicator is lit.

A HD Radio indicator

(U.S.A. model only)

Lights up when this unit is tuned into the HD Radio reception band.

B VOLUME level indicator

Indicates the volume level.

C Decoder indicators

When any of this unit’s decoders function, the respective indicator lights up.

D DSD indicator

Lights up when this unit is reproducing DSD (direct stream digital) digital audio signals.

E PCM indicator

Lights up when this unit is reproducing PCM (pulse code modulation) digital audio signals.

Presence DSP sound field

Listening position

Left surround DSP sound field

Surround/surround back DSP sound field

Right surround DSP sound field

F SLEEP indicator

Lights up while the sleep timer is on.

G ZONE 2/ZONE 3 indicators

Light up when Zone 2 or Zone 3 power is on.

H THX indicator

Lights up when a THX program is selected.

I STANDARD indicator

Lights up when a decoder is selected (see page 37).

J Headphones indicator

Lights up when headphones are connected.

ft mS dB

MUTE

96/24

LFE

PHONO

VOLU ME

LL C R SL SB SR

Page 15

K SP A B indicators

Light up according to the set of front speakers selected. Both indicators light up when both sets of speakers are selected, or when bi-wiring.

L SILENT CINEMA indicator

Lights up when headphones are connected and a sound field program is selected (see page 36).

M Multi-information display

Shows the current sound field program name and other information when adjusting or changing settings.

N HiFi DSP indicator

Lights up when you select a HiFi DSP sound field program.

O MEMORY indicator

Flashes to show a station can be stored.

P TUNED indicator

Lights up when this unit is tuned into a station.

Q MUTE indicator

Flashes while the MUTE function is on.

R 96/24 indicator

Lights up when a DTS 96/24 signal is input to this unit.

S LFE indicator

Lights up when the input signal contains an LFE signal.

T Input channel indicators

Indicate the channel components of current digital input signal.

U Presence and surround back speaker

indicators

Indicate the connection of presence and/or surround back speakers when using the Auto Setup setting (page 27) or Speaker Level setting (page 65).

CONTROLS AND FUNCTIONS

INTRODUCTION

Page 16

CONTROLS AND FUNCTIONS

Rear panel

12 3 4 5 67 8 9 0 A

AUDIOVIDEO

ZONE 3

(

)

PLAY

MD/TAPE

OUT

(REC)

(

)

PLAY

CD-R

OUT

(REC)

PHONO

FRONT(6CH)/SB(8CH)

SURROUND

MULTI CH INPUT

AUDIO

CENTERSUBWOOFER

GND

RS-232C

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

PRE OUT

CENTER

SINGLE

FRONT

CLASS 2 WIRING

(SB)

IN IN OUT

OUT

–

SURROUND

–

SURROUND BACK SINGLE

SPEAKERS

CONTROL OUTREMOTE

+12V 15mA MAX.

–

++––

SPEAKER IMPEDANCE

–

CENTER

–

PRESENCE/ZONE 2

(U.S.A. model)

DIGITAL OUTPUT

OPTICAL

MD/TAPE

CD-R

DVD

DTV

CBL/SAT

DVD

DVR/VCR 2

COAXIAL

DIGITAL INPUT

(AUDIO)

HDMI

S400

IN 1

COMPONENT VIDEO

DVD

IN 2

DTV

CBL/ SAT

OUT

MONITOR OUT

S VIDEO

VIDEO

MONITOR

OUT

DVD

DTV

CBL/ SAT

VCR 1

OUT

DVR/VCR 2

OUT

ZONE 2

OUTPUT

TUNER

FM ANT

75Ω

UNBAL.

GND

AM ANT

PBY

BC D E F G H

AC OUTLETS

SWITCHED

AC IN

1 DIGITAL OUTPUT jacks

See page 22 for details.

2 i.LINK connectors

See page 91 for connection information.

3 Antenna terminals

See page 24 for connection information.

4 Video component jacks

See pages 19 and 21 for connection information.

5 Audio component jacks

See page 22 for connection information.

6 Speaker terminal wrench hook

Use to store the speaker terminal wrench when not in use.

7 RS-232C terminal

This is a control expansion terminal for factory use only. Consult you dealer for details.

8 REMOTE 1/2 IN/OUT jacks

See page 82 for details.

9 CONTROL OUT jacks

These are control expansion terminals for factory use only.

0 AC OUTLETS

Use to supply power to your other A/V components (see page 25).

A AC INLET

Use this inlet to plug in the supplied power cable (see page 25).

B DIGITAL INPUT jacks

See pages 19, 21 and 22 for details.

C HDMI IN/OUT connectors

See page 95 for connection information.

D ZONE 2/ZONE 3 OUTPUT jacks

See page 82 for details.

E MULTI CH INPUT jacks

See page 20 for connection information.

F PRE OUT jacks

See page 23 for connection information.

G Speaker terminals

See page 15 for connection information.

H PRESENCE/ZONE 2 speaker terminals

See page 15 for connection information.

Page 17

SPEAKER SETUP

Speaker placement

The speaker layout below shows the standard ITU-R* speaker setting. You can use it to enjoy CINEMA DSP, multi-channel audio sources and THX.

ITU-R is the radio communication sector of the ITU (International Telecommunication Union).

30˚

60˚

80˚

SBL

More than 30 cm (12 in)

SBR

SPEAKER SETUP

Surround speakers (SR and SL)

The surround speakers are used for effect and surround sounds. Place these speakers behind your listening position, facing slightly inwards, about 1.8 m (6 ft) above the floor.

Surround back speakers (SBR and SBL)

The surround back speakers supplement the surround speakers and provide for more realistic front-to-back transitions. Place these speakers directly behind the listening position and at the same height as the surround speakers. They should be positioned at least 30 cm (12 in) apart. Ideally, they should be positioned at the same width as the front speakers.

Subwoofer

The use of a subwoofer, such as the YAMAHA Active Servo Processing Subwoofer System, is effective not only for reinforcing bass frequencies from any or all channels, but also for high fidelity reproduction of the LFE (lowfrequency effect) channel included in Dolby Digital and DTS software. The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce wall reflections.

PREPARATION

1.8 m (6 ft)

Front speakers (FR and FL)

The front speakers are used for the main source sound plus effect sounds. Place these speakers an equal distance from the ideal listening position. The distance of each speaker from each side of the video monitor should be the same.

Center speaker (C)

The center speaker is for the center channel sounds (dialog, vocals, etc.). If for some reason it is not practical to use a center speaker, you can do without it. Best results, however, are obtained with the full system. Align the front face of the center speaker with the front face of your video monitor. Place the speaker centrally between the front speakers and as close to the monitor as possible, such as directly over or under it.

Presence speakers (PR and PL)

Presence speakers supplement the sound from the front speakers with extra ambient effects produced by CINEMA DSP (see page 48). These effects include sounds that filmmakers intend to locate a little farther back behind the screen in order to create more theater-like ambience. Place these speakers at the front of the room about 0.5 – 1 m (1 – 3 ft) outside the front speakers, facing slightly inwards, and about 1.8 m (6 ft) above the floor.

Note

Surround back and presence speakers do not output sound simultaneously. You can set to prioritize either set of speakers in the Sound menu (see page 61).

Page 18

SPEAKER SETUP

■ Di-pole speaker layout

Either di-pole or direct radiating speaker types can be used for THX surround. If you choose di-pole speakers, please place the surround and surround back speakers according to the speaker layout below.

SBL

30˚ 30˚

SBR

: Di-pole speaker

: Direction of di-pole speaker

Page 19

SPEAKER SETUP

Speaker connections

Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly. If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass.

CAUTION

• If you will use 6 ohm speakers, be sure to set this unit’s speaker impedance setting to 6 ohms before using (see page 26). If you will use 8 ohm speakers, use this unit’s initial setting for speaker impedance.

• Before connecting the speakers, make sure that this unit is disconnected from the power source.

• Do not let the bare speaker wires touch each other or do not let them touch any metal part of this unit. This could damage this unit and/or speakers.

• Use magnetically shielded speakers. If this type of speaker still creates interference with the monitor, place the speakers away from the monitor.

A speaker cord is actually a pair of insulated cables running side by side. One cable is colored or shaped differently, perhaps with a stripe, groove or ridges. Connect the striped (grooved, etc.) cable to the “+” (red) terminals on this unit and your speaker. Connect the plain cable to the “–” (black) terminals.

10 mm (3/8 in)

5 Tighten the knob to secure the wire.

Speaker terminal wrench

Red: positive (+)

Black: negative (–)

■ Connecting to PRESENCE/ZONE 2 or PRESENCE speaker terminals

1 Open the tab.

2 Insert one bare wire into the hole of each

terminal.

3 Return the tab to secure the wire.

PREPARATION

1 Remove approximately 10 mm (3/8 in) of

insulation from each of the speaker cables.

2 Twist the exposed wires of the cable together

to prevent short circuits.

3 Loosen the knob.

The supplied speaker terminal wrench is useful for loosening or tightening knobs.

4 Insert one bare wire into the hole in the side

of each terminal.

■ Banana plug connections

(With the exception of U.K., Europe and Asia models) First, tighten the knob and then insert the banana plug connector into the end of the corresponding terminal.

Banana plug

(With the exception of U.K., Europe and Asia models)

You can also use banana plugs with the PRESENCE/ZONE 2 and PRESENCE speaker terminals. Open the tab, then insert one banana plug connector into the hole of each terminal. Do not attempt to close the tabs after connecting the banana plugs.

Page 20

SPEAKER SETUP

Speaker layout

Front speakers (A)

LeftRight

Subwoofer with

built-in amplifier

Center

speaker

Front

speakers

(B)

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

PRE OUT

CENTER

SINGLE

2 31

FRONT

CLASS 2 WIRING

(SB)

–

SURROUND

––

–

SURROUND BACK SINGLE

SPEAKERS

SPEAKER IMPEDANCE

–

CENTER

–

PRESENCE/ZONE 2

(U.S.A. model)

7 8 65 109

Surround speakers

LeftRight LeftRight

Surround back speakers

Presence speakers

LeftRight

• You can connect both surround back and presence speakers to this unit, but they do not output sound simultaneously.You can set to prioritize either set of speakers in the Sound menu (see page 61).

• The surround back speakers output the surround back channel included in Dolby Digital EX and DTS-ES software and only

operate when the Dolby Digital EX, DTS-ES or Dolby Pro Logic x decoder is turned on.

• The presence speakers output ambient effects created by the DSP sound fields. They do not output sound when other sound fields are selected.

Page 21

■ FRONT terminals

Connect one or two speaker systems to these terminals. If you use only one speaker system, connect it to either of the FRONT A or B terminals.

Note

The Canada model cannot output to two separate speaker systems simultaneously.

Bi-wired connection

The unit also allows you to make bi-wired connections to one speaker system. Use two pairs of speaker cables for each speaker (one pair for the woofer and one pair for the tweeter/mid-range). To use the bi-wired connections, press SPEAKERS A and SPEAKERS B on the front panel so that both SP A and B light up on the front panel display.

Bi-wired connection

++–

–

SPEAKER SETUP

PREPARATION

FRONT

–

This unit

–

■ CENTER terminals

Connect a center speaker to these terminals.

■ SURROUND terminals

Connect surround speakers to these terminals.

■ SUBWOOFER jack

Connect a subwoofer with a built-in amplifier, such as the YAMAHA Active Servo Processing Subwoofer System, to this jack.

■ SURROUND BACK terminals

Connect surround back speakers to these terminals. If you only connect one surround back speaker, connect it to the left (L) terminals.

■ PRESENCE terminals

Connect presence speakers to these terminals.

Note

You can also use these terminals to connect Zone 2 speakers (see page 83).

Page 22

CONNECTIONS

Before connecting components

CAUTION

Do not connect this unit or other components to the mains power until all connections between components are complete.

■ Cable indications

For analog signals

left analog cables

right analog cables

■ Video jacks

This unit has three types of video jacks. Connection depends on the availability of input jacks on your monitor. The signals input at the S VIDEO jacks on this unit are automatically converted for output at the VIDEO jacks.

“Video Conv.” is set to “On” (see page 66), signals

When input at the VIDEO jacks can be output at the S VIDEO and COMPONENT VIDEO jacks. Likewise, signals input at the S VIDEO jacks can also be output at the COMPONENT VIDEO jacks.

VIDEO

S VIDEO

COMPONENT VIDEO

PR PB Y

For digital signals

optical cables

coaxial cables

For video signals

video cables

S-video cables

■ Analog jacks

You can input analog signals from audio components by connecting audio pin cables to the analog jacks on this unit. Connect red plugs to the right jacks and white plugs to the left jacks.

■ Digital jacks

This unit has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, Dolby Digital and DTS bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks, priority is given to signals input at the COAXIAL jack. All digital input jacks are compatible with 96-kHz sampling digital signals.

Note

This unit handles digital and analog signals independently. Thus audio signals input at the analog jacks are only output at the analog OUT (REC) jacks. Likewise audio signals input at the digital (OPTICAL or COAXIAL) jacks are only output at the DIGITAL OUTPUT jacks.

VIDEO jack

For conventional composite video signals.

S VIDEO jack

For S-video signals, separated into luminance (Y) and color (C) video signals to achieve high-quality color reproduction.

COMPONENT VIDEO jacks

For component signals, separated into luminance (Y) and color difference (P

B, PR) to provide the best quality in

picture reproduction.

Signal flow inside this unit

Input

COMPONENT VIDEO

S VIDEO

VIDEO

Only when “Video Conv.” is set to “On” (see page 66)

Output

(MONITOR OUT)

Note

When signals are input at both the S VIDEO and VIDEO jacks, signals input at the S VIDEO jack have priority.

Page 23

Connecting video components

■ Connections for DVD playback

CONNECTIONS

Coaxial out

Optical out Video out

DVD player

Audio out

PREPARATION

DIGITAL OUTPUT

OPTICAL

DVD

COMPONENT VIDEO

PBY

S VIDEO

VIDEO

DVD

AUDIOVIDEO

Video

monitor

Video in

DVD

COAXIAL

DIGITAL INPUT

MONITOR OUT

(U.S.A. model)

MONITOR

OUT

OUTPUT

Page 24

CONNECTIONS

■ Connecting to the MULTI CH INPUT jacks

This unit is equipped with 6 additional input jacks (left and right FRONT, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from a multi-format player, external decoder, sound processor or pre-amplifier. If you set Multi CH Assign: Input Channels to 8ch (see page 57), you can use input jacks assigned as Multi CH Assign: Front Input (page 57) together with the MULTI CH INPUT jacks to input 8 channels. Connect the output jacks on your multi-format player or external decoder to the MULTI CH INPUT jacks. Be sure to match the left and right outputs to the left and right input jacks for the front and surround channels.

For 6-channel input For 8-channel input

FRONT(6CH)/SB(8CH)

SURROUND

SUBWOOFER

MULTI CH INPUT

Subwoofer

out

Multi-format player/

External decoder

Front out

CENTER

Center out

Surround out

Surround back out

FRONT(6CH)/SB(8CH)

SURROUND

CENTER

SUBWOOFER

MULTI CH INPUT

Subwoofer out

Center out

Multi-format player/

External decoder

LRLR

DVR/VCR 2

Surround out

Front out

DVD

DTV

CBL/

SAT

VCR 1

OUT

AUDIO

(

)

PLAY

MD/TAPE

OUT

(REC)

(

)

PLAY

CD-R

OUT

(REC)

AUDIO

Notes

• When you select MULTI CH INPUT as the input source, this unit automatically turns off the digital sound field processor, and you cannot select sound field programs.

• This unit does not redirect signals input at the MULTI CH INPUT jacks to accommodate for missing speakers. We recommend that you connect at least a 5.1-channel speaker system before using this feature.

• When headphones are used, only front L/R channels are output.

Page 25

■ Connections for other video components

CONNECTIONS

DIGITAL OUTPUT

OPTICAL

CBL/SAT

Optical out

Cable TV or

satellite tuner

Video out

COMPONENT VIDEO

DTV

CBL/

SAT

PRPBY

Audio out

S VIDEO

VIDEO

CBL/

SAT

VCR 1

OUT

AUDIOVIDEO

PREPARATION

DVR/VCR 2

COAXIAL

DIGITAL INPUT

Video in

Video out

Coaxial out

■ VIDEO AUX jacks (on the front panel)

Use these jacks to connect any video source, such as a game console or video camera, to this unit.

DVD recorder

or VCR

S VIDEO VIDEO L

VIDEO/AUX

(U.S.A. model)

AUDIO R OPTICAL

Audio in

Audio out

Optical out

Audio out R

Audio out L

Video out

S-video out

LR LR

Game console or video camera

Page 26

CONNECTIONS

Connecting audio components

■ Connections for audio components

Optical in

CD recorder

Optical in

MD recorder or

tape deck

DIGITAL OUTPUT

OPTICAL

MD/TAPE

CD-R

COAXIAL

DIGITAL INPUT

Audio in

Audio out

Optical out

Coaxial out

Audio out

CD player

(U.S.A. model)

LRLRLR LR

(

)

PLAY

MD/TAPE

OUT

(REC)

(

)

PLAY

CD-R

OUT

(REC)

PHONO

Audio out

AUDIO

Audio inAudio out

GND

LRLR

GND

■ Connecting a turntable

PHONO jacks are for connecting a turntable with an MM or high-output MC cartridge. If you have a turntable with a low-output MC cartridge, use an in-line boosting transformer or MC-head amplifier when connecting to these jacks.

Turntable

Connect your turntable to the GND terminal to reduce noise in the signal. However you may hear less noise without the connection to the GND terminal for some record players.

Page 27

CONNECTIONS

■ Connecting to an external amplifier

If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the PRE OUT jacks as follows.

Notes

• When audio pin plugs are connected to the PRE OUT jacks for output to an external amplifier, it is not necessary to use the corresponding SPEAKERS terminals. Set the volume of the external amplifier connected to this unit to the maximum.

• The signal output at the FRONT PRE OUT and CENTER PRE OUT jacks are affected by the TONE CONTROL settings.

• If SPEAKERS A is turned off and Multi Zone: Speaker B is set to “Zone B” (see page 67), signals will only be output at the FRONT PRE OUT jacks.

FRONT

SURROUND

SUBWOOFER

SURROUND BACK/PRESENCE

1 FRONT PRE OUT jacks

Front channel line output jacks.

2 SURROUND PRE OUT jacks

Surround channel line output jacks.

3 SUBWOOFER PRE OUT jack

Connect a subwoofer with built-in amplifier, such as the YAMAHA Active Servo Processing Subwoofer System, to this jack.

4 SURROUND BACK/PRESENCE PRE OUT

jacks

Surround back or presence channel line output jacks. If you only connect one external amplifier for the surround back channel, connect it to the left (L) jack.

5 CENTER PRE OUT jack

Center channel line output jack.

Notes

• Each PRE OUT jack outputs the same channel signal as the corresponding speaker terminals. However, when both surround back and presence speakers are setup in this unit, the signals output at SURROUND BACK/PRESENCE PRE OUT jacks may not correspond to the correct speakers.

• Adjust the volume level of the subwoofer with the control on the subwoofer.

• Some signals may not be output at the SUBWOOFER PRE OUT jack depending on the Speaker Set settings (see page 62).

PRE OUT

CENTER

SINGLE

(SB)

■ Connecting i.LINK components

If you have a component with an i.LINK connector, you can enjoy digital audio from CD, DVD, Super Audio CD and DVD-A discs. For details on i.LINK, see “USING i.LINK” on page 91.

DIGITAL OUTPUT

i.LINK component

OPTICAL

(AUDIO)

S400

Note

An i.LINK cable shorter than 3.5 m is recommended.

■ Connecting HDMI components

This unit has the HDMI IN 1 and HDMI IN 2 jacks for signal input as well as the HDMI OUT jack for signal output. Connect the HDMI IN 1 or HDMI IN 2 jack of this unit to the HDMI OUT jack of other HDMI-compatible components (such as a DVD player). Connect the HDMI OUT jack of this unit to the HDMI IN jack of other HDMI-compatible components (such as TV and a projector). For details on HDMI, see “USING HDMI” on page 95.

HDMI

DVD Player

HDMI OUT

DVD P layer

HDMI OUT

Video monitor

HDMI IN

CBL/SAT

DVR/VCR 2

COAXIAL

DIGITAL INPUT

Note

An HDMI cable shorter than 5 m with the HDMI logo printed on it is recommended.

IN 1

IN 2

OUT

PREPARATION

Page 28

CONNECTIONS

Connecting the antennas

Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal strength. Connect each antenna correctly to the designated terminals.

Indoor FM antenna (included)

AM loop antenna

(included)

3 Orient the AM loop antenna for the best

reception.

TUNER

FM ANT

75Ω

UNBAL.

GND

AM ANT

(U.S.A. model)

Ground (GND terminal)

For maximum safety and minimum interference, connect the antenna ground. A good earth ground is a metal stake driven into moist earth.

GND terminal to a good earth

■ Connecting the AM loop antenna

1 Set up the AM loop antenna.

Notes

• The AM loop antenna should be placed away from this unit.

• The AM loop antenna should always be connected, even if an outdoor AM antenna is connected to this unit.

• A property installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an outdoor antenna may improve the quality. Consult the nearest authorized YAMAHA dealer or service center about outdoor antennas.

■ 75-ohm/300-ohm antenna adapter

(U.K. model only)

1 Open the cover of the

included 75-ohm/300-ohm antenna adapter.

2 Cut the external sleeve

of the 75-ohm coaxial cable and prepare it for connection.

11 (7/16 ) 8 (5/16) 6 (1/14)

Unit: mm (in)

3 Cut the lead wire and

remove it.

Lead wire

2 Press and hold the tab to insert the AM loop

antenna lead wires into the AM ANT and GND terminals.

4 Insert the cable

wire into the slot, and clamp it with pliers.

Insert the wire into the slot

5 Snap the cover into place.

Clamp

Page 29

Connecting the power cable

SELECTO

AC IN

AC OUTLETS

SWITCHED

(U.S.A. model)

VOLTAGE SELECTOR

CONNECTIONS

■ Connecting the AC power cable

Plug the power cable into the AC inlet after all other connections are complete, then plug the power cable to an AC wall outlet.

CAUTION

Do not use other AC power cables. Use the provided cable. Use of other power cables may result in fire hazard or electrical shock.

PREPARATION

■ AC OUTLET(S) (SWITCHED)

U.K. and Australia models ..................................... 1 outlet

Korea model ............................................................... None

Other models ......................................................... 2 outlets

Use these outlets to connect the power cables from your other components to this unit. Power to the AC OUTLET(S) is controlled by this unit’s STANDBY/ON (or SYSTEM POWER and STANDBY). These outlets will supply power to any connected component whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to the AC OUTLET(S) is:

Asia and General models .......................................... 50 W

Other models ...........................................................100 W

■ VOLTAGE SELECTOR (Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage BEFORE plugging into the AC main supply. Voltages are:

General model ....... AC 110/120/220/230–240 V, 50/60 Hz

Asia model ...........................AC 220/230–240V, 50/60 Hz

(Asia and General models)

■ Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is in the standby mode. However if the power cable is disconnected from the AC wall outlet, or the power supply is cut for more than one week, the stored data will be lost.

Page 30

CONNECTIONS

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

POWER POWER POWER

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

AMP

Speaker impedance setting

Follow the procedure below to change the impedance setting for all speakers.

CAUTION

If you are using 6 ohm speakers, set the impedance to 6 ohms before using this unit.

Be sure this unit is in the standby mode.

1 On the front panel, while holding down

STRAIGHT/EFFECT, press STANDBY/ON.

“SP IMP.–8ΩMIN” appears on the front panel display.

STRAIGHT

EFFECT

SP IMP.-8 MIN

2 Press STRAIGHT/EFFECT to select the

impedance of your speakers.

If you are using 6 ohm speakers, select 6 ohms; if you are using 8 ohm speakers, select 8 ohms.

3 Press STANDBY/ON to exit the setting.

This unit will be set to the standby mode.

Note

Speaker impedance setting function is located in the Advanced menu (see page 86).

STANDBY

/ON

Turning on the power

When all connections are complete, turn on the power of this unit.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/ TUNING

1 Press STANDBY/ON (or SYSTEM POWER on

the remote controls) to turn on the power of this unit.

SYSTEM

STANDBY

/ON

Front panel

POWER

Remote control

2 Turn on the video monitor connected to this

unit.

VOLUME

TONE

Note

Press STANDBY/ON again (or STANDBY on the remote control) to enter the standby mode.

Page 31

AUTO SETUP

Introduction

This receiver employs YAMAHA Parametric Room Acoustic Optimizer (YPAO) technology which lets you avoid troublesome listening-based speaker setup and achieves highly accurate sound adjustments. The supplied optimizer microphone collects and analyzes the sound your speakers produce in your actual listening environment.

Notes

• Please be advised that it is normal for loud test tones to be output during the auto setup procedure.

• If auto setup stops and error messages appear on the screen, follow the troubleshooting on page 31.

YPAO performs the following checks and makes appropriate adjustments to give you the best possible sound from your system.

Wiring

Checks which speakers are connected and the polarity of each speaker.

Distance

Checks the distance of each speaker from the listening position and adjusts the timing of each channel.

Size

Checks the speaker’s frequency response and sets the appropriate low frequency crossover for each channel.

Equalizing

Adjusts frequency and levels of each channel’s parametric equalizer to reduce coloration across the channels and create a cohesive sound field. This is particularly important if you use different brands or sizes of speakers for some channels or have a room with unique sonic characteristics. YPAO equalizing calibration incorporates three parameters (frequency, level and Q factor) for each of the seven bands in its parametric equalizer to provide highly precise automatic adjustment of frequency characteristics.

Level

Checks and adjusts the sound level (volume) of each speaker.

Optimizer microphone setup

1 Connect the supplied optimizer microphone

to the OPTIMIZER MIC jack on the front panel.

MULTI CH

AUDIO

SELECT

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

INPUT

A/B/C/D/E

SPEAKERS

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

OPTIMIZER

MIC

SILENT CINEMA S VIDEO VIDEO L

PHONES

PRESET/

TUNING

EDIT

MAIN ZONE 2

MEMORY

FM/AM

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE ON/OFF

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

VIDEO/AUX

TUNING

MODE

Notes

• After you have completed the auto setup procedure, be sure to disconnect the optimizer microphone.

• The optimizer microphone is sensitive to heat. – Keep it away from direct sunlight. – Do not place it on top of this unit.

2 Place the optimizer microphone on a flat

level surface with the omni-directional microphone head upward, at your normal listening position.

If possible, use a tripod (etc.) to affix the optimizer mic at the same height as your ears would be when you are seated in your listening position.

Optimizer microphone position

STRAIGHT

PROGRAM

CONTROL

TONE

PREPARATION

Page 32

AUTO SETUP

Starting the setup

For best results, make sure the room is as quiet as possible during the auto setup procedure (YPAO). If there is too much ambient noise, the results may not be satisfactory.

If your subwoofer has adjustable volume and crossover/high cut frequency controls, set the volume between 9 and 11 o’clock (as viewed on a conventional clockface) and set the crossover/high cut frequency to the maximum.

VOLUME

MAX

MIN

Subwoofer

1 Switch on this unit and video monitor.

2 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

The top display appears.

AMP

SOURCE

CROSSOVER/

HIGH CUT

MIN

TOP

TITLE

MAX

4 Press k / n repeatedly to select Setup Menu,

then press h.

Information

Setup Menu

Setup Type

Start

Wiring

Distance

Size

5 Press k / n repeatedly to select Wiring,

Distance, Size, Equalizing or Level, then press h.

Skip

Check

Wiring

Distance

Size

Equalizing

Distance

Size

Equalizing

Level

Skip

Check

Skip

Check: Natural

Check: Flat

Check: Front

Wiring

Distance

Size

Wiring

Distance

Size

Equalizing

Level

Skip

Check

Skip

Check

Size

Equalizing

Level

Stereo/Surround

Input Select

Manual Setup

Auto Setup

Sound

Basic

Option

System Memory

3 Press k / n repeatedly to select Auto Setup,

then press h.

PRESET

ENTER

A/B/C/D/E

Input Select

Manual Setup

Auto Setup

System Memory

Audio Info.

PRESET

ENTER

A/B/C/D/E

Information

Setup Menu

Setup Type

Start

Equalizing is also available in the front panel display system options menu (see page 87).

6 For Wiring, Distance, Size or Level, select:

Check To automatically check and adjust the selected

item.

Skip To skip the selected item and perform no

adjustments.

When using THX speakers, select “Skip” for Size and make sure that “Small” or “Small x2” is selected in Speaker Set (page 62) and that “80Hz” is selected in Bass Cross Over (page 63).

Page 33

For Equalizing, press k / n to select:

Skip To skip the selected item and perform no

adjustments.

Check: Natural To average out the frequency response of all

speakers with higher frequencies being less emphasized. Recommended if the “Flat” setting sounds a little harsh.

Check: Flat To average the frequency response of all

speakers. Recommended if all of your speakers are of similar quality.

Check: Front To adjust the frequency response of each

speaker in accordance with the sound of your front speakers. Recommended if your front speakers are of much higher quality than your other speakers.

7 Once you have selected the desired setting,

press l to move back to Setup Menu.

Information

Setup Menu

Setup Type

Start

Wiring

Distance

Size

AUTO SETUP

9 Press n to select Start, then press ENTER.

Loud test tones are output from each speaker and “Measuring” appears during the auto setup procedure.

Setup Menu

Setup Type

Start:ENTERStart

• To stop the auto setup procedure, press one of the cursor buttons (

k / n / l / h) or ENTER. In the pause mode,

press k to retry the procedure,

• If an error message appears during testing, refer to “Troubleshooting for the auto setup procedure” on page 31, and after carrying out the remedy, retry the auto setup procedure.

• This menu item is also available in the front panel display system options menu (see page 87).

l to cancel auto setup.

PREPARATION

8 Press n to select Setup Type, then select:

Auto To automatically perform the entire

auto setup procedure.

Step To pause for confirmation between

each check in the auto setup procedure.

Information

Setup Menu

Setup Type

Start

This menu item is also available in the front panel display system options menu (see page 87).

Auto

Step

Page 34

AUTO SETUP

Confirming the results

If you set Setup Type to “Step”

The results are displayed individually after each analysis.

You can confirm the results of each analysis.

If you set Setup Type to “Auto”

The results are displayed after all items have been analyzed.

Setup Menu

Setup Type

Start

•Press n and select Setup to set the measured values.

•Press k and select Retry to retry the auto setup procedure.

•Press h and select Detail to view information about

measurement results and warning messages. For more details about warning messages, see “Troubleshooting for the auto setup procedure” on page 31.

•Press l and select Exit to exit from the auto setup

procedure. If you select Exit, “Don’t Setup?” appears on the screen. To set the measured values and exit, select Yes. To cancel the settings and exit, select No.

Retry

Exit Detail

Setup

Measurement Over

Successfully

Distance

Size

Equalizing

Level

Result

Retry

Exit Detail

• Press n and select Next to start measurement of the next

menu item.

• Press k and select Retry to retry the auto setup procedure.

• Press h and select Detail to view information about

measurement results and warning messages. For more details about warning messages, see “Troubleshooting for the auto setup procedure” on page 31.

• Press l and select Exit to exit from the auto setup

procedure. If you select Exit, “Don’t Setup?” appears on the screen. To set the measured values and exit, select Yes. To cancel the settings and exit, select No.

After all menu items have been measured, “Measurement Over” appears on the screen and the results for each item are displayed.

• Press n and select Setup to set the measured values.

• Press k and select Retry to retry the auto setup procedure.

• Press h and select Detail to view information about

measurement results and warning messages. For more details about warning messages, see “Troubleshooting for the auto setup procedure” on page 31.

• Press l and select Exit to exit from the auto setup

procedure. If you select Exit, “Don’t Setup?” appears on the screen. To set the measured values and exit, select Yes. To cancel the settings and exit, select No.

If you want to make more detailed settings, change the system parameters using the Manual Setup menu. If you want to return to the Auto Setup settings after making settings in the Manual Setup menu, navigate to the Information screen in the Auto Setup menu, press k / n repeatedly to select the parameter you want to adjust, then press ENTER.

Notes

• If you change speakers, speaker positions, or the layout of your listening environment, perform auto setup again to re-calibrate your system.

• Depending on your listening environment, SubWfr:REV may appear in the Wiring results. In this case, SWFR Phase in the Manual Setup menu (see page 64) is automatically set to Reverse. To select the desired setting, change the SWFR Phase parameter in the Manual Setup menu.

• In the Distance results, the distance displayed may be longer than the actual distance depending on the characteristics of your subwoofer. This may also be the case when using an external amplifier.

• In the Equalizing results, different values may be set for the same band to provide finer adjustments.

Page 35

AUTO SETUP

■ Troubleshooting for the auto setup procedure

Before auto setup

Error message Cause Remedy

Connect MIC! Optimizer microphone is not connected. • Connect the supplied optimizer microphone to the

Unplug Phones! Headphones are connected. • Unplug the headphones.

No Setup Menu! No setup menu items have been selected. • Select at least one setup menu item.

Memory Guard! This setting is protected. • Remove the protection setting for auto setup

During auto setup

Press l / h to display detailed information for individual errors. Select Retry to try the auto setup procedure again.

Error message Cause Remedy

E01:No Front SP Front L/R channel signal(s) is (are) not

detected.

E02:No Sur. SP Only one surround channel signal is detected. • Check the surround speaker connections.

E03:No Pres. SP Only one presence channel signal is detected. • Check the presence speaker connections.

E04:SBR ->SBL Only the surround back right channel signal is

detected.

E05:Noisy Background noise is too loud. • Try auto setup in a quiet environment.

E06:Check Sur. Surround back speaker(s) is (are) connected,

though surround L/R speakers are not.

E07:No MIC The optimizer microphone was unplugged

during the auto setup procedure.

E08:No Signal The optimizer microphone does not detect test

tones.

E09:User Cancel The auto setup procedure was cancelled

because a setting that affects auto setup (such as changing speaker settings, etc.) was changed during the procedure.

E10:Internal Err An internal error occurred. • Restart this unit, then try the auto setup procedure

OPTIMIZER MIC jack on the front panel.

(see page 68).

• Select the front speakers by pressing SPEAKERS A or B on the front panel (or by setting AMP/SOURCE/TV to AMP, then pressing SPEAKERS A or B on the remote control).

• Check the front L/R speaker connections.

• Connect the surround back speaker to the LEFT SURROUND BACK SPEAKERS terminal if you only have one surround back speaker.

• Turn off noisy electric equipment like air conditioners, or move them away from this unit.

• Connect surround speakers when using (a) surround back speaker(s).

• Connect the supplied optimizer microphone to the OPTIMIZER MIC jack on the front panel.

• Check the microphone setting.

• Check the speaker connections and placement.

• Perform the auto setup procedure again.

again.

PREPARATION

Page 36

AUTO SETUP

After auto setup

The following warning messages are displayed after analysis is complete to inform you of possible problems. We recommend that you check the contents of each message, then select Retry to try the auto setup procedure again.

Warning message Cause Remedy

W1:Out of Phase Speaker polarity is incorrect. This message may

appear depending on the speakers even when they are connected correctly.

W2:Over Distance The distance between the speaker and the

listening position is over 24 m (80 ft).

W3:Level Error The difference in volume level between the

speakers is excessive. (No level correction is made.)

W4:SP Mismatch The speaker settings differ from the

measurement results of wiring (only occurs when the wiring measurement procedure is skipped).

• Check the speaker connections.

• Bring the speaker closer to the listening position.

• Readjust the speaker installation.

• Check the speaker connections.

• Use speakers of similar quality.

• Adjust the output volume of the subwoofer.

• Check the speaker connections.

Page 37

PLAYBACK

CLEAR

LEARN

RE–NAME

EXIT

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

3421

+10

ENT.

5678

MACROONOFF

SPEAKERSMEMORY

PRESET

EXIT

PURE DIRECT

TOP

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

VOL

–

POWER POWER POWER

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

PLAYBACK

Basic operations

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

TUNER

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/

TUNING

1 Press STANDBY/ON (or set AMP/SOURCE/TV

to AMP, then press SYSTEM POWER on the remote control) to turn on the power.

VOLUME

TONE

3 Press SPEAKERS A or B on the front panel

(or press SPEAKERS A or B on the remote control).

Each press turns the respective speakers on or off.

SPEAKERS

Front panel Remote control

+10

SPEAKERS

ENT.

When bi-wiring, select both A and B.

4 Select the input source.

Use the INPUT selector (or press one of the input selector buttons on the remote control) to select the input you desire.

INPUT

Front panel Remote control

The current input source name appears in the front panel display and video monitor for a few seconds.

V-AUX

DVR/VCR2

CBL/SAT

DTV DVD

VCR 1

SP A

MD/TAPE

DVD

Selected input source

CD-R

CD TUNER

PHONO

VOLUME

L R

OPERATION

BASIC

STANDBY

/ON

Front panel

AMP

SOURCE

SYSTEM

POWER

Remote control

2 Turn on the video monitor connected to this

unit.

5 Start playback or select a broadcast station

on the source component.

Refer to the operation instructions for the component. See page 41 for details about tuning instructions.

6 Adjust the volume to the desired output level.

VOLUME

VOL

–

Front panel

Remote control

Page 38

PLAYBACK

7 Select a sound field program if desired.

Use PROGRAM (or press one of the sound field program buttons repeatedly) to select a sound field program. See page 48 for details about sound field programs.

STEREO

PROGRAM

Front panel

MUSIC ENTERTAIN MOVIE

THX

5678

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

Remote control

Note

When this unit detects Dolby Digital signals, the following display appears for a few seconds. This shows how the signal level is being corrected to become –27 dB (THX recommendation).3

DialNorm;;+4dB

Selecting sound field programs

■ Front panel operation

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/

TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

STRAIGHT

PROGRAM

PRESET/ TUNING

PROGRAM

Rotate PROGRAM to select the desired program.

The name of the selected program appears in the front panel display and video monitor.

PROGRAM

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

SP A

HiFi DSP

CD-R

Hall in Munich

TONE

CONTROL

CD TUNER

VOLUME

PHONO

VOLUME

L R

Program name

Page 39

■ Remote control operation

EXIT

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

VOL

–

3421

+10

ENT.

5678

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

SPEAKERSMEMORY

PRESET

PLAYBACK

Additional operations

AMP/SOURCE/TV

Sound field program buttons

Set AMP/SOURCE/TV to AMP, then press one of the sound field program buttons repeatedly to select the desired program.

The name of the selected program appears in the front panel display and video monitor.

STEREO

AMP

SOURCE

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

SP A

Hall in Munich

MUSIC ENTERTAIN MOVIE

THX

5678

HiFi DSP

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

MD/TAPE

CD-R

CD TUNER

PHONO

VOLUME

L R

Program name

Choose a sound field program based on your listening preference, and not on the name of the program.

Notes

• When you select an input source, this unit automatically selects the last sound field program used with that source.

• Sound field programs cannot be selected when the MULTI CH INPUT is selected.

■ To adjust the tone

TONE CONTROL

PROGRAM

Select BASS, then rotate PROGRAM to the right or left to increase or decrease the low-frequency response. To cancel the tone control, press TONE CONTROL repeatedly to select BYPASS.

Notes

• If you increase or decrease the high-frequency or the low-frequency sound to an extreme level, the tonal quality of the surround speakers may not match that of the front left/right and center speakers.

• TONE CONTROL is not effective when THX (page 48) or PURE DIRECT (page 38) is selected, or when MULTI CH INPUT is selected.

• If headphones are connected to this unit, the Tone Control setting adjusts the bass/treble balance of your headphones (see page 60).

You can adjust the bass/treble balance for the front left/right and center channels. Press TONE CONTROL repeatedly on the front panel to select TREBLE or BASS. Select TREBLE, then rotate PROGRAM to the right or left to increase or decrease the highfrequency response.

■ To mute the sound

Press MUTE on the remote control. The MUTE indicator flashes on the front panel display. To resume the audio output, press MUTE again (or press VOL –/+). The MUTE indicator disappears from the display.

You can adjust the muting level (see page 60).

MUTE

OPERATION

BASIC

Page 40

PLAYBACK

■ To listen with headphones (“SILENT CINEMA”)

“SILENT CINEMA” allows you to enjoy multi-channel music or movie sound, including Dolby Digital and DTS surround, through ordinary headphones. “SILENT CINEMA” activates automatically whenever you connect headphones to the PHONES jack while listening to CINEMA DSP or HiFi DSP sound field programs. When activated, the “SILENT CINEMA” indicator lights up in the front panel display.

Notes

• This unit will not be set to “SILENT CINEMA” when

MULTI CH INPUT is selected as the input source.

•

“SILENT CINEMA” is not effective when PURE DIRECT or a

2ch Stereo program is selected, or in STRAIGHT mode.

■ Selecting the MULTI CH INPUT

Press MULTI CH INPUT so that “MULTI CH INPUT” appears in the front panel display and video monitor.

MULTI CH

INPUT

Front panel Remote control

Note

When “MULTI CH INPUT” is shown on the front panel display and/or the video monitor, no other source can be played. To select another input source with the INPUT selector on the front panel (or one of the input selector buttons on the remote control), press MULTI CH INPUT to turn off “MULTI CH INPUT” from the front panel display and the video monitor.

MULTI CH IN

■ Enjoying multi-channel software in

6.1/7.1 channel surround

If you connected one or two surround back speakers, use this feature to enjoy 6.1/7.1-channel playback for multi-channel sources using the Dolby Pro Logic x, Dolby Digital EX or DTS-ES decoders.

Set AMP/SOURCE/TV to AMP, then press EXTD SUR. on the remote control to switch between 5.1 and 6.1/7.1 channel playback.

EXTD SUR.

To select a decoder, press l / h repeatedly when PL xMovie (etc.) is displayed.

Auto (AUTO)

When a signal (flag) that can be recognized by the unit is input, the unit selects the optimum decoder for playing back the signal in 6.1/7.1 channels. If the unit cannot recognize the flag or no flag is present in the input signal, it cannot automatically be played in

6.1/7.1 channels.

Decoders (select with l / h)

You can select from the following modes depending on the format of the software you are playing. PL xMovie

For playing back Dolby Digital or DTS signals in 7.1 channels using the Pro Logic x movie decoder. PL xMusic

For playing back Dolby Digital or DTS signals in 6.1/7.1 channels using the Pro Logic x music decoder. EX/ES For playing back Dolby Digital signals in 6.1/7.1 channels using the Dolby Digital EX decoder. DTS signals are played back in 6.1/7.1 channels using the DTS-ES decoder. EX For playing back Dolby Digital or DTS signals in 6.1/7.1 channels using the Dolby Digital EX decoder.

Off (OFF)

For playing back Dolby Digital or DTS signals in 5.1 channels.

When Surround Back is set to “Large x1” or “Small x1” (see page 63), the surround back channel will output from the left SURROUND BACK speaker terminals.

Page 41

PLAYBACK

Notes

• Some 6.1-channel compatible discs do not have a signal (flag) which this unit can automatically detect. When playing these

kinds of discs with 6.1-channel, select decoders (PL xMovie,

PL xMusic, EX/ES or EX) manually.

• 6.1/7.1-channel playback is not possible even if EXTD SUR. is pressed in the following cases: – When Surround or Surround Back is set to “None”

(see page 63).

– When the source connected to the MULTI CH INPUT jack is

being played.

– When the source being played does not contain surround L/R

channel signals. – When a Dolby Digital KARAOKE source is being played. – When 2ch Stereo, 7ch Stereo or PURE DIRECT is selected.

• When the power of this unit is turned off, the input mode will be reset to AUTO.

• The Pro Logic x decoder is not available when Surround Back is set to “None” (see page 63).

• “PL xMovie” cannot be selected when Surround Back is set to “Large x1” or “Small x1” (see page 63).

■ Enjoying 2-channel software in surround

Signals input from 2-channel sources can also be played back on multiple channels.

Set AMP/SOURCE/TV to AMP, then press STANDARD on the remote control to switch between the SUR. STANDARD and SUR. ENHANCED programs.

STANDARD

Or press MOVIE or THX on the remote control to select the MOVIE THEATER or THX programs.

MOVIE

Press SELECT on the remote control to select the decoder.

SELECT

THX

When you select the SUR. STANDARD program

Dolby Pro Logic processing for any sources.

Dolby Pro Logic x processing for movie software.

Dolby Pro Logic x processing for music software.

Dolby Pro Logic x processing for game software.

<Neo:6 Cinema>

DTS processing for movie software.

<Neo:6 Music>

DTS processing for music software.

<CS Cinema>*

SRS Circle Surround processing for movie software.

<CS Music>*

SRS Circle Surround processing for music software.

* (U.S.A. model only)

When you select the SUR. ENHANCED, MOVIE THEATER or THX programs

Dolby Pro Logic processing for any sources.

Dolby Pro Logic x processing for movie software.

<Neo:6 Cinema>

DTS processing for movie software.

• You can also select a decoder with the Decode Type parameter in the Stereo/Surround menu (see page 99).

• You can also select a decoder by pressing l / h on the remote control when the decoder type is displayed in the short message display.

Note

The Pro Logic x decoder is not available when Surround Back is set to “None” (see page 63).

OPERATION

BASIC

You can select from the following modes depending on the type of software you are playing and your personal preference.

Page 42

PLAYBACK

■ Listening to high fidelity stereo sound (PURE DIRECT)

PURE DIRECT bypasses this unit’s decoders and DSP processors as well as shuts down the video circuitry, allowing you to enjoy the highest possible sound fidelity from analog and PCM sources.

Press PURE DIRECT to activate pure direct.

The button lights up and the front panel display automatically goes out

PURE DIRECT

Front panel Remote control

The front panel display switches on momentarily when an operation is performed.

To cancel, press PURE DIRECT again.

The indicator around the front panel button goes out and the previous settings are restored.

Notes

• To avoid unexpected noise, do not play DTS-encoded CDs in

this mode.

• When a multi-channel signal (Dolby Digital or DTS) is input,

this unit automatically switches to the corresponding analog input. (When DTS is selected as an input mode, no sound will be heard.)

• No sound will be output from the subwoofer.

• Tone Control (page 35) and GUI menu (page 52) settings are

not effective.

• The following operations are not possible during PURE

DIRECT operation: – switching the sound field program – displaying the short message – adjusting GUI menu parameters – all video functions (video conversion etc.)

• PURE DIRECT is automatically cancelled whenever this unit is

set to the standby mode.

PURE DIRECT

■ Night listening modes

The night listening modes are designed to improve listenability at lower volumes or at night. Choose either NIGHT:CINEMA or NIGHT:MUSIC depending on the type of material you are playing.

Set AMP/SOURCE/TV to AMP, then press NIGHT on the remote control repeatedly to select cinema or music.

When night listening is selected, the NIGHT indicator in the front panel display lights up.

NIGHT

AUDI O

Remote control

• Select NIGHT:CINEMA when watching films to reduce the dynamic range of film soundtracks and make dialog easier to hear at lower volumes.

• Select NIGHT:MUSIC when listening to music sources to preserve ease-of-listening for all sounds.

• Select NIGHT:OFF if you do not want to use this function.

Press l / h to adjust the effect level while NIGHT:CINEMA or NIGHT:MUSIC is displayed.

This adjusts the level of compression.

PRESET

ENTER

A/B/C/D/E

Remote control

Effect.Lvl:MID

• Select “MIN” for minimum compression.

• Select “MID” for standard compression.

• Select “MAX” for maximum compression.

NIGHT:CINEMA and NIGHT:MUSIC adjustments are stored independently.

Notes

• You cannot use the night listening modes with PURE DIRECT,

MULTI CH INPUT, or when headphones are connected (even though the NIGHT indicator lights up when PURE DIRECT is selected).

• The night listening modes may vary in effectiveness depending

on the input source and surround sound settings you use.

Page 43

PLAYBACK

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE CD-R

PHONO TUNER CD

MULTI CH IN

■ Downmixing to 2 channels

You can enjoy 2-channel stereo playback from multichannel sources.

Rotate PROGRAM (or set AMP/SOURCE/TV to AMP, then press STEREO on the remote control) to select 2ch Stereo.

STEREO

PROGRAM

Front panel

MUSIC ENTERTAIN MOVIE

THX

5678

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

Remote control

2ch Stereo

Note

You can use a subwoofer with this program when SWFR or BOTH is selected in LFE/BASS OUT.

■ Listening to unprocessed input signals

In STRAIGHT mode, two channel stereo sources are output from only the front left and right speakers. Multichannel sources are decoded straight into the appropriate channels without any additional effect processing.

Press STRAIGHT (EFFECT) to select STRAIGHT.

STRAIGHT

EFFECT

Front panel Remote control

STRAIGHT

EFFECT

■ Playing video sources in the background

You can combine images from a video source with sound from an audio source. For example, you can enjoy listening to classical music while having beautiful scenery from the video source on the video monitor.

Use the input selector buttons to select a video source, then select an audio source.

Audio sources

Video sources

Note

If you want to enjoy an audio source connected to the MULTI CH INPUT jacks together with a video source, first select the video source and then press MULTI CH INPUT.

OPERATION

BASIC

Press STRAIGHT/EFFECT again so that “STRAIGHT” disappears from the display when you want to turn the sound effect back on.

■ Virtual CINEMA DSP

Virtual CINEMA DSP allows you to enjoy the CINEMA DSP programs without surround speakers. It creates virtual speakers to reproduce a natural sound field. If you set Surround to None, Virtual CINEMA DSP activates automatically whenever you select a CINEMA DSP sound field program.

Note

Virtual CINEMA DSP will not activate, even when Surround is set to “None” (see page 62) in the following cases:

– When MULTI CH INPUT is selected as the input source. – When headphones are connected to the PHONES jack.

Page 44

PLAYBACK

Selecting audio input modes

This unit comes with a variety of input jacks. You can select the type of input signal you want to use as follows.

Press AUDIO SELECT to select an input mode.

In most cases, use AUTO.

AUDIO

SELECT

POWER POWER POWER

AVTV

PHONO TUNER CD

Front panel Remote control

STANDBY

AUDIO SELECT

SYSTEM

SLEEP

MULTI CH IN

■ Displaying information about the input source

You can display the type, format and sampling frequency of the current input signal.

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

The top display appears.

AMP

SOURCE

TOP

TITLE

V–AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DV D

MD/TAPE

SP A

A.SEL: AUTO

CD–R CD TUNER

PHONO

VOLUME

LL R

Input mode

AUTO Automatically selects input signals in

the following order:

1) i.LINK

2) HDMI

3) Digital signals

4) Analog signals

i.LINK Selects only i.LINK signals.

If no i.LINK signals are input, no sound is output.

HDMI Selects only HDMI signals.

If no HDMI signals are input, no sound is output.

COAX/OPT Selects digital signals input at the

OPTICAL or COAXIAL jacks. Use if i.LINK or HDMI signals are also being input.

ANALOG Selects only analog signals.

If no analog signals are input, no sound is output.

* If this unit detects a Dolby Digital or DTS signal,

the decoder automatically switches to the appropriate sound field program.

• You can adjust the default input mode this unit selects when the power is turned on (see page 56).

• DTS mode is recommended for playback of a CD or LD encoded in DTS.

Note

If the digital output data of the player has been processed in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Basic

Option

2 Press n repeatedly to select Audio Info.

The following information appears in the display.

Auto Setup

System Memory

Audio Info.

Format Sampling Channel Bitrate Dialogue Flag1 Flag2

Analog

--2/0/---

---

Format Signal format display. When the unit

cannot detect a digital signal it automatically switches to analog input.

Sampling Sampling frequency. When the unit is

unable to detect the sampling frequency “?” appears.

Channel Number of source channels in the input

signal. For example, a multi-channel soundtrack with 3 front channels, 2 surround channels and LFE, is displayed as “3/2/0.1”.

Bitrate Bit rate. When the unit is unable to

detect the bit rate “– – –” appears.

Dialogue Dialogue normalization information

for Dolby Digital signals.

Flag1/Flag2 Flag data encoded with DTS or Dolby

Digital signals that cue this unit to automatically switch decoders.

3 Press EXIT.

Page 45

TUNING

Automatic and manual tuning

There are 2 tuning methods: automatic and manual. Automatic tuning is effective when station signals are strong and there is no interference.

■ Automatic tuning

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

332

CONTROL

STRAIGHT

PROGRAM

PRESET/

TUNING

1 Rotate the INPUT selector to select TUNER

as the input source.

INPUT

Front panel

2 Press FM/AM to select the reception band.

“FM” or “AM” appears on the front panel display.

FM/AM

VOLUME

TONE

4 Press PRESET/TUNING l / h once to begin

automatic tuning.

Press h to tune into a higher frequency, or press l to tune into a lower frequency.

PRESET/

TUNING

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD T

SP A

HiFi DSP

AUTO

A AM 1530 kHz

When tuned into a station, the TUNED indicator lights up and the frequency of the received station is shown on the front panel display.

■ Manual tuning

If the signal from the station you want to select is weak, you must tune into it manually. Manually tuning into an FM station will automatically change the reception mode to monaural reception to increase the signal quality.

1 Select TUNER and the reception band

following steps 1 and 2 as described in “Automatic tuning”.

2 Press TUNING MODE (AUTO/MAN’L) so that

the AUTO indicator disappears from the front panel display.

TUNING

MODE

AUTO/MAN'L

If a colon (:) appears in the front panel display, this unit is in PRESET mode and tuning is not possible. Press PRESET/TUNING (EDIT) to turn it off.

AUTO

Disappears

TUNED

OPERATION

BASIC

3 Press TUNING MODE (AUTO/MAN’L) so that

the AUTO indicator lights up on the front

PRESET/

TUNING

EDIT

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD T

SP A

AUTO

A AM 630 kHz

panel display.

TUNING

MODE

AUTO/MAN'L

AUTO

Lights up

If a colon (:) appears in the front panel display, this

3 Press PRESET/TUNING l / h to tune into

the desired station manually.

Hold down the button to continue searching.

PRESET/ TUNING

unit is in PRESET mode and tuning is not possible. Press PRESET/TUNING (EDIT) to turn it off.

PRESET/ TUNING

EDIT

VCR 1

CBL/SAT

DTV DVD

A AM 630 kHz

MD/TAPE

CD-R

CD T

AUTO

Page 46

TUNING

Presetting stations

■ Automatically presetting FM stations

You can use the automatic preset tuning feature to store FM stations. This function enables this unit to automatically tune into FM stations with strong signals, and to store up to 40 (8 stations in 5 groups, A1 through E8) of those stations in order. You can then recall any preset station easily by selecting the preset station number.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/ TUNING

321

1 Press FM/AM to select the FM band.

FM/AM

2 Press TUNING MODE (AUTO/MAN’L) so that

the AUTO indicator lights up on the front panel display.

TUNING

MODE

AUTO/MAN'L

AUTO

Lights up

3 Press and hold MEMORY (MAN’L/AUTO FM)

for more than 3 seconds.

The preset number, the MEMORY and AUTO indicators flash. After about 5 seconds, automatic presetting starts from the frequency currently displayed and proceeds toward the higher frequencies.

MEMORY

MAN'L/AUTO FM

VOLUME

TONE

Notes

• Any stored station data existing under a preset number is cleared when you store a new station under that preset number.

• If the number of the received stations does not reach 40 (E8), automatic preset tuning has automatically stopped after searching all stations.

• Only FM stations with sufficient signal strength are stored automatically by automatic preset tuning. If the station you want to store is weak in signal strength, tune into it manually and store it by following the procedure in “Manually presetting stations”.

Automatic preset tuning options

You can select the preset number from which this unit will store FM stations and/or begin tuning toward lower frequencies. After pressing MEMORY in step 3: 1 Press A/B/C/D/E, then PRESET/TUNING l / h to

select the preset number under which the first station will be stored. Automatic preset tuning will stop when stations have all been stored up to E8.

2 Press PRESET/TUNING (EDIT) to turn off the colon

(:) and then press PRESET/TUNING l to begin tuning toward lower frequencies.

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cable is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the preset stations may be cleared. If so, store the stations again by using the presetting station methods.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD TUNER

SP A

MEMORY

AUTO

A1:FM 87.5 MHz

When automatic preset tuning is completed, the front panel display shows the frequency of the last preset station.

PHONO

VOLUME

L R

Page 47

■ Manually presetting stations

You can also store up to 40 FM or AM stations (8 stations in 5 groups, A1 through E8) manually.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

3 2,5

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/

TUNING

VOLUME

TONE

1 Tune into a station.

See page 41 for tuning instructions.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD TUNER

SP A

A :AM 630 kHz

TUNED

PHONO

VOLUME

L R

When tuned into a station, the front panel display shows the frequency of the station received.

2 Press MEMORY (MAN’L/AUTO FM).

The MEMORY indicator flashes for about 5 seconds.

MEMORY

MAN'L/AUTO FM

MEMORY

Flashes

TUNING

4 Press PRESET/TUNING l / h to select a

preset station number (1 to 8) while the MEMORY indicator is flashing.

Press h to select a higher preset station number. Press l to select a lower preset station number.

PRESET/

TUNING

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD TUNER

SP A

MEMORY

C3:AM 630 kHz

TUNED

PHONO

VOLUME

L R

5 Press MEMORY (MAN’L/AUTO FM) on the

front panel while the MEMORY indicator is flashing.

The station band and frequency appear in the front panel display with the preset

MEMORY

MAN'L/AUTO FM

group and number you have selected.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

SP A

CD TUNER

TUNED

C3:AM 630 kHz

Shows the displayed station has been stored as C3.

PHONO

VOLUME

L R

OPERATION

BASIC

3 Press A/B/C/D/E repeatedly to select a preset

station group (A to E) while the MEMORY indicator is flashing.

The group letter appears. Check that the colon (:) appears on the front panel display.

A/B/C/D/E

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD TUNER

SP A

C :AM 630 kHz

Preset group

MEMORY

TUNED

PHONO

VOLUME

L R

6 Repeat steps 1 to 5 to store other stations.

Notes

• Any stored station data existing under a preset number is cleared when you store a new station under that preset number.

• The reception mode (stereo or monaural) is stored along with the station frequency.

Page 48

TUNING

EXIT

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

TV MUTE TV INPUT

MUTE

PRESET

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

Selecting preset stations

You can tune any desired station simply by selecting the preset station number under which it was stored.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/ TUNING

1 Set AMP/SOURCE/TV to SOURCE, then press

TUNER to set the remote to tuner mode.

2 Press A/B/C/D/E (or l / h on the remote

control) to select the preset station group.

The preset group letter appears on the front panel display and changes each time you press the button.

TONE

VOLUME

PRESET

Exchanging preset stations

You can exchange the assignment of two preset stations with each other. The example below describes the procedure for exchanging preset station “E1” with “A5”.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

1,3

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

1,3

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/ TUNING

2,4

1 Select preset station “E1” by using

A/B/C/D/E and PRESET/TUNING l / h.

See “Selecting preset stations”.

2 Press and hold PRESET/TUNING (EDIT) for

more than 3 seconds.

“E1” and the MEMORY indicator flash in the front panel display.

PRESET/

TUNING

EDIT

VCR2

VCR 1

CBL/SAT

DTV DVD

SP A

E1:FM 87.5 MHz

VOLUME

TONE

MD/TAPE

CD-R

CD TUNER

MEMORY

TUNED

A/B/C/D/E

Front panel

ENTER

Remote control

3 Press PRESET/TUNING l / h (or

PRESET k / n on the remote control) to select a preset station number (1 through 8).

The preset group and number appear on the front panel display along with the station band, frequency and the TUNED indicator lights up.

PRESET

PRESET/

TUNING

Front panel

VCR2

VCR 1

CBL/SAT

SP A

DTV DVD

ENTER

Remote control

MD/TAPE

CD-R

CD TUNER

TUNED

E1:FM 87.5 MHz

A/B/C/D/E

3 Select preset station “A5” by using

A/B/C/D/E and PRESET/TUNING l / h.

“A5” and the MEMORY indicator flash in the front panel display.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

SP A

CD-R

MEMORY

A5:FM 90.6 MHz

4 Press PRESET/TUNING (EDIT) again.

The stations stored at the two preset assignments are exchanged.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

PRESET/

TUNING

EDIT

EDIT E1-A5

DTV DVD

SP A

CD TUNER

TUNED

MD/TAPE

PHONO

VOLUME

L R

CD-R

Page 49

TUNING

Using HD Radio

HD Radio is a new technology that enables AM and FM radio stations to broadcast programs digitally. Digital broadcasting provides listeners with radically improved audio quality and reception as well as new data services. Furthermore, supplemental program services allow listeners to select from up to 8 HD Radio programs multicast on a single FM HD Radio channel. For further information on HD Radio, visit “www.ibiquity.com”.

This unit is equipped with an HD Radio reception feature, facilitating CD quality FM broadcasts as well as analog FM stereo quality AM broadcasts. In addition, this unit can receive both audio and data (such as song titles, artist names, album names, and genres) from supplemental program services (HD1 to HD8).

™

HD Radio™ tuning

Just as for tuning into an analog FM or AM station, 2 tuning methods are available: automatic and manual.

CAUTION

This unit is capable of receiving both hybrid and all-digital HD Radio station signals. However, this unit may not automatically receive all-digital FM station signals and the automatic tuning operation may stop. In this case, select one of the preset stations, or manually tune into the FM station you want to select, then set the tuning mode back to AUTO by pressing TUNING MODE (AUTO/MAN’L).

■ HD Radio automatic tuning

Automatic tuning is effective when station signals are strong and there is no interference.

Follow steps 1 through 4 as described in “Automatic tuning” on page 41.

Both analog and digital broadcasts are received, but when tuned into an HD Radio station, the TUNED and HD indicators light up and the frequency of the received station is displayed in the front panel. If the HD indicator lights up, the broadcast being received contains an HD Radio digital signal.

■ HD Radio manual tuning

Manual tuning is recommended when station signals are weak.

Follow steps 1 through 3 as described in “Manual tuning” on page 41, then set the tuning mode back to AUTO by pressing TUNING MODE (AUTO/MAN’L).

Note

If station signals are weak, analog broadcasts will be played back instead even in the automatic tuning mode, and the HD indicator does not light up.

OPERATION

BASIC

Page 50

TUNING

Selecting HD Radio™ audio programs

Use this feature to select one of the 8 HD Radio audio programs (HD1 to HD8) when the unit is in the tuner mode. Each audio program contains data programs.

Press PRG SELECT on the remote control repeatedly to toggle between HD Radio audio programs.

Press PRG SELECT again within 2 seconds to select another data program. The HD indicator may disappear from the front panel display while toggling between data programs.

Notes

• Only 1 HD Radio audio program (HD1) is available for AM broadcasts, while up to 8 audio programs (HD1 to HD8) are available for FM broadcasts.

• When reception for an audio program ceases, the HD disappears from the front panel display and HD1 is automatically selected after approximately 20 seconds.

• Some audio programs may not contain data programs depending on the broadcasting station and the time period.

• The audio programs from HD2 to HD8 can be selected only when they contain data programs.

indicator

Displaying HD Radio™ information

There are 3 types of front panel displays that show HD Radio information when the unit is in the tuner mode: frequency, station and music information.

Press DISPLAY on the remote control repeatedly to toggle between the following 3 front panel displays.

■ Frequency information

(Preset group / FM or AM / Frequency)

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

CD TUNER

PHONO

CD-R

AUTO HD

TUNED

CD TUNER

AUTO

STEREO

TUNED

CD TUNER

AUTO HD

TUNED

VOLUME

L R

PHONO

VOLUME

L R

PHONO

VOLUME

L R

SP A

HiFi DSP

A FM 87.5 MHz

■ Station information

(Station name / FM or AM / Audio program) Station information is available when a station name is received as data in 4 alphabetical codes.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

SP A

HiFi DSP

MD/TAPE

WXYZ-FM : HD1

DTV DVD

Audio program

MD/TAPE

HiFi DSP

Station name

■ Music information

(Song title / Artist name / Album name / Genre) Music information is available only when data programs are received. If the music information is long, it automatically scrolls to the left in the front panel display.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

SP A

FM Radio - CD

HD Radio information is also available in the GUI menu (see page 55).

Page 51

RECORDING

You can use the REC OUT/ZONE 2 control to record one source while watching and/or listening to another source.

Recording adjustments and other operations are performed from the recording components. Refer to the operation instructions for those components.

PURE DIRECT

MULTI CH

AUDIO

INPUT

SELECT

INPUT

STANDBY

/ON

SOURCE/ REMOTE

MD/TAPEDVD

CD-R

DTV

TUNER

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

A/B/C/D/E

SPEAKERS

SILENT CINEMA S VIDEO VIDEO L

OPTIMIZER

PHONES

MIC

PRESET/ TUNING

EDIT

MAIN ZONE 2

VIDEO/AUX

FM/AM

ZONE ON/OFF

TUNING

MEMORY

MODE

MAN'L/AUTO FM AUTO/MAN'L EFFECT

ZONE CONTROL

ZONE 3

AUDIO R OPTICAL

CONTROL

STRAIGHT

PROGRAM

PRESET/

TUNING

VOLUME

TONE

1 Turn on the power of this unit and all

connected components.

2 Select the source component you want to

record from by using REC OUT/ZONE 2.

• To record the current input source that you are watching or listening to, set REC OUT/ZONE 2 to SOURCE/REMOTE.

SOURCE/ REMOTE

MD/TAPEDVD

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

DTV

CD-R

TUNER

• To record a source other than the one that you are watching or listening to, set REC OUT/ZONE 2 to the source you want to record.

SOURCE/ REMOTE

MD/TAPEDVD

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

DTV

CD-R

TUNER

After this setting, you can change the source you are listening to and/or watching without effecting the recording by rotating the INPUT selector (or pressing one of the input selector buttons on the remote control).

3 Start playback (or select a broadcast station)

on the source component.

4 Start recording on the recording component.

• To record audio and video from different sources, set REC OUT/ZONE 2 to SOURCE/REMOTE, select a video source first then select an audio source (see page 39).

• Do a test recording before you start an actual recording.

Notes

• The source you record and the source sent to Zone 2 are always the same.

• When this unit is set in the standby mode, you cannot record between other components connected to this unit.

• The setting of TONE CONTROL, (see page 60) VOLUME, Speaker Level (page 65) and programs does not affect recorded material.

• A source connected to the MULTI CH INPUT jacks of this unit cannot be recorded.

• S-video and composite video signals pass independently through this unit’s video circuits. Therefore, when recording or dubbing video signals, if your video source component is connected to provide only an S-video (or only a composite video) signal, you can record only an S-video (or only a composite video) signal to your VCR.

• Digital signals input at the DIGITAL INPUT jacks are not output at the analog AUDIO OUT (L/R) jacks for recording. Likewise, analog signals input at the AUDIO IN (L/R) jacks are not output at the DIGITAL OUTPUT jack. Therefore, if your source component is connected to provide only digital (or analog) signals, you can only record digital (or analog) signals.

• A given input source is not output on the same REC OUT channel. (For example, the signal input from VCR 1 IN is not output on VCR 1 OUT.)

• Check the copyright laws in your country to record from records, CDs, radio, etc. Recording of copyrighted material may infringe copyright laws.

• Audio signals input from the selected i.LINK or HDMI components are output to REC OUT when REC OUT/ZONE 2 on the front panel is set to SOURCE/REMOTE or to the source you want to record. However, multi-channel DVD audio signals, DSD signals of Super Audio CD and 2-channel PCM signals over 48 kHz of sampling frequency cannot be output to REC OUT.

If you play back a video source that uses scrambled or encoded signals to prevent it from being dubbed, the picture itself may be disturbed due to those signals.

■ Special considerations when recording

DTS software

The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources that have DTS signals recorded on them, the following considerations and adjustments need to be made. For DVDs and CDs encoded with DTS, when your player is compatible with the DTS format, follow its operation instruction to make a setting so that the analog signal will be output from the player.

OPERATION

BASIC

Page 52

SOUND FIELD PROGRAM DESCRIPTIONS

This unit is equipped with a variety of precise digital decoders that allow you to enjoy multi-channel playback from almost any sound source (stereo or multi-channel). This unit is also equipped with a YAMAHA digital sound field processing (DSP) chip containing several sound field programs which you can use to enhance your playback experience. Most of these sound field programs are precise digital recreations of actual acoustic environments found in famous concert halls, music venues, and movie theaters.

The YAMAHA CINEMA DSP modes are compatible with all Dolby Digital, DTS, and Dolby Surround sources. Set the input mode to AUTO (see page 40) to enable this unit to automatically switch to the appropriate digital decoder according to the input signal.

Notes

• This unit’s DSP sound field programs are recreations of real-world acoustic environments made from precise measurements taken in actual halls, etc. Thus you may notice variations in the strength of the reflections coming from the front, back, left and right.

• Feel free to choose a sound field program based on your listening preference, and not purely on the name of the program itself.

For movie/video sources

You can select from the following sound fields when playing movie or video sources. The sound fields marked “MULTI” can be used with multi-channel sources, like DVD, digital TV, etc. Those marked “2-CH” can be used with 2-channel (stereo) sources like TV programs, video tapes, etc.

Program selection methods vary depending on sound field program types. For details on how to select sound field programs, see “Selecting sound field programs” on pages 34 and 35.

Sources

MULTI

2-CH

Remote control button

Program Features

STEREO 2ch Stereo

ENTERTAINMENT TV Sports

ENTERTAINMENT Mono Movie

ENTERTAINMENT Game

MOVIE THEATER Spectacle

MOVIE THEATER Sci-Fi

MOVIE THEATER Adventure

MOVIE THEATER General

Downmixes multi-channel sources to 2 (left and right) channels or plays back 2-channel sources as is.

CINEMA DSP processing. Though the presence sound field is relatively narrow, the surround sound field employs the sound environment of a large concert hall. This effect enhances the experience of watching various TV programs such as news, variety shows, music programs or sports programs.

CINEMA DSP processing. This program is provided for reproducing monaural video sources (such as old movies). The program produces the optimum reverberation to create sound depth using only the presence sound field.

CINEMA DSP processing. This program adds a deep and spatial feeling to video game sounds.

CINEMA DSP processing. This program creates the extremely wide sound field of a 70-mm movie theater. It precisely reproduces the source sound in detail, making both the video and the sound field incredibly real. This is ideal for any kind of video source encoded with Dolby Surround, Dolby Digital or DTS (especially large-scale movie productions).

CINEMA DSP processing. This program clearly reproduces dialog and sound effects in the latest sound form for science fiction films, thus creating a broad and expansive cinematic space amid silence. You can enjoy science fiction films in a virtual-space sound field that includes Dolby Surround, Dolby Digital and DTS-encoded software employing the most advanced techniques.

CINEMA DSP processing. This program is ideal for precisely reproducing the sound design of the newest 70-mm and multichannel soundtrack films. The sound field is made to be similar to that of the newest movie theaters, so the reverberations of the sound field itself are restrained as much as possible.

CINEMA DSP processing. This program is for reproducing sounds from 70-mm and multichannel soundtrack films, and is characterized by soft and extensive sound field. The presence sound field is relatively narrow. It spatially spreads all around and toward the screen, restraining the echo effect of conversations without losing clarity.

Page 53

Sources

MULTI

2-CH

MULTI

2-CH

Remote control button

Program Features

THX THX Cinema

THX THX Game

THX THX Select2 Cinema

THX THX Surr. EX

SUR. STANDARD DOLBY DIGITAL

SUR. STANDARD

q D+PL x Movie

SUR. STANDARD DOLBY D EX

SUR. STANDARD DTS

SUR. STANDARD DTS 96/24

SUR. STANDARD DTS+PL x Movie

SUR. STANDARD DTS+DOLBY EX

SUR. STANDARD DTS ES

SUR. STANDARD DTS 96/24 ES

SUR. ENHANCED

SUR. STANDARD PRO LOGIC

SUR. STANDARD PL x Movie

SUR. STANDARD PL Movie

SUR. STANDARD PL x Game

SUR. STANDARD PL Game

SUR. STANDARD Neo:6 Cinema

SUR. STANDARD CS Cinema

SUR. ENHANCED

SOUND FIELD PROGRAM DESCRIPTIONS

THX processing for movie software.

THX processing for game software.

THX Select2 processing for movie software.

THX processing for any 5.1 channel source.

Standard 5.1 channel processing for Dolby Digital sources.

Standard 7.1 channel processing for Dolby Digital sources.

Standard 6.1 channel processing for Dolby Digital sources.

Standard 5.1 channel processing for DTS sources.

Standard 5.1 channel processing for 96kHz/24-bit DTS sources.

Standard 7.1 channel processing (Dolby Pro Logic x) for DTS sources.

Standard 6.1 channel processing (Dolby Digital EX) for DTS sources.

Standard 6.1 channel processing (DTS-ES Matrix and DTS-ES Discrete) for DTS sources.

Standard 6.1 channel processing (DTS-ES Matrix and DTS-ES Discrete) for 96kHz/24-bit DTS sources.

CINEMA DSP enhanced processing for the selected decoder.

Standard processing for Dolby Surround sources.

Dolby Pro Logic x processing for movie software.

Dolby Pro Logic processing for movie software.

Dolby Pro Logic x processing for game software.

Dolby Pro Logic processing for game software.

DTS processing for movie software.

SRS Circle Surround processing for movie software. (U.S.A. model only)

CINEMA DSP enhanced processing for the selected decoder.

SOUND FIELD

PROGRAMS

Page 54

SOUND FIELD PROGRAM DESCRIPTIONS

For music sources

You can select from the following sound fields when playing music sources, like CD, FM/AM broadcasting, tapes, etc.

Program selection methods vary depending on sound field program types. For details on how to select sound field programs, see “Selecting sound field programs” on pages 34 and 35.

Remote

Sources

MULTI

2-CH

MULTI

2-CH

control button

Program Features

STEREO

2 channel (left and right) playback.

2ch Stereo

STEREO 7ch Stereo

MUSIC Hall in Munich

MUSIC Hall in Vienna

MUSIC Freiburg

MUSIC The Bttm Line

MUSIC The Roxy Thtr

MUSIC Pop/Rock

MUSIC Classic/Opera

ENTERTAINMENT Disco

THX

HiFi DSP processing. Use to increase the output stereo sources (in stereo) from all speakers. This provides a larger sound field and is ideal for background music at parties, etc.

HiFi DSP processing. This is a large fan-shaped concert hall which has approximately 2500 seats. Almost the whole interior is made of wood. There is relatively little reflection from the walls, and sound spreads finely and beautifully.

HiFi DSP processing. A classic shoe-box type concert hall with approximately 1700 seats. Pillars and ornate carvings create extremely complex reflections which produce a very full, rich sound.

HiFi DSP processing. This program recreates the acoustic environment of a big church with a high dome and columns along each side. The reverberation delay is very long while the early reflections are smaller than with other sound field programs.

HiFi DSP processing. This is the sound field at stage front in “The Bottom Line”, a famous New York jazz club. The floor can seat 300 people to the left and right in a sound field offering real and vibrant sound.

HiFi DSP processing. The ideal program for lively, dynamic rock music. The data for this program was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-left of the hall.

CINEMA DSP processing. This program produces a vibrant atmosphere and lets you feel as if you are at an actual jazz or rock concert.

CINEMA DSP processing. This program provides excellent vocal depth and overall clarity by restraining excessive reverberation. The surround sound field is relatively moderate but it reproduces beautiful sound using data collected from a concert hall.

HiFi DSP processing. This program recreates the acoustic environment of a lively disco in the heart of a big city. The sound is dense and highly concentrated. It is also characterized by high-energy, “immediate” sound.

THX processing for all 5.1 encoded music sources.

THX Music

SUR. STANDARD

q D+PL x Music

SUR. STANDARD DTS+PL x Music

SUR. ENHANCED

SUR. STANDARD PL x Music

SUR. STANDARD PL Music

SUR. STANDARD

Standard Dolby Digital and Dolby Pro Logic x processing for music sources.

Standard DTS and Dolby Pro Logic x processing for music sources.

CINEMA DSP enhanced processing for the selected decoder.

Dolby Pro Logic x processing for music software.

Dolby Pro Logic processing for music software.

DTS processing for music software.

Neo:6 Music

SUR. STANDARD CS Music

SRS Circle Surround processing for music software. (U.S.A. model only)

Page 55

ADVANCED OPERATIONS

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

POWER POWER POWER

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

Using the sleep timer

Use this feature to automatically set this unit in the standby mode after a certain amount of time. The sleep timer is useful when you are going to sleep while this unit is playing or recording a source. The sleep timer also automatically turns off any external components connected to the AC OUTLET(S).

■ Setting the sleep timer

1 Select a source and start playback on the

source component.

ADVANCED OPERATIONS

■ Canceling the sleep timer

Press SLEEP repeatedly until “SLEEP OFF” appears on the front panel display. After a few seconds, “SLEEP OFF” disappears, and the SLEEP indicator goes off.

SLEEP

The sleep timer setting can also be canceled by pressing STANDBY on the remote control (or STANDBY/ON on the front panel) to set this unit to the standby mode.

2 Press SLEEP repeatedly to

set the amount of time.

Each time you press SLEEP, the front panel display changes as shown below. The SLEEP indicator flashes while switching the amount of time for the sleep timer.

SLEEP 120 min SLEEP 90 min

SLEEP 60 minSLEEP 30 minSLEEP OFF

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

SP A

SLEEP

SLEEP 120min

The SLEEP indicator lights up in the front panel display, and the display returns to the selected sound field program.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

SP A

SLEEP

Hall in Munich

MD/TAPE

CD TUNER

CD-R

CD TUNER

SLEEP

PHONO

VOLUME

L R

PHONO

VOLUME

L R

OPERATION

ADVANCED

Page 56

SYSTEM OPTIONS

You can use the following parameters to adjust a variety of system settings and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

■ HDMI (HDMI menu)

Use to edit HDMI parameters (see page 95).

■ i.LINK Select (i.LINK select menu)

Use to edit i.LINK parameters (see page 91).

■ Stereo/Surround (Stereo/Surround menu)

Use to edit sound field parameters (see page 99).

■ Input Select (Input select menu)

Use to reassign digital input/outputs, select the input signal, rename the inputs, or adjust the output volume of each jack (see page 55).

Item Features Page

I/O Assignment Assigns jacks according to the component to be used.

Audio Select Selects the type of input signal to be used.

Decoder Mode Selects the input mode for sources connected to the DIGITAL INPUT jacks.

Volume Trim Adjusts the output volume of each jack.

Rename Changes the name of the input.

■ Manual Setup (Manual setup menu)

Use to manually adjust speaker and system settings (see page 58).

Sound (Sound menu)

Use to manually adjust the sound parameters.

Item Features Page

LFE Level Adjusts the output level of the LFE channel for Dolby Digital or DTS signals.

Dynamic Range Adjusts the dynamic range for Dolby Digital or DTS signals.

Parametric EQ Adjusts the tonal quality of each speaker.

Tone Control Adjusts the tonal balance of the speakers and headphones.

Audio Option Customizes overall audio settings for this unit.

Basic (Basic menu)

Use to quickly setup basic system parameters.

Item Features Page

Test Tone Turns the test tone output on or off for Speaker Set, Speaker Distance and Speaker Level settings.

Speaker Set

Speaker Distance Adjusts the delay time of each speaker.

Speaker Level Adjusts the output level of each speaker.

THX Set Adjusts the THX settings.

Selects the output mode suitable for each speaker, the speakers for low-frequency signal output, and the cross over frequency.

Page 57

SYSTEM OPTIONS

Option (Options menu)

Use to adjust the optional system settings.

Item Features Page

Display Adjusts the GUI and front panel displays.

Multi Zone Customizes the Zone 2, Zone 3 and Zone B settings.

Sur.Initialize Initializes the parameters of all or a group of sound field programs.

Audio Select Selects the initial input mode of the source.

Decoder Mode Selects the decoder used by this unit.

Memory Guard Locks the menu parameter settings.

■ Auto Setup (Auto setup menu)

Use to specify which speaker parameters auto setup will adjust, and to activate the auto setup procedure (see page 27).

■ System Memory (System memory menu)

Use to save and recall various settings (see page 69).

■ Audio Info. (Audio signal information menu)

Use to check audio signal information (see page 40).

OPERATION

ADVANCED

Page 58

SYSTEM OPTIONS

EXIT

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

VOL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

Changing parameter settings

Use the remote control to access and adjust each parameter. (Speaker set is used in the following example to change parameter settings.)

Manual Setup > Basic > Speaker Set >

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

2 Press k / n repeatedly to select a menu, then

press h to enter the selected menu.

Test Tone

Speaker Set

Speaker Distance

Speaker Level

Sound

Basic

Option

Front

Center

Surround

5 2-4

TOP

TITLE

3 Press k / n repeatedly to select the

parameter you want to adjust.

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

4 Press ENTER or h, then press k / n

repeatedly to change the setting of the item you want to adjust.

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

5 Press EXIT.

If you want to continue adjusting parameter settings, press ENTER to return to the previously selected menu item.

Notes

• The available parameters may be displayed on more than one

page of the GUI display. To scroll through pages, press k / n.

• You cannot change parameter values when Memory Guard is set to “On”. If you want to change the parameter values, set Memory Guard to “Off” (see page 68).

Memory back-up

The memory back-up circuit prevents the stored data from being lost even if this unit is set in the standby mode, the power cable is disconnected from the AC outlet, or the power supply is temporarily cut due to power failure. However, if the power is cut for more than one week, the parameter values will return to the factory settings. If this happens, edit the parameter value again.

Front

Center

Surround

Surround Back

Presence

Large

Small

None

Page 59

Input Select

Use this feature to reassign digital input/outputs, select the input signal, rename the inputs, or adjust the level of the signal input at each jack.

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

2 Select Input Select, then press h.

Stereo/Surround

Input Select

Manual Setup

Auto Setup

CD-R

MD/TAPE

DVD

DTV

CBL/SAT

TOP

TITLE

SYSTEM OPTIONS

Music information

Page 1: the summary of music information

(Song title / Artist name / Album name) Page 2: the details of the song title Page 3: the details of the artist Page 4: the details of the album Page 5: the details of the genre Press l / h repeatedly to toggle between pages. Press ENTER on the remote control to hold the display temporarily. “Hold:ENTER” changes to “Release:ENTER”. Press ENTER again to release it. Music information is available only when data programs are received.

Hold:ENTER [1] 2

Station

Music

HD Radio information is also available in the front panel display menu (see page 46).

3 Select the desired input (CD, DVD, etc.), then

press h to access and adjust.

■ Information (Information)

There are 2 types of GUI displays that show HD Radio information when the unit is in the tuner mode: station and music information.

Input Select > TUNER > Information >

Current

Information

Volume Trim

Rename

Station information

(Band / Frequency / Station name / Program / Program type) Station information is available when a station name is received as data in 4 alphabetical codes.

Current

Station

Music

Station

Music

Band Freq. Name

Program Program Type

87.50MHz

■ I/O Assignment

(Input/output assignment)

You can assign the digital audio input/output and component video jacks to other components if this unit’s initial settings do not correspond to your needs. Change the following parameters to reassign the jacks and effectively connect more components. Once the jacks are reassigned, you can select the corresponding component using the INPUT selector on the front panel or the input selector buttons on the remote control.

Input Select > input source (DVD, etc.) > I/O Assignment >

Example 1:

To assign the COAXIAL 7 (CD) jack to the DVD input.

1) Select Input Select, then select DVD.

2) Select I/O Assignment > Coaxial Input, then select

7 CD.

OPERATION

ADVANCED

Page 60

SYSTEM OPTIONS

Example 2:

To clear a jack assignment.

1) Select Input Select, then select the input source (DVD, etc.).

2) Select I/O Assignment, then select the jack assignment (Optical Output, Optical Input, Coaxial Input or Component Video).

3) Select NONE, then press ENTER to clear the assignment.

I/O Assignment

Audio Select

Decoder Mode

Optical Output

Optical Input

Coaxial Input

This menu item is also available in the front panel display system options menu (see page 89).

Notes

• You cannot select a specific item more than once for the same

type of jack.

• When you connect a component to both the COAXIAL and

OPTICAL jacks, priority is given to signals input at the COAXIAL jack.

■ Audio Select (Audio selection)

This unit comes with a variety of input jacks. You can select the type of input signal you want to use.

Input Select > input source (DVD, etc.) > Audio Select >

Choices: Auto, i.LINK, HDMI, Coax/Opt, Analog

• You can adjust the default input mode this unit selects when the power is turned on (see page 68).

• DTS mode is recommended for playback of a CD or LD encoded in DTS.

Note

If the digital output data of the player has been processed in any way, you may not be able to perform DTS decoding even if you make a digital connection between this unit and the player.

■ Decoder Mode (Decoder mode)

Use this feature to switch the input mode. You can designate the reassigned digital input jacks (see page 55) for specific audio signals (DTS, etc.).

Input Select > input source (DVD, etc.) > Decoder Mode >

Choices: Auto, DTS

I/O Assignment

Audio Select

Decoder Mode

Volume Trim

Rename

• Select “Auto” if you want this unit to automatically

detect input signal types and select the appropriate input mode.

• Select “DTS” if you want this unit to select DTS as the

input mode.

This menu item is also available in the front panel display system options menu (see page 89).

Auto

DTS

I/O Assignment

Audio Select

Decoder Mode

Volume Trim

Auto

i.LINK

HDMI

• Select “Auto” if you want signals to be input to this unit in the following order: i.LINK signals,

signals, digital signals

and analog signals.

HDMI

• Select “i.LINK” if you only want i.LINK signals to be input to this unit. If no i.LINK signals are input, no sound is output.

• Select “HDMI” if you only want HDMI signals to be input to this unit. If no HDMI signals are input, no sound is output.

• Select “Coax/Opt” if you want digital signals to be input to this unit at the OPTICAL or COAXIAL jacks. Use if i.LINK or HDMI signals are also being input.

• Select “Analog” if you only want analog signals to be input to this unit. If no analog signals are input, no sound is output.

If this unit detects a Dolby Digital or DTS signal, the decoder automatically switches to the appropriate sound field program.

■ Volume Trim (Volume trimming)

You can adjust the level of the signal input at each jack. This is useful if you want to balance the level of each input source to avoid sudden changes in volume when switching between input sources.

Manual Setup > Input Select > input source (DVD, etc.) > Volume Trim >

Control range: –6.0 dB to +6.0 dB

Audio Select

Decoder Mode

Volume Trim

Rename

This menu item is also available in the front panel display system options menu (see page 89).

Note

You can only adjust the volume for the current input source using this setting.

0.0dB

Page 61

SYSTEM OPTIONS

■ Rename (Rename)

Use this feature to change the name of the inputs in the GUI or the front panel display menu. (DVD is used as the source component in the following example.)

Input Select > input source (DVD, etc.) > Rename

1 Press an input selector button to select the

input you want to change the name of.

2 Press l / h to place the _ (under-bar) under

the space or character you want to edit.

Decoder Mode

Volume Trim

Rename

CAPITAL

DVD

OK RESET

3 Press ENTER to select a character type

(CAPITAL/SMALL/FIGURE/MARK).

4 Press k / n to select the character you want

to use and l / h to move to the next one.

• You can use up to 8 characters for each input.

• Press n to change the character in the following order, or press k to go in the reverse order. Press ENTER to switch between character types: CAPITAL A to Z, space SMALL a to z, space FIGURE 0 to 9, space MARK !, #, %, &, etc.

• Repeat steps 1 to 3 to rename each input.

5 Press l / h to select OK and press ENTER

when complete.

• To change source names in the display window on the remote control, see page 75.

• This menu item is also available in the changing source names in the display window feature (see page 75), and in the front panel display system options menu (see page 89).

■ Multi CH Assign (Multi channel assignment)

Use this feature to set the direction of the signals input into the center, subwoofer and surround channels when a source component is connected to the MULTI CH INPUT jacks. If you are inputting 8-channel signals from an external decoder, use this feature to select jacks for the additional front signals.

Input Select > MULTI CH > Multi CH Assign >

Volume Trim

Multi CH Assign

Input Channels

This setting is used to select the number of channels input from an external decoder. Choices: 6ch, 8ch

Note

If Zone2 Amplifier (page 67) is set to “Internal”, no sound is output from the surround back speakers even if you select “8ch”. In this case, select “6ch” and set the output setting of the external component to 6 channels.

Front Input

If you selected “8ch” in Input Channels, you can select analog jacks at which front signals from an external decoder will be input. Choices: DVD, DTV, CBL/SAT, VCR1, DVR/VCR2,

V-AUX, CD, CD-R, MD/TAPE

This menu item is also available in the front panel display system options menu (see page 89).

Input Channels

Front Input

OPERATION

ADVANCED

Note

You can only change the name of the current input source (except for multi channel input sources) using this setting.

Page 62

SYSTEM OPTIONS

Manual Setup (Sound)

Use this menu to adjust the sound parameters.

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

2 Select Manual Setup, then press h.

3 Select Sound, then press h.

Sound

Basic

Option

4 Select the desired parameters, then press h

to access and adjust.

■ LFE Level (Low-frequency effect level)

Use to adjust the output level of the LFE (low-frequency effect) channel according to the capacity of your subwoofer or headphones. The LFE channel carries low-frequency special effects which are only added to certain scenes. This setting is effective only when this unit decodes Dolby Digital or DTS signals. To access these parameters, select:

Manual Setup > Sound > LFE Level >

Choices: –20.0 to 0.0 (dB)

TOP

TITLE

LFE Level

Dynamic Range

Parametric EQ

Tone Control

Audio Option

This menu item is also available in the front panel display system options menu (see page 89).

Note

Depending on the settings of LFE Level, some signals may not be output at the SUBWOOFER jack.

■ Dynamic Range (Dynamic range)

Use to select the amount of dynamic range compression to be applied to your speakers and headphones. This setting is effective only when the unit is decoding Dolby Digital and DTS signals. To access these parameters, select:

Manual Setup > Sound > Dynamic Range >

Choices: MAX (maximum), STD (standard),

MIN (minimum)

Speaker

Headphone

Speaker (Speaker dynamic range)

Select to adjust the speaker compression.

Headphone (Headphone dynamic range)

Select to adjust the headphone compression.

• Select “MAX” to preserve the greatest amount of dynamic range.

• Select “STD” for general use.

• Select “MIN” for listening to sources at low volume levels.

This menu item is also available in the front panel display system options menu (see page 89).

MAX

STD

MIN

Speaker

Headphone

0.0dB

Speaker (Speaker low-frequency effect level)

Select to adjust the speaker LFE level.

Headphone (Headphone low-frequency effect level)

Select to adjust the headphone LFE level.

Page 63

■ Parametric EQ (Parametric equalizer)

Use this feature to adjust the parametric equalizer for any speaker.

Manual Setup > Sound > Parametric EQ >

LFE Level

Dynamic Range

Parametric EQ

Tone Control

Audio Option

Test Tone

Front L

Front R

1 Press k / n to select Test Tone or the speaker

you want to adjust.

• Test Tone turns on or off the test tone output

when adjusting the tonal quality of each speaker.

• Front L adjusts the tonal quality of the front left

speaker.

• Front R adjusts the tonal quality of the front right

speaker.

• Center adjusts the tonal quality of the center

speaker.

• Surround L adjusts the tonal quality of the

surround left speaker.

• Surround R adjusts the tonal quality of the

surround right speaker.

• Surround Back L adjusts the tonal quality of the

surround back left speaker.

• Surround Back R adjusts the tonal quality of the

surround back right speaker.

• Presence L adjusts the tonal quality of the

presence left speaker.

• Presence R adjusts the tonal quality of the

presence right speaker.

SYSTEM OPTIONS

4 Press n to select EDIT and press ENTER to

access the edit window.

Band

Gain

0.0dB

Freq.

Test Tone

Front L

Front R

Center

125.0Hz

1.000

The parameter selected in PARAM is highlighted.

•Press l / h to adjust the parameter.

•Press k / n to adjust the Gain.

• Press ENTER to exit the edit window.

5 Repeat steps 3 and 4 until you are satisfied

with the results.

If you want to reset all PEQ parameter settings for the selected speaker, select RESET and press ENTER.

6 Select EXIT and press ENTER to exit the

settings window.

• If you select “Band” in step 3, you can use this menu as a graphic equalizer.

• For more information on the parametric equalizer, see “PARAMETRIC EQUALIZER INFORMATION” on page 114.

2 Press h to access the settings window.

PARAM RESET

Test Tone

Front L

Front R

Center

EDIT EXIT

Band / Gain

3 Press l / h to select PARAM, then press

ENTER to select a parameter from Band (band), Freq. (frequency) or Q (Q factor).

OPERATION

ADVANCED

Page 64

SYSTEM OPTIONS

■ Tone Control (Tone control)

Use to adjust the amount of bass and treble output to your speakers and headphones.

Manual Setup > Sound > Tone Control >

Choices: Control, Bass, Treble

Control (Tone control)

Choices: Defeat, Speakers, Headphones

Control

Bass

Treble

• Select “Defeat” if you do not want to make any adjustments.

• Select “Speakers” to adjust the bass/treble balance of your speakers.

• Select “Headphones” to adjust the bass/treble balance of your headphones.

Bass (Bass control)

Use this feature to adjust low-frequencies output to your speakers or headphones. Choices: 125Hz, 350Hz, 500Hz (frequency)

–6.0dB to +6.0dB (gain), initial setting: 0.0dB

Control

Bass

Treble

Treble (Treble control)

Use this feature to adjust high-frequencies output to your speakers or headphones. Choices: 2.5kHz, 3.5kHz, 8.0kHz (frequency)

–6.0dB to +6.0dB (gain), initial setting: 0.0dB

Control

Bass

Treble

Defeat

Speakers

Headphones

Speaker Freq : 125Hz Gain : 0.0dB

-6

Speaker Freq : 3.5kHz Gain : 0.0dB

-6

Note

Tone Control is not effective when:

– THX (pages 49 to to 50) or PURE DIRECT (page 38) is

selected.

– MULTI CH INPUT is selected.

■ Audio Option (Audio options)

Use to customize this unit’s overall audio settings.

Manual Setup > Sound > Audio Option >

Choices: Muting Type, Audio Delay, PR/SB Select

Muting Type (Muting type)

Use to adjust how much the mute function reduces the output volume. Choices: Full, –20dB

Muting Type

Audio Delay

PR/SB Select

• Select “Full” to completely halt all output of sound.

• Select “–20dB” to reduce the current volume by 20 dB.

Audio Delay (Audio delay)

Use to delay the sound output and synchronize it with the video image. This may be necessary when using certain LCD monitors or projectors. Choices: 0 to 240 (ms)

Muting Type

Audio Delay

PR/PB Select

This menu item is also available in the front panel display system options menu (see page 89).

Full

-20dB

0ms

This menu item is also available in the front panel display system options menu (see page 89).

Page 65

PR/SB Select (Presence/surround back speaker selection)

Surround back and presence speakers do not output sound simultaneously. You can select to prioritize either speaker set when playing sources that contain surround back channel signals using CINEMA DSP sound field programs. Choices: Presence, Surround Back

Muting Type

Audio Delay

PR/SB Select

Presence

Surround Back

SYSTEM OPTIONS

Manual Setup (Basic)

Use this menu to set up basic system parameters.

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

2 Select Manual Setup, then press h.

TOP

TITLE

• Select “Presence” to use presence speakers even when surround back channel signals are input. The signals for the surround back channel will be output from surround speakers.

• Select “Surround Back” to use surround back speakers when a surround back channel signal is detected in a CINEMA DSP program. Presence channel signals will be output from front speakers.

3 Select Basic, then press h.

Sound

Basic

Option

Test Tone

Speaker Set

Speaker Distance

Speaker Level

4 Select the desired parameters, then press h

to access and adjust.

• Most of the parameters described in the basic menu are set automatically when you run auto setup. You can use the basic menu to make further adjustments, but we recommend running auto setup first.

• You can reset these parameters by performing the auto setup procedure (see page 27).

OPERATION

ADVANCED

Page 66

SYSTEM OPTIONS

■ Test Tone (Test tone)

Turns the test tone output on or off for Speaker Set, Speaker Distance and Speaker Level settings.

Manual Setup > Basic > Test Tone >

Choices: Off, On

Test Tone

Speaker Set

Speaker Distance

Off

• If you use a handheld SPL meter, hold at arms length and point upwards so that the meter is in the listening position. With the meter set to the 70 dB scale and to C SLOW, calibrate each speaker to 75 dB.

• This menu item is also available in the front panel display system options menu (see page 88).

Note

Loud test tones will be output when “On” is selected. In this case, make sure no children are present in the listening room.

■ Speaker Set (Speaker set)

Use to manually adjust any speaker setting.

Manual Setup > Basic > Speaker Set >

Choices: Front, Center, Surround, Surround Back, Presence, Bass Out, Bass Cross Over, SWFR Phase

If you are not satisfied with the bass sounds from your speakers, you can change these settings according to your preference.

Note

Set any THX speakers to Small.

Front (Front speakers) Choices: Large, Small

Large

Front

Center

Surround

Small

Center (Center speaker) Choices: Large, Small, None

Front

Center

Surround Back

Large

Small

NoneSurround

• Select “Large” if you have a large center speaker. The unit directs the entire range of the center channel signal to the center speaker.

• Select “Small” if you have a small center speaker. The unit directs the low-frequency signals of the center channel to the speakers selected with Bass Out.

• Select “None” if you do not have a center speaker. The unit directs all of the center channel signal to the front left and right speakers.

Surround (Surround left/right speakers) Choices: Large, Small, None

Front

Center

Surround

Presence

Large

Small

NoneSurround Back

• Select “Large” if you have large surround left and right speakers or if a rear subwoofer is connected to the surround speakers. The entire range of the surround channel signal is directed to the surround left and right speakers.

• Select “Small” if you have small surround left and right speakers. The low-frequency signals of the surround channel are directed to the speakers selected with Bass Out.

• Select “None” if you do not have surround speakers. This sets the unit to the Virtual CINEMA DSP mode (see page 39) and automatically sets the surround back speaker setting (Surround Back) to “None”.

• Select “Large” if you have large front speakers. The unit directs the entire range of the front left and right channel signals to the front left and right speakers.

• Select “Small” if you have small front speakers. The unit directs the low-frequency signals of the front channel to the speakers selected with Bass Out.

Page 67

SYSTEM OPTIONS

Surround Back (Surround back left/right speakers)

Choices: Large x1, Small x1, Small x2, Large x2,

None

Center

Surround

Surround Back

Presence

Bass Out

Large x1

Small x1

Small x2

Large x2

None

• Select “Large x1” if you have a large surround back speaker. The unit directs the entire range of the surround back channel signal to the surround back left speaker.

• Select “Small x1” if you have a small surround back speaker. The low-frequency signals of the surround back channel are directed to the speakers selected with Bass Out, and the rest of the frequency signals are directed to the surround back left speaker.

• Select “Small x2” if you have two small surround back speakers. The low-frequency signals of the surround back channels are directed to the speakers selected with Bass Out.

• Select “Large x2” if you have two large surround back speakers. The unit directs the entire range of the surround back channel signal to the surround back speakers.

• Select “None” if you do not have a surround back speaker. The unit directs all of the surround back channel signal to the surround left and right speakers.

Note

If you select “Large x1” or “Small x1”, connect a speaker to the SURROUND BACK (SINGLE) speaker terminals.

Presence (Presence speakers)

Choices: None, Yes

Bass Out (Bass out)

LFE signals carry low-frequency effects when this unit decodes Dolby Digital or DTS signals. These low-frequency signals can be directed to both front left and right speakers, and to the subwoofer (which can be used for both stereo reproduction and sound field programs). Choices: Both, SWFR, Front THX recommendation: SWFR

Surround Back

Presence

Bass Out

Bass Cross Over

SWFR Phase

Both

SWFR

Front

Notes

• Select “Both” to direct LFE signals to the subwoofer. Front L/R low-frequency signals are directed to both the subwoofer and front channels, and all other low-frequency signals are directed in accordance with other speaker settings.

• Select “SWFR” if you connected a subwoofer. The unit directs all LFE and low-frequency signals in accordance with other speaker settings.

• Select “Front” if you have not connected a subwoofer. The unit directs all low-frequency and LFE signals to the front speakers (even if you have previously set Front to Small in Speaker Set).

Bass Cross Over (Bass cross over)

Use this feature to select a cross-over (cut-off) frequency for all low-frequency signals. All frequencies below the selected frequency are sent to the subwoofer. Choices: 40Hz, 60Hz, 80Hz (THX), 90Hz, 100Hz,

110Hz, 120Hz, 160Hz, 200Hz

THX recommendation: 80Hz (THX)

OPERATION

ADVANCED

Surround

Surround Back

Presence

Bass Out

Bass Cross Over

None

Yes

• Select “None” if you do not have presence speakers. This unit directs all presence channel signals to the front left and right speakers.

• Select “Yes” if you have presence speakers.

Note

When Zone2 Amplifier is set to “Internal” (see page 67), Presence is automatically set to “None”.

Presence

Bass Out

Bass Cross Over

SWFR Phase

40Hz

60Hz

80Hz (THX)

90Hz

100Hz

Page 68

SYSTEM OPTIONS

SWFR Phase (Subwoofer Phase)

If bass sounds are lacking or unclear, use this feature to adjust the frequency phase characteristics of your subwoofer. Choices: Normal, Reverse

Bass Out

Bass Cross Over

SWFR Phase

Normal

Reverse

• Select “Normal” not to reverse the phase for your subwoofer(s).

• Select “Reverse” to reverse the phase for your subwoofer(s).

This menu item is also available in the front panel display system options menu (see page 88).

■ Speaker Distance (Speaker distance)

Use this feature to manually input the distance of each speaker and adjust the delay applied to the respective channel. Ideally, each speaker should be the same distance from the main listening position. However, this is not possible in most home situations. Thus, a certain amount of delay must be applied to the sound from each speaker so that all sound will arrive at the listening position at the same time.

Manual Setup > Basic > Speaker Distance >

Speaker distances

Choices: 0.30 to 24.00 m (1.0 to 80.0 ft) Initial setting: 3.00 m (10.0 ft)

• Front L adjusts the distance of the front left speaker.

• Front R adjusts the distance of the front right speaker.

• Center adjusts the distance of the center speaker.

• Surround L adjusts the distance of the surround left

speaker.

• Surround R adjusts the distance of the surround right

speaker.

• Surround Back L adjusts the distance of the

surround back left speaker.

• Surround Back R adjusts the distance of the

surround back right speaker.

• Presence L adjusts the distance of the presence left

speaker.

• Presence R adjusts the distance of the presence right

speaker.

• Subwoofer adjusts the distance of the subwoofer.

This menu item is also available in the front panel display system options menu (see page 88).

Notes

• You cannot adjust the distance of speakers set to “None” in Speaker Set.

• If you are only using one surround back speaker, connect it to the SURROUND BACK (SINGLE) jack, and adjust the distance in Surround Back L.

Test Tone

Speaker Set

Speaker Distance

Speaker Level

THX Set

Subwoofer

Unit

Front L

Front R

Center

Unit (Unit)

Choices: Meter (m), Feet (ft) Initial setting:U.S.A. and Canada models: Feet (ft)

Other models: Meter (m)

• Select “Meter” to input speaker distances in meters.

• Select “Feet” to input speaker distances in feet.

Presence R

Subwoofer

Unit

Front L

Front R

Meter

Feet

Page 69

SYSTEM OPTIONS

Dimmer

Speaker B

Dimmer

■ Speaker Level (Speaker level)

Use these settings to manually balance the speaker levels between the front left speakers and each speaker selected in Speaker Set (see page 62).

Manual Setup > Basic > Speaker Level

Speaker Set

Speaker Distance

Speaker Level

THX Set

Choices: –10.0 dB to +10.0 dB Initial setting: 0.0 dB

• Front L adjusts the balance of the front left speaker.

• Front R adjusts the balance of the front right speaker.

• Center adjusts the balance of the center speaker.

• Surround L adjusts the balance of the surround left

speaker.

• Surround R adjusts the balance of the surround right

speaker.

• Surround Back L adjusts the balance of the surround

back left speaker.

• Surround Back R adjusts the balance of the

surround back right speaker.

• Presence L adjusts the balance of the front left and

presence left speakers.

• Presence R adjusts the balance of the front left and

presence right speakers.

• Subwoofer adjusts the balance of the subwoofer.

• To calibrate correctly to THX reference levels, use Test Tone (see page 62).

• This menu item is also available in the front panel display system options menu (see page 88).

Notes

• You cannot adjust the level of channels set to “None” in Speaker Set.

• If you are only using one surround back speaker, connect it to the SURROUND BACK (SINGLE) jack, and adjust the balance in Surround Back L.

Presence R

Subwoofer

Front L

Front R

Center

■ THX Set (THX settings)

Use to manually adjust the THX settings.

Manual Setup > Basic > THX Set >

Speaker Distance

Speaker Level

THX Set

Information

Input Mode

SB Speaker Dist. (Surround back speaker distance)

Use this feature to optimize the surround sound field when you have to place the surround back speakers apart. Choices: U.S.A. and Canada models: under 1ft, 1 – 4ft, over 4ft Other models: under 0.3m, 0.3 – 1.2m, over 1.2m

Input Assign

Support Audio

SB Speaker Dist.

Information

Input Mode

• Select “under 0.3m” or “under 1ft” if the distance between the two surround back speakers is less than

0.3 m (1 ft).

• Select “0.3 – 1.2m” or “1 – 4ft” if the distance between the two surround back speakers is between 0.3 and 1.2 m (1 and 4 ft).

• Select “over 1.2m” or “over 4ft” if the distance between the two surround back speakers is more than

1.2 m (4 ft).

This menu item is also available in the front panel display system options menu (see page 88).

Dimmer

Speaker B

SB Speaker Dist.

Output

Zone 3 Volume

Dimmer

under 0.3m

0.3-1.2m

over 1.2m

Zone 3 Volume

OPERATION

ADVANCED

Page 70

SYSTEM OPTIONS

Manual Setup (Option)

This menu adjusts the optional system settings.

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

2 Select Manual Setup, then press h.

3 Select Option then press h.

Sound

Basic

Option

4 Select the desired parameters, then press h

to access and adjust.

5 When finished adjusting parameters, press

ENTER.

■ Display (Display)

Use this feature to adjust the GUI and front panel displays.

Manual Setup > Option > Display >

Choices: Dimmer, Video Conv., Short Message, Position,

Wall Paper

Display

Multi Zone

Sur.Initialize

Dimmer (Dimmer)

Use to adjust the brightness of the front panel display. Choices: –4 to 0

TOP

TITLE

Display

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode

Dimmer

Video Conv.

Short Message

Position

Wall Paper

Video Conv. (Video conversion)

Use this feature to turn on/off conversion of composite (VIDEO) signals to both S-video and component signals. This allows you to output converted video signals at the S VIDEO or COMPONENT VIDEO jacks when no S-video or component signals are input. This feature also converts S-video signals to component signals when no component signals are input. Choices: Off, On

• Select “Off” not to convert any signals.

• Select “On” to convert composite signals to S-video and component signals, and to convert S-video signals to component signals.

When using the THX system, we recommend setting Video Conv. to “Off”.

Notes

• Converted video signals are only output at the MONITOR OUT

jacks. When recording you must make the same type of video connections (composite or S-video) between each component.

• When converting composite video or S-video signals from a

VCR to component video signals, the picture quality may suffer depending on your VCR.

Short Message (Short message)

Use this feature to turn on/off the short message display. Choices: Off, On

• Select “Off” to turn off the short message display.

• Select “On” to turn on the short message display.

Notes

• The short message display may not display properly depending

on the type of input signal and video monitor used.

• If Video Conv. is set to “Off”, the short message display is not

displayed even if “On” is selected.

Position (Position)

Use to adjust the vertical and horizontal position of the GUI display. Choices: –5 (downward/left) to +5 (upward/right)

•Press k to raise the position of the GUI display.

•Press n to lower the position of the GUI display.

•Press h to shift the position of the GUI display to the right. Press l to shift the position of the GUI display to the left.

•

Wall Paper (Wallpaper)

Use this feature to select the background when no image is input from an external source. If you do not want to display the background, select None. Choices: None, Yes, Gray

Note

If Video Conv. is set to “Off”, no background is displayed even if “Yes” is selected.

This menu item is also available in the front panel display system options menu (see page 90).

Page 71

SYSTEM OPTIONS

■ Multi Zone (Multi zone)

Use this feature to customize the Zone 2 and Zone B settings.

Manual Setup > Option > Multi Zone >

Choices: Speaker B, Zone2 Amplifier, Zone2 Volume,

Zone3 Volume

Display

Multi Zone

Sur.Initialize

Audio Select

Speaker B (Speaker B)

Use this feature to select the location of the front speakers connected to the SPEAKERS B terminals. Choices: Main, Zone B

• Select “Main” to turn on/off SPEAKERS A and B when the speakers connected to the SPEAKERS B terminals are set in the main room.

• Select “Zone B” if the speakers connected to the SPEAKERS B terminals are set in another room. If SPEAKERS A is turned off and SPEAKERS B is turned on, all the speakers including the subwoofer in the main room are muted and the unit outputs sound from SPEAKERS B only.

Notes

• If you select “Zone B” and connect headphones to the PHONES

jack on this unit, the sound is output from both the headphones and SPEAKERS B.

• When a DSP program is selected, the unit automatically enters

the Virtual CINEMA DSP mode.

Zone2 Amplifier (Zone 2 amplifier)

Use to select how the ZONE 2 speakers are amplified. Choices: Internal, External

• Select “External” if you connect your Zone 2 speakers through an external amplifier connected to this unit’s ZONE 2 OUTPUT jacks.

• Select “Internal” to use this unit’s internal amplifier if you connect your Zone 2 speakers directly to this unit’s PRESENCE/ZONE 2 speaker terminals.

• Select “None” if you do not want to use the Zone2 feature.

Notes

• When “Internal” is selected, the presence speaker setting

automatically switches to “None”.

• When “Internal” is selected, the Zone2 volume setting

automatically switches to “Variable”.

Speaker B

Zone2 Amplifier

Zone2 Volume

Zone3 Volume

Zone2 Volume (Zone 2 volume)

Use to select how the volume control will operate with regard to the ZONE 2 OUTPUT jacks. When Zone2 Amplifier is set to “Internal”, this feature is automatically set to “Variable”. Choices: Fixed, Variable

• Select “Fixed” to fix the ZONE 2 OUTPUT volume level to a standard line level.

• Select “Variable” to adjust the ZONE 2 OUTPUT volume simultaneously using VOL +/– on the remote control.

Zone3 Volume (Zone 3 volume)

Use to select how the volume control will operate with regard to the ZONE 3 OUTPUT jacks. Choices: Fixed, Variable

• Select “Fixed” to fix the ZONE 3 OUTPUT volume level to a standard line level.

• Select “Variable” to adjust the ZONE 3 OUTPUT volume simultaneously using VOL +/– on the remote control.

This menu item is also available in the front panel display system options menu (see page 90).

■ Sur.Initialize (Surround initialize)

Use this feature to initialize the parameters for each sound field program within sound field program groups. When you initialize a sound field program group, all of the parameter values within that group revert to their initial settings. Adjusted sound field parameter settings are displayed in blue.

Manual Setup > Option > Sur.Initialize

Choices: STEREO, MUSIC, ENTERTAINMENT,

MOVIE THEATER, SURROUND, All

Display

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode

• Press k / n to select the sound field program you want to initialize, then press ENTER.

• Select “All” to initialize settings for all sound field program parameters.

This menu item is also available in the front panel display system options menu (see page 90).

Note

Sound field program groups cannot be initialized when Memory Guard is set to “On” (see page 68).

STEREO

MUSIC

ENTERTAINMENT

MOVIE THEATER

SURROUND

All

OPERATION

ADVANCED

Page 72

SYSTEM OPTIONS

■ Audio Select (Audio selection)

Use this feature to designate the default input mode this unit selects when the power is turned on and the input source (such as a DVD player) is connected to the DIGITAL INPUT jacks on this unit.

Manual Setup > Option > Audio Select

Choices: Auto, Last

Multi Zone

Sur.Initialize

Audio Select

Decoder Mode

Memory Guard

• Select “Auto” if you want this unit to automatically detect input signal types and select the appropriate input mode.

• Select “Last” if you want this unit to automatically select the last input mode used for the connected source.

This menu item is also available in the front panel display system options menu (see page 89).

Note

Selecting “Last” does not recall the last setting for the EXTD SUR. button.

Auto

Last

■ Memory Guard (Memory Guard)

Use this feature to prevent accidental changes to DSP program parameter values and other system settings.

Manual Setup > Option > Memory Guard

Choices: Off, On

Audio Select

Decoder Mode

Memory Guard

Select “On” to protect:

• DSP program parameters

• All menu items except Memory Guard and System Memory – Load.

This menu item is also available in the front panel display system options menu (see page 90).

Note

In general, front panel and remote control operations are not affected when Memory Guard is set to “On”. However, you cannot adjust the tone control using Tone Control.

Off

■ Decoder Mode (Decoder mode)

You can select the decoder used by this unit.

Manual Setup > Option > Decoder Mode

Choices: Auto, Last

Sur. Initialize

Audio Select

Decoder Mode

Memory Guard

• Select “Auto” if you want this unit to automatically detect input signal types and select the appropriate decoder.

• Select “Last” if you want this unit to automatically select the last decoder used for the connected source.

Auto

Last

Page 73

System Memory

This feature allows you to save up to six of your favorite settings that can be easily recalled when needed. You can save settings such as the following:

• Sound field program parameters

• Speaker settings

• Speaker channel settings

• LFE level

• Dynamic range settings

• Parametric equalizer settings

■ To save settings

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

TOP

TITLE

SYSTEM OPTIONS

■ To recall settings

1 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

AMP

SOURCE

TOP

TITLE

2 Select System Memory, then press h.

3 Select Load, then press ENTER.

Sci-Fi

Current

Memory 1

Memory 2

Memory 3

Speaker SpeakerCH LFE Level D-Range PEQ

A:ON B:OFF 3/4/0.1 0dB MAX Reset

2 Select System Memory, then press h.

3 Select Save, then press ENTER.

Sci-Fi

A:ON B:OFF 3/4/0.1 0dB MAX Reset

Current

Memory 1

Memory 2

Speaker SpeakerCH LFE Level D-Range PEQ

Current displays the current settings of this unit.

4 Press k / n repeatedly to select the memory

number under which you want to save the settings, then press h.

“Save: ENTER” appears in the bottom right corner of the window.

5 Press ENTER to save the settings.

4 Press k / n repeatedly to select the memory

number you want to recall, then press h.

“Load: ENTER” appears in the bottom right corner of the window.

5 Press ENTER to recall the settings.

Memory 1 and Memory 2 settings can be recalled simply by pressing MEMORY 1/2 on the remote control. When you press MEMORY 1, the message “Load Memory 1? Yes:Press Again” appears in the front panel display. Press MEMORY 1 once more to recall the settings.

MEMORY1 2

When you press MEMORY 2, the message “Load Memory 2? Yes:Press Again” appears in the front panel display. Press MEMORY 2 once more to recall the settings.

MEMORY1 2

OPERATION

ADVANCED

Page 74

REMOTE CONTROL FEATURES

FREQ/RDS

EON

MODE

PTY SEEK

START

REMOTE CONTROL FEATURES

In addition to controlling this unit, the remote control can also operate other audio and video components made by YAMAHA and other manufacturers. To control these other components, you must set up the remote control with the appropriate remote control codes. This remote control also has a learn feature which allows the remote to acquire functions from other remote controls equipped with an infrared remote control transmitter.

Control area

■ Controlling this unit

The shaded areas below can be used to control this unit after setting AMP/SOURCE/TV to AMP to activate the AMP mode.

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

MULTI CH IN

CD-R

SELECT

AMP

–

SOURCE

VOL

–

MUTE

EXIT

PURE DIRECT

PRG SELECT

NIGHT

AUDIO

A/B/C/D/E

STRAIGHT

DISPLAY

EFFECT

3421

SPEAKERSMEMORY

ENT.

+10

CLEAR

LEARN

RE–NAME

The buttons inside the dotted lines control this unit in any mode (SYSTEM POWER, STANDBY, SLEEP, AUDIO SELECT, the input selector buttons, VOL +/–, MUTE, PURE DIRECT and STRAIGHT/ EFFECT).

Display

window

AMP/SOURCE/

Set to AMP to

operate this unit.

POWER POWER POWER

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TV MUTE TV INPUT

PRESET

TOP

TITLE

BAND

ENTER

RETURN

STEREO

MUSIC ENTERTAIN MOVIE

THX

STANDARD SELECT EXTD SUR.

5678

FREQ/RDS EON MODE PTY SEEK START

REC

DISC SKIP

MACROONOFF

■ Controlling other components

The shaded areas below can be used to control other components. Each button has a different function depending on the selected components. Select the component you want to control by pressing an input selector button or SELECT k / n. The name of the selected component appears in the display window.

The A/B and input selector buttons switch the function of the component control area below.

Use the A/B buttons to control other components regardless of whether they are connected to this unit. Factory setting: A...LD player B...Tape deck

Display

window

Component control area

You can control up to 14 different components by setting appropriate remote control codes (see page 81).

POWER POWER POWER

PHONO TUNER CD

V-AUX

TV MUTE TV INPUT

TITLE

BAND

RETURN

STEREO

FREQ/RDS EON MODE PTY SEEK START

DISC SKIP

STANDBY

AVTV

AUDIO SELECT

POWER POWER

MULTI CH IN

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

TV VOL

–

TOP

THX

5678

REC

VOL

–

MUTE

TV VOL

PRESET

EXIT

PURE DIRECT

–

PRG SELECT

TV MUTE TV INPUT

ENTER

PRESET

TOP

A/B/C/D/E

TITLE

STRAIGHT

BAND

DISPLAY

MUSIC ENTERTAIN MOVIE

3421

RETURN

STANDARD SELECT EXTD. SUR

STEREO

MUSIC ENTERTAIN MOVIE

SPEAKERSMEMORY

+10

THX

STANDARD SELECT EXTD SUR.

5678

FREQ/RDS

CLEAR

LEARN

MACROONOFF

REC

DISC SKIP

EFFECT

ENTER

EON

SELECT k / n

SYSTEM

switches control to another component

SLEEP

without changing the input source on this unit.

CD-R

SELECT

AMP

SOURCE

–

NIGHT

AUDIO

EXIT

PRG SELECT

A/B/C/D/E

DISPLAY

ENT.

+10

MODE

RE–NAME

3421

SPEAKERSMEMORY

PTY SEEK

NIGHT

AUDIO

ENT.

START

AMP/ SOURCE/ TV Set to SOURCE to operate the component selected with an input selector button. Set to TV to operate the television (you must set the remote control code in DTV or PHONO).

Page 75

■ Controlling optional components (OPTN area)

OPTN is an additional component control area that can be programmed with remote control functions independently from any input source. This area is useful for programming commands that are to be used only as a part of a macro function or for components that do not have a valid remote control code. To select the OPTN control area, press n repeatedly until OPTN appears in the display window.

Notes

• You cannot set a remote control code for this area. See page 73

to program buttons operated within this component control area.

• The OPTN area cannot be used when “2001” or “2003” is

selected in the amplifier library (see page 72).

REMOTE CONTROL FEATURES

Setting remote control codes

You can control other components by setting the appropriate remote control codes. Codes can be set up for each input area. For a complete list of available remote control codes, refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

The following table shows the default component (Library: component category) and the remote control code for each input area.

Remote Control Code Default Settings

Library

Input area

(component

category)

ALD2200

BTAPE2700

PHONO TV –

TUNER TUNER 2602

CD CD 2300

MULTI CH

INPUT

DVD 2102

V-AUX VCR –

CBL/SAT CABLE –

MD/TAPE MD 2500

CD-R CD-R 2400

DTV TV –

VCR 1 VCR –

DVR/VCR2 DVR 2807

DVD DVD 2102

Default YAMAHA

code

Note

You may not be able to operate your YAMAHA component even if a YAMAHA remote control code is preset as listed above. In this case, try setting another YAMAHA remote control code.

1 Set AMP/SOURCE/TV to SOURCE.

AMP

SOURCE

2 Press an input selector button to select the

source component you want to set up.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

MULTI CH IN

CD-R

OPERATION

ADVANCED

Page 76

REMOTE CONTROL FEATURES

3 Press and hold LEARN for about 3 seconds

using a ballpoint pen or similar object.

The library name (ex. “L:DVD”) and the selected component name (ex. “DVD”) appear alternately in the display window.

LEARN

If you want to setup for another component, press the input selector button or SELECT k / n to select the component.

Notes

• Be sure to press and hold LEARN for at least 3 seconds, otherwise the learning process will start.

• If you do not complete each of the following steps within 30 seconds, the setting mode will be automatically canceled. In this case, press LEARN again.

If you want to change a library (component category), press l / h. You can set a different type of component.

Library choices: L:DVD, L:DVR, L:LD, L;CD, L:CDR, L:MD, L:TAP (tape), L:TUN (tuner),

L;AMP L:VCR

* The amplifier library (L;AMP) code is preset to “2000” in

Setting remote control AMP codes

Select one of the following codes to set the remote control AMP code for the component you want to use. Set AMP/SOURCE/TV to AMP or SOURCE, then change the remote control code settings.

, L:TV, L:CAB (cable), L:SAT (satellite),

order to operate this unit. However, you can switch by entering one of the following 4 codes if necessary.

AMP library

code

(remote

control

setting)

2000

(initial setting)

2001

2002

2003

Function

To operate this unit using the default code.

To operate this unit using the default code. To operate Zone 2 or Zone 3 features (see page 82).

To operate this unit using an alternative code.

To operate this unit using an alternative code. To operate Zone 2 or Zone 3 features of other YAMAHA receivers/amplifiers (see page 82).

Remote

control

AMP ID

(this unit’s

setting:

see page 86)

ID1

(initial setting)

ID2

Setting remote control tuner codes

Select one of the following codes to set the remote control tuner code for the component you want to use. Set AMP/SOURCE/TV to SOURCE and the unit to the tuner mode by pressing TUNER on the remote control, then change the remote control code settings.

Tune r

library code

(remote

control

setting)

2602

(initial setting)

2603

Function

To operate this unit using the default code.

To operate this unit using an alternative code.

Remote

control

tuner ID

(this unit’s

setting:

see page 86)

ID1

(initial setting)

ID2

Note

When using multiple YAMAHA receivers/amplifiers, you may be able to operate the other components simultaneously with the default code setting. In this case, set one of the alternative codes to operate this unit separately.

4 Press ENTER.

The four-digit code set for the selected component appears in the display window.

Note

“0000” appears in the display window if no code has been set.

5 Press the numeric buttons to enter the

four-digit remote control code for the component you want to use.

For a complete list of available remote control codes, refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

STEREO

MUSIC ENTERTAIN MOVIE

THX

5678

3421

STANDARD SELECT EXTD SUR.

SPEAKERSMEMORY

ENT.

+10

6 Press ENTER to set the number.

“OK” appears in the display window if setting was successful. “NG” appears in the display window if the setting was unsuccessful. In this case, start over from step 3.

If you continuously want to set up another code for another component, press the input selector button or SELECT k / n to select the component, then repeat steps 4 through 6.

Page 77

REMOTE CONTROL FEATURES

FREQ/RDS

EON

MODE

PTY SEEK

START

7 Press LEARN again to exit from the setup

mode.

LEARN

8 Press one of the buttons shaded below to

see if you can control your component. If you can, the remote control code is correct.

POWER POWER POWER

AVTV

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

If the manufacturer of your component has more than one code, try each of them until you find the correct one.

Notes

• “ERROR” appears in the display window if you press a button not indicated in the respective step, or when you press more than one button simultaneously.

• The supplied remote control does not contain all possible codes for commercially available audio and video components (including YAMAHA components). If operation is not possible with any of the remote control codes, program the new remote control function using the Learn feature (see “Programming codes from other remote controls (Learn)”) or use the remote control supplied with the component.

• Function programmed using the learn feature take priority over remote control code functions.

STANDBY

AUDIO SELECT

SYSTEM

SLEEP

MULTI CH IN

CD-R

FREQ/RDS

REC

DISC SKIP

EON

MODE

PTY SEEK

START

CLEAR

LEARN

MACROONOFF

RE–NAME

Programming codes from other remote controls (Learn)

Use the learn feature if you want to program functions not included in the basic operations covered by remote control codes, or an appropriate remote control code is not available. You can program any of the buttons available in the component control area (see page 70). The buttons can be programmed independently for each component.

Note

This remote control transmits infrared rays. If the other remote control also uses infrared rays, this remote control can learn most of its functions. However, you may not be able to program some special signals or extremely long transmissions. (Refer to the operating instructions for the other remote control.)

1 Set AMP/SOURCE/TV to SOURCE.

AMP

SOURCE

2 Press an input selector button to select a

source component.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

MULTI CH IN

CD-R

3 Place this remote control about 5 to 10 cm

OPERATION

(2 to 4 in) apart from the other remote control

ADVANCED

on a flat surface so that their infrared transmitters are aimed at each other.

PHONO TUNER CD

DTV DVR/VCR2VCR 1 DVD

AUX

CBL/SAT MD/TAPE

SELECT

CD-R

POWER POWER POWER

AVTV

AUDIO SELECT

STANDBY

MULTI CH IN

SYSTEM

SLEEP

5 to 10 cm (2 to 4 in)

Page 78

REMOTE CONTROL FEATURES

4 Press LEARN using a ballpoint pen or similar

object.

“LEARN” and the selected component name (ex. “DVD”) appear alternately in the display window.

LEARN

Notes

• Do not press and hold LEARN. If you hold it down for more than 3 seconds, the remote enters the remote control code setting mode.

• If you do not complete each of the following steps within 30 seconds, the learning mode will be automatically canceled. In this case, press LEARN again.

5 Press the button for which you want to

program the new function.

“LEARN” appears in the display window.

PHONO TUNER CD

RETURN

DISPLAY

STRAIGHT

SELECT

DTV DVR/VCR2VCR 1 DVD

AUX

CBL/SAT MD/TAPE

CD-R

TITLE

TV MUTE TV INPUT

BAND

TV VOL

TOP

–

PRESET

ENTER

A/B/C/D/E

NIGHT

AUDIO

PRG SELECT

EXIT

PURE DIRECT

–

MUTE

VOL

–

SOURCE

AMP

POWER POWER POWER

AVTV

AUDIO SELECT

STANDBY

MULTI CH IN

SYSTEM

SLEEP

7 Press LEARN again to exit the learning

mode.

LEARN

Notes

• “ERROR” appears in the display window if you press a button not indicated in the respective step, or when you press more than one button simultaneously.

• This remote control can learn approximately 200 functions. However, depending on the signals learned, “FULL” may appear in the display before you program 200 functions. In this case, clear unnecessary programmed functions to make room for further learning.

• Learning may not be possible in the following cases: – When the batteries in the remote control for this unit or other

components are weak.

– When the distance between the two remote controls is too

great or too small.

– When the remote control infrared windows are not facing

each other at the appropriate angle. – When the remote control is exposed to direct sunlight. – When the function to be programmed is continuous or

uncommon.

6 Press and hold the button you want to

program on the other remote control until “OK” appears in the display window.

“NG” appears in the display window if learning was unsuccessful. In this case, start over from step 5.

PHONO TUNER CD

POWER POWER POWER

AVTV

AUDIO SELECT

STANDBY

MULTI CH IN

SYSTEM

SLEEP

SELECT

DTV DVR/VCR2VCR 1 DVD

AUX

CBL/SAT MD/TAPE

CD-R

• If you want to program another function, repeat steps 5 and 6.

• If you continuously want to program another function for another component, press SELECT k / n to select the component, then repeat steps 5 and 6.

Page 79

REMOTE CONTROL FEATURES

Changing source names in the display window

You can change the name that appears in the display window on the remote control if you want to use a different name than the factory preset. This is useful when you have set the input selector to control a different component.

1 Set AMP/SOURCE/TV to AMP or SOURCE.

AMP

SOURCE

2 Press an input selector button to select the

source component you want to rename.

The selected component name appears in the display window.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

3 Press RE-NAME using a ballpoint pen or

similar object.

MULTI CH IN

CD-R

RE-NAME

5 Press l / h to move the cursor to the next

position.

PRESET

ENTER

A/B/C/D/E

6 Press ENTER to set the new name.

“OK” appears in the display window if renaming was successful. “NG” appears in the display window if renaming was unsuccessful. In this case, start over from step 4.

If you continuously want to rename another component, press the input selector button or SELECT k / n to select the component, then repeat steps 4 through 6.

7 Press RE-NAME again to exit the renaming

mode.

RE-NAME

Note

“ERROR” appears in the display window if you press a button not indicated in the respective step, or when you press more than one button simultaneously.

Note

If you do not complete each of the following steps within 30 seconds, the renaming mode will be automatically canceled. In this case, press RE-NAME again.

4 Press k / n to select and enter a character.

Pressing n changes the character as follows: A to Z, 1 to 9, 0, + (plus), – (hyphen), ; (semicolon), / (slash), and space. (Pressing k changes the characters in reverse order.)

PRESET

ENTER

A/B/C/D/E

OPERATION

ADVANCED

Page 80

REMOTE CONTROL FEATURES

Using the Macro feature

The Macro feature makes it possible to perform a series of operations with the press of a single button. For example, when you want to play a CD, normally you would turn on the components, select the CD input, and press the play button to start playback. The Macro feature lets you perform all of these operations simply by pressing the CD macro button. The buttons listed as macro buttons below are factory set with macro programs. You can also program your own macros (see page 77).

Press a macro button To automatically transmit these signals in order

Macro buttons First Second Third

STANDBY

SYSTEM

POWER

SYSTEM

POWER

STANDBY

SYSTEM

POWER

—

(*1)

—

POWER

—

(*2)

(CD area)

—

PHONO

TUNER

MULTI CH IN MULTI CH IN

V-AUX

CBL/SAT

MD/TAPE

SYSTEM

POWER

—

PHONO

TUNER

V-AUX

CBL/SAT

MD/TAPE

(*1)

CD-R

DTV

VCR 1

DVR/VCR2

DVD

CD-R

DTV

VCR 1

DVR/VCR2

DVD

(*3)

—

(CD area) (*4)

—

(MD/TAPE area) (*4)

(CD-R area) (*4)

—

(VCR 1 area) (*4)

(DVR/VCR 2 area) (*4)

(DVD area) (*4)

You can turn on some components (including YAMAHA components) connected to this unit by connecting them to the AC OUTLET(S) on the rear panel of this unit. (Power control may not be synchronized with this unit depending on the component. For details, refer to the operating instructions for the connected component.)

When the remote control code for your TV is set up for either DTV or PHONO (see page 71), you can turn on the power of your TV without selecting an input source. The remote control code set up for DTV takes priority over the one for PHONO.

When TUNER is selected as the input source, this unit plays the last station received before the unit was set in the standby mode.

Playback can be started for any YAMAHA remote control-compatible MD recorder, CD player, CD recorder, DVD player, or DVD recorder. When using macros to operate other components, you will need to program the play button on the control area of that component (see page 73) or set a remote control code (see page 71).

Page 81

REMOTE CONTROL FEATURES

FREQ/RDS

EON

MODE

PTY SEEK

START

■ Macro operations

Macro buttons

POWER POWER POWER

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

MULTI CH IN

CD-R

FREQ/RDS

REC

DISC SKIP

EON

MODE

PTY SEEK

START

CLEAR

LEARN

MACROONOFF

RE–NAME

MACROMACRO ON/OFF

1 Set MACRO ON/OFF to ON.

2 Press a macro button.

Notes

• When you have finished using the Macro feature, set MACRO ON/OFF to OFF.

• While the remote is carrying out a Macro program, it will not accept any other button’s function until the macro operation is complete (the transmission indicator stops flashing).

• Continue to aim the remote control at the component the macro is operating until the macro operation is complete.

■ Programming macro operations

You can program your own macros and use the macro feature to transmit several remote control commands in sequence at the press of a button. Be sure to set up remote control codes or perform learning operations before programming the macro. We do not recommend programming continuous operations such as volume control in a macro.

Notes

• The default macro is not cleared when a new macro is programmed for a button. The default macro can be used again when the programmed macro is cleared.

• It is not possible to add a new signal (macro step) to the default macro. Programming a macro changes all macro contents.

1 Set AMP/SOURCE/TV to AMP or SOURCE.

AMP

SOURCE

2 Press MACRO using a ballpoint pen or

similar object.

“MCR ?” appears in the display window.

MACRO

Note

If you do not complete each of the following steps within 30 seconds, the macro programming mode will be automatically canceled. In this case, press MACRO again.

3 Press the macro button you want to use to

operate the macro.

The macro button name (ex. “M:DVD”) and the selected component name (ex. “DVD”) appear alternately in the display window.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

Note

“AGAIN” appears in the display window if you press a button other than a macro button.

MULTI CH IN

CD-R

OPERATION

ADVANCED

Page 82

REMOTE CONTROL FEATURES

4 Press the buttons for the functions you want

to include in the macro operation in sequence.

You can set up to 10 steps (10 functions). After you have set 10 steps, “FULL” appears and the remote control automatically exits the macro mode.

POWER POWER POWER

AVTV

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

SYSTEM

STANDBY

AUDIO SELECT

MCR 2: AV POWER

SLEEP

MCR 3: AUDIO SELECT

MULTI CH IN

CD-R

MCR 1: DVD

Indicates the number of macro steps entered

Flashes alternately so you can set the next step

Note

To change the selected source component, press

SELECT k / n. Pressing the input selector buttons will

program a macro step, whereas SELECT k / n only changes the selected component and corresponding component control area.

5 Press MACRO again when the operation

sequence you want to program is complete.

Note

“ERROR” appears in the display window if you press a button not indicated in the respective step, or if you press more than one button simultaneously.

Memory back-up

If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the remote control, the contents of the memory may be cleared. If the memory is cleared, insert new batteries, set up the remote control code(s) and program any acquired functions that may have been cleared.

Clearing function sets

You can clear all changes made in each function set, such as learned functions, macros, renamed source names and setup remote control codes.

1 Set AMP/SOURCE/TV to AMP or SOURCE.

AMP

SOURCE

2 Press CLEAR by using a ballpoint pen or

similar object.

“CLEAR” appears in the display window.

CLEAR

Note

If you do not complete each of the following steps within 30 seconds, the clearing mode will be automatically canceled. In this case, press CLEAR again.

3 Press k / n to select the clear mode.

L;CD (L: name of a component)

Clears all learned functions in the respective component control area. Press an input selector button to select the component.

L;AMP Clears all learned functions for this unit’s control

area. L;ALL Clears all learned functions. M;ALL Clears all programmed macros RNAME Clears all renamed source names. FCTRY Clears all remote functions and returns the remote

to the factory settings.

4 Press and hold CLEAR again for about 3

seconds.

“WAIT” appears in the display window. If clearing was successful, “C;OK” appears in the display window.

CLEAR

Once you have cleared a learned function for a button, the button reverts to the factory setting (or to the manufacturer setting, if you have set remote control codes).

Note

“L;ALL” and “FCTRY” may take about 30 seconds to complete.

Page 83

REMOTE CONTROL FEATURES

5 Press CLEAR to exit from the clear mode.

CLEAR

Notes

• “C;NG” appears in the display window if clearing was unsuccessful. In this case start over from step 3.

• “ERROR” appears in the display window if you press a button not indicated in the respective step, or if you press more than one button simultaneously.

Clearing individual functions

■ Clearing a learned function

You can clear the function learned for a certain button in each control area.

1 Set AMP/SOURCE/TV to SOURCE.

AMP

SOURCE

2 Press an input selector button to select the

source component containing the function you want to clear.

The selected component name appears in the display window.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

MULTI CH IN

CD-R

3 Press LEARN using a ballpoint pen or similar

object.

“LEARN” and the selected component name (ex. “DVD”) appear alternately in the display window.

LEARN

Notes

• Do not press and hold LEARN. If you hold it down for more than 3 seconds, the remote control enters the remote control code setting mode.

• If you do not complete each of the following steps within 30 seconds, the learning mode will be automatically canceled. In this case, press LEARN again.

OPERATION

ADVANCED

Page 84

REMOTE CONTROL FEATURES

4 Press and hold CLEAR using a ballpoint pen

or similar object, then press the button you want to clear for about 3 seconds.

“C;OK” appears in the display window if clearing was successful.

FREQ/RDS EON MODE PTY SEEK START

REC

DISC SKIP

CLEAR

LEARN

MACROONOFF

RE–NAME

• If you continuously want to clear another function, repeat step 4.

• If you continuously want to clear another function for another component, press SELECT k / n to select the component, then repeat step 4.

• Once you clear a learned function, the button reverts to the factory setting (or to the manufacturer setting if you have set remote control codes).

5 Press CLEAR to exit the clearing mode.

The remote control returns to the learning mode.

6 Press LEARN again to exit.

Notes

• “C;NG” appears in the display window if clearing was unsuccessful. In this case, start over from step 4.

• “ERROR” appears in the display window if you press a button not indicated in the respective step, or if you press more than one button simultaneously.

3 Press and hold CLEAR using a ballpoint pen

or similar object, then press the macro button you want to clear for about 3 seconds.

“C;OK” appears in the display window if clearing was successful.

DTV DVR/VCR2VCR 1 DVD

REC

DISC SKIP

CLEAR

LEARN

MACROONOFF

RE–NAME

• If you continuously want to clear another function, repeat step 3.

• Once you clear a programmed function, the button reverts to the factory setting (or to the manufacturer setting if you have set remote control codes).

4 Press CLEAR to exit the clearing mode.

The remote control returns to the macro programming mode.

5 Press MACRO again to exit.

Notes

• “C;NG” appears in the display window if clearing was unsuccessful. In this case, start over from step 3.

• “ERROR” appears in the display window if you press a button not indicated in the respective step, or if you press more than one button simultaneously.

■ Clearing a macro function

You can clear the function programmed for a certain macro button.

1 Set AMP/SOURCE/TV to AMP or SOURCE.

AMP

SOURCE

2 Press MACRO using a ballpoint pen or

similar object.

“MCR ?” appears in the display window.

MACRO

Note

If you do not complete each of the following steps within 30 seconds, the macro programming mode will be automatically canceled. In this case, press MACRO again.

Page 85

Controlling each component

FREQ/RDSFREQ/RDS EONEON MODEMODE PTY SEEKPTY SEEK STARTSTART

CLEAR

LEARN

RE–NAME

EXIT

REC

DISC SKIP

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

THX

STANDARD SELECT EXTD SUR.

STEREO

MUSIC ENTERTAIN MOVIE

VOL

–

3421

+10

ENT.

5678

–

TV VOL

TV MUTE TV INPUT

MUTE

–

SOURCE

MACROONOFF

SPEAKERSMEMORY

PRESET

EXIT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

SELECT

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

VOL

–

POWER POWER POWER

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECTAB

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

REMOTE CONTROL FEATURES

Once you set the appropriate remote control codes, you can use this remote to control your other components. Note that some buttons may not correctly operate the selected component. Use the input selector buttons to select the component you want to operate. The remote control automatically switches to the appropriate control mode for that component.

Cable TV/ Satellite tuner

Power

Channel + Channel +

Channel – Channel –

VCR search backward

VCR search forward

VCR rec *3VCR rec

VCR stop *3VCR stop

VCR pause *3VCR pause

VCR play *3VCR play

1 AV P OW ER 2 TV POWER 3 TV VOL +

4 TITLE 5 MENU

6 ENTER

7 RETURN 8 1-9, 0, +10 9 ll

0 AUDIO A DISPLAY B ENTER

DVD player/ DVD recorder

Power

VCR

Power

TV power *2TV power *2TV power *2Power

TV volume + *2TV volume + *2TV volume +

TV VOL –

CH +

CH –

TV INPUT

TV MUTE

TV volume – *2TV volume – *2TV volume –

TV channel + *2Channel +

TV channel – *2Channel –

TV input *2TV input *2TV input

TV mute *2TV mute *2TV mute

Title Title Title Title Band

Menu Menu Menu

Menu enter Menu select Menu select

k Menu up Menu up Menu up

n Menu down Menu down Menu down

Menu left Menu left Menu left

h Menu right Menu right Menu right Direction A/B

Return Return Return Return

Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons

Search backward

hh Search forward Search forward

b Skip backward

a Skip forward

REC/ DISC SKIP

Disc skip (player) Rec (recorder)

Rec

s Stop Stop

e Pause Pause

h Play Play

Audio Audio

Display Display Display Display Display Display

This button functions only when the original remote control of the component has a POWER button. These buttons can operate your TV without switching the input if the remote control code is set in DTV or PHONO. When the remote control code for your TV is set up in both the DTV and PHONO areas, priority is given to the signal in the DTV area. These buttons can operate your VCR without switching the input to VCR 1 if the remote control code is set in VCR 1. These buttons function for U.K. and Europe models only. These buttons function for the U.S.A. model only.

Enter Enter/recall

TV LD player CD player

VCR power *3Power

TV power *2TV power *2TV power *2TV power *2TV power

Volume +

Volume –

Input

Mute

VCR search backward

VCR search forward

Enter/ numeric button

TV volume + *2TV volume + *2TV volume + *2TV volume + *2TV volume +

TV volume – *2TV volume – *2TV volume – *2TV volume – *2TV volume –

TV channel + *2TV channel + *2TV channel + *2TV channel + *2TV channel +

TV channel – *2TV channel – *2TV channel – *2TV channel – *2TV channel –

TV input *2TV input *2TV input *2TV input *2TV input

TV mute *2TV mute *2TV mute *2TV mute

backward

Search forward Search forward S earch forward Search forward

Chapter/Skip backward

Chapter/Skip forward

Stop Stop Stop Stop

Pause Pause Pause Pause

Play Play Play Play

1 2

Power

Search backward

Skip backward Skip backward Direction back

Skip forward Skip forward

Disc skip Rec Rec

MD recorder/ CD recorder

Power

Search backward

6 7

Tape deck Tuner

Power

Search backward

Direction forward

0 A

Power

TV mute

Program

select

Preset up (1 to 8)

Preset down (1 to 8)

Preset down (A to E)

Preset up (A to E)

Preset stations (1-8)

FREQ

EON

PTY MO DE

PTY START

Display

OPERATION

ADVANCED

Page 86

ZONE 2/ZONE 3

This unit allows you to configure a multi-room audio system. The Zone 2 and Zone 3 features enable you to set this unit to reproduce separate input sources in the main room, second room (Zone 2) and third room (Zone 3). You can control this unit from the second or third room using the supplied remote control.

Only analog signals are sent to the second and third rooms. Any source you want to listen to in the second or third room must be connected using the analog (AUDIO L/R) input jacks on this unit.

Zone 2/Zone 3 connections

You need the following additional equipment to use the multi-room functions of this unit:

• An infrared signal receiver in the second and/or third room.

• An infrared emitter in the main room. This emitter transmits the infrared signals from the remote control in the second and/or third room to the main room (to a CD player or DVD player, for example).

• An amplifier and speakers for the second and/or third room.

• A video monitor for the second room.

OUT

CONTROL OUT

This unit

• Since there are many possible ways to connect and use this unit in a multi-room configuration, we recommend that you consult with your nearest authorized YAMAHA dealer or service center for the Zone 2/Zone 3 connections that best meet your requirements.

• Some YAMAHA models are able to connect directly to the CONTROL OUT jack on this unit. If you own these products, you may not need to use an infrared emitter. Up to six YAMAHA components can be connected as shown.

■ System configuration and connections example

Using external amplifiers

To use an external amplifier in Zone 2, select “External” in Zone2 Amplifier (page 67).

ZONE 3 AUDIO OUT

ZONE 2 VIDEO OUT

ZONE 2 AUDIO OUT

SP OUT

Amplifier

MONITOR OUT

DVD player

(or other component)

VIDEO IN AUDIO IN

Infrared emitter

REMOTE OUT

This unit

SYSTEM

MAIN

ZONE 2

ZONE 3

Remote control

Infrared signal receiver

Second room Third roomMain room

REMOTE 1 IN

Notes

• When not using the main room, turn down the volume of this unit in the main room. Adjust the Zone 2/Zone 3 volume by using the amplifier in the second/third room.

• To avoid unexpected noise, DO NOT USE the Zone 2/Zone 3 feature with CDs encoded in DTS.

Amplifier

Remote control

Infrared signal receiver

REMOTE 2 IN

Page 87

Using this unit’s internal amplifier

To use this unit’s internal amplifier, select “Internal” in Zone2 Amplifier 2 (page 67).

–

PRESENCE/ ZONE 2

This unit

Second room

ZONE 2/ZONE 3

Controlling Zone 2/Zone 3 from the front panel

You can control the input or adjust the volume level for Zone 2 and Zone 3 components using ZONE CONTROL on the front panel.

1 Set REC OUT/ZONE 2 on the front panel to

SOURCE/REMOTE.

SOURCE/ REMOTE

MD/TAPEDVD

ZONE 3

CD-R

TUNER

DTV

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

2 Press MAIN, ZONE 2 or ZONE 3 to select the

zone you want to change the input for or adjust the volume level.

ZONE ON/OFF

MAIN ZONE 2

Press each button repeatedly to turn the respective zone on or off.

You can choose from the following modes:

ZONE2 Controls the Zone 2 component

connected to the ZONE 2 AUDIO L/R jacks on this unit.

ZONE3 Controls the Zone 3 component

connected to the ZONE 3 AUDIO L/R jacks on this unit.

MAIN Controls the main component

(this unit).

3 Press ZONE CONTROL on the front panel

repeatedly to choose the zone you selected in step 2.

ZONE CONTROL

Each time you press ZONE CONTROL, the front panel display changes as shown below, and the indicator for the currently selected zone flashes for approximately 5 seconds.

ZONE 2

ZONE 3

MAIN

• You must complete this step within 5 seconds of pressing ZONE CONTROL on the front panel. Otherwise, the zone mode selection process is automatically canceled. In this case, press ZONE CONTROL again.

• The initial setting is “ZONE 2” when both the Zone 2 and Zone 3 components connected to this unit are turned on.

• If you selected MAIN in step 2, no indicator flashes on the front panel display when ZONE CONTROL is pressed.

4 Use the INPUT or VOLUME selector on the

front panel to switch the input or adjust the volume level for the selected zone component.

VOLUME

INPUT

OPERATION

ADVANCED

You must complete this step within 5 seconds of performing step 2. Otherwise, the zone mode selection process is automatically canceled. In this case, repeat steps 2 and 3 again.

Page 88

ZONE 2/ZONE 3

DTV DVR/VCR2VCR 1 DVD

V-AUX

CBL/SAT MD/TAPE

CD-R

PHONO TUNER CD

MULTI CH IN

POWER POWER POWER

SYSTEM

STANDBY

AVTV

SLEEP

AUDIO SELECT

EXIT

PURE DIRECT

TOP

TITLE

SELECT

VOL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

Controlling Zone 2/Zone 3 using the remote control

The supplied remote control can be used to control Zone 2/Zone 3. You can even select the input source and control components located in the main room directly from the second/third room regardless of the listening condition in the main room.

■ To enable Zone mode on the remote control

You will be able to switch the remote control mode from one room to another, and use the input selector, STANDBY, SYSTEM POWER, MUTE and VOLUME +/– to control the selected room.

1 Set REC OUT/ZONE 2 on the front panel to

SOURCE/REMOTE.

SOURCE/ REMOTE

MD/TAPEDVD

DTV

CBL/SAT

VCR 1

DVR/ VCR 2

REC OUT/ZONE 2

2 Repeat steps 1 through 3 of the procedure in

“Setting remote control codes” on page 71.

3 Press l / h to select “L;AMP”.

CD-R

TUNER

■ To control Zone 2/Zone 3

1 Press SELECT k repeatedly to display

“ZONE 2” or “ZONE 3” in the display window.

SELECT

2 Press SYSTEM POWER to turn Zone 2 or

Zone 3 power on.

3 Press an input selector button to select the

input source you want to listen to in the second/third room.

The display window shows “2: name of selected input” or “3: name of selected input” if the remote control is in the Zone 2/Zone 3 mode.

SLEEP

AUDIO SELECT

PHONO TUNER CD

V-AUX

CBL/SAT MD/TAPE

DTV DVR/VCR2VCR 1 DVD

MULTI CH IN

CD-R

ENTER

4 Press ENTER.

“2000” appears in the display window.

5 Enter the code number “2001” or “2003”.

For details, see page 72.

6 Press ENTER to set the number.

“OK” appears in the display window if setting was successful.

7 Press LEARN to complete the Zone setup.

The remote control will be able to operate this unit from Zone 2 or Zone 3.

LEARN

Note

Signals input at V-AUX and PHONO jacks cannot be sent to Zone 2/Zone 3.

4 You can control the unit from Zone 2 or Zone

3 by using the input selector, STANDBY, SYSTEM POWER, MUTE and VOLUME +/– buttons.

* VOLUME +/– can be used only when Zone2 Volume or

Zone3 Volume is set to “Variable” in the GUI menu (see page 67).

Page 89

5 Press SELECT k / n to exit from the

Zone 2/Zone 3 mode.

Notes

• The source in Zone 2 and the source available for recording are always the same.

• “ZONE2” or “ZONE3” will appear in the display window only when k is pressed, and “SYSTM” only when n is pressed.

■ Turning on this unit or setting it to the

standby mode

SYSTEM POWER and STANDBY work differently depending on the selected mode that appears on the display window.

• When normal, Zone 2 or Zone 3 mode is selected, you

can turn on the main unit, Zone 2 or Zone 3 or set them to the standby mode individually.

• When System mode is selected, or when “2000” or

“2002” (see page 72) is selected as the amplifier library (L;AMP) code, pressing SYSTEM POWER turns on the main unit only. However, pressing STANDBY sets everything (the main unit, Zone 2 and Zone 3) to the standby mode simultaneously.

SYSTEM POWER/ STANDBY

Turns on the main unit only or sets it to the standby mode.

Turns on Zone 2 or sets it to the standby mode.

Turns on Zone 3 or sets it to the standby mode.

SYSTEM POWER: turns on the main unit only. STANDBY: sets everything (the main unit, Zone 2 and Zone 3) to the standby mode simultaneously.

Normal mode

Zone 2 mode

Zone 3 mode

System mode

LCD display

Name of component

“Zone2” or “2:name of component”

“Zone3” or “3:name of component”

“SYSTM”

ZONE 2/ZONE 3

■ Special considerations for DTS software

The DTS signal is a digital bitstream. If you attempt to send the DTS signal to the second/third room you will only hear digital noise (that may damage your speakers). Thus, the following considerations and adjustments need to be made when playing DTS encoded discs.

For DVDs encoded with DTS

Only 2 channel analog audio signals may be sent to the second/third room. Use the disc menu to set the DVD player’s mixed 2-channel left and right audio outputs to the PCM or Dolby Digital soundtrack.

For CDs encoded in DTS

To avoid unexpected noise, DO NOT USE the Zone 2/Zone 3 feature with CDs encoded in DTS.

OPERATION

ADVANCED

“MAIN” appears for a few seconds when SYSTEM POWER or STANDBY is pressed.

Note

To control Zone 2 or Zone 3 again when System mode is selected and the main unit, Zone 2 and Zone 3 are in the standby mode, press SYSTEM POWER to turn on the main unit, then repeat steps 1 through 5 of the procedure in “To control Zone 2/Zone 3” on pages 84 and 85.

Page 90

FRONT PANEL DISPLAY MENUS

This unit has additional menus that are displayed in the front panel display.

Advanced setup menu

This menu offers additional operations to adjust and customize the way this unit operates. Change the initial settings (indicated in bold under each parameter) to reflect the needs of your listening environment.

1 Make sure this unit is in the standby mode.

2 On the front panel, while holding down

STRAIGHT/EFFECT, press STANDBY/ON.

STRAIGHT

EFFECT

3 Rotate PROGRAM to select the desired menu

item.

The name of the selected item appears in the front panel display.

4 Press STRAIGHT/EFFECT to change the

setting.

5 Press STANDBY/ON to save the new setting

This unit enters the standby mode.

The new setting is activated next time you turn on the power of this unit.

Note

The remote controls and VOLUME control on the front panel of this unit are ineffective while you are using the advanced setup menu.

■ SP IMP. (Speaker impedance)

Use to set the impedance of this unit so that it matches that of your speakers. Choices: 6ΩMIN, 8ΩMIN

• Select “6ΩMIN” for speakers 6 ohms or higher.

• Select “8ΩMIN” for speakers 8 ohms or higher.

PROGRAM

STANDBY

/ON

■ PRESET (User preset)

Use to reset all of this unit’s parameters to the initial factory settings with the exception of System Memory and Auto Setup settings. Choices: CANCEL, RESET

• Select “CANCEL” if you do not want to reset this unit’s parameters.

• Select “RESET” to reset this unit’s parameters.

Note

This setting does not affect advanced setup menu item parameters.

■ REMOTE AMP (Remote control AMP ID)

Use to set this unit’s ID for remote control recognition (see page 72). Choices: ID1, ID2

• Select “ID1” when the remote control amplifier library code is set to “2000” or “2001”.

• Select “ID2” when the remote control amplifier library code is set to “2002” or “2003”.

■ REMOTE TUN (Remote control tuner ID)

Use to set this unit’s tuner ID for remote control recognition (see page 72). Choices: ID1, ID2

• Select “ID1” when the remote control tuner library code is set to “2602”.

• Select “ID2” when the remote control tuner library code is set to “2603”.

■ FAN MODE (Fan operation mode)

Use to set the operation of this unit’s cooling fan. Choices: AUTO, CONT.

• Select “AUTO” to set the fan to operate automatically according to the temperature of this unit.

• Select “CONT.” to set the fan to operate continuously regardless of the temperature of this unit.

< Asia and General models only >

■ TU (Tuner frequency step)

Use to set the tuner frequency step according to the frequency spacing in your area. Choices: AM10/FM100, AM9/FM50

• Select “AM10/FM100” for North, Central and South America.

• Select “AM9/FM50” for all other areas.

■ LANG. (GUI language)

Use to set the language that appears in this unit’s GUI (graphical user interface) display. Choices: ENGLISH, JAPANESE, FRENCH, GERMAN You can select the language of your choice.

Page 91

Front panel display system options menu

EXIT

EFFECT

RETURN

DISPLAY

STRAIGHT

BAND

PRG SELECT

A/B/C/D/E

NIGHT

AUDIO

PURE DIRECT

ENTER

TOP

TITLE

VOL

–

TV VOL

TV MUTE TV INPUT

MUTE

–

AMP

SOURCE

PRESET

This is a complimentary menu that allows you to access most GUI menu system option parameters without using a video monitor. Use the remote control to access and adjust each parameter.

3-5

FRONT PANEL DISPLAY MENUS

3 Press k / n repeatedly to select an item, then

press ENTER to enter the selected item.

4 Press k / n repeatedly to select the

parameter you want to adjust.

5 Press ENTER, then press l / h repeatedly to

change the setting of the item you want to adjust.

2,6

6 Press DISPLAY to exit.

1 Set AMP/SOURCE/TV to AMP.

If you want to adjust another parameter, press RETURN to return to the previously selected menu item.

2 Press DISPLAY on the remote control to

enter the menu.

■ AUTO SETUP

Item Sub-items Features

SETUP

AUTO

NATURAL FRONT FLAT

START [ENTER] • Use to activate the auto setup procedure.

• Use to specify the speaker parameters auto setup adjusts.

• Corresponds to Setup Type in the GUI menu (see page 29).

• Use to specify the equalizer characteristics auto setup uses.

• Corresponds to Setup Menu – Equalizing in the GUI menu (see page 28).

• Corresponds to Start in the GUI menu (see page 29).

OPERATION

ADVANCED

Page 92

FRONT PANEL DISPLAY MENUS

■ MANUAL SETUP

1 BASIC MENU

Item Sub-items Features

A)SPEAKER SET

B)SP DISTANCE

C)SP LEVEL

D)TEST TONE

E)THX SET

FRONT;;;;SMALL CENTER;;;;;SML SURR LR;;;;SML SURR B;;;SMLx2 PRESENCE;;NONE BASS OUT;;SWFR CrossOver;80Hz SWFR PHASE;NRM

UNIT;;;;meters FRONT L;;3.00m FRONT R;;3.00m CENTER;;;3.00m SURR L;;;3.00m SURR R;;;3.00m SB L;;;;;3.00m SB R;;;;;3.00m SWFR;;;;;3.00m PRES L;;;3.00m PRES R;;;3.00m

UNIT;;;;;;feet FRONT L;;10.00ft FRONT R;;10.00ft CENTER;;;10.00ft SURR L;;;10.00ft SURR R;;;10.00ft SB L;;;;;10.00ft SB R;;;;;10.00ft SWFR;;;;;10.00ft PRES L;;;10.00ft PRES R;;;10.00ft

FL-----||---- C-----||---- FR-----||---- SL-----||---- SB.L----||---- SB.R----||---- SR-----||----SWFR-----||---- PR.R----||---- PR.L----||-----

TEST TONE;;OFF TEST TONE;;;ON

SB Dis: <0.3m SB Dis: 0.3-1.2m SB Dis: >1.2m

• Selects the output mode suitable for each speaker, the speakers for low-frequency signal output, and the cross over frequency.

• Corresponds to Speaker Set in the GUI menu (see page 62).

• Adjusts the delay time of each speaker.

• Corresponds to Speaker Distance in the GUI menu (see page 64).

• Set the unit to “meters” or “feet” to input speaker distances in meters or in feet.

• Adjusts the output level of each speaker.

• Corresponds to Speaker Level in the GUI menu (see page 65).

• Outputs a test tone to calibrate your speaker levels.

• Corresponds to Test Tone in the GUI menu (see page 62).

• Adjusts the THX settings.

• Corresponds to THX Set in the GUI menu (see page 65).

Page 93

2 SOUND MENU

Item Sub-items Features

A)LFE LEVEL

B)D.RANGE

C)TONE CON FRQ

SP LFE;;;;;;;0 HP LFE;;;;;;;0

SP D.R;;;;MAX HP D.R;;;;MAX

BASS SP 350Hz TRBL SP 3.5kHz

BASS HP 350Hz TRBL HP 3.5kHz

FRONT PANEL DISPLAY MENUS

• Adjusts the output level of the LFE channel for Dolby Digital or DTS signals.

• Corresponds to LFE Level in the GUI menu (see page 58).

• Adjusts the dynamic range for Dolby Digital or DTS signals.

• Corresponds to Dynamic Range in the GUI menu (see page 58).

• Adjusts the tonal balance of the speakers and headphones.

• Corresponds to Tone Control in the GUI menu (see page 60).

• “BASS SP” and “TRBL SP” appear when no headphones are connected to this unit, and “BASS HP” and “TRBL HP” appear when headphones are connected to this unit.

D)AUDIO OPTION

3 INPUT MENU

Item Sub-items Features

A)I/O ASSIGN

B)INPUT TRIM

C)AUDIO SELECT

D)DECODER MODE

E)INPUT RENAME

F)MULTI CH IN

A.MUTE;;;;MUTE A.DELAY;;;;0ms PRch >SBch

C.V[A] DVD C.V[B] DTV C.V[C]CBL/SAT OUT(1)MD/TAPE OUT(2) CD-R IN (3) CD IN (4) DVD IN (5) DTV IN (6) CBL/SAT IN (7) CD IN (8) DVD IN (9)DVR/VCR2

DVD;;;;;0.0

>AUTO LAST

DVD ._ DVD

>6CH 8CH

• Customizes overall audio settings for this unit.

• Corresponds to Audio Option in the GUI menu (see page 60).

• Assigns jacks according to the component to be used.

• Corresponds to I/O assignment in the GUI menu (see page 55).

• Adjusts the output volume of each jack.

• Corresponds to Volume Trim in the GUI menu (see page 56).

• Selects the initial input mode of the source.

• Corresponds to Audio Select in the GUI menu (see page 68).

• Selects the decoder used by this unit.

• Corresponds to Decoder Mode in the GUI menu (see page 56).

• Changes the name of the input.

• Corresponds to Rename in the GUI menu (see page 57).

• Selects the number of audio channels input at the MULTI CH INPUT jacks.

• Corresponds to Multi CH Assign in the GUI menu (see page 57).

OPERATION

ADVANCED

Page 94

FRONT PANEL DISPLAY MENUS

4 HDMI MENU

Item Sub-items Features

A)INPUT ASSIGN

B)SUPPORT AUD.

5 i.LINK MENU

Item Sub-items Features

A)INPUT ASSIGN

B)AUTO PLAY

6 OPTION MENU

IN 1 DVD IN 2 CBL/SAT

>4600 OTHER

----> ---

----> DVD

<---> PLAYER

----> PLAYER <---- PLAYER

--X-- PLAYER

• Assigns input sources (such as a DVD player) to the HDMI IN jacks.

• Corresponds to Input Assign in the GUI menu (see page 98).

• Selects the HDMI audio signal playback source.

• Corresponds to Support Audio in the GUI menu (see page 98).

• Selects the input assignment for registered i.LINK components.

• Corresponds to Input Assign in the GUI menu (see page 93).

• “---” appears if no i.LINK component is registered.

• Selects automatic playback for signals input from i.LINK components connected to this unit.

• Corresponds to Auto Play in the GUI menu (see page 93).

Item Sub-items Features

A)DISPLAY SET

B)MEMORY GUARD

C)SURR. INI

D)ZONE SET

E)ZONE2 SET

F)ZONE3 SET

DIMMER;;;;;;;0 WALL PAPER;;ON SHORT MSG. ON V CONV.;;;;;ON

MEM.GUARD;;OFF

PRESS DSP Key

SP B;;;;MAIN

OUT VOL;;;VAR. ZONE2 AMP;;EXT

OUT VOL;;;VAR.

• Adjusts the GUI and front panel displays.

• Corresponds to Display in the GUI menu (see page 66).

• Locks the menu parameter settings.

• Corresponds to Memory Guard in the GUI menu (see page 68).

• Initializes the parameters of all or a group of sound field programs.

• Corresponds to Sur.Initialize in the GUI menu (see page 67).

• Customizes the Zone B parameters.

• Corresponds to Multi Zone in the GUI menu (see page 67).

• Customizes the Zone 2 parameters.

• Corresponds to Multi Zone in the GUI menu (see page 67).

• Customizes the Zone 3 parameters.

• Corresponds to Multi Zone in the GUI menu (see page 67).

Page 95

USING i.LINK

USING I.LINK

What is i.LINK?

i.LINK is a high-speed and bi-directional digital interface in compliance with a global standard approved by the Institute of Electrical and Electronics Engineers (IEEE).

i.LINK enables i.LINK-compatible components to send and receive digital audio signals (bitstreams such as Dolby Digital, and DTS; 2-channel linear PCM signals; DSD signals of Super Audio CD) over a single i.LINK cable.

You can process audio signals by selecting between the DSD Direct mode where DSD signals are directly output to DSD-compatible audio DAC and the DSD mode where DSD signals are changed to PCM signals to ensure rich sound fields.

i.LINK currently supports three different data transfer rates: 100 Mbps, 200 Mbps and 400 Mbps.

This unit supports hot plugging, a function that allows you to disconnect or connect the IEEE1394 cable while the power is turned on.

This unit’s i.LINK interface was based on the following design standards:

• IEEE1394 Std 1394a-2000 (Standard for a High Performance Serial Bus)

• A&M Protocol (Audio and Music Data Transmission Protocol 2.1)

• DTCP (Digital Transmission Content Protection)

■ i.LINK compatibility with this unit

Audio signal

types

2ch Linear

PCM

Multi-ch

Linear PCM

Bitstream Dolby Digital,

DSD 2ch/5ch/6ch

Audio signal

formats

2ch, 32-192 kHz

5.1 ch, 32-96 kHz DVD-Audio

DTS

2.8224 MHz

Compatible

i.LINK

components

CD, DVD-Video,

DVD-Audio

DVD-Video

Super Audio CD

Connecting i.LINK components

■ Daisy chain connections

Use to link components together in a single chain. You can link up to 17 different components (including this unit) with this method.

Maximum single cable length: 4.5 m (14.75 ft)

i.LINK

component

i.LINK

component

■ Tree connections

Use to link components in a branched configuration when 3 or more i.LINK connectors are available. You can link up to 63 different components (including this unit) with this method.

i.LINK

component

i.LINK

component

Notes

• When making connections, use a 4-pin IEEE1394 cable that supports the S400 transmission speed. We also recommend using a cable less than 3.5 m (10 ft) in length.

• The system will not work if components are connected in a loop (where the output signal is returned to the original component).

• This unit does not output signals not input at the i.LINK jacks.

• Because the data transfer rates may vary depending on the arrangement order of i.LINK components, it is advised that you link i.LINK components with the same data transfer rates.

• Do not disconnect or connect the IEEE1394 cable from this unit or other i.LINK components while data is being transferred. Doing so may disrupt playback or cause noise.

• When connecting the IEEE1394 cable to this unit’s i.LINK connectors, be sure to confirm the orientation of the connector before connecting the cable. Using excessive force to connect the cable to the connector in the wrong orientation will damage the connector.

• Do not turn the power of i.LINK components on or off while data is transferred. Doing so may stop playback. If this happens, turn this unit to standby mode, and then turn it back on.

• Other i.LINK components connected to this unit need to support DTCP (Digital Transmission Content Protection).

• This unit supports i.LINK (AUDIO) components only. Because this unit does not support i.LINK (VIDEO), video signals, such as MPEG2-TS (BS digital, etc.) or DV (DV camera, DVD recorder, etc.), are not compatible with this unit.

• If this unit is in the standby mode or turned off, signals cannot be output to the next i.LINK component.

i.LINK

component

i.LINK

component

Maximum single cable length:

4.5 m (14.75 ft)

i.LINK

component

OPERATION

ADVANCED

Page 96

USING i.LINK

Basic i.LINK operations

■ Assigning i.LINK components

When an i.LINK component is connected, this unit automatically recognizes the connection and registers up to 16 i.LINK components. Assigning an i.LINK component to a specific input allows you to select video and audio input signals from that component received via the i.LINK connection for simultaneous playback.

Turn on the power of this unit and the connected i.LINK component.

The i.LINK component is automatically recognized and registered in the following order: DVD → DTV → CBL/SAT → VCR1 → DVR/VCR2 → V-AUX → PHONO → CD → CD-R → MD/TAPE “LINK CHECK” flashes on the front panel display during this procedure.

Notes

• If you want to change the input assignment of a registered i.LINK component, use Input Assign in the GUI menu (see page 93) or INPUT ASSIGN in the front panel display system options menu (see page 90).

• Only one i.LINK component is assigned to each input and inputs that are already assigned are skipped.

• If i.LINK components are assigned to all the inputs available, no more i.LINK components can be assigned, and audio signals input from these i.LINK components cannot be played back on this unit.

■ Listening to playback from i.LINK

components

If an i.LINK component has been assigned to a specific input, perform the following steps to listen to playback from the registered i.LINK component.

1 Rotate the INPUT selector to select the input

assigned to the i.LINK component.

Notes

• You can turn on/off automatic playback when an i.LINK component is selected using the INPUT selector or to select whether you want the input to switch automatically when an input stream from a connected i.LINK component is detected (see page 93).

• Audio signals input at the i.LINK jacks are digitally output only when AUDIO SELECT is set to either AUTO or i.LINK as the input mode and REC OUT/ZONE 2 on the front panel is set to SOURCE/REMOTE.

Changing i.LINK Select parameters

Use this menu to display information about registered i.LINK components, delete any unused registered components, or customize the operation and playback settings to be used when this unit is connected to an i.LINK component.

1 Switch on this unit and video monitor.

2 Set AMP/SOURCE/TV to AMP, then press

TOP on the remote control.

The top display appears.

AMP

SOURCE

Stereo/Surround

Input Select

Manual Setup

Auto Setup

System Memory

Sound

Basic

Option

TOP

TITLE

2 Press AUDIO SELECT repeatedly to set

“AUTO” or “i.LINK” as the input mode.

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

SP A

CD TUNER

A.SEL:AUTO

V-AUX

DVR/VCR2

VCR 1

CBL/SAT

DTV DVD

MD/TAPE

CD-R

SP A

CD TUNER

A.SEL:i.LINK

3 Start playback on the connected i.LINK

component.

PHONO

VOLUME

L R

PHONO

VOLUME

L R

3 Press k / n repeatedly to select i.LINK Select.

HDMI

i.LINK Select

Stereo/Surround

Input Select

Information

Select

Auto Play

4 Press ENTER or h, then press k / n

repeatedly to change the setting of the item you want to adjust.

5 Press EXIT.

Page 97

USING i.LINK

■ Information (Information)

Use this feature to display the following information: operation status of registered i.LINK components, registered i.LINK components that have been deleted, and i.LINK signals that are currently being received.

i.LINK Select > Information >

Choices: Details, Delete, Protect, i.LINK Status

• Select Details to display the following information about the selected i.LINK component.

– Vendor: Displays the name of the manufacturer for

your i.LINK component.

– Model: Displays the model name of your i.LINK

component.

– Active (connected) or Non Active (not

connected): Displays depending on whether your i.LINK component is connected.

– Audio (for audio signals) or Non Audio (for non-

audio signals): Displays depending on whether your i.LINK component supports audio signal playback.

– Assign: Displays the name of the input assigned to

the selected i.LINK component.

• Select Delete to delete the selected i.LINK component from the registered components list. To delete, press ENTER. You can only delete non-active and unprotected i.LINK components.

• Select Protect to protect the selected i.LINK component from being accidentally deleted.

• Select i.LINK Status to display operation status of i.LINK signals that are currently being received. You can also use this feature to delete all non-active and unprotected i.LINK components together at once.

Note

Information about unregistered i.LINK components is not available in the GUI menu. These i.LINK components cannot be used on this unit although they can be output to other i.LINK components.

■ Select (Input select)

Use this feature to select which registered i.LINK component’s audio signal will be selected for playback.

i.LINK Select > Select >

Select the name of the desired component and press ENTER to switch the input. When you select the desired component, its manufacturer and model information appear along with its input assignment.

■ Input Assign (Input assign)

Use this feature if you want to change the input assignment of a registered i.LINK component. You can select to assign the i.LINK component to any of the various inputs (PHONO to V-AUX).

i.LINK Select > Input Assign >

Choices: PHONO, CD, CD-R, MD/TAPE, DVD, DTV,

CBL/SAT, VCR 1, DVR/VCR 2, V-AUX, No Assignment

1 Press k / n repeatedly to select the i.LINK

component you want to assign, then press h.

2 Press k / n repeatedly to select the input for

the i.LINK component, then press ENTER.

This menu item is also available in the front panel display system options menu (see page 90).

■ Auto Play (Auto Play)

Use this feature to turn on/off automatic playback when an i.LINK component is selected using the INPUT selector or to select whether you want the input to switch automatically when an input stream from a connected i.LINK component is detected.

i.LINK Select > Auto Play >

Choices: ← – → Player, → → → Player, ← ← ← Player,

– X – Player

•Select ← – → automatically on the i.LINK component selected using the INPUT selector, and you want this unit to

automatically switch its input to the i.LINK component which has started playing back.

•Select → → → Player if you want playback to start automatically on the i.LINK component selected using the INPUT selector.

•Select ← ← ← Player if you want this unit to automatically switch its input to the i.LINK component which has started playing back.

• Select – X – Player to disable automatic playback for the i.LINK components. This setting also prevents this unit from automatically switching its input to the i.LINK component.

This menu item is also available in the front panel display system options menu (see page 90).

Player if you want both playback to start

OPERATION

ADVANCED

Page 98

USING i.LINK

i.LINK display messages

■ Status display messages

The following messages may appear on the front panel display depending on the status of this unit.

Message Contents

LINK CHECK

Playback may stop while this message is displayed.

Flashes while the i.LINK component connection is being checked.

■ Error messages

The following messages appear on the front panel display if a connection or registration error is detected.

Message Cause Remedy

BUS FULL

CANNOT LINK

LOOP CONNECT

NODE OVER

HOP OVER

REGIST. OVER

The 1394 bus transmission band is full, and no more data can be transmitted.

The connected i.LINK component is not recognized because the connection is incomplete.

This unit and the i.LINK component are connected in a loop (where the output signal is returned to the original component).

More than 63 i.LINK components (including this unit) are connected.

More than 15 i.LINK components are connected in a daisy chain configuration.

A new i.LINK component is connected to this unit while 16 i.LINK components are already registered. This unit can register up to 16 i.LINK components.

This problem may be resolved by disconnecting any unused i.LINK components.

If an i.LINK component with a slow transmission speed (S100 or S200) is connected between this unit and the i.LINK (AUDIO) component which you want to play back, the bus may become full. Changing the connection order of the i.LINK components so that this unit and the i.LINK (AUDIO) component are directly connected may resolve this problem.

Check that all i.LINK components are connected properly using an IEEE1394 cable.

Disconnect the IEEE1394 cable, then reconnect it in either a daisy chain or tree configuration.

Reduce the number of connected components.

Reduce the number of i.LINK components connected between the two end components to 15 or less.

Reconnect the i.LINK components using tree-type connections.

Delete any unused registered i.LINK components from the registered components list and reconnect the i.LINK component you want to register. See “Changing i.LINK Select parameters” on page 92.

■ i.LINK indicator

Lights up When an i.LINK component is connected, and this unit is playing back signals input via

i.LINK connections.

Flashes When an i.LINK component is connected, but this unit is playing back signals input via

connections other than i.LINK or no signals are being input via i.LINK connections.

Off When no i.LINK component is connected.

Page 99

USING HDMI

What is HDMI?

HDMI (High-Definition Multimedia Interface) is the first industry-supported, uncompressed, all-digital A/V (audio/ video) interface.

Providing an interface between any A/V source (such as a set-top box or A/V receiver) and an audio/video monitor (such as a digital television – DTV), HDMI supports standard, enhanced or high-definition video as well as multi-channel digital audio using a single cable.

HDMI transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements.

When used in combination with HDCP (High-bandwidth Digital Content Protection), HDMI provides a secure audio/video interface that meets the security requirements of content providers and system operators.

For further information on HDMI, visit the HDMI website at “http://www.hdmi.org/”.

This unit’s HDMI interface is based on the following standards:

• HDMI 1.1 (High-Definition Multimedia Interface Specification Version 1.1) licensed by HDMI Licensing, LLC.

• HDCP 1.1 (High-bandwidth Digital Content Protection System Revision 1.1) licensed by Digital Content Protection, LLC.

Notes

• Video or audio signals input at audio input jacks other than the HDMI IN 1 or HDMI IN 2 jack cannot be output at the HDMI OUT jack.

• Connect the HDMI OUT jack of other components (such as a DVD player) to the HDMI IN 1 or HDMI IN 2 jack of this unit. Connect the HDMI OUT jack of this unit to the HDMI IN 1 or HDMI IN 2 jack of other components (such as a projector).

• You need a commercially available HDMI cable to connect this unit to other HDMI-compatible components. Use a HDMI cable shorter than 5 m (15 ft) to ensure stable operations and to prevent losses of video quality.

• This unit is not compatible with HDCP-incompatible HDMI or DVI components.

• Use a conversion cable (HDMI jack this unit to other DVI components.

• Digital video signals input at the HDMI IN 1 or HDMI IN 2 jack cannot be output from analog video output jacks.

• GUI displays or analog video signals input at video input jacks cannot be output at the HDMI OUT jack. To display analog video signals, connect them to analog video output jacks.

↔ DVI-D jack) to connect

USING HDMI

• Audio signals input at input jacks other than the HDMI IN 1 or HDMI IN 2 of this unit cannot be digitally output at the HDMI OUT jack.

• This unit is not compatible with multi-stereo area audio signals of Super Audio CDs. You can connect devices (such as a DVD player) to the i.LINK jack or the MULTI CH INPUT jacks.

• When connected to a DVD player, audio signals may not be output depending on the type of the DVD player. In case the DVD player connected to this unit does not output DVD multichannel audio signals at the HDMI OUT jack, connect the DVD player to the i.LINK jack or analog multi-channel audio input jacks.

• When CPPM copy-protected DVD audio plays back, video and audio signals may not be output depending on the type of the DVD player.

• Video and audio signals input at the HDMI IN 1 or HDMI IN 2 jack cannot be output at the HDMI OUT jack when this unit is set to the standby mode or the power is turned off.

• When connecting other HDMI components to this unit, refer to the instruction manuals for those components.

• When HDMI audio signals are output from components like a DVD player, the audio signal format (such as sampling frequencies) may be restricted depending on the HDMI video signal format.

• Do not disconnect or connect the HDMI cable from this unit or turn off the power of the HDMI/DVI components connected to the HDMI OUT jack of this unit while data is being transferred. Doing so may disrupt playback or cause noise.

■ HDMI compatibility with this unit

Audio signal

types

2ch Linear

PCM

Multi-ch

Linear PCM

Bitstream Dolby Digital,

Audio signal

formats

2ch, 32-192 kHz,

16/20/24 bit

5.1 ch, 32-96 kHz, 16/20/24 bit

DTS

Compatible

HDMI

components

CD, DVD-Video, DVD-Audio, etc.

DVD-Audio, etc.

DVD-Video, etc.

OPERATION

ADVANCED

Page 100

USING HDMI

Connecting HDMI components

See page 23 for connection information.

■ HDMI video and audio signal flow

Video or audio signals input at the HDMI IN 1 or HDMI IN 2 jack you selected using Select in the GUI menu (see page 97) or the INPUT selector on the front panel are output at the HDMI OUT jack of this unit. In addition, audio signals input at the HDMI IN 1 or HDMI IN 2 jack are output to speakers, headphones and REC OUT.

DVD player

HDMI OUT HDMI IN

Notes

• Digital audio signals input at the HDMI IN jacks are not output at the analog AUDIO OUT jacks.

• Audio signals input at the HDMI IN 1 or HDMI IN 2 jack are output to REC OUT only when REC OUT/ZONE 2 on the front panel is set to SOURCE/REMOTE. Some audio signals may not be output to REC OUT depending on the signal type.

Video signals

Audio signals

This unit

HDMI OUT

Audio signals

Speakers

Headphones

REC OUT

Video signals

Audio signals

HDMI IN

■ HDMI indicator

Lights up when an HDMI component is connected, and this unit is playing back audio signals input via HDMI. Flashes when an HDMI component is connected, but this unit is playing back audio signals input via connections other than HDMI or no audio signals are being input via HDMI connections. Turns off when no HDMI component is connected.

■ Connecting HDMI video components

HDMI IN 1 HDMI IN 2

Component

coaxial

Component D

S-video

Component

RCA

HDMI OUT

Component

coaxial

Component D

S-video

Component

RCA

Digital video signals

Analog video signals

■ Connecting HDMI audio components

i.LINK

(AUDIO)

HDMI IN 1 HDMI IN 2

Digital audio

(optical/coaxial)

Analog audio

HDMI OUT

Digital audio

(optical/coaxial)

Analog audio

Digital audio signals

Analog audio signals

■ Error messages

In case of an error, an error message appears on the GUI or the front panel display. Device Over: more than 5 HDMI components (including this unit) are connected. Reduce the number of the connected HDMI components HDCP Error: HDCP testing failed. Check whether the connected HDMI components support HDCP copy protection standards.

Yamaha RX-V4600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

FEATURES

GETTING STARTED

Supplied accessories

Installing batteries in the remote controls

Front panel

CONTROLS AND FUNCTIONS

Remote control

Zone 2/Zone 3 remote control

Using the remote controls

Front panel display

Rear panel

SPEAKER SETUP

Speaker placement

PREPARATION

Speaker connections

CONNECTIONS

Before connecting components

Connecting video components

Connecting audio components

Connecting the antennas

Connecting the power cable

Speaker impedance setting

Turning on the power

AUTO SETUP

Introduction

Optimizer microphone setup

Starting the setup

Confirming the results

PLAYBACK

Basic operations

Selecting sound field programs

Additional operations

Selecting audio input modes

TUNING

Automatic and manual tuning

Presetting stations

Selecting preset stations

Exchanging preset stations

HD Radio™ tuning

Selecting HD Radio™ audio programs

Displaying HD Radio™ information

RECORDING

SOUND FIELD PROGRAM DESCRIPTIONS

For movie/video sources

For music sources

ADVANCED OPERATIONS

Using the sleep timer

SYSTEM OPTIONS

Changing parameter settings

Input Select

Manual Setup (Sound)

Manual Setup (Basic)

Manual Setup (Option)

System Memory

REMOTE CONTROL FEATURES

Control area

Setting remote control codes

Programming codes from other remote controls (Learn)

Changing source names in the display window

Using the Macro feature

Clearing function sets

Clearing individual functions

Controlling each component

ZONE 2/ZONE 3

Zone 2/Zone 3 connections

Controlling Zone 2/Zone 3 from the front panel

Controlling Zone 2/Zone 3 using the remote control

FRONT PANEL DISPLAY MENUS

Advanced setup menu

Front panel display system options menu

USING i.LINK

What is i.LINK?

Connecting i.LINK components

Basic i.LINK operations

Changing i.LINK Select parameters
