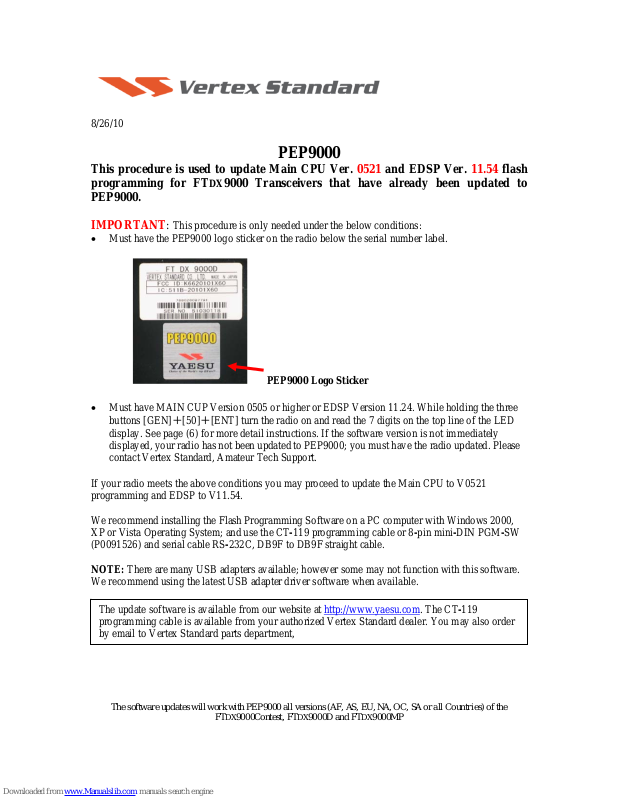

Yaesu PEP9000 Update Manual

8/26/10

PEP9000

This procedure is used to update Main CPU Ver. 0521 and EDSP Ver. 11.54 flash
programming for FTDX9000 Transceivers that have already been updated to
PEP9000.

IMPORTANT: This procedure is only needed under the below conditions:

• Must have the PEP9000 logo sticker on the radio below the serial number label.

PEP9000 Logo Sticker

• Must have MAIN CUP Version 0505 or higher or EDSP Version 11.24. While holding the three

buttons [GEN]＋[50]＋[ENT] turn the radio on and read the 7 digits on the top line of the LED
display. See page (6) for more detail instructions. If the software version is not immediately
displayed, your radio has not been updated to PEP9000; you must have the radio updated. Please
contact Vertex Standard, Amateur Tech Support.

If your radio meets the above conditions you may proceed to update the Main CPU to V0521
programming and EDSP to V11.54.

We recommend installing the Flash Programming Software on a PC computer with Windows 2000,
XP or Vista Operating System; and use the CT-119 programming cable or 8-pin mini-DIN PGM-SW
(P0091526) and serial cable RS-232C, DB9F to DB9F straight cable.

NOTE: There are many USB adapters available; however some may not function with this software.
We recommend using the latest USB adapter driver software when available.

.

The update software is available from our website at http://www.yaesu.com. The CT-119
programming cable is available from your authorized Vertex Standard dealer. You may also order
by email to Vertex Standard parts department,

.

The software updates will work with PEP9000 all versions (AF, AS, EU, NA, OC, SA or all Countries) of the

FT

DX9000Contest, FTDX9000D and FTDX9000MP

The software versions can be displayed on the radio

While holding the three buttons [GEN]＋[50]＋[ENT] turn the radio on. The software version will be
displayed in the VFO-A window for 5 seconds then the radio will start up in normal operation.
See below:

Example EDSP V11.53 and MAIN V 0518 software version.

EDSP:
Software version 11.XX

(This image & version is for
illustration only)

Main CPU:
Software version

05XX

(This image & version is
for illustration only)

*If you already have EDSP V11.54 and MAIN V0521 software versions, it is not necessary to update the

DX9000 again.

FT

The latest versions are listed below with the release dates.

・ MAIN Software Version 0521 (8/26/10)
・ EDSP Software Version 11.54 (4/23/10)

Ver. 0521 MAIN implements improvements (also includes all previous updates):

• In Split different mode operation between VFO-A and VFO-B, the DMU display is corrected to show

operation.

• Stabilize initial power on display.

Ver. 11.54 EDSP implements improvements (also includes all previous updates):

• Corrected FM TX for a slight frequency offset.

*When menu settings are saved on the DMU-9000 CF card and transferred to the new version, some previous versions
may not transfer correctly. Please check your menu, update the settings, and then save the new settings to the CF card.

Install the data file to PC

*Before you install this software make sure that you delete all of the old update files AH010 and FWS002
that are saved on your computer. Do not keep any of the old files or folders on your computer. (The old
files are not compatible with the PEP9000 updated radio).

1. Down load the FTDX9000 data file [FTdx9000_PEP9000_8-26-10.zip] from the following

website:

http://www.yaesu.com/indexVS.cfm?cmd=DisplayProducts&ProdCatID=102&encProdID=34B0B268
F77981D7E72CF66FC1930880&DivisionID=65&isArchived=0

2. Save the FT

computer.

3. Unzip and Extract the contents of [FTdx9000_PEP9000_8-26-10.zip] to the desktop of your

computer.

4. You will find the PEP9000_EDSP and PEP9000_MAIN folders on your desktop.

The programmer and software are now stored on your computer on the desktop. The files designated
in the last step above are ready to update your FT

DX9000 data file [FTdx9000_PEP9000_8-26-10.zip] to the desktop on your

DX9000 Transceiver.
