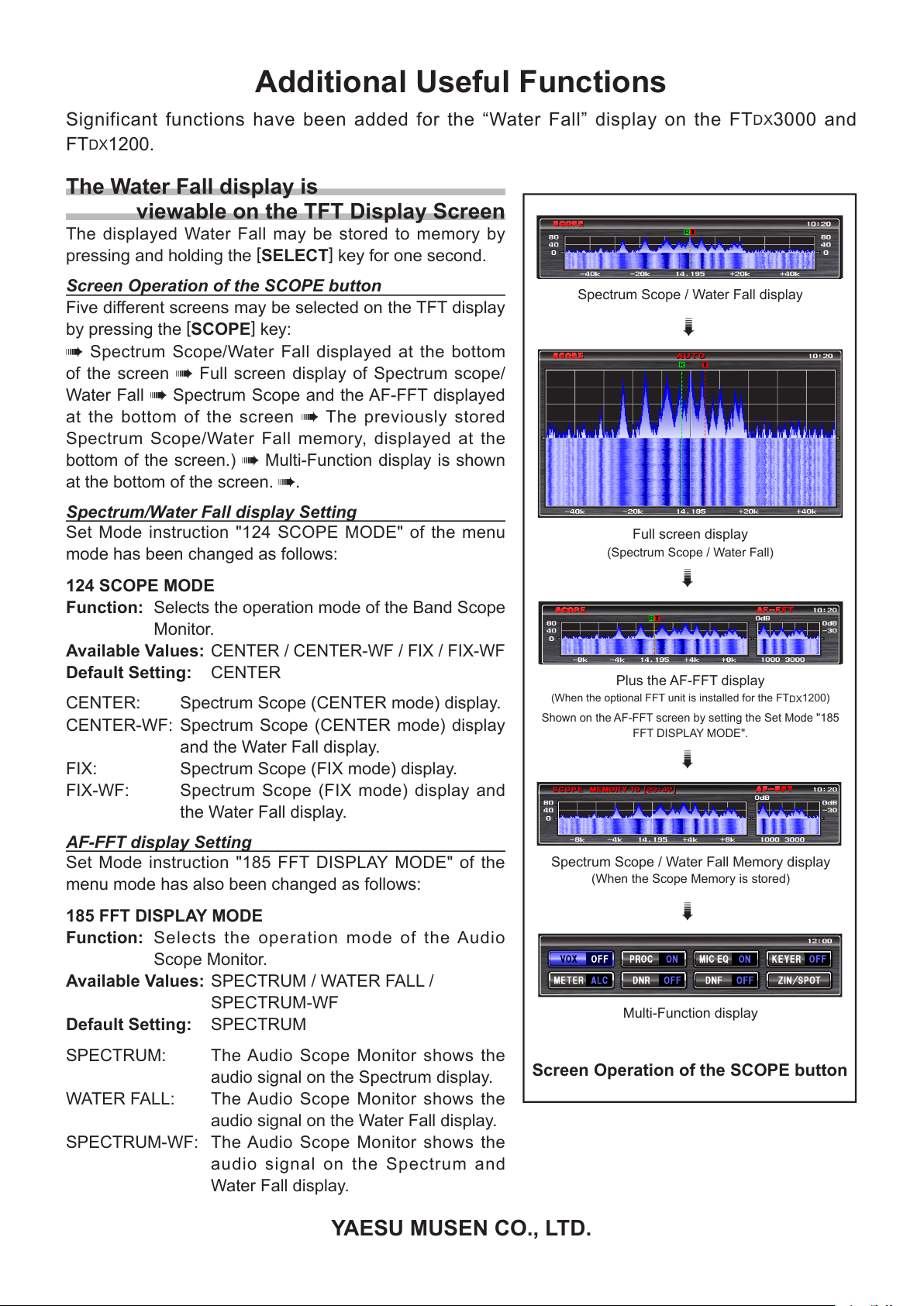

Additional Useful Functions

SCOPE

Significant functions have been added for the “Water Fall” display on the FTDX3000 and

DX

FT

1200.

The Water Fall display is

viewable on the TFT Display Screen

The displayed Water Fall may be stored to memory by
pressing and holding the [SELECT] key for one second.

SCOPE

Screen Operation of the SCOPE button

Five different screens may be selected on the TFT display
by pressing the [SCOPE] key:

à

Spectrum Scope/Water Fall displayed at the bottom
of the screen à Full screen display of Spectrum scope/
Water Fall à Spectrum Scope and the AF-FFT displayed
at the bottom of the screen à The previously stored
Spectrum Scope/Water Fall memory, displayed at the
bottom of the screen.) à Multi-Function display is shown
at the bottom of the screen. à.

Spectrum/Water Fall display Setting

Set Mode instruction "124 SCOPE MODE" of the menu
mode has been changed as follows:

124 SCOPE MODE
Function: Selects the operation mode of the Band Scope

Monitor.

Available Values:

CENTER / CENTER-WF / FIX / FIX-WF

Default Setting: CENTER

CENTER: Spectrum Scope (CENTER mode) display.
CENTER-WF: Spectrum Scope (CENTER mode) display

and the Water Fall display.
FIX: Spectrum Scope (FIX mode) display.
FIX-WF: Spectrum Scope (FIX mode) display and

the Water Fall display.

Spectrum Scope / Water Fall display

à

Full screen display

(Spectrum Scope / Water Fall)

à à à

SCOPE

Plus the AF-FFT display

(When the optional FFT unit is installed for the FTDX1200)

Shown on the AF-FFT screen by setting the Set Mode "185

FFT DISPLAY MODE".

AF-FFT

AF-FFT

AF-FFT display Setting

Set Mode instruction "185 FFT DISPLAY MODE" of the
menu mode has also been changed as follows:

185 FFT DISPLAY MODE
Function: Selects the operation mode of the Audio

Scope Monitor.
Available Values: SPECTRUM / WATER FALL /
SPECTRUM-WF
Default Setting: SPECTRUM

SPECTRUM: The Audio Scope Monitor shows the

audio signal on the Spectrum display.

WATER FALL: The Audio Scope Monitor shows the

audio signal on the Water Fall display.

SPECTRUM-WF: The Audio Scope Monitor shows the

audio signal on the Spectrum and
Water Fall display.

YAESU MUSEN CO., LTD.

Spectrum Scope / Water Fall Memory display

(When the Scope Memory is stored)

Multi-Function display

Screen Operation of the SCOPE button
