LogiCORE IP I/O Module v1.02a

Product Guide

PG052 October 16, 2012

SECTION I: SUMMARY

IP Facts

Chapter 1: Overview

Feature Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Licensing and Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 2: Product Specification

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Resource Utilization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Port Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Register Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 3: Designing with the Core

General Design Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

LMB Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Clocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Resets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Protocol Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

SECTION II: VIVADO DESIGN SUITE

Chapter 4: Customizing and Generating the Core

GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Parameter Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Chapter 5: Constraining the Core

Required Constraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Device, Package, and Speed Grade Selections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

I/O Module v1.02a www.xilinx.com 2

PG052 October 16, 2012

Clock Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Clock Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Clock Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Banking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Transceiver Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

I/O Standard and Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

SECTION III: ISE DESIGN SUITE

Chapter 6: Customizing and Generating the Core

GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Parameter Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Chapter 7: Constraining the Core

Clock Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

SECTION IV: APPENDICES

Appendix A: Migrating

Appendix B: Debugging

Solution Centers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Appendix C: Application Software Development

Device Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Appendix D: Additional Resources

Xilinx Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Notice of Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

I/O Module v1.02a www.xilinx.com 3

PG052 October 16, 2012

SECTION I: SUMMARY

IP Facts

Overview

Product Specification

Designing with the Core

I/O Module v1.02a www.xilinx.com 4

PG052 October 16, 2012

IP Facts

Introduction

The LogiCORE™ I/O Module is a highly integrated and light-weight implementation of a standard set of peripherals.

The I/O Module is a standalone version of the tightly coupled I/O Module included in the LogiCORE MicroBlaze™ Micro Controller System (MCS). Using the I/O Module, a system equivalent to MicroBlaze MCS can be design using the ISE® Design Suite Embedded Edition or the Vivado™ Design Suite.

The I/O Module connects to MicroBlaze through the lmb_v10 bus.

Features

• LMB v1.0 bus interfaces to communicate with MicroBlaze

•I/O Bus

• Interrupt Controller with fast interrupt mode support

•UART

•Fixed Interval Timers

• Programmable Interval Timers

• General Purpose Inputs

• General Purpose Outputs

LogiCORE IP Facts Table

Core Specifics

Supported Device

(1)

Family

Supported User Interfaces

Resources See Ta b le 2 -2 .

Zynq™-7000

(2)

, Virtex-7, Kintex™-7, Artix™-7,

Virtex-6, Spartan-6, Virtex-5, Virtex®-4,

Local Memory Bus (LMB), Dynamic

Reconfiguration Port (DRP)

Spartan®-3

Provided with Core

Design Files

Example Design

Tes t B e nc h Not Provid e d

Constraints File

Simulation Model

Supported S/W Driver

(3)

ISE: VHDL

Vivado: RTL

Not Provided

VHDL Behavioral

Standalone

Tested Design Flows

Design Entr y Xilinx Platform Studio (XPS)

Simulation Mentor Graphics ModelSim

Synthesis

Xilinx Synthesis Technology (XST)

Vivado Synthesis

(5)

Support

Provided by Xilinx @ www.xilinx.com/support

Notes:

1. For a complete list of supported derivative devices, see the

mbedded Edition Derivative Device Support.

2. Supported in ISE Design Suite implementations only.

3. Standalone driver details can be found in the EDK or SDK

directory (<install_directory>/doc/usenglish/ xilinx_drivers.htm). Linux OS and driver support information is available from //wiki.xilinx.com

4. For the supported versions of the tools, see the Xilinx Design

Tools: Release Notes Guide.

5. Supports only 7 series devices.

I/O Module v1.02a www.xilinx.com 5

PG052 October 16, 2012 Product Specification

Overview

I/O Module

LMB

UART_Tx_IO

UART_Interrupt FITx_Interrupt PITx_Interrupt

GPOx_IO

INTC_Interrupt

INTC_IRQ

IO_Addr_Strobe IO_Read_Strobe IO_Write_Strobe IO_Address IO_Byte_Enable IO_Write_Data

IO_Read_Data

IO_Ready

PITx_Toggle

INTC_Interrupt_Address

INTC_Interrupt_Ack

Interrupt

GPIx_IO

UART_Rx_IO

PITx_Enable

FITx_Toggle

IO_Bus

GPIx_Interrupt

The I/O Module is a light-weight implementation of a set of standard I/O functions commonly used in a MicroBlaze™ processor sub-system. The input/output signals of the I/O Module are shown in Figure 1-1. The detailed list of signals are listed and described in

Tab le 2- 3. See the description of LMB Signals in the MicroBlaze Bus Interfaces chapter in the

MicroBlaze Processor Reference Guide [Ref 1].

X-Ref Target - Figure 1-1

Chapter 1

I/O Module v1.02a www.xilinx.com 6

PG052 October 16, 2012

In a MicroBlaze system the I/O Module would typically be connected according to

Figure 1-2.

Figure 1-1: I/O Module Block Diagram

ILMB

MicroBlaze

LMB_v10

LMB BRAM

Interface Controller

BRAM Block

(Dual Port)

DLMB

LMB_v10

LMB BRAM

Interface Controller

I/O Module

X-Ref Target - Figure 1-2

Feature Summary

Figure 1-2: Typical MicroBlaze System

Feature Summary

I/O Bus

The I/O Bus provides a simple bus for accessing to external modules. The I/O Bus is mapped in the MicroBlaze memory space, with the I/O Bus address directly reflecting the byte address used by MicroBlaze Load/Store instructions. I/O Bus data is 32-bit wide, with byte enables to write byte and half-word data.

The I/O Bus is fully compatible with the Xilinx Dynamic Reconfiguration Port (DRP).

UART

The Universal Asynchronous Receiver Transmitter (UART) interface provides the controller interface for asynchronous serial data transfers. Features supported include:

• One transmit and one receive channel (full duplex)

• Configurable number of data bits in a character (5-8)

• Configurable parity bit (odd or even)

• Configurable and programmable baud rate

I/O Module v1.02a www.xilinx.com 7

PG052 October 16, 2012

Licensing and Ordering Information

Fixed Interval Timer, FIT

The Fixed Interval Timer generates a strobe signal at fixed intervals. The Fixed Interval Timer asserts the output signal and generates an interrupt according to the selected parameter values.

Programmable Interval Timer, PIT

The Programmable Interval Timer, PIT, has a configurable width from 1 to 32. The PIT operation and period are controlled by software. An interrupt can be generated when the timer lapses.

General Purpose Output, GPO

The General Purpose Output, GPO, drives I/O Module GPO output signals defined by the value of the corresponding GPO register, programmable from software. The width and initial value are defined by parameters.

General Purpose Input, GPI

The General Purpose Input, GPI, makes it possible for software to sample the value of the I/O Module GPI input signals by reading the GPI register. The width and whether to generate an interrupt are defined by parameters.

Interrupt Controller INTC

Licensing and Ordering Information

This Xilinx LogiCORE IP module is provided at no additional cost with the Xilinx Vivado Design Suite and ISE Design Suite Embedded Edition tools under the terms of the Xilinx End

User License.

Information about this and other Xilinx LogiCORE IP modules is available at the Xilinx

Intellectual Property page. For information on pricing and availability of other Xilinx

LogiCORE IP modules and tools, contact your local Xilinx sales representative

I/O Module v1.02a www.xilinx.com 8

PG052 October 16, 2012

Product Specification

Standards

The I/O Bus interface provided by the I/O Module is fully compatible with the Xilinx Dynamic Reconfiguration Port (DRP). For a detailed description of the DRP, see the 7 Series FPGAs Configuration User Guide [Ref 2].

Performance

The frequency and latency of the I/O Module are optimized for use together with MicroBlaze™. This means that the frequency targets are aligned to MicroBlaze targets as well as the access latency optimized for MicroBlaze data access.

Chapter 2

Maximum Frequencies

The following are clock frequencies for the target families. The maximum achievable clock frequency can vary. The maximum achievable clock frequency and all resource counts can be affected by the used tool flow, other tool options, additional logic in the FPGA, using different versions of Xilinx tools, and other factors.

Table 2-1: Maximum Frequencies

Architecture Speed grade Max Frequency

Virtex-7 -3 320

Kintex™-7 -3 320

Artix™-7 -3 225

Virtex®-6 -3 300

Spartan®-6 -4 195

Latency

Data read from I/O Module registers is available two clock cycles after the address strobe is asserted.

I/O Module v1.02a www.xilinx.com 9

PG052 October 16, 2012 Product Specification

Resource Utilization

Data write to I/O Module registers is performed the clock cycle after the address strobe is asserted.

Data accesses to peripherals connected on the I/O Bus take three clock cycles plus the number of wait states introduced by the accessed peripheral.

Throughput

The maximum throughput when using the I/O Bus is one read or write access every three clock cycles.

Resource Utilization

Because the MicroBlaze MCS is a module that is used together with other parts of the design in the FPGA, the utilization and timing numbers reported in this section are just estimates, and the actual utilization of FPGA resources and timing of the MicroBlaze MCS design will vary from the results reported here. All parameters not given in the table below have their default values.

Table 2-2: Performance and Resource Utilization Benchmarks on Virtex-6 (xc6vlx240t-1-ff1156)

Parameter Values (other parameters at default value) Device Resources

LUTs Flip-Flops

C_USE_UART_TX

C_USE_UART_RX

C_INTC_USE_EXT_INTR

11000 0 000000 00 40 75

11150 0 000000 00 69 110

11150 0 000000 01 118 173

1 1 1 5 1 65000 0 0 0 0 0 0 0 0 75 122

1 1 1 5 1 65000 1 32 0 0 0 0 0 0 121 216

1115165000132132132 00 121 280

1115165000132132132 10 119 361

C_INTC_INTR_SIZE

C_USE_FIT1

C_FIT1_No_CLOCKS

C_USE_PIT1

C_USE_GPI1

C_PIT1_SIZE

C_GPI1_SIZE

C_USE_GPO1

C_GPO1_SIZE

C_USE_IO_BUS

C_INTC_HAS_FAST

I/O Module v1.02a www.xilinx.com 10

PG052 October 16, 2012 Product Specification

Port Descriptions

The I/O ports and signals for the I/O Module are listed and described in Ta bl e 2 -3.

Table 2-3: I/O Module I/O Signals

Port Name MSB:LSB I/O Description

LMB Signals

LMB_ABus 0:C_LMB_AWIDTH-1

LMB_WriteDBus 0:C_LMB_DWIDTH-1

LMB_ReadStrobe

LMB_AddrStrobe

LMB_WriteStrobe

LMB_BE 0:C_LMB_DWIDTH/8-1

Sl_DBus 0:C_LMB_DWIDTH-1

Sl_Ready

Sl_Wait

Sl_CE

Sl_UE

I/O Bus Signals

IO_Addr_Strobe

IO_Read_Strobe

IO_Write_Strobe

IO_Address 31:0

IO_Byte_Enable 3:0

IO_Write_Data 31:0

IO_Read_Data 31:0

IO_Ready

LMB Address Bus

LMB Write Data Bus

LMB Read Strobe

LMB Address Strobe

LMB Write Strobe

LMB Byte Enable Bus

LMB Read Data Bus

LMB Data Ready

LMB Wait

LMB Correctable Error

LMB Uncorrectable Error

Address strobe signals valid I/O Bus output signals

I/O Bus access is a read

I/O Bus access is a write

Address for access

Byte enables for access

Data to write for I/O Bus write access

Read data for I/O Bus read access

Ready handshake to end I/O Bus access

UART Signals

UART_Rx_IO

UART_Tx_IO

UART_Interrupt

Receive Data

Trans m i t Data

UART Interrupt

FIT Signals

FITx_Interrupt

FITx_Toggle

(1)

FITx timer lapsed

Inverted FITx_Toggle when FITx timer lapses

PIT Signals

I/O Module v1.02a www.xilinx.com 11

PG052 October 16, 2012 Product Specification

Table 2-3: I/O Module I/O Signals (Cont ’d)

Port Name MSB:LSB I/O Description

(1)

[C_GPOx_SIZE - 1]:0

[C_GPIx_SIZE - 1]:0

PITx_Enable

PITx_Interrupt

PITx_Toggle

GPOx

(1)

GPIx

GPIx_Interrupt

GPO Signals

GPI Signals

INTC Signals

Port Descriptions

PITx count enable when C_PITx_PRESCALER = External

PITx timer lapsed

Inverted PITx_Toggle when PITx lapses

GPOx Output

GPIx Input

GPIx input changed

INTC_Interrupt 0:[C_INTC_INTR_SIZE - 1]

INTC_IRQ

INTC_Interrupt_Address [C_INTC_ADDR_WIDTH-1]:0

INTC_Interrupt_Ack 1:0

1. x = 1, 2, 3 or 4

External interrupt inputs

Interrupt Output

Interrupt Address Output

Interrupt Acknowledge Input

Parameter - Port Dependencies

The width of many of the I/O Module signals depends on design parameters. The dependencies between the design parameters and I/O signals are shown in Tab le 2-4 .

Table 2-4: Parameter-Port Dependencies

Parameter Name Ports (Port width depends on parameter)

C_INTC_INTR_SIZE INTC_Interrupt

C_INTC_ADDR_WIDTH INTC_Interrupt_Address

C_GPO1_SIZE GPO1

C_GPO2_SIZE GPO2

C_GPO3_SIZE GPO3

C_GPO4_SIZE GPO4

C_GPI1_SIZE GPI1

C_GPI2_SIZE GPI2

C_GPI3_SIZE GPI3

C_GPI4_SIZE GPI4

I/O Module v1.02a www.xilinx.com 12

PG052 October 16, 2012 Product Specification

Register Space

Table 2-5: I/O Module Register Address Map

Base Address + Offset (hex) Register

C_BASEADDR + 0x0 UART_RX R

C_BASEADDR + 0x4 UART_TX W

C_BASEADDR + 0x8 UART_STATUS R

C_BASEADDR + 0xC IRQ_MODE W

C_BASEADDR + 0x10 GPO1 W

C_BASEADDR + 0x14 GPO2 W

C_BASEADDR + 0x18 GPO3 W

C_BASEADDR + 0x1C GPO4 W

C_BASEADDR + 0x20 GPI1 R

C_BASEADDR + 0x24 GPI2 R

C_BASEADDR + 0x28 GPI3 R

C_BASEADDR + 0x2C GPI4 R

C_BASEADDR + 0x30 IRQ_STATUS R

C_BASEADDR + 0x34 IRQ_PENDING R

C_BASEADDR + 0x38 IRQ_ENABLE W

C_BASEADDR + 0x3C IRQ_ACK W

C_BASEADDR + 0x40 PIT1_PRELOAD W

C_BASEADDR + 0x44 PIT1_COUNTER R

C_BASEADDR + 0x48 PIT1_CONTROL W

C_BASEADDR + 0x4C UART_BAUD W

C_BASEADDR + 0x50 PIT2_PRELOAD W

C_BASEADDR + 0x54 PIT2_COUNTER R

C_BASEADDR + 0x58 PIT2_CONTROL W

C_BASEADDR + 0x5C Reserved

C_BASEADDR + 0x60 PIT3_PRELOAD W

C_BASEADDR + 0x64 PIT3_COUNTER R

C_BASEADDR + 0x68 PIT3_CONTROL W

C_BASEADDR + 0x6C Reserved

C_BASEADDR + 0x70 PIT4_PRELOAD W

C_BASEADDR + 0x74 PIT4_COUNTER R

C_BASEADDR + 0x78 PIT4_CONTROL W

C_BASEADDR + 0x7C Reserved

Access

Type

Description

UART Receive Data Register

UART Transmit Data Register

UART Status Register

Interrupt Mode Register

Gen e ra l P u r p os e O u t p ut 1 Re g is te r

Gen e ra l P u r p os e O u t p ut 2 Re g is te r

Gen e ra l P u r p os e O u t p ut 3 Re g is te r

Gen e ra l P u r p os e O u t p ut 4 Re g is te r

General Purpose Input 1 Register

General Purpose Input 2 Register

General Purpose Input 3 Register

General Purpose Input 4 Register

Interrupt Status Register

Pending Interrupt Register

Interrupt Enable Register

Interrupt Acknowledge Register

PIT1 Preload Register

PIT1 Counter Register

PIT1 Control Register

UART Programmable Baud Rate

PIT2 Preload Register

PIT2 Counter Register

PIT2 Control Register

PIT3 Preload Register

PIT3 Counter Register

PIT3 Control Register

PIT4 Preload Register

PIT4 Counter Register

PIT4 Control Register

I/O Module v1.02a www.xilinx.com 13

PG052 October 16, 2012 Product Specification

Table 2-5: I/O Module Register Address Map (Cont’d)

Base Address + Offset (hex) Register

C_BASEADDR + 0x80 -

C_BASEADDR + 0xFC

(C_BASEADDR + 0x100) - C_HIGHADDR Reserved

C_IO_BASEADDR - C_IO_HIGHADDR I/O Bus RW

IRQ_VECTOR_0 -

IRQ_VECTOR_31

Access

Type

Description

Interrupt Address Vector Registers

Mapped to I/O Bus address output IO_Address

UART Receive Data Register (UART_RX)

This register contains data received by the UART. Reading this location results in reading the current word from the register. When a read request is issued without having received a new character, the previously read data is read again. This register is a read-only register. Issuing a write request to the register does nothing but generate the write acknowledgement. The register is implemented if C_USE_UART_RX is set to 1.

Table 2-6: UART Receive Data Register (UART_RX) (C_DATA_BITS=8)

Reserved UART_RX

31 87 0

Table 2-7: UART Receive Data Register Bit Definitions

Bit(s) Name

31:C_UART_DATA_BITS

[C_UART_DATA_BITS-1]:0

Core

Access

-R0

UART_RX R 0

Reset Value

Description

Reserved

UART Receive Data

UART Transmit Data Register (UART_TX)

A register contains data to be output by the UART. Data to be transmitted is written into this register. This is write only location. Issuing a read request to this register generates the read acknowledgement with zero data. Writing this register when the character has not been transmitted will overwrite previously written data, resulting in loss of data. The register is implemented if C_USE_UART_TX is set to 1.

Table 2-8: UART Transmit Data Register (UART_TX) (C_DATA_BITS=8)

Reserved UART_TX

31 87 0

Table 2-9: UART Transmit Data Register Bit Definitions

Bit(s) Name

Core

Access

Reset Value

Description

31:C_UART_DATA_BITS - R 0

[C_UART_DATA_BITS-1]:0 UART_TX R 0

Reserved

UART Transmit Data

I/O Module v1.02a www.xilinx.com 14

PG052 October 16, 2012 Product Specification

UART Status Register (UART_Status)

The UART Status Register contains the status of the receive and transmit registers, and if there are any errors. This is read only register. If a write request is issued to status register it will do nothing but generate write acknowledgement. The register is implemented if C_USE_UART_RX or C_USE_UART_TX is set to 1.

Table 2-10: UART Status Register (UART_Status)

Reserved UART_Status

31 87 0

Table 2-11: UART Status Register Bit Definitions

Bit(s) Name

7 Parity Error R 0

6 Frame Error R 0

5 Overrun Error R 0

Core

Access

Reset Value

Description

Indicates that a parity error has occurred after the last time the status register was read. If the UART is configured without any parity handling, this bit is always ‘0’. The received character is written into the receive register. This bit is cleared when the status register is read.

0 = No parity error has occurred 1 = A parity error has occurred

Indicates that a frame error has occurred after the last time the status register was read. Frame Error is defined as detection of a stop bit with the value 0. The receive character is ignored and not written to the receive register. This bit is cleared when the status register is read.

0 = No Frame error has occurred 1 = A frame error has occurred

Indicates that a overrun error has occurred since the last time the status register was read. Overrun occurs when a new character has been received but the receive register has not been read. The received character is ignored and not written into the receive register. This bit is cleared when the status register is read.

0 = No interrupt has occurred 1 = Interrupt has occurred

4- R0Reserved

Indicates if the transmit register is in use

3Tx Used R 0

2- R0Reserved

1- R0Reserved

0 Rx Valid Data R 0

0 = Transmit register is not in use 1= Transmit register is in use

Indicates if the receive register has valid data 0 = Receive register is empty

1 = Receive register has valid data

I/O Module v1.02a www.xilinx.com 15

PG052 October 16, 2012 Product Specification

UART_BAUD

C_FREQ

C_UART_BAUDRATE 16•

------------------------------------ ------------------

1–=

UART Programmable Baud Rate Register (UART_BAUD)

This register sets the baud rate when using programmable baud rate. The initial value of the register is determined from the selected fixed baud rate C_UART_BAUDRATE and the clock frequency C_FREQ, using the formula:

Table 2-12: UART Programmable Baud Rate Register (UART_BAUD)

Reserved UART_BAUD

31 20 19 0

Table 2-13: UART Programmable Baud Rate Register Bit Definitions

Bit(s) Name

31:20 - - -

19:0 UART_BAUD W See above

Core

Access

Reset

Value

Description

Reserved

Programmed UART Baud Rate

General Purpose Output x Register (GPOx) (x = 1, 2, 3 or 4)

This register holds the value that will be driven to the corresponding bits in the I/O Module GPOx port output signals. All bits in the register are updated when the register is written. This register is not implemented if the value of C_USE_GPOx is 0.

Table 2-14: General Purpose Output x Register (GPOx)

Reserved GPOx

31 C_GPOx_SIZE C_GPOx_SIZE-1 0

Table 2-15: General Purpose Output x Register Bit Definitions

Bit(s) Name

31:C_GPOx_SIZE

[C_GPOx_SIZE-1]:0

Core

Access

---

GPOx W 0

Reset Valu e

Description

Reserved

General Purpose Input x Register (GPIx) (x=1, 2, 3 or 4)

This register reads the value that is input on the corresponding I/O Module GPIx port input signal bits. This register is not implemented if the value of C_USE_GPIx is 0.

Table 2-16: General Purpose Input x Register (GPIx)

Reserved GPIx

31 C_GPIx_SIZE C_GPIx_SIZE-1 0

I/O Module v1.02a www.xilinx.com 16

PG052 October 16, 2012 Product Specification

Table 2-17: General Purpose Input x Register Bit Definitions

Bit(s) Name

31:C_GPIx_SIZE

[C_GPIx_SIZE-1]:0

Core

Access

-R0

GPIx R 0

Reset Value

Description

Reserved

Interrupt Status Register (IRQ_STATUS)

The Interrupt Status Register holds information on interrupt events that have occurred. The register is read-only and the IRQ_ACK register should be used to clear individual interrupts.

Table 2-18: Interrupt Status Register (IRQ_STATUS)

Reserved INTC_Interrupt Reserved Internal Interrupts

31 C_INTC_EXT_INTR+16 C_INTC_EXT_INTR+15 16 15 11 10 0

Table 2-19: Interrupt Status Register Bit Definitions

Bit(s) Name

31:[C_INTC_EXT_INTR + 16] - R 0

[C_INTC_EXT_INTR+15]:16 INTC_Interrupt R 0

Core

Access

Reset Value

Description

Reserved

I/O Module external interrupt input signal INTC_Interrupt [C_INTC_EXT_INTR-1:0] mapped to corresponding bit positions in IRQ_STATUS

15 - R 0

14 GPI4 R 0

13 GPI3 R 0

12 GPI2 R 0

11 GPI1 R 0

10 FIT4 R 0

9FIT3R0

8FIT2R0

7FIT1R0

6PIT4R0

5PIT3R0

4PIT2R0

3PIT1R0

2UART_RXR0

1UART_TXR0

0UART_ERRR0

Reserved

GPI4 changed

GPI3 changed

GPI2 changed

GPI1 changed

FIT4 strobe

FIT3 strobe

FIT2 strobe

FIT1 strobe

PIT4 lapsed

PIT3 lapsed

PIT2 lapsed

PIT1 lapsed

UART Received Data

UART Transmitted Data

UART Error

I/O Module v1.02a www.xilinx.com 17

PG052 October 16, 2012 Product Specification

Interrupt Pending Register (IRQ_PENDING)

The Interrupt Pending Register holds information on enabled interrupt events that have occurred. IRQ_PENDING is the contents of IRQ_STATUS bit-wised masked with the IRQ_ENABLE register. The register is read-only and the IRQ_ACK register should be used to clear individual interrupts.

Table 2-20: Interrupt Pending Register (IRQ_PENDING)

Reserved INTC_Interrupt Reserved Internal Interrupts

31 C_INTC_EXT_INTR+16 C_INTC_EXT_INTR+15 16 15 11 10 0

Table 2-21: Interrupt Pending Register Bit Definitions

Bit(s) Name

31:[C_INTC_EXT_INTR+16] - R 0

[C_INTC_EXT_INTR+15]:16 INTC_Interrupt R 0

15 - R 0

14 GPI4 R 0

13 GPI3 R 0

12 GPI2 R 0

11 GPI1 R 0

10 FIT4 R 0

9FIT3R0

8FIT2R0

7FIT1R0

6PIT4R0

5PIT3R0

Core

Access

Reset Valu e

Description

Reserved

I/O Module external interrupt input signal INTC_Interrupt [C_INTC_EXT_INTR-1:0] mapped to corresponding bit positions in IRQ_STATUS

Reserved

GPI4 changed

GPI3 changed

GPI2 changed

GPI1 changed

FIT4 strobe

FIT3 strobe

FIT2 strobe

FIT1 strobe

PIT4 lapsed

PIT3 lapsed

4PIT2R0

3PIT1R0

2UART_RXR0

1 UART_TX R 0

0UART_ERRR0

PIT2 lapsed

PIT1 lapsed

UART Received Data

UART Transmitted Data

UART Error

I/O Module v1.02a www.xilinx.com 18

PG052 October 16, 2012 Product Specification

Interrupt Enable Register (IRQ_ENABLE)

The Interrupt Enable Register enables assertion of the I/O Module interrupt output signal INTC_IRQ by individual interrupt sources. The contents of this register are also used to mask the value of the IRQ_STATUS register when registering enabled interrupts in the IRQ_PENDING register.

Table 2-22: Interrupt Enable Register (IRQ_ENABLE)

Reserved INTC_Interrupt Reserved Internal Interrupts

31 C_INTC_EXT_INTR+16 C_INTC_EXT_INTR+15 16 15 11 10 0

Table 2-23: Interrupt Enable Register Bit Definitions

Bit(s) Name

31:[C_INTC_EXT_INTR+16] - - 0

[C_INTC_EXT_INTR+15]:16 INTC_Interrupt W 0

15 - - 0

14 GPI4 R 0

13 GPI3 R 0

12 GPI2 R 0

11 GPI1 R 0

10 FIT4 W 0

9FIT3W0

8FIT2W0

7FIT1W0

6PIT4W0

5PIT3W0

4PIT2W0

Core

Access

Reset Value

Description

Reserved

Enable I/O Module external interrupt input signal INTC_Interrupt(16-C_INTC_EXT_INTR)

Reserved

GPI4 changed

GPI3 changed

GPI2 changed

GPI1 changed

FIT4 interrupt enabled

FIT3 interrupt enabled

FIT2 interrupt enabled

FIT1 interrupt enabled

PIT4 interrupt enabled

PIT3 interrupt enabled

PIT2 interrupt enabled

3PIT1W0

2UART_RXW0

1 UART_TX W 0

0UART_ERRW0

PIT1 interrupt enabled

UART Received Data interrupt enabled

UART Transmitted Data interrupt enabled

UART Error interrupt enabled

I/O Module v1.02a www.xilinx.com 19

PG052 October 16, 2012 Product Specification

Interrupt Acknowledge Register (IRQ_ACK)

This register is used as a command register for clearing individual interrupts in IRQ_STATUS and IRQ_PENDING registers. All bits set to 1 clear the corresponding bits in the IRQ_STATUS and IRQ_PENDING registers. The register is write-only.

Table 2-24: Interrupt Acknowledge Register (IRQ_ACK)

IRQ_ACK

31 0

Table 2-25: Interrupt Acknowledge Register Bit Definitions

Bit(s) Name

31:0 IRQ_ACK W 0

Core

Access

Reset Value

Description

All bit position written with 1 will clear corresponding bits in both the IRQ_STATUS and the IRQ_PENDING registers

Interrupt Mode Register (IRQ_MODE)

This register is used to define which interrupts use fast interrupt mode. All bits set to 1 use fast interrupt mode. The register is write-only. The register is only implemented when fast interrupt mode is enabled, by setting C_INTC_HAS_FAST to 1.

Table 2-26: Interrupt Mode Register (IRQ_MODE)

IRQ_MODE

31 0

Table 2-27: Interrupt Mode Register Bit Definitions

Bit(s) Name

31:0 IRQ_MODE W 0

Core

Access

Reset Value

Description

All bit positions written with 1 use fast interrupt mode

I/O Module v1.02a www.xilinx.com 20

PG052 October 16, 2012 Product Specification

Interrupt Address Vector Registers (IRQ_VECTOR_0 IRQ_VECTOR_31)

These 32 registers are used as Interrupt Address Vector for the corresponding interrupt bit. The content is sent to the processor on the INTC_Interrupt_Address port when the interrupt occurs. The registers are write-only.

The two least significant bits and the most significant bits greater than or equal to C_INTC_ADDR_WIDTH (if any) of each register are fixed to 0.

For reserved interrupt bits (11-15), and unused external interrupts (greater than C_INTC_EXT_INTR+15), writing to the corresponding register has no effect.

The registers are only implemented when fast interrupt mode is enabled, by setting C_INTC_HAS_FAST to 1.

Table 2-28: Interrupt Address Vector Register (IRQ_VECTOR_x)

0 IRQ_VECTOR_x 0

31 C_INTC_ADDR_WIDTH C_INTC_ADDR_WIDTH-1 2 1 0

Table 2-29: Interrupt Address Vector Register Bit Definitions

Bit(s) Name

31:0 IRQ_VECTOR W

1. C_INTC_BASE_VECTORS + 0x10

Core

Access

Reset Valu e

(1)

Description

The Interrupt Address Vector for the corresponding interrupt.

PITx Preload Register (PITx_PRELOAD) (x = 1, 2, 3 or 4)

The value written to this register determines the period between two consecutive PITx_Interrupt events. The period is the value written to the register + 2 count events. The register is implemented if C_USE_PITx is 1.

Table 2-30: PITx Preload Register (PITx_PRELOAD)

Reserved PITx_PRELOAD

31 C_PITx_SIZE C_PITx_SIZE-1 0

Table 2-31: PITx Preload Register Bit Definitions

Bit(s) Name

Core

Access

Reset Valu e

Description

31:C_PITx_SIZE - - -

[C_PITx_SIZE-1]:0 PITx_PRELOAD W 0

Reserved

I/O Module v1.02a www.xilinx.com 21

PG052 October 16, 2012 Product Specification

PITx Counter Register (PITx_COUNTER) (x = 1, 2, 3 or 4)

When reading this register the data obtained is a sample of the current counter value. The register is implemented if C_USE_PITx is 1 and C_PITx_READABLE is 1.

Table 2-32: PITx Counter Register (PITx_COUNTER)

Reserved PITx_PRELOAD

31 C_PITx_SIZE C_PITx_SIZE-1 31

Table 2-33: PITx Counter Register Bit Definitions

Bit(s) Name

31:C_PITx_SIZE - - -

[C_PITx_SIZE-1]:0 PITx_COUNTER R 0

Core

Access

Reset Valu e

Description

Reserved

PITx counter value at time of read

PITx Control Register (PITx_CONTROL) (x=1, 2, 3 or 4)

The EN bit in this register enables/disables counting. The PRELOAD bit determines if the counting is continuous with automatic reload of the PITx_PRELOAD value when lapsing (PITx_COUNTER = 0) or if the counting is stopped after counting the number of cycles defined in PITx_PRELOAD. The register is implemented if C_USE_PITx is 1.

Table 2-34: PITx Control Register (PITx_CONTROL)

Reserved RELOAD EN

31 21 0

Table 2-35: PITx Control Register Bit Definitions

Bit(s) Name

31:2 - - 0

Core

Access

Reset Value

Description

Reserved

1PRELOAD W 0

0EN W0

0 = Counter counts PITx_PRELOAD value cycles and the stops 1 = Counter value is automatically reloaded with the PITx_PRELOAD value when counter lapses

0 = Counting Disabled 1 = Counter Enabled

I/O Module v1.02a www.xilinx.com 22

PG052 October 16, 2012 Product Specification

Designing with the Core

This chapter includes guidelines and additional information to facilitate designing with the core.

General Design Guidelines

I/O Bus

The I/O Bus provides a simple bus for accessing to external modules using MicroBlaze™ Load/Store instructions. The I/O Bus is mapped at address C_IO_BASEADDR–C_IO_HIGHADDR in the MicroBlaze memory space, with the I/O Bus address directly reflecting the byte address used by MicroBlaze Load/Store instructions. I/O Bus data is 32-bit wide, with byte enables to write byte and half-word data.

Chapter 3

The I/O Bus has a ready handshake to handle different waitstate needs, from IO_Ready asserted the cycle after the IO_Addr_Strobe is asserted to as many cycles as needed. There is no timeout on the I/O Bus and MicroBlaze is stalled until IO_Ready is asserted.

IO_Address, IO_Byte_Enable, IO_Wr ite_Data, I O_Read_Strobe, IO_Write_Strobe are only valid when IO_Addr_Strobe is asserted. For read access IO_Read_Data is sampled at the rising Clk edge, when the slave has asserted IO_Ready.

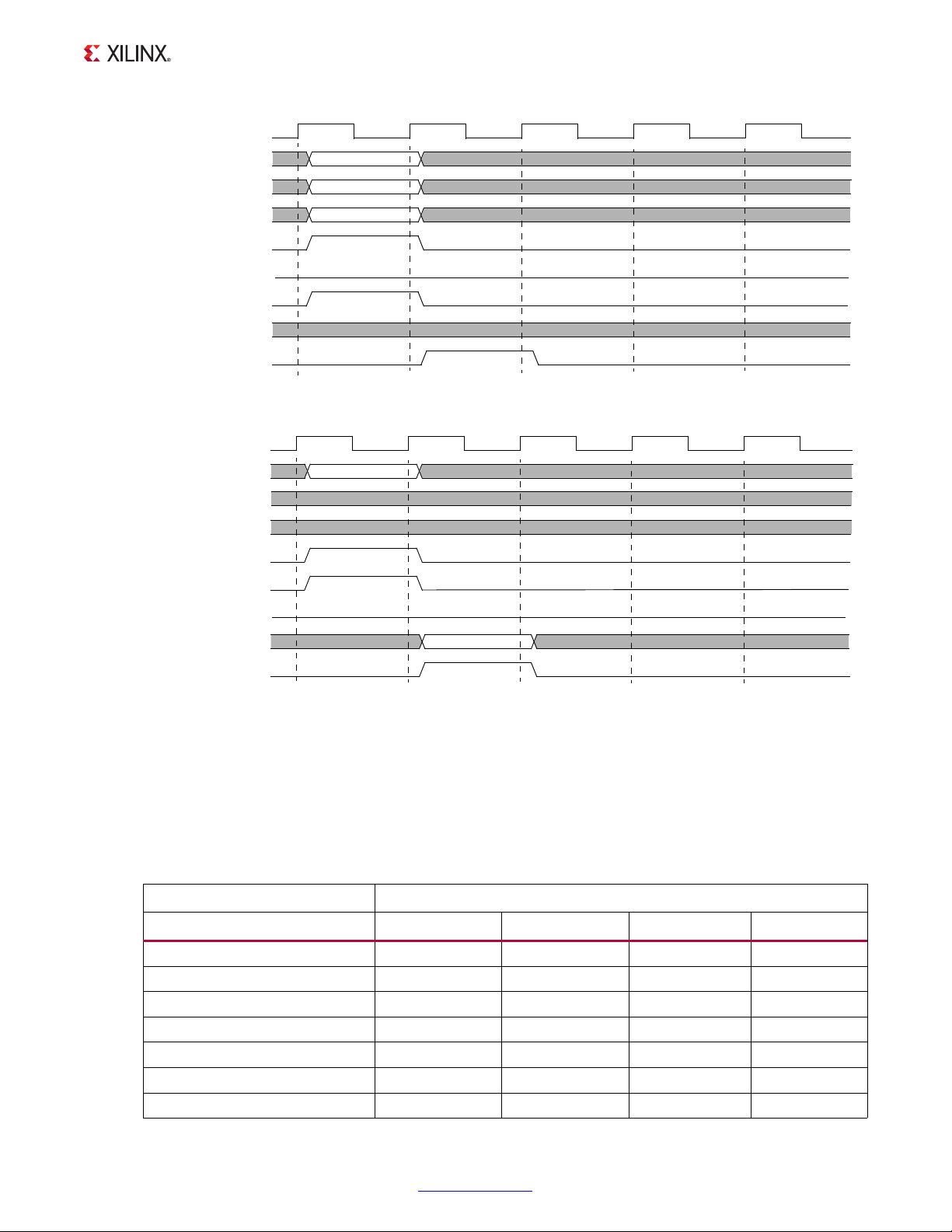

I/O Bus read and write transactions can be found in the two following timing diagrams in

Figure 3-1 and Figure 3-2.

I/O Module v1.02a www.xilinx.com 23

PG052 October 16, 2012

Clk

IO_Address

IO_Byte_Enab

IO_Write_Dat

IO_Addr_Stro

IO_Read_Stro

IO_Write_Stro

IO_Read_Data

IO_Ready

Clk

IO_Address

IO_Byte_Enab

IO_Write_Dat

IO_Addr_Stro

IO_Read_Stro

IO_Write_Stro

IO_Read_Data

IO_Ready

X-Ref Target - Figure 3-1

X-Ref Target - Figure 3-2

General Design Guidelines

Figure 3-1: I/O Bus Write

Figure 3-2: I/O Bus Read

The byte enable signals indicate which byte lanes of the data bus contain valid data. Valid values for IO_Byte_Enable are shown in Ta bl e 3 -1. The IO_Byte _Enable signal should be used instead of the two least significant bits of the IO_Address to decode byte and halfword accesses, to ensure that byte and halfword accesses are correctly decoded independent of MicroBlaze endianess.

Table 3-1: Valid Values for IO_Byte_Enable[3:0]

IO_Byte_Enable IO_Data_Write and IO_Data_Read Byte Lanes Used

[3:0] [31:24] [23:16] [15:8] [7:0]

0001 l

0010 l

0100 l

1000 l

0011 l l

1100 l l

1111 l l l l

I/O Module v1.02a www.xilinx.com 24

PG052 October 16, 2012

General Design Guidelines

The I/O Bus is fully compatible with the Xilinx Dynamic Reconfiguration Port (DRP). This configuration port supports partial dynamic reconfiguration of functional blocks, such as CMTs, clock management, XADC, serial transceivers, and the PCIe® block.

The nominal connection of the I/O Bus to the DRP is shown in Tab l e 3 -2.

Table 3-2: Mapping of the I/O Bus to the Dynamic Reconfiguration Port

MicroBlaze MCS Signal DRP Signal Note

Clk DCLK

IO_Addr_Strobe DEN

IO_Read_Strobe - Not used by DRP

IO_Write_Strobe DWE

IO_Address[m+2:2] DADDR[m:0] Uses 32-bit word access for DRP

IO_Byte_Enable - Only 32-bit word accesses used for DRP

IO_Write_Data[n:0] DI[n:0] Data width depends on DRP (n < 32)

IO_Read_Data[n:0] DO[n:0] Data width depends on DRP (n < 32)

IO_Ready DRDY

For a detailed description of the DRP, see the 7 Series FPGAs Configuration User Guide

[Ref 2].

UART

The Universal Asynchronous Receiver Transmitter (UART) interface provides the controller interface for asynchronous serial data transfers. Features supported include:

• One transmit and one receive channel (full duplex)

• Configurable number of data bits in a character (5-8)

• Configurable parity bit (odd or even)

• Configurable and programmable baud rate

The UART performs parallel-to-serial conversion on characters received through LMB and serial-to-parallel conversion on characters received from a serial peripheral. The UART is capable of transmitting and receiving 8, 7, 6 or 5-bit characters, with 1-stop bit and odd, even or no parity. The UART can transmit and receive independently.

The device can be configured and its status can be monitored via the internal register set. The UART also asserts the UART_Interrupt output when the receiver becomes non-empty, when the transmitter becomes empty or when an error condition has occurred. The individual interrupt events are connected to the Interrupt Controller of the I/O Module and can be used to assert the INTC_IRQ output signal.

I/O Module v1.02a www.xilinx.com 25

PG052 October 16, 2012

General Design Guidelines

UART_BAUD

Clock Frequency of Clk (Hz)

Baud Rate 16•

------------------------------------ ------------------------

1–=

The UART can be configured with either fixed or programmable baud rate. When using programmable baud rate the UART_BAUD register is used to set the baud rate. The initial value of this register is determined from the selected fixed baud rate. The register value is calculated by the formula:

Fixed Interval Timer, FIT

The Fixed Interval Timer generates a strobe (interrupt) signal at fixed intervals. The Fixed Interval Timer asserts the output signal FITx_Interrupt one clock cycle every C_FITx_NO_CLOCKS. Operation begins immediately after FPGA configuration and the clock is running. The FITx_Toggle output signal is toggled each time FITx_Interrupt is asserted, creating a 50% duty cycle output with twice the FITx_Interrupt period. Using the parameter C_FITx_INTERRUPT, the FIT can be connected to the Interrupt Controller of the I/O Module and used for generating interrupts every time the strobe occurs.

Programmable Interval Timer, PIT

The Programmable Interval Timer, PIT, has a configurable width from 1 to 32. The PIT operation and period are controlled by software.

The PITx_Interrupt output signal is asserted one clock cycle when the timer lapses. The timer can be used in continuous mode, where the timer reloads automatically when it lapses. In continuous mode, the period between two PITx_Interrupt assertions is the value in PITx Preload Register + 2 count events.

The PIT can also be used in one-shot mode, where the timer stops when it has reached zero. The timer is implemented by means of a counter that is pre-loaded with the timer value and then decremented. When the counter reaches zero, the timer lapses, and the interrupt signal is generated. The timer starts counting when it is enabled by setting the EN bit in the PITx Control Register.

The PITx_Toggle output signal is toggled each time PITx_Interrupt is asserted, creating a 50% duty cycle output with twice the PITx_Interrupt period when the timer is operated in continuous mode.

The value of the counter that implements the timer can be read by software if the C_PITx_Readable parameter is enabled.The PIT can have a pre-scaler connected from any FITx, PITx, or External. The pre-scaler is selected by the C_PITx_PRESCALER parameter. The PIT has no pre-scaler by default. If External is selected the input signal PITx_Enable is used as pre-scaler. Selecting External as pre-scaler can also be used to measure the width in clock cycles of a signal connected to the PITx_Enable input.

Using the parameter C_PITx_INTERRUPT, the PIT can be connected to the Interrupt Controller of the I/O Module and used for generating interrupts every time it lapses.

I/O Module v1.02a www.xilinx.com 26

PG052 October 16, 2012

General Design Guidelines

General Purpose Output, GPO

The General Purpose Output, GPO, drives I/O Module GPO output signals defined by the value of the GPOx register, programmable from software. The width of the GPOx is defined by the C_GPOx_SIZE and the initial value is defined by the parameter C_GPOx_INIT. When the GPOx register is written, the value of the GPOx output signals change accordingly.

General Purpose Input, GPI

The General Purpose Input, GPI, makes it possible for software to sample the value of the I/O Module GPI input signals by reading the GPIx register. The width of GPIx is defined by the parameter C_GPIx_SIZE.

Using the parameter C_GPIx_INTERRUPT, the GPI can be connected to the Interrupt Controller of the I/O Module and used for generating interrupts every time an input changes.

Interrupt Controller INTC

The Interrupt Controller handles both I/O module internal interrupt events and external ones. The internal interrupt events originate from the UART, the Fixed Interval Timers, the Programmable Interval Timers, or the General Purpose Inputs. For an internal interrupt to be generated on the INTC_IRQ output, the corresponding I/O Module parameter needs to be set, for example, C_UART_RX_INTERRUPT=1, and that particular interrupt needs to be enabled in the Interrupt Enable Register.

The Interrupt Controller supports up to 16 external interrupts using the INTC_Interrupt inputs. The number of external interrupts is defined by the parameter, C_INTC_INTR_SIZE. The external interrupt signals can be individually configured as either edge or level sensitive by the C_INTC_LEVEL_EDGE parameter. The polarity of the external interrupt signals can be individually configured to be either active-High (rising edge) or Low (falling edge) by the C_INTC_POSITIVE parameter. Interrupt events for external interrupt sources are generated according to Tab le 3 -3 .

Table 3-3: Interrupt Event Generation

C_INTC_LEVEL_EDGE(x) C_INTC_POSITIVE(x) INTC_Interrupt(x) Input

00 0

01 1

10 1 -> 0

11 0 -> 1

00 0

The current status of all interrupt sources can be read from the Interrupt Status Register. The current status of all enabled interrupts can be read from the Interrupt Pending Register.

I/O Module v1.02a www.xilinx.com 27

PG052 October 16, 2012

LMB Timing

An interrupt is cleared in both the Interrupt Status and Interrupt Pending Registers by writing to the Interrupt Acknowledge Register, with bits set corresponding to the interrupts that should be cleared.

Either normal or fast interrupt mode can be used, based on latency requirement. Fast interrupt mode is available when the parameter C_INTC_HAS_FAST is set, and is enabled for an interrupt by setting the corresponding bit in the Interrupt Mode Register (IRQ_MODE). In this case, the Interrupt Controller drives the interrupt vector address of the highest priority interrupt on the INTC_Interrupt_Address port, along with INTC_IRQ. The generated interrupt is cleared based on acknowledge received from the processor through the INTC_Interrupt_Ack port. The processor sends 0b01 on this port when the interrupt is being acknowledged by the processor (that is, when branching to the interrupt service routine), sends 0b10 when executing a return from interrupt instruction in the interrupt service routine, and sends 0b11 when interrupts are re-enabled. The bit in IRQ_STATUS corresponding to the interrupt is cleared when 0b10 or 0b11 is seen on the port.

With fast interrupt mode, the interrupt vector address for each interrupt is stored in the corresponding IRQ_VECTOR register. To be compatible with normal mode, the registers are initialized to C_INTC_BASE_VECTORS + 0x10 after reset, which is equivalent to the static interrupt vector used by normal mode.

LMB Timing

See the MicroBlaze Bus Interfaces chapter in the MicroBlaze Processor Reference Guide

[Ref 1] for details on the transaction signaling.

Clocking

The I/O Module is fully synchronous with all clocked elements clocked with the Clk input.

Resets

The Rst input is the master reset input signal for the I/O Module.

I/O Module v1.02a www.xilinx.com 28

PG052 October 16, 2012

Protocol Description

See LMB Interface Description timing diagrams in the MicroBlaze Processor Reference Guide

[Ref 1].

I/O Module v1.02a www.xilinx.com 29

PG052 October 16, 2012

SECTION II: VIVADO DESIGN SUITE

Customizing and Generating the Core

Constraining the Core

I/O Module v1.02a www.xilinx.com 30

PG052 October 16, 2012

Chapter 4

Customizing and Generating the Core

This chapter includes information on using Xilinx tools to customize and generate the core in the Vivado™ Design Suite.

GUI

The I/O Module parameters are divided in seven tabs: System, UART, FIT Timers, PIT Timers, GPO, GPI and Interrupt. When using Vivado IP Integrator, the addresses and masks are auto generated.

The System tab is shown in Figure 4-1.

X-Ref Target - Figure 4-1

Figure 4-1: System Tab

• I/O Module Register Base Address - Base address of the internal registers.

• I/O Module Register High Address - High address of the internal registers.

I/O Module v1.02a www.xilinx.com 31

PG052 October 16, 2012

GUI

• I/O Module Register Address Decode Mask - A mask indicating which address bits

the module takes into account when decoding a register access.

• Enable IO Bus - Enables the I/O Bus to connect to DRP or external peripherals.

• I/O Module IO Bus Base Address - Base address of the I/O Bus.

• I/O Module IO Bus High Address - High address of the I/O Bus.

• I/O Module IO Bus Address Decode Mask - A mask indicating which address bits the

module takes into account when decoding an I/O Bus access.

The UART parameter tab is shown in Figure 4-2.

X-Ref Target - Figure 4-2

Figure 4-2: UART Parameter Tab

• Enable Receiver - Enables UART receiver for character input. This is automatically

connected to standard input (stdin) in the software program.

• Enable Transmitter - Enables UART transmitter for character output. This is

automatically connected to standard output (stdout) in the software program.

• Define Baud Rate - Sets the UART baud rate. To get the correct baud rate, the input

clock frequency must also be correctly defined.

• Programmable Baud Rate - Determines if the UART baud rate is programmable. The

default baud rate is calculated based on the input clock frequency and the defined baud rate.

I/O Module v1.02a www.xilinx.com 32

PG052 October 16, 2012

GUI

• Number of Data Bits - Defines the number of data bits used by the UART. Should

almost always be set to 8.

• Use Parity - Enable this parameter to use parity checking of the UART characters.

• Even or Odd Parity - Select odd or even parity. Only available when parity is used.

• Implement Receive Interrupt - Generate an interrupt when the UART has received a

character. When the interrupt is not enabled the UART must be polled to check if data has been received.

• Implement Transmit Interrupt - Generate an interrupt when the UART has sent a

character. When the interrupt is not enabled the UART must be polled to wait until data has been transmitted.

• Implement Error Interrupt - Generate an interrupt if an error occurs when the UART

receives a character. This error can be a framing error, an overrun error or a parity error (if parity is used), When the interrupt is not enabled the UART must be polled to check if an error has occurred after a character has been received.

The FIT Timer parameter tab showing the parameters for one of the four timers is shown in

Figure 4-3.

X-Ref Target - Figure 4-3

Figure 4-3: FIT Timers Parameter Tab

• Use FIT - Enable the Fixed Interval Timer.

• Number of Clocks Between Strobes - The number of clock cycles between each

strobe.

• Generate Interrupt - Generate an interrupt for each Fixed Interval Timer strobe.

I/O Module v1.02a www.xilinx.com 33

PG052 October 16, 2012

GUI

The PIT Timer parameter tab showing the parameters for one of the four timers is shown in

Figure 4-4.

X-Ref Target - Figure 4-4

Figure 4-4: PIT Timers Parameter Tab

• Use PIT - Enable the Programmable Interval Timer.

• Number of Bits for Timer - The maximum number of cycles to count before stopping

or restarting.

• Shall Counter Value be Readable - The Programmable Interval Timer counter is

readable by software when this parameter is set. Unless resource usage is very critical it is recommended to keep this enabled.

• Define Prescaler - Selects a prescaler as source for the Programmable Interval Timer

count. When no prescaler is selected the core input clock is used. Any Programmable Interval Timer or Fixed Interval Timer can be used as prescaler, as well as a dedicated external enable input.

• Generate Interrupt - Generate an interrupt when the Programmable Interval Timer has

counted down to zero.

The GPO parameter tab showing the parameters for one of the four General Purpose Output ports is shown in Figure 4-5.

I/O Module v1.02a www.xilinx.com 34

PG052 October 16, 2012

X-Ref Target - Figure 4-5

GUI

Figure 4-5: GPO Parameter Tab

• Use GPO - Enable the General Purpose Output port.

• Number of Bits - Set the number of bits of the General Purpose Output port.

• Initial Value of GPO - Set the initial value of the General Purpose Output port. The

right most bit in the value is assigned to bit 0 of the port, the next right most to bit 1, and so on.

The GPI parameter tab showing the parameters for one of the four General Purpose Input ports is shown in Figure 4-6.

I/O Module v1.02a www.xilinx.com 35

PG052 October 16, 2012

X-Ref Target - Figure 4-6

GUI

Figure 4-6: GPI Parameter Tab

• Use GPI - Enable the General Purpose Input port.

• Number of Bits - Set the number of bits of the General Purpose Input port.

• Generate Interrupt - Generate an interrupt when a General Purpose Input changes.

The Interrupt parameter tab is shown in Figure 4-7.

I/O Module v1.02a www.xilinx.com 36

PG052 October 16, 2012

X-Ref Target - Figure 4-7

Parameter Values

Figure 4-7: Interrupt Parameter Tab

• Use External Interrupts - Enable the use of external interrupt inputs.

• Number of External Inputs - Select the number of used external interrupt inputs.

• Level or Edge of External Interrupts - Select whether the input is considered level

sensitive or edge triggered. Each bit in the value corresponds to the equivalent interrupt input. When a bit is set to one, the interrupt is edge triggered, otherwise it is level sensitive.

• Positive or Negative External Interrupts - Set whether to use high or low level for

level sensitive interrupts, and rising or falling edge for edge triggered interrupts. Each bit in the value corresponds to the equivalent interrupt input When a bit is set to one, high level or rising edge is used, otherwise low level or falling edge is used.

• Use Low-latency Interrupt Handling - Enable the use of low-latency interrupt

handling.

Parameter Values

To obtain an I/O Module that is uniquely tailored a specific system, certain features can be parameterized in the I/O module design. This allows for configuring a design that only uses the resources required by the system, and operates with the best possible performance. The features that can be parameterized in I/O Module designs are shown in Tab le 4- 1 .

I/O Module v1.02a www.xilinx.com 37

PG052 October 16, 2012

Table 4-1: I/O Module Parameters

Parameter Values

Parameter Name Feature/Description

C_FAMILY

(1)

FPGA Architecture Supported

Allowable

Val u es

architectures

I/O Bus Parameter

C_USE_IO_BUS Use I/O Bus 0 = Not Used

1 = Used

UART Parameters

C_USE_UART_RX Use UART Receive 0 = Not Used

1 = Used

C_USE_UART_TX Use UART Transmit 0 = Not Used

1 = Used

C_UART_BAUDRATE Baud rate of the UART in

bits per second

C_UART_PROG_ BAUDRATE

Programmable UART Baud rate

C_UART_DATA_BITS The number of data bits in

the serial frame

C_UART_USE_PARITY Determines whether parity

is used or not

C_UART_ODD_PARITY If parity is used,

determines whether parity is odd or even

C_UART_RX_INTERRUPT Use UART RX Interrupt in

INTC

C_UART_TX_INTERRUPT Use UART TX Interrupt in

INTC

C_UART_ERROR_ INTERRUPT

Use UART ERROR Interrupt in INTC

integer (e.g. 115200)

0 = Not Used 1 = Used

5 - 8

0 = No Parity 1 = Use Parity

0 = Even Parity 1 = Odd Parity

0 = Not Used 1 = Used

Default

Value

“virtex5” string

0 integer

9600 integer

0 integer

8 integer

0 integer

VHDL Type

FIT Parameters

C_USE_FITx

(2)

C_FITx_No_CLOCKS

C_FITx_INTERRUPT

(2)

Enable implementation of FIT

(2)

The number of clock cycles between strobes

Use FITx_Interrupt in INTC 0 = Not Used

0 = Not Used 1 = Used

1 = Used

0 integer

6216 integer

0 integer

PIT Parameters

C_USE_PITx

C_PITx_SIZE

(2)

C_PITx_READABLE

(2)

Enable implementation of PIT

0 = Not Used 1 = Used

Size of PITx counter 1 - 32

Make PITx counter software readable

0 = Not SW readable 1 = SW readable

0 integer

1 integer

I/O Module v1.02a www.xilinx.com 38

PG052 October 16, 2012

Table 4-1: I/O Module Parameters (Cont’d)

Parameter Values

Parameter Name Feature/Description

C_PITx_PRESCALER

C_PITx_INTERRUPT

(2)(3)

(2)

Select PITx prescaler 0 = No prescaler

Use PITx_Interrupt in INTC 0 = Not Used

GPO Parameters

(2)

Use GPOx 0 = Not Used

Size of GPOx 1 - 32

Initial value for GPOx Fit Range

Use GPIx 0 = Not Used

Size of GPIx 1 - 32

C_USE_GPOx

C_GPOx_SIZE

C_GPOx_INIT

C_USE_GPIx

C_GPIx_SIZE

1 = FIT1 2 = FIT2 3 = FIT3 4 = FIT4 5 = PIT1 6 = PIT2 7 = PIT3 8 = PIT4 9 = External

1 = Used

(31:0)

GPI Parameters

1 = Used

Allowable

Val u es

Default

Value

0 integer

32 integer

all zeros std_logic_vector

0 integer

32 integer

VHDL Type

INTC Parameters

C_INTC_USE_EXT_INTR Use I/O Module external

interrupt inputs

C_INTC_INTR_SIZE Number of external

interrupt inputs used

C_INTC_LEVEL_EDGE Level or edge triggered for

each external interrupt

C_INTC_POSITIVE Polarity for each external

interrupt

C_INTC_HAS_FAST Use fast interrupt mode 0 = Not Used

C_INTC_ADDR_WIDTH Interrupt Address width 5 - 32

C_INTC_BASE_VECTORS Relocatable base vector

address

1. Values automatically populated by tool.

2. x =1, 2, 3 or 4.

3. Selecting PIT prescaler the same as PITx is illegal, e.g. PIT2 cannot be prescaler to itself.

4. The 7 least significant bits must all be 0.

0 = Not Used 1 = Used

1 - 16

For each bit: 0 = Level 1 = Edge

For each bit: 0 = active-Low 1 =active-High

1 = Used

0x00000000 0xFFFFFF80

(4)

level std_logic_vector

active-High std_logic_vector

0x00000000 std_logic_vector

0 integer

1 integer

0 integer

32 integer

I/O Module v1.02a www.xilinx.com 39

PG052 October 16, 2012

Constraining the Core

Required Constraints

There are no required constraints for this core.

Device, Package, and Speed Grade Selections

There are no Device, Package or Speed Grade requirements for this core.

Chapter 5

Clock Frequencies

There are no specific clock frequency requirements for this core.

Clock Management

The I/O Module is fully synchronous with all clocked elements clocked by the Clk input.

To operate properly when connected to MicroBlaze™, the Clk must be the same as the MicroBlaze Clk.

Clock Placement

There are no specific Clock placement requirements for this core.

I/O Module v1.02a www.xilinx.com 40

PG052 October 16, 2012

Banking

There are no specific Banking rules for this core.

Transceiver Placement

There are no Transceiver Placement requirements for this core.

I/O Standard and Placement

There are no specific I/O standards and placement requirements for this core.

Banking

I/O Module v1.02a www.xilinx.com 41

PG052 October 16, 2012

SECTION III: ISE DESIGN SUITE

Customizing and Generating the Core

Constraining the Core

I/O Module v1.02a www.xilinx.com 42

PG052 October 16, 2012

Chapter 6

Customizing and Generating the Core

This chapter includes information on using Xilinx tools to customize and generate the core in the ISE® Design Suite.

GUI

The I/O Module parameters are divided in seven tabs: System, UART, FIT Timers, PIT Timers, GPO, GPI and Interrupt.

The System tab showing the Addresses parameters is shown in Figure 6-1.

X-Ref Target - Figure 6-1

Figure 6-1: System Tab

• I/O Module Register Base Address - Base address of the internal registers.

• I/O Module Register High Address - High address of the internal registers.

I/O Module v1.02a www.xilinx.com 43

PG052 October 16, 2012

GUI

• I/O Module Register Address Decode Mask - A mask indicating which address bits

the module takes into account when decoding a register access.

• Enable IO Bus - Enables the I/O Bus to connect to DRP or external peripherals.

• I/O Module IO Bus Base Address - Base address of the I/O Bus.

• I/O Module IO Bus High Address - High address of the I/O Bus.

• I/O Module IO Bus Address Decode Mask - A mask indicating which address bits the

module takes into account when decoding an I/O Bus access.

The UART parameter tab is shown in Figure 6-2.

X-Ref Target - Figure 6-2

Figure 6-2: UART Parameter Tab

• Enable Receiver - Enables UART receiver for character input. This is automatically

connected to standard input (stdin) in the software program.

• Enable Transmitter - Enables UART transmitter for character output. This is

automatically connected to standard output (stdout) in the software program.

• Define Baud Rate - Sets the UART baud rate. To get the correct baud rate, the input

clock frequency must also be correctly defined.

I/O Module v1.02a www.xilinx.com 44

PG052 October 16, 2012
