Whirlpool AKZ 612 DATASHEET

AKZ 612

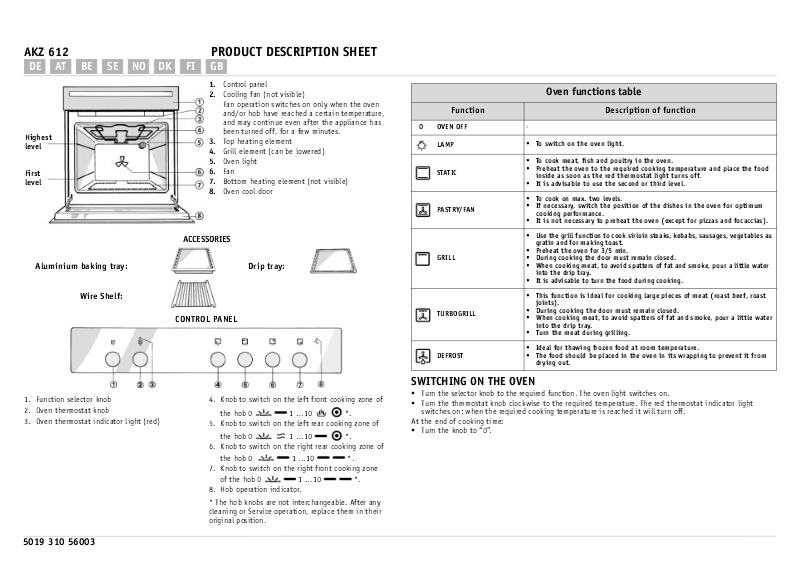

PRODUCT DESCRIPTION SHEET

DE

AT

BE

SE

NO

DK

FI

GB

Highest level

First level

Aluminium baking tray:

Wire Shelf:

1.Control panel

2.Cooling fan (not visible)

Fan operation switches on only when the oven and/or hob have reached a certain temperature, and may continue even after the appliance has been turned off, for a few minutes.

3.Top heating element

4.Grill element (can be lowered)

5.Oven light

6.Fan

7.Bottom heating element (not visible)

8.Oven cool door

ACCESSORIES

Drip tray:

CONTROL PANEL

1.	Function selector knob	4.	Knob to switch on the left front cooking zone of
2.	Oven thermostat knob		the hob 0	1 ...10	*.
3.	Oven thermostat indicator light (red)	5.	Knob to switch on the left rear cooking zone of
			the hob 0	1 ...10	*.
		6.	Knob to switch on the right rear cooking zone of
			the hob 0	1 ...10	*.
		7.	Knob to switch on the right front cooking zone
			of the hob 0	1 ...10	*.
		8.	Hob operation indicator.

		Oven functions table
	Function	Description of function
0	OVEN OFF
	LAMP	• To switch on the oven light.
		• To cook meat, fish and poultry in the oven.
	STATIC	• Preheat the oven to the required cooking temperature and place the food
		inside as soon as the red thermostat light turns off.
		• It is advisable to use the second or third level.
		• To cook on max. two levels.
	PASTRY/FAN	• If necessary, switch the position of the dishes in the oven for optimum
		cooking performance.
		• It is not necessary to preheat the oven (except for pizzas and focaccias).
		• Use the grill function to cook sirloin steaks, kebabs, sausages, vegetables au
		gratin and for making toast.
		• Preheat the oven for 3/5 min.
	GRILL	• During cooking the door must remain closed.
		• When cooking meat, to avoid spatters of fat and smoke, pour a little water
		into the drip tray.
		• It is advisable to turn the food during cooking.
		• This function is ideal for cooking large pieces of meat (roast beef, roast
		joints).
	TURBOGRILL	• During cooking the door must remain closed.
		• When cooking meat, to avoid spatters of fat and smoke, pour a little water
		into the drip tray.
		• Turn the meat during grilling.
		• Ideal for thawing frozen food at room temperature.
	DEFROST	• The food should be placed in the oven in its wrapping to prevent it from
		drying out.

SWITCHING ON THE OVEN

•Turn the selector knob to the required function. The oven light switches on.

•Turn the thermostat knob clockwise to the required temperature. The red thermostat indicator light switches on; when the required cooking temperature is reached it will turn off.

At the end of cooking time:

• Turn the knob to “0”.

* The hob knobs are not interchangeable. After any cleaning or Service operation, replace them in their original position.

5019 310 56003
