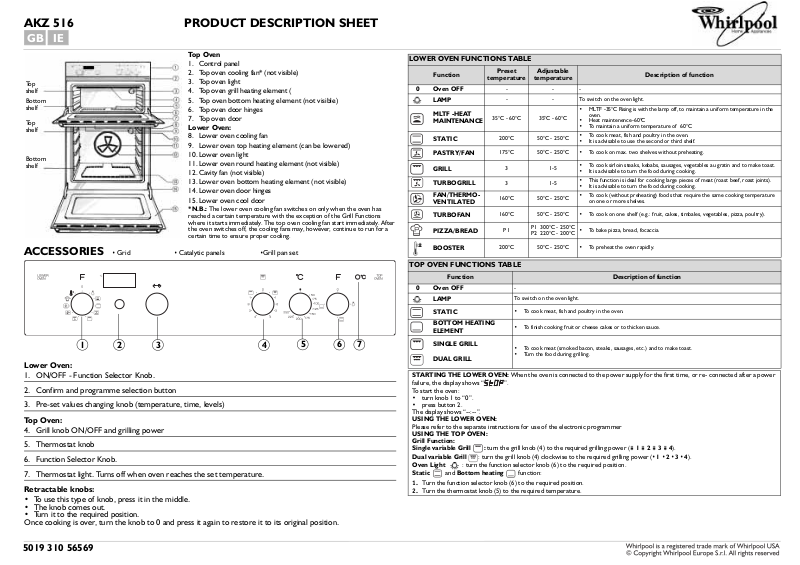

AKZ 516 |
PRODUCT DESCRIPTION SHEET |
GB IE |
Top Oven
|
|
|
|
|
1. |
Control panel |
|
|
|
|
|
|
|
|
|
|
|
2. |
Top oven cooling fan* (not visible) |
||||||
Top |
3. |
Top oven light |
|
|
|
|
|
|||||
shelf |
4. |
Top oven grill heating element ( |
||||||||||
Bottom |
5. |
Top oven bottom heating element (not visible) |
||||||||||
shelf |
6. |
Top oven door hinges |
||||||||||
Top |
7. |
Top oven door |
|
|
|
|
|
|||||
|
Lower Oven: |
|
|
|
|
|
||||||
shelf |
|
|
|
|
|
|
||||||
|
|
|
|
|
8. |
Lower oven cooling fan |
||||||
|
|
|
|
|
9. |
Lower oven top heating element (can be lowered) |
||||||
Bottom |
|
10. Lower oven light |
|
|
|
|
|
|||||
|
11. Lower oven round heating element (not visible) |
|||||||||||
shelf |
|
|||||||||||
|
|
|
|
|
|
12. Cavity fan (not visible) |
||||||
|
|
|
|
|
|
13. Lower oven bottom heating element (not visible) |
||||||
|
|
|
|
|
|
14. Lower oven door hinges |
||||||
|
|
|
|
|
|
15. Lower oven cool door |
||||||
|
|
|
|
|
|
*N.B.: The lower oven cooling fan switches on only when the oven has |
||||||
|
|
|
|
|
|
reached a certain temperature with the exception of the Grill Functions |
||||||
|
|
|
|
|
|
where it starts immediately. The top oven cooling fan start immediately. After |
||||||
|
|
|
|
|
|
the oven switches off, the cooling fans may, however, continue to run for a |
||||||
|
|
|
|
|
|
certain time to ensure proper cooling. |
||||||
ACCESSORIES • Grid |
|
• Catalytic panels |
•Grill pan set |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Lower Oven:
1.ON/OFF - Function Selector Knob.
2.Confirm and programme selection button
3.Pre-set values changing knob (temperature, time, levels)
Top Oven:
4.Grill knob ON/OFF and grilling power
5.Thermostat knob
6.Function Selector Knob.
7.Thermostat light. Turns off when oven reaches the set temperature.
Retractable knobs:
•To use this type of knob, press it in the middle.
•The knob comes out.
•Turn it to the required position.
Once cooking is over, turn the knob to 0 and press it again to restore it to its original position.
LOWER OVEN FUNCTIONS TABLE
|
|
Function |
Preset |
Adjustable |
|
Description of function |
|
|
temperature |
temperature |
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
0 |
Oven OFF |
- |
- |
- |
|
|
|
|
LAMP |
- |
- |
To switch on the oven light. |
|
|
|
|
|
|
|
|
|
|
MLTF -HEAT |
|
|
• MLTF -35°C Rising is with the lamp off, to maintain a uniform temperature in the |
|
|
|
35°C - 60°C |
35°C - 60°C |
|
oven. |
|
|
|
MAINTENANCE |
• |
Heat maintenence-60°C |
||
|
|
|
|
|||
|
|
|
|
|
• |
To maintain a uniform temperature of 60°C |
|
|
STATIC |
200°C |
50°C - 250°C |
• To cook meat, fish and poultry in the oven. |
|
|
|
• It is advisable to use the second or third shelf. |
||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
PASTRY/FAN |
175°C |
50°C - 250°C |
• To cook on max. two shelves without preheating. |
|
|
|
|
|
|
|
|
|
|
GRILL |
3 |
1-5 |
• To cook sirloin steaks, kebabs, sausages, vegetables au gratin and to make toast. |
|
|
|
• It is advisable to turn the food during cooking. |
||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
TURBOGRILL |
3 |
1-5 |
• This function is ideal for cooking large pieces of meat (roast beef, roast joints). |
|
|
|
• It is advisable to turn the food during cooking. |
||||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
FAN/THERMO- |
160°C |
50°C - 250°C |
• To cook (without preheating) foods that require the same cooking temperature |
|
|
|
VENTILATED |
|
on one or more shelves. |
||
|
|
|
|
|
||
|
|
TURBOFAN |
160°C |
50°C - 250°C |
• To cook on one shelf (e.g.: fruit, cakes, timbales, vegetables, pizza, poultry). |
|
|
|
|
|
|
|
|
|
|
PIZZA/BREAD |
P1 |
P1 300°C - 250°C |
• To bake pizza, bread, focaccia. |
|
|
|
P2 220°C - 200°C |
||||
|
|
|
|
|
|
|
|
|
BOOSTER |
200°C |
50°C - 250°C |
• To preheat the oven rapidly. |
|
|
|
|
|
|
|
|
TOP OVEN FUNCTIONS TABLE
|
Function |
Description of function |
|
|
|
0 |
Oven OFF |
- |
|
LAMP |
To switch on the oven light. |
|
|
|
|
STATIC |
• To cook meat, fish and poultry in the oven. |
|
|
|
|
BOTTOM HEATING |
• To finish cooking fruit or cheese cakes or to thicken sauce. |
|
ELEMENT |
|
|
|
|
|
|
|
|
SINGLE GRILL |
• To cook meat (smoked bacon, steaks, sausages, etc.) and to make toast. |
|
|
|
|
DUAL GRILL |
• Turn the food during grilling. |
|
|
|
|
|
|
STARTING THE LOWER OVEN: When the oven is connected to the power supply for the first time, or reconnected after a power failure, the display shows “
”.
To start the oven:
•turn knob 1 to “0”.
•press button 2.
The display shows “--:--”.
USING THE LOWER OVEN:
Please refer to the separate instructions for use of the electronic programmer
USING THE TOP OVEN:
Grill Function:
Single variable Grill |
: turn the grill knob (4) to the required grilling power ( 1 2 3 4). |
||
Dual variable Grill |
: turn the grill knob (4) clockwise to the required grilling power (• 1 • 2 • 3 • 4). |
||
Oven Light |
: turn the function selector knob (6) to the required position. |
||
Static |
and Bottom heating |
function: |
|
1.Turn the function selector knob (6) to the required position.
2.Turn the thermostat knob (5) to the required temperature.
5019 310 56569
