IMPORTANT:
Read and save

Part No. 3358974

these instructions.

IMPORTANT:
Installer: Leave Installation Instructions

with the homeowner.

Homeowner: Keep Installation Instructions

for future reference.

Save Installation Instructions for local

electrical inspector’s use.

Washer

220/23O=volt, 50-Hz Models

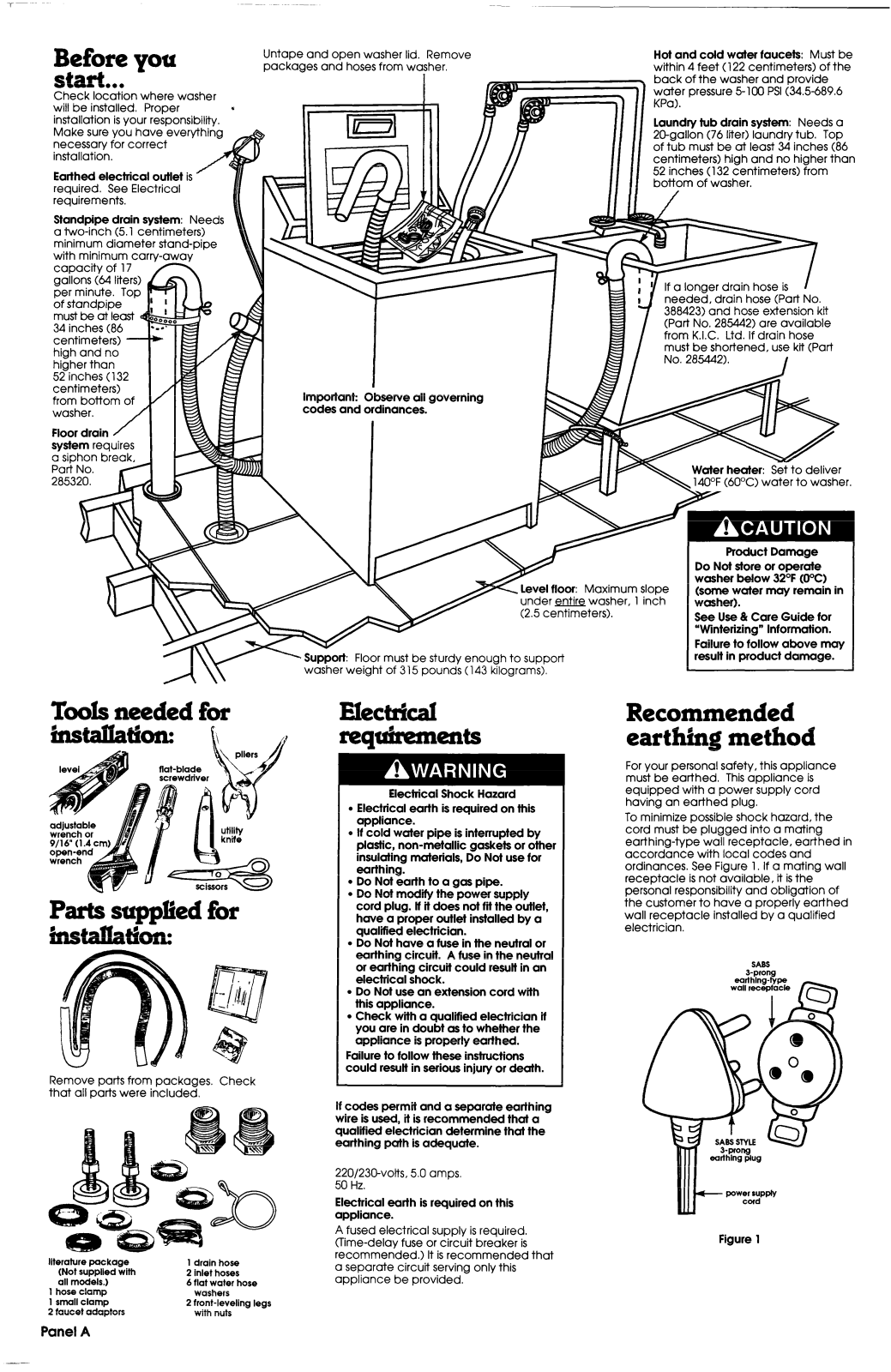

Check location where washer

will be installed. Proper

installation is your responsibility.

_.

Make sure you have everytt
necessary for correct
installation.

Earthed electrical outlet is ’

required. See Electrical
requirements.

Standpipe drain system: Needs

a two-inch (5.1 centimeters)

minimum diameter stand-pipe
with minimum carry-away

capacity of 17

gallons (64 liters)

per minute. Top
of standpipe

mustbeatleast a
34 inches (86
centimeters) ­high and no
higher than
52 inches (132
centimeters)
from bottom of
washer.

Floor drain
system requires
a siphon break,
Part No.

/

ling

I;

Untape and open washer lid. Remove
packages and hoses from washer.

c

I

Important: Observe all governing
codes and ordinances.

I

Hot and cold water faucets: Must be

within 4 feet (122 centimeters) of the

back of the washer and provide

water pressure 5 100 PSI 04.5-689.6

laundry tub drain system: Needs a
20-gallon (76 liter) laundry tub. Top
of tub must be at least 34 inches (86

igh and no higher than

centimeters) from

If a longer drain hose is
needed, drain hose (Part No.

388423) and hose extension kit

(Part No. 285442) are available
from K.I.C. Ltd. If drain hose
must be shortened, use kit (Part
No. 285442).

I

A \\

Tbols needed fm

Parts supplied for
itaanatia

Remove parts from packages. Check
that all parts were included,

floor: Maximum slope

r entire 1 inch washer,

Support: Floor must be sturdv enouah to suooort
w&her weight of 3 15 pounds ( 143 cogram’sj.

Elect&al
reqttirwnats

Electrical Shock Hazard

l

Electrical earth is required on this
appliance.

l

If cold water pipe is interrupted by
plastic, non-metallic gaskets or other
insulating materials, Do Not use for
earthing.

l

Do Not earth to a gas pipe.

l

Do Not modify the power supply
cord plug. lf it does not fii the outlet,
have a proper outlet installed by a
qualified electrician.

l

Do Not have a fuse in the neutral or
earthing circuit. A fuse in the neutral
or earthing circuit could result in an
electrical shock.

l

Do Not use an extension cord with

this appliance.

l

Check with a qualified electrician if
you are in doubt as to whether the
appliance is properly earthed.

Failure to follow these instructions
could result in serious injury or death.

If codes permit and a separate earthing
wire is used, it is recommended that a
qualified electrician determine that the
earthing path is adequate.

Product Damage

Do Not store or operate
washer below 32OF (0°C)
(some water may remain in

washer).
See Use 81 Care Guide for

“Winterizing” Information.
Failure to follow above may

result in product damage.

I

Recommended

earthing

For your personal safety, this appliance

must be earthed. This appliance is
equipped with a power supply cord
having an earthed plug.

To minimize possible shock hazard, the
cord must be plugged into a mating
earthing-type wall receptacle, earthed in
accordance with local codes and
ordinances. See Figure 1. If a mating wall
receptacle is not available, it is the
personal responsibility and obligcrtion of

the customer to have a properly earthed
wall receptacle installed by a qualified
electrician.

method

literature package

(Not supplied with

all models.)
1 hose clamp
1 small clamp

2 faucet adaptors

Panel A

1 drain hose
2 inlet hoses
6 flat water hose

washers

2 front-leveling legs

with nuts

220/230-votts, 5.0 amps.
50 Hz.

Electrical earth is required on this
appliance.

A fused electrical supply is required.
(Time-delay fuse or circuit breaker is
recommended.) It is recommended that
a separate circuit serving only this
appliance be provided.

Figure 1
