Page 1
www.iconeurope.com
Visit our website at
Model No. WEEVSY10230
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are
committed to providing complete customer satisfaction. If
you have questions, or if there
are missing parts, please call:
USER'S MANUAL
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the centre of
this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before
beginning assembly.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
2
Page 3
Keep hands and
fingers clear of
this area.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the weight system.
1. Read all instructions in this manual and in
the accompanying literature before using the
weight system. Use the weight system only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are adequately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in a commercial, rental, or institutional setting.
4. Use the weight system only on a level surface. Cover the floor or carpet beneath the
weight system to protect the floor.
5. Make sure all parts are properly tightened
each time the weight system is used.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the weight system at all times.
7. Keep hands and feet away from moving parts.
Always disconnect the lat bar from the
13.
weight system when performing an exercise
that does not use the lat bar.
14. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.
15. The decals shown here have been placed on
the weight system in the locations shown on
page 4. If a decal is missing or illegible,
please call our Customer Service Department
at 08457 089 009, to order a free replacement
decal. Apply the decal in the location shown.
8. Always wear athletic shoes for foot protection when using the weight system.
9. The weight system is designed to support a
maximum user weight of 135 kg (300 lbs.).
Never release the press arm, butterfly arms,
10.
leg lever, lat bar, or handle whilst weights are
raised; the weights will fall with great force.
1. Make sure that the cables remain on the pul-
1
leys at all times. If the cables bind whilst you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.
12. Always stand on the foot plate when performing an exercise that could cause the
weight system to tip.
Decal 1
Decal 2
Decal 3
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
hank you for selecting the versatile WEIDER
T
weight system. The weight system offers a selection of
eight stations designed to develop every major muscle
w
group of the body. Whether your goal is to tone your
body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight system
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight system. If you have additional ques-
Lat Bar
High Pulley Station
Press Arm/Butterfly Arm
Front Upright
®
970
8
ions, please call our Customer Service Department at
t
08457 089 009. To help us assist you, please note the
roduct model number and serial number before calling.
p
The model number is WEEVSY10230. The serial number can be found on a decal attached to the weight system (see the front cover of this manual).
Before reading further, please review the drawing below
and familiarise yourself with the parts that are labeled.
ASSEMBLED
DIMENSIONS:
Height: 188 cm (74 in.)
Width: 107 cm (42 in.)
Length: 152 cm (60 in.)
Warning Decal 2
(One on each side
of the front upright.)
Warning Decal 1
Warning Decal 3
Backrest
Leg Lever
Weight Stack
Seat
Low Pulley Station
Foot Plate
4
Page 5
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled successfully by anyone. However, it is important to
realise that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
DENTIFICATION CHAR
I
Assembly requires the included hex key
and the following tools (not included):
• two adjustable spanners
• one rubber mallet
• one standard screwdriver
• one Phillips screwdriver
• lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end spanners, or a set of ratchet spanners.
T.
FRAME ASSEMBLY
1. Before beginning assembly, be sure that you
have read and understand the information in
the box above.
Press the three Base Caps (28) onto the ends of
the Front Base (1), the Centre Base (2), and the
Rear Base (3). Secure the Base Caps with six M4
x 20mm Screws (72) and six M5 Washers (75).
2. Press two 50mm x 75mm Inner Caps (29) into
the sides of the Foot Plate (74).
Attach the Foot Plate (74) to the Centre Base (2)
with two M10 x 65mm Carriage Bolts (57) and
two M10 Nylon Locknuts (71).
Attach the Front Base (1) and the Rear Base (3)
to the Centre Base (2) with two M10 x 70mm
Bolts (58) and two M10 Nylon Locknuts (71).
not tighten the Locknuts yet.
Insert four M10 x 65mm Carriage Bolts (57) up
through the Front Base (1).
Do
1
2
1
28
2
58
3
71
71
75
72
2
58
1
57
57
29
28
75
72
28
75
72
3
71
74
29
57
5
Page 6
3. Press a 38mm Square Inner Cap (41) into the
tube on the Front Upright (6).
3
Attach the Front Upright (6) to the Front Base (1)
ith the two indicated M10 x 65mm Carriage
w
Bolts (57) and two M10 Nylon Locknuts (71). Do
not tighten the Locknuts yet.
71
1
1
4
6
71
57
4. Insert the two Weight Guides (31) into the indicated holes in the Rear Base (3) and secure them
with an M10 x 155mm Bolt (67), two M10
Washers (26), two 19mm Spacers (78), and an
M10 Nylon Locknut (71). Make sure that the
holes in the Weight Guides are closer to the
bottom. Do not overtighten the Locknut.
Slide two Weight Bumpers (32) onto the Weight
Guides (31).
4
32
31
Holes
78
71
26
3
78
26
67
6
Page 7
5. Slide the nine Weights (7) onto the Weight
Guides (31). Make sure the pin grooves are on
he indicated side.
t
ress the Weight Tube Bumper (14) into the
P
Weight Tube (20). Insert the Weight Tube into the
stack of Weights (7).
5
31
30
Lubricate
Lubricate the indicated holes in the Top Weight
(30) with grease. Slide the Top Weight onto the
Weight Guides (31).
Weight Tube (20) rests in the groove on the
bottom of the Top Weight.
Insert the Weight Pin (13) into the stack of
Weights (7).
6. Press two 50mm Square Inner Caps (22) into the
end of the Top Frame (8).
Attach the Top Frame (8) to the Front Upright (6)
with two M10 x 70mm Bolts (58), the 90mm
Space Support Plate (21), and two M10 Nylon
Locknuts (71).
Attach the Weight Guides (31) to the Top Frame
(8) with an M10 x 155mm Bolt (67), two M10
Washers (26), and an M10 Nylon Locknut (71).
Make sure the pin on the
Pin
20
14
7
13
Pin
Grooves
21
58
26
22
71
26
67
6
8
Do not tighten the M10 Nylon Locknuts (71) yet.
7. Press a 50mm Square Inner Cap (22) into the
Seat Upright (73).
Seat Upright with an M4 x 20mm Screw (72) and
an M5 Washer (75).
Attach the Seat Upright (73) to the Front Base (1)
with the two indicated M10 x 65mm Carriage
Bolts (57) and two M10 Nylon Locknuts (71).
not tighten the Locknuts yet.
Attach the Bumper (25) to the
Do
22
71
7
25
72
75
71
71
31
6
22
73
71
1
57
7
Page 8
8. Attach the Seat Frame (5) to the Front Upright (6)
with an M10 x 70mm Bolt (58), an M10 x 77mm
olt (60), three M10 Washers (26), and two M10
B
Nylon Locknuts (71).
ocknut on the M10 x 77mm Bolt; a cable will
L
be attached to this bolt in step 23.
Attach the Seat Frame (5) to the Seat Upright
(73) with two M10 x 70mm Bolts (58), two M10
Washers (26), and two M10 Nylon Locknuts (71).
Don’t over tighten the
8
58
60
8
5
26
5
71
26
Tighten the M10 Nylon Locknuts (71) used in
steps 1–8.
ARM ASSEMBLY
9. Press a 50mm Square Inner Cap (22) into the
Butterfly Frame (9).
Lubricate the M10 x 77mm Bolt (60) with grease.
Attach the Butterfly Frame (9) to the Top Frame
(8) with the Bolt and an M10 Nylon Locknut (71).
Do not overtighten the Locknut; the Butterfly
Frame must be able to pivot easily.
10. Press a 40mm x 50mm Inner Cap (23) into the
indicated end of the Right Butterfly Arm (11). Wet
the bottom end of the Arm with soapy water. Slide
a Large Foam Pad (19) onto the Arm.
Attach a Pivot Bracket (48) to the Right Butterfly
Arm (11) with an M10 x 53mm Bolt (61) and an
M10 Nylon Locknut (71). Do not overtighten the
Locknut; the Pivot Bracket must be able to
pivot easily.
Slide a Foam Grip (76) onto a Butterfly Handle
(12). Press a 31mm Round Inner Cap (24) into the
Butterfly Handle. Attach the Butterfly Handle to the
Right Butterfly
Head Bolts (64) and two M8 Washers (62).
Slide the Large Foam Pad (19) down so that the
bottom of the Foam Pad is even with the bottom
of the Right Butterfly Arm (11).
Arm (11) with two M8 x 15mm Allen
9
10
71
64
19
26
62
26
11
6
73
8
22
71
Lubricate
60
9
61
48
23
71
10
64
62
24
76
12
Repeat this step with the Left Butterfly
Arm (10).
8
Page 9
11. Lubricate an M10 x 80mm Allen Head Bolt (50)
and both sides of two Plastic Washers (55) with
grease. Attach the Right Butterfly Arm (11) to the
Butterfly Frame (9) with the Bolt, the two Plastic
Washers, two Butterfly Caps (54), two M10
Washers (26), and an M10 Nylon Locknut (71).
Do not overtighten the Locknut; the Butterfly
rm must be able to pivot easily. Make sure
A
the indented sides of the Plastic Washers fit
over the welded bushing in the Butterfly Arm.
Repeat this step with the Left Butterfly Arm (10).
1
1
Welded
Bushing
1
1
55
Lubricate
Lubricate
55
2
54
9
54
71
26
50
10
6
12. Press two 40mm x 50mm Inner Caps (23) into
the ends of the Leg Lever (4).
Lubricate an M10 x 65mm Bolt (81) with grease.
Attach the Leg Lever (4) to the Seat Upright (73)
with the Bolt and an M10 Nylon Locknut (71). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
CABLE ASSEMBLY
13. Locate the Butterfly Cable (46). Attach the
Cable to the indicated Pivot Bracket (48) with an
M8 x 27mm Shoulder Bolt (63) and an M8 Nylon
Locknut (70).
14. Wrap the Butterfly Cable (46) over a “V”-pulley
Attach the “V”-pulley and a Long Cable
(39).
(40) to the bracket on the Front Upright (6) with
an M10 x 57mm Bolt (69) and an M10 Nylon
Locknut (71). Be sure the Cable T
to hold the Cable in the groove of the Pulley
rap is turned
T
rap
.
12
13
14
71
23
73
23
81
4
Lubricate
6
71
70
39
40
48
46
63
69
46
9
Page 10
15. Wrap the Butterfly Cable (46) under a 90mm
Pulley (38). Attach the Pulley and a pair of Pulley
overs (44) to the Double “U”-bracket (37) with
C
an M10 x 53mm Bolt (61) and an M10 Nylon
ocknut (71). M
L
Pulley Covers are on top.
ake sure the small tabs on the
15
46
Small
Tabs
44
8
3
16. Wrap the Butterfly Cable (46) over a “V”-pulley
(39). Attach the “V”-pulley and a Long Cable Trap
(40) to the bracket on the Front Upright (6) with
an M10 x 57mm Bolt (69) and an M10 Nylon
Locknut (71).
turned to hold the Cable in the groove of the
Pulley.
17. Attach the Butterfly Cable (46) to the indicated
Pivot Bracket (48) with an M8 x 27mm Shoulder
Bolt (63) and an M8 Nylon Locknut (70).
Make sure the Cable Trap is
16
17
46
39
63
69
70
40
46
48
44
71
61
37
6
71
18. Locate the High Cable (45). Route the bolt end
of the Cable up through the Top Frame (8) and
over a 90mm Pulley (38). Attach the Pulley inside
the Top Frame with an M10 x 68mm Bolt (59),
two M10 Washers (26), two 13mm Spacers (34),
and an M10 Nylon Locknut (71).
Wrap the High Cable (45) over a 90mm Pulley
19.
(38). Attach the Pulley inside the T
with an M10 x 68mm Bolt (59), two M10 Washers
(26), two 13mm Spacers (34), and an M10 Nylon
Locknut (71).
op Frame (8)
18
19
26
71
34
8
38
34
26
59
45
34
26
71
45
8
38
26
34
59
10
Page 11
20. Wrap the High Cable (45) under a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
overs (44) to the second set of holes from the
C
top of the two Pulley Plates (36) with an M10 x
3mm Bolt (61) and an M10 Nylon Locknut (71).
5
Make sure that the small tabs on the Pulley
Covers are on top.
20
71
45
Small
Tabs
44
3
44
36
38
6
61
21. Wrap the High Cable (45) over a 90mm Pulley
(38). Attach the Pulley inside the Top Frame (8)
with an M10 x 68mm Bolt (59), two M10 Washers
(26), two 13mm Spacers (34), and an M10 Nylon
Locknut (71).
22. Attach the High Cable (45) to the “U”-bracket (77)
with an M8 Washer (62), and an M8 Nylon
Locknut (70).
Locknut; it should be tightened so that only
two threads of the Cable show past the
Locknut, as shown in the inset drawing.
Attach the “U”-bracket (77) to the Weight Tube
(20) with an M8 x 43mm Bolt (56) and an M8
Nylon Locknut (70). Do not overtighten the
Locknut; the Weight Tube must be able to
pivot easily.
23. Locate the Short Cable (83). Remove the M10
Nylon Locknut (71) from the indicated M10 x
77mm Bolt (60). Attach the Cable to the Bolt with
the Locknut.
Do not completely tighten the
21
22
23
56
60
38
26
71
34
8
45
70
77
62
70
20
6
71
83
45
34
59
26
45
70
77
Wrap the Short Cable (83) over a 90mm Pulley
24.
(38). Attach the Pulley and a pair of Pulley
Covers (44) to the Double “U”-bracket (37) with
an M10 x 53mm Bolt (61) and an M10 Nylon
Locknut (71). Make sure that the large tabs on
the Pulley Covers are on top.
11
24
Large Tab
44
83
71
37
61
44
Page 12
25. Attach the Short Cable (83) to the Large “U”bracket (82) with an M8 Washer (62) and an M8
ylon Locknut (70). D
N
the Locknut; it should be tightened so that
nly two threads of the Cable show past the
o
Locknut, as shown in the inset drawing.
o not completely tighten
5
2
83
83
26. Locate the Low Cable (47). Route the Cable
through the cage and under a 90mm Pulley (38).
Attach the Pulley and a pair of Pulley Covers (44)
inside the indicated bracket on the Centre Base
(2) with an M10 x 53mm Bolt (61) and an M10
Nylon Locknut (71).
tabs on the Pulley Covers are on top.
27. Wrap the Cable under a 90mm Pulley (38). Attach
the Pulley and a pair of Pulley Covers (44) inside
the indicated bracket on the Centre Base (2) with
an M10 x 53mm Bolt (61) and an M10 Nylon
Locknut (71). Make sure that the large tabs on
the Pulley Covers are on top.
Make sure that the large
26
27
70
62
44
61
44
38
82
2
70
82
Large Tab
44
71
Cage
47
Large Tab
44
38
71
28. Wrap the Low Cable (47) over a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
Covers (44) to the second set of holes from the
bottom of the two Pulley Plates (36) with an M10
x 53mm Bolt (61) and an M10 Nylon Locknut
Make sure that the large tabs on the
(71).
Pulley Covers are on top.
Wrap the Low Cable (47) under a 90mm Pulley
29.
(38). Attach the Pulley and a pair of Pulley
Covers (44) inside the indicated bracket on the
Front Base (1) with an M10 x 53mm Bolt (61) and
an M10 Nylon Locknut (71).
tabs on the Pulley Covers are on top.
Make sure the small
28
29
Small Tab
44
71
1
61
44
71
38
2
36
61
Large Tab
38
47
44
61
44
47
12
Page 13
30. Wrap the Low Cable (47) over a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
overs (44) to the Large “U”-bracket (82) with an
C
M10 x 53mm Bolt (61) and an M10 Nylon Locknut
ake sure the small tabs on the Pulley
71). M
(
Covers are on the bottom.
0
3
2
8
71
44
1
6
31. Wrap the Low Cable (47) under a 90mm Pulley
(38). Attach the Pulley and a pair of Pulley
Covers (44) inside the Front Upright (6) with an
M10 x 68mm Bolt (59), two M10 Washers (26),
two 8mm Spacer (51), and an M10 Nylon Locknut
Make sure the large tabs on the Pulley
(71).
Covers are oriented as shown.
32. Route the Low Cable (47) through the Seat
Upright (73) and under a 90mm Pulley (38).
Attach the Pulley and a pair of Pulley Covers (44)
inside the Seat Upright with an M10 x 68mm Bolt
(59), two M10 Washers (26), two 8mm Spacer
(51), and an M10 Nylon Locknut (71). Make sure
the small tabs on the Pulley Covers are on the
bottom.
31
Large Tab
32
Small Tab
4
71
44
38
44
26
47
71
38
51
26
38
47
51
44
44
51
6
26
59
73
51
See the inset drawing. Attach the end of the
Low Cable (47) to the Leg Lever (4) with an M8 x
27mm Shoulder Bolt (63) and an M8 Nylon
Locknut (70).
SEAT ASSEMBLY
33. Orient the Seat (16) as shown. Attach the Seat to
the Seat Frame (5) with an M6 x 65mm Screw
(65), an M6 Washer (35), and two M6 x 15mm
Screws (66).
13
70
33
W
End
63
ide
47
44
47
Small
Ta b
16
5
35
66
65
26
59
Page 14
34. Attach the Backrest (15) to the Front Upright (6)
with two M6 x 65mm Screws (65), and two M6
ashers (35).
W
34
15
6
65
5
3
65
35
35. Press two 19mm Round Inner Caps (27) into the
ends of a Pad Tube (17). Slide the Pad Tube
through the hole in the Leg Lever (4). Slide two
Foam Pads (18) onto the ends of the Pad Tube.
Repeat this step with the other Pad Tube (17)
and the Seat Upright (73).
36. Insert the two Locking Pins (53) into the Butterfly
Frame (9). Attach the tether on the Pins to the
Butterfly Frame with the M4 x 12mm Screw (68).
35
36
18
27
9
53
17
17
4
27
73
18
68
53
Make sure that all parts have been properly tightened. The use of all remaining parts will be explained in
37.
ADJUSTMENTS, beginning on the next page.
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If
the cables are not properly routed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAM on page 17 of this manual for proper cable routing. If there is any slack in the cables, you
will need to remove it by tightening the cables; see TIGHTENING THE CABLES on page 16.
14
Page 15
ADJUSTMENTS
This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 18 for important information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
ake sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediate-
M
ly. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ATTACHING THE ACCESSORIES TO A PULLEY
STATION
Attach the Lat Bar (42) to the High Cable (45) with a
Cable Clip (52). For some exercises, the Chain (not
shown) should be attached between the Lat Bar and
the High Cable with two Cable Clips. Adjust the
length of the Chain between the Lat Bar and the
High Cable so that the Lat Bar is in the correct
starting position for the exercise to be performed.
45
52
The Handle (not shown) can be attached in the same
manner. The accessories can be attached to the Low
Cable (not shown) in the same manner.
CHANGING THE WEIGHT SETTING
To change the weight setting of the weight stack,
insert the Weight Pin (13) under the desired Weight
(7). Make sure to insert the Weight Pin until the bent
end of the Weight Pin is touching the Weights, and
turn the bent end downward. The weight setting of the
weight stack can be changed from 6 pounds to 118.5
pounds, in increments of 12.5 pounds.
the cables and pulleys, the actual amount of
resistance at each exercise station may vary from
the weight setting. Use the WEIGHT RESISTANCE
CHART on page 16 to find the actual amount of
resistance at each weight station.
CONVERTING THE BUTTERFLY ARMS
o use the Butterfly
T
insert the Locking Pins (53) into the butterfly holes in
the Front Upright (6).
o use the Butterfly Arms (10, 11) as press arms,
T
insert the Locking Pins (53) into the press holes in the
Butterfly Frame (9).
Arms (10, 1
1) as butterfly arms,
Note: Due to
42
13
7
Butterfly
Holes
53
9
6
10
Make sure that the Locking Pins (53) are fully
inserted into the same set of holes before performing any exercises.
15
Press
Holes
11
Page 16
LOCKING THE WEIGHT STACK
o prevent unauthorised use of the weight system,
T
insert the Locking Bar (80) into the indicated hole in
ne of the Weight Guides (31) and secure the
o
Locking Bar with the Lock (79).
31
79
Remove the Lock (79) and Locking Bar (80) to use
the weight system again.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened.
Slack can be removed by moving a 90mm Pulley (not
shown) and pair of Pulley Covers (44) to a set of
holes closer to the centre of the two Pulley Plates
(36). Remove the M10 Nylon Locknut (71) and the
M10 x 53mm Bolt (61) from the Pulley Covers, the
Pulley, and the Pulley Plates. Re-attach the Pulley
and the Pulley Covers to the new set of holes in the
Pulley Plates with the Bolt and Nylon Locknut.
WEIGHT RESISTANCE CHART
80
71
44
61
36
61
The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6 lb. top
weight. The other numbers refer to the 12.5 lb. weight plates. Weight resistance shown for the butterfly arm station is for each butterfly arm. Note: The actual resistance at each station may vary due to differences in
individual weight plates as well as friction between the cables, pulleys, and weight guides.
Note: 1 lb. = .454 kg
WEIGHT
Top
1
2
3
4
5
6
7
8
HIGH PULLEY
(lbs.)
15
30
44
61
76
91
106
121
136
PRESS ARM
(lbs.)
22
35
52
66
89
97
114
129
143
BUTTERFLY
ARM (lbs.)
Arm)
(Per
18
31
44
60
75
82
97
109
124
LEG LEVER
(lbs.)
22
34
45
59
72
85
98
1
1
1
126
LOW PULLEY
(lbs.)
7
30
42
59
73
87
101
15
1
130
9
151
158
135
139
145
16
Page 17

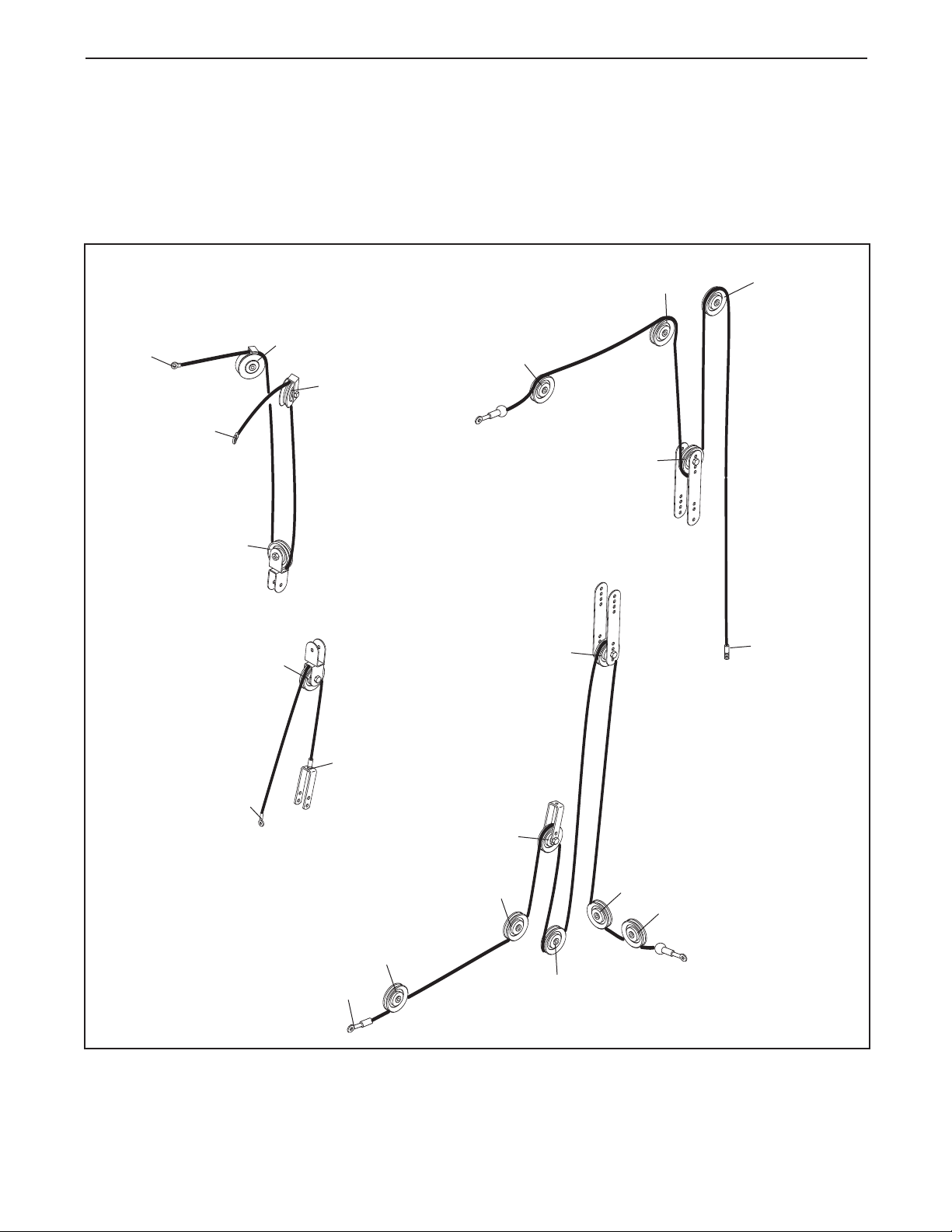

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Butterfly Cable (46), the High Cable (45), the Low
Cable (47), and the Short Cable (83). Use the diagrams to make sure that the cables and the cable traps have
been assembled correctly. If the cables have not been correctly routed, the weight system will not function properly and damage may occur. The numbers show the correct route for each cable.
raps do not touch or bind the cables.
t
Make sure that the cable
Butterfly Cable (46)
Length: 1.3m
5
1
High Cable (45)
Length: 2.6m
4
1
2
3
2
3
2
3
4
5
1
Short Cable (83)
Length: 1.0m
3
5
6
7
8
4
Low Cable (47)
Length: 4.5m
2
1
17
Page 18
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of weight for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of weight that is right
for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of weight and increase the number of repetitions in each set. Complete as many sets of 15 to 20
repetitions as possible without discomfort. Rest for 1
minute after each set. Work your muscles by completing more sets rather than by using high amounts of
weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Cross training is an ef
well-balanced fitness program.
anced program is:
• Plan weight training workouts on Monday,
ednesday, and Friday.
W
Plan 20 to 30 minutes of aerobic exercise, such as
•
cycling or swimming, on Tuesday and Thursday.
Rest from both weight training and aerobic exercise
•
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exer
cise will reshape and strengthen your body
op your heart and lungs.
ficient way to get a complete and
An example of a bal-
-
, plus devel
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time whilst exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
fective exercise program.
ef
through the full range of motion for each exercise, and
moving only the appropriate parts of the body
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles af
19 to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing.
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
-
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
fected. Refer to the muscle chart on page
This requires moving
.
The exertion stage of
-
18
Page 19
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. list the
date, the exercises performed, the weight used, and
the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to
achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
19
Page 20
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
CON Health & Fitness, Ltd.
I
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133
Fax: 0 (044) 113 387 7125
Please provide the following information when ordering replacement parts:
• the MODEL NUMBER of the product (WEEVSY10230)
®
• the NAME of the product (WEIDER
8970 weight system)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
centre of this manual)
Part No. 201405 R1003A
Printed in China
© 2003 ICON Health & Fitness, Inc.
Page 21
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the centre of this manual.
Some parts may have been pre-assembled for shipping. If you cannot find a part in the parts bags,
check to see if it has been pre-assembled.
Important:
Note: Assembly is divided into four stages: 1) frame assembly, 2) arm
assembly, 3) cable assembly, and 4) seat assembly. The hardware for
ait until you begin each stage to
each stage is packaged separately
open the parts bag for that stage.
. W
Page 22
PART LIST—Model No. WEEVSY10230 R1003A
Key No. Qty. Description Key No. Qty. Description
1 1 Front Base
2 1 Centre Base
3 1 Rear Base
4 1 Leg Lever
5 1 Seat Frame
6 1 Front Upright
7 9 Weight
8 1 Top Frame
9 1 Butterfly Frame
10 1 Left Butterfly Arm
11 1 Right Butterfly Arm
12 2 Butterfly Handle
13 1 Weight Pin
14 1 Weight Tube Bumper
15 1 Backrest
16 1 Seat
17 2 Pad Tube
18 4 Foam Pad
19 2 Large Foam Pad
20 1 Weight Tube
21 1 90mm Space Support Plate
22 4 50mm Square Inner Cap
23 4 40mm x 50mm Inner Cap
24 2 31mm Round Inner Cap
25 1 Bumper
26 23 M10 Washer
27 4 19mm Round Inner Cap
28 3 Base Cap
29 2 50mm x 75mm Inner Cap
30 1 Top Weight
31 2 Weight Guide
32 2 Weight Bumper
33 1
34 6 13mm Spacer
35
36 2
37 1 Double “U”-bracket
38 13 90mm Pulley
39
40 2 Long Cable Trap
41 1 38mm Square Inner Cap
42
43 2
44 20 Pulley Cover
3
2
1
Handle
M6 Washer
Pulley Plate
“V”-pulley
Lat Bar
Handgrip
45 1 High Cable
46 1 Butterfly Cable
47 1 Low Cable
48 2 Pivot Bracket
49 1 Chain
50 2 M10 x 80mm Allen Head Bolt
51 4 8mm Spacer
52 2 Cable Clip
53 2 Locking Pin
54 4 Butterfly Cap
55 4 Plastic Washer
56 1 M8 x 43mm Bolt
57 6 M10 x 65mm Carriage Bolt
58 7 M10 x 70mm Bolt
59 5 M10 x 68mm Bolt
60 2 M10 x 77mm Bolt
61 10 M10 x 53mm Bolt
62 6 M8 Washer
63 3 M8 x 27mm Shoulder Bolt
64 4 M8 x 15mm Allen Head Bolt
65 3 M6 x 65mm Screw
66 2 M6 x 15mm Screw
67 2 M10 x 155mm Bolt
68 1 M4 x 12mm Screw
69 2 M10 x 57mm Bolt
70 6 M8 Nylon Locknut
71 37 M10 Nylon Locknut
72 7 M4 x 20mm Screw
73 1 Seat Upright
74 1 Foot Plate
75 7 M5 Washer
76 2 Foam Grip
77 1
78 2 19mm Spacer
79
80 1
81 1 M10 x 65mm Bolt
82 1 Large “U”-bracket
83
# 1 User’s Manual
# 1 Exercise Guide
#
#
1
1
1
1
“U”-bracket
Lock
Locking Bar
Short Cable
Grease Packet
Hex Key
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Page 23
19mm Round Inner Cap (27)
50mm Square Inner Cap (22)
40mm x 50mm Inner Cap (23)
50mm x 75mm Inner Cap (29)
38mm Square Inner Cap (41)
31mm Round Inner Cap (24)
"V"-pulley (39)
(Not shown to scale)
90mm Pulley (38)
(Not shown to scale)
PART IDENTIFICATION CHART—Model No. WEEVSY10230 R1003A
Page 24
M6 Washer (35)
M10 Nylon Locknut (71)
M8 Nylon Locknut (70)
M5 Washer (75)
M4 x 12mm
Screw (68)
M6 x 65mm Screw (65)
M6 x 15mm Screw (66)
M10 x 65mm Carriage Bolt (57)
M10 x 70mm Bolt (58)
M10 x 65mm Bolt (81)
M10 x 77mm Bolt (60)
M10 x 53mm Bolt (61)
M10 x 57mm Bolt (69)
M8 x 27mm Shoulder Bolt (63)
M4 x 20mm Screw (72)
M8 Washer (62)
M10 x 155mm Bolt (67)
M10 x 80mm Allen Head Bolt (50)
M8 x 15mm Allen Head Bolt (64)
M8 x 43mm Bolt (56)
M10 x 68mm Bolt (59)
M10 Washer (26)
Page 25
8
1
REMOVE THIS PART LIST/EXPLODED DRAWING
FROM THE MANUAL.
SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE
Page 26
1
4
5
6
10
11
12
12
15
16
17
17
18
18
18
18
19
2
23
24
24
23
23
22
27
27
27
27
28
51
51
51
51
38
38
39
3
9
40
41
40
4
5
46
46
48
48
47
49
52
52
57
58
59
59
71
81
61
61
63
65
65
65
66
72
71
71
71
71
7
1
69
6
9
71
71
71
70
71
71
71
7
1
71
64
70
57
71
71
75
26
26
26
70
63
73
35
35
26
26
26
26
35
64
25
76
76
72
44
44
44
33
44
44
62
62
62
71
58
58
43
42
43
75
64
6
62
60
44
38
44
61
71
70
82
83
83
EXPLODED DRAWING—Model No. WEEVSY10230 R1003A
Loading...
