Weider 8630 Owner's Manual

®

Model No. WEEVSY52000

www.weiderfitness.com

Visit our website at

w

Serial No.

Write the serial number in the space
above for future reference.

Serial Number Decal (Under Seat)

QUESTIONS?

As a manufacturer, we are com­mitted to complete customer sat­isfaction. If you have questions,
or if there are missing parts, we
will guarantee complete satisfac­tion through direct assistance
from our factory.

USER'S MANUAL

Please CALL:

0345-089009

Or WRITE:
ICON Health & Fitness Ltd.
Revie Road Industrial Estate
Revie Road
Leeds
LS11 8JG

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

B

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

HOW TO USE THE TRAINING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

T

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . End of Manual

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . End of Manual

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: T

efore using the training system.

b

1. It is the responsibility of the owner to ensure
that all users of the training system are ade­quately informed of all precautions.

2. Read all instructions in this manual literature
before using the training system.

3. The training system is intended for home use

only. Do not use the training system in any
commercial, rental, or institutional setting.

4. Use the training system only on a level sur-

face. Place a mat beneath the training sys­tem to protect the floor or carpet.

5. Inspect and tighten all parts often. Replace

any worn parts immediately.

6. Always wear athletic shoes for foot protec-

tion.

7. Keep hands and feet away from moving parts.

8. Keep children under the age of 12 and pets

away from the training system at all times.

o reduce the risk of serious injury, read the following important precautions

12. When using the leg press station, always be
sure that the lock pin is fully inserted and
that the lock pin is clipped in place on the
adjustment tube (see page 23).

13. Always stand on the foot plate when per­forming an exercise that could cause the
training system to tip.

14. Always disconnect the lat bar from the train-

ing system when performing an exercise that
does not use the lat bar.

15. The decals shown at
the right (1) and
below (2) have been
attached to the train­ing system in the
locations shown on
page 4. If a decal is
missing or illegible,
please call 0345­089009 to order a free
replacement decal.

9. Make sure that the cables remain on the pul­leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.

10. Never release the press arm, butterfly arms,
leg lever, leg press plate, lat bar, ab strap, or
nylon strap while weights are raised. The
weights will fall with great force.

11. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool­ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

3

BEFORE YOU BEGIN

hank you for selecting the versatile WEIDER

T
training system. The WEIDER

®

8630 offers a selection

®

630

8

of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone

our body, build dramatic muscle size and strength, or

y
improve your cardiovascular system, the WEIDER

®

8630 will help you to achieve the specific results you
want.

For your benefit, read this manual carefully before
using the training system. If you have additional

High Pulley Station

Lat Bar

uestions, please call our Customer Service

q
Department Customer Service Department at
0345-089009. To help us assist you, please note the
product model number and serial number before call-

ng. The model number is WEEVSY52000. The serial

i
number can be found on a decal attached to the train­ing system (see the front cover of this manual).

Before reading further, please review the drawing
below and familiarise yourself with the parts that are
labeled.

ASSEMBLED
DIMENSIONS:
Height: 198 cm
Width: 163 cm
Length: 178 cm

Butterfly Arms

WARNING DECAL 1

Ab Pulley Station

Backrests

WARNING DECAL 2

Leg Lever

Low Pulley
Station

Foot Plate

WARNING

DECAL 1

Press Arm

Leg Press

Plate

WARNING

DECAL 2

Weight Stacks

4

ASSEMBLY

Make Assembly Easier for Yourself!

Everything in this manual is designed to
ensure that the training system can be
assembled successfully by anyone. Before

beginning assembly, make sure to read the
information on this page; this brief intro­duction will save you much more time than
it takes to read it!

Assembly Requires Two Persons

For your convenience and safety, assemble the
training system with the help of another person.

Make sure you have the following tools:

• Two (2) adjustable spanners

• One (1) standard screwdriver

• One (1) phillips screwdriver

• One (1) rubber mallet

• You will also need grease or petroleum jelly, a
small amount of soapy water, and clear tape or
masking tape.

Note: Assembly will be more convenient if you have
a socket set, a set of open-end or closed-end span­ners or a set of ratchet spanners.

Set Aside Enough Time

Due to the many features of the training system,
the assembly process will require about six hours.
By setting aside plenty of time and by deciding to
make the task enjoyable, assembly will go smoothly.
You may want to assemble the training system over
a couple of evenings.

Select a Location for the Training
System

Because of its weight and size, the training system
should be assembled in the location where it will be
used. Make sure that there is enough room to walk
around the training system as you assemble it.

How to Unpack the Box

To make assembly as easy as possible, we have
divided the assembly process into four stages. The
parts needed for each stage are found in individual
bags. Important: Wait until you begin each stage
to open the parts bag for that stage. Place all
parts of the training system in a cleared area and
remove the packing materials. Do not dispose of
the packing materials until assembly is completed.

How to Identify Parts

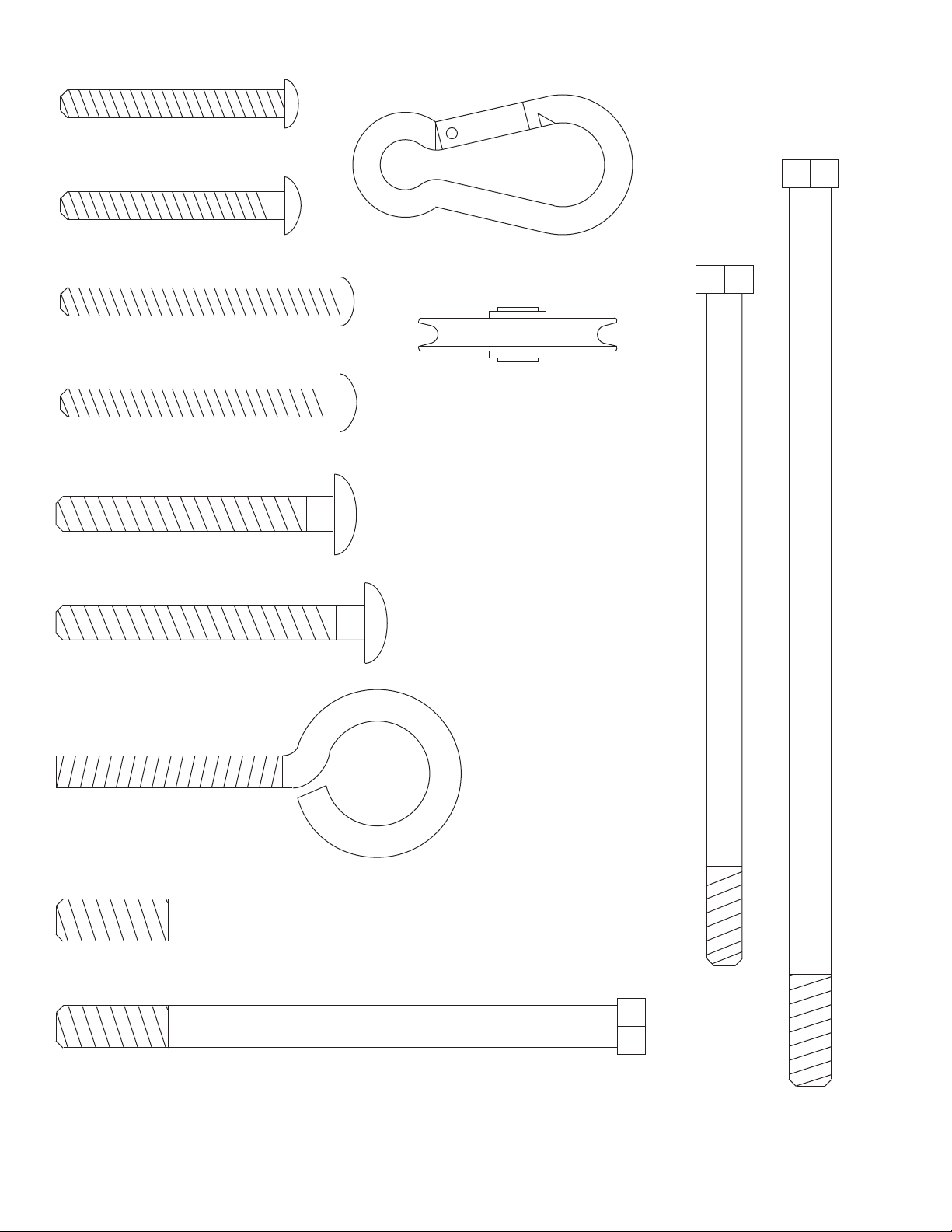

To help you identify the small parts used in assembly,
we have included a PART IDENTIFICATION CHART
in the centre of this manual. Place the chart on the
floor and use it to easily identify parts during each
assembly step. Note: Some small parts may have

been pre-attached. If a part is not in the parts
bag, check to see if it has been pre-attached.

How to Orient Parts

As you assemble the training system, make sure
that all parts are oriented exactly as shown in the
drawings.

Tightening Parts

Tighten all parts as you assemble them, unless
instructed to do otherwise.

Questions?

If you have questions after reading the assembly
instructions, please call our Customer Service
Department Customer Service Department at

0345-089009.

The Four Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the base and the uprights that form the skeleton of
the training system.

Arm Assembly—During this stage you will
assemble the arms and the leg lever.

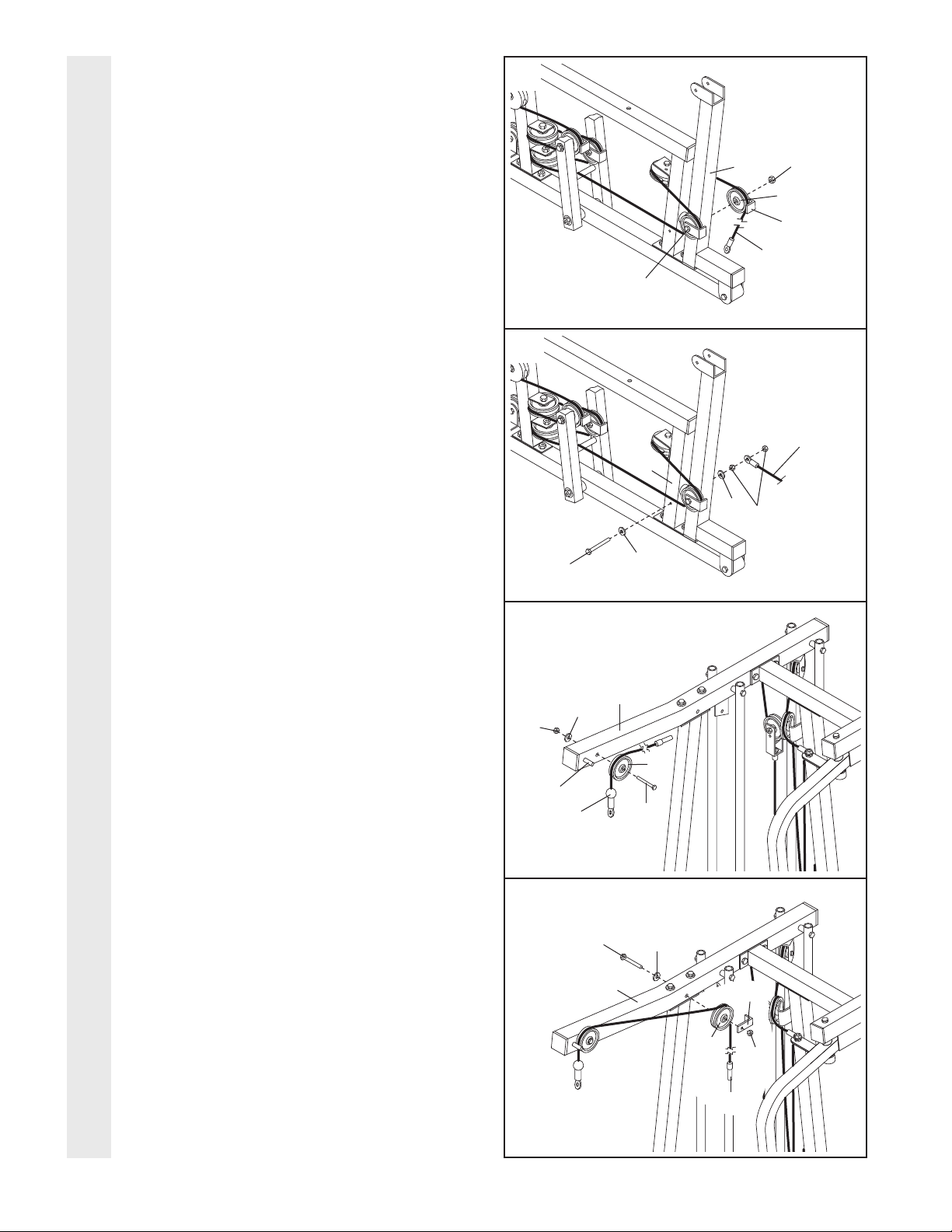

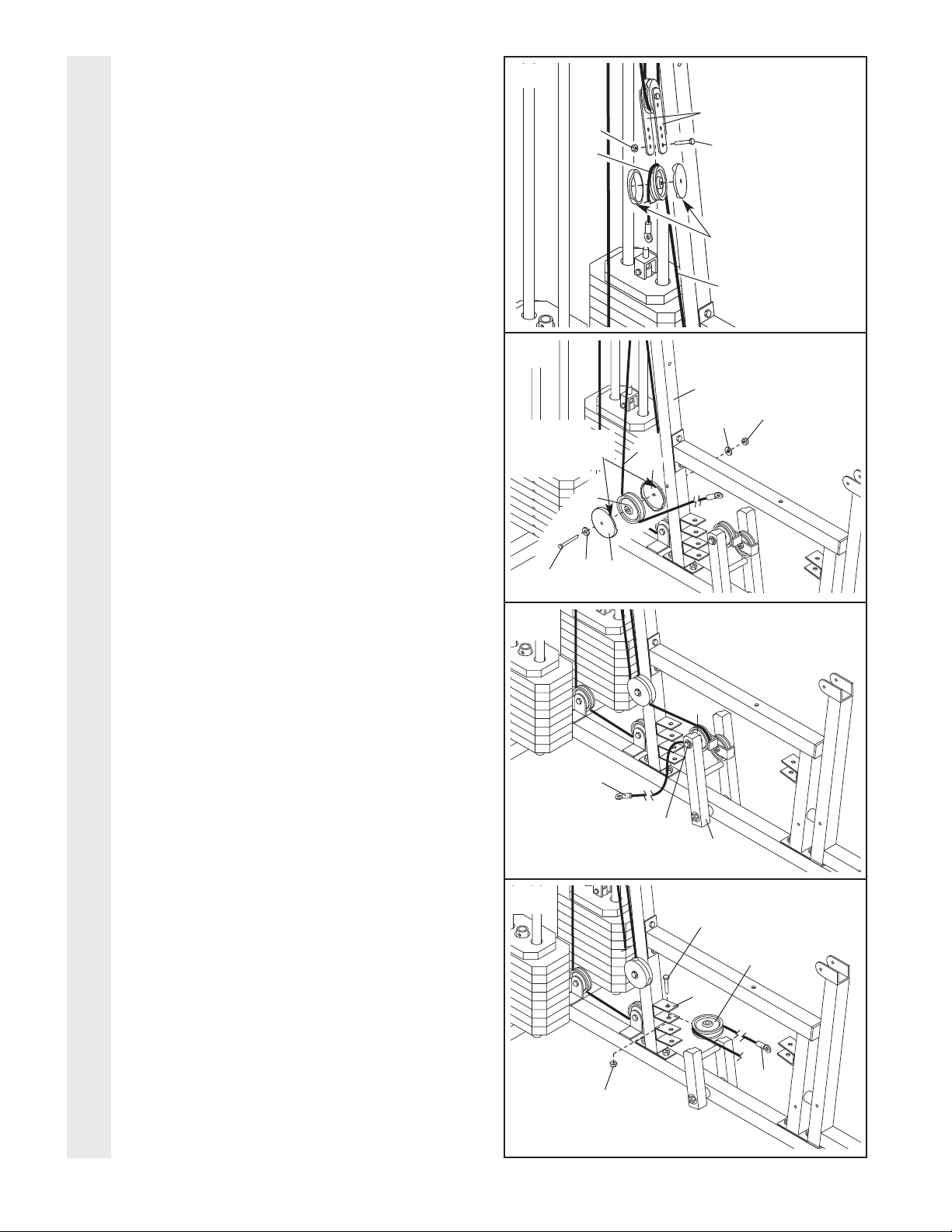

Cable Assembly—During this stage you will
attach the cables and pulleys that connect the
arms to the weights.

Seat Assembly—During the final stage you will
assemble the seats and the backrests.

5

1.

efore you begin this step, make sure

B
that you have read all of the information
on page 5. This brief introduction will
save you much more time than it takes
to read it.

Locate and open the parts bags labeled
“FRAME ASSEMBLY BAG ONE” and
“FRAME ASSEMBLY BAG TWO.”

Press two 2” Square Outer Caps (58) onto the
Weight Base (14) in the indicated locations.
Press a 2” Square Inner Cap (56) into the end
of the Weight Base.

Insert four 5/16” x 2 1/2” Carriage Bolts (49)
up through the Press Base (13). Insert two
5/16” x 2 1/2” Carriage Bolts up through the
Weight Base (14).

Attach the Press Base (13) to the Weight
Base (14) with two 5/16” x 2 3/4” Bolts (55),
two 5/16” Washers (20), and two 5/16” Nylon
Locknuts (40). Do not tighten the Nylon

Locknuts yet.

1

58

55

20

14

40

49

56

2

58

13

49

2. Slide the Ab Upright (1) onto the indicated
5/16” x 2 1/2” Carriage Bolts (49) in the
Weight Base (14). Hand tighten two 5/16”
Nylon Locknuts (40) onto the Carriage Bolts.

Do not tighten the Nylon Locknuts yet.

Slide the Leg Press Upright (4) onto the indi-

FRAME ASSEMBLY

cated 5/16” x 2 1/2” Carriage Bolts (49) in the
Press Base (13). Hand tighten two 5/16”
Nylon Locknuts (40) onto the Carriage Bolts.

Do not tighten the Nylon Locknuts yet.

3. Press a 2” Square Inner Cap (56) into each
end of the Top Frame (2). Press a 2” Square
Inner Cap into each side of the Butterfly
Frame (3). Press two 1” Inner Caps (95) into
the top of the Butterfly Frame.

Attach the Butterfly Frame (3) to the Top
Frame (2) with a 5/16” x 3” Bolt (92) and a
5/16” Nylon Jam Nut (91). Be sure that the

Bolt is on the side shown.

92

4

56

95

40

13

56

3

1

40

14

49

3

91

40

20

2

49

55

Finish attaching the Butterfly Frame (3) to the
Top Frame (2) with a 5/16” x 2 3/4” Bolt (55),
a 5/16” Washer (20), and a 5/16” Nylon
Locknut (40).

56

56

6

4. Slide the Front Seat Frame (8) onto the indi­cated 5/16” x 2 1/2” Carriage Bolts (49) in the
Press Base (13). Hand tighten two 5/16”

ylon Locknuts (40) onto the Carriage Bolts.

N

ttach the other end of the Front Seat Frame

A
(8) to the Leg Press Upright (4) with two 5/16”
x 2 3/4” Bolts (55), two 5/16” Washers (20),
and two 5/16” Nylon Locknuts (40).

Press a 2” Square Inner Cap (56) into the
Front Seat Frame (8).

5. Insert two Weight Guides (23) into one of the
brackets on the Weight Base (14). Attach the
lower ends of the Weight Guides with a 5/16”
x 6” Bolt (67), two 1/2” x 3/4” Spacers (69),
and a 5/16” Nylon Locknut (40). Do not over-

tighten the Nylon Locknut.

4

5

5

20

5

40

8

4

13

49

23

56

0

4

Attach the other Weight Guides (23) in the
same manner.

6. Slide a Weight Bumper (81) onto each of the
Weight Guides (23).

Slide eight Weights (90) onto each set of
Weight Guides (23). Be sure that the pin

FRAME ASSEMBLY

grooves are on the indicated side of each
stack of Weights.

6

Pin

Grooves

90

40

23

14

69

81

67

90

Pin

Grooves

23

81

7. Press a Weight Tube Bumper (26) into each
Weight Tube (25).

Insert a Weight Tube (25) into each stack of
Weights (90). Be sure that the pins on the

Weight Tubes are in the pin grooves in the
upper Weights.

7

90

25

26

90

7

8. Lubricate the insides of the holes in the Top
Weights (24) as shown. Slide a Top Weight
onto each set of Weight Guides (23).

8

24

9. Attach the Top Frame (2) to the Ab Upright (1)
with two 5/16” x 2 3/4” Bolts (55), two 5/16”
Washers (20), and two 5/16” Nylon Locknuts
(40). Do not tighten the Nylon Locknuts

yet.

FRAME ASSEMBLY

Attach the Butterfly Frame (3) to the Leg
Press Upright (4) with two 5/16” x 2 3/4” Bolts
(55), two 5/16” Washers (20), and two 5/16”
Nylon Locknuts (40). Do not tighten the

Nylon Locknuts yet.

Lubricate

9

2

23

24

20

Lubricate

23

55

20

55

3

10. Attach the upper ends of one set of Weight
Guides (23) to the Top Frame (2) with a 5/16”
x 6” Bolt (67), two 1/2” x 3/4” Spacers (69),
and a 5/16” Nylon Locknut (40).

Attach the upper ends of the other set of
Weight Guides (23) in the same manner.

Before continuing, firmly tighten all nylon
locknuts used in steps 1 through 10.

40

10

1

40

2

40

69

40

69

67

23

4

23

67

8

11. Attach the Leg Press Plate (11) to the
Adjustment Tube (10) with a 5/16” x 2 1/4”
Bolt (62), two 5/16” Washers (20), and a 5/16”

ylon Locknut (40). Be sure that the Leg

N

Press Plate and Adjustment Tube are ori-

nted as shown.

e

11

48

10

40

0

2

Press a 1 3/4” Square Inner Cap (48) into the
Adjustment Tube (10).

12. Press two 2” Square Inner Caps (56) into the
Leg Press Arm (9).

FRAME ASSEMBLY

13. Locate and open the parts bag labeled
“ARM ASSEMBLY.”

62

Angle

11

12

9

56

13

Attach the Leg Press Bumper (53) to the Front
Seat Frame (8) with the 1” Tap Screw (72).

Lubricate the 3/8” x 3 1/4” Bolt (71). Attach
the Leg Press Arm (9) to the Press Base (13)
with the Bolt and a 3/8” Nylon Locknut (42).

14. Press a 1” x 7/8” Plastic Bushing (54) onto
each welded spacer on the Press Frame (12).
Slide the Press Frame onto the Press Base
(13) so that the Plastic Bushings are aligned

ARM ASSEMBLY

with the indicated tube. Note: This will be a
tight fit. Make sure that the high pulley is
on the side shown.

Lubricate the 3/8” x 8” Bolt (52). Attach the
Press Frame (12) to the Press Base (13) with
the Bolt and a 3/8” Nylon Locknut (42).

14

High

Pulley

Welded

Spacers

8

9

53

42

72

71—Lubricate

13

Tube

12

13

52—Lubricate

42

54

9

15. Attach a Press Arm (7) to one side of the
Press Frame (12) with two 5/16” x 2 1/2” Bolts
(39) and two 5/16” Nylon Locknuts (40).

15

Attach the other Press Arm (7) to the Press

rame (12) in the same manner.

F

16. Press a 1” Round Inner Cap (70) into one of
the Press Arms (7). Press a 1 3/4” Square
Inner Cap (48) into the Press Arm.

Repeat this step for the other Press Arm (not
shown).

16

39

7

12

48

7

7

40

70

17. Lubricate both axles on the Butterfly Frame (3).

Refer to the drawing to identify the Right
Butterfly Arm (5) and the Left Butterfly Arm (6).

ARM ASSEMBLY

Press a 1 3/4” Square Inner Cap (48) into the
upper end of the Left Butterfly Arm (6). Slide
the Left Fly Arm onto the indicated axle. Note:

Be careful not to confuse the Left Butterfly
Arm with the Right Butterfly Arm (5). Be
sure that the upper end of the Left Butterfly
Arm is behind the indicated bracket on the
Butterfly Frame (3).

IMPORTANT NOTE: Before assembling the
1” Retainers (45) used in this step, be sure
that you thoroughly understand the step.
The Retainers can be assembled only
once. If they must be removed, you will
need to order new Retainers.

Tap two 1” Retainers (45) and a 1” Round
Outer Cap (46) onto the axle. Be sure that

the teeth on the Retainers bend toward the
Round Outer Cap, as shown in the inset
drawing.

17

3

Lubricate Axle

5

Bracket

48

45

46

6

Axle

45

Attach the Right Butterfly Arm (5) in the same
way.

46

10

18. Press a 1 3/4” Square Inner Cap (48) into the
lower end of the Left Butterfly Arm (6). Wet
the lower end of the Left Butterfly Arm with

oapy water and slide a 10” Pad (22) onto it.

s

epeat this step with the Right Butterfly

R
Arm (5).

18

6

5

48

19. Locate and open the parts bags labeled

“CABLE ASSEMBLY” and “PULLEYS.”

During steps 19 through 50, refer to the
CABLE DIAGRAMS on pages 26 and 27 of
this manual to verify proper cable routing.
Before beginning this section, fully unwind the
five cables and identify the cables by compar­ing the lengths and the ends. The approxi­mate length of each cable, in inches, is listed
after the key number in the drawing.

IMPORTANT: While assembling the cables,
do not overtighten the bolts and nuts
attaching the pulleys. The pulleys must be
able to turn freely.

19

22

22

182 cm

204 cm

CABLE ASSEMBLY ARM ASSEMBLY

20. Insert a 5/16” x 1” Bolt (51) through the brack­et on the Right Fly Arm (5). Tighten a 5/16”
Nylon Jam Nut (91) onto the Bolt.

Identify the Butterfly Cable (89)—this is the
second shortest Cable. Slide one end of the

Butterfly Cable onto the 5/16” x 1” Bolt (51).
Thread another 5/16” Nylon Jam Nut (91)
onto the Bolt, but do not fully tighten it.

Leave enough room between the two Jam
Nuts for the Cable to pivot.

256 cm

291 cm

607 cm

20

91

89

5

51

11

21. Wrap the Butterfly Cable (89) around a 3 1/2”
Pulley (82) as shown. Attach the Pulley and a
Cable Trap (80) to the bracket on the Leg

ress Upright (4) with a 3/8” x 2” Bolt (50)

P
and a 3/8” Nylon Locknut (42). The Cable

rap must be oriented as shown and be

T
positioned to hold the Cable in the groove
of the Pulley.

21

50

80

89

42

2

8

4

22. Route the Butterfly Cable (89) around a 3 1/2”
Pulley (82). Using a 3/8” x 2” Bolt (50) and a
3/8” Nylon Locknut (42), attach the Pulley and
a set of Pulley Covers (94) to the top of the
Pulley Plates (31). Note: Be sure that the

small tab on the Pulley Covers is facing up
and that the end of the Pulley Plates with
three holes is down.

23. Wrap the Butterfly Cable (89) around a 3 1/2”
Pulley (82) as shown. Attach the Pulley and a
Cable Trap (80) to the other side of the bracket
on the Leg Press Upright (4) with a 3/8” x 2”
Bolt (50) and a 3/8” Nylon Locknut (42). The

CABLE ASSEMBLY

Cable Trap must be oriented as shown and
be positioned to hold the Cable in the
groove of the Pulley.

22

94—Small tabs
should be up

42

23

89

42

82

31

50

End with
three hole
should be

down

80

82

4

50

89

24. Note: The Left Butterfly Arm (6) is shown

removed for easier part identification.

Insert a 5/16” x 1” Bolt (51) through the brack­et on the Left Fly Arm. Fully tighten a 5/16”
Nylon Jam Nut (91) onto the Bolt.

Slide the free end of the Butterfly Cable (89)
onto the 5/16” x 1” Bolt (51). Thread another
5/16” Nylon Jam Nut (91) onto the Bolt, but

do not fully tighten it. Leave enough room
between the two Jam Nuts for the Cable to
pivot.

12

24

89

51

91

6

25. Identify the Rear Cable (87)—this is the
shortest Cable. Slide one end of the Rear
Cable onto the 5/16” x 3” Bolt (92). Thread

nother 5/16” Nylon Jam Nut (91) onto the

a
Bolt, but do not fully tighten it. Leave

nough room between the two Jam Nuts

e
for the Cable to pivot.

25

91

87

92

26. See the inset drawing. Attach a 3 1/2” Pulley
(82) and a Cable Trap (80) to the upper hole
in a Large “U” Bracket (84) with a 3/8” x 2”
Bolt (50) and a 3/8” Nylon Locknut (42). Be

sure that the Cable Trap is inside the
Large “U” Bracket. Note: This may come
pre-assembled.

Route the Rear Cable (87) between the Cable
Trap (80) and the 3 1/2” Pulley (82) in the
Large “U” Bracket (84). Be sure that the

Cable is in the groove of the Pulley and
that the Cable and Pulley move smoothly.

27. Wrap the Rear Cable (87) around a 3 1/2”
Pulley (82). Attach the Pulley to the Top
Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”
Nylon Locknut (42). The Cable must be

routed from the direction shown.

CABLE ASSEMBLY

26

27

87

80

42

84

82

50

87

82

84

2

42

50

82

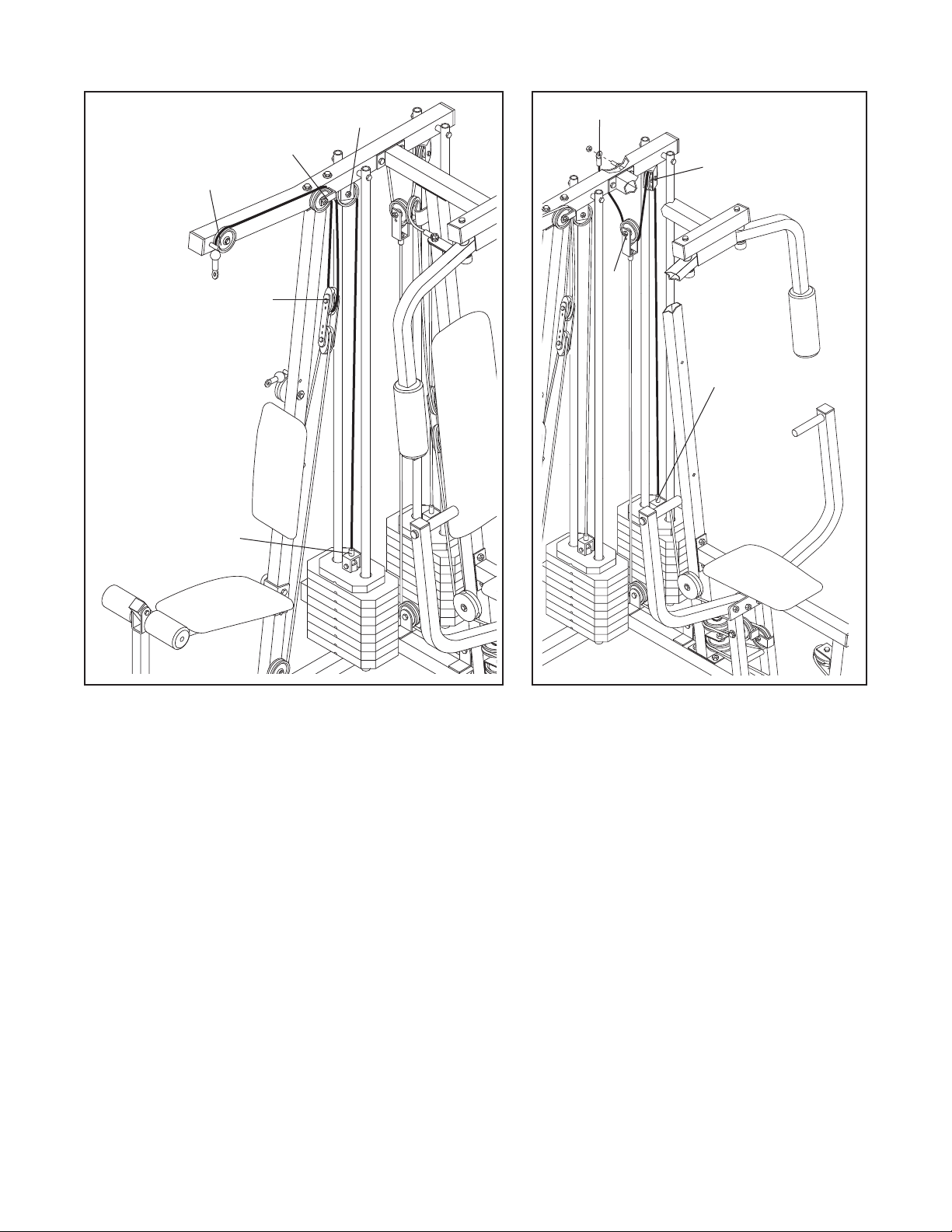

28. Attach the Rear Cable (87) to a Small “U”
Bracket (32) with a 1/4” Nylon Locknut (44)
and a 1/4” Washer (37). Do not completely

tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown in the inset
drawing.

Attach the Small “U” Bracket (32) to the indi­cated Weight Tube (25) with a 5/16” x 1 3/4”
Bolt (68) and a 5/16” Nylon Locknut (40).

13

28

32

87

37

44

68

32

87

87

40

37

44

25

29. Identify the Press Cable (88)—this is the
longest Cable. Attach the end of the Press
Cable to the Large “U” Bracket (84) with a

/4” Nylon Locknut (44) and a 1/4” Washer

1
(37). Do not completely tighten the Nylon

ocknut. It should be threaded onto the

L
end of the Cable so only a couple of
threads are showing above the Nylon
Locknut, as shown in the inset drawing.

29

44

44

3

7

84

30. Wrap the Press Cable (88) around a 3 1/2”
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the indicated bracket on the
Press Base (13) with a 3/8” x 2” Bolt (50) and
a 3/8” Nylon Locknut (42). Be sure that the

Cable Trap is turned to hold the Cable in
place.

88

30

84

37

88

88

CABLE ASSEMBLY

31. Wrap the Press Cable (88) around a 3 1/2”
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the other bracket on the Press
Base (13) with a 3/8” x 2” Bolt (50) and a 3/8”
Nylon Locknut (42). Be sure that the Cable

Trap is turned to hold the Cable in place.

31

50

50

82

13

82

88

13

80

80

42

42

14

32. Route the Press Cable (88) around a 3 1/2”
Pulley (82). Attache the Pulley and a set of
Pulley Covers (94) to the lowest set of holes

n the Pulley Plates (31) with a 3/8” x 2” Bolt

i
(50) and a 3/8” Nylon Locknut (42). The

able must be routed from the direction

C
shown. Be sure that the small tabs on the
Pulley Covers are facing down.

32

42

8

1

3

2

50

Tighten the 3/8” x 2” Bolt (50) and the 3/8”
Nylon Locknut (42).

33. Route the Press Cable (88) around a 3 1/2”
Pulley (82). Attach the Pulley and a set of
Pulley Covers (94) to the Leg Press Upright
(4) with a 3/8” x 3 3/4” Bolt (76), two 3/8”
Washers (38) and a 3/8” Nylon Jam Nut (43).

The Cable must be routed from the direc­tion shown. Be sure that the small tabs on
the Pulley Covers are facing up.

34. Route the Press Cable (88) over the indicated
3 1/2” Pulley (82) attached to the Press
Frame (12). Tighten the 3/8” x 3 1/2” Bolt (66)
and the 3/8” Nylon Locknut (not shown).

33

Small Tabs
should be up

82

38

76

34

94

88

94

94—Small tabs
should be down

88

4

38

43

CABLE ASSEMBLY

35. Wrap the Press Cable (88) around a V-Pulley
(98). Attach the V-Pulley to the upper bracket
on the Leg Press Upright (4) with a 3/8” x 2
1/4” Bolt (83) and a 3/8” Nylon Jam Nut (43).

82

88

66

12

35

83

98

4

88

43

15

36. Route the Press Cable (88) over the indicated
3 1/2” Pulley (82) attached to the Press
Frame (12). Be sure that the Cable Trap

80) is turned to hold the Cable in place

(
and that the Cable is between the Pulley

nd the crossbar on the Press Frame.

a

Tighten the 3/8” Nylon Locknut (42) and the
3/8” x 3 1/2” Bolt (not shown).

36

42

12

88

Crossbar

82

0

8

37. Wrap the Press Cable (88) around a V-Pulley
(98). Attach the V-Pulley to the lower bracket
on the Leg Press Upright (4) with a 3/8” x 2
1/4” Bolt (83) and a 3/8” Nylon Jam Nut (43).

38. Wrap the Press Cable (88) around a 3 1/2”
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the Leg Press Arm (9) with the
3/8” x 5” Bolt (74).

CABLE ASSEMBLY

Slide another 3 1/2” Pulley (82) with a Cable
Trap (80) onto the 3/8” x 5” Bolt (74). Hand
tighten a 3/8” Nylon Locknut (42) onto the
Bolt. Do not tighten the Nylon Locknut

until step 40.

37

38

43

88

83

4

98

88

82

9

42

80

39. Wrap the Press Cable (88) around a 3 1/2”
Pulley (82). Attach the 3 1/2” Pulley and a set
of Pulley Covers (94) to the bracket on the
Front Seat Frame (8) with a 3/8” x 2 1/2” Bolt
(65) and a 3/8” Nylon Locknut (42). Be sure

that the large tab on the Pulley Covers is
in the position shown and that the Cable
and Pulley move smoothly.

16

39

74

94—Large
tabs should
be here

82

80

65

82

8

42

88

40. Note: The 3 1/2” Pulley (82) used in this

step was attached in step 38. It is shown
removed for easier part identification.

Route the Press Cable (88) around the 3 1/2”

ulley (82). Be sure that the Cable Trap (80)

P

is turned to hold the Cable in place and
that the Cable is routed as shown. Tighten

the 3/8” x 5” Bolt (74) and the 3/8” Nylon
Locknut (42).

40

74

9

42

82

80

88

41. Slide a 5/16” Washer (20) onto a 5/16” x 2 3/4”
Bolt (55). Insert the Bolt into the Front Seat
Frame (8). Slide another 5/16” Washer onto
the Bolt. Fully tighten a 5/16” Nylon Jam Nut
(91) onto the Bolt. Slide the end of the Press
Cable (88) onto the Bolt. Thread another
5/16” Nylon Jam Nut onto the Bolt, but do

not fully tighten it. Leave enough room
between the two Jam Nuts for the Cable to
pivot.

42. Identify the High Cable (85)—this is the
shortest remaining cable. Wrap the High

Cable around a 3 1/2” Pulley (82). Attach the
Pulley to the Top Frame (2) with a 3/8” x 3 1/2”
Bolt (66), a 3/8” Washer (38), and a 3/8”

CABLE ASSEMBLY

Nylon Jam Nut (43). Be sure that the end of
the Cable with the ball is on the indicated
side of the Pulley and that the Cable is
between the Pulley and the post.

41

42

43

Post

55

85

38

88

8

20

91

20

2

82

66

43. Wrap the High Cable (85) around a 3 1/2”
Pulley (82). Attach the Pulley and a Cable
Trap (80) to the Top Frame (2) with a 3/8” x
3 1/2” Bolt (66), a 3/8” Washer (38), and a
3/8” Nylon Jam Nut (43). Be sure that the

Cable Trap is positioned to hold the Cable
in place.

17

43

66

38

2

82

80

43

85

44. Route the High Cable (85) around a 3 1/2”
Pulley (82). Using a 3/8” x 2” Bolt (50) and a
3/8” Nylon Locknut (42), attach the Pulley and

set of Pulley Covers (94) to the top of the

a
Pulley Plates (31). Note: The small tab on

he Pulley Covers should be facing up.

t
The end of the Pulley Plates with three
holes should be down.

45. Wrap the High Cable (85) around a 3 1/2”
Pulley (82). Attach the Pulley to the Top
Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8”
Nylon Locknut (42). The Cable must be

routed from the direction shown.

44

45

85

End with

three holes

should be

down

2

94—Small

Tabs on top

0

5

82

31

42

42

50

82

85

46. Attach the High Cable (85) to a Small “U”
Bracket (32) with a 1/4” Nylon Locknut (44)
and a 1/4” Washer (37). Do not completely

tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a

CABLE ASSEMBLY

couple of turns, as shown in the inset
drawing.

Attach the Small “U” Bracket (32) to the indi­cated Weight Tube (25) with a 5/16” x 1 3/4”
Bolt (68) and a 5/16” Nylon Locknut (40).

47. Lay the Low Cable (86) over a 3 1/2” Pulley
(82). Attach the Pulley and two Pulley Covers
(94) to the Ab Upright (1) with the 3/8” x 3
3/4” Bolt (76), two 3/8” Washers (38), and a
3/8” Nylon Jam Nut (43). Do not overtighten

the Nylon Locknut; the Pulley should turn
easily. Make sure that the Cable is
between the Pulley and the post, and that
the Pulley Covers are turned so the wide
tabs are on the indicated side.

46

32

47

43

38

94

Wide tabs

must be on

this side

85

37

44

68

82

32

85

40

37

44

25

Post

76

86

38

18

1

48. Wrap the Low Cable (86) around a 3 1/2”
Pulley (82). Attach the Pulley, a set of Pulley
Covers (94), and a 3/8” Washer (38) to the

b Upright (1) with the 3/8” x 3 3/4” Bolt (76)

A
and a 3/8” Nylon Jam Nut (43). Be sure that

he Cable Trap is in the indicated position.

t

48

43

3

94

1

8

86

82

94

76

49. Wrap the Low Cable (86) around a 3 1/2”
Pulley (82). Attach the Pulley and a set of
Pulley Covers (94) to the lowest holes in the
Pulley Plates (31) with a 3/8” x 2” Bolt (50)
and a 3/8” Nylon Locknut (42).

CABLE ASSEMBLY

50. Wrap the Low Cable (86) around a 3 1/2”
Pulley (82). Attach the Pulley to the Ab
Upright (1) with the 3/8” x 3 1/2” Bolt (66), a
3/8” Washer (38), and a 3/8” Nylon Jam Nut
(43). The ball on the Cable must be on the

indicated side of the Pulley. Be sure that
the Cable and Pulley move smoothly and
that the Cable is between the Pulley and
the post.

49

94—Small Tabs
should be down

50

1

43

50

86

86

31

42

82

51. Attach the Adjustment Tube (10) to the Leg
Press Arm (9) with the Lock Pin (73). Be sure

the Leg Press Plate (11) is oriented as
shown.

SEAT ASSEMBLY

19

51

38

73

9

82

66

Post

Hook

10

11

52. Locate and open the parts bag labeled

“SEAT ASSEMBLY.”

ttach the Small Backrest (18) to the Ab

A
Upright (1) with two 1/4” x 2 1/2” Machine

crews (64) and two 1/4” Washers (37).

S

53. Press a 1 1/2” Square Inner Cap (57) into the
Rear Seat Frame (16).

52

1

37

64

18

Insert a 1/4” x 2” Carriage Bolt (61) through
the centre hole in a Seat Plate (41). Attach
the Seat Plate to a Seat (17) with two 1/4” x
3/4” Screws (59).

Insert the 1/4” x 2” Carriage Bolt (61) through
the indicated hole in the Rear Seat Frame
(16). Tighten a 1/4” Nylon Locknut (44) with a
1/4” Washer (37) onto the Carriage Bolt.

Attach the other end of the Seat (17) to the
Rear Seat Frame (16) with a 1/4” Washer (37)
and a 1/4” x 2” Machine Screw (63).

54. Press a 1 1/2” Square Inner Cap (57) into the
Leg Lever (15).

Lubricate the 5/16” x 2 1/4” Bolt (62). Attach

SEAT ASSEMBLY

the Leg Lever (15) to the Rear Seat Frame
(16) with the Bolt and a 5/16” Nylon Locknut
(40). Do not overtighten the Nylon

Locknut; the Leg Lever must pivot freely.

Insert the 5/16” x 2” Eyebolt (79) into the Leg
Lever (15) from the direction shown. Tighten a
5/16” Nylon Locknut (40) with a 5/16” Washer
(20) onto the Eyebolt.

53

54

40

57

40

20

15

16

61

41

44

16

62—Lubricate

79

57

59

37

17

63

55. Rest the slot in the Rear Seat Frame (16) on
the indicated post in the Ab Upright (1). Attach
the Rear Seat Frame to the Ab Upright with a
5/16” x 2 3/4” Carriage Bolt (77) and the Seat
Knob (30).

20

55

30

Slot

16

1

77

Post

56. Press two 3/4” Round Inner Caps (78) into
each Pad Tube (28).

56

nsert a Pad Tube (28) into the Rear Seat

I
Frame (16). Slide a Foam Pad (29) onto each

nd of the Pad Tube.

e

Insert the other Pad Tube (28) into the Leg
Lever (15). Slide a Foam Pad (29) onto each
end of the Pad Tube.

57. Attach the Large Backrest (19) to the Leg Press
Upright (4) with two 1/4” x 2 1/2” Machine
Screws (64) and two 1/4” Washers (37).

57

78

29

15

64

16

28

29

78

4

19

37

SEAT ASSEMBLYMISC.

58. Insert a 1/4” x 2 1/2” Carriage Bolt (60)
through the centre hole in a Seat Plate (41).
Attach the Seat Plate to a Seat (17) with two
1/4” x 3/4” Screws (59).

Insert the 1/4” x 2 1/2” Carriage Bolt (60)
through the indicated hole in the Front Seat
Frame (8). Tighten a 1/4” Nylon Locknut (44)
with a 1/4” Washer (37) onto the Carriage Bolt.

Attach the other end of the Seat (17) to the
Front Seat Frame (8) with a 1/4” Washer (37)
and a 1/4” x 2 1/2” Machine Screw (64).

59. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained
in HOW TO USE THE TRAINING SYSTEM, beginning on page 22 of this manual.

Before using the training system, pull each cable a few times to be sure that the cables move smoothly
over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPOR-

TANT: If the cables are not properly installed, they may be damaged when heavy weight is
used. See the CABLE DIAGRAMS on pages 26 and 27 of this manual for proper cable routing. If
there is any slack in the cables, you will need to remove the slack by tightening the cables. See
TROUBLE-SHOOTING AND MAINTENANCE on page 25.

58

8

64

37

41

17

60

59

44

21

HOW TO USE THE TRAINING SYSTEM

The instructions below describe how each part of the training system can be adjusted. Refer to the exercise
poster accompanying this manual to see how the training system should be set up for each exercise. IMPOR-

ANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start-

T
ing position for the exercise to be performed. If there is any slack in the cables or chain as an exercise

s performed, the effectiveness of the exercise will be reduced.

i

CHANGING THE WEIGHT SETTING

The training system features two weight stacks. The
one weight stack is connected to the ab, upper, and
lower pulley stations. The other weight stack is con­nected to the fly and press arms and the leg press.

93

To change the weight setting of either weight stack,
insert a Weight Pin (93) under the desired Weight
(90). Insert the Weight Pin until the bent end of the
Weight Pin is touching the Weights, and turn the bent
end downward. The weight setting of either weight
stack can be changed from 6.5 pounds to 106.5
pounds, in increments of 12.5 pounds. Note: Due to

the cables and pulleys, the amount of resistance
at each exercise station may vary from the weight
setting. Use the WEIGHT RESISTANCE CHART on
page 24 to find the approximate amount of resis­tance at each weight station.

93

90

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION

Attach the Lat Bar (36) to the High Cable (85) with a
Cable Clip (33). For some exercises, the Chain (34)
should be attached between the Lat Bar and the High
Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the High Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.

The Nylon Strap (96) can be attached in the same
manner.

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION

Attach the Lat Bar (36) to the Low Cable (86) with a
Cable Clip (33). For some exercises, the Chain (34)
should be attached between the Lat Bar and the Low
Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Low Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.

36

96

36

33

34

85

33

86

34

The Nylon Strap (96) can be attached in the same
manner.

96

22

ATTACHING THE AB STRAP TO THE AB PULLEY
STATION

ttach the Ab Strap (35) to the Low Cable (86) at the

A
ab pulley station with a Cable Clip (33).

33

35

6

8

ATTACHING AND REMOVING THE SEAT

To attach the Seat (17), set the bracket on the Rear
Seat Frame (16) onto the posts on the Ab Upright (1).
Attach the Rear Seat Frame to the Ab Upright with
the 5/16” x 2 3/4” Carriage Bolt (77) and the Seat
Knob (30).

For some exercises, the Seat (17) must be removed.
First, be sure that the chain is not attached to the leg
lever. Next, remove the Seat Knob (30) and the 5/16”
x 2 3/4” Carriage Bolt (77) from the Rear Seat Frame
(16). Lift the Rear Seat Frame off the Ab Upright (1).

ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION

To use the Leg Lever (15), the seat must be attached
to the front upright (see ATTACHING AND REMOV­ING THE SEAT above).

Attach one end of the Chain (34) to the Low Cable
(86) with a Cable Clip (33). Attach the other end of
the Chain to the Eyebolt (79) with a Cable Clip.

79

17

30

77

16

1

33

15

34

86

ADJUSTING THE LEG PRESS PLATE

Remove the Lock Pin (73) from the Adjustment Tube
(10).

Align the holes in the Leg Press Arm (9) with the
desired set of holes in the Adjustment Tube (10). Re­insert the Lock Pin (73) through the holes in the Leg
Press Arm and the holes in the Adjustment Tube. Be

sure that the hook on the Lock Pin is clipped in
place on the Adjustment Tube.

23

73

Hook

10

9

LOCKING THE WEIGHT STACK

To prevent unauthorised use of the training system,

nsert a Locking Bar (97) into the indicated hole in

i
one of the Weight Guides (23) and secure the

ocking Bar with a Lock (27).

L

Remove the Lock (27) to use the training system
again.

23

27

Hole

97

WEIGHT RESISTANCE CHART

This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight.
The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for
each butterfly arm. Note: The actual resistance at each weight station may vary due to differences in indi-

vidual weight plates, as well as friction between the cables, pulleys, and weight guides.

WEIGHT PRESS BUTTERFLY LEG HIGH LOW LEG AB

ARM ARM LEVER PULLEY PULLEY PRESS PULLEY

PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

Top 27 20 9 10 10 52 10

1 53 37 18 24 24 94 25

2 79 50 33 40 41 141 40

3 101 65 38 53 53 180 53

4 125 83 48 66 63 228 68

5 148 103 58 80 80 263 83

6 175 120 68 96 91 310 96

7 205 143 76 107 101 358 110

8 240 173 90 123 120 410 124

Note: 1 lb = .454 kg

24

TROUBLE-SHOOTING AND MAINTENANCE

Inspect and tighten all parts each time you use the training system. Replace any worn parts immediately. The
training system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the training system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the
weight stack closest to the ab upright, both the High Cable (85) and the Low Cable (86) will need to be tight­ened. If any slack is felt when using the other weight stack, the Rear Cable (87), the Press Cable (88), and the
Butterfly Cable (89) will need to be tightened.

To tighten the cables, first insert the weight pin into the mid­dle of the weight stack. Slack can be removed from these
cables several ways:

• See drawing 1. Tighten the 1/4” Nylon Locknut (44) that
connects the end of the Press Cable (88) to the Large “U”
Bracket (84).

• See drawing 1. Remove the 3/8” Nylon Locknut (42) and
the 3/8” x 2” Bolt (50) from the Cable Trap (80), 3 1/2”
Pulley (82), and Large “U” Bracket (84). Reattach the
Pulley and Cable Trap to the lower hole in the Large “U”
Bracket. Be sure that the Cable Trap is in the proper
position and that the Cable and Pulley move smoothly.

• See drawing 2. Tighten the 1/4” Nylon Locknut (44) that
connects the end of the High Cable (85) to the Small “U”
Bracket (32).

The Rear Cable (87) can be tightened in the same
manner.

• See Drawing 3. If you feel additional slack while using the
training system, the Low Cable (86) and the Press Cable
(88) can be tightened further.

Remove the 3/8” x 2” Bolt (50) and the 3/8” Nylon
Locknut (42) from the lower 3 1/2” Pulley (82), Pulley
Covers (94) and the Pulley Plates (31). Reattach the
Pulley and Pulley Covers to a higher set of holes in the
Pulley Plates with the Bolt and Locknut. Be sure that the
Cable and Pulley move smoothly.

1

80

42

84

44

2

85

32

3

82, 94

50

82

50

88

87

32

44

44

88

42

31

Do not overtighten the cables. If the cables are over­tightened, the top weight will be lifted off the weight
stack.

If a cable tends to slip off the pulleys often, it may
have become twisted. Remove the cable and re­install it.

If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

82, 94

86

25

CABLE DIAGRAMS

The cable diagrams on this page and the next page show the proper routing of the High Cable (85), the Low

able (86), the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89). Use the diagrams to be sure

C
that the Cables have been assembled correctly. The starting and ending points of each Cable have been
labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been cor-

rectly routed, the WEIDER 8630 will not function properly and damage may occur.

Press Cable (88)

1—Long “U” Bracket

4

Low Cable (86)

3

Ab Pulley—1

2

4—Low Pulley

5

7

6

11

8

2

3

9

10

Leg Press—13

12

Butterfly Cable (89)

4

2

1—Right Arm

3

5—Left Arm

26

High Cable (85) Rear Cable (87)

High Pulley—1

Weight Stack—5

4

2

3

1—Top Frame

3

2

4—Weight Stack

27

3/8" Nylon Jam Nut(43)

5/16" x 1 3/4" Bolt (68)

3/8" x 2" Bolt (50)

5/16" x 2 1/4" Bolt (62)

5/16" x 2 1/2" Bolt (39)

3/8" x 2 1/2" Bolt (65)–1

5/16" x 2 3/4" Bolt (55)

5/16" x 3" Bolt (92)

3/8" x 3 1/4" Bolt (71)

3/8" x 3 1/2" Bolt (66)

1/4" Washer (37)

5/16" Washer (20)

3/8" Washer (38)

1/4" Nylon Locknut (44)

5/16" Nylon Locknut (40)

5/16" Nylon Jam Nut (91)

3/8" Nylon Locknut(42)

1" Retainer (45)

5/16" x 1" Bolt (51)

3/8" x 2 1/4" Bolt (83)

1/4" x 3/4" Screw (59)

1" Tap Screw (72)

5/16" x 2" Carriage Bolt (79)

Cable Clip (33)

3/8" x 5" Carriage Bolt (74)

3/8" x 3 3/4" Carriage Bolt (76)

5/16" x 2 3/4" Carriage Bolt (77)

5/16" x 2 1/2" Carriage Bolt (49)

1/4" x 2 1/2" Carriage Bolt (60)

1/4" x 2 1/2" Machine Screw (64)

1/4" x 2" Carriage Bolt (61)

1/4" x 2" Machine Screw (63)

3 1/2" Pulley (82)

(Not shown to scale)

5/16" x 6" Bolt (67)

3/8" x 8" Bolt (52)

1/2" x 3/4" Spacer (69)

2" Square Inner Cap (56)2" Square Outer Cap (58)

1 3/4" Square Inner Cap (48)

1" Round Outer Cap (46)

1 1/2" Square Inner Cap (57)

1" Round Inner Cap (70)

1" x 7/8" Plastic Bushing (54)

1 1/8" x 2 1/2" Plastic Bushing (47)

3/4" Round Inner Cap (78)

1" Inner Cap (95)

PART LIST—Model No. WEEVSY52000 R

0101A

Key No. Qty. Description

11Ab Upright
2
31Butterfly Frame
4
51Right Butterfly Arm
61Left Butterfly Arm
72Press Arm
81Front Seat Frame

91Leg Press Arm
10 1 Adjustment Tube
11 1 Leg Press Plate
12 1 Press Frame
13 1 Press Base
14 1 Weight Base
15 1 Leg Lever
16 1 Rear Seat Frame
17 2 Seat
18 1 Small Backrest
19 1 Large Backrest
20 14 5/16” Washer
21 4 5” Plastic Grip
22 2 10” Pad
23 4 Weight Guide
24 2 Top Weight
25 2 Weight Tube
26 2 Weight Tube Bumper
27 2 Lock
28 2 Pad Tube
29 4 Foam Pad
30 1 Seat Knob
31 4 Pulley Plate
32 2 Small “U” Bracket
33 4 Cable Clip
34 1 Chain
35 1 Ab Strap
36 1 Lat Bar
37 11 1/4” Washer
38 10 3/8” Washer
39 4 5/16” x 2 1/2” Bolt
40 28 5/16” Nylon Locknut
41 2 Seat Plate
42 17 3/8” Nylon Locknut
43 8 3/8” Nylon Jam Nut
44 5 1/4” Nylon Locknut
45 4 1” Retainer

46 2 1” Round Outer Cap
47 2 1 1/8” x 2 1/2” Plastic Bushing
48 7 1 3/4” Square Inner Cap
49 6 5/16” x 2 1/2” Carriage Bolt
50 11 3/8” x 2” Bolt

1 Top Frame

1 Leg Press Upright

Key No. Qty. Description

51 2 5/16” x 1” Bolt

2 1 3/8” x 8” Bolt

5
53 1 Leg Press Bumper

4 2 1” x 7/8” Plastic Bushing

5
55 10 5/16” x 2 3/4” Bolt
56 8 2” Square Inner Cap
57 2 1 1/2” Square Inner Cap
58 2 2” Square Outer Cap
59 4 1/4” x 3/4” Screw
60 1 1/4” x 2 1/2” Carriage Bolt
61 1 1/4” x 2” Carriage Bolt
62 2 5/16” x 2 1/4” Bolt
63 1 1/4” x 2” Machine Screw
64 5 1/4” x 2 1/2” Machine Screw
65 1 3/8” x 2 1/2” Bolt
66 3 3/8” x 3 1/2” Bolt
67 4 5/16” x 6” Bolt
68 2 5/16” x 1 3/4” Bolt
69 8 1/2” x 3/4” Spacer
70 2 1” Round Inner Cap
71 3 3/8” x 3 1/4” Bolt
72 1 1” Tap Screw
73 1 Lock Pin
74 1 3/8” x 5” Bolt
75 2 Press Bushing
76 3 3/8” x 3 3/4” Bolt
77 1 5/16” x 2 3/4” Carriage Bolt
78 4 3/4” Round Inner Cap
79 1 5/16” x 2” Eyebolt
80 10 Cable Trap
81 4 Weight Bumper
82 22 3 1/2” Pulley
83 2 3/8” x 2 1/4” Bolt
84 1 Large “U” Bracket
85 1 High Cable
86 1 Low Cable
87 1 Rear Cable
88 1 Press Cable
89 1 Butterfly Cable
90 16 Weight
91 8 5/16” Nylon Jam Nut
92 1 5/16” x 3” Bolt
93 2 Weight Pin
94 16 Pulley Cover
95 2 1” Inner Cap
96 1 Nylon Strap
97 2 Locking Bar
98 2 V-Pulley

#1Userʼs Manual

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

1

2

3

4

5

6

7

7

8

9

10

11

12

13

14

15

16

17

18

19

17

21

21

22

22

23

23

24

24

25

25

26

26

28

28

29

29

29

29

30

31

32

32

33

34

35

36

21

21

85

85

87

86

31

41

41

86

87

88

88

89

89

56

66

82

38

43

20

55

55

66

50

38

40

20

56

42

82

80

43

42

50

40

69

40

69

67

67

40

68

37

44

40

37

68

44

67

40

40

67

42

50

82

58

55

20

55

20

49

56

58

83

43

40

20

55

20

76

82

43

43

98

40

37

64

82

42

50

50

37

64

40

82

80

50

42 42

82

80

50

40

56

55

92

95

20

55

56

91

91

47

47

51

51

45

45

46

46

48

48

50

40

82

80

42

80

82

49

49

75

38

38

71

71

40

39

54

70

48

82

42

80

52

82

42

40

82

91

53

72

73

59

65

37

44

56

64

37

60

40

55

74

80

82

56

71

56

42

82

80

42

62

20

20

40

48

70

78

57

20

40

79

62

78

78

40

44

37

37

63

59

57

61

43

38

40

40

82

66

77

37

64

64

76

82

43

43

82

76

38

40

37

44

84

42

82

50

83

90

90

91

91

38

20

91

94

94

96

48

48

38

69

69

94

94

94

94

94

94

94

97

27

81

81

38

20

93

93

38

EXPLODED DRAWING—Model No. WEEVSY52000 R

0101A

ORDERING REPLACEMENT PARTS

If you encounter any difficulties with this product, or if you need to order replacement parts, please call or write
the ICON Health & Fitness, Ltd. office.

CON Health & Fitness Ltd.

I
Revie Road Industrial Estate
Revie Road
Leeds
LS11 8JG

Tel: Country Code:

0345-089009

Fax: [phone]

When calling or writing, please provide the following information:

1. The MODEL NUMBER of the product (WEEVSY52000)

®

2. The NAME of the product (WEIDER

8630 training system)

3. The SERIAL NUMBER of the product (see the front cover of this manual)

4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the centre of this manual).

Part No. 170831 R0101A Printed in Canada © 2001 ICON Health & Fitness, Inc.
