R Trademark
Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l’outil au détaillant.
1-800-554-6723
www.weedeater.com
Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
ENGLISH ESPAÑOL
FeatherLite
25 HO SST
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
A VERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertissements ettoutesles instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
CopyrightE2002 Electrolux Home Products, Inc.
530163448 12/5/02
t
FRANÇAIS
SAFETY RULES
WARNING:
appliances, basic safety precautions must always befollowed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous!
responsible for following instructions and warnings on unit and in manual. Read entire instruction manual before using unit! Be thoroughly familiarwiththe controls andtheproperuse of the
unit. Restrict the use of this unit to persons who
have read, understand, and will follow the
instructions and warnings on the unit and in the
manual. Never allow children to operate this
unit.
INSTRUCTION
MANUAL
DANGER:
devices. This unit is designed for line trimmer
use only. Use of any other accessories or attachments will increase the risk of injury.
WARNING:
jects violently.Youandotherscan beblinded/injured. Wear eye and leg protection. Keep body
parts clear of rotating line.
Eye Protection
Boots
Keep children, bystanders, and animals 50 feet
(15 meters) away. If approached stop unit immediately.
If situations occur which are not covered in
this manual, use care and good judgment. If
youneedassistance, contact your authorized
service dealer or call 1-800-554--6723.
OPERATOR SAFETY
Dress properly. Always wear safety glasses
S
or similar eye protection when operating, or
performing maintenance, on your unit (safety
glasses areavailable). Eye protectionshould
be marked Z87.
Always wearface ordustmaskif operation is
S
dusty.
When using gardening
Operator is
SAFETY INFORMATION
ON THE UNIT
Neveruseblades or flailing
Trimme rline throws ob-
HazardZone
50 ft.
(15 m)
Alwayswearheavy, longpants,longsleeves,
S
boots, andgloves. Wearingsafetylegguards
is recommended.
Always wearfoot protection. Do not go bare-
S
foot or wear sandals. Stay clear of spinning
line.
Securehairaboveshoulderlength. Secureor
S
removeloose clothing or clothingwithloosely
hanging ties, straps, tassels, etc. They can
be caught in moving parts.
Being fully covered also helps protect you
S
from debris and pieces of toxic plants thrown
by spinning line.
Stay Alert. Do not operate this unit when you
S
are tired, ill, upset orundertheinfluence ofalcohol, drugs, or medication. Watch what you
are doing; use common sense.
Wear hearing protection.
S
Never start or run inside a closed room or
S
building. Breathing exhaust fumes can kill.
Keep handles free of oil and fuel.
S
UNIT / MAINTENANCE SAFETY
Disconnect the spark plug before performing
S
maintenance except carburetor adjustments.
Look for and replace damaged or loose parts
S
before each use. Look for and repair fuel
leaks before use. Keep in good working
condition.
Replace trimmerheadpartsthat arechipped,
S
cracked, broken, or damaged in any other
way before using the unit.
Maintain unit accordingtorecommended pro-
S
cedures. Keep cutting line at proper length.
Use only 0.080!(2 mm)diameter Weed Eat-
S
er"brand line. Never use wire, rope, string,
etc.
Install required shield properly before using
S
the unit. Use only specified trimmer head;
makesureit is properly installed andsecurely
fastened.
Make sure unit is assembled correctly as
S
shown in this manual.
Make carburetor adjustments with lower end
S
supported to prevent line from contacting any
object.
Keep others away when making carburetor
S
adjustments.
Use only recommended Weed Eater"ac-
S
cessories and replacement parts.
Have all maintenance and service not ex-
S
plained inthismanualperformedbyanauthorized service dealer.
FUEL SAFETY
Mix and pour fuel outdoors.
S
Keep away from sparks or flames.
S
Use a container approved for fuel.
S
Do not smoke or allow smoking near fuel or
S
the unit.
Avoidspilling fuel oroil. Wipe up all fuelspills.
S
Move at least 10 feet (3 meters) away from
S
fueling site before starting engine.
Stop engine and allow to cool before remov-
S
ing fuel cap.
Always store gasoline in a container ap-
S
proved for flammable liquids.
2
CUTTING SAFETY
WARNING:
each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage the trimmer head and be thrown
causing serious injury.
Use only for trimming, scalping, mowing and
S
sweeping. Do not use for edging, pruning or
hedge trimming.
Keep firm footing and balance. Do not over-
S
reach.
Keep all parts of your bodyawayfrommuf fler
S
and spinning line. Keep engine below waist
level. A hot muffler can cause serious burns.
Cut from yourrighttoyourleft. Cutting on left
S
side of the shield will throw debris away from
the operator.
Use only in daylight or good artificial light.
S
Use only for jobs explained in this manual.
S
Inspect the area before
TRANSPORTING AND STORAGE
Allow engine to cool; secure unit before stor-
S
ing or transporting in vehicle.
Empty the fuel tank before storing or trans-
S
portingtheunit.Useup fuelleftinthe carburetorbystartingtheengineand letting it rununtil
it stops.
Store unit and fuel in area where fuel vapors
S
cannot reachsparksor openflamesfromwater heaters, electric motors or switches, furnaces, etc.
Storeunitso line limiterbladecannot acciden-
S
tally causeinjury.Theunit canbehung bythe
tube.
Store unit out of reach of children.
S
SAFETY NOTICE:
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or abnormal swellings. Prolonged use in cold
weather has beenlinked tobloodvesseldamage inotherwise healthy people. Ifsymptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seekmedical attention. An anti--vibration system does
not guarantee the avoidance of these problems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condition of this tool.
SPECIAL NOTICE:
with a temperature limiting muffler and spark
arresting screen which meets the requirements of California Codes 4442 and 4443. All
U.S. forest land and the states of California,
Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that
many internal combustion engines be
equipped with asparkarresting screen. Ifyou
operate inalocale where such regulations exist, you are legally responsible formaintaining
the operating condition of these parts. Failure
to do so is a violation of the law. For normal
homeowner use, the muffler and sparkarresting screen will not require any service. After
50 hours of use, we recommend that your
muffler beserviced orreplaced byyourauthorized service dealer.
Exposure to vibrations
This unit is equipped
ASSEMBLY
WARNING:
repeat all steps to ensure your unit isproperly
assembled and all fasteners are secure.
Examine parts for damage. Do not use damaged parts.
NOTE:
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
If you need assistance or find parts
ADJUSTING THE HANDLE
WARNING:
dle, be sure it remains between the trigger
and the safety label.
1. Loosen wing nut on handle.
2. Rotate the handle on the tube to an upright
position; retighten wing nut.
ATTACHING SHIELD
WARNING:
erly installed. The shield providespartialprotection from the riskofthrownobjectsto theoperator and others and is equipped with a line limiter
If received assembled,
When adjusting the han-
The shield must be prop-
blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can cut you.
For proper orientation of shield, see KNOW
YOUR TRIMMER illustration in OPERATION
section.
1. Remove washer and wing nut from shield.
2. Assemble parts as shown in illustration.
3. Securely tighten wing nut onto bolt.
Shield
NOTE:
and use washer and
wing nut from this
bolt for assembling
shield.
Remove
Line Limiter
Blade
Wing Nut
Washer
3
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Comparethe illustrations withyourunit to familiarizeyours elfwith the location of the variouscon tr o ls
and adjustments. Save this manual for future reference.
Throttle Trigger
ON/STOP
Switch
Starter
Rope
Handle
Assist Handle
Tube
Shield
Spark Plug
Choke lever
Fuel Mix Fill Cap
Primer Bulb
Trimmer
Head
Line Limiter
Blade
ON/STOP SWITCH
TheON/STOPswitch is used tostop engine.To
stop the engine, push and release the engine
ON/STOP switch.
PRIMER BULB
The PRIMER BULB removes airfromthe carburetor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
BEFORE STARTING ENGINE
WARNING:
information in the safety rules before you
begin. If you do not understand the safety
rules, do not attempt to fuel your unit. Call
1-800-554-6723.
Be sure to read the fuel
FUELING ENGINE
WARNING:
when refueling.
This engine is certified to operate on unleaded
gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at
a ratio of 40:1. Poulan/Weed Eater brand
synthetic oil is recommended. Mix gasoline
and oil at aratioof40:1. A 40:1 ratio is obtained
by mixing 3.2 ounces of oil with 1 gallon of
unleaded gasoline. DO NOT USE automotive
oil or boat oil. These oils will cause engine
damage. When mixing fuel, follow instructions
printed on container. Once oil is added to
gasoline, shake container momentarily to
assurethatthefuel is thoroughly mixed.Always
Remove fuel cap slowly
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. Aftertheengineattempts to start,move
the choke lever to the HALF CHOKE position.
Once engine hasstarted, movethechokelever
to the OFF CHOKE position.
read and follow the safety rules relating to fuel
before fueling your unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during storage. Acidic gas can damage the fuel system
of an engine while in storage.
Toavoid engine problems, emptythefuelsystem before storage for 30 days or longer.
Drain the gas tank, start the engine and let it
run until the fuel lines and carburetor are
empty. Use fresh fuel next season.
Never use engine or carburetor cleaner products in the fuel tank or permanent damage
may occur.
See the STORAGE section for additional information.
HOW TO STOP YOUR UNIT
To stop the engine, push and release the
S
engine ON/STOP switch. The switch will
automatically return to the ON position.
Wait 5 seconds before attempting to restart
unit to allow switch to reset.
4
If engine does not stop, move choke to the
S
FULL CHOKE position.
Engine
ON/STOP
Switch
Choke Lever
FULL
HALF
OFF

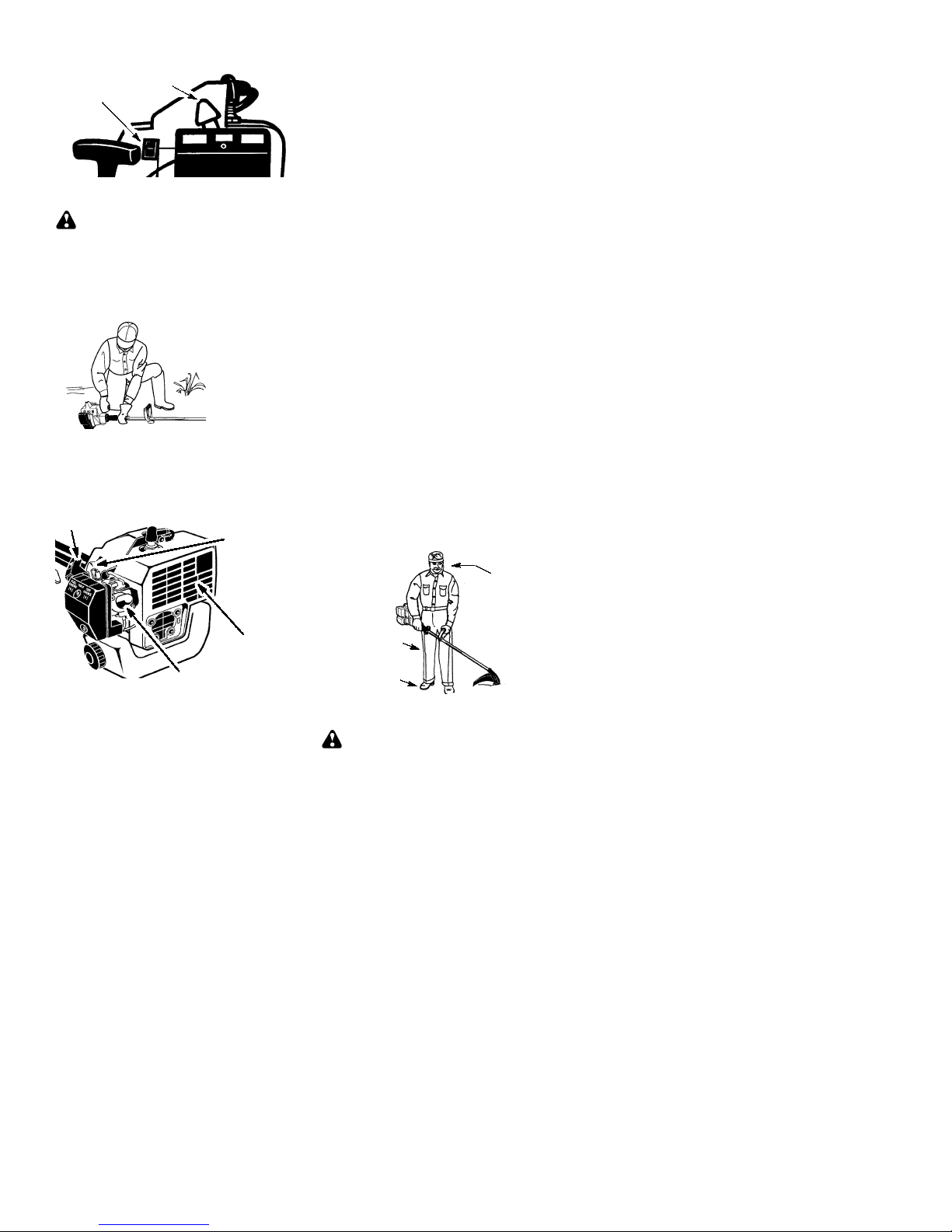

HOW TO START YOUR UNIT
WARNING:
turn while starting the engine. Avoid any contact with the muffler. A hot muffler can cause
serious burns.
The trimmer head will
STARTING A COLD ENGINE (or a
warm engine after running out of
fuel)
Starting Position
1. Set unit on a flat surface.
2. Slowly press the primer bulb 6 times.
3. Movechokelever to theFULLCHOKEposition.
4. Squeeze the throttle trigger fully and hold
through
all remaining steps.
Starter Handle
Choke
Lever
engine still doesn’t start, it is probably
flooded. Proceed to STARTING A
FLOODED ENGINE.
8. Once the engine starts, allow it to run 10
seconds, then movethechokelevertothe
OFF CHOKEposition. Allow the unit torun
for 30 more seconds at OFF CHOKE before releasing the throttle trigger.
If engine dies with the choke lever
NOTE:
in the OFF CHOKE position, move the
choke lever to the HALF CHOKE position
and pull the rope until engine runs, but no
more than 6 pulls.
STARTING A WARM ENGINE
1. Move the choke lever to the HALF CHOKE
position.
2. Squeeze and hold the throttle trigger. Keep
throttle triggerfullysqueezeduntil the engine
runs smoothly.
3. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
4. Allow engine to run 15 seconds, then move
the choke lever to OFF CHOKE.
If engine has not started, pull starter
NOTE:
rope 5more pulls. If engine still doesnotrun,it
is probably flooded.
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of excessfuel.Thiscouldrequirepulling thestarter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
OPERATING INSTRUCTIONS
OPERATING POSITION
ALWAYS WEAR:
Muffler
Primer Bulb
5. Pull starter rope handle sharply until engine
soundsasifit is trying to start, but do notpull
rope more than 6 times.
6. As soon as engine sounds as if it is trying to
start, move choke lever to HALF CHOKE
position.
7. Pull starter rope sharply until engine runs,
but no more than 6 pulls.
NOTE:
pulls (at the HALF CHOKE position),
move the chokelevertothe FULL CHOKE
position and press the primer bulb 6times.
Squeeze and hold the throttle trigger and
pull the starter rope 2 more times. Move
the choke lever to the HALF CHOKE position and pull the starter rope until the engine runs, but no more than 6 pulls. If the
If the engine doesn’t start after 6
Eye Protection
Long Pants
Heavy Shoes
Cut from your right to your left.
WARNING:
tion. Never lean over the trimmer head.
Rocks ordebris canricochet orbe thrown into
eyes and face and cause blindness or other
serious injury.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration. The cutting line will last longer and will
be less likely to “weld” onto the spool.
Always release the throttle trigger and allow the
engine to return to idle speed when not cutting.
Always weareyeprotec-
5
To stop engine:
Release the throttle trigger.
S
Push and release the engine ON/STOP
S
switch.
TRIMMER LINE ADVANCE
Thetrimmerlinewilladvance approximately 2
in. (5 cm) each time the bottom of the trimmer
head is tapped on the ground with the engine
running at full throttle.
The most efficient line length is the maximum
length allowed by the line limiter.Always keep
the shield in place when the tool is being operated.
To advance line:
Operate the engine at full throttle.
S
Hold the trimmer head parallel to andabove
S
the grassy area.
Tap the bottom of the trimmer head lightly
S
ontheground onetime. Approximately 2 in.
(5 cm) of line will be advanced with each
tap.
Always tap the trimmer head on a grassy
area. Tapping on surfaces such as concrete
or asphalt can cause excessive wear to the
trimmer head.
If the line is worn down to 2 inches (5 cm) or
less, more than one tap will be required toobtain the most efficient line length.
WARNING:
diameter line. Other sizes and shapes of line
will not advance properly and will result in improper cutting head function or can cause serious injury. Do not use other materials such
as wire, string, rope, etc. Wire can break off
during cutting and become a dangerous missile that can cause serious injury.
Use only 0.080” (2 mm)
CUTTING METHODS
For trimming or scalping, use less than full
S
throttle to increase line life and decrease
head wear, especially:
During light duty cutting.
S
Near objects around which the line can
S
wrap such as small posts, trees or fence
wire.
Formowing orsweeping, usefull throttle for
S
a good clean job.
TRIMMING -- Hold the bottom of the trimmer
head about 3 in. (8cm)abovethe ground and
at an angle. Allow only the tip of the line to
make contact. Do not force trimmer line into
work area.
Trimming
3in.(8cm)
Above Ground
SCALPING -- The scalping technique removes unwanted vegetationdown to the
ground. Hold the bottom of the trimmer head
about 3 in. (8 cm) above the ground and at an
angle. Allow the tip of the line to strike the
ground around trees, posts, monuments, etc.
This technique increases line wear.
Scalping
WARNING:
and donotcrowdthe line when cutting around
hard objects (rock, gravel, fence posts, etc.),
whichcandamage thetrimmer head, become
entangled in the line, or be thrown causing a
serious hazard.
The tip of the line does the cutting. You will
S
achieve the best performance and minimum line wear by not crowding the line into
the cutting area. The right and wrong ways
are shown below.
Tip of the Line
Does The Cutting
Right Wrong
The line will easily remove grass and
S
weedsfromaround walls, fences, trees and
flower beds, but it also can cut the tender
bark of trees or shrubs and scar fences. To
help avoid damage especially to delicate
vegetation or trees with tender bark,
shorten line to 4--5 in. (10--13 cm) and use
at less than full throttle.
Use minimum speed
Line Crowded Into
Work Area

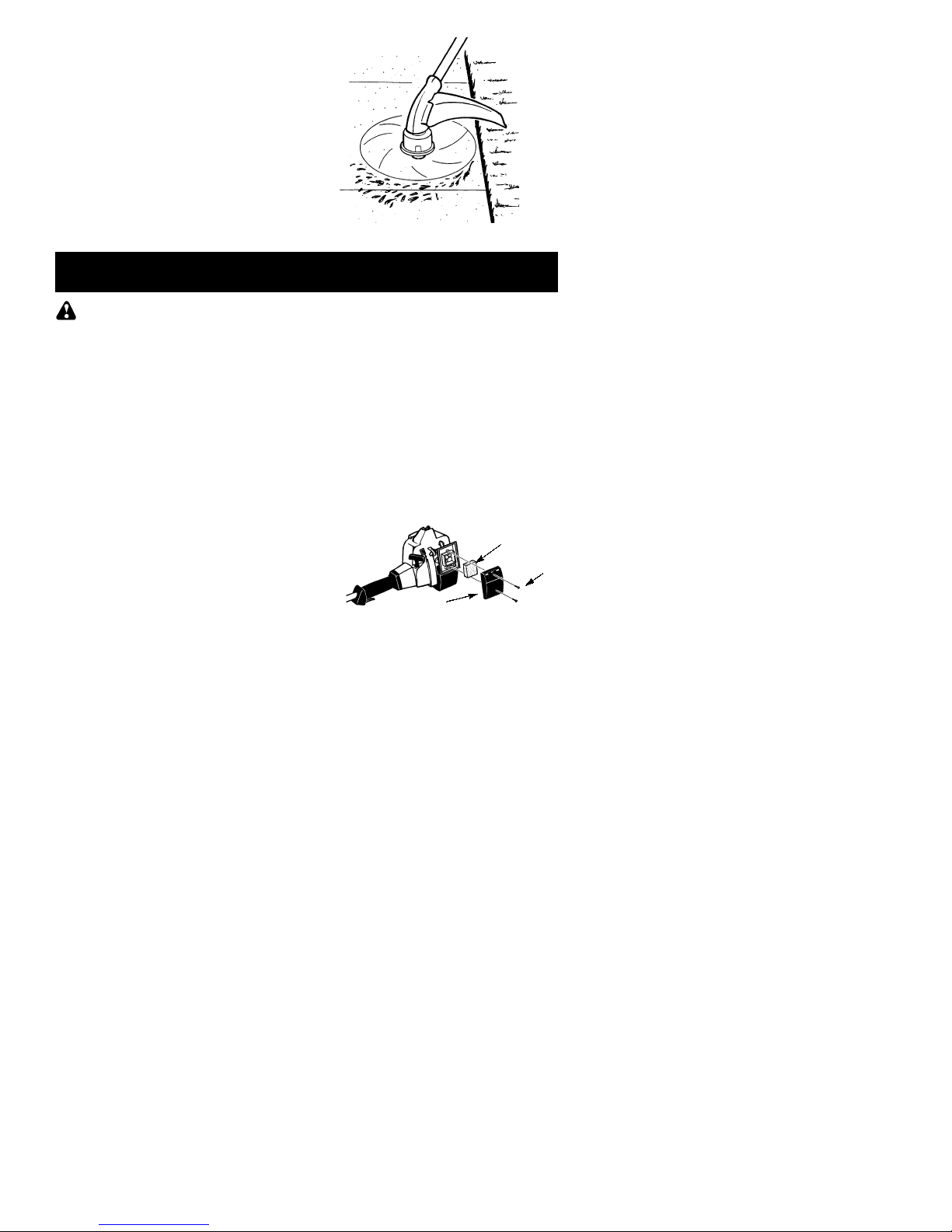

MOWING -- Yourtrimmer is ideal for mowing
in places conventional lawn mowers cannot
reach. In the mowing position, keep the line
parallel to the ground. Avoid pressing the
head into the ground as this can scalp the
ground and damage the tool.
Mowing
6
SWEEPING -- The fanning action of the rotating line can be used for a quick and easy
clean up. Keep the line parallel to and above
the surfaces being swept and move the tool
from side to side.
MAINTENANCE
Sweeping
WARNING:
plug before performing maintenance except
for carburetor adjustments.
Disconnect the spark
CHECK FOR LOOSE
FASTENERS AND PARTS
Spark Plug Boot
S
Air Filter
S
Housing Screws
S
Assist Handle Screws
S
Debris Shield
S
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for replacement of damaged or worn parts.
ON/STOP Switch -- Ensure ON/STOP
S
switch functions properly by pushing and
releasing the switch. Make sure engine
stops. Wait 5 seconds before attempting to
restart unit to allow switch to reset. Restart
engine and continue.
Fuel Tank -- Discontinue use of unit if fuel
S
tank shows signs of damage or leaks.
Debris Shield -- Discontinue use of unit if
S
debris shield is damaged.
INSPECT AND CLEAN UNIT AND
LABELS
After each use, inspect complete unit for
S
loose ordamaged parts. Clean the unit and
labels using a damp cloth with a mild detergent.
Wipe off unit with a clean dry cloth.
S
CLEAN AIR FILTER
A dirty air filter decreases engine performance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.
2. Remove parts as illustrated.
NOTE:
producing harmful evaporative emissions, do
not clean filter in gasoline or other flammable
solvent.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Add a few drops of oil to the filter; squeeze
6. Replace parts.
To avoid creating a fire hazard or
the filter to distribute oil.
Air Filter
Cover
Air Filter
Screws
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 inch. Ignition timing is
fixed and nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and discard.
3. Replace with Champion RCJ-6Y spark plug
and tighten securely with a 3/4 inch socket
wrench.
4. Reinstall the spark plug boot.
7
SERVICE AND ADJUSTMENTS
LINE REPLACEMENT
1. Removespoolbyfirmlypulling ontapbutton.
2. Clean entire surface of hub and spool.
3. Replace with a pre-wound spool, or cut two
lengths of
eter Weed Eaterrbrand line.
WARNING:
string, etc., which canbreakoffand become a
dangerous missile.
4. Insert ends of the lines about 1/2inch(1cm)
into the small holes on the inside of spool.
Spool
Line exit holes
Hub
5. Wind the line evenly and tightly onto the
spool. Wind in the direction of the arrows
found on the spool.
6. Push thelinesinto thenotches,leaving3 to 5
inches (7 -- 12 cm) unwound.
7. Insert the lines into the exit holes in the hub
as shown in the illustration.
8. Align the notches with the line exit holes.
9. Push spool into hub until it snaps into place.
feetof0.080!(2mm)diam-
12-1/2
Never use wire, rope,
Line in Notch
Line in Notch
Small
Holes
10.Pull the lines extending outside of the hub to
release the lines from the notches.
CARBURETOR ADJUSTMENT
WARNING:
making idle speed adjustments. The trimmer
head will be spinning during this procedure.
Wear your protective equipment and observe
all safety precautions.
The carburetor has been carefully set at the
factory. Adjustments may benecessary ifyou
notice any of the following conditions:
Engine will not idle when the throttle is re-
S
leased.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making adjustments. Keep all parts of your body away
from the cutting attachment and muffler.
Keep others away when
Idle Speed Adjustment
Allow engine to idle. Adjust speed until engine
runs without stalling (idle speed too slow).
Turn idle speed screw clockwise to in-
S
crease engine speedifenginestalls ordies.
Turn idle speed screw counterclockwise to
S
decrease engine speed.
Idle Speed
Screw
Air Filter
Cover
If yourequire further assistance orareunsure
about performing this procedure, contact an
authorized service dealer or call
1--800--554--6723.
STORAGE
WARNING:
steps after each use:
Allow engine to cool, and secure the unit
S
before storing or transporting.
Store unit and fuel in a well ventilated area
S
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
Store unit with all guards in place. Position
S
unit so that any sharp object cannot accidentally cause injury.
Store unit and fuel well out of the
S
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
Perform the following
reach of
If your unit is to be stored for a period of time:
Clean the entire unit before lengthy storage.
S
Store in a clean dry area.
S
Lightly oil external metal surfaces.
S
FUEL SYSTEM
Under FUELING ENGINE in the OPERATION section of this manual, see message labeledIMPORTANT regarding the use of gasohol in your engine.
Fuel s t abilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Follow the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
8
At the beginning of the next season, use
ENGINE
Remove spark plug and pour 1 teaspoon of
S
40:1, 2-cycleengine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
Replace spark plug with newone ofrecom-
S
mended type and heat range.
Clean air filter.
S
Check entire unit for loose screws, nuts,
S
and bolts. Replace any damaged, broken,
or worn parts.
S
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
Do not store gasoline from one season to
S
another.
Replace your gasoline can ifitstarts torust.
S
TROUBLESHOOTING TABLE
WARNING:
recommended remedies below except remedies that require operation of the unit.
Always stop unit anddisconnect spark plug before performing all of the
TROUBLE CAUSE REMEDY
Engine will not
start.
Engine will
not idle
properly.
Engine will not
accelerate,
lacks power,
or dies under
a load.
Engine
smokes
excessively.
Engine runs
hot.
1. Engine flooded.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Carburetor requires
adjustment.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
5. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
1. See “Starting a Flooded Engine” in
Operation Section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct spark plug.
3. Contact an authorized service dealer
.
4. Contact an authorized service dealer.
9
LIMITED WARRANTY
ELECTROLUX HOME PRODUCTS, INC.,
warrantsto the originalpurchaserthat eachnew
WeedEaterrbrandgasolinetoolorattachment
is free from defects in material and
workmanship and agrees to repair or replace
under this warranty any defective gasoline
product or attachment as follows from the
original date of purchase.
2 YEARS -- Parts and Labor, when used for
household purposes.
60 DAYS -- Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use of
accessories and/or attachments not specifically
recommended by ELECTROLUX HOME
PRODUCTS, INC., for this tool. Additionally,
this warranty does not cover tune--ups, spark
plugs, filters, starter ropes, starter springs,
cutting line, or rotating head parts that will wear
and require replacement with reasonable use
during the warranty period. This warranty does
U.S. EPA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U. S. Environmental Protection
Agency and ELECTROLUX HOME PRODUCTS, INC., are pleased to explain the emissions control system warranty on your year
2002--2004 small off--road engine. ELECTROLUX HOME PRODUCTS, INC., must warrant
the emission control system on your small off-road engine for the periods of time listed below
provided there has been no abuse, neglect, or
improper maintenance of your small off--road
engine. Your emission control system includes
parts such as the carburetor and the ignition
system. Where a warrantable condition exists,
ELECTROLUX HOME PRODUCTS, INC., will
repair your small off- -road engine at no cost to
you. Expenses covered under warrantyinclude
diagnosis, parts and labor. MANUFACTUR-
ER’S WARRANTY COVERAGE: If any emissions related part on your engine (as listed under Emissions Control Warranty Parts List) is
defective or a defect in the materials or workmanshipofthe enginecausesthe failure ofsuch
anemissionrelated part,thepartwill berepaired
or replaced by ELECTROLUX HOME PRODUCTS, INC. OWNER’S WARRANTY RE-
SPONSIBILITIES: As the small off--road engine owner, you are responsible for the
performanceof the required maintenance listed
in your instruction manual. ELECTROLUX
HOME PRODUCTS, INC., recommends that
you retain all receipts covering maintenance on
your small off- -road engine, but ELECTROLUX
HOME PRODUCTS, INC., cannot deny warranty solely for the lack of receipts or for your
not cover predelivery setup or normal
adjustmentsexplainedin the instructionmanual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE
EXPRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW
LIMITATIONSONHOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION
OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS OR EXCLUSION
MAYNOTAPPLYTOYOU.
The policy of ELECTROLU X HOME
PRODUCTS, INC., is to continuously improve
its products. Therefore, ELECTRO LUXHOME
PRODUCTS, INC., reserves the right to
change, modify, or discontinue models,
designs, specifications, and accessories of all
products at any time without notice or obligation
to any purchaser.
failure to ensure the performance of all scheduled maintenance. As the small off--road engine owner, you should be aware that ELECTROLUX HOME PRODUCTS, INC., maydeny
you warranty coverage if your small off--road
engine ora part of it hasfaileddueto abuse, neglect, impropermaintenance,unapprovedmodifications, or the use of parts not made or approved by the original equipment manufacturer.
You are responsible for presenting your small
off--road engine to an ELECTROLUX HOME
PRODUCTS, INC., authorized repair center as
soon as a problem exists. Warranty repairs
should be completed in a reasonable amountof
time, not to exceed 30 days. If you have any
questionsregardingyourwar r antyrights andresponsibilities, you should contact your nearest
authorized service center or call ELECTROLUX HOME PRODUCTS, INC., at
1--800--554- -6723. WARRANTY COM-
MENCEMENT DATE: The warrantyperiodbegins on the date the small off--road engine is
purchased. LENGTH OF COVERAGE: This
warranty shall be for a period of two years from
the initial date of purchase. WHAT IS COV-
ERED: REPA IR OR REPLACEMENT OF
PARTS. Repair or replacement of any war-
rantedpartwill be performedatnochargetothe
owner at an approved ELECTROLUX HOME
PRODUCTS, INC., servicing center. If you
have any questions regarding your warranty
rights and responsibilities, you should contact
your nearest authorized service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1--800--554- -6723. WARRANTY PERIOD: Any
10
warranted part which is not scheduled for replacement asrequiredmaintenance, or whichis
scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be
warrantedfor 2years.Any warrantedpartwhich
is scheduled for replacement as requiredmaintenance shallbewarranted fortheperiod oftime
up to the first scheduled replacement point for
that part. DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to the
determination that a warranted part is defective
if the diagnostic work is performed at an approved ELECTROLUX HOME PRODUCTS,
INC., servicing center. CONSEQUENTIAL
DAMAGES: ELECTROLUX HOME PRODUCTS,INC.,may be liable fordamagesto other
engine components caused by the failure of a
warranted part still under warranty. WHAT IS
NOTCOVERED:All failures caused by abuse,
neglect, or improper maintenance are not covered. ADD--ON OR MODIFIED PARTS: The
useofadd--on or modifiedpartscan be grounds
for disallowing a warranty claim. ELECTROLUX HOME PRODUCTS, INC., is not liable to
cover failures of warranted parts caused by the
This engine is certified to be emissions compliant for the following use:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)
useofadd--on ormodifiedparts. HOW TO FILE
ACLAIM:If you have any questions regarding
your warranty rights and responsibilities, you
should contact your nearest authorized service
center or call ELECTROLUX HOME PRODUCTS, INC., at 1--800--554--6723. WHERE TO
GET WARRANTY SERVICE: Warranty services or repairs shall be provided at all ELECTROLUX HOME PRODUCTS, INC., service
centers. Call 1--800--554--6723. MAINTE-
NANCE, REPLACEMENT AND REPAIR OF
EMISSION RELATED PARTS: Any ELEC-
TROLUX HOME PRODUCTS, INC., approved
replacement part used in the performance of
any warranty maintenance or repair on emission related parts will be provided without
chargetotheowner ifthepartis underwarranty.
EMISSION CONTROL WARRANTY PARTS
LIST: Carburetor, Ignition System: Spark Plug
(covered up to maintenance schedule), Ignition
Module. MAINTENANCE STATEMENT: The
owner is responsible for the performance of all
required maintenance as defined in the instruction manual.
11
Loading...
