User’s Manual for Windows & Macintosh

®®

NTENTS

Wacom Graphire® 3 User’s Manual for Windows® & Macintosh®, March 07, 2003 English V1.0 for Windows & Macintosh Copyright © Wacom Company, Limited, 2003 All rights reserved. No part of this manual may be reproduced except for your express personal use. Wacom reserves

the right to revise this publication without obligation to provide notiﬁcation of such changes. Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right to change any speciﬁcations and product conﬁgurations at its discretion, without prior notice and without obligation to include such changes in this manual.

DuoSwitch is a trademark, and Graphire and Wacom are registered trademarks of Wacom Company, Limited. Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the

United States and/or other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Apple, the Apple logo, and Macintosh are registered trademarks of Apple Computer, Inc., registered in the U .S . and other countries. Any additional compan y and product names mentioned in this documentation may be trademarked and/or registered as trademarks. Mention of third-party products is for information purposes only and constitutes neither an endorsement nor a recommendation. No responsibility is assumed with regard to the performance or use of these products.

NDEX

NTENTS

Page 2

CONTENTS

About the Manual 5 Navigating the Manual 7

WORKING WITH GRAPHIRE3 8 Graphire3 Tablet Features 9 Graphire3 Input Tools 10 Setting Up Your Work Area 11 Using the Pen 12

Holding the Pen 13 Pointing 14 Clicking 15 Using the Side Switch 16 Dragging 17 Proximity 18 Drawing with Pressure 19 Erasing 20 Eye-Hand Coordination Exercise 21

Using the Cordless Mouse 22

Using the Cordless Mouse Fingerwheel 23

Working with the Tablet 24

Changing the Tablet Underlay 25 Creating a New Tablet Underlay 26

CUSTOMIZING 27 Opening the Control Panel 27

Control Panel Basics 28

Customizing the Pen 29 Customizing the Cordless Mouse 30 Customizing the Pop-up Menu 31

Control Panel Details 32

Adjusting Tip and Eraser Feel 33 Adjusting Double-Click 34 Customizing the Side Switch 35 Button Functions 36 Tablet Tracking 40 Mapping to Multiple Monitors 42 Portion of Screen 43 Portion of Tablet 44 Setting Mouse Speed 45

TROUBLESHOOTING 46 T esting Your T ablet 47 Troubleshooting Tables 49

General Problems 49 Windows-Speciﬁc Problems 53 Macintosh-Speciﬁc Problems 54

Technical Support Options 55

Obtaining Driver Downloads 56

NDEX

NTENTS

Page 3

APPENDICES 57 Caring for Your Tablet and Tools 58

Replacing the Pen Tip 58 Uninstalling the Software 59 Product Speciﬁcations 60

General Speciﬁcations for All Graphire3 Tablets 60

Graphire3 4x5 / A6 Tablet (Model CTE-430) 61

Graphire3 6x8 / A5 Tablet (Model CTE-630) 61

Graphire3 Pen (Model EP-130) 61

Graphire3 Cordless Mouse (Model EC-130) 62

Graphire3 Inking Pen (Model EP-200, optional) 62 Product Information 62 Ordering Parts and Accessories 63 Radio and Television Interference 64

FCC Notice 64

CE Declaration 65

License and Warranties (Worldwide, Except for Europe, Africa and Middle East) 66

Software License 66 Limited Warranty (Worldwide, Except Europe,

Africa and Middle East) 67 Warranty on Sales Outside of U.S. and Canada

(Except Europe, Africa and Middle East) 69

License and Warranty (Europe, Africa and Middle East) 70

Software License Agreement 70 Entitlement to Use the Software 70

Limited Warranty 71 GLOSSARY 73 INDEX 75

NDEX

NTENTS

ONTENTS

Page 4

ABOUT THE MANUAL

This combined interactive User’s Manual for Windows and Macintosh provides quick access to information about Graphire3. Just click on a navigation button or highlighted w ord to move through the document. The information is common to both platforms, unless otherwise noted. Windows screen captures are shown.

• The Contents

• Working with Graphire3 is the learning chapter, and introduces you to the many capabilities of your Graphire3 pen and mouse set. It includes a description of the features and functions of your Graphire3 tools, as well as exercises for new users. If you are not familiar with a pen tablet, this chapter gives you the basics.

• Customizing mouse set for the way you like to work.

• Want to test your tablet? Need troubleshooting guidelines? T to most common questions.

• The Appendices the tablet software, your license and warranty, and more.

Note:

This manual does not contain information on installing your tablet. Please refer to your product Quick Start Guide and to the automated software installer (located on the Wacom Tablet CD) for details on installing your Wacom tablet.

enables you to go directly to a topic by clicking on it.

describes how you can change the control panel settings to optimize your Graphire3 pen and

roubleshooting is where you will ﬁnd the answers

include a variety of information: tips on caring for y our tab let and tools , a ho w-to on uninstalling

If you are new to electronic documentation, be sure to read Na

NTENTS

NDEX

vigating the Manual.

Page 5

MALL CAPITAL LETTERS

are used to identify the names of keyboard keys, dialog boxes, and control panel options.

Remember that you can always use the Acrobat Reader zoom-in tool to increase the size of the manual on your display screen.

The following kinds of information are not included with this product: information about your speciﬁc computer hardware or operating system, information about application software, and information about other Wacom tab lets . Your best source for this information is the set of manuals and disks that came with your hardware, operating system, applications, or other Wacom tablets.

Many graphics applications have built-in support for Graphire3 features (such as pressure-sensitivity and eraser support). You can ﬁnd a listing of applications that support these features at Wacom’s web site (see Product

Information). For information on how best to use Graphire3 features within a speciﬁc application, refer to the

instructions in that application’s manuals.

NDEX

NTENTS

Page 6

NAVIGATING THE MANUAL

Use the navigation controls to move through the manual:

Go to front page.

CONTENTS

INDEX

Go to Table of Contents. Go to Index.

Go back to previous view.

Page back, or page forward.

HEADING TEXT

Topic

Go to beginning of section. Go to topic.

Topic continued.

Acrobat Reader provides you with additional tools for using and printing the manual. Refer to the Acrobat

Online Guide

for more information.

Reader

NDEX

NTENTS

Page 7

WORKING WITH GRAPHIRE3

The Graphire3 pen and mouse set consists of two basic elements: a tablet that serves as your work area, and the

aphire3 Input Tools you use with the tablet.

The quickest way to learn about your Graphire3 pen and mouse set is to become familiar with its appearance and features. If you are new to using a pen tablet and tablet input tools, read the following sections; they describe your Graphire3 tools and explain how to use them with the tablet.

Note:

The Cordless Mouse that came with your Graphire3 tablet will not work on any other tablet model (including tablets from the Graphire or Graphire2 series).

GRAPHIRE3 TABLET FEATURES GRAPHIRE3 INPUT TOOLS SETTING UP YOUR WORK AREA USING THE PEN USING THE CORDLESS MOUSE WORKING WITH THE TABLET

NDEX

NTENTS

Page 8

GRAPHIRE3 TABLET FEATURES

Pen Storage Compartment

Cable

Active Area

Status LED

Photo Frame Cover

Note:

To learn more about your tablet, see Working with the Tablet.

See also Changing the Tablet Underlay and Creating a New Tablet

Underlay.

NTENTS

NDEX

Pen Stand (Not included with some product conﬁgurations.)

ORKING WITH GRAPHIRE

Page 9

GRAPHIRE3 INPUT TOOLS

Your Graphire3 input tools are cordless, batteryless, and ergonomically designed.

• The Graphire3 pen is a pressure-sensitive freehand tool for image editing and creating natural-looking pen and

brush strokes.

• The Graphire3 Cordless Mouse is an ideal tool for navigation, with three customizable buttons that you can

program for different functions. The integrated ﬁngerwheel is both a programmable middle button and a rolling wheel. In most applications, rolling the wheel will cause the active window to scroll.

Eraser

Fingerwheel

DuoSwitch (rocker style)

Replaceable Nib

(pen tip)

Graphire3 Pen

NDEX

NTENTS

Programmable Buttons

Graphire3 Cordless Mouse

(Not included with some product conﬁgurations.)

ORKING WITH GRAPHIRE

Page 10

SETTING UP YOUR WORK AREA

To minimize fatigue, organize your work area so you can work comfortably. Position your tablet, input tools, and keyboard so they are easily accessible without unnecessary reaching. Your monitor should be positioned so you can view it comfortably with a minimum of eyestrain.

Here are some other points to keep in mind:

• Take short breaks between tasks to stretch and relax your muscles.

• Use a gentle grip when working with your tools.

• Alternate tasks throughout the day.

• Maintain a good posture at all times. Minimize awkward postures and repetitive movements that cause discomfort.

• Change your position if you feel any discomfort due to your work position.

Note:

Wacom makes no representation, promise or guarantee that Wacom products will cure or prevent, in whole or in part, mouse-induced repetitive stress symptoms, injuries or conditions. Individual results may vary. Always obtain competent medical advice to determine the most appropriate treatment for your speciﬁc situation.

See W

NTENTS

NDEX

orking with the Tablet for more information.

ORKING WITH GRAPHIRE

Page 11

USING THE PEN

Your Graphire3 pen is cordless, batteryless, and pressure sensitive. There are four basic techniques for using the pen: pointing, clicking, double-clicking, and dragging. With a bit of practice, using the pen will become second nature to you. If you are unfamiliar with using a pen, try the exercises on the following pages.

HOLDING THE P

EN POINTING CLICKING USING THE SIDE SWITCH DRAGGING PROXIMITY DRAWING WITH PRESSURE ERASING EYE-HAND COORDINATION EXERCISE

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 12

HOLDING THE PEN

Hold the Graphire3 pen like you would a pencil. Make sure the DuoSwitch is in a convenient location where you can toggle it with your thumb or index ﬁnger, but not accidently press the switch while drawing. You can tilt the pen in any way that feels most comfortable for drawing.

Position for erasing

Important:

Position for drawing

When the Graphire3 pen is not in use, place it in the pen storage compartment, the pen stand included with some product conﬁgurations, or lay it ﬂat on your desk. To maintain the sensitivity of your pen tip, do not store the pen in a container where it will rest on its tip . Leaving a Graphire3 tool on the tab let ma y interfere with screen cursor positioning when using other pointing devices.

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 13

POINTING

The Graphire3 pen positions the pointer (or cursor) on your screen. You can position the screen cursor two different ways, like a pen (Pen Mode) or like a mouse (Mouse Mode).

• In Pen Mode , the tablet’s active area is a mapped representation of y our computer screen where every point on the tablet’s active area corresponds to exactly one point on the display screen; wherever you place the pen on the tablet, the screen cursor will jump to the corresponding point on the screen. This is the default setting f or the pen, and makes tracing possible—something you cannot do with a mouse.

• In Mouse Mode (the default setting for the Gr aphire3 Cordless mouse), you move the screen cursor with a “pic k up and slide” motion similar to using a traditional mouse.

Try moving the screen cursor by lifting the pen and placing it in a new location on the tablet. The cursor instantly jumps to the new location.

As the pen enters Proximity, the tablet senses the pen above the tablet surface. You do not need to touch the tablet with the pen tip in order to move the screen cursor.

Hints:

• If you are used to working with a mouse and ﬁnd that using a pen is somewhat difﬁcult, try the Eye-Hand

Coordination Exercise.

• Pointing is easier when you orient the tablet so the screen cursor follows the same direction as your hand movements on the tablet.

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 14

CLICKING

You typically click to highlight or select something on the screen, and double-click to open it.

Clicking.

register a click. (If C then you will hear a “clic k” sound when the pen tip is pressed hard enough to generate a a mouse click. Adjust y our speaker volume as necessary.) Try clicking on a folder icon by moving the screen cursor ov er the icon and pressing down on the pen tip. The icon should highlight when you press.

Double Clicking.

twice with a mouse button. You can also double-click by pressing the side switch – this is the preferred method of double-clicking with a pen. Try both ways of double-clicking on a folder icon to open it. First use your pen tip to do this, then use the side switch.

Hint:

Windows, or the lower side switch to double-click on Macintosh systems. This is easier than tapping twice with the pen tip.

To click, tap the tablet once with the tip of the pen or press the pen tip on the tablet with enough force to

LICK SOUND

is selected in the Pen Tablet control panel and your computer speakers are on,

To double-click, quickly tap the tablet twice in the same place with the pen tip. This is like clic king

Press the upper side switch to double-click in

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 15

USING THE SIDE SWITCH

The Graphire3 pen is equipped with a DuoSwitch. This switch has two programmable functions that can be selected by rocking the s witch in either direction. You can use the DuoSwitch whenever the pen tip is in Pro the tablet. You do not have to touch the pen tip to the tablet in order to use the switch.

ximity of

Windows:

double-click by default.

Macintosh OS X, v10.2:

position is set to INK TOGGLE by default.

Macintosh OS X, v10.1.5:

position is set to right-click by default.

Macintosh OS 9:

simulates a CTRL function by default. Clicking with the pen tip while pressing the upper side switch will display a contextual menu.

Hints:

• Press the upper side switch to double-click.

• Use right-click to bring up application-speciﬁc

The upper s witch position is set to left

The upper switch

The upper switch position

(For Macintosh systems, press the lower side switch.) This is easier than tapping twice with the pen tip.

or icon-speciﬁc menus.

By default, the lower switch is set for a right-click on Windows systems and for a double-click on Macintosh systems.

Macintosh OS 9:

the side switch to MODIFIERS: CTRL+CLICK.

To assign new switch functions, see Customizing the Side Switch

To simulate right-click functionality, set

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 16

DRAGGING

Dragging is used to select and move objects on the screen. To drag, ﬁrst point to an object. Then press the pen tip to the tablet and slide it across the tablet surface. The selected object will move across the screen. To select text, move the screen cursor to the beginning of a text line, then drag the pen across the tablet until the text is highlighted.

First, try moving an icon on the screen. Then, within a document, select some text by pressing and dragging the pen tip across the text.

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 17

PROXIMITY

The pen is activated as soon as it nears the surface of the tablet’s active area. This is known as entering tablet proximity, and allows you to position the screen cursor or use the side switch without touching the pen tip to the tablet. You can also trace a drawing or photograph as long as the pen tip remains within proximity height of the tablet surface.

Place a picture either on top of or beneath the photo frame cover and try tracing it from within one of your graphics applications. (The thickness of the item to be traced or digitized should be 1 mm or less.) See Changing the

Underlay for details on placing an image beneath the photo frame cover.

When positioning the screen cursor and operating the side switch, the pen tip needs to be within 5 mm (0.20 inch) of the tablet surface, average.

When drawing or clicking, the pen tip needs to be within 1 mm (0.04 inch) of the tablet surface.

The Cordless Mouse works similarly to the pen, and can only be used on the tablet’s active area. For the Cordless Mouse, proximity is approximately 1 - 2 mm (.04 - .08 inch).

Tablet

NDEX

NTENTS

ORKING WITH GRAPHIRE

Page 18

DRAWING WITH PRESSURE

The Graphire3 pen responds to the nuance and inﬂection of your hand movements, enabling you to create naturallooking pen and brush strokes. Many graphics applications have drawing tools that respond to the pressure you place on the pen. For example, in some drawing programs sliders are used to vary brush characteristics (width, color, and opacity). These characteristics can be controlled much better by the pen’s pressure-sensitivity. You can vary line width, blend colors, and change opacity with the pressure you exert upon the pen.

To draw with pressure-sensitivity, select a pressure-sensitive tool from your application’s tool palette. Draw along the surface of the tablet while applying v arious amounts of pressure downw ard on the tip of the pen. Press hard for thick lines or dense color. Press gently for thin lines or softer color. To adjust the tip feel, see Adjusting

Eraser Feel.

Tip and

Visit our web site for a list of graphics applications that support pressure. See Product Inf

CONTENTS

INDEX

ormation.

ORKING

WITH GRAPHIRE3

Page 19

ERASING

The eraser on the Graphire3 pen works like the eraser on a pencil. In graphics applications that support the pen’s eraser, you can erase intuitively and naturally. When you use the pen’s eraser, the application will automatically switch to the eraser tool. In applications that support pressure-sensitivity , y ou can select pressure-sensitiv e tools in an application’s tool palette to v ary the width and depth of your erasures as y ou change the amount of pressure y ou exert upon the pen.

You can also use the eraser in many standard ofﬁce applications. The eraser will not be pressure sensitive in these applications, but you can use it to select and delete text or spreadsheet cells.

Try your eraser by opening Notepad (Windows) or Simple Text (Macintosh) and typing a few words. Use the eraser to select the text. When you lift the er aser, the text will be erased. For further information on using your eraser , see

Adjusting

Tip and Eraser Feel.

Visit our web site for a list of graphics applications that support the eraser (see Product Inf ormation). If the eraser is not supported in an application, you can still use the eraser for navigating and drawing.

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 20

EYE-HAND COORDINATION EXERCISE

If you use a mouse, you may remember how long it took to get used to positioning the screen cursor. Your Graphire3 pen, likewise, will take a bit of practice to master the technique of positioning the screen cursor in

en Mode. This may seem difﬁcult at ﬁrst, but it is more natural and faster than in Mouse Mode.

This exercise is designed to retrain your eye-hand coordination for using the pen:

1. Open any graphics application. Use the line tool to draw a rectangular grid with line spacings of about 20-25 mm (3/4 to 1 inch). You can use your traditional mouse to do this.

2. Choose a free-hand tool in your application and use the pen to draw a dot at each grid intersection.

3. Draw an X at each grid intersection.

4. Now draw a circle around each intersection. Your screen should look like this:

5. Clear your screen and make a simple dra wing of y our o wn. The more y ou use y our pen, the easier dra wing and navigation will become.

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 21

USING THE CORDLESS MOUSE

The Graphire3 Cordless Mouse is batteryless and works on your Graphire3 tablet. By moving the Cordless Mouse across the tablet’ s activ e area, you can position the screen cursor lik e you do with a regular mouse . The b uttons are programmable, and the integrated ﬁngerwheel is both a programmable middle button and a rolling wheel for scrolling. By default, the rolling ﬁngerwheel provides a line scrolling capability in most applications. See Using the

Cordless Mouse Fingerwheel.

Integrated middle button and ﬁngerwheel. By default, the button function is set to MIDDLE CLICK and the ﬁngerwheel is set to SCROLL 3 lines per wheel notch.

Macintosh OS 9:

and the ﬁngerwheel is set to SCROLL 3 lines per wheel notch.

The right button is set to RIGHT-CLICK by default.

Macintosh OS 9:

MODIFIERS: CTRL+CLICK by default.

Hint:

For MS Ofﬁce applications (MS Ofﬁce 97 and greater) that support a wheel

mouse, press the CTRL key and move the ﬁngerwheel to zoom in and out.

Note:

The Cordless Mouse that came with your Graphire3 tablet will not work on any other tablet model, including tablets from the Graphire or Graphire2 series. (Note also that the Cordless Mouse is not available with some product conﬁgurations.)

To learn how to program buttons, see Customizing the Cordless Mouse.

By default, the button function is set to DOUBLE CLICK

The button is set to

Important:

the Cordless Mouse, place it on your desk. Leaving a Graphire3 tool on the tablet may interfere with screen cursor positioning when using other pointing devices, or prevent your computer from going to sleep.

By default, the left button is set to LEFT-CLICK on Windows systems, and single CLICK on Macintosh systems.

When not using

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 22

USING THE CORDLESS MOUSE FINGERWHEEL

To use the ﬁngerwheel, place your hand on the Graphire3 Cordless Mouse with your index ﬁnger on the wheel.

•

Button function.

•

Scrolling.

CROLL 3 lines for each notch of wheel movement in applications that support the ﬁngerwheel function.

to S

Move the ﬁngerwheel f orw ard to scroll up , and bac k to scroll do wn. By default, the ﬁngerwheel is set

Press down on the wheel to perform a button click.

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 23

WORKING WITH THE TABLET

Think of the tablet’s active area as a mapped representation of your computer screen. Wherever you place your pen on the tablet’s active area, the screen cursor will jump to the corresponding point on the screen. For example, when you position your pen tip in the upper right corner of the tablet, the cursor appears in the upper right corner of your screen. This is called “absolute positioning” and makes tracing possible – something you cannot do with a mouse. As you work with Graphire3, you can rest your hand on the tab let surface, just as if it were a drawing board or piece of paper.

Your tablet comes with a transparent photo frame cover used to protect your favorite photos or artwork. See Changing the

Tablet Underlay and Creating a Ne w Tablet Underlay f or details

on this feature.

Your tablet also comes with an integrated pen storage compartment. When you are not using the Graphire3 pen, you can reach behind the tablet and press the pen into the storage compartment or lay it ﬂat on your desk. Leaving a Graphire3 tool on the tablet may interfere with screen cursor positioning when using other pointing devices.

CONTENTS

INDEX

If your product came with a pen stand, you can use it to store the pen between tasks. This also makes the pen available for quick, easy access when you are working.

WORKING WITH GRAPHIRE3

Page 24

CHANGING THE TABLET UNDERLAY

Your tablet comes with a printed underlay that can be seen through the transparent photo frame cover. You can replace the underlay with a favorite photo or design of your own by following these steps:

1. Using your ﬁngernail, carefully unsnap the photo

frame cover from either the left or right side of the tablet and remove it.

2. Lift away the printed underlay and replace it with a

new photo or design of your choosing.

3. When you are done, carefully replace the photo

frame cover b y inserting the tabs on the cover into one side of the tablet and gently pressing down on the opposite side until both tabs lock into place. This will protect your photo or design as you work on the tablet.

If you would like to customize the look of Graphire3 with your own artwork or photos, see Creating a New

Tablet Underlay.

Note:

You can trace or digitize an image either by placing it on top of or beneath the photo frame cover. The thickness of the item to be traced or digitized should be 1 mm or less.

If you will be placing your image beneath the photo frame cover for tracing, ﬁrst remove the photo frame cover and position the image to be traced so that it ﬁts within the active drawing area of the tablet. Then replace the photo frame cover and begin tracing in your favorite graphics application.

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 25

CREATING A NEW TABLET UNDERLAY

If you would like to create an entirely ne w image that y ou can use for the tablet underlay, you can use the templates provided on the Wacom Tablet CD as a starting point:

1. Insert the Wacom Tablet CD into your computer and locate the T

2. Open the folder to access the template ﬁles. Template ﬁles are available for both the 4x5 / A6 and 6x8 / A5 tablets, and come in various f ormats that can be modiﬁed within any gr aphics application that supports .tif, .psd, or .eps formatted ﬁles.

3. Choose one of the predesigned templates or use a blank template to create your own design.

4. When you are done, print out your new tablet underlay. Use photo-quality paper for best results.

5. Trim the new underlay to size and place it beneath the tablet photo frame cover. See Changing the

Underlay.

EMPLATES folder.

Tablet

CONTENTS

INDEX

WORKING WITH GRAPHIRE3

Page 26

CUSTOMIZING

After you master the basics of using your Graphire3 pen and mouse set, you may want to customize the way the pen or Cordless Mouse works. This chapter describes how to use the Pen Tablet control panel to adjust your Graphire3 tablet and tool settings.

OPENING THE CONTROL PANEL CONTROL P CONTROL PANEL DETAILS

OPENING THE CONTROL PANEL

To open the Pen Tablet control panel, use the Graphire3 tool you wish to customize on the tablet:

Windows.

choose the P

Macintosh.

Then click on the P After you have opened the Pen Tablet control panel, you can begin customizing Graphire3.

Note:

control panel will be applied only to the tablet that was used when opening the Pen Tablet control panel.

Click on the Windows START button and choose ALL PROGRAMS. (For versions other than Windows XP,

ROGRAMS group.) Then select PEN TABLET and choose the PEN TABLET control panel option.

For OS X, open SYSTEM PREFERENCES from the Apple menu or from the APPLICATIONS folder.

EN TABLET icon. (For OS 9, from the Apple menu CONTROL PANELS choose PEN TABLET.)

When more than one Graphire tablet is installed on a single computer, any changes made in the Pen Tablet

ANEL BASICS

CONTENTS

INDEX

Page 27

CONTROL PANEL BASICS

Use the Pen Tablet control panel to customize your Graphire3 pen and mouse set. The control panel tabs allow you to customize your tablet, pen, and Cordless Mouse. When you change a setting, your changes take effect immediately.

If you are using a Windows system, you can also use keyboard shortcuts to select a tab. To select a tab in this manner, hold down the

Balloon Help provides quick information and useful tips, and is available for most control panel items. Simply position the screen cursor over an item and let it rest there; in a few moments the balloon help will pop up. For Macintosh, you will need to turn Balloon Help on by selecting S menu.

As you explore the control panel tabs, experiment with different settings to ﬁnd what works best for you. You can always clic k D

EFAULT to return to the factory settings. (For Windows systems y ou can also use the ALT+D k e yboard

shortcut.)

ALT key and press the key corresponding to the letter underlined on the tab.

HOW BALLOONS from the Macintosh Finder HELP

CONTENTS

INDEX

CUSTOMIZING THE P

EN CUSTOMIZING THE CORDLESS MOUSE CUSTOMIZING THE POP-UP MENU

CUSTOMIZING

Page 28

CUSTOMIZING THE PEN

Selects the side switch Button Functions.

Closes the control panel.

Customizes the

amount of pressure

needed to erase with the pen.

Customizes the

amount of pressure

needed to click or draw with the pen.

Adjusts the size of the

double-click area.

Displays information about the control panel and driver.

Software driver version.

Note:

The MOUSE tab will not display until you

have used a Cordless Mouse on the tablet.

When checked, an audible “click” sound will be heard whenever a pen click occurs and your computer speakers are turned on.

Moves the screen cursor to correspond with the position of the pen on the tablet. Click DETAILS... to customize the tablet mapping.

Moves the screen cursor like a mouse. Click DETAILS... for

Setting Mouse Speed.

Returns the PEN tab settings to their factory defaults.

Displays this User’s Manual.

CONTENTS

INDEX

CUSTOMIZING

Page 29

CUSTOMIZING THE CORDLESS MOUSE

You can set the buttons on the mouse to a variety of functions. Just select an option from the pull-down menus. Your changes take effect immediately. The Cordless Mouse buttons are chordable; you can press two or more buttons simultaneously and the functions will occur. For example, if you set one button to S

LICK, when you press both buttons a SHIFT+CLICK will occur.

to C

HIFT and another button

Use these options to customize the ﬁngerwheel. You can disable the ﬁngerwheel function, set the ﬁngerwheel to scroll a selected number of lines (1 to 15) for each notch of wheel movement, or set the ﬁngerwheel to scroll one page for each notch of wheel movement.

Displays information about the control panel and driver.

Selects the left, middle, and right Button Functions.

Software driver version.

Displays this User’s Manual.

Closes the control panel.

Moves the screen cursor to correspond with the position of your Cordless Mouse on the tablet. Click DETAILS... to customize the tablet

mapping.

Moves the screen cursor like a mouse. Click DETAILS... for Setting

Mouse Speed.

Returns the MOUSE tab settings to factory defaults.

CONTENTS

INDEX

CUSTOMIZING

Page 30

CUSTOMIZING THE POP-UP MENU

Use the POP-UP MENU tab to deﬁne the available functions on the Pop-up Menu list. To display the Pop-up Menu, set one of your tool buttons to the P displayed. Select items in the Pop-up Menu by clicking on them. To close the Pop-up Menu without making a selection, click outside of the Pop-up Menu.

OP-UP MENU function. Whenever you press that button, the Pop-up Menu is

Enables you to add a ke ystrok e macro to the Pop-up Menu list. When you click on the ADD KEYSTROKES... button a dialog box will appear where you can enter a keystroke or keystroke sequence to play back.

Opens a dialog box where you can select a speciﬁc application to launch from the Pop-up Menu.

Removes the selected item from the list.

Returns all settings to their default values.

Warning:

items that have been deﬁned.

Displays a list of functions that will appear in the Pop-up Menu. To change the order of an item, drag it to a new location.

Menu options enable you to change the appearance (FONT and font SIZE) of the Pop-up Menu.

This will delete all Pop-up Menu

CONTENTS

INDEX

CUSTOMIZING

Page 31

CONTROL PANEL DETAILS

Once you have mastered the basics of customizing your Graphire3 pen and mouse set, you may want to learn more. Use this section as a reference when working with the Pen Tablet control panel; it provides detailed information about each tab and some of the more complex topics. Many of the sections also contain useful customizing tips.

ADJUSTING ADJUSTING DOUBLE-CLICK CUSTOMIZING THE SIDE SWITCH BUTTON FUNCTIONS TABLET TRACKING MAPPING TO MULTIPLE MONITORS PORTION OF SCREEN PORTION OF TABLET SETTING MOUSE SPEED

TIP AND ERASER FEEL

CONTENTS

INDEX

CUSTOMIZING

Page 32

ADJUSTING TIP AND ERASER FEEL

The TIP FEEL slider adjusts the sensitivity of the pen tip. To create broad brush strokes or to click with a light touch, use a soft tip setting. For maximum control while drawing thin lines, use a ﬁrm tip setting.

The E

RASER FEEL slider adjusts the sensitivity of the pen eraser. To erase with broad strokes or a light touch, use a

soft eraser setting. Use a ﬁrm eraser setting for maximum control.

Customizes the amount of pressure needed to erase with the pen. Dr ag the slider to a softer or ﬁrmer setting.

When checked, an audible “click” sound will be heard whenever a pen click occurs and your computer speakers are turned

Customizes the amount of pressure needed to click or draw with the pen. Drag the slider to a softer or ﬁrmer setting.

on.

Hints:

• Use a soft TIP FEEL setting for a wider range of pressure values with most pressure-sensitive applications.

• In some applications, a soft pressure setting can make the pen overreact – any small press on the pen is magniﬁed on the screen. If you experience this, try a ﬁrmer TIP FEEL setting.

CONTENTS

INDEX

CUSTOMIZING

Page 33

ADJUSTING DOUBLE-CLICK

Double-clicking with the pen tip can be made easier by expanding the tap area that accepts a double-click (the double-click distance), or by setting the pen’s side switch to automatically double-click when pressed. A large double-click distance may adversely affect your brushstrokes in some drawing applications. If you notice such effects, try setting a smaller double-click distance and using the side switch to double-click.

Adjusts the size of the double-click area and the double-click speed. A larger setting makes double-clicking easier.

Hint:

On Windows systems y ou can make navigating with the pen easier by conﬁguring Windows to select when the pen is over an icon and to launch the icon with a single click.

To turn on this feature for Windows Me, 2000, or XP: Open a folder , select the TOOLS pull-do wn menu, and

FOLDER OPTIONS.... F rom the GENERAL tab select the

option SINGLE-CLICK TO OPEN AN ITEM (POINT TO

SELECT).

For Windows 98, open a folder and select the VIEW

pull-down menu. Then choose FOLDER OPTIONS....

From the GENERAL tab select the WEB STYLE option.

CONTENTS

INDEX

CUSTOMIZING

Page 34

CUSTOMIZING THE SIDE SWITCH

You can set the DuoSwitch on the pen to simulate a variety of mouse button functions. Just select an option from the pull-down menu for either the upper or lo wer side s witch. Your changes take effect immediately. When y ou bring the pen tip into proximity without touching the tablet and press the upper or lower side switch, the selected function occurs.

Select Button Functions to perform when pressing the upper or lower side switch.

Hint:

To make double-clicking easier, set the side switch to double-click automatically by selecting LEFT DOUBLE-CLICK in Windows, or DOUBLE-CLICK on Macintosh systems.

CONTENTS

INDEX

CUSTOMIZING

Page 35

BUTTON FUNCTIONS

The pen side switch and Cordless Mouse buttons each have a pull-down menu that allows you to choose the function that will be performed when the button is pressed. The following list describes the available functions. Some options, however, are not available for all buttons.

•

EFT-CLICK

•

LICK

•

EFT DOUBLE-CLICK

mouse button double-click. For easier double-clicking, use this function instead of tapping twice with your pen.

OUBLE-CLICK

• selected, pressing the switch simulates a mouse button double-click. For easier double-clicking, use this function instead of tapping twice with your pen tip.

IGHT-CLICK

• side switch in Windows, and for the upper position of the side switch on Macintosh systems running OS X, v10.1.5. This simulates a right mouse button click.

IDDLE-CLICK

•

EFT CLICK-LOCK

initiate click lock. Press the button again to release click lock. Click lock is useful for dragging objects or selecting blocks of text.

LICK-LOCK

• lock. Press the button again to release click lock. Click lock is useful for dragging objects or selecting blocks of text.

(Windows.) Default setting for the pen tip. This option simulates a left mouse button click.

(Macintosh.) Default setting for the pen tip. This option simulates a mouse button click.

(Windows.) Default setting for the upper position of the side switch. Simulates a left

(Macintosh.) Default setting for the lower position of the side switch. When this option is

(Windows and Macintosh OS X, v10.1.5.) This is the default setting for the lower position of the

(Windows and Macintosh OS X.) Simulates a middle mouse button click.

(Windows.) Simulates holding down the left mouse button. Press the tool button once to

(Macintosh.) Simulates holding down a mouse button. Press the tool button once to initiate click

CONTENTS

INDEX

CUSTOMIZING

Page 36

•

EYSTROKE

EYSTROKE dialog box where you can enter a keystroke or keystroke sequence to play back.

Keystroke combinations can include letters, numbers, function keys (such as F3) and modiﬁer keys (such as SHIFT, ALT, or CTRL for Windows, or SHIFT, OPTION, COMMAND, and CTRL for Macintosh).

Important:

and RETURN (Macintosh) keys can be selected as a deﬁned keystroke , they cannot be used to select OK. Y ou must use y our pen or mouse to click on the OK button.

After deﬁning a keystroke sequence, click OK.

Note:

When you assign a KEYSTROKE... sequence to the Pop-up Menu, you are prompted to enter a keystroke name that will be displayed in the Pop-up Menu list.

....

Enables you to simulate a series of keystrokes. Selecting this option displays the DEFINE

Because the ENTER (Windows)

If you make a mistake , click here to CLEAR the KEYS: entry block.

CONTENTS

INDEX

CUSTOMIZING

Page 37

•

ODIFIER

OMMAND, and CTRL for Macintosh). Many applications use modiﬁer keys to constrain the size or placement of

C objects. Selecting this option displays the D

....

Enables you to assign modiﬁer key(s) (such as SHIFT, ALT, or CTRL for Windows, or SHIFT, OPTION,

EFINE MODIFIER(S) dialog box where you can assign one or more

modiﬁer key functions.

Select the CLICK box plus one or more modiﬁer key options if you want a mouse click to happen whenever you press the tool button.

Windows screen capture shown.

RESSURE HOLD

•

(Pen only.) Sets the button so that, when pressed, the pressure is locked at the current pressure level until the button is released. For example, you can paint with pressure-sensitivity until you reach the brush size that you like. You can then press the button and continue painting with the same size brush until the button is released.

CONTENTS

INDEX

CUSTOMIZING

Page 38

•

ODE TOGGLE

....

Toggles between Pen Mode and Mouse Mode. When setting a tool button to MODE TOGGLE..., a dialog box displays allowing you to adjust the mouse acceleration and speed. See Setting Mouse Speed details.

Ink T oggle.

•

NYWHERE function of Inkwell on and off. Note that Ink must be turned on for this button function to work.

•

POP-UP M

(Pen and Macintosh OS X, v10.2 or greater only.) Lets you use your pen to toggle the INK

ENU

Displays a Pop-up Menu on your screen. See Customizing the Pop-up Menu for more

information.

RASE

• applications that support the E

•

RUN....

Click BROWSE... to locate an application to launch. The selection you make appears in the APPLICATION TO RUN block. Click OK to accept the selection. The dialog box will close and the RUN... option will be assigned as your tool button option.

The next time you press the tool button, the deﬁned application will launch.

GNORED

•

(Pen only.) Sets a button so that when the button is pressed, the pen tip will act like the eraser in

RASE function. See Erasing for information on using the eraser.

Opens a dialog box where you can select a speciﬁc application, ﬁle, or script to launch.

Disables the button function.

for

CONTENTS

INDEX

CUSTOMIZING

Page 39

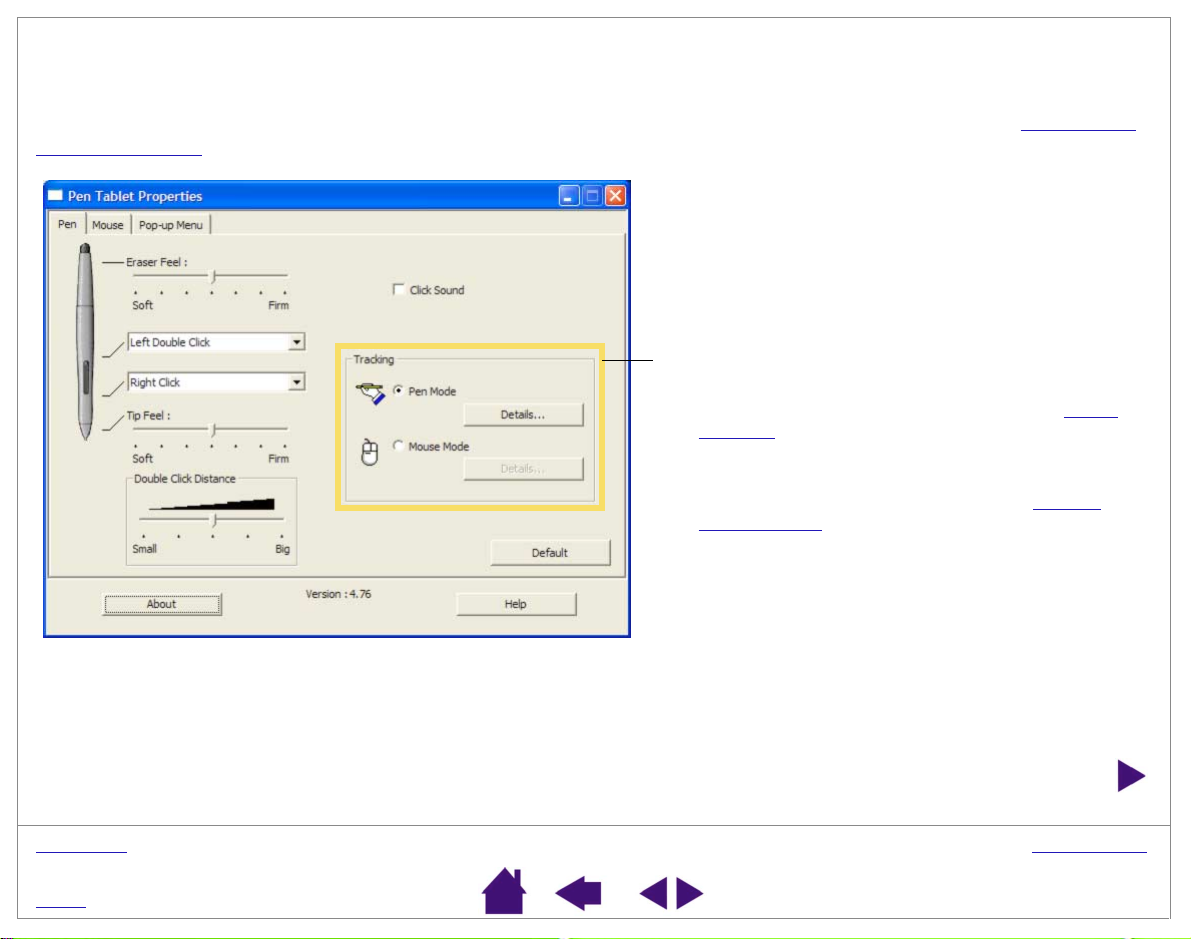

TABLET TRACKING

The tablet TRACKING options enable y ou to determine the relationship between pen (or Cordless Mouse) mov ement on the tablet surface and cursor movement on the monitor screen. By default the entire active area of the tablet maps to the entire monitor. If more than one monitor is in use the tablet will map to all monitors. See Mapping to

Multiple Monitors.

The TRACKING mode you select controls how the screen cursor moves:

• Select PEN MODE to set the cursor so that its movement corresponds with the position of your Graphire3 tool on the tablet – wherev er y ou place your tool on the tablet, the cursor will jump to a corresponding point on the screen. This is known as absolute positioning, and is required for tracing. Click D

mapping.

• Select MOUSE MODE to move the screen cursor with a “pick up and slide” motion similar to using a traditional mouse. Click DETAILS... for Setting

Mouse Speed.

By default, the pen is set to PEN MODE, and the Cordless Mouse is set to MOUSE MODE for navigation.

ETAILS... to customize the tablet

Note:

If you frequently switch between PEN MODE and MOUSE MODE, you can assign

the MODE TOGGLE... function to one of your tool buttons.

CONTENTS

INDEX

CUSTOMIZING

Page 40

When you click on the PEN MODE DETAILS... button, the PEN MODE DETAILS dialog box is displayed.

Use the SCREEN AREA options to select a screen area for tablet to screen mapping.

•ALL SCREENS. The entire monitor(s) area is mapped; this is the default setting. See Mapping to Multiple Monitors for more information.

•MONITOR. The entire area of a single monitor that you choose is mapped.

•PORTION. A portion of the desktop area is mapped. Click SET... to open a dialog box where you can set the

portion of screen area.

MAINTAIN PROPORTIONS. Check or uncheck the box to select a tablet to screen mapping relationship.

• When unchecked, the correct scale or proportions are not maintained. The selected tablet area is mapped to the selected display area. A tr aced image ma y appear stretched, and may be smaller or larger than the original image. This is the default setting.

• When checked, the correct vertical and horizontal proportions are maintained between the tablet and display. A tr aced image appears proportionally correct on your display, but may be smaller or larger than the original image. Depending on your settings, some portions of the tablet active area may no longer be usable when this option is selected.

Returns settings to their factory defaults.

CONTENTS

INDEX

CUSTOMIZING

Page 41

Use the TABLET AREA options to select a tablet area for tablet to screen mapping.

•FULL. The entire active area of the tablet is mapped. This is the default setting.

•PORTION. A portion of the tablet area is mapped. Click SET... to open a dialog box where you can set the portion of tablet area.

MAPPING TO MULTIPLE MONITORS

When you are working with more than one monitor, Graphire3 will map to the monitors based upon how your system is conﬁgured. By default, if more than one monitor is in use and you are in extended monitor mode, the tablet will map to all monitors as if they were one large display. If you are in mirror mode, the tablet will map to the entire space on each monitor and the screen cursor will be displayed on each monitor simultaneously.

Please refer to your hardware and operating system documentation for details on conﬁguring your computer and operating system for use with multiple monitors.

After you have correctly conﬁgured your computer for use with multiple monitors, you can then adjust the tablet mapping by opening the Pen Tablet control panel and changing the appropriate options.

CONTENTS

INDEX

CUSTOMIZING

Page 42

PORTION OF SCREEN

The PORTION OF SCREEN dialog box enab les you to deﬁne which portion of the display screen your tab let will map to . After deﬁning a portion of the screen, you may need to use a different input device to access other portions of the screen area.

Drag corners of the foreground graphic to select the screen area. The background graphic represents the entire screen area.

Move the screen cursor to select the screen area. Select the CLICK

TO DEFINE SCREEN AREA button.

As you deﬁne PORTION OF SCREEN, follow any MESSAGE prompts to set the portion of your display screen that will be used for mapping.

CONTENTS

INDEX

CUSTOMIZING

Page 43

PORTION OF TABLET

The PORTION OF TABLET dialog box enables you to select a portion of the tablet’s active area for tablet to display mapping.

Drag corners of the foreground graphic to select the tablet area that will be mapped to your selected screen area. The background graphic represents the tablet.

Use your tool on the tablet to select the tablet area. Select the CLICK

TO DEFINE TABLET AREA button.

As you deﬁne PORTION OF TABLET, follow any MESSAGE prompts to set the portion of your tablet that will be used for mapping.

CONTENTS

INDEX

CUSTOMIZING

Page 44

SETTING MOUSE SPEED

To change the screen cursor acceleration and speed when in MOUSE MODE, click on the MOUSE MODE DETAILS... button (located on the P

EN or MOUSE tabs) to display a dialog box where you can make your adjustments.

Sets the screen cursor acceleration when in MOUSE MODE.

Returns settings to their factory defaults.

Note:

The dialog box will also appear when you ﬁrst set a tool button to MODE TOGGLE....

Sets the screen cursor tracking speed when in

OUSE MODE.

CONTENTS

INDEX

CUSTOMIZING

Page 45

TROUBLESHOOTING

Most of the time your tablet will work ﬂawlessly. But if you are having trouble, Wacom recommends you do the following:

1. If the Wacom tablet driver failed to load properly, ﬁrst perform the recommended action in any error message that may appear on your screen. If that does not solve the problem, refer to the troubleshooting procedures in this chapter.

2. Look in the T

3. Open the Wacom tablet Read Me ﬁle for late-breaking information.

4. If you are having a compatibility conﬂict between Graphire3 and a new hardware or software product, check if a newer Wacom tablet software driver is available. See Obtaining Dr downloading an updated software driver. Wacom periodically updates the software driver to maintain compatibility with new products.

5. Check the FAQs (Frequently Asked Questions) on the Wacom web site for your region.

6. If you have tried the suggestions in this manual and still cannot resolve the problem, then contact Wacom for Technical Support. See the Read Me ﬁle for information on where to obtain support for your region.

roubleshooting Tables. Your problem may be described there and you can try the solution offered.

iver Downloads for information on

ESTING YOUR TABLET

T TROUBLESHOOTING TABLES TECHNICAL SUPPORT OPTIONS

CONTENTS

INDEX

Page 46

TESTING Y OUR T ABLET

Make sure your computer is turned on, the operating system has ﬁnished loading, and the tablet is properly connected to an active USB port. Then try the following tests:

Check the tablet.

computer has registered it as a USB device. If the LED is on, continue with step 2. If the tablet status LED does not glow when the computer is on and the system has fully loaded, then:

• Make sure the tablet USB cable is securely connected to an active USB port on your computer.

• If you are connecting the tablet to a USB hub (or hub device such as a keyboard with USB ports), be sure

the USB hub is properly connected to your computer and is active.

• Connect the tablet to a different USB port or try connecting to the USB port on another computer. If the tablet’s status LED does not illuminate after your computer is on and has ﬁnished booting up, your USB

port may be disabled. Verify that you have connected the tablet to an active USB port.

The tablet’s orange status LED will light whenever the tablet is properly connected and your

CONTENTS

INDEX

TROUBLESHOOTING

Page 47

Check the pen.

• Move your pen across the active area of the tablet; the screen cursor should move in the corresponding

direction on your monitor.

• Press the pen tip against the surface of the tablet. The tablet status LED should turn from orange to green.

• Next, without applying pressure to the pen tip, hold the pen tip within approximately 5 mm (0.20 inch) of the

tablet surface and press the side switch. The status LED should again change from orange to green.

• Turn the pen over and press the eraser against the surface of the tablet; the status LED should change from

orange to green.

3. Check the Cordless Mouse.

• Move the Cordless Mouse across the active area of the tablet; the screen cursor should move in the

corresponding direction on your monitor.

• Test the buttons on your Cordless Mouse by clicking each button. The tab let’s status LED should turn green

when a button is pressed. If not, you may have a defective Cordless Mouse or tablet. See T

echnical

Support Options.

CONTENTS

INDEX

TROUBLESHOOTING

Page 48

TROUBLESHOOTING TABLES

If you encounter problems with your Graphire3 tools or tablet, refer to the following tables. Your problem may be described here, and you can try the solution offered. Be sure you refer to the Read Me ﬁle f or the latest inf ormation updates.

GENERAL PROBLEMS WINDO MACINTOSH-SPECIFIC PROBLEMS

GENERAL PROBLEMS

WS-SPECIFIC PROBLEMS

The computer does not have an available USB port.

Check if there is an available USB port on a USB hub device. If none are available you will need to add a USB hub.

The tablet status LED is off. Verify that your tablet’s USB cable is properly connected to an active USB

port. If you are connecting to a USB hub device, make sure the hub is connected to an active USB port and that the hub is active.

The pen works only in Mouse Mode, and does not draw with pressure-sensitivity.

Clicking is difﬁcult. Set the T

The tablet driver software was not installed or did not load properly. Make sure the tablet driver software is installed and functioning. Insert the Tablet CD into your computer and install the driver software for the tablet.

IP FEEL slider to a softer setting.

Select the CLICK SOUND option (the check box should be checked) so that you can hear when the pen registers a mouse click. Note that your computer speakers must be turned on and the volume audible before you can hear C

CONTENTS

INDEX

LICK SOUND.

TROUBLESHOOTING

Page 49

Double-clicking is difﬁcult. Be sure you are quickly tapping the tablet twice in the same place on the

tablet’s active area. Using the side switch to double-click is recommended (review the

techniques in Clic

king). See also Customizing the Side Switch.

Try increasing the DOUBLE-CLICK DISTANCE (see Adjusting Double-Click). Try using a lighter TIP FEEL (see Adjusting Tip and Eraser Feel). Try setting your system to launch programs with a single click.

le-Click.

IP FEEL slider toward FIRM.

The pen selects everything, will not

See Adjusting Doub Open the Pen Tablet control panel. Move the T

stop drawing. The eraser selects everything or

will not stop erasing. You notice a screen delay at the

beginning of pen strokes. You have to press hard with the pen

Open the Pen Tablet control panel. Move the ERASER FEEL slider toward

IRM.

F In the Pen Tablet control panel, try decreasing the D

(see Adjusting Doub

le-Click).

Open the Pen Tablet control panel. Move the T

OUBLE-CLICK DISTANCE

IP FEEL slider toward SOFT.

when clicking or drawing. The pen tip does not function. Make sure the status LED changes from orange to green when the pen tip

is pressed to the tablet surface. If it does not, you may have defective hardware (see T

esting Your Tablet).

CONTENTS

INDEX

TROUBLESHOOTING

Page 50

The side switch does not work. Be sure you press the side switch when the pen tip is in proximity – do this

without pressing down on the pen tip. From the Pen Tablet control panel, verify that the side switch is set to the

function you are expecting to occur. Make sure the tablet status LED changes from orange to green when you

press the side switch. If it does not, you may have defective hardware

esting Your Tablet).

Changing the function settings for the Graphire3 tools has no effect.

The screen cursor jumps back when using your regular mouse or trackball.

(see T Make sure that you change the settings for the tool that you are using.

See Customizing the Pen or Customizing the Cordless Mouse. Do not place the pen or Cordless Mouse on the tablet when they are not in

use, or when you are using another pointing device. Leaving your tool on the tablet may interfere with screen cursor positioning when using other input devices.

CONTENTS

INDEX

TROUBLESHOOTING

Page 51

Cannot move the cursor where you want to on the screen, or the line you are drawing does not line up with the location of the pointer in paint applications.

Open the Pen Tablet control panel. Verify that P does not help, click on the D

EFAULT button to reestablish the default tablet

to screen mapping. If this does not work:

Windows:

Do a Search or Find for the TABLET.DAT ﬁle and delete it.

The ﬁle should be in your Windows or Windows\System32 folder.

EN MODE is selected. If this

Then restart your computer. When the tablet driver loads, it will create a new preferences ﬁle with the factory default settings.

Macintosh OS X, v10.1.5 or greater:

HARED AND TABLET folders. From the TABLET folder, drag the TABLET

REFERENCES to the trash. Log out, then log back in. When the tablet

From the USERS folder, open the

driver loads it will create a new preferences ﬁle with the factory default settings.

Macintosh OS 9:

ABLET folders. From the TABLET folder, drag the TABLET PREFERENCES ﬁle

From the SYSTEM FOLDER open the PREFERENCES and into the trash. Then restart your computer. When the tablet driver loads, it

will create a new preferences ﬁle with the factory default settings.

The computer does not go to sleep. When you are not using the pen or Cordless Mouse, remov e them from the

tablet surface or the tab let will continue to send data, k eeping the computer awake.

When using the tablet the screen cursor is very erratic or jumps around.

On rare occasions the tablet may receive interfering radio frequencies from a computer monitor or nearby AM radio station. If you notice interference from a monitor, try moving the tablet at least 6 inches away from the monitor, or change the monitor refresh rate or monitor resolution.

CONTENTS

INDEX

TROUBLESHOOTING

Page 52

WINDOWS-SPECIFIC PROBLEMS

Windows 98 or Me.

Your Graphire3 tools do not function inside a full screen DOS window.

After pressing C

TRL+ALT+DEL, the

screen cursor cannot be controlled with your pen or Cordless Mouse.

After changing right- and lefthanded settings in the Mouse control panel, the Graphire3 pen tip no longer functions properly and the Graphire3 Cordless Mouse button functions are reversed.

Windows XP.

After installing the tablet on a system with multiple users, the tablet only works on the primary user desktop.

You must use a traditional mouse when working in a full screen DOS window.

When the C

LOSE PROGRAM dialog box (Windows 98 or Me) is active, the

tablet will not work. Use your mouse or keyboard to continue. When this dialog box is closed, you can again use your Graphire3 tool to control the screen cursor.

This will reverse the right and left button settings on your Wacom tools. Restart Windows for your Wacom tool settings to be correctly recognized.

Reboot the system after installing the tablet on a system with multiple users.

CONTENTS

INDEX

TROUBLESHOOTING

Page 53

Windows 98 or Me.

When working with multiple monitors, the screen cursor positioning is incorrect after moving into the unmapped area of the virtual desktop.

On a multiple monitor system, the tablet is mapped to the virtual desktop (a rectangular area covering all monitors). In the Pen Tablet control panel’s

ORTION OF SCREEN dialog box, the screen rectangle represents the entire

P virtual desktop.

If your video display areas do not form a rectangle because they are different sizes or they are not evenly aligned, the screen cursor positioning will be incorrect after moving into the unmapped area of the virtual desktop. To reestablish the correct screen cursor position, lift your Graphire3 tool out of tablet proximity and bring it back into proximity over an area of the tablet that is mapped to a display area.

MACINTOSH-SPECIFIC PROBLEMS

At startup, a dialog box appears telling you that either the driver failed to load or the tablet preferences have not yet been created.

CONTENTS

INDEX

The tablet was not detected at startup. Make sure the USB interface cab le is securely connected and that the status LED on the tablet is orange. If your tablet is plugged into a USB hub, make sure the hub is connected and active.

Macintosh OS X, v10.1.5 or greater:

PPLICATIONS and open the UTILITIES folder. Launch the APPLE SYSTEM

ROFILER and select the DEVICES AND VOLUMES tab. A USB tablet should

From the GO menu, select

be displayed by the proﬁler. If a USB tablet was not found, check the USB tablet cable connection or try plugging the tablet into a different USB port.

TROUBLESHOOTING

Page 54

TECHNICAL SUPPORT OPTIONS

If you have a problem with your Wacom tablet, ﬁrst check the tablet installation guide to be sure the unit is installed correctly. Then review the T you can try the solution(s) offered.

If you cannot ﬁnd the answer in this manual, you may ﬁnd updated information about your problem in the Read Me ﬁle for your platform (located on the Wacom Tablet CD). You can also check the product FAQs (Frequently Asked Questions) on the Wacom web site for your region.

If you cannot solve the problem and you think your Wacom tablet is not working properly, contact the Wacom support staff for the area where your product was purchased. See the Wacom tablet Read Me ﬁle, located on the Wacom Tablet CD, for contact inf ormation. If you hav e a modem you can download the latest software drivers from the Wacom web site for your region. See Obtaining Dr

When you call, you should be at your computer with the following information available:

• This manual.

• Tablet serial and model number. (Look on the bottom of the tablet.)

• Driver version number. (See the Wacom Tablet CD or the Pen Tablet control panel.)

• The make and model of your computer, and operating system version number.

• A list of peripheral devices attached to your computer.

• The software application and version you were using when the problem occurred.

• The exact wording of any error message that appeared on your screen.

• What happened and what you were doing when the problem occurred.

• How you tried to solve the problem.

roubleshooting section within this manual; your problem may be described there and

iver Downloads for your region.

CONTENTS

INDEX

TROUBLESHOOTING

Page 55

OBTAINING DRIVER DOWNLOADS

If you are having a compatibility conﬂict between Graphire3 and a new hardware or software product, it may be helpful to download a new Wacom tablet software driver (when available) from the Internet. Wacom periodically updates the software driver to maintain compatibility with new products.

USA, Canada, Central and South America

Worldwide Web: http://www.wacom.com/productsupport Software updates. (English) Anonymous FTP Site: ftp.wacom.com/pub/drivers Software updates.

Europe, Middle East and Africa

Worldwide Web: http://www.wacom-europe.com Software updates. Anonymous FTP Site: ftp://ftp.wacom-europe.com/pub/ Software updates.

Japan

Worldwide Web: http://tablet.wacom.co.jp Software updates. (Japanese)

Asia Paciﬁc (English)

Worldwide Web: http://ap.wacom.co.jp Software updates. (English)

CONTENTS

INDEX

TROUBLESHOOTING

Page 56

APPENDICES

This section contains information and tips on caring for your tablet and tools, a how-to on uninstalling the tablet software, your license and warranty, and more.

ING FOR YOUR TABLET AND TOOLS

CAR UNINSTALLING THE SOFTWARE PRODUCT SPECIFICATIONS PRODUCT INFORMATION ORDERING PARTS AND ACCESSORIES RADIO AND TELEVISION INTERFERENCE LICENSE AND WARRANTIES (WORLDWIDE, EXCEPT

FOR EUROPE, AFRICA AND MIDDLE EAST)

LICENSE AND WARRANTY (EUROPE, AFRICA

AND MIDDLE EAST)

CONTENTS

INDEX

Page 57

CARING FOR YOUR TABLET AND TOOLS

Keep your Graphire3 tools and tablet surface clean. Dust and dirt particles can stick to your tools and cause wear to the tablet surface. Regular cleaning with a soft, damp cloth will help prolong the life of your tablet surface and tools; you can also dampen the cloth using a very mild soap diluted with water. Do paint thinner or benzene, as they may damage the plastic case.

Keep your tablet and tools in a clean, dry place and avoid extremes in temperature. Room temperature is best. Also, your Graphire3 tools and tablet are not made to come apart. Twisting the pen case can break the pen. Taking apart the product will void your warranty.

REPLACING THE PEN TIP

The pen tip (nib) will wear with normal use. When the nib gets too short or develops a ﬂat point, you can replace it with another nib. Simply clasp the old nib with a tweezer, needle-nosed plier, or similar instrument and pull it straight out of the pen. Then slide the end of the new nib straight into the barrel of the pen – ﬁrmly push the nib until it stops.

not

use volatile liquids, such as

To order replacement parts, see Order

CONTENTS

INDEX

ing Parts and Accessories.

Important:

pen is not in use, place it in the pen storage compartment, the pen stand included with some product conﬁgurations or lay it ﬂat on your desk. To maintain the sensitivity of your pen tip, do not store the pen in a container where it will rest on the tip.

When the Graphire3

APPENDICES

Page 58

UNINSTALLING THE SOFTWARE

Follow the appropriate procedure below to remove the Wacom tablet and tablet software from your system.

Windows XP:

In the A

ROGRAMS button. Follow the prompts to remove the tablet driver. When the tablet driver has been removed,

DD OR REMOVE PROGRAMS window, choose PEN TABLET DRIVER and click on the CHANGE OR REMOVE

unplug the tablet from your computer.

Windows 98, Me, or 2000:

1. Click the Windows START button. Then choose SETTINGS and CONTROL PANEL.

2. In the CONTROL PANEL window, double-click on the ADD/REMOVE PROGRAMS icon. In the dialog box that appears, choose the P

3. Click on the ADD/REMOVE... b utton and f ollow the prompts to remo v e the tablet driver. When the tab let driver has been removed, unplug the tablet from your computer.

Macintosh OS X, v10.1.5 or greater:

From the FINDER, choose APPLICATIONS from the GO menu and open the TABLET folder. Double-click on the

EMOVE TABLET icon and select the REMOVE TABLET SOFTWARE button. After the removal is completed, click OK.

R Then unplug your tablet from the computer.

Macintosh OS 9:

1. Run the Wacom Tablet Installer (either from the Wacom Tablet CD or from your latest tablet driver download).

2. Select the INSTALL button and CONTINUE through the prompts until you reach the tablet driver installation dialog box. Then select the R

3. Unplug the tablet from your computer.

Click START. In the start menu, select CONTROL PANEL. Then select ADD OR REMOVE PROGRAMS.

EN TABLET option.

EMOVE button and follow the prompts.

Important:

When you remove the Wacom tablet software from your system, any other Wacom tablet

connected to your computer will no longer operate with full Wacom tablet functionality.

CONTENTS

INDEX

APPENDICES

Page 59

PRODUCT SPECIFICATIONS

GENERAL SPECIFICATIONS FOR ALL GRAPHIRE3 TABLETS

Coordinate resolution 80 lpmm (2032 lpi) Accuracy (pen) +/- 0.5 mm (0.02 in) Reading height with pen 5 mm (0.20 in), average Report rate 100 points per second Communication interface USB Connector USB A Power requirements DC 5V, 40 mA or less, from USB port Operating temperature 5 to 40 degrees C (41 to 104 degrees F) Storage temperature -10 to +60 degrees C (14 to 140 degrees F) Operating relative humidity 20% to 80% noncondensing Storage relative humidity 20% to 90% noncondensing Certiﬁcations and compliance FCC Class B, CE, VCCI Class B, BSMI, C-Tick, Korean EMI

GRAPHIRE3 4X5 / A6 TABLET (MODEL CTE-430) GRAPHIRE3 6X8 / A5 TABLET (MODEL CTE-630) GRAPHIRE3 PEN (MODEL EP-130) GRAPHIRE3 CORDLESS MOUSE (MODEL EC-130) GRAPHIRE3 INKING PEN (MODEL EP-200, OPTIONAL)

CONTENTS

INDEX

APPENDICES

Page 60

GRAPHIRE3 4X5 / A6 TABLET (MODEL CTE-430)

Active area (W x D) 127.6 x 92.8 mm (5.02 x 3.65 in) Physical size (W x D x H) 210 x 17.5 x 208 mm (8.27 x 0.69 x 8.20 in) Cable length 1.5 m (4.95 ft) Weight 0.5 kg (1.1 lb), approximately Power consumption 0.2 watts, approximately

GRAPHIRE3 6X8 / A5 TABLET (MODEL CTE-630)

Active area (W x D) 208.8 x 150.8 mm (8.22 x 5.94 in) Physical size (W x D x H) 275.5 x 18.1 x 256.8 mm (10.85 x 0.71 x 10.12 in) Cable length 1.5 m (4.95 ft) Weight 0.8 kg (1.8 lb), approximately Power consumption 0.2 watts, approximately

GRAPHIRE3 PEN (MODEL EP-130)

Physical size (L x D) 145 x 12.5 mm (5.71 x 0.49 in) Pressure levels 512 levels Pen tip travel 0.1 mm (0.004 in) or less Eraser tip travel 0.1 mm (0.004 in) or less Weight 11 g (0.02 lb), approximately Tip reﬁll type Polyacetal (Part No. PSI-A007)

CONTENTS

INDEX

APPENDICES

Page 61

GRAPHIRE3 CORDLESS MOUSE (MODEL EC-130)

Physical size (L x W x H) 115 x 60 x 38 mm (4.53 x 2.36 x 1.50 in), approximately Weight 90 g (0.20 lb), approximately Fingerwheel type Continuous rotation, 24 notches per revolution

GRAPHIRE3 INKING PEN (MODEL EP-200, OPTIONAL)

Pen tip travel 0.1 mm (0.04 in) or less Pressure levels 512 levels Physical size (L x D) 151 x 12.5 mm (5.94 x 0.49 in) Weight 12 g (0.42 oz), approximately Tip reﬁll types Polyacetal (Part No. PSI-A011)

Ink reﬁll, black (Part No. PSI-A023)

Note:

The Inking Pen will not ﬁt into the pen storage compartment or pen stand.

PRODUCT INFORMATION

To learn more about which software applications currently support the pressure-sensitivity and eraser function of your Graphire3 tablet and pen, visit the Wacom web site for your region:

USA, Canada, Central and South America http://www.wacom.com/productinfo Europe, Middle East and Africa http://www.wacom-europe.com/de (German)

http://www.wacom-europe.com/fr (French)

http://www.wacom-europe.com/uk (English) Japan http://tablet.wacom.co.jp Asia Paciﬁc (English) http://www.wacom.com

CONTENTS

INDEX

APPENDICES

Page 62

ORDERING PARTS AND ACCESSORIES

To purchase parts and accessories, refer to the tablet Read Me ﬁle and see who to call for your region.

Description Part Numbers

Photo Frame Cover (4x5 / A6) PPL-A130 Photo Frame Cover (6x8 / A5) PPL-A131 Replacement Tips for Pen

(EP-130 models) Pen Stand PST-A031 Pen Tether (optional) FUZ-A089

You can also do the following:

To purchase parts and accessories in the USA or Canada,

site at http://www.wacom.com/wacomdirect/ (USA only).

To purchase parts and accessories in Europe,

call +49 (0)180 500 03 75 or send an email to parts@wacom-europe.com. If you have an Internet connection, visit www.wacom-europe.com/solutionstore. You can also contact your local dealer, distributor, or Technical Support using the appropriate number for your region.

To purchase parts and accessories in other countries,

PSI-A007

call 1-888-884-1870 (toll-free) or visit Wacom’s web

please contact your local dealer or distributor.

CONTENTS

INDEX

APPENDICES

Page 63

RADIO AND TELEVISION INTERFERENCE

The equipment described in this manual generates, uses, and can radiate radio-frequency energy. If it is not installed and used properly—that is, in strict accordance with Wacom instructions—it may cause interference with radio and television reception.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications . Howev er , there is no guar antee that interf erence will not occur in a particular installation.

You can determine whether the tablet is causing interference by disconnecting it from your computer. If the interference stops, it was probably caused by the tablet.

If your tablet does cause interference to radio or television reception, you may be able to correct the interference by using one or more of the following measures:

• Rotate the television or radio antenna until the interference stops.

• Move the tablet farther away from the television or radio.

• Plug the tablet and computer into an outlet that is on a different circuit from the television or radio. If necessary, consult your Wacom dealer or an experienced radio/television technician for help.

Changes or modiﬁcations to this product not authorized by Wacom could void the FCC Certiﬁcation and negate your authority to operate the product.

CONTENTS

INDEX

APPENDICES

Page 64

CE DECLARATION

The Graphire® 3 digitizing tablet, models CTE-430 and CTE-630, have been tested and found to comply to the following harmonized European Norms:

• EN 55024 (electromagnetic immunity)

• EN 55022 Class B (electromagnetic emissions) Based on the results of these tests, Wacom declares that the above mentioned devices conf orm to Article 10.1 of the European

Council Directive 89/336/EEC, and their amendment Directiv e 93/68/EEC and indicates this conf ormity by the CE-sign on each device.

The device must be installed and operated always in strict accordance to the instructions given in this handbook. Any changes or modiﬁcations to this product that were not speciﬁcally authorized will invalidate this declaration.

CONTENTS

INDEX

APPENDICES

Page 65

LICENSE AND WARRANTIES

(WORLDWIDE, EXCEPT FOR EUROPE, AFRICA AND MIDDLE EAST)

Software License

This legal document is an agreement between you, the end-user, and Wacom Technology Corporation (Wacom).

1. Grant of License.

CD-ROM (the “Software”). The Software is licensed, not sold, to you for use only with Wacom products upon the terms of this license, and Wacom reserves any rights not expressly granted to you. Wacom grants to you a non-exclusive right to use this copy of the Software in conjunction with a Wacom product at a single location.

2. Ownership of Software.

ownership of the Software itself. You acknowledge that the Software is Wacom’s property, and contains valuable conﬁdential, unpublished information developed or acquired by Wacom at great expense, including data processing algorithms, innovations and concepts. The Software is protected by cop yright and other f eder al and state la ws . You agree to use your reasonable best efforts to protect the Software from unauthorized reproduction, distribution, disclosure, use, or publication.

3. Copy Restrictions.

4. Use Restrictions.

5. Termination.

if you fail to comply with any provisions of the License.

6. Miscellaneous.

Asia Paciﬁc and by the laws of Japan for Asia Paciﬁc.

The enclosed product includes computer programs embedded in ﬁrmware and accompanying diskette or

Although you may own the product in which the Software is originally recorded, Wacom retains

Unauthorized copying of the Software is expressly forbidden.

You may not decompile, reverse assemble, disassemble or reverse engineer the Software.

This License is effective until terminated. This License will terminate automatically without notice from Wacom

This License is governed by the la ws of the United States of America and the state of Washington except in

CONTENTS

INDEX

APPENDICES

Page 66

Limited Warranty (Worldwide, Except Europe, Africa and Middle East)

WA COM warr ants the product, e xcept f or the Software , to be free from def ects in materials and workmanship under normal use and service as long as the product remains in possession of the original owner, for a period of one (1) year, from the date of original purchase, as evidenced by a copy of the receipt and a registration card that has been returned to WACOM within 30 days of purchase.

The Software is licensed “as is.” WACOM makes no warranty with respect to its quality or performance. WACOM cannot guarantee you uninterrupted service or the correction of any errors.

Upon discovery of a defect in the product, except in the Software, within the Warranty Period, you should notify WACOM Technical Support via telephone, email, or fax to obtain an RMA (Return Merchandise Authorization) number and instructions for shipping the product to a service location designated by WACOM.

You should send the product, shipping charges prepaid, to the designated service location, accompanied by the return authorization number, your name, address and telephone number, proof of purchase date, and a description of the defect. WACOM will pay for return shipping by United Parcel Service or by an equivalent service as chosen by WACOM.

WACOM’s sole obligation and entire liability under this warranty shall be, at WACOM’s option, either the repair or replacement of the defective product or parts thereof of which WACOM is notiﬁed during the Warranty Period; provided, however, that you are responsible for (i) the cost of transportation of the product to the designated service location and (ii) any loss or damage to the product resulting from such transportation.

WACOM shall have no responsibility to repair or replace the product if the failure of the product has resulted from accident, abuse, misuse, negligence, or unauthorized modiﬁcation or repair, or if it has been handled or stored other than in accordance with WACOM’s storage instructions.

Any descriptions, drawings, speciﬁcations, samples, models, bulletins, or similar material, used in connection with the sale of the product, shall not be construed as an express warranty that the product will conform or comply with your requirements.

CONTENTS

INDEX

APPENDICES

Page 67

EXCEPT FOR THE LIMITED WARRANTY DESCRIBED ABOVE, THERE ARE NO OTHER W ARRANTIES MADE BY WACOM ON THIS PRODUCT. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY WACOM, ITS DEALERS, DISTRIBUTORS , AGENTS, OR EMPLO YEES SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY, AND YOU MAY NOT RELY ON ANY SUCH INFORMATION OR ADVICE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH VARY FROM STATE TO STATE.

WACOM LIMITS THE DURATION OF ANY LEGALLY IMPLIED WARRANTIES INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE DURATION OF WACOM’S EXPRESS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

NEITHER WACOM NOR ANYONE ELSE WHO HAS BEEN INVOLVED IN THE CREATION, PRODUCTION, OR DELIVERY OF THIS PRODUCT SHALL BE LIABLE FOR ANY DIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION AND THE LIKE) ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF WACOM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

In the event that any of the above limitations are held unenforceable, WACOM’s liability for any damages to you or any party shall not exceed the purchase price you paid, regardless of the form of any claim.

This Limited Warranty is governed by the laws of the United States of America and the state of Washington. This Limited Warranty is valid for and only applies to products purchased and used inside the United States (and its territories

or possessions) and Canada.

CONTENTS

INDEX

APPENDICES

Page 68

Warranty on Sales Outside of U.S. and Canada (Except Europe, Africa and Middle East)

For products purchased or used outside of the United States and Canada, upon discovery of a defect in the product, except in the Software, within the Warranty Period you should notify your local dealer or distributor. In all other respects the terms of the warranty as set forth above apply to such sales.

Should you have any questions about this Agreement, or if you desire to contact WACOM for any reason, please contact in writing:

In North and South America contact: In Asia Paciﬁc contact:

Wacom Technology Corporation WACOM Co., Ltd. 1311 S.E. Cardinal Court 2-510-1 Toyonodai Vancouver, Washington 98683 Otone-Machi, Kitasaitama-Gun U.S.A. Saitama, 349-1148

Japan

CONTENTS

INDEX

APPENDICES

Page 69

LICENSE AND WARRANTY

(EUROPE, AFRICA AND MIDDLE EAST)

Software License Agreement

Important Notice to Customers

This product contains copyrighted computer programs (“software”) which are the inalienable intellectual property of WACOM Europe GmbH (“WACOM”). This software is both integrated within the product and also contained on the accompanying data carrier. The purchase of this product from your dealer does not include WA COM's software and the associated rights of usage. WACOM grants you, the user, the right to use the software solely in accordance with the conditions of this software license agreement. By purchasing this product you agree to the terms of this license.

Entitlement to Use the Software

WACOM grants the customer a personal, non-exclusive license to use the software solely in combination with this product and for the proper operation of this product. This license may be transferred only in connection with this product.

The use of this software includes solely the permanent or temporary, complete or partial copying of the software by means of loading, displaying, executing, transmitting or saving for the purpose of executing the commands and data it contains or of observing, examining or testing the functions of the software.

The customer may not license, lease or loan the software to a third party, nor allow a third party to access the software in any other way. The customer may not without prior written authorization from WACOM copy, modify, transmit or edit the software, apart from the actions of copying necessary to create a backup copy and for the purposes outlined in section 2 above.

The customer may not decompile the software; if the softw are contains interf aces to softw are which is not supplied by WA COM, WACOM shall make the necessary information available to the customer upon request, provided that the customer can prove

his/her entitle-ment to use the software and that he/she agrees to pay the copying and postage costs.

CONTENTS

INDEX

APPENDICES

Page 70

Limited Warranty

WACOM warrants to you as the original end-user that the product hardware is free from defects in materials and workmanship under normal use and service for a period of TWO (2) YEARS after the date of purchase, provided that they are unused at the time of such purchase. WACOM further warrants to you the accompany-ing diskettes against defects in materials and workmanship for a period of SIX (6) MONTHS after the date of purchase.

The Software is licensed and distributed “AS IS”. WACOM makes no warranties, expressed or implied, with respect to its quality, performance, merchantability and ﬁtness for a particular purpose (including related manuals and documentation). WACOM cannot guarantee you uninterrupted service or the correction of any errors.

Upon discovery of a defect in the product, e xcept in the Software , within the applicable Warranty Period, you should return them in the original packaging to the place of your original purchase, together with your name, address, telephone number, a description of the problem and a copy of the original invoice. You are responsible for any loss or damage to the product resulting from such transportation. WACOM's sole obligation and entire liability under this warranty shall be, at WACOM's option, either the repair or the replacement of product or parts thereof that prove defective and that were returned within the applicable Warr anty Period.

WACOM shall have no responsibility to repair or replace the product if (a), in the opinion of WACOM, the failure of the product has resulted from accident, abuse, misuse, negligence, misapplication, or unauthorized modiﬁcation or repair, or (b) the product has been handled or stored other than in accordance with WACOM's storage instructions, or (c) the failure is due to normal wear and tear, or (d) you fail to fulﬁll your obligations as described above.

In case that any claim presented under warranty is f ound upon inv estigation to be either outside the duration or the scope of this warranty, or in case that the product is found to be not def ectiv e, then the cost of such in v estigation and repair shall be borne by you.

CONTENTS

INDEX

APPENDICES

Page 71

Should any provision of this agreement be declared inv alid, that pro vision shall be treated as separate from the agreement, and the agreement shall remain in force without limitation in all other respects.

If this product is found to be defectiv e , the purchaser ma y be entitled to institute legal proceedings against the seller on grounds of liability for deﬁciency. The statutory rights indicated with regard to the seller are not limited in any way by this warranty. Rather, this warranty affords the purchaser rights in addition to those indicated in the present text.

This limited warranty shall apply if the seller's corporate domicile is in the European Union or in Iceland, Norway, Jersey, Switzerland, Poland, Estonia, Latvia, Lithuania, Russia, the Ukraine, the Czech Republic, Slovakia, Hungary, Rumania, Bulgaria, Croatia, Slovenia, Serbia, Malta, Tunisia, Cyprus, Turkey, Syria, the Lebanon, Jordan, Israel, Egypt, the United Arab Emirates, Iran or South Africa.

This Limited Warranty and Liability is governed by the laws of the Federal Republic of Germany. Should you have any questions about this Agreement, or if you desire to contact WACOM for any reason, please contact in

writing:

WACOM Europe GmbH Europark Fichtenhain A9 47807 Krefeld GERMANY

CONTENTS

INDEX

APPENDICES

Page 72

GLOSSARY

Active Area. Aspect.

AINTAIN PROPORTIONS checkbox) is located in the PEN MODE DETAILS dialog box, and deﬁnes how the tablet area

(M is mapped to the display area.

Click Force. DOS Shell. Double-Click Distance.

be accepted as a double-click. Increasing the double-click distance mak es double-clicking easier, b ut may cause a delay in brush strokes in some graphics applications.

Eraser-Aware Application.

These applications take advantage of the eraser in different ways, depending on what makes sense for the application.

Fingerwheel. Mapping.

monitor screen.

Modiﬁer.

Macintosh. You can customize your Graphire3 tool to simulate a modiﬁer key.

Mouse Mode.

move the screen cursor with a “pick up and slide” motion similar to using a traditional mouse. This is known as relative positioning, and is the default setting for the Graphire3 Cordless Mouse. See also

The drawing area of the tablet where your Graphire3 tools are detected.

The ratio between the vertical and horizontal dimension of the tablet or display. The aspect setting

The amount of force you must apply to your pen tip for a click to occur.

A DOS session that is running under the Windows operating system.

The maximum distance (in screen pix els) that the cursor can mo v e between clicks and still

A software application that has built-in support for the Graphire3 eraser.

The control wheel on the Graphire3 Cordless Mouse.

The relationship between your Graphire3 tool position on the tablet and the cursor position on the

Modiﬁer keys include SHIFT, ALT, and CTRL for Windows, or SHIFT, CTRL, COMMAND, and OPTION for

A method for positioning the screen cursor . When you place a Graphire3 tool on the tablet, you can

Pen Mode.

CONTENTS

INDEX

Page 73

Nib.

The replaceable tip of the Graphire3 pen.

Pen Mode.

A method of positioning the screen cursor. Wherever you place your Graphire3 tool on the tablet, the

screen cursor will jump to the same corresponding point on the screen. This is known as absolute positioning, and is the default setting for the pen. Absolute positioning (Pen Mode) allows you to quickly position the screen cursor without having to ﬁrst ﬁnd it and then slide it across the desktop. See also Mouse Mode

Pixel.

The smallest unit of measure on your monitor screen.

Pop-up Menu.

A window that displays a list of keystroke functions and other actions you can perform. You can

customize the tool buttons of your Graphire3 pen and Cordless Mouse to display this menu.

Pressure Sensitive.

A quality of the Graphire3 pen tip and eraser that senses the amount of pressure being

applied. This is used to create natural-looking pen and brush strokes in applications that are pressure-sensitive.

Pressure-Sensitive Application. Proximity.

ximity section.

Pro

Screen Cursor.

The height above the tablet’s active area where the Graphire3 tools are detected. Refer also to the

The pointer on the display screen. Screen cursors come in different shapes (such as an I-beam,

Any application that supports pressure-sensitive input.

arrow, or box), depending on which application you are running.

USB.

Universal Serial Bus. A hardware interface standard f or connecting computer peripheral de vices . USB ports

support hot-plugging, which allows you to connect or disconnect a USB device without turning off your computer.

Wintab.

An interface standard used by Windows applications for receiving tablet information. Graphire3 supports

all Wintab-compatible applications under Windows.

CONTENTS

INDEX

GLOSSARY

Page 74

INDEX

About the manual 5 Accessories and parts, ordering 63 Basics, control panel 28 Button functions 36 Care, for tablet and tools 58 CE declaration 65 Click Sound 15 Clicking, with pen 15 Control panel

basics 28 details 32 opening 27

Cordless Mouse

buttons, customizing 30 using 22

ﬁngerwheel 23

Customizing

Cordless Mouse buttons 30 double-click 34 mouse acceleration 45 mouse speed 45 Pen 29 side switch 35

tip feel 33 Double-click, customizing 34 Double-clicking, how to 15

Dragging, with pen 17 Drawing with pressure 19 Driver downloads, obtaining 56 Environmental conditions 58 Eraser feel, adjusting 33 Erasing, with pen 20 Eye-hand coordination exercise 21 FCC notice 64 Features

input tools 10

tablet 9 Fingerwheel, using 23 Functions, button 36 General problems, troubleshooting 49 Graphire3, working with 8 Holding the pen 13 Interference, radio and television 64 Keystrokes, adding to Pop-up Menu 31 Macintosh-speciﬁc problems, troubleshooting 54 Maintain Proportions 41 Manual, about 5 Mapping, to multiple monitors 42 Mouse Speed, setting 45 Nib, replacing 58

Ordering parts and accessories 63

CONTENTS

INDEX

Page 75

Parts and accessories, ordering 63 Pen

adjusting eraser feel 33 clicking with 15 customizing 29 double-clicking with 15 dragging with pen 17 drawing with pressure 19 erasing with 20 holding 13 pointing 14 replacing the tip 58 using 12

using side switch 16 Pointing, with pen 14 Pop-up Menu, adding keystrokes 31 Pressure, drawing with 19 Proximity 18 Radio and television interference 64 Screen area, mapping 43 Side switch

customizing 35

using 16 Software

driver downloads 56

uninstalling 59

Speciﬁcations

4x5 / A6 tablet 61 6x8 / A5 tablet 61 Cordless Mouse 62 general 60 Inking Pen 62 Pen 61 product 60

Tablet

changing the underlay 25 creating a new underlay 26 features 9 Maintain Proportions option 41 mapping to multiple monitors 42 screen area 43 storing 58 tablet area 44 testing 47 tracking 40

working with 24 Tablet area, mapping 42, 44 Technical Support options 55 Testing, tablet 47 Tip feel, customizing 33

Tip, replacing 58

CONTENTS

INDEX

Page 76

Tracking, tablet 40 Troubleshooting 46

general problems 49 Macintosh-speciﬁc problems 54 tables 49 Windows-speciﬁc problems 53

Underlay

changing 25

creating new 26 Uninstalling software 59 Windows-speciﬁc problems, troubleshooting 53 Work area, setting up 11 Working with Graphire3 8

CONTENTS

INDEX

Page 77

WACOM INTERNATIONAL OFFICES

WACOM Technology Corporation WACOM Europe GmbH

1311 S.E. Cardinal Court Europark Fichtenhain A9 Vancouver, WA 98683 47807 Krefeld U.S.A. Germany Telephone Telephone

General: +1-360-896-9833 General: +49-(0)2151-3614-0 Fax: +1-360-896-9724 Fax: +49-(0)2151-3614-111

WACOM Co., Ltd.

2-510-1 Toyonodai Otone-Machi, Kitasaitama-Gun Saitama, 349-1148 Japan Telephone

General: +81-(0)480-78-1213 Fax: +81-(0)480-78-1217

CONTENTS

INDEX

Page 78

Wacom Graphire - 3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

WORKING WITH GRAPHIRE3

GRAPHIRE3 TABLET FEATURES

GRAPHIRE3 INPUT TOOLS

SETTING UP YOUR WORK AREA

USING THE PEN

HOLDING THE PEN

POINTING

CLICKING

USING THE SIDE SWITCH

DRAGGING

PROXIMITY

DRAWING WITH PRESSURE

ERASING

EYE-HAND COORDINATION EXERCISE

USING THE CORDLESS MOUSE

USING THE CORDLESS MOUSE FINGERWHEEL

WORKING WITH THE TABLET

CHANGING THE TABLET UNDERLAY

CREATING A NEW TABLET UNDERLAY

CUSTOMIZING

OPENING THE CONTROL PANEL

CONTROL PANEL BASICS

CUSTOMIZING THE PEN

CUSTOMIZING THE CORDLESS MOUSE

CUSTOMIZING THE POP-UP MENU

CONTROL PANEL DETAILS

ADJUSTING TIP AND ERASER FEEL

ADJUSTING DOUBLE-CLICK

CUSTOMIZING THE SIDE SWITCH

BUTTON FUNCTIONS

TABLET TRACKING

MAPPING TO MULTIPLE MONITORS

PORTION OF SCREEN

PORTION OF TABLET

SETTING MOUSE SPEED

TROUBLESHOOTING

TESTING Y OUR T ABLET

TROUBLESHOOTING TABLES

GENERAL PROBLEMS

WINDOWS-SPECIFIC PROBLEMS

MACINTOSH-SPECIFIC PROBLEMS

TECHNICAL SUPPORT OPTIONS

OBTAINING DRIVER DOWNLOADS

APPENDICES

CARING FOR YOUR TABLET AND TOOLS

REPLACING THE PEN TIP

UNINSTALLING THE SOFTWARE

PRODUCT SPECIFICATIONS

GENERAL SPECIFICATIONS FOR ALL GRAPHIRE3 TABLETS

GRAPHIRE3 4X5 / A6 TABLET (MODEL CTE-430)

GRAPHIRE3 6X8 / A5 TABLET (MODEL CTE-630)

GRAPHIRE3 PEN (MODEL EP-130)

GRAPHIRE3 CORDLESS MOUSE (MODEL EC-130)

GRAPHIRE3 INKING PEN (MODEL EP-200, OPTIONAL)

PRODUCT INFORMATION

ORDERING PARTS AND ACCESSORIES

RADIO AND TELEVISION INTERFERENCE

FCC NOTICE

CE DECLARATION

Software License

Limited Warranty (Worldwide, Except Europe, Africa and Middle East)

Warranty on Sales Outside of U.S. and Canada (Except Europe, Africa and Middle East)

Software License Agreement

Entitlement to Use the Software

Limited Warranty

GLOSSARY
